Matts-Åke Belin
     Swedish
    Transport
  Administration
matts-ake.belin@trafikverket.se


Vision Zero a road
   safety policy
    innovation
      Transforming
Transportation, Washington
    on 27th of January

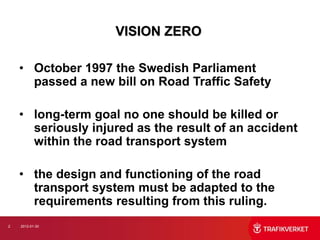

VISION ZERO

    • October 1997 the Swedish Parliament
      passed a new bill on Road Traffic Safety

    • long-term goal no one should be killed or
      seriously injured as the result of an accident
      within the road transport system

    • the design and functioning of the road
      transport system must be adapted to the
      requirements resulting from this ruling.
2   2012-01-30
3
                        200
                              400
                                          800
                                    600




                    0
                                                        1,200
                                                                1,400


                                                1,000




2012-01-30
             1943
             1945
             1947
             1949
             1951
             1953
             1955
             1957
             1959
             1961
             1963
             1965
             1967
             1969
             1971
             1973
             1975
             1977
             1979
             1981
             1983
             1985
             1987
             1989
             1991
             1993
             1995
             1997
             1999

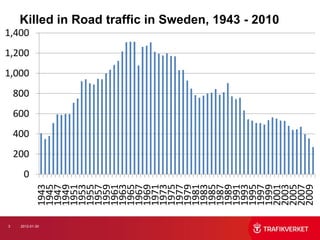

                                                                        Killed in Road traffic in Sweden, 1943 - 2010




             2001
             2003
             2005
             2007
             2009
Different policies and strategies
                     Traditional approach                  Vision Zero approach

                     Accidents                             Injuries
                     Individual road user behavior         The system is not designed
                                                           according to human capability
                                                           and human tolerance against
                                                           external violence – in other
                                                           words what the human body
                                                           can stand.
                     Road user has primary                 System designer has primary
                     responsibility                        responsibility
                     Change individual road user           Change the environment (road
                     behavior                              environment, vehicles, social
                                                           environment)
                     Risk reduction                        Eliminate fatalities and serious
                                                           injuries
    Vision Zero – a road safety policy innovation DOI:10.1080/17457300.2011.635213
    Matts-Åke Belin, Per Tillgren & Evert Vedung
    Available online: 14 Dec 2011 http://www.tandfonline.com/doi/abs/10.1080/17457300.2011.635213

4    2012-01-30
5   2012-01-30

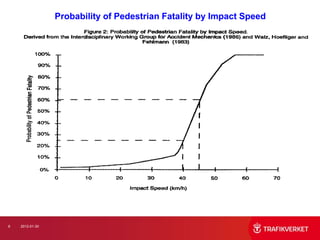

Probability of Pedestrian Fatality by Impact Speed




6   2012-01-30
7   2012-01-30

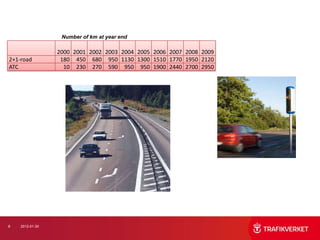

Number of km at year end

                 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009
2+1-road          180 450 680 950 1130 1300 1510 1770 1950 2120
ATC                10 230 270 590 950 950 1900 2440 2700 2950




8   2012-01-30
600      Number


            500


            400


            300


            200
                                                                         New intermediate
            100                                                         target

                 0
                     1996     2000   2004   2008   2012   2016   2020




9   2012-01-30
Focus on implementation- and innovation
     processes

     • Vision Zero has moved our interest from the individual
       road users to those who design the road transport
       system.
     • Those who design the road transport system are public
       and private organizations.
     • The questions are therefore what shape a organization
       and its norms and behaviors and how is it possible to
       influence these norms and behaviors in an effective
       way?



10   2012-01-30

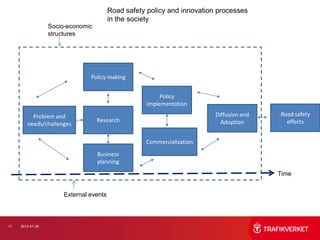

Road safety policy and innovation processes
                                         in the society
                  Socio-economic
                  structures




                                Policy making


                                                          Policy
                                                     implementation

          Problem and                                                     Diffusion and   Road safety
                                   Research                                 Adoption        effects
        needs/challenges

                                                    Commercialization
                                   Business
                                   planning
                                                                                          Time


                       External events



11   2012-01-30

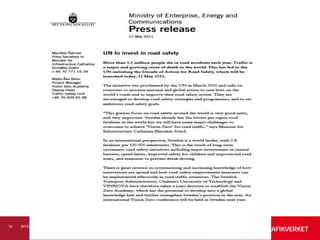

12   2012-01-30
Thank you!
                  matts-ake.belin@trafikverket.se




13   2012-01-30
