Oracle VDI provides a comprehensive virtualization solution designed for secure and flexible access to desktops across various devices and operating systems, including Windows, Linux, and Solaris. The architecture incorporates centralized management, security features like two-factor authentication, and session management for scalability and efficiency. Key functionalities include mixed hypervisor support, hotdesking, instant cloning, and multi-company support, making it suitable for diverse business needs in a cloud environment.

1. Oracle VDI
Virtualization the best choice for your Cloud
Oracle's Virtual Desktop Solution
Felipe Herrera Martínez
felipe.herrera@oracle.com
EMEA Principal Sales Consultant
Oracle VDI Global Business Unit

2. Something strange?

3. Tailored Solution
One Customer, one choice?
S M L XL

4. Tailored Solution
Do it, at your self choice

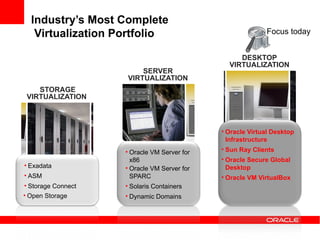

5. Industry’s Most Complete
Virtualization Portfolio Focus today
DESKTOP
VIRTUALIZATION
SERVER
VIRTUALIZATION
STORAGE
VIRTUALIZATION
• Oracle Virtual Desktop
Infrastructure
• Oracle VM Server for • Sun Ray Clients
x86 • Oracle Secure Global
• Exadata • Oracle VM Server for Desktop
• ASM SPARC • Oracle VM VirtualBox
• Storage Connect • Solaris Containers
• Open Storage • Dynamic Domains

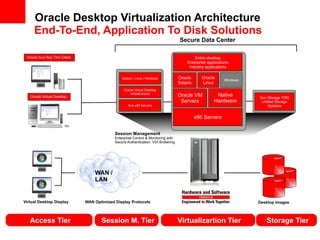

6. Oracle Desktop Virtualization Architecture
End-To-End, Application To Disk Solutions
Secure Data Center
Oracle Sun Ray Thin Client Entire desktop
Enterprise applications
Industry applications
Solaris / Linux / Windows Oracle Oracle Windows
Solaris Linux
Oracle Virtual Desktop
Infrastructure
Oracle Virtual Desktop Oracle VM Native Sun Storage 7000
Servers Hardware Unified Storage
Sun x86 Servers Systems
x86 Servers
Session Management
Enterprise Control & Monitoring with
Secure Authentication. VDI Brokering
WAN /
LAN
Virtual Desktop Display WAN Optimized Display Protocols Desktop Images
Client Layer
Access Tier Session M. Tier Virtualizartion Tier Storage Tier

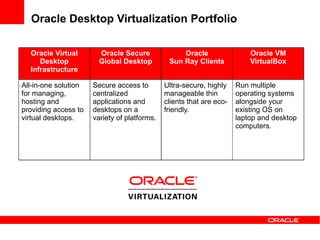

7. Oracle Desktop Virtualization Portfolio
Oracle Virtual Oracle Secure Oracle Oracle VM
Desktop Global Desktop Sun Ray Clients VirtualBox
Infrastructure
All-in-one solution Secure access to Ultra-secure, highly Run multiple
for managing, centralized manageable thin operating systems
hosting and applications and clients that are eco- alongside your
providing access to desktops on a friendly. existing OS on
virtual desktops. variety of platforms. laptop and desktop
computers.

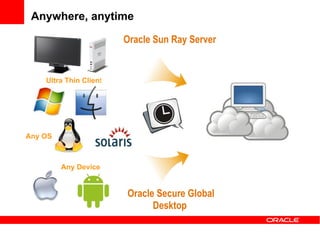

8. Anywhere, anytime
Oracle Sun Ray Server
Ultra Thin Client
Any OS
Any Device
Oracle Secure Global
Desktop

9. Sun Ray
Clients

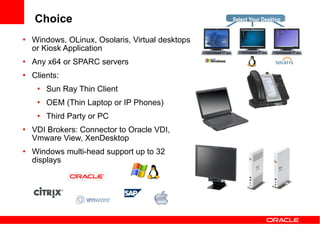

10. Choice Select Your Desktop
● Windows, OLinux, Osolaris, Virtual desktops
or Kiosk Application
Applications Clients
● Any x64 or SPARC servers
● Clients:
● Sun Ray Thin Client
● OEM (Thin Laptop or IP Phones)
● Third Party or PC
● VDI Brokers: Connector to Oracle VDI,
Vmware View, XenDesktop
● Windows multi-head support up to 32
displays

11. Sun Ray 3 = Security
Green IT con Oracle Thin Clients
● No local data – a stolen Sun Ray client
has no valuable data to retrieve Sun Ray 3i
HD 1920 x 1080
0.4-30 Watts
● No local OS, so no viruses, spywares or Monitor Integrado 22.5”
worm – Easy management.
● Smart card reader built-in for2-factor
authentication and ultra high security
● Multi-level network security
● Integrated VPN – Cisco EzVPN or
Juniper Screen OS
● Ultra-low power consumption
● Multimedia experience Sun Ray 3 Sun Ray 3 Plus
1920 x 1200 2 x (2550 x 1600)
0.4-6 Watts 0.4-14 Watts,
no footprint SFP Fibra,
Dual-DVI-I

12. Oracle Virtual Desktop Client
• Sun Ray Software includes a software
client feature that provides access to
centralized virtual desktops
• Seamless access to desktop session
from any supported device
• Work in fullscreen or windowed mode,
working alongside your local desktop
• Runs on Windows, Mac or Linux
• Provides connectivity to same OS
environments as Sun Ray hardware
clients

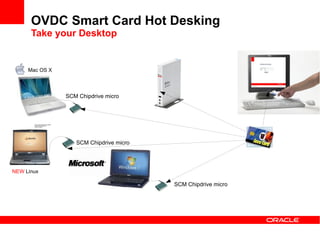

13. OVDC Smart Card Hot Desking
Take your Desktop
Mac OS X
SCM Chipdrive micro
SCM Chipdrive micro
NEW Linux
SCM Chipdrive micro

14. Oracle Secure
Global Desktop

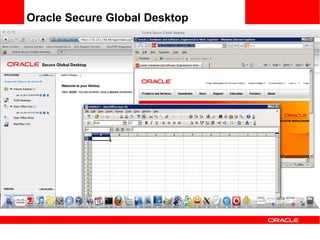

15. Oracle Secure Global Desktop

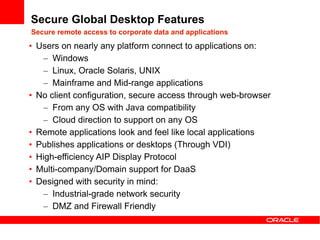

16. Secure Global Desktop Features
Secure remote access to corporate data and applications
• Users on nearly any platform connect to applications on:
– Windows
– Linux, Oracle Solaris, UNIX
– Mainframe and Mid-range applications
• No client configuration, secure access through web-browser
– From any OS with Java compatibility
– Cloud direction to support on any OS
• Remote applications look and feel like local applications
• Publishes applications or desktops (Through VDI)
• High-efficiency AIP Display Protocol
• Multi-company/Domain support for DaaS
• Designed with security in mind:
– Industrial-grade network security
– DMZ and Firewall Friendly

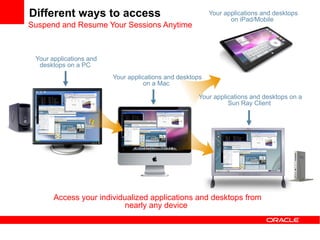

17. Different ways to access Your applications and desktops
on iPad/Mobile
Suspend and Resume Your Sessions Anytime
Your applications and
desktops on a PC
Your applications and desktops
on a Mac
Your applications and desktops on a
Sun Ray Client
Access your individualized applications and desktops from
nearly any device

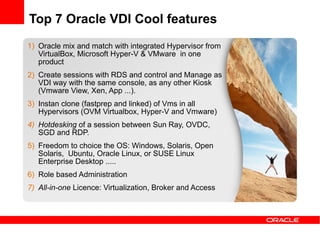

18. Top 7 Oracle VDI Cool features
1) Oracle mix and match with integrated Hypervisor from
VirtualBox, Microsoft Hyper-V & VMware in one
product
2) Create sessions with RDS and control and Manage as
VDI way with the same console, as any other Kiosk
(Vmware View, Xen, App ...).
3) Instan clone (fastprep and linked) of Vms in all
Hypervisors (OVM Virtualbox, Hyper-V and Vmware)
4) Hotdesking of a session between Sun Ray, OVDC,
SGD and RDP.
5) Freedom to choice the OS: Windows, Solaris, Open
Solaris, Ubuntu, Oracle Linux, or SUSE Linux
Enterprise Desktop .....
6) Role based Administration
7) All-in-one Licence: Virtualization, Broker and Access

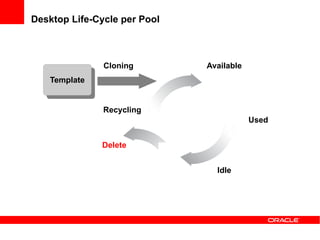

19. Desktop Life-Cycle per Pool
Cloning Available
Template
Template
Recycling
Used
Delete
Idle

20. Flexible Desktop Assignments

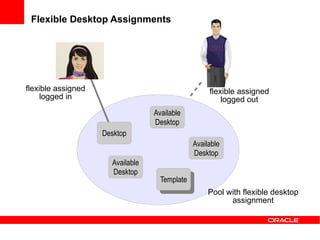

21. Flexible Desktop Assignments
flexible assigned flexible assigned
logged in logged out
Available
Desktop
Desktop
Available
Desktop
Available
Desktop
Template
Template
Pool with flexible desktop
assignment

22. ts
signmen
a l Desktop As
Person

23. Personal Desktop Assignments
Michael Nina
personal assigned personal assigned
logged in logged out
Nina’s
Desktop
Michael’s
Desktop
Template
Template
Pool with personal
desktop assignment

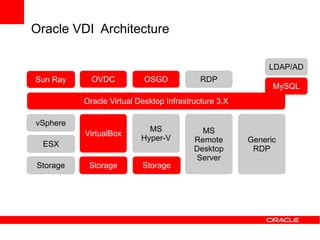

24. Oracle VDI Architecture
LDAP/AD
Sun Ray OVDC OSGD RDP
MySQL
Oracle Virtual Desktop Infrastructure 3.X
vSphere
MS MS
VirtualBox
Hyper-V Remote Generic
ESX
Desktop RDP
Server
Storage Storage Storage

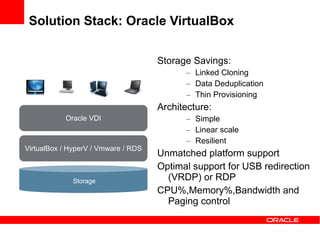

25. Solution Stack: Oracle VirtualBox
Storage Savings:
– Linked Cloning
– Data Deduplication
– Thin Provisioning
Architecture:
Oracle VDI – Simple
– Linear scale
– Resilient
VirtualBox / HyperV / Vmware / RDS
Unmatched platform support
Optimal support for USB redirection
Storage (VRDP) or RDP
CPU%,Memory%,Bandwidth and
Paging control

26. Oracle VM VirtualBox
Performance, Power, Platforms
Performance Power Platforms
• Latest Intel hardware • Page Fusion ●
Windows (NT, 2K, 2K3, 2K8
support (i5/i7 Xeon) • Memory Ballooning XP, Vista, 7 )
• Faster boot-times • Multiple Virtual Monitors
●
DOS/Win 3.X
• Large Page support • Hotplug CPUs
●
Linux (2.4 y 2.6)
• In-hypervisor Networking • Virtual SAS controller
●
Solaris
• New I/O Subsystem • Online Snapshot merging
●
OpenSolaris
• I/O Cache • OVF enhancements
●
OS/2
• VRDP video acceleration • Guest Automation
●
OpenBSD
• VRDP Audio upstream

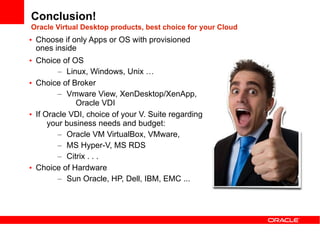

27. Conclusion!
Oracle Virtual Desktop products, best choice for your Cloud
• Choose if only Apps or OS with provisioned
ones inside
• Choice of OS
– Linux, Windows, Unix …
• Choice of Broker
– Vmware View, XenDesktop/XenApp,
Oracle VDI
• If Oracle VDI, choice of your V. Suite regarding
your business needs and budget:
– Oracle VM VirtualBox, VMware,
– MS Hyper-V, MS RDS
– Citrix . . .
• Choice of Hardware
– Sun Oracle, HP, Dell, IBM, EMC ...

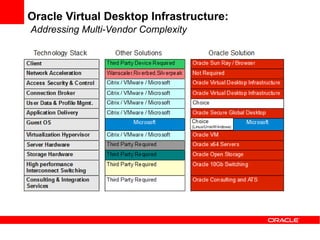

28. Oracle Virtual Desktop Infrastructure:
Addressing Multi-Vendor Complexity

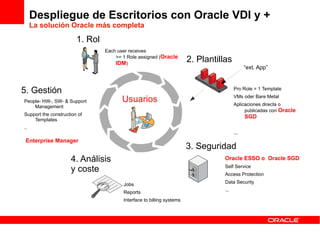

29. Despliegue de Escritorios con Oracle VDI y +
La solución Oracle más completa
1. Rol
Each user receives
>= 1 Role assigned (Oracle
IDM)
2. Plantillas
“ext. App”
5. Gestión Pro Role = 1 Template
VMs oder Bare Metal
People- HW-, SW- & Support Usuarios Aplicaciones directa o
Management
publicadas con Oracle
Support the construction of
SGD
Templates
..
...
Enterprise Manager
3. Seguridad
4. Análisis Oracle ESSO o Oracle SGD
y coste Self Service
Access Protection
Data Security
Jobs
...
Reports
Interface to billing systems
