This document describes a virtual ocular system project created by Vivek Sanghvi and Nayan Seth. The project involved building a head-mounted display for virtual reality using a 720p camera for head tracking, LED lights, and a 234p display. Software was developed using game engines to create immersive media experiences. Potential applications mentioned include training, medical treatment, and recreational gaming. Limitations noted were latency, motion sickness, and that the technology is still nascent.

1. V I R T U A L O C U L A R S Y S T E M
V I V E K S A N G H V I J A I N | | N A YA N S E T H
Dwarkadas J. Sanghvi College of Engineering
B E P R O J E C T

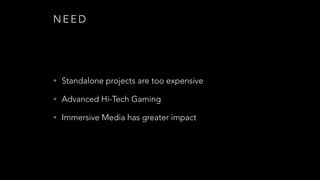

2. N E E D
• Standalone projects are too expensive
• Advanced Hi-Tech Gaming
• Immersive Media has greater impact

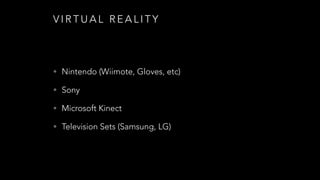

3. V I R T U A L R E A L I T Y
• Nintendo (Wiimote, Gloves, etc)
• Sony
• Microsoft Kinect
• Television Sets (Samsung, LG)

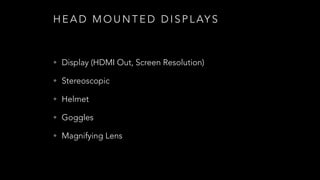

4. H E A D M O U N T E D D I S P L AY S
• Display (HDMI Out, Screen Resolution)
• Stereoscopic
• Helmet
• Goggles
• Magnifying Lens

5. S O F T WA R E S
• Vireio
• FreeTrack IR / FaceTrackNoIR
• Games with HMD Support (Crysis 2, ARMA 2, etc)
• Custom Games / Custom Multimedia Content

6. I M P L E M E N TAT I O N ( H E A D T R A C K I N G )
• 720p Camera
• High Convex Powered LEDs
• Latency (High if refresh rate is less)
• Cost Effective
• 6DOF (Degrees of Freedom - Roll, Yaw, Pitch, X, Y & Z)

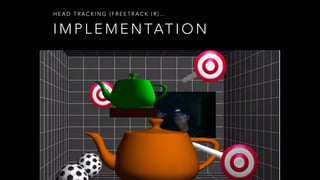

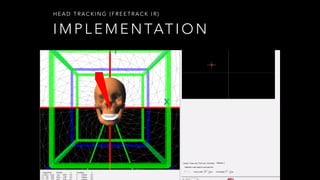

7. I M P L E M E N TAT I O N
H E A D T R A C K I N G ( F R E E T R A C K I R )

8. D I S P L AY
• 234p
• AV
• HDMI to AV

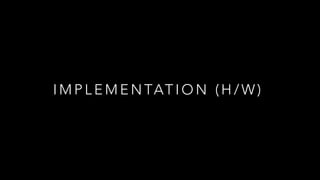

9. I M P L E M E N TAT I O N ( H / W )

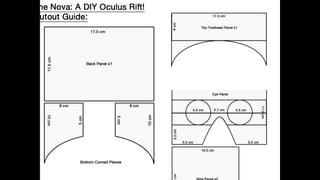

12. H M D
F I N A L A S S E M B LY

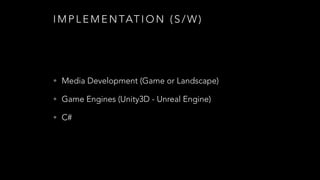

14. I M P L E M E N TAT I O N ( S / W )
• Media Development (Game or Landscape)
• Game Engines (Unity3D)
• C# & Javascript

15. G A M E

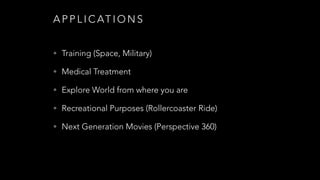

16. A P P L I C AT I O N S
• Training (Space, Military)
• Medical Treatment
• Explore World from where you are
• Recreational Purposes (Rollercoaster Ride)
• Next Generation Movies (Perspective 360)

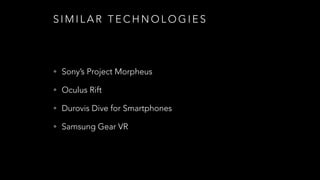

17. S I M I L A R T E C H N O L O G I E S
• Sony’s Project Morpheus
• Oculus Rift
• Durovis Dive for Smartphones
• Samsung Gear VR

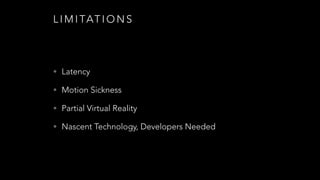

18. L I M I TAT I O N S
• Latency
• Motion Sickness
• Partial Virtual Reality
• Nascent Technology, Developers Needed

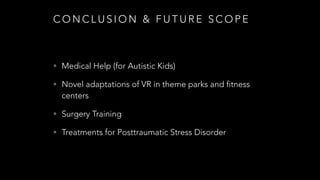

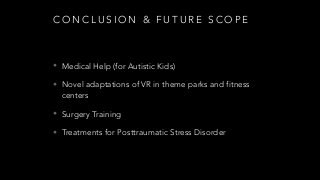

19. C O N C L U S I O N & F U T U R E S C O P E
• Medical Help (for Autistic Kids)
• Novel adaptations of VR in theme parks and fitness
centers
• Surgery Training
• Treatments for Posttraumatic Stress Disorder
