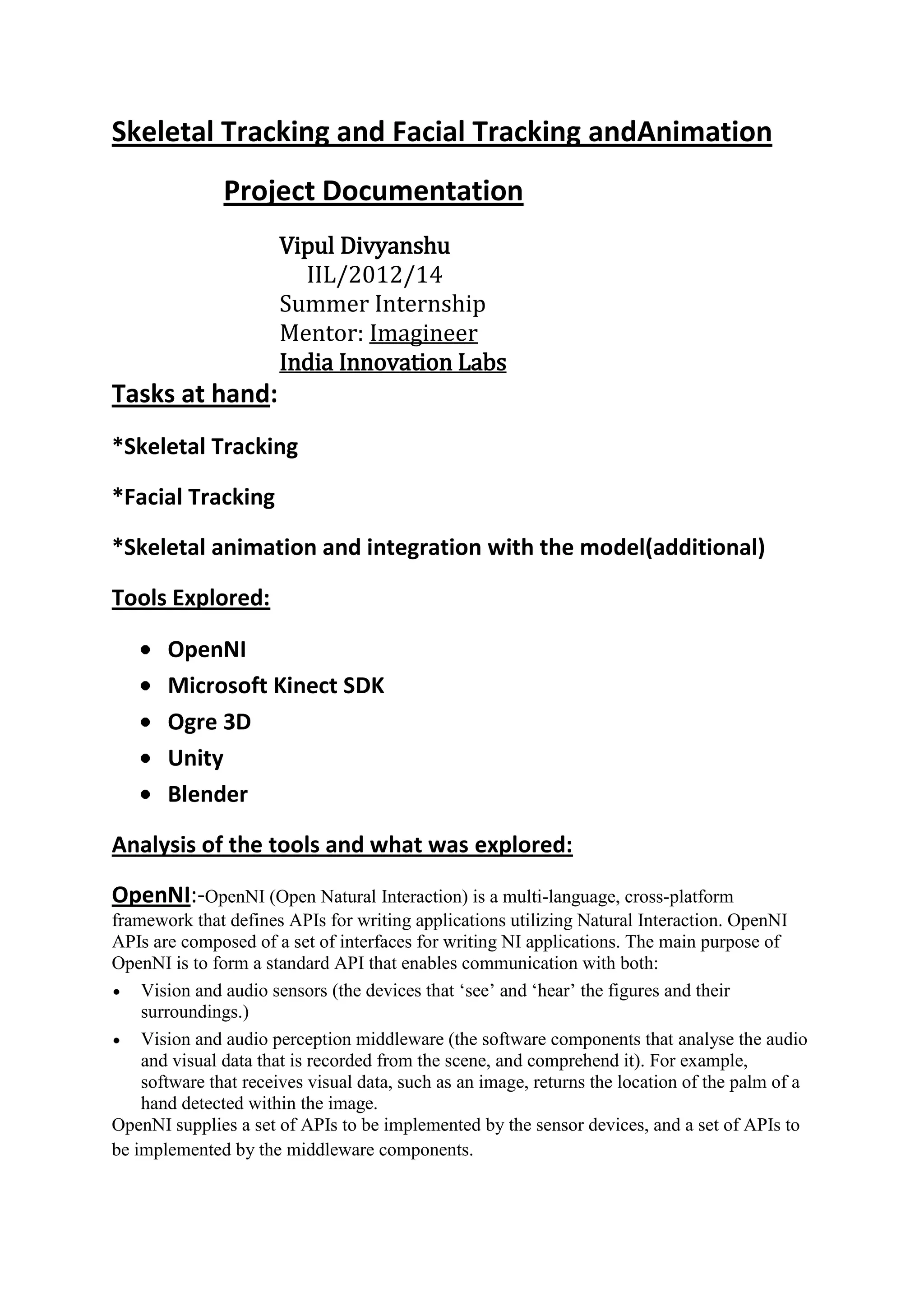

1. Skeletal Tracking and Facial Tracking andAnimation
Project Documentation
Vipul Divyanshu
IIL/2012/14
Summer Internship
Mentor: Imagineer
India Innovation Labs
Tasks at hand:
*Skeletal Tracking
*Facial Tracking
*Skeletal animation and integration with the model(additional)
Tools Explored:
OpenNI
Microsoft Kinect SDK
Ogre 3D
Unity
Blender
Analysis of the tools and what was explored:
OpenNI:-OpenNI (Open Natural Interaction) is a multi-language, cross-platform
framework that defines APIs for writing applications utilizing Natural Interaction. OpenNI
APIs are composed of a set of interfaces for writing NI applications. The main purpose of
OpenNI is to form a standard API that enables communication with both:
Vision and audio sensors (the devices that ‘see’ and ‘hear’ the figures and their
surroundings.)
Vision and audio perception middleware (the software components that analyse the audio
and visual data that is recorded from the scene, and comprehend it). For example,
software that receives visual data, such as an image, returns the location of the palm of a
hand detected within the image.
OpenNI supplies a set of APIs to be implemented by the sensor devices, and a set of APIs to
be implemented by the middleware components.

2. A major plus point of OpenNI is that we can run the skeletal tracking work and work on the
recorded Kinect video in .oni format.
Constrains of OpenNI:-
What I found out was for an easier start of project Microsoft Kinect SDK would be
more useful for a full body skeletal tracking and its animation C#. This is because
OpenNI cannot easily load a model in OpenNI directly from Maya or Blender, instead
SDKs like Ogre 3D must be used.
Microsoft Kinect SDK: -Microsoft Kinect come with classes for skeletal tracking
and it is much easier to initialise Kinect and get the skeletal joint points just by calling the
skeletal.joint in C#. For developing in C++ both Microsoft Kinect and OpenNI stand at same
level.
I developed in C# and found XNA and Microsoft Kinect very useful in both getting the
skeletal data and interacting with the 3D model in .fbx format.
Still the exploration of Kinect SDK in the facial animation field is left as it wasn’t a part my
work package.
FBX :-Fbx format used with C# is very flexible and is has no problem with object collision.
Constrains:-
Working directly with the recorded data from the Kinect Studio .xed hasn’t been well
explored due to lack of material online and that can be restricting.
For facial tracking, it cannot be detected if the eyes are open or not, rest other features
are detected properly.
Ogre 3D: -Ogre can be used in animation and in sync in the OpenNI or Kinect
SDK .It wasn’t explored much by me. It has a vast amount of potential for facial
animation.
Constrains:-Requires a bit of detailed study about the model and the class hierarchy to
perform the animation. It is easier for experienced person.
Things Learnt and coded:
OpenNI: I learnt basic of extracting the skeletal joints and how to work
with the recorded data and the class hierarchy of the OpenNI and there
attributes, and understood the data flow. Wrote and analysed the code
for the getting the skeletal data of the user.
Microsoft Kinect SDK: I learnt basic of extracting the skeletal joints and
how to work with the recorded data and the class hierarchy of the

3. Microsoft Kinect and there attributes, and understood the data flow. And
then learnt C# .Using Kinect SDK I wrote few code blocks to add the
sample and three complete programs for skeletal tracking and user
interface. Wrote the code for controlling the cursorand colouring the
player detected with different colour. There screenshots can be found
below. Understood how to load and work with 3D model into C# and
control it with user motion and locked the default to the knee so the
model doesn’t slip and has a more natural motion flow. Learnt and
understood the sample for facial tracking and understood the data
structure for getting the facial points.
Ogre: Learnt the data flow of Ogre and explored just the tip of the ice
burg of Ogre as my part was just the tracking.
Initial Software Development tools (SDKs) suggested: OpenNI, Ogre and Maya
Installation of OpenNI:
In Ubuntu:-
First the following requirements need to be installed to install OpenNI.
Requirements:
1. GCC 4.x ( http://gcc.gnu.org/releases.html )
sudo apt-get install g++
2) Python 2.6+/3.x ( http://www.python.org/download/ ) This may already be installed, based on
the linuxdistro being used.
sudo apt-get install python
3) LibUSB 1.0.8 ( http://sourceforge.net/projects/libusb/ )
sudo apt-get install libusb-1.0-0-dev
4) FreeGLUT3 ( http://freeglut.sourceforge.net/index.php#download )
sudo apt-get install freeglut3-dev
5) JDK 6.0 ( http://www.oracle.com/technetwork/java/javase/downloads/jdk-6u26-download-
400750.html )
sudo add-apt-repository "deb http://archive.canonical.com/ lucid partner"
sudo apt-get update
sudo apt-get install sun-java6-jdk
Optional Requirements (To build the documentation):

4. 1) Doxygen( http://www.stack.nl/~dimitri/doxygen/download.html#latestsrc )
sudo apt-get install doxygen
2) GraphViz( http://www.graphviz.org/Download_linux_ubuntu.php )
sudo apt-get install graphviz
Optional Requirements (To build the Mono wrapper):
1) Mono ( http://www.go-mono.com/mono-downloads/download.html )
sudo apt-get install mono-complete
Download OpenNI Modules:
Download the OpenNI modules appropriate for your operating system
fromhttp://75.98.78.94/Downloads/OpenNIModules.aspx
Download the latest unstable binaries for these:
OpenNI binaries
OpenNI compliant middleware binaries
OpenNI compliant hardware binaries
For Ubuntu Linux 12.04 64bit, the files will be: (as of 19 June 2012)
openni-bin-dev-linux-x64-v1.5.4.0.tar
nite-bin-linux-x64-v1.5.2.21.tar.bz2
sensor-bin-linux-x64-v5.1.2.1.tar.bz2
Make a new folder called kinect
mkdirkinect
cdkinect
Extract the downloaded files into it. (3 folders are now created).
1. OpenNI-Bin-Linux64-v1.5.4.0
2. Sensor-Bin-Linux64-v5.1.2.1
3. Nite-1.5.2.1
Rename the folders as, OpenNI, Sensor, Nite respectively.
Install OpenNI and Sensor Kinect: (run sudo ./install.sh )
cdkinect
cd OpenNI
sudo ./install.sh
(Every step should now show OK! )
cd ../Sensor
sudo ./install.sh

5. (Every step should now show OK! )
Install NITE:
cd ../Nite
Enter the kinect/Nite/Data folder and edit each of the three xml files in there changing the key data
from
key=""
to
key="0KOIk2JeIBYClPWVnMoRKn5cdY4="
(useGedit)
sudo ./install.sh
(Every step should now show OK! )
Test if install succeeded:
Test out some samples from OpenNI. Run Niviewer
cd ~/kinect/OpenNI/Samples/Bin/x64-Release/
./NiViewer
(If a Kinect is connected, this will show depth map and image stream in a window)
Download Sample streams from OpenNI.
If kinect is not connected, you can run NiViewer on some pre-recorded .oni files from OpenNI.
ONI Files (OpenNI sample streams recorded onto a file)
http://75.98.78.94/Downloads/OpenNIModules.aspx (extract as skeletonrec.oni and
MultipleHands.oni)
Now run NiViewer from the ~/kinect/OpenNI/Samples/Bin/x64-Release/ folderwith the oni file as
argument.

6. ./NiViewer ~/skeletonrec.oni
(This will show a window with the sample)
(skeletonrec.oni from NiViewer)
Sample Program: (Sample-NiUserTracker)
Run similar to NiViewer
./Sample-NiUserTracker ~/skeletonrec.oni

7. (skeletonrec.oni from Sample-NiUserTracker)
**********************************************************************************
Installation in windows:
OpenNI and NITE installation can be painful if not done properly. Let's do it step by step:
Step 0
Uninstall any previews drivers, such as CLNUI. Look at the end of this post if you want to
see how you can have multiple drivers installed.
Step 1
Download Kinect Drivers and unzip.
Open the unzipped folder and navigate to Bin folder.
Run the msi Windows file.
Drivers are now installed in your PC.
Step 2
Download and install the latest stable or unstable OpenNI Binaries from OpenNI website.
Step 3
Download and install the latest stable or unstable OpenNI Compliant Middleware
Binaries (NITE) from OpenNI website.
During installation, provide the following (free) PrimeSense
key: 0KOIk2JeIBYClPWVnMoRKn5cdY4=
Step 4
Download and install the latest stable or unstable OpenNI Compliant Hardware
Binaries from OpenNI website.
Both stable and unstable releases have worked for me. If you have trouble installing the
unstable releases, just try the stable ones.
Step 5
Plug in your Kinect device and connect its USB port with your PC.
Wait until the driver software is found and applied.
Navigate to the Device Manager (Control Panel). You should see something like
the following:
Step 6
C:Program
Navigate to
FilesOpenNISamplesBinRelease (or C:Program Files

8. (x86)OpenNISamplesBinRelease) and try out the existing demo applications.
Try the demos found in C:Program FilesPrime
SenseNITESamplesBinRelease (or C:Program Files (x86)Prime
SenseNITESamplesBinRelease), too. If they work properly, then you are done!
Congratulations!
Step 7
You have successfully installed Kinect in your Windows PC! Read the documentation and
familiarize yourself with the OpenNI and NITE API. You'll find the proper assemblies in:
C:Program FilesOpenNIBin (or C:Program Files (x86)OpenNIBin)
and
C:Program FilesPrime SenseNITEBin (or C:Program Files
(x86)Prime SenseNITEBin)
OpenNI is the primary assembly you'll need when developing Natural User Interfaces
applications.
Installation of OGRE :
For installation of Ogre in Linux and Windows the following link can be very useful .
http://www.ogre3d.org/tikiwiki/Installing+the+Ogre+SDK
With these suggested tools the Kinect can be very well exploited for Skeletal tracking and its
animation. These are limited to C++ till what I understood.
For starters the Microsoft Kinect SKD also is very useful and a very well developed tool .
For using the Kinect SDK just follow the link:
http://www.microsoft.com/en-us/kinectforwindows/develop/developer-downloads.aspx
In the toolkit I went through the different examples and understood them and the code flow.
I decided of doing the project in C# rather than in C because in C# it was easily possible to import a
Maya or blender model easily in .fbx format and can be easily transformed in the sense of
orientation and bone movement.
Doing that I used Visual studio C# to track the Skeletal .
The model was imported and animated with the help of Microsoft XNA Game Studio SDK which is
basicallyused for and ease in importing the model.
This was done by the use of the libraries in the SDK called Microsoft.Kinect.

9. Other tools,SDKs Installed and used:
Blender: Linkhttp://www.blender.org/download/get-blender/
FbxConverter:Linkhttp://usa.autodesk.com/adsk/servlet/pc/item?id=10775855&siteID=123112
Unity:http://unity3d.com/unity/download/
The first skeletal tracking code written after going through the documentations and
understanding the class hierarchy, by me was for simple head and hand tracking, in C#.
Here is a snapshot of it in action.
Now Using C# I built on it the code for tracking a full player and colouring him in a specific colour
when detected. Note the different colour for the user and the background.

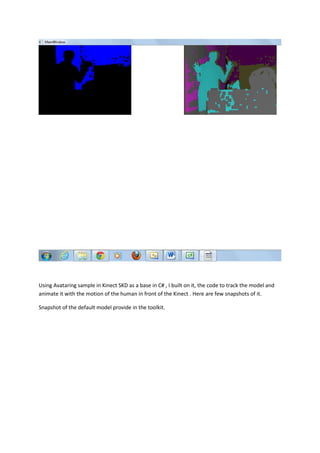

10. Using Avataring sample in Kinect SKD as a base in C# , I built on it, the code to track the model and
animate it with the motion of the human in front of the Kinect . Here are few snapshots of it.
Snapshot of the default model provide in the toolkit.

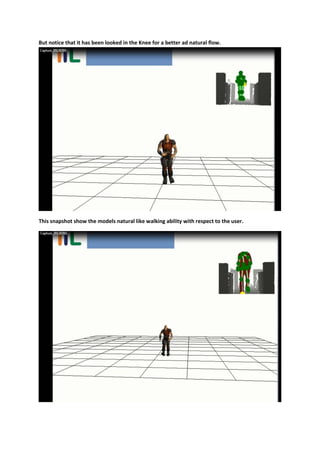

11. But notice that it has been looked in the Knee for a better ad natural flow.
This snapshot show the models natural like walking ability with respect to the user.

12. This depicts the neck and hand movement of the model with users movement.
This picture is for animation of a different character ( Zombie).

13. The picture below is for an improved version on my previous simple head and hand tracker. In this
improved code I can control the courser by my hand movement, where I have use Euclidian
distance between the head joint to the right hand cursor joint for moving the courser left or right.
For Facial tracking the Kinect SKD has been used. The samples were well understood and are quite
simple to begin with.The samples were well studied and understood. Here is the facial tracking
snapshot.
For facialanimation Ogre3D SDK has been studied and the facial points returned by the function are
theorised to the animate the following character in the model.

14. But unable to still match the face points with the vector position values of the actual face. This is still
something left to work on and can be done with a while of work and with some time in hand.
Vipul Divyanshu
IIL/2012/14
