- 1. Netflix Conductor A MicroservicesOrchestrator Viren Baraiya, Vikram Singh
- 2. Content Platform Engineering- CPE 〉 Studio In the Cloud 〉 Content Ingest from Studio Partners 〉 Title Setup - Making it live on Netflix.com 〉 Localization

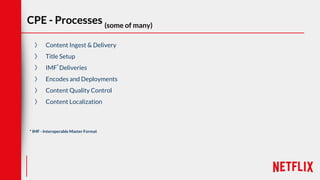

- 3. CPE - Processes(some of many) 〉 Content Ingest & Delivery 〉 Title Setup 〉 IMF* Deliveries 〉 Encodes and Deployments 〉 Content Quality Control 〉 Content Localization * IMF - Interoperable Master Format
- 4. Once Upon ATime ... 〉 Peer to Peer Messaging 〉 10’s MM messages per day 〉 Process flows embedded in applications 〉 Lack of control (STOP deployment!) 〉 Lack of visibility into progress
- 5.

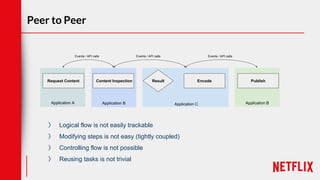

- 6. Peer to Peer ApplicationC Application BApplication BApplication A Request Content Content Inspection Result Encode Publish Events / API calls Events / API calls Events / API calls
- 7. Peer to Peer ApplicationC Application BApplication BApplication A Request Content Content Inspection Result Encode Publish Events / API calls Events / API calls Events / API calls 〉 Logical flow is not easily trackable 〉 Modifying steps is not easy (tightly coupled) 〉 Controlling flow is not possible 〉 Reusing tasks is not trivial
- 9.
- 10. 〉 Orchestration Engine 〉Open Source (Apache 2.0)
- 11. Conductor - DesignGoals 〉 BYO Task (Reuse existing code) 〉 REST/HTTP support 〉 Extensible and Hackable 〉 JSON based DSL to define blueprint 〉 Scale Out Horizontally 〉 Visibility, Traceability & Control

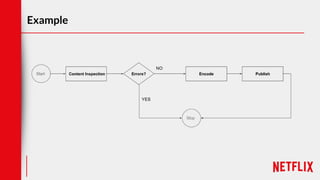

- 12. Same Flow -New Flavor Request Content Content Inspection Result Encode PublishStart Stop Conductor Application A Task Request Content Application B Task Content Inspection Application C Task Encode Application B Task Publish OrchestrationExecution

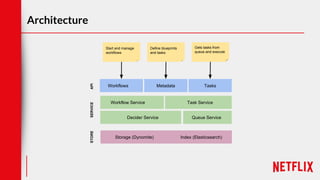

- 13. Architecture API Workflows Metadata Tasks SERVICE WorkflowService Task Service Decider Service Queue Service STORE Storage (Dynomite) Start and manage workflows Define blueprints and tasks Gets tasks from queue and execute Index (Elasticsearch)

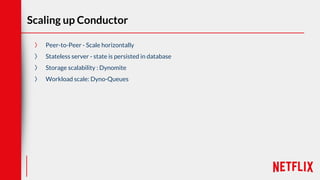

- 14. Scaling up Conductor 〉Peer-to-Peer - Scale horizontally 〉 Stateless server - state is persisted in database 〉 Storage scalability : Dynomite 〉 Workload scale: Dyno-Queues
- 15. Storage Dynomite 〉 Generic Dynamoimplementation (Redis, Memcache) 〉 Multi-datacenter 〉 Highly available 〉 Peer-to-Peer Elasticsearch 〉 Indexing workflow and task executions 〉 Verbose logging of worker executions

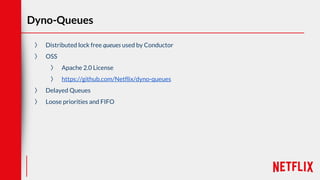

- 16. Dyno-Queues 〉 Distributed lockfree queues used by Conductor 〉 OSS 〉 Apache 2.0 License 〉 https://github.com/Netflix/dyno-queues 〉 Delayed Queues 〉 Loose priorities and FIFO

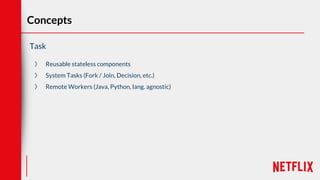

- 17. Task 〉 Reusable statelesscomponents 〉 System Tasks (Fork / Join, Decision, etc.) 〉 Remote Workers (Java, Python, lang. agnostic) Concepts

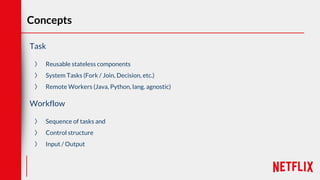

- 18. Concepts Task 〉 Reusable statelesscomponents 〉 System Tasks (Fork / Join, Decision, etc.) 〉 Remote Workers (Java, Python, lang. agnostic) Workflow 〉 Sequence of tasks and 〉 Control structure 〉 Input / Output

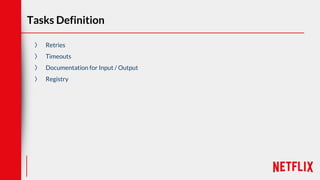

- 19. Tasks Definition 〉 Retries 〉Timeouts 〉 Documentation for Input / Output 〉 Registry

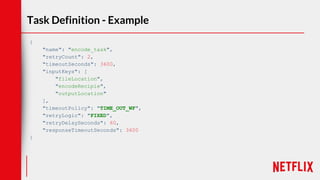

- 20. Task Definition -Example { "name": "encode_task", "retryCount": 2, "timeoutSeconds": 3600, "inputKeys": [ "fileLocation", "encodeRecipie", "outputLocation" ], "timeoutPolicy": "TIME_OUT_WF", "retryLogic": "FIXED", "retryDelaySeconds": 60, "responseTimeoutSeconds": 3600 }
- 21. Workflow Definition 〉 LogicalFlow of Tasks 〉 Error / Failure Handling 〉 Input / Output transformation 〉 JSONPath Based 〉 Versioning 〉 Registry

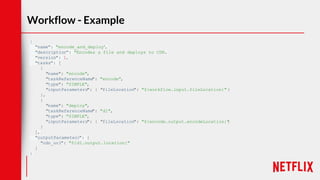

- 22. Workflow - Example { "name":"encode_and_deploy", "description": "Encodes a file and deploys to CDN", "version": 1, "tasks": [ { "name": "encode", "taskReferenceName": "encode", "type": "SIMPLE", "inputParameters": { "fileLocation": "${workflow.input.fileLocation}"} }, { "name": "deploy", "taskReferenceName": "d1", "type": "SIMPLE", "inputParameters": { "fileLocation": "${encode.output.encodeLocation}"} } ], "outputParameters": { "cdn_url": "${d1.output.location}" } }

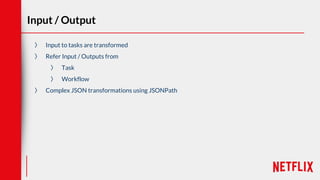

- 23. Input / Output 〉Input to tasks are transformed 〉 Refer Input / Outputs from 〉 Task 〉 Workflow 〉 Complex JSON transformations using JSONPath

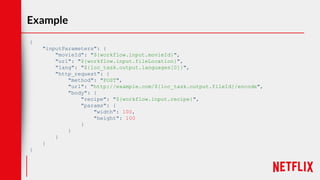

- 24. Example { "inputParameters": { "movieId": "${workflow.input.movieId}", "url":"${workflow.input.fileLocation}", "lang": "${loc_task.output.languages[0]}", "http_request": { "method": "POST", "url": "http://example.com/${loc_task.output.fileId}/encode", "body": { "recipe": "${workflow.input.recipe}", "params": { "width": 100, "height": 100 } } } } }
- 25. Example { "inputParameters": { "movieId": "${workflow.input.movieId}", "url":"${workflow.input.fileLocation}", "lang": "${loc_task.output.languages[0]}", "http_request": { "method": "POST", "url": "http://example.com/${loc_task.output.fileId}/encode", "body": { "recipe": "${workflow.input.recipe}", "params": { "width": 100, "height": 100 } } } } } Get movieId from workflow Input
- 26. Example { "inputParameters": { "movieId": "${workflow.input.movieId}", "url":"${workflow.input.fileLocation}", "lang": "${loc_task.output.languages[0]}", "http_request": { "method": "POST", "url": "http://example.com/${loc_task.output.fileId}/encode", "body": { "recipe": "${workflow.input.recipe}", "params": { "width": 100, "height": 100 } } } } } Get movieId from workflow Input JSONPath Expressions

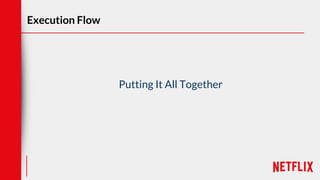

- 27. Execution Flow Putting ItAll Together

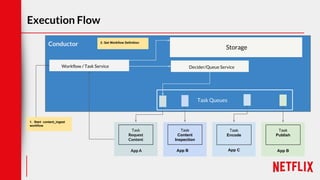

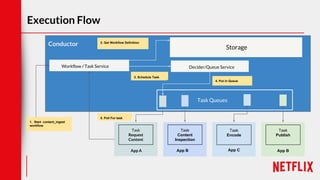

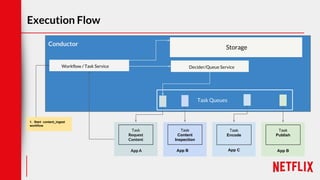

- 28. Execution Flow App A Conductor AppA Task Request Content Task Content Inspection App C Task Encode App B Task Publish Workflow / Task Service Decider/Queue Service 1. Start content_ingest workflow Storage Task Queues App B
- 29. Execution Flow App A Conductor AppA Task Request Content Task Content Inspection App C Task Encode App B Task Publish Workflow / Task Service Decider/Queue Service 1. Start content_ingest workflow 2. Get Workflow Definition Storage Task Queues App B

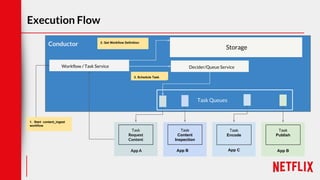

- 30. Execution Flow App A Conductor AppA Task Request Content Task Content Inspection App C Task Encode App B Task Publish Workflow / Task Service Decider/Queue Service 1. Start content_ingest workflow 2. Get Workflow Definition 3. Schedule Task Storage Task Queues App B

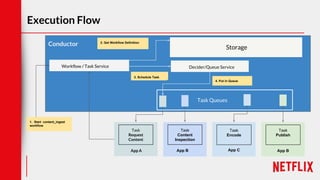

- 31. Execution Flow App A Conductor AppA Task Request Content Task Content Inspection App C Task Encode App B Task Publish Workflow / Task Service Decider/Queue Service 1. Start content_ingest workflow 2. Get Workflow Definition 3. Schedule Task 4. Put in Queue Storage Task Queues App B
- 32. Execution Flow App A Conductor AppA Task Request Content Task Content Inspection App C Task Encode App B Task Publish Workflow / Task Service Decider/Queue Service 1. Start content_ingest workflow 2. Get Workflow Definition 3. Schedule Task 4. Put in Queue 5. Poll For task Storage Task Queues App B

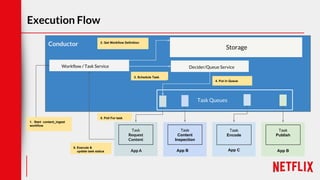

- 33. Execution Flow App A Conductor AppA Task Request Content Task Content Inspection App C Task Encode App B Task Publish Workflow / Task Service Decider/Queue Service 1. Start content_ingest workflow 2. Get Workflow Definition 3. Schedule Task 4. Put in Queue 5. Poll For task 6. Execute & update task status Storage Task Queues App B
- 34. Workers Worker 1 Worker 2 Worker3 Worker n ... Management/ Execution Service Task Queues Orchestrator Trigger Schedule Task HTTP Database Index HTTP Update Task Status Queue Poll
- 35.

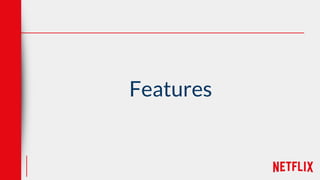

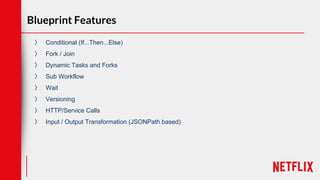

- 36. 〉 Conditional (If...Then...Else) 〉Fork / Join 〉 Dynamic Tasks and Forks 〉 Sub Workflow 〉 Wait 〉 Versioning 〉 HTTP/Service Calls 〉 Input / Output Transformation (JSONPath based) Blueprint Features

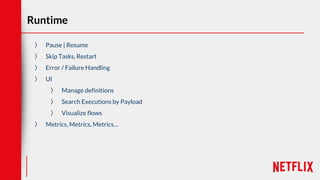

- 37. Runtime 〉 Pause |Resume 〉 Skip Tasks, Restart 〉 Error / Failure Handling 〉 UI 〉 Manage definitions 〉 Search Executions by Payload 〉 Visualize flows 〉 Metrics, Metrics, Metrics…

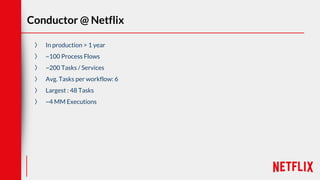

- 38. Conductor @ Netflix 〉In production > 1 year 〉 ~100 Process Flows 〉 ~200 Tasks / Services 〉 Avg. Tasks per workflow: 6 〉 Largest : 48 Tasks 〉 ~4 MM Executions

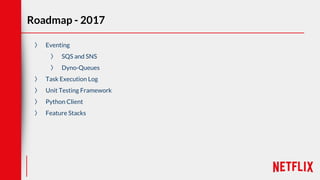

- 39. Roadmap - 2017 〉Eventing 〉 SQS and SNS 〉 Dyno-Queues 〉 Task Execution Log 〉 Unit Testing Framework 〉 Python Client 〉 Feature Stacks

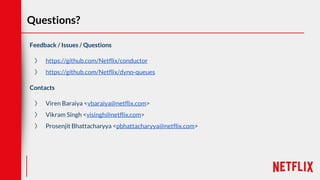

- 40. Questions? Feedback / Issues/ Questions 〉 https://github.com/Netflix/conductor 〉 https://github.com/Netflix/dyno-queues Contacts 〉 Viren Baraiya <vbaraiya@netflix.com> 〉 Vikram Singh <visingh@netflix.com> 〉 Prosenjit Bhattacharyya <pbhattacharyya@netflix.com>
