Vertical Axis Wind Turbine
•
1 like•1,232 views

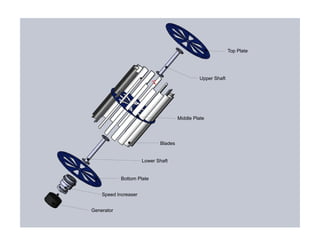

This diagram shows the components of a wind turbine, including the top plate, upper shaft, middle plate, blades, lower shaft, bottom plate, speed increaser, and generator. The blades are connected to the upper shaft which transfers rotational energy through the middle and lower shafts to the speed increaser and generator to produce electricity.
