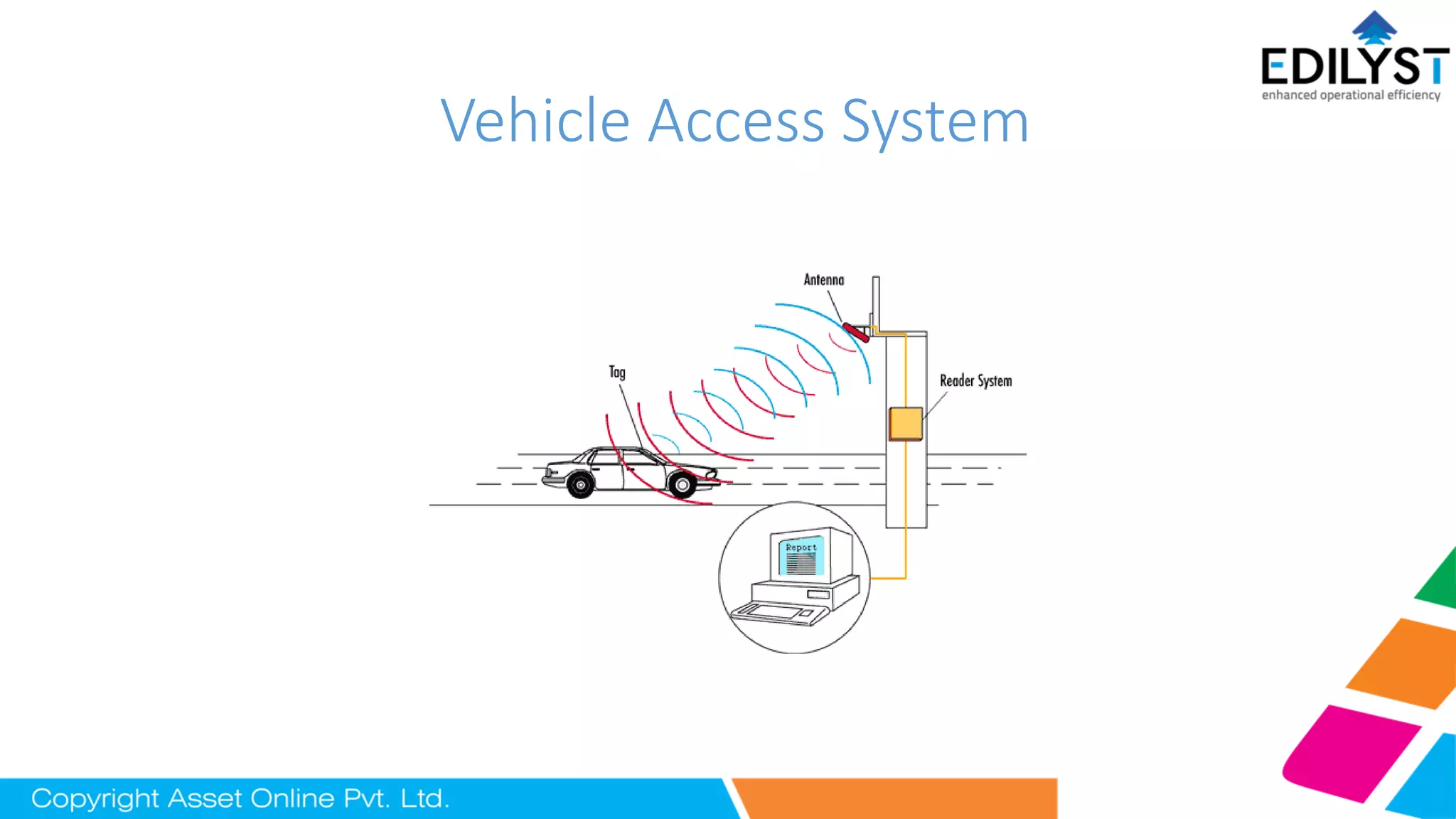

1. Vehicle Access System

2. Components of System
• RFID Tags.
• Fixed reader.
• Desktop reader.
• Controller.

3. Component of Application
• Window application.
• Web application.

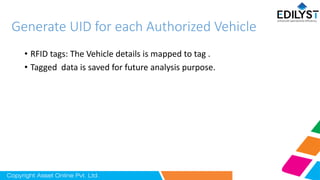

4. Generate UID for each Authorized Vehicle
• RFID tags: The Vehicle details is mapped to tag .
• Tagged data is saved for future analysis purpose.

5. Fixed reader
• It gets UID information from an authorized vehicle in real time.
• In eye-blink seconds checks for authorization.

6. Window application
• Views details of authorized vehicle with following:
1. Owner Name.
2. Mobile number.
3. Flat number.
4. Entry time.
5. Exit time.
6. Security name during both entry and exit.

7. Web application
• The authorized user can view the following details:
• Entry and exit of Authorized vehicle.
• Entry and exit of Visitor vehicle with security persons detail present at
that time.
• Note: it requires Internet connection.

8. Case 1: Authorized Vehicle
• When Vehicle come near entry point, it is detected by fixed reader.
• Window application makes an entry and automatically allows
barrigate to open .
• When Vehicle come near exit point, it is detected by fixed reader.
• Window application makes note of an exit time and allows barrigate
to open.
• Note: Implementation entry and exit fixed reader needs site visit and
also required to know opening and closing timing of barrigate.

9. Case 2: Visitors Vehicle
• Vehicle comes to entry point , security will take detail of vehicle.
• Security uses his authority card and issue a card to Visitor vehicle and
lets vehicle in.
• During exit, security collects card and uses his authority card to
release Visitor vehicle to go out.
• Window application will make note of entry and exit time and
security person detail who is responsible for opening the barrigate.

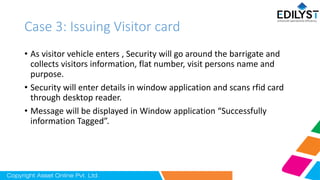

10. Case 3: Issuing Visitor card
• As visitor vehicle enters , Security will go around the barrigate and
collects visitors information, flat number, visit persons name and
purpose.
• Security will enter details in window application and scans rfid card
through desktop reader.
• Message will be displayed in Window application “Successfully
information Tagged”.

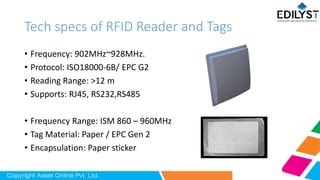

11. Tech specs of RFID Reader and Tags
• Frequency: 902MHz~928MHz.
• Protocol: ISO18000-6B/ EPC G2
• Reading Range: >12 m
• Supports: RJ45, RS232,RS485
• Frequency Range: ISM 860 – 960MHz
• Tag Material: Paper / EPC Gen 2
• Encapsulation: Paper sticker

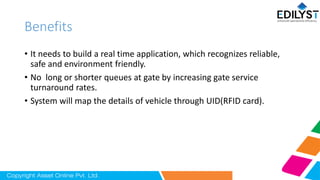

12. Benefits
• It needs to build a real time application, which recognizes reliable,
safe and environment friendly.
• No long or shorter queues at gate by increasing gate service
turnaround rates.
• System will map the details of vehicle through UID(RFID card).

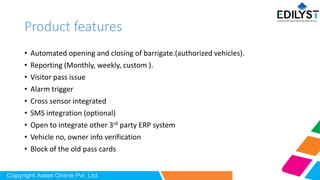

13. Product features
• Automated opening and closing of barrigate.(authorized vehicles).
• Reporting (Monthly, weekly, custom ).
• Visitor pass issue
• Alarm trigger
• Cross sensor integrated
• SMS integration (optional)
• Open to integrate other 3rd party ERP system
• Vehicle no, owner info verification
• Block of the old pass cards

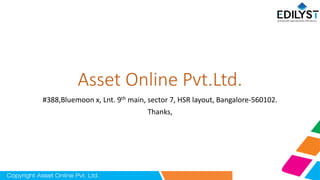

14. Asset Online Pvt.Ltd.
