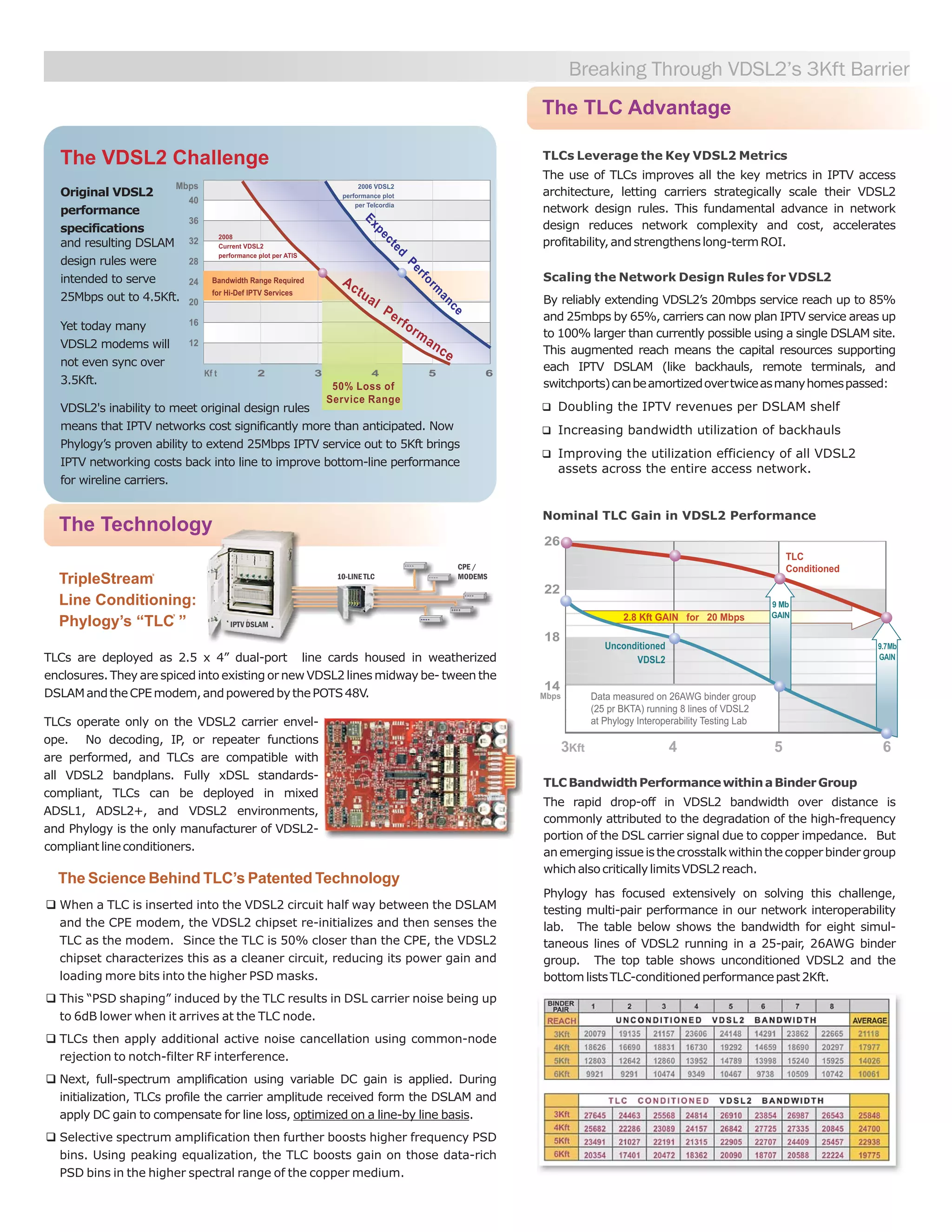

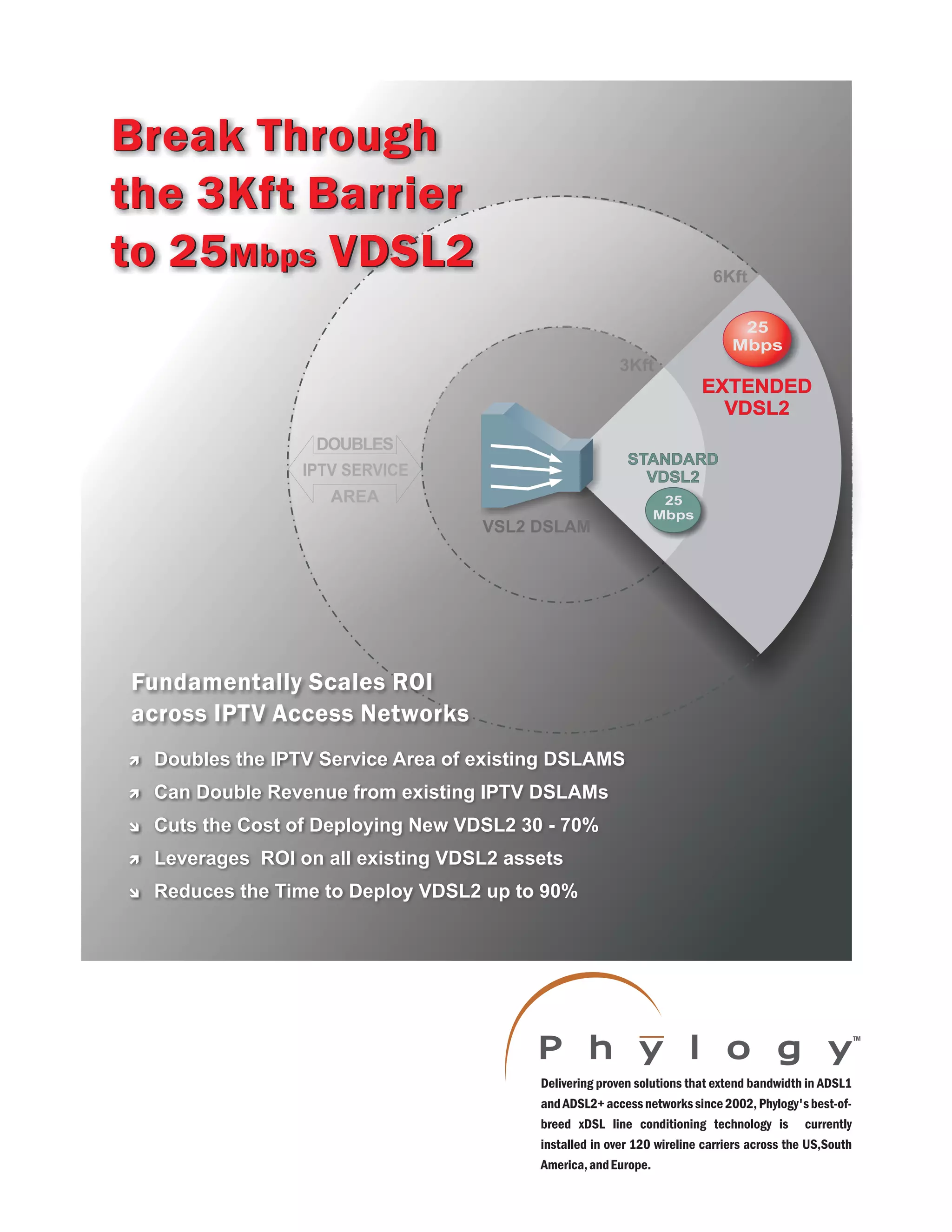

1. REDEFINING RATE AND REACH
P h y l o g y
TM
Delivering proven solutions that extend bandwidth in ADSL1
andADSL2+accessnetworkssince ,Phylogy'sbest-of-
breed xDSL line conditioning technology is currently
installed in over 120 wireline carriers across the US,South
America,andEurope.
2002
DOUBLES
AREA
IPTV SERVICE
VSL2 DSLAM
25
Mbps
STANDARD
VDSL2
STANDARD
VDSL2
25
Mbps
EXTENDED
VDSL2
EXTENDED
VDSL2
3Kft
6Kft
Break Through
the 3Kft Barrier
to 25 VDSL2Mbps
Break Through
the 3Kft Barrier
to 25 VDSL2Mbps
Break Through
the 3Kft Barrier
to 25 VDSL2Mbps
ì
ì
î
î
Doubles the IPTV Service Area of existing DSLAMS
Can Double Revenue from existing IPTV DSLAMs
Cuts the Cost of Deploying New VDSL2 30 - 70%
Leverages ROI on all existing VDSL2 assets
Reduces the Time to Deploy VDSL2 up to 90%
ì
Fundamentally Scales ROI
across IPTV Access Networks
2. The TLC Advantage
Scaling the Network Design Rules for VDSL2
By reliably extending VDSL2’s 20mbps service reach up to 85%
and 25mbps by 65%, carriers can now plan IPTV service areas up
to 100% larger than currently possible using a single DSLAM site.
This augmented reach means the capital resources supporting
each IPTV DSLAM (like backhauls, remote terminals, and
switchports)canbeamortizedovertwiceasmanyhomespassed:
q
q
q
Doubling the IPTV revenues per DSLAM shelf
Increasing bandwidth utilization of backhauls
Improving the utilization efficiency of all VDSL2
assets across the entire access network.
TLCs Leverage the Key VDSL2 Metrics
The use of TLCs improves all the key metrics in IPTV access
architecture, letting carriers strategically scale their VDSL2
network design rules. This fundamental advance in network
design reduces network complexity and cost, accelerates
profitability,andstrengthenslong-termROI.
3 4 5 6Kft
2.8 Kft GAIN for 20 Mbps
9 Mb
GAIN
Data measured on 26AWG binder group
(25 pr BKTA) running 8 lines of VDSL2
at Phylogy Interoperability Testing Lab
TLC
Conditioned
Unconditioned
VDSL2
9.7Mb
GAIN
Mbps
26
22
18
14
Nominal TLC Gain in VDSL2 Performance
TLCBandwidthPerformancewithinaBinderGroup
The rapid drop-off in VDSL2 bandwidth over distance is
commonly attributed to the degradation of the high-frequency
portion of the DSL carrier signal due to copper impedance. But
anemergingissueisthecrosstalkwithinthecopperbindergroup
whichalsocriticallylimitsVDSL2reach.
Phylogy has focused extensively on solving this challenge,
testing multi-pair performance in our network interoperability
lab. The table below shows the bandwidth for eight simul-
taneous lines of VDSL2 running in a 25-pair, binder
group. The top table shows unconditioned VDSL2 and the
bottomlistsTLC-conditionedperformancepast2Kft.
26AWG
Breaking Through VDSL2’s 3Kft Barrier
The Technology
The Science Behind TLC’s Patented Technology
q
q
q
q
q
When a TLC is inserted into the VDSL2 circuit half way between the DSLAM
and the CPE modem, the VDSL2 chipset re-initializes and then senses the
TLC as the modem. Since the TLC is 50% closer than the CPE, the VDSL2
chipset characterizes this as a cleaner circuit, reducing its power gain and
loading more bits into the higher PSD masks.
This “PSD shaping” induced by the TLC results in DSL carrier noise being up
to 6dB lower when it arrives at the TLC node.
TLCs then apply additional active noise cancellation using common-node
rejection to notch-filter RF interference.
Next, full-spectrum amplification using variable DC gain is applied. During
initialization, TLCs profile the carrier amplitude received form the DSLAM and
apply DC gain to compensate for line loss, .
Selective spectrum amplification then further boosts higher frequency PSD
bins. Using peaking equalization, the TLC boosts gain on those data-rich
PSD bins in the higher spectral range of the copper medium.
optimized on a line-by line basis
TLCs are deployed as 2.5 x 4” dual-port line cards housed in weatherized
enclosures. They are spiced into existing or new VDSL2 lines midway be- tween the
DSLAMandtheCPEmodem,andpoweredbythePOTS48V.
TLCs operate only on the VDSL2 carrier envel-
ope. No decoding, IP, or repeater functions
are performed, and TLCs are compatible with
all VDSL2 bandplans. Fully xDSL standards-
compliant, TLCs can be deployed in mixed
ADSL1, ADSL2+, and VDSL2 environments,
and Phylogy is the only manufacturer of VDSL2-
compliantlineconditioners.
TripleStream
Line Conditioning:
Phylogy’s “TLC ”
TM
TM
IPTV DSLAM
10-LINE TLC
CPE /
MODEMS
The VDSL2 Challenge
Original VDSL2
performance
specifications
and resulting DSLAM
design rules were
intended to serve
25Mbps out to 4.5Kft.
Yet today many
VDSL2 modems will
not even sync over
3.5Kft.
VDSL2's inability to meet original design rules
means that IPTV networks cost significantly more than anticipated. Now
Phylogy’s proven ability to extend 25Mbps IPTV service out to 5Kft brings
IPTV networking costs back into line to improve bottom-line performance
for wireline carriers.
Mbps
40
36
32
28
24
20
16
12
Kf t 2 3 4 5 6
Bandwidth Range Required
for Hi-Def IPTV Services
2008
Current VDSL2
performance plot per ATIS
2006 VDSL2
performance plot
per Telcordia
2 3 4 5 6
50% Loss of
Service Range
Expected
Perform
ance
Actual Performance
3. TLCs Offer “Best Practices Engineering”
to Optimize ROI for IPTV Access Loops
To fundamentally improve ROI and profitability of IPTV
services, TLCs deliver a network-wide scaling factor that can
broadly impact core business aspects of the access loop
architecture.
Thus, we offer our approach as a “Best Practices Network
Engineering” option which significantly improves both network
performance and the utilization efficiency - and ROI - of all
existing xDSL assets including DSLAMs, remote terminals, fiber
backhauls,andCOswitchports.
q
q
q
q
Aggregate more IPTV subscribers per DSLAM
Require fewer switchports per service area
Require fewer remote terminals per service area
Concentrate higher bandwidth per backhaul, and
reduce the need for additional fiber
Reducing VDSL2 Networking CAPEX
Installing a new IPTV Remote Terminal (RT) entails hidden costs
beyond just the obvious equipment and labor. Up to 30% of the
cost of a new IPTV overlay can be spent in re-arrangement of
copperlegsneededtoreachthenewRTsite.
Real-world comparisons of these costs show that installing high
density TLC cabinets instead of new IPTV RT/DSLAMs can cut
CAPEX costs by one-third. For low-density applications using
pole or pedestal mounted TLCs , IPTV carriers can cut access
networkCAPEXupto70%.
TAKE THE PHYLOGY “PMO” CHALLENGE: DEPLOY TLCs OR NEW RT / DSLAMs?
Whether the goal is to incrementally add new customers to existing CO or RT-based DSLAMs, or to install an entirely new
IPTV service area, the integration of TLCs into your network design will prove to be the faster, cheaper, and smarter option
than Present Methods of Operation (PMO)
Reach Unserved and Under-Served IPTV Subscribers without Adding New Remote Terminals
For 48 lines of VDSL2
q
q
q
q
Cabinet-deployed TLC installation aggregates dozens
of homes into a single site requiring no external
power, rectifiers, or batteries
Simplifies network planning, & engineering
requirements compared to RT / DSLAMs
Cuts time-to-market from months to weeks -
cabinet installation and line splicing with integral
cross-connect can extend new IPTV service within
weeks to enable subscriber responsiveness
Costs 30 - 50% less than installing new RT / DSLAM
NEW TERMINAL
NEW BACKHAUL
NEW DSLAM
NEW POWER
NEW BATTERIES
NEW CROSS-X
NEW COPPER LEGS
è
è
è
è
è
è
è
ç NEW TLC TERMINAL
TLCsç
ç
ç
24 DUAL-PORT
INTEGRAL CROSS-X
INTEGRAL SPLICE BAY
?
For 20 lines of VDSL2
q
q
q
q
Pole-mounted conditioning simplifies network
design by reducing components, complexity,
and engineering requirements
Cuts time-to-market 98% or more.
Can mount and splice into existing lines within hours
Cuts VDSL2 installation cost up to 70%
Enhances flexibility & subscriber responsiveness.
Makes turnup of new IPTV services now feasible on-
demand within hours to match cable’s 24-hour
installation offers
ç
ç
ç
ç
ç
ç
ç
NEW POWER
NEW BATTERIES
NEW CROSS-X
NEW COPPER LEGS
NEW PAD & TERMINAL
NEW BACKHAUL
NEW DSLAM
NEW TLC TERMINAL
10 DUAL-PORT TLCs
SAME-DAY SPLICING
è
è
è
?
IPTV DSLAM
IPTV DSLAM
q
q
q
q
q
q
q
q
TLCs install as passive network elements
Self-powering; 1/4 watt current uses existing
-48 POTS supply; can be safely hot-swapped
No external power supplies, batteries, rectifiers, or active
cooling required
Requires no EMS or IT integration, no custom DSLAM
settings or optimization
Autocalibration maximizes data rates for the unique line
conditions of each subscriber pair, requiring no DSLAM
adjustments nor additional field or CO setup
Uses only standard outside plant procedures for
installation and turn up – no special tools or training used
Comprehensive planning and step-by-step installation
procedure guides provided
Application engineering support provided at no cost
VDC
Phylogy’s Turnkey Solution
Simplifies Network Engineering
with
and Network Integration
Seamless Installation Procedures
Worry-Free
Breaking Through VDSL2’s 3Kft Barrier
INSERTING TLC INTO
48-LINE TLC CABINET
INSERTING TLC INTO
48-LINE TLC CABINET
4. Comprehensive Suite of Line Card Enclosures
q
q
q
Enclosures are available in wide range of service capacities to
match subscriber densities and all feature plug-&-play
backplanes pre-connected to pigtails for rapid field splicing.
Enclosures support all access network deployment scenarios:
manhole, aerial, pole, pedestal, underground, and cabinet.
Backplane designs for all s may be licensed to
carriers wanting to use their own preferred cabinet suppliers.
Phylogy enclosure
Offices and Distributors Worldwide
q
q
q
For inquiries and ordering information, contact
For distributor inquiries, contact
For pre-sales application support, contact
sales@phylogy.com
partners@phylogy.com
applications@phylogy.com
Only Standard-Practice Outside Plant Installation
Procedures Are Required
q
q
q
No special training required
No special tooling needed
Fully documented procedures
Flexible Deployment Options
CONDITION 5 - 10 LINES AT A POLE
5 - 10 LINES
AERIAL SPLICED
5 - 30 LINES
AERIAL SPLICED
CONDITION 5 - 30 LINES AT A PEDESTALSEQUENCE FOR UPGRADING EXISTING UNDERGROUND PEDESTAL FOR 5 - 30 LINES
SEQUENCE FOR UPGRADING EXISTING UNDERGROUND PEDESTAL FOR 48 - 192 LINES
Phylogy Corporate Offices - Phone 1-866-PHYLOGY2350 Mission College Blvd. Suite 400, Santa Clara, CA USA 95054 www.phylogy.com
Phylogy and TripleStream are registered trademarks of Phylogy, Inc. All rights reserved. US Patent number 7,110,528 and other patents pending. Product information subject to change without notice - rev 2009.a
Conditioning the Loop - Two Options
Two primarily different deployment options can be used to
enable a flexible, widespread, and complementary approach to
service extension.
Using our high density cabinets, carriers can lay the foundation
to meet growing demand by deploying line conditioners across
the entire distribution area to support higher aggregate
bandwidth capacity and higher efficiency of all xDSL assets.
Phylogy’s one-to-15 slot enclosures support on-demand
installation to boost bandwidth for underserved individual
subscribers. Fast, cost-effective, and easy to deploy, these
band-aid installations let you opportunistically protect your
subscriber base against competitive erosion and provide
revenue-enhancing service upgrades for time-sensitive special
projects.
Capture Customers Opportunistically
Best-Practices Network Conditioning:
Quick-Turn Provisioning:
Deploying Line Conditioning
