1. SURVEILLANCE PRODUCT INTRODUCTION

2. © 2014 VCU DATA MANAGEMENT LTD.
CONTENTS
 Company Introduction
 Product Range
 IP Products
• Camera Series
• NVRs
• VMS
 HD Analog Cameras & DVR
 Analog Cameras & DVR

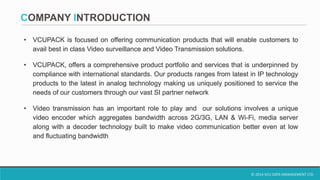

3. © 2014 VCU DATA MANAGEMENT LTD.
COMPANY INTRODUCTION
• VCUPACK is focused on offering communication products that will enable customers to
avail best in class Video surveillance and Video Transmission solutions.
• VCUPACK, offers a comprehensive product portfolio and services that is underpinned by
compliance with international standards. Our products ranges from latest in IP technology
products to the latest in analog technology making us uniquely positioned to service the
needs of our customers through our vast SI partner network
• Video transmission has an important role to play and our solutions involves a unique
video encoder which aggregates bandwidth across 2G/3G, LAN & Wi-Fi, media server
along with a decoder technology built to make video communication better even at low
and fluctuating bandwidth

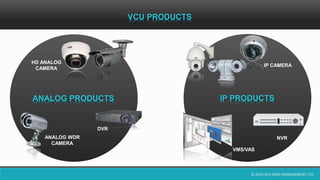

4. © 2014 VCU DATA MANAGEMENT LTD.
HD ANALOG
CAMERA
IP CAMERA
NVR
VMS/VAS
DVR
VCU PRODUCTS
ANALOG WDR
CAMERA
IP PRODUCTSANALOG PRODUCTS

5. IP PRODUCTS
CAMERA, NVR & VMS

6. © 2014 VCU DATA MANAGEMENT LTD.

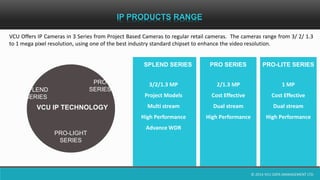

IP PRODUCTS RANGE
VCU Offers IP Cameras in 3 Series from Project Based Cameras to regular retail cameras. The cameras range from 3/ 2/ 1.3
to 1 mega pixel resolution, using one of the best industry standard chipset to enhance the video resolution.
VCU IP TECHNOLOGY
SPLEND
SERIES
PRO
SERIES
PRO-LIGHT
SERIES
SPLEND SERIES PRO SERIES PRO-LITE SERIES
3/2/1.3 MP
Project Models
Multi stream
High Performance
Advance WDR
2/1.3 MP
Cost Effective
Dual stream
High Performance
1 MP
Cost Effective
Dual stream
High Performance

7. © 2014 VCU DATA MANAGEMENT LTD.

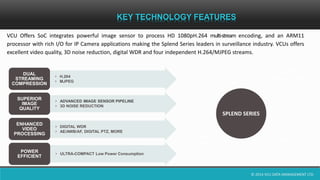

KEY TECHNOLOGY FEATURES
VCU Offers SoC integrates powerful image sensor to process HD 1080pH.264 multi-stream encoding, and an ARM11
processor with rich I/O for IP Camera applications making the Splend Series leaders in surveillance industry. VCUs offers
excellent video quality, 3D noise reduction, digital WDR and four independent H.264/MJPEG streams.
• H.264
• MJPEG
DUAL
STREAMING
COMPRESSION
• ADVANCED IMAGE SENSOR PIPELINE
• 3D NOISE REDUCTION
SUPERIOR
QUALITY
• DIGITAL WDR
• AE/AWB/AF, DIGITAL PTZ, MORE
ENHANCED
VIDEO
PROCESSING
• ULTRA-COMPACT Low Power Consumption
POWER
EFFICIENT
SPLEND SERIES
Enhanced
Video
Processing
Superior
Quality
Full HD
1080p30 + D1
H.264
Compression
Engine

8. © 2014 VCU DATA MANAGEMENT LTD.
VC-AM200/130WBB-IP
4mm Fixed Lens
42pcs Led,30-40m IR 2pc Array Led, 50-60m IR 36pcs Led, 50-60m IR
2.8-12mm Varifocal Lens
SPLEND SERIES 2 / 1.3 MP WATERPROOF BULLET IP CAMERA
o 1/3”, 1.3/2 Megapixel Progressive Scan CMOS Sensor
o Resolution: Max 25fps@1.3M(1280X960), Max 25fps@2M(1920X1080),
o Multi-streaming: H.264 Compression, M-JPEG Smooth Video Relay
o CS Port Lens, 4/6/8mm Optional
o ICR Filter Auto Switch, Motion Detection
o Built-In POE
VC-AM200/130WDB-IP VC-AM200/130WX-IP
VF Lens, Fan, Heater

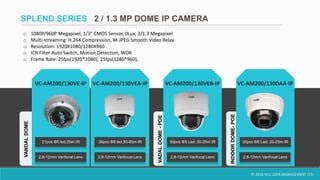

9. © 2014 VCU DATA MANAGEMENT LTD.
INDOORDOME-POE
o 1080P/960P Megapixel, 1/3" CMOS Sensor, 0Lux, 2/1.3 Megapixel
o Multi-streaming: H.264 Compression, M-JPEG Smooth Video Relay
o Resolution: 1920X1080/1280X960
o ICR Filter Auto Switch, Motion Detection, WDR
o Frame Rate: 25fps(1920*1080), 25fps(1280*960),
VC-AM200/130VE-IP VC-AM200/130VEA-IP
2.8-12mm Varifocal Lens
21pcs Φ5 led,20m IR 36pcs Φ8 led,50-60m IR
VANDALDOME
SPLEND SERIES 2 / 1.3 MP DOME IP CAMERA
2.8-12mm Varifocal Lens
VC-AM200/130DAA-IP
30pcs Φ5 Led, 20-25m IR
2.8-12mm Varifocal Lens
VADALDOME-POE
VC-AM200/130VEB-IP
30pcs Φ5 Led, 20-25m IR
2.8-12mm Varifocal Lens

10. © 2014 VCU DATA MANAGEMENT LTD.

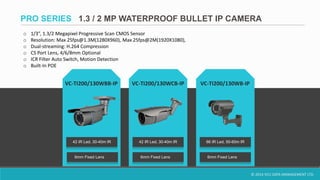

VC-TI200/130WBB-IP VC-TI200/130WB-IPVC-TI200/130WCB-IP
6mm Fixed Lens
42 IR Led, 30-40m IR 42 IR Led, 30-40m IR
6mm Fixed Lens
66 IR Led, 50-60m IR
6mm Fixed Lens
PRO SERIES 1.3 / 2 MP WATERPROOF BULLET IP CAMERA
o 1/3”, 1.3/2 Megapixel Progressive Scan CMOS Sensor
o Resolution: Max 25fps@1.3M(1280X960), Max 25fps@2M(1920X1080),
o Dual-streaming: H.264 Compression
o CS Port Lens, 4/6/8mm Optional
o ICR Filter Auto Switch, Motion Detection
o Built-In POE

11. © 2014 VCU DATA MANAGEMENT LTD.
-
VANDALDOME-POE
o 1/3”, 2/1.3 Megapixel Progressive Scan CMOS Sensor
o Resolution: Max 25fps@1.3M (1280X960), Max 25fps@2M(1920X1080),
o Dual-streaming: H.264 Compression
o ICR Filter Auto Switch, Motion Detection
VC-TI130/200VE-IP VC-TI130/200VEB-IP
2.8-12mm Varifocal Lens
21 IR Led, 20m IR 3 IR Led, 20-25m IR
VC-TI130/200DAA-IP
30 IR Led, 20-25m IR
VANDALDOME
INDOORDOME-POE
PRO SERIES 1.3 / 2 MP VANDAL/INDOOR DOME IP CAMERA
2.8-12mm Varifocal Lens 2.8-12mm Varifocal Lens

12. © 2014 VCU DATA MANAGEMENT LTD.

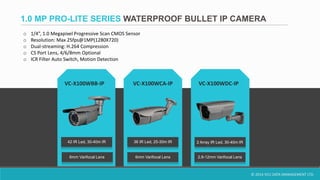

1.0 MP PRO-LITE SERIES WATERPROOF BULLET IP CAMERA
o 1/4”, 1.0 Megapixel Progressive Scan CMOS Sensor
o Resolution: Max 25fps@1MP(1280X720)
o Dual-streaming: H.264 Compression
o CS Port Lens, 4/6/8mm Optional
o ICR Filter Auto Switch, Motion Detection
VC-X100WBB-IP VC-X100WDC-IPVC-X100WCA-IP
6mm Varifocal Lens
42 IR Led, 30-40m IR 36 IR Led, 25-30m IR
2.8-12mm Varifocal Lens
2 Array IR Led, 30-40m IR
6mm Varifocal Lens

13. © 2014 VCU DATA MANAGEMENT LTD.
1.0 MP PRO-LITE SERIES VANDAL/INDOOR DOME IP CAMERA
o 1/4" Progressive Scan CMOS
o H.264 Compression and 720P
o 1.0 Megapixel, 25fps(1280X720)
o Fixed or Varifocal Lens (Standard Configuration)
o Intelligent IR, 15pcs Φ5 Led, 10-15m IR
o DC12V/POE (External POE)
VC-X100VDA-IP VC-X100DA-IPVC-X100VLB-IP
4/6/8mm Fixed Lens
15 IR Led, 10-15m IR 24 IR Led, 15-20m IR 24 IR Led, 15-20m IR
4/6/8mm Fixed Lens
VC-X100DBB-IP
15 IR Led, 10-15m IR
VANDALDOME
INDOORDOME
4/6/8mm Fixed Lens4/6/8mm Fixed Lens

14. © 2014 VCU DATA MANAGEMENT LTD.

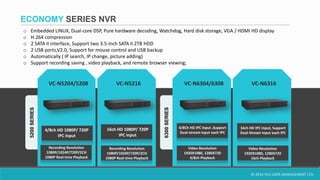

ECONOMY SERIES NVR
o Embedded LINUX, Dual-core DSP, Pure hardware decoding, Watchdog, Hard disk storage, VGA / HDMI HD display
o H.264 compression
o 2 SATA II interface, Support two 3.5-inch SATA II 2TB HDD
o 2 USB ports,V2.0, Support for mouse control and USB backup
o Automatically ( IP search, IP change, picture adding)
o Support recording saving , video playback, and remote browser viewing;
VC-N5204/5208 VC-N6316VC-N5216 VC-N6304/6308
5200SERIES
6300SERIES
Recording Resolution
1080P/1024P/720P/2CH
1080P Real-time Playback
4/8Ch HD IPC input ,Support
Dual-stream input each IPC
Video Resolution
1920X1080, 1280X720
4/8ch Playback
4/8ch HD 1080P/ 720P
IPC input
16ch HD 1080P/ 720P
IPC input
Recording Resolution
1080P/1024P/720P/2CH
1080P Real-time Playback
16ch HD IPC Input, Support
Dual-Stream input each IPC
Video Resolution
1920X1080, 1280X720
16ch Playback

15. © 2014 VCU DATA MANAGEMENT LTD.

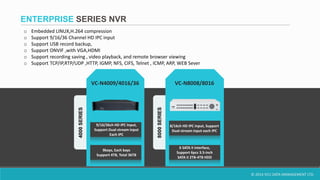

ENTERPRISE SERIES NVR
o Embedded LINUX,H.264 compression
o Support 9/16/36 Channel HD IPC input
o Support USB record backup,
o Support ONVIF ,with VGA,HDMI
o Support recording saving , video playback, and remote browser viewing
o Support TCP/IP,RTP/UDP ,HTTP, IGMP, NFS, CIFS, Telnet , ICMP, ARP, WEB Sever
VC-N4009/4016/36 VC-N8008/80164000SERIES
8000SERIES
8/16ch HD IPC input, Support
Dual-stream input each IPC
6 SATA II interface,
Support 6pcs 3.5-inch
SATA II 2TB-4TB HDD
9/16/36ch HD IPC Input,
Support Dual-stream input
Each IPC
9bays, Each bays
Support 4TB, Total 36TB

16. © 2014 VCU DATA MANAGEMENT LTD.

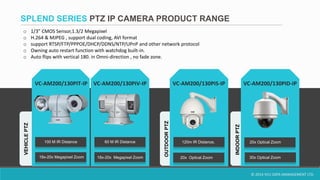

OUTDOORPTZ
o 1/3” CMOS Sensor,1.3/2 Megapixel
o H.264 & MJPEG , support dual coding, AVI format
o support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocol
o Owning auto restart function with watchdog built-in.
o Auto flips with vertical 180. in Omni-direction , no fade zone.
VC-AM200/130PIT-IP VC-AM200/130PIV-IP
18x-20x Megapixel Zoom
100 M IR Distance 60 M IR Distance
VEHICLEPTZ
INDOORPTZ
SPLEND SERIES PTZ IP CAMERA PRODUCT RANGE
VC-AM200/130PIS-IP
120m IR Distance,
20x Optical Zoom
VC-AM200/130PID-IP
20x Optical Zoom
18x-20x Megapixel Zoom 30x Optical Zoom

17. © 2014 VCU DATA MANAGEMENT LTD.

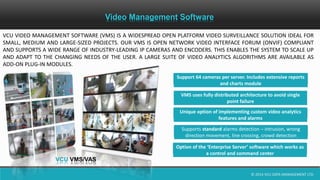

Video Management Software
VCU VIDEO MANAGEMENT SOFTWARE (VMS) IS A WIDESPREAD OPEN PLATFORM VIDEO SURVEILLANCE SOLUTION IDEAL FOR
SMALL, MEDIUM AND LARGE-SIZED PROJECTS. OUR VMS IS OPEN NETWORK VIDEO INTERFACE FORUM (ONVIF) COMPLIANT
AND SUPPORTS A WIDE RANGE OF INDUSTRY-LEADING IP CAMERAS AND ENCODERS. THIS ENABLES THE SYSTEM TO SCALE UP
AND ADAPT TO THE CHANGING NEEDS OF THE USER. A LARGE SUITE OF VIDEO ANALYTICS ALGORITHMS ARE AVAILABLE AS
ADD-ON PLUG-IN MODULES.
VCU VMS
SPLEND
SERI
PRO
SERIES
PRO-LIGHT
SERIES
VCU VMS/VAS
Support 64 cameras per server. Includes extensive reports
and charts module
VMS uses fully distributed architecture to avoid single
point failure
Unique option of implementing custom video analytics
features and alarms
Supports standard alarms detection – intrusion, wrong
direction movement, line crossing, crowd detection
Option of the ‘Enterprise Server’ software which works as
a control and command center

18. HD ANALOG PRODUCTS
CAMERA and DVRs

19. © 2014 VCU DATA MANAGEMENT LTD.

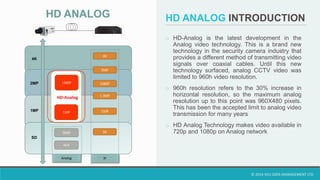

o HD-Analog is the latest development in the
Analog video technology. This is a brand new
technology in the security camera industry that
provides a different method of transmitting video
signals over coaxial cables. Until this new
technology surfaced, analog CCTV video was
limited to 960h video resolution.
o 960h resolution refers to the 30% increase in
horizontal resolution, so the maximum analog
resolution up to this point was 960X480 pixels.
This has been the accepted limit to analog video
transmission for many years
o HD Analog Technology makes video available in
720p and 1080p on Analog network
HD ANALOG INTRODUCTION
4K
5MP
1080P
1.3MP
720P
SD960H
4CIF
Analog IP
SD
1MP
2MP
4K
1080P
720P
HD-Analog
HD ANALOG

20. © 2014 VCU DATA MANAGEMENT LTD.

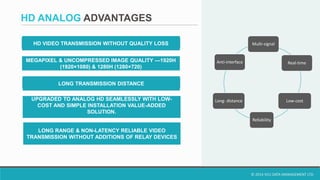

HD ANALOG ADVANTAGES
Multi-signal
Real-time
Low-cost
Reliability
Long- distance
Anti-interface
HD VIDEO TRANSMISSION WITHOUT QUALITY LOSS
MEGAPIXEL & UNCOMPRESSED IMAGE QUALITY —1920H
(1920×1080) & 1280H (1280×720)
UPGRADED TO ANALOG HD SEAMLESSLY WITH LOW-
COST AND SIMPLE INSTALLATION VALUE-ADDED
SOLUTION.
LONG TRANSMISSION DISTANCE
LONG RANGE & NON-LATENCY RELIABLE VIDEO
TRANSMISSION WITHOUT ADDITIONS OF RELAY DEVICES

21. © 2014 VCU DATA MANAGEMENT LTD.
VCU HD ANALOG VANDAL/INDOOR DOME CAMERA
o 720P 1.0 Megapixel, 1/2.9" CMOS Sensor, 0Lux
o HDCVI Analog interface/output, Coaxial cable transmission
o 50Hz:720p@25fps(1280×720)
o 60Hz:720p@30fps(1280×720)
o AWB, AGC, BLC, 3D-DNR, OSD MENU
o ICR Filter Auto switch
VC-100VEA-CVI
2.8-12mm Varifocal Lens
36pcs Φ8 Led, 50-60m IR
VC-100VCA-CVI VC-100VLB-CVI VC-100DAA-CVI VC-100DA-CVI VC-100DQ-CVI
2.8-12mm Varifocal Lens
30 IR Led, 20m IR
2.8-12mm Varifocal Lens
30 IR Led, 20m IR
2.8-12mm Varifocal Lens
24 IR Led, 20m IR
2.8-12mm Varifocal Lens
24 IR Led, 20m IR
2.8-12mm Varifocal Lens

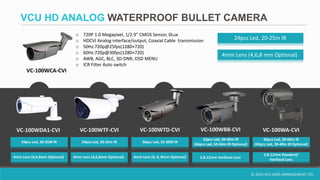

22. © 2014 VCU DATA MANAGEMENT LTD.
VCU HD ANALOG WATERPROOF BULLET CAMERA
o 720P 1.0 Megapixel, 1/2.9" CMOS Sensor, 0Lux
o HDCVI Analog interface/output, Coaxial Cable transmission
o 50Hz:720p@25fps(1280×720)
o 60Hz:720p@30fps(1280×720)
o AWB, AGC, BLC, 3D-DNR, OSD MENU
o ICR Filter Auto switch
VC-100WCA-CVI
4mm Lens (4,6,8 mm Optional)
24pcs Led, 20-25m IR
VC-100WDA1-CVI VC-100WTD-CVIVC-100WTF-CVI VC-100WBB-CVI VC-100WA-CVI
4mm Lens (4,6,8mm Optional)
24pcs Led, 20-25M IR 24pcs Led, 20-25m IR
4mm Lens (4, 6, 8mm Optional)
36pcs Led, 25-30M IR
2.8-12mm Varifocal Lens
42pcs Led, 30-40m IR
(66pcs Led, 50-60m IR Optional)
2.8-12mm Standard/
Varifocal Lens
66pcs Led, 50-60m IR
(42pcs Led, 30-40m IR Optional)
4mm Lens (4,6,8mm Optional)

23. © 2014 VCU DATA MANAGEMENT LTD.

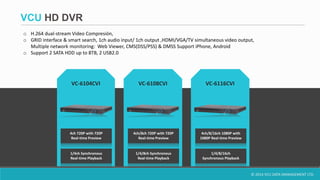

VCU HD DVR
o H.264 dual-stream Video Compresión,
o GRID interface & smart search, 1ch audio input/ 1ch output ,HDMI/VGA/TV simultaneous video output,
Multiple network monitoring: Web Viewer, CMS(DSS/PSS) & DMSS Support iPhone, Android
o Support 2 SATA HDD up to 8TB, 2 USB2.0
VC-6104CVI VC-6116CVIVC-6108CVI
4ch 720P with 720P
Real-time Preview
1/4ch Synchronous
Real-time Playback
4ch/8ch 720P with 720P
Real-time Preview
1/4/8ch Synchronous
Real-time Playback
4ch/8/16ch 1080P with
1080P Real-time Preview
1/4/8/16ch
Synchronous Playback

24. © 2014 VCU DATA MANAGEMENT LTD.
ANALOG PRODUCTS
CAMERAS and DVRs

25. © 2014 VCU DATA MANAGEMENT LTD.
VCU ANALOG BULLET CAMERA
o Color CMOS 1/3" 700/800/1000/1600TVL WDR, 0Lux
o Day & Night / AGC / BLC /WDR /AWB/3D-DNR
VC-700/800/1000
/1600WFA-WDR
VC-700/800/1000
/1600WTB-WDR
VC-700/800/1000
/1600WTA-WDR
6mm Varifocal Lens
24pcs IR Led, 25m IR 24pcs Led, 25-30m IR 36pcs IR Led, 25-30m IR
3.6/6mm Varifocal Lens 3.6/6mm Varifocal Lens

26. © 2014 VCU DATA MANAGEMENT LTD.

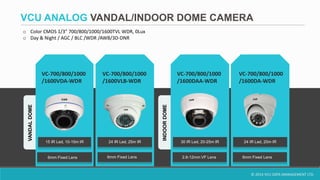

VCU ANALOG VANDAL/INDOOR DOME CAMERA
VC-700/800/1000
/1600VDA-WDR
VC-700/800/1000
/1600DA-WDR
VC-700/800/1000
/1600VLB-WDR
6mm Fixed Lens
15 IR Led, 10-15m IR 24 IR Led, 25m IR 24 IR Led, 20m IR
6mm Fixed Lens
VC-700/800/1000
/1600DAA-WDR
30 IR Led, 20-25m IR
VANDALDOME
INDOORDOME
2.8-12mm VF Lens 6mm Fixed Lens
o Color CMOS 1/3" 700/800/1000/1600TVL WDR, 0Lux
o Day & Night / AGC / BLC /WDR /AWB/3D-DNR

27. © 2014 VCU DATA MANAGEMENT LTD.

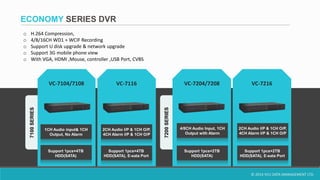

ECONOMY SERIES DVR
o H.264 Compression,
o 4/8/16CH WD1 + WCIF Recording
o Support U disk upgrade & network upgrade
o Support 3G mobile phone view
o With VGA, HDMI ,Mouse, controller ,USB Port, CVBS
VC-7104/7108 VC-7216VC-7116 VC-7204/7208
7100SERIES
7200SERIES
Support 1pcs×4TB
HDD(SATA)
Support 1pcs×4TB
HDD(SATA), E-sata Port
4/8CH Audio Input, 1CH
Output with Alarm
Support 1pcs×2TB
HDD(SATA)
2CH Audio I/P & 1CH O/P,
4CH Alarm I/P & 1CH O/P
Support 1pcs×2TB
HDD(SATA), E-sata Port
1CH Audio input& 1CH
Output, No Alarm
2CH Audio I/P & 1CH O/P,
4CH Alarm I/P & 1CH O/P

28. © 2014 VCU DATA MANAGEMENT LTD.
Thank
You
