1. VARIOUS TESTS IN HIGHWAY
ENGINEERING
TEST ON SOIL SUB GRADE

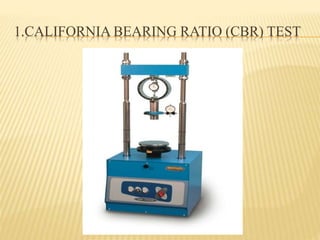

2. 1.CALIFORNIA BEARING RATIO (CBR) TEST

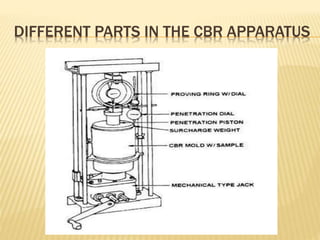

3. DIFFERENT PARTS IN THE CBR APPARATUS

4. TEST ON AGGREGATE

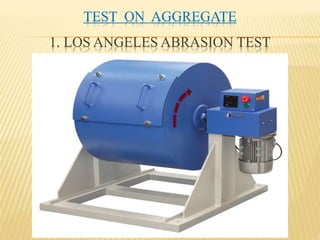

1. LOS ANGELES ABRASION TEST

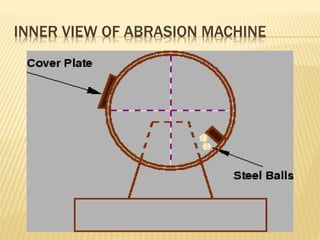

5. INNER VIEW OF ABRASION MACHINE

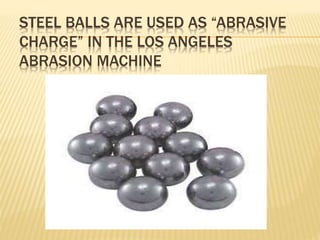

6. STEEL BALLS ARE USED AS “ABRASIVE
CHARGE” IN THE LOS ANGELES
ABRASION MACHINE

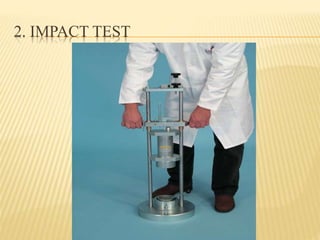

7. 2. IMPACT TEST

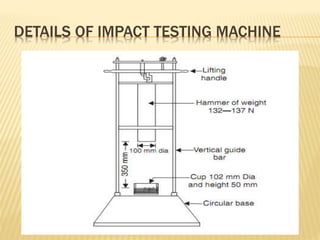

8. DETAILS OF IMPACT TESTING MACHINE

9. 3. SHAPE TEST (ELONGATION & FLAKINESS
TEST)

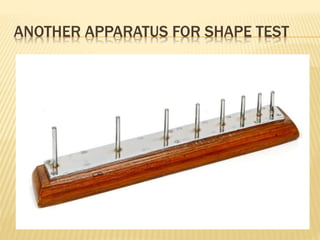

10. ANOTHER APPARATUS FOR SHAPE TEST

11. TESTS ON BITUMEN
1. PENETRATION TEST

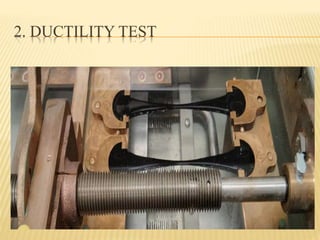

12. 2. DUCTILITY TEST

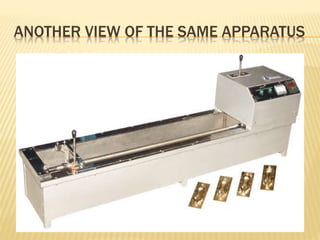

13. ANOTHER VIEW OF THE SAME APPARATUS

14. 3. SOFTENING POINT TEST

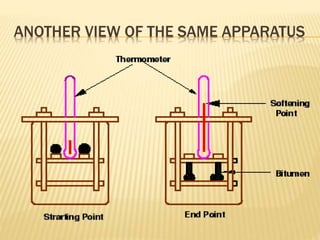

15. ANOTHER VIEW OF THE SAME APPARATUS
