The document discusses the confusion in the vacuum oil industry due to a lack of standardized information on oil equivalents and changing recommendations from manufacturers. It presents a comprehensive list of vacuum oils and their substitutes, detailing key properties that facilitate their interchangeability. Supervac aims to provide cost-effective, high-quality alternatives while encouraging users to seek help for finding unavailable oils.

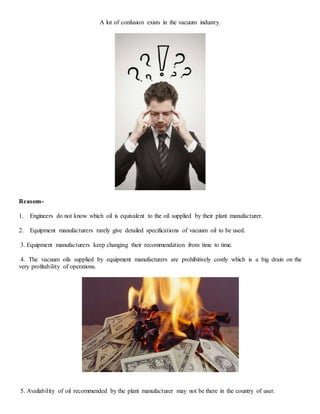

1. A lot of confusion exists in the vacuum industry.
Reasons-
1. Engineers do not know which oil is equivalent to the oil supplied by their plant manufacturer.
2. Equipment manufacturers rarely give detailed specifications of vacuum oil to be used.
3. Equipment manufacturers keep changing their recommendation from time to time.
4. The vacuum oils supplied by equipment manufacturers are prohibitively costly which is a big drain on the
very profitability of operations.
5. Availability of oil recommended by the plant manufacturer may not be there in the country of user.

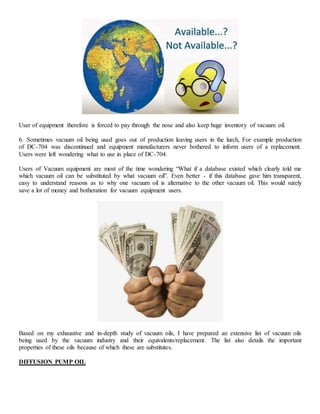

2. User of equipment therefore is forced to pay through the nose and also keep huge inventory of vacuum oil.
6. Sometimes vacuum oil being used goes out of production leaving users in the lurch, For example production
of DC-704 was discontinued and equipment manufacturers never bothered to inform users of a replacement.
Users were left wondering what to use in place of DC-704.
Users of Vacuum equipment are most of the time wondering “What if a database existed which clearly told me
which vacuum oil can be substituted by what vacuum oil”. Even better - if this database gave him transparent,
easy to understand reasons as to why one vacuum oil is alternative to the other vacuum oil. This would surely
save a lot of money and botheration for vacuum equipment users.
Based on my exhaustive and in-depth study of vacuum oils, I have prepared an extensive list of vacuum oils
being used by the vacuum industry and their equivalents/replacement. The list also details the important
properties of these oils because of which these are substitutes.
DIFFUSION PUMP OIL

3. Supervac Grade Equivalent Oils Common Properties that make them
Interchangeable
SV-Sigma High Vacuum
Silicone Diffusion Pump Oil
1. DC-704
2. CVC-4
3. Hivac F4
4. Ulvoil D31
5. Indomet Tetra
1. Silicone Diffusion Pump Oil.
2. Ultimate vacuum of the order of
1 x 10-7 Torr.
3. Boiling Temperature 2200C
4. Gasses being pumped out are
corrosive or have high moisture.
5. Long service life.
SV-Sigma + Ultrahigh
Vacuum Silicone Diffusion
Pump Oil
1. DC-705,
2. Hivac F5.
1. Silicone Diffusion Pump oil.
2. Ultimate vacuum of the order of
1 x 10-9 Torr.
3. Boiling temperature 2550C.
4. Gives very clean vacuum.
5. Very long service life.
SV-Sigma Fast Silicone
Diffusion Pump Oil
1. DC-702. 1. Silicone Diffusion Pump Oil.
2. Ultimate Vacuum of the order
of 1 x 10-6 Torr.
3. Boiling temperature 1900C
4. Vacuum is created very fast.
5. Long service life.

4. SV-Delta Diffusion Pump Oil 1. Lion S
2. Ulvoil D11.
3. CVP 300
4. CONVOIL 20
1. Hydrocarbon Diffusion Pump
Oil.
2. Ultimate Vacuum of the order
of 1 x 10-5 Torr.
3. Boiling Temperature 2350C.
4. Economy of operation is very
important.
5. Service life 3-6 months.

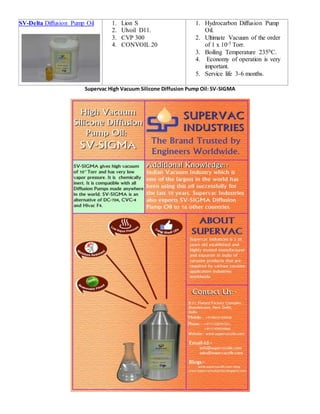

Supervac High Vacuum Silicone Diffusion Pump Oil: SV-SIGMA

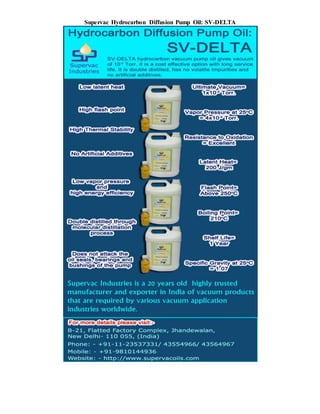

5. Supervac Hydrocarbon Diffusion Pump Oil: SV-DELTA

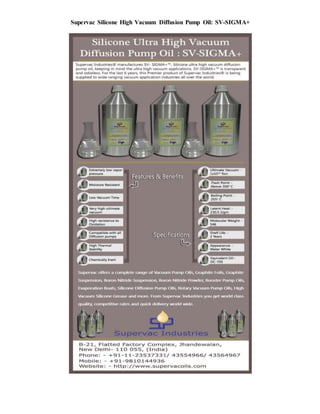

6. Supervac Silicone High Vacuum Diffusion Pump Oil: SV-SIGMA+

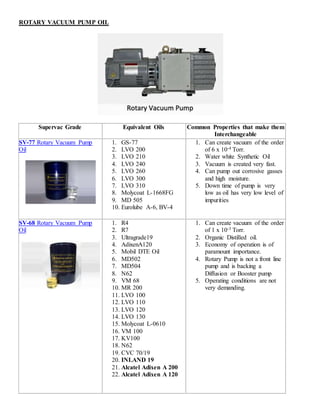

7. ROTARY VACUUM PUMP OIL
Supervac Grade Equivalent Oils Common Properties that make them
Interchangeable
SV-77 Rotary Vacuum Pump
Oil
1. GS-77
2. LVO 200
3. LVO 210
4. LVO 240
5. LVO 260
6. LVO 300
7. LVO 310
8. Molycoat L-1668FG
9. MD 505
10. Eurolube A-6, BV-4
1. Can create vacuum of the order
of 6 x 10-4 Torr.
2. Water white Synthetic Oil
3. Vacuum is created very fast.
4. Can pump out corrosive gasses
and high moisture.
5. Down time of pump is very
low as oil has very low level of
impurities
SV-68 Rotary Vacuum Pump
Oil
1. R4
2. R7
3. Ultragrade19
4. AdixenA120
5. Mobil DTE Oil
6. MD502
7. MD504
8. N62
9. VM 68
10. MR 200
11. LVO 100
12. LVO 110
13. LVO 120
14. LVO 130
15. Molycoat L-0610
16. VM 100
17. KV100
18. N62
19. CVC 70/19
20. INLAND 19
21. Alcatel Adixen A 200
22. Alcatel Adixen A 120
1. Can create vacuum of the order
of 1 x 10-3 Torr.
2. Organic Distilled oil.
3. Economy of operation is of
paramount importance.
4. Rotary Pump is not a front line
pump and is backing a
Diffusion or Booster pump
5. Operating conditions are not
very demanding.

8. 1) Hydraulic Oils,
2) Automotive oils
3) Turbine oils
These are not meant for Vacuum
Pumps and can seriously damage
vacuum pump. NEVER USE THESE
for Vacuum Pump.

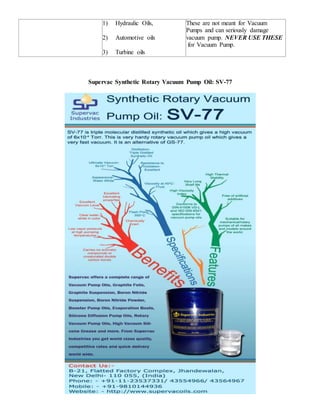

Supervac Synthetic Rotary Vacuum Pump Oil: SV-77

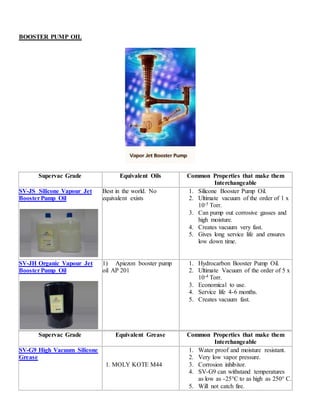

9. BOOSTER PUMP OIL
Supervac Grade Equivalent Oils Common Properties that make them
Interchangeable
SV-JS Silicone Vapour Jet
BoosterPump Oil
Best in the world. No
equivalent exists
1. Silicone Booster Pump Oil.
2. Ultimate vacuum of the order of 1 x
10-5 Torr.
3. Can pump out corrosive gasses and
high moisture.
4. Creates vacuum very fast.
5. Gives long service life and ensures
low down time.
SV-JH Organic Vapour Jet
BoosterPump Oil
1) Apiezon booster pump
oil AP 201
1. Hydrocarbon Booster Pump Oil.
2. Ultimate Vacuum of the order of 5 x
10-4 Torr.
3. Economical to use.
4. Service life 4-6 months.
5. Creates vacuum fast.
Supervac Grade Equivalent Grease Common Properties that make them
Interchangeable
SV-G9 High Vacuum Silicone
Grease
1. MOLY KOTE M44
1. Water proof and moisture resistant.
2. Very low vapor pressure.
3. Corrosion inhibitor.
4. SV-G9 can withstand temperatures
as low as -25°C to as high as 250° C.
5. Will not catch fire.

10. 6. Will not be runny at high
temperatures.
7. Will not form solid deposits on the
vacuum system in low
temperatures.

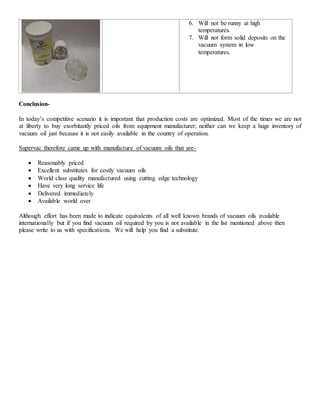

Conclusion-
In today’s competitive scenario it is important that production costs are optimized. Most of the times we are not
at liberty to buy exorbitantly priced oils from equipment manufacturer; neither can we keep a huge inventory of
vacuum oil just because it is not easily available in the country of operation.
Supervac therefore came up with manufacture of vacuum oils that are-
 Reasonably priced
 Excellent substitutes for costly vacuum oils
 World class quality manufactured using cutting edge technology
 Have very long service life
 Delivered immediately
 Available world over
Although effort has been made to indicate equivalents of all well known brands of vacuum oils available
internationally but if you find vacuum oil required by you is not available in the list mentioned above then
please write to us with specifications. We will help you find a substitute.
