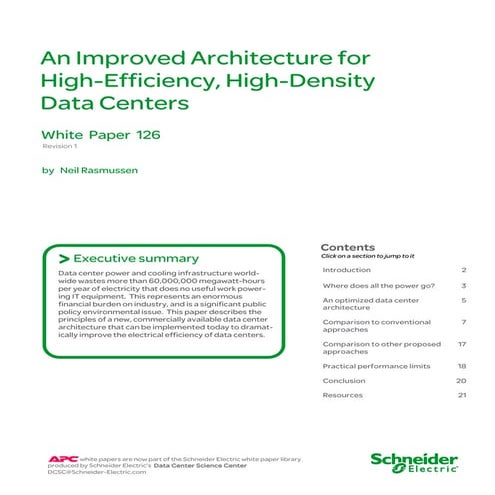

Data center power and cooling infrastructure worldwide wastes more than 60,000,000 megawatt-hours per year of electricity that does no useful work powering IT equipment. This represents an enormous financial burden on industry, and is a significant public policy environmental issue. This paper describes the principles of a new, commercially available data center
architecture that can be implemented today to dramatically improve the electrical efficiency of data centers.
Thirty states in the United States have renewable portfolio standards. The U.S. EPA is targeting many coal plants for shutdown. Electricity rates may rise 50% in five years. Electric vehicles could add significant strain to an aging infrastructure. Wind and solar could add significant instability to power quality and reliability. Demand response (DR) is the answer to remaining globally competitive in an uncertain energy future. Once a novel way to earn extra cash, DR is rapidly becoming a key competitive strategy as utilities realize they must encourage more interaction with customers. Explore the evolving world of DR and how to plan for it. Copyright AIST Reprinted with Permission
International Standards: The Challenges for an Interoperable Smart GridSchneider Electric
Building an electric energy Smart Grid involves proper interfacing between existing devices, applications and systems – all likely sourced from many different vendors. The resulting interoperability allows valuable advantages, such as the ability to use distribution system demand response (DSDR) to improve the efficiency of delivered power. Interoperability enables automated switching sequences, for system ‘self-healing’ and improved reliability, along with effective integration of distributed renewable and non-renewable resources that can enable peak shaving. Interoperability also is vital for assimilating emerging automation technologies that will enable the utility to realize these benefits in the future – and protect public and private sector technology investments.
The International Electrotechnical Commission (IEC) defines international standards, recognized globally, that characterize interoperability and security of electrical, electronic and related technologies. These standards are created to assure interoperability within all the major power system objects in an electrical utility enterprise and allow mission critical distribution functions to take advantage of real-time data in a secure manner. The IEC standards also enable reliable exchange of data among utilities and across power pools.
The U.S. National Institute of Standards and Technology (NIST) is incorporating IEC standards, and developing new or revised standards, to be applied in its development of a Smart Grid as a national energy goal. This standards framework aims to eliminate the implementation of technologies that might become obsolete prematurely or be implemented without necessary security measures – and help utilities make the infrastructure decisions that reduce cost and energy loss, improve network reliability and embrace technology innovation.
There are many factors in the data center that are driving the new data center design considerations. This slideshare discusses several of the trends in the data center and covers several solutions to implement.

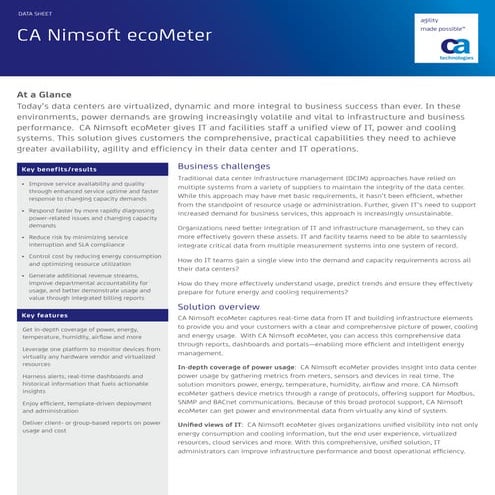

Today’s data centers are virtualized, dynamic and more integral to business success
than ever. In these environments, power demands are growing increasingly volatile and vital to infrastructure and business performance.
For more information, visit: http://nimsoft.com/solutions/nimsoft-monitor/dcim/ecometer.html.
The combination of Cisco's UCS Manager and Schneider Electric's DCIM solution provides Cisco UCS customers with an opportunity to bridge the gap between IT and Facilities, offer transparency across the two silos, and positively impact the rest of the organization – both in terms of efficiency, uptime and capex/opex costs. This is achieved by optimising the existing physical infrastructure capacities, thus reducing overprovisioning and improving the balance between supply and demand, resulting in continual availability and optimal energy efficiency.
Maximize Your Data Center for Virtualization InitiativesSchneider Electric
Presentation focuses on the impact virtualization initiatives have on the data center and more importantly the critical
physical infrastructure supporting the data center. Virtualization is an IT strategy that can easily and quickly impact, with potential negative consequences, the reliability and availability of the data center. Understand the effects and some considerations in the implementation of virtualization.
As steel operations rely heavily on low-voltage motors, the introduction of new technologies which target motor performance have a direct impact on energy, commissioning and maintenance costs. Networking allows for easy monitoring of critical data of
each motor or load connected to the intelligent motor control center (iMCC), enabling precise process control. However, the iMCC concept isn’t a new technology. Networked protection relays and speed drivers are mature technologies with consolidated acceptance. Explore new trends for iMCCs including new Ethernet technologies, Web, wireless, biometric devices, and new technologies for metering and motor branch circuit protection. Copyright AIST Reprinted with Permission

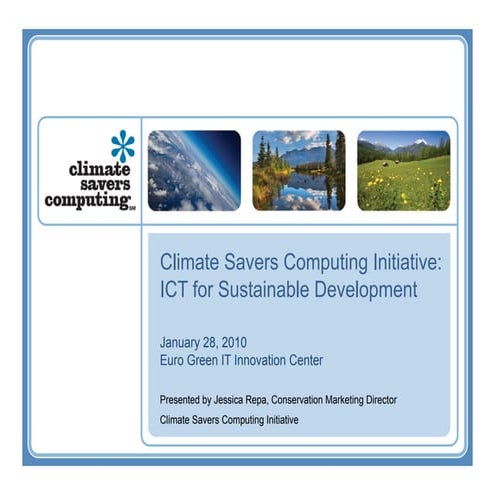

Jessica Repa, Conservation Marketing Director for Climate Savers Computing Initiative, presented at the Euro Green IT Innovation Center launch in Brussels, Belgium on January 28, 2010 to discuss Information and Communication Technologies (ICT) for Sustainable Development.
This presentation was developed to help companies engage employees and partners in energy efficient computing practices. It also serves as a platform to expanding the Climate Savers Computing Initiative through new alliances with interested businesses and organizations.
High End metering is focused on a much smaller market including:
Production – Generation metering
Transmission – Grid metering for bulk power exchange
Distribution – Large industrial customers and renewable grid connections
The combination of Cisco's UCS Manager and Schneider Electric's DCIM solution provides Cisco UCS customers with an opportunity to bridge the gap between IT and Facilities, offer transparency across the two silos, and positively impact the rest of the organization – both in terms of efficiency, uptime and capex/opex costs. This is achieved by optimising the existing physical infrastructure capacities, thus reducing overprovisioning and improving the balance between supply and demand, resulting in continual availability and optimal energy efficiency.
Maximize Your Data Center for Virtualization InitiativesSchneider Electric
Presentation focuses on the impact virtualization initiatives have on the data center and more importantly the critical
physical infrastructure supporting the data center. Virtualization is an IT strategy that can easily and quickly impact, with potential negative consequences, the reliability and availability of the data center. Understand the effects and some considerations in the implementation of virtualization.
As steel operations rely heavily on low-voltage motors, the introduction of new technologies which target motor performance have a direct impact on energy, commissioning and maintenance costs. Networking allows for easy monitoring of critical data of
each motor or load connected to the intelligent motor control center (iMCC), enabling precise process control. However, the iMCC concept isn’t a new technology. Networked protection relays and speed drivers are mature technologies with consolidated acceptance. Explore new trends for iMCCs including new Ethernet technologies, Web, wireless, biometric devices, and new technologies for metering and motor branch circuit protection. Copyright AIST Reprinted with Permission
Jessica Repa, Conservation Marketing Director for Climate Savers Computing Initiative, presented at the Euro Green IT Innovation Center launch in Brussels, Belgium on January 28, 2010 to discuss Information and Communication Technologies (ICT) for Sustainable Development.
This presentation was developed to help companies engage employees and partners in energy efficient computing practices. It also serves as a platform to expanding the Climate Savers Computing Initiative through new alliances with interested businesses and organizations.
High End metering is focused on a much smaller market including:
Production – Generation metering
Transmission – Grid metering for bulk power exchange
Distribution – Large industrial customers and renewable grid connections
Synerjix Core Team Consulting - tailor made for a Challenging EconomyBenaud Jacob
A challenging economy demands reduced costs and better results. This is all the more apparent with the Small and Medium sized businesses (SMB). Synerjix "Core Teams" is a proven consulting methodology that was derived in the late nineties, utilized by a few fortune 500 firms in the U.S.
Synerjix' 2013 strategy is to co-locate with businesses across the U.S by having partnerships and representations around major U.S business hubs. A consulting methodology that benefited leading U.S corporations is being made available to the SMB with the same levels of attention and care.
Please contact sales@Synerjix.com or visit www.Synerjix.com for more details
Developing a Collective Curriculum to make Civil Society Data LiteratePim Bellinga
In January 2017 I Hate Statistics was invited to organise an interactive workshop at the United Nations World Data Forum in Cape Town. A lot of data about the Sustainable Development Goals is being shared. But to make that data meaningful, requires interpretation. Those skills are often lacking. In this interactive workshop presentation outline the why, when, who, what and how of data literacy.
Invited talk at Processing ROmanian in Multilingual, Interoperational and Scalable Environments (PROMISE 2010) on how to port the QALL-ME framework to a new language
“We will keep our minds firmly on our goal that is to save the lives of children.
Rotary will turn the dreams of a safe and happy childhood — a childhood that becomes a long and healthy life — into a reality because all of the world’s children, are our children.”
D. K. LEE
R I President (2008-09)
Rotary Club of Rajkot
Picnic of 450 Deaf & Dumb / Orphan Children to Balbhavan on 16.01.2009
Project Chairman - PE Ketan Joshi
Echelon Enables Powerful and Efficient Grid Analytics with New Smart Meter Software that Helps Utilities Avoid Service Outages.
- Industry First - Smart meters (Echelon/OSGP) can now be upgraded in the field to function as multi-parameter grid sensors, in addition to serving as billing devices.
- Reduces Data Deluge - Separating billing data from grid power quality data enables utilities to minimize the volume of data collected and processed, while increasing its usefulness – ultimately improving service reliability at lower cost.
Confronting the Data Center Crisis: A Cost - Benefit Analysis of the IBM Computing on Demand (CoD) Cloud Offering
Reducing TCO and Enabling New Capability, Faster Time to Results,
and New Business Models
since our electrical system consists of many interconnections .in order to have a proper transmission we need grid if we incorporate some sensors it results in smart grid .today grid system consists of all interconnection tapping points
IDC Tech Spotlight: From Silicon To CloudJames Price
The topic of cloud computing has received a tremendous amount of attention in the last year. This whitepaper discusses some of the aspects of the delivery of IT Infrastructure as a service.
Analytics is being used in data centers, buildings, and municipalities to provide streamlined, proactive services. The deeper understanding of daily operations that analytics provides enables companies and governments to address problems that stretch across their systems, and makes it easier for them to simplify infrastructures and reduce costs.
UiPath Test Automation using UiPath Test Suite series, part 4DianaGray10
Welcome to UiPath Test Automation using UiPath Test Suite series part 4. In this session, we will cover Test Manager overview along with SAP heatmap.
The UiPath Test Manager overview with SAP heatmap webinar offers a concise yet comprehensive exploration of the role of a Test Manager within SAP environments, coupled with the utilization of heatmaps for effective testing strategies.
Participants will gain insights into the responsibilities, challenges, and best practices associated with test management in SAP projects. Additionally, the webinar delves into the significance of heatmaps as a visual aid for identifying testing priorities, areas of risk, and resource allocation within SAP landscapes. Through this session, attendees can expect to enhance their understanding of test management principles while learning practical approaches to optimize testing processes in SAP environments using heatmap visualization techniques
What will you get from this session?
1. Insights into SAP testing best practices
2. Heatmap utilization for testing
3. Optimization of testing processes
4. Demo
Topics covered:
Execution from the test manager
Orchestrator execution result
Defect reporting
SAP heatmap example with demo
Speaker:
Deepak Rai, Automation Practice Lead, Boundaryless Group and UiPath MVP
Essentials of Automations: Optimizing FME Workflows with ParametersSafe Software
Are you looking to streamline your workflows and boost your projects’ efficiency? Do you find yourself searching for ways to add flexibility and control over your FME workflows? If so, you’re in the right place.
Join us for an insightful dive into the world of FME parameters, a critical element in optimizing workflow efficiency. This webinar marks the beginning of our three-part “Essentials of Automation” series. This first webinar is designed to equip you with the knowledge and skills to utilize parameters effectively: enhancing the flexibility, maintainability, and user control of your FME projects.
Here’s what you’ll gain:
- Essentials of FME Parameters: Understand the pivotal role of parameters, including Reader/Writer, Transformer, User, and FME Flow categories. Discover how they are the key to unlocking automation and optimization within your workflows.
- Practical Applications in FME Form: Delve into key user parameter types including choice, connections, and file URLs. Allow users to control how a workflow runs, making your workflows more reusable. Learn to import values and deliver the best user experience for your workflows while enhancing accuracy.
- Optimization Strategies in FME Flow: Explore the creation and strategic deployment of parameters in FME Flow, including the use of deployment and geometry parameters, to maximize workflow efficiency.
- Pro Tips for Success: Gain insights on parameterizing connections and leveraging new features like Conditional Visibility for clarity and simplicity.
We’ll wrap up with a glimpse into future webinars, followed by a Q&A session to address your specific questions surrounding this topic.
Don’t miss this opportunity to elevate your FME expertise and drive your projects to new heights of efficiency.
GraphRAG is All You need? LLM & Knowledge GraphGuy Korland
Guy Korland, CEO and Co-founder of FalkorDB, will review two articles on the integration of language models with knowledge graphs.
1. Unifying Large Language Models and Knowledge Graphs: A Roadmap.
https://arxiv.org/abs/2306.08302
2. Microsoft Research's GraphRAG paper and a review paper on various uses of knowledge graphs:
https://www.microsoft.com/en-us/research/blog/graphrag-unlocking-llm-discovery-on-narrative-private-data/
The Art of the Pitch: WordPress Relationships and SalesLaura Byrne
Clients don’t know what they don’t know. What web solutions are right for them? How does WordPress come into the picture? How do you make sure you understand scope and timeline? What do you do if sometime changes?
All these questions and more will be explored as we talk about matching clients’ needs with what your agency offers without pulling teeth or pulling your hair out. Practical tips, and strategies for successful relationship building that leads to closing the deal.
Transcript: Selling digital books in 2024: Insights from industry leaders - T...BookNet Canada
The publishing industry has been selling digital audiobooks and ebooks for over a decade and has found its groove. What’s changed? What has stayed the same? Where do we go from here? Join a group of leading sales peers from across the industry for a conversation about the lessons learned since the popularization of digital books, best practices, digital book supply chain management, and more.
Link to video recording: https://bnctechforum.ca/sessions/selling-digital-books-in-2024-insights-from-industry-leaders/
Presented by BookNet Canada on May 28, 2024, with support from the Department of Canadian Heritage.
Smart TV Buyer Insights Survey 2024 by 91mobiles.pdf91mobiles
91mobiles recently conducted a Smart TV Buyer Insights Survey in which we asked over 3,000 respondents about the TV they own, aspects they look at on a new TV, and their TV buying preferences.
SAP Sapphire 2024 - ASUG301 building better apps with SAP Fiori.pdfPeter Spielvogel
Building better applications for business users with SAP Fiori.
• What is SAP Fiori and why it matters to you
• How a better user experience drives measurable business benefits
• How to get started with SAP Fiori today
• How SAP Fiori elements accelerates application development
• How SAP Build Code includes SAP Fiori tools and other generative artificial intelligence capabilities
• How SAP Fiori paves the way for using AI in SAP apps
Le nuove frontiere dell'AI nell'RPA con UiPath Autopilot™UiPathCommunity
In questo evento online gratuito, organizzato dalla Community Italiana di UiPath, potrai esplorare le nuove funzionalità di Autopilot, il tool che integra l'Intelligenza Artificiale nei processi di sviluppo e utilizzo delle Automazioni.
📕 Vedremo insieme alcuni esempi dell'utilizzo di Autopilot in diversi tool della Suite UiPath:
Autopilot per Studio Web
Autopilot per Studio
Autopilot per Apps
Clipboard AI
GenAI applicata alla Document Understanding
👨🏫👨💻 Speakers:
Stefano Negro, UiPath MVPx3, RPA Tech Lead @ BSP Consultant
Flavio Martinelli, UiPath MVP 2023, Technical Account Manager @UiPath
Andrei Tasca, RPA Solutions Team Lead @NTT Data
Welocme to ViralQR, your best QR code generator.ViralQR
Welcome to ViralQR, your best QR code generator available on the market!
At ViralQR, we design static and dynamic QR codes. Our mission is to make business operations easier and customer engagement more powerful through the use of QR technology. Be it a small-scale business or a huge enterprise, our easy-to-use platform provides multiple choices that can be tailored according to your company's branding and marketing strategies.
Our Vision
We are here to make the process of creating QR codes easy and smooth, thus enhancing customer interaction and making business more fluid. We very strongly believe in the ability of QR codes to change the world for businesses in their interaction with customers and are set on making that technology accessible and usable far and wide.
Our Achievements
Ever since its inception, we have successfully served many clients by offering QR codes in their marketing, service delivery, and collection of feedback across various industries. Our platform has been recognized for its ease of use and amazing features, which helped a business to make QR codes.
Our Services
At ViralQR, here is a comprehensive suite of services that caters to your very needs:
Static QR Codes: Create free static QR codes. These QR codes are able to store significant information such as URLs, vCards, plain text, emails and SMS, Wi-Fi credentials, and Bitcoin addresses.
Dynamic QR codes: These also have all the advanced features but are subscription-based. They can directly link to PDF files, images, micro-landing pages, social accounts, review forms, business pages, and applications. In addition, they can be branded with CTAs, frames, patterns, colors, and logos to enhance your branding.
Pricing and Packages
Additionally, there is a 14-day free offer to ViralQR, which is an exceptional opportunity for new users to take a feel of this platform. One can easily subscribe from there and experience the full dynamic of using QR codes. The subscription plans are not only meant for business; they are priced very flexibly so that literally every business could afford to benefit from our service.
Why choose us?
ViralQR will provide services for marketing, advertising, catering, retail, and the like. The QR codes can be posted on fliers, packaging, merchandise, and banners, as well as to substitute for cash and cards in a restaurant or coffee shop. With QR codes integrated into your business, improve customer engagement and streamline operations.
Comprehensive Analytics
Subscribers of ViralQR receive detailed analytics and tracking tools in light of having a view of the core values of QR code performance. Our analytics dashboard shows aggregate views and unique views, as well as detailed information about each impression, including time, device, browser, and estimated location by city and country.
So, thank you for choosing ViralQR; we have an offer of nothing but the best in terms of QR code services to meet business diversity!
Builder.ai Founder Sachin Dev Duggal's Strategic Approach to Create an Innova...Ramesh Iyer
In today's fast-changing business world, Companies that adapt and embrace new ideas often need help to keep up with the competition. However, fostering a culture of innovation takes much work. It takes vision, leadership and willingness to take risks in the right proportion. Sachin Dev Duggal, co-founder of Builder.ai, has perfected the art of this balance, creating a company culture where creativity and growth are nurtured at each stage.
Key Trends Shaping the Future of Infrastructure.pdfCheryl Hung
Keynote at DIGIT West Expo, Glasgow on 29 May 2024.
Cheryl Hung, ochery.com
Sr Director, Infrastructure Ecosystem, Arm.
The key trends across hardware, cloud and open-source; exploring how these areas are likely to mature and develop over the short and long-term, and then considering how organisations can position themselves to adapt and thrive.
A tale of scale & speed: How the US Navy is enabling software delivery from l...sonjaschweigert1
Rapid and secure feature delivery is a goal across every application team and every branch of the DoD. The Navy’s DevSecOps platform, Party Barge, has achieved:
- Reduction in onboarding time from 5 weeks to 1 day
- Improved developer experience and productivity through actionable findings and reduction of false positives
- Maintenance of superior security standards and inherent policy enforcement with Authorization to Operate (ATO)
Development teams can ship efficiently and ensure applications are cyber ready for Navy Authorizing Officials (AOs). In this webinar, Sigma Defense and Anchore will give attendees a look behind the scenes and demo secure pipeline automation and security artifacts that speed up application ATO and time to production.
We will cover:
- How to remove silos in DevSecOps
- How to build efficient development pipeline roles and component templates
- How to deliver security artifacts that matter for ATO’s (SBOMs, vulnerability reports, and policy evidence)
- How to streamline operations with automated policy checks on container images
A tale of scale & speed: How the US Navy is enabling software delivery from l...
Utilities Datapower.2
1. Business-IT Alignment, Business Process Transformation(BPX), Services Oriented,
Automated Metering Infrastructure, Architectural Services (SOA), and SOA
Industrialization service

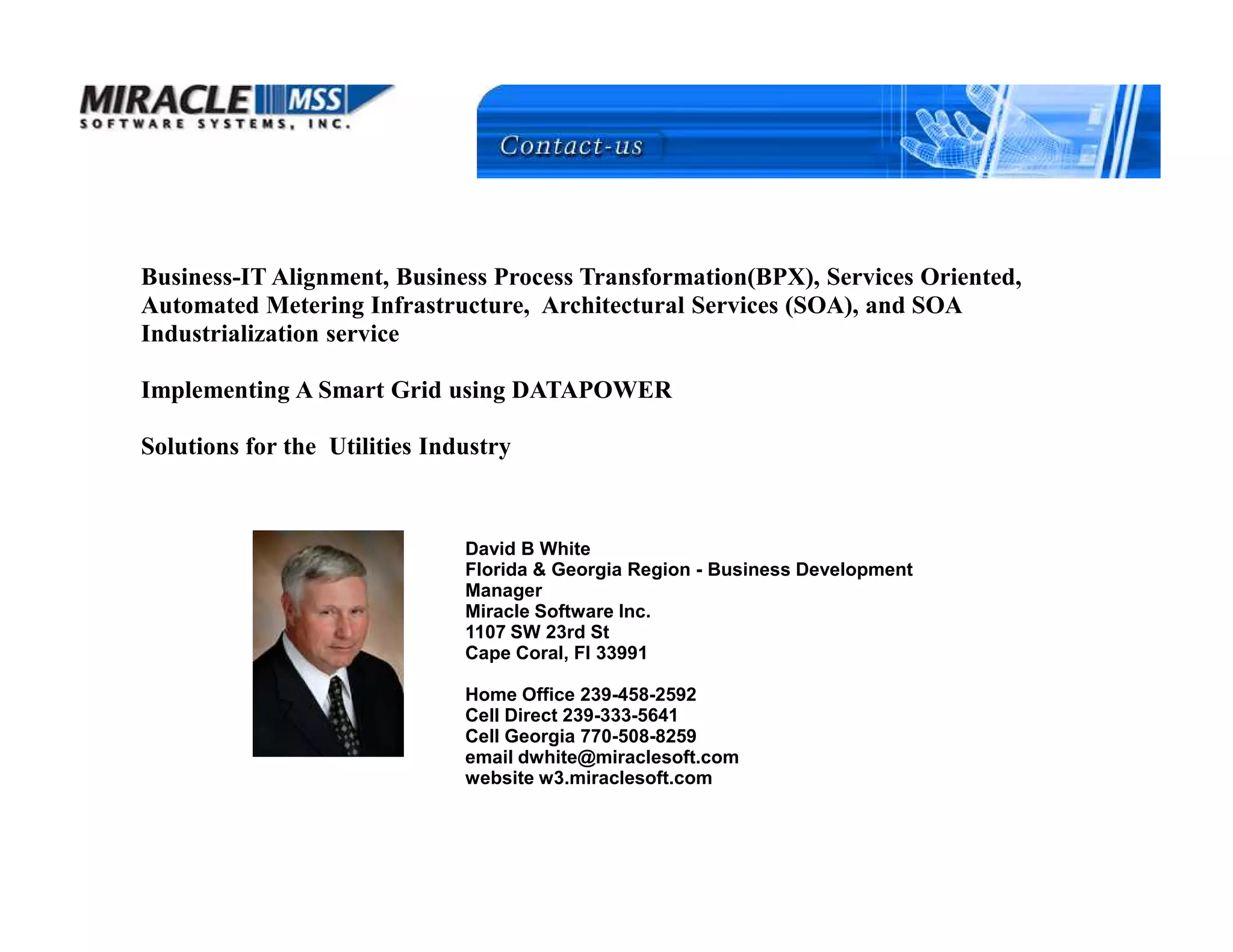

Implementing A Smart Grid using DATAPOWER
Solutions for the Utilities Industry
David B White
Florida & Georgia Region - Business Development
Manager
Miracle Software Inc.
1107 SW 23rd St
Cape Coral, Fl 33991
Home Office 239-458-2592
Cell Direct 239-333-5641
Cell Georgia 770-508-8259
email dwhite@miraclesoft.com
website w3.miraclesoft.com

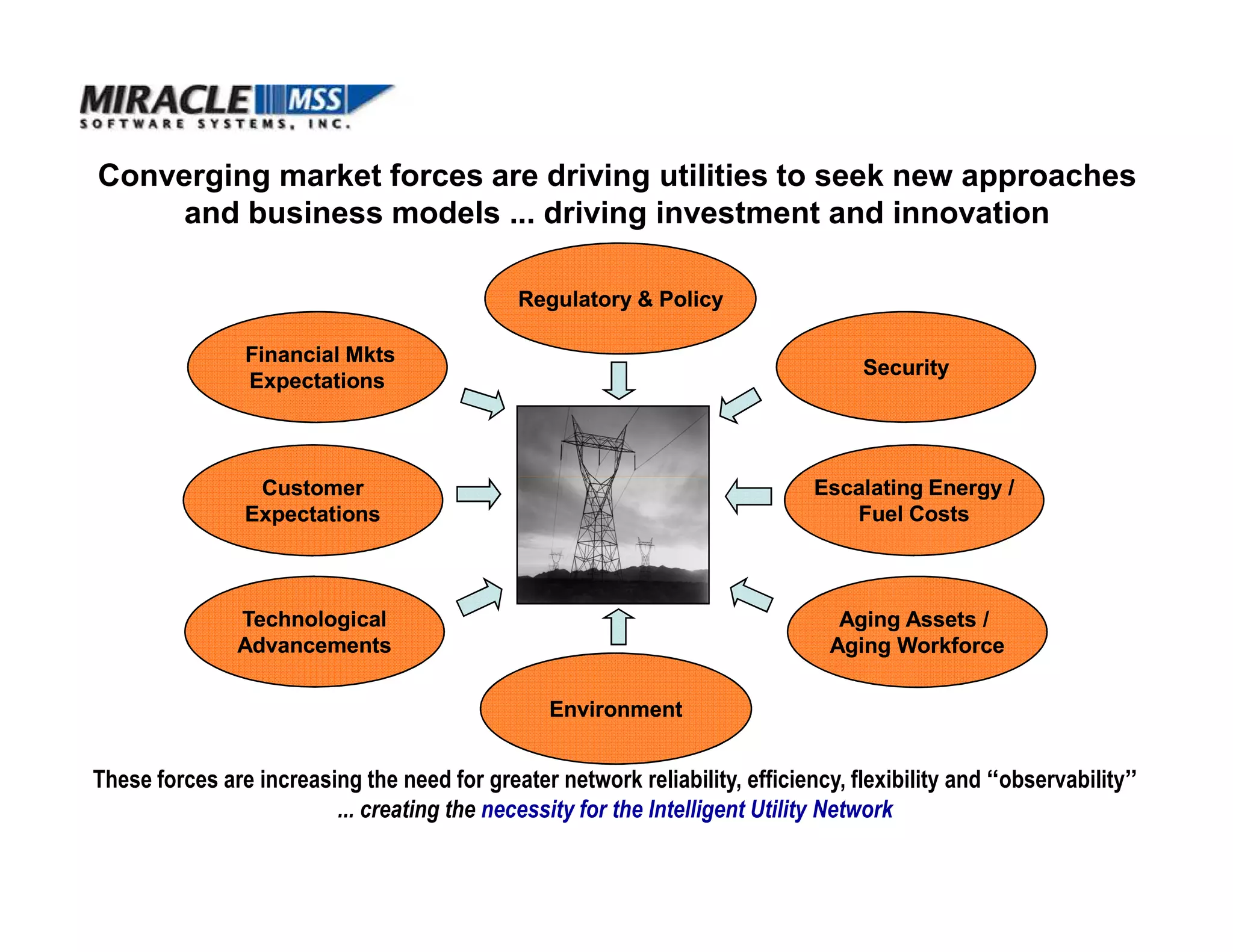

2. Converging market forces are driving utilities to seek new approaches
and business models ... driving investment and innovation
Regulatory & Policy
Financial Mkts
Security
Expectations
Escalating Energy /
Customer
Fuel Costs
Expectations
Technological Aging Assets /
Advancements Aging Workforce
Environment
These forces are increasing the need for greater network reliability, efficiency, flexibility and “observability”
... creating the necessity for the Intelligent Utility Network

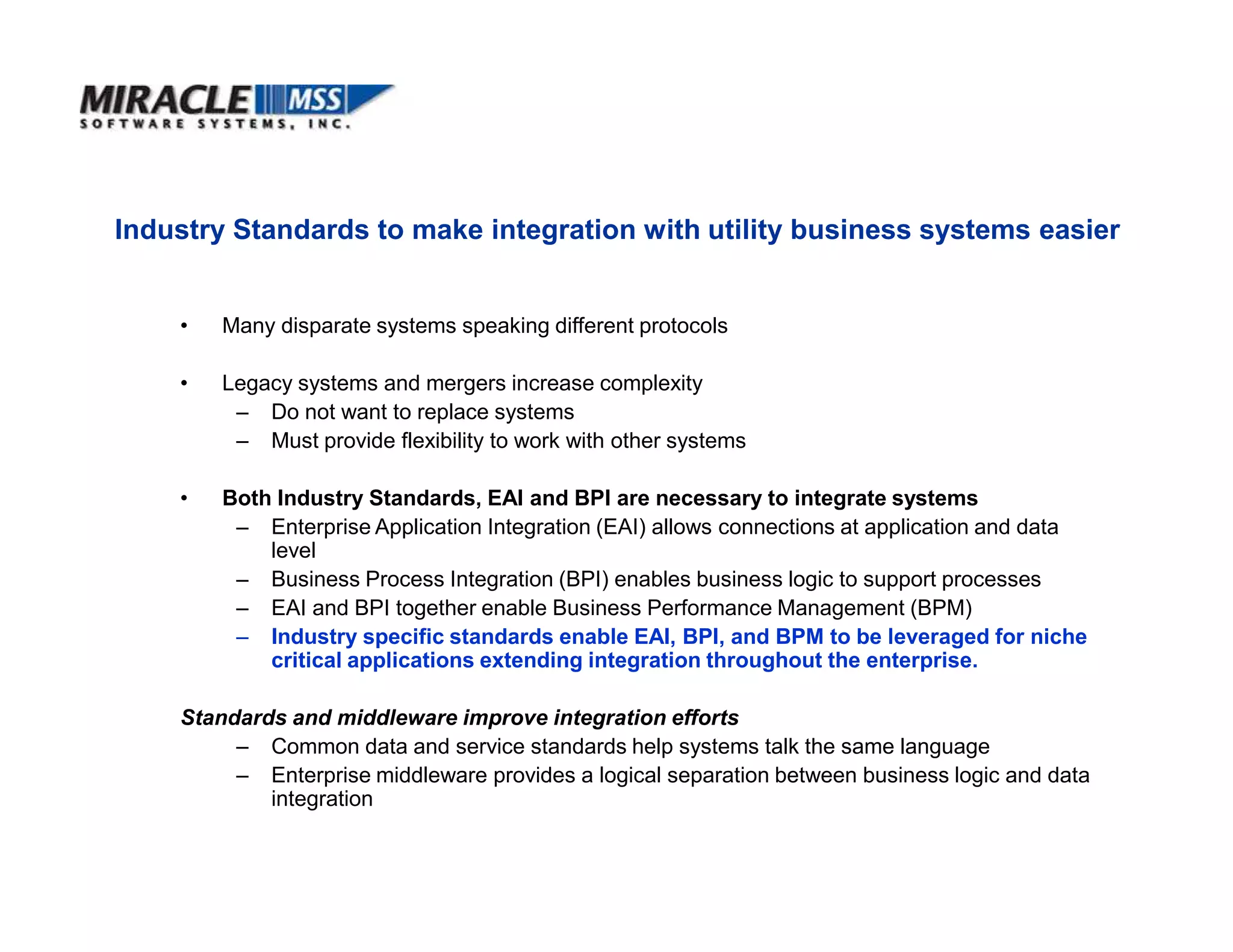

3. Industry Standards to make integration with utility business systems easier
• Many disparate systems speaking different protocols
• Legacy systems and mergers increase complexity
– Do not want to replace systems
– Must provide flexibility to work with other systems
• Both Industry Standards, EAI and BPI are necessary to integrate systems
– Enterprise Application Integration (EAI) allows connections at application and data
level
– Business Process Integration (BPI) enables business logic to support processes
– EAI and BPI together enable Business Performance Management (BPM)
– Industry specific standards enable EAI, BPI, and BPM to be leveraged for niche
critical applications extending integration throughout the enterprise.
Standards and middleware improve integration efforts
– Common data and service standards help systems talk the same language
– Enterprise middleware provides a logical separation between business logic and data
integration

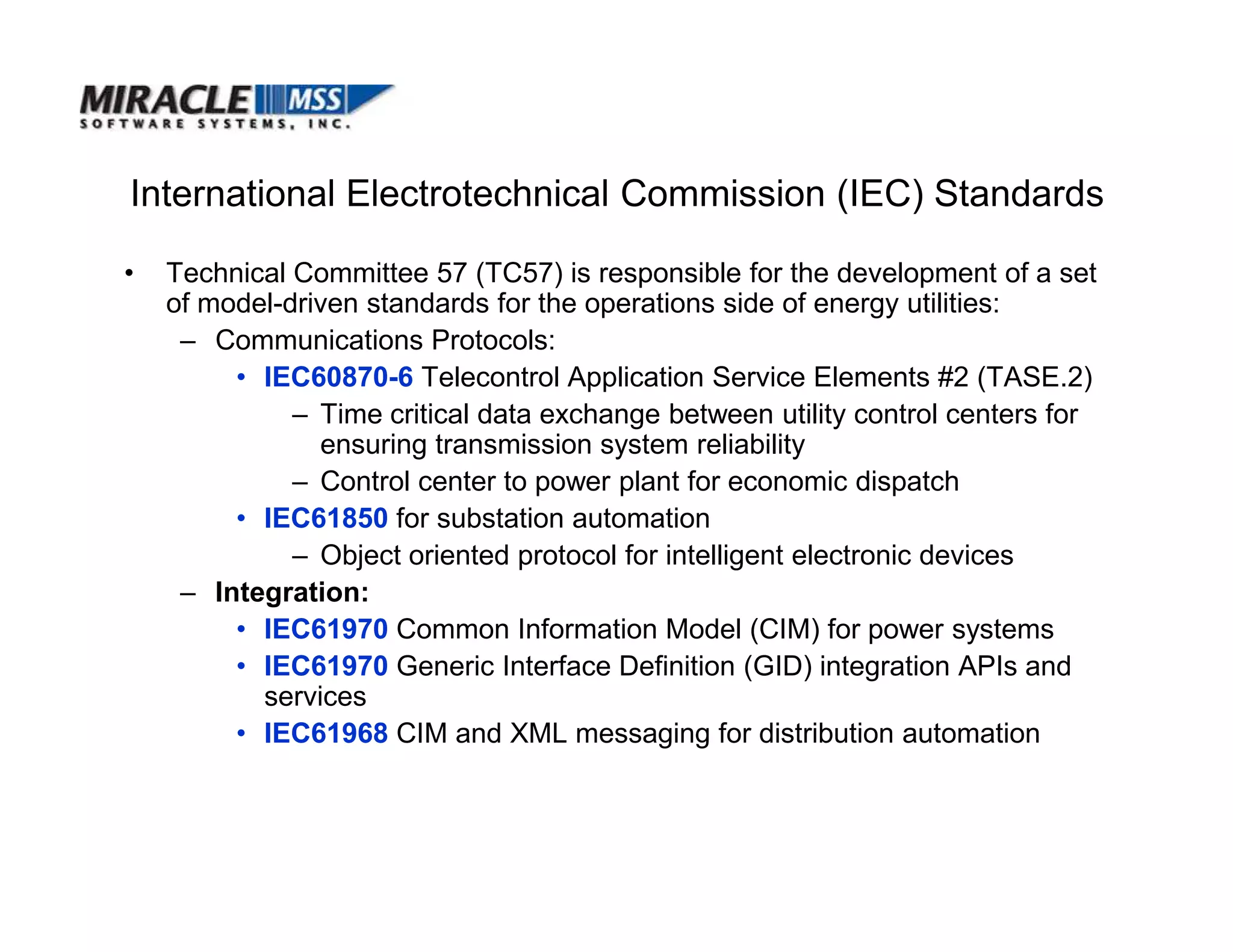

4. International Electrotechnical Commission (IEC) Standards
• Technical Committee 57 (TC57) is responsible for the development of a set
of model-driven standards for the operations side of energy utilities:
– Communications Protocols:
• IEC60870-6 Telecontrol Application Service Elements #2 (TASE.2)
– Time critical data exchange between utility control centers for
ensuring transmission system reliability
– Control center to power plant for economic dispatch
• IEC61850 for substation automation
– Object oriented protocol for intelligent electronic devices
– Integration:
• IEC61970 Common Information Model (CIM) for power systems
• IEC61970 Generic Interface Definition (GID) integration APIs and
services
• IEC61968 CIM and XML messaging for distribution automation

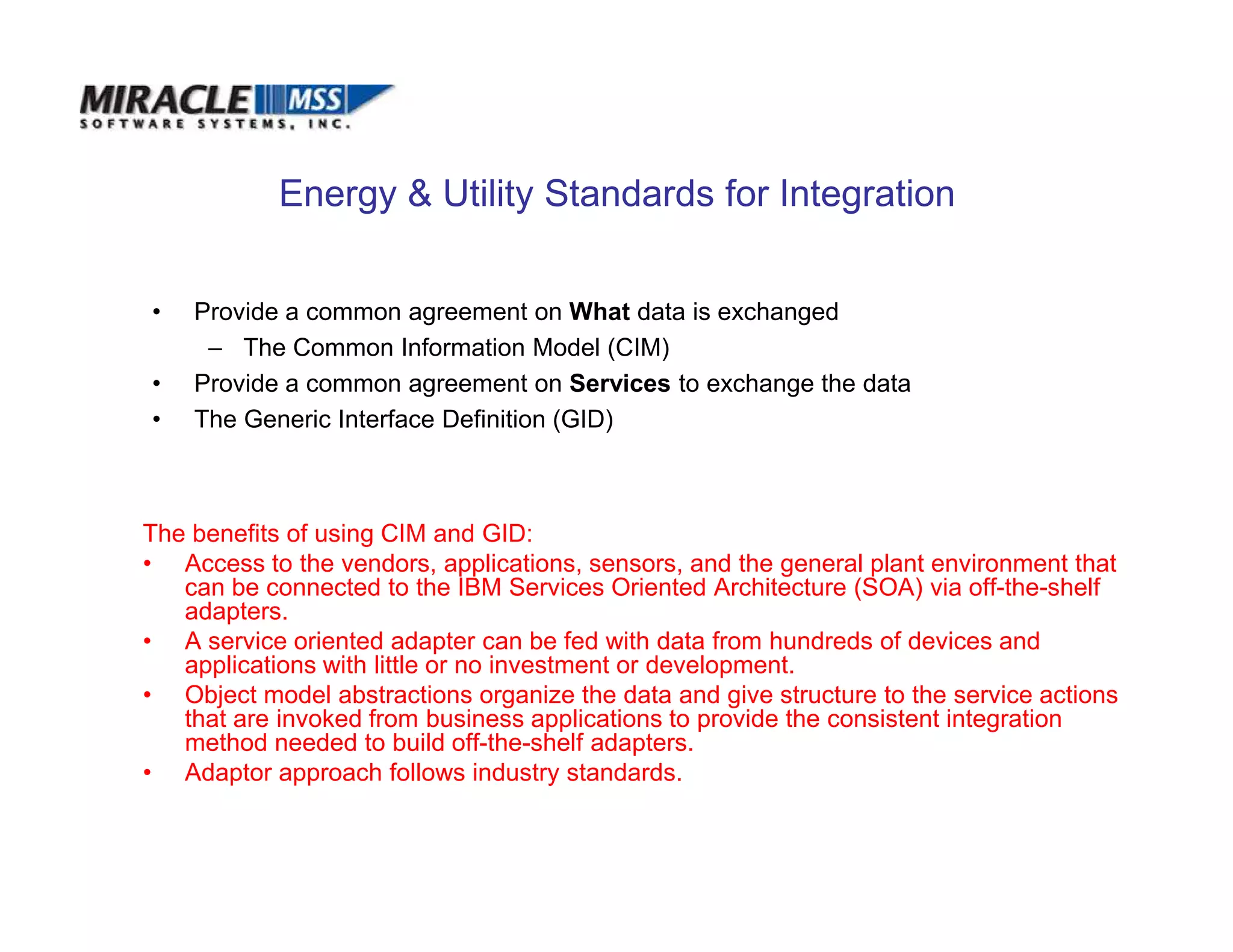

5. Energy & Utility Standards for Integration
• Provide a common agreement on What data is exchanged
– The Common Information Model (CIM)
• Provide a common agreement on Services to exchange the data
• The Generic Interface Definition (GID)
The benefits of using CIM and GID:
• Access to the vendors, applications, sensors, and the general plant environment that
can be connected to the IBM Services Oriented Architecture (SOA) via off-the-shelf
adapters.
• A service oriented adapter can be fed with data from hundreds of devices and
applications with little or no investment or development.
• Object model abstractions organize the data and give structure to the service actions
that are invoked from business applications to provide the consistent integration
method needed to build off-the-shelf adapters.
• Adaptor approach follows industry standards.

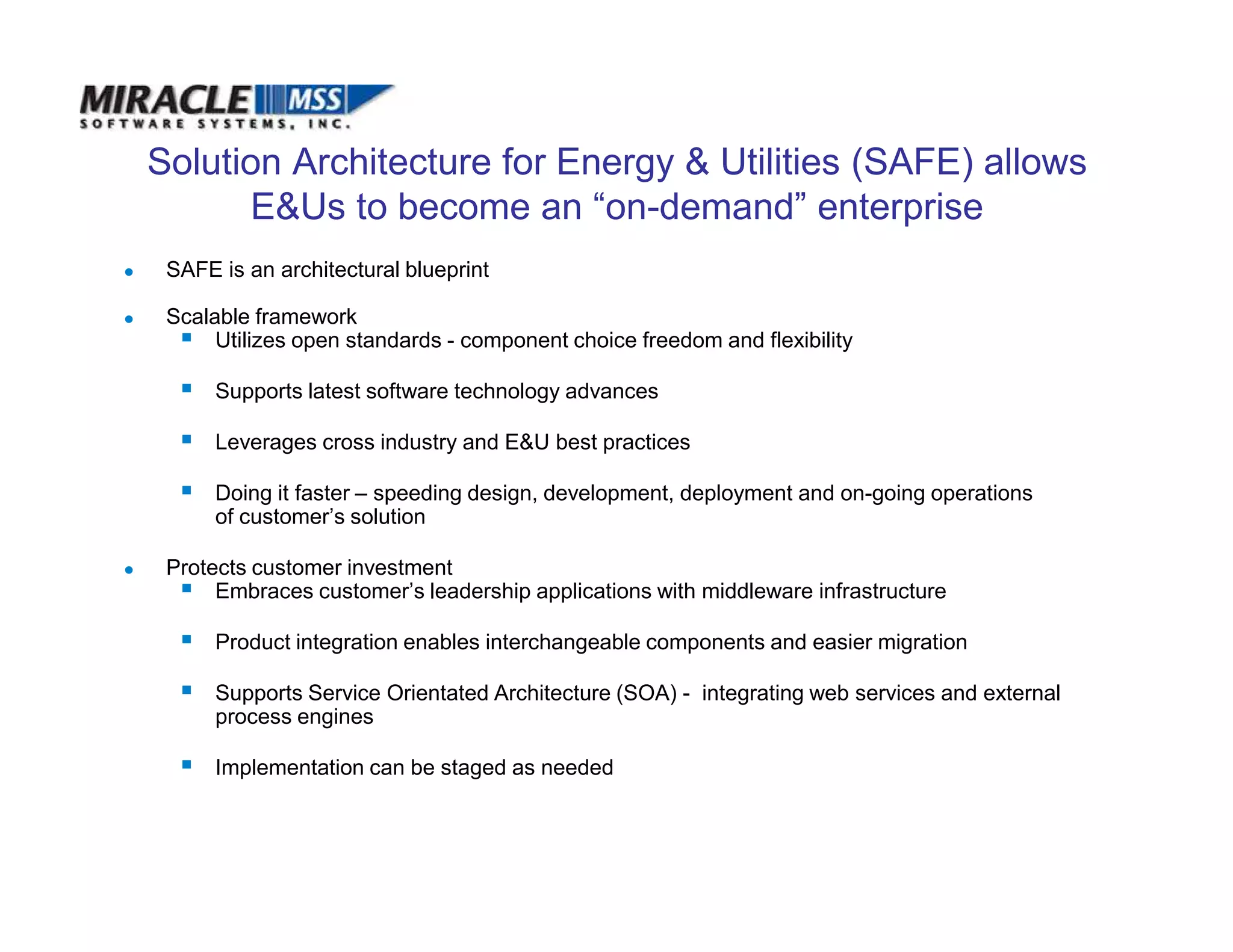

6. Solution Architecture for Energy & Utilities (SAFE) allows
E&Us to become an “on-demand” enterprise
SAFE is an architectural blueprint
Scalable framework
Utilizes open standards - component choice freedom and flexibility
Supports latest software technology advances
Leverages cross industry and E&U best practices
Doing it faster – speeding design, development, deployment and on-going operations
of customer’s solution
Protects customer investment
Embraces customer’s leadership applications with middleware infrastructure
Product integration enables interchangeable components and easier migration
Supports Service Orientated Architecture (SOA) - integrating web services and external
process engines
Implementation can be staged as needed

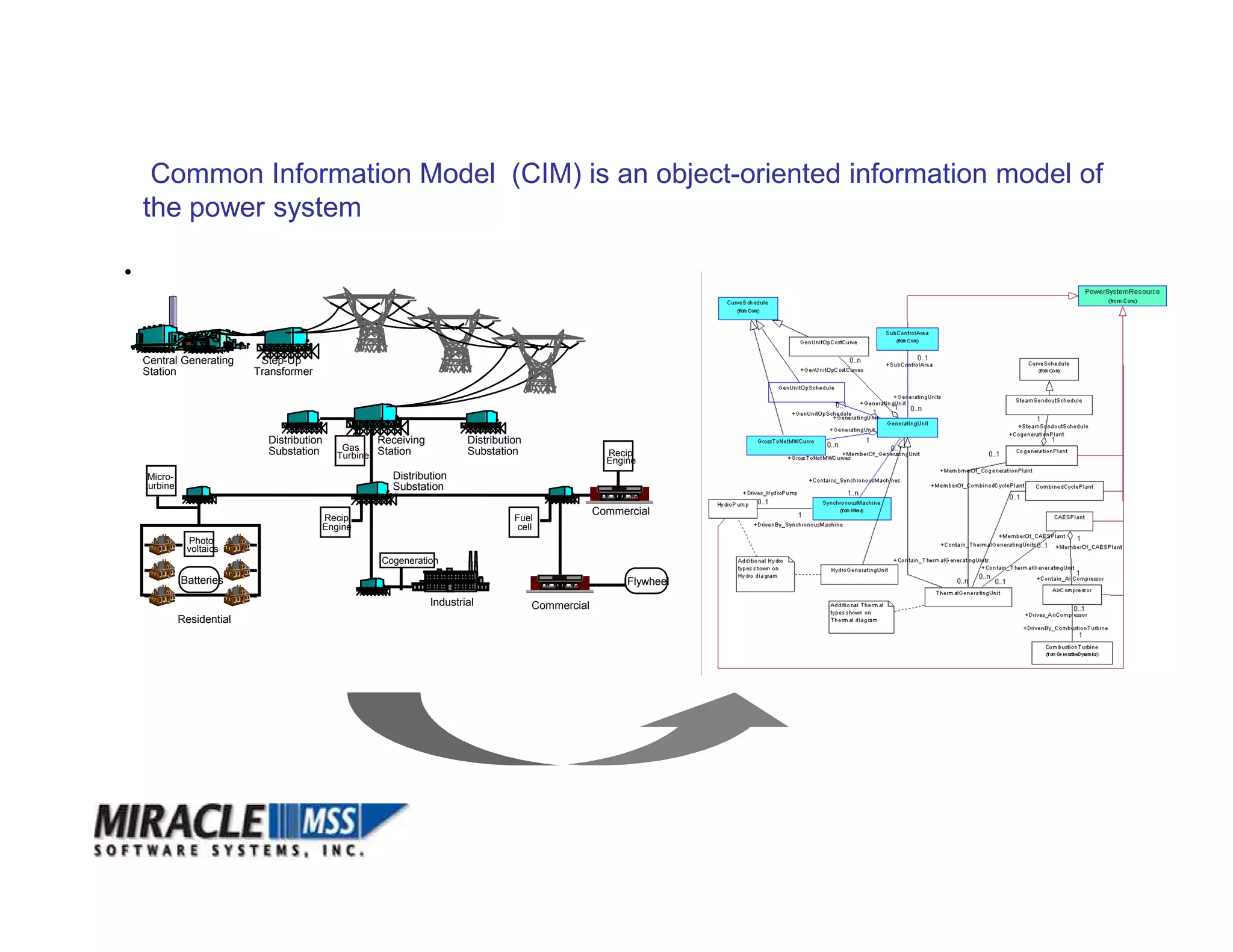

7. Common Information Model (CIM) is an object-oriented information model of
the power system
•
Central Generating Step-Up
Station Transformer
Distribution Receiving Distribution
Gas
Substation Turbine Station Substation Recip
Engine
Distribution
Micro-
turbine Substation
Commercial
Recip Fuel
Engine cell
voltaics
Cogeneration
Batteries Flywheel
Industrial Commercial
Residential

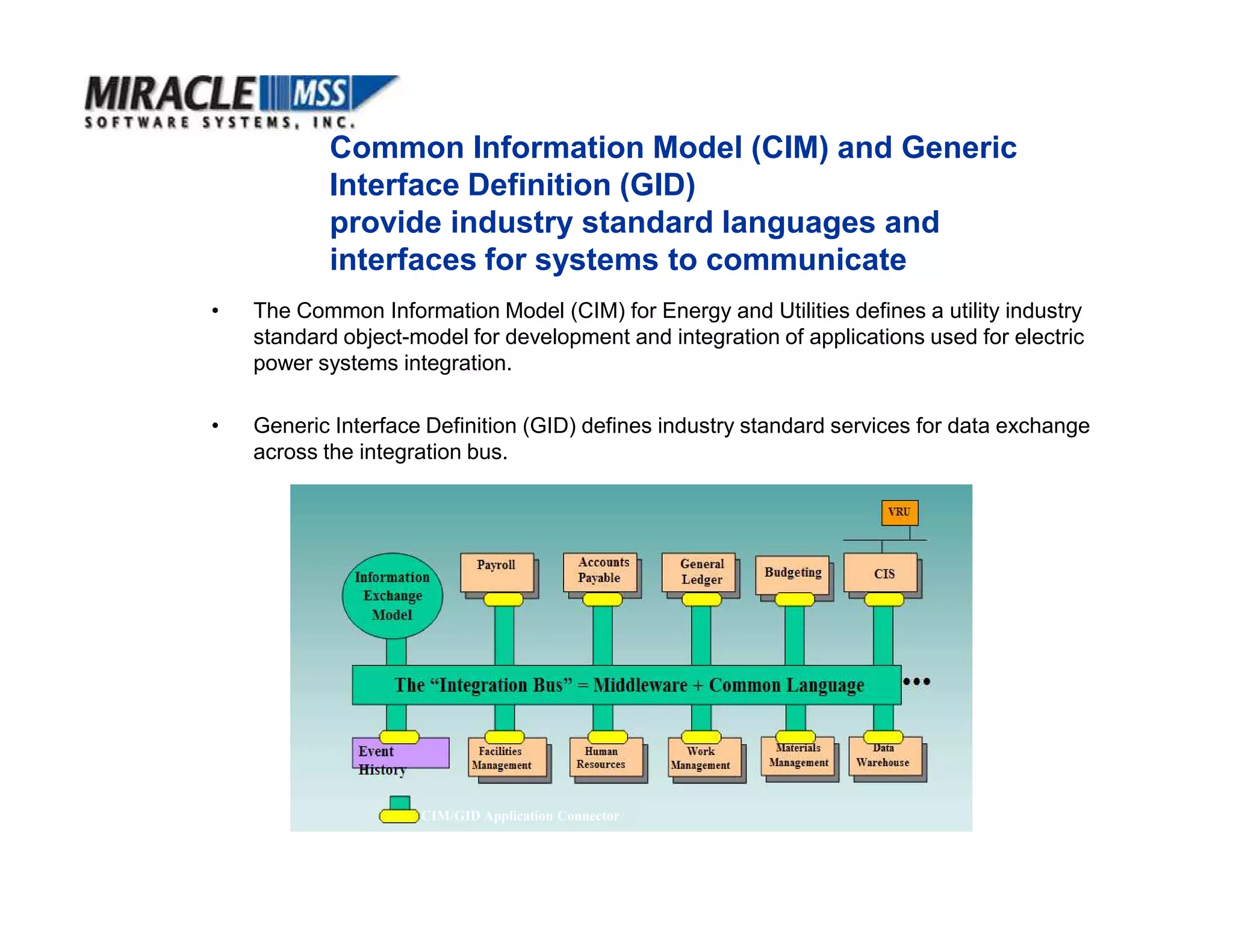

8. Common Information Model (CIM) and Generic
Interface Definition (GID)
provide industry standard languages and
interfaces for systems to communicate
• The Common Information Model (CIM) for Energy and Utilities defines a utility industry
standard object-model for development and integration of applications used for electric
power systems integration.
• Generic Interface Definition (GID) defines industry standard services for data exchange
across the integration bus.
CIM/GID Application Connector

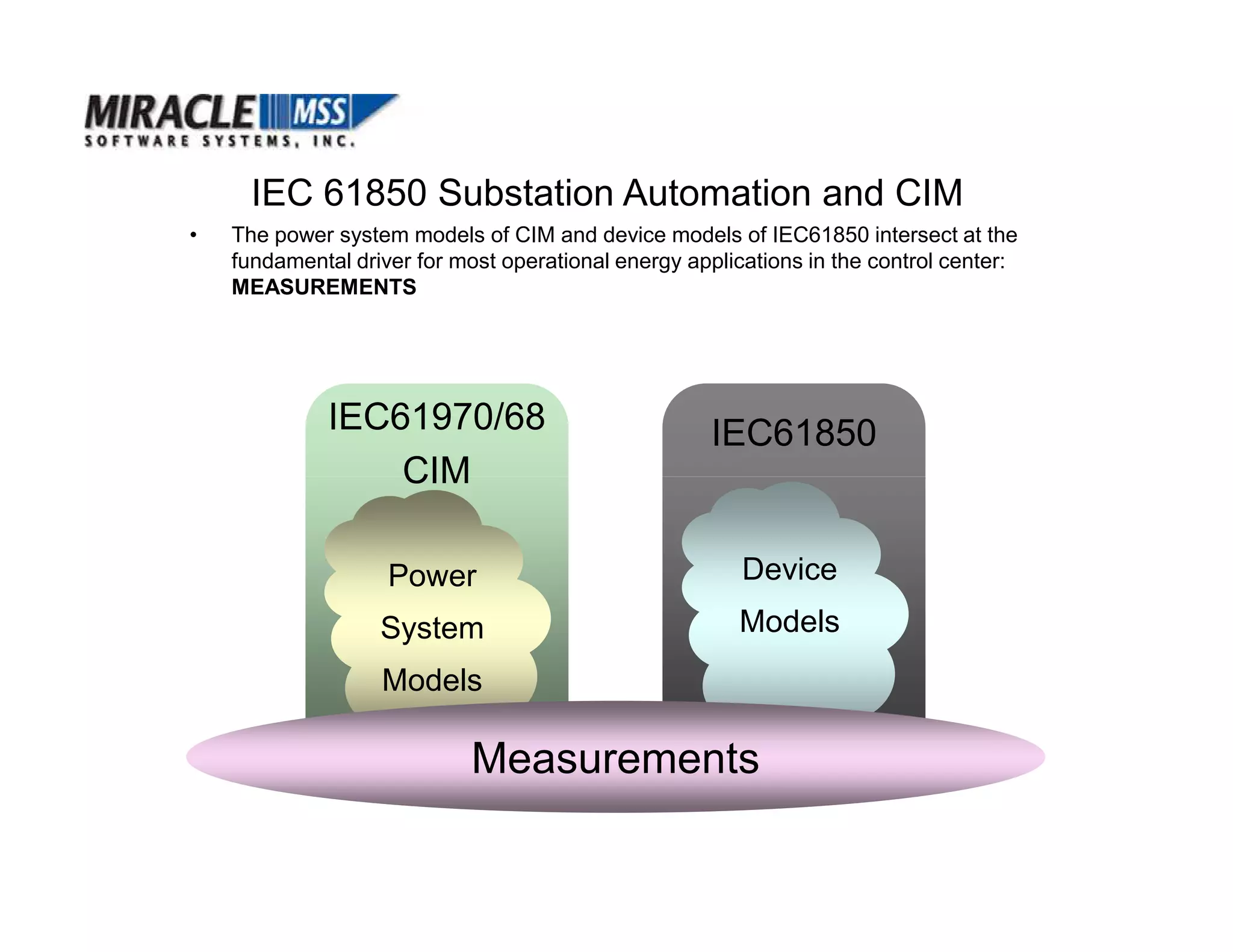

9. IEC 61850 Substation Automation and CIM
• The power system models of CIM and device models of IEC61850 intersect at the
fundamental driver for most operational energy applications in the control center:
MEASUREMENTS
IEC61970/68 IEC61850
CIM
Device
Power
Models
System
Models
Measurements

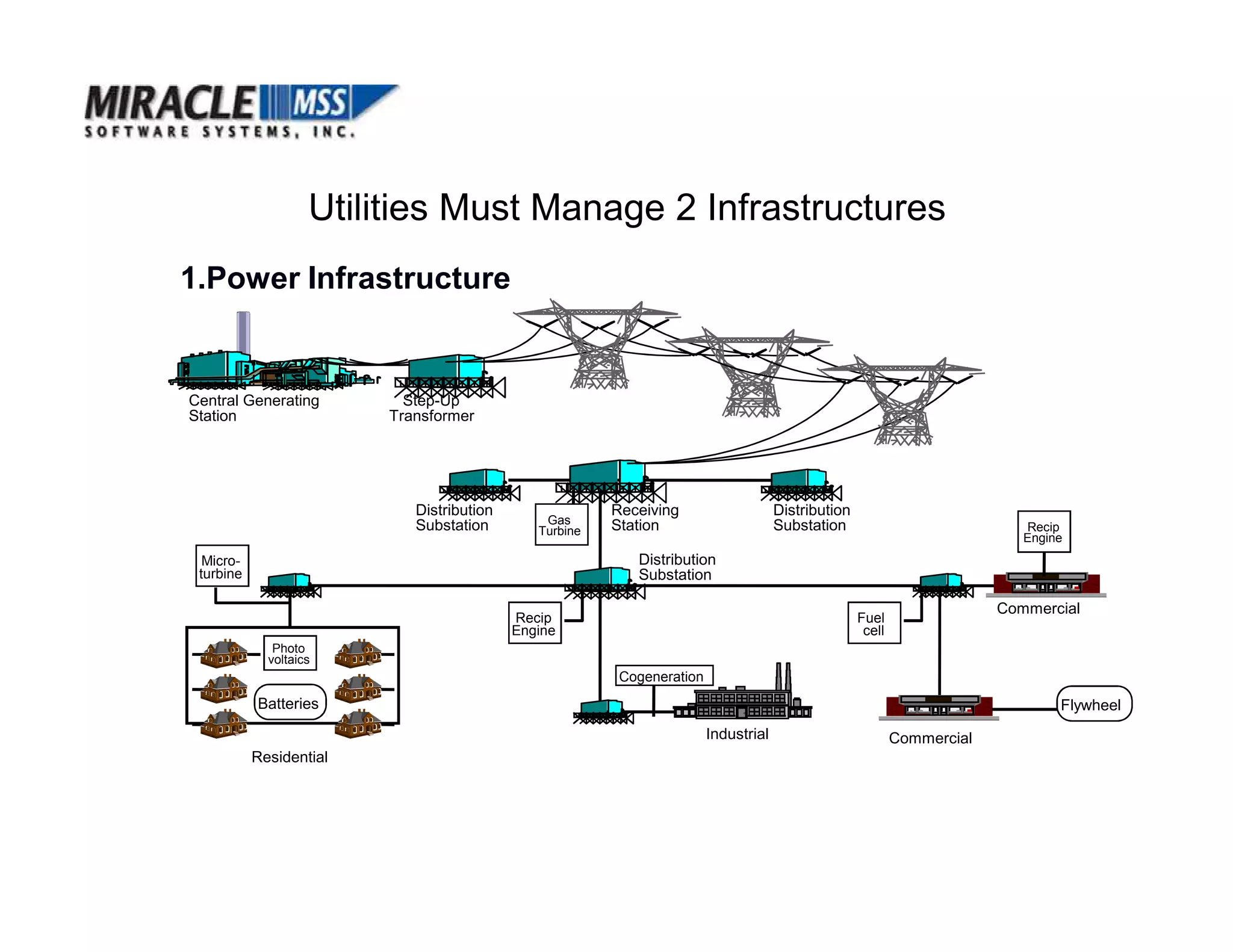

10. Utilities Must Manage 2 Infrastructures
1.Power Infrastructure
Central Generating Step-Up
Station Transformer
Distribution Receiving Distribution
Gas
Substation Station Substation Recip
Turbine
Engine
Distribution
Micro-
turbine Substation
Commercial
Recip Fuel
Engine cell
voltaics
Cogeneration
Batteries Flywheel
Industrial Commercial
Residential

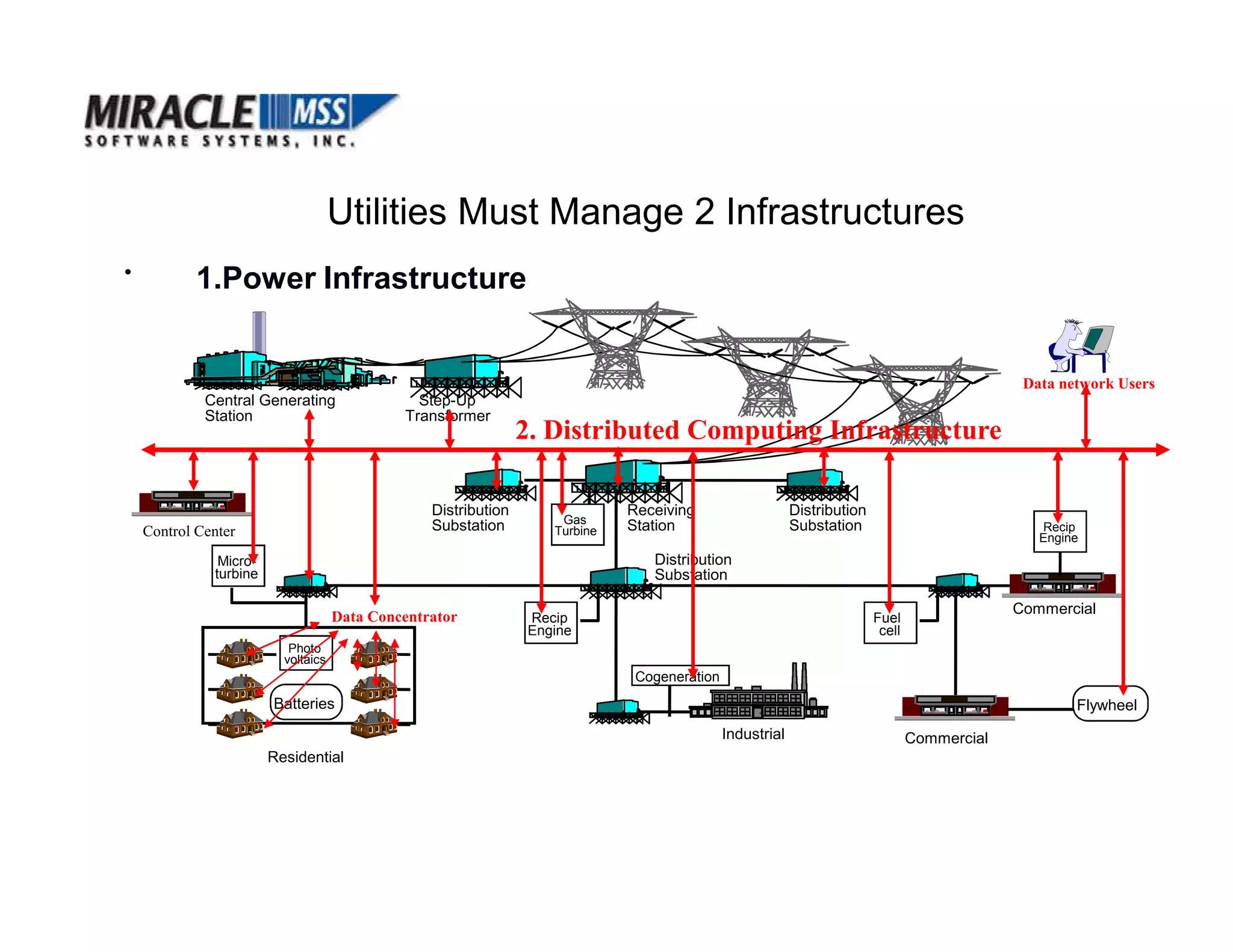

11. Utilities Must Manage 2 Infrastructures
• 1.Power Infrastructure
Data network Users
Central Generating Step-Up
Station Transformer
2. Distributed Computing Infrastructure
Distribution Receiving Distribution
Gas
Substation Station Substation Recip
Control Center Turbine
Engine
Distribution
Micro-
turbine Substation
Commercial
Data Concentrator Recip Fuel
Engine cell
voltaics
Cogeneration
Batteries Flywheel
Industrial Commercial
Residential

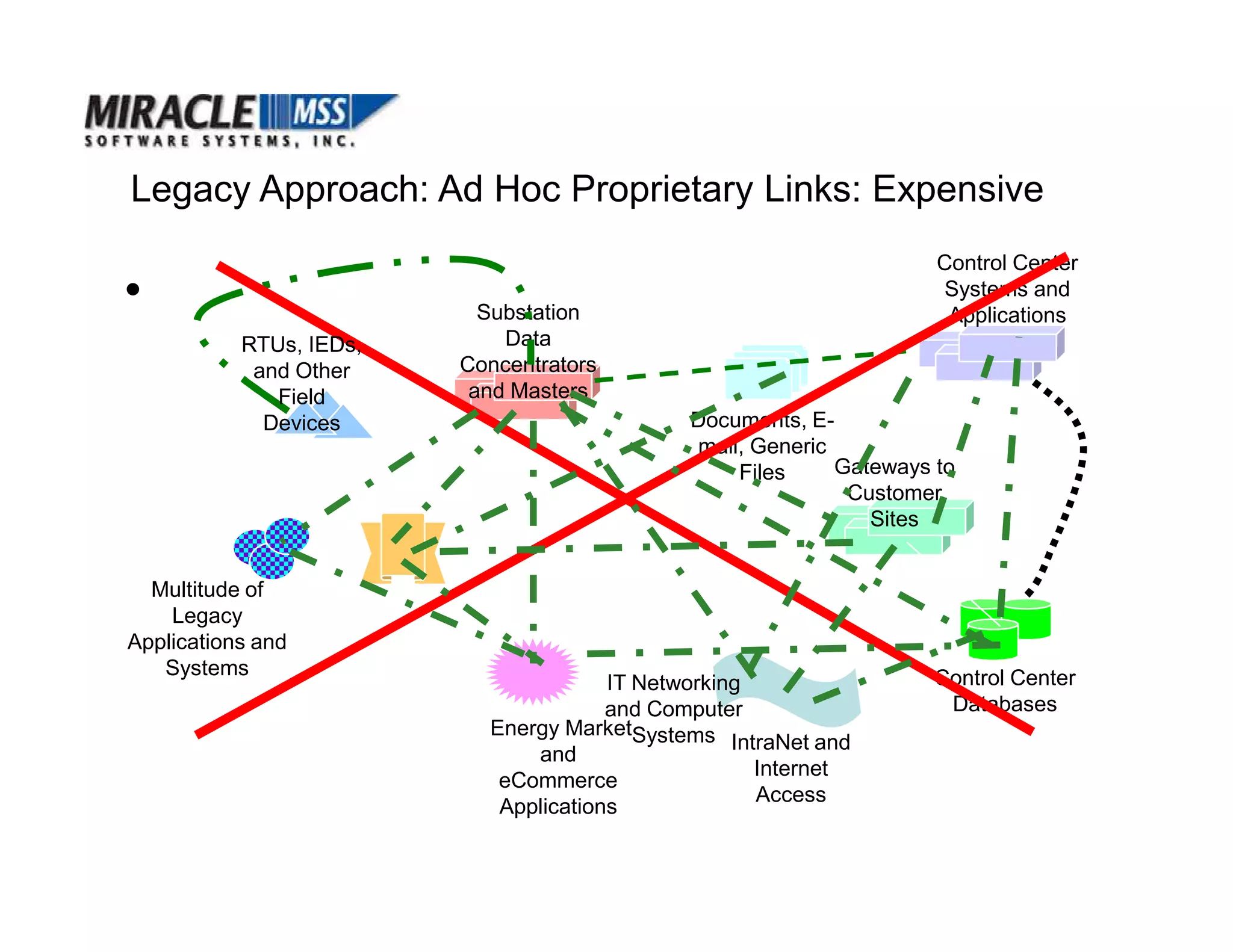

12. Legacy Approach: Ad Hoc Proprietary Links: Expensive
Control Center
• Systems and
Substation Applications
Data
RTUs, IEDs,
Concentrators
and Other
and Masters
Field
Documents, E-
Devices
mail, Generic
Gateways to
Files
Customer
Sites
Multitude of
Legacy
Applications and
Systems Control Center
IT Networking
Databases
and Computer
Energy MarketSystems
IntraNet and
and
Internet
eCommerce
Access
Applications

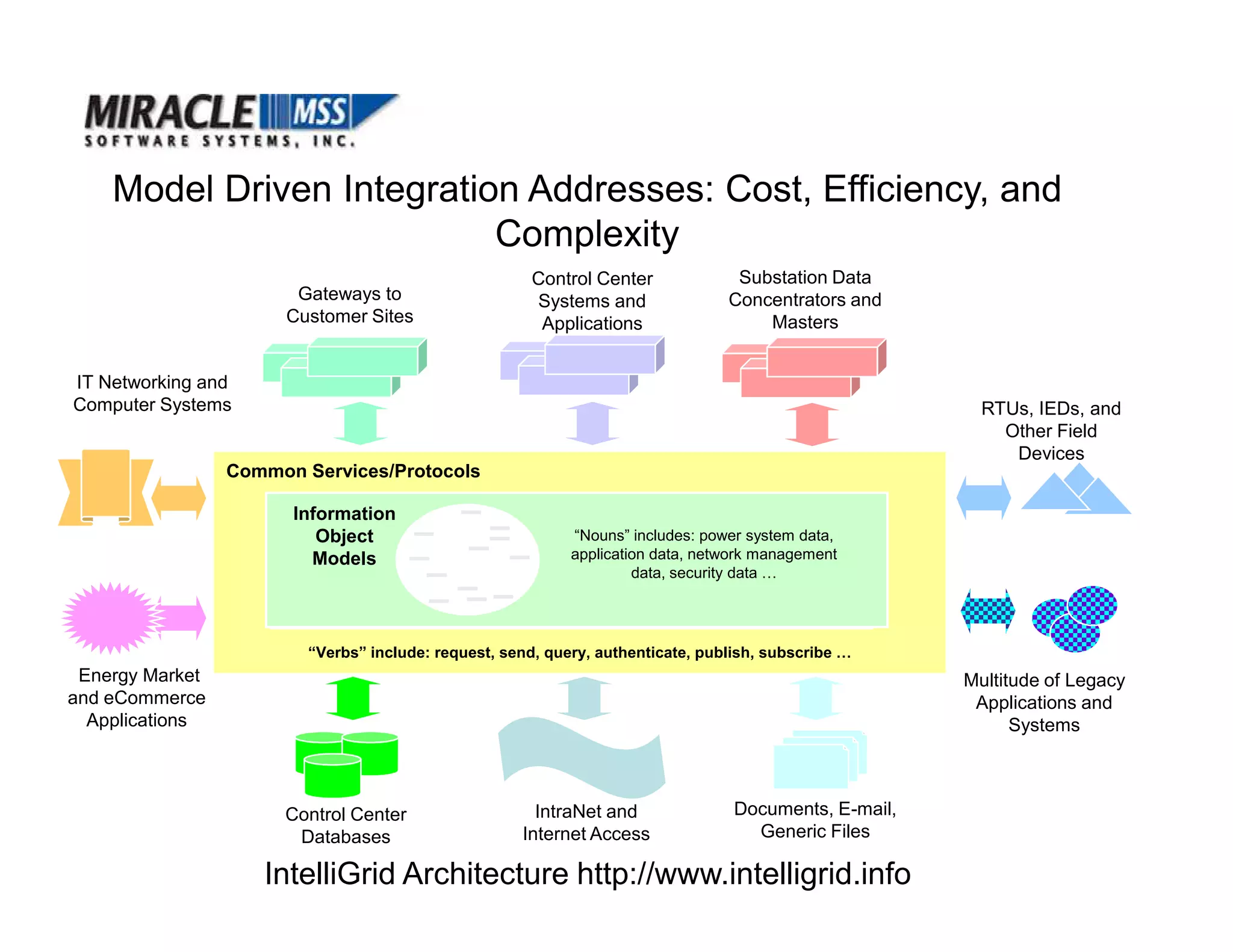

13. Model Driven Integration Addresses: Cost, Efficiency, and
Complexity
Substation Data
Control Center
Gateways to Concentrators and
Systems and
Customer Sites Masters
Applications
IT Networking and
Computer Systems RTUs, IEDs, and
Other Field
Devices
Common Services/Protocols
Information
Object “Nouns” includes: power system data,
application data, network management
Models
data, security data …
“Verbs” include: request, send, query, authenticate, publish, subscribe …
Energy Market Multitude of Legacy
and eCommerce Applications and
Applications Systems
Documents, E-mail,
IntraNet and
Control Center
Generic Files
Internet Access
Databases
IntelliGrid Architecture http://www.intelligrid.info

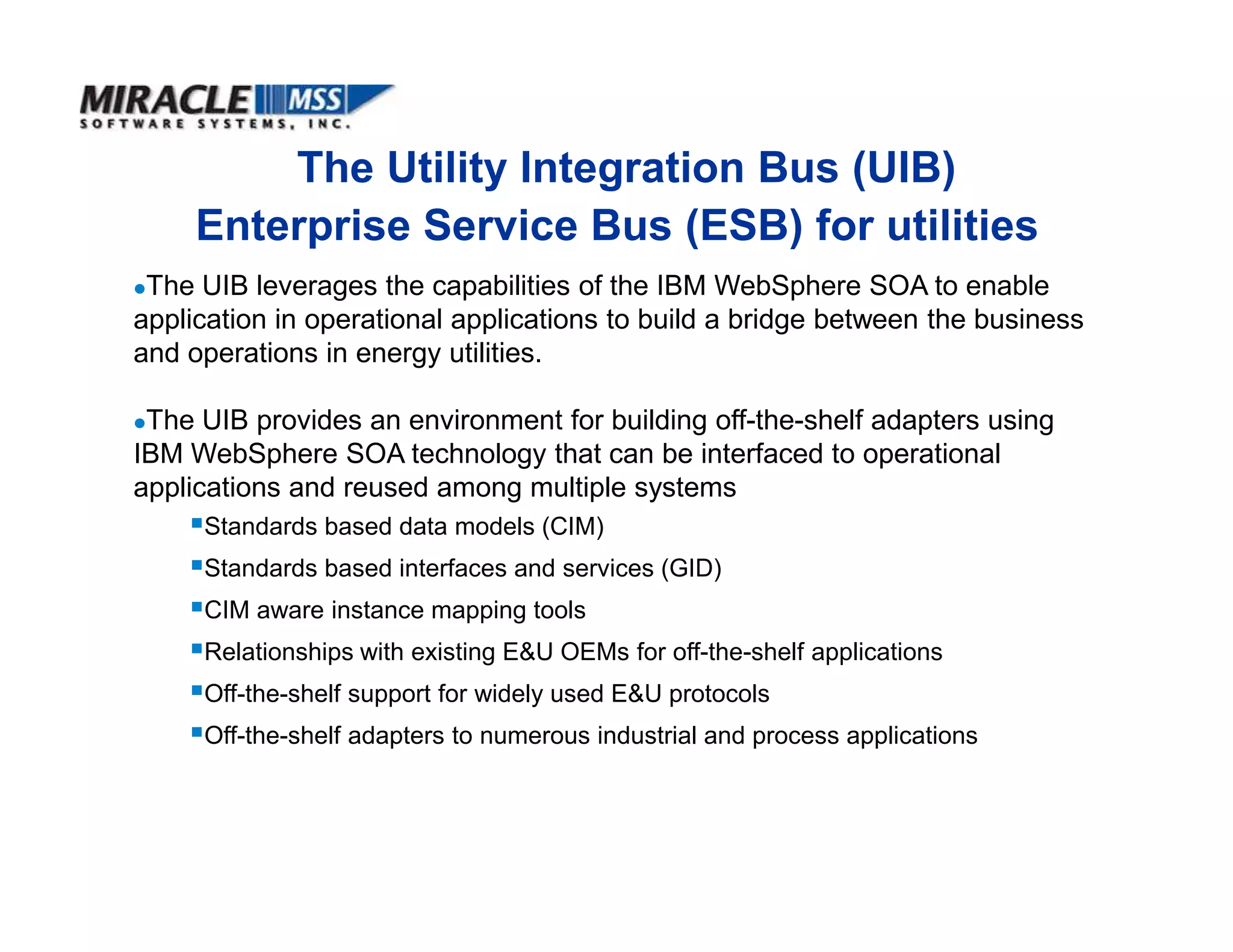

14. The Utility Integration Bus (UIB)
Enterprise Service Bus (ESB) for utilities
The UIB leverages the capabilities of the IBM WebSphere SOA to enable
application in operational applications to build a bridge between the business
and operations in energy utilities.
The UIB provides an environment for building off-the-shelf adapters using
IBM WebSphere SOA technology that can be interfaced to operational
applications and reused among multiple systems
Standards based data models (CIM)
Standards based interfaces and services (GID)
CIM aware i
