Using Yahoo Pipes

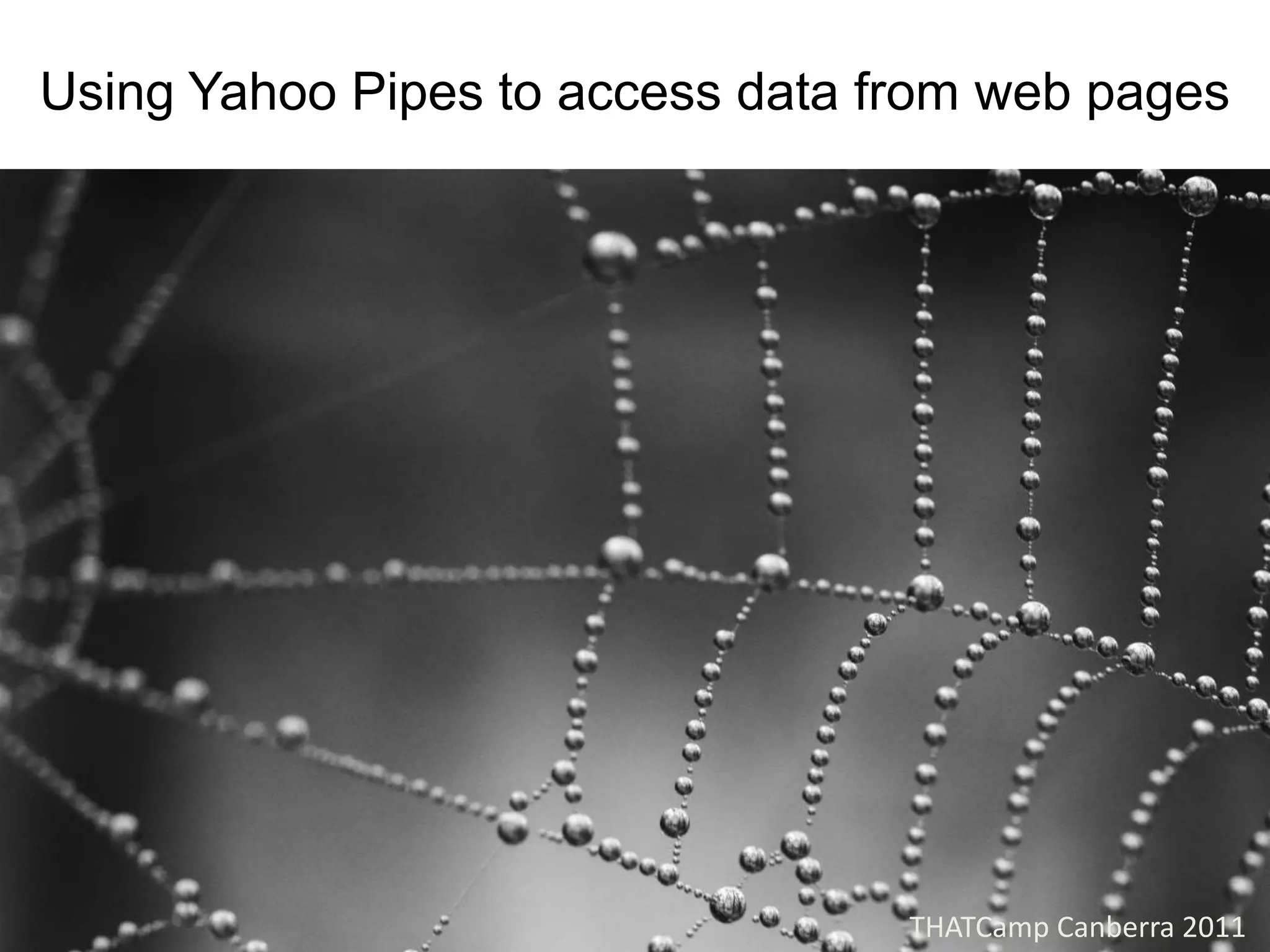

- 1. Using Yahoo Pipes to access data from web pages THATCamp Canberra 2011

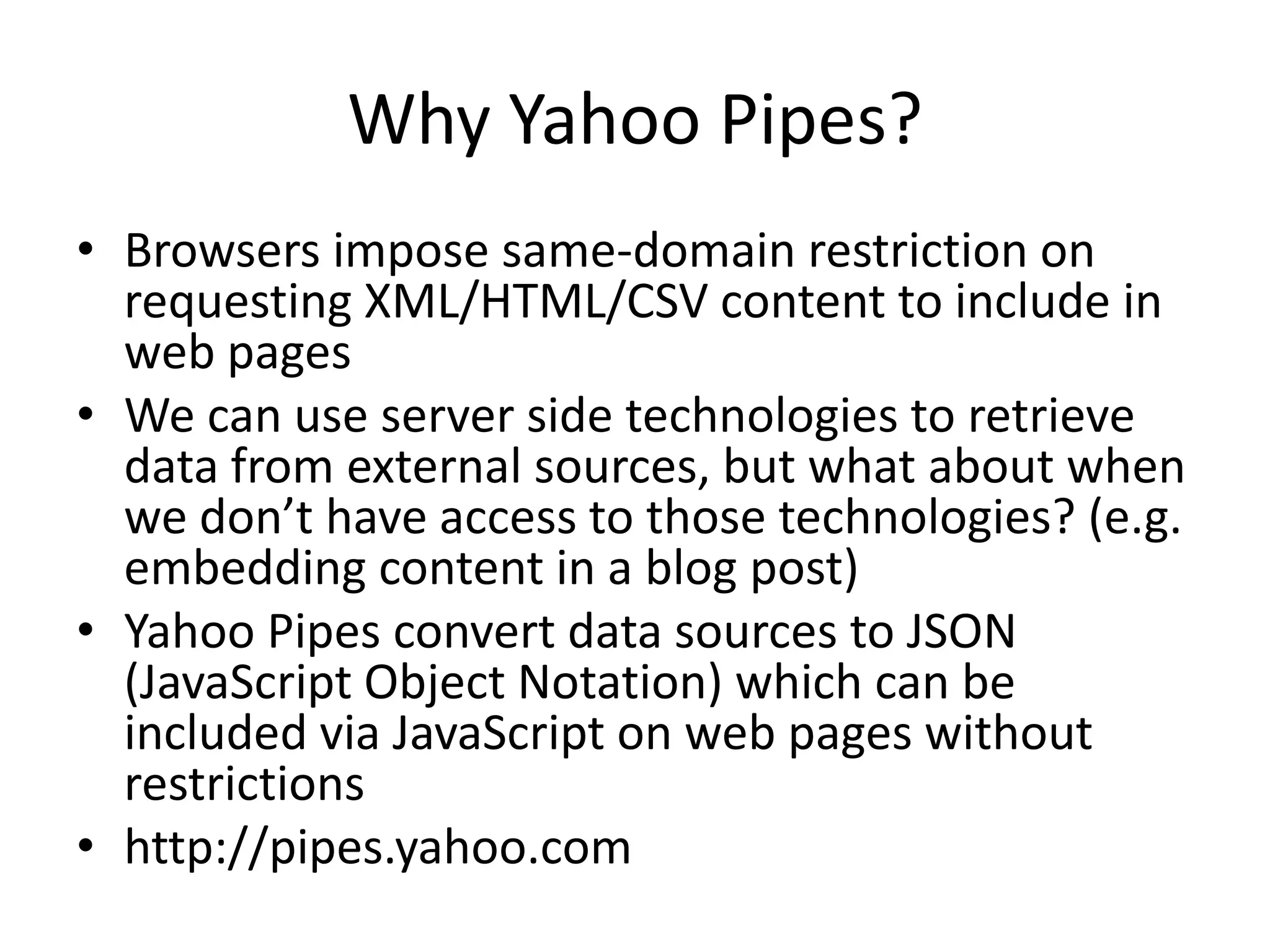

- 2. Why Yahoo Pipes? Browsers impose same-domain restriction on requesting XML/HTML/CSV content to include in web pages We can use server side technologies to retrieve data from external sources, but what about when we don’t have access to those technologies? (e.g. embedding content in a blog post) Yahoo Pipes convert data sources to JSON (JavaScript Object Notation) which can be included via JavaScript on web pages without restrictions http://pipes.yahoo.com
- 5. convictbook data sources Trove People & Organisations SLQ convict data Web page : hosted within a Content Management System (HTML + CSS + JavaScript + jQuery) CSV SRU Query Result (XML) Google Refine (Data clean up) Yahoo Pipes CSV JSON Visualisation links JSON Yahoo Pipes Google FusionTables Query (XML) CSV Picture Australia data
- 6. Pipe : Trove People by name http://pipes.yahoo.com/pipes/pipe.info?_id=eed133e99c38a68d20d279e46cee66e6
- 7. Yahoo Pipes
- 9. JSON { "count" : 1, "value" : { "title" : "ConvictIDGet", "description" : "Pipes Output", "link" : "http:pipes.yahoo.compipespipe.info?_id=c8b70fd9d9f6edcfbb7c0e351992e717", "pubDate" : "Thu, 06 Oct 2011 22:49:50 -0700", "generator" : "http:pipes.yahoo.compipes", "callback" : "", "items" : [{ "convictid" : "200", "name" : "Frederick Beadle", "one_of" : "one of 296 convicts transported on the Pyrenees", "convicted" : "Central Criminal Court", "term_duration" : "10 years", "conviction_date" : "", "notes" : "Ticket of Leave.", "vessel" : "Pyrenees", "departure_date" : "31 January 1853", "destination" : "Western Australia", "microfilmref" : "Australian Joint Copying Project. Microfilm Roll 93, Class and Piece Number HO1118, Page Number 3 (3)", "surname" : "Beadle", "given_names" : "Frederick", "y:row" : "2", "description" : null, "title" : null }] }} Tip: Use http://jsonlint.com/ to validate and format JSON
- 10. JSON for Trove People query { "count" : 1, "value" : { "title" : "TrovePeople", "description" : "Pipes Output", "link" : "http:pipes.yahoo.compipespipe.info?_id=c3412dfcaf40a54bdcd0273b293174e5", "pubDate" : "Thu, 06 Oct 2011 22:50:47 -0700", "generator" : "http:pipes.yahoo.compipes", "callback" : "", "items" : [{ "xmlns" : "http:www.loc.govzingsrw", "version" : "1.1", "numberOfRecords" : "265", "resultSetId" : "kc2umf", "resultSetIdleTime" : "300", "records”: {"record" : [{ "recordSchema" : "http:www.w3.org2005Atom", "recordPacking" : "xml", "recordData" : { "entry" : { "id" : "http:nla.gov.aunla.party-529154", "link" : [{ "href" : "http:nla.gov.aunla.party-529154” }, { "href" : "http:nla.gov.auanbd.aut-an35513577", "rel" : "related” }, { "href" : "http:www.adb.online.anu.edu.aubiogsA100015b.htm", "rel" : "related”}], "author" : { "name" : "National Library of Australia Party Infrastructure”}, "published" : "2008-12-10T15:20:01Z", "title" : "Lawson, H. S. W.", "content" : { "type" : "textplain", "content" : "Alternate names: Lawson, Harry Sutherland Wightman; Lawson, Harry Sutherland Wightman, Sir” }}}, "recordPosition" : "1” }, … }]}}
- 11. Including JSON data using jQuery Live example: http://jsfiddle.net/AnnaGerber/cbJrc/ <html><head><title>Demo</title></head> <script type=“text/javascript” src=“jQuery.js”></script> <script type="text/javascript"> function findPeople(pName) { varurl = "http://pipes.yahoo.com/pipes/pipe.run?_id=eed133e99c38a68d20d279e46cee66e6&_render=json&name=" + pName; $.getJSON( url, function( data ) { varoutputHTML = "”; $.each(data.value.items[0].records.record, function( index,item ) { var record=item.recordData.entry; outputHTML += "<li><a target='_blank' href='” + record.link[0].href +"'>" + record.title + "</a></li>"; }); $('#output').html(outputHTML); }); }); $(document).ready(function(){ findPeople(‘Lawson’); }); </script></head><body> <h1>People</h1> <ul id=“output"></ul> </body></html> Tip: use browser inspector + console.log() to inspect data
