Using Machine Learning to Debug Oracle
RAC Issues
Anil Nair
Sr. Principal Product Manager,
Oracle Real Application Clusters (RAC)
Dec 4th, 2018
@RACMasterPM, @OracleRACpm
http://www.linkedin.com/in/anil-nair-01960b6
http://www.slideshare.net/AnilNair27/

Safe Harbor Statement
The following is intended to outline our general product direction. It is intended for
information purposes only, and may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality, and should not be relied upon
in making purchasing decisions. The development, release, and timing of any features or
functionality described for Oracle’s products remains at the sole discretion of Oracle.
2

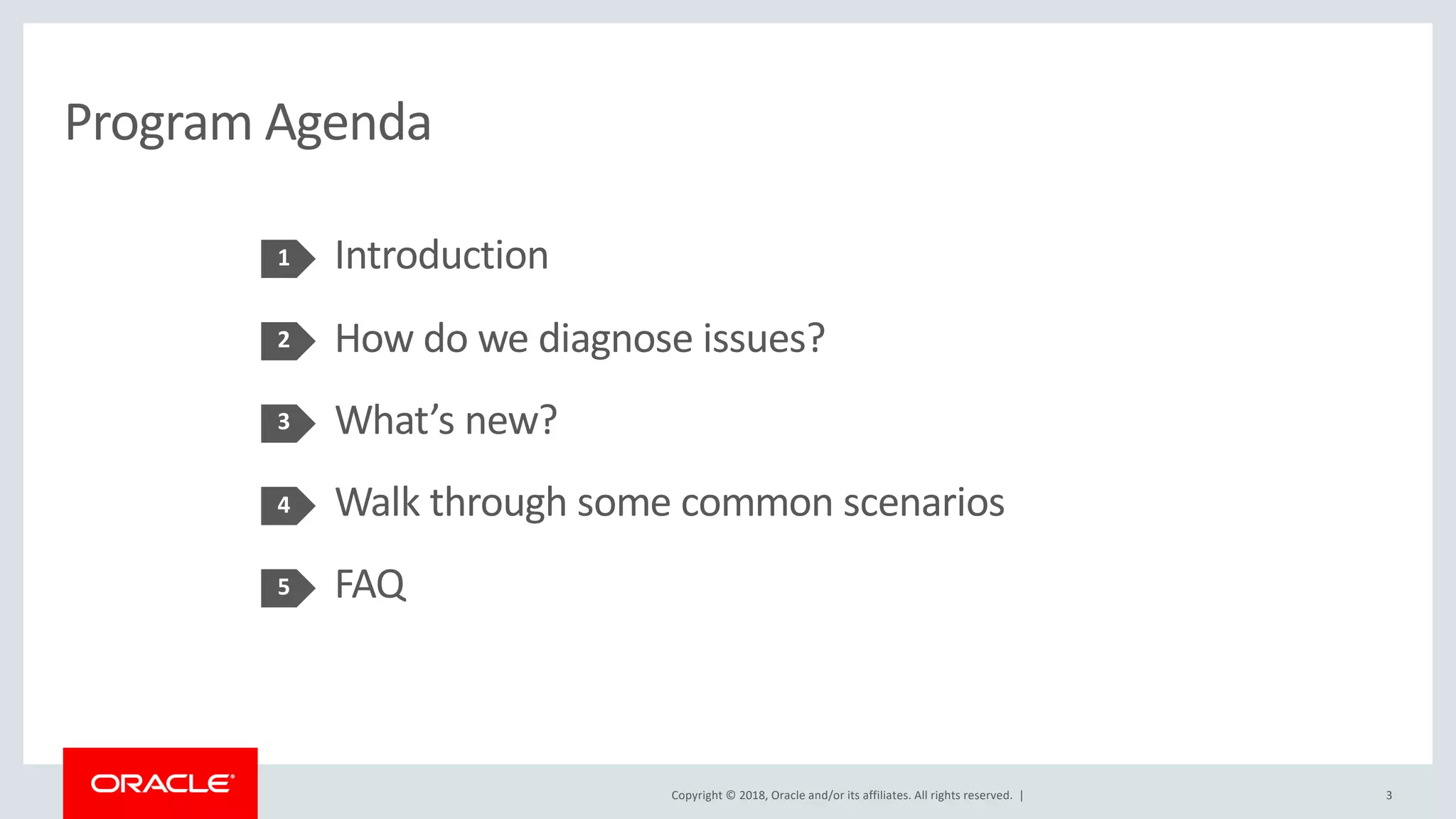

Program Agenda
Introduction
How do we diagnose issues?
What’s new?
Walk through some common scenarios
FAQ
1
2
3
4
5
3

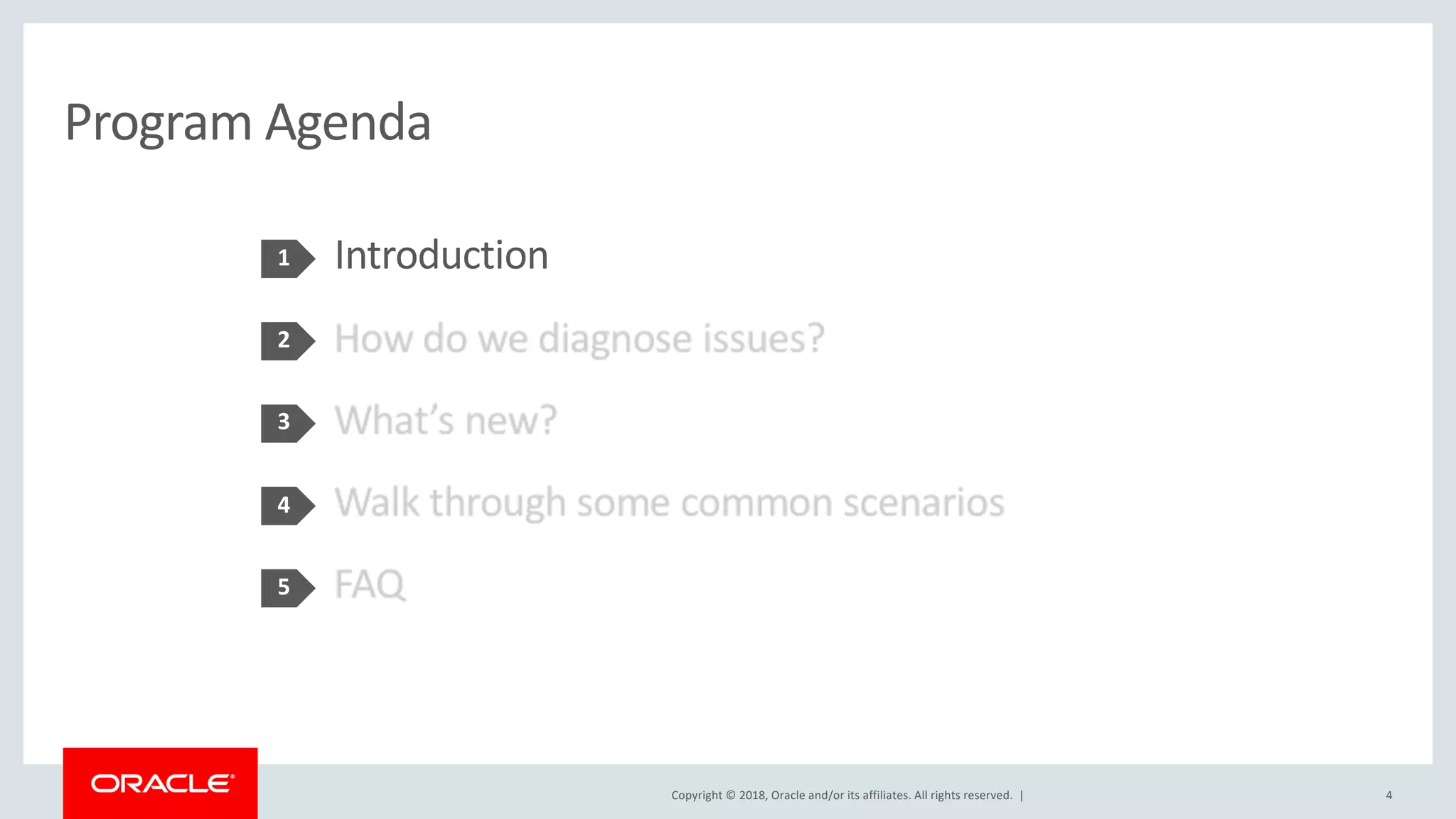

Program Agenda
Introduction1
2
3
4
5
4

Copyright © 2018, Oracle and/or its affiliates. All rights reserved. | 5

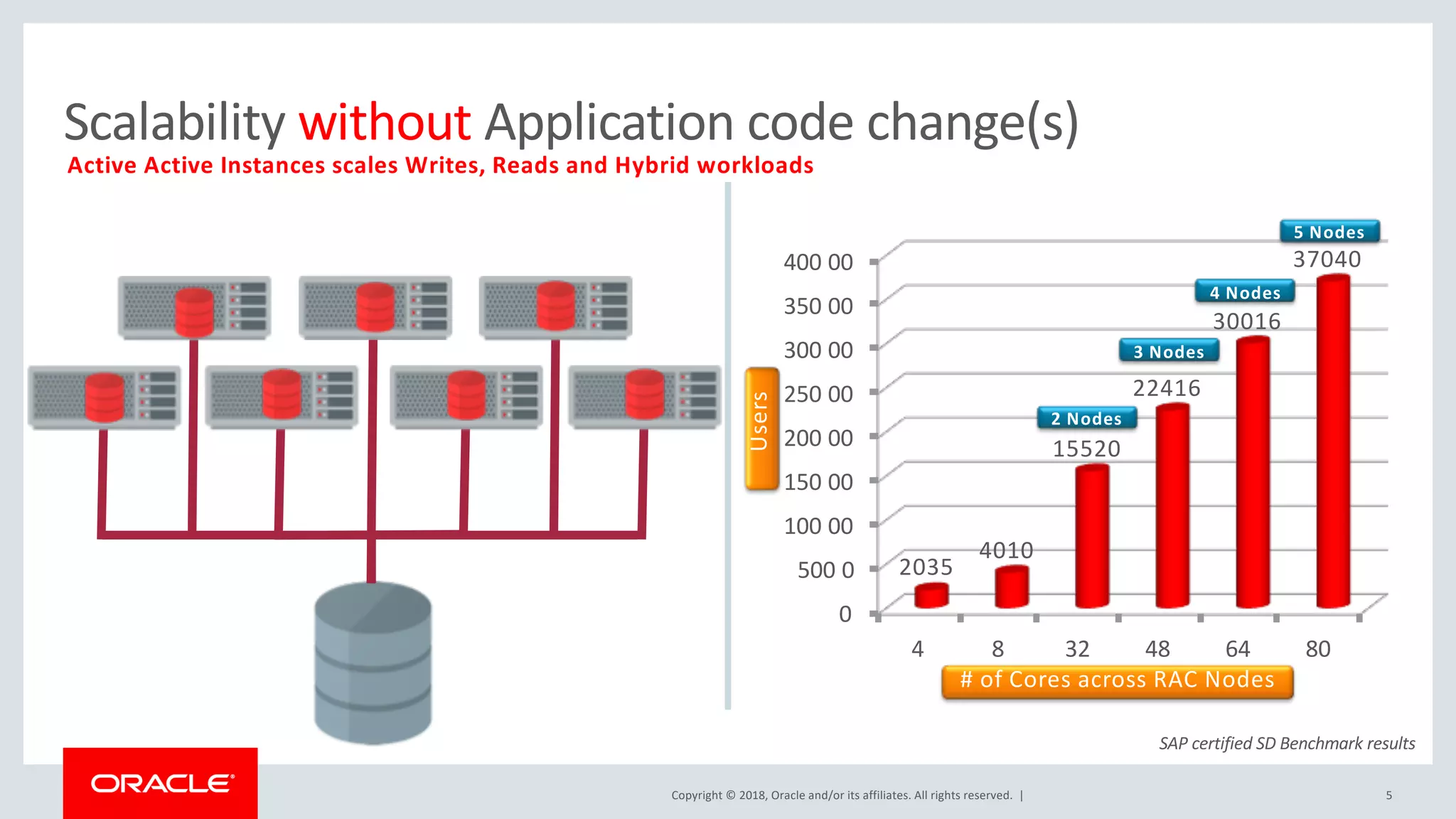

Scalability without Application code change(s)
0
500 0
100 00
150 00
200 00
250 00
300 00
350 00
400 00
4 8 32 48 64 80
2035
4010
15520
22416
30016
37040
# of Cores across RAC Nodes
Users
2 Nodes
3 Nodes
4 Nodes
5 Nodes
SAP certified SD Benchmark results
Active Active Instances scales Writes, Reads and Hybrid workloads

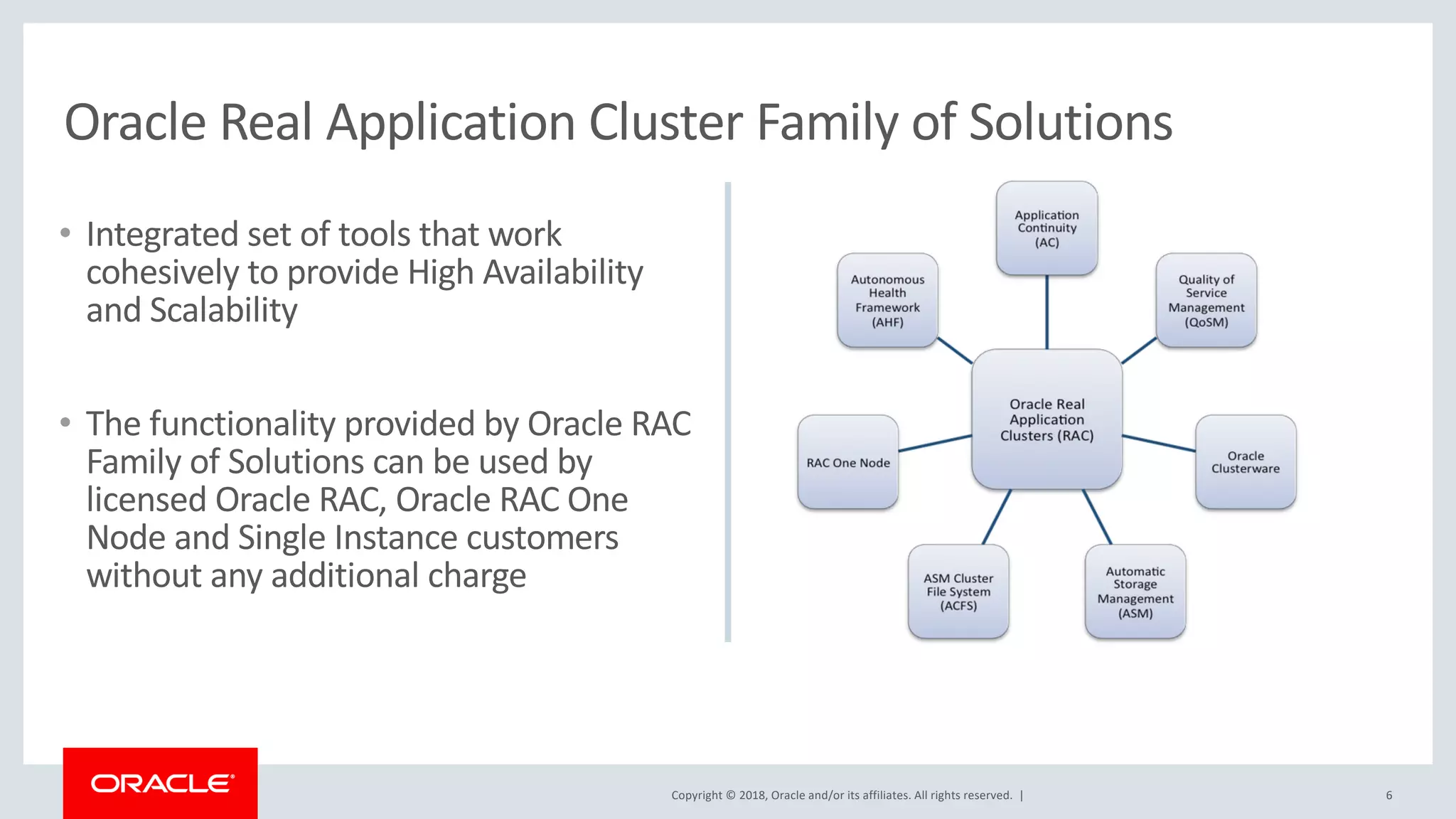

Oracle Real Application Cluster Family of Solutions
• Integrated set of tools that work
cohesively to provide High Availability
and Scalability
• The functionality provided by Oracle RAC
Family of Solutions can be used by
licensed Oracle RAC, Oracle RAC One
Node and Single Instance customers
without any additional charge

Program Agenda
How do we Diagnose issues?
1
2
3
4
5
7

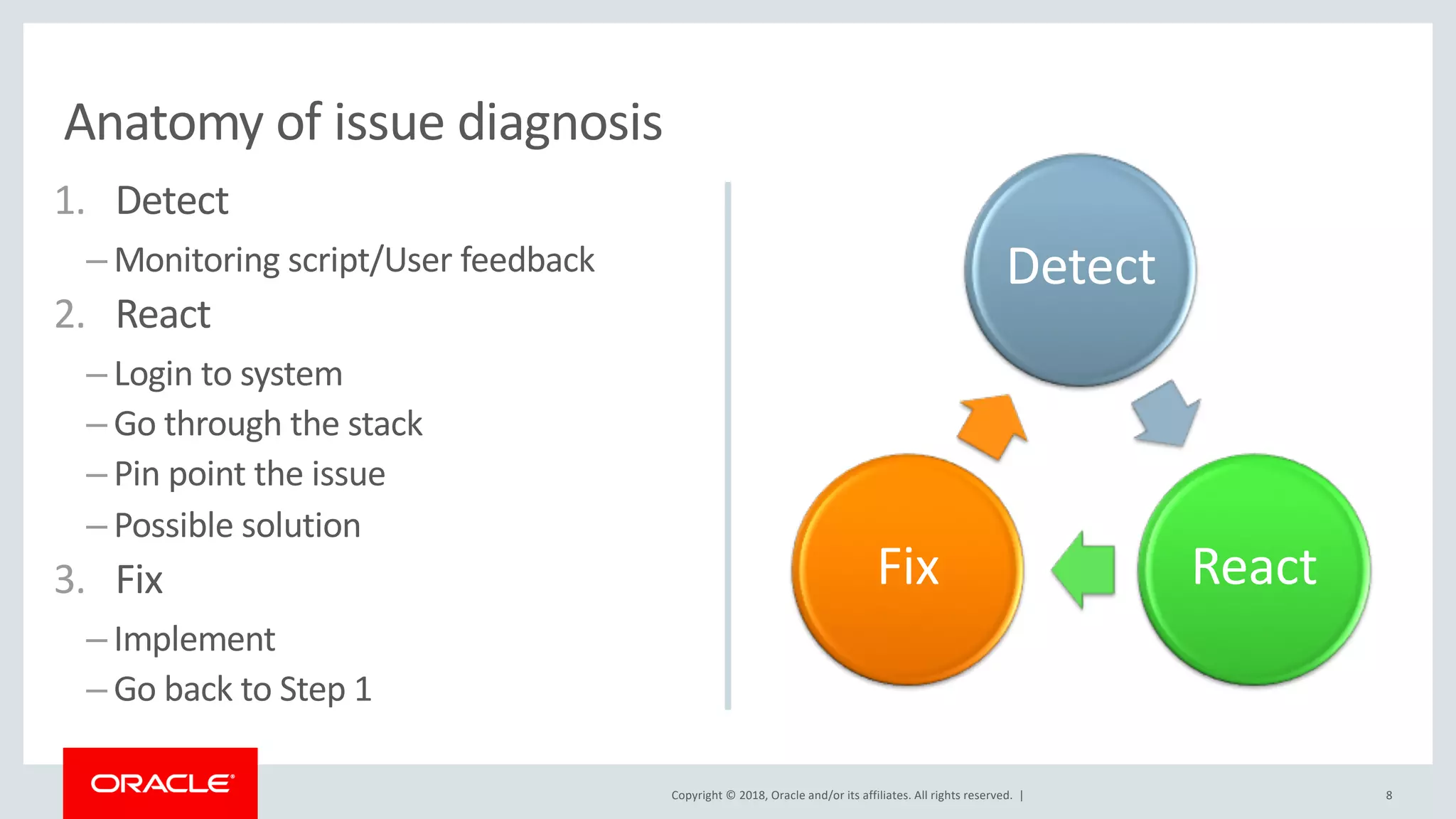

1. Detect
– Monitoring script/User feedback
2. React
– Login to system
– Go through the stack
– Pin point the issue
– Possible solution
3. Fix
– Implement
– Go back to Step 1
8
Anatomy of issue diagnosis
Detect
ReactFix

Lets walk through a
sample problem
resolution
There is a quiz in the end so pay attention!!!

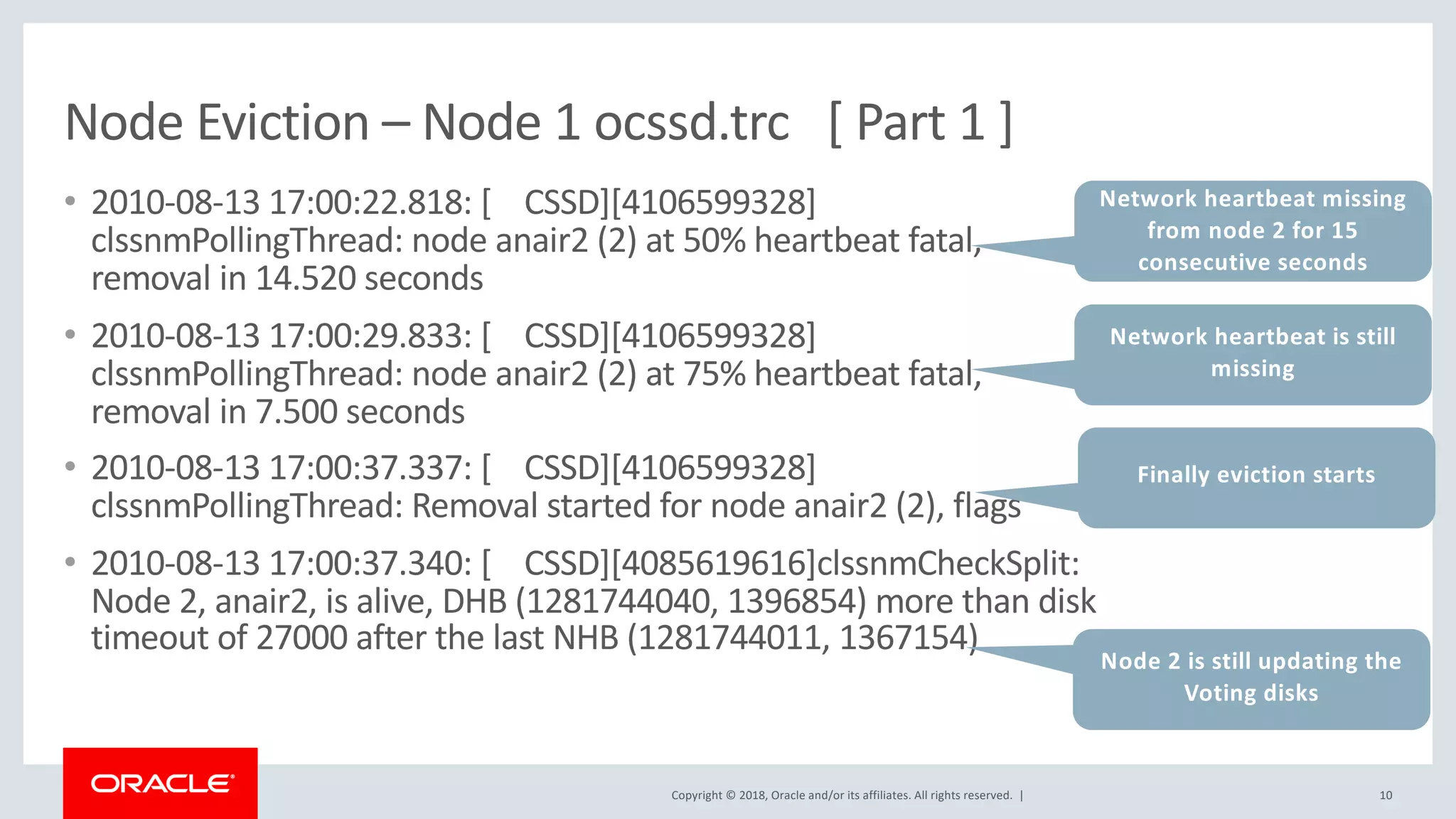

Node Eviction – Node 1 ocssd.trc [ Part 1 ]
• 2010-08-13 17:00:22.818: [ CSSD][4106599328]
clssnmPollingThread: node anair2 (2) at 50% heartbeat fatal,
removal in 14.520 seconds
• 2010-08-13 17:00:29.833: [ CSSD][4106599328]
• 2010-08-13 17:00:37.337: [ CSSD][4106599328]
clssnmPollingThread: Removal started for node anair2 (2), flags
• 2010-08-13 17:00:37.340: [ CSSD][4085619616]clssnmCheckSplit:
Node 2, anair2, is alive, DHB (1281744040, 1396854) more than disk
timeout of 27000 after the last NHB (1281744011, 1367154)
10
Network heartbeat missing
from node 2 for 15
consecutive seconds
Network heartbeat is still
missing
Finally eviction starts
Node 2 is still updating the
Voting disks

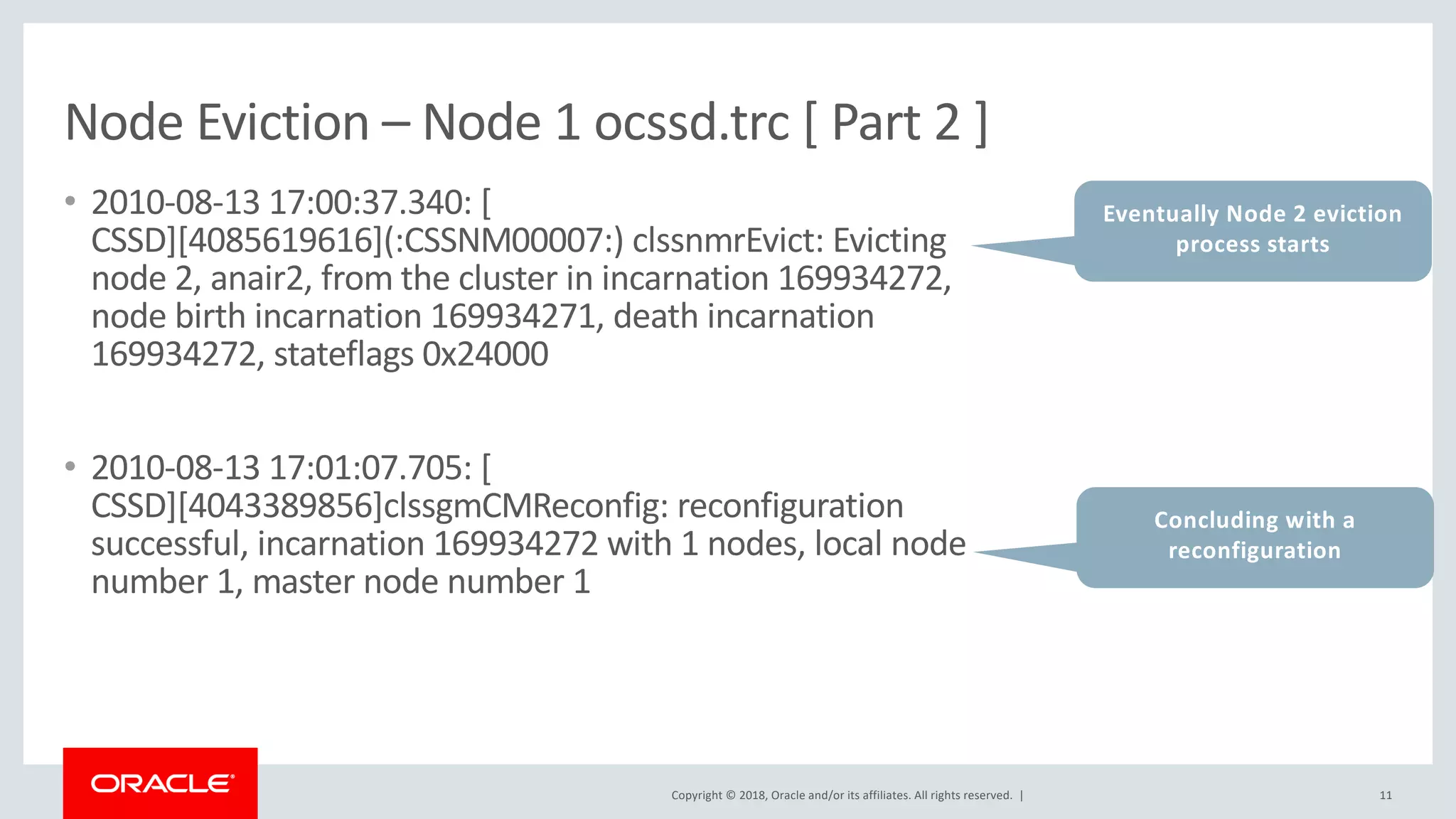

• 2010-08-13 17:00:37.340: [
CSSD][4085619616](:CSSNM00007:) clssnmrEvict: Evicting
node 2, anair2, from the cluster in incarnation 169934272,
node birth incarnation 169934271, death incarnation
169934272, stateflags 0x24000
• 2010-08-13 17:01:07.705: [
CSSD][4043389856]clssgmCMReconfig: reconfiguration
successful, incarnation 169934272 with 1 nodes, local node
number 1, master node number 1
11
Eventually Node 2 eviction
process starts
Concluding with a
reconfiguration

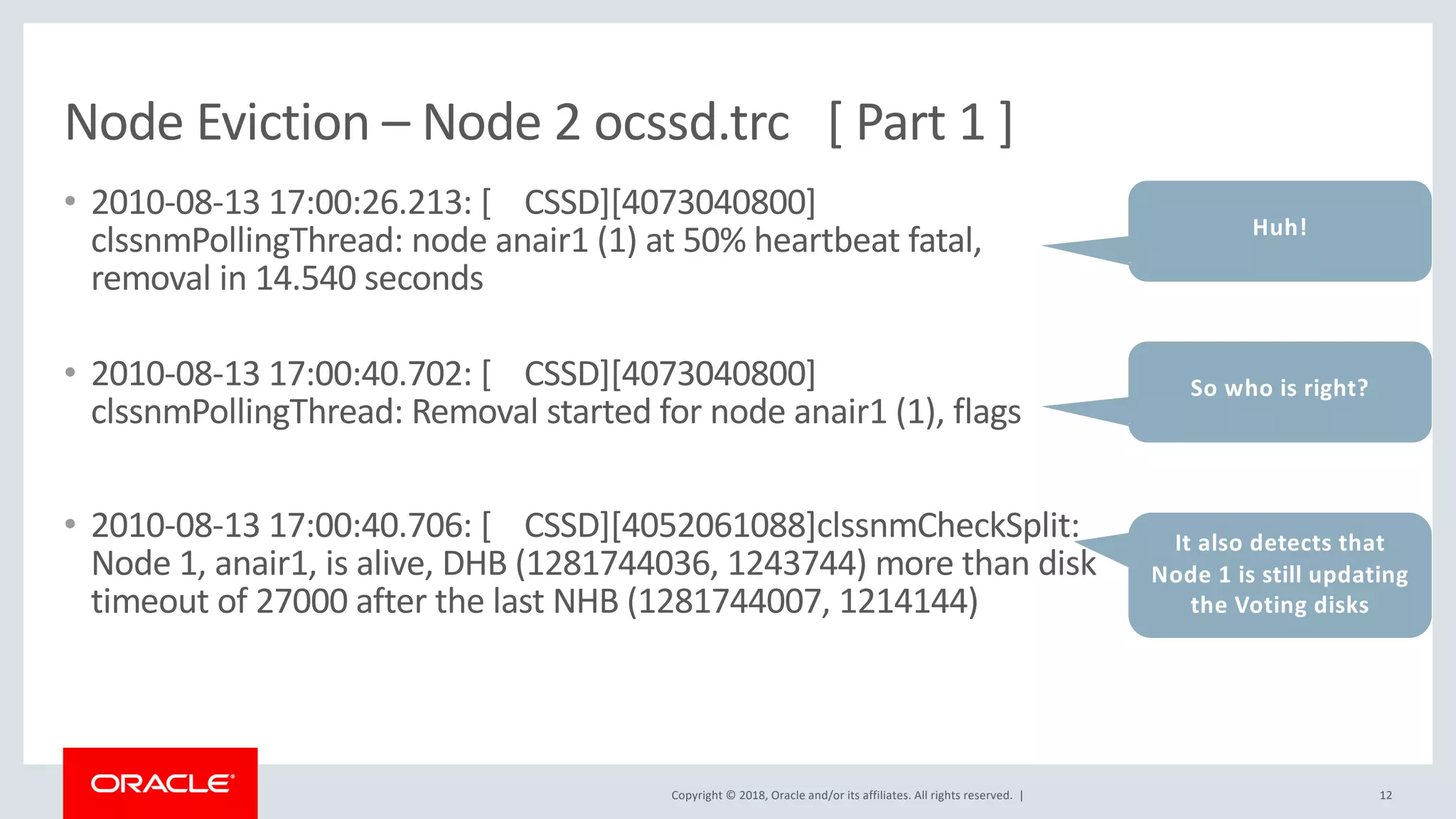

• 2010-08-13 17:00:26.213: [ CSSD][4073040800]
• 2010-08-13 17:00:40.702: [ CSSD][4073040800]
clssnmPollingThread: Removal started for node anair1 (1), flags
• 2010-08-13 17:00:40.706: [ CSSD][4052061088]clssnmCheckSplit:
Node 1, anair1, is alive, DHB (1281744036, 1243744) more than disk
timeout of 27000 after the last NHB (1281744007, 1214144)
12
Huh!
So who is right?
It also detects that
Node 1 is still updating
the Voting disks

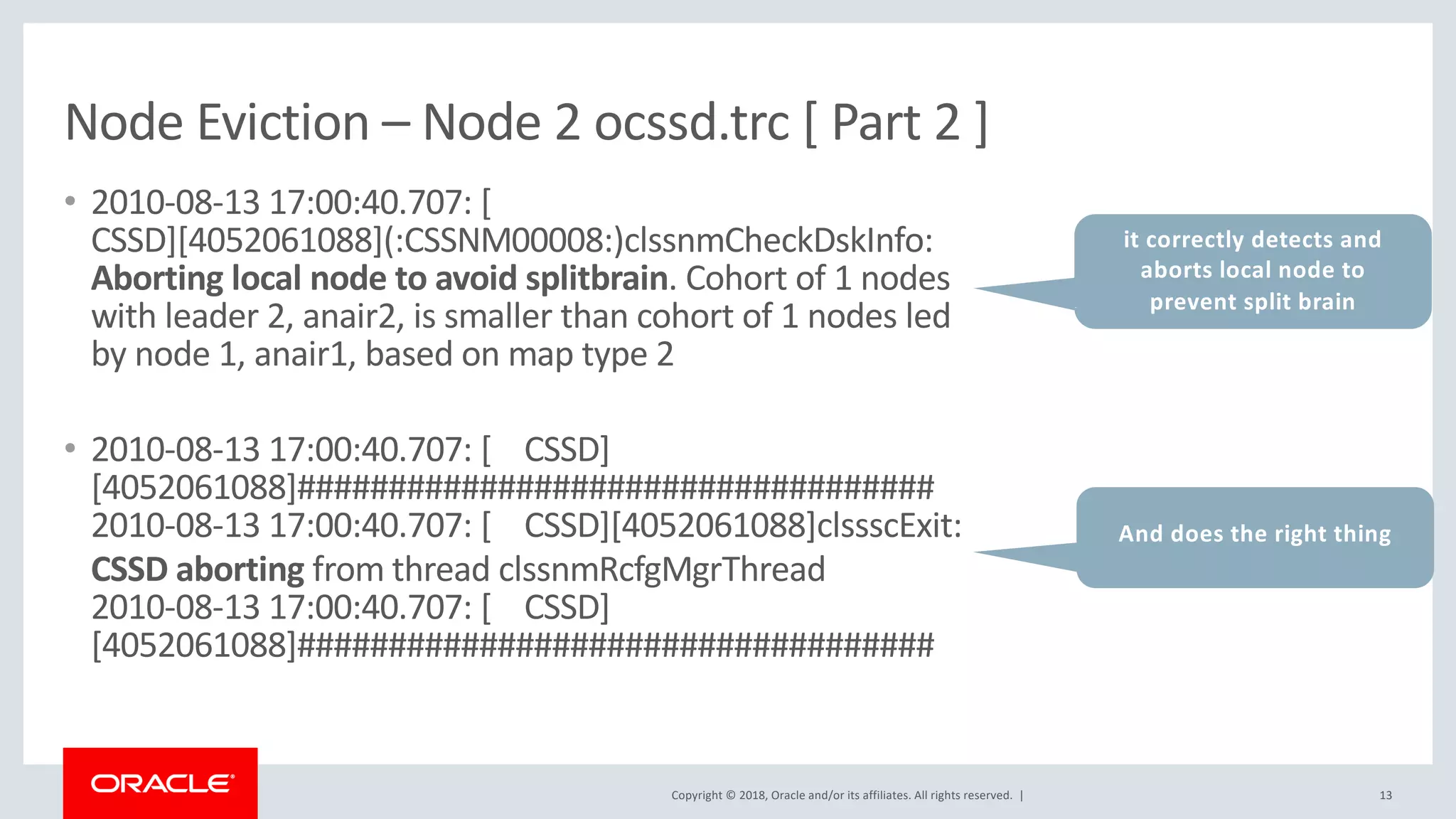

• 2010-08-13 17:00:40.707: [
CSSD][4052061088](:CSSNM00008:)clssnmCheckDskInfo:
Aborting local node to avoid splitbrain. Cohort of 1 nodes
with leader 2, anair2, is smaller than cohort of 1 nodes led
by node 1, anair1, based on map type 2
• 2010-08-13 17:00:40.707: [ CSSD]
[4052061088]###################################
2010-08-13 17:00:40.707: [ CSSD][4052061088]clssscExit:
CSSD aborting from thread clssnmRcfgMgrThread
2010-08-13 17:00:40.707: [ CSSD]
[4052061088]###################################
13
it correctly detects and
aborts local node to
prevent split brain
And does the right thing

So what is the conclusion ?
14
Hmmm….I think it is the network.

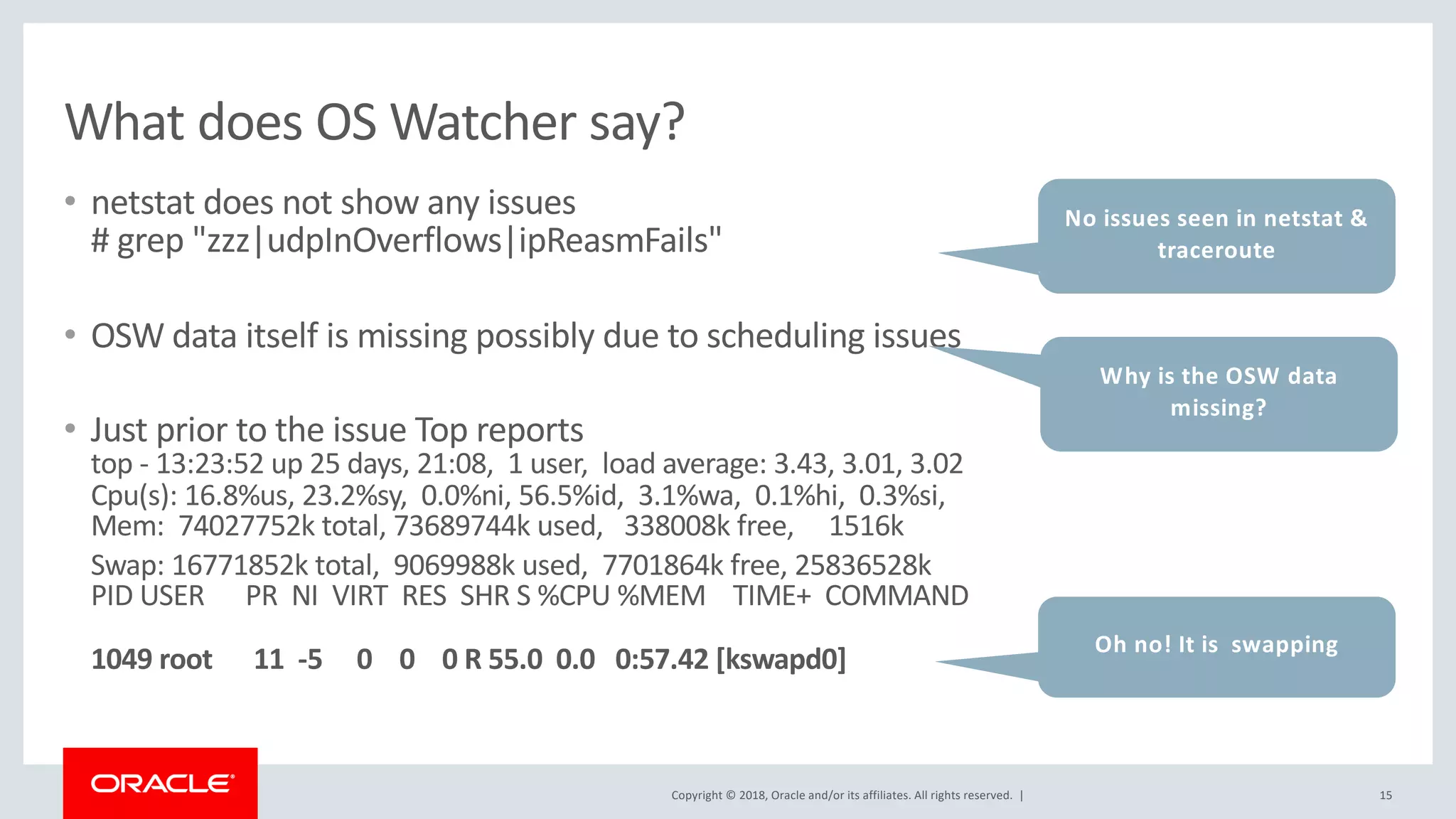

What does OS Watcher say?
• netstat does not show any issues
# grep "zzz|udpInOverflows|ipReasmFails"
• OSW data itself is missing possibly due to scheduling issues
• Just prior to the issue Top reports
top - 13:23:52 up 25 days, 21:08, 1 user, load average: 3.43, 3.01, 3.02
Cpu(s): 16.8%us, 23.2%sy, 0.0%ni, 56.5%id, 3.1%wa, 0.1%hi, 0.3%si,
Mem: 74027752k total, 73689744k used, 338008k free, 1516k
Swap: 16771852k total, 9069988k used, 7701864k free, 25836528k
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
1049 root 11 -5 0 0 0 R 55.0 0.0 0:57.42 [kswapd0]
15
No issues seen in netstat &
traceroute
Oh no! It is swapping
Why is the OSW data
missing?

• Network heart beats could be
delayed due to lack of resources
– Incorrect sizing
– Configuration issues
• OSW may not capture all the
required data
– May not be scheduled
– No co-relation between data points
16
Summary
Delayed and inconclusive diagnosis
I think it was
either a network
or CPU issue

Program Agenda
What’s new?
1
2
3
4
5
17

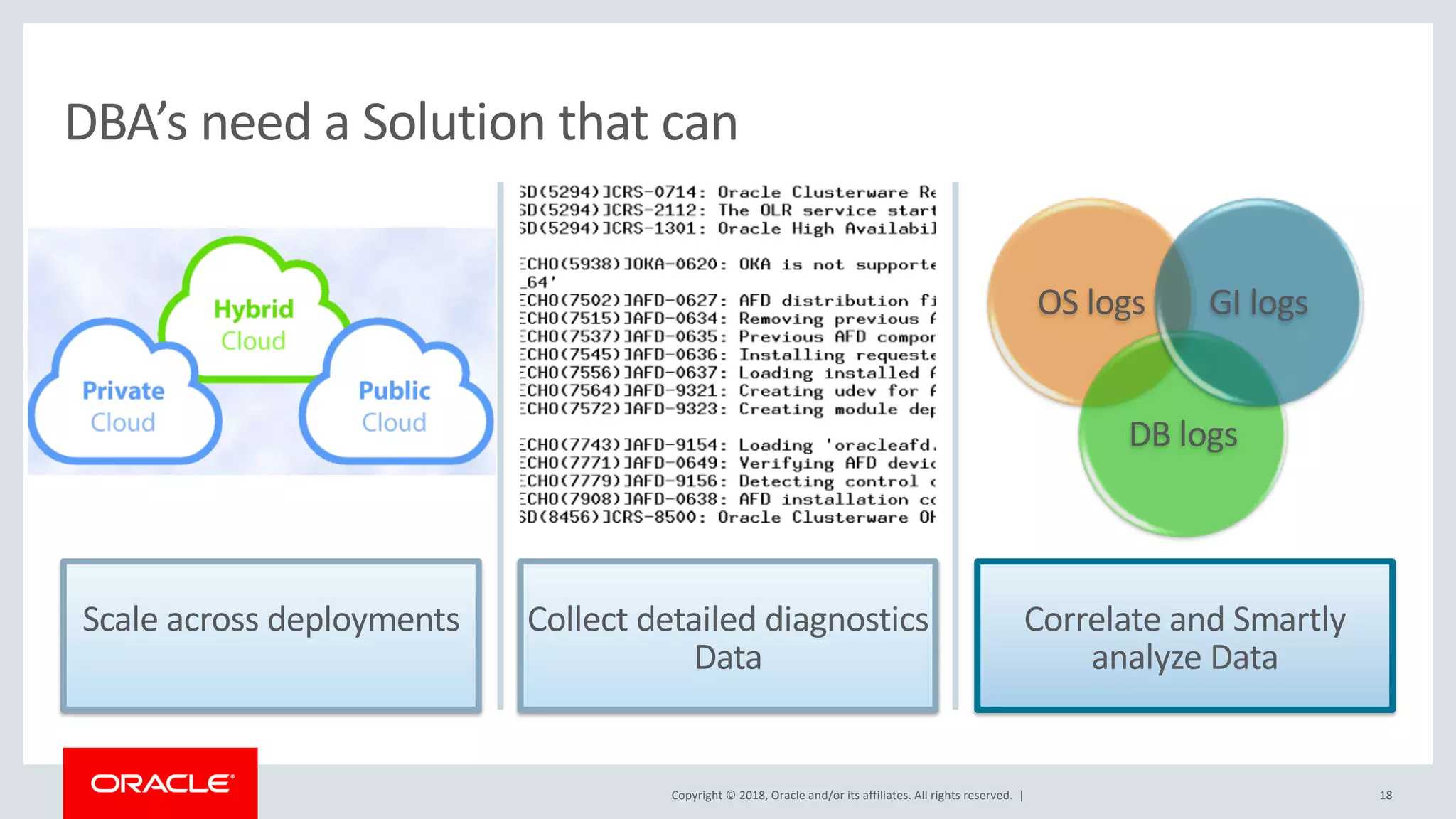

Scale across deployments
18
Collect detailed diagnostics
Data
Correlate and Smartly
analyze Data
DBA’s need a Solution that can
OS logs
DB logs
GI logs

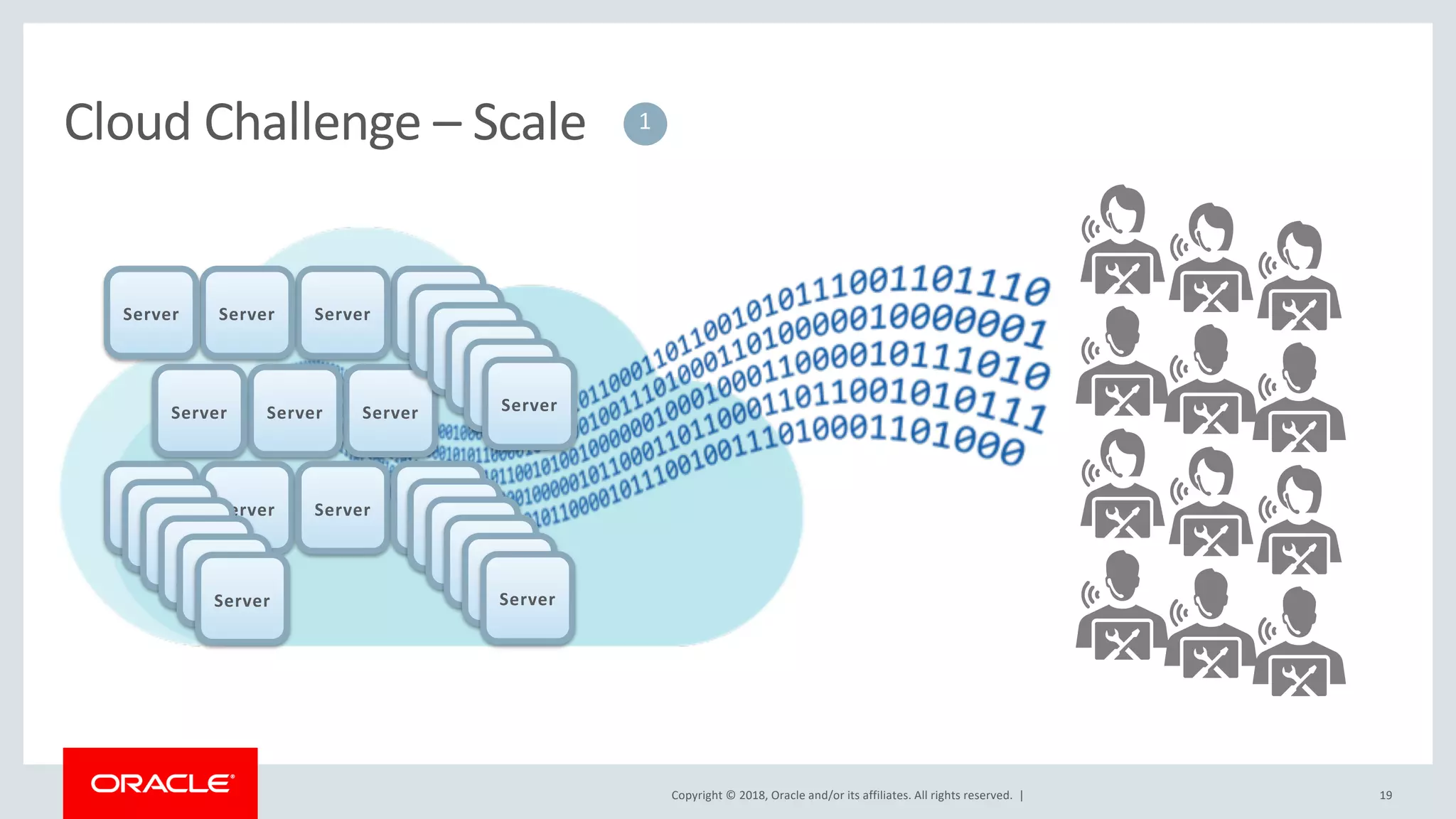

Cloud Challenge – Scale
19
Server
ServerServerServer
ServerServerServerServer
Server Server Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
1

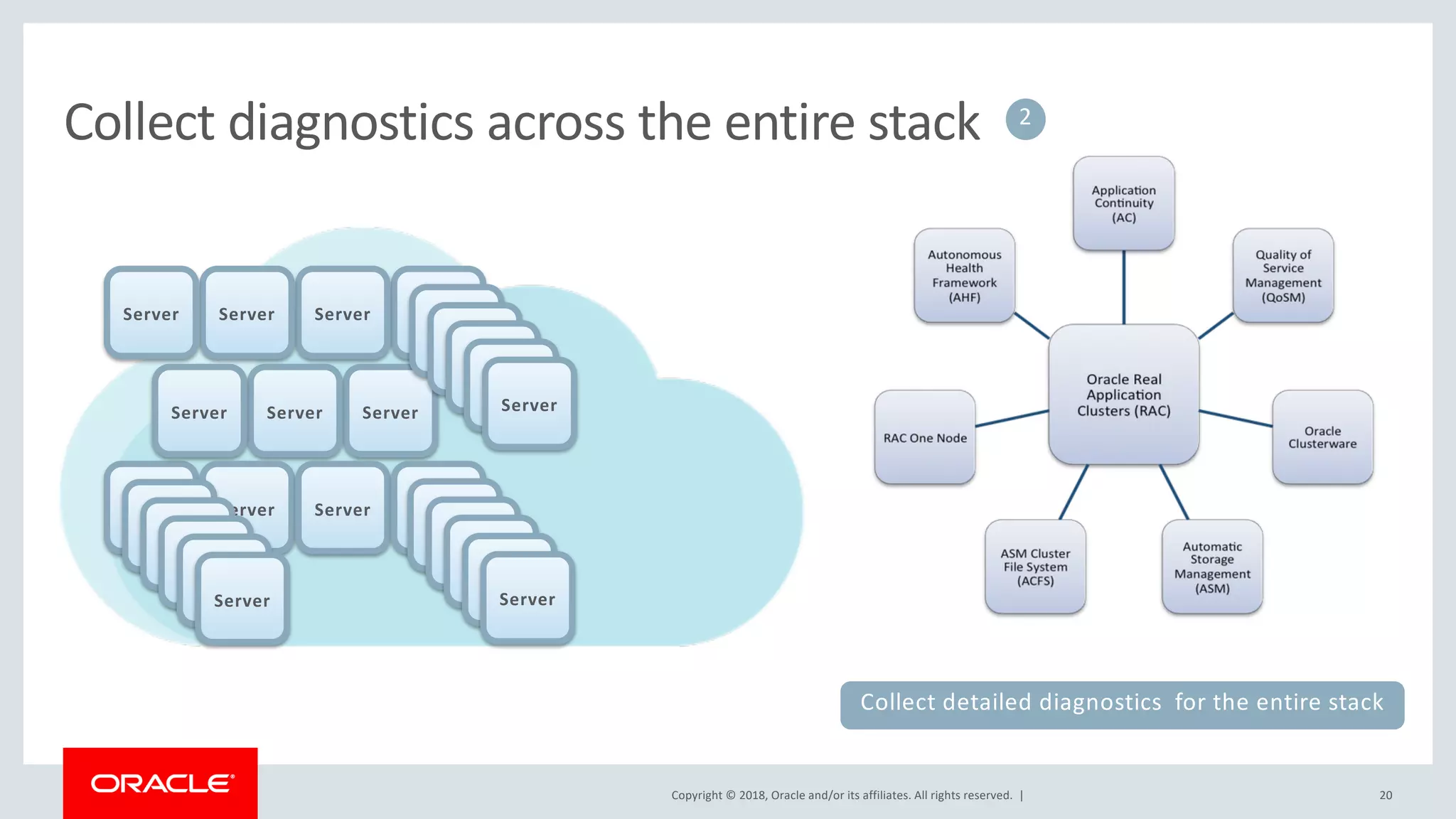

Collect diagnostics across the entire stack
Server
ServerServerServer
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Collect detailed diagnostics for the entire stack
2

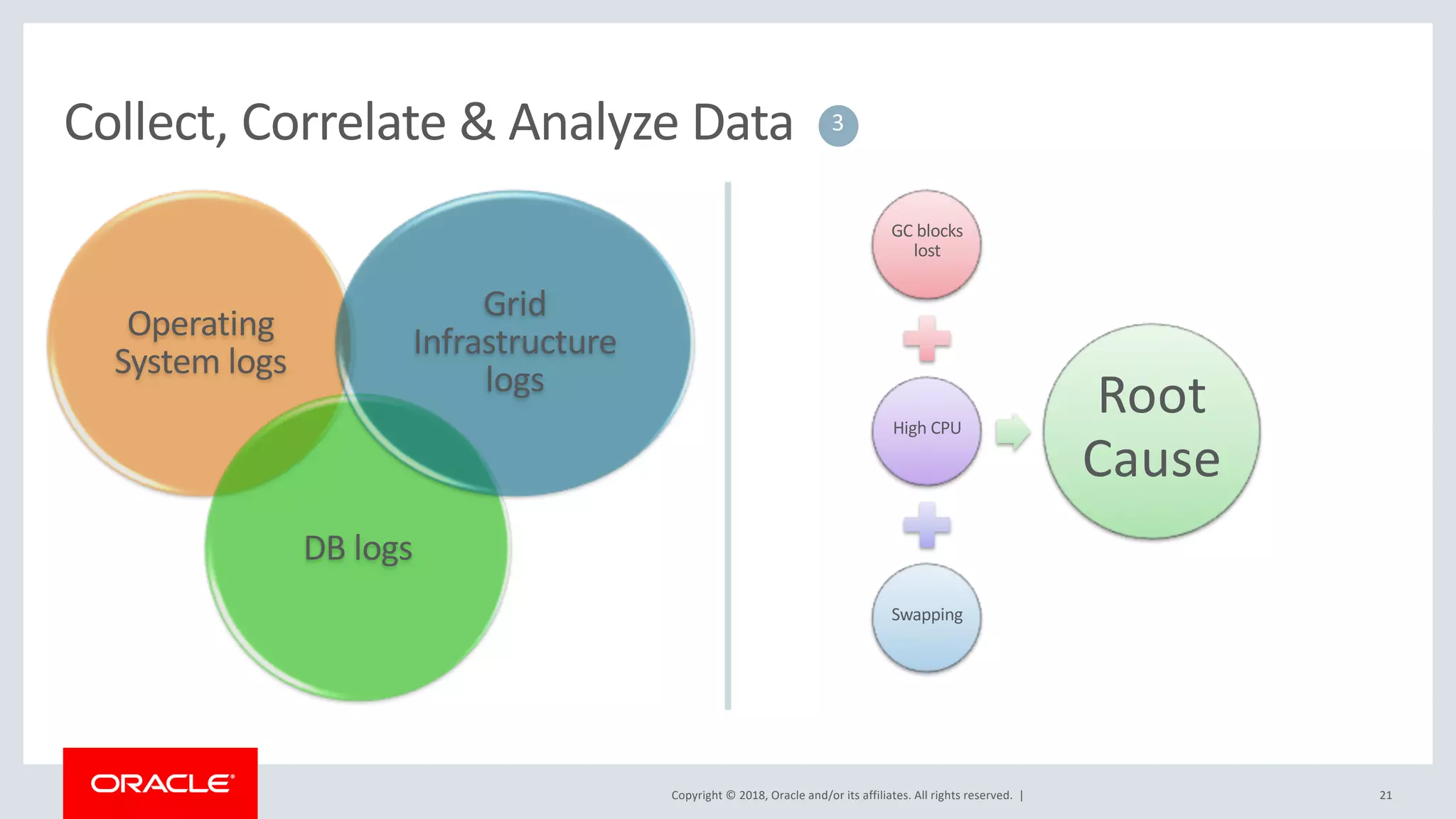

Collect, Correlate & Analyze Data
Operating
System logs
DB logs
Grid
Infrastructure
logs
3
GC blocks
lost
High CPU
Swapping
Root
Cause

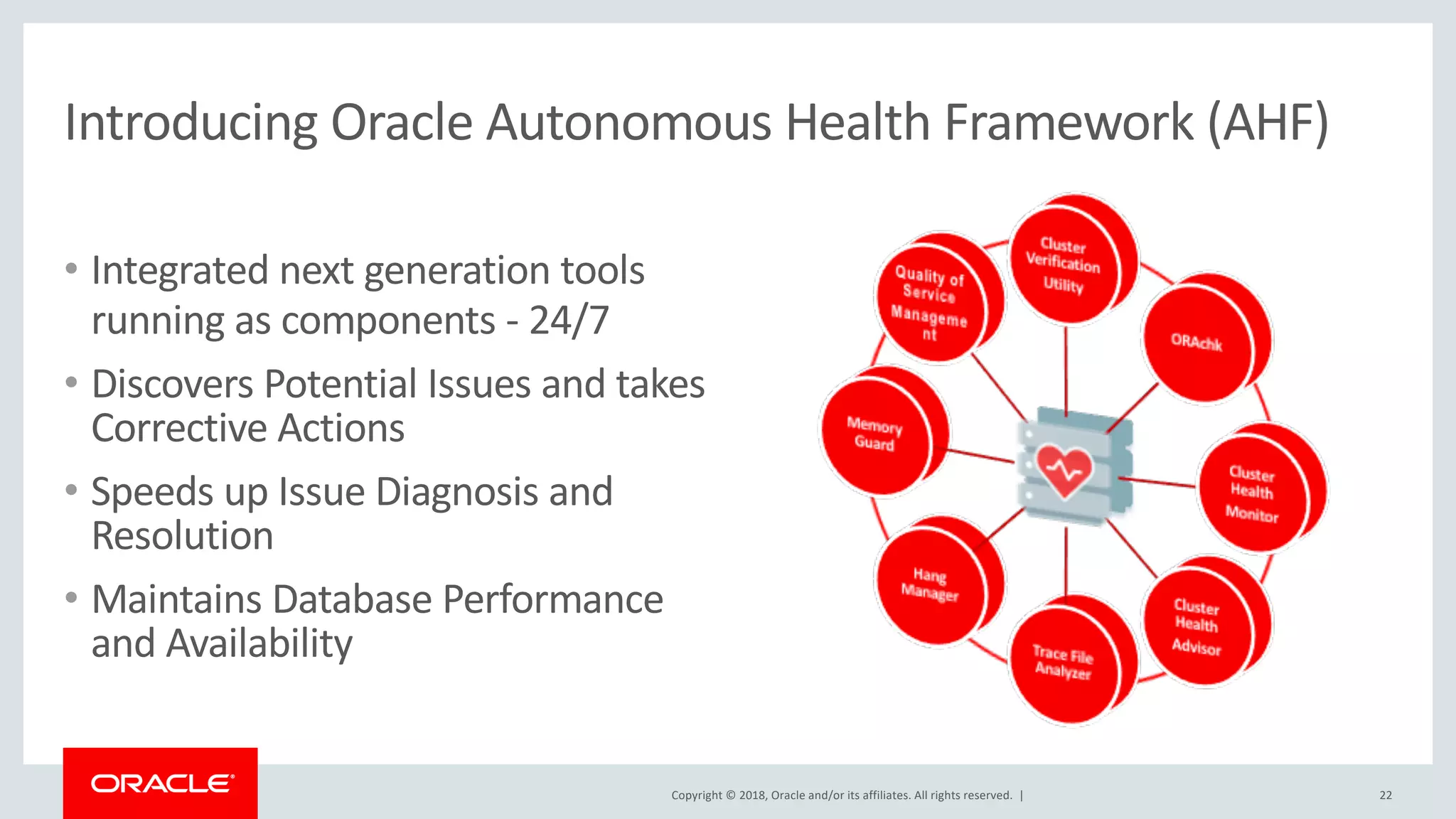

Introducing Oracle Autonomous Health Framework (AHF)
• Integrated next generation tools
running as components - 24/7
• Discovers Potential Issues and takes
Corrective Actions
• Speeds up Issue Diagnosis and
Resolution
• Maintains Database Performance
and Availability
22

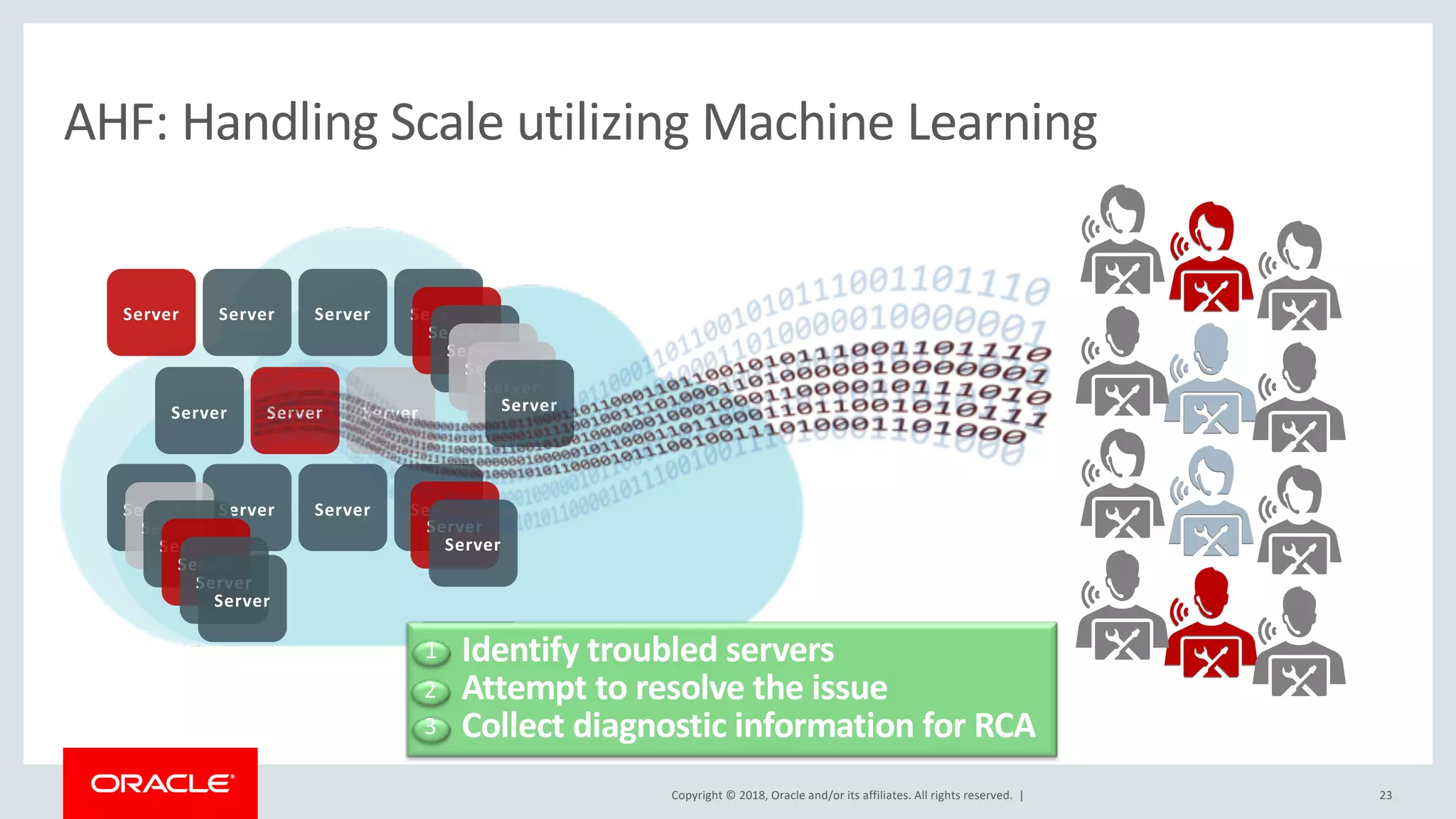

AHF: Handling Scale utilizing Machine Learning
23
Server
ServerServerServer
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server
Server• Identify troubled servers
• Attempt to resolve the issue
• Collect diagnostic information for RCA
1
2
3

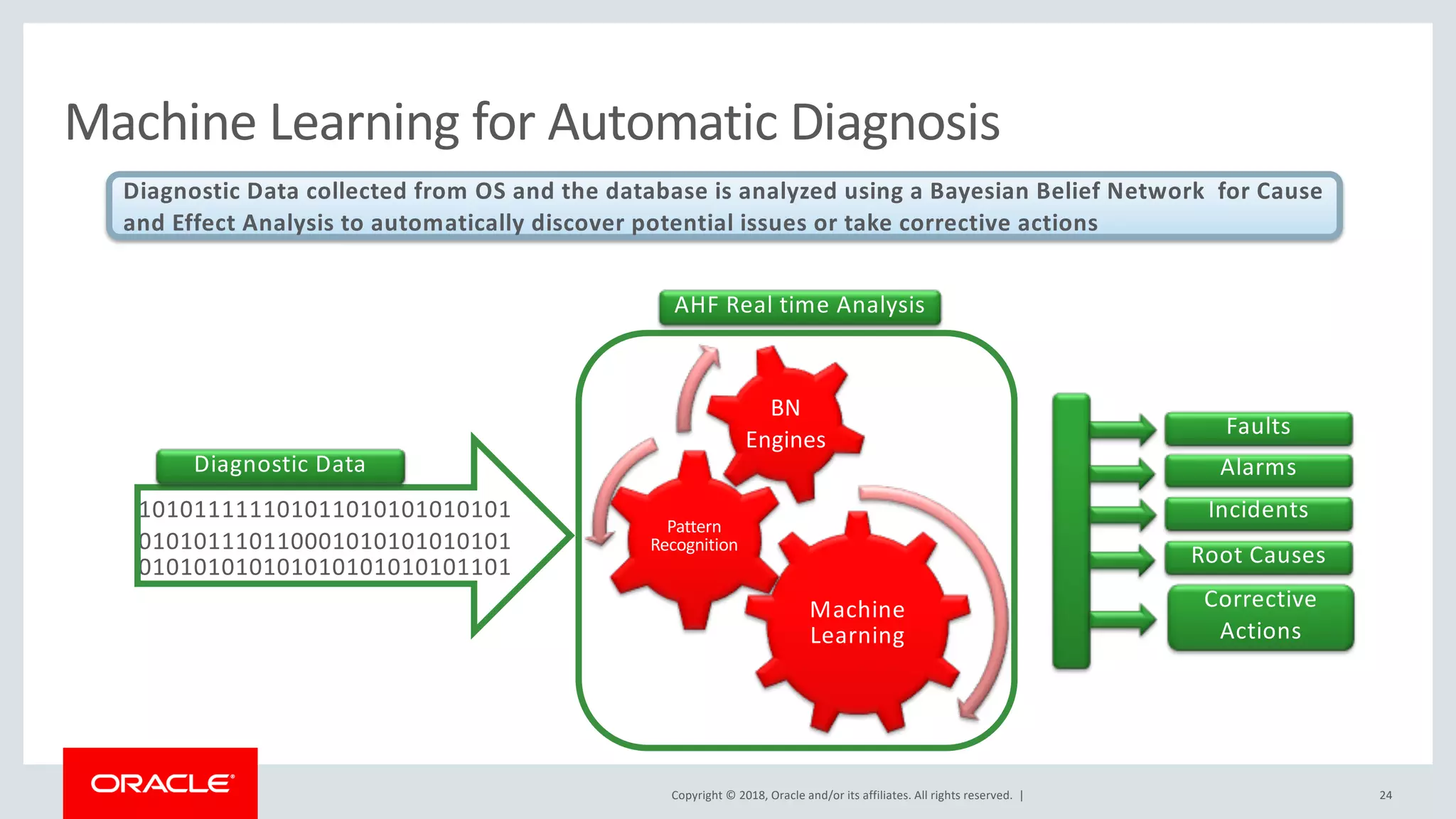

Machine Learning for Automatic Diagnosis
Faults
Alarms
Incidents
Root Causes
Corrective
Actions
101011111101011010101010101
010101110110001010101010101
010101010101010101010101101
Diagnostic Data collected from OS and the database is analyzed using a Bayesian Belief Network for Cause
and Effect Analysis to automatically discover potential issues or take corrective actions
Diagnostic Data
AHF Real time Analysis
Machine
Learning
Pattern
Recognition
BN
Engines

• Utilize Machine Learning for
efficient diagnosis in house
• Reduce the amount of trace
files to be read manually
• Create reusable models for
different problem scenarios
25

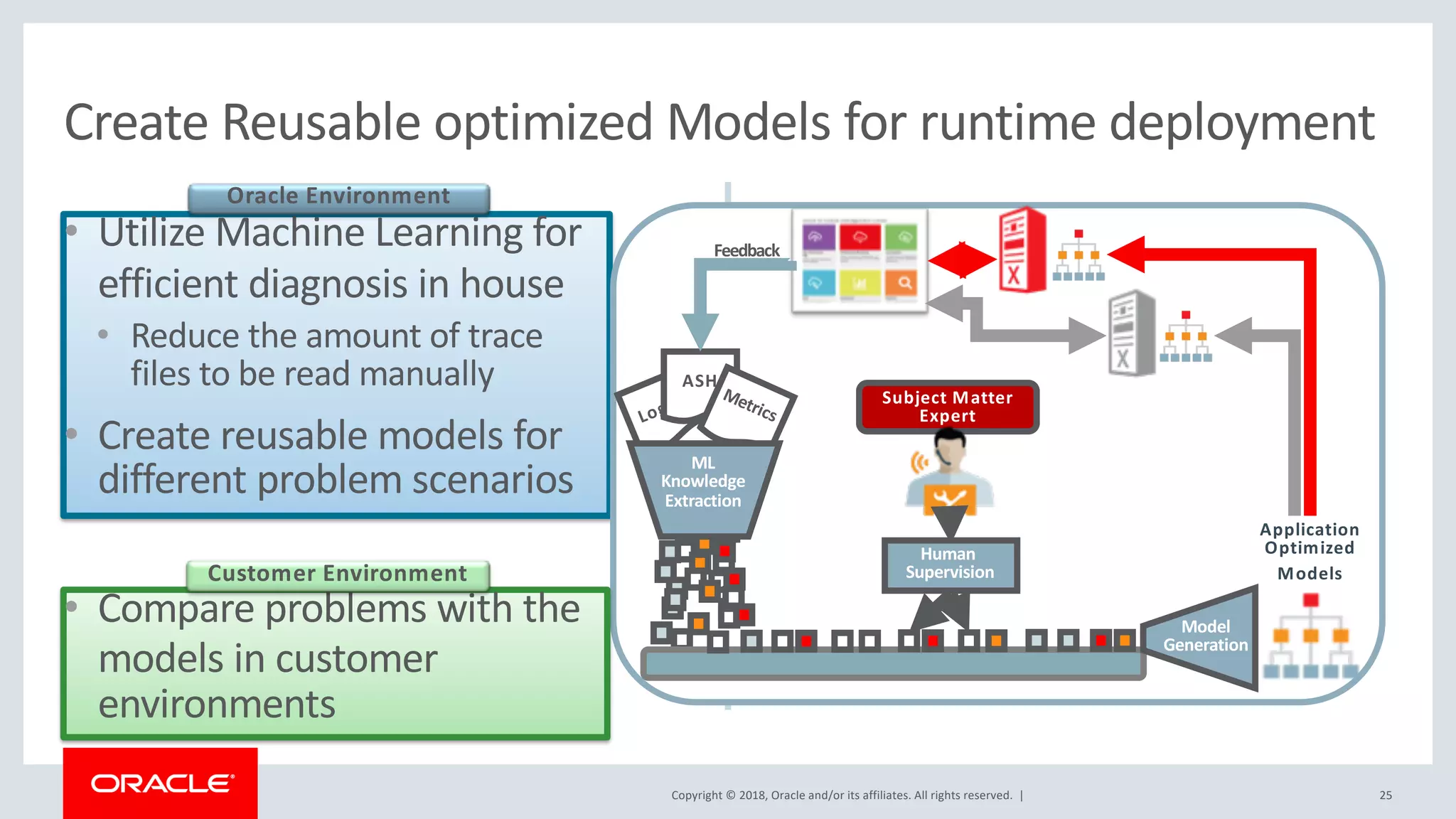

Create Reusable optimized Models for runtime deployment
Subject Matter
ExpertLog
ASH
Metrics
ML
Knowledge
Extraction
Model
Generation
Human
Supervision
Application
Optimized
Models
Feedback
• Compare problems with the
models in customer
environments
Oracle Environment
Customer Environment

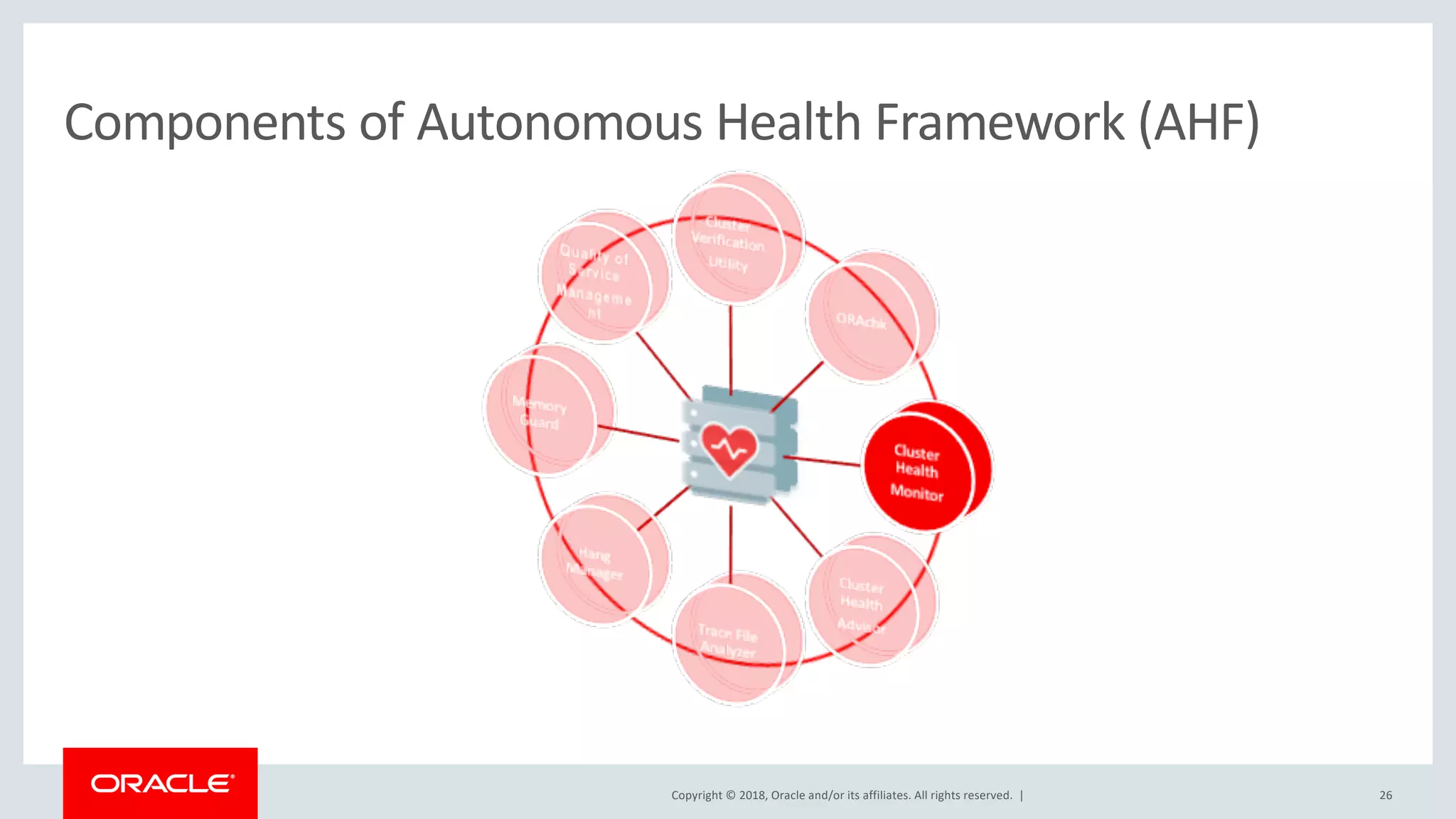

Components of Autonomous Health Framework (AHF)
26

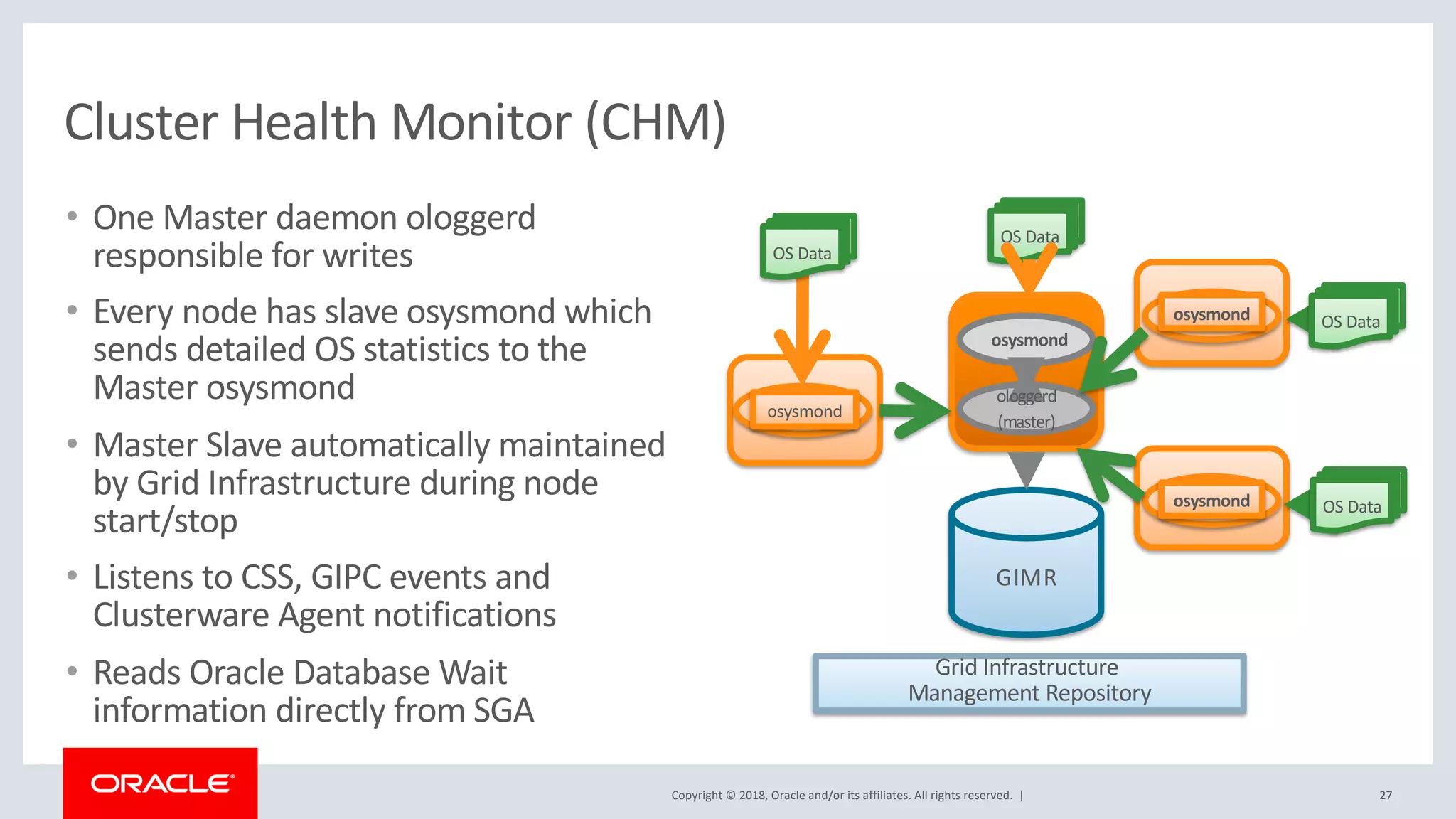

Cluster Health Monitor (CHM)
27
GIMR
ologgerd
(master)
osysmond
osysmond
osysmond
osysmond
Grid Infrastructure
Management Repository
• One Master daemon ologgerd
responsible for writes
• Every node has slave osysmond which
sends detailed OS statistics to the
Master osysmond
• Master Slave automatically maintained
by Grid Infrastructure during node
start/stop
• Listens to CSS, GIPC events and
Clusterware Agent notifications
• Reads Oracle Database Wait
information directly from SGA
OS Data
OS Data
OS Data
OS Data

28

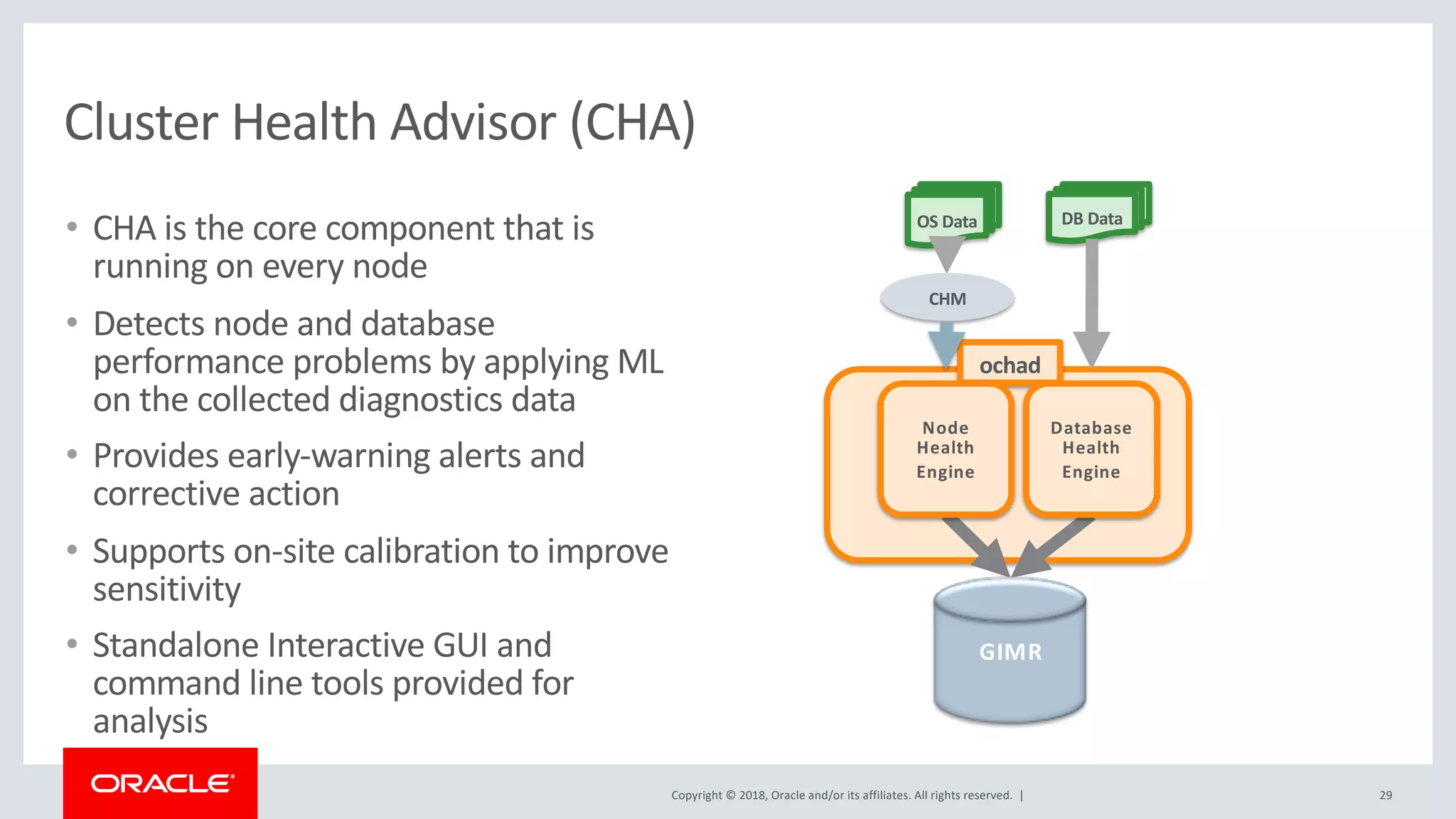

Cluster Health Advisor (CHA)
29
OS Data
ochad
• CHA is the core component that is
running on every node
• Detects node and database
performance problems by applying ML
on the collected diagnostics data
• Provides early-warning alerts and
corrective action
• Supports on-site calibration to improve
sensitivity
• Standalone Interactive GUI and
command line tools provided for
analysis
DB Data
CHM
Node
Health
Engine
Database
Health
Engine
GIMR

30

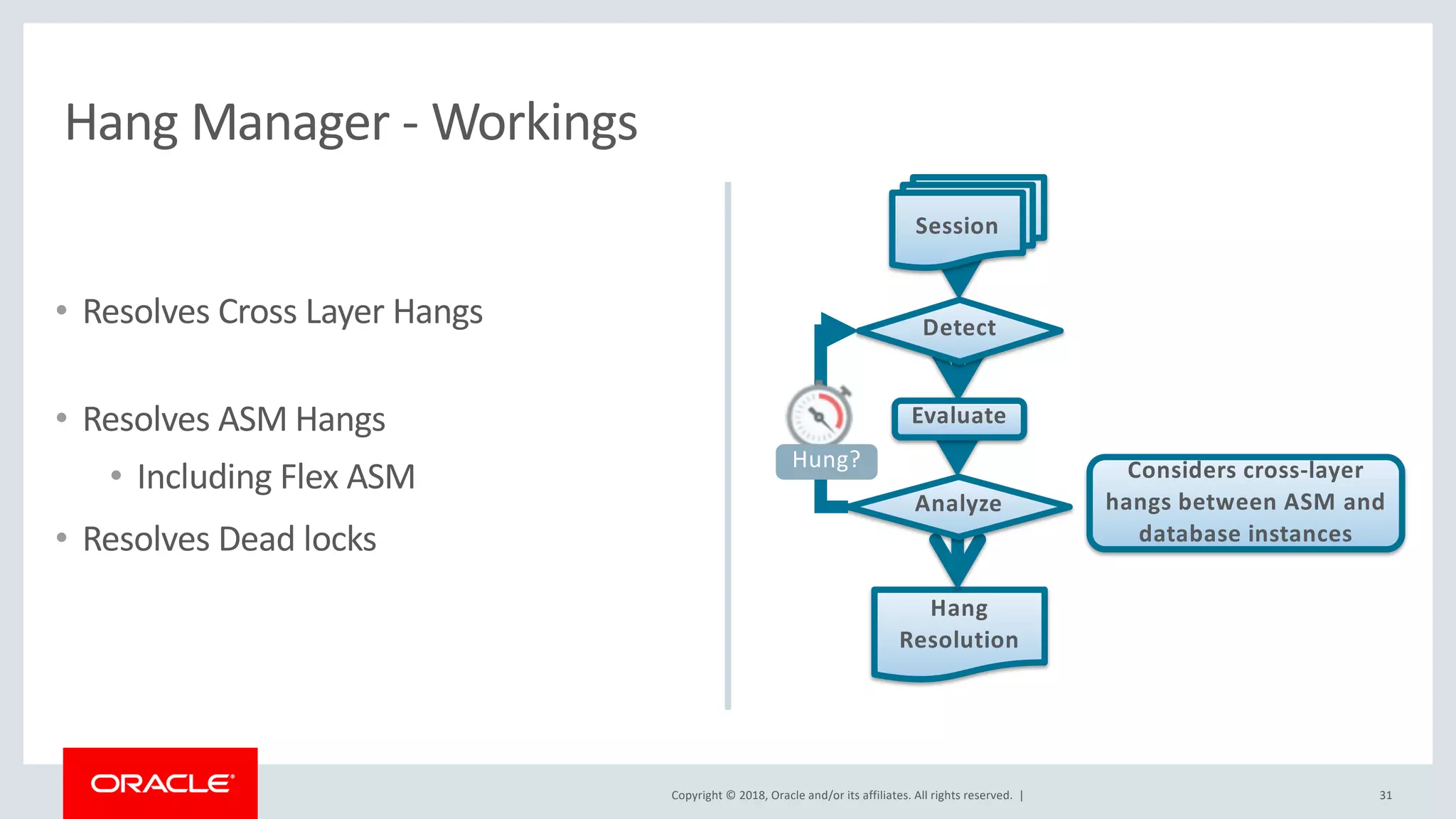

Hang Manager - Workings
• Resolves Cross Layer Hangs
• Resolves ASM Hangs
• Including Flex ASM
• Resolves Dead locks
Considers cross-layer
hangs between ASM and
database instances
Hang
Resolution
Analyze
Evaluate
Detect
Session
Hung?

• Database processes can be waiting
on
– Allocating space in SGA due to change
in workload
– Higher load on LMS*
• Even though there is adequate
resources
– CPU and Memory
• Remaster Blocks
• Reduce Brownouts
32
The Database point of view
What is happening in the Database?
Allocate space in SGA

Oracle RAC Optimization Design Goals
Monitor
Reduce
Brownouts
Optimize CPU
usage
Dynamically
Adjust

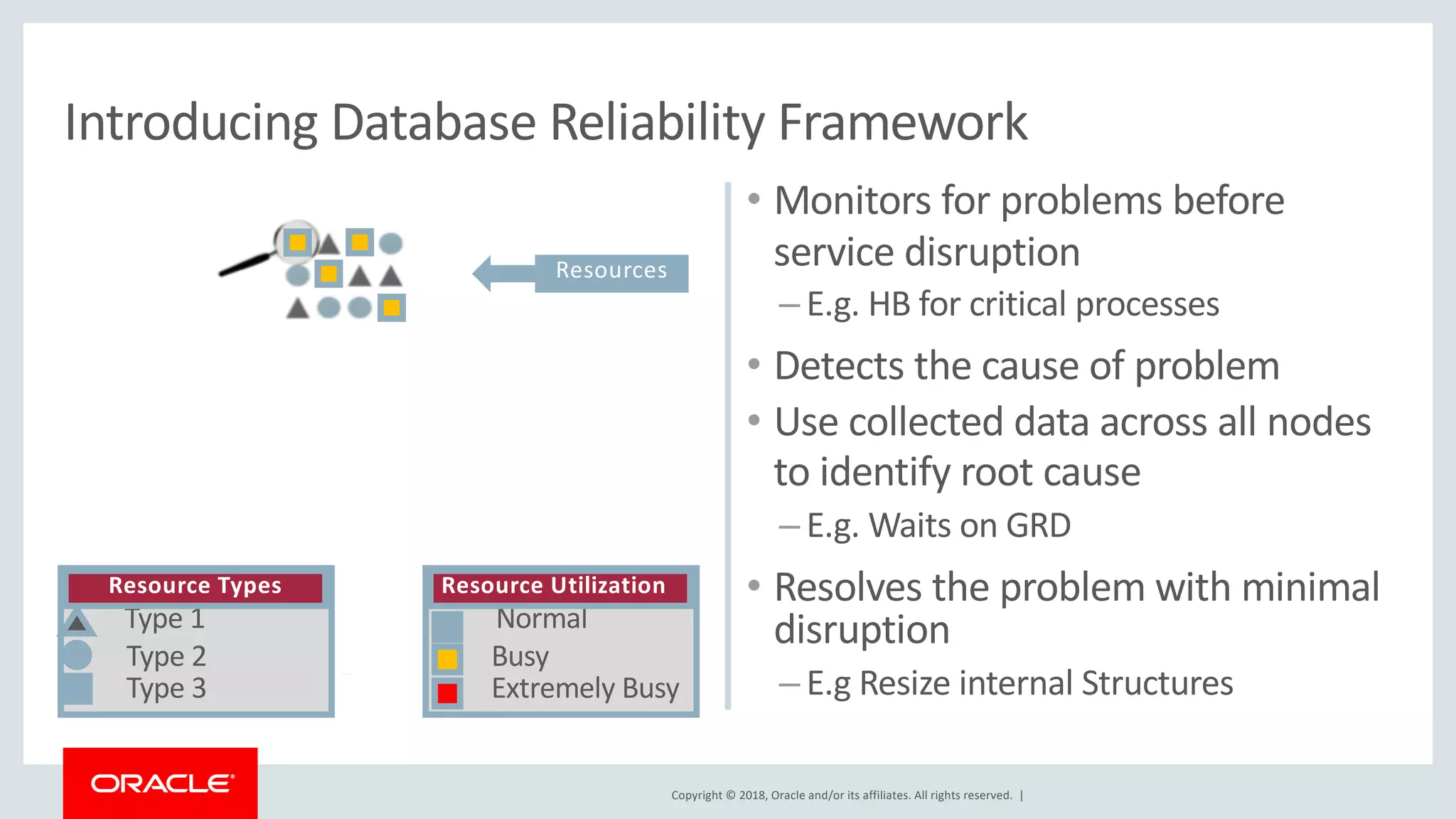

• Monitors for problems before
service disruption
– E.g. HB for critical processes
• Detects the cause of problem
• Use collected data across all nodes
to identify root cause
– E.g. Waits on GRD
• Resolves the problem with minimal
disruption
– E.g Resize internal Structures
Introducing Database Reliability Framework
• Normal
• Busy
• Extremely Busy
Resource Utilization
• Type 1
• Type 2
• Type 3
Resource Types
Resources

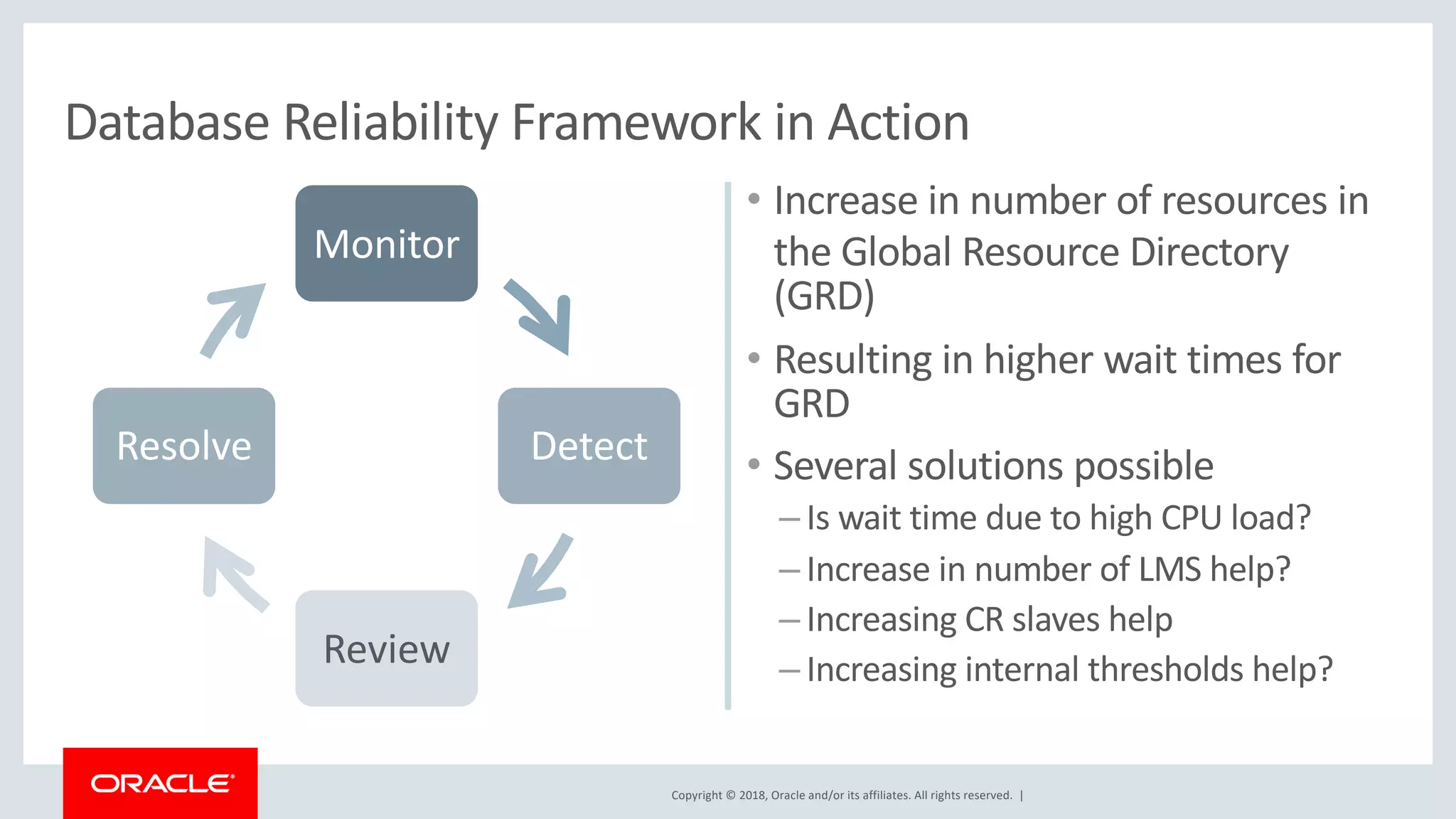

Monitor
Detect
Review
Resolve
• Increase in number of resources in
the Global Resource Directory
(GRD)
• Resulting in higher wait times for
GRD
• Several solutions possible
– Is wait time due to high CPU load?
– Increase in number of LMS help?
– Increasing CR slaves help
– Increasing internal thresholds help?
Database Reliability Framework in Action

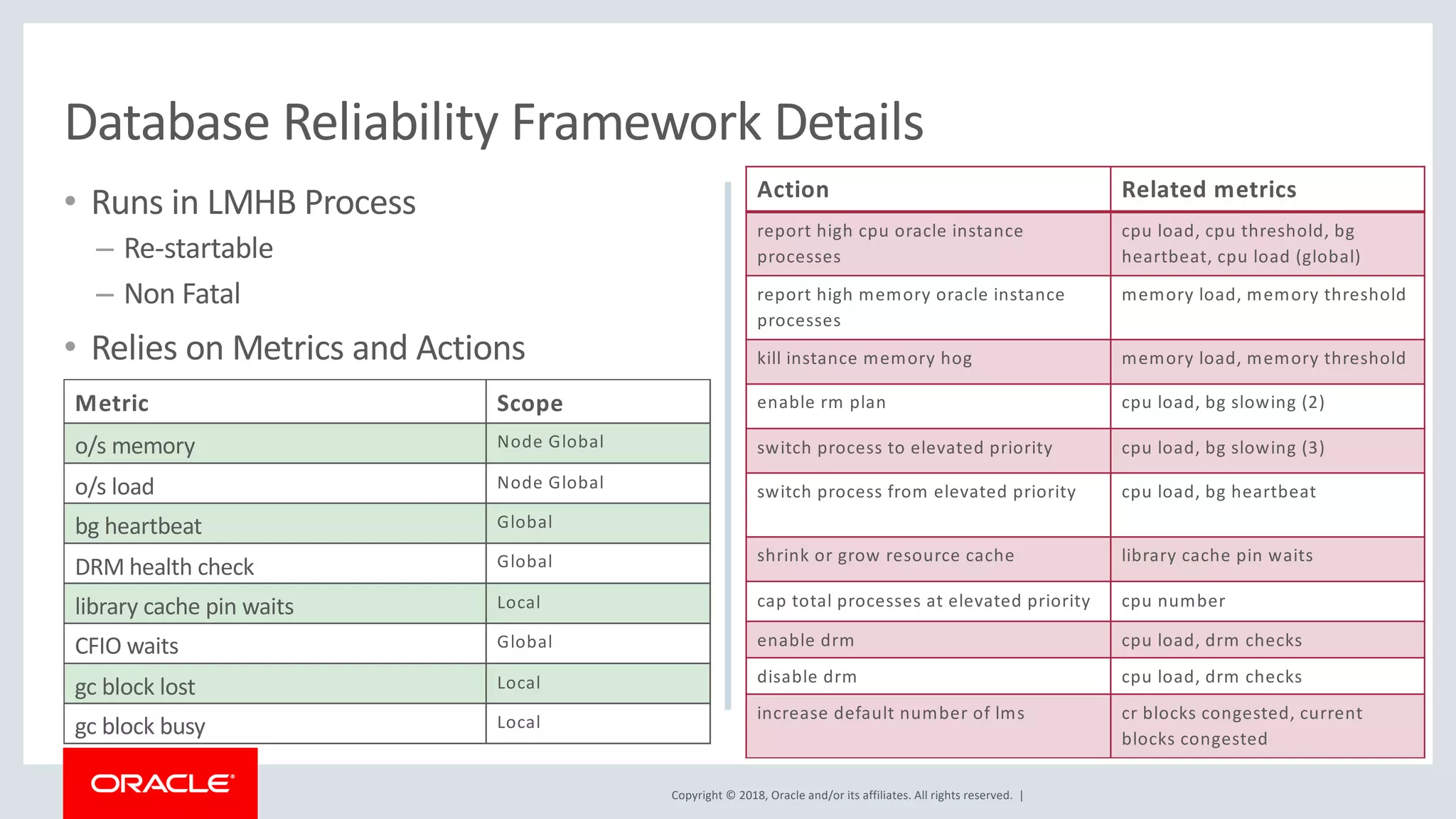

Database Reliability Framework Details
• Runs in LMHB Process
– Re-startable
– Non Fatal
• Relies on Metrics and Actions
Action Related metrics
report high cpu oracle instance
processes
cpu load, cpu threshold, bg
heartbeat, cpu load (global)
report high memory oracle instance
processes
memory load, memory threshold
kill instance memory hog memory load, memory threshold
enable rm plan cpu load, bg slowing (2)
switch process to elevated priority cpu load, bg slowing (3)
switch process from elevated priority cpu load, bg heartbeat
shrink or grow resource cache library cache pin waits
cap total processes at elevated priority cpu number
enable drm cpu load, drm checks
disable drm cpu load, drm checks
increase default number of lms cr blocks congested, current
blocks congested
Metric Scope
o/s memory Node Global
o/s load Node Global
bg heartbeat Global
DRM health check Global
library cache pin waits Local
CFIO waits Global
gc block lost Local
gc block busy Local

• Busy FG process(es) using CPU
• Potential upcoming memory
starvation
• LGWR constrained by CPU
• Too many RT processes
• Insufficient CR slaves
• DLM resource cache incorrectly
sized
• Control file IO (CFIO) stall
• v$ views
• v$gcr_metrics - details on all defined
metrics
• v$gcr_actions - details on all defined
actions
• v$gcr_log – metric/action history
summary log
• v$gcr_status – details on latest
metric/action status
37
Examples and DRF Views

• Increase the maximum number of
LMSs
– Based on System utilization (DRF)
• Each LMS will spawn a dedicated
CR slave
– Threshold of Rollback Changes
– Threaded CR slave in 18c
• Optimized for Multi core/thread architecture
• Remastering Slaves (RMV0..)
– Offloads heavy remastering work to
slaves
Cache Fusion Optimizations

Program Agenda
Walk through some common scenarios
1
2
3
4
5
39

Scenario 1 – Remember our Node eviction issue
40

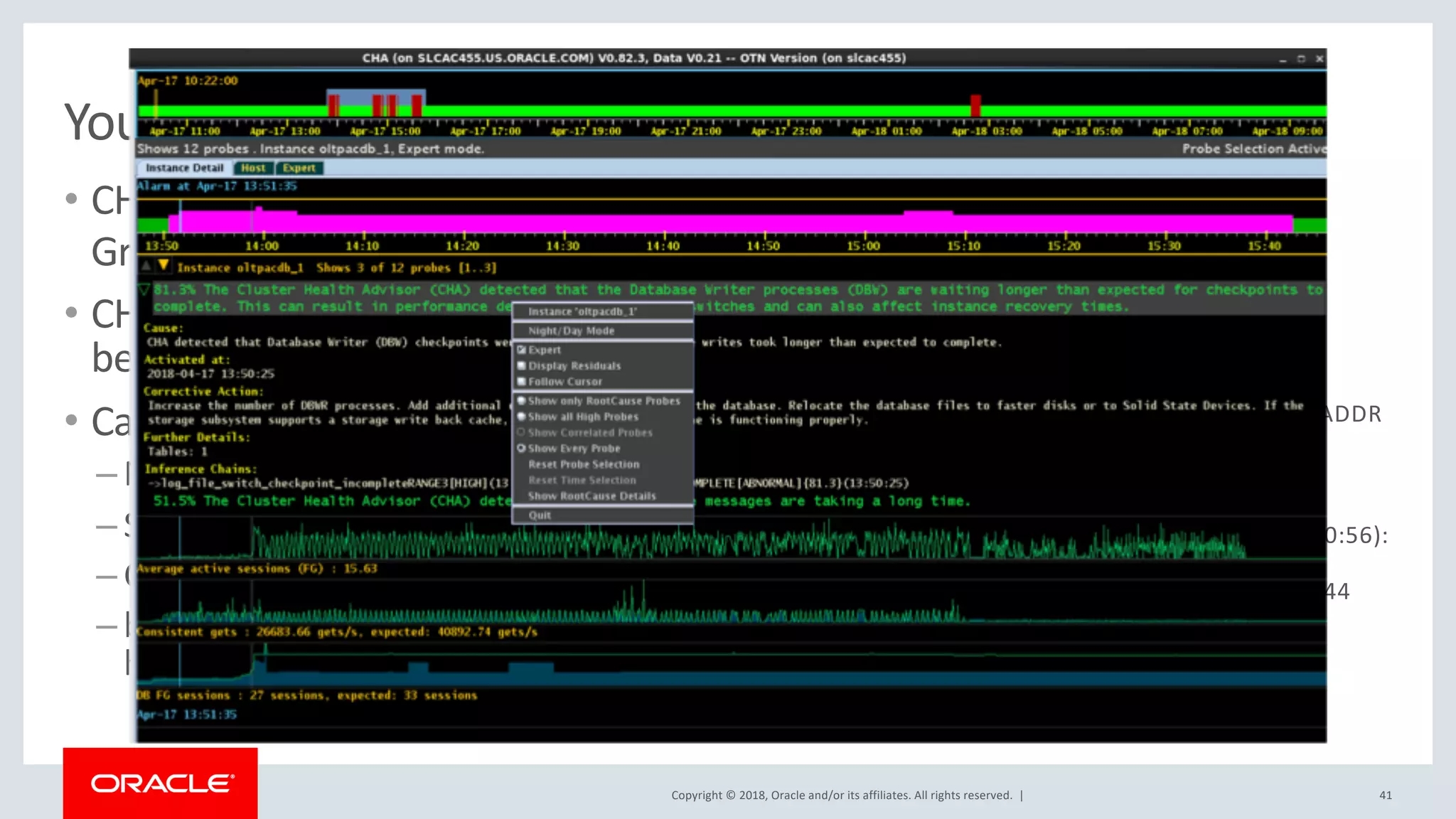

• CHAG (Cluster Health Advisor
Graphical) Doc ID 2340062.1
• CHAG is the GUI to utilize the
benefits of AHF
• Can be run on the Cluster node
– Not Recommended*
– Set ORACLE_HOME= GI HOME
– Connects to the GIMR using wallets
– but Install locally on a separate Linux
host
$export ORACLE_HOME=/u01/app/12.2.0/grid
$ ./chag
CHAG logging to log/chagout_20873.log
Initializing DB reader
Connect via
'jdbc:oracle:thin:@(DESCRIPTION=(ADDRESS_LIST=(ADDR
ESS=…..
CHAG MDB feed open. Timings: Load JDBC driver:
147.50 ms, Connect to MDB: 1398.85 ms
1st Query with 60 minutes of data (15:00:56..16:00:56):
16546 ms
1st CLOB : (59290 lines, 1.484 MB) parsing time: 644
ms, 10.49 mics/line
41
You could have reached same conclusion using

Use CHAG on a Remote system
• Remote Mode requires the GIMR Data to be exported
– Execute the following on the cluster node
– $chactl export repository -format mdb -start ‘’ -end '‘
–
• Copy the MDB to the local node and execute
– chag –f <mdb_file>
• MDB file includes all the data for post mortem analysis from all the nodes
43
$chactl export repository -format mdb -start '2017-12-15 00:00:00' -end '2017-12-20 00:00:00'
successfully dumped the CHA statistics to location
"/u01/app/gridbase/crsdata/anair/trace/chad/cha_dump_20171215_000000_20171215_010000.mdb“

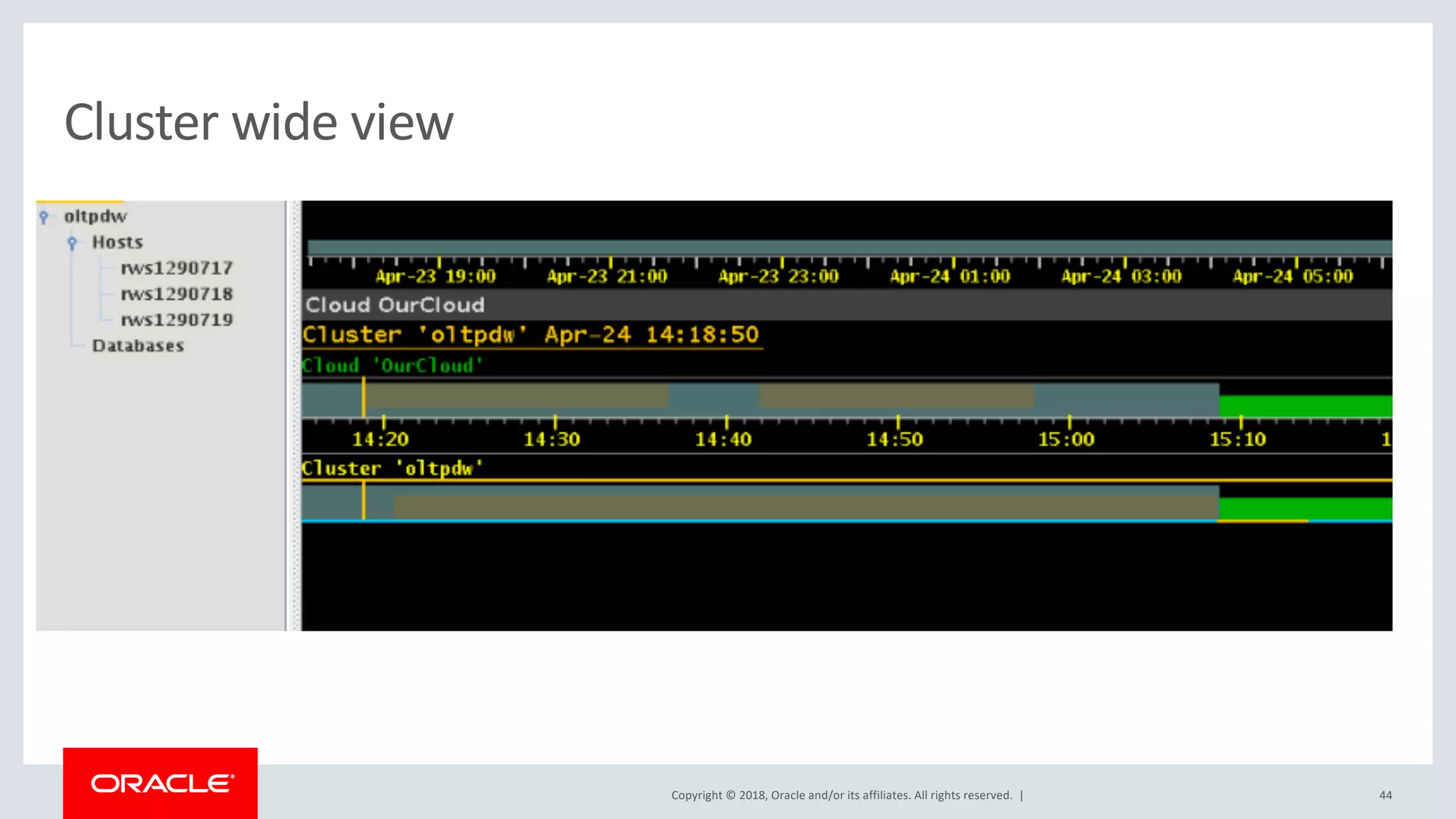

Cluster wide view
44

Individual node details
45

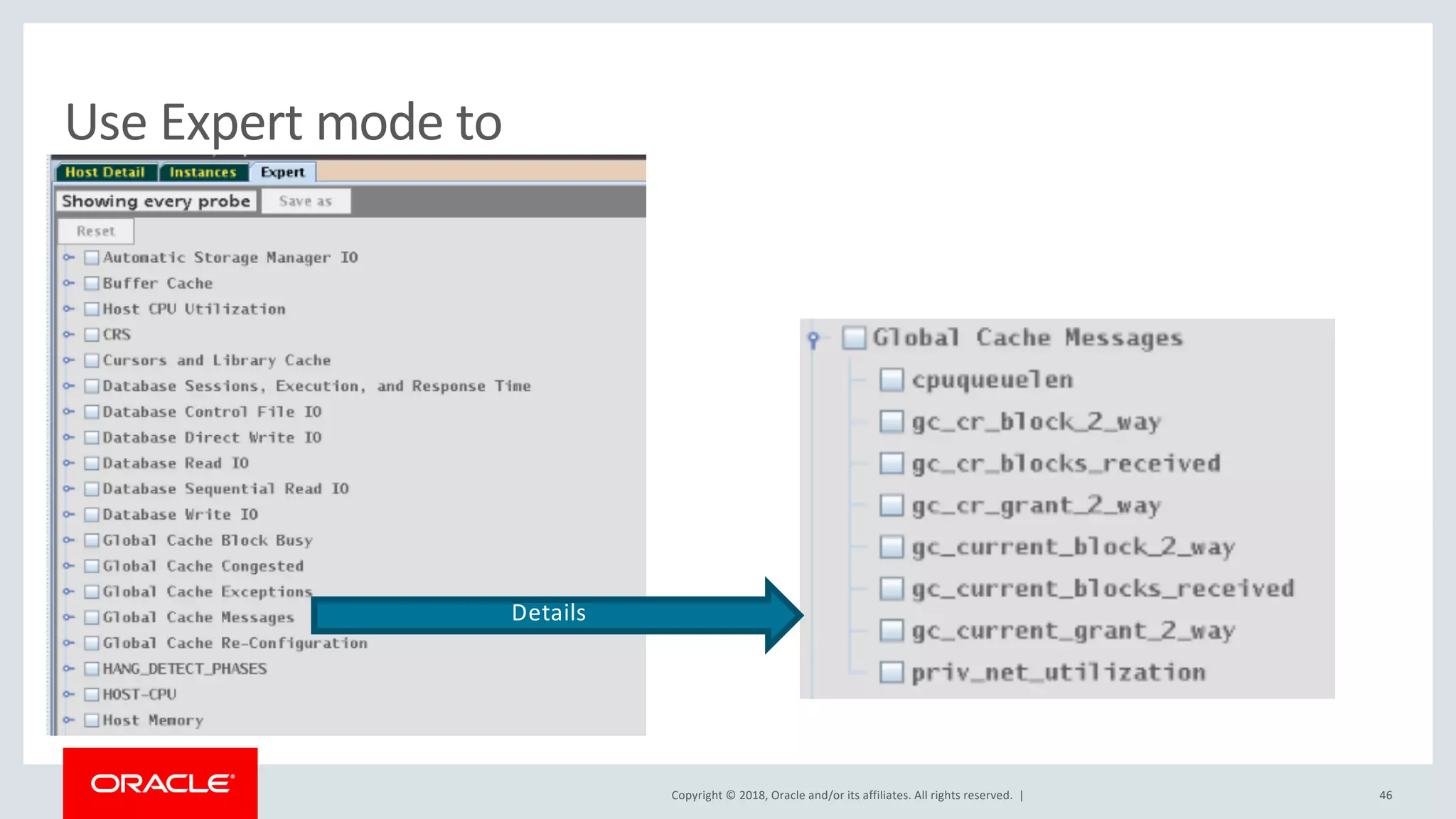

Use Expert mode to
46
Details

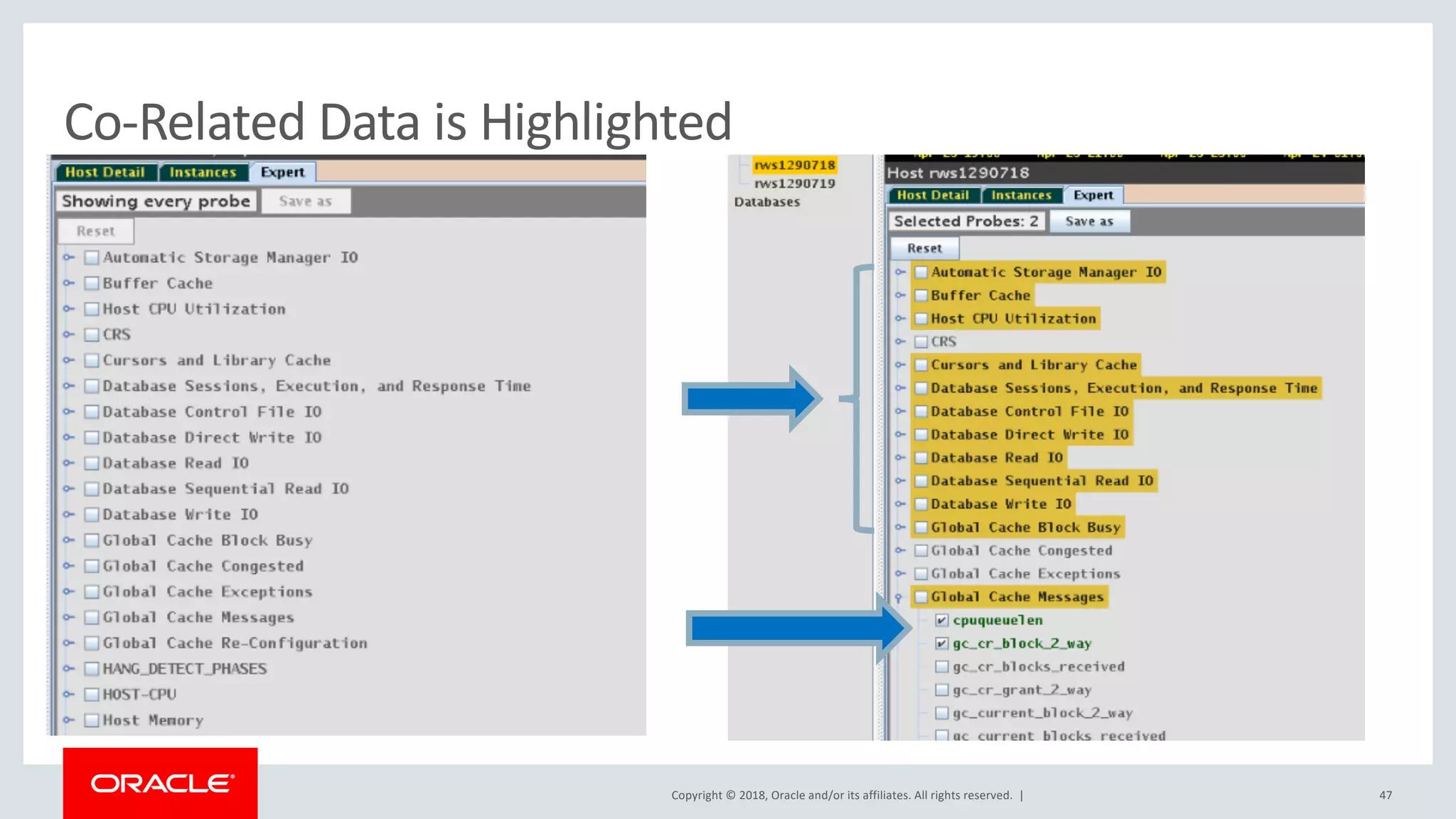

Co-Related Data is Highlighted
47

Sample Problems and Resolution
48
Problem 2 – Slow I/O

• Start the Database on all instances to
simulate physical reads
• Simulate I/O on shared storage
– Loading data (sqlldr,expdp) OR
– Swingbench
• **behavior may depend on your test setup, HCA, HBA
etc
49

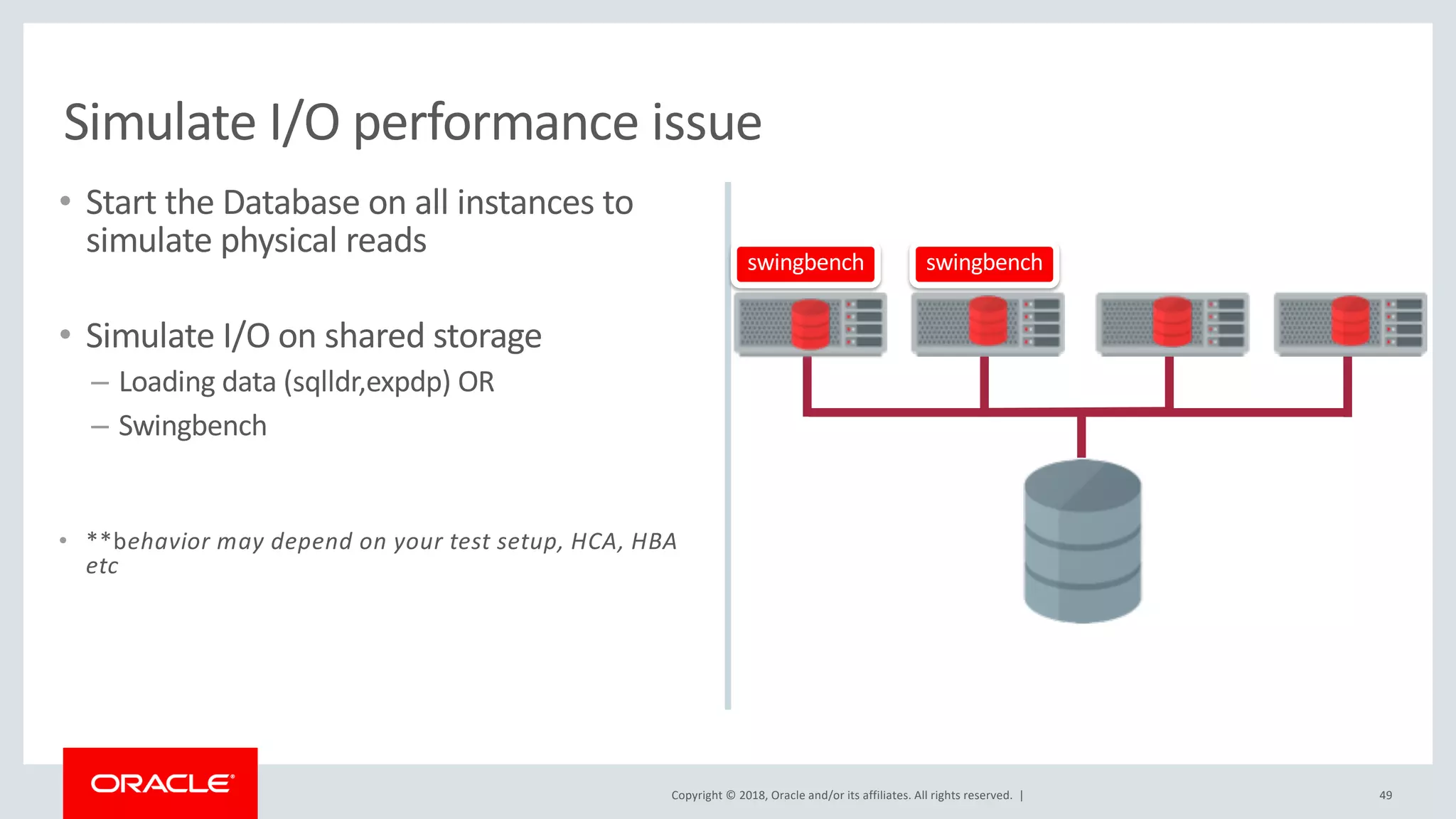

Simulate I/O performance issue
swingbench swingbench

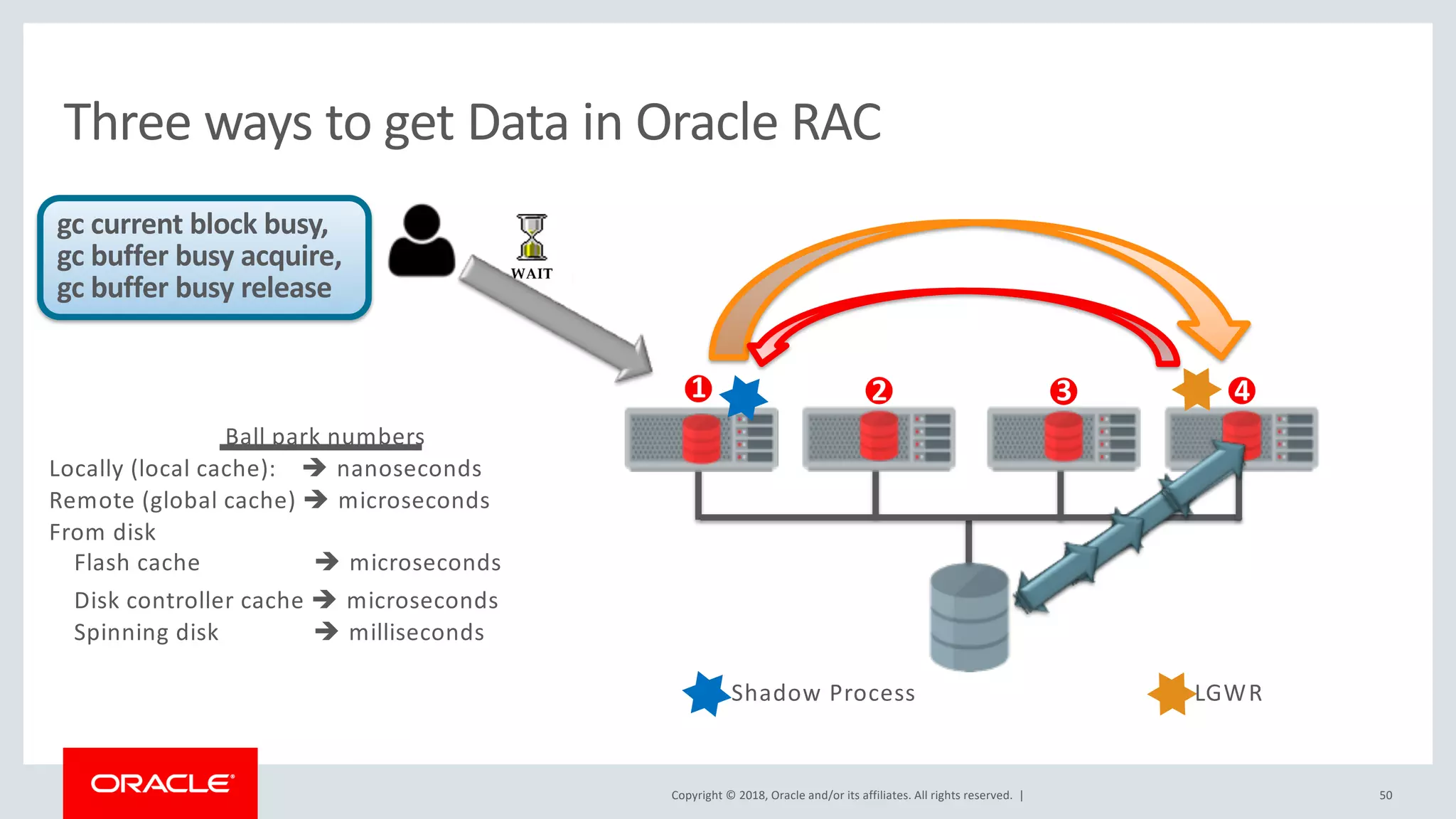

Three ways to get Data in Oracle RAC
Ball park numbers
Locally (local cache): è nanoseconds
Remote (global cache) è microseconds
From disk
Flash cache è microseconds
Disk controller cache è microseconds
Spinning disk è milliseconds
1 2 3 4
Shadow Process LGWR
gc current block busy,
gc buffer busy acquire,
gc buffer busy release

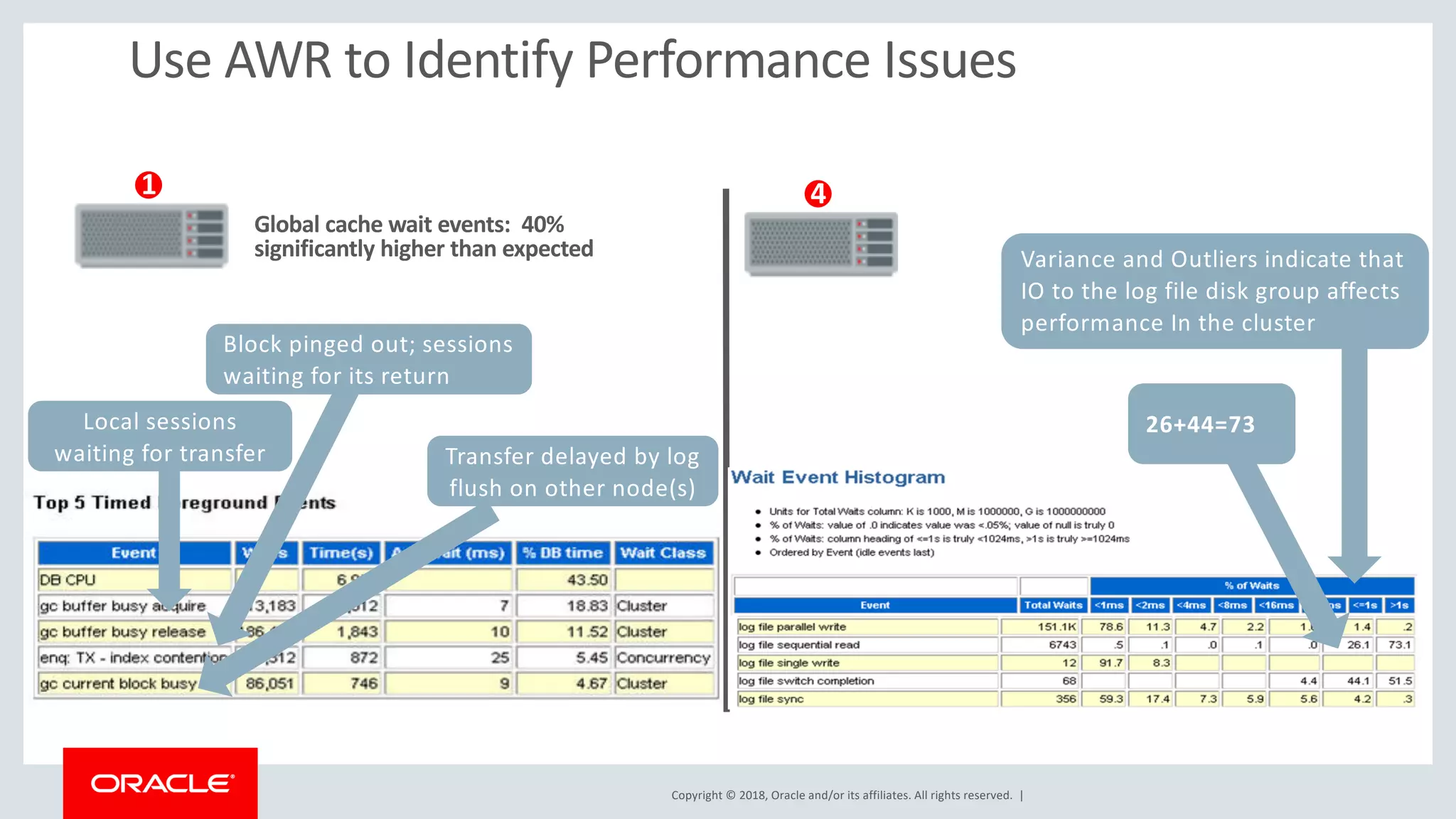

Use AWR to Identify Performance Issues
Global cache wait events: 40%
significantly higher than expected
1
Local sessions
waiting for transfer Transfer delayed by log
flush on other node(s)
4
Variance and Outliers indicate that
IO to the log file disk group affects
performance In the cluster
26+44=73
Block pinged out; sessions
waiting for its return

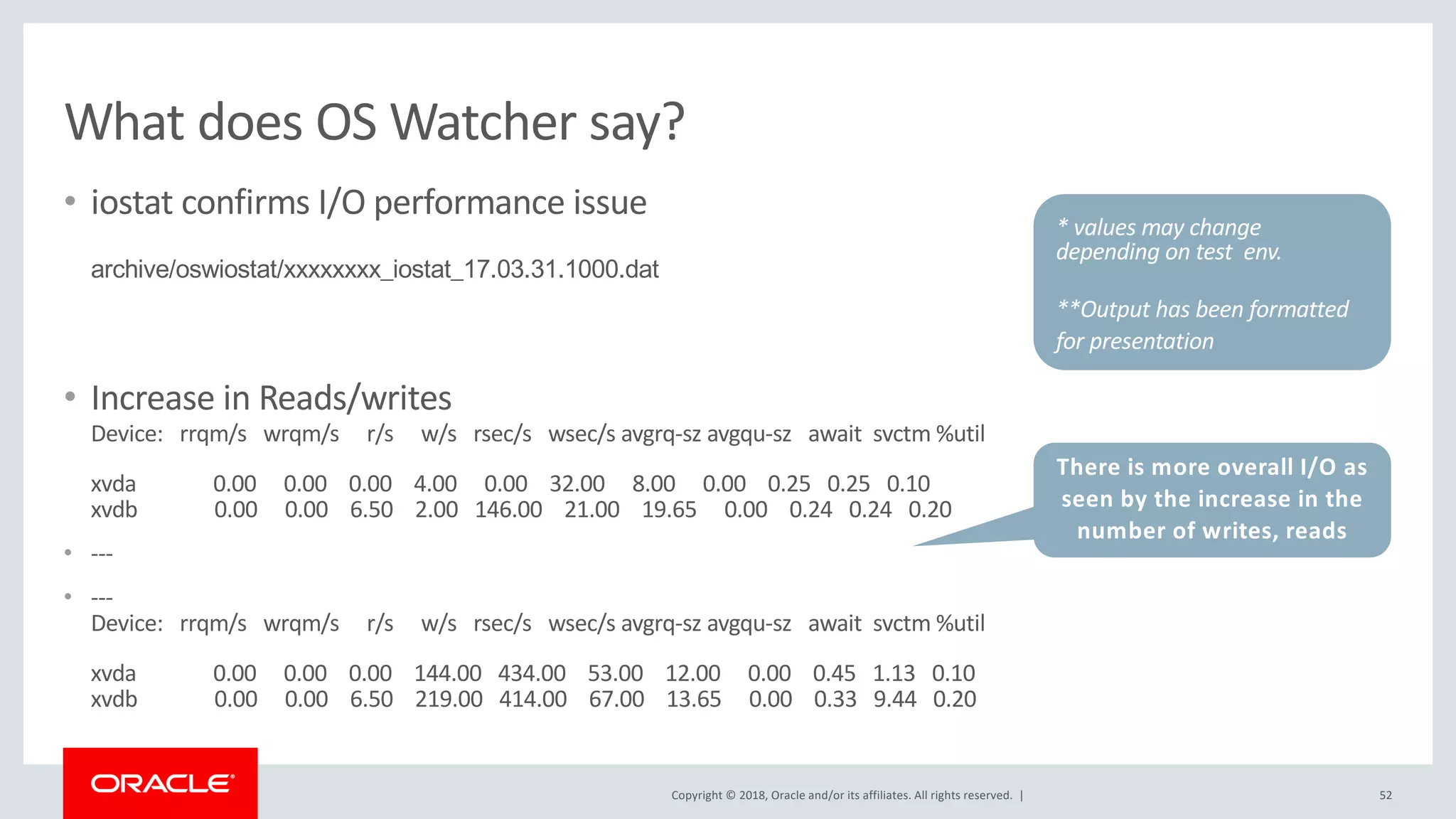

• iostat confirms I/O performance issue
archive/oswiostat/xxxxxxxx_iostat_17.03.31.1000.dat
• Increase in Reads/writes
Device: rrqm/s wrqm/s r/s w/s rsec/s wsec/s avgrq-sz avgqu-sz await svctm %util
xvda 0.00 0.00 0.00 4.00 0.00 32.00 8.00 0.00 0.25 0.25 0.10
xvdb 0.00 0.00 6.50 2.00 146.00 21.00 19.65 0.00 0.24 0.24 0.20
• ---
• ---
Device: rrqm/s wrqm/s r/s w/s rsec/s wsec/s avgrq-sz avgqu-sz await svctm %util
xvda 0.00 0.00 0.00 144.00 434.00 53.00 12.00 0.00 0.45 1.13 0.10
xvdb 0.00 0.00 6.50 219.00 414.00 67.00 13.65 0.00 0.33 9.44 0.20
52
There is more overall I/O as
seen by the increase in the
number of writes, reads
* values may change
depending on test env.
**Output has been formatted
for presentation

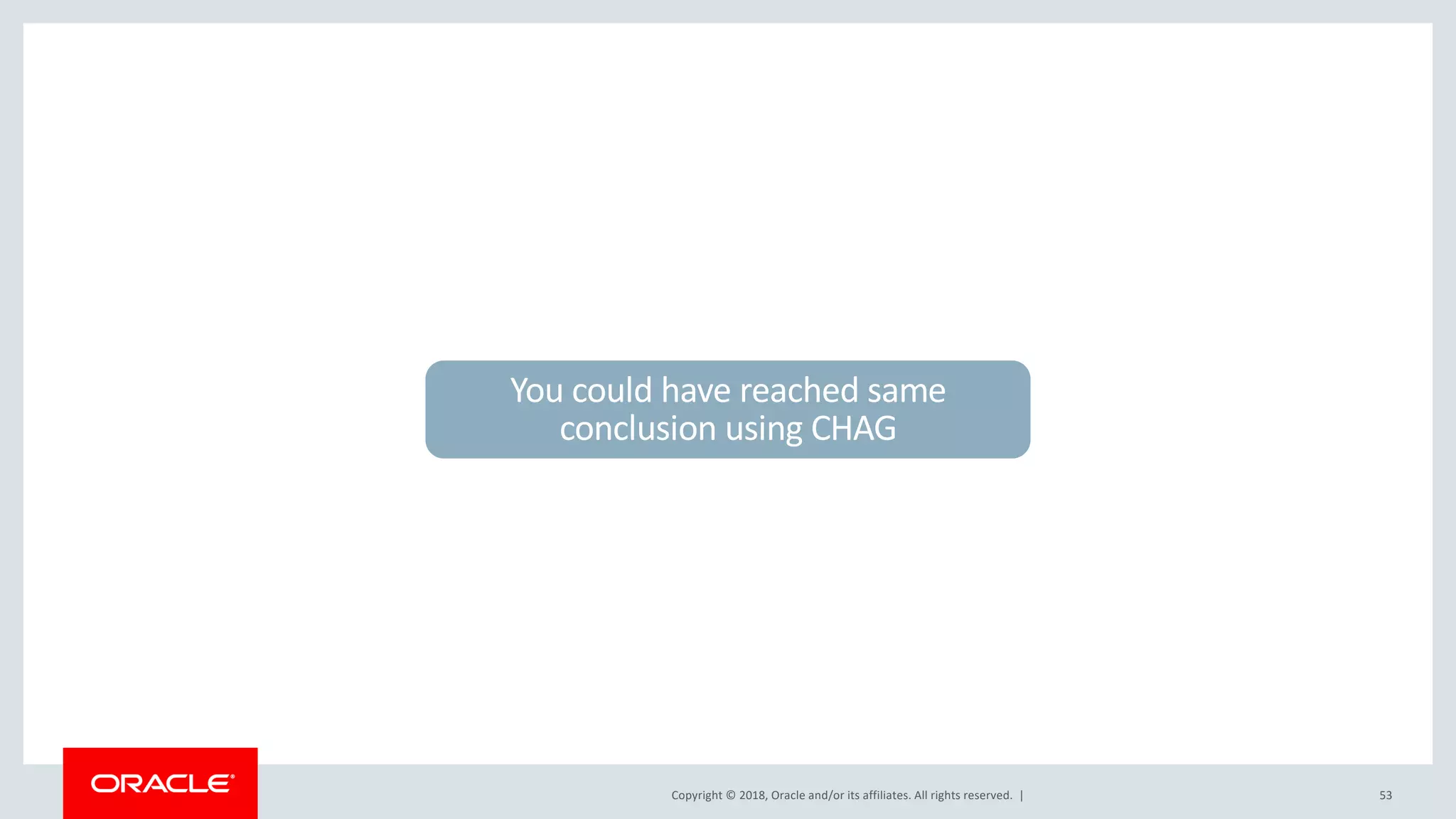

You could have reached same
conclusion using CHAG

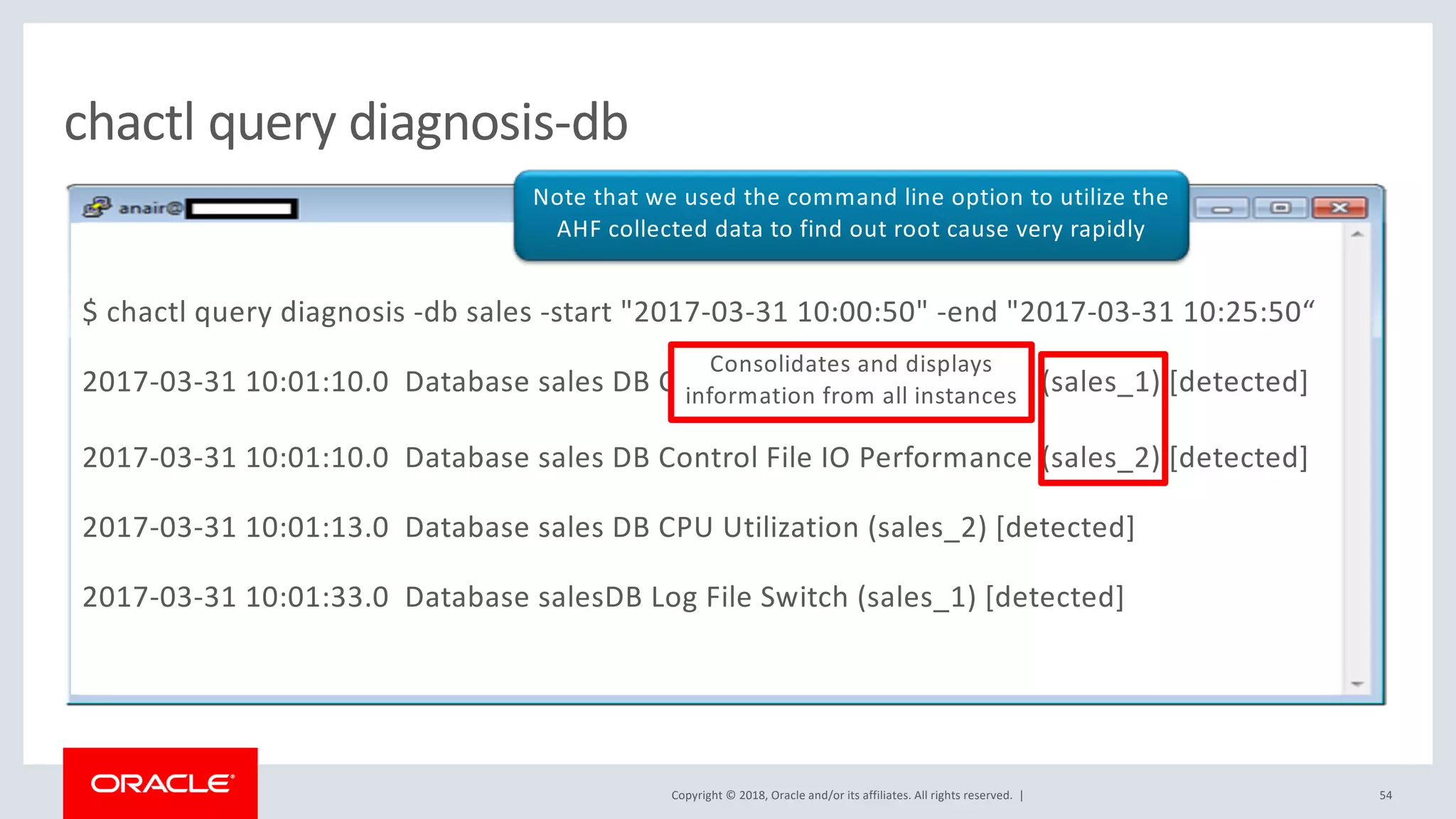

chactl query diagnosis-db
54
$ chactl query diagnosis -db sales -start "2017-03-31 10:00:50" -end "2017-03-31 10:25:50“
2017-03-31 10:01:10.0 Database sales DB Control File IO Performance (sales_1) [detected]
2017-03-31 10:01:10.0 Database sales DB Control File IO Performance (sales_2) [detected]
2017-03-31 10:01:13.0 Database sales DB CPU Utilization (sales_2) [detected]
2017-03-31 10:01:33.0 Database salesDB Log File Switch (sales_1) [detected]
Consolidates and displays
information from all instances
Note that we used the command line option to utilize the
AHF collected data to find out root cause very rapidly

55

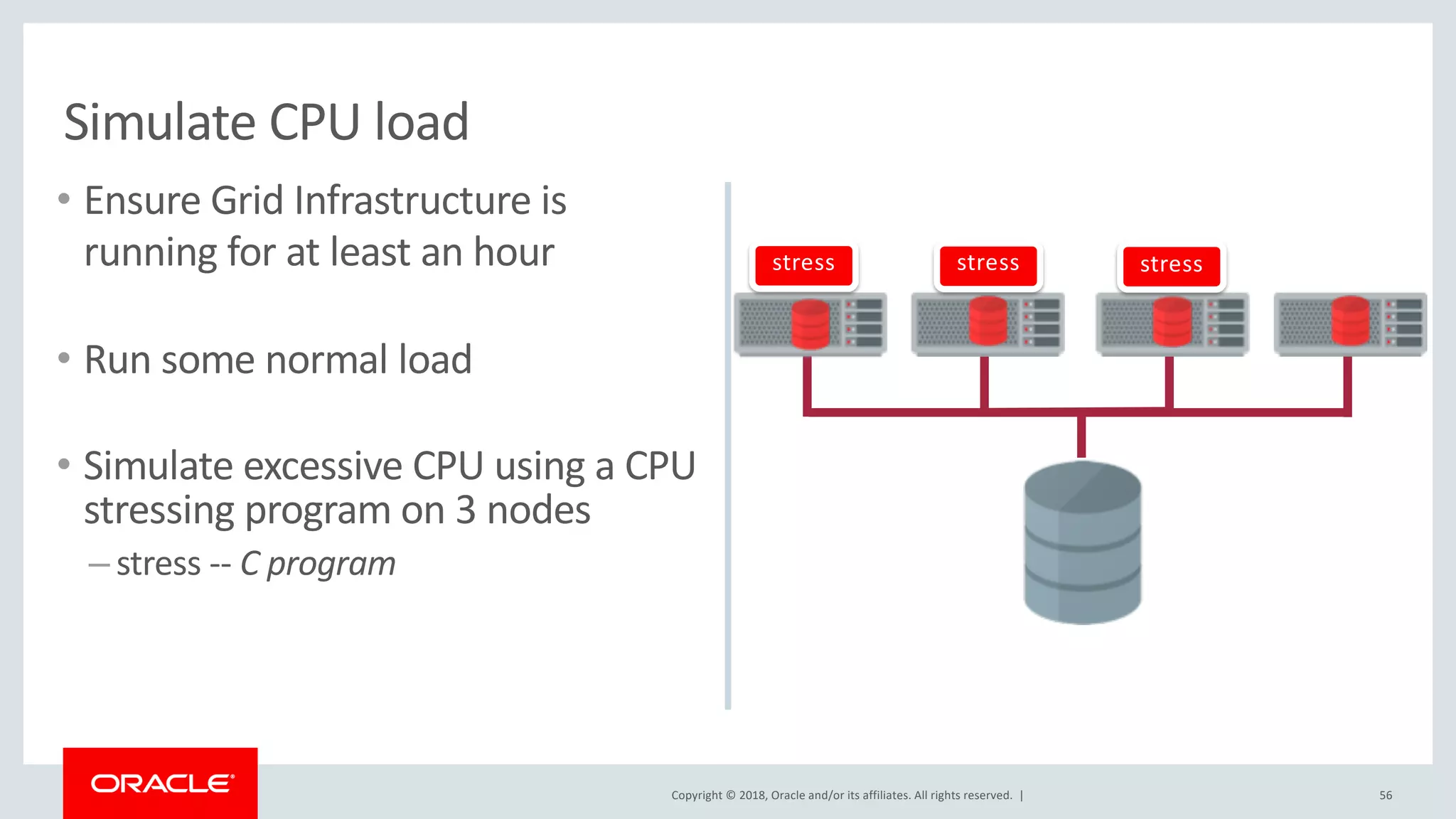

Problem 3 – High CPU usage

• Ensure Grid Infrastructure is
running for at least an hour
• Run some normal load
• Simulate excessive CPU using a CPU
stressing program on 3 nodes
– stress -- C program
56
Simulate CPU load
stress stress stress

• OSWatcher confirms chactl diagnosis
• mpstat (platform dependent)
zzz ***Fri Mar 31 10:10:29 PST 2017
10:10:29 CPU %usr %nice %sys %iowait %irq %soft %steal %guest %idle
10:10:29 all 74.01 0.00 7.95 12.20 0.00 0.13 0.13 0.00 5.10
10:10:29 0 44.89 0.00 8.79 12.09 0.00 0.00 0.00 0.00 31.23
10:10:29 1 56.00 0.00 4.00 18.00 0.00 0.00 0.00 0.00 23.00
• Top also reports the CPU stress program
Tasks: 454 total, 4 running, 450 sleeping, 0 stopped, 0 zombie
Cpu(s): 94.9%us, 4.8%sy, 0.0%ni, 0.0%id, 0.0%wa, 0.0%hi, 0.3%si, 0.0%st
PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND
20752 racusr 20 0 2498m 45m 39m R 85.9 0.3 752:32.40 stress
57
System is indeed CPU
starved
**Output has been formatted for presentation

chactl query diagnosis -cluster
58
$chactl query diagnosis –start "2017-03-31 10:00:50" -end "2017-03-31 10:25:50“
2017-03-31 10:01:25.0 Host rwsxxxxx9 Host Memory Consumption [detected]
Problem: Host Memory Consumption
Description: CHA detected that more memory than expected is consumed on this server. The
memory is not allocated by sessions of this database.
Cause: The Cluster Health Advisor (CHA) detected an increase in memory consumption by other
databases or by applications not connected to a database on this node.
Action: Identify the top memory consumers by using the Cluster Health Monitor (CHM).
Note: This is a 4 node cluster but the memory
consumption issue is reported on 3 of the 4 nodes

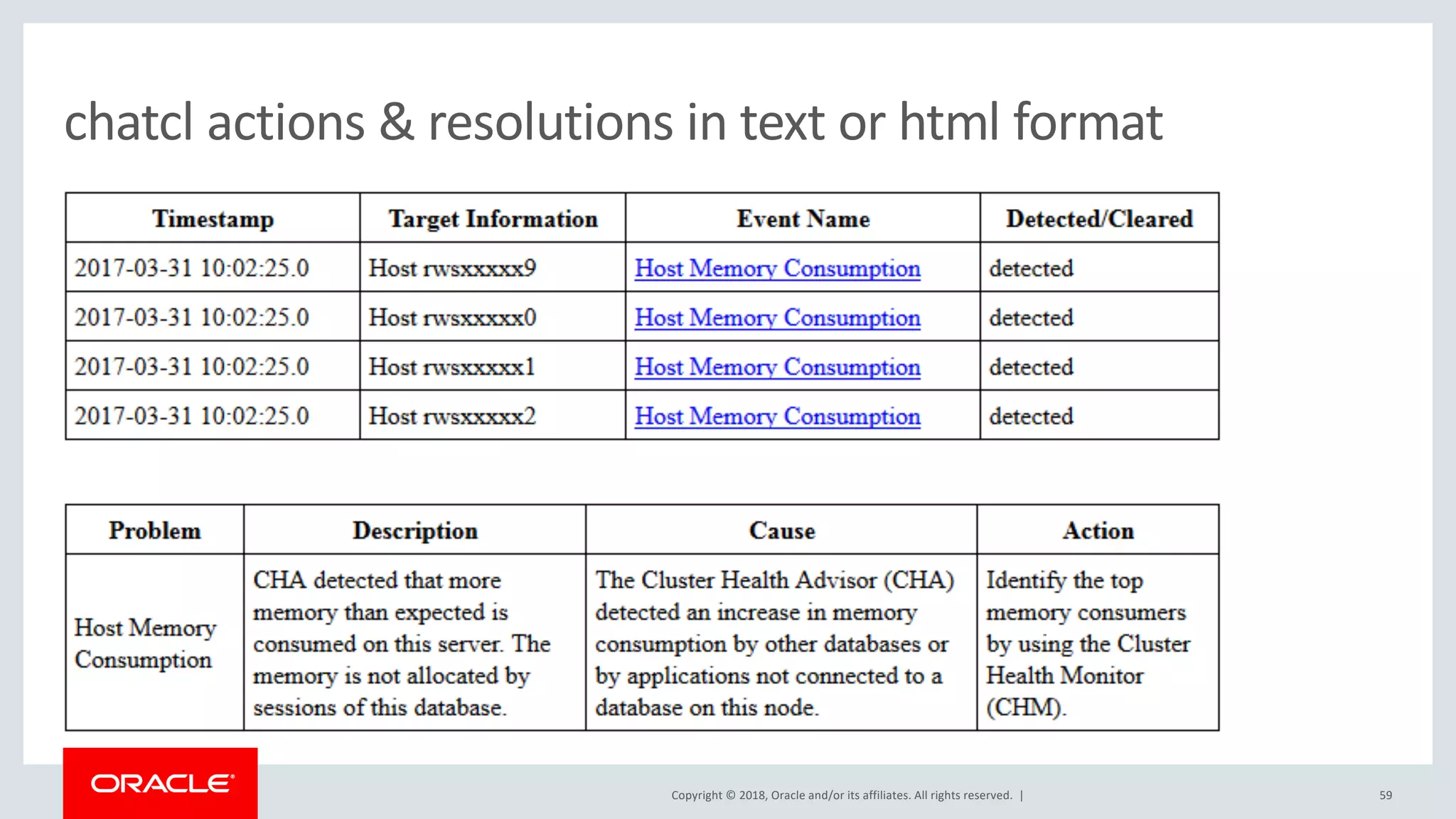

chatcl actions & resolutions in text or html format
59

60
Problem 4 – Why did my Database
Instance move to different node?

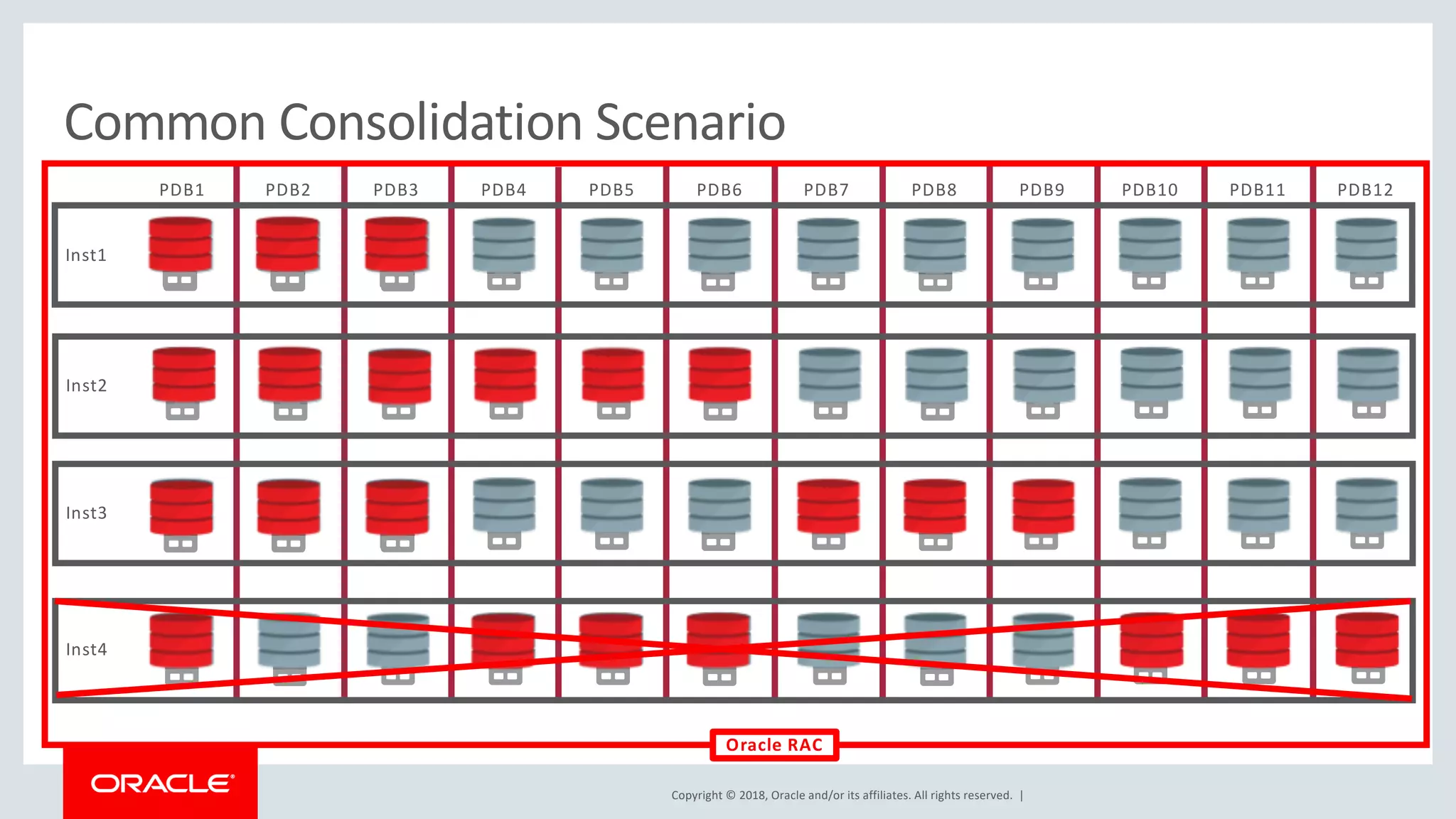

PDB1 PDB2 PDB3 PDB4 PDB5 PDB6 PDB7 PDB8 PDB9 PDB10 PDB11 PDB12
Oracle RAC
Inst1
Inst2
Inst3
Inst4
Common Consolidation Scenario

• Provides common view of cluster-
wide activities in a co-ordinated
fashion
• Customer readable summary of all
actions in a cluster
• Clusterwide information provided
from any single node
• Further details are in the trace files
62
Clusterware Activity Log
On Friday, my instances
were running on Nodes
1 & 2, but today it is
only running on Node 1

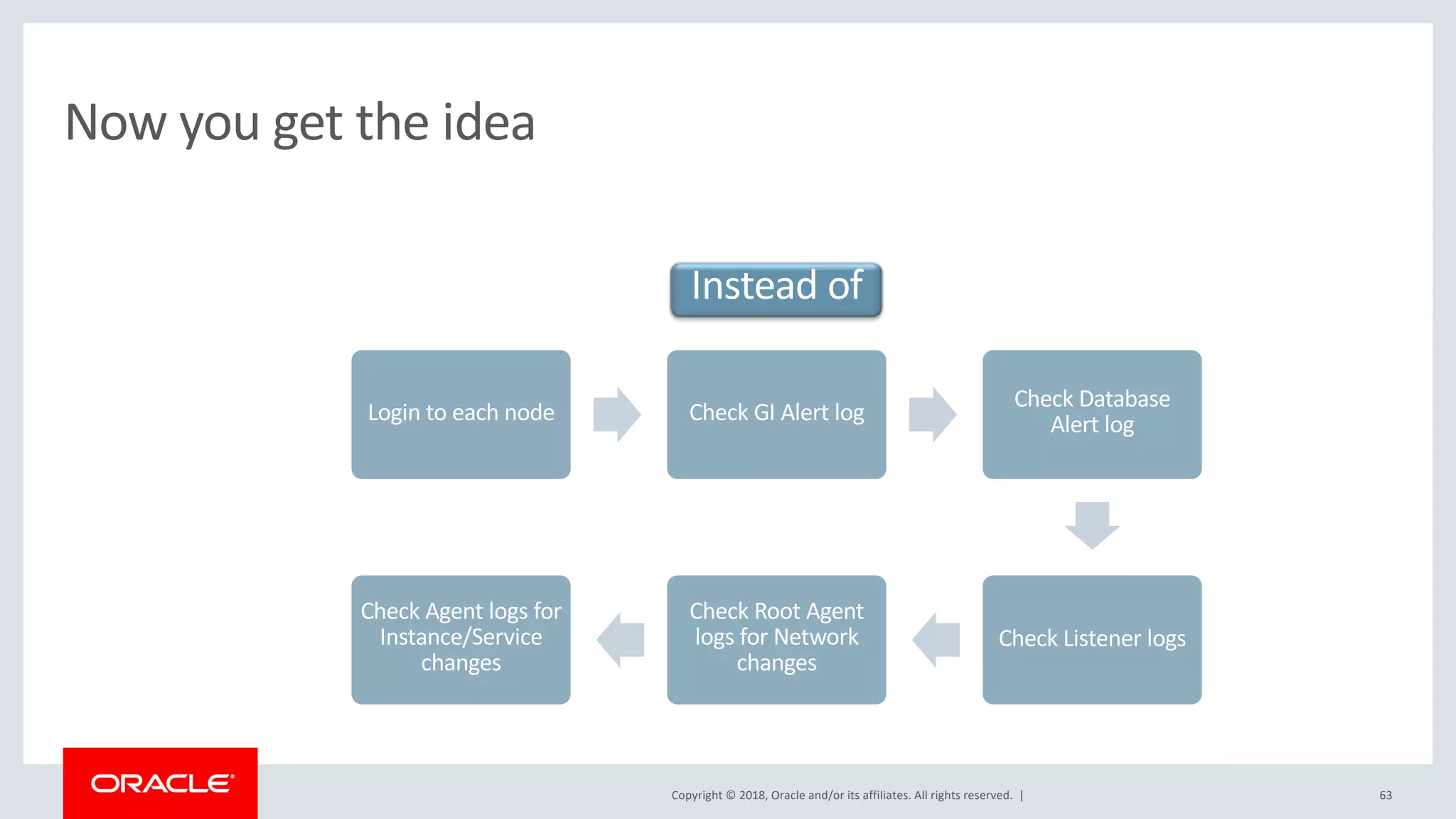

Now you get the idea
Login to each node Check GI Alert log
Check Database
Alert log
Check Listener logs
Check Root Agent
logs for Network
changes
Check Agent logs for
Instance/Service
changes
Instead of

Use crsctl query calog from Single node
$ crsctl query calog -aftertime "2017-03-08 15:09:46.522-07:00"
2017-04-12 20:05:04.668000 : Attempting to start 'ora.anair1.vip' on ‘anair1' :
14920191617156230/1194/11 :
…..
2017-04-12 20:05:06.559000 : Attempting to start 'ora.LISTENER.lsnr' on ‘anair1' :
14920191617156230/1194/16
…
2017-04-12 20:05:32.038000 : Start of 'ora.FRA.dg' on ‘anair1' succeeded :
14920191617156230/1194/27 :
2017-04-12 20:05:32.040000 : Attempting to start 'ora.sales.db' on ‘anair1' :
14920191617156230/1194/28 :
2017-04-12 20:05:59.415000 : Start of 'ora.sales.db' on ‘anair1' succeeded :
14920191617156230/1194/30 :
-- Format of output records is:
DATE & TIME (YYYY-MM-DD HH24:MI:SS[.FF][[+-]HH:MM]): Event text: ACTID
ACTID
Possibly network issues
caused VIP relocation

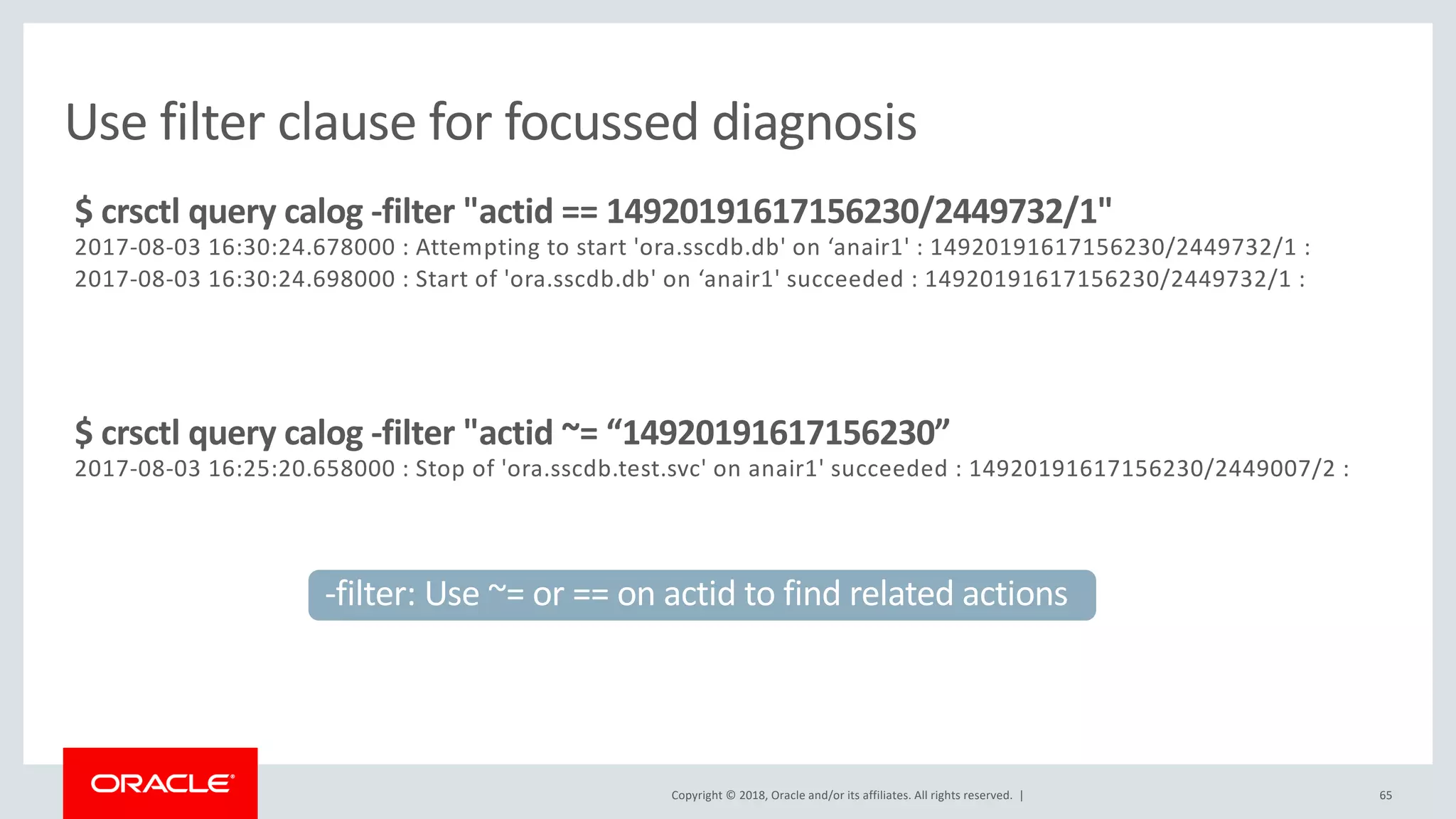

Use filter clause for focussed diagnosis
$ crsctl query calog -filter "actid == 14920191617156230/2449732/1"
2017-08-03 16:30:24.678000 : Attempting to start 'ora.sscdb.db' on ‘anair1' : 14920191617156230/2449732/1 :
2017-08-03 16:30:24.698000 : Start of 'ora.sscdb.db' on ‘anair1' succeeded : 14920191617156230/2449732/1 :
$ crsctl query calog -filter "actid ~= “14920191617156230”
2017-08-03 16:25:20.658000 : Stop of 'ora.sscdb.test.svc' on anair1' succeeded : 14920191617156230/2449007/2 :
-filter: Use ~= or == on actid to find related actions

66
Problem 5 – Why was my Session
killed?

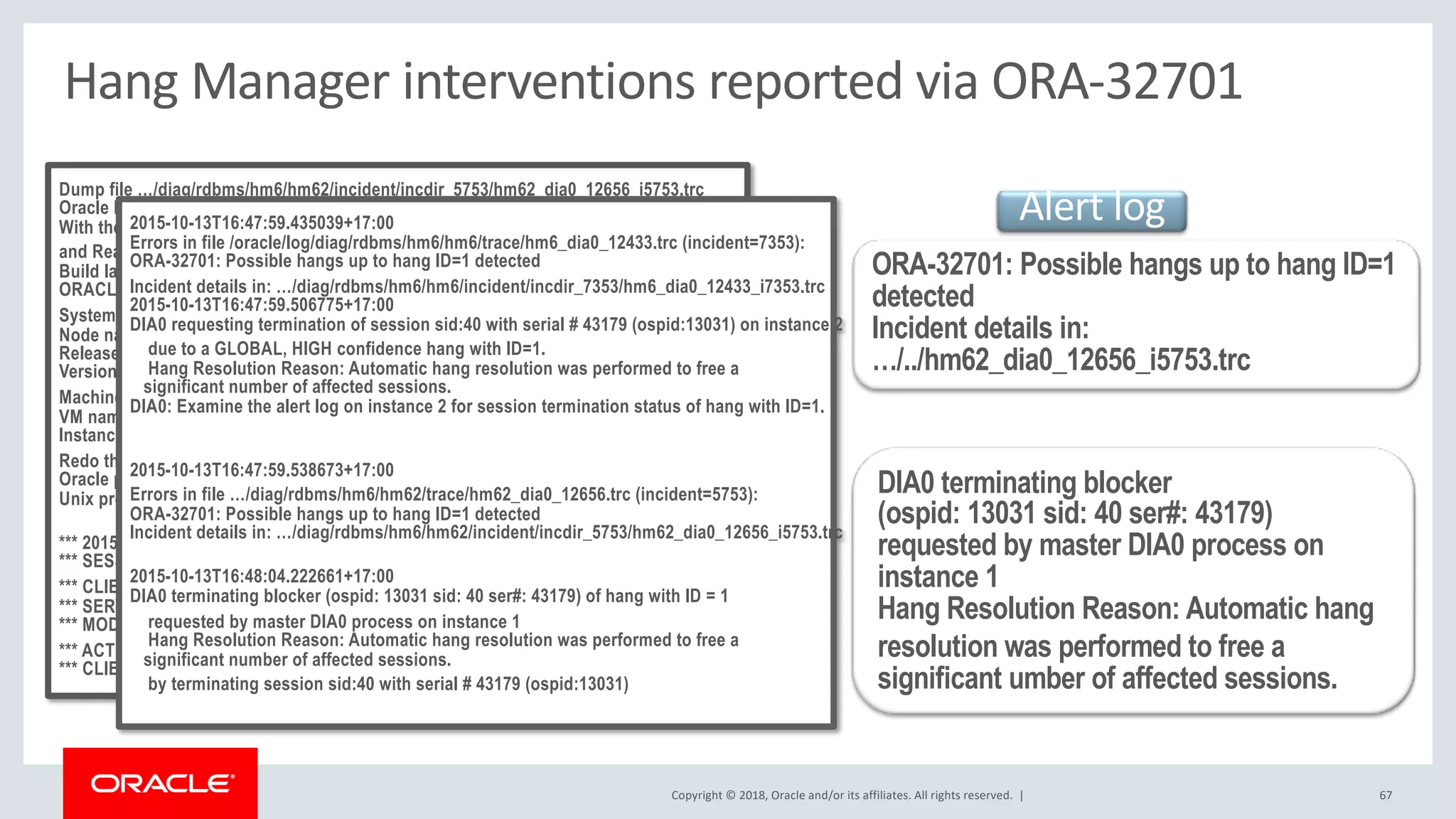

Hang Manager interventions reported via ORA-32701
Dump file …/diag/rdbms/hm6/hm62/incident/incdir_5753/hm62_dia0_12656_i5753.trc
Oracle Database 12c Enterprise Edition Release 12.2.0.0.0 - 64bit Beta
With the Partitioning, Real Application Clusters, OLAP, Advanced Analytics
and Real Application Testing options
Build label: RDBMS_MAIN_LINUX.X64_151013
ORACLE_HOME: …/3775268204/oracle
System name: Linux
Node name: slc05kyr
Release: 2.6.39-400.211.1.el6uek.x86_64
Version: #1 SMP Fri Nov 15 13:39:16 PST 2013
Machine: x86_64
VM name: Xen Version: 3.4 (PVM)
Instance name: hm62
Redo thread mounted by this instance: 2
Oracle process number: 19
Unix process pid: 12656, image: oracle@slc05kyr (DIA0)
*** 2015-10-13T16:47:59.541509+17:00
*** SESSION ID:(96.41299) 2015-10-13T16:47:59.541519+17:00
*** CLIENT ID:() 2015-10-13T16:47:59.541529+17:00
*** SERVICE NAME:(SYS$BACKGROUND) 2015-10-13T16:47:59.541538+17:00
*** MODULE NAME:() 2015-10-13T16:47:59.541547+17:00
*** ACTION NAME:() 2015-10-13T16:47:59.541556+17:00
*** CLIENT DRIVER:() 2015-10-13T16:47:59.541565+17:00
2015-10-13T16:47:59.435039+17:00
Errors in file /oracle/log/diag/rdbms/hm6/hm6/trace/hm6_dia0_12433.trc (incident=7353):
ORA-32701: Possible hangs up to hang ID=1 detected
Incident details in: …/diag/rdbms/hm6/hm6/incident/incdir_7353/hm6_dia0_12433_i7353.trc
2015-10-13T16:47:59.506775+17:00
DIA0 requesting termination of session sid:40 with serial # 43179 (ospid:13031) on instance 2
due to a GLOBAL, HIGH confidence hang with ID=1.
Hang Resolution Reason: Automatic hang resolution was performed to free a
significant number of affected sessions.
DIA0: Examine the alert log on instance 2 for session termination status of hang with ID=1.
2015-10-13T16:47:59.538673+17:00
Errors in file …/diag/rdbms/hm6/hm62/trace/hm62_dia0_12656.trc (incident=5753):
ORA-32701: Possible hangs up to hang ID=1 detected
Incident details in: …/diag/rdbms/hm6/hm62/incident/incdir_5753/hm62_dia0_12656_i5753.trc
2015-10-13T16:48:04.222661+17:00
DIA0 terminating blocker (ospid: 13031 sid: 40 ser#: 43179) of hang with ID = 1
requested by master DIA0 process on instance 1
Hang Resolution Reason: Automatic hang resolution was performed to free a
significant number of affected sessions.
by terminating session sid:40 with serial # 43179 (ospid:13031)
ORA-32701: Possible hangs up to hang ID=1
detected
Incident details in:
…/../hm62_dia0_12656_i5753.trc
DIA0 terminating blocker
(ospid: 13031 sid: 40 ser#: 43179)
requested by master DIA0 process on
instance 1
Hang Resolution Reason: Automatic hang
resolution was performed to free a
significant umber of affected sessions.
Alert log

68
Problem 6 – How long did the
reconfiguration take?

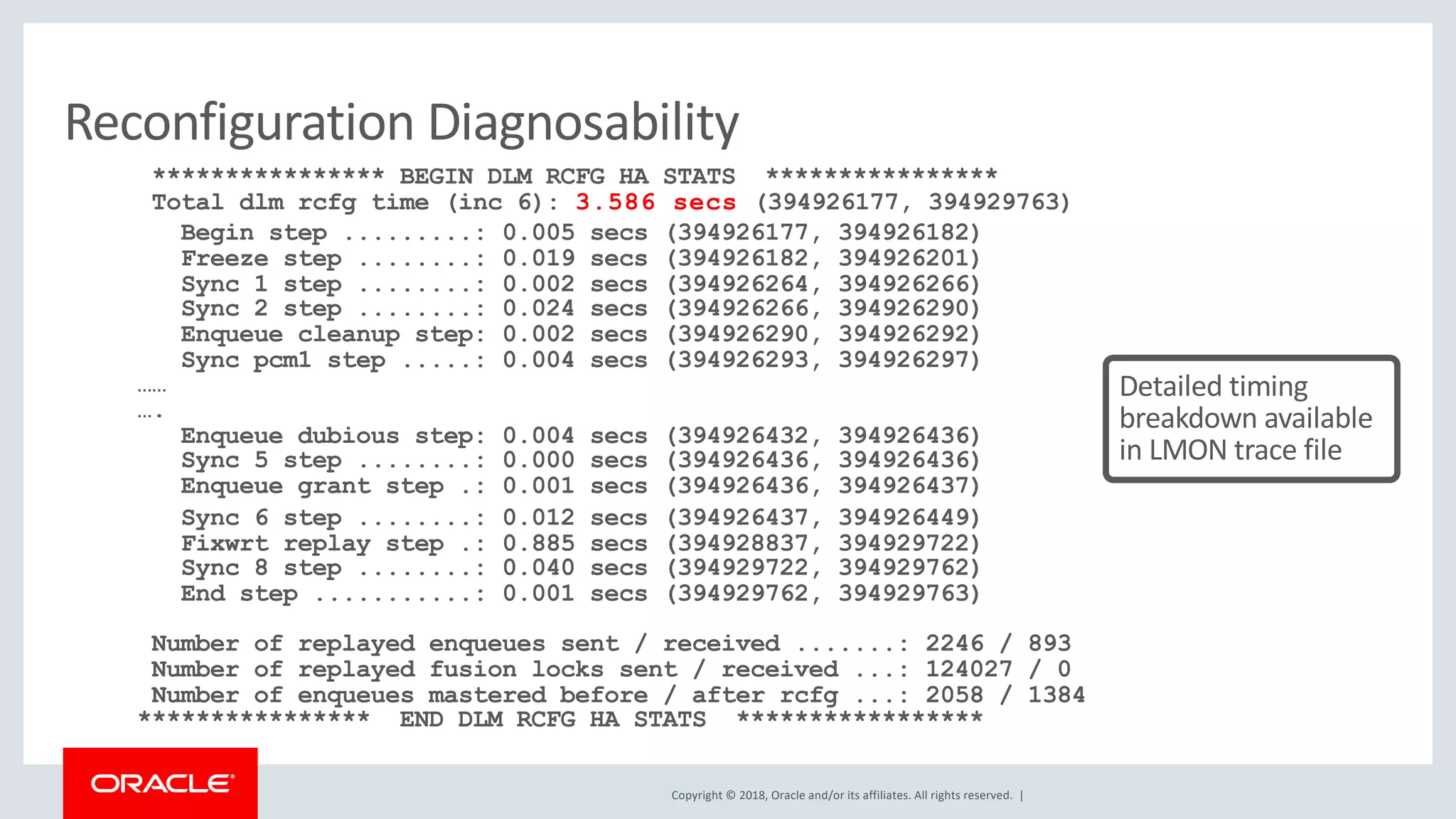

Reconfiguration Diagnosability
**************** BEGIN DLM RCFG HA STATS ****************
Total dlm rcfg time (inc 6): 3.586 secs (394926177, 394929763)
Begin step .........: 0.005 secs (394926177, 394926182)
Freeze step ........: 0.019 secs (394926182, 394926201)
Sync 1 step ........: 0.002 secs (394926264, 394926266)
Sync 2 step ........: 0.024 secs (394926266, 394926290)
Enqueue cleanup step: 0.002 secs (394926290, 394926292)
Sync pcm1 step .....: 0.004 secs (394926293, 394926297)
……
….
Enqueue dubious step: 0.004 secs (394926432, 394926436)
Sync 5 step ........: 0.000 secs (394926436, 394926436)
Enqueue grant step .: 0.001 secs (394926436, 394926437)
Sync 6 step ........: 0.012 secs (394926437, 394926449)
Fixwrt replay step .: 0.885 secs (394928837, 394929722)
Sync 8 step ........: 0.040 secs (394929722, 394929762)
End step ...........: 0.001 secs (394929762, 394929763)
Number of replayed enqueues sent / received .......: 2246 / 893
Number of replayed fusion locks sent / received ...: 124027 / 0
Number of enqueues mastered before / after rcfg ...: 2058 / 1384
**************** END DLM RCFG HA STATS *****************
Detailed timing
breakdown available
in LMON trace file

70

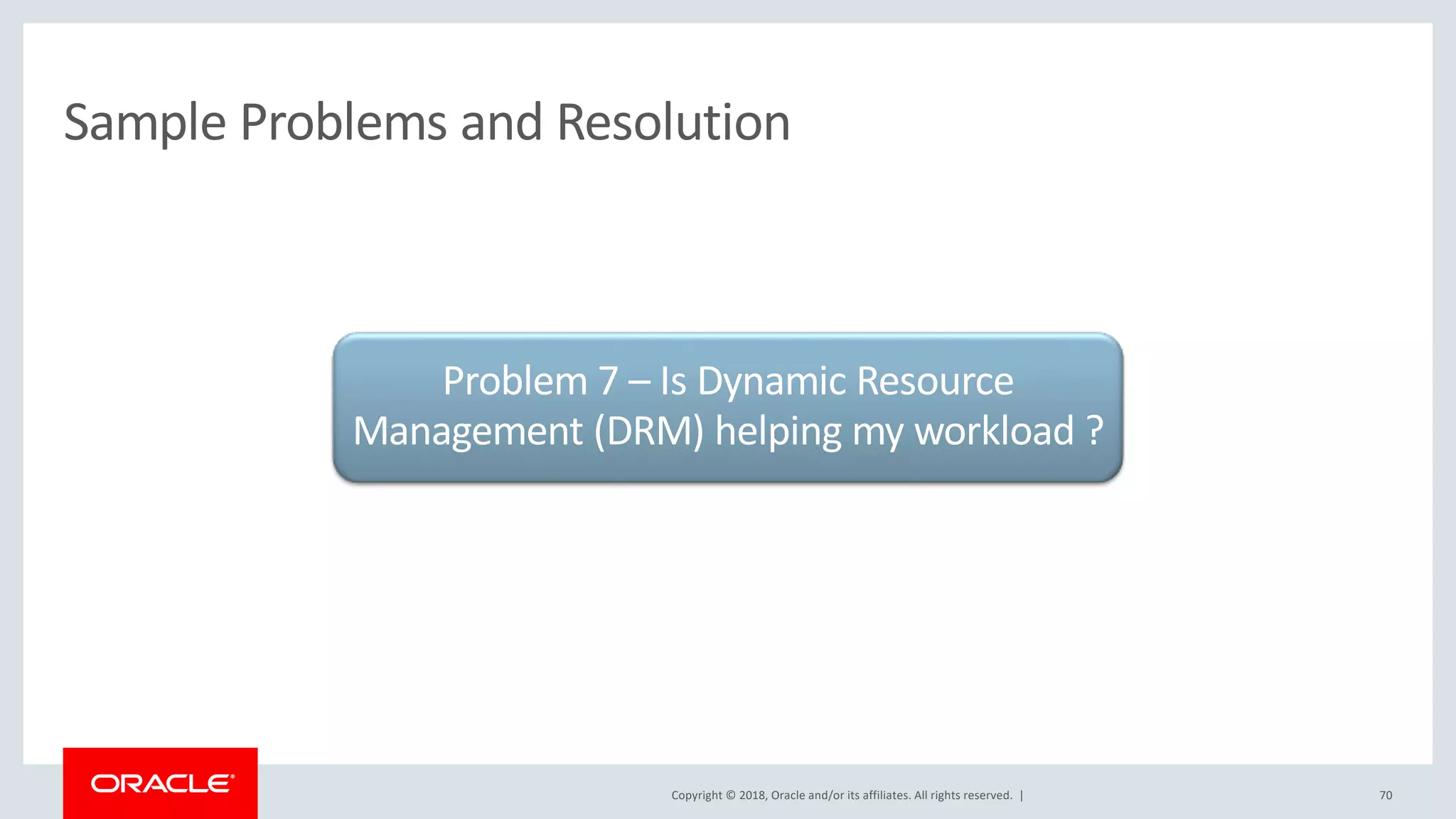

Problem 7 – Is Dynamic Resource
Management (DRM) helping my workload ?

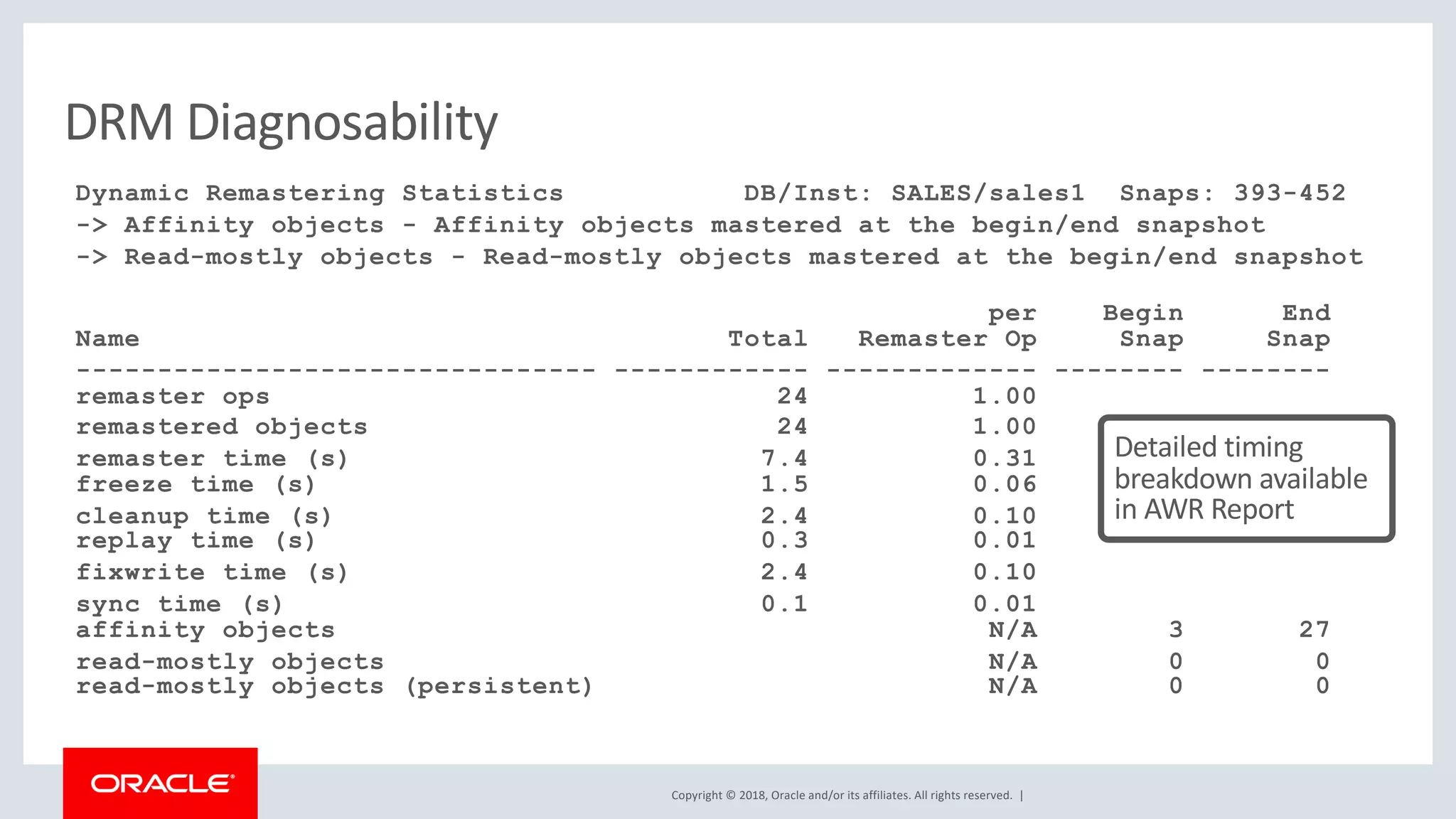

DRM Diagnosability
Dynamic Remastering Statistics DB/Inst: SALES/sales1 Snaps: 393-452
-> Affinity objects - Affinity objects mastered at the begin/end snapshot
-> Read-mostly objects - Read-mostly objects mastered at the begin/end snapshot
per Begin End
Name Total Remaster Op Snap Snap
-------------------------------- ------------ ------------- -------- --------
remaster ops 24 1.00
remastered objects 24 1.00
remaster time (s) 7.4 0.31
freeze time (s) 1.5 0.06
cleanup time (s) 2.4 0.10
replay time (s) 0.3 0.01
fixwrite time (s) 2.4 0.10
sync time (s) 0.1 0.01
affinity objects N/A 3 27
read-mostly objects N/A 0 0
read-mostly objects (persistent) N/A 0 0
Detailed timing
breakdown available
in AWR Report

Program Agenda
FAQ
1
2
3
4
5
72

Frequently asked Question # 1
Why does MGMT
DB need so much
space?

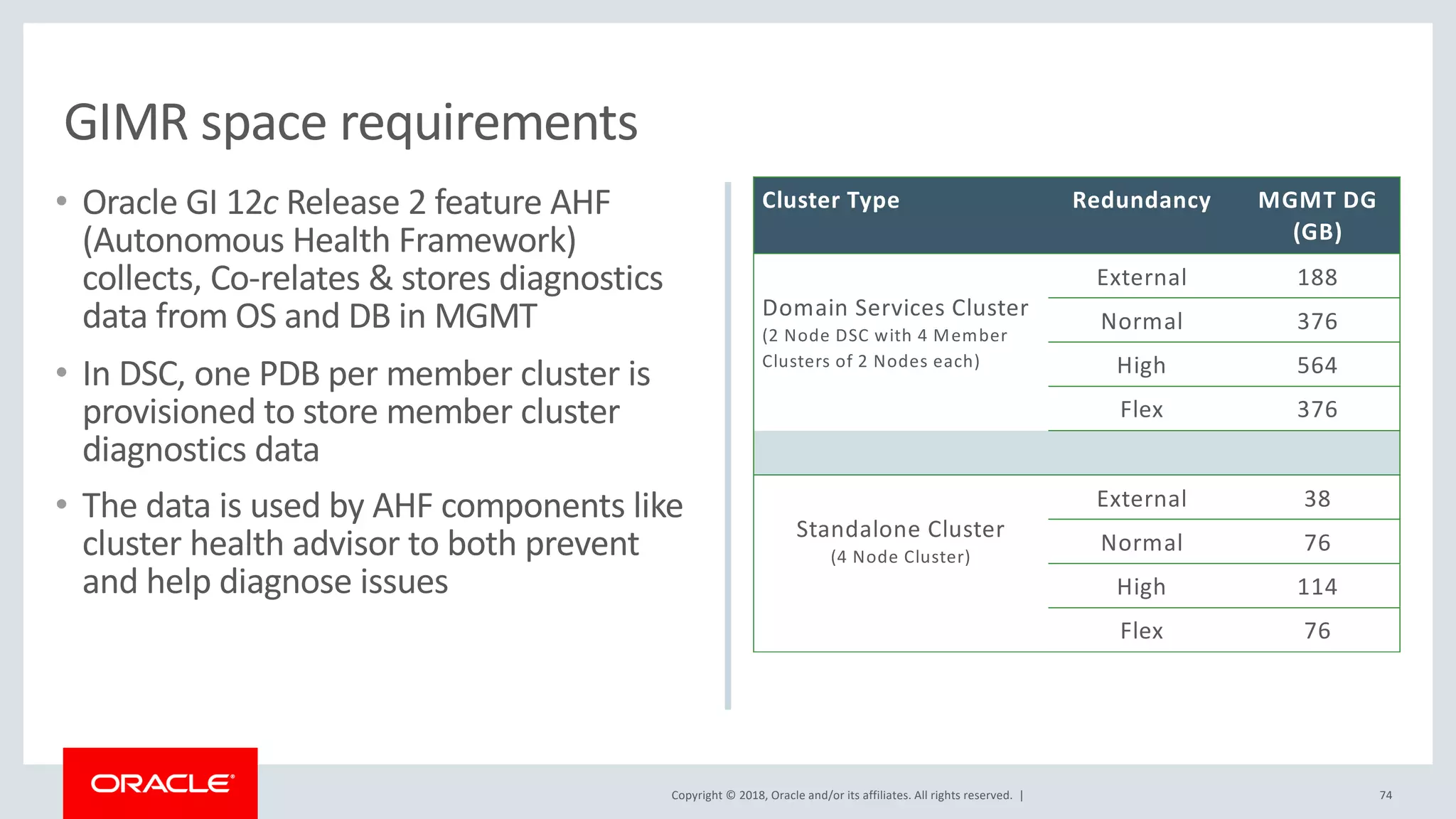

Cluster Type Redundancy MGMT DG
(GB)
Domain Services Cluster
(2 Node DSC with 4 Member
Clusters of 2 Nodes each)
External 188
Normal 376
High 564
Flex 376
Standalone Cluster
(4 Node Cluster)
External 38
Normal 76
High 114
Flex 76
• Oracle GI 12c Release 2 feature AHF
(Autonomous Health Framework)
collects, Co-relates & stores diagnostics
data from OS and DB in MGMT
• In DSC, one PDB per member cluster is
provisioned to store member cluster
diagnostics data
• The data is used by AHF components like
cluster health advisor to both prevent
and help diagnose issues
74
GIMR space requirements

Should I continue
to use
Oswatcher?

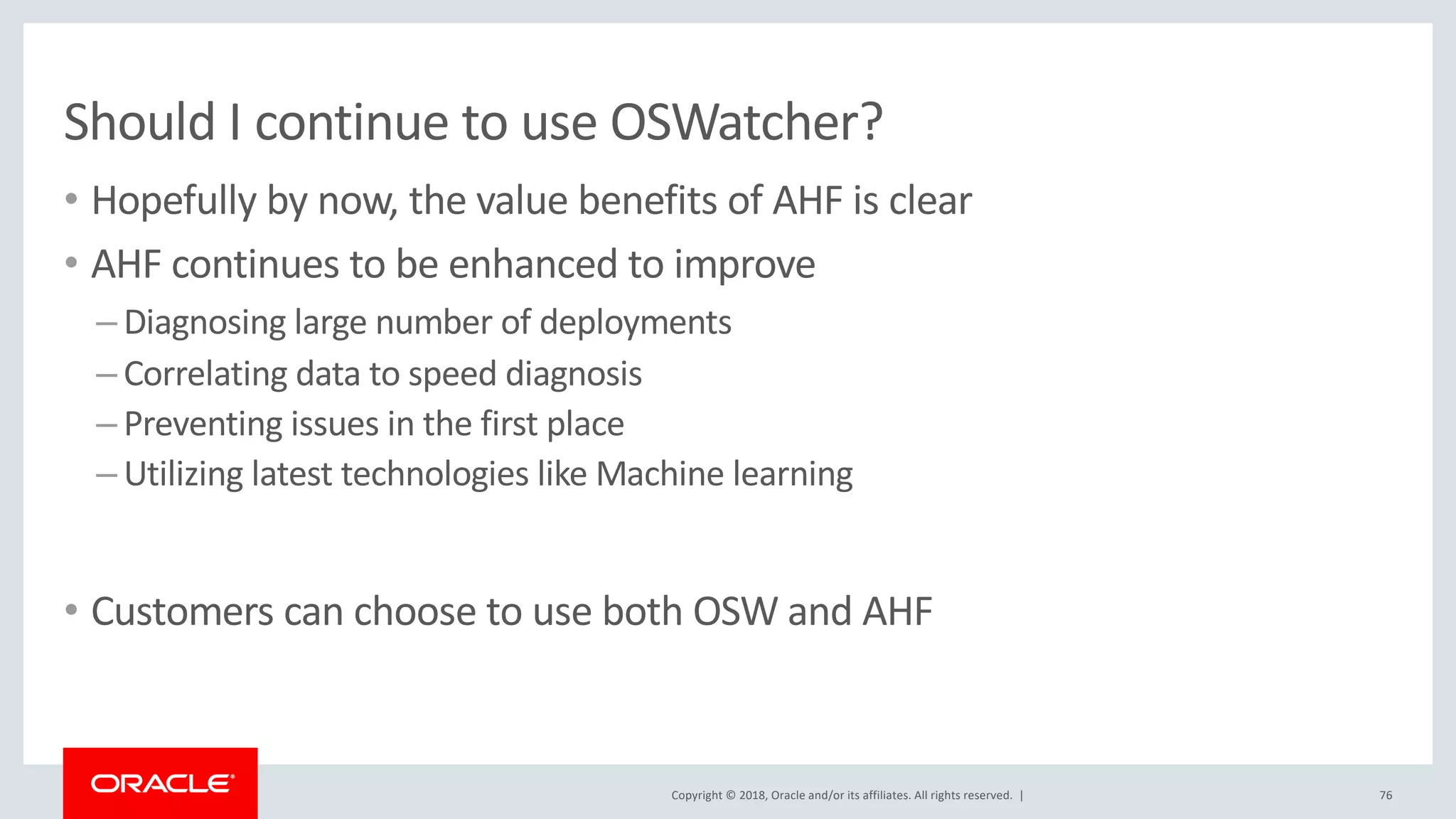

Should I continue to use OSWatcher?
• Hopefully by now, the value benefits of AHF is clear
• AHF continues to be enhanced to improve
– Diagnosing large number of deployments
– Correlating data to speed diagnosis
– Preventing issues in the first place
– Utilizing latest technologies like Machine learning
• Customers can choose to use both OSW and AHF
76

• opatch automatically patches
MGMT database if required
• clients of MGMT connect using
encrypted credentials
• MGMT listener automatically
maintained by the clusterware
agent
77
But it is still one
more database
for me to manage

Using Machine Learning to Debug Oracle RAC Issues

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Using Machine Learning to Debug Oracle RAC Issues

Similar to Using Machine Learning to Debug Oracle RAC Issues (20)

More from Anil Nair

More from Anil Nair (9)

Recently uploaded

Recently uploaded (20)

Using Machine Learning to Debug Oracle RAC Issues
