The document provides a step-by-step guide for installing and configuring Oracle's Cluster Domain and its associated services. It includes instructions for setting up Domain Services Cluster (DSC) and Member Services Cluster (MC), highlighting the creation of cluster manifest files and necessary configuration steps. Key considerations include management database disk group separation and ensuring the appropriate cluster modes and roles are established during installation.

2. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Oracle Real Application Clusters
Anil Nair
Sr. Principal Product Manager,
Oracle Real Application Clusters (RAC)
Apr 3rd , 2017
@RACMasterPM
http://www.linkedin.com/in/anil-nair-01960b6
http://www.slideshare.net/AnilNair27/
Step by Step guide to install Cluster Domain

3. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Safe Harbor Statement
The following is intended to outline our general product direction. It is intended for
information purposes only, and may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality, and should not be relied upon
in making purchasing decisions. The development, release, and timing of any features or
functionality described for Oracle’s products remains at the sole discretion of Oracle.
3

4. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Step by Step guide to install/configure Cluster Domain
Install Domain Services Cluster (DSC)
Create Cluster Manifest file
Install Member Services Cluster (MC)
1
4
2
3

5. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
5
Domain Services Cluster
Cluster Domain
ASM
IO Service
ACFS
Services
ASM
Service
Database
Member Cluster
Uses ASM
Service
Database
Member Cluster
Uses ASM IO
Service of DSC
Trace File
Analyzer
(TFA)
Service
Mgmt
Repository
(GIMR)
Service
Application
Member Cluster
GI only
Database
Member Cluster
Uses local ASM
Shared ASM
Additional
Optional
Services
Rapid Home
Provisioning
(RHP)
Service
Private
Network
SAN
Storage
ASM
Network
Storage
1 2 3 4

6. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps
$ssh <DSC_host>
$ ./gridSetup.sh
Start Install using gridSetup

7. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

8. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

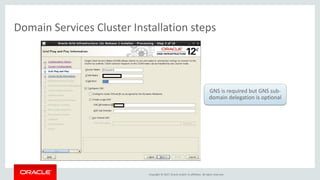

9. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps
GNS is required but GNS sub-
domain delegation is optional

10. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

11. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

12. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps
Highly recommended to
create separate Disk group for
Management Database

13. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

14. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

15. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

16. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

17. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

18. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

19. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Domain Services Cluster Installation steps

20. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Step by Step guide to install/configure Cluster Domain
Install Domain Services Cluster (DSC)
Create Cluster Manifest file
Install Member Services Cluster (MC)
1
20
2
3

21. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Create Member Cluster Manifest file
$ssh <DSC_host>
$ cd $GRID_HOME/bin
$./crsctl create -h
Usage:
$./crsctl create member_cluster_configuration salesmb -file
$HOME/sales_mb .xml
$scp $HOME/sales_mb.xml mc_host:/tmp
Check Usage with
crsctl create –h
Create Cluster manifest
file using
crsctl create
member_cluster_configu
ration –file <path>
Use the –domain_service
attribute to configure
how member cluster
accesses ASM storage
Backup the Manifest file
as file cannot be
recreated

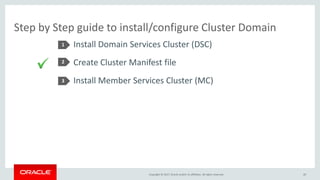

22. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Step by Step guide to install/configure Cluster Domain
Install Domain Services Cluster (DSC)
Create Cluster Manifest file
Install Member Services Cluster (MC)
1
22
2
3

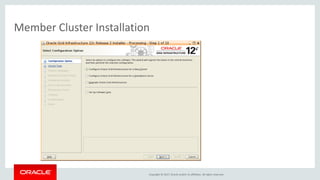

23. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Member Cluster Installation

24. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

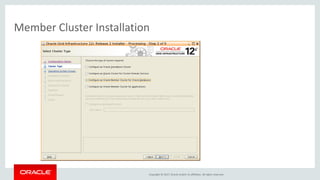

Member Cluster Installation

25. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Member Cluster Installation
Enter the Manifest file name
created earlier in the DSC

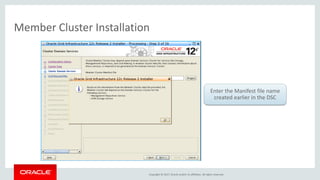

26. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Member Cluster Installation
Enter the Manifest file name
created earlier in the DSC

27. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Member Cluster Installation

28. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Member Cluster Installation

29. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Member Cluster Installation

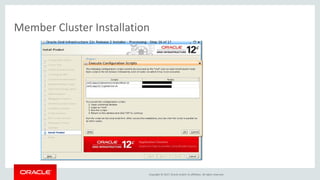

30. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Member Cluster Installation

31. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.

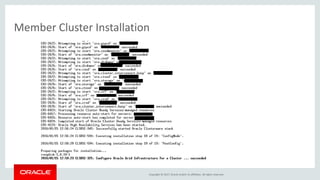

Member Cluster Installation

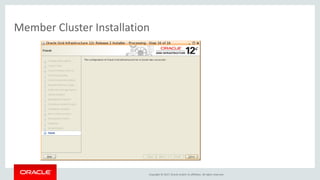

32. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
Member Cluster Installation

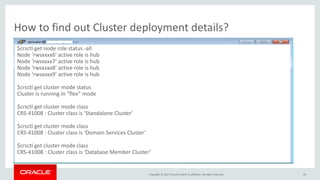

33. Copyright © 2017, Oracle and/or its affiliates. All rights reserved.
How to find out Cluster deployment details?
33
$crsctl get node role status -all
Node ‘rwsxxxx6’ active role is hub
Node ‘rwsxxxx7’ active role is hub
Node ‘rwsxxxx8’ active role is hub
Node ‘rwsxxxx9’ active role is hub
$crsctl get cluster mode status
Cluster is running in “flex” mode
$crsctl get cluster mode class
CRS-41008 : Cluster class is ‘Standalone Cluster’
$crsctl get cluster mode class
CRS-41008 : Cluster class is ‘Domain Services Cluster’
$crsctl get cluster mode class
CRS-41008 : Cluster class is ‘Database Member Cluster’
