1. User Stories
from the field

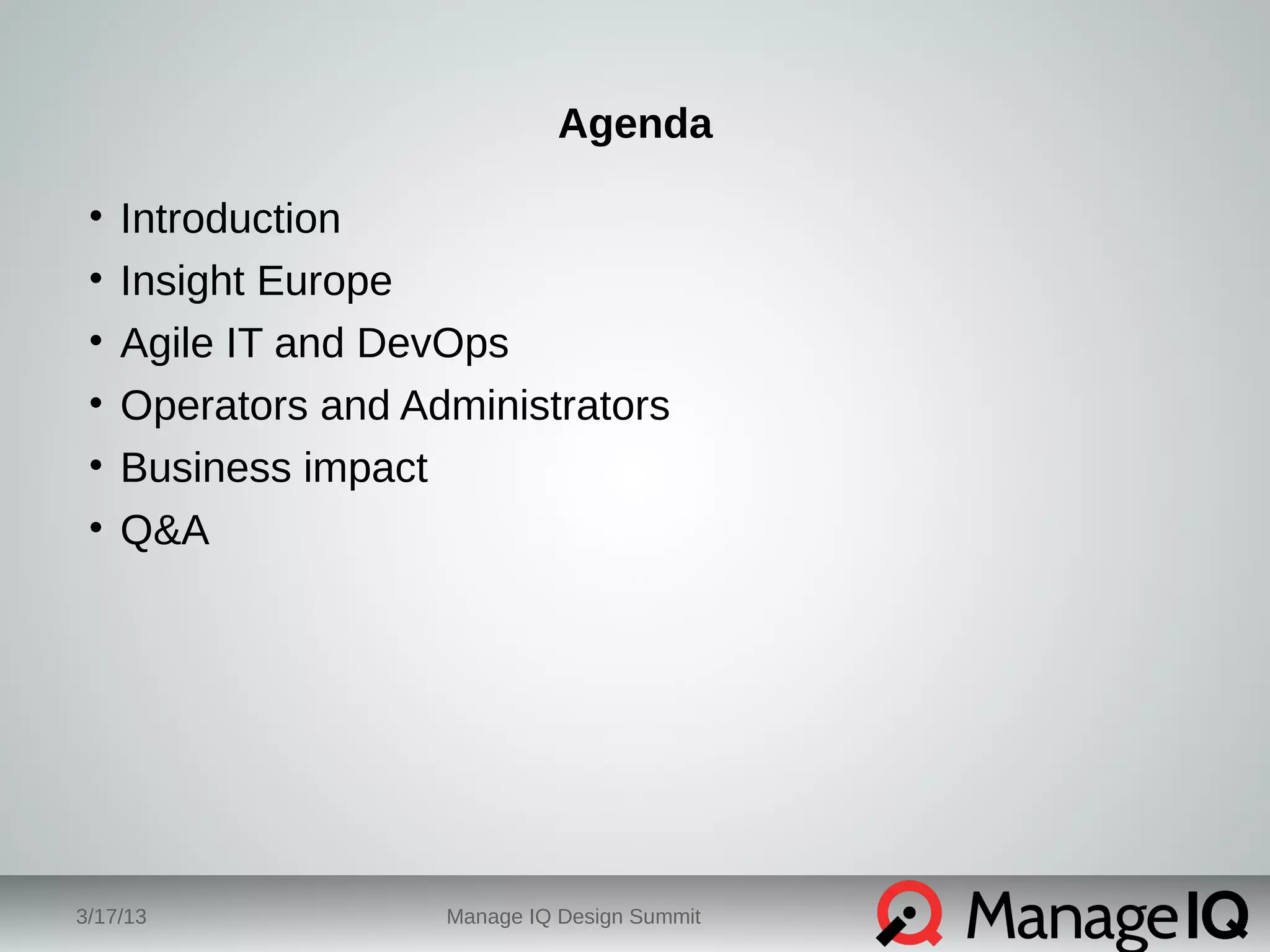

2. Agenda
• Introduction
• Insight Europe
• Agile IT and DevOps
• Operators and Administrators
• Business impact
• Q&A
3/17/13 Manage IQ Design Summit

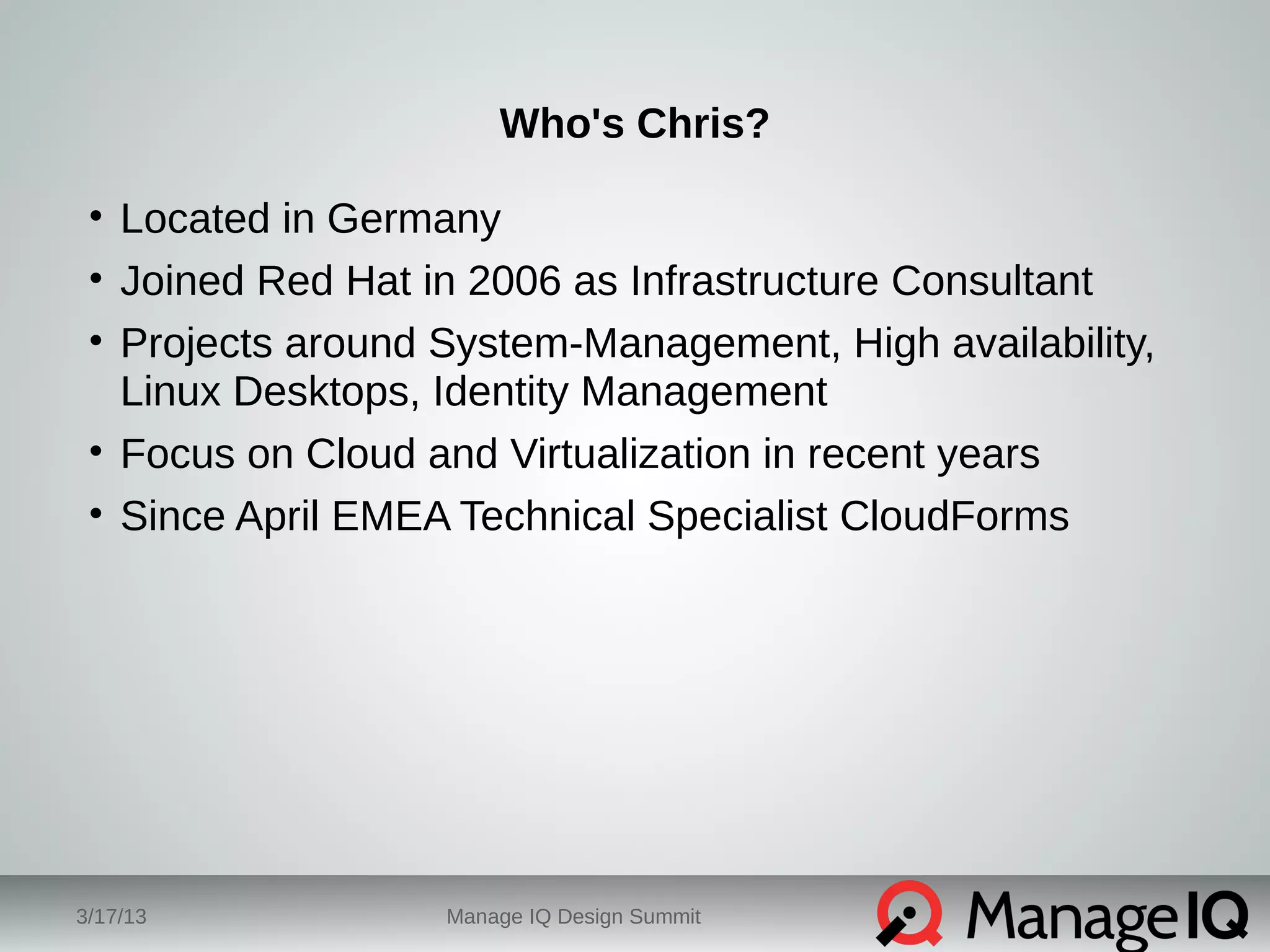

3. Who's Chris?
• Located in Germany
• Joined Red Hat in 2006 as Infrastructure Consultant
• Projects around System-Management, High availability,
Linux Desktops, Identity Management
• Focus on Cloud and Virtualization in recent years
• Since April EMEA Technical Specialist CloudForms
3/17/13 Manage IQ Design Summit

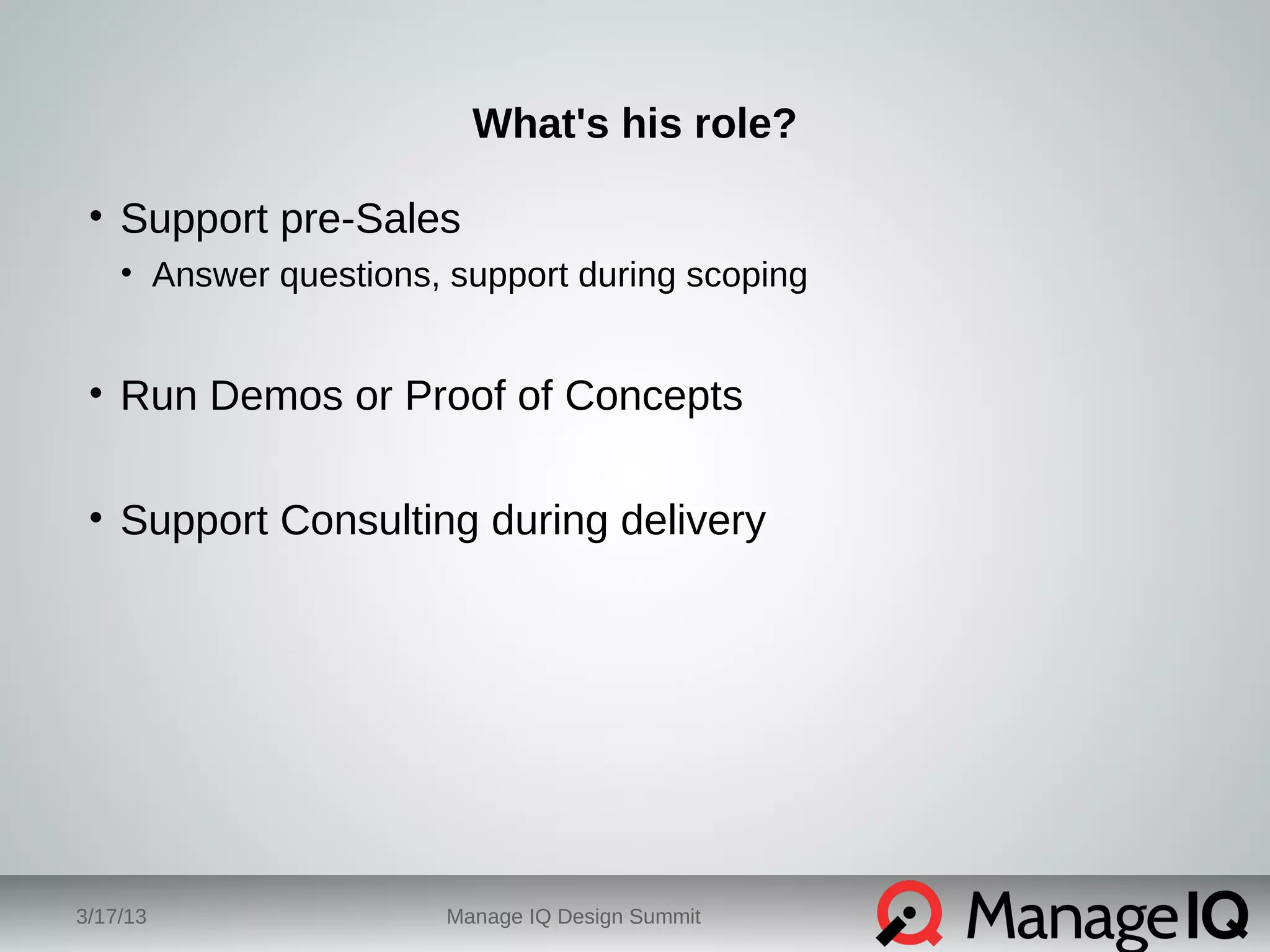

4. What's his role?
• Support pre-Sales
• Answer questions, support during scoping
• Run Demos or Proof of Concepts
• Support Consulting during delivery
3/17/13 Manage IQ Design Summit

5. Insight Europe

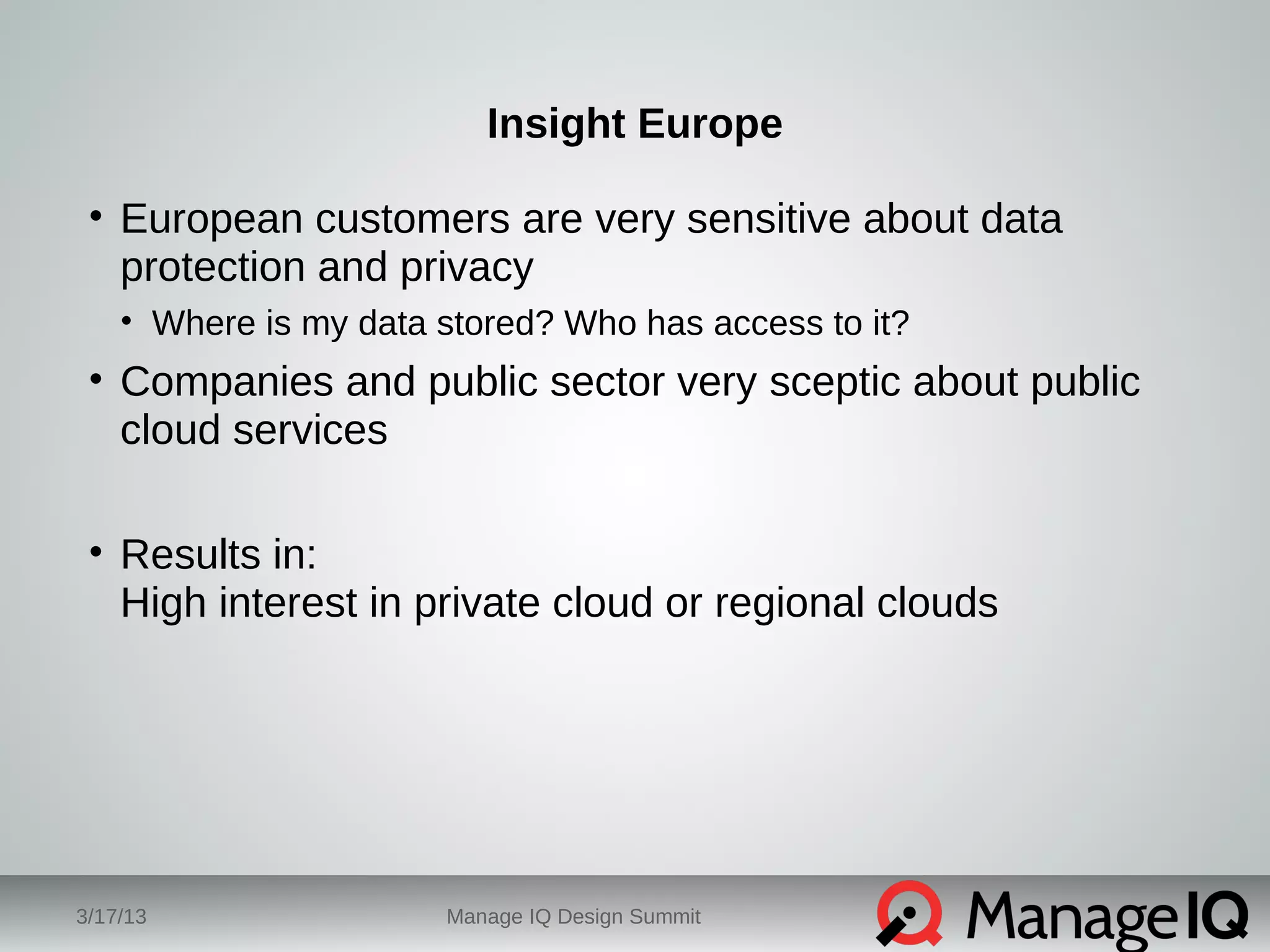

6. Insight Europe
• European customers are very sensitive about data
protection and privacy
• Where is my data stored? Who has access to it?
• Companies and public sector very sceptic about public
cloud services
• Results in:
High interest in private cloud or regional clouds
3/17/13 Manage IQ Design Summit

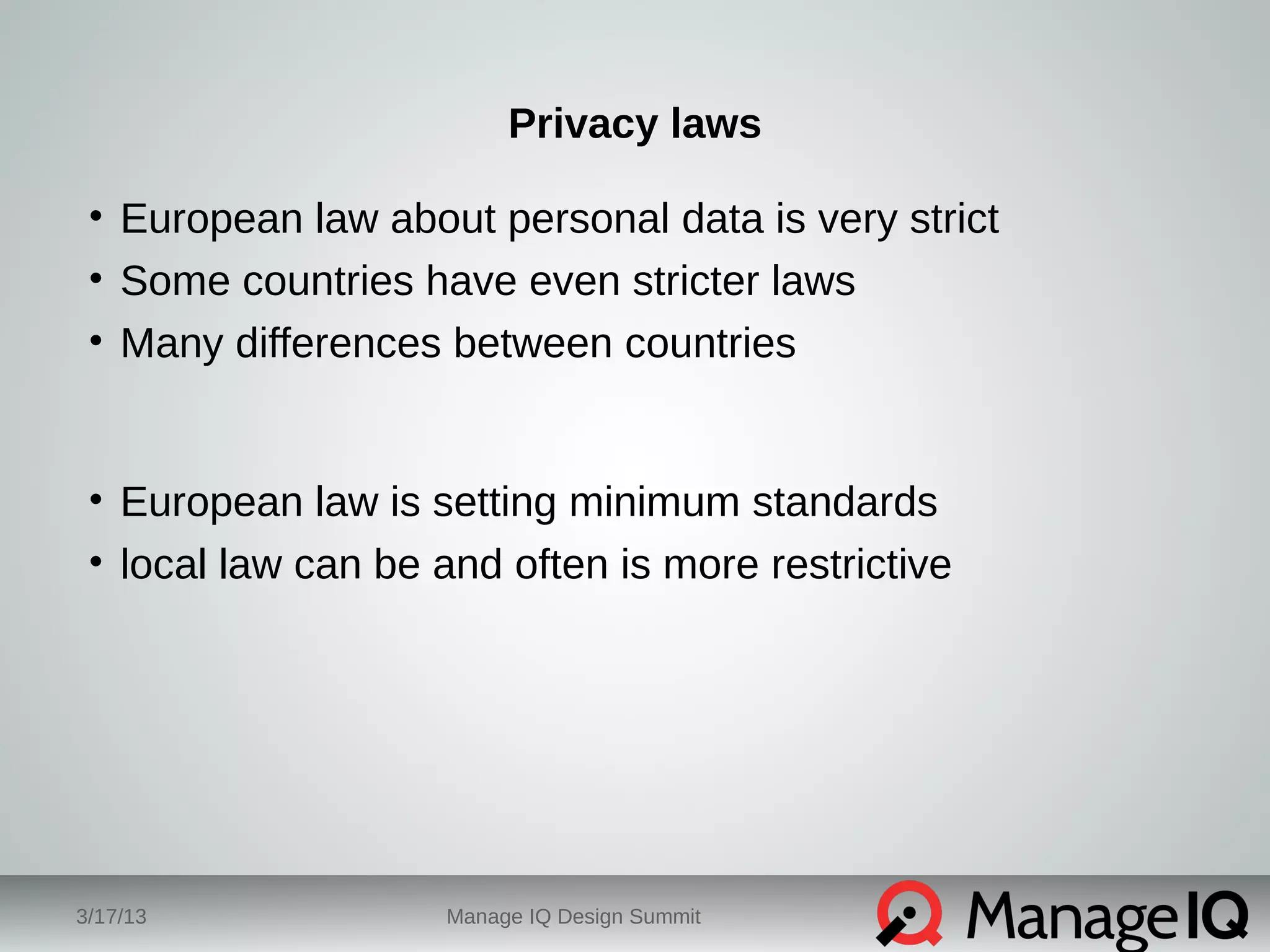

7. Privacy laws
• European law about personal data is very strict
• Some countries have even stricter laws
• Many differences between countries
• European law is setting minimum standards
• local law can be and often is more restrictive
3/17/13 Manage IQ Design Summit

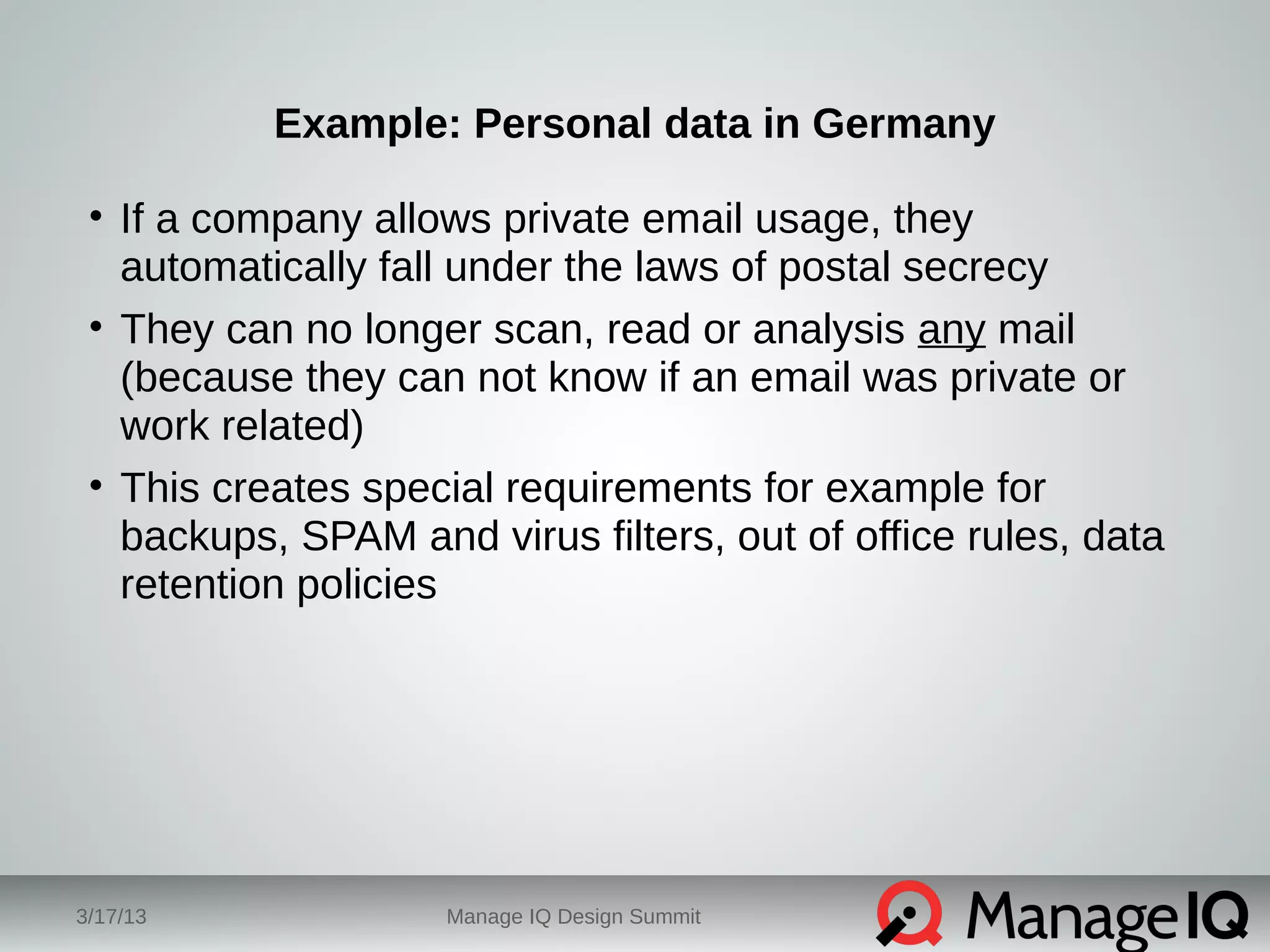

8. Example: Personal data in Germany
• If a company allows private email usage, they
automatically fall under the laws of postal secrecy
• They can no longer scan, read or analysis any mail
(because they can not know if an email was private or
work related)
• This creates special requirements for example for
backups, SPAM and virus filters, out of office rules, data
retention policies
3/17/13 Manage IQ Design Summit

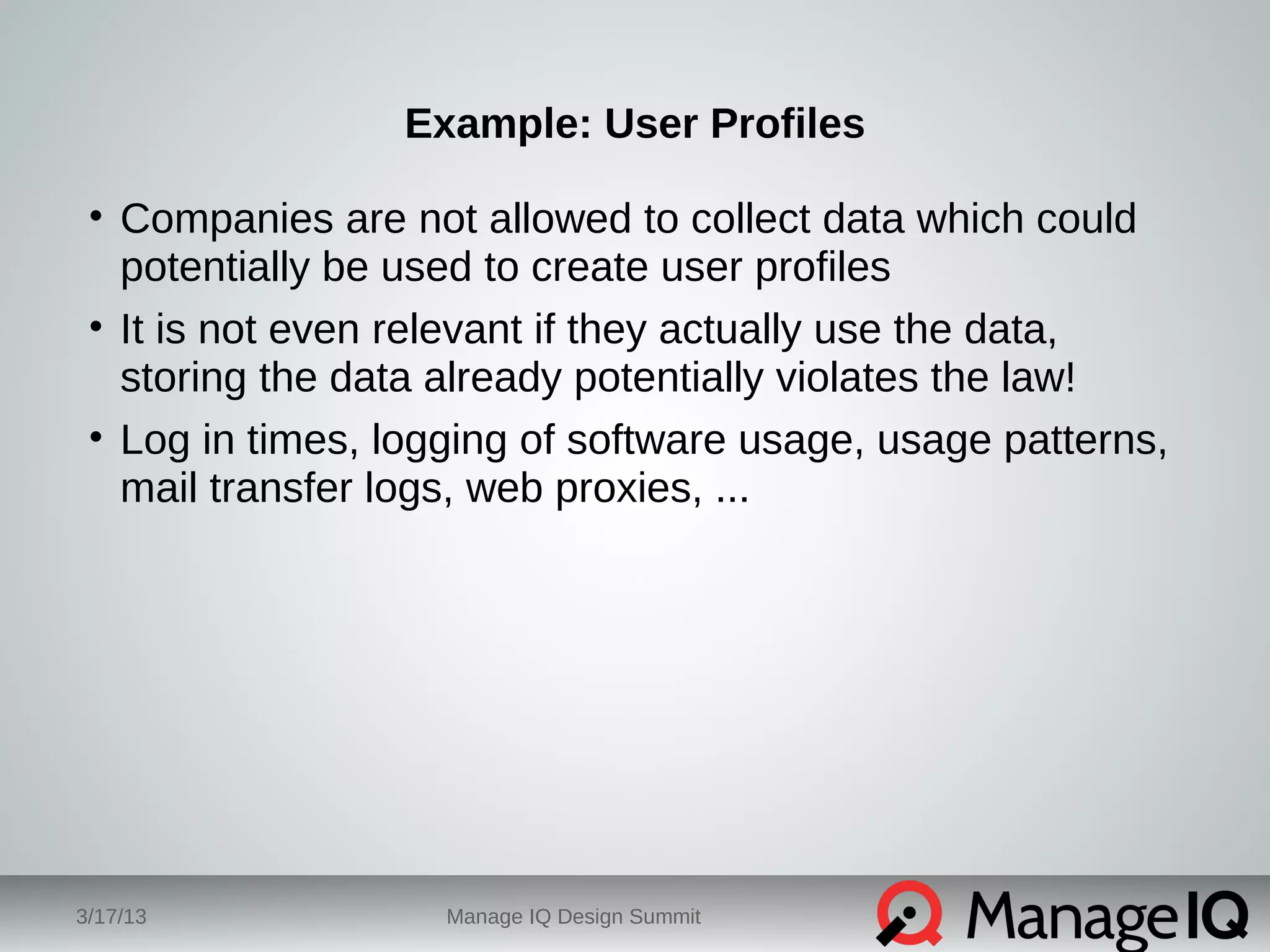

9. Example: User Profiles
• Companies are not allowed to collect data which could
potentially be used to create user profiles
• It is not even relevant if they actually use the data,
storing the data already potentially violates the law!
• Log in times, logging of software usage, usage patterns,
mail transfer logs, web proxies, ...
3/17/13 Manage IQ Design Summit

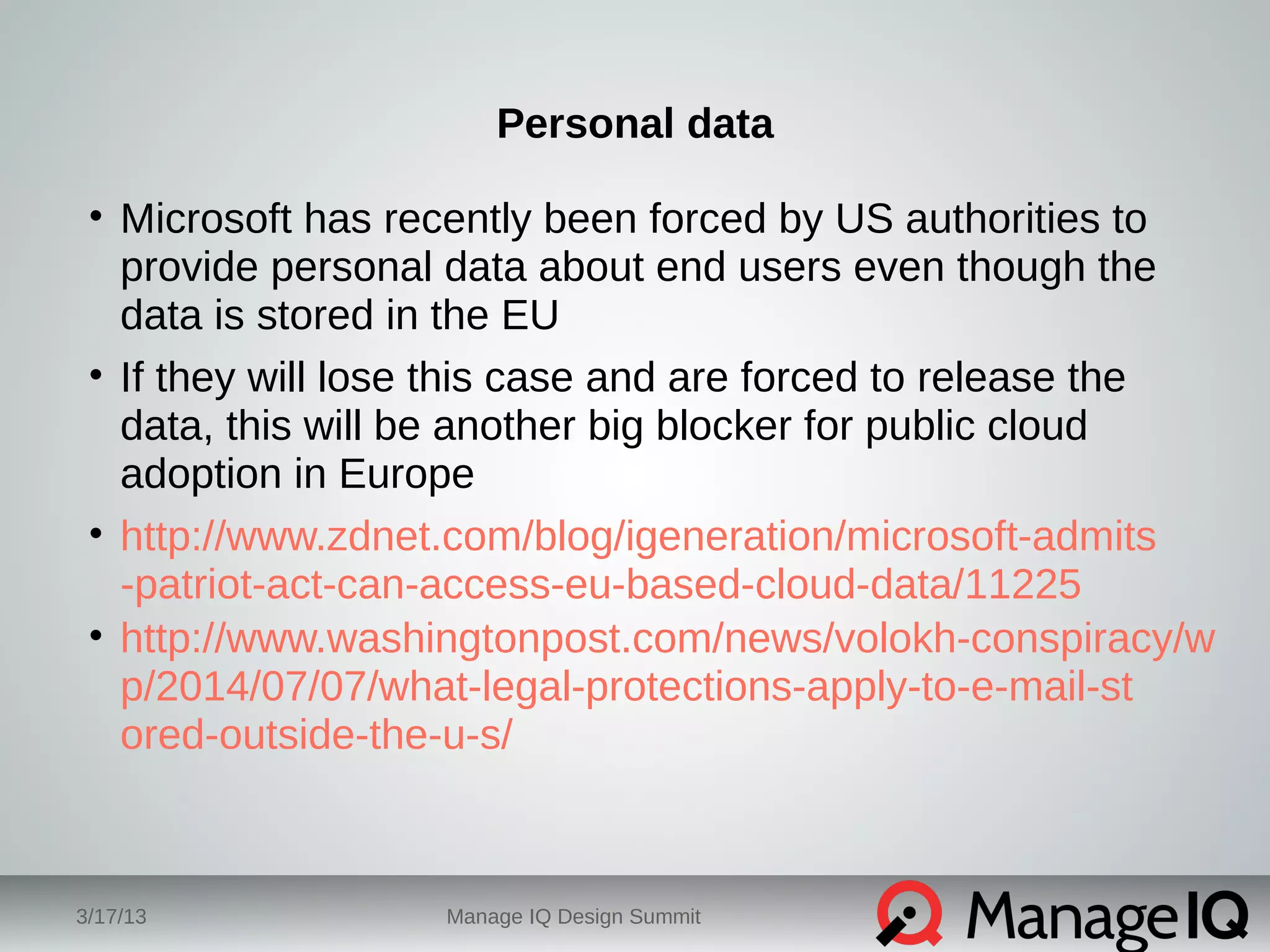

10. Personal data
• Microsoft has recently been forced by US authorities to
provide personal data about end users even though the
data is stored in the EU
• If they will lose this case and are forced to release the
data, this will be another big blocker for public cloud
adoption in Europe
• http://www.zdnet.com/blog/igeneration/microsoft-admits
-patriot-act-can-access-eu-based-cloud-data/11225
• http://www.washingtonpost.com/news/volokh-conspiracy/w
p/2014/07/07/what-legal-protections-apply-to-e-mail-st
ored-outside-the-u-s/
3/17/13 Manage IQ Design Summit

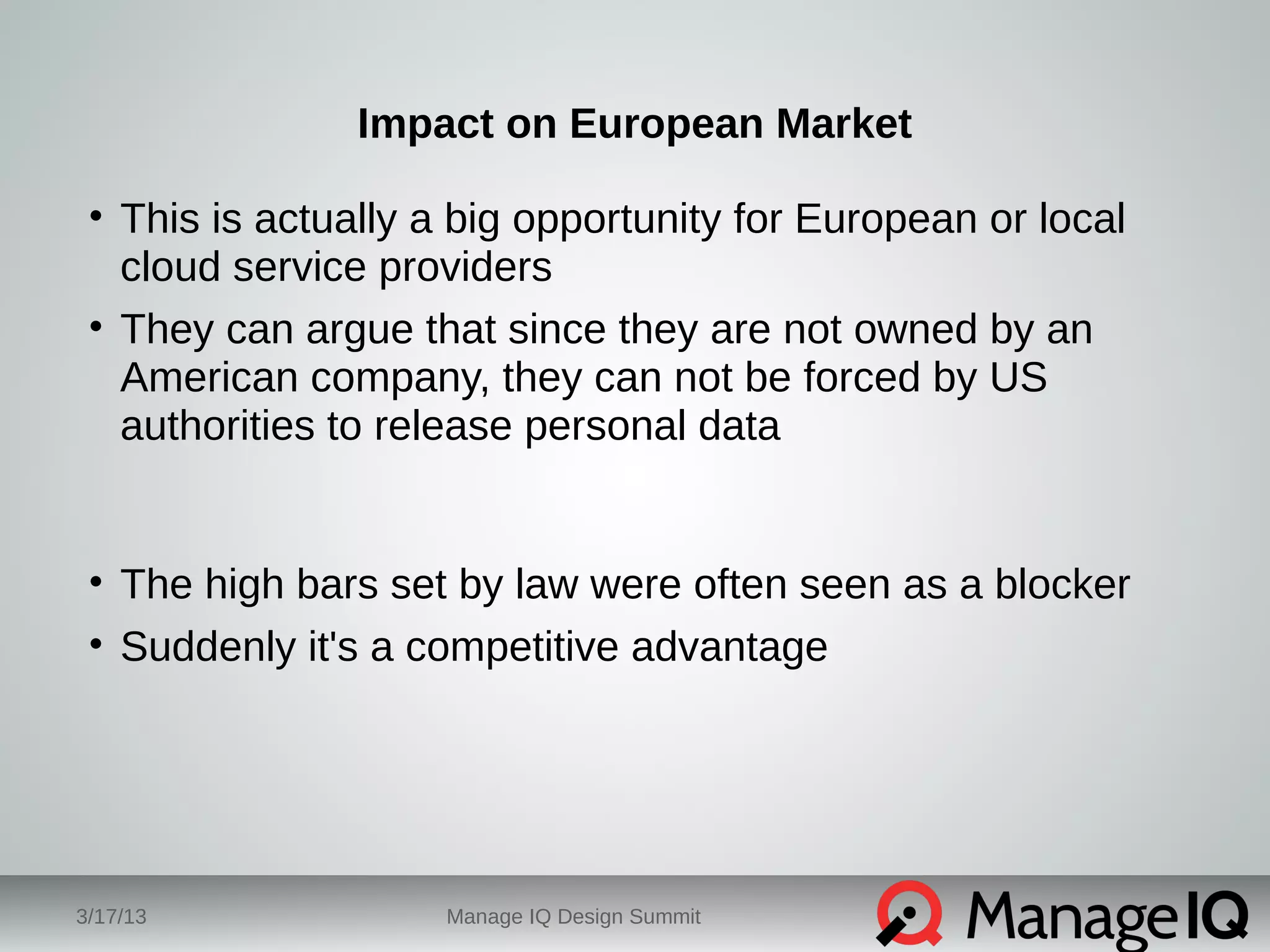

11. Impact on European Market
• This is actually a big opportunity for European or local
cloud service providers
• They can argue that since they are not owned by an
American company, they can not be forced by US
authorities to release personal data
• The high bars set by law were often seen as a blocker
• Suddenly it's a competitive advantage
3/17/13 Manage IQ Design Summit

12. Impact on ManageIQ

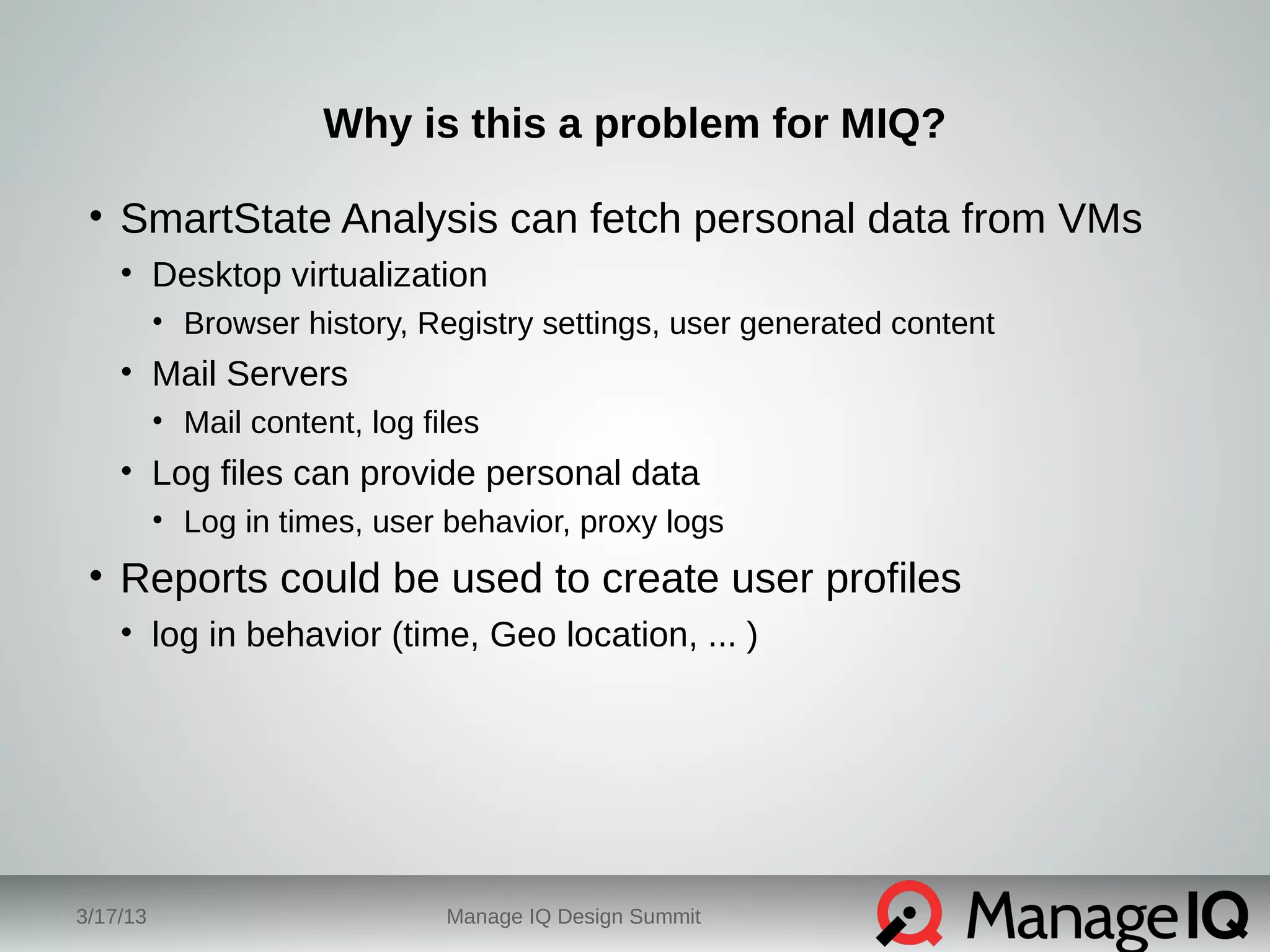

13. Why is this a problem for MIQ?
• SmartState Analysis can fetch personal data from VMs
• Desktop virtualization
• Browser history, Registry settings, user generated content
• Mail Servers
• Mail content, log files
• Log files can provide personal data
• Log in times, user behavior, proxy logs
• Reports could be used to create user profiles
• log in behavior (time, Geo location, ... )
3/17/13 Manage IQ Design Summit

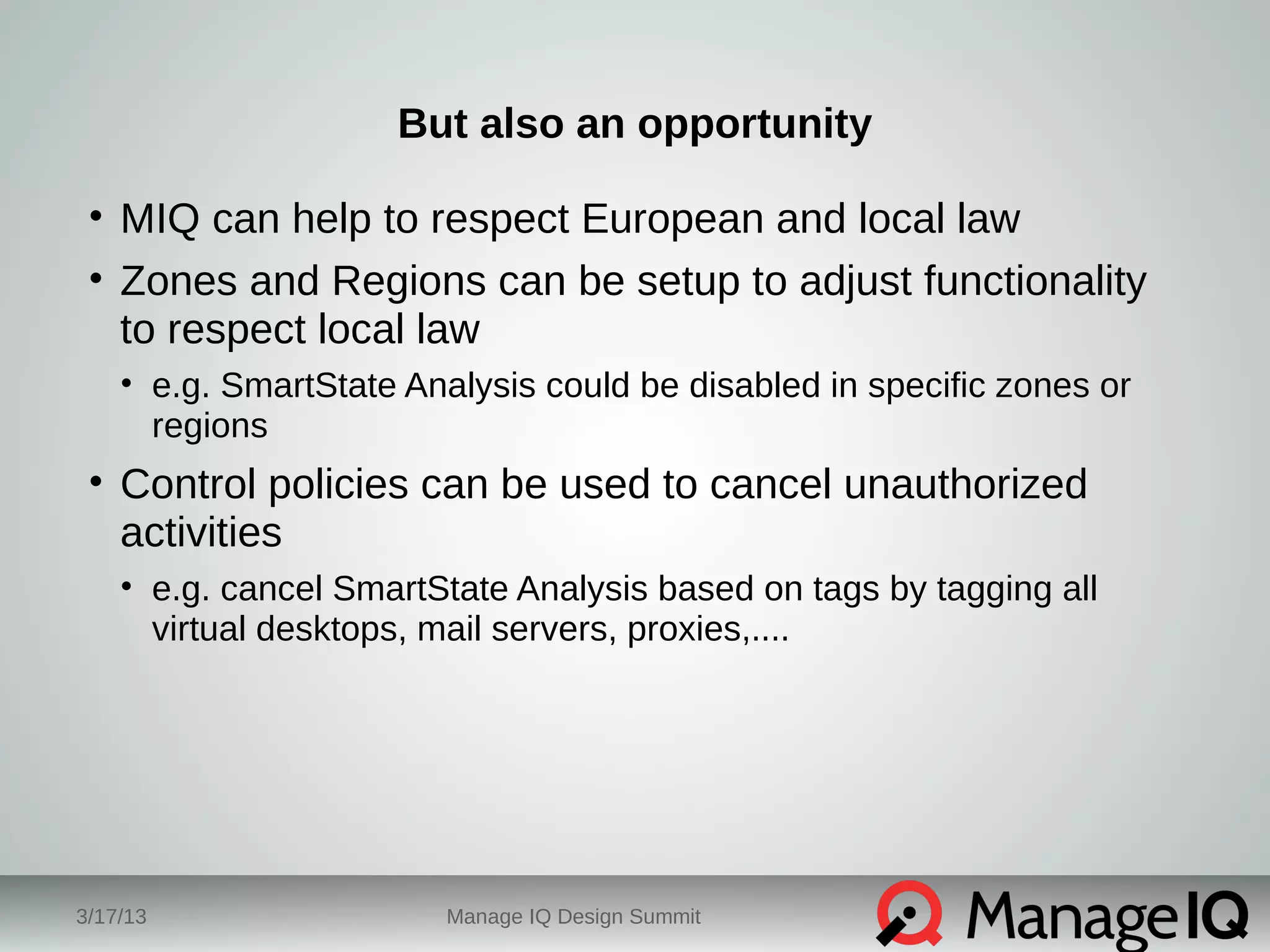

14. But also an opportunity
• MIQ can help to respect European and local law
• Zones and Regions can be setup to adjust functionality
to respect local law
• e.g. SmartState Analysis could be disabled in specific zones or
regions
• Control policies can be used to cancel unauthorized
activities
• e.g. cancel SmartState Analysis based on tags by tagging all
virtual desktops, mail servers, proxies,....
3/17/13 Manage IQ Design Summit

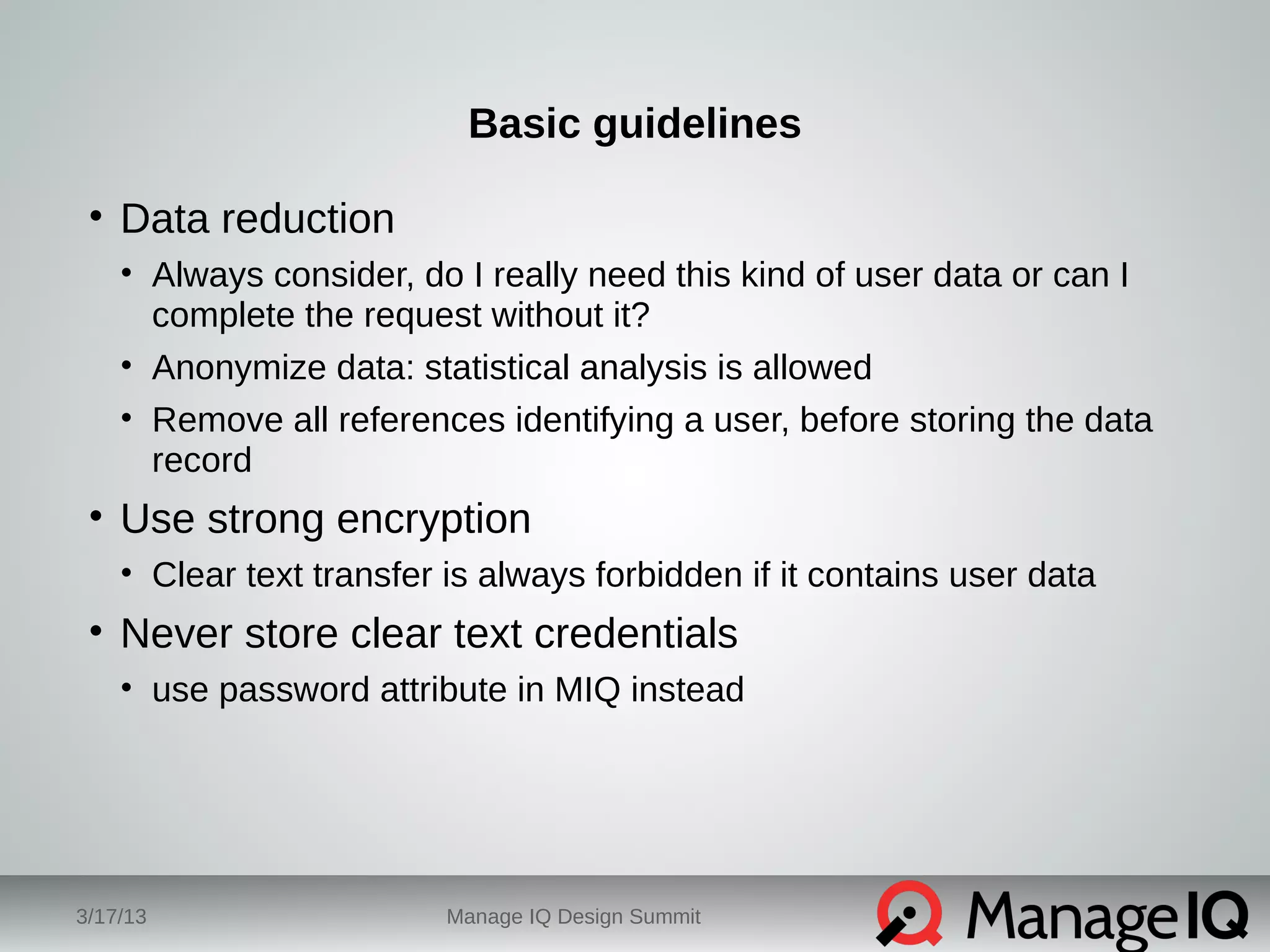

15. Basic guidelines
• Data reduction
• Always consider, do I really need this kind of user data or can I
complete the request without it?
• Anonymize data: statistical analysis is allowed
• Remove all references identifying a user, before storing the data
record
• Use strong encryption
• Clear text transfer is always forbidden if it contains user data
• Never store clear text credentials
• use password attribute in MIQ instead
3/17/13 Manage IQ Design Summit

16. Übersetzungen
Conversione
Thème
Translations

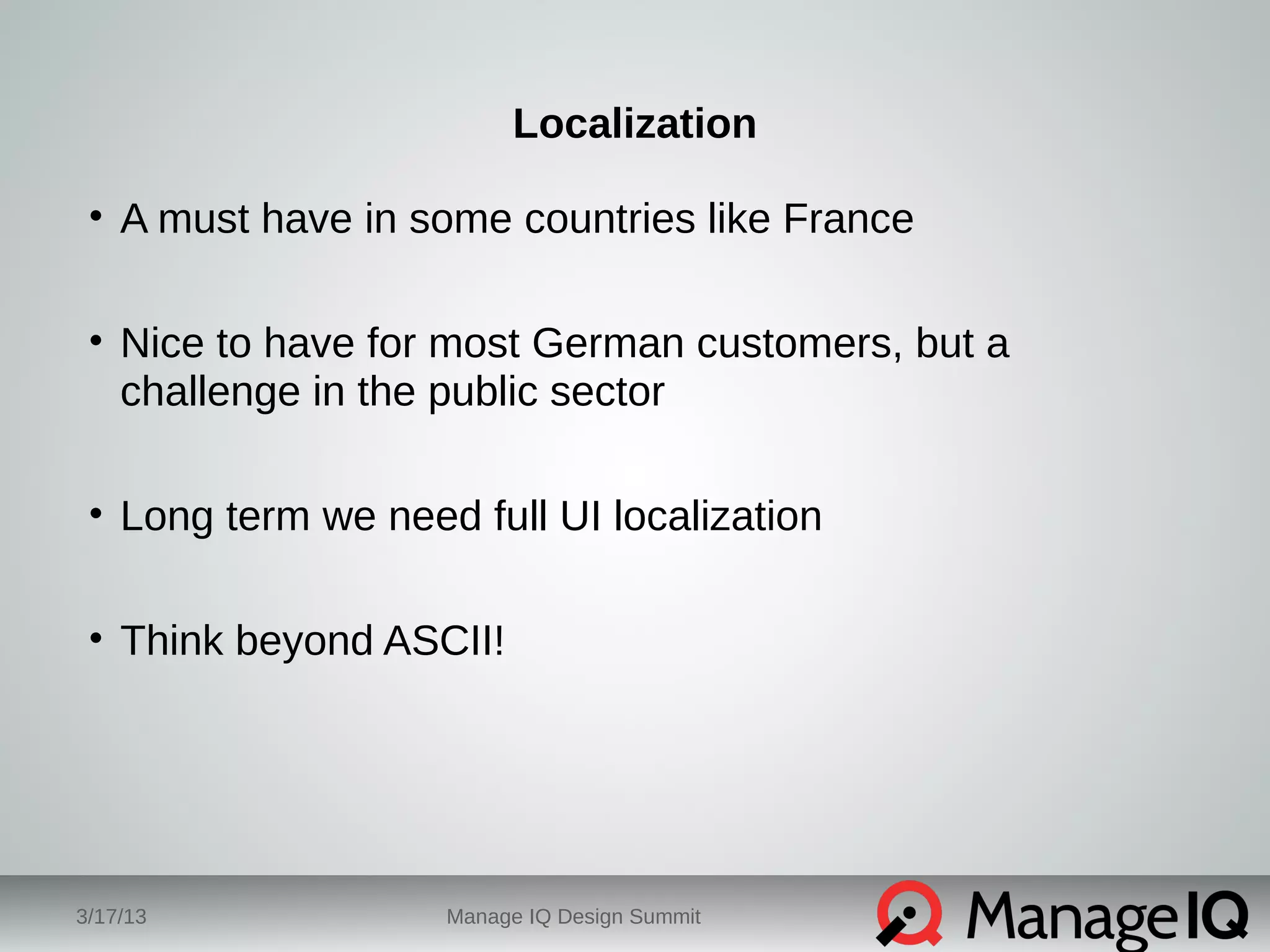

17. Localization
• A must have in some countries like France
• Nice to have for most German customers, but a
challenge in the public sector
• Long term we need full UI localization
• Think beyond ASCII!
3/17/13 Manage IQ Design Summit

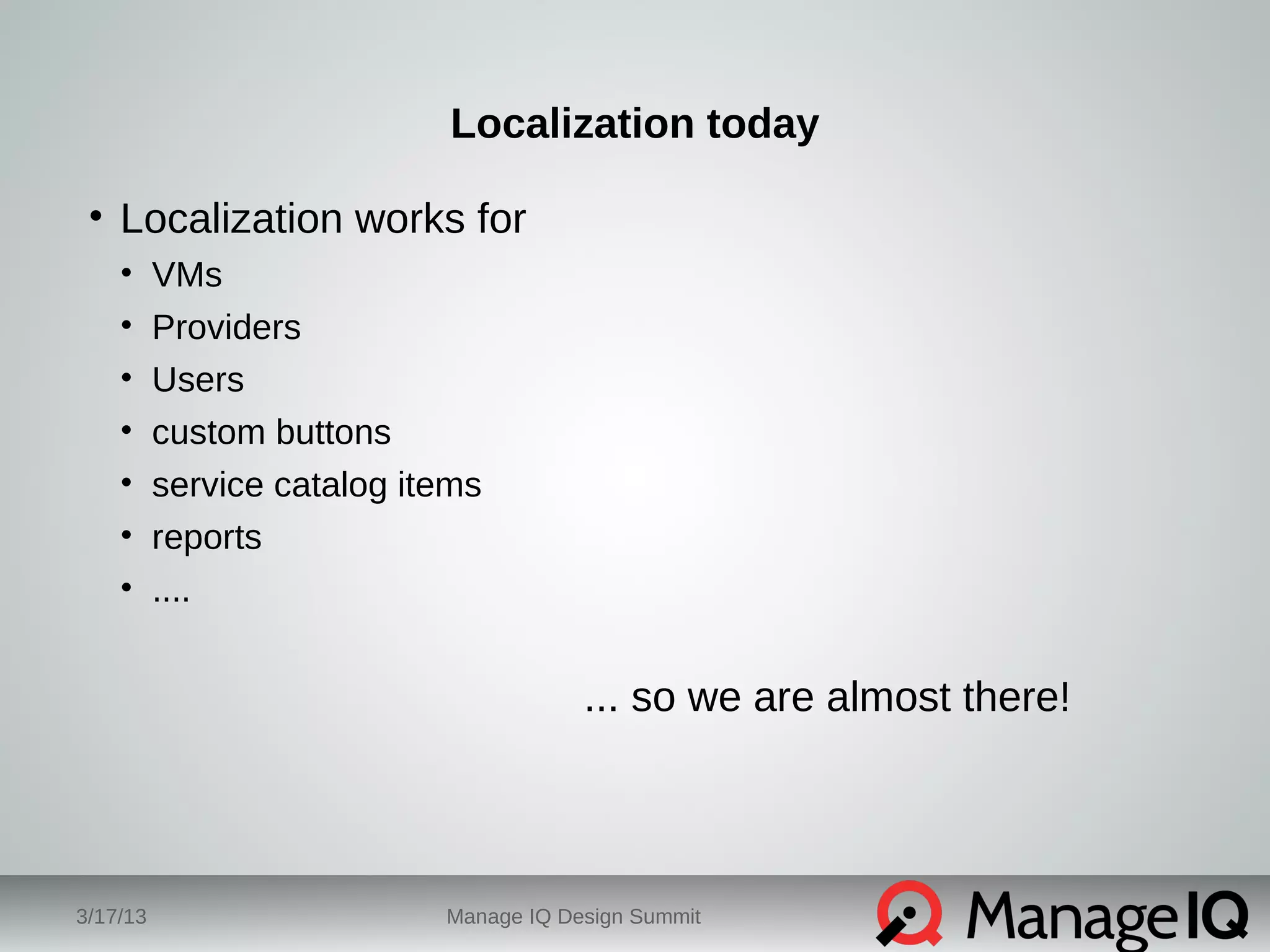

18. Localization today
• Localization works for
• VMs
• Providers
• Users
• custom buttons
• service catalog items
• reports
• ....
... so we are almost there!
3/17/13 Manage IQ Design Summit

19. Special Industry
requirements

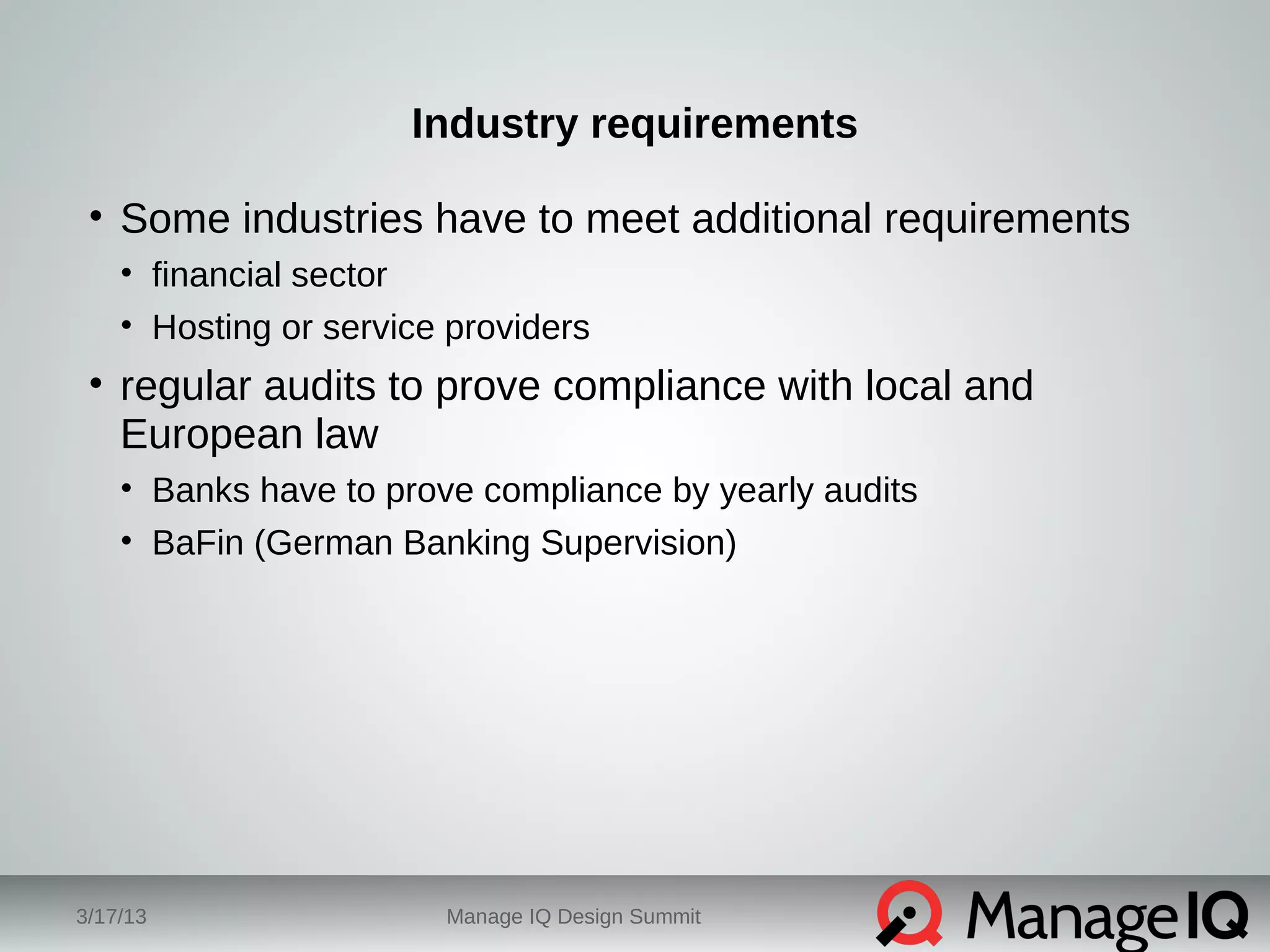

20. Industry requirements
• Some industries have to meet additional requirements
• financial sector
• Hosting or service providers
• regular audits to prove compliance with local and
European law
• Banks have to prove compliance by yearly audits
• BaFin (German Banking Supervision)
3/17/13 Manage IQ Design Summit

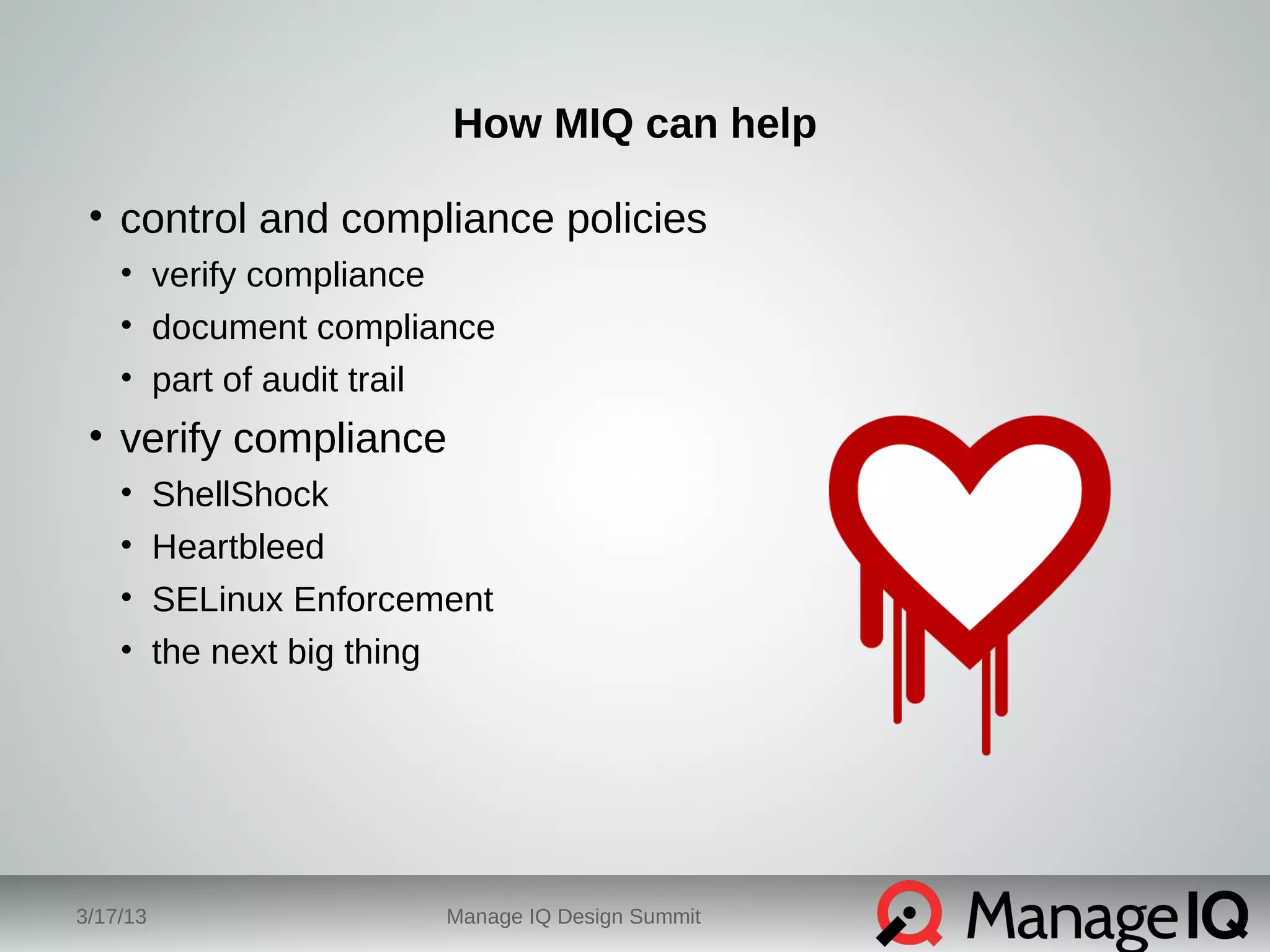

21. How MIQ can help
• control and compliance policies
• verify compliance
• document compliance
• part of audit trail
• verify compliance
• ShellShock
• Heartbleed
• SELinux Enforcement
• the next big thing
3/17/13 Manage IQ Design Summit

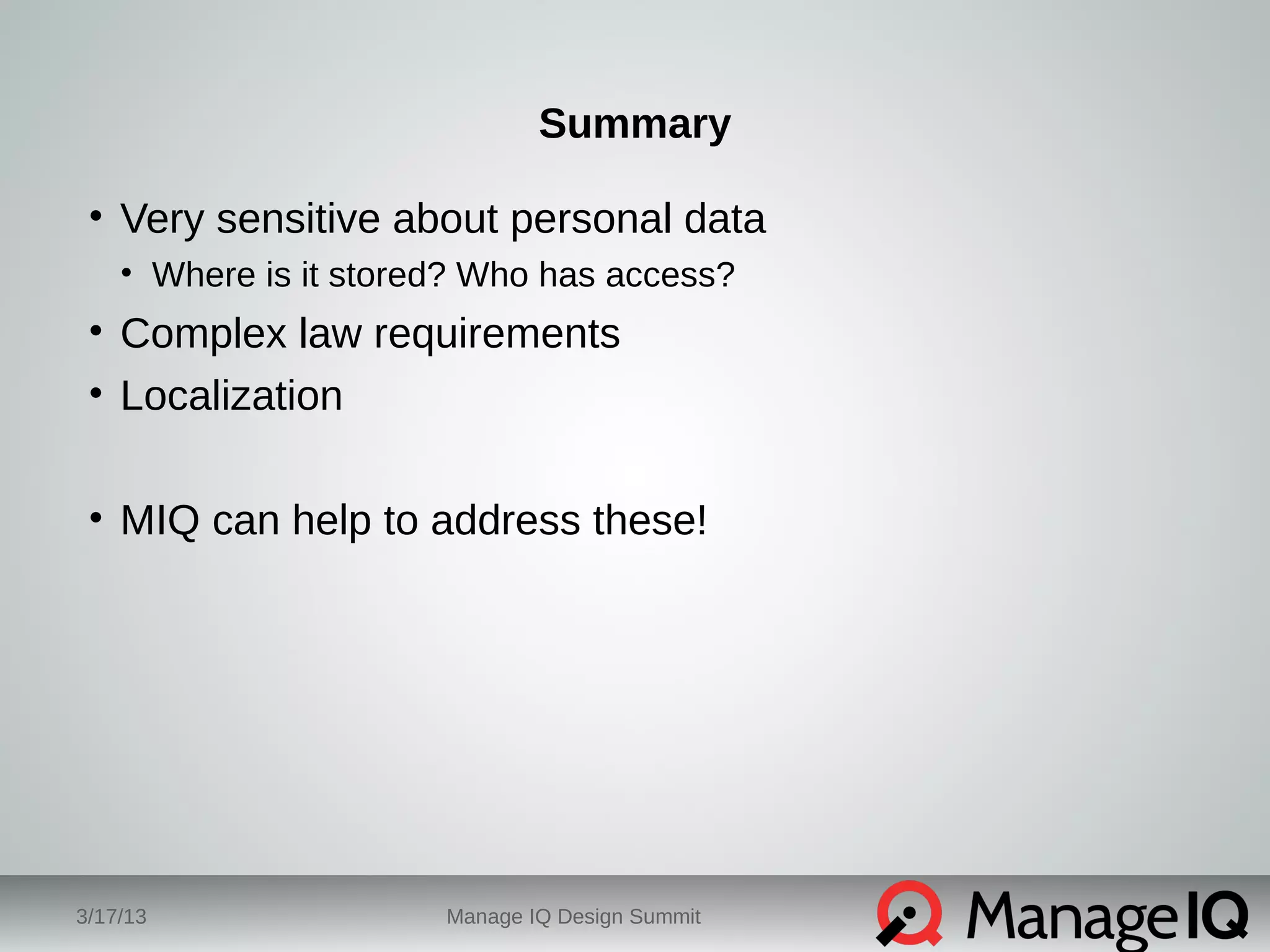

22. Summary
• Very sensitive about personal data
• Where is it stored? Who has access?
• Complex law requirements
• Localization
• MIQ can help to address these!
3/17/13 Manage IQ Design Summit

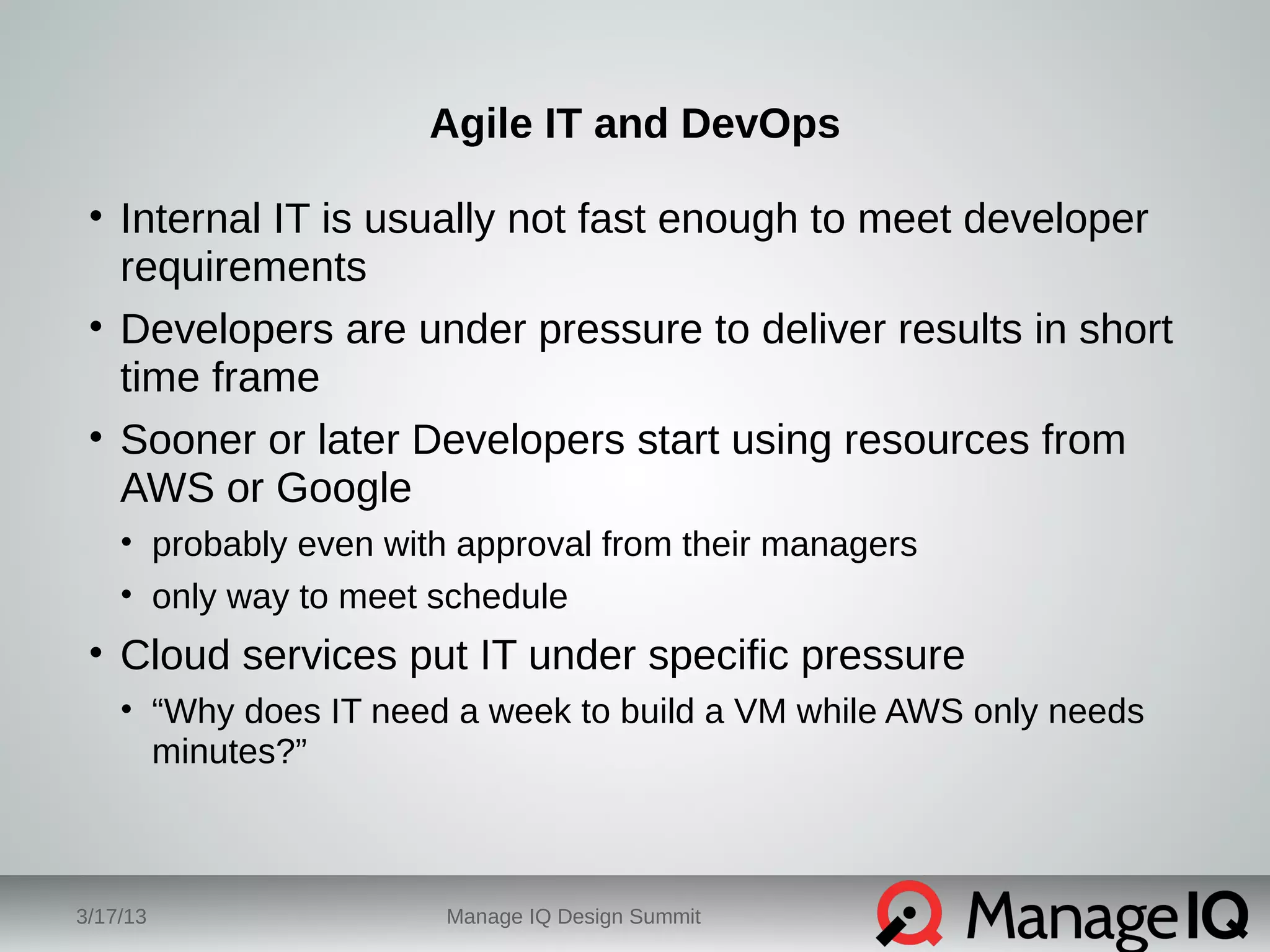

23. Agile IT and DevOps

24. Agile IT and DevOps
• Internal IT is usually not fast enough to meet developer
requirements
• Developers are under pressure to deliver results in short
time frame
• Sooner or later Developers start using resources from
AWS or Google
• probably even with approval from their managers
• only way to meet schedule
• Cloud services put IT under specific pressure
• “Why does IT need a week to build a VM while AWS only needs
minutes?”
3/17/13 Manage IQ Design Summit

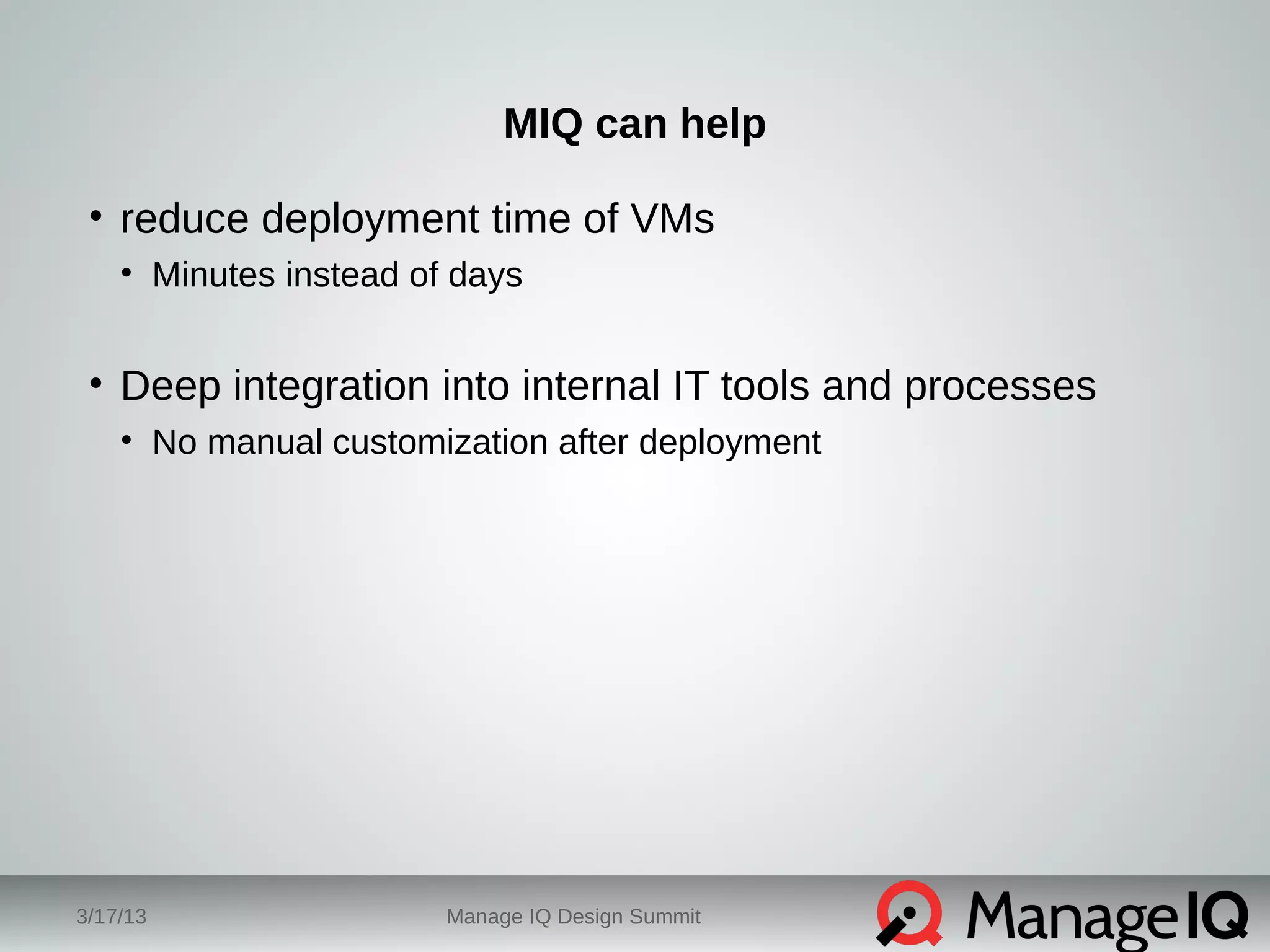

25. MIQ can help
• reduce deployment time of VMs
• Minutes instead of days
• Deep integration into internal IT tools and processes
• No manual customization after deployment
3/17/13 Manage IQ Design Summit

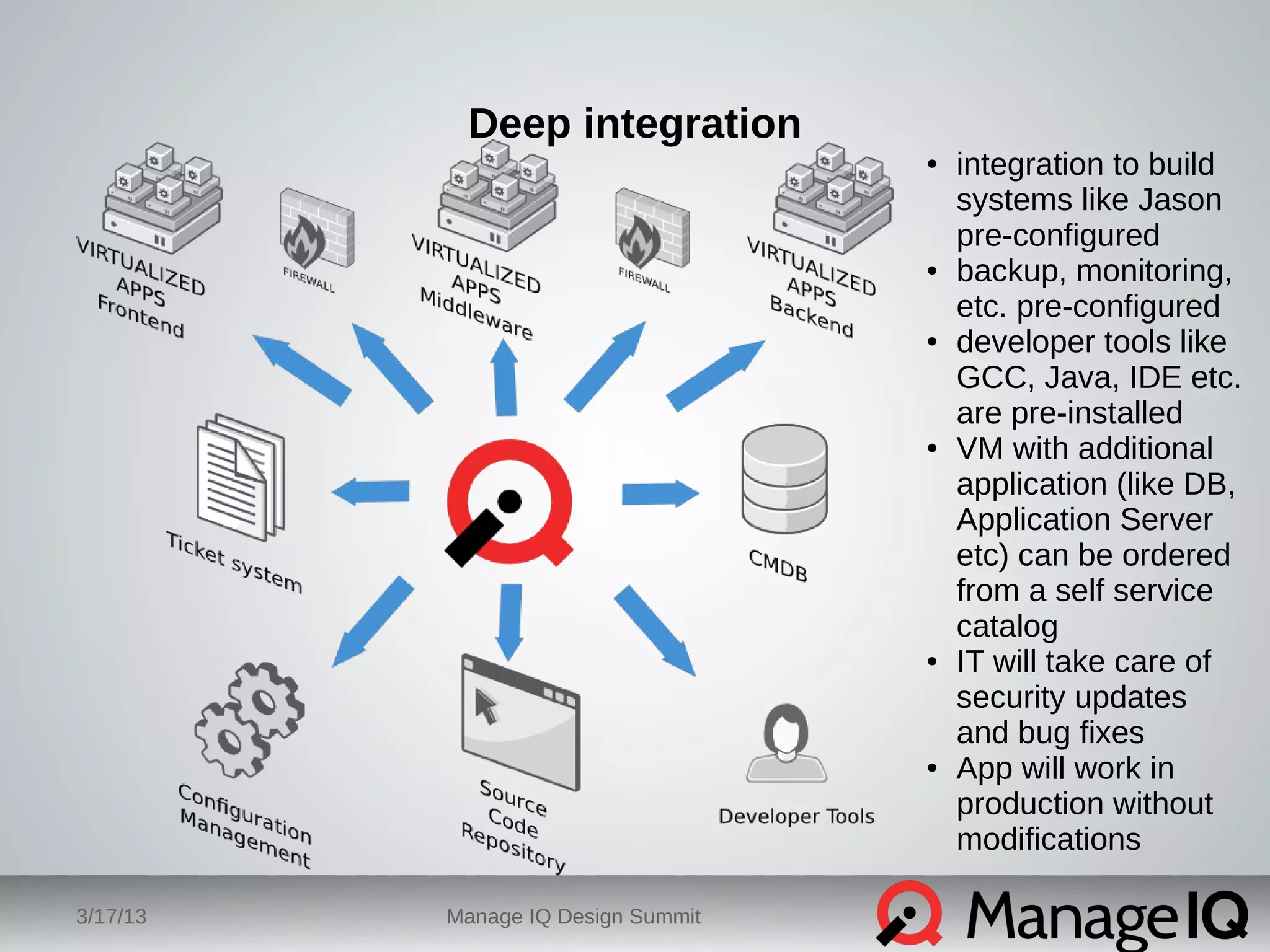

26. Deep integration
3/17/13 Manage IQ Design Summit
● integration to build
systems like Jason
pre-configured
● backup, monitoring,
etc. pre-configured
● developer tools like
GCC, Java, IDE etc.
are pre-installed
● VM with additional
application (like DB,
Application Server
etc) can be ordered
from a self service
catalog
● IT will take care of
security updates
and bug fixes
● App will work in
production without
modifications

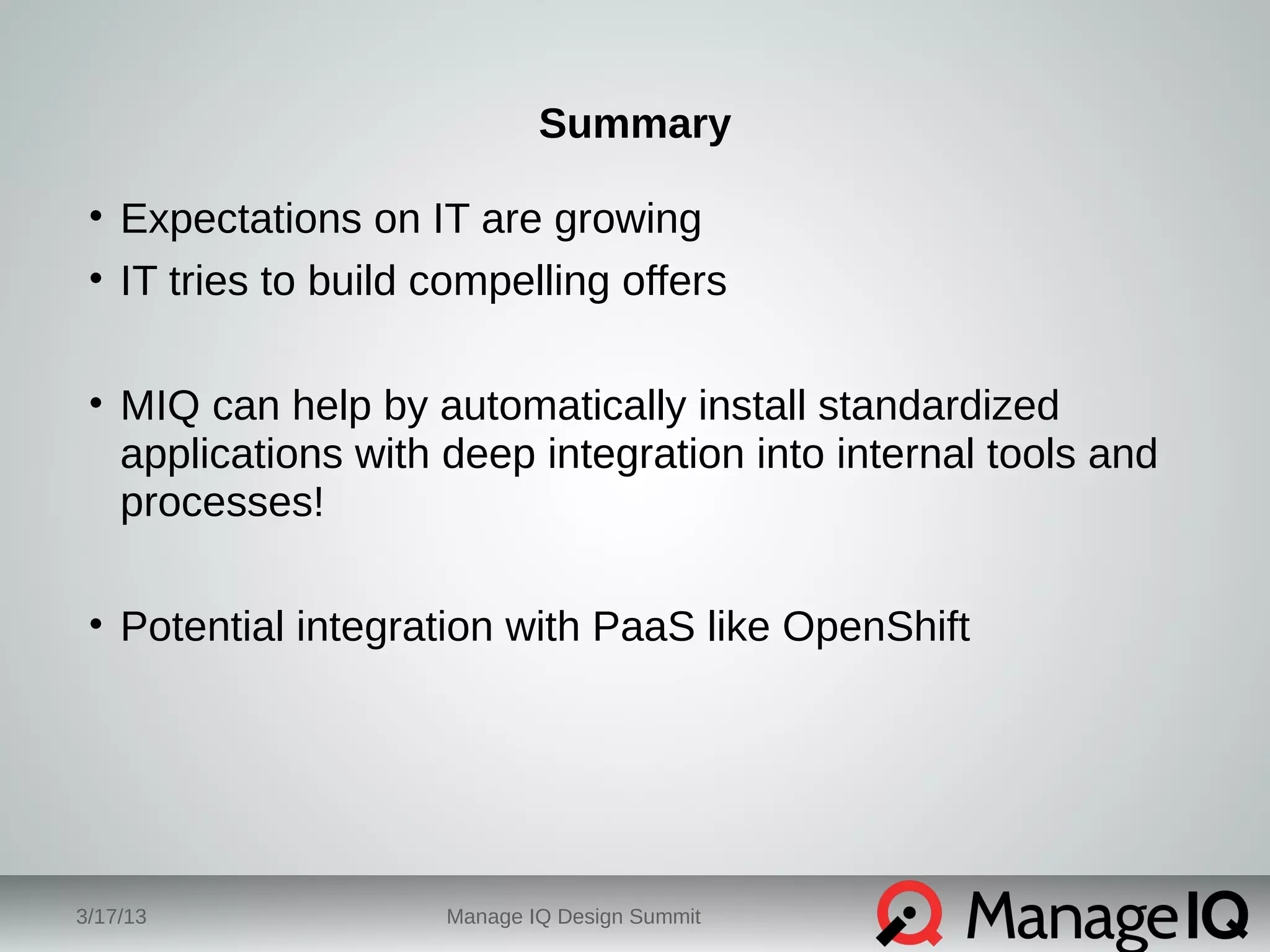

27. Summary
• Expectations on IT are growing
• IT tries to build compelling offers
• MIQ can help by automatically install standardized
applications with deep integration into internal tools and
processes!
• Potential integration with PaaS like OpenShift
3/17/13 Manage IQ Design Summit

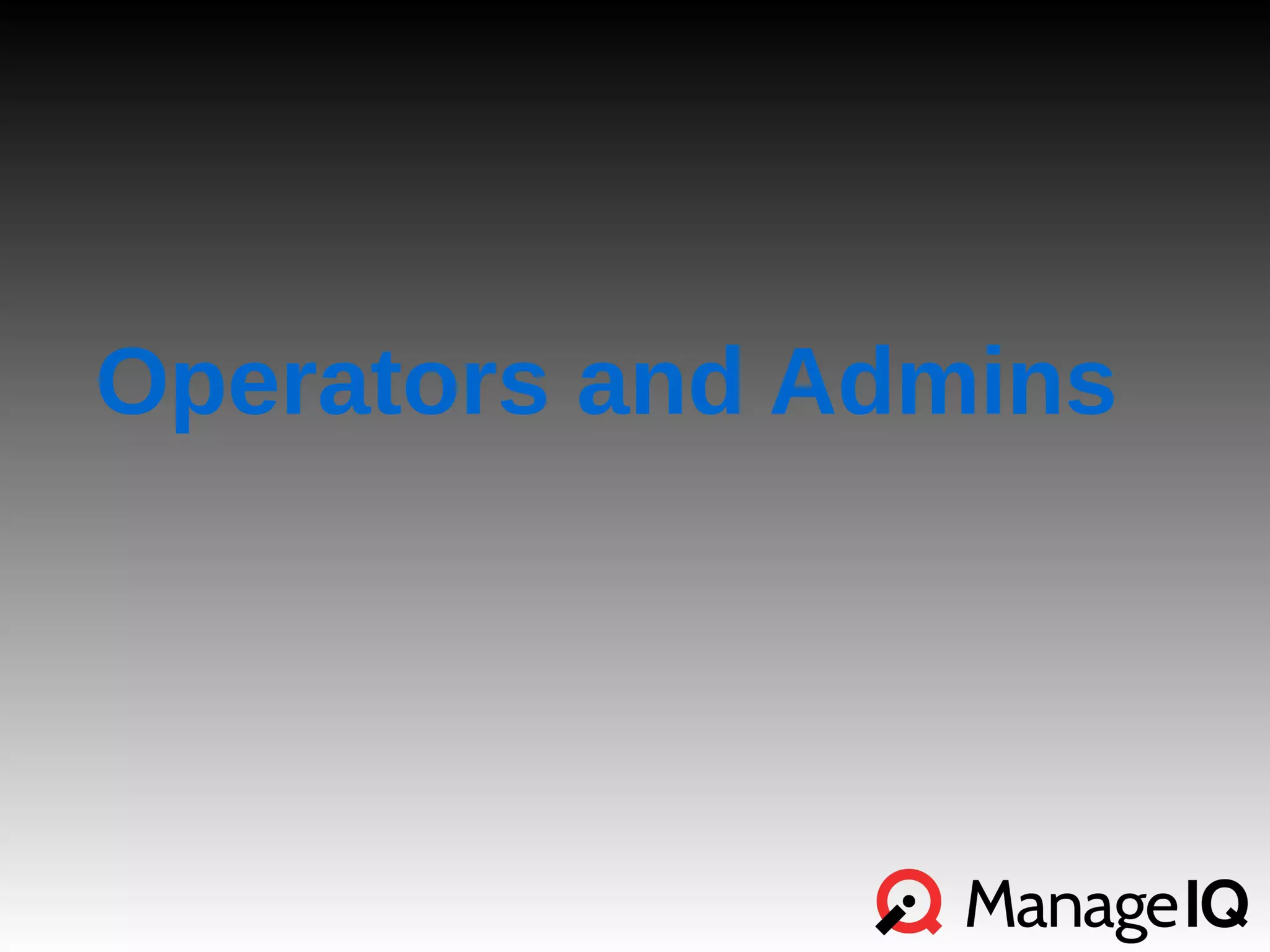

28. Operators and Admins

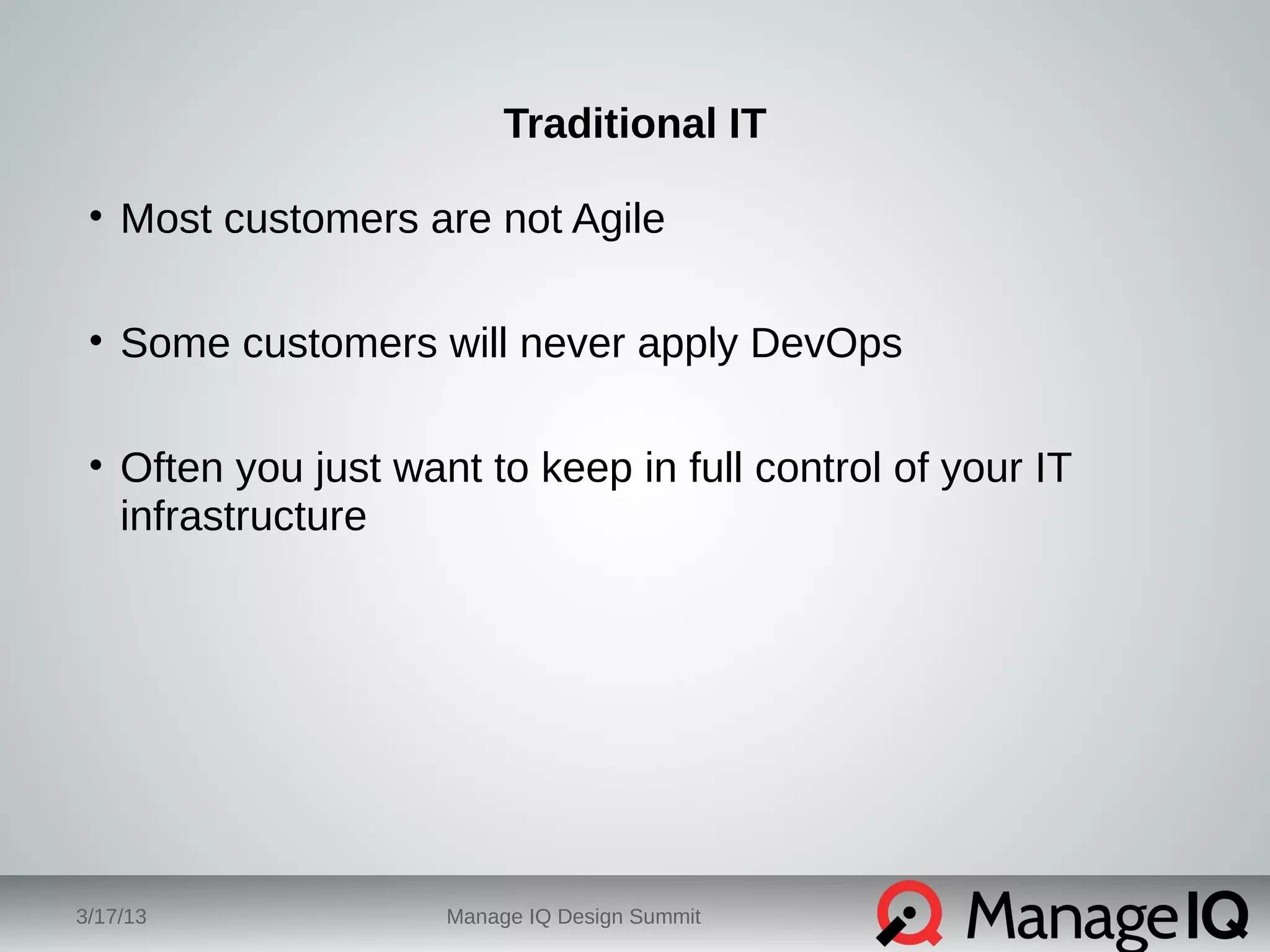

29. Traditional IT
• Most customers are not Agile
• Some customers will never apply DevOps
• Often you just want to keep in full control of your IT
infrastructure
3/17/13 Manage IQ Design Summit

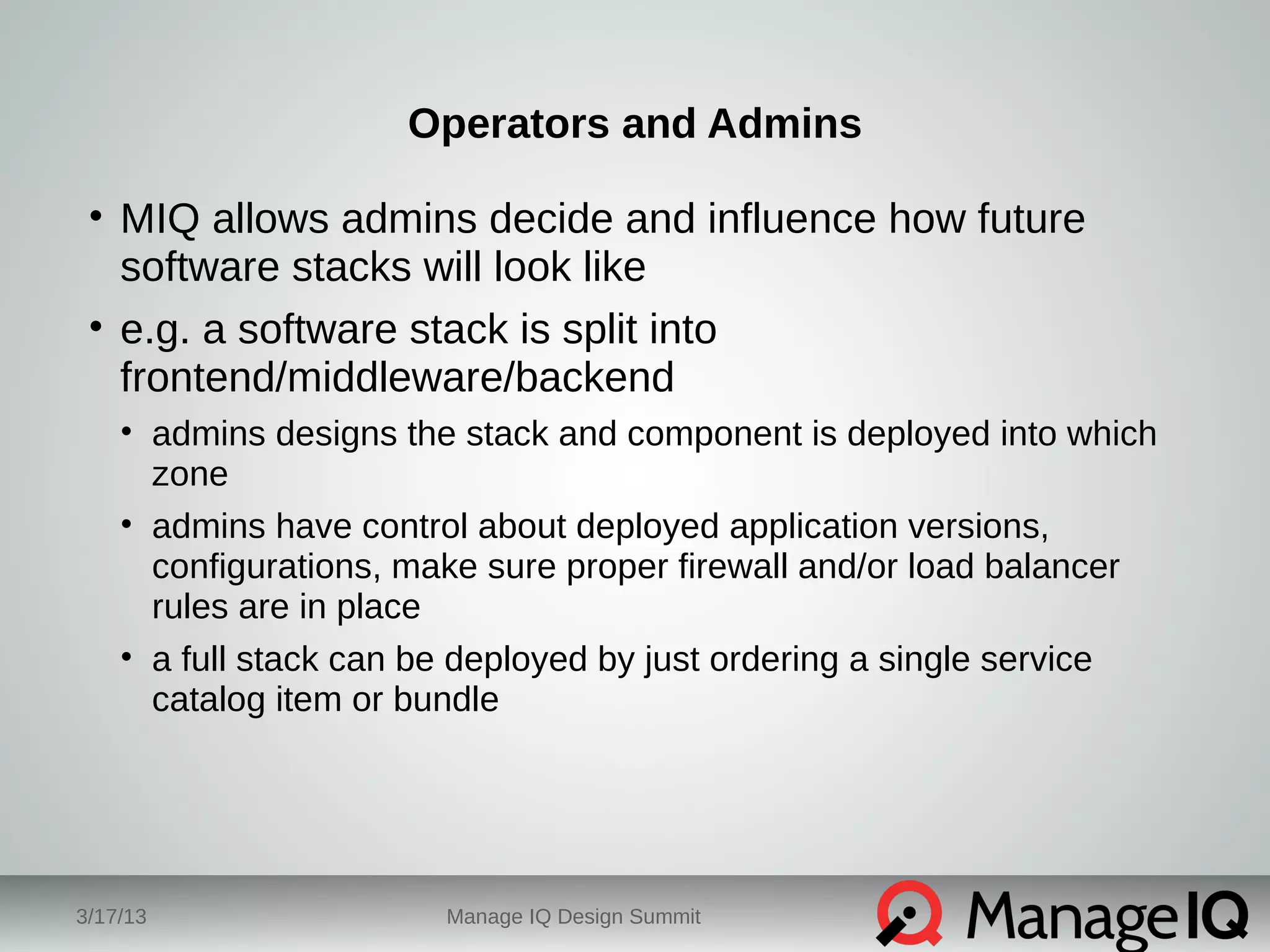

30. Operators and Admins
• MIQ allows admins decide and influence how future
software stacks will look like
• e.g. a software stack is split into
frontend/middleware/backend
• admins designs the stack and component is deployed into which
zone
• admins have control about deployed application versions,
configurations, make sure proper firewall and/or load balancer
rules are in place
• a full stack can be deployed by just ordering a single service
catalog item or bundle
3/17/13 Manage IQ Design Summit

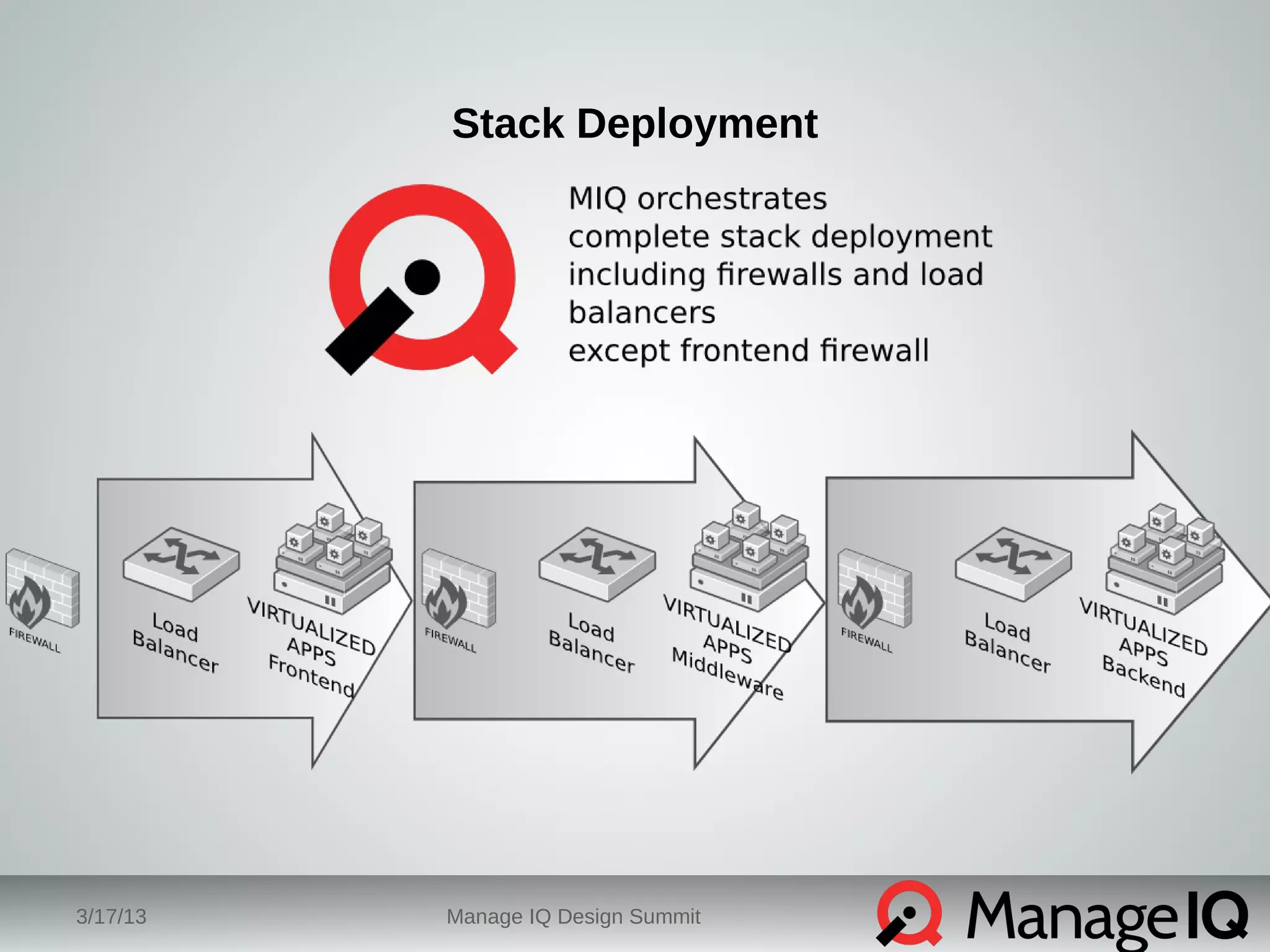

31. Stack Deployment
3/17/13 Manage IQ Design Summit

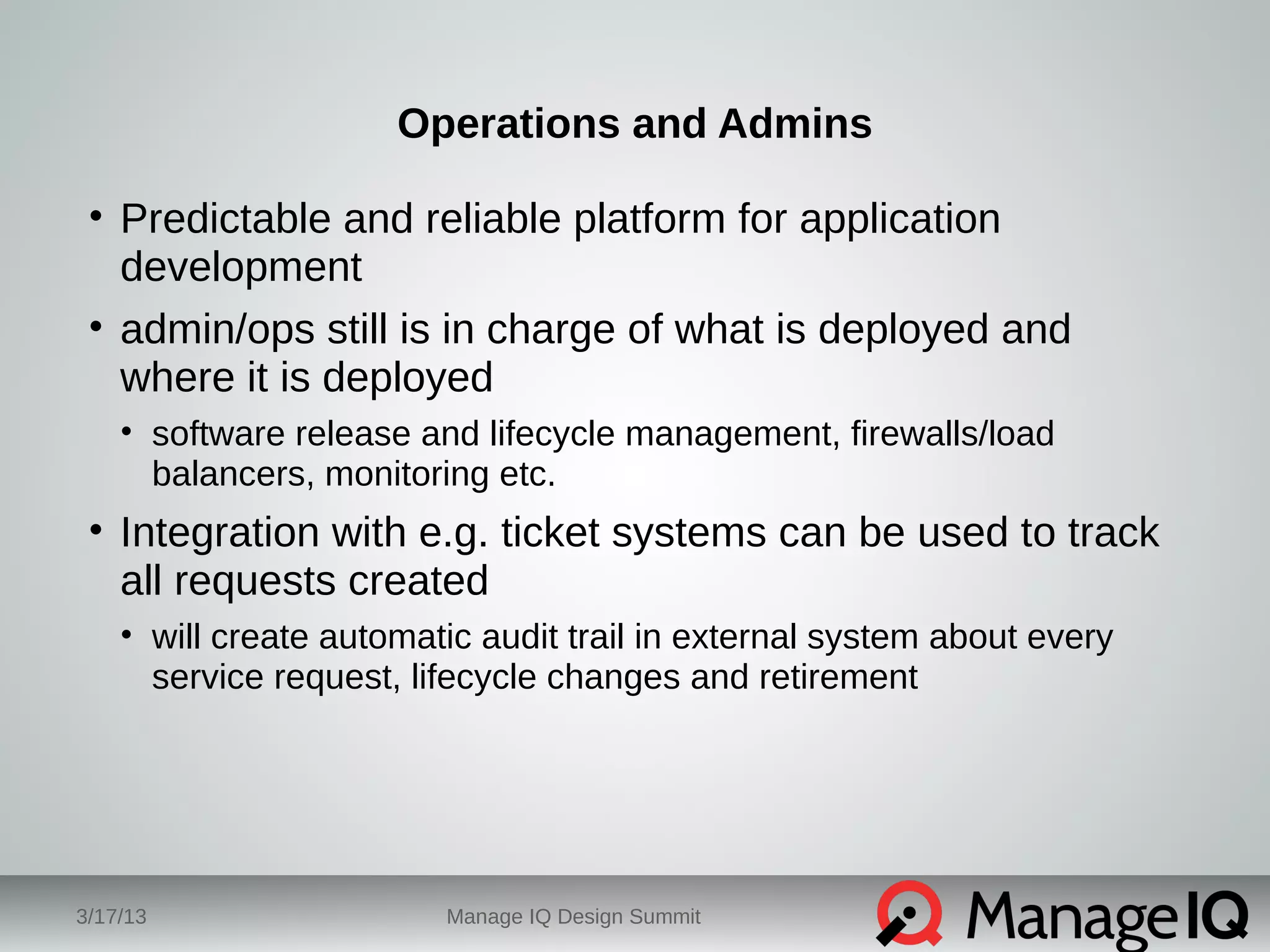

32. Operations and Admins
• Predictable and reliable platform for application
development
• admin/ops still is in charge of what is deployed and
where it is deployed
• software release and lifecycle management, firewalls/load
balancers, monitoring etc.
• Integration with e.g. ticket systems can be used to track
all requests created
• will create automatic audit trail in external system about every
service request, lifecycle changes and retirement
3/17/13 Manage IQ Design Summit

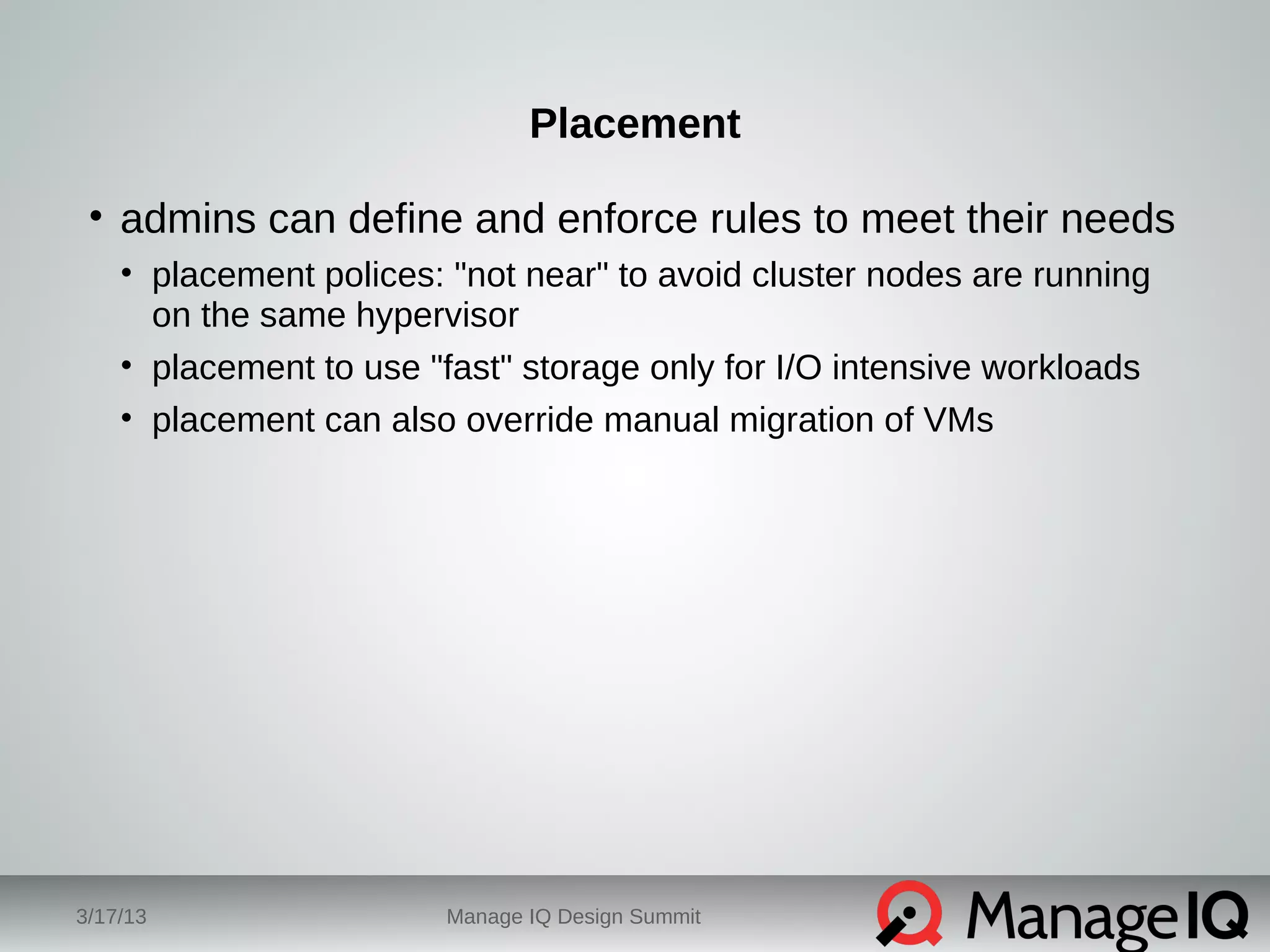

33. Placement
• admins can define and enforce rules to meet their needs
• placement polices: "not near" to avoid cluster nodes are running
on the same hypervisor
• placement to use "fast" storage only for I/O intensive workloads
• placement can also override manual migration of VMs
3/17/13 Manage IQ Design Summit

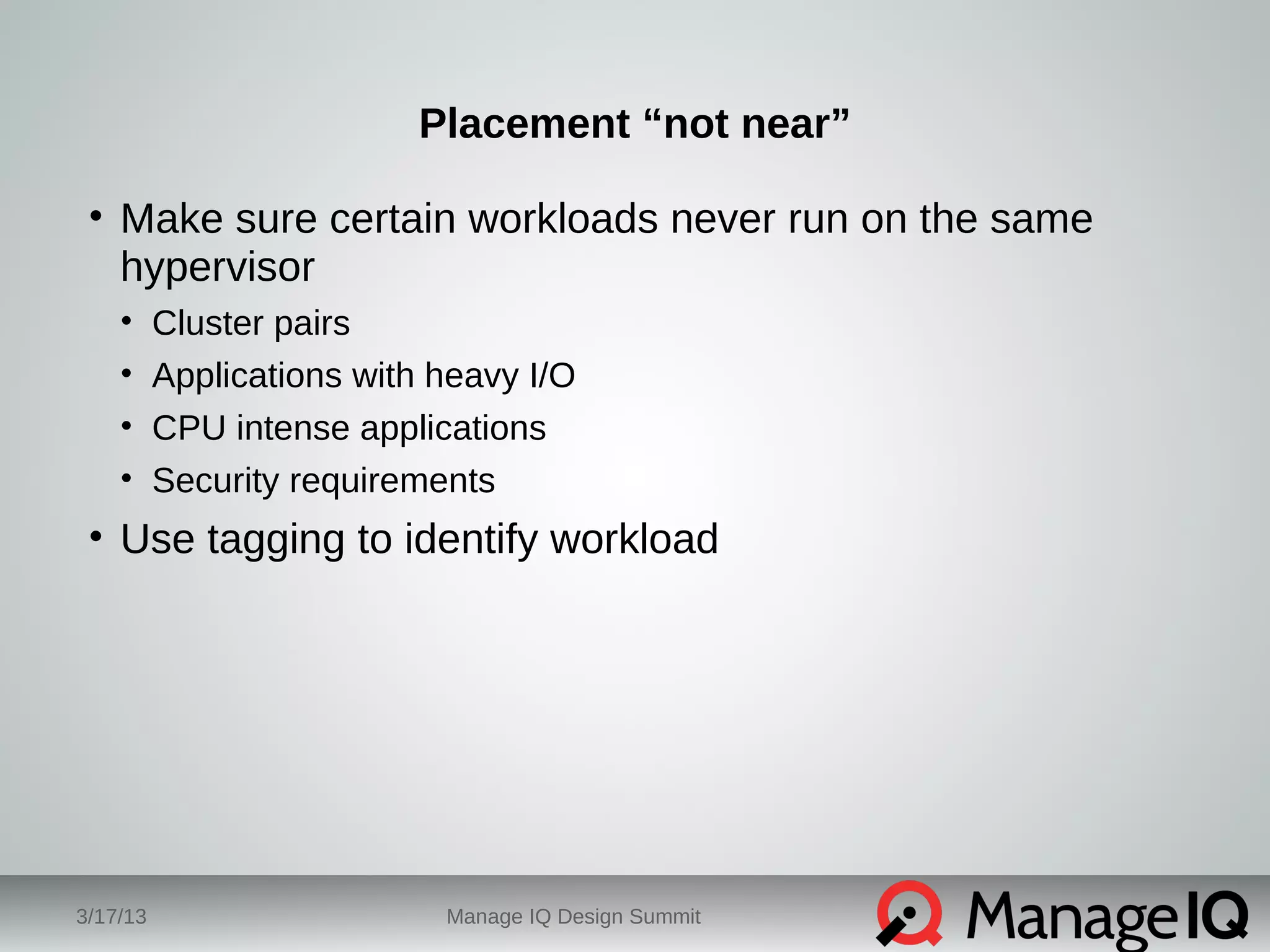

34. Placement “not near”
• Make sure certain workloads never run on the same
hypervisor
• Cluster pairs
• Applications with heavy I/O
• CPU intense applications
• Security requirements
• Use tagging to identify workload
3/17/13 Manage IQ Design Summit

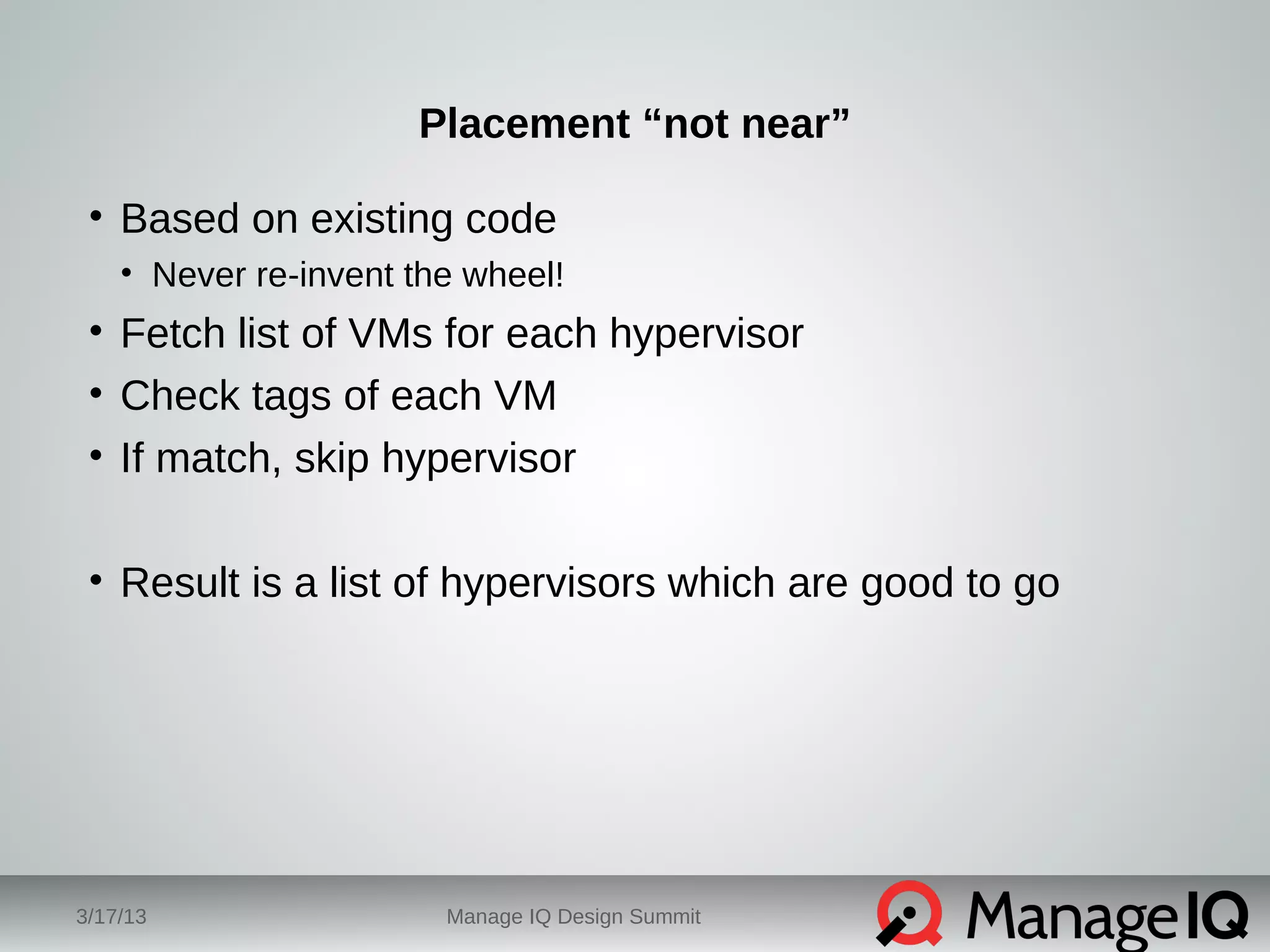

35. Placement “not near”
• Based on existing code
• Never re-invent the wheel!
• Fetch list of VMs for each hypervisor
• Check tags of each VM
• If match, skip hypervisor
• Result is a list of hypervisors which are good to go
3/17/13 Manage IQ Design Summit

36. Global Deployments

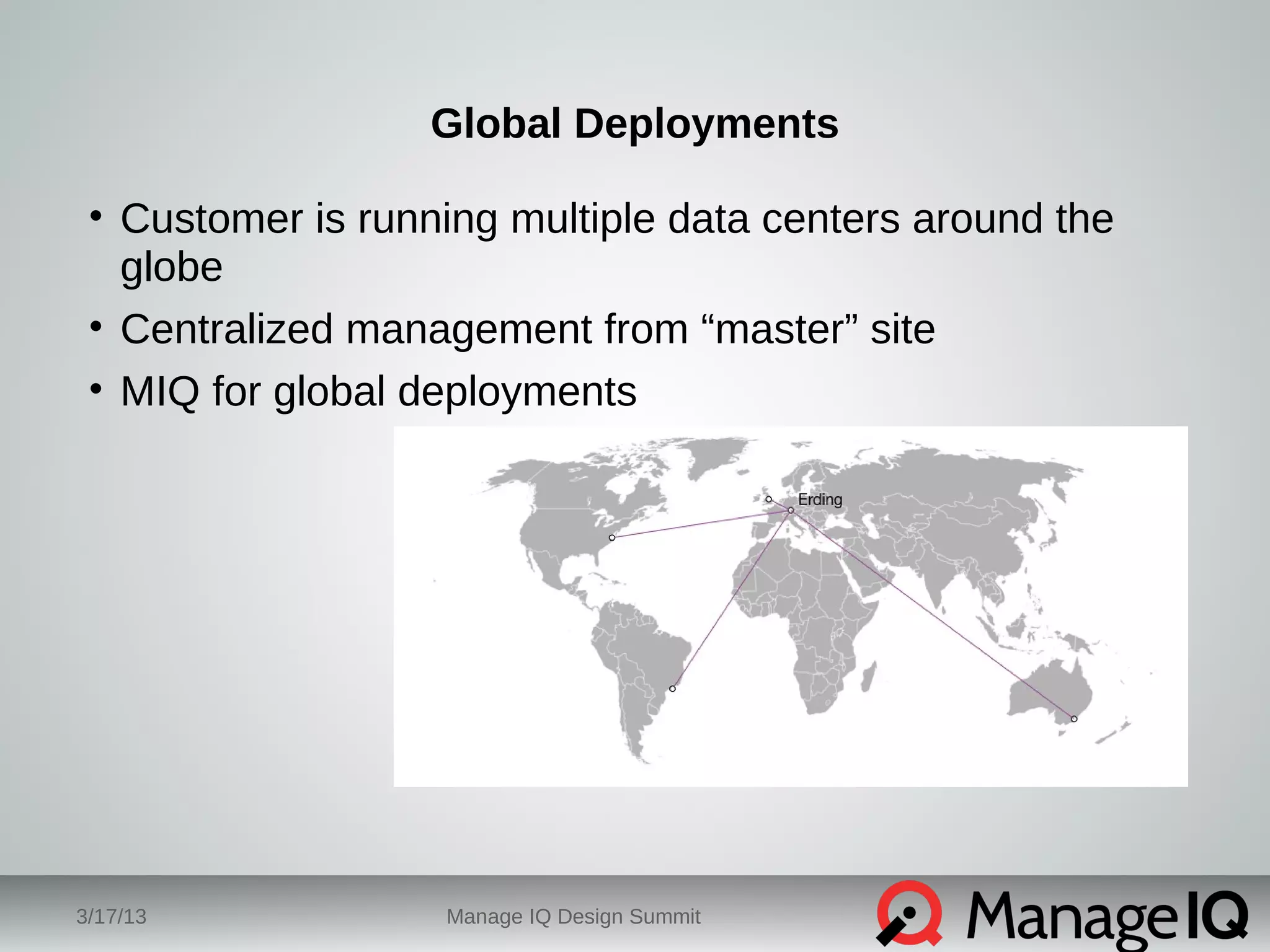

37. Global Deployments
• Customer is running multiple data centers around the
globe
• Centralized management from “master” site
• MIQ for global deployments
3/17/13 Manage IQ Design Summit

38. Single entry point
• Admins and Ops are scheduling deployments from one
entry point
• Deployment is orchestrated globally
• Heavy usage of SOAP API
• Automatic scaling
• With geographical awareness
• Integrated with
• License management (for proprietary software)
• Monitoring
• Configuration Management
3/17/13 Manage IQ Design Summit

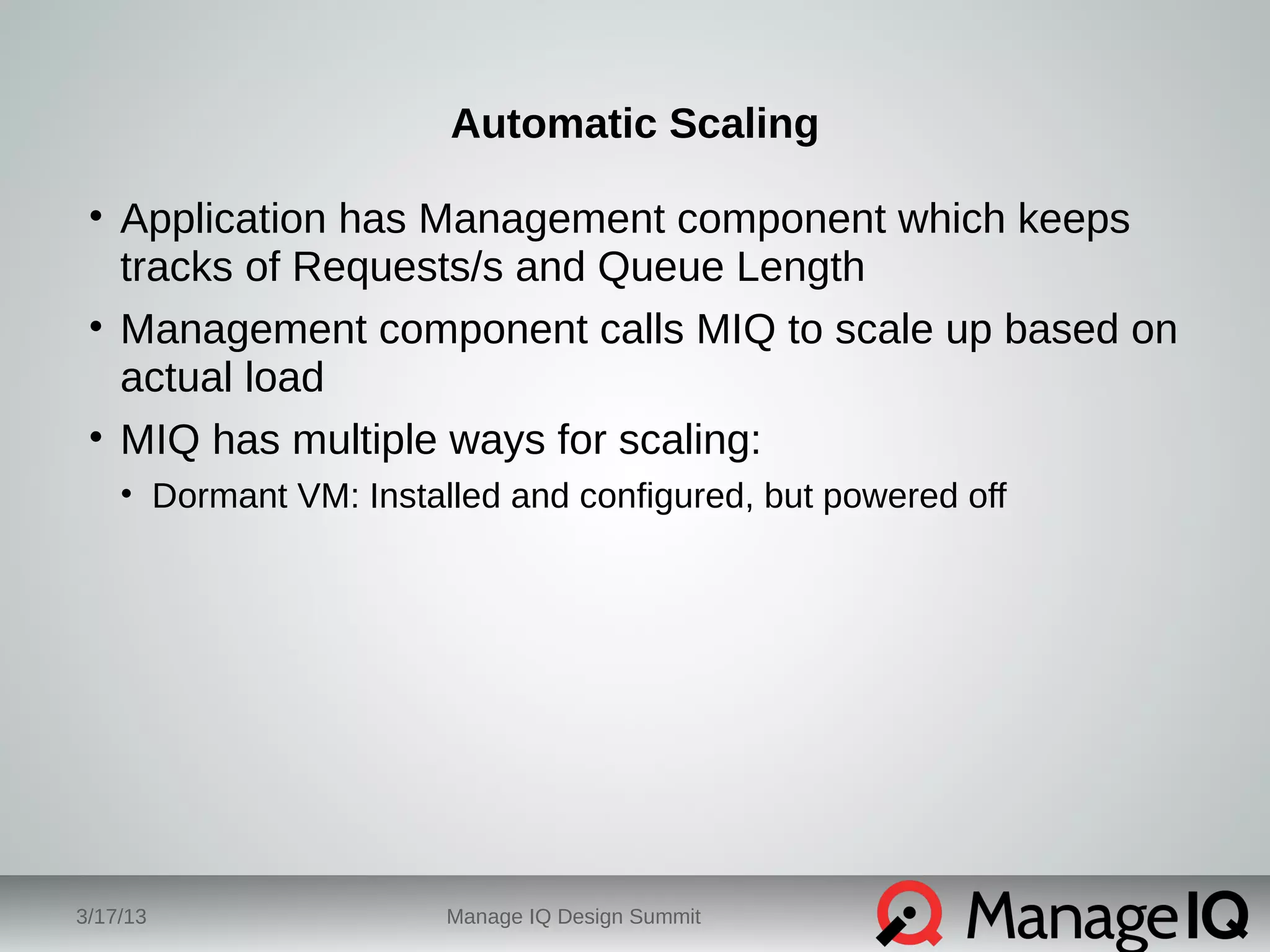

39. Automatic Scaling
• Application has Management component which keeps
tracks of Requests/s and Queue Length
• Management component calls MIQ to scale up based on
actual load
• MIQ has multiple ways for scaling:
• Dormant VM: Installed and configured, but powered off
3/17/13 Manage IQ Design Summit

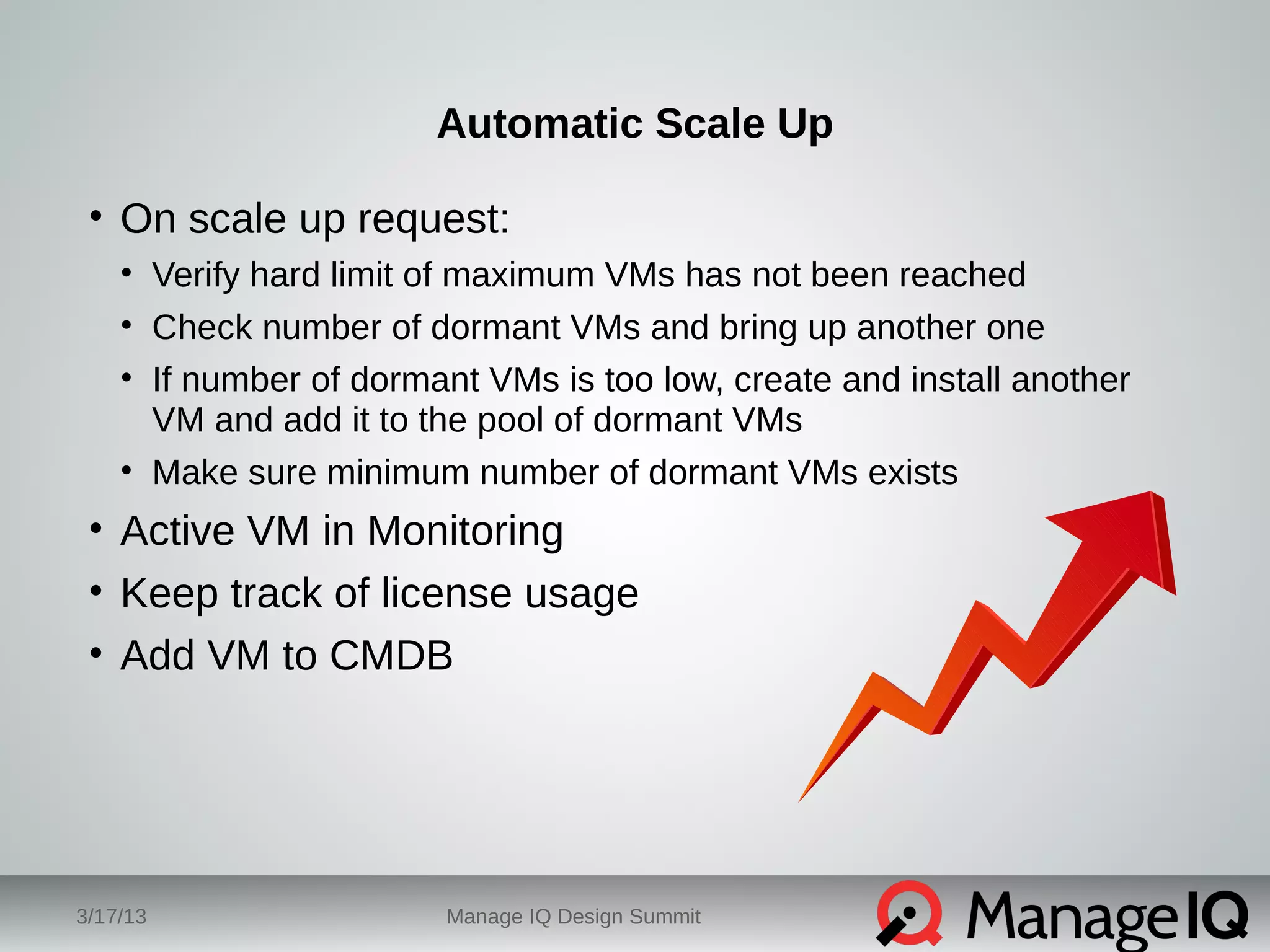

40. Automatic Scale Up
• On scale up request:
• Verify hard limit of maximum VMs has not been reached
• Check number of dormant VMs and bring up another one
• If number of dormant VMs is too low, create and install another
VM and add it to the pool of dormant VMs
• Make sure minimum number of dormant VMs exists
• Active VM in Monitoring
• Keep track of license usage
• Add VM to CMDB
3/17/13 Manage IQ Design Summit

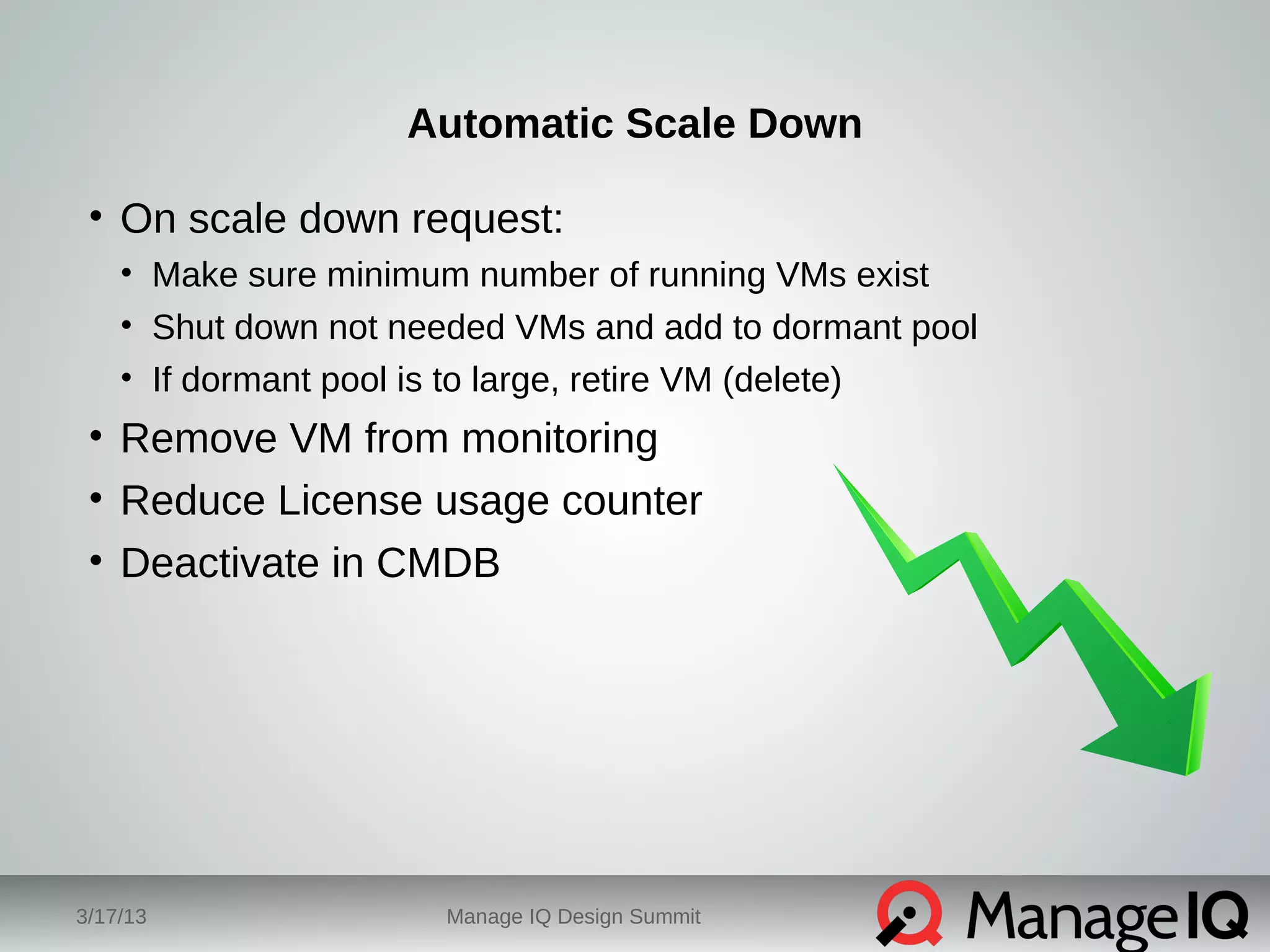

41. Automatic Scale Down
• On scale down request:
• Make sure minimum number of running VMs exist
• Shut down not needed VMs and add to dormant pool
• If dormant pool is to large, retire VM (delete)
• Remove VM from monitoring
• Reduce License usage counter
• Deactivate in CMDB
3/17/13 Manage IQ Design Summit

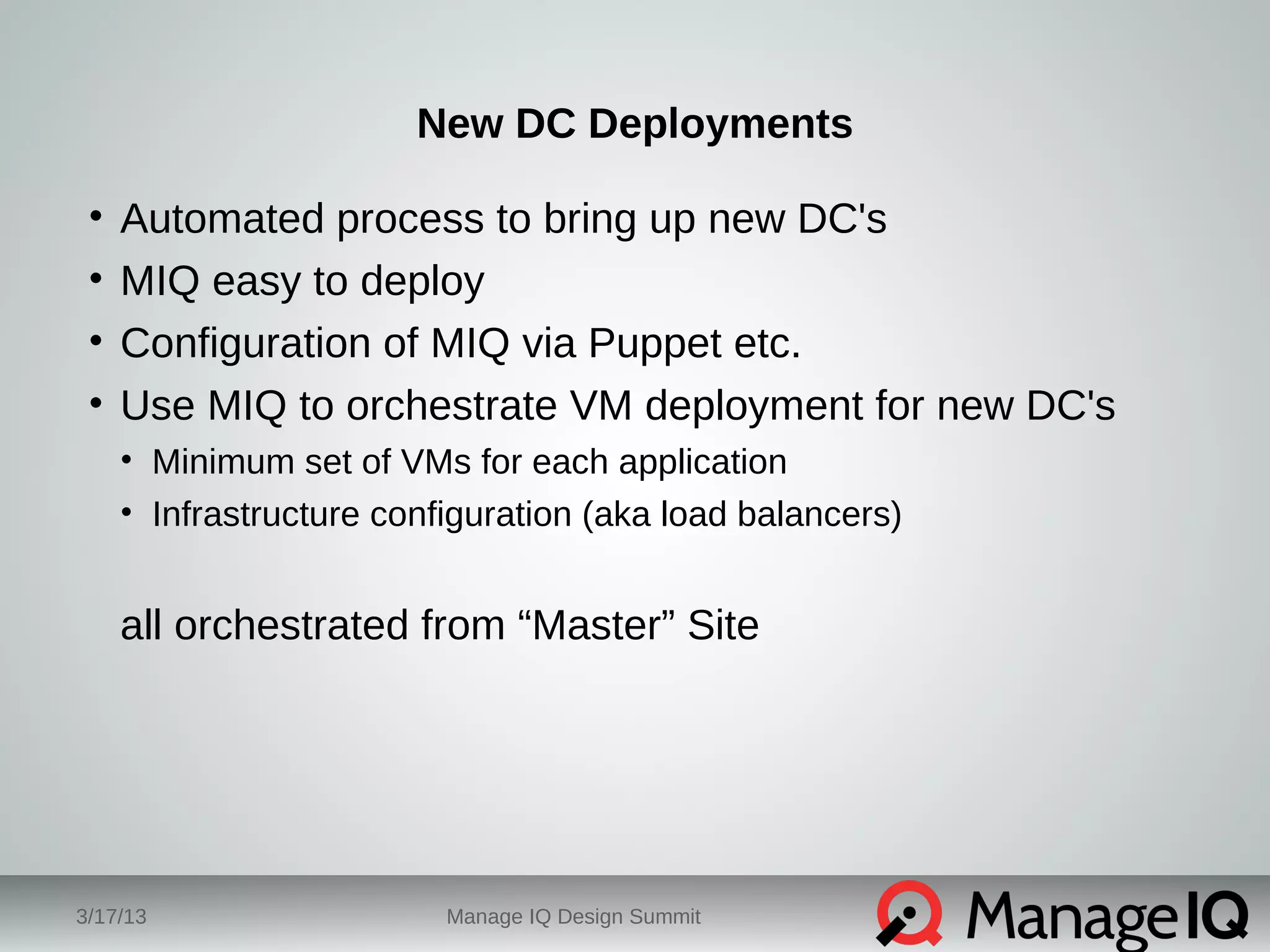

42. New DC Deployments
• Automated process to bring up new DC's
• MIQ easy to deploy
• Configuration of MIQ via Puppet etc.
• Use MIQ to orchestrate VM deployment for new DC's
• Minimum set of VMs for each application
• Infrastructure configuration (aka load balancers)
all orchestrated from “Master” Site
3/17/13 Manage IQ Design Summit

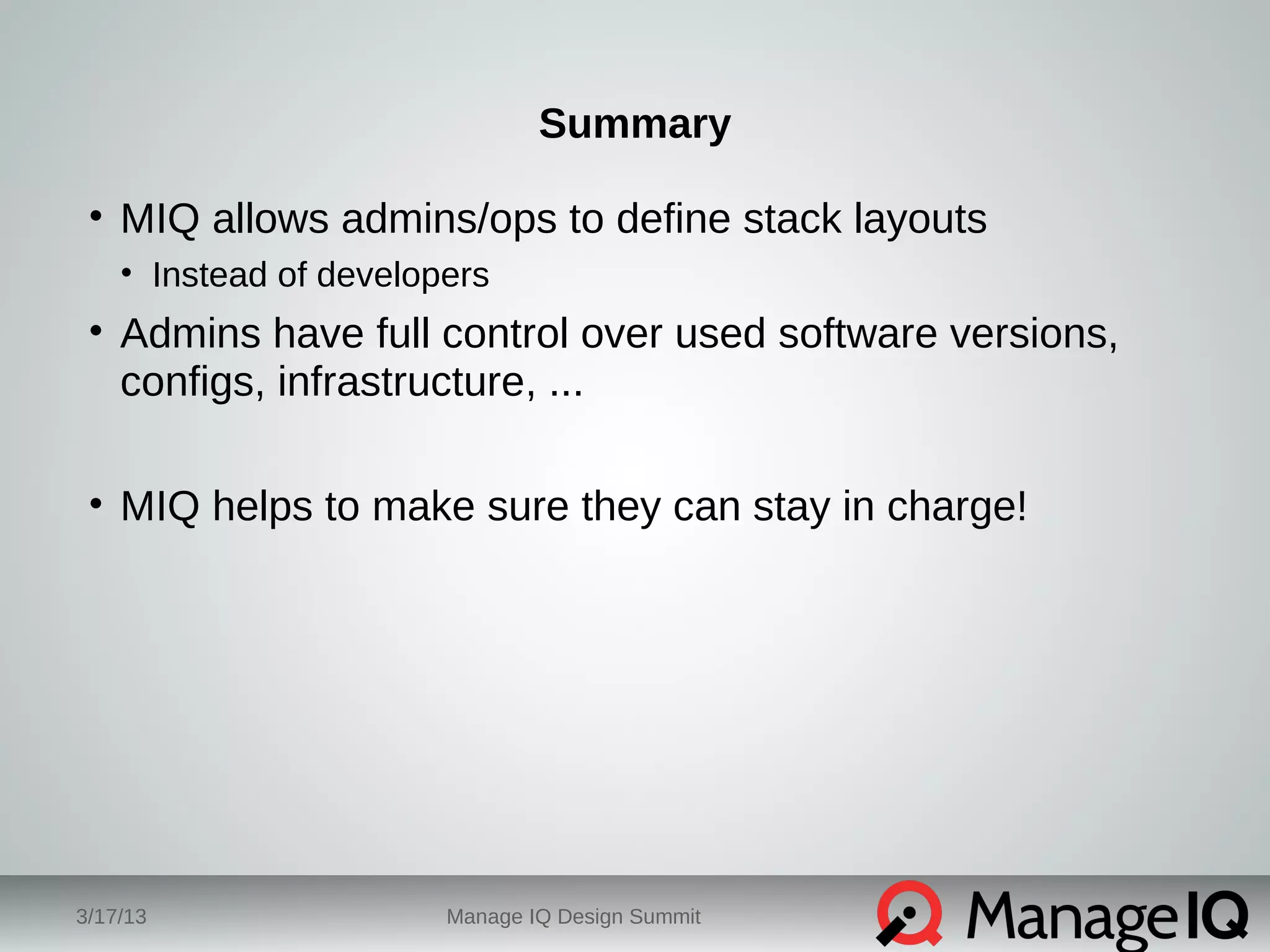

43. Summary
• MIQ allows admins/ops to define stack layouts
• Instead of developers
• Admins have full control over used software versions,
configs, infrastructure, ...
• MIQ helps to make sure they can stay in charge!
3/17/13 Manage IQ Design Summit

44. Business Impact

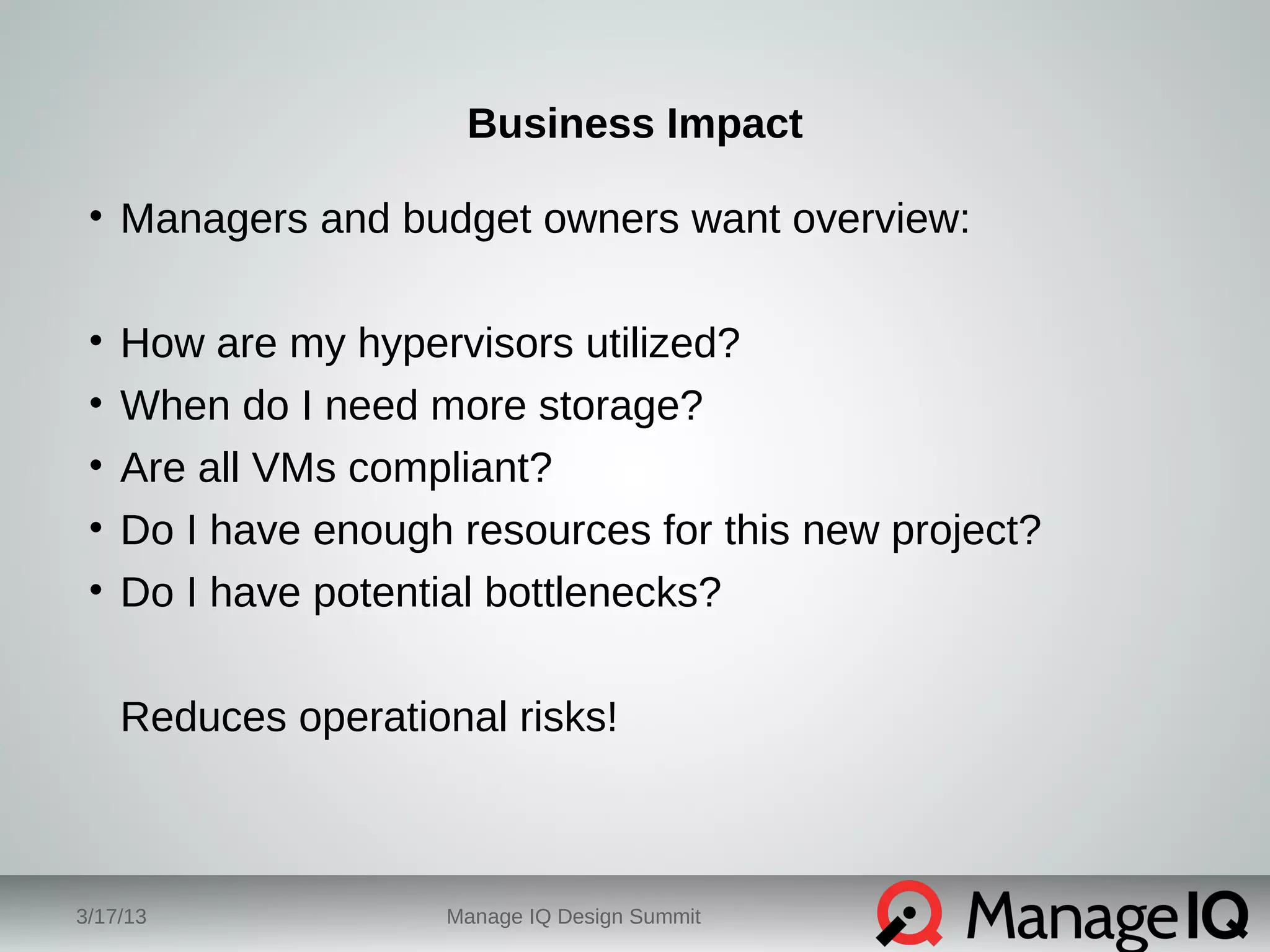

45. Business Impact
• Managers and budget owners want overview:
• How are my hypervisors utilized?
• When do I need more storage?
• Are all VMs compliant?
• Do I have enough resources for this new project?
• Do I have potential bottlenecks?
Reduces operational risks!
3/17/13 Manage IQ Design Summit

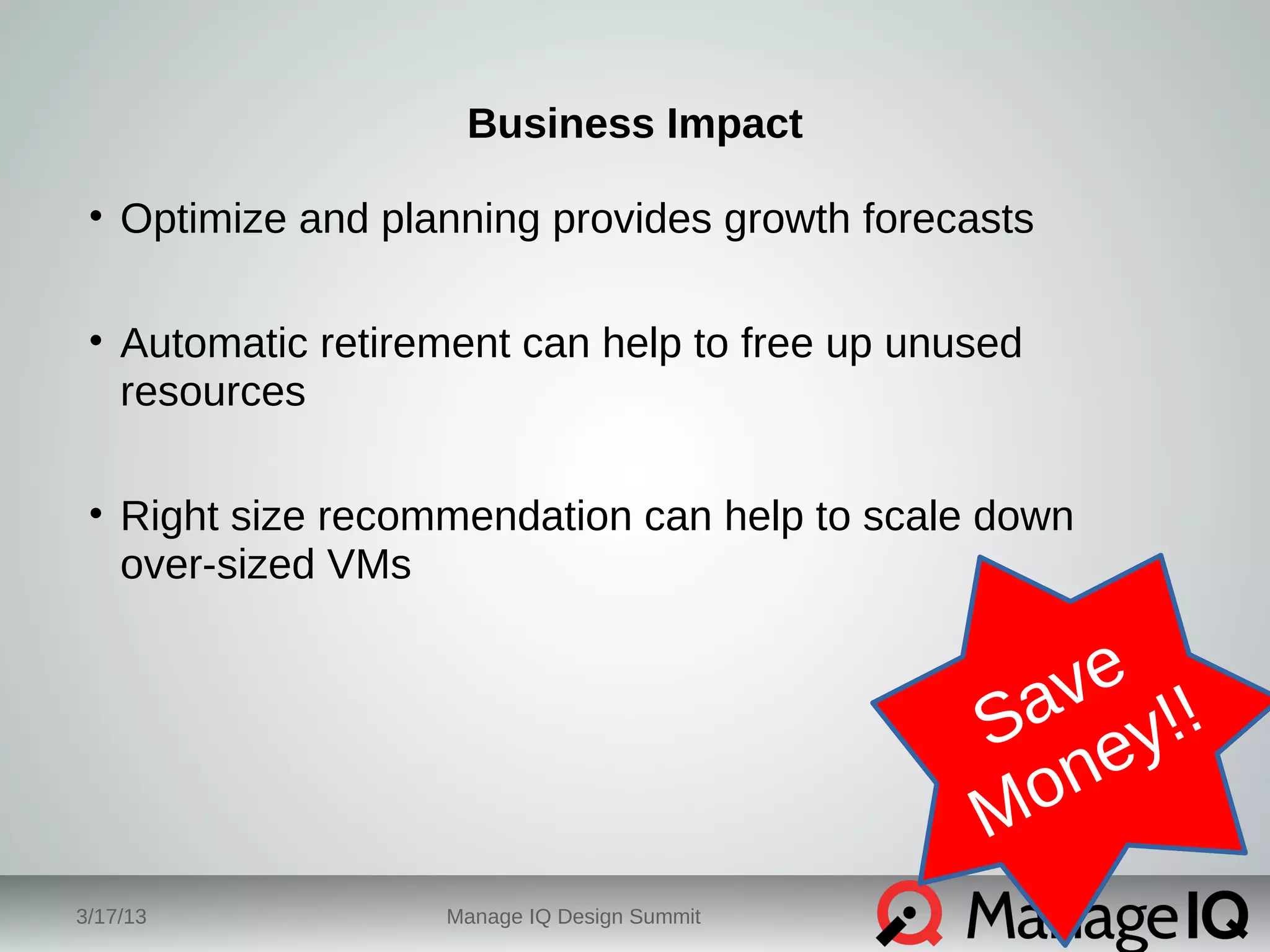

46. Business Impact
• Optimize and planning provides growth forecasts
• Automatic retirement can help to free up unused
resources
• Right size recommendation can help to scale down
over-sized VMs
3/17/13 Manage IQ Design Summit
Save
Money!!

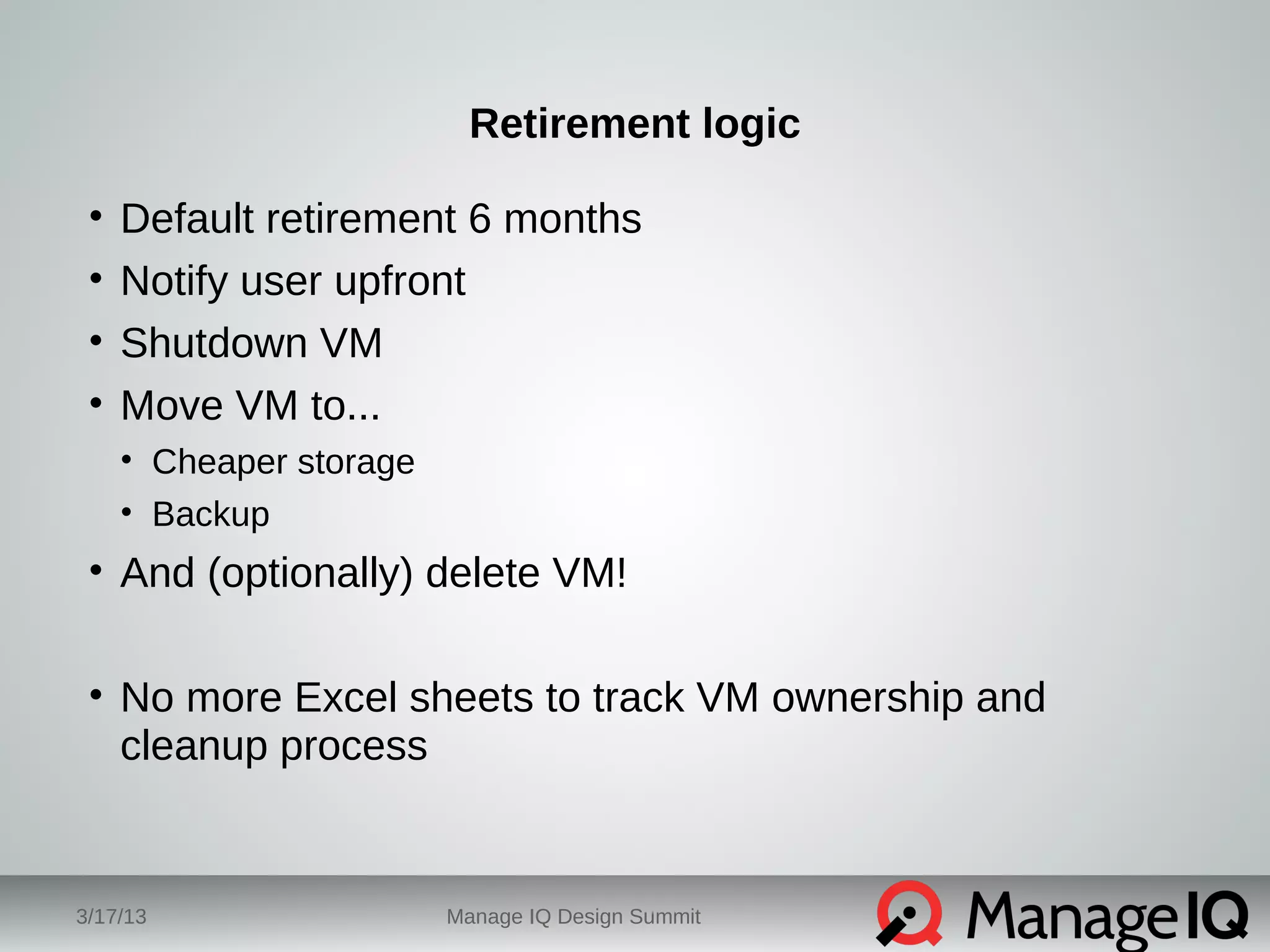

47. Retirement logic
• Default retirement 6 months
• Notify user upfront
• Shutdown VM
• Move VM to...
• Cheaper storage
• Backup
• And (optionally) delete VM!
• No more Excel sheets to track VM ownership and
cleanup process
3/17/13 Manage IQ Design Summit

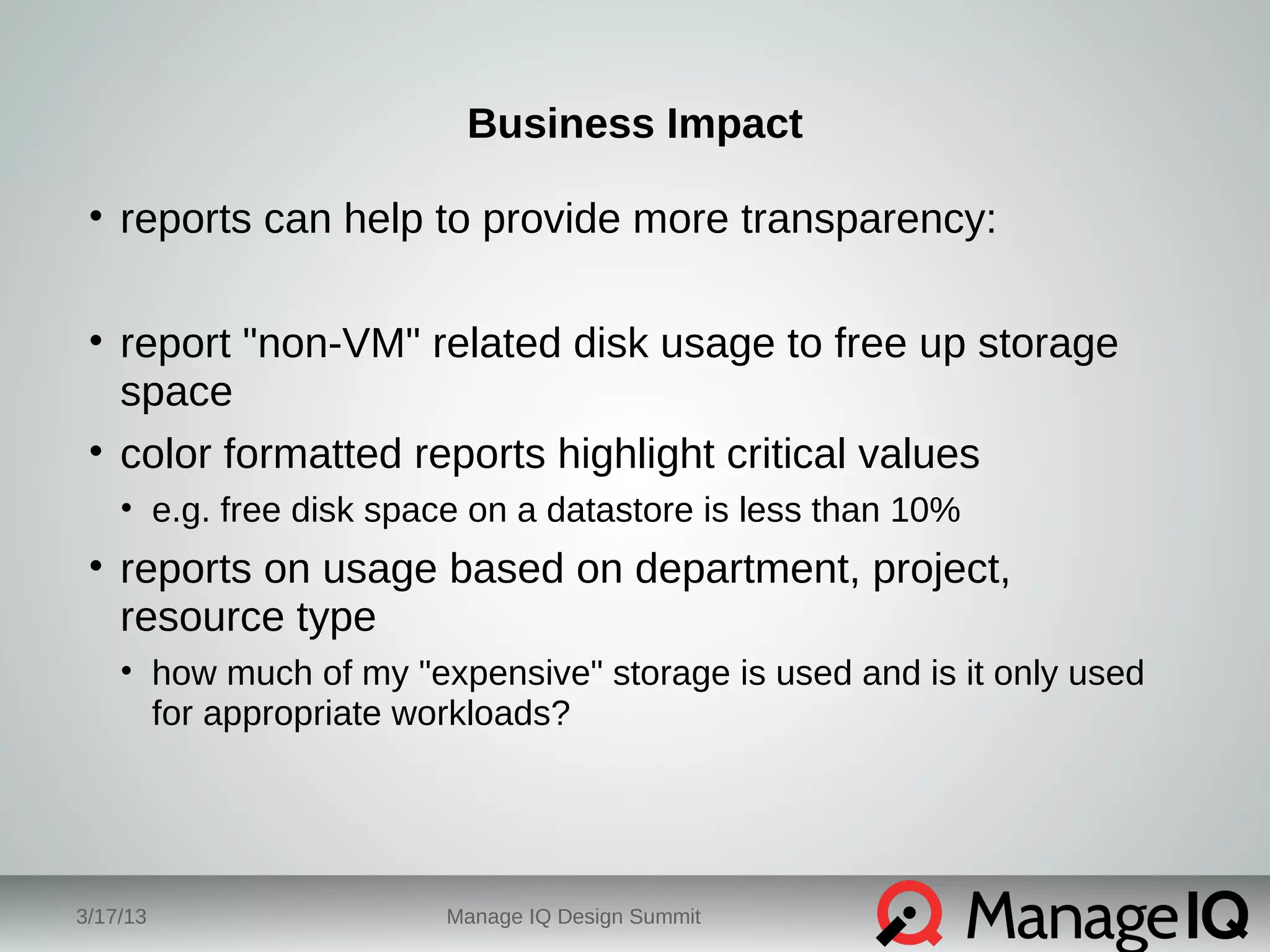

48. Business Impact
• reports can help to provide more transparency:
• report "non-VM" related disk usage to free up storage
space
• color formatted reports highlight critical values
• e.g. free disk space on a datastore is less than 10%
• reports on usage based on department, project,
resource type
• how much of my "expensive" storage is used and is it only used
for appropriate workloads?
3/17/13 Manage IQ Design Summit

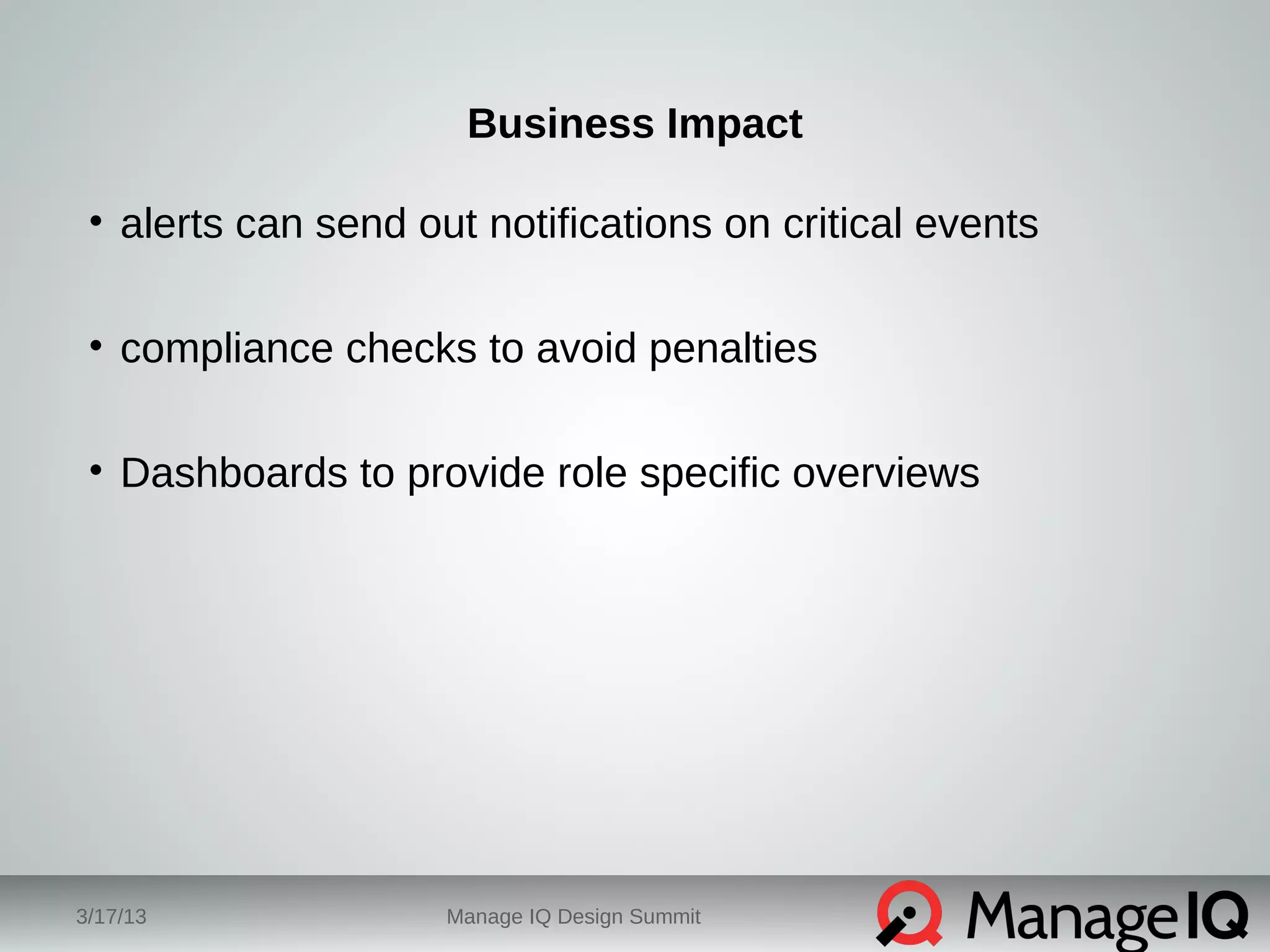

49. Business Impact
• alerts can send out notifications on critical events
• compliance checks to avoid penalties
• Dashboards to provide role specific overviews
3/17/13 Manage IQ Design Summit

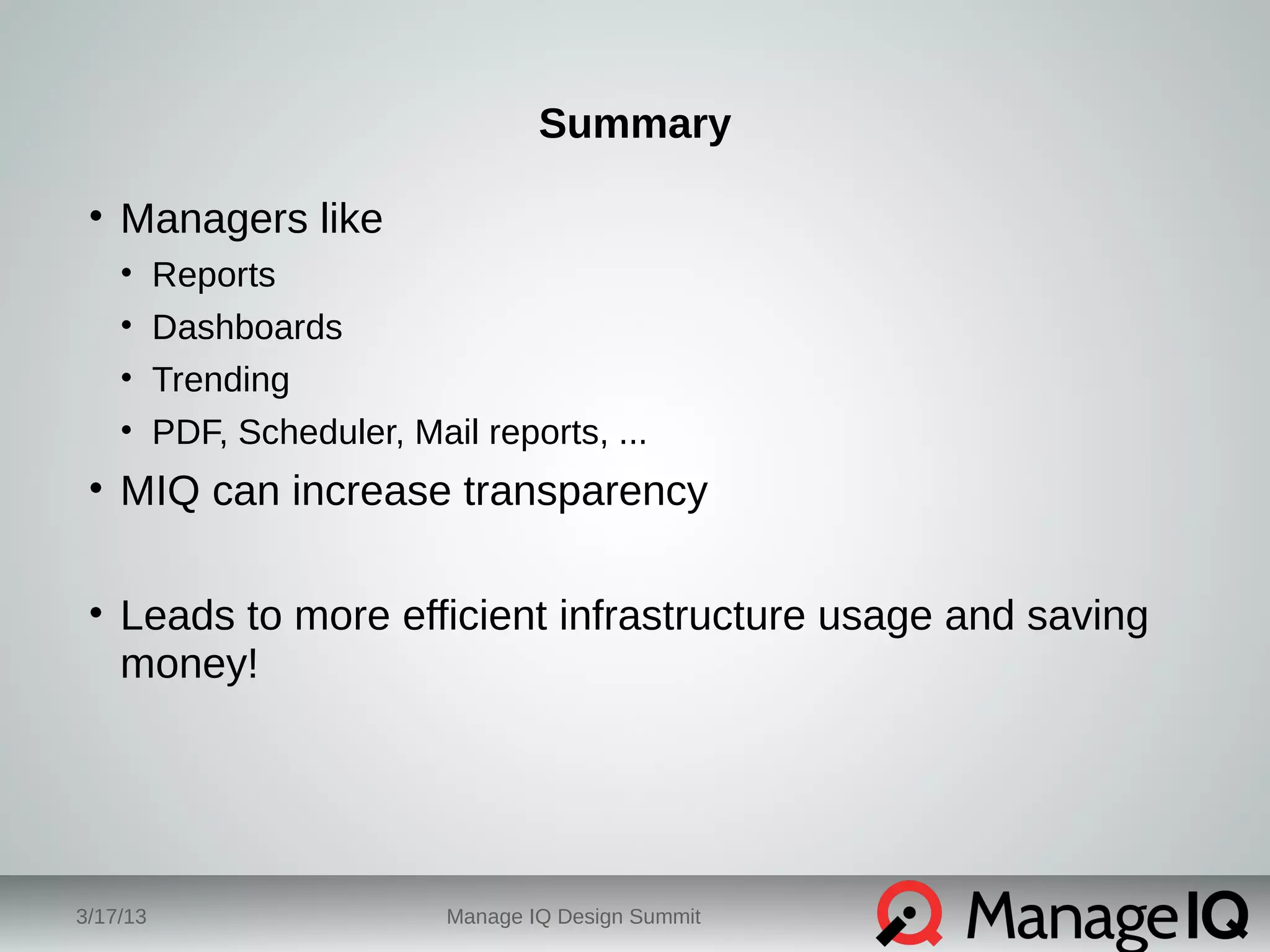

50. Summary
• Managers like
• Reports
• Dashboards
• Trending
• PDF, Scheduler, Mail reports, ...
• MIQ can increase transparency
• Leads to more efficient infrastructure usage and saving
money!
3/17/13 Manage IQ Design Summit

51. Wrapping things up

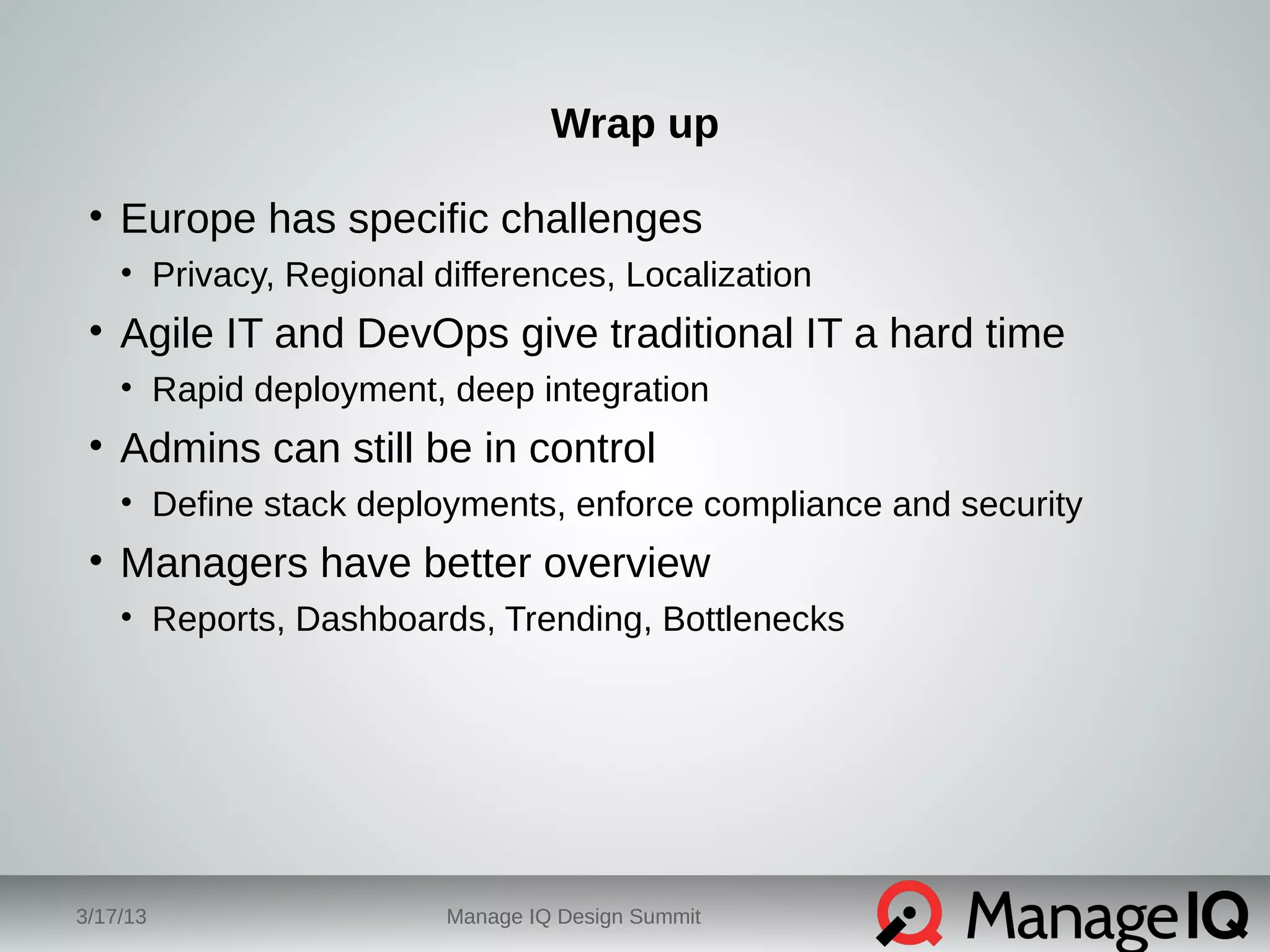

52. Wrap up
• Europe has specific challenges
• Privacy, Regional differences, Localization
• Agile IT and DevOps give traditional IT a hard time
• Rapid deployment, deep integration
• Admins can still be in control
• Define stack deployments, enforce compliance and security
• Managers have better overview
• Reports, Dashboards, Trending, Bottlenecks
3/17/13 Manage IQ Design Summit

53. Q&A

54. That's all folks!
