Universal apps on Windows 10 - Intro (TechDays Sweden 2015)
This document provides an overview of app development for Windows 10, covering the evolution of the Windows platform and Universal Windows Platform. It discusses features for building apps that scale across devices like Continuum and improvements in Windows 10 like live tiles, notifications, and background triggers. The document concludes with links to resources for Windows 10 development.
More Related Content
Similar to Universal apps on Windows 10 - Intro (TechDays Sweden 2015)
Universal apps on Windows 10 - Intro (TechDays Sweden 2015)
- 2. Apps on Windows10 - intro Andreas Hammar @andyhammar - andreas.hammar@jayway.com
- 3.

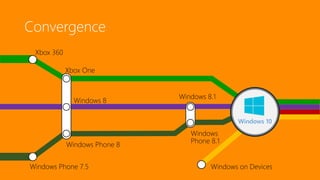

- 4. Windows Phone 7.5 WindowsPhone 8 Windows Phone 8.1 Windows 8 Xbox One Windows on Devices Xbox 360 Windows 8.1 Windows 10 Convergence
- 5.
- 6.

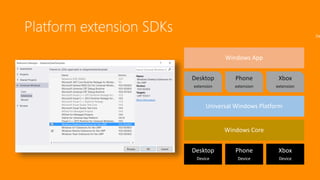

- 8. Platform extension SDKsDe Phone Device Xbox Device Desktop Device Windows Core Universal Windows Platform Windows App Phone extension Xbox extension Desktop extension
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.

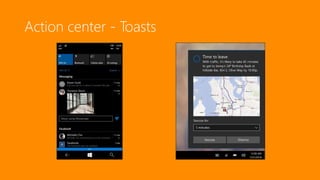

- 16. Action center -Toasts
- 17.
- 18.

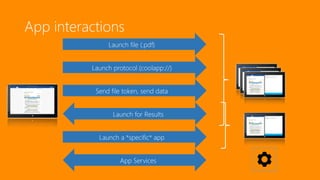

- 19. App interactions Send filetoken, send data Launch a *specific* app App Services Launch for Results Launch protocol (coolapp://) Launch file (.pdf)
- 20.
- 21.

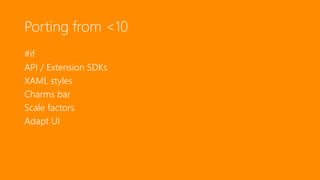

- 22. Porting from <10 #if API/ Extension SDKs XAML styles Charms bar Scale factors Adapt UI

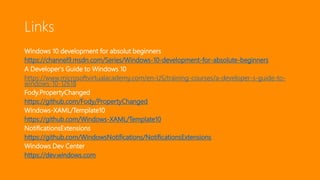

- 23. Links Windows 10 developmentfor absolut beginners https://channel9.msdn.com/Series/Windows-10-development-for-absolute-beginners A Developer's Guide to Windows 10 https://www.microsoftvirtualacademy.com/en-US/training-courses/a-developer-s-guide-to- windows-10-12618 Fody.PropertyChanged https://github.com/Fody/PropertyChanged Windows-XAML/Template10 https://github.com/Windows-XAML/Template10 NotificationsExtensions https://github.com/WindowsNotifications/NotificationsExtensions Windows Dev Center https://dev.windows.com
- 24. Glöm inte attutvärdera sessionen direkt i Microsoft TechDays-appen!
- 25. Questions? Andreas Hammar @andyhammar -andreas.hammar@jayway.com
Editor's Notes
- #3 Me – Jayway Talk about building apps Many ways to write apps, go through the options – then create a simple app Both intro to app development in general – but also highlight some new stuff in Windows 10
- #4 Apps on windows started with phone No background execution, one tile size etc Built on silverlight and Windows CE – many came from WPF
- #5 Since then a lot has happened Shared core with 8 Shared app platform with 8.1 Now shared binary and API across ALL devices

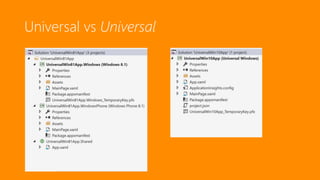

- #6 In 8.1, universal meant code sharing via ’shared’ project (=tooling support) In Windows 10, it is one project and one binary

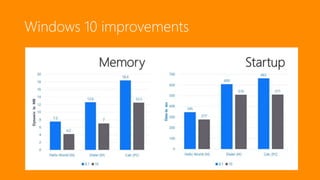

- #7 But its not just easier to develop, performance is so much better. Remember when VS started using WPF? Text handling had to be totally rewritten! Was so laggy. I was working on a set of OEM apps just when 8.1 came out, and there were talk about 1st party apps being rewritten using the XAML stack (not Silverlight). We had heaps of problems (was early stage), and eventually MSFT never did rewrite those apps – until now! Start menu (core shell) uses XAML, etc etc.

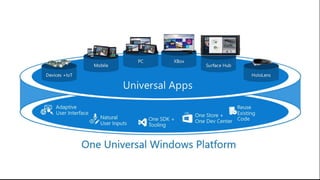

- #8 Devices are arranged in families, code can be adaptive and be enhanced for specific families Feature detection instead of device type checking Can also do family detection
- #9 Extensions SDKs allow for features only relevant on a device family – ApiInformation allows for feature detection (eg see of a class is defined)

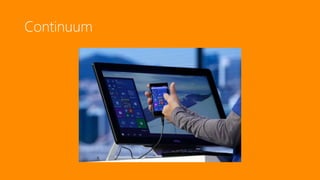

- #10 So, all is much easier now? Both yes and no, one core means easier API and universal apps gives a lot for free – but apps must be more adaptive. Phone – continuum – scaling Luckily there is support in the platform and new tooling for this

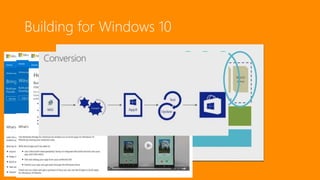

- #11 Old apps and languages work Now that modern apps and desktop is one and the same, UWP is the should be the default way to write apps BRIDGES Ios – recompiles code to win10 Android – SDK for existing IDEs, runs app in container Web – hosted web apps, can access uwp too Win32 – next year, converts win32 apps to modern apps

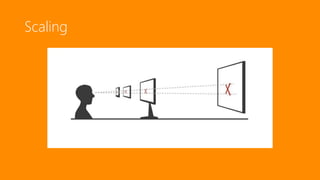

- #12 Large variety of screen sizes and DPIs require intelligent scaling – eg full HD on TV is not the same as full HD on a phone! Has to take DPI in account, as well as viewing distance.
- #13 -------------------------------------------------------------------------------------------------------------- Code at: https://github.com/andyhammar/win10apps-intro (and https://github.com/andyhammar/ToddlerVideo) -------------------------------------------------------------------------------------------------------------- Demo walkthrough: VS project setup App manifest Files MainPage designer – preview devices, scaling levels and effective pixels CTRLS Pivot with 5 items Add textblock Add rectangle in PI 2 Add datepicker in PI1, change grid to relativepanel RUN on local machine VM Create VM with prop TimeSpan Time Inpc BLEND – sampledata – connect both to VM RUN in phone ADAPTIVE Create visual states, 600 width – move timepicker to right of textblock Run on PC – resize LIST Add snippets to VM Blend, rebuild, create listview and drag list to listview itemTemplate – fix Add runtime data (snippet) RUN – nice BACK Add itemclick Create ItemPage (XAML snippet), navigate Set DC on ItemPage (snippet) RUN – no back button! (has in tablet mode, like phone, steps away from app) Handle backRequested Set BackVisibility RUN – works but has back button on start page too – todo: put in base page Last: show ToddlerVideo – easy to accomplish a lot with little code: https://github.com/andyhammar/ToddlerVideo -------------------------------------------------------------------------------------------------------------- Snippets used: ** SAMPLE DATA ** public class NewsItemVmi { public string Title { get; set; } public string Published { get; set; } public string Image { get; set; } } public MainPageVm() { NewsItems = new ObservableCollection<NewsItemVmi>(); Time = DateTime.Now.TimeOfDay; NewsItems.Add(new NewsItemVmi { Title = "item 1", Published = "2015-01-01", Image = "/Assets/StoreLogo.png" }); NewsItems.Add(new NewsItemVmi { Title = "item 2", Published = "2015-01-01", Image = "https://pbs.twimg.com/profile_images/508960761826131968/LnvhR8ED.png" }); NewsItems.Add(new NewsItemVmi { Title = "item 3 with longer name", Published = "2015-01-01", Image = "/Assets/StoreLogo.png" }); if (DesignMode.DesignModeEnabled) { NewsItems.Add(new NewsItemVmi { Title = "item 4 (design time only)", Published = "2015-01-01", Image = "/Assets/StoreLogo.png" }); } } public ObservableCollection<NewsItemVmi> NewsItems { get; set; } ** LIVE DATA ** public async Task Init() { var client = new SyndicationClient(); var feed = await client.RetrieveFeedAsync(new Uri("http://rss.cnn.com/rss/edition_technology.rss", UriKind.Absolute)); foreach (var item in feed.Items) { var element = item. ElementExtensions.FirstOrDefault(e => e.NodeName == "thumbnail"); var attribute = element.AttributeExtensions.FirstOrDefault(ae => ae.Name == "url"); var uri = attribute?.Value; var imageUri = uri ?? "https://pbs.twimg.com/profile_images/508960761826131968/LnvhR8ED.png"; NewsItems.Add(new NewsItemVmi { Title = item.Title.Text, Image = imageUri, Published = item.PublishedDate.ToString("g") }); } } ** ITEM CLICK ** private void listView_ItemClick(object sender, ItemClickEventArgs e) { Frame.Navigate(typeof (ItemPage), e.ClickedItem); } <RelativePanel Background="{ThemeResource ApplicationPageBackgroundThemeBrush}"> <TextBlock x:Name="textBlock" Text="{Binding Title}" Style="{StaticResource TitleTextBlockStyle}"/> <Image x:Name="image" RelativePanel.Below="{Binding ElementName=textBlock}" RelativePanel.AlignLeftWithPanel="True" RelativePanel.AlignRightWithPanel="True" RelativePanel.AlignBottomWithPanel="True" Source="{Binding Image}"/> </RelativePanel> protected override void OnNavigatedTo(NavigationEventArgs e) { base.OnNavigatedTo(e); var item = e.Parameter as NewsItemVmi; if (item == null) return; DataContext = item; } ** BACK ** SystemNavigationManager.GetForCurrentView().BackRequested += App_BackRequested; private void App_BackRequested(object sender, BackRequestedEventArgs e) { var frame = Window.Current.Content as Frame; if (frame == null || !frame.CanGoBack) return; e.Handled = true; frame.GoBack(); } SystemNavigationManager.GetForCurrentView(). AppViewBackButtonVisibility = Frame.CanGoBack ? AppViewBackButtonVisibility.Visible : AppViewBackButtonVisibility.Collapsed; ** NAVI STATE ** var frame = Window.Current.Content as Frame; if (frame == null) return; var navigationState = frame.GetNavigationState(); ApplicationData.Current.LocalSettings.Values["naviState"] = navigationState;

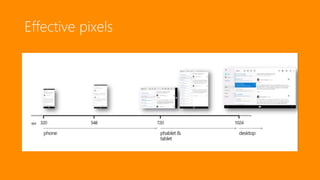

- #14 As you saw, after scaling has been accounted for – we are left with effective pixels – the physical space to lay out your UI on Of course depends on app, but some rough numbers exist as to where to start rearranging your UI

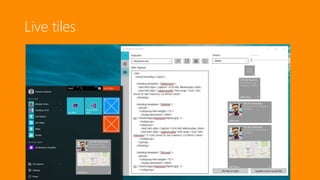

- #16 Apps can show and update information when not running – either from server or from background job – on the live tiles Several templates exist, but also a new Adaptive template that allows for custom tile assembly – and a Store app for testing your layouts!
- #17 Toasts are popup-messages, and they end up in the action center. Toasts can now be interactive, and launch the app in background or foreground.
- #18 Several data storage options – both as key/value store and raw folder access Local Roaming Temp Publisher shared – cool! Encrypted passwordVault

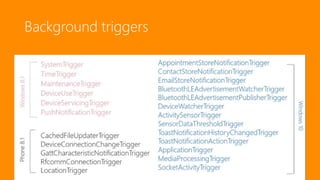

- #19 A sea of trigger for triggering background work by your app – all from location based for geofencing, via sensor triggers all the way to toast triggers (someone interacted with your toast in the action center – eg you should update your live tile if the user has dismissed emails)
