1. Authorization: RBAC, Authorization bypassing:-
Parameter tampering, Forceful browsing, Rendering
based Authorization, Client side validation attacks,
Insecure direct object reference, Login without SQL

2. RBAC
• Access control
-Access is the ability of an individual user or application to perform a
specific task, such as view, create or modify a resource (e.g. topics)
• Principal
-The identity of a user or software requesting permission to perform
a specific action on a specific resource.
• User principal
-A single identity tied to a specific user or piece of software.
• Group principal
-A shared identity that groups together a list of user principals and/or
other group principals.

3. RBAC
• Role
-A set of permissions that allow principals to perform particular operations.
• Resource
-A resource can be an Apache Kafka® topic, consumer group,
transactionalID, cluster, Schema Registry, ksqlDB, and any other Confluent
Platform component.
• Role binding
-A principal-role-resource combination that allows a principal to perform
operations on a resource or set of resources as defined by the role.
• Role-based access control (RBAC)
-With RBAC, permissions are associated with roles, and users or groups are
assigned to appropriate roles.

4. Authorization using Role-Based Access
Control
• Role-based access control (RBAC) is a method for controlling system
access based on roles assigned to users within an organization.
• RBAC is defined around predefined roles and the privileges associated
with those roles (also known as role bindings).
• Roles are a collection of permissions that you can bind to a resource;
this binding allows the privileges associated with that role to be
performed on that resource.
• You must grant the role to a principal at the time you bind a resource
to the role.

5. • you can manage who has access to specific Confluent Platform resources,
and the actions a user can perform within that resource.
• RBAC leverages the Confluent Platform meta service to configure and
manage your RBAC implementation from a centralized configuration
context, thereby simplifying access management across Confluent
Platform resources.
• Like ACLs, RBAC uses principals, so you can associate whatever principal a
client is using with an RBAC role, which is authorized by the Confluent
Server Authorizer to communicate with both RBAC and ACLs..
• However, if you intend to continue using ACLs, we recommend that you
migrate to centralized ACLs which store ACL information in MDS, just like
role bindings.
Authorization using Role-Based Access
Control

6. Role-Based Access Control benefits
• Manage security access across the Confluent Platform (Kafka, ksqlDB,
Connect, Schema Registry, Confluent Control Center)
• Manage authorization at scale.
• Centrally manage authentication and authorization for multiple
clusters

7. Role-Based Access Control working

8. RBAC and ACLs
• RBAC serves as an additional authorization enforcement layer on top
of ACLs and does not change the way ACLs are created or managed.
• When considering whether to use RBAC or ACLs for access control, it
is suggested you use RBAC as the default
• ACLs may make more sense. For example, you could use RBAC to
allow access for a group of users, but an ACL to deny access for a
particular member of that group.

9. RBAC and ACLs
• Without RBAC, you cannot use ACLs
• RBAC provides the ability to offer Confluent Control Center
users granular access to resources
• RBAC provides a consistent authentication and authorization
mechanism for users access
• Prior to RBAC, the creation and management of ACLs could be difficult
to manage and maintain

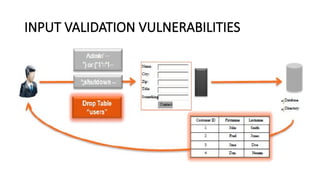

10. INPUT VALIDATION VULNERABILITIES

11. INPUT VALIDATION VULNERABILITIES
Impact
• Subversion of application-specific business rules .
• Server-side code injection such as SQL injection, XML injection and LDAP
injection.
• Execution of malicious code due to input, causing a buffer overflow or similar
condition.
• Information disclosure, such as created by path manipulation or
canonicalization.
• Denial of service caused by unconstrained or poorly formatted input.
Vulnerabilities
• Failure to validate user input on the server.
• Inconsistent validation between client-side and server-side validation.

12. INPUT VALIDATION VULNERABILITIES
Countermeasures
• Constrain input on the server: Use vigorous white-list style checking on
any user input that is provided by the client.
• Validate input on the server: Assume input is malicious until proven
otherwise. Even if the input is coming from a client that does validation,
do not accept the input until it has been validated by the server. Client-
side validation is for usability; server side validation is for security.
• Use whitelists for input validation: Malicious input comes in many forms.
Guard against as many of them as possible by using an inclusion list of
known good inputs, and reject everything else.

13. key vulnerabilities to applications
• SQL Injection.
• Cross Site Scripting.
• Broken Authentication and Session Management.
• Insecure Direct Object References.
• Cross Site Request Forgery.
• Security Misconfiguration.
• Insecure Cryptographic Storage.
• Failure to restrict URL Access.

14. Forceful Browsing
• Forced browsing is an attack where the aim is to enumerate and access
resources that are not referenced by the application, but are still
accessible
• An attacker can use Brute Force techniques to search for unlinked
contents in the domain directory
• This attack is performed manually when the application index directories
and pages are based on number generation or predictable values, or using
automated tools for common files and directory names.
• This attack is also known as Predictable Resource Location, File
Enumeration, Directory Enumeration, and Resource Enumeration.

16. Forceful Browsing
• Example:- 1
Example:- 2
http://www.vulnerablebank.com/transfer-money.asp?
From_account=12345678&To_account=87654321&amount=100

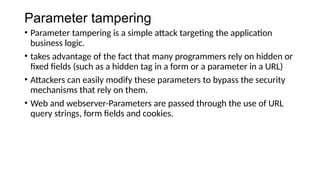

17. Parameter tampering
• Parameter tampering is a simple attack targeting the application
business logic.
• takes advantage of the fact that many programmers rely on hidden or
fixed fields (such as a hidden tag in a form or a parameter in a URL)
• Attackers can easily modify these parameters to bypass the security
mechanisms that rely on them.
• Web and webserver-Parameters are passed through the use of URL
query strings, form fields and cookies.

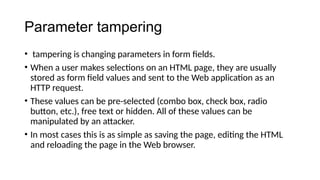

18. Parameter tampering
• tampering is changing parameters in form fields.
• When a user makes selections on an HTML page, they are usually
stored as form field values and sent to the Web application as an
HTTP request.
• These values can be pre-selected (combo box, check box, radio
button, etc.), free text or hidden. All of these values can be
manipulated by an attacker.
• In most cases this is as simple as saving the page, editing the HTML
and reloading the page in the Web browser.

19. Parameter tampering

20. Insecure direct object reference
• A direct object reference is likely to occur when a developer exposes a
reference to an internal implementation object, such as a file,
directory, or database key without any validation mechanism which
allows attackers to manipulate these references to access
unauthorized data

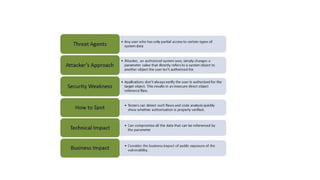

• Threat Agents, Attack Vectors, Security Weakness, Technical Impact
and Business Impacts of this flaw

22. Example- idor

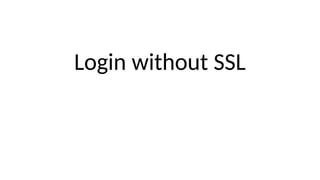

23. Login without SSL

24. Background…
• Hyper Text Transfer Protocol
• Based on Request-Response Model
• Static Web Page
• Dynamic Web Page
• Active web page
Web
Brows
er
Web
Server
GET /files/new/image1 HTTP/1.1
Accept: image/gif
Accept: image/jpeg
HTTP /1.1 200 OK
Date: Tue, 19-06-02 15:58:10 GMT
Server: MyServer
Content-length: 3010
… (Actual data for the image)
HTTP Request
HTTP Response

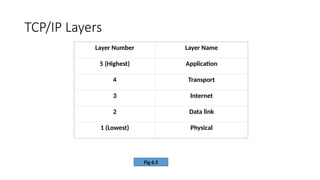

25. TCP/IP Layers
Fig 6.5
Layer Number Layer Name
5 (Highest) Application
4 Transport
3 Internet
2 Data link
1 (Lowest) Physical

26. Data Exchange using TCP/IP Layers
Fig 6.8
X
L5 data
H4
010101010100010101010010
Transmission medium
L5 data
H3
L4 data
H2
L3 data
Y
L5 data
H4
010101010100010101010010
L5 data
H3
L4 data
H2
L3 data
Application
Transport
Internet
Data link
Physical

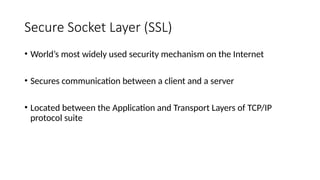

27. Secure Socket Layer (SSL)
• World’s most widely used security mechanism on the Internet
• Secures communication between a client and a server
• Located between the Application and Transport Layers of TCP/IP
protocol suite

28. Position of SSL in TCP/IP
Application Layer
Transport Layer
Internet Layer
Data Link Layer
Physical Layer
SSL Layer

29. Data Exchange including SSL
X
L5 data
010101010100010101010010
Transmission medium
H4
L5 data
H3
L4 data
Application
Transport
Internet
Physical
L5 data SSL
SH
H2
L3 data Data Link
Y
L5 data
010101010100010101010010
H4
L5 data
H3
L4 data
L5 data SH
H2
L3 data

30. SSL Sub-Protocols
• Handshake Protocol
• Record Protocol
• Alert Protocol

31. SSL Handshake Message Format
Type Length Content
1 byte 3 bytes 1 or more bytes

32. SSL Handshake Messages
Message Type Parameters
Hello request None
Client hello Version, Random number, Session id, Cipher suite, Compression
method
Server hello Version, Random number, Session id, Cipher suite, Compression
method
Certificate Chain of X.509V3 certificates
Server key exchange Parameters, signature
Certificate request Type, authorities
Server hello done None
Certificate verify Signature
Client key exchange Parameters, signature
Finished Hash value

33. SSL Handshake Process
Fig 6.13
Web
Browse
r
Web
Server
1. Establish security
capabilities
2. Server authentication and
key exchange
3. Client authentication and
key exchange
4. Finish

34. SSL Handshake – Phase 1
Web
Brows
er
Web
Server
Step 1: Client hello
Step 2: Server hello

35. SSL Handshake – Phase 2
Fig 6.15
Web
Brows
er
Web
Server
Step 1: Certificate
Step 2: Server key exchange
Step 3: Certificate request
Step 4: Server hello done

36. SSL Handshake – Phase 3
Web
Browser
Web
Server
Step
1:
Certificate
Step
2:
Client
key
exchange
Step
3:
Certificate
verify

37. SSL Handshake – Phase 4
Web
Browse
r
Web
Server
Step 3: Change cipher specs
Step 4: Finished
1. Change cipher specs
2. Finished

38. SSL Record Protocol
Application data
Fragmentation
Compression
Addition of MAC
Encryption
Append header

39. Time Stamping Protocol (TSP)
• Digital version of a notary service
• Prove that a document existed at a specific date and time
• Time Stamping Authority (TSA) is used

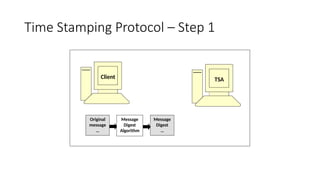

40. Time Stamping Protocol – Step 1
Client TSA
Original
message
…
Message
Digest
Algorithm
Message
Digest
…

41. Time Stamping Protocol – Step 2
Client
TSA
Step
2:
Time
Stamping
Request
Message
Digest
…

42. Time Stamping Protocol – Step 3
Client TSA
Step 3: Time Stamping Response
…
…
…

43. SSL versus SET
Issue SSL SET
Main aim Exchange of data in an encrypted
form
E-commerce related payment
mechanism
Certification Two parties exchange certificates All the involved parties must be
certified by a trusted third party
Authentication Mechanisms in place, but not
very strong
Strong mechanisms for
authenticating all the parties
involved
Risk of merchant fraud Possible, since customer gives
financial data to merchant
Unlikely, since customer gives
financial data to payment
gateway
Risk of customer fraud Possible, no mechanisms exist if
a customer refuses to pay later
Customer has to digitally sign
payment instructions
Action in case of customer fraud Merchant is liable Payment gateway is liable
Practical usage High Low at the moment, expected to
grow

44. Login without SSL
• Man in the middle attacks
• Data leaks
• Phishing attacks
• Your site will be distrusted by browsers
• Noncompliance issues
• Brand and reputational damage
