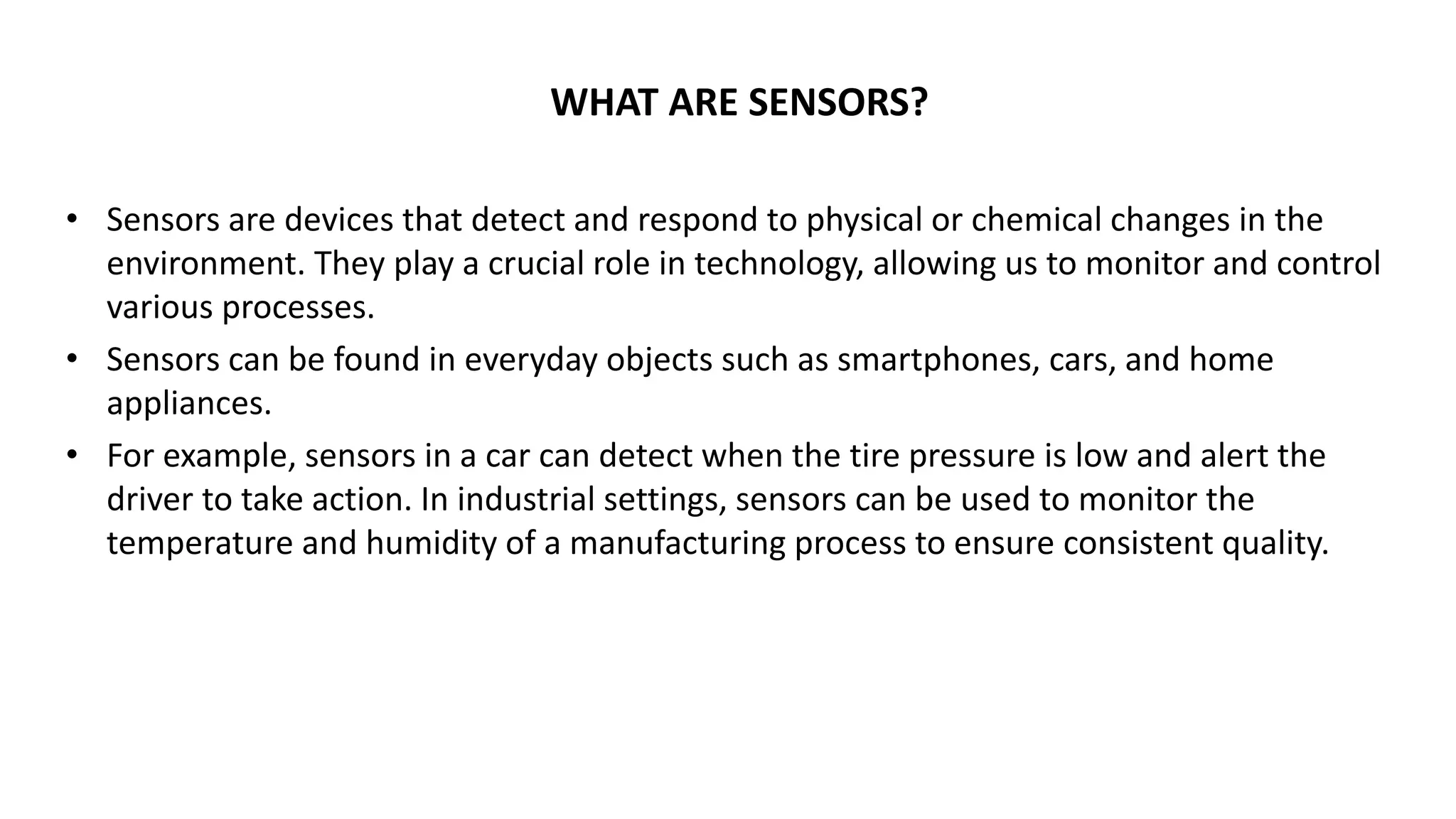

2. WHAT ARE SENSORS?
• Sensors are devices that detect and respond to physical or chemical changes in the
environment. They play a crucial role in technology, allowing us to monitor and control
various processes.
• Sensors can be found in everyday objects such as smartphones, cars, and home
appliances.
• For example, sensors in a car can detect when the tire pressure is low and alert the
driver to take action. In industrial settings, sensors can be used to monitor the
temperature and humidity of a manufacturing process to ensure consistent quality.
3. TYPES OF SENSORS
•There are several types of sensors, each with its own unique set of
applications. One of the most common types is the temperature sensor,
which is used in a variety of industries, including food processing,
automotive, and HVAC.
•These sensors are critical in ensuring that systems operate within safe
parameters and can help prevent accidents and failures.
4. WORKING PRINCIPLE OF SENSORS
• Sensors are devices that convert physical quantities into electrical signals. They work on the principle of
transduction, which is the conversion of one form of energy into another.
• The physical quantity to be measured is called the input signal, and the electrical signal produced by the
sensor is called the output signal.
• The working principle of sensors varies depending on the type of sensor and the physical quantity being
measured.
• For example, a temperature sensor works by measuring the change in resistance of a material as its
temperature changes. A pressure sensor works by measuring the deflection of a diaphragm or the
change in capacitance of a material as pressure is applied.
5.
6. Applications of sensors
• Sensors are widely used in various industries, ranging from healthcare to aerospace. In the healthcare
industry, sensors are used to monitor vital signs of patients, such as heart rate and blood pressure. In the
automotive industry, sensors are used for collision detection and lane departure warning systems.
• In the agriculture industry, sensors are used to monitor soil moisture levels and temperature, which
helps farmers optimize crop growth.
7.
8.
9.
10.
11. Sensor range
• Sensor range refers to the minimum and maximum values that a sensor can measure. It is an important
specification for sensors as it determines the range of physical quantities that can be measured
accurately.
• For example, a temperature sensor with a range of -40°C to 120°C can accurately measure
temperatures within this range. However, if the temperature falls outside this range, the sensor may
not provide accurate readings.
12.
13.
14.
15. Sensor technology advancements
• Sensor technology has come a long way in recent years, with advancements that have had a significant
impact on various industries. One of the most notable advancements is the development of smart
sensors, which are capable of processing and analyzing data in real-time.
• These sensors can be used in a wide range of applications, from monitoring environmental conditions to
improving the efficiency of manufacturing processes.
• Another major advancement in sensor technology is the use of wireless communication protocols, such
as Bluetooth and Wi-Fi, which allow sensors to communicate with other devices over a network.
21. Amplification
• Amplification is the process of increasing the strength of a signal.
This can be achieved by using an amplifier, which takes in a weak
signal and outputs a stronger one.
• Amplification is necessary in many situations, such as in audio
systems where a low-level signal from a microphone needs to be
amplified before it can be heard through speakers.
22. Types of Amplifiers
Amplifiers are electronic devices that increase the amplitude of a signal. There are main types of amplifiers power
amplifiers, voltage amplifiers, and current amplifiers. Each type has its unique characteristics and applications.
• Power Amplifiers
• Voltage Amplifiers
• Current Amplifiers
• Operational Amplifiers
• Differential Amplifiers
• Transistor Amplifiers
• Feedback Amplifiers
23. Power Amplifiers
• Power amplifiers are a type of amplifier that are designed to increase the power of an input signal. They are
commonly used in audio systems, where they amplify the signal from a source such as a microphone or CD
player to drive speakers.
• Power amplifiers can also be used in radio frequency (RF) applications, where they amplify signals for
transmission. Power amplifiers typically use transistors or vacuum tubes to amplify the signal.
• The input signal is applied to the base or gate of
the transistor or tube, and the amplified output
is taken from the collector or drain.
• Power amplifiers can be classified as either class
A, B, AB, or C, depending on the way the
transistor or tube is biased
24. Voltage Amplifiers
• Voltage amplifiers are electronic devices that increase the voltage of an input signal. They are commonly used in
audio equipment, such as guitar amplifiers, to boost the signal from a guitar pickup to a level that can be heard
through a loudspeaker.
• Voltage amplifiers are also used in radio and television transmitters to amplify the signal before it is broadcasted.
• The basic operation of a voltage amplifier involves using a transistor or
vacuum tube to control the flow of current through a load resistor.
• By varying the amount of current flowing through the resistor, the
voltage across the resistor can be increased or decreased. This allows
the input signal to be amplified to a higher voltage level.
25. Voltage Amplifiers
• For example, consider a guitar pickup that produces a signal
with a voltage of 100 millivolts. If this signal is fed into a voltage
amplifier with a gain of 10, the output signal will have a voltage
of 1 volt.
• This higher voltage level is necessary to drive a loudspeaker
and produce an audible sound.
• voltage amplifiers play a critical role in many electronic devices
by boosting the voltage of an input signal. Understanding how
they work and their applications can help engineers design
better and more efficient electronic systems.
26. Current Amplifiers
• Current amplifiers are electronic devices that amplify the current flowing through a circuit. They are used in a
variety of applications, such as audio equipment, power supplies, and motor control systems.
• Current amplifiers work by using a small input current to control a larger output current. This is achieved
through the use of transistors or operational amplifiers. The gain of a current amplifier is determined by the
ratio of the output current to the input current.
27. Operational Amplifiers
• Operational amplifiers, or op-amps for short, are electronic devices
that amplify voltage signals. They are widely used in a variety of
applications, such as audio amplification, signal conditioning, and
instrumentation.
• Op-amps have two inputs and one output, and they work by
amplifying the difference between the two inputs. They have a very
high gain, which means that even small differences between the
inputs can result in large changes in the output.
• Op-amps can also be used to perform mathematical operations,
such as addition, subtraction, and integration.
28. Transistor Amplifiers
• Transistor amplifiers are electronic devices that use transistors to amplify electrical signals. Transistors are
semiconductor devices that can act as switches or amplifiers, depending on how they are configured. In an
amplifier circuit, a small input signal is amplified to produce a larger output signal.
• Transistor amplifiers have many applications in electronics,
including in audio amplifiers, radio receivers, and power
supplies.
• They are also used in digital circuits, such as in microcontrollers
and computer processors. Transistor amplifiers are important
because they allow us to amplify weak signals, which is
essential for many electronic devices.
29. Differential Amplifiers
• Differential amplifiers are a type of electronic amplifier that amplify the difference between two input signals. They
are commonly used in applications such as audio amplifiers, instrumentation amplifiers, and differential signaling.
• Differential amplifiers consist of two transistors, with their emitters connected together, and their bases and
collectors connected to form a differential pair.
• The output is taken from the collector of one transistor,
and the emitter of the other. By adjusting the biasing of
the transistors, the gain and common-mode rejection ratio
(CMRR) of the amplifier can be controlled.
30. Feedback Amplifiers
• Feedback amplifiers are a type of electronic amplifier that use feedback to control their gain and performance.
They are widely used in audio equipment, telecommunications systems, and other electronic devices where high
performance is required.
• The basic principle of feedback amplifiers is to take a portion of the output signal and feed it back into the input
of the amplifier.
• This creates a loop that can be used to control the gain and other parameters of the amplifier, resulting in
improved performance and stability.
31. GAIN ADJUSTMENT TECHNIQUES
• Gain adjustments are typically found on amplifiers that control
the sensitivity of the input circuit (signal processors use a level
adjustment that controls the amplitude of the output circuit).
• Gain is the ratio of output to input. In electronics, it is usually used to describe the amplification of a signal.
• A gain adjustment's primary purpose is to match the output
voltage of the source unit to the input circuit of the amplifier.
32. Filtering
• Filtering is an essential technique in signal processing that helps remove unwanted noise and interference from
a signal.
• By selectively allowing certain frequencies to pass through
while blocking others, filters can significantly improve the
quality and accuracy of a signal.
• There are several types of filters, including low-pass, high-
pass, band-pass, and notch filters. Each type has its own
unique characteristics and applications.
33. Filtering techniques are essential in signal processing to remove unwanted noise or frequencies from a signal. There
are four main types of filters:
Filtering Techniques
• low-pass
• high-pass
• band-pass
• notch filters
34. A low-pass filter allows low-frequency signals to pass through while attenuating higher frequencies. It
passes frequencies below a certain cutoff frequency and attenuates frequencies above it
Low-pass filter
A high-pass filter allows high-frequency signals to pass through while attenuating lower frequencies. It
passes frequencies above a certain cutoff frequency and attenuates frequencies below it.
high-pass filter
Filtering Techniques
35. A band-pass filter allows a specific range of frequencies (the band) to pass through while attenuating
frequencies outside that range. It has both a lower cutoff frequency and an upper cutoff frequency.
Band-pass filter
A notch filter, also known as a band-stop filter, attenuates a specific narrow band of frequencies while
allowing frequencies above and below that band to pass through. It is used to remove or reduce specific
interference frequencies or eliminate unwanted signals within a specific frequency range.
Notch filter
Filtering Techniques
36. Linearization
Linearization is the process of making a signal more linear in nature. This is important because many signals are
inherently non-linear, and linearization can help improve their accuracy and reliability. The common methods for
linearization is
• Feedback
• pre-distortion
37. Linearization Techniques
Feedback Linearization:
• This technique involves using feedback in the circuit to compensate for the non-linear behavior of the
system.
• Feedback is often used in audio amplifiers, where it can help to reduce distortion and improve the clarity of
sound.
• By measuring the output and comparing it to the desired linear response, the feedback circuit can adjust the
input signal in a way that reduces distortion and brings the system closer to a linear response. This method is
often used in amplifier circuits and other analog systems.
38. Pre-distortion:
• In pre-distortion, a non-linear system is driven with a pre-distorted version of the input signal to counteract
the system's inherent non-linearity.
• The pre-distortion signal is carefully designed to anticipate the distortion introduced by the system so that when
it passes through the non-linear system, the overall output becomes more linear.
• This technique is often used in power amplifiers to compensate for their non-linear characteristics and improve
linearity.
Linearization Techniques
• For example, pre-distortion can be used to compensate for the nonlinearities introduced by power amplifiers in
cellular base stations, resulting in clearer and more reliable communication.
41. ACCURACY
• Accuracy refers to how close a measurement is to its true or intended value. In sensing technologies, accuracy is
crucial because it directly affects the reliability and effectiveness of the technology.
• For example, in medical devices such as blood glucose monitors, a small error in accuracy can have serious
consequences for the patient's health.
• In addition to affecting the performance of the technology, accuracy also impacts the cost and complexity of the
device.
42. SENSING TECHNOLOGIES BASED ON
ACCURACY
• There are various types of sensing technologies that differ in their accuracy levels. One such technology is the
thermocouple, which measures temperature by detecting changes in voltage caused by a temperature
difference between two different metals.
• While thermocouples are relatively inexpensive and can measure a wide range of temperatures, they have a
lower accuracy compared to other technologies.
• On the other hand, the resistance temperature detector (RTD) is another type of sensing technology that has
a higher accuracy level.
43. SENSITIVITY
• Sensitivity is a crucial factor in sensing technologies that determines the smallest change in the measured
quantity that can be detected.
• In other words, it measures how responsive a sensor is to changes in the environment. The higher the sensitivity
of a sensor, the more accurately it can detect small changes in the measured quantity.
• For example, in medical applications such as glucose monitoring, the sensitivity of the sensor is critical for
accurate and timely detection of changes in blood sugar levels.
44. SENSING TECHNOLOGIES BASED ON
SENSITIVITY
• Sensitivity is another important factor to consider when choosing a sensing technology. It refers to the ability of the
technology to detect small changes in the environment.
• For example, a highly sensitive sensor can detect even the slightest change in temperature or pressure. There are
several types of sensing technologies based on their sensitivity levels.
• One example is the piezoelectric sensor, which generates an electric charge when subjected to mechanical stress.
This type of sensor is highly sensitive and can be used to measure very small forces, such as the force exerted by a
single cell.
• Another example is the optical sensor, which uses light to detect changes in the environment. This type of sensor is
also highly sensitive and can be used to detect very small changes in temperature or pressure.
45. RESPONSE TIME: WHAT IT MEANS AND
WHY IT MATTERS
• Response time refers to the time it takes for a sensor to detect a change in its environment and produce a
corresponding output signal.
• In sensing technologies, response time plays a critical role in ensuring accurate and timely detection of changes
in the environment. For example, in automotive sensors, a delay in response time can lead to accidents or
malfunctions.
• The importance of response time can also be seen in medical sensors, where a delay in detecting a change in a
patient's vital signs can have serious consequences.
• In these applications, sensors with faster response times are preferred to ensure timely detection and response
to changes in the environment.
46. SENSING TECHNOLOGIES BASED ON
RESPONSE TIME
• There are various sensing technologies that differ in response time. Some of the technologies with fast response
times include thermocouples, infrared sensors, and piezoelectric sensors.
• These sensors can detect changes in temperature, radiation, and pressure respectively almost instantaneously.
• On the other hand, there are sensing technologies that have slower response times such as strain gauges, load
cells, and LVDTs.
• These sensors measure changes in physical properties such as force, pressure, and displacement respectively.
48. Sensor Networks
• Sensor networks are collections of small, low-power devices that are equipped with sensors to monitor and
measure various environmental conditions such as temperature, humidity, and light levels.
• These devices communicate with each other wirelessly to form a network that can be used for a variety of
applications.
• One example of a sensor network is a smart home system that uses sensors to detect when someone enters or
leaves a room and adjusts the temperature and lighting accordingly.
49. Communication Protocols
• Communication protocols are essential for sensor networks as they enable devices to communicate with
each other efficiently and reliably. Without protocols, different devices may not be able to understand each
other's signals, leading to communication breakdowns.
• For example, imagine a smart home system where the temperature sensor communicates with the
thermostat to adjust the temperature.
50. ZigBee Protocol
• The ZigBee protocol is a wireless communication standard that is specifically designed for low-power, low-
data-rate applications. It operates on the IEEE 802.15.4 standard and is widely used in sensor networks, home
automation, and industrial control systems.
• One of the main advantages of the ZigBee protocol is its low power consumption. This makes it ideal for
battery-powered devices that need to operate for long periods of time without needing frequent battery
replacements.
51. Bluetooth Protocol
• Bluetooth is a wireless communication protocol that allows devices to communicate with each other over short
distances. It was originally developed for use in mobile phones and headsets but has since been adopted by a
wide range of devices such as speakers, keyboards, and smartwatches.
• It also supports data transfer rates of up to 24 Mbps, which is more than enough for most applications. Another
advantage is its ease of use - pairing devices is usually a simple process that can be done with just a few clicks.
52. WiFi Protocol
• The WiFi protocol, also known as IEEE 802.11, is a wireless communication standard used for local area
networks (LANs). It allows devices to connect to the internet or other networks without the need for
physical cables.
• One of the key features of WiFi is its high data transfer rate, which can reach up to several gigabits per
second. This makes it ideal for applications that require fast and reliable data transmission, such as video
streaming and online gaming.
53. Comparing Protocols
• ZigBee, Bluetooth, and WiFi are three popular communication protocols used in sensor networks. While
each protocol has its own unique features and advantages, they also share some similarities.
• ZigBee is a low-power, low-data-rate protocol that is ideal for applications that require long battery life and
low cost. Bluetooth, on the other hand, is a higher-power, higher-data-rate protocol that is better suited for
applications that require higher bandwidth and faster data transfer.
• WiFi is the most powerful of the three protocols, with the highest data rates and longest range, but it also
consumes the most power and is the most expensive to implement.
