This document discusses the properties and specifications of the Uniq PC, a compact, fanless all-in-one touchscreen computer system designed for use in industrial environments. Some key points: 1. It uses an Intel Atom processor for compatibility with Windows and Linux, has a 15" touchscreen display, and compact aluminum enclosure. 2. The Uniq PC is designed for 24/7 operation in demanding environments with IP65/IP54 sealing, passive cooling, and low power consumption of 30W active/20W standby. 3. It offers flexibility in mounting and connectivity through options like VESA mounting, port replicators, WiFi/Ethernet, and works with various peripherals.

1. Heineken
Case Study

2. Properties
x86 compatibility
Windows and Linux OS
Compact fanless system with aluminium enclosure
Totally enclosed with IP65 front panel and IP54 all around
Rubber seal around for better protection
Hiden and secure buttons
Various colors according to customer corporate identity

3. Ultra slim design for
dimensionally limited
spaces with zero noise
Intel Atom processor
compatible with OS
Windows 7, XP, Vista,
Embedded POS, CE,
Linux
15” large display with
resistive touch panel at
standard resolution
1024x768 with vandal
proof performance as a
option
Compact fanless
solution in aluminium
housing with no holes,
even for extreme
industrial environments
Properties
IP65 front panel and
IP54 all around for
different types of
environments
30W consumption in
active mode and 20W in
stand by mode.
Applications with safe
power supply even from
car battery
WiFi, Ethernet,
Bluetooth and through
port replicators
communication
Attachable
practically anywhere
through stands or
standard VESA
mount
Protected connector
access and wide range
of external devices
Practical and easy
cleaning by liquid and
disinfectant solutions
Minimal maintenance
system with increased
reliability, ideal for non
stop operation
24/7/365
Significantly lower
operating costs
opposite to classic
computers

4. Power Consumption
Comparison of Personal Computer and Uniq PC average annual power consumption
Up to 85% of energy
cost savings!

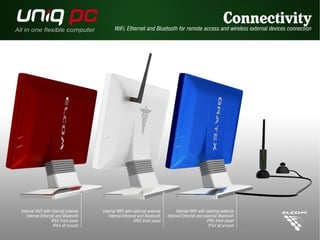

5. Internal WiFi with internal antenna
Internal Ethernet and Bluetooth
IP65 front panel
IP54 all around
WiFi, Ethernet and Bluetooth for remote access and wireless external devices connection
Internal WiFi with external antenna
Internal Ethernet and Bluetooth
IP65 front panel
Connectivity
Internal WiFi with external antenna
Internal Ethernet and external Bluetooth
IP65 front panel
IP54 all around

6. Port replicator mounting
Connectivity
Wide spectrum of external devices through a port replicator

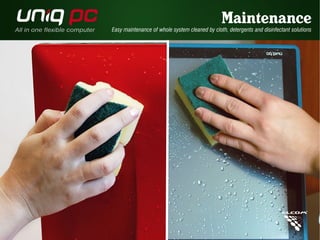

7. Maintenance
Easy maintenance of whole system cleaned by cloth, detergents and disinfectant solutions

8. (1)
(2)

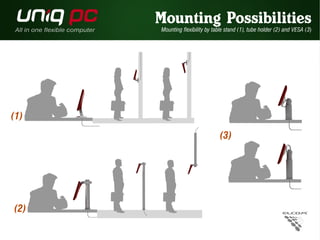

Mounting Possibilities
Mounting flexibility by table stand (1), tube holder (2) and VESA (3)
(3)

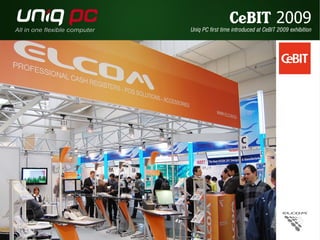

9. CeBIT 2009
Uniq PC first time introduced at CeBIT 2009 exhibition

10. 1. Intel Atom processor
1.1 x86 compatibility
1.2 OS MS Windows/LINUX support
1.3 Existing solutions portability (applications, external devices drivers,
communication protocols)
2. Consumption 30/20 Watts for active/stand by mode
2.1 Passive cooling method
2.2 Nonstop 24/7/365 operation
2.3 Other devices power supply connectivity
2.4 Storage
2.5 Safe power supply
2.6 Power supply from car battery
2.7 Noiseless
3. Enclosed compact ultra slim All-In-One solution for extreme industrial
environments
3.1 Using in difficult operating conditions (Indoor/Outdoor)
3.2 IP65/IP54 front panel/all around, dust and dirt proof, splashing water
and snow proof
3.3 Sunlight readable panel
3.4 Anti finger
3.5 Vandal proof
3.6 Ergonomic workplace for dimensionally limited spaces
4. Touch technology (resistive, capacitive panel)
4.1 Intuitive use
4.2 Possibility of usage with gloves
4.3 Long life
Key Properties
5. Modern attractive design with various colors possibility under customers design
manual and corporate identity compliance
6. Connectivity, Ethernet, Bluetooth, WiFi, USB
- text, voice and image communication by metallic, optical or wireless connection
7. Easy ports extension by port replicators
8. Wide range of certified peripheral devices even with higher protection IP
- keyboards, mouses, printers, scales, payment terminals, EKG, EEG, ultrasounds,
cameras
9. Mounting variability
9.1 Horizontal/Vertical - classic or upside down position
9.2 Table/Wall/Pole stand or VESA mounting
9.3 Discrete cables distribution
9.4 Kiosks built in possibility
10. High reliability
10.1 Maintenance-free system
10.2 Safe/protected communication ports
10.3 Production and service in European Union
11. Easy and practical cleaning by cloth, detergents and disinfectant solutions
12. Significantly lower ownership costs as a total acquisition, operating and
disposal costs

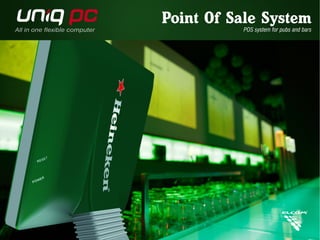

11. Point Of Sale System
POS system for pubs and bars

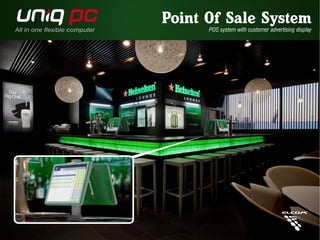

12. Point Of Sale System
POS system with customer advertising display

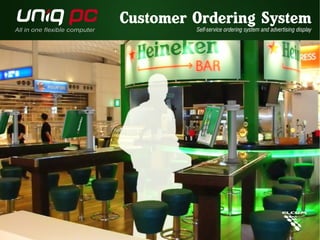

13. Customer Ordering System
Self-service ordering system and advertising display

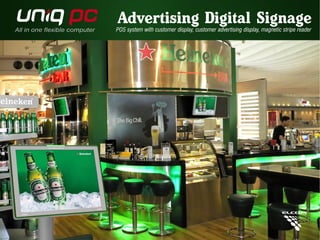

14. Advertising Digital Signage
POS system with customer display, customer advertising display, magnetic stripe reader

15. LCD technology TFT
LCD size 15"
Resolution 1024 × 768
Aspect ratio 4:3
CPU Intel Atom N270 1.6 GHz
RAM 512 MB (system max. 2 GB)
Operating system Windows 7, XP, Vista, Embedded POS, CE / Linux
Touch panel Resistive or capacitive (7mm vandal proof panel – optional)
Interfaces* 3 × USB, Ethernet, WiFi (optional), Bluetooth (optional), serial port, parallel
port (optional on port replicator)
Storage HDD 80 – 250 GB (2,5“), SSD (optional)
Interface for external monitor YES (optional on port replicator)
External monitor resolution 1024 × 768 (800 × 600)
Internal beeper YES
Power requirements Input 230V - output 5V/12V power supply
Consumption 30W active mode, 20W stand by mode
Mounting table stand, wall stand, pole stand (optional), VESA 100 (optional)
Dimensions (W×H×D) 351 × 350 × 141 mm
Display depth 39 mm (48 mm - vandal proof)
Weight 4,5 kg
Construction IP65 front panel and IP54 all around - water proof, dust proof, scratch proof,
shock resistant, vandal proof (optional), antibacterial coating (optional)
* Interfaces depend on type of port replicator
Technical Details
