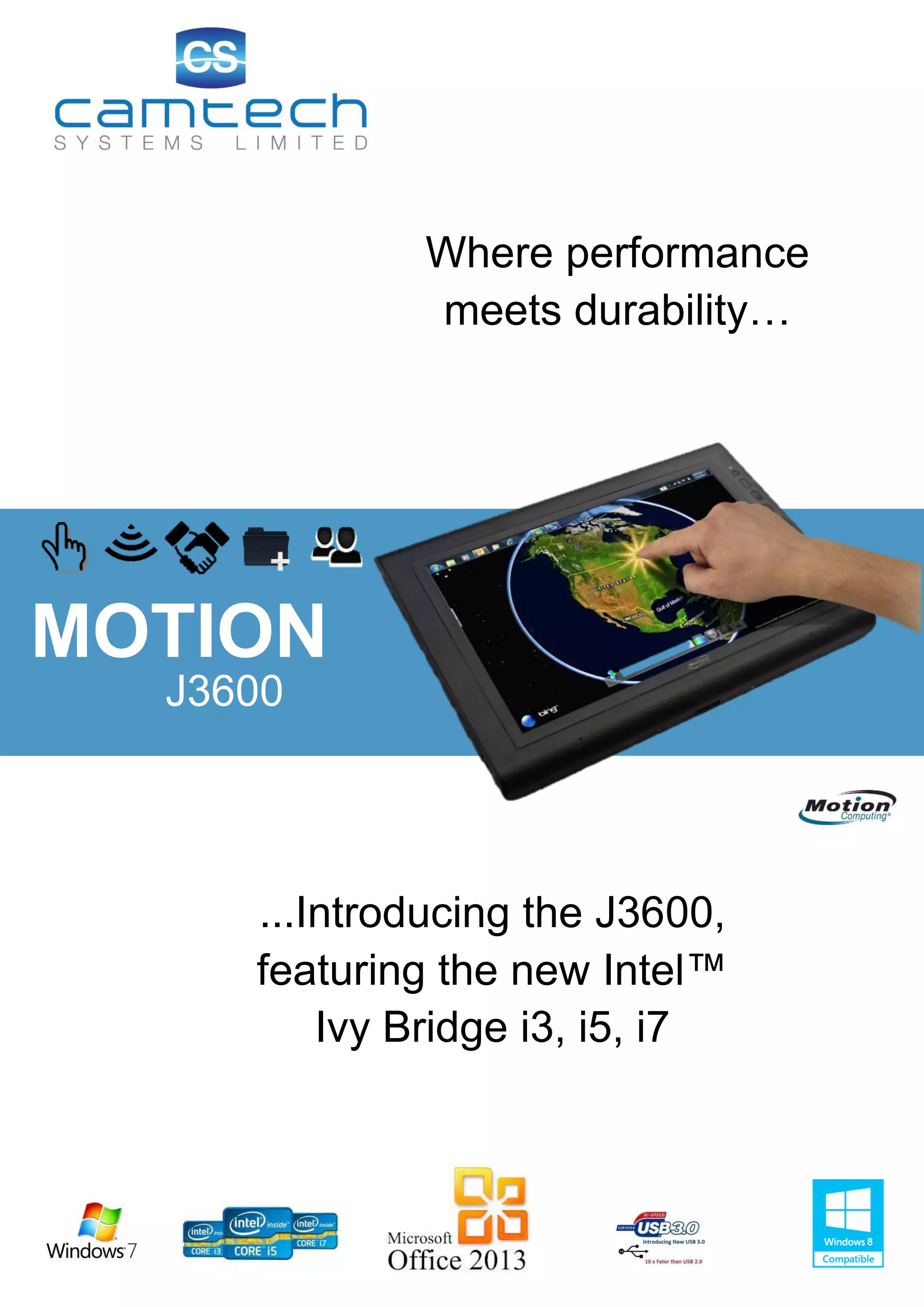

MOTION
J3600
...Introducing the J3600,
featuring the new Intel™
Ivy Bridge i3, i5, i7
Where performance
meets durability…
Web: www.camtechsystems.co.uk
Email: sales@camtechsystems.co.uk
Phone: 08453 707510

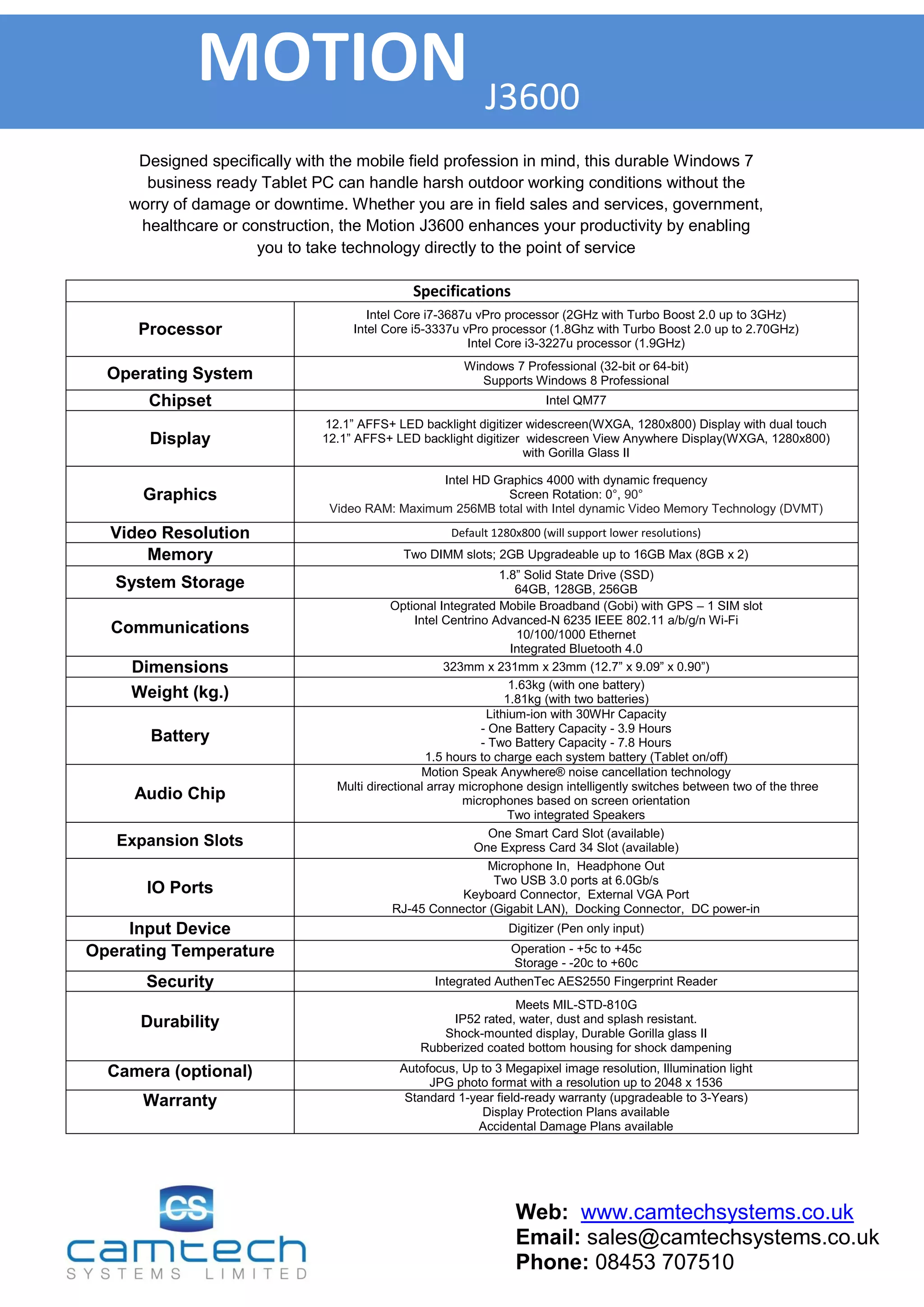

MOTION J3600
Specifications
Processor
Intel Core i7-3687u vPro processor (2GHz with Turbo Boost 2.0 up to 3GHz)
Intel Core i5-3337u vPro processor (1.8Ghz with Turbo Boost 2.0 up to 2.70GHz)
Intel Core i3-3227u processor (1.9GHz)
Operating System
Windows 7 Professional (32-bit or 64-bit)
Supports Windows 8 Professional
Chipset Intel QM77
Display
12.1” AFFS+ LED backlight digitizer widescreen(WXGA, 1280x800) Display with dual touch
12.1” AFFS+ LED backlight digitizer widescreen View Anywhere Display(WXGA, 1280x800)
with Gorilla Glass II
Graphics
Intel HD Graphics 4000 with dynamic frequency
Screen Rotation: 0°, 90°
Video RAM: Maximum 256MB total with Intel dynamic Video Memory Technology (DVMT)
Video Resolution Default 1280x800 (will support lower resolutions)
Memory Two DIMM slots; 2GB Upgradeable up to 16GB Max (8GB x 2)
System Storage
1.8” Solid State Drive (SSD)
64GB, 128GB, 256GB
Communications
Optional Integrated Mobile Broadband (Gobi) with GPS – 1 SIM slot
Intel Centrino Advanced-N 6235 IEEE 802.11 a/b/g/n Wi-Fi
10/100/1000 Ethernet
Integrated Bluetooth 4.0
Dimensions 323mm x 231mm x 23mm (12.7” x 9.09” x 0.90”)
Weight (kg.)
1.63kg (with one battery)
1.81kg (with two batteries)
Battery
Lithium-ion with 30WHr Capacity
- One Battery Capacity - 3.9 Hours
- Two Battery Capacity - 7.8 Hours
1.5 hours to charge each system battery (Tablet on/off)
Audio Chip
Motion Speak Anywhere® noise cancellation technology
Multi directional array microphone design intelligently switches between two of the three
microphones based on screen orientation
Two integrated Speakers
Expansion Slots
One Smart Card Slot (available)
One Express Card 34 Slot (available)
IO Ports
Microphone In, Headphone Out
Two USB 3.0 ports at 6.0Gb/s
Keyboard Connector, External VGA Port
RJ-45 Connector (Gigabit LAN), Docking Connector, DC power-in
Input Device Digitizer (Pen only input)
Operating Temperature Operation - +5c to +45c
Storage - -20c to +60c
Security Integrated AuthenTec AES2550 Fingerprint Reader
Durability
Meets MIL-STD-810G
IP52 rated, water, dust and splash resistant.
Shock-mounted display, Durable Gorilla glass II
Rubberized coated bottom housing for shock dampening
Camera (optional) Autofocus, Up to 3 Megapixel image resolution, Illumination light
JPG photo format with a resolution up to 2048 x 1536
Warranty Standard 1-year field-ready warranty (upgradeable to 3-Years)
Display Protection Plans available
Accidental Damage Plans available
Designed specifically with the mobile field profession in mind, this durable Windows 7
business ready Tablet PC can handle harsh outdoor working conditions without the
worry of damage or downtime. Whether you are in field sales and services, government,
healthcare or construction, the Motion J3600 enhances your productivity by enabling
you to take technology directly to the point of service
