UML for Data Architects

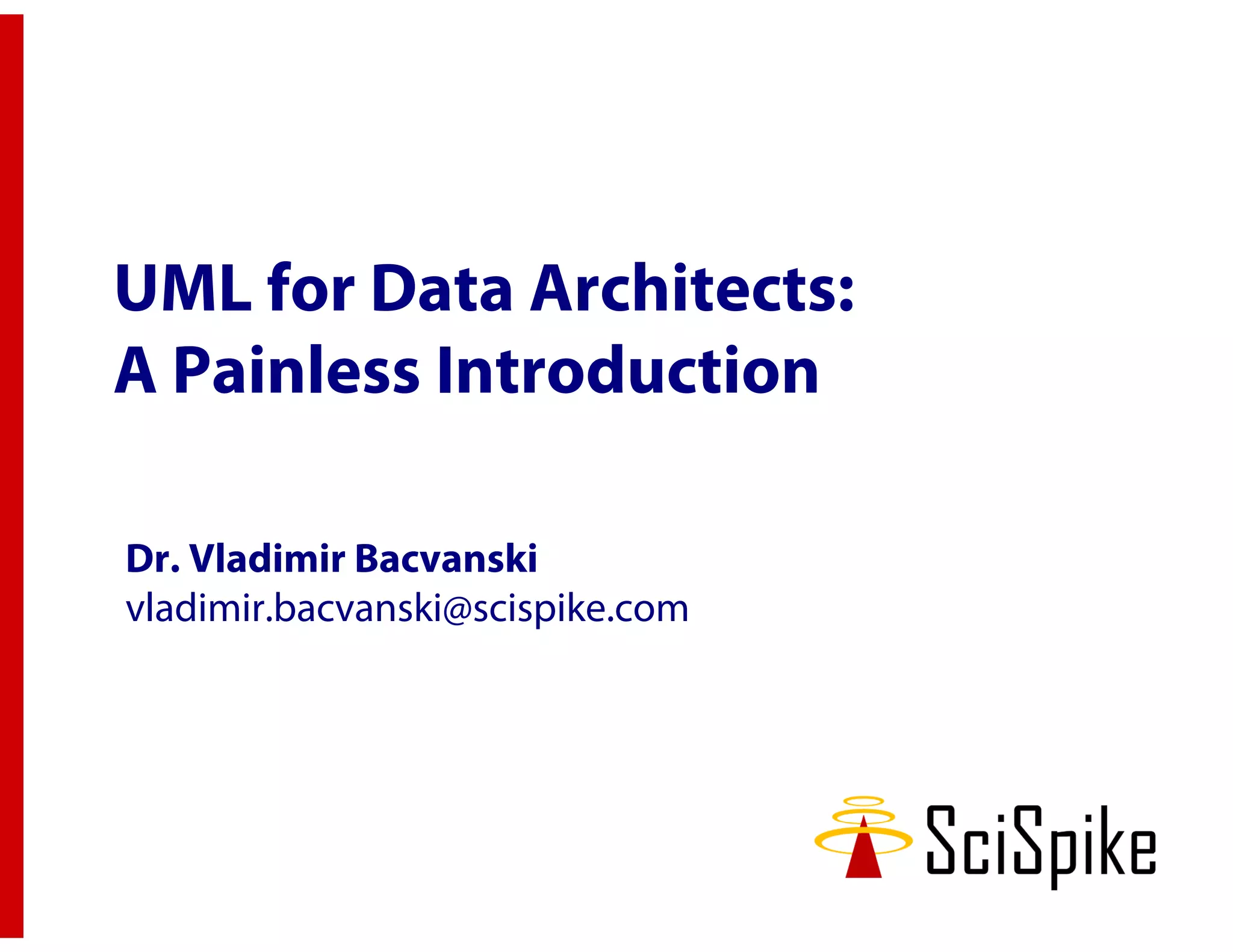

- 1. UML for Data Architects:
A Painless Introduction
Dr. Vladimir Bacvanski
vladimir.bacvanski@scispike.com

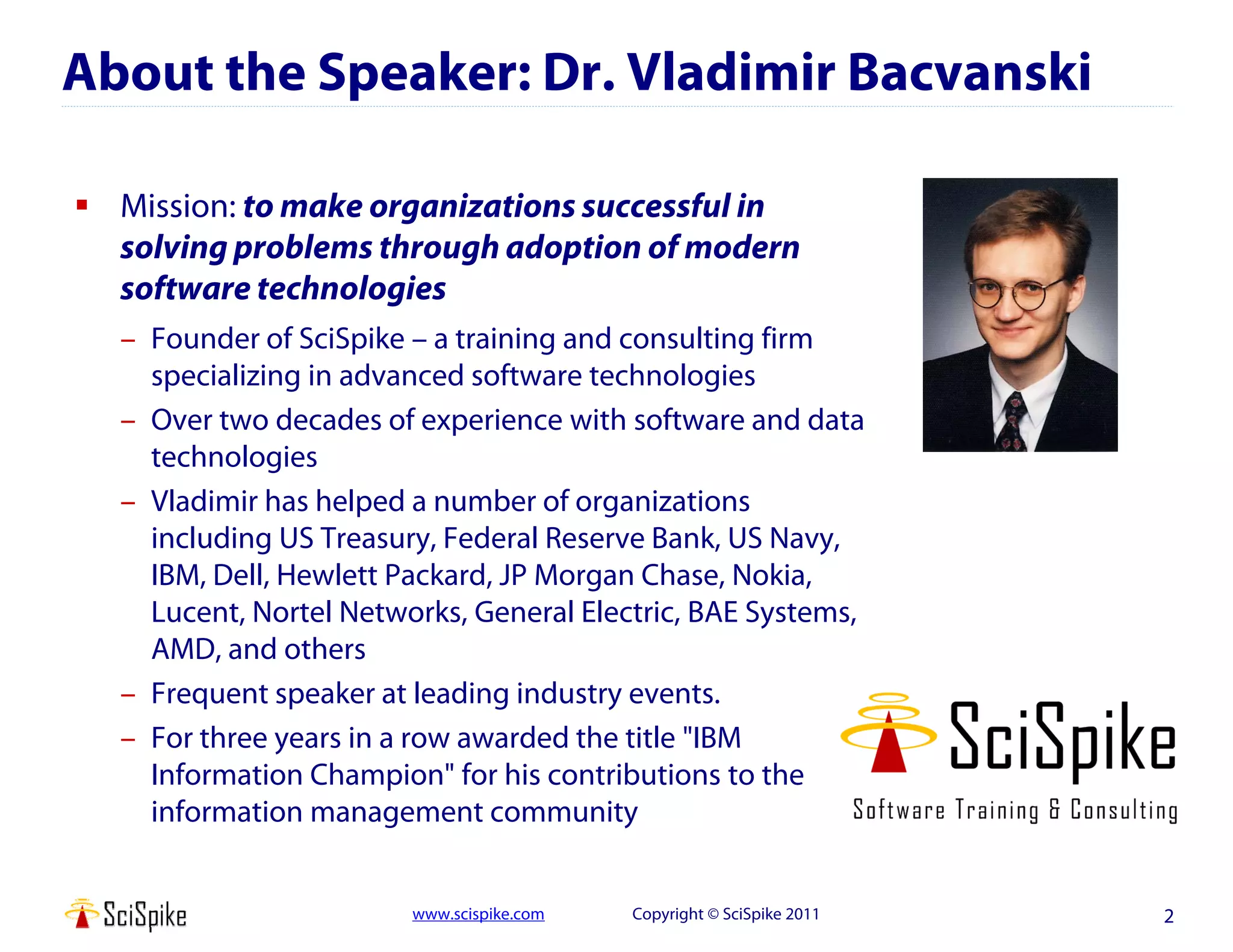

- 2. About the Speaker: Dr. Vladimir Bacvanski
Mission: to make organizations successful in
solving problems through adoption of modern
software technologies
– Founder of SciSpike – a training and consulting firm
specializing in advanced software technologies
– Over two decades of experience with software and data
technologies
– Vladimir has helped a number of organizations
including US Treasury, Federal Reserve Bank, US Navy,
IBM, Dell, Hewlett Packard, JP Morgan Chase, Nokia,
g
Lucent, Nortel Networks, General Electric, BAE Systems,
AMD, and others
– Frequent speaker at leading industry events.
q p g y
– For three years in a row awarded the title "IBM
Information Champion" for his contributions to the
information management community
g y
www.scispike.com Copyright © SciSpike 2011 2
- 3. Outline
What is UML?
How to approach UML? (aka "Avoiding pain")
UML diagrams: use only what you need!
g y y
Representing structure: class (aka type) diagrams
UML for database design
Automation
Conclusion
www.scispike.com Copyright © SciSpike 2011 3
- 4. What is UML?
The UML is a graphical language for
software intensive systems
f
– Note: UML is just a notation:
the way we visualize our decisions
h i li d ii
UML covers a broad area of software
development
d l t
UML is a standard: it enables you to
express your models i a way th t
d l in that
can be understood by others
www.scispike.com Copyright © SciSpike 2011 4
- 5. Models and Diagrams
Model is a view of a system from a particular perspective
Diagram visually presents elements of a model
– One model can be presented with several diagrams, each
focusing on a separate aspect
www.scispike.com Copyright © SciSpike 2011 5
- 6. UML Diagrams
Diagrams in italics are introduced in UML 2
www.scispike.com Copyright © SciSpike 2011 6
- 7. Choose your Approach to UML!
Painful Painless
• Focus on > 95% of UML • Focus on < 5% of UML
that
th t you d 't need
don't d that
th t you need d
• Start with a 1000+ • Start with a subset
pages UML Reference relevant to data
• Avoid practical modeling
examples • Seek practical guides
• Use UML for all the and examples
wrong reasons • Use UML to
communicate and
automate
www.scispike.com Copyright © SciSpike 2011 7
- 8. Modeling Data with UML Class Diagrams
A subset of UML Class Diagram is very close to notations
used in d
d data modeling
d l
UML Class Diagrams have features not needed for data
modeling:
d l
– Operations (methods)
– Visibility (public, private, …)
We can use only a subset that make sense for data modeling:
– Classes (aka "types")
– Attributes
– Associations
– Generalization
www.scispike.com Copyright © SciSpike 2011 8
- 9. UML Classes and Attributes
Class
Similar to entity in ERD.
Customer
Class name
Typically capitalized.
Attribute Compartment
The only compartment we care about.
UML classes can have other
compartments, e.g. for operations.
It is fine to skip parts we don't need!
pp
Note:
N t
Attribute Name Attribute Type High level class
Typically E.g. String, Integer,… diagrams typically don't
lowercase. but also other class names need primary and
foreign keys.
www.scispike.com Copyright © SciSpike 2011 9
- 10. UML Associations
Association Association Name Multiplicity
Usually skipped. *: zero or many
1..*: one or many
0..1: zero or one
Association Role
Start from a class, follow the
Start from a class follow the Note:
association, read the role of the Foreign key attributes are
not needed
associated objects.
www.scispike.com Copyright © SciSpike 2011 10
- 11. Navigability
1..* *
Person Address
homeAddress
High level diagrams typically do not show navigability
Navigability is a design decision!
– It is a bad practice to assign navigability prematurely
– Typically not needed for modeling when we target
relational databases
www.scispike.com Copyright © SciSpike 2011 11
- 12. Associations vs. Attributes
Person
P Multiplicity
M lti li it Company
C
employer: Company[*]
p y p y[ ] employee: Person[1..*]
p y [ ]
In UML, attributes and associations are equivalent!
Choose the representation that is more suitable to the
reader
Important relationships are often represented as
associations – they bring the visual emphasis
www.scispike.com Copyright © SciSpike 2011 12
- 13. Association Class
Association
Class
Cl
Association class allows to attach information to an
association
– Often refined into two associations to a class
www.scispike.com Copyright © SciSpike 2011 13
- 14. Association Class Refined
Association classes are commonly refined in lower level
y
diagrams
www.scispike.com Copyright © SciSpike 2011 14
- 15. Semantics of Aggregation and Composition
1
Car Engine
Aggregation
1
Car Engine
Composition
Aggregation: shortcut for "has" relationship
has
– Does not have a well defined semantics. Use sparingly!
Composition lifetime of the owner determines the lifetime
Composition:
of the owned objects
– Similar to "cascading"
cascading
www.scispike.com Copyright © SciSpike 2011 15
- 16. Generalization (aka Inheritance)
Employee
Generalization
G li i
Engineer Manager TechWriter
Subclasses extend superclasses with additional attributes
and associations
This relationship eventually needs to be mapped to tables
for relational database design
– Several solutions possible with different performance impact. Choice
impact
depends on the typical pattern of usage.
www.scispike.com Copyright © SciSpike 2011 16
- 17. Constraints
Constraints can be expressed as:
– Plain text
– OCL: Object Constraint Language, part of UML
• Not common in mainstream projects
• Enforcable
www.scispike.com Copyright © SciSpike 2011 17
- 18. Organizing UML Models: Packages
A package is a
structuring element
Customer
Management – It contains other
elements and
diagrams
Sales
P k
Packages are important
i
for managing
complexity of models
Prefer models organized
Inventory into packages to huge
diagrams
www.scispike.com Copyright © SciSpike 2011 18
- 19. Mapping UML to ER Models…
Class Entity
– Add primary key
Simple Attribute Type Column Type
Complex Attribute Type Relationship to an entity for the
attribute type
Association Foreign Key relationships
– Use role names for foreign keys
– Many-to-many association add an associative table
– Aggregation: treat as ordinary relationships
www.scispike.com Copyright © SciSpike 2011 19
- 20. …Mapping UML to ER Models
Generalization: use the usual mappings:
– Table per class hierarchy
– Table per subclass
– Table per concrete class
Constraints
– Set constraints on the database
– Some only enforceable in application logic
y pp g
This is just a simplified set of rules to get you going!
www.scispike.com Copyright © SciSpike 2011 20
- 21. UML for Database Design
Agile teams often use UML for both software and database
design
UML data modeling profile introduces extensions to UML:
– <<PK>>, <<FK>>, <<Auto Generated>>, <<Not Null>>,
<<View>>, <<Stored Procedures>>,…
Use relational data types
– String CHAR(x), VARCHAR(x)
www.scispike.com Copyright © SciSpike 2011 21
- 22. Automation
Code
Transformer
DDL
Input
Models
Models
Output
Tools can convert from UML to ERD and vice versa
Model transformation tools operate at a MOF/EMF level and
can transform UML to various targets
– Visual Domain Specific Languages (DSLs) based on UML may provide
better alignment with the p
g problem domain than vanilla UML
www.scispike.com Copyright © SciSpike 2011 22
- 23. Conclusion
You will need just a small part of UML!
UML is a common starting point for data models
Mapping of UML to ER is quite straightforward
pp g q g
Knowing UML makes you a more significant player in the
software development p
p process
www.scispike.com Copyright © SciSpike 2011 23
- 24. Getting in Touch
Email: vladimir.bacvanski@scispike.com
Blog: http://www.OnBuildingSoftware.com/
Twitter: http://twitter.com/OnSoftware
p
LinkedIn: http://www.linkedin.com/in/VladimirBacvanski
SciSpike Training and Consulting:
http://www.scispike.com
http://www scispike com
– Related training for data architects:
• Visual Modeling with UML
• Mastering Data Modeling with InfoSphere Data Architect
www.scispike.com Copyright © SciSpike 2011 24
