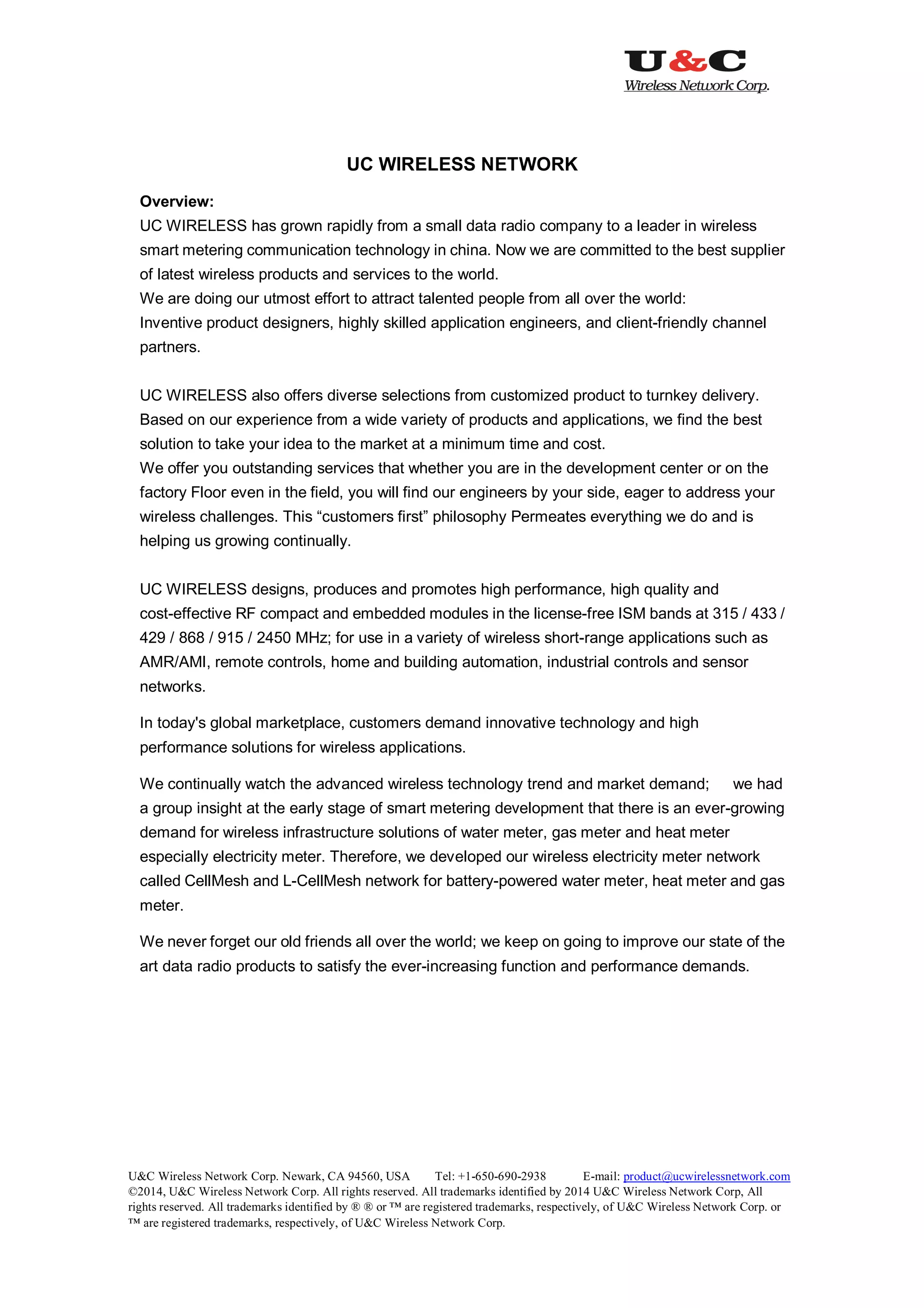

UC WIRELESS NETWORK
Overview:
UC WIRELESS has grown rapidly from a small data radio company to a leader in wireless
smart metering communication technology in china. Now we are committed to the best supplier
of latest wireless products and services to the world.
We are doing our utmost effort to attract talented people from all over the world:
Inventive product designers, highly skilled application engineers, and client-friendly channel
partners.
UC WIRELESS also offers diverse selections from customized product to turnkey delivery.
Based on our experience from a wide variety of products and applications, we find the best
solution to take your idea to the market at a minimum time and cost.
We offer you outstanding services that whether you are in the development center or on the
factory Floor even in the field, you will find our engineers by your side, eager to address your
wireless challenges. This “customers first” philosophy Permeates everything we do and is
helping us growing continually.
UC WIRELESS designs, produces and promotes high performance, high quality and
cost-effective RF compact and embedded modules in the license-free ISM bands at 315 / 433 /
429 / 868 / 915 / 2450 MHz; for use in a variety of wireless short-range applications such as
AMR/AMI, remote controls, home and building automation, industrial controls and sensor
networks.
In today's global marketplace, customers demand innovative technology and high
performance solutions for wireless applications.
We continually watch the advanced wireless technology trend and market demand; we had
a group insight at the early stage of smart metering development that there is an ever-growing
demand for wireless infrastructure solutions of water meter, gas meter and heat meter
especially electricity meter. Therefore, we developed our wireless electricity meter network
called CellMesh and L-CellMesh network for battery-powered water meter, heat meter and gas
meter.
We never forget our old friends all over the world; we keep on going to improve our state of the
art data radio products to satisfy the ever-increasing function and performance demands.

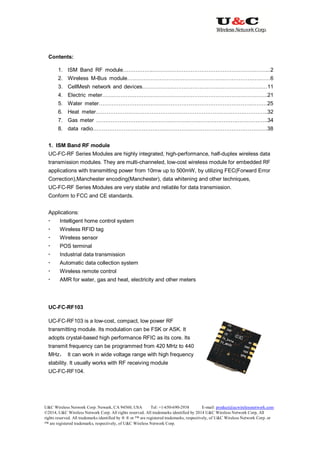

Contents:
1. ISM Band RF module……………..………………………………………………………...2
2. Wireless M-Bus module…………………………………………………………….….……6
3. CellMesh network and devices………………………………………………………….…11

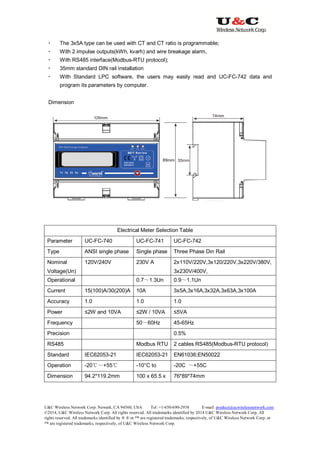

4. Electric meter…………………………………………………………….………………….21
5. Water meter………………………………………………………………………….………25

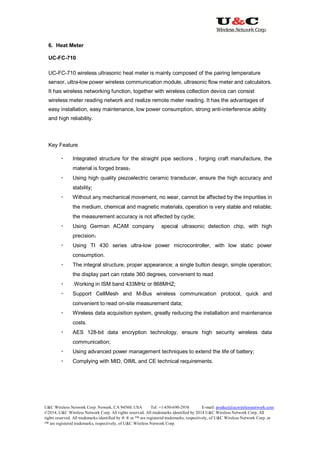

6. Heat meter……………………………………………………………………….…………..32

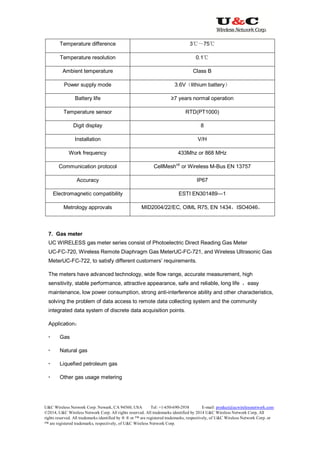

7. Gas meter …………………………………………………………………….……………..34

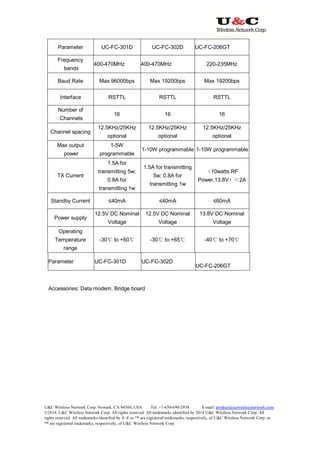

8. data radio…………………………………………………………………………………….38
1. ISM Band RF module
UC-FC-RF Series Modules are highly integrated, high-performance, half-duplex wireless data
transmission modules. They are multi-channeled, low-cost wireless module for embedded RF
applications with transmitting power from 10mw up to 500mW, by utilizing FEC(Forward Error
Correction),Manchester encoding(Manchester), data whitening and other techniques,
UC-FC-RF Series Modules are very stable and reliable for data transmission.
Conform to FCC and CE standards.
Applications:
 Intelligent home control system
 Wireless RFID tag
 Wireless sensor
 POS terminal
 Industrial data transmission
 Automatic data collection system
 Wireless remote control
 AMR for water, gas and heat, electricity and other meters
UC-FC-RF103
UC-FC-RF103 is a low-cost, compact, low power RF
transmitting module. Its modulation can be FSK or ASK. It
adopts crystal-based high performance RFIC as its core. Its
transmit frequency can be programmed from 420 MHz to 440
MHz， It can work in wide voltage range with high frequency
stability. It usually works with RF receiving module
UC-FC-RF104.

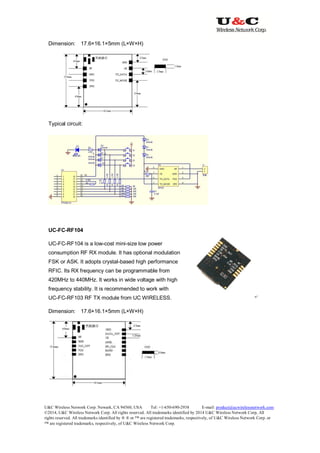

Dimension: 17.6×16.1×5mm (L×W×H)
Typical circuit:
UC-FC-RF104
UC-FC-RF104 is a low-cost mini-size low power
consumption RF RX module. It has optional modulation
FSK or ASK. It adopts crystal-based high performance
RFIC. Its RX frequency can be programmable from
420MHz to 440MHz. It works in wide voltage with high
frequency stability. It is recommended to work with
UC-FC-RF103 RF TX module from UC WIRELESS.

Typical circuit:

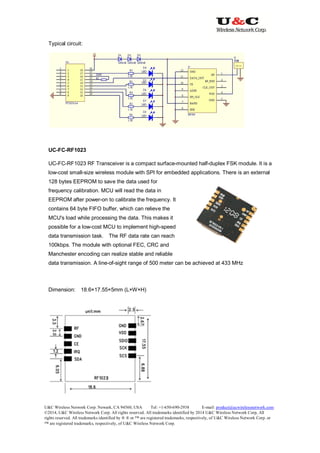

UC-FC-RF1023
UC-FC-RF1023 RF Transceiver is a compact surface-mounted half-duplex FSK module. It is a
low-cost small-size wireless module with SPI for embedded applications. There is an external
128 bytes EEPROM to save the data used for
frequency calibration. MCU will read the data in
EEPROM after power-on to calibrate the frequency. It
contains 64 byte FIFO buffer, which can relieve the
MCU's load while processing the data. This makes it
possible for a low-cost MCU to implement high-speed
data transmission task. The RF data rate can reach
100kbps. The module with optional FEC, CRC and
Manchester encoding can realize stable and reliable
data transmission. A line-of-sight range of 500 meter can be achieved at 433 MHz

Typical circuit:

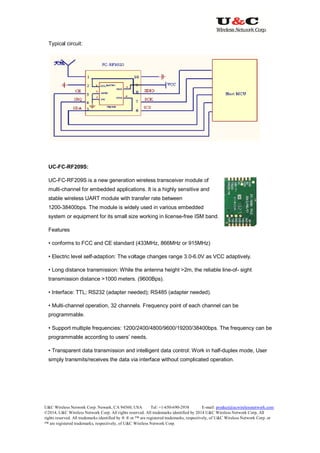

UC-FC-RF209S:
UC-FC-RF209S is a new generation wireless transceiver module of
multi-channel for embedded applications. It is a highly sensitive and
stable wireless UART module with transfer rate between
1200-38400bps. The module is widely used in various embedded
system or equipment for its small size working in license-free ISM band.
Features
• conforms to FCC and CE standard (433MHz, 866MHz or 915MHz)
• Electric level self-adaption: The voltage changes range 3.0-6.0V as VCC adaptively.
• Long distance transmission: While the antenna height >2m, the reliable line-of- sight
transmission distance >1000 meters. (9600Bps).
• Interface: TTL; RS232 (adapter needed); RS485 (adapter needed).
• Multi-channel operation, 32 channels. Frequency point of each channel can be
programmable.
• Support multiple frequencies: 1200/2400/4800/9600/19200/38400bps. The frequency can be
programmable according to users’ needs.
• Transparent data transmission and intelligent data control: Work in half-duplex mode, User
simply transmits/receives the data via interface without complicated operation.

Dimension46×26×6mm (L×W×H)
RF Module selection table
Parameter
UC-FC-RF1
03
UC-FC-RF1
04
UC-FC-RF10
23
UC-FC-RF209s Units
Frequency bands
433.92/420-
440
433.92/420-
440
315/433/475/
868/915
433/475/868/915 MHz
Number of
Channels
1/Multi 1/Multi Multi 32
RF Data Rate 20 20 100 1.2 – 38.4 kbit/s
Max output power 10 10 20 27 dBm
Sensitivity
(2.0 kbps)
-110 -116 -120 dBm
Supply voltage* 2.2 - 3.6 2.3 - 3.0 3.0 - 3.6 3.3 - 6.0 Volt
Current consumption
TX/RX
16/None None/10 100 / 20 320 / 27 mA
Current consumption
SLEEP
1 1 1 0.1 uA
Interface SPI SPI SPI,IIC TLL/RS232/RS485
2. Wireless M-Bus Module
Wireless M-Bus Series Modules follow wireless M-Bus protocol. It has a UART interface for
serial communication and configuration. The Module is pre-certified for operation under the
European radio hardware test regulations.

Application :
 The module can be used for wireless water meters, gas meters, heat meters and
electricity meters.
 Automatic Meter Reading (AMR)
 Advanced Metering Infrastructure (AMI)
 Electricity meters
 Gas and Water meters
 Heat meters, Heat cost allocators
 Readers and concentrators
UC-FC-703A
TheF703Amodule follows wireless M - Bus protocol. It has a UART interface for serial
communication and configuration. The module is pre-certified for operation under the
European radio hardware test regulations. F703A can work in S, T and R2 mode of
EN13757-4. It can work in sleeping mode with super-low power and waken up by serial port.
You only need to mount this module to user board by SMT machine. It is very convenient for
product development.
The module can be configured to be either Master or Slave. The Slave contains a unique
address; this address is appended when sending a metering message. Master will receive the
message, and get the Slave’s information then decode the message and send the data on its
serial interface.
Dimension：12.7x25.4x3.3mm

Typical applications
Various base meters (water, gas and heat meters) are connected with UC-FC-703A module
via a UART interface, which constitute Wireless MBUS smart meter. The remote UC-FC-703A
module is connected to the concentrator, computers or any other meter reading system via
UART interface (hardware USB interface) to achieve remote smart meter reading.
UC-FC-703A system has a low-power mode, can be widely used in battery-powered meter
system.
UC-FC-703B
The F703B Module follows the wireless M - Bus protocol. It has a UART interface for serial
communication and configuration. The Module is pre-certified for operation under the
European radio hardware test regulations. F703B can work in S, T and R2 mode. It can work
in the sleeping mode with super-low consumption power and be wakened up by serial port.
Various base meters (water, gas and heat meters) are connected with UC-FC-703B module
via a UART interface, which constitute Wireless MBUS smart meter. The remote UC-FC-703B
UC-FC-703B system has a low-power mode, can be widely used in battery-powered meter
system.

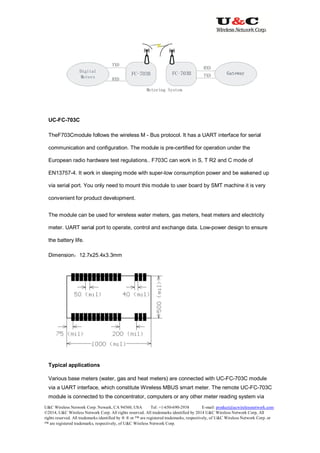

UC-FC-703C
TheF703Cmodule follows the wireless M - Bus protocol. It has a UART interface for serial
communication and configuration. The module is pre-certified for operation under the
European radio hardware test regulations.. F703C can work in S, T R2 and C mode of
EN13757-4. It work in sleeping mode with super-low consumption power and be wakened up
via serial port. You only need to mount this module to user board by SMT machine it is very
convenient for product development.
The module can be used for wireless water meters, gas meters, heat meters and electricity
meter. UART serial port to operate, control and exchange data. Low-power design to ensure
the battery life.

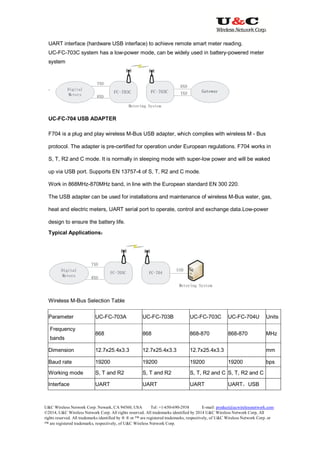

Various base meters (water, gas and heat meters) are connected with UC-FC-703C module
via a UART interface, which constitute Wireless MBUS smart meter. The remote UC-FC-703C

UC-FC-703C system has a low-power mode, can be widely used in battery-powered meter
system
.
UC-FC-704 USB ADAPTER
F704 is a plug and play wireless M-Bus USB adapter, which complies with wireless M - Bus
protocol. The adapter is pre-certified for operation under European regulations. F704 works in
S, T, R2 and C mode. It is normally in sleeping mode with super-low power and will be waked
up via USB port. Supports EN 13757-4 of S, T, R2 and C mode.
Work in 868MHz-870MHz band, in line with the European standard EN 300 220.
The USB adapter can be used for installations and maintenance of wireless M-Bus water, gas,
heat and electric meters, UART serial port to operate, control and exchange data.Low-power
design to ensure the battery life.
Typical Applications：
Wireless M-Bus Selection Table
Parameter UC-FC-703A UC-FC-703B UC-FC-703C UC-FC-704U Units
Frequency
bands
868 868 868-870 868-870 MHz
Dimension 12.7x25.4x3.3 12.7x25.4x3.3 12.7x25.4x3.3 mm
Baud rate 19200 19200 19200 19200 bps
Working mode S, T and R2 S, T and R2 S, T, R2 and C S, T, R2 and C
Interface UART UART UART UART，USB

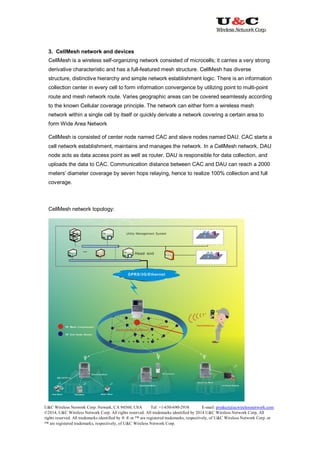

3. CellMesh network and devices
CellMesh is a wireless self-organizing network consisted of microcells; it carries a very strong
derivative characteristic and has a full-featured mesh structure. CellMesh has diverse
structure, distinctive hierarchy and simple network establishment logic. There is an information
collection center in every cell to form information convergence by utilizing point to multi-point
route and mesh network route. Varies geographic areas can be covered seamlessly according
to the known Cellular coverage principle. The network can either form a wireless mesh
network within a single cell by itself or quickly derivate a network covering a certain area to
form Wide Area Network
CellMesh is consisted of center node named CAC and slave nodes named DAU. CAC starts a
cell network establishment, maintains and manages the network. In a CellMesh network, DAU
node acts as data access point as well as router. DAU is responsible for data collection, and
uploads the data to CAC. Communication distance between CAC and DAU can reach a 2000
meters’ diameter coverage by seven hops relaying, hence to realize 100% collection and full
coverage.
CellMesh network topology:

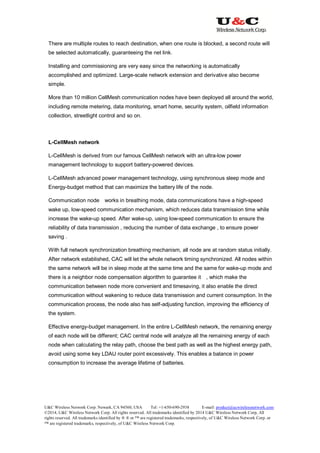

There are multiple routes to reach destination, when one route is blocked, a second route will
be selected automatically, guaranteeing the net link.
Installing and commissioning are very easy since the networking is automatically
accomplished and optimized. Large-scale network extension and derivative also become
simple.
More than 10 million CellMesh communication nodes have been deployed all around the world,
including remote metering, data monitoring, smart home, security system, oilfield information
collection, streetlight control and so on.
L-CellMesh network
L-CellMesh is derived from our famous CellMesh network with an ultra-low power
management technology to support battery-powered devices.
L-CellMesh advanced power management technology, using synchronous sleep mode and
Energy-budget method that can maximize the battery life of the node.
Communication node works in breathing mode, data communications have a high-speed
wake up, low-speed communication mechanism, which reduces data transmission time while
increase the wake-up speed. After wake-up, using low-speed communication to ensure the
reliability of data transmission , reducing the number of data exchange , to ensure power
saving .
With full network synchronization breathing mechanism, all node are at random status initially.
After network established, CAC will let the whole network timing synchronized. All nodes within
the same network will be in sleep mode at the same time and the same for wake-up mode and
there is a neighbor node compensation algorithm to guarantee it , which make the
communication between node more convenient and timesaving, it also enable the direct
communication without wakening to reduce data transmission and current consumption. In the
communication process, the node also has self-adjusting function, improving the efficiency of
the system.
Effective energy-budget management. In the entire L-CellMesh network, the remaining energy
of each node will be different; CAC central node will analyze all the remaining energy of each
node when calculating the relay path, choose the best path as well as the highest energy path,
avoid using some key LDAU router point excessively. This enables a balance in power
consumption to increase the average lifetime of batteries.

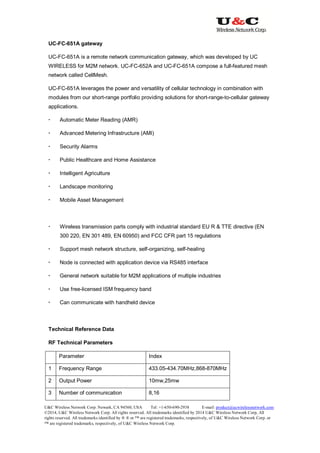

UC-FC-651A gateway
UC-FC-651A is a remote network communication gateway, which was developed by UC
WIRELESS for M2M network. UC-FC-652A and UC-FC-651A compose a full-featured mesh
network called CellMesh.
UC-FC-651A leverages the power and versatility of cellular technology in combination with
modules from our short-range portfolio providing solutions for short-range-to-cellular gateway
applications.
 Security Alarms
 Public Healthcare and Home Assistance
 Intelligent Agriculture
 Landscape monitoring
 Mobile Asset Management
 Wireless transmission parts comply with industrial standard EU R & TTE directive (EN
300 220, EN 301 489, EN 60950) and FCC CFR part 15 regulations
 Support mesh network structure, self-organizing, self-healing
 Node is connected with application device via RS485 interface
 General network suitable for M2M applications of multiple industries
 Use free-licensed ISM frequency band
 Can communicate with handheld device

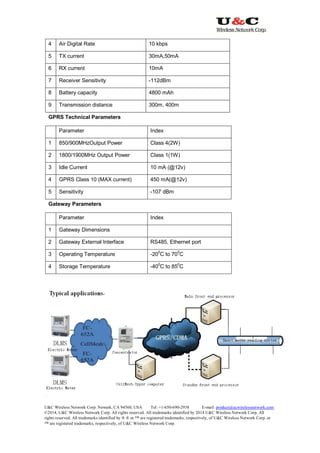

Technical Reference Data
RF Technical Parameters
Parameter Index
1 Frequency Range 433.05-434.70MHz,868-870MHz
2 Output Power 10mw,25mw
3 Number of communication
channels
8,16

4 Air Digital Rate 10 kbps
5 TX current 30mA,50mA
6 RX current 10mA
7 Receiver Sensitivity -112dBm
8 Battery capacity 4800 mAh
9 Transmission distance 300m, 400m
GPRS Technical Parameters
Parameter Index
1 850/900MHzOutput Power Class 4(2W)
2 1800/1900MHz Output Power Class 1(1W)
3 Idle Current 10 mA (@12v)
4 GPRS Class 10 (MAX current) 450 mA(@12v)
5 Sensitivity -107 dBm
Gateway Parameters
Parameter Index
1 Gateway Dimensions
2 Gateway External Interface RS485, Ethernet port
3 Operating Temperature -200
C to 700
C
4 Storage Temperature -400
C to 850
C

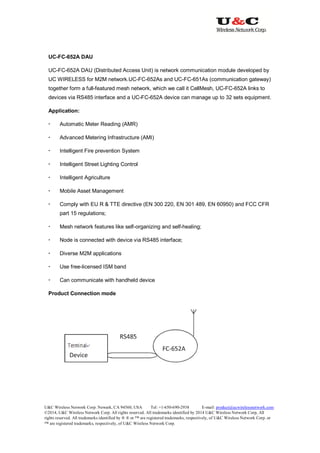

UC-FC-652A DAU
UC-FC-652A DAU (Distributed Access Unit) is network communication module developed by
UC WIRELESS for M2M network.UC-FC-652As and UC-FC-651As (communication gateway)
together form a full-featured mesh network, which we call it CellMesh, UC-FC-652A links to
devices via RS485 interface and a UC-FC-652A device can manage up to 32 sets equipment.
Application:
 Intelligent Fire prevention System
 Intelligent Street Lighting Control
 Comply with EU R & TTE directive (EN 300 220, EN 301 489, EN 60950) and FCC CFR
part 15 regulations;
 Mesh network features like self-organizing and self-healing;
 Node is connected with device via RS485 interface;
 Diverse M2M applications
 Use free-licensed ISM band
 Can communicate with handheld device
Product Connection mode

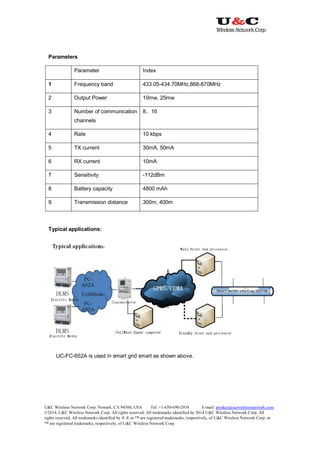

Parameters
Parameter Index
1 Frequency band 433.05-434.70MHz,868-870MHz
2 Output Power 10mw, 25mw
3 Number of communication
channels
8，16
4 Rate 10 kbps
5 TX current 30mA, 50mA
6 RX current 10mA
7 Sensitivity -112dBm
8 Battery capacity 4800 mAh
9 Transmission distance 300m, 400m
Typical applications:
UC-FC-652A is used in smart grid smart as shown above.

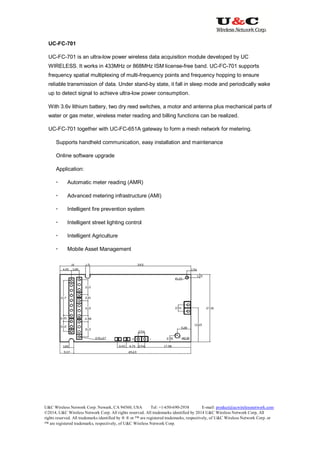

UC-FC-701
UC-FC-701 is an ultra-low power wireless data acquisition module developed by UC
WIRELESS. It works in 433MHz or 868MHz ISM license-free band. UC-FC-701 supports
frequency spatial multiplexing of multi-frequency points and frequency hopping to ensure
reliable transmission of data. Under stand-by state, it fall in sleep mode and periodically wake
up to detect signal to achieve ultra-low power consumption.
With 3.6v lithium battery, two dry reed switches, a motor and antenna plus mechanical parts of
water or gas meter, wireless meter reading and billing functions can be realized.
UC-FC-701 together with UC-FC-651A gateway to form a mesh network for metering.
Supports handheld communication, easy installation and maintenance
Online software upgrade
Application:
 Automatic meter reading (AMR)
 Advanced metering infrastructure (AMI)
 Intelligent fire prevention system
 Intelligent street lighting control

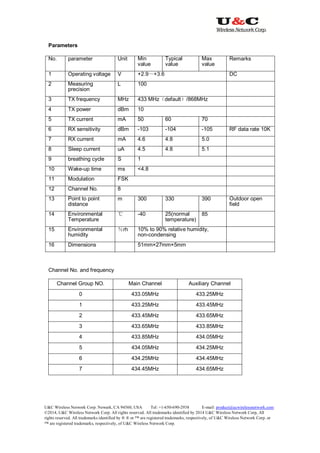

Parameters
No. parameter Unit Min
value
Typical
value
Max
value
Remarks
1 Operating voltage V +2.9～+3.6 DC
2 Measuring
precision
L 100
3 TX frequency MHz 433 MHz（default）/868MHz
4 TX power dBm 10
5 TX current mA 50 60 70
6 RX sensitivity dBm -103 -104 -105 RF data rate 10K
7 RX current mA 4.6 4.8 5.0
8 Sleep current uA 4.5 4.8 5.1
9 breathing cycle S 1
10 Wake-up time ms <4.8
11 Modulation FSK
12 Channel No. 8
13 Point to point
distance
m 300 330 390 Outdoor open
field
14 Environmental
Temperature
℃ -40 25(normal
temperature)
85
15 Environmental
humidity
％rh 10% to 90% relative humidity,
non-condensing
16 Dimensions 51mm×27mm×5mm
Channel No. and frequency
Channel Group NO. Main Channel Auxiliary Channel
0 433.05MHz 433.25MHz
1 433.25MHz 433.45MHz
2 433.45MHz 433.65MHz
3 433.65MHz 433.85MHz
4 433.85MHz 434.05MHz
5 434.05MHz 434.25MHz
6 434.25MHz 434.45MHz
7 434.45MHz 434.65MHz

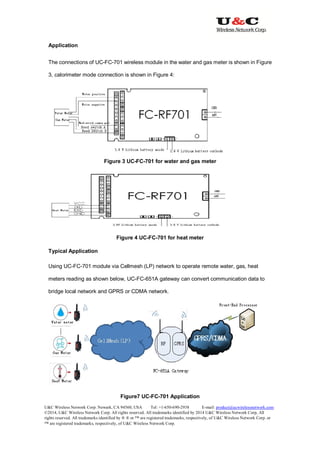

Application
The connections of UC-FC-701 wireless module in the water and gas meter is shown in Figure
3, calorimeter mode connection is shown in Figure 4:
Figure 3 UC-FC-701 for water and gas meter
Figure 4 UC-FC-701 for heat meter
Typical Application
Using UC-FC-701 module via Cellmesh (LP) network to operate remote water, gas, heat
meters reading as shown below, UC-FC-651A gateway can convert communication data to
bridge local network and GPRS or CDMA network.
Figure7 UC-FC-701 Application

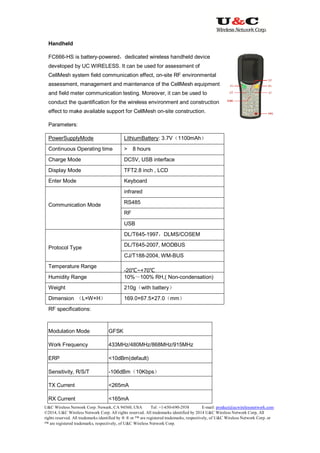

Handheld
FC666-HS is battery-powered，dedicated wireless handheld device
developed by UC WIRELESS. It can be used for assessment of
CellMesh system field communication effect, on-site RF environmental
assessment, management and maintenance of the CellMesh equipment
and field meter communication testing. Moreover, it can be used to
conduct the quantification for the wireless environment and construction
effect to make available support for CellMesh on-site construction.
Parameters:
PowerSupplyMode LithiumBattery: 3.7V（1100mAh）
Continuous Operating time > 8 hours
Charge Mode DC5V, USB interface
Display Mode TFT2.8 inch , LCD
Enter Mode Keyboard
Communication Mode
infrared
RS485
RF
USB
Protocol Type
DL/T645-1997，DLMS/COSEM
DL/T645-2007, MODBUS
CJ/T188-2004, WM-BUS
Temperature Range
-20℃~+70℃
Humidity Range 10%～100% RH,( Non-condensation)
Weight 210g（with battery）
Dimension （L×W×H） 169.0×67.5×27.0（mm）
RF specifications:
Modulation Mode GFSK
Work Frequency 433MHz/480MHz/868MHz/915MHz
ERP <10dBm(default)
Sensitivity, R/S/T -106dBm（10Kbps）
TX Current <265mA
RX Current <165mA

4. Electrical Meter
UC-FC-740
Type UC-FC-740 singe phase electronic watt-hour meter(hereafter is the meter) is the most
advanced type whole electronic watt-hour meter adopted big scale integrated circuit and
practicing digital sampling technique and SMT technique by us, which is suitable for
measuring active energy in electric net with single phase AC 50Hz or 60Hz. The meter must
be mounted in the place which temperature is in -25℃～+55℃ and the relative humidity shall
not exceed 95%.And the air should not be included some harm gas, dust, mildew and insect,
etc. The meter is completely conformed to the relative requirements of the International
Standard IEC62053-21 IEC62052-11 and ANSI standard on the meter (Class 1 or Class 2).
Dimension
Display

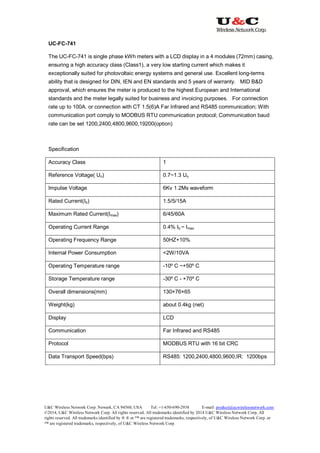

UC-FC-741
The UC-FC-741 is single phase kWh meters with a LCD display in a 4 modules (72mm) casing,
ensuring a high accuracy class (Class1), a very low starting current which makes it
exceptionally suited for photovoltaic energy systems and general use. Excellent long-terms
ability that is designed for DIN, IEN and EN standards and 5 years of warranty. MID B&D
approval, which ensures the meter is produced to the highest European and International
standards and the meter legally suited for business and invoicing purposes. For connection
rate up to 100A. or connection with CT 1.5(6)A Far Infrared and RS485 communication; With
communication port comply to MODBUS RTU communication protocol; Communication baud
rate can be set 1200,2400,4800,9600,19200(option)
Specification
Accuracy Class 1
Reference Voltage( Un) 0.7~1.3 Un
Impulse Voltage 6Kv 1.2Ms waveform
Rated Current(Ib) 1.5/5/15A
Maximum Rated Current(Imax) 6/45/60A
Operating Current Range 0.4% Ib ~ Imax
Operating Frequency Range 50HZ+10%
Internal Power Consumption <2W/10VA
Operating Temperature range -10º C ~+50º C
Storage Temperature range -30º C - +70º C
Overall dimensions(mm) 130×76×65
Weight(kg) about 0.4kg (net)
Display LCD
Communication Far Infrared and RS485
Protocol MODBUS RTU with 16 bit CRC
Data Transport Speed(bps) RS485: 1200,2400,4800,9600,IR: 1200bps

Dimension

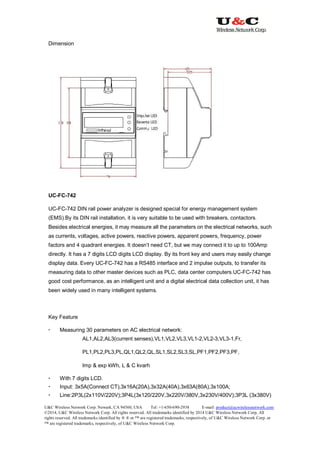

UC-FC-742
UC-FC-742 DIN rail power analyzer is designed special for energy management system
(EMS).By its DIN rail installation, it is very suitable to be used with breakers, contactors.
Besides electrical energies, it may measure all the parameters on the electrical networks, such
as currents, voltages, active powers, reactive powers, apparent powers, frequency, power
factors and 4 quadrant energies. It doesn’t need CT, but we may connect it to up to 100Amp
directly. It has a 7 digits LCD digits LCD display. By its front key and users may easily change
display data. Every UC-FC-742 has a RS485 interface and 2 impulse outputs, to transfer its
measuring data to other master devices such as PLC, data center computers.UC-FC-742 has
good cost performance, as an intelligent unit and a digital electrical data collection unit, it has
been widely used in many intelligent systems.
Key Feature
 Measuring 30 parameters on AC electrical network:
AL1,AL2,AL3(current senses),VL1,VL2,VL3,VL1-2,VL2-3,VL3-1,Fr,
PL1,PL2,PL3,PL,QL1,QL2,QL,SL1,SL2,SL3,SL,PF1,PF2,PF3,PF,
Imp & exp kWh, L & C kvarh
 With 7 digits LCD.
 Input: 3x5A(Connect CT),3x16A(20A),3x32A(40A),3x63A(80A),3x100A;
 Line:2P3L(2x110V/220V);3P4L(3x120/220V,3x220V/380V,3x230V/400V);3P3L (3x380V)

 The 3x5A type can be used with CT and CT ratio is programmable;
 With 2 impulse outputs(kWh, kvarh) and wire breakage alarm,
 With RS485 interface(Modbus-RTU protocol);
 35mm standard DIN rail installation
 With Standard LPC software, the users may easily read and UC-FC-742 data and
program its parameters by computer.
Dimension
Electrical Meter Selection Table
Parameter UC-FC-740 UC-FC-741 UC-FC-742
Type ANSI single phase Single phase Three Phase Din Rail
Nominal
Voltage(Un)
120V/240V 230V A 2x110V/220V,3x120/220V,3x220V/380V,
3x230V/400V,
Operational 0.7～1.3Un 0.9～1.1Un
Current 15(100)A/30(200)A 10A 3x5A,3x16A,3x32A,3x63A,3x100A
Accuracy 1.0 1.0 1.0
Power ≤2W and 10VA ≤2W / 10VA ≤5VA
Frequency 50～60Hz 45-65Hz
Precision 0.5%
RS485 Modbus RTU 2 cables RS485(Modbus-RTU protocol)
Standard IEC62053-21 IEC62053-21 EN61036;EN50022
Operation -20℃～+55℃ -10°C to -20C ～+55C
Dimension 94.2*119.2mm 100 x 65.5 x 76*89*74mm

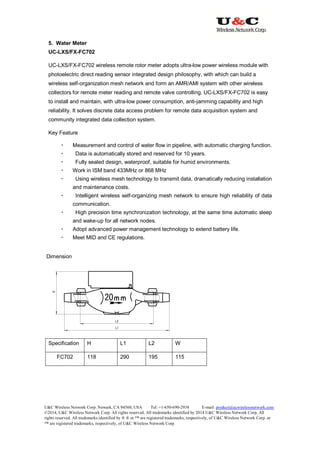

5. Water Meter
UC-LXS/FX-FC702
UC-LXS/FX-FC702 wireless remote rotor meter adopts ultra-low power wireless module with
photoelectric direct reading sensor integrated design philosophy, with which can build a
wireless self-organization mesh network and form an AMR/AMI system with other wireless
collectors for remote meter reading and remote valve controlling. UC-LXS/FX-FC702 is easy
to install and maintain, with ultra-low power consumption, anti-jamming capability and high
reliability. It solves discrete data access problem for remote data acquisition system and
community integrated data collection system.
Key Feature
 Measurement and control of water flow in pipeline, with automatic charging function.
 Data is automatically stored and reserved for 10 years.
 Fully sealed design, waterproof, suitable for humid environments.
 Work in ISM band 433MHz or 868 MHz
 Using wireless mesh technology to transmit data, dramatically reducing installation
and maintenance costs.
 Intelligent wireless self-organizing mesh network to ensure high reliability of data
communication.
 High precision time synchronization technology, at the same time automatic sleep
and wake-up for all network nodes.
 Adopt advanced power management technology to extend battery life.
 Meet MID and CE regulations.
Dimension
Specification H L1 L2 W
FC702 118 290 195 115

Diameter L1 L2 L3 H W D
DN15 165 255 14 123 82 R1/2″
DN20 Copper
Base meter
190 290 16 123 82 R3/4″
DN20 Iron 195 295 16 123 82 R3/4″
DN25 225 341 18 125 86 R1″

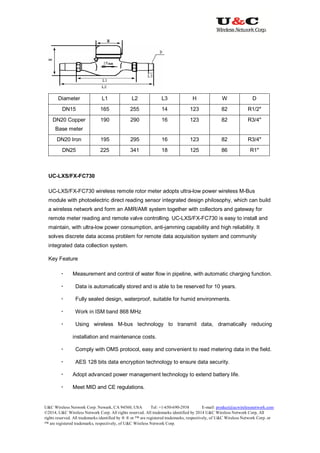

UC-LXS/FX-FC730
UC-LXS/FX-FC730 wireless remote rotor meter adopts ultra-low power wireless M-Bus
module with photoelectric direct reading sensor integrated design philosophy, which can build
a wireless network and form an AMR/AMI system together with collectors and gateway for
remote meter reading and remote valve controlling. UC-LXS/FX-FC730 is easy to install and
maintain, with ultra-low power consumption, anti-jamming capability and high reliability. It
solves discrete data access problem for remote data acquisition system and community
integrated data collection system.
Key Feature
 Measurement and control of water flow in pipeline, with automatic charging function.
 Data is automatically stored and is able to be reserved for 10 years.
 Fully sealed design, waterproof, suitable for humid environments.
 Work in ISM band 868 MHz
 Using wireless M-bus technology to transmit data, dramatically reducing
installation and maintenance costs.
 Comply with OMS protocol, easy and convenient to read metering data in the field.
 AES 128 bits data encryption technology to ensure data security.
 Meet MID and CE regulations.

Dimension
Specification H L1 L2 W
FC730 118 290 195 115
Diameter L1 L2 L3 H W D
DN15 165 255 14 123 82 R1/2″
DN20 Copper
Base meter
190 290 16 123 82 R3/4″
DN20 Iron 195 295 16 123 82 R3/4″
DN25 225 341 18 125 86 R1″
UC-LXS/FX-FC731
UC-LXS/FX-FC731 wireless remote rotor meter adopts ultra-low power wireless M-Bus
module with pulse-acquisition module (Reed switch, Hall element) integrated design
philosophy, with which can build a wireless network and form an AMR/AMI system with other
wireless collectors for remote meter reading and remote valve controlling. UC-LXS/FX-FC731
is easy to install and maintain, with ultra-low power consumption, anti-jamming capability and
high reliability. It solves discrete data access problem for remote data acquisition system and
community integrated data collection system.

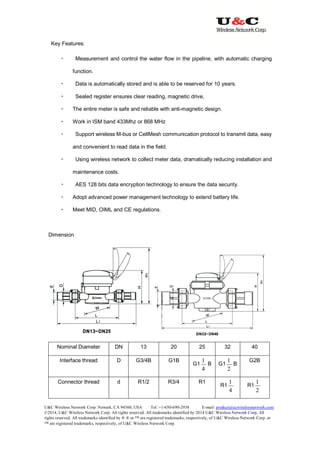

Key Features:
 Measurement and control the water flow in the pipeline, with automatic charging
function.
 Data is automatically stored and is able to be reserved for 10 years.
 Sealed register ensures clear reading, magnetic drive,
 The entire meter is safe and reliable with anti-magnetic design.
 Work in ISM band 433Mhz or 868 MHz
 Support wireless M-bus or CellMesh communication protocol to transmit data, easy
and convenient to read data in the field.
 Using wireless network to collect meter data, dramatically reducing installation and
maintenance costs.
 AES 128 bits data encryption technology to ensure the data security.
 Meet MID, OIML and CE regulations.
Dimension
Nominal Diameter DN 13 20 25 32 40
Interface thread D G3/4B G1B
G1
4
1
B G1
2
1
B
G2B
Connector thread d R1/2 R3/4 R1
R1
4
1
R1
2
1

Body length mm L 80/110 130 160 160 200
Total length mm L1 174/204 234 280 284 331
Width mm W 80 80 80 110 110
Height mm H 88 88 96 123 123
Work Height mm H1 143 143 151 178 178
Weight Without connector Kg 0.5/0.6 0.7 1.05 2.1 2.43
Weight With connector Kg 0.68/0.78 0.98 1.57 2.89 3.47

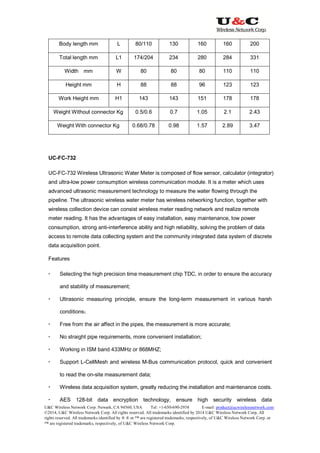

UC-FC-732
UC-FC-732 Wireless Ultrasonic Water Meter is composed of flow sensor, calculator (integrator)
and ultra-low power consumption wireless communication module. It is a meter which uses
advanced ultrasonic measurement technology to measure the water flowing through the
pipeline. The ultrasonic wireless water meter has wireless networking function, together with
wireless collection device can consist wireless meter reading network and realize remote
meter reading. It has the advantages of easy installation, easy maintenance, low power
consumption, strong anti-interference ability and high reliability, solving the problem of data
access to remote data collecting system and the community integrated data system of discrete
data acquisition point.
Features
 Selecting the high precision time measurement chip TDC, in order to ensure the accuracy
and stability of measurement;
 Ultrasonic measuring principle, ensure the long-term measurement in various harsh
conditions；
 Free from the air affect in the pipes, the measurement is more accurate;
 No straight pipe requirements, more convenient installation;
 Working in ISM band 433MHz or 868MHZ;
 Support L-CellMesh and wireless M-Bus communication protocol, quick and convenient
to read the on-site measurement data;
 Wireless data acquisition system, greatly reducing the installation and maintenance costs.
 AES 128-bit data encryption technology, ensure high security wireless data

communication;
 Using advanced power management techniques, extend the lifetime of battery;
 Complying with MID, OIML and CE technical requirements.

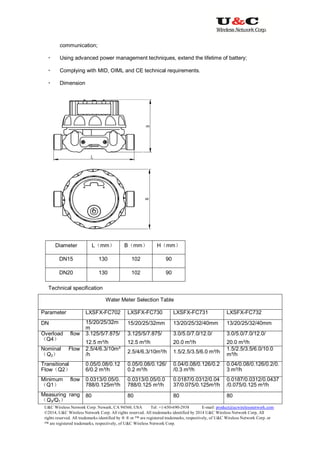

 Dimension
Diameter L（mm） B（mm） H（mm）
DN15 130 102 90
DN20 130 102 90
Technical specification

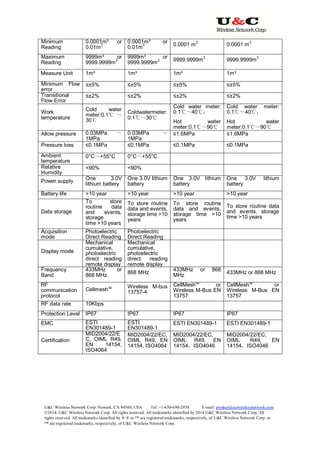

Water Meter Selection Table
Parameter LXSFX-FC702 LXSFX-FC730 LXSFX-FC731 LXSFX-FC732
DN 15/20/25/32m
m
15/20/25/32mm 13/20/25/32/40mm 13/20/25/32/40mm
Overload flow
（Q4）
3.125/5/7.875/
12.5 m³/h
3.125/5/7.875/
12.5 m³/h
3.0/5.0/7.0/12.0/
20.0 m³/h
3.0/5.0/7.0/12.0/
20.0 m³/h
Nominal Flow
（Q3）
2.5/4/6.3/10m³
/h 2.5/4/6.3/10m³/h 1.5/2.5/3.5/6.0 m³/h
1.5/2.5/3.5/6.0/10.0
m³/h
Transitional
Flow（Q2）
0.05/0.08/0.12
6/0.2 m³/h
0.05/0.08/0.126/
0.2 m³/h
0.04/0.08/0.126/0.2
/0.3 m³/h
0.04/0.08/0.126/0.2/0.
3 m³/h
Minimum flow
（Q1）
0.0313/0.05/0.
788/0.125m³/h
0.0313/0.05/0.0
788/0.125 m³/h
0.0187/0.0312/0.04
37/0.075/0.125m³/h
0.0187/0.0312/0.0437
/0.075/0.125 m³/h
Measuring rang
（Q3/Q1）
80 80 80 80

Minimum
Reading
0.0001m³ or
0.01m3
0.0001m³ or
0.01m3 0.0001 m
3
0.0001 m
3
Maximum
Reading
9999m³ or
9999.9999m3
9999m³ or
9999.9999m3 9999.9999m3
9999.9999m3
Measure Unit 1m³ 1m³ 1m³ 1m³
Minimum Flow
error
≤±5% ≤±5% ≤±5% ≤±5%
Transitional
Flow Error
≤±2% ≤±2% ≤±2% ≤±2%
Work
temperature
Cold water
meter:0.1℃ ～
30℃
Coldwatermeter:
0.1℃～30℃
Cold water meter:
0.1℃～40℃；
Hot water
meter:0.1℃～90℃
Cold water meter:
0.1℃～40℃；
Hot water
meter:0.1℃～90℃
Allow pressure 0.03MPa ～
1MPa
0.03MPa ～
1MPa
≤1.6MPa ≤1.6MPa
Pressure loss ≤0.1MPa ≤0.1MPa ≤0.1MPa ≤0.1MPa
Ambient
temperature
0°C～+55°C 0°C～+55°C
Relative
Humidity
<90% <90%
Power supply
One 3.0V
lithium battery
One 3.0V lithium
battery
One 3.0V lithium
battery
One 3.0V lithium
battery
Battery life >10 year >10 year >10 year >10 year
Data storage
To store
routine data
and events,
storage
time >10 years
To store routine
data and events,
storage time >10
years
To store routine
data and events,
storage time >10
years
To store routine data
and events, storage
time >10 years
Acquisition
mode
Photoelectric
Direct Reading
Photoelectric
Direct Reading
Display mode
Mechanical
cumulative,
photoelectric
direct reading
remote display
Mechanical
cumulative,
photoelectric
direct reading
remote display
Frequency
Band
433MHz or
868 MHz 868 MHz
433MHz or 868
MHz 433MHz or 868 MHz
RF
communication
protocol
Cellmeshup Wireless M-bus
13757-4
CellMeshup
or
Wireless M-Bus EN
13757
CellMeshup
or
Wireless M-Bus EN
13757
RF data rate 10Kbps
Protection Level IP67 IP67 IP67 IP67
EMC ESTI
EN301489-1
ESTI
EN301489-1
ESTI EN301489-1 ESTI EN301489-1
Certification
MID2004/22/E
C, OIML R49,
EN 14154,
ISO4064
MID2004/22/EC,
OIML R49, EN
14154, ISO4064
MID2004/22/EC,
OIML R49, EN
14154，ISO4046
MID2004/22/EC,
OIML R49, EN
14154，ISO4046

6. Heat Meter
UC-FC-710
UC-FC-710 wireless ultrasonic heat meter is mainly composed of the pairing temperature
sensor, ultra-low power wireless communication module, ultrasonic flow meter and calculators.
It has wireless networking function, together with wireless collection device can consist
wireless meter reading network and realize remote meter reading. It has the advantages of
easy installation, easy maintenance, low power consumption, strong anti-interference ability
and high reliability.
Key Feature
 Integrated structure for the straight pipe sections , forging craft manufacture, the
material is forged brass；
 Using high quality piezoelectric ceramic transducer, ensure the high accuracy and
stability;
 Without any mechanical movement, no wear, cannot be affected by the impurities in
the medium, chemical and magnetic materials, operation is very stable and reliable;
the measurement accuracy is not affected by cycle;
 Using German ACAM company special ultrasonic detection chip, with high
precision；
 Using TI 430 series ultra-low power microcontroller, with low static power
consumption.
 The integral structure, proper appearance; a single button design, simple operation;
the display part can rotate 360 degrees, convenient to read
 .Working in ISM band 433MHz or 868MHZ;
 Support CellMesh and M-Bus wireless communication protocol, quick and
convenient to read on-site measurement data;
 Wireless data acquisition system, greatly reducing the installation and maintenance
costs.
 AES 128-bit data encryption technology, ensure high security wireless data
communication;
 Using advanced power management techniques to extend the life of battery;
 Complying with MID, OIML and CE technical requirements.

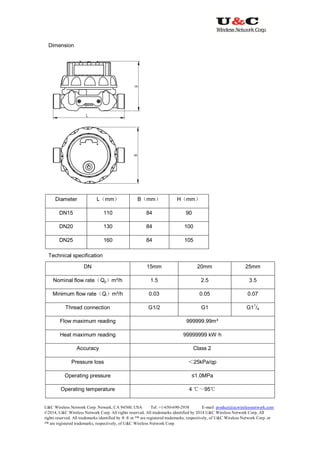

Dimension
DN15 110 84 90
DN20 130 84 100
DN25 160 84 105
Technical specification
DN 15mm 20mm 25mm
Nominal flow rate（Qp）m³/h 1.5 2.5 3.5
Minimum flow rate（Qi）m³/h 0.03 0.05 0.07
Thread connection G1/2 G1 G1
1
/4
Flow maximum reading 999999.99m³
Heat maximum reading 99999999 kW·h
Accuracy Class 2
Pressure loss ＜25kPa/qp
Operating pressure ≤1.0MPa
Operating temperature 4 ℃～95℃

Temperature difference 3℃～75℃
Temperature resolution 0.1℃
Ambient temperature Class B
Power supply mode 3.6V（lithium battery）
Battery life ≥7 years normal operation
Temperature sensor RTD(PT1000)
Digit display 8
Installation V/H
Work frequency 433Mhz or 868 MHz
Communication protocol CellMesh
up
or Wireless M-Bus EN 13757
Accuracy IP67
Electromagnetic compatibility ESTI EN301489—1
Metrology approvals MID2004/22/EC, OIML R75, EN 1434，ISO4046，
7. Gas meter
UC WIRELESS gas meter series consist of Photoelectric Direct Reading Gas Meter
UC-FC-720, Wireless Remote Diaphragm Gas MeterUC-FC-721, and Wireless Ultrasonic Gas
MeterUC-FC-722, to satisfy different customers’ requirements.
The meters have advanced technology, wide flow range, accurate measurement, high
sensitivity, stable performance, attractive appearance, safe and reliable, long life ，easy
maintenance, low power consumption, strong anti-interference ability and other characteristics,
solving the problem of data access to remote data collecting system and the community
integrated data system of discrete data acquisition points.
Application：
 Gas
 Natural gas
 Liquefied petroleum gas
 Other gas usage metering

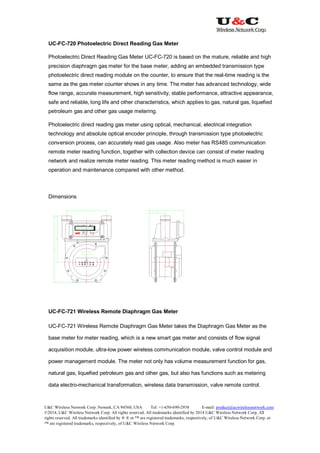

UC-FC-720 Photoelectric Direct Reading Gas Meter
Photoelectric Direct Reading Gas Meter UC-FC-720 is based on the mature, reliable and high
precision diaphragm gas meter for the base meter, adding an embedded transmission type
photoelectric direct reading module on the counter, to ensure that the real-time reading is the
same as the gas meter counter shows in any time. The meter has advanced technology, wide
flow range, accurate measurement, high sensitivity, stable performance, attractive appearance,
safe and reliable, long life and other characteristics, which applies to gas, natural gas, liquefied
petroleum gas and other gas usage metering.
Photoelectric direct reading gas meter using optical, mechanical, electrical integration
technology and absolute optical encoder principle, through transmission type photoelectric
conversion process, can accurately read gas usage. Also meter has RS485 communication
remote meter reading function, together with collection device can consist of meter reading
network and realize remote meter reading. This meter reading method is much easier in
operation and maintenance compared with other method.
Dimensions
UC-FC-721 Wireless Remote Diaphragm Gas Meter
UC-FC-721 Wireless Remote Diaphragm Gas Meter takes the Diaphragm Gas Meter as the
base meter for meter reading, which is a new smart gas meter and consists of flow signal
acquisition module, ultra-low power wireless communication module, valve control module and
power management module. The meter not only has volume measurement function for gas,
natural gas, liquefied petroleum gas and other gas, but also has functions such as metering
data electro-mechanical transformation, wireless data transmission, valve remote control.

Wireless Remote Diaphragm Gas Meter together with wireless collection device consist
wireless meter reading network. The meter have remote pre-payment, remote adjustment of
gas price and other control functions, it is easy to install, easy to maintain, with low power
consumption, strong anti-jamming capability and high reliability, an ideal solution to the
problem of data collection for discrete points.

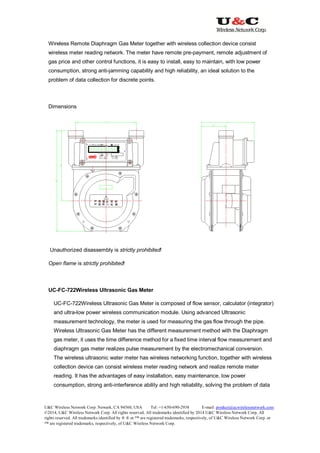

Dimensions
Unauthorized disassembly is strictly prohibited!
Open flame is strictly prohibited!
UC-FC-722Wireless Ultrasonic Gas Meter
UC-FC-722Wireless Ultrasonic Gas Meter is composed of flow sensor, calculator (integrator)
and ultra-low power wireless communication module. Using advanced Ultrasonic
measurement technology, the meter is used for measuring the gas flow through the pipe.
Wireless Ultrasonic Gas Meter has the different measurement method with the Diaphragm
gas meter, it uses the time difference method for a fixed time interval flow measurement and
diaphragm gas meter realizes pulse measurement by the electromechanical conversion.
The wireless ultrasonic water meter has wireless networking function, together with wireless
collection device can consist wireless meter reading network and realize remote meter
reading. It has the advantages of easy installation, easy maintenance, low power
consumption, strong anti-interference ability and high reliability, solving the problem of data

access to remote data collecting system and the community integrated data system of
discrete data acquisition points.

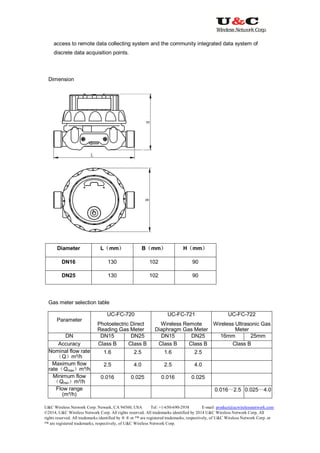

Dimension
DN16 130 102 90
DN25 130 102 90
Gas meter selection table
Parameter
UC-FC-720
Photoelectric Direct
Reading Gas Meter
UC-FC-721
Wireless Remote
Diaphragm Gas Meter
UC-FC-722
Wireless Ultrasonic Gas
Meter
DN DN15 DN25 DN15 DN25 16mm 25mm
Accuracy Class B Class B Class B Class B Class B
Nominal flow rate
（Q）m³/h
1.6 2.5 1.6 2.5
Maximum flow
rate（Qmax）m³/h
2.5 4.0 2.5 4.0
Minimum flow
（Qmin）m³/h
0.016 0.025 0.016 0.025
Flow range
(m³/h)
0.016～2.5 0.025～4.0

Transitional flow
（Qt）m³/h
0.25 0.4 0.25 0.4
Rotary volume 1.2dm³ 1.2dm³
Minimum reading 0.00001m³ 0.00001m³
Maximum
reading
99999.99m³ 99999.99m³
Measurement
unit
1m³ 1m³
Basic error limit
±3% （Qmin≤Q＜Qt）
±1.5% (Qt≤Q≤Qmax）
±3% （Qmin≤Q＜Qt）
±1.5% (Qt≤Q≤Qmax ）
Measurement
level
1.5 1.5
Data collection
methods
Photoelectric direct
reading
RS485/M-Bus RS485/M-Bus
Data
Communication
mode
Wireless M-Bus /RF WirelessM-Bus
Wireless M-Bus
/CellMesh
Tightness ≤15kPa without any
leakage
≤15kPa without any
leakage
Pressure loss ≤200Pa（Qmax） ≤200Pa（Qmax）
Maximum
working pressure
10KPa 10KPa ≤10kPa
Operating
Temperature
-10℃～40℃ -10℃～40℃ -10℃～+40℃
Operating
Humidity
≤93%RH ≤93%RH ≤93%RH
Protection class IP67 IP67 IP67
Explosion level Exib IIB T3 Exib IIB T3 Exib IIB T3
Electromagnetic
Compatibility
ESTI EN301489—1 ESTI EN301489—1 ESTI EN301489—1
Certification EN1359:1998/A1:2006
and OIML
R137-1&2:2012
EN1359:1998/A1:2006
and OIML
R137-1&2:2012
EN1359:1998/A1:2006
and OIML
R137-1&2:2012

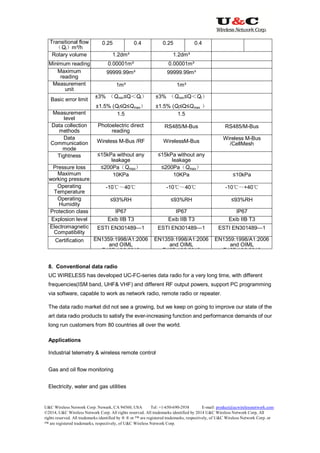

8. Conventional data radio
UC WIRELESS has developed UC-FC-series data radio for a very long time, with different
frequencies(ISM band, UHF& VHF) and different RF output powers, support PC programming
via software, capable to work as network radio, remote radio or repeater.
The data radio market did not see a growing, but we keep on going to improve our state of the
art data radio products to satisfy the ever-increasing function and performance demands of our
long run customers from 80 countries all over the world.
Applications
Industrial telemetry & wireless remote control
Gas and oil flow monitoring
Electricity, water and gas utilities

Earthquake, weather, environmental protection and urban lighting control
Vehicle tracking and asset tracking systems
Water monitoring, wastewater management and irrigation control
Railway, police, army automation system
Aerial defense and fire alarm system
Wireless Paging system

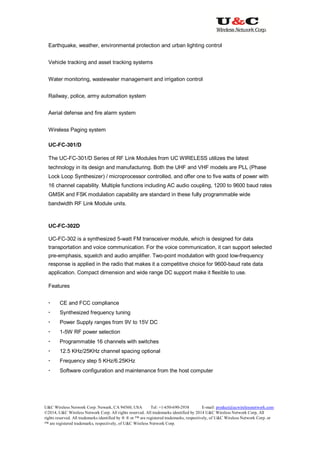

UC-FC-301/D
The UC-FC-301/D Series of RF Link Modules from UC WIRELESS utilizes the latest
technology in its design and manufacturing. Both the UHF and VHF models are PLL (Phase
Lock Loop Synthesizer) / microprocessor controlled, and offer one to five watts of power with
16 channel capability. Multiple functions including AC audio coupling, 1200 to 9600 baud rates
GMSK and FSK modulation capability are standard in these fully programmable wide
bandwidth RF Link Module units.
UC-FC-302D
UC-FC-302 is a synthesized 5-watt FM transceiver module, which is designed for data
transportation and voice communication. For the voice communication, it can support selected
pre-emphasis, squelch and audio amplifier. Two-point modulation with good low-frequency
response is applied in the radio that makes it a competitive choice for 9600-baud rate data
application. Compact dimension and wide range DC support make it flexible to use.
Features
 CE and FCC compliance
 Synthesized frequency tuning
 Power Supply ranges from 9V to 15V DC
 1-5W RF power selection
 Programmable 16 channels with switches
 12.5 KHz/25KHz channel spacing optional
 Frequency step 5 KHz/6.25KHz
 Software configuration and maintenance from the host computer

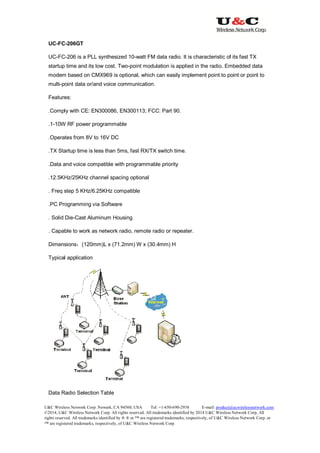

UC-FC-206GT
UC-FC-206 is a PLL synthesized 10-watt FM data radio. It is characteristic of its fast TX
startup time and its low cost. Two-point modulation is applied in the radio. Embedded data
modem based on CMX969 is optional, which can easily implement point to point or point to
multi-point data or/and voice communication.
Features:
.Comply with CE: EN300086, EN300113; FCC: Part 90.
.1-10W RF power programmable
.Operates from 8V to 16V DC
.TX Startup time is less than 5ms, fast RX/TX switch time.
.Data and voice compatible with programmable priority
.12.5KHz/25KHz channel spacing optional
. Freq step 5 KHz/6.25KHz compatible
.PC Programming via Software
. Solid Die-Cast Aluminum Housing
. Capable to work as network radio, remote radio or repeater.
Dimensions：(120mm)L x (71.2mm) W x (30.4mm) H
Typical application
Data Radio Selection Table

Parameter UC-FC-301D UC-FC-302D UC-FC-206GT
Frequency
bands
400-470MHz 400-470MHz 220-235MHz
Baud Rate Max 96000bps Max 19200bps Max 19200bps
Interface RSTTL RSTTL RSTTL
Number of
Channels
16 16 16
Channel spacing
12.5KHz/25KHz
optional
12.5KHz/25KHz
optional
12.5KHz/25KHz
optional
Max output
power
1-5W
programmable
1-10W programmable 1-10W programmable
TX Current
1.5A for
transmitting 5w;
0.8A for
transmitting 1w
1.5A for transmitting
5w; 0.8A for
transmitting 1w
（10watts RF
Power,13.8V）＜2A
Standby Current ≤40mA ≤40mA ≤60mA
Power supply
12.5V DC Nominal
Voltage
12.5V DC Nominal
Voltage
13.8V DC Nominal
Voltage
Operating
Temperature
range
-30℃ to +60℃ -30℃ to +65℃ -40℃ to +70℃
Parameter UC-FC-301D UC-FC-302D
UC-FC-206GT
Accessories: Data modem, Bridge board

UC-GUIDE RE

More Related Content

What's hot

Similar to UC-GUIDE RE

UC-GUIDE RE
