1. TYPES OF HOUSING AND
RESIDINTIAL BLOCKS
ROJ CITY GROUP:
JWAN MEDHAT SEPAN HAYRAN
RAND FAREED DARISTAN AZIZ

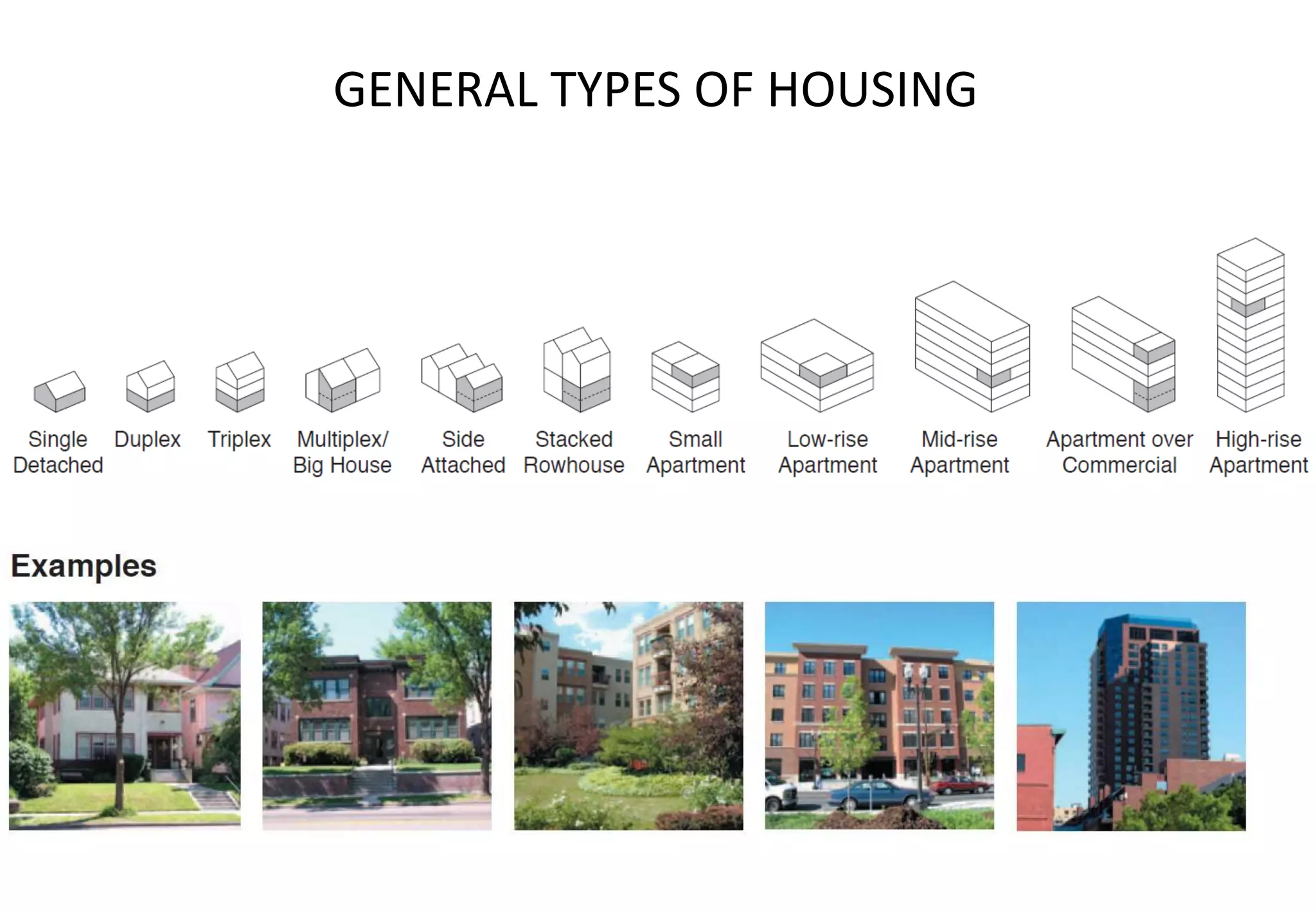

2. GENERAL TYPES OF HOUSING

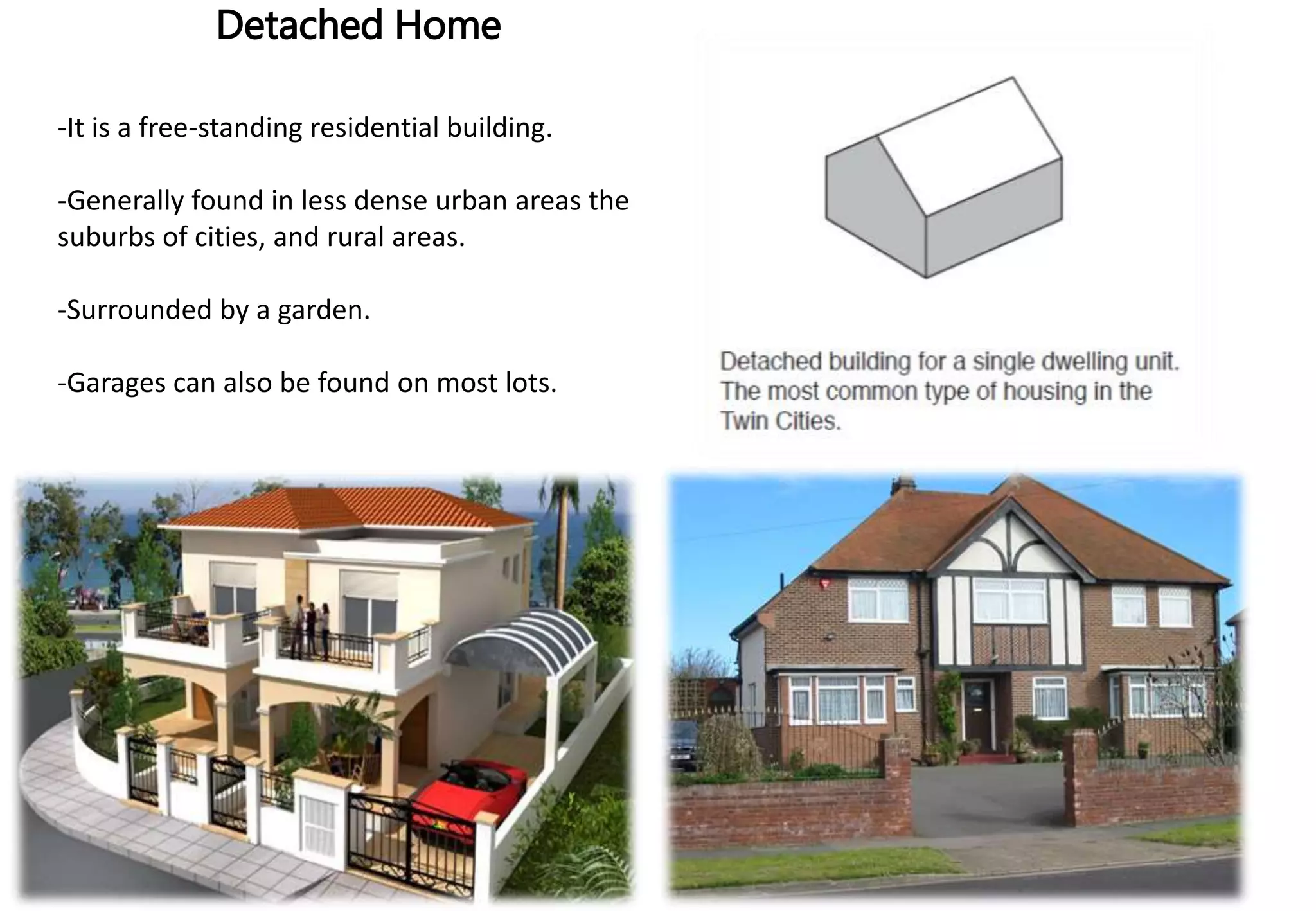

3. Detached Home
-It is a free-standing residential building.
-Generally found in less dense urban areas the
suburbs of cities, and rural areas.
-Surrounded by a garden.
-Garages can also be found on most lots.

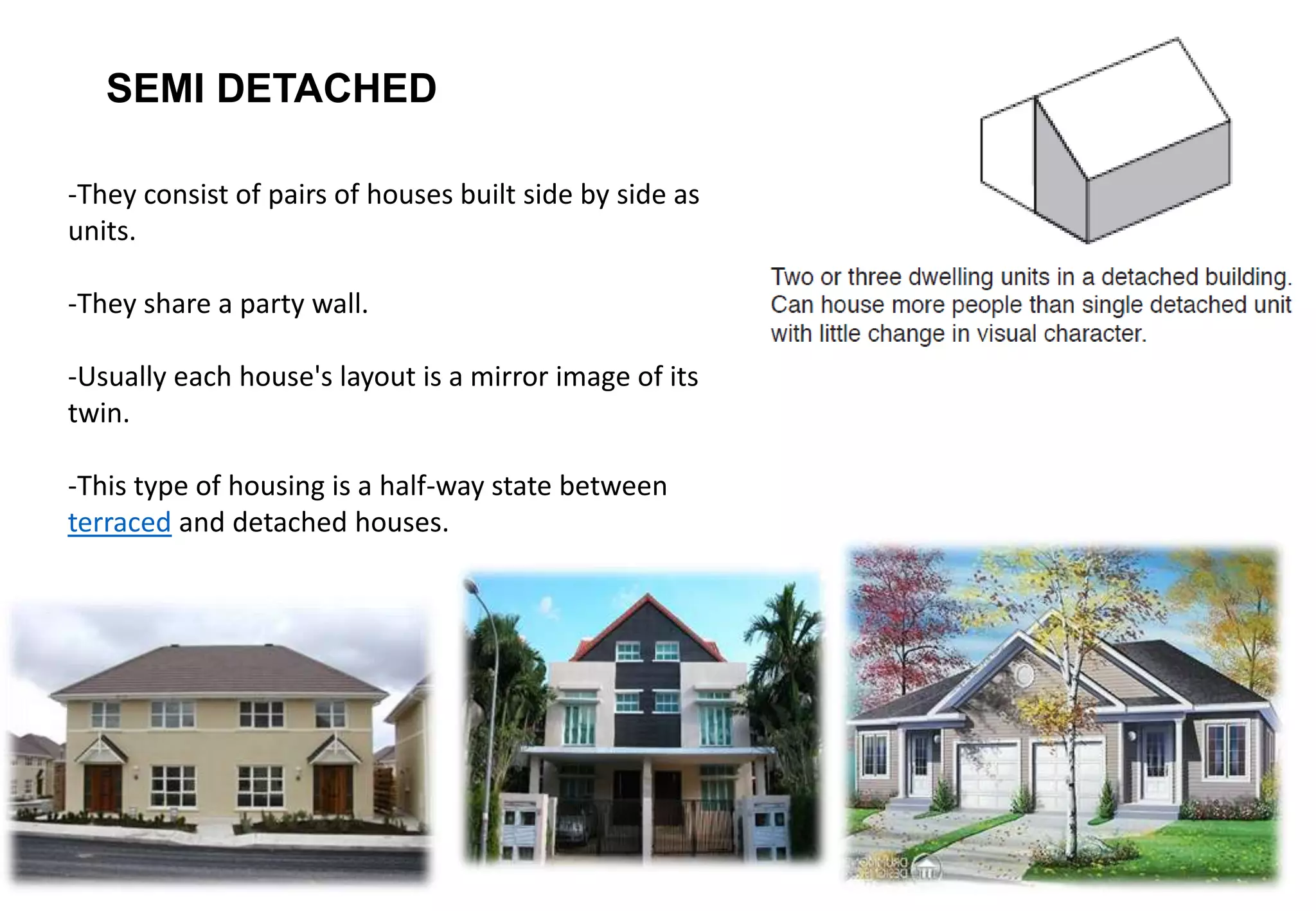

4. SEMI DETACHED
-They consist of pairs of houses built side by side as
units.
-They share a party wall.
-Usually each house's layout is a mirror image of its
twin.
-This type of housing is a half-way state between
terraced and detached houses.

5. 5

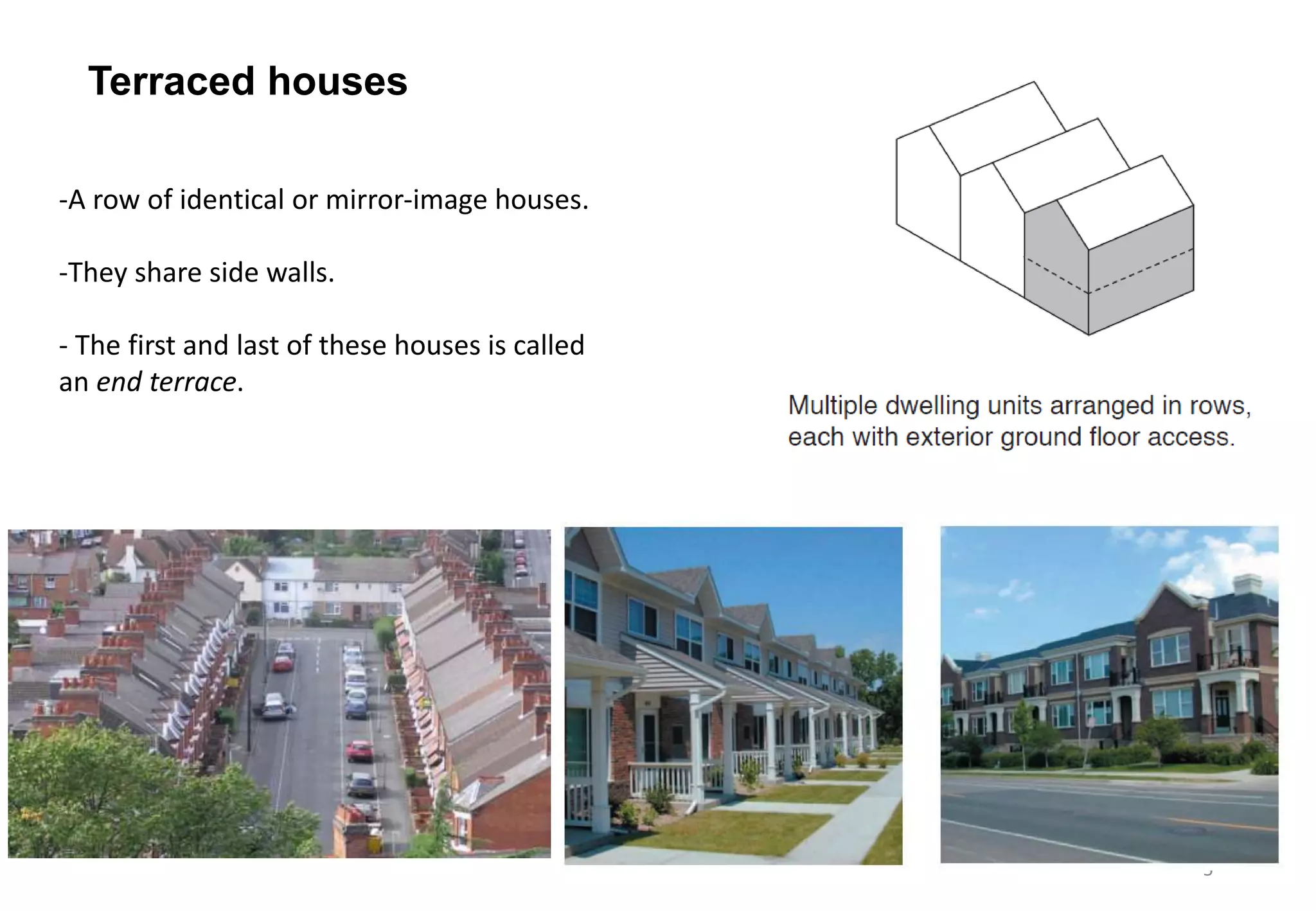

Terraced houses
-A row of identical or mirror-image houses.
-They share side walls.
- The first and last of these houses is called
an end terrace.

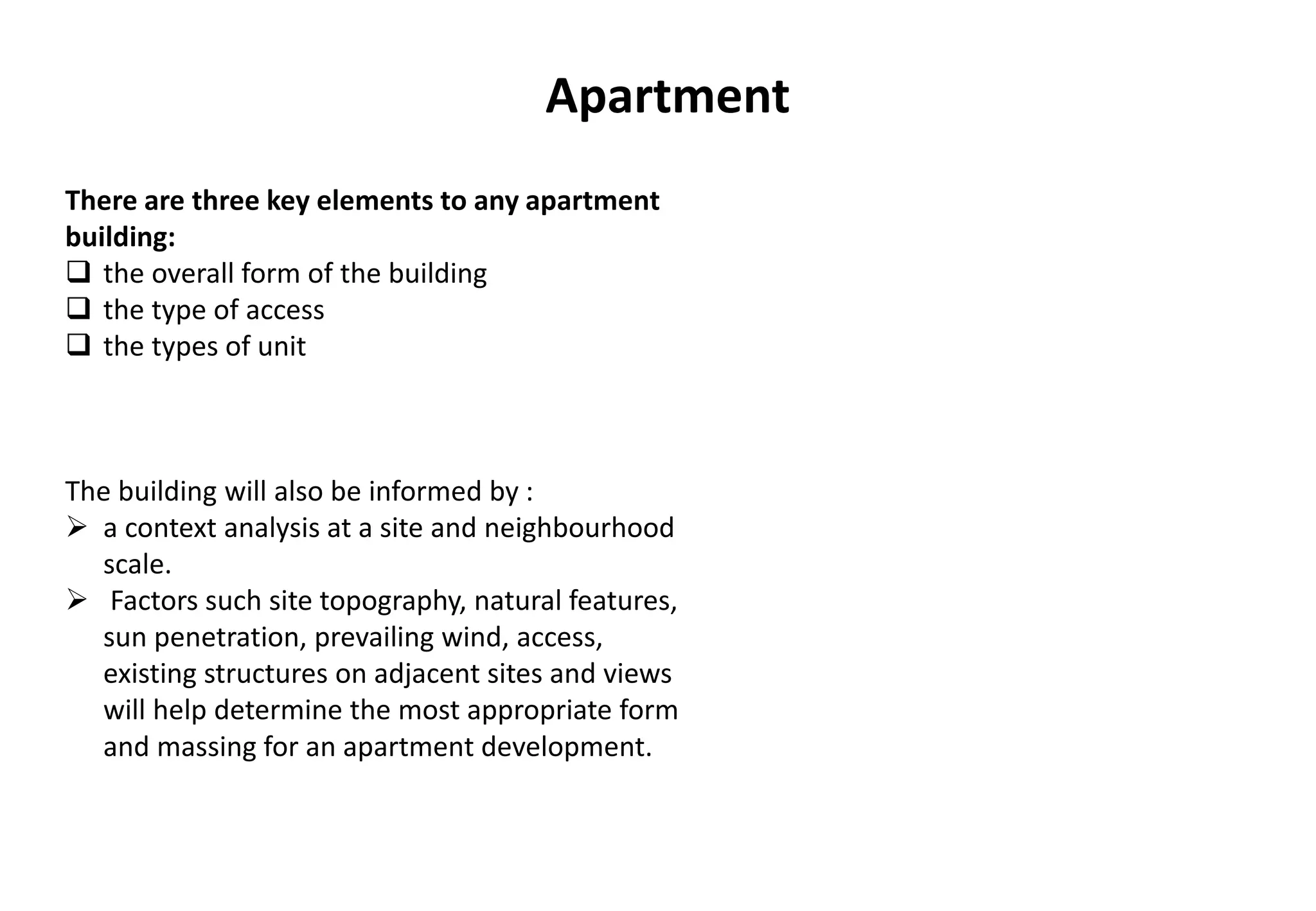

6. Apartment
The building will also be informed by :
 a context analysis at a site and neighbourhood
scale.
 Factors such site topography, natural features,
sun penetration, prevailing wind, access,
existing structures on adjacent sites and views
will help determine the most appropriate form
and massing for an apartment development.
There are three key elements to any apartment
building:
 the overall form of the building
 the type of access
 the types of unit

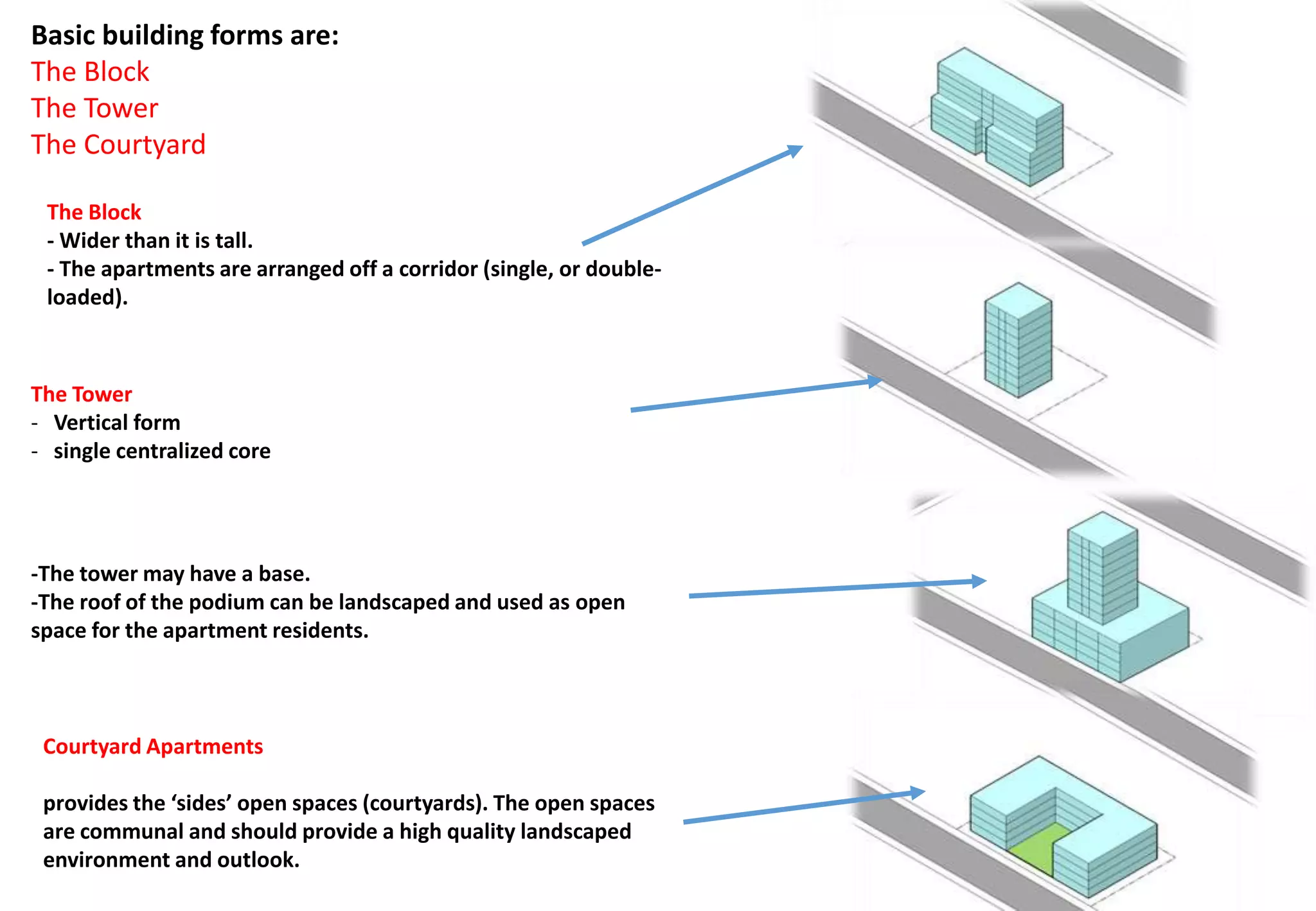

7. ​​​Basic building forms are:
The Block
The Tower
The Courtyard
The Block
- Wider than it is tall.
- The apartments are arranged off a corridor (single, or double-
loaded).
The Tower
- Vertical form
- single centralized core
-The tower may have a base.
-The roof of the podium can be landscaped and used as open
space for the apartment residents.​
Courtyard Apartments
provides the ‘sides’ open spaces (courtyards). The open spaces
are communal and should provide a high quality landscaped
environment and outlook.

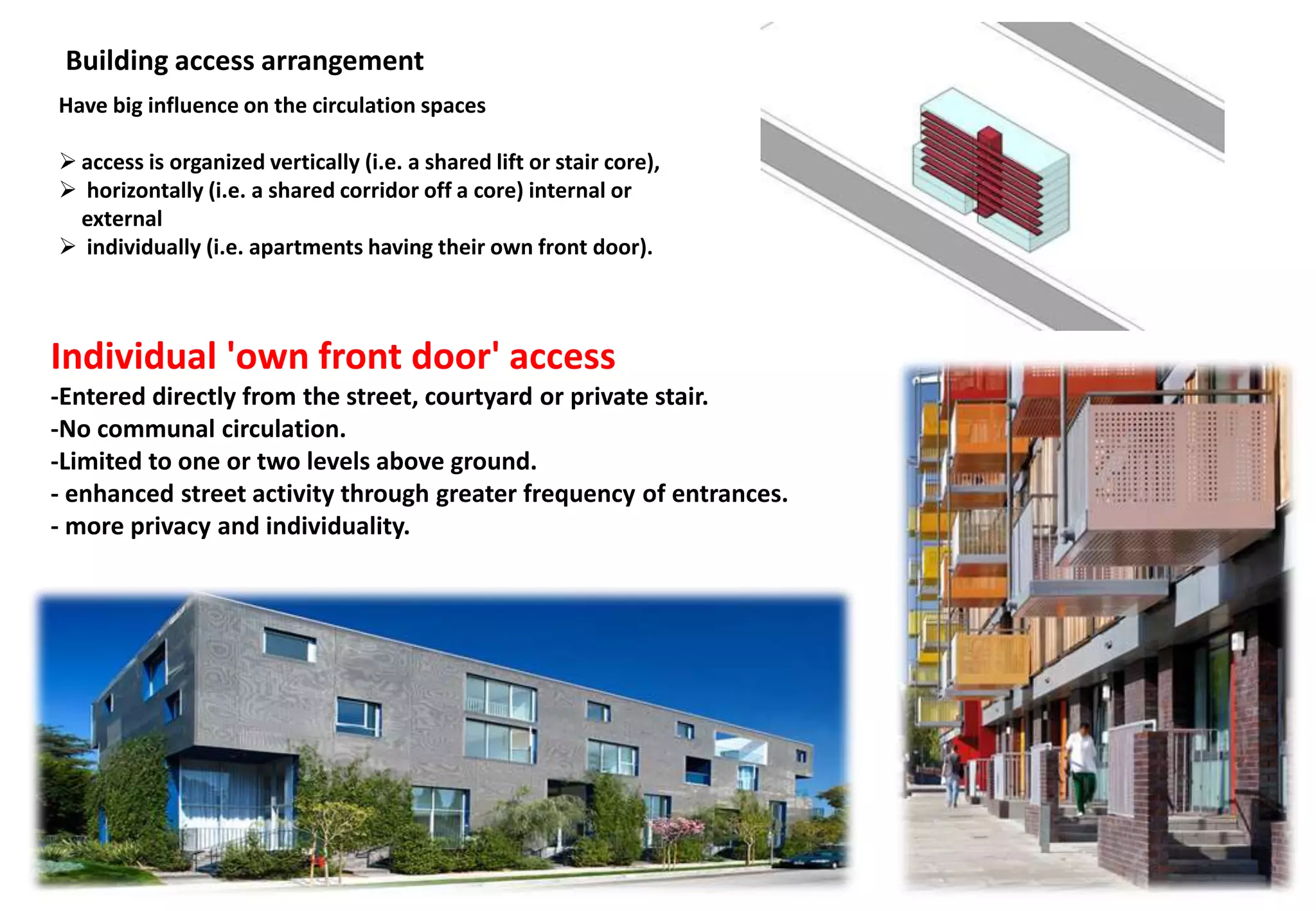

8. Building access arrangement
Have big influence on the circulation spaces
 access is organized vertically (i.e. a shared lift or stair core),
 horizontally (i.e. a shared corridor off a core) internal or
external
 individually (i.e. apartments having their own front door).
Individual 'own front door' access
-Entered directly from the street, courtyard or private stair.
-No communal circulation.
-Limited to one or two levels above ground.
- enhanced street activity through greater frequency of entrances.
- more privacy and individuality.

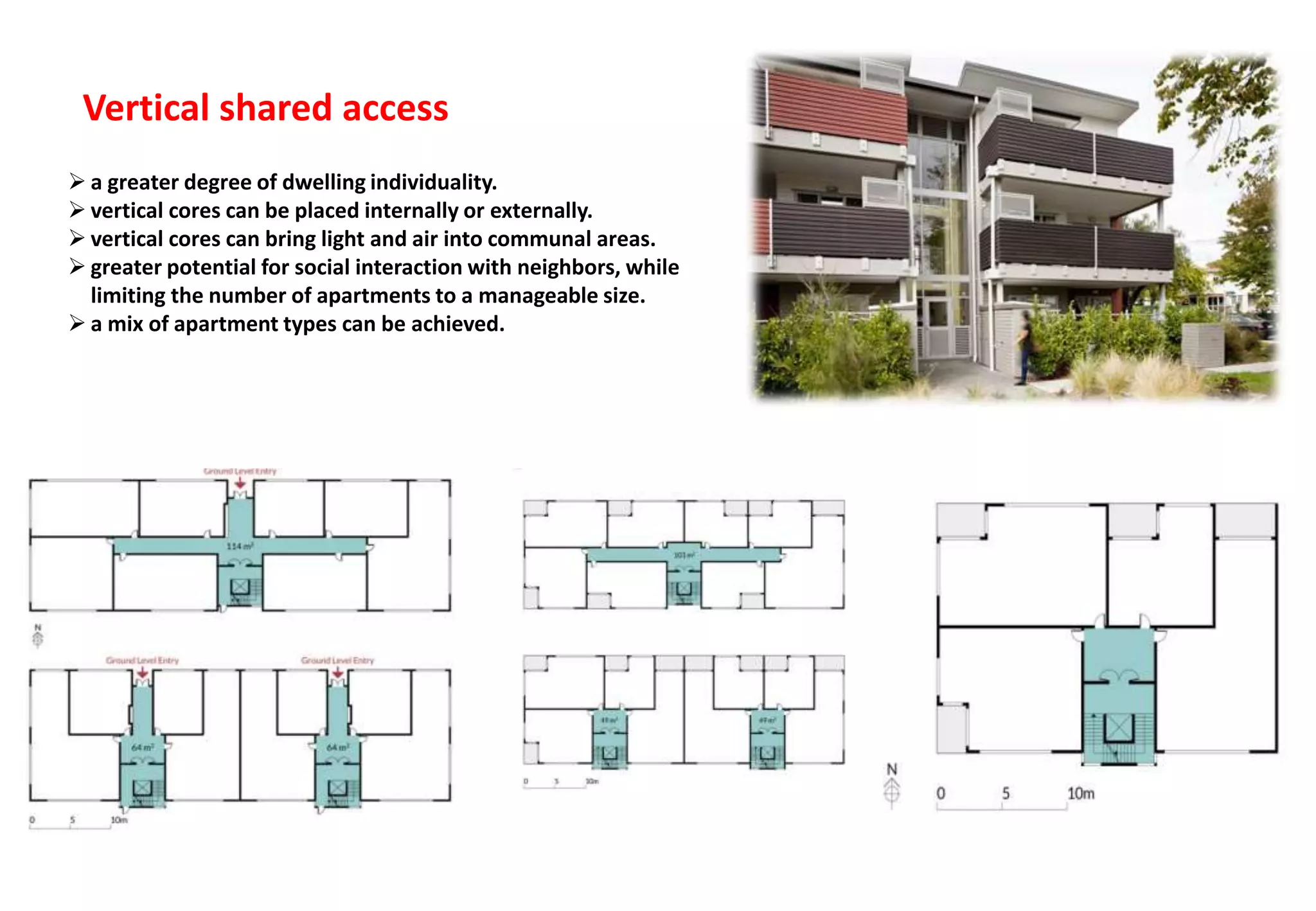

9. Vertical shared access
 a greater degree of dwelling individuality.
 vertical cores can be placed internally or externally.
 vertical cores can bring light and air into communal areas.
 greater potential for social interaction with neighbors, while
limiting the number of apartments to a manageable size.
 a mix of apartment types can be achieved.

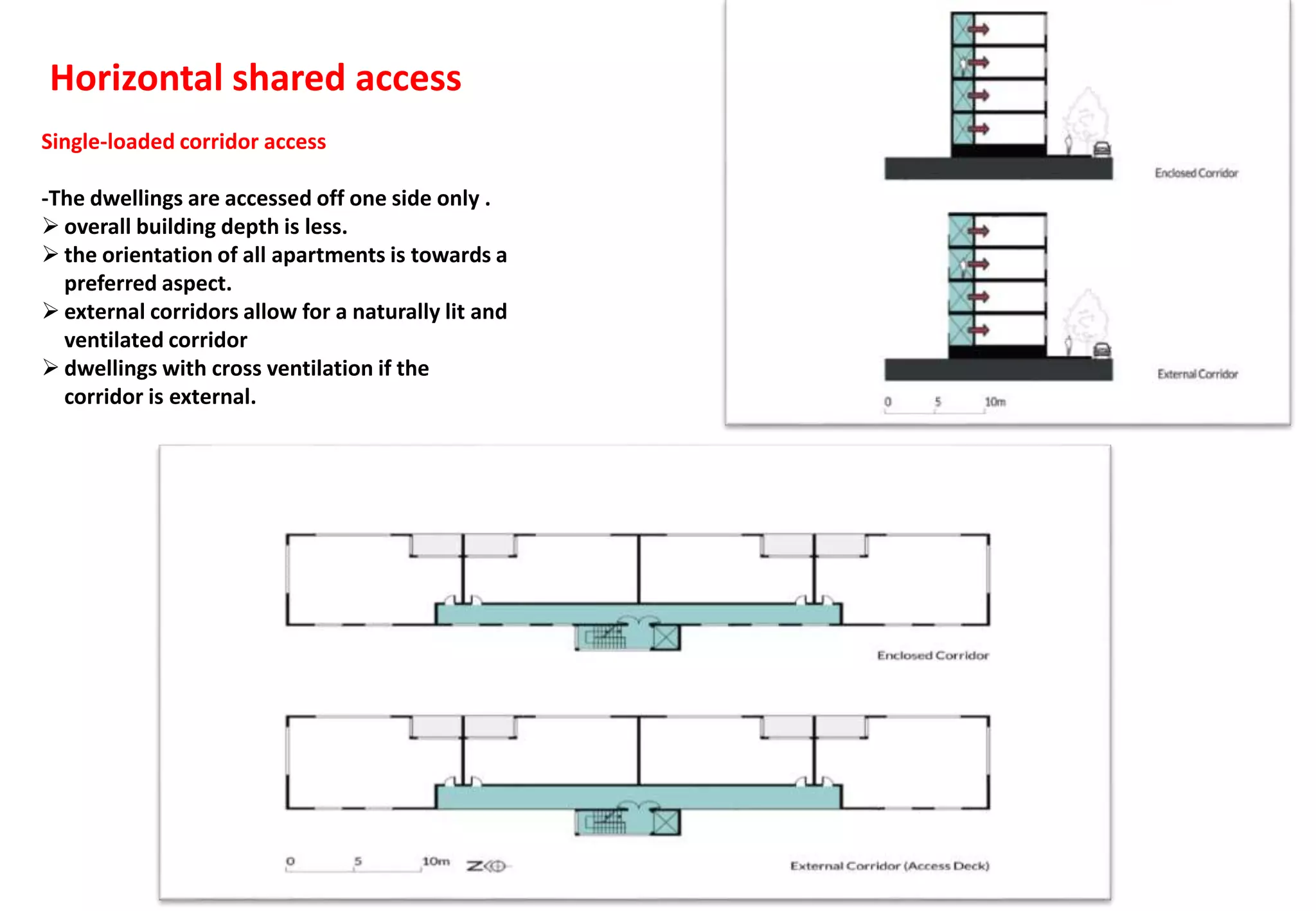

10. Horizontal shared access
Single-loaded corridor access
-The dwellings are accessed off one side only .
 overall building depth is less.
 the orientation of all apartments is towards a
preferred aspect.
 external corridors allow for a naturally lit and
ventilated corridor
 dwellings with cross ventilation if the
corridor is external.

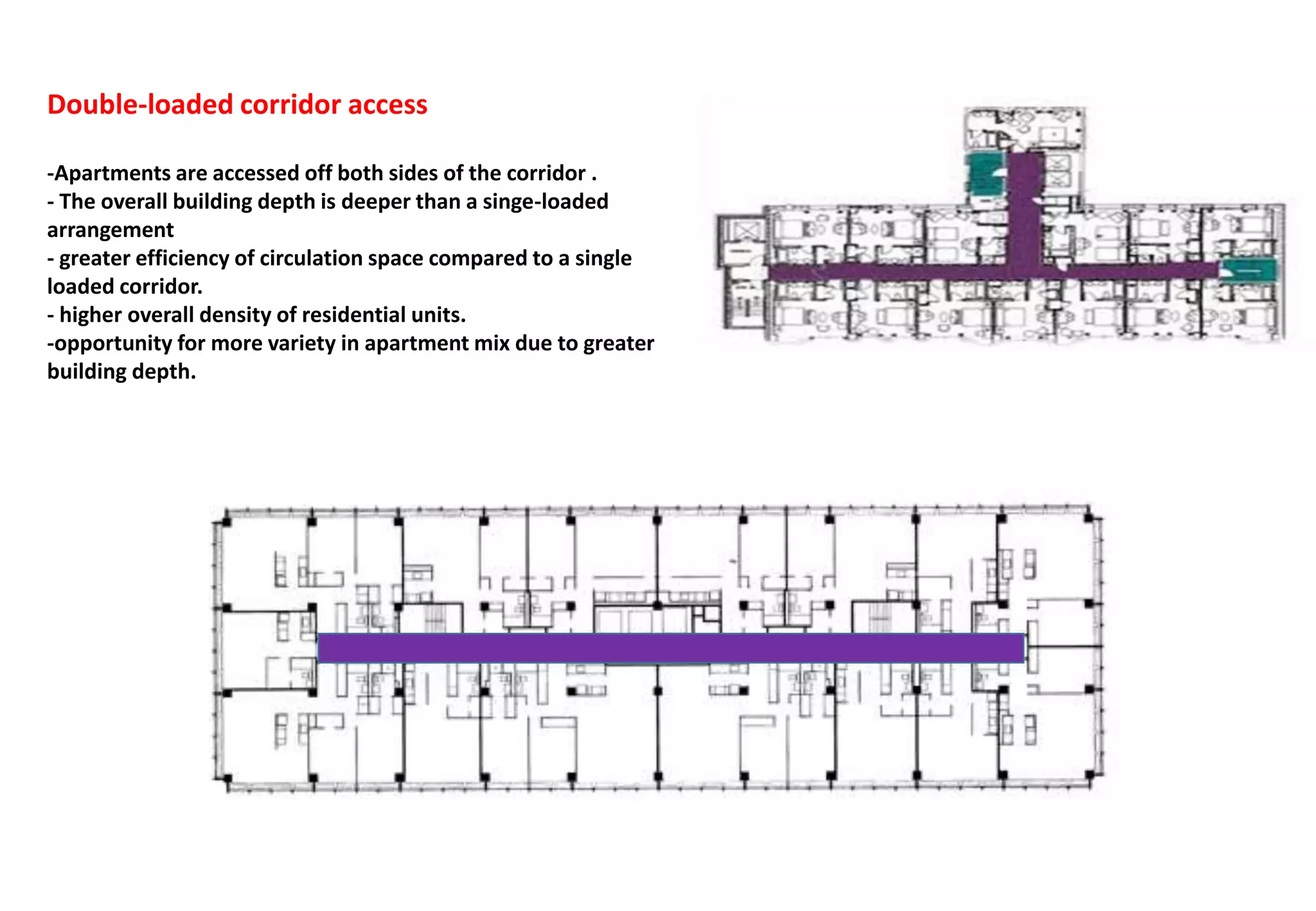

11. Double-loaded corridor access
-Apartments are accessed off both sides of the corridor .
- The overall building depth is deeper than a singe-loaded
arrangement
- greater efficiency of circulation space compared to a single
loaded corridor.
- higher overall density of residential units.
-opportunity for more variety in apartment mix due to greater
building depth.

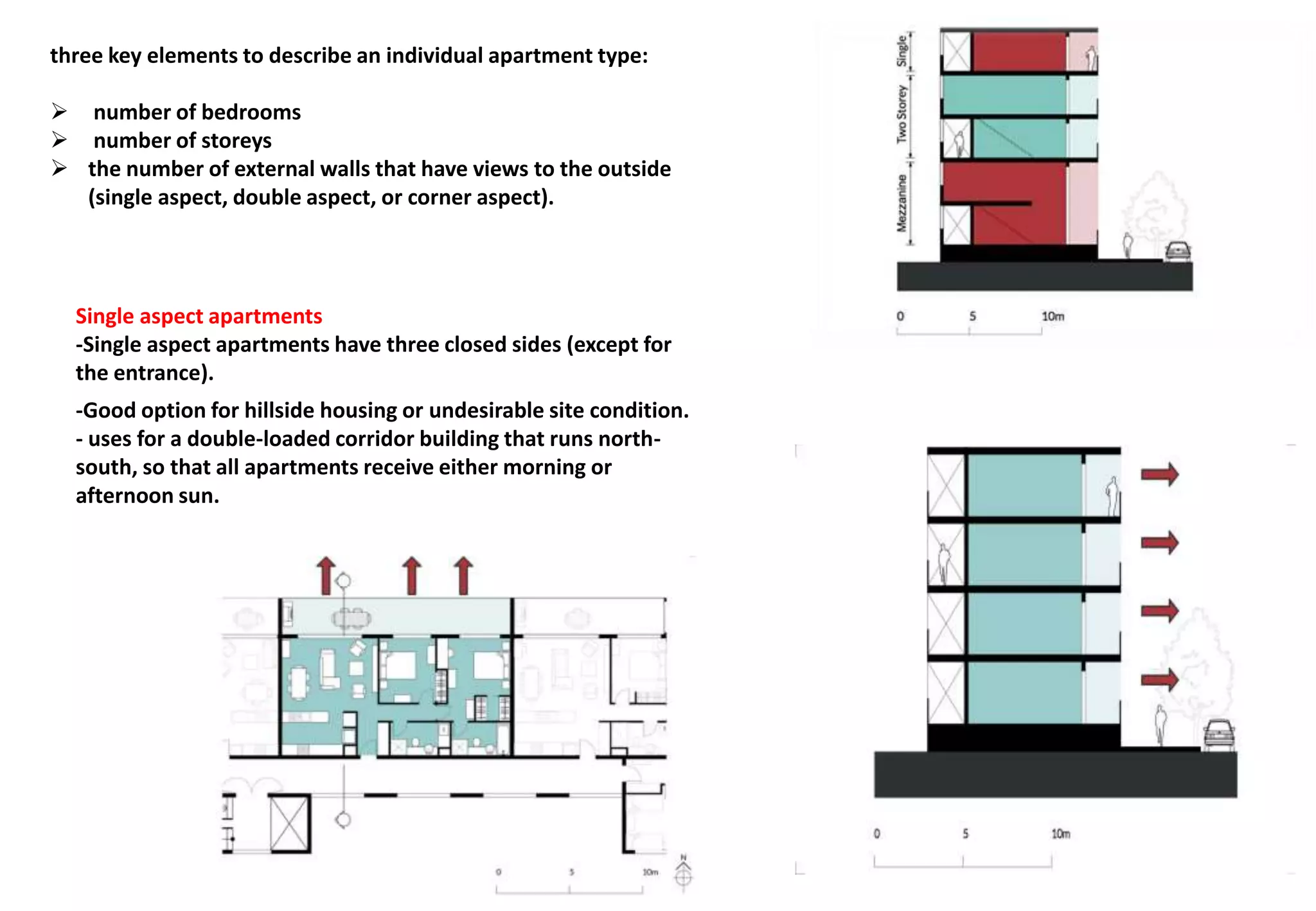

12. ​three key elements to describe an individual apartment type:
 number of bedrooms
 number of storeys
 the number of external walls that have views to the outside
(single aspect, double aspect, or corner aspect).
Single aspect apartments
-Single aspect apartments have three closed sides (except for
the entrance).
-Good option for hillside housing or undesirable site condition.
- uses for a double-loaded corridor building that runs north-
south, so that all apartments receive either morning or
afternoon sun.

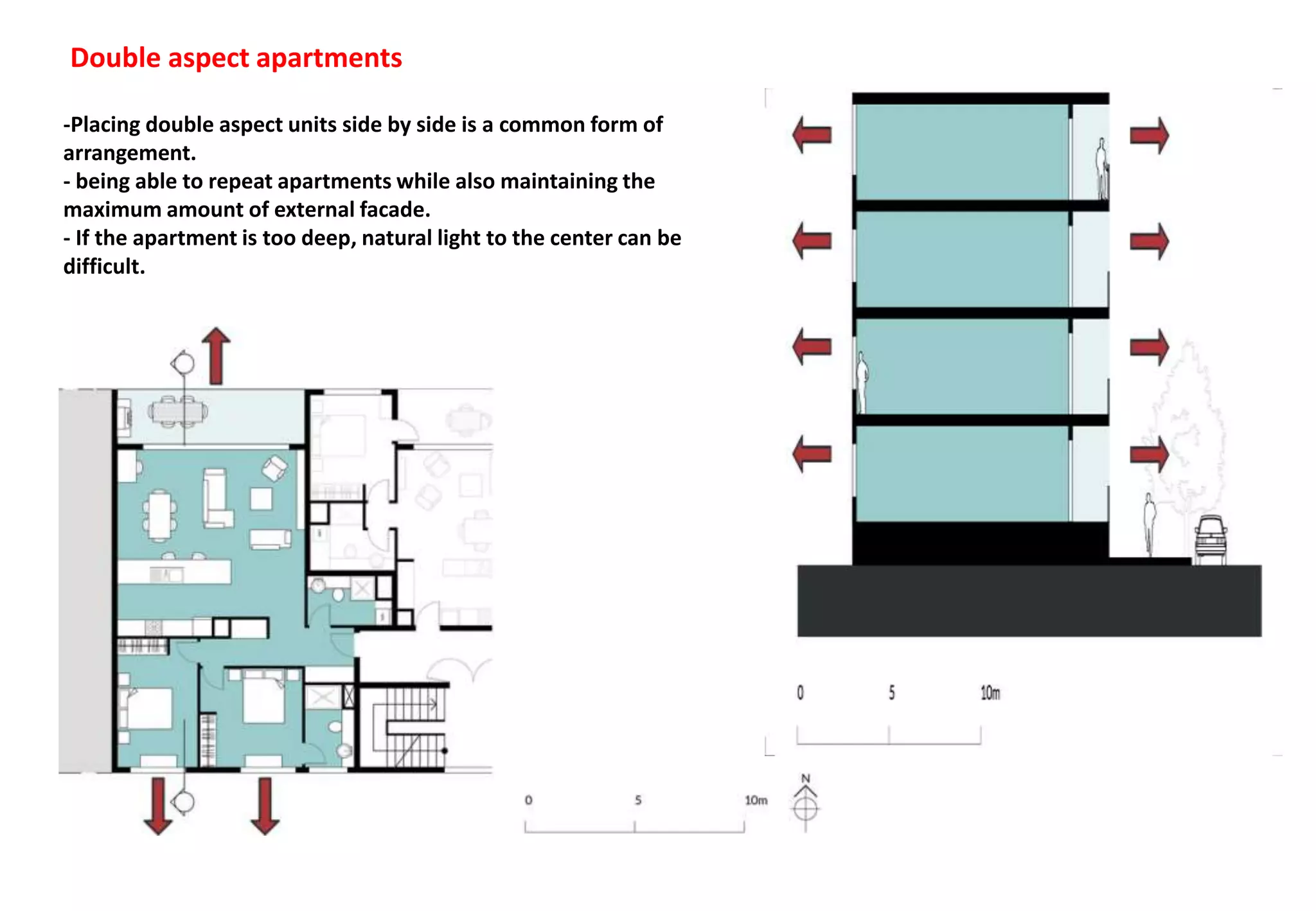

13. Double aspect apartments
-Placing double aspect units side by side is a common form of
arrangement.
- being able to repeat apartments while also maintaining the
maximum amount of external facade.
- If the apartment is too deep, natural light to the center can be
difficult.

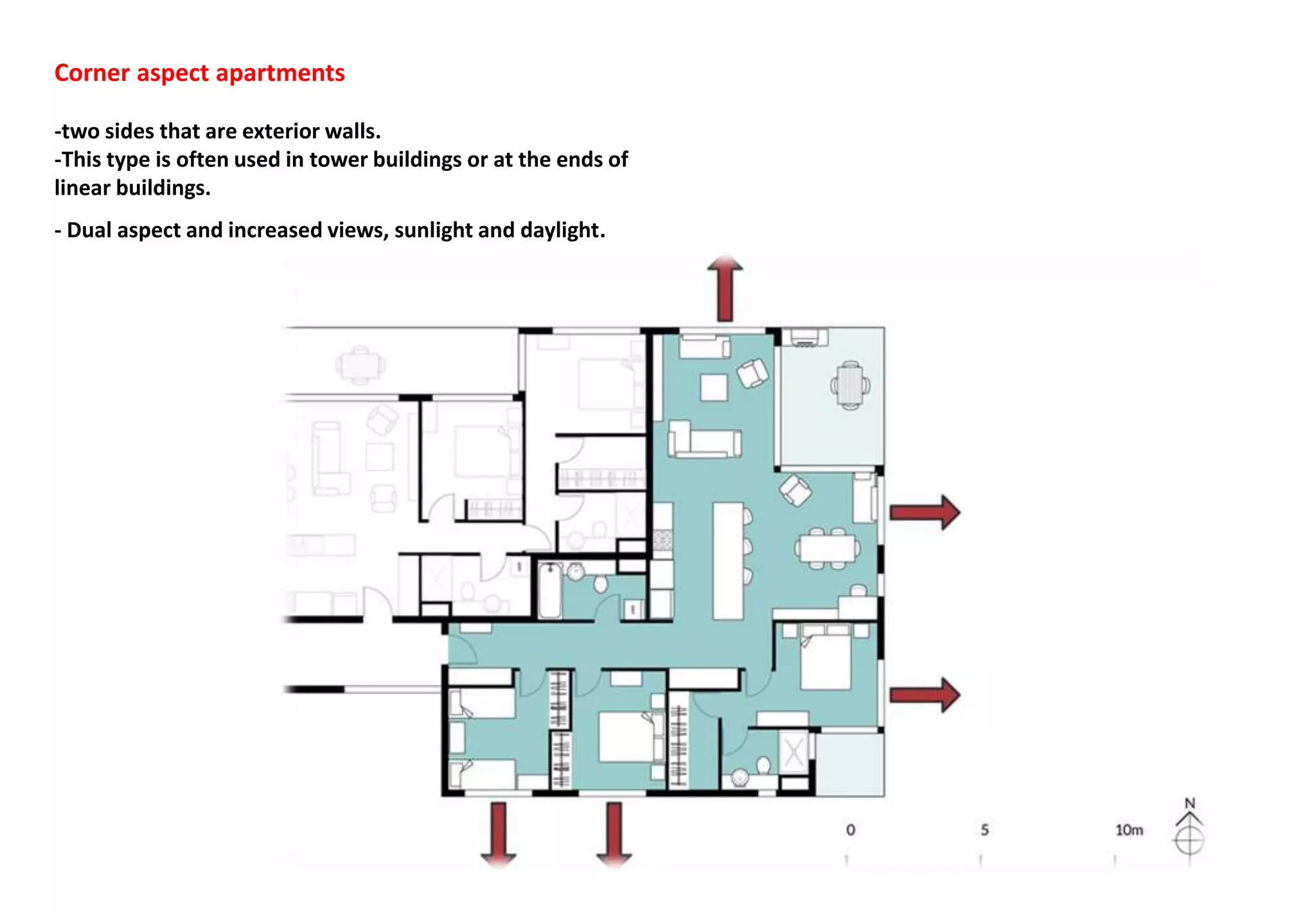

14. Corner aspect apartments
-two sides that are exterior walls.
-This type is often used in tower buildings or at the ends of
linear buildings.
- Dual aspect and increased views, sunlight and daylight.

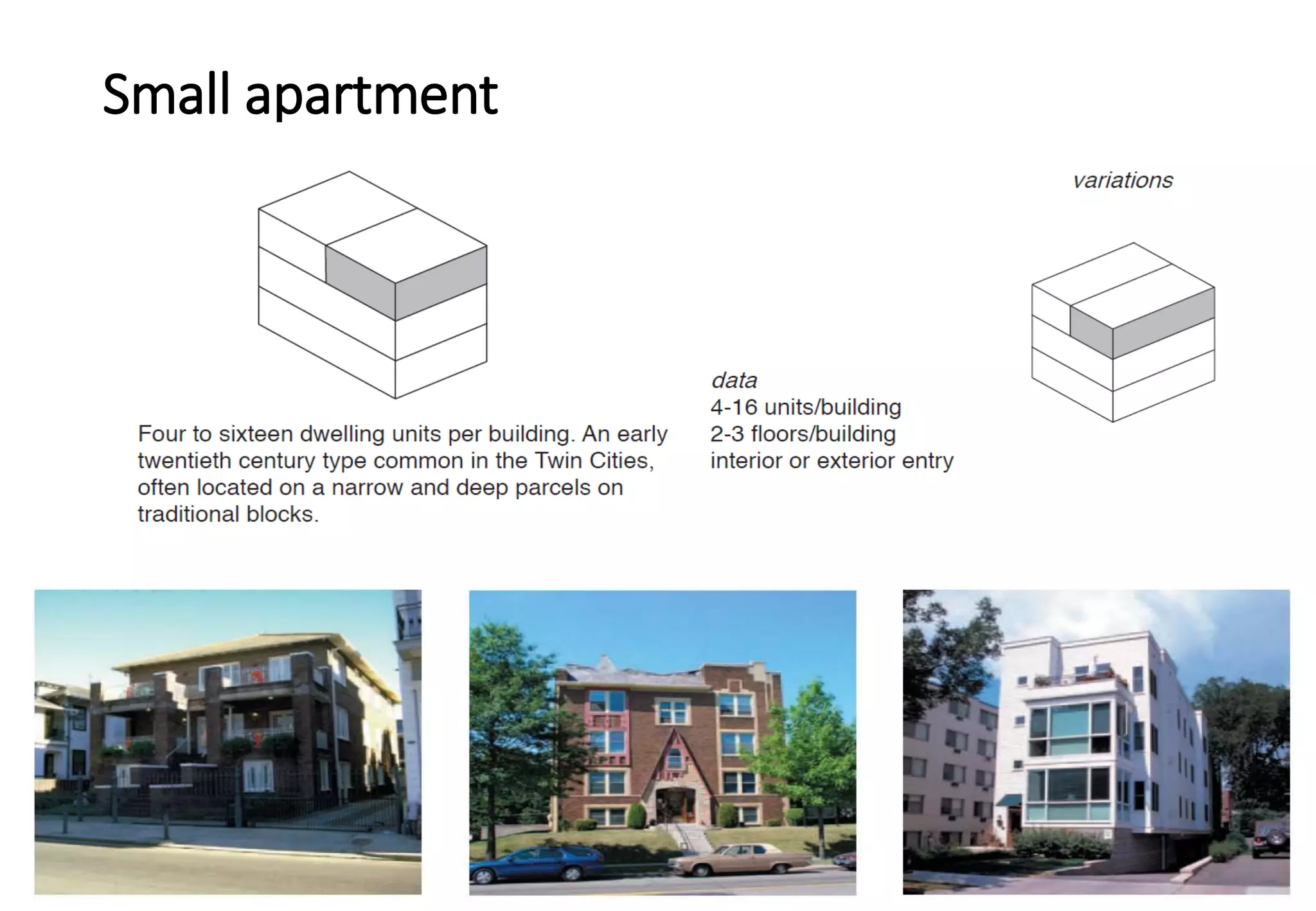

15. Small apartment

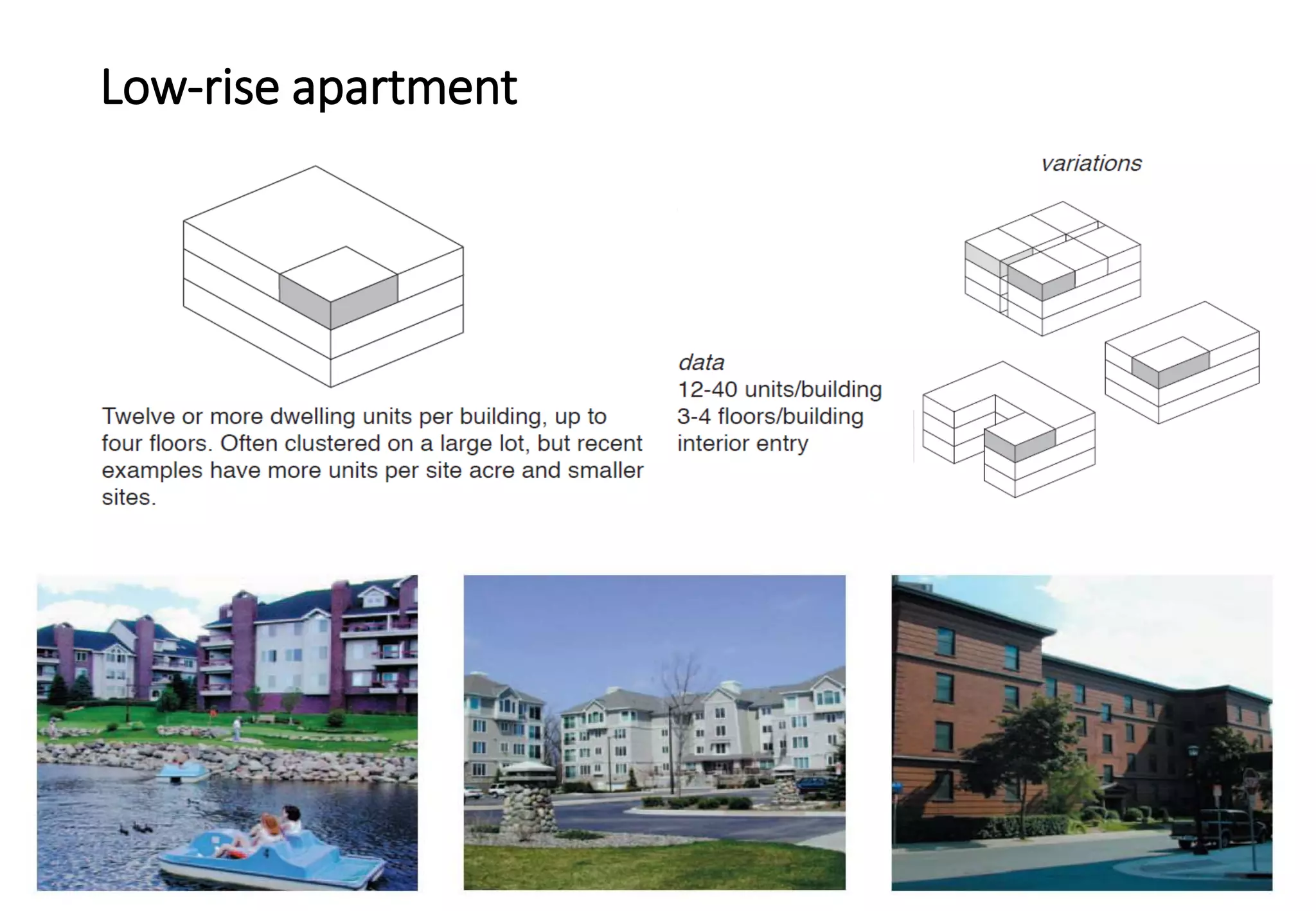

16. Low-rise apartment

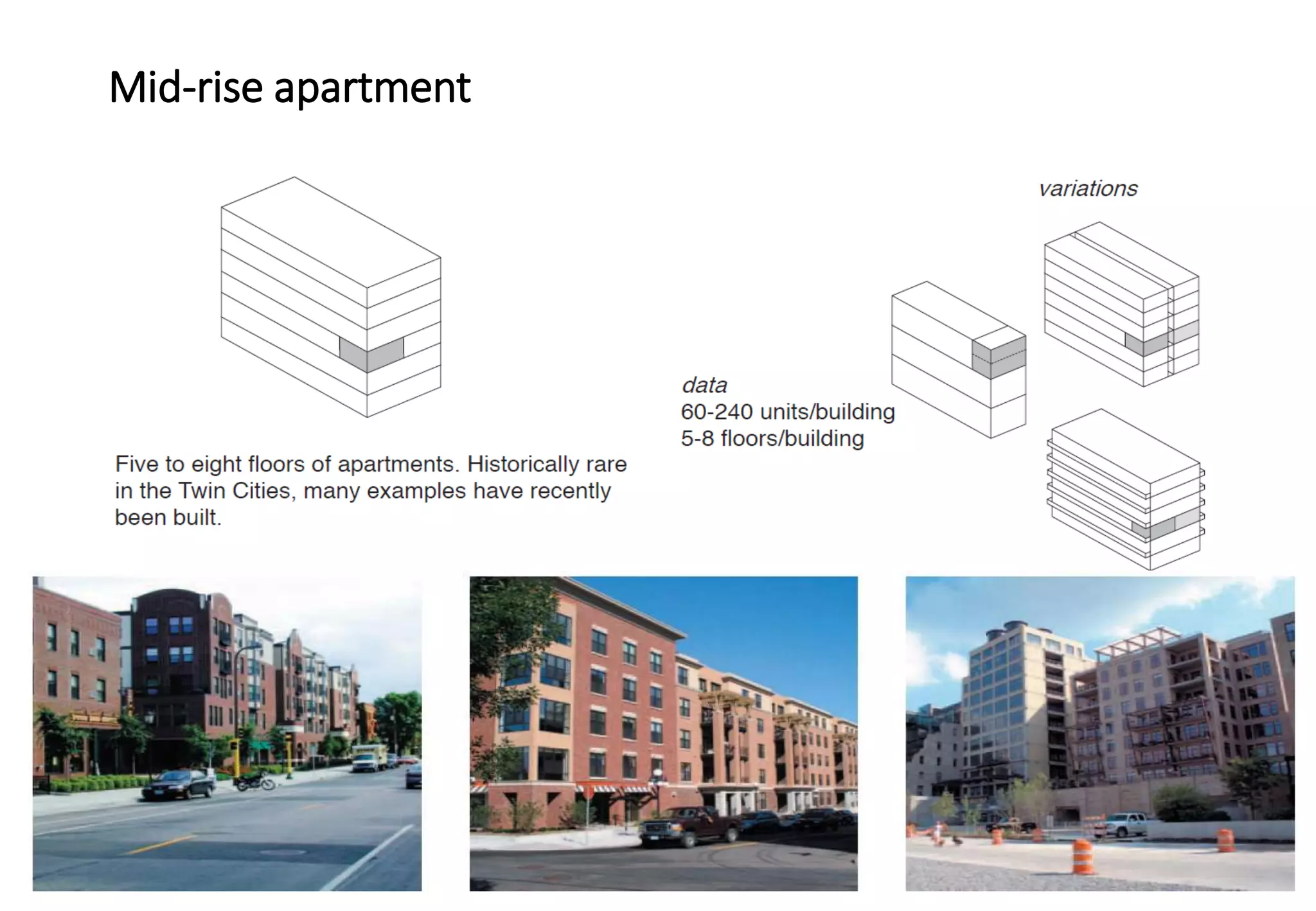

17. Mid-rise apartment

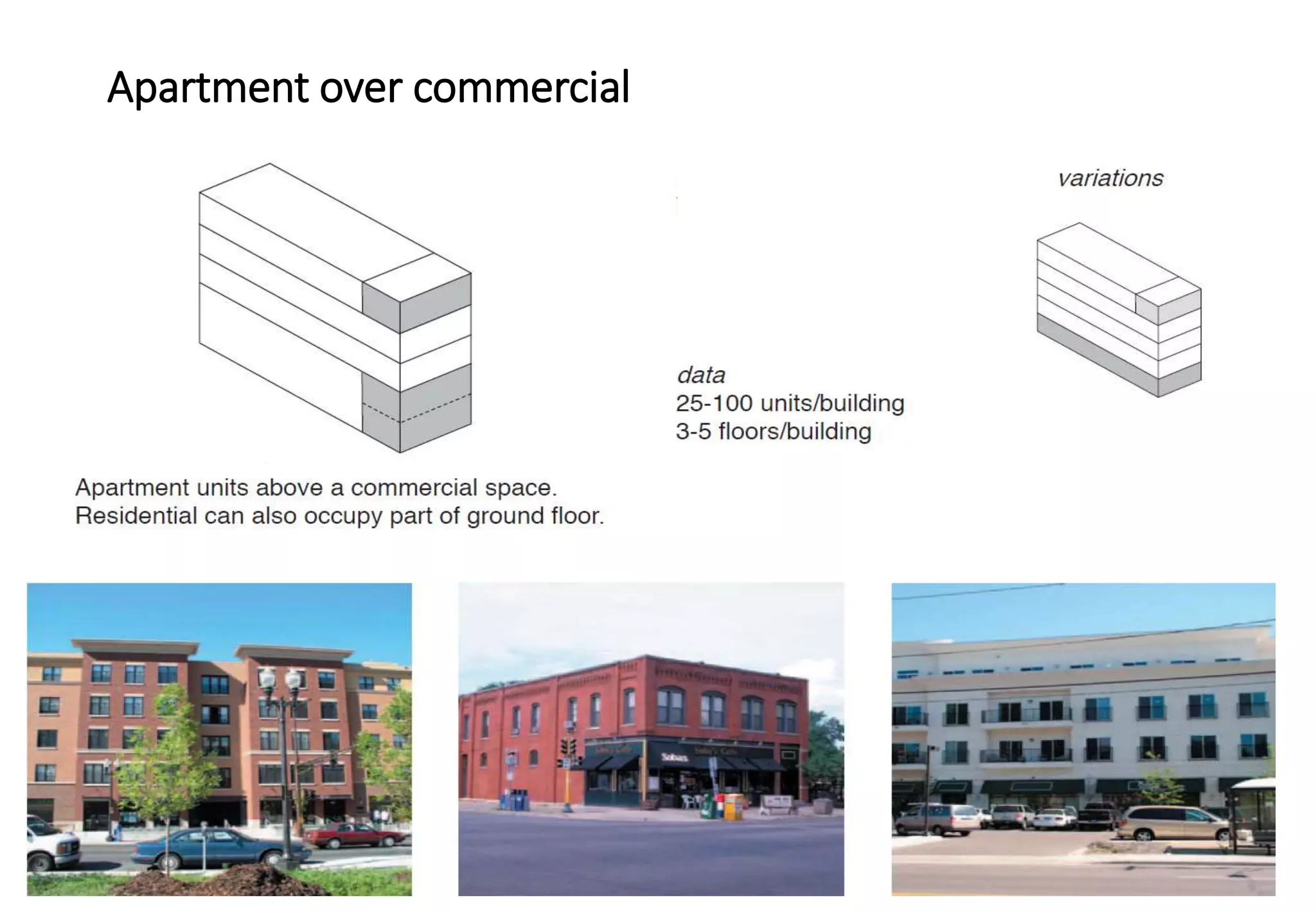

18. Apartment over commercial

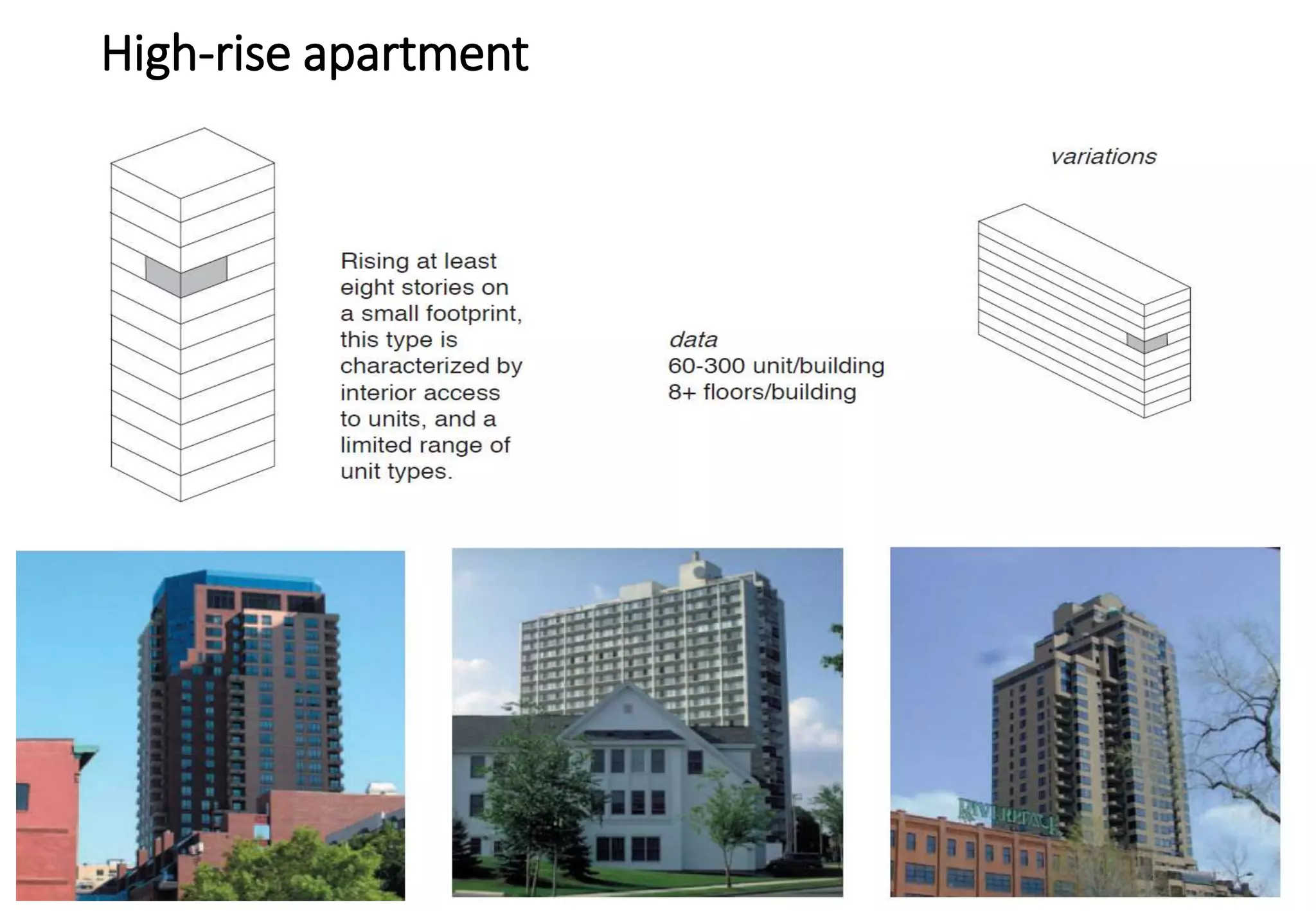

19. High-rise apartment

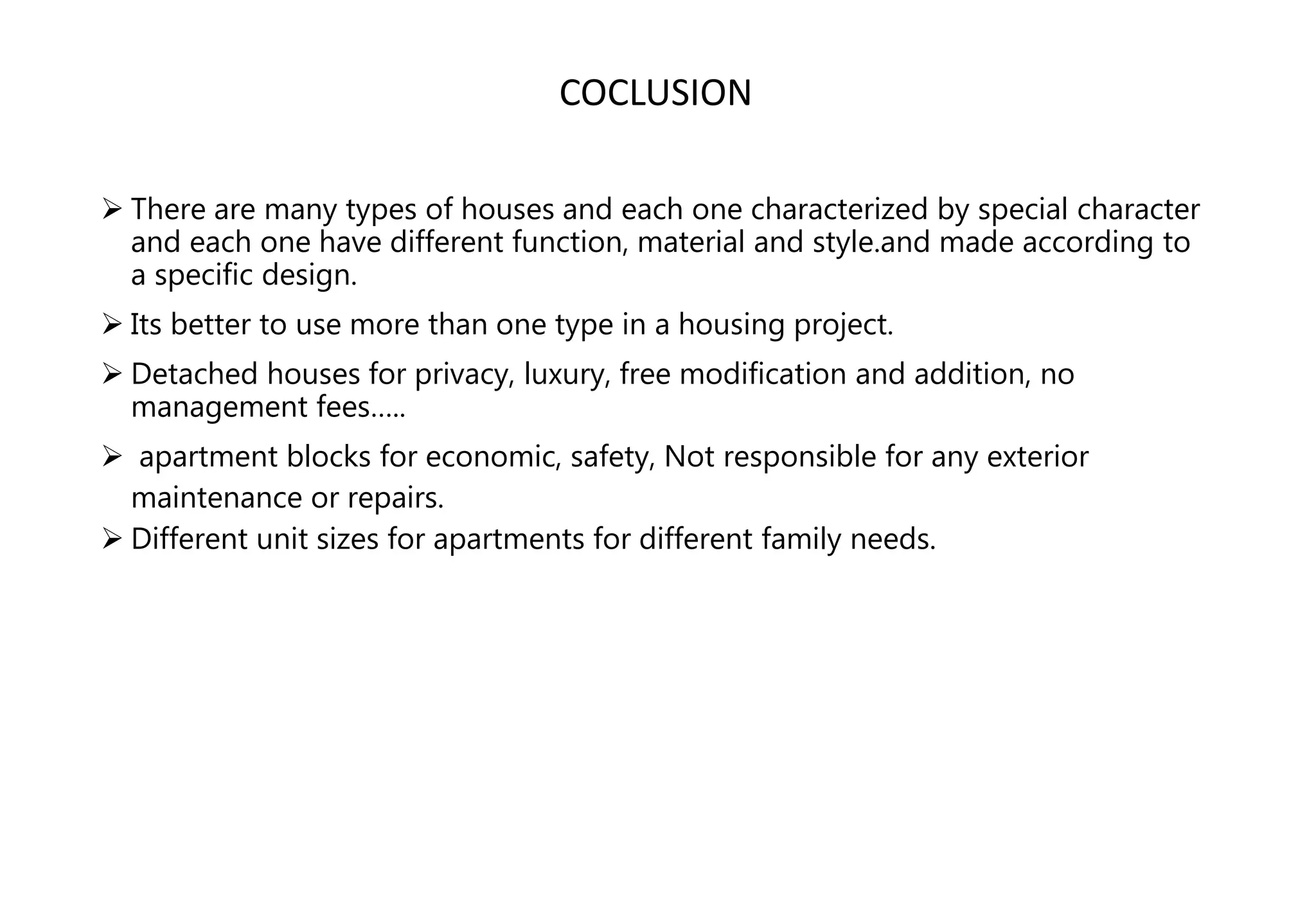

20.  There are many types of houses and each one characterized by special character
and each one have different function, material and style.and made according to
a specific design.
 Its better to use more than one type in a housing project.
 Detached houses for privacy, luxury, free modification and addition, no
management fees…..
 apartment blocks for economic, safety, Not responsible for any exterior
maintenance or repairs.
 Different unit sizes for apartments for different family needs.
COCLUSION

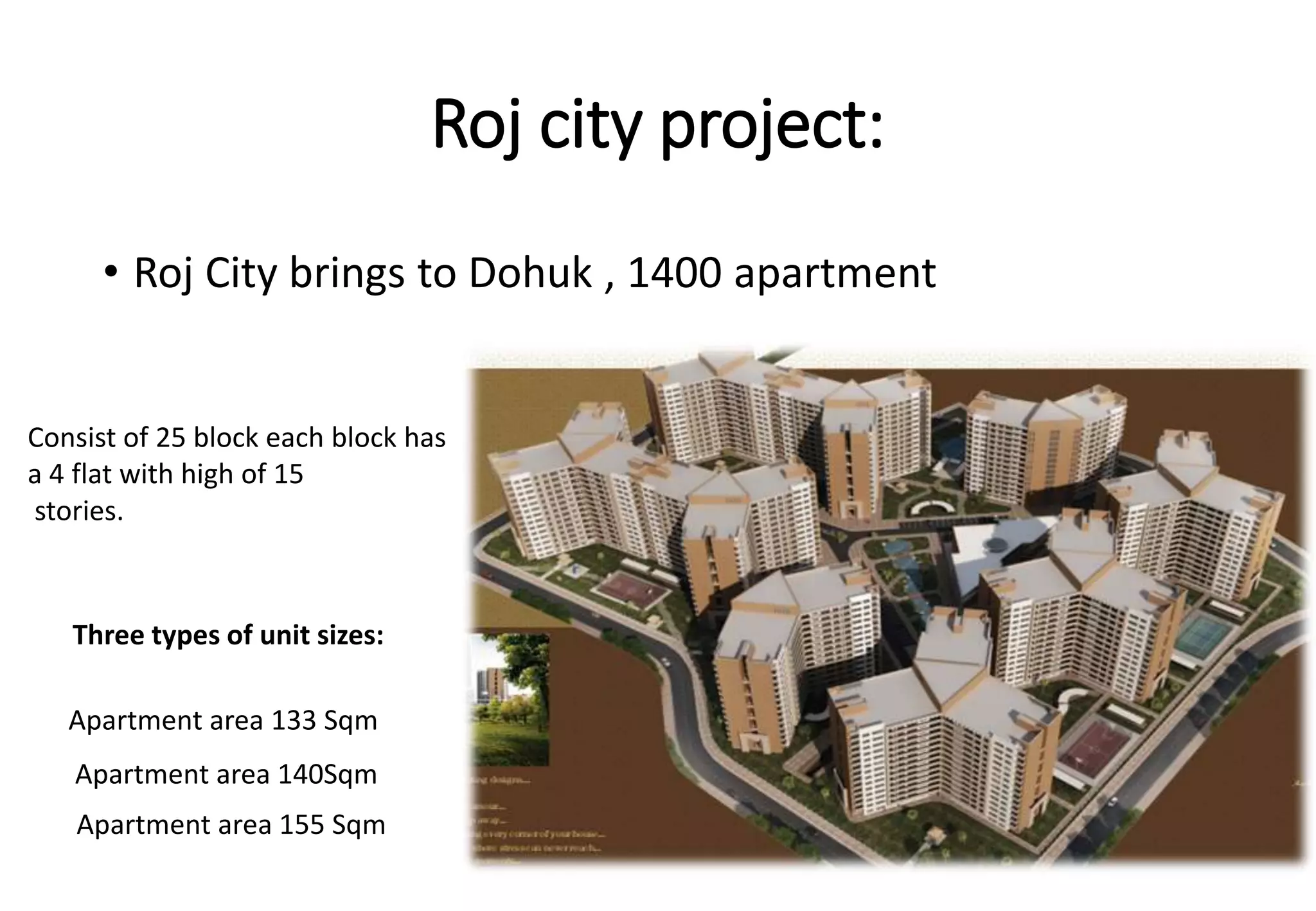

21. • Roj City brings to Dohuk , 1400 apartment
Roj city project:
Consist of 25 block each block has
a 4 flat with high of 15
stories.
Apartment area 133 Sqm
Apartment area 140Sqm
Apartment area 155 Sqm
Three types of unit sizes:

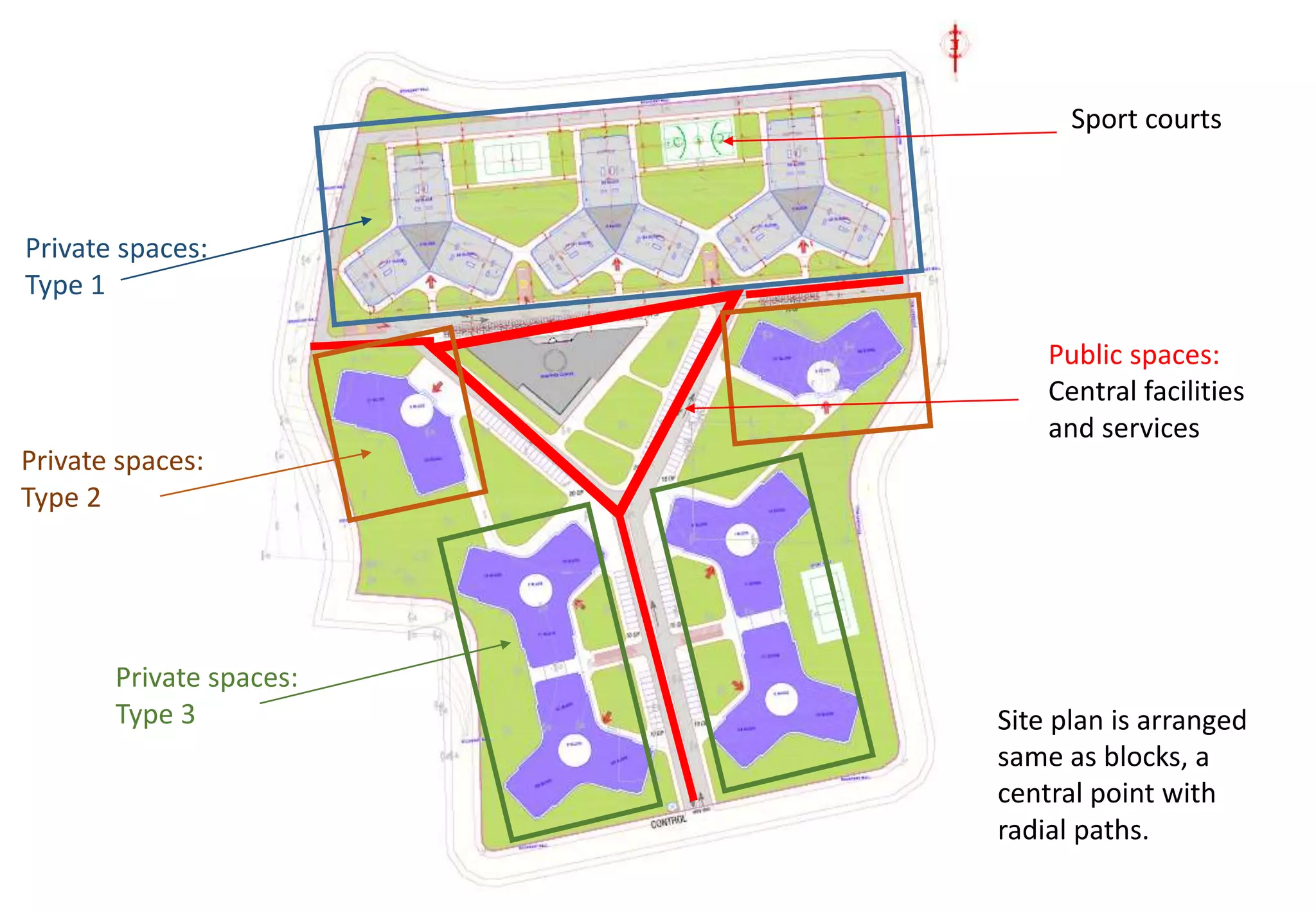

22. Private spaces:
Type 3
Public spaces:
Central facilities
and services
Site plan is arranged
same as blocks, a
central point with
radial paths.
Sport courts
Private spaces:
Type 2
Private spaces:
Type 1

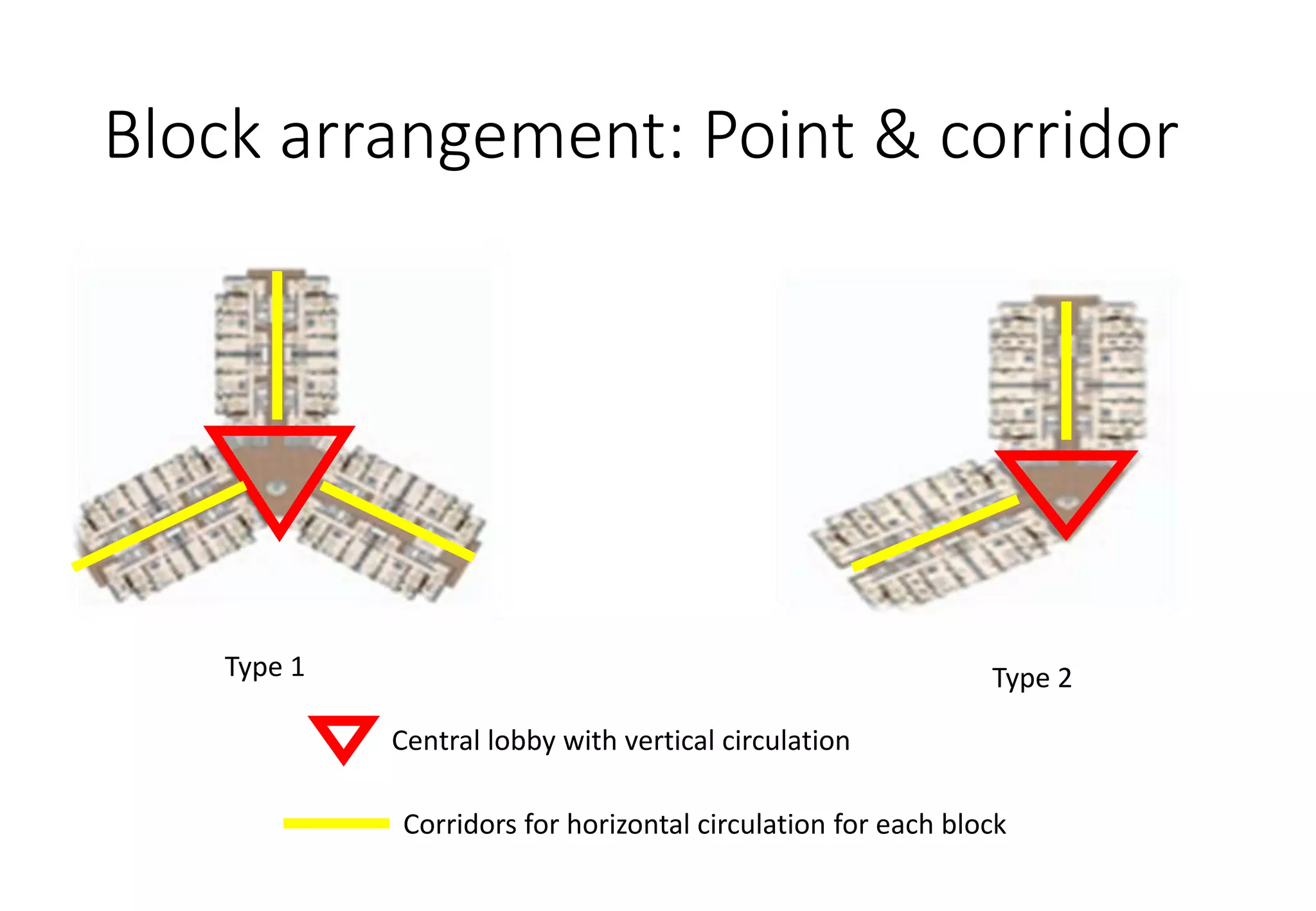

24. Block arrangement: Point & corridor
Central lobby with vertical circulation
Corridors for horizontal circulation for each block
Type 1 Type 2

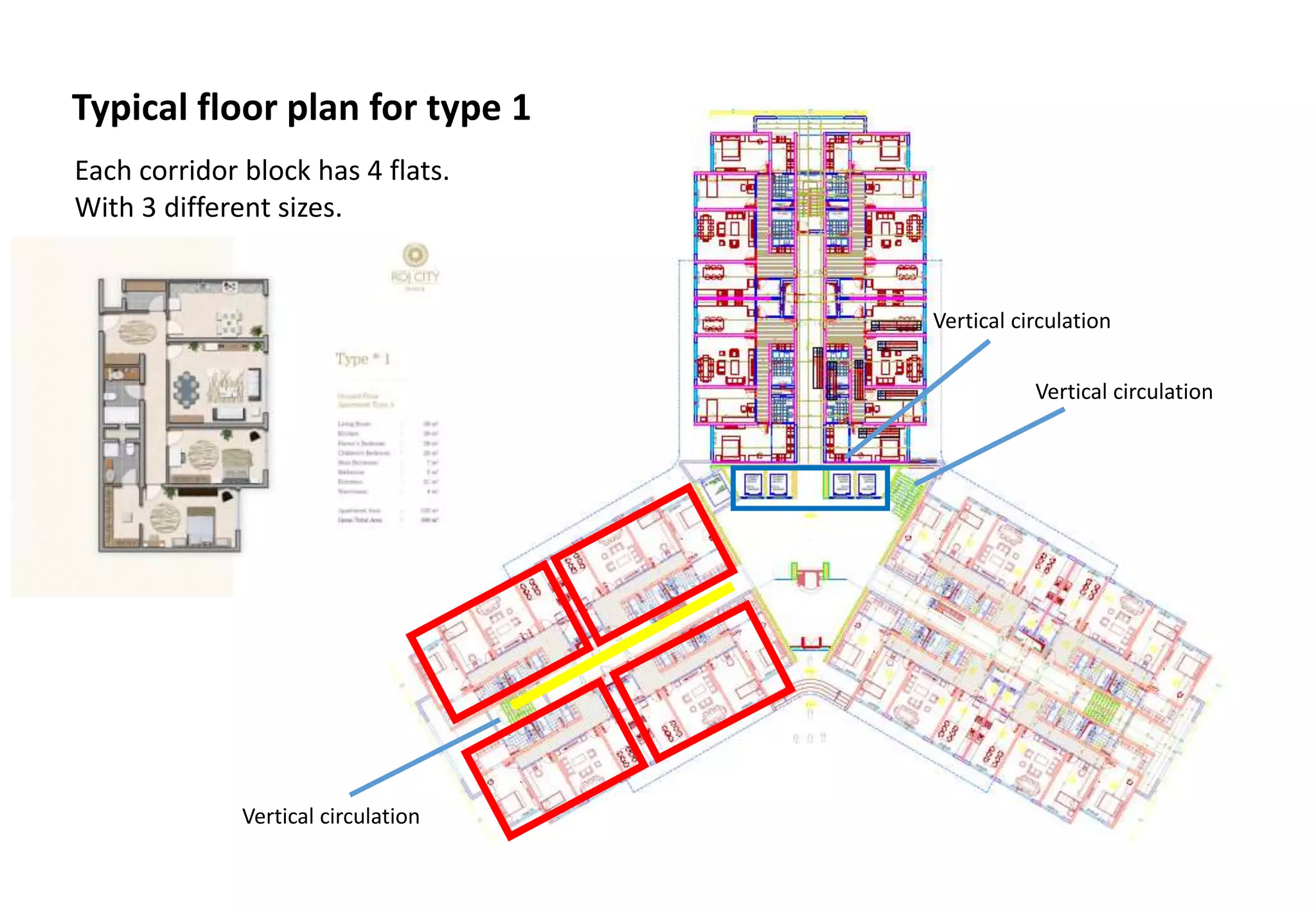

25. Typical floor plan for type 1
Each corridor block has 4 flats.
With 3 different sizes.
Vertical circulation
Vertical circulation
Vertical circulation

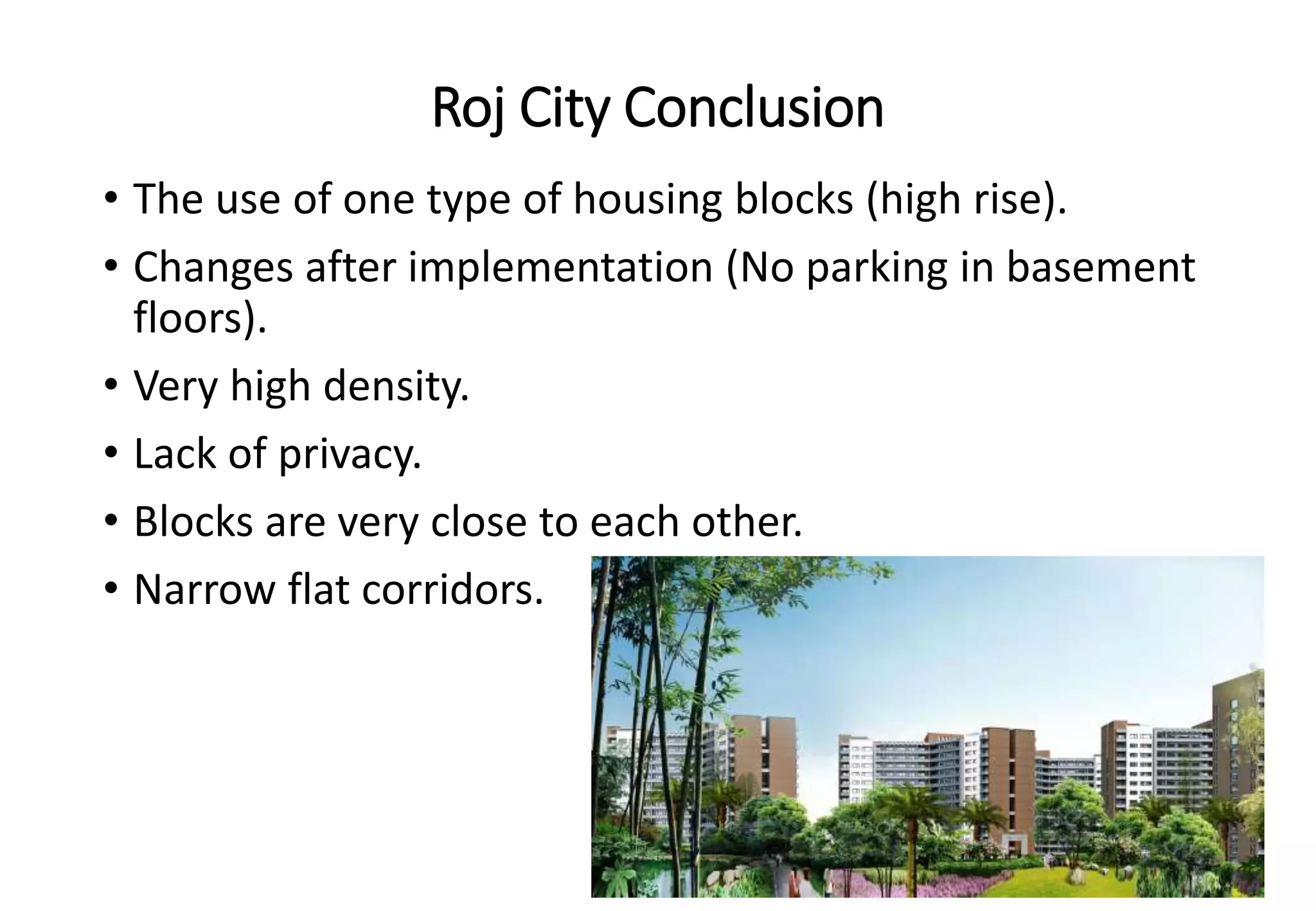

26. Roj City Conclusion
• The use of one type of housing blocks (high rise).
• Changes after implementation (No parking in basement
floors).
• Very high density.
• Lack of privacy.
• Blocks are very close to each other.
• Narrow flat corridors.

27. Example

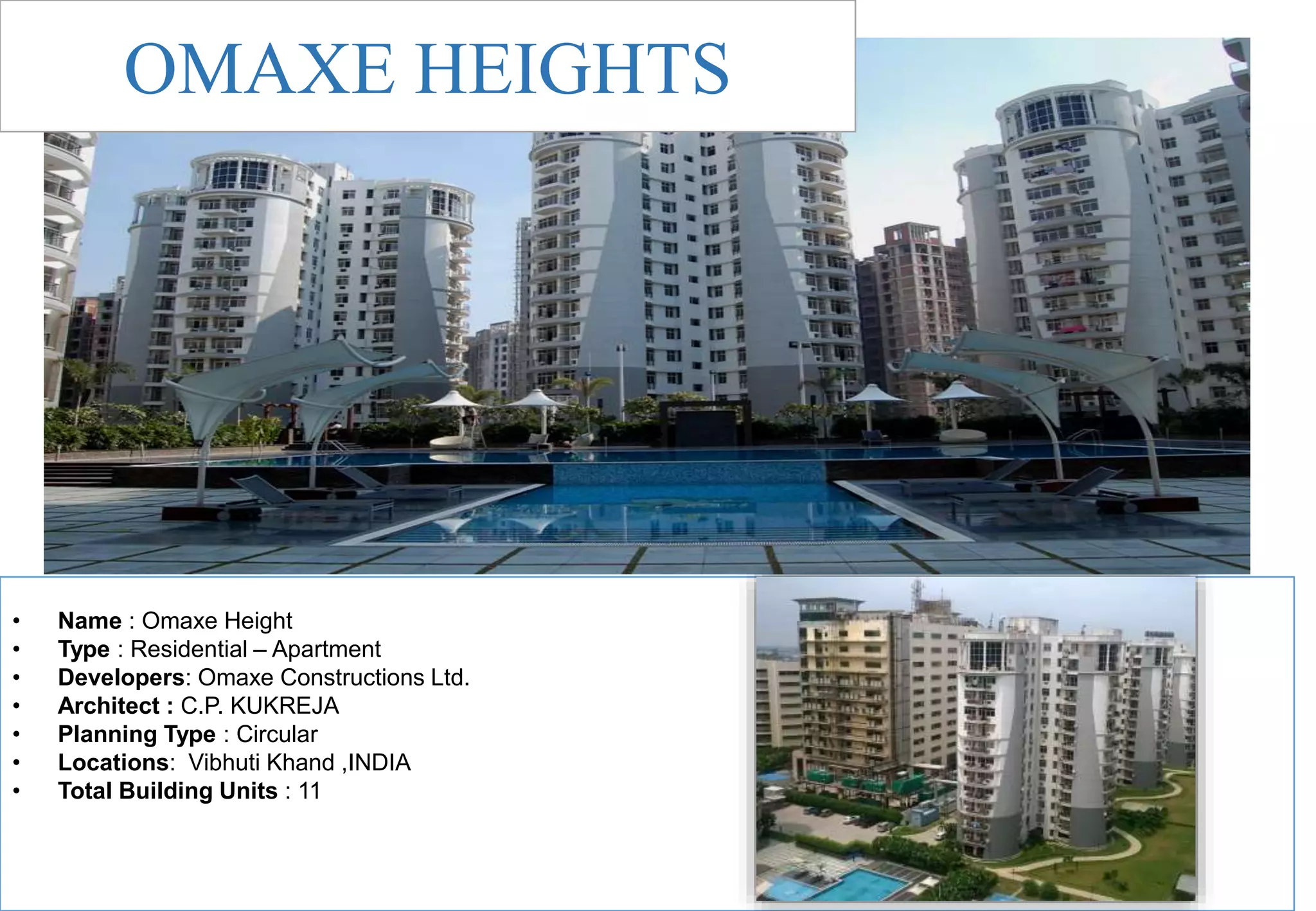

28. • Name : Omaxe Height
• Type : Residential – Apartment
• Developers: Omaxe Constructions Ltd.
• Architect : C.P. KUKREJA
• Planning Type : Circular
• Locations: Vibhuti Khand ,INDIA
• Total Building Units : 11
OMAXE HEIGHTS

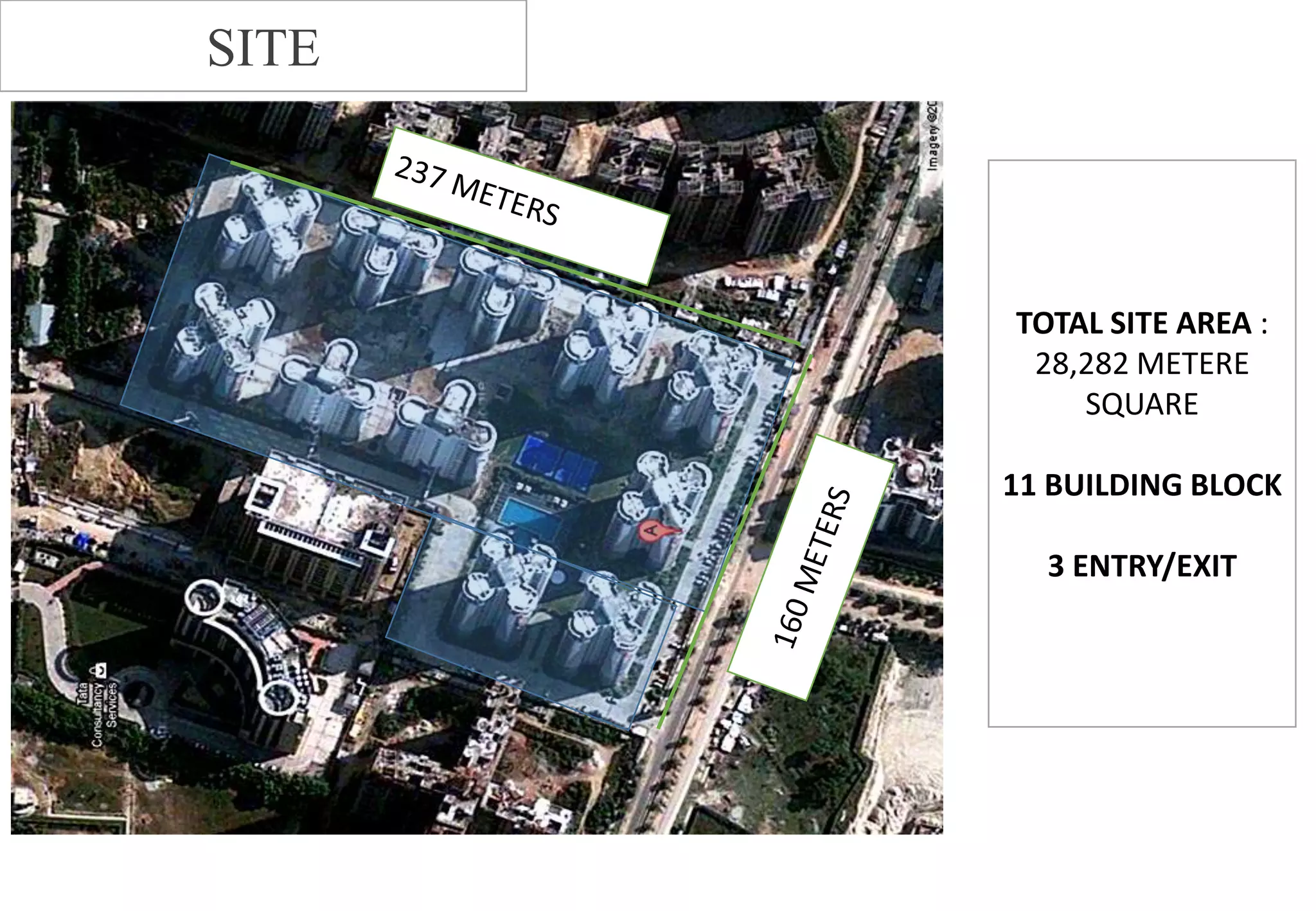

29. TOTAL SITE AREA :
28,282 METERE
SQUARE
11 BUILDING BLOCK
3 ENTRY/EXIT
SITE

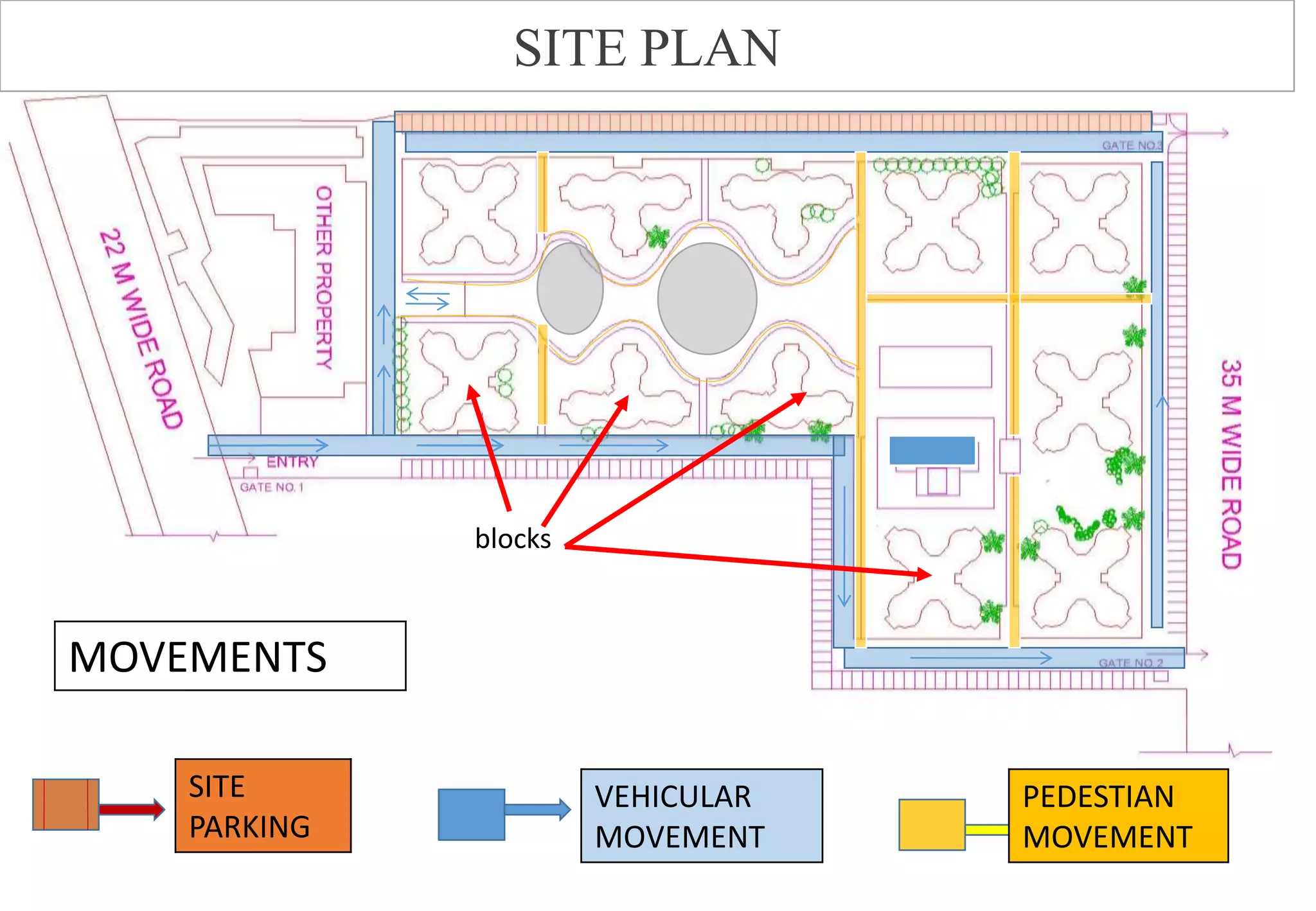

30. SITE
PARKING
VEHICULAR
MOVEMENT
PEDESTIAN
MOVEMENT
MOVEMENTS
SITE PLAN
blocks

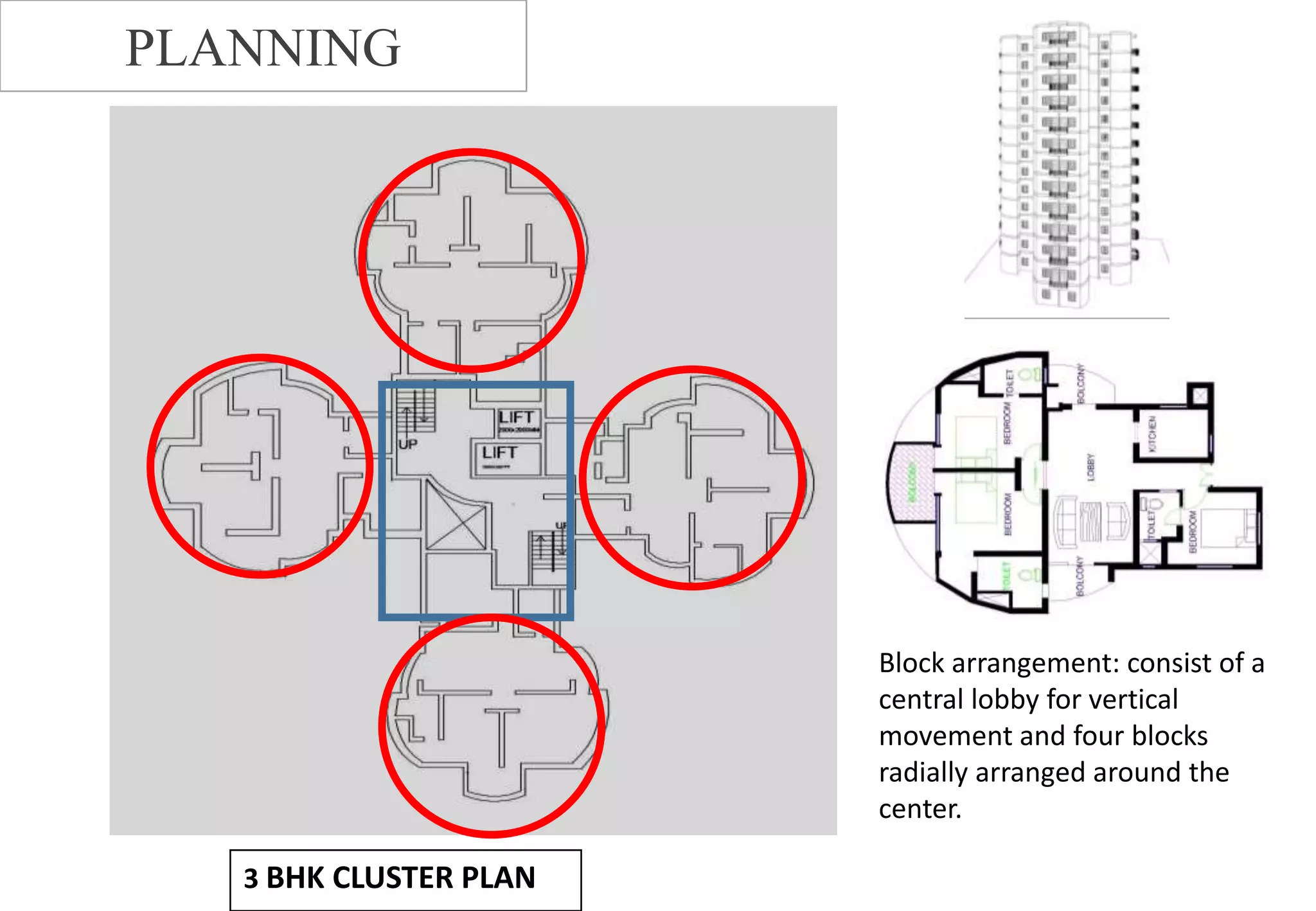

31. 3 BHK CLUSTER PLAN
PLANNING
Block arrangement: consist of a
central lobby for vertical
movement and four blocks
radially arranged around the
center.

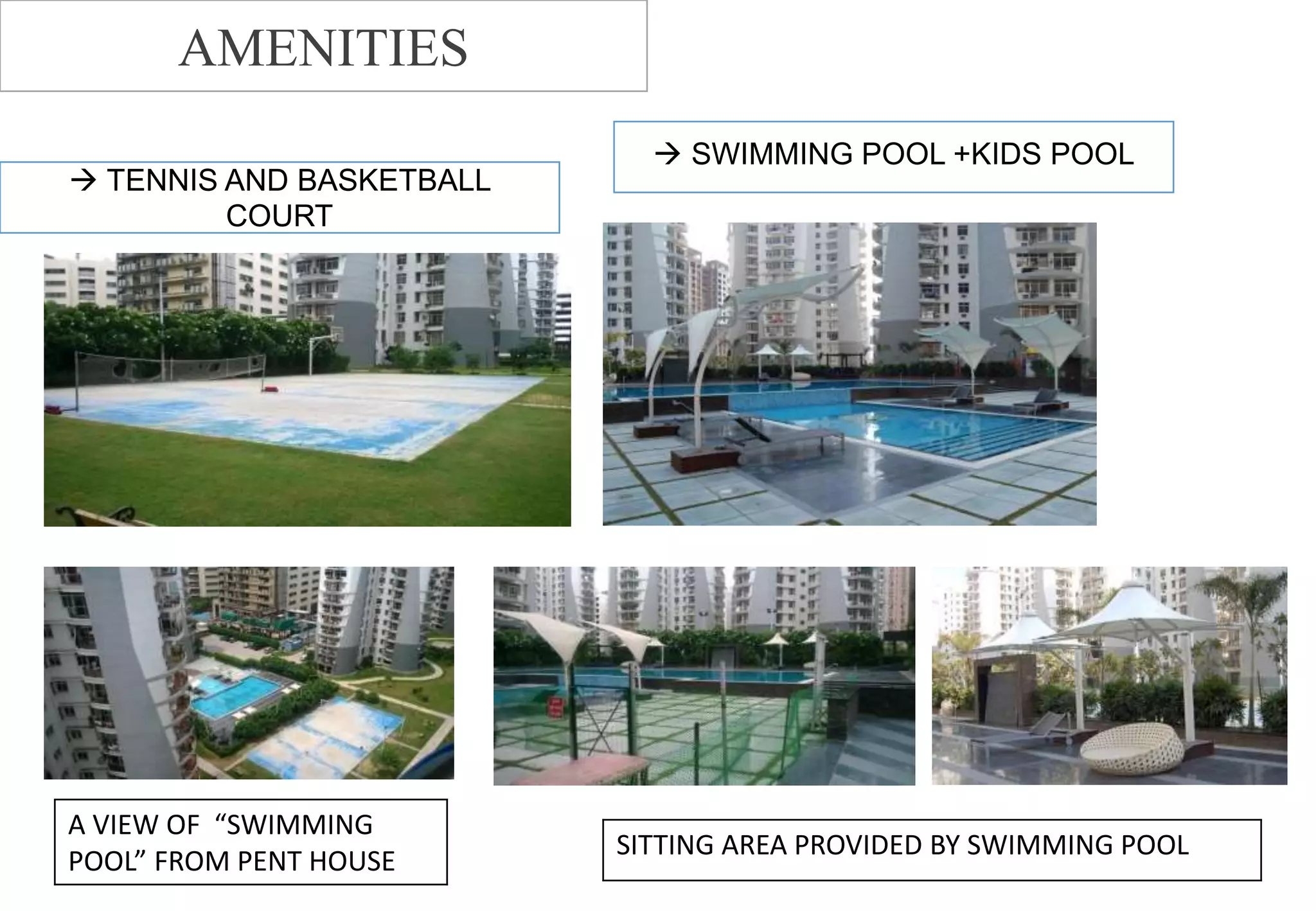

32.  TENNIS AND BASKETBALL
COURT
 SWIMMING POOL +KIDS POOL
A VIEW OF “SWIMMING
POOL” FROM PENT HOUSE
SITTING AREA PROVIDED BY SWIMMING POOL
AMENITIES

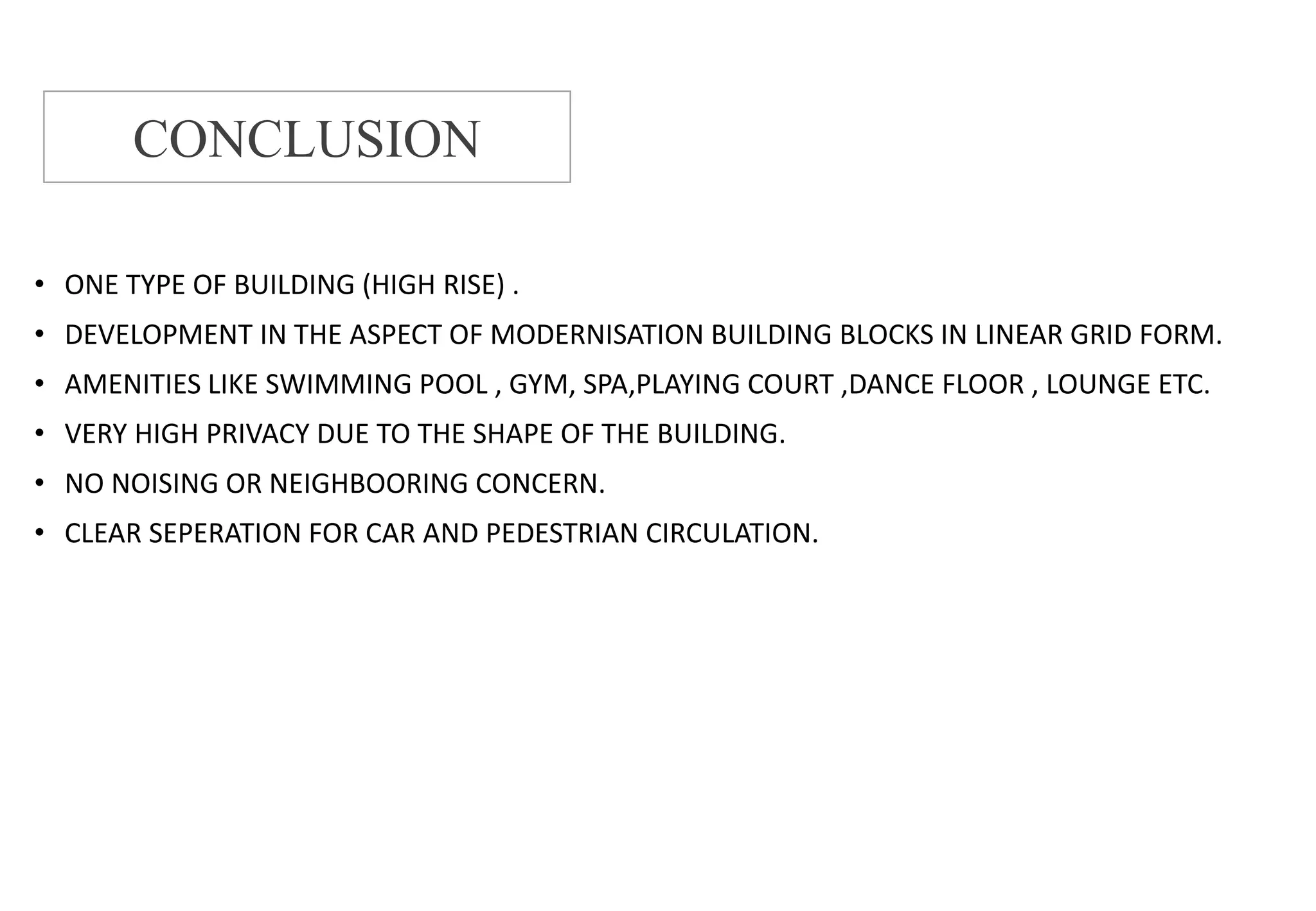

33. • ONE TYPE OF BUILDING (HIGH RISE) .
• DEVELOPMENT IN THE ASPECT OF MODERNISATION BUILDING BLOCKS IN LINEAR GRID FORM.
• AMENITIES LIKE SWIMMING POOL , GYM, SPA,PLAYING COURT ,DANCE FLOOR , LOUNGE ETC.
• VERY HIGH PRIVACY DUE TO THE SHAPE OF THE BUILDING.
• NO NOISING OR NEIGHBOORING CONCERN.
• CLEAR SEPERATION FOR CAR AND PEDESTRIAN CIRCULATION.
CONCLUSION

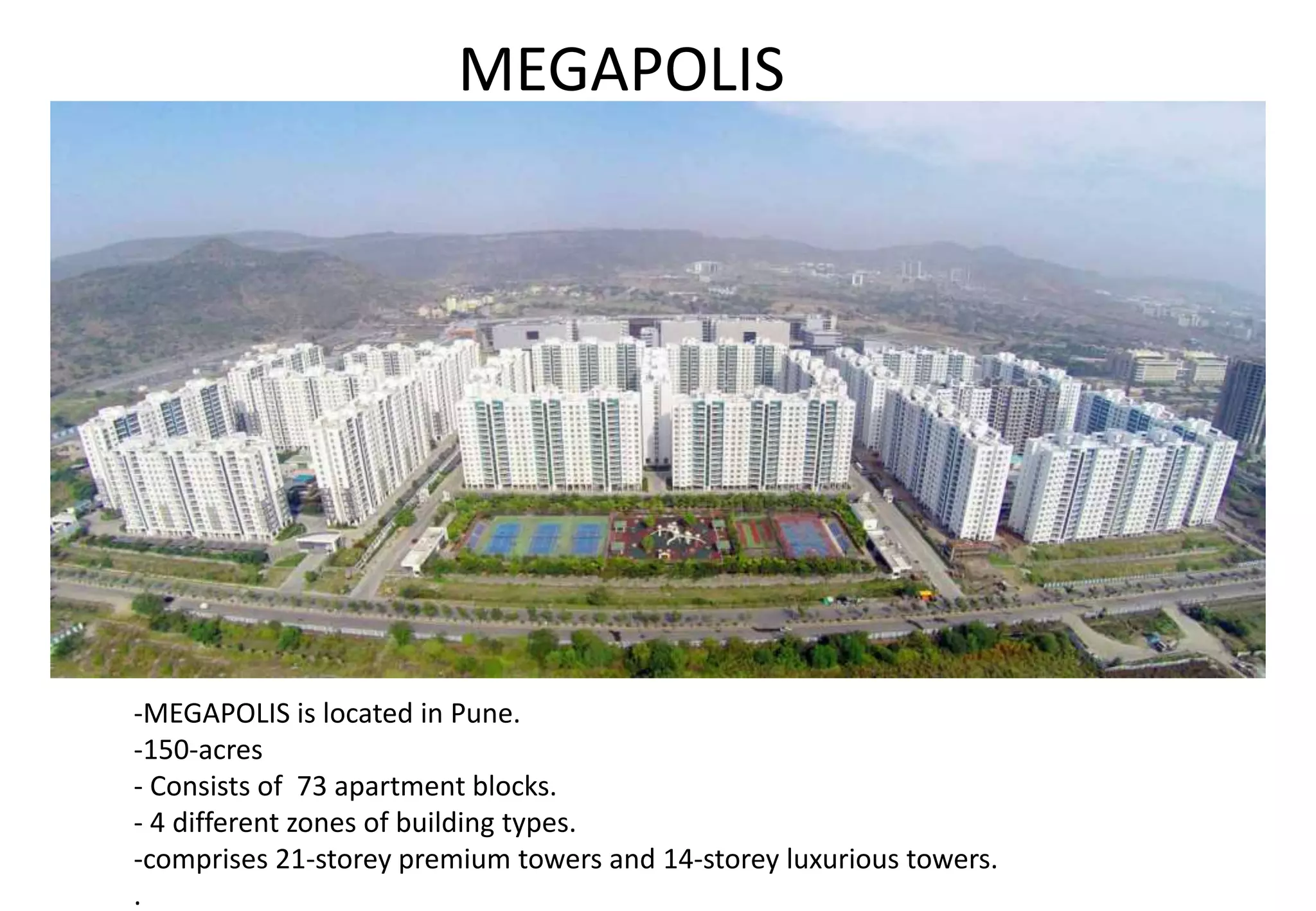

34. -MEGAPOLIS is located in Pune.
-150-acres
- Consists of 73 apartment blocks.
- 4 different zones of building types.
-comprises 21-storey premium towers and 14-storey luxurious towers.
.
MEGAPOLIS

35. SPARKLET
SUNWAYSANGRIA SPLENDOUR
Public spacesSemi Public spaces

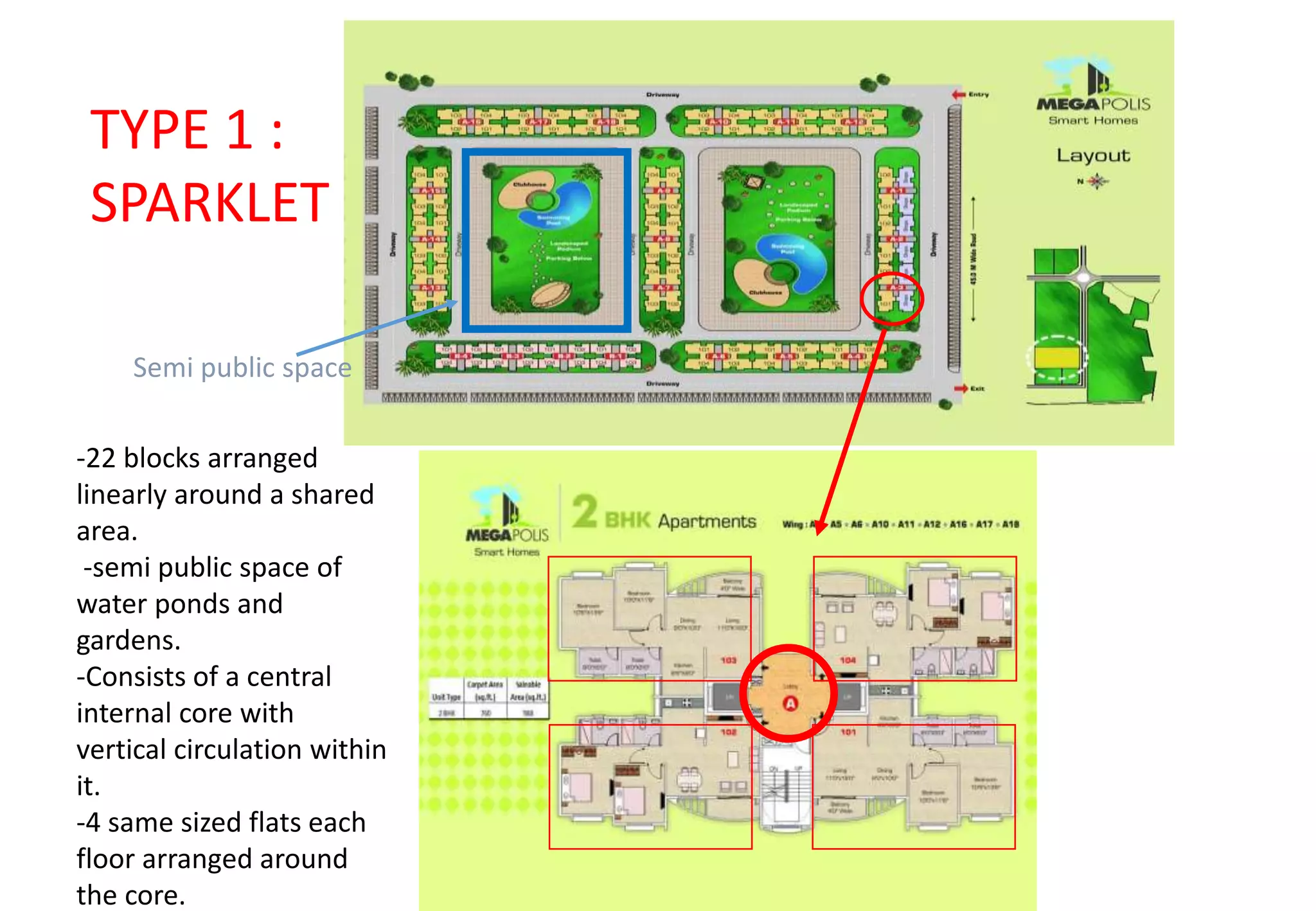

36. TYPE 1 :
SPARKLET
-22 blocks arranged
linearly around a shared
area.
-semi public space of
water ponds and
gardens.
-Consists of a central
internal core with
vertical circulation within
it.
-4 same sized flats each
floor arranged around
the core.
Semi public space

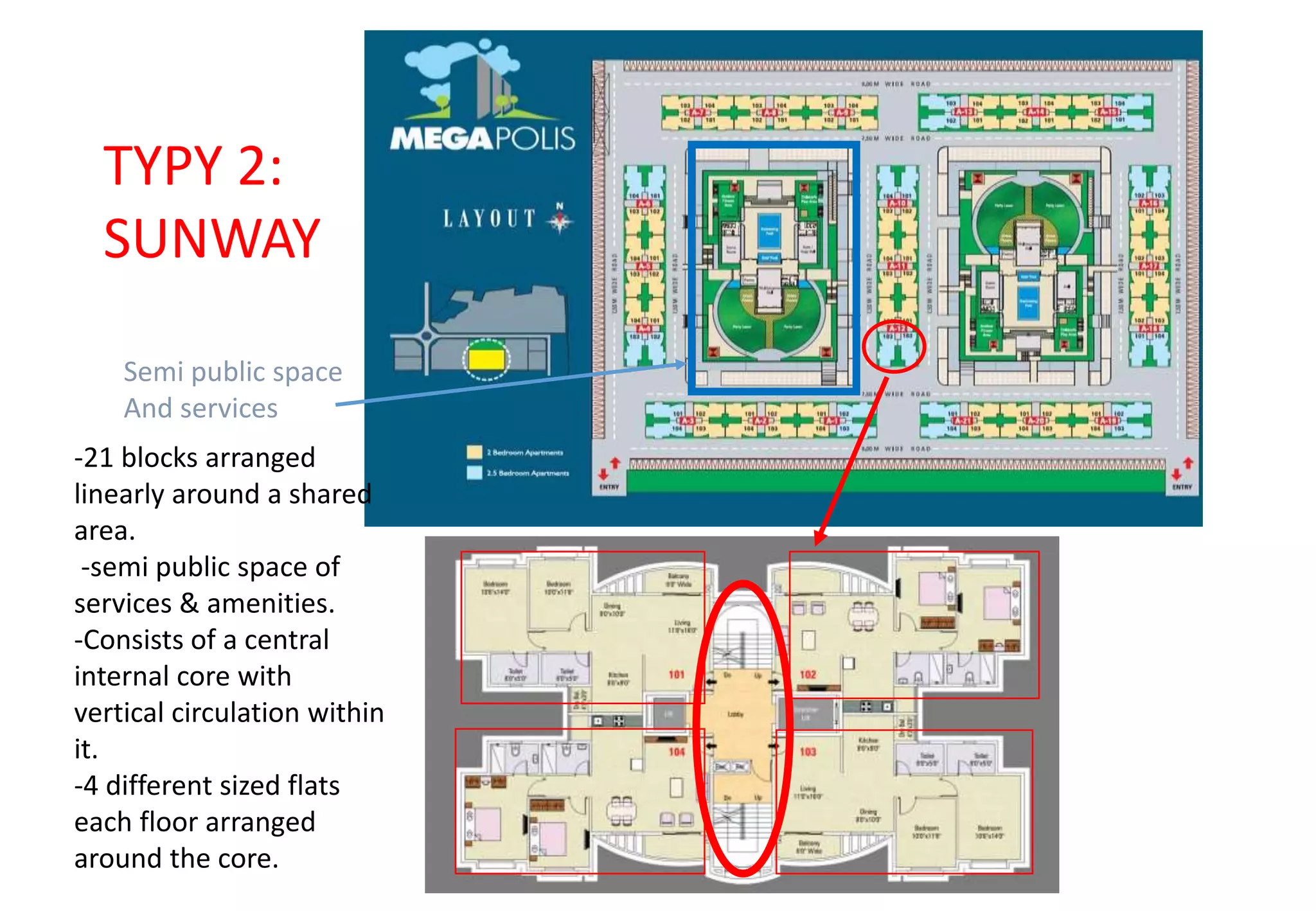

37. TYPY 2:
SUNWAY
Semi public space
And services
-21 blocks arranged
linearly around a shared
area.
-semi public space of
services & amenities.
-Consists of a central
internal core with
vertical circulation within
it.
-4 different sized flats
each floor arranged
around the core.

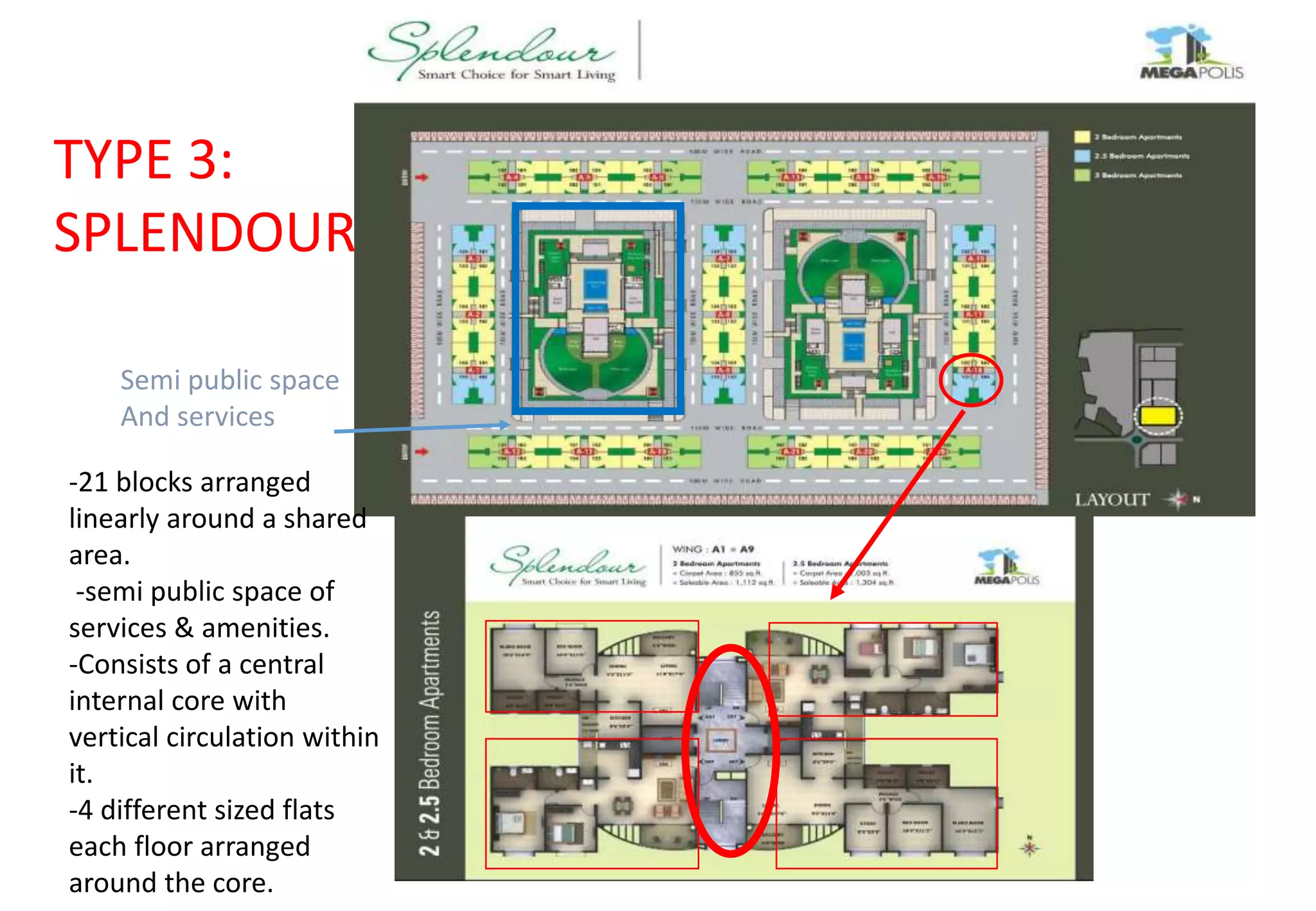

38. TYPE 3:
SPLENDOUR
Semi public space
And services
-21 blocks arranged
linearly around a shared
area.
-semi public space of
services & amenities.
-Consists of a central
internal core with
vertical circulation within
it.
-4 different sized flats
each floor arranged
around the core.

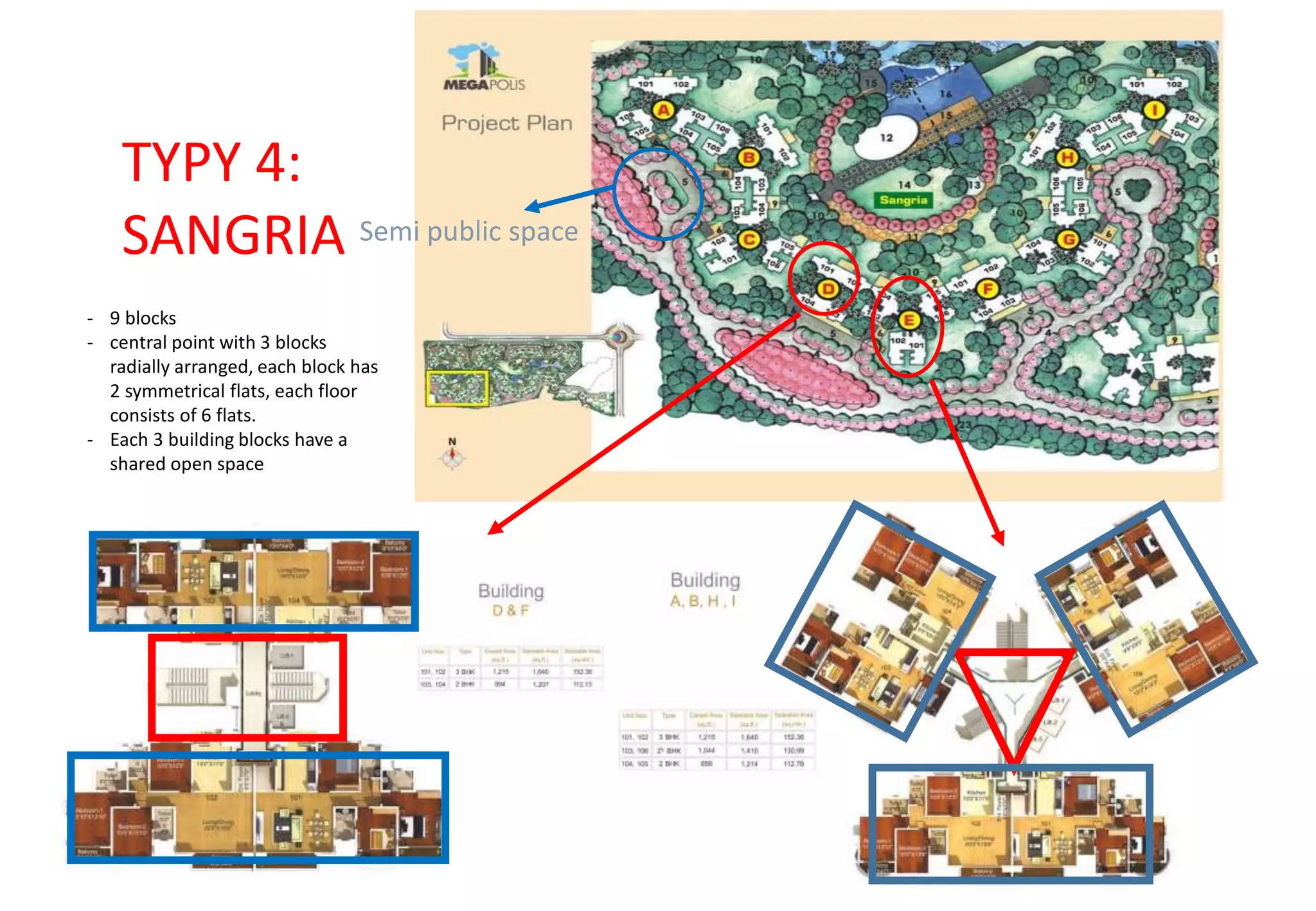

39. TYPY 4:
SANGRIA
- 9 blocks
- central point with 3 blocks
radially arranged, each block has
2 symmetrical flats, each floor
consists of 6 flats.
- Each 3 building blocks have a
shared open space
Semi public space

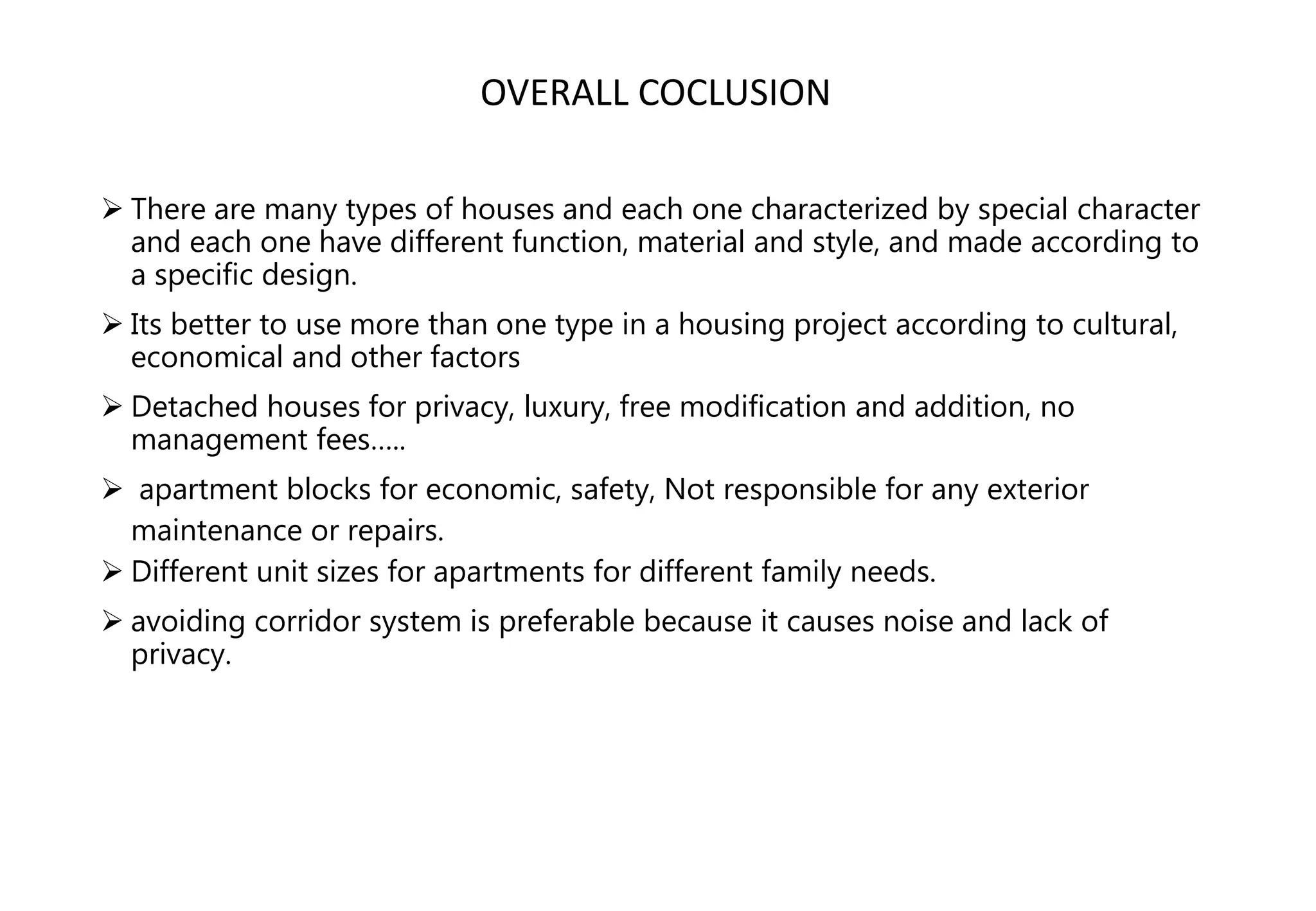

40.  There are many types of houses and each one characterized by special character
and each one have different function, material and style, and made according to
a specific design.
 Its better to use more than one type in a housing project according to cultural,
economical and other factors
 Detached houses for privacy, luxury, free modification and addition, no
management fees…..
 apartment blocks for economic, safety, Not responsible for any exterior
maintenance or repairs.
 Different unit sizes for apartments for different family needs.
 avoiding corridor system is preferable because it causes noise and lack of
privacy.
OVERALL COCLUSION
