There are several types of grinding machines classified based on their construction and purpose, including rough grinders and precision grinders, floor stand and bench grinders, portable and flexible shaft grinders, swing frame grinders, abrasive belt grinders, cylindrical grinders, surface grinders, tool & cutter grinders, and special grinders. Common grinding machines are bench & pedestal grinders, portable or flexible shaft grinders, swing frame grinders, external and internal cylindrical grinders, surface grinders, and universal tool and cutter grinders.

1. TYPES OF GRINDING
MACHINES
Manufacturing Engineering-III
Developed By: Prof.M.B.Raval,ME Mechanical (CAD/CAM)

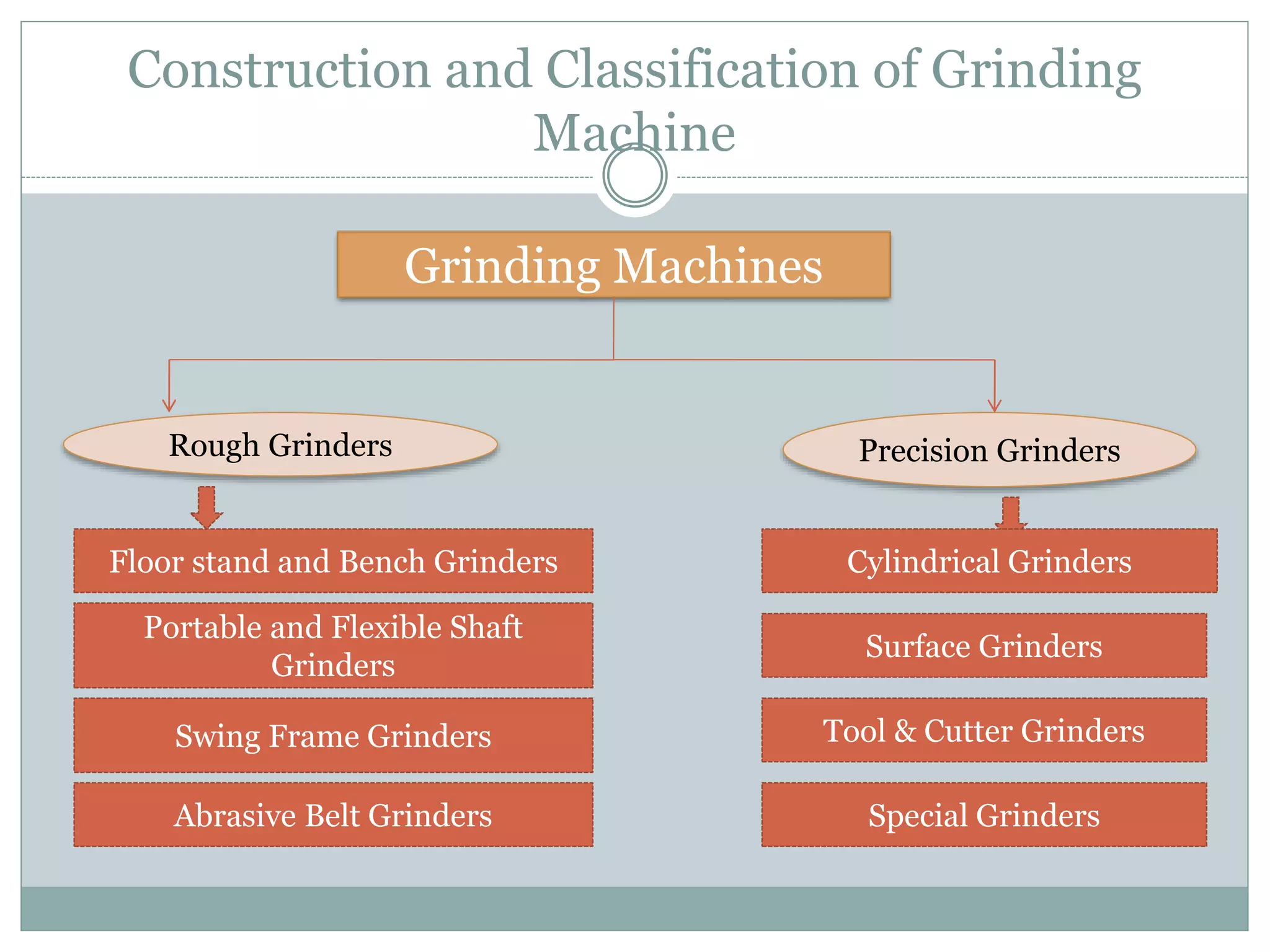

2. Construction and Classification of Grinding
Machine
Grinding Machines
Rough Grinders Precision Grinders
Floor stand and Bench Grinders
Portable and Flexible Shaft
Grinders
Swing Frame Grinders
Abrasive Belt Grinders
Cylindrical Grinders
Surface Grinders
Tool & Cutter Grinders
Special Grinders

3. Bench & Pedastal Grinder

4. Portable or Flexible Shaft Grinder
Flexible Shaft Grinder
Portable Grinder

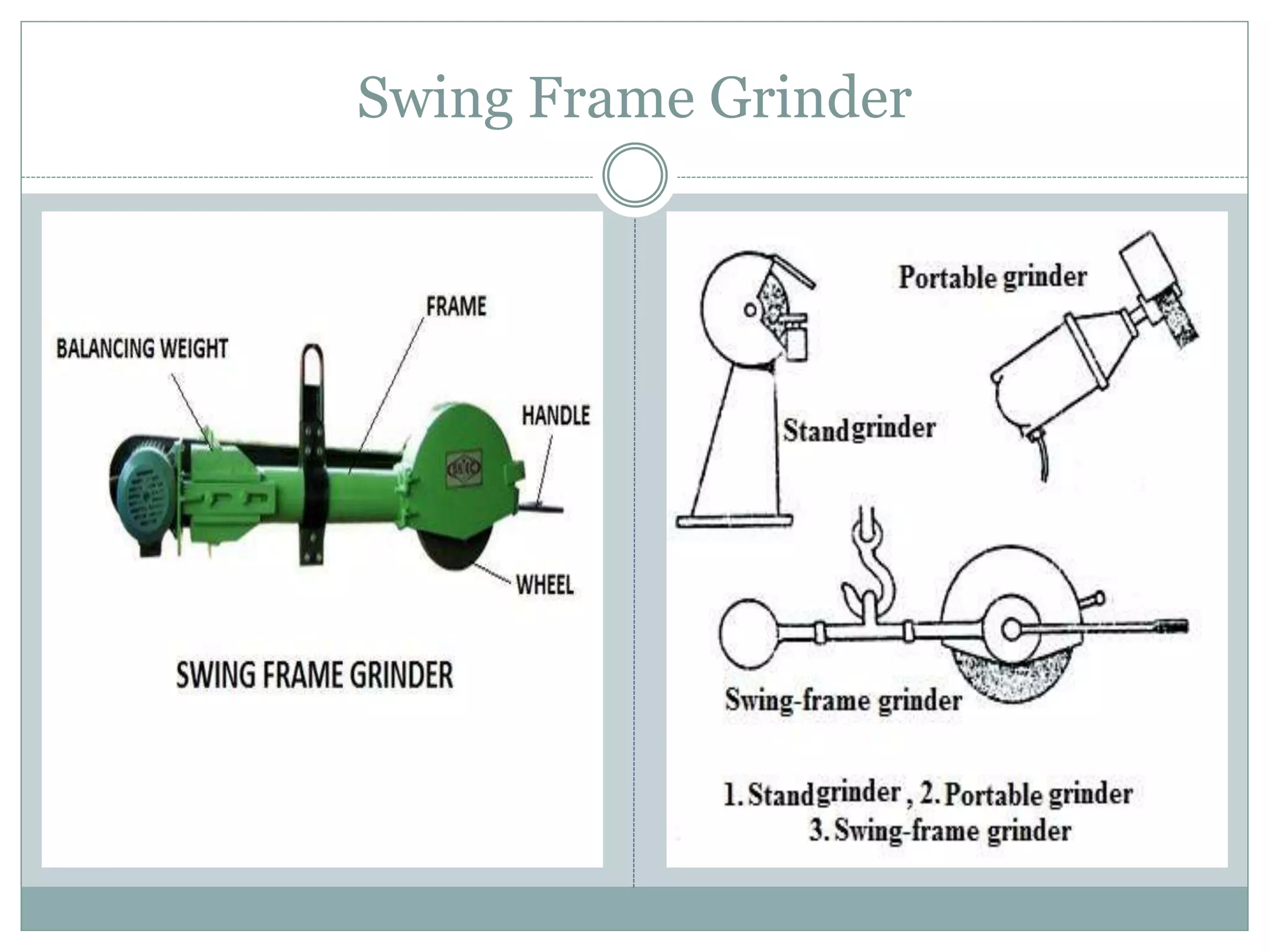

5. Swing Frame Grinder

6. External and Internal Cylindrical Grinding
Machine
Internal Cylindrical
Grinder
External Cylindrical Grinder

7. Surface Grinding Machine

8. Universal tool and Cutter Grinding Machine
