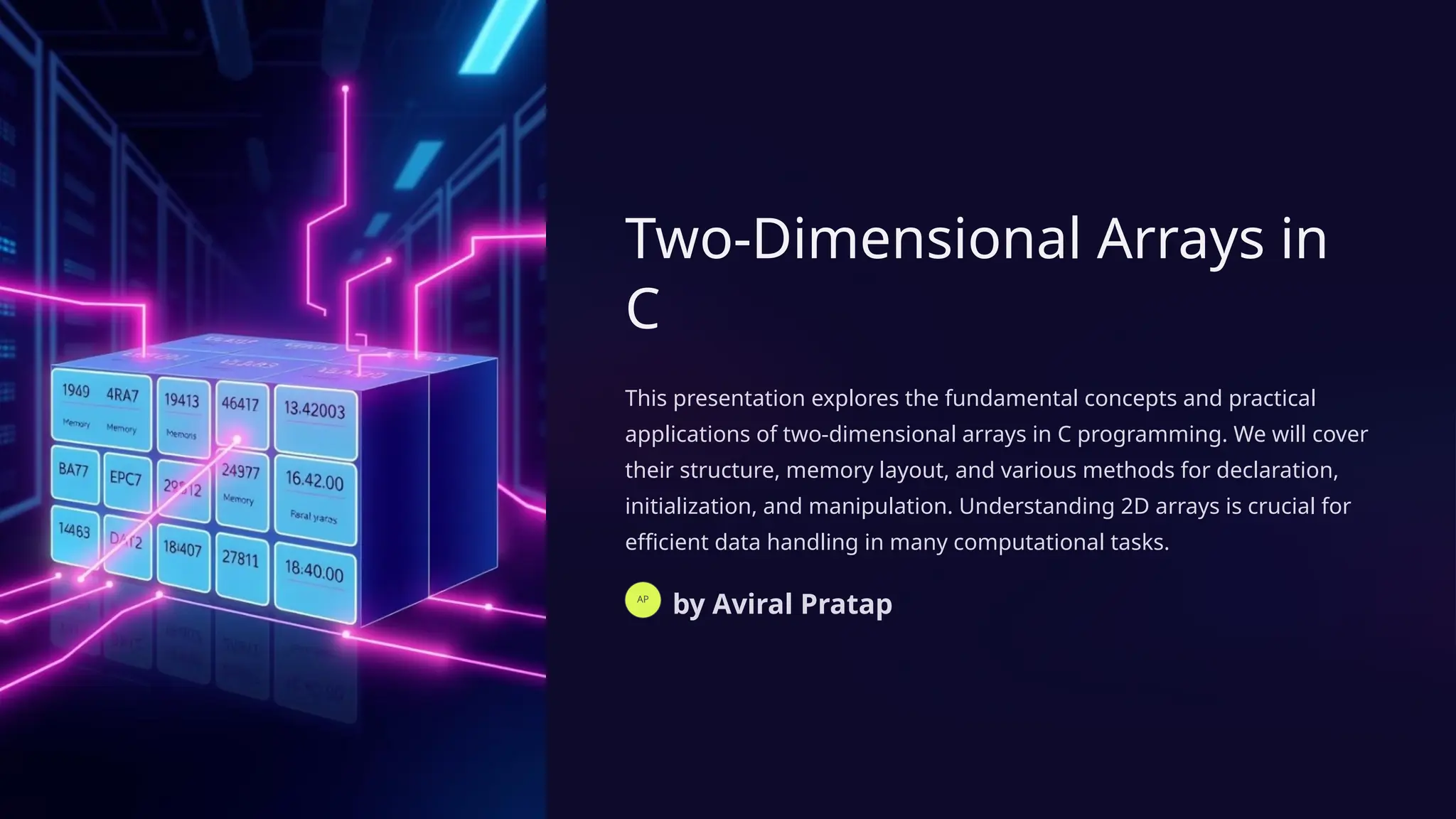

1. Two-Dimensional Arrays in
C
This presentation explores the fundamental concepts and practical
applications of two-dimensional arrays in C programming. We will cover
their structure, memory layout, and various methods for declaration,
initialization, and manipulation. Understanding 2D arrays is crucial for
efficient data handling in many computational tasks.
AP
by Aviral Pratap

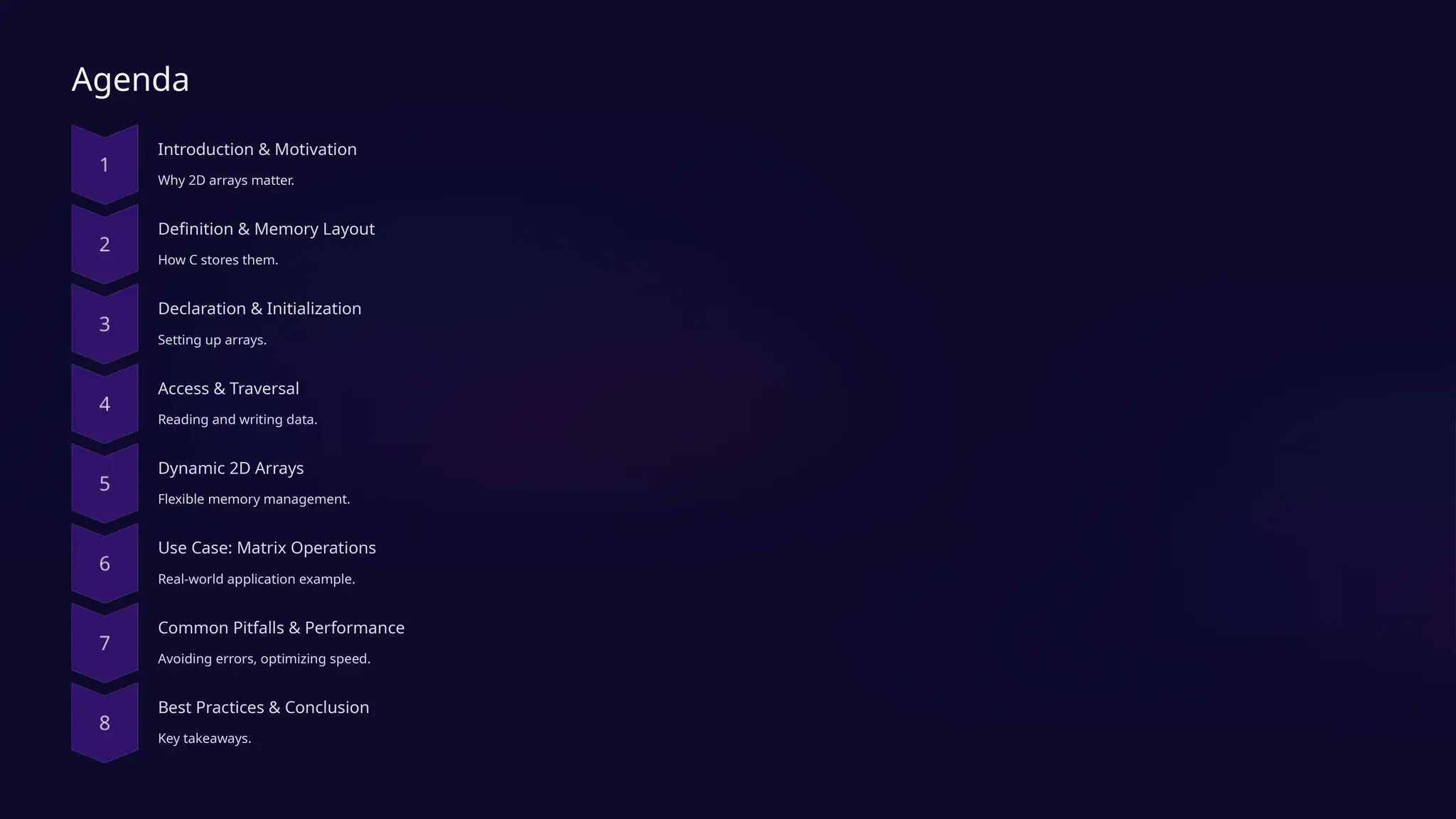

2. Agenda
Introduction & Motivation
Why 2D arrays matter.
Definition & Memory Layout
How C stores them.
Declaration & Initialization
Setting up arrays.
Access & Traversal
Reading and writing data.
Dynamic 2D Arrays
Flexible memory management.
Use Case: Matrix Operations
Real-world application example.
Common Pitfalls & Performance
Avoiding errors, optimizing speed.
Best Practices & Conclusion
Key takeaways.

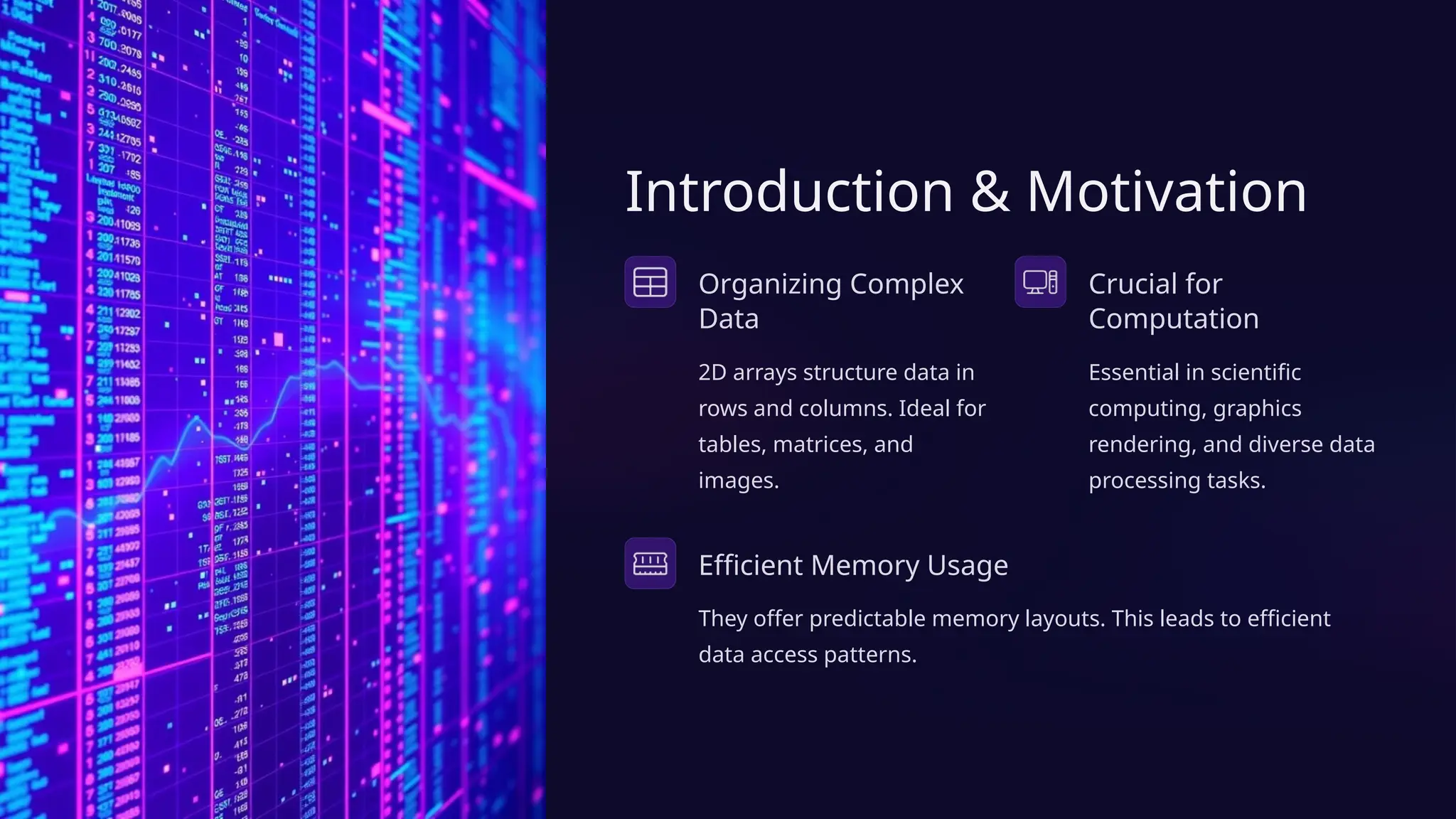

3. Introduction & Motivation
Organizing Complex
Data
2D arrays structure data in
rows and columns. Ideal for
tables, matrices, and
images.
Crucial for
Computation
Essential in scientific
computing, graphics
rendering, and diverse data
processing tasks.
Efficient Memory Usage
They offer predictable memory layouts. This leads to efficient
data access patterns.

4. Definition & Memory Layout
Array of Arrays
Concept
A two-dimensional array is
fundamentally an array.
Each element is itself
another array.
C Syntax
dataType
arrayName[rows]
[columns];
Example: int matrix[3][4];
Row-Major Order
C stores elements row by
row. Each row is
contiguous in memory.
Memory Address
Calculation
Address = base + ((i *
columns) + j) *
sizeof(dataType).

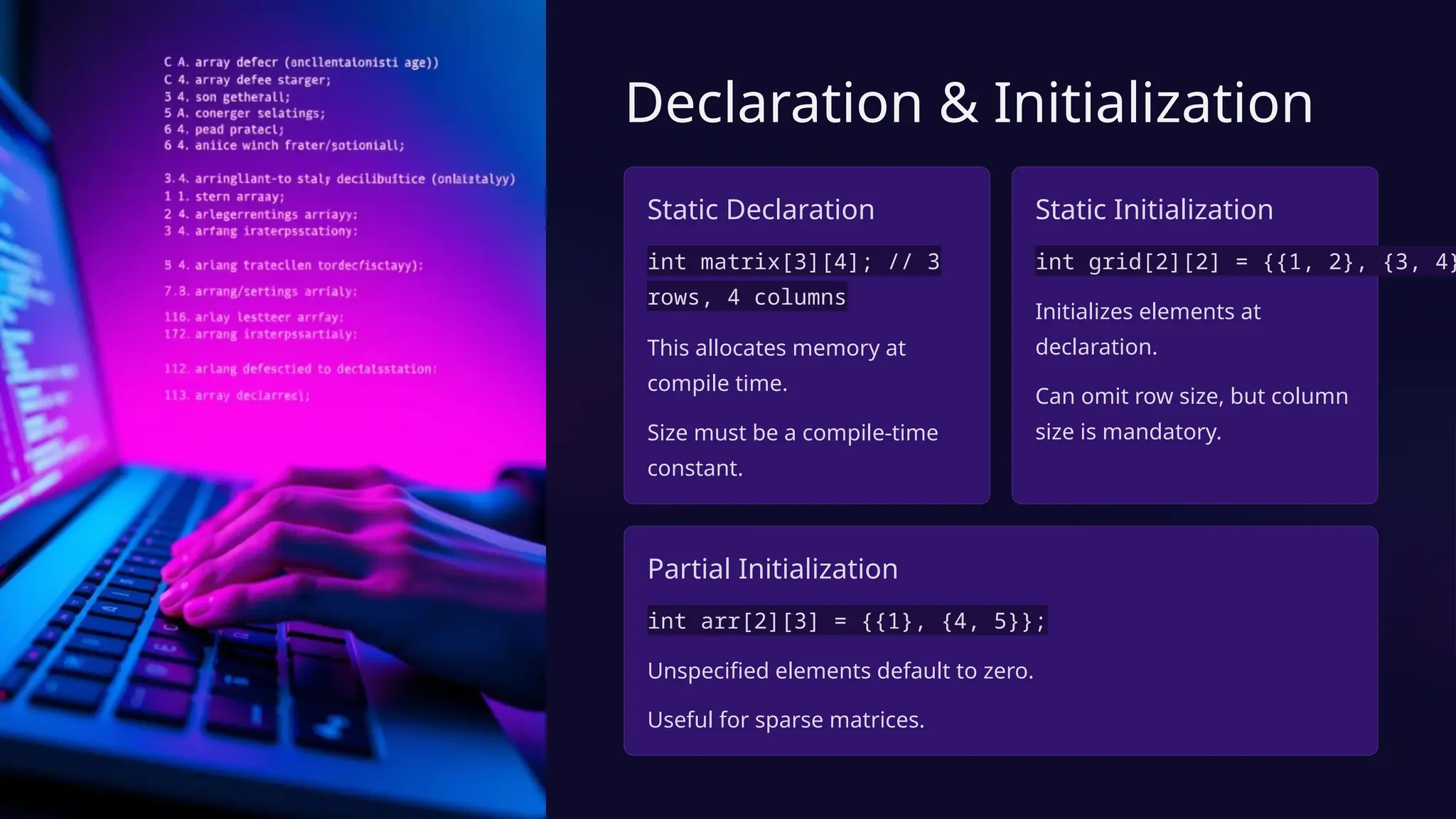

5. Declaration & Initialization
Static Declaration
int matrix[3][4]; // 3
rows, 4 columns
This allocates memory at
compile time.
Size must be a compile-time
constant.
Static Initialization
int grid[2][2] = {{1, 2}, {3, 4}
Initializes elements at
declaration.
Can omit row size, but column
size is mandatory.
Partial Initialization
int arr[2][3] = {{1}, {4, 5}};
Unspecified elements default to zero.
Useful for sparse matrices.

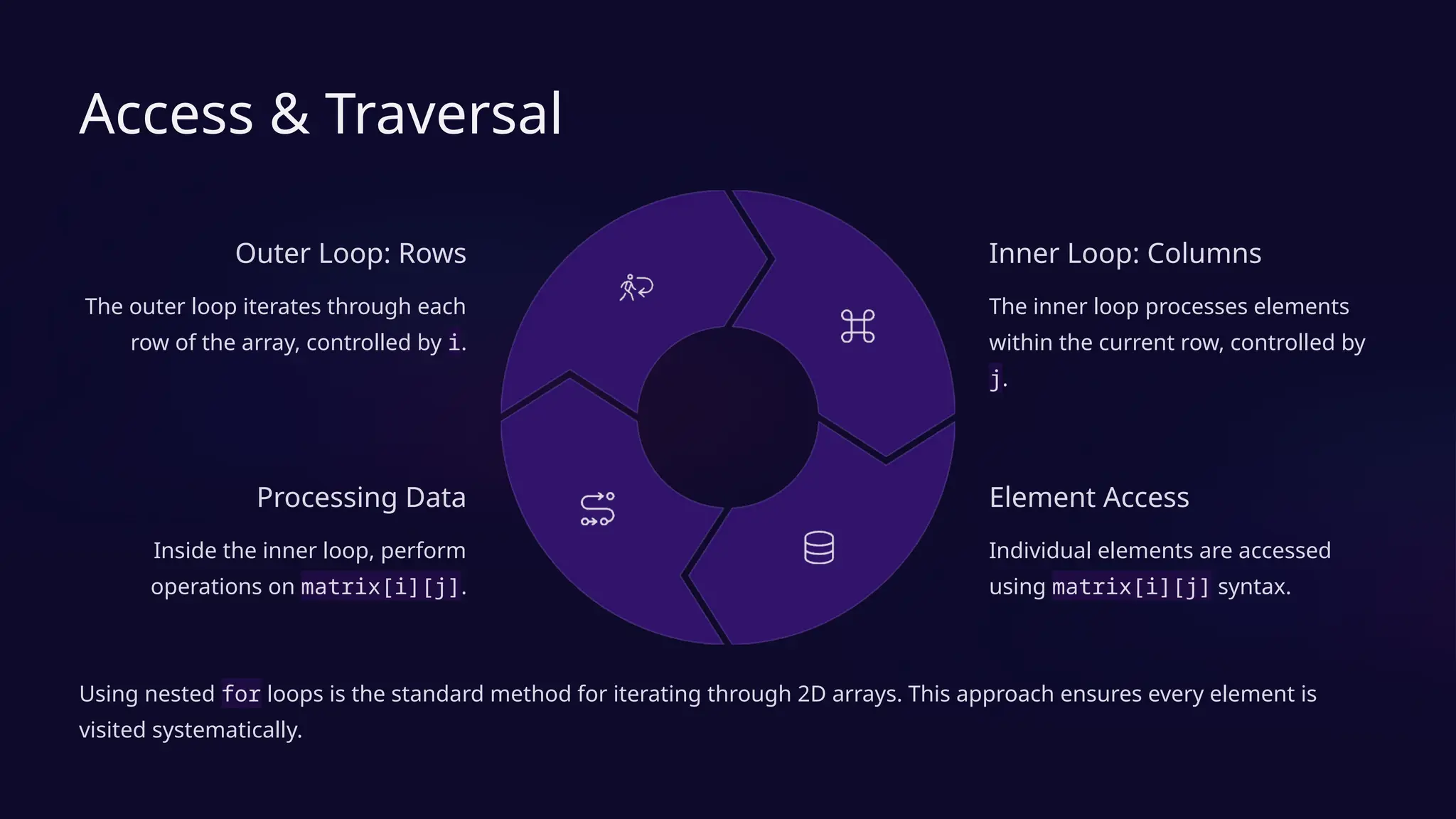

6. Access & Traversal
Outer Loop: Rows
The outer loop iterates through each
row of the array, controlled by i.
Inner Loop: Columns
The inner loop processes elements
within the current row, controlled by
j.
Element Access
Individual elements are accessed
using matrix[i][j] syntax.
Processing Data
Inside the inner loop, perform
operations on matrix[i][j].
Using nested for loops is the standard method for iterating through 2D arrays. This approach ensures every element is
visited systematically.

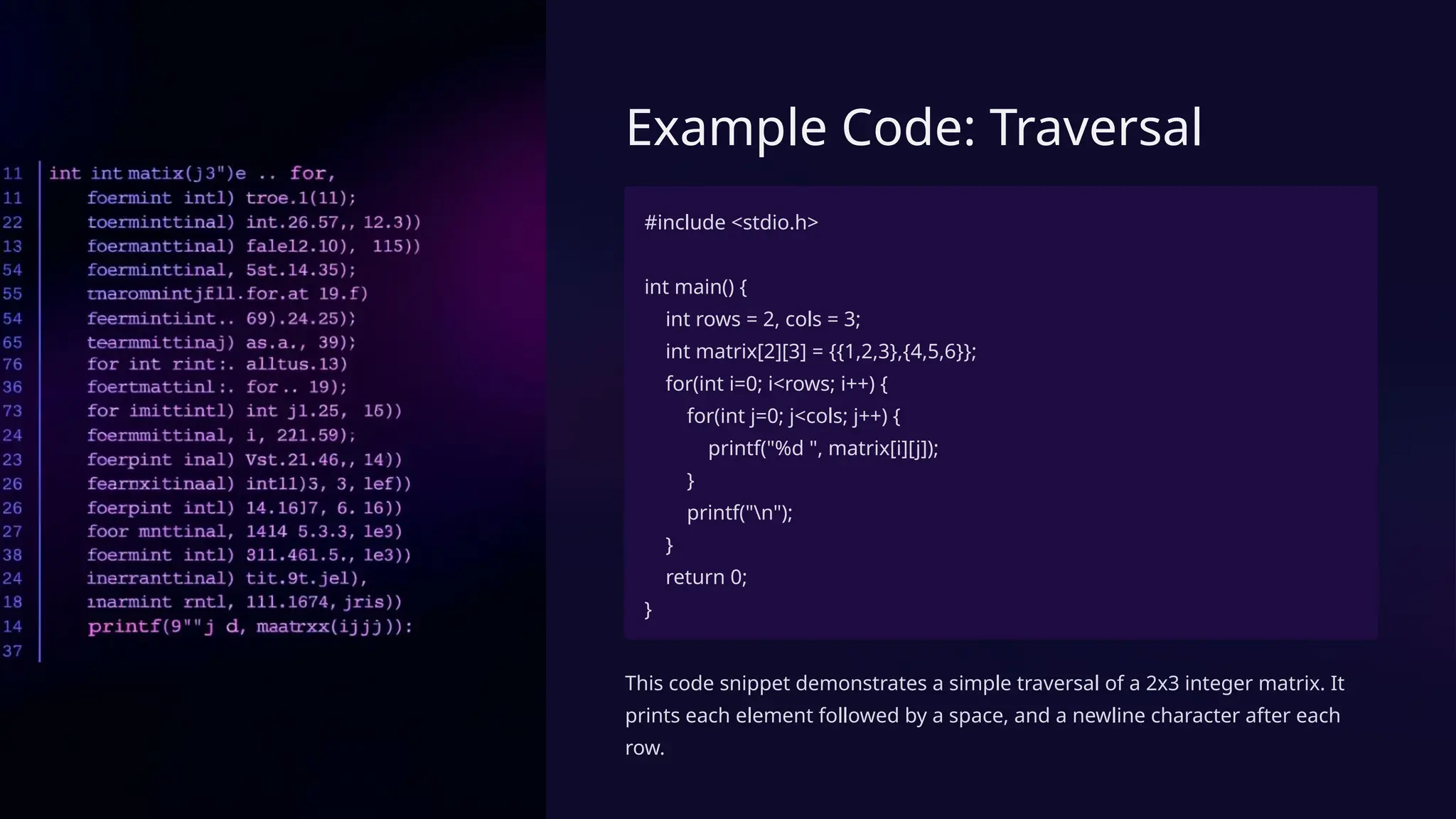

7. Example Code: Traversal
#include <stdio.h>
int main() {
int rows = 2, cols = 3;
int matrix[2][3] = {{1,2,3},{4,5,6}};
for(int i=0; i<rows; i++) {
for(int j=0; j<cols; j++) {
printf("%d ", matrix[i][j]);
}
printf("n");
}
return 0;
}
This code snippet demonstrates a simple traversal of a 2x3 integer matrix. It
prints each element followed by a space, and a newline character after each
row.

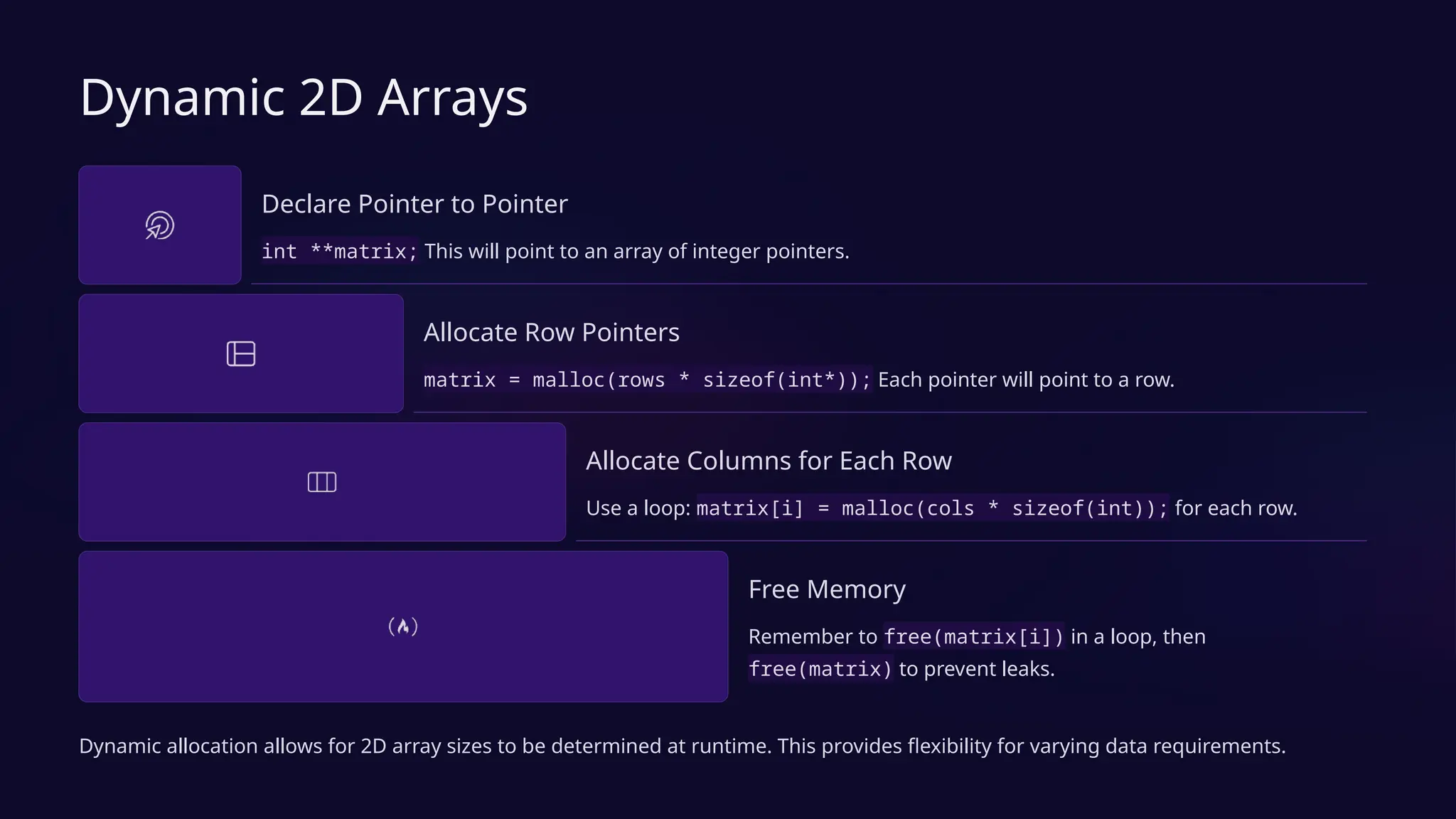

8. Dynamic 2D Arrays
Declare Pointer to Pointer
int **matrix; This will point to an array of integer pointers.
Allocate Row Pointers
matrix = malloc(rows * sizeof(int*)); Each pointer will point to a row.
Allocate Columns for Each Row
Use a loop: matrix[i] = malloc(cols * sizeof(int)); for each row.
Free Memory
Remember to free(matrix[i]) in a loop, then
free(matrix) to prevent leaks.
Dynamic allocation allows for 2D array sizes to be determined at runtime. This provides flexibility for varying data requirements.

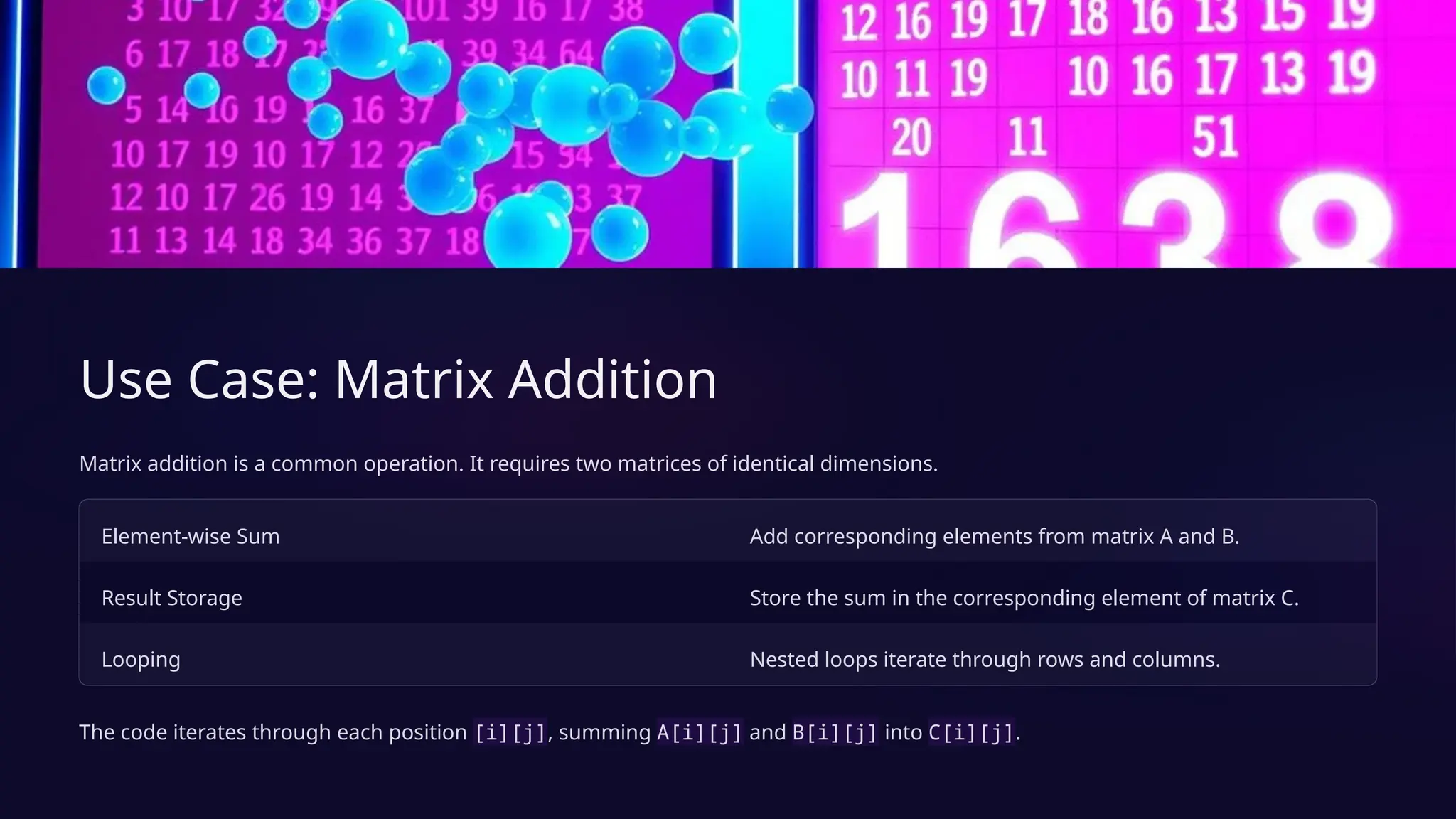

9. Use Case: Matrix Addition
Matrix addition is a common operation. It requires two matrices of identical dimensions.
Element-wise Sum Add corresponding elements from matrix A and B.
Result Storage Store the sum in the corresponding element of matrix C.
Looping Nested loops iterate through rows and columns.
The code iterates through each position [i][j], summing A[i][j] and B[i][j] into C[i][j].

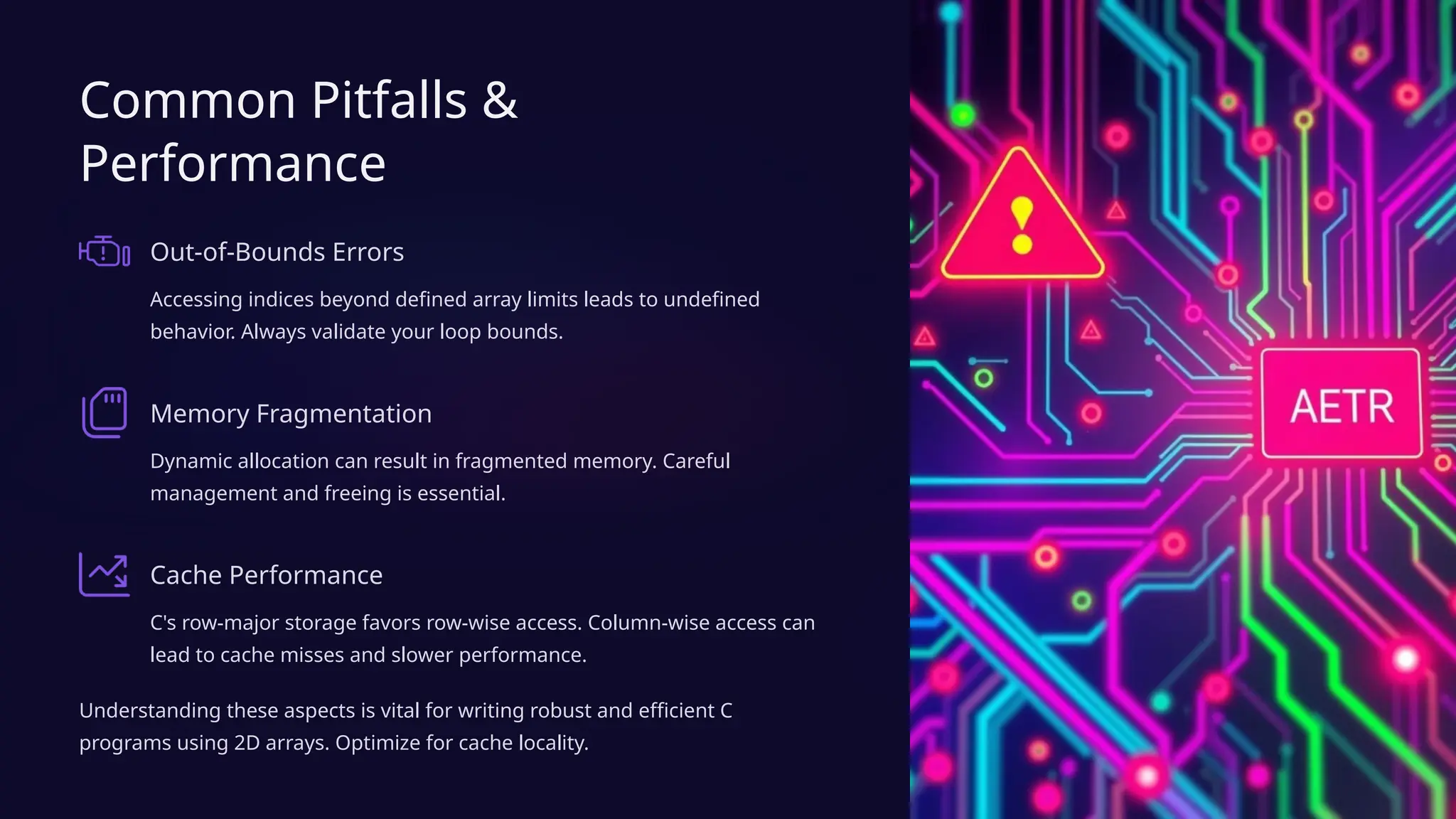

10. Common Pitfalls &
Performance
Out-of-Bounds Errors
Accessing indices beyond defined array limits leads to undefined
behavior. Always validate your loop bounds.
Memory Fragmentation
Dynamic allocation can result in fragmented memory. Careful
management and freeing is essential.
Cache Performance
C's row-major storage favors row-wise access. Column-wise access can
lead to cache misses and slower performance.
Understanding these aspects is vital for writing robust and efficient C
programs using 2D arrays. Optimize for cache locality.
