1. Team Project
TwitterTrend Analyzer
Group 20
Ikwhan Chang / QuanTrung Nguyen
Prof. Hungwen Li
11-May, 2017
1
Final Presentation

2. INDEX
• Overview
• Twitter Developer API
• Search API
• Streaming API
• Web Socket
• Chart & Map
• Heroku for the PaaS
• Architecture
• Data Flows
• User Interface & Demo
2

3. Overview
• Project Title
• The trend analysis and predict engine for a specific keyword of Twitter by using cloud platform
• Description
• Twitter is one of popular social networking tools to share our think or news, and it will rapidly
spread across the worlds.
• We will make a web application to collect the Twitter's feeds related to the specific word,
and then provide the user a daily trend by using a realtime linear chart and geographical chart
• Team Members
3
Name Ikwhan Chang Role Frontend / API / Cloud / UX
Name Quan Nguyen Trung Role Backend / Data Handling

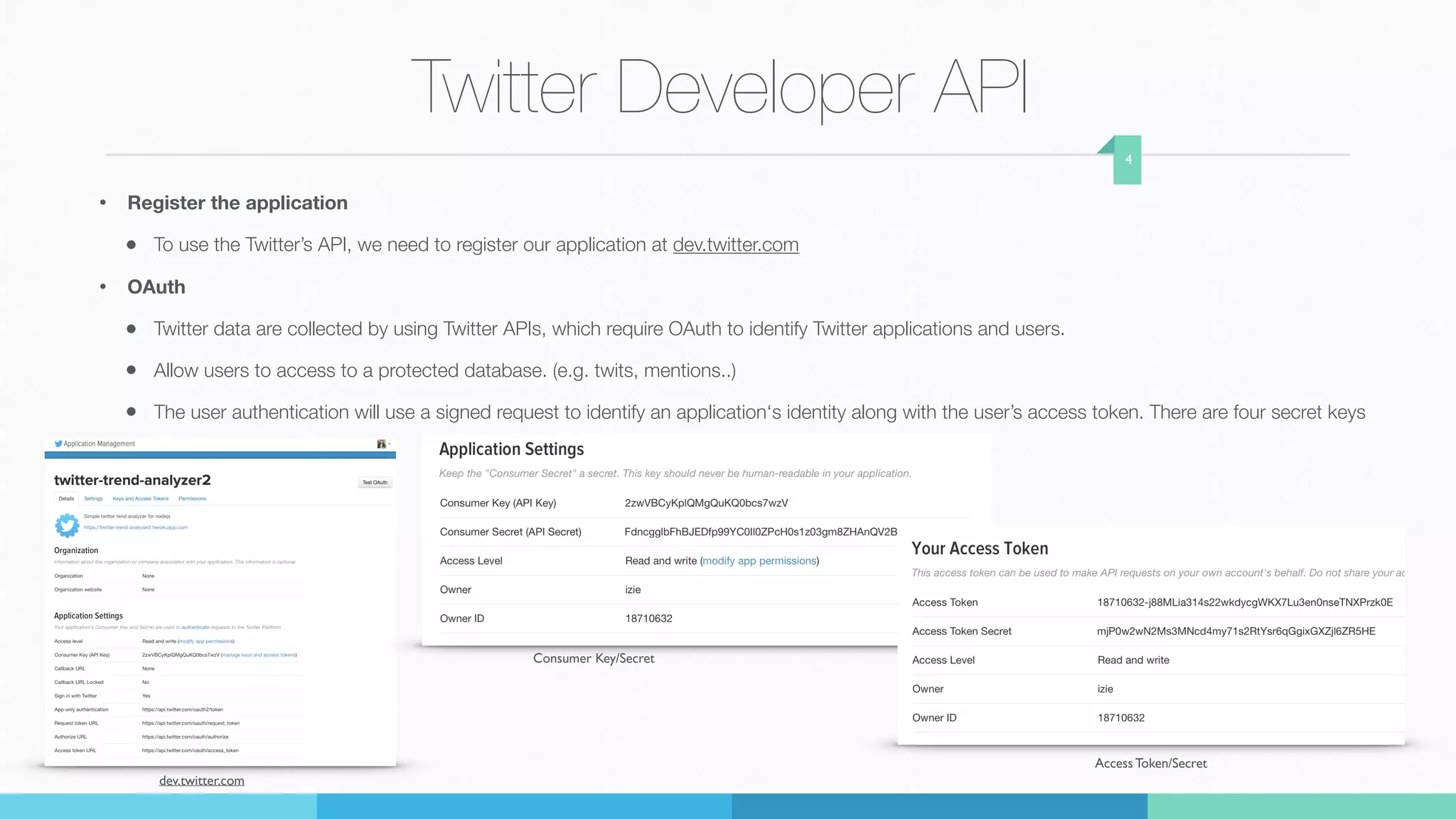

4. Twitter Developer API
• Register the application
• To use the Twitter’s API, we need to register our application at dev.twitter.com
• OAuth
• Twitter data are collected by using Twitter APIs, which require OAuth to identify Twitter applications and users.
• Allow users to access to a protected database. (e.g. twits, mentions..)
• The user authentication will use a signed request to identify an application‘s identity along with the user’s access token. There are four secret keys
4
dev.twitter.com
Consumer Key/Secret
Access Token/Secret

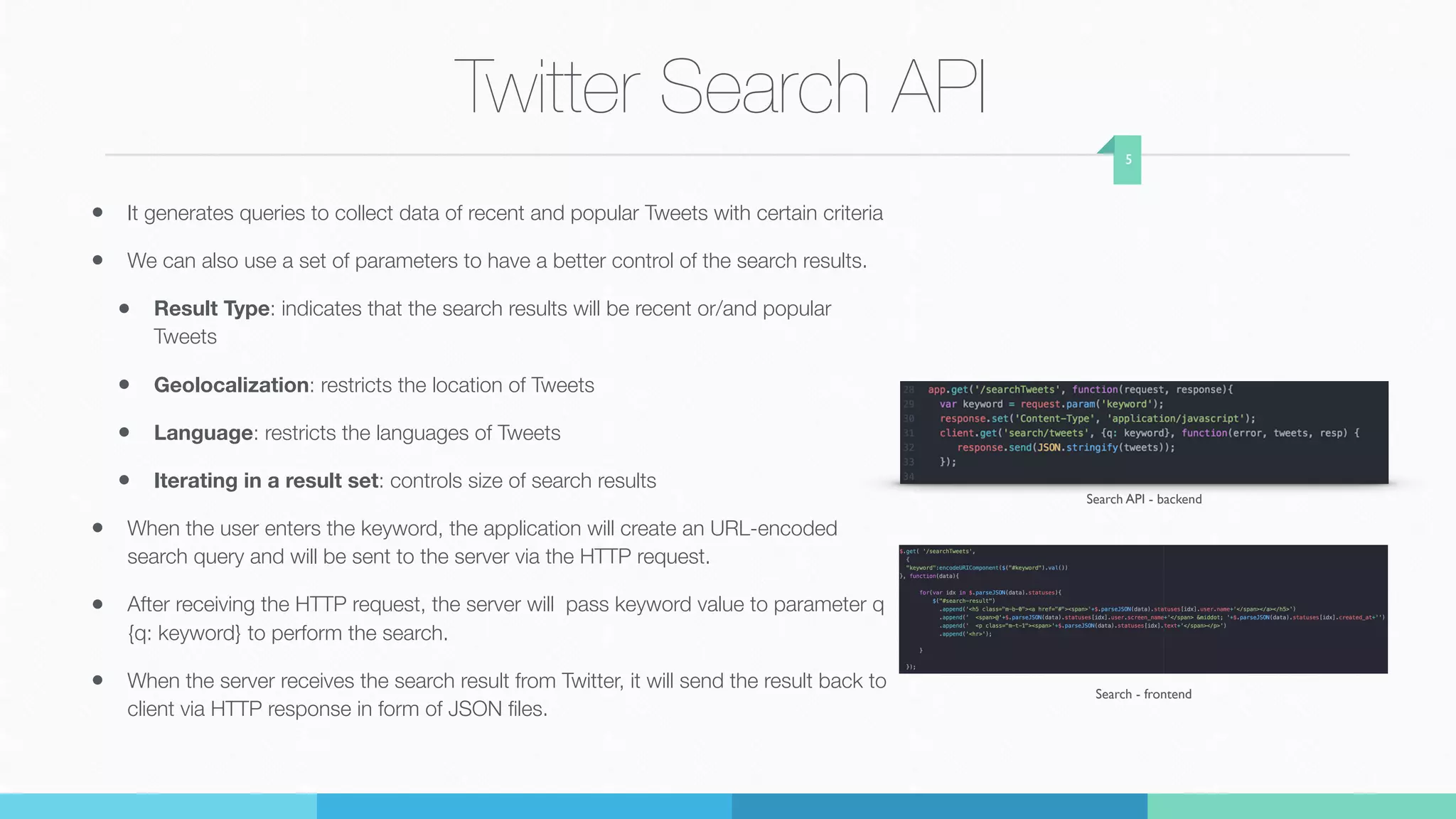

5. Twitter Search API
• It generates queries to collect data of recent and popular Tweets with certain criteria
• We can also use a set of parameters to have a better control of the search results.
• Result Type: indicates that the search results will be recent or/and popular
Tweets
• Geolocalization: restricts the location of Tweets
• Language: restricts the languages of Tweets
• Iterating in a result set: controls size of search results
• When the user enters the keyword, the application will create an URL-encoded
search query and will be sent to the server via the HTTP request.
• After receiving the HTTP request, the server will pass keyword value to parameter q
{q: keyword} to perform the search.
• When the server receives the search result from Twitter, it will send the result back to
client via HTTP response in form of JSON files.
5
Search API - backend
Search - frontend

6. Twitter Streaming API
• We used Streaming APIs to obtain high volume, real-time data from
Twitter for our charts
• Twitter provides several basic streaming types:
• Public streams: the streaming data comes from the public data
flowing through Twitter
• User streams: the single-user streaming data comes from a
single user’s view of Twitter
• Site streams: this is the multi-user version of user streams
• The streaming connection process will get the collected data,
perform the tasks parsing, filtering and store the result into a data
store.
• Then the HTTP server will get the processed result to send back to
the user by using Web Socket
6
Streaming API overview

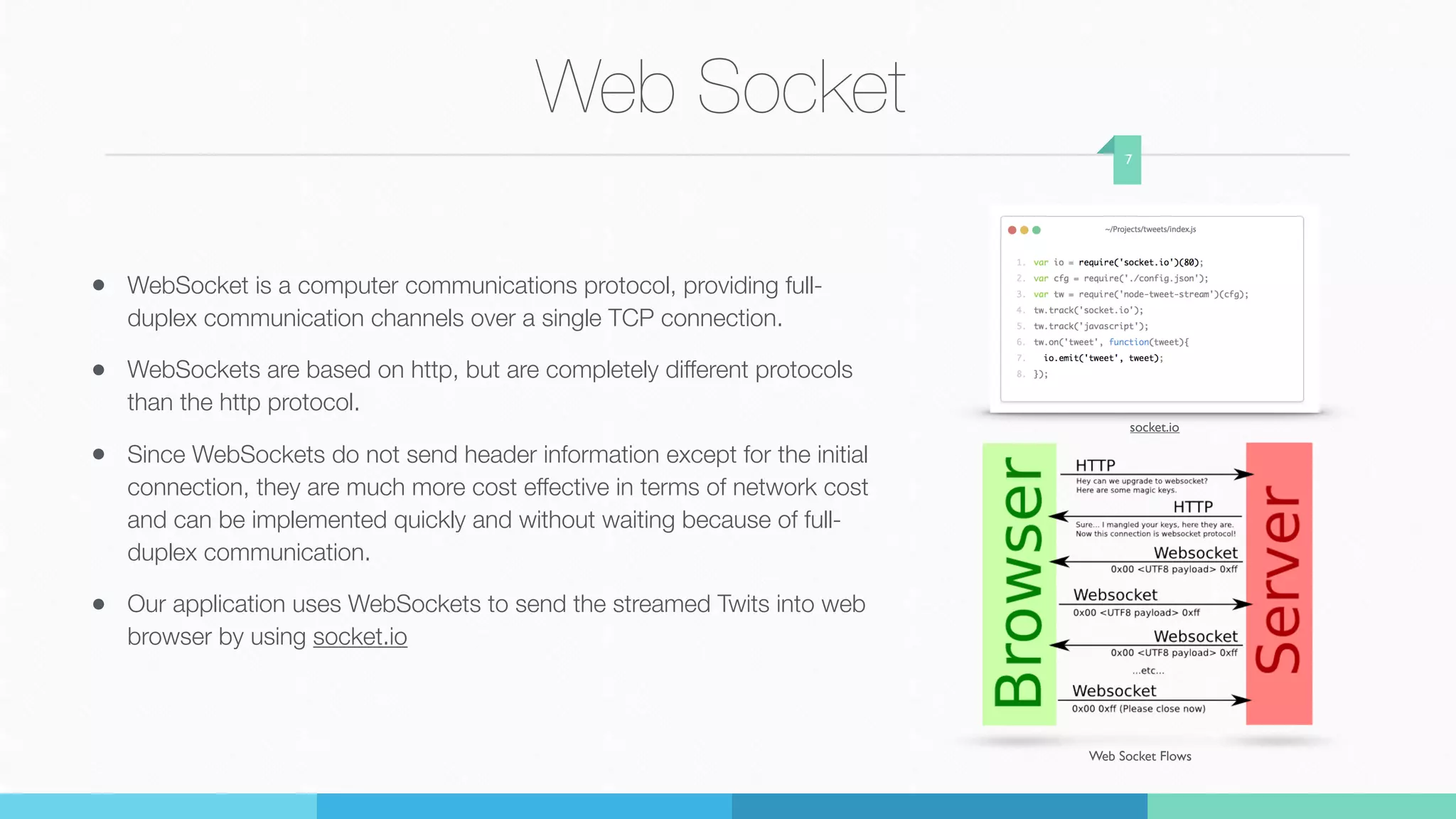

7. Web Socket
• WebSocket is a computer communications protocol, providing full-
duplex communication channels over a single TCP connection.
• WebSockets are based on http, but are completely different protocols
than the http protocol.
• Since WebSockets do not send header information except for the initial
connection, they are much more cost effective in terms of network cost
and can be implemented quickly and without waiting because of full-
duplex communication.
• Our application uses WebSockets to send the streamed Twits into web
browser by using socket.io
7
Web Socket Flows
socket.io

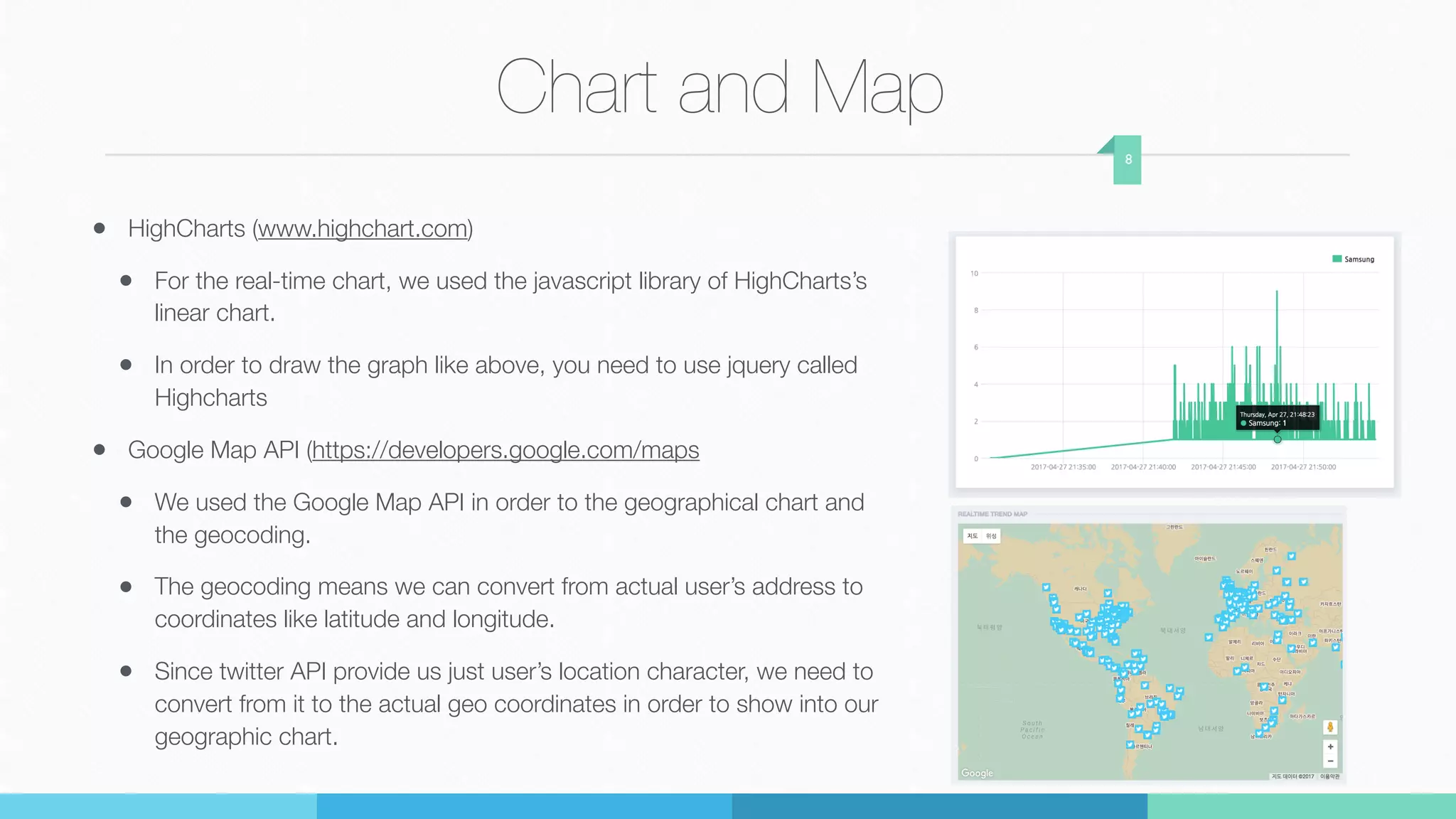

8. Chart and Map
• HighCharts (www.highchart.com)
• For the real-time chart, we used the javascript library of HighCharts’s
linear chart.
• In order to draw the graph like above, you need to use jquery called
Highcharts
• Google Map API (https://developers.google.com/maps
• We used the Google Map API in order to the geographical chart and
the geocoding.
• The geocoding means we can convert from actual user’s address to
coordinates like latitude and longitude.
• Since twitter API provide us just user’s location character, we need to
convert from it to the actual geo coordinates in order to show into our
geographic chart.
8

9. Heroku for PaaS
• Heroku is a new way of deploying web applications,
where developers are providing services based on the
idea that they can concentrate on the code of the web
application without losing time for tasks such as server
configuration, deployment environment, and server
expansion.
• Developers are only deployed and restarted by writing
source code, committing the code to the git repository
for deployment, and pushing it to the remote Heroku
repository.
• If the success of your web application requires more
servers, increasing the number of processors called
Dyno will have the same effect as adding multiple
servers.
9
Type of Cloud Computing
Heroku Deployment Architecture

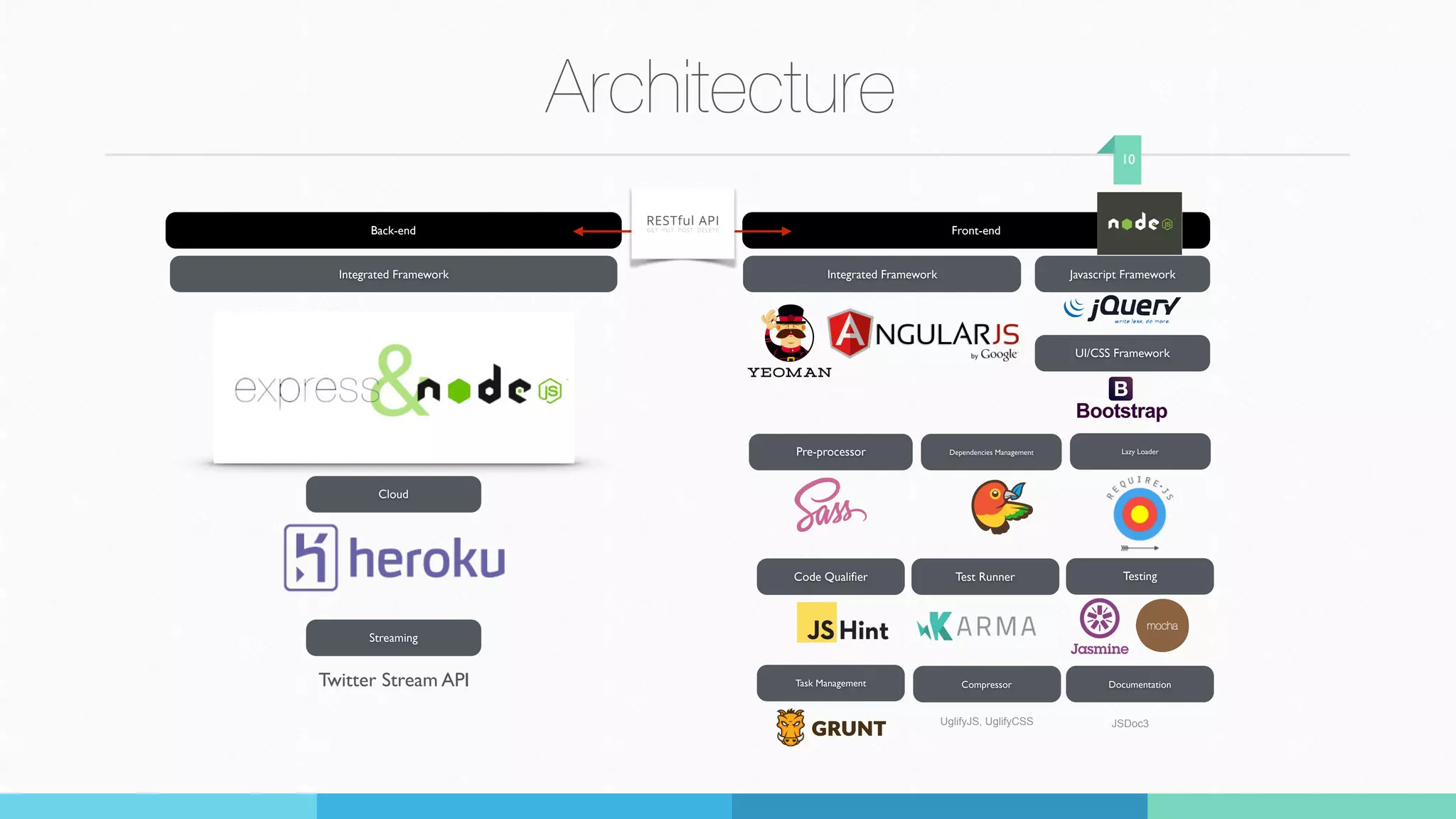

10. Architecture
10
Back-end Front-end
Integrated Framework
UI/CSS Framework
Dependencies Management
Javascript Framework
Testing
Task Management
Test Runner
Pre-processor
Compressor
UglifyJS, UglifyCSS
Code Qualifier
Documentation
JSDoc3
Lazy Loader
Integrated Framework
Cloud
Streaming
Twitter Stream API

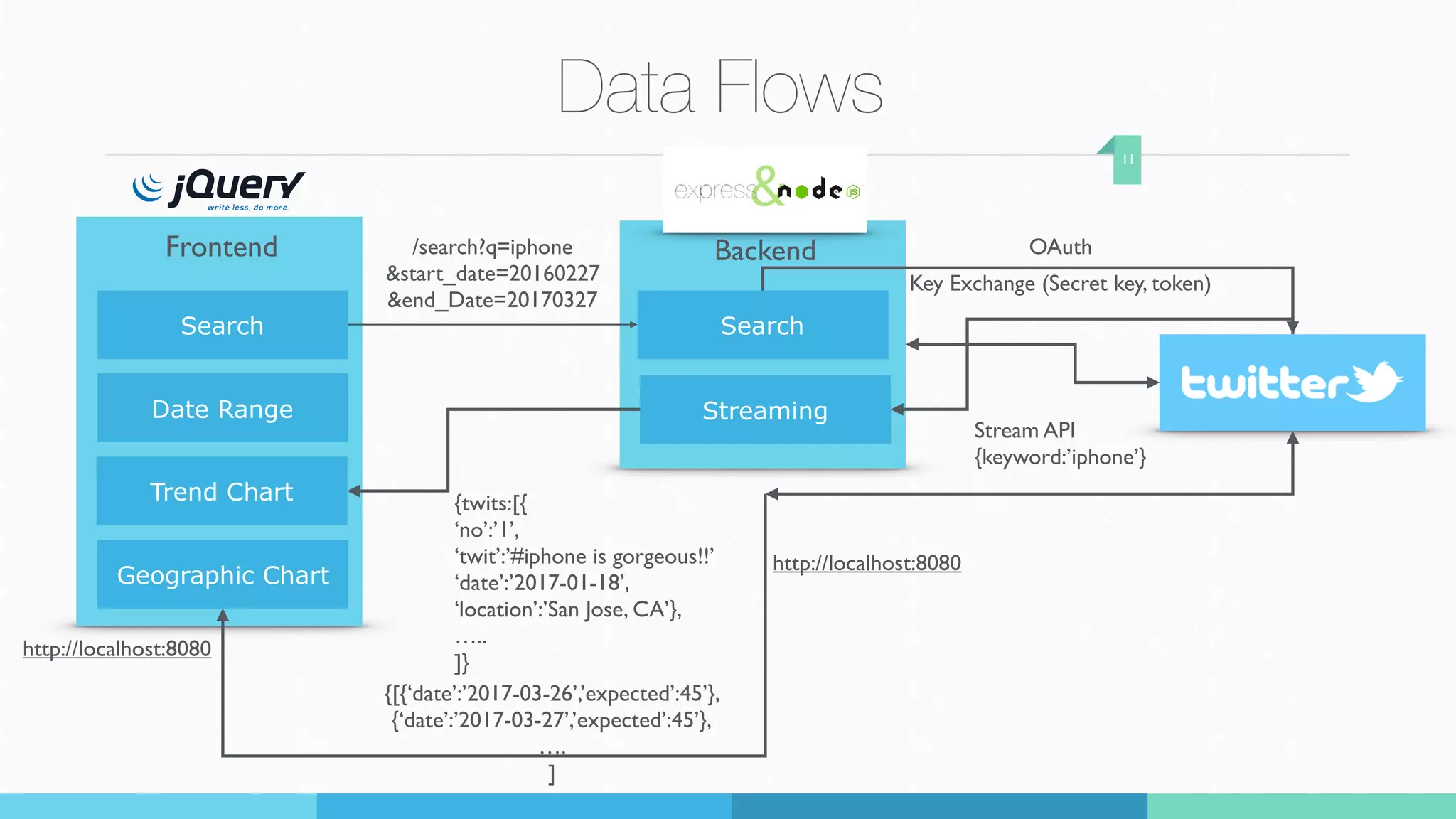

11. Data Flows
11
Frontend Backend OAuth
Search Search
/search?q=iphone
&start_date=20160227
&end_Date=20170327
Trend Chart
Streaming
Geographic Chart
{twits:[{
‘no’:’1’,
‘twit’:’#iphone is gorgeous!!’
‘date’:’2017-01-18’,
‘location’:’San Jose, CA’},
…..
]}
{[{‘date’:’2017-03-26’,’expected’:45’},
{‘date’:’2017-03-27’,’expected’:45’},
….
]
Date Range
http://localhost:8080
http://localhost:8080
Stream API
{keyword:’iphone’}
Key Exchange (Secret key, token)

12. User Interface & Demo
Search Box
Realtime Linear Chart
Geographical Chart
Actual Twit Data
# of streamed Tweets
http://twitter-trend-analyzer2.herokuapp.com

13. Thank You 13
https://github.com/IkwhanChang/twitter-trend-analyzer
