1. MADRID · NOV 27-28 · 2015
Adding Realtime
To your Apps
Nacho Martín

2. MADRID · NOV 27-28 · 2015
I write software at limenius.com
3/4 of them need some
form of Real Time
We build web and mobile apps
for clients
We have tried many things in different battles
This year we abstracted carotene-project.com and
opensourced it

3. MADRID · NOV 27-28 · 2015
A bit of history
Websockets? where we are going
we don’t need Websockets

4. MADRID · NOV 27-28 · 2015
Meet Tim Berners-Lee, 1991

5. MADRID · NOV 27-28 · 2015

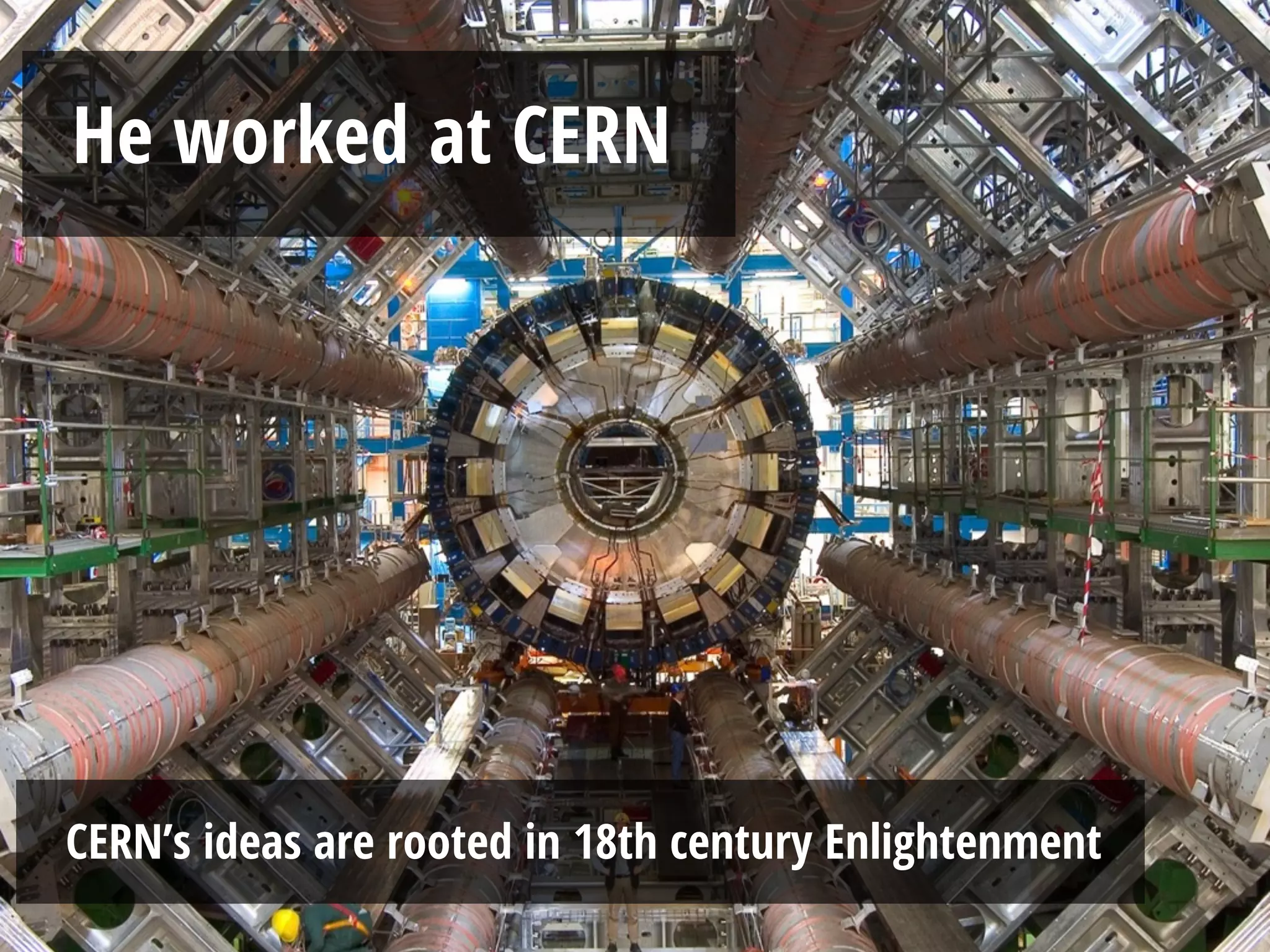

He worked at CERN
CERN’s ideas are rooted in 18th century Enlightenment

6. MADRID · NOV 27-28 · 2015
Most important: knowledge

7. MADRID · NOV 27-28 · 2015
Humans pass knowledge
to next generations!

8. MADRID · NOV 27-28 · 2015
We stand on the shoulders of giants!

9. MADRID · NOV 27-28 · 2015

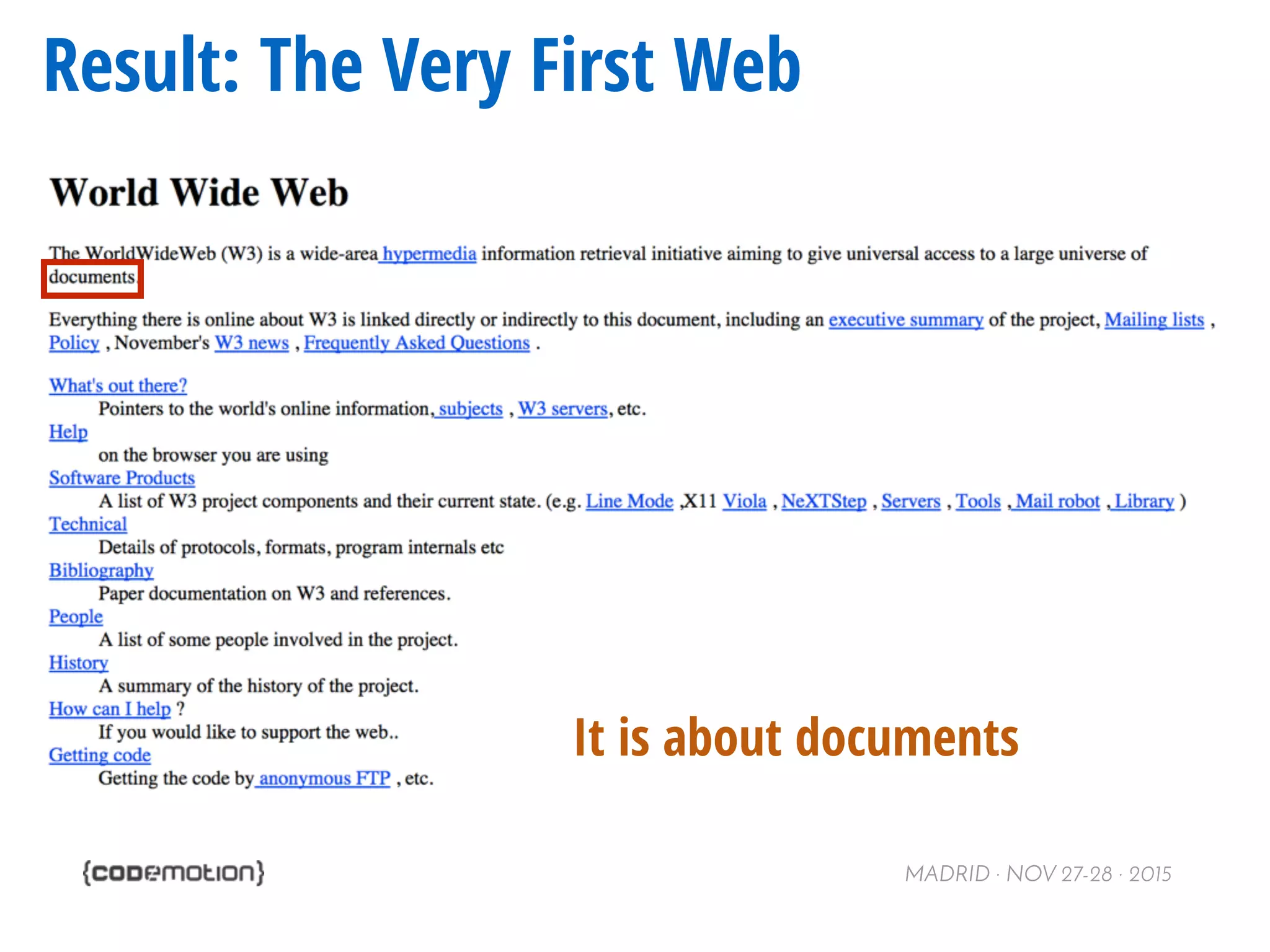

Result: The Very First Web
It is about documents

10. MADRID · NOV 27-28 · 2015

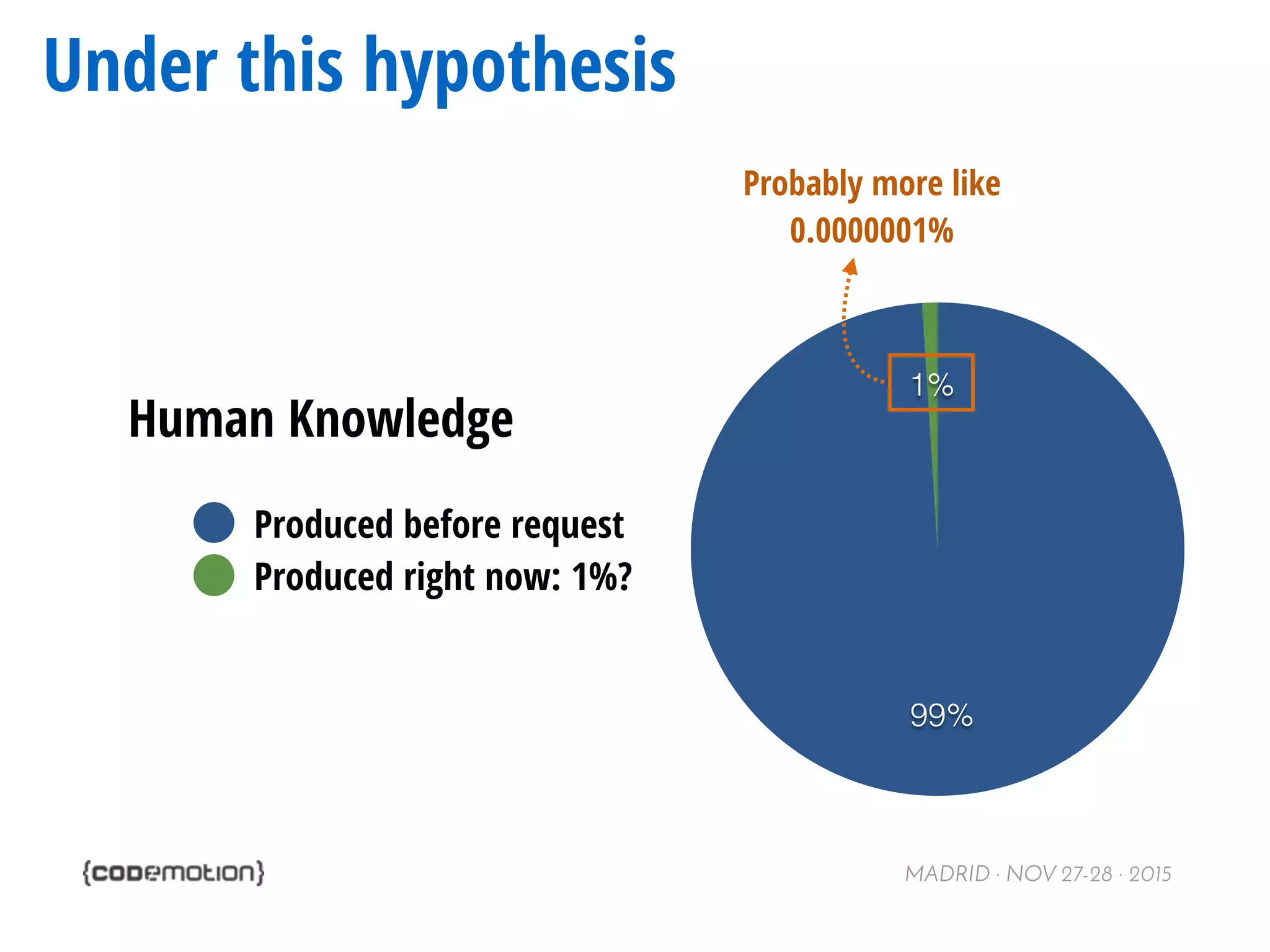

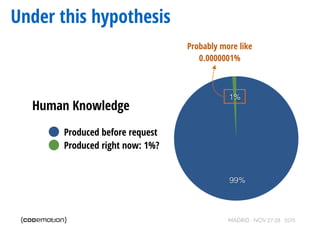

Under this hypothesis
1%
99%
Produced before request
Produced right now: 1%?
Probably more like
0.0000001%
Human Knowledge

11. MADRID · NOV 27-28 · 2015
Corollary: If something important happens
after the HTTP request, it will be filtered and
solidified in Knowledge and preserved for
ages! Come again next month.

12. MADRID · NOV 27-28 · 2015

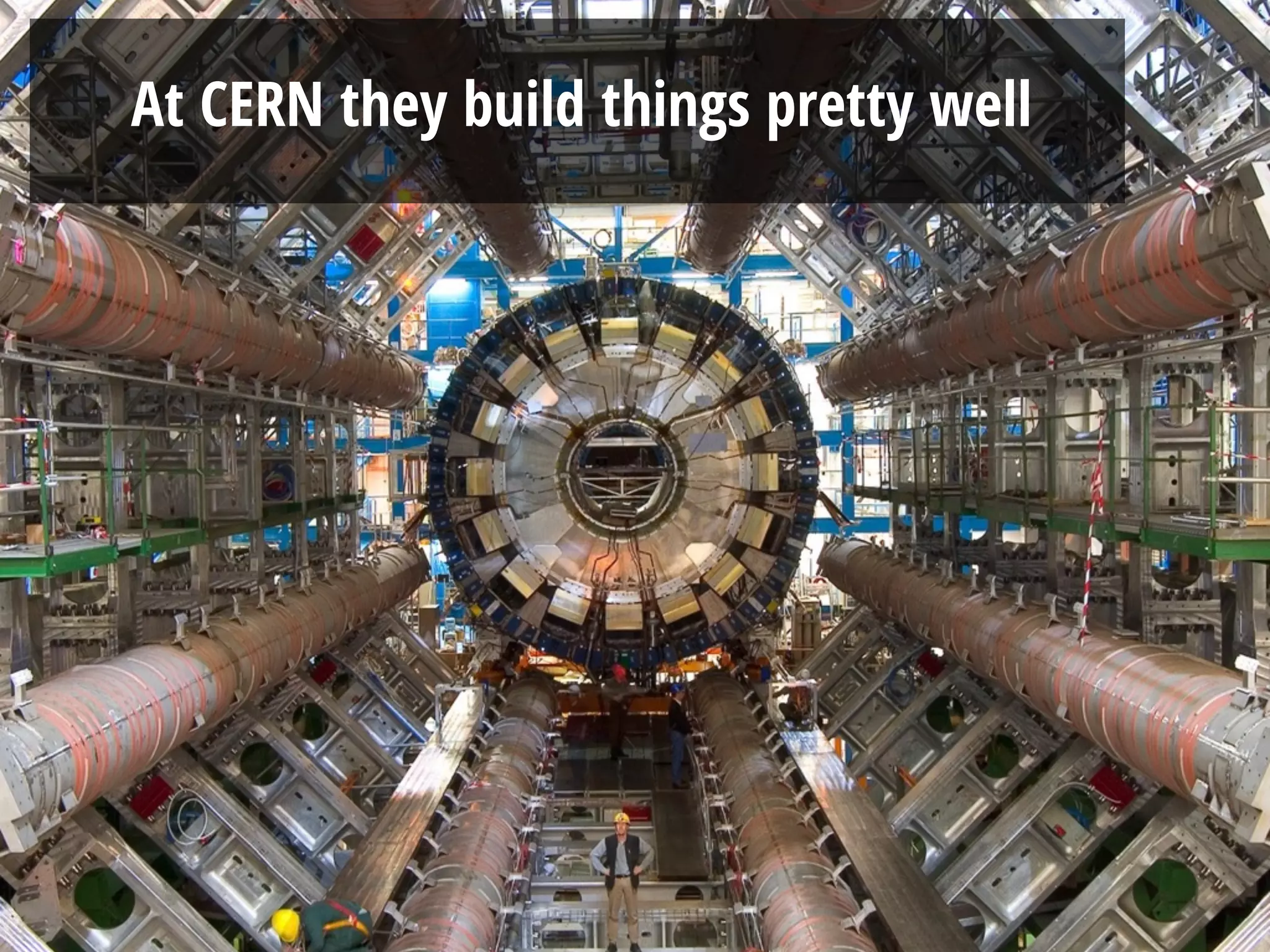

At CERN they build things pretty well

13. MADRID · NOV 27-28 · 2015

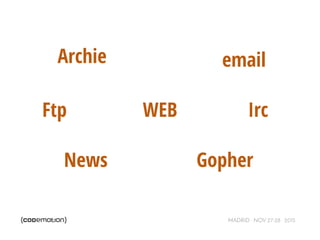

Archie
News
Irc
Gopher
email
WEBFtp

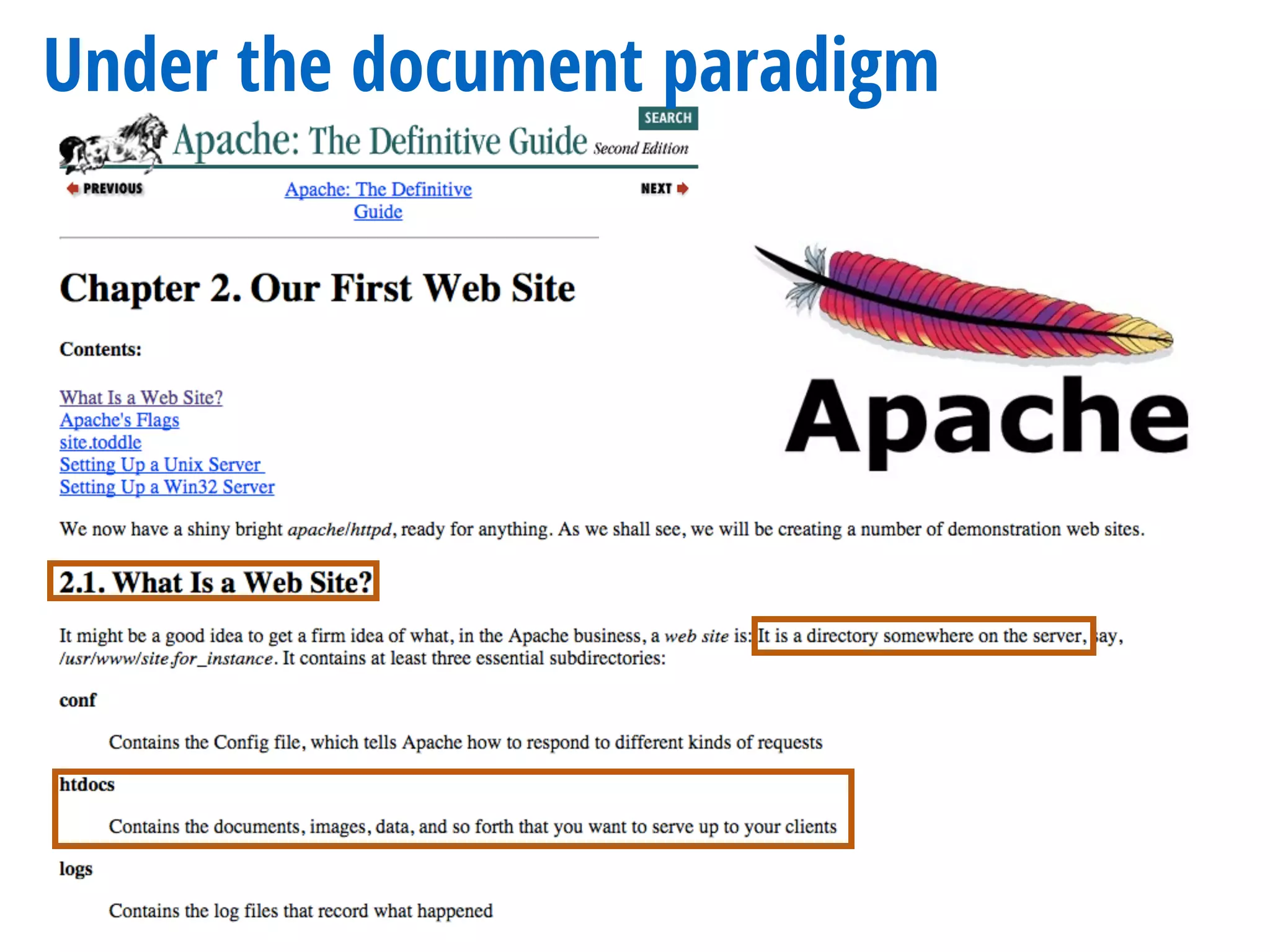

14. MADRID · NOV 27-28 · 2015
Under the document paradigm

15. MADRID · NOV 27-28 · 2015
Process a Request,
call a program
serve a Response
Serve a Document
Under the document paradigm
Short lived processes
Under the document paradigm

16. MADRID · NOV 27-28 · 2015
CGI was born
And then…
PHP
Rails Django
Symfony
Wordpress
MediaWiki
Spring
CakePHP
Perl-cgi
Code Igniter
Laravel

17. MADRID · NOV 27-28 · 2015

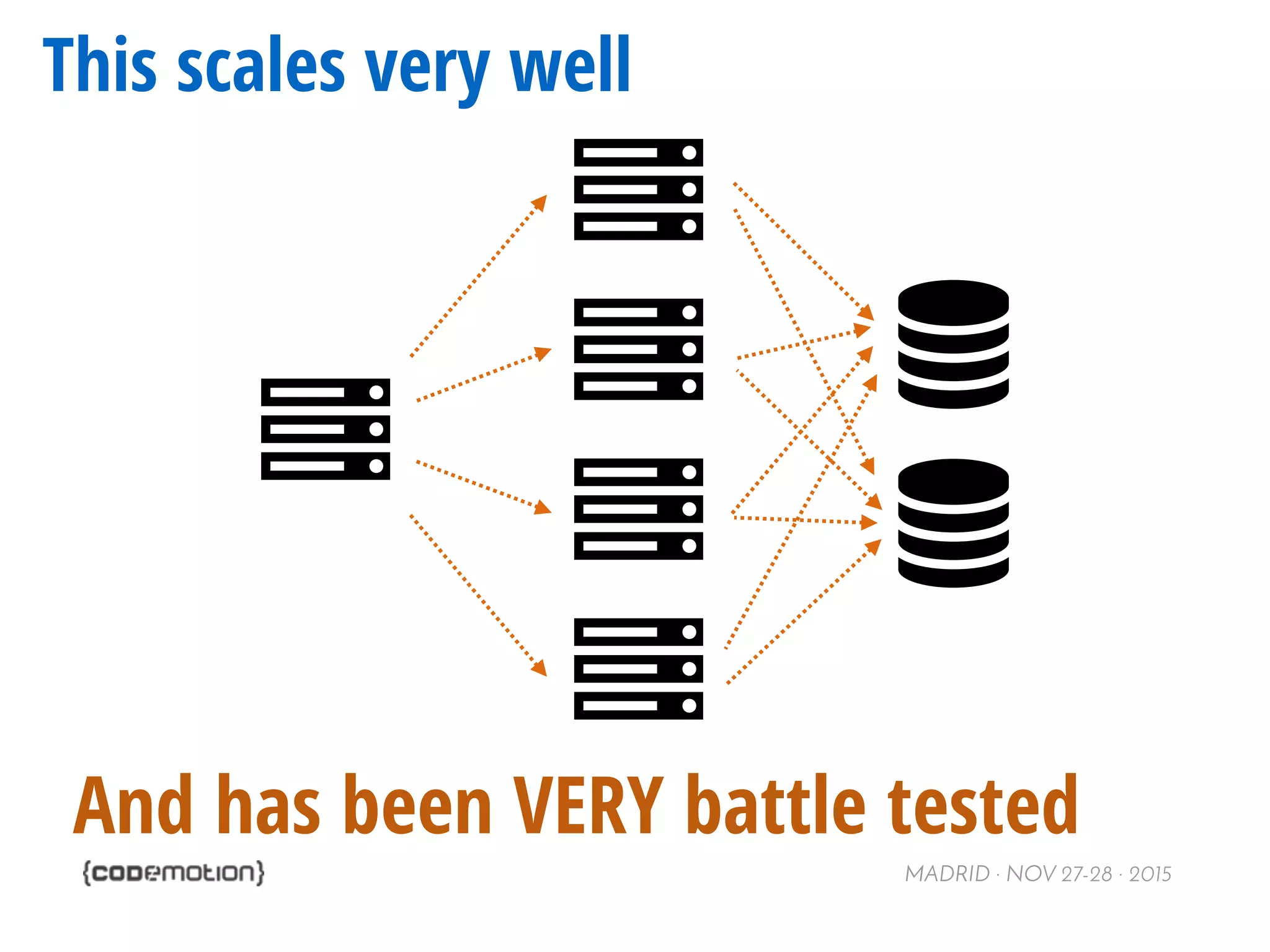

This scales very well
!
!
!
!
!


And has been VERY battle tested

18. MADRID · NOV 27-28 · 2015

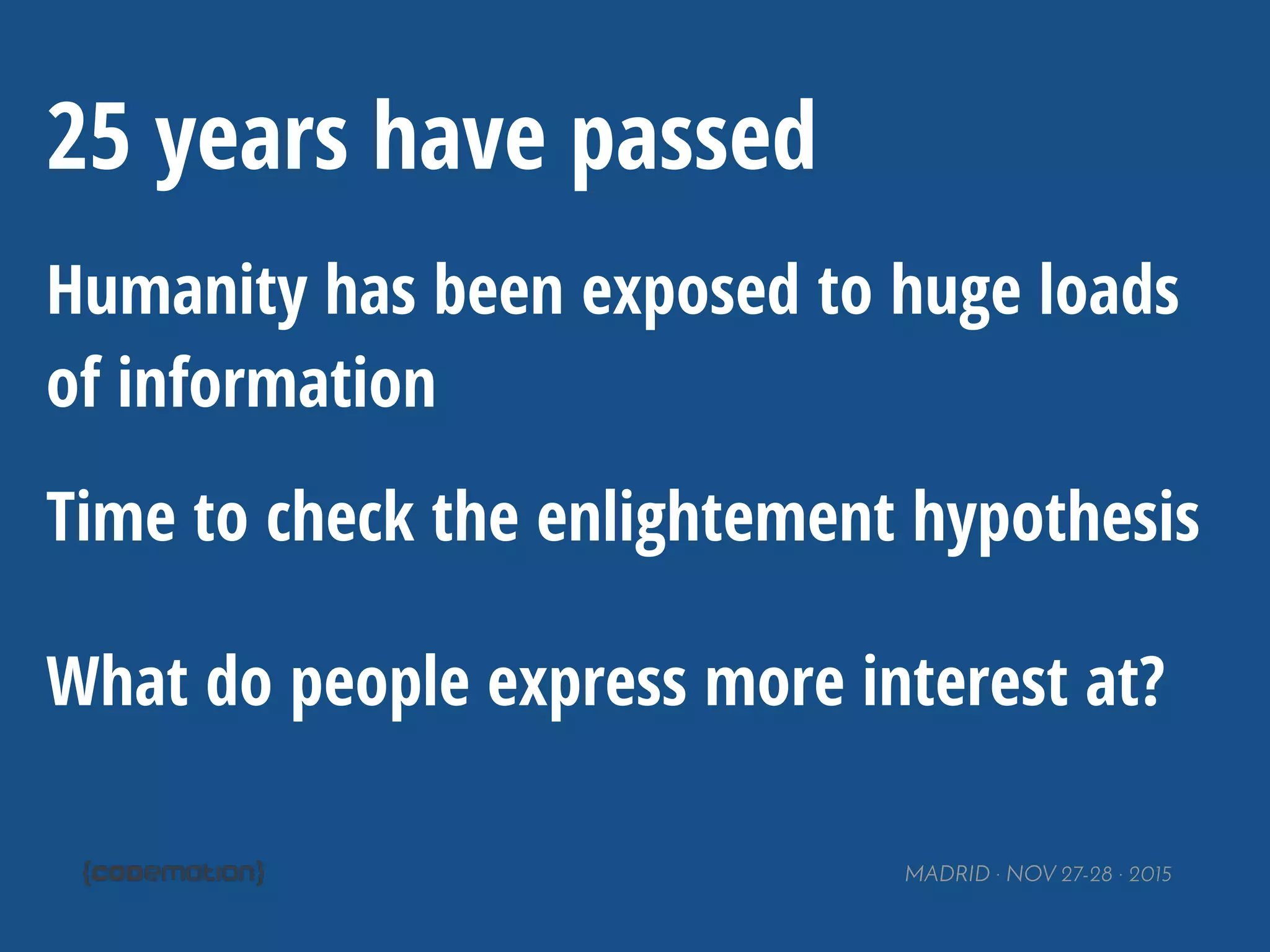

25 years have passed
Humanity has been exposed to huge loads
of information
Time to check the enlightement hypothesis
What do people express more interest at?

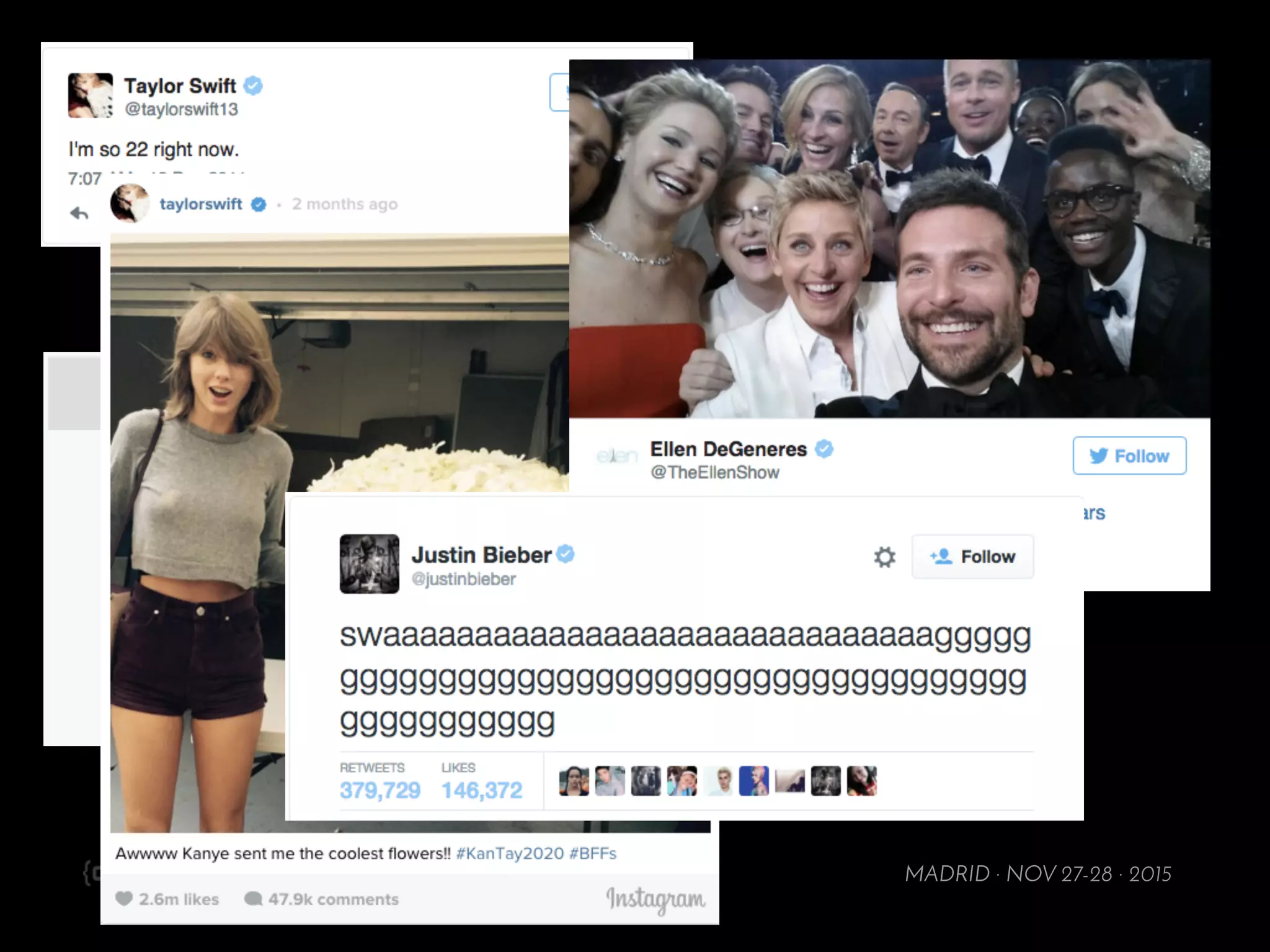

19. MADRID · NOV 27-28 · 2015

20. MADRID · NOV 27-28 · 2015
Meet Tim Berners-Lee, 2015

21. MADRID · NOV 27-28 · 2015
In face of this sad truth
What to do as a developer?

22. MADRID · NOV 27-28 · 2015
Possibility 1
(Has chances of doing something
meaningful and be rememebered)

23. MADRID · NOV 27-28 · 2015
Let’s explore possibility 2

24. MADRID · NOV 27-28 · 2015

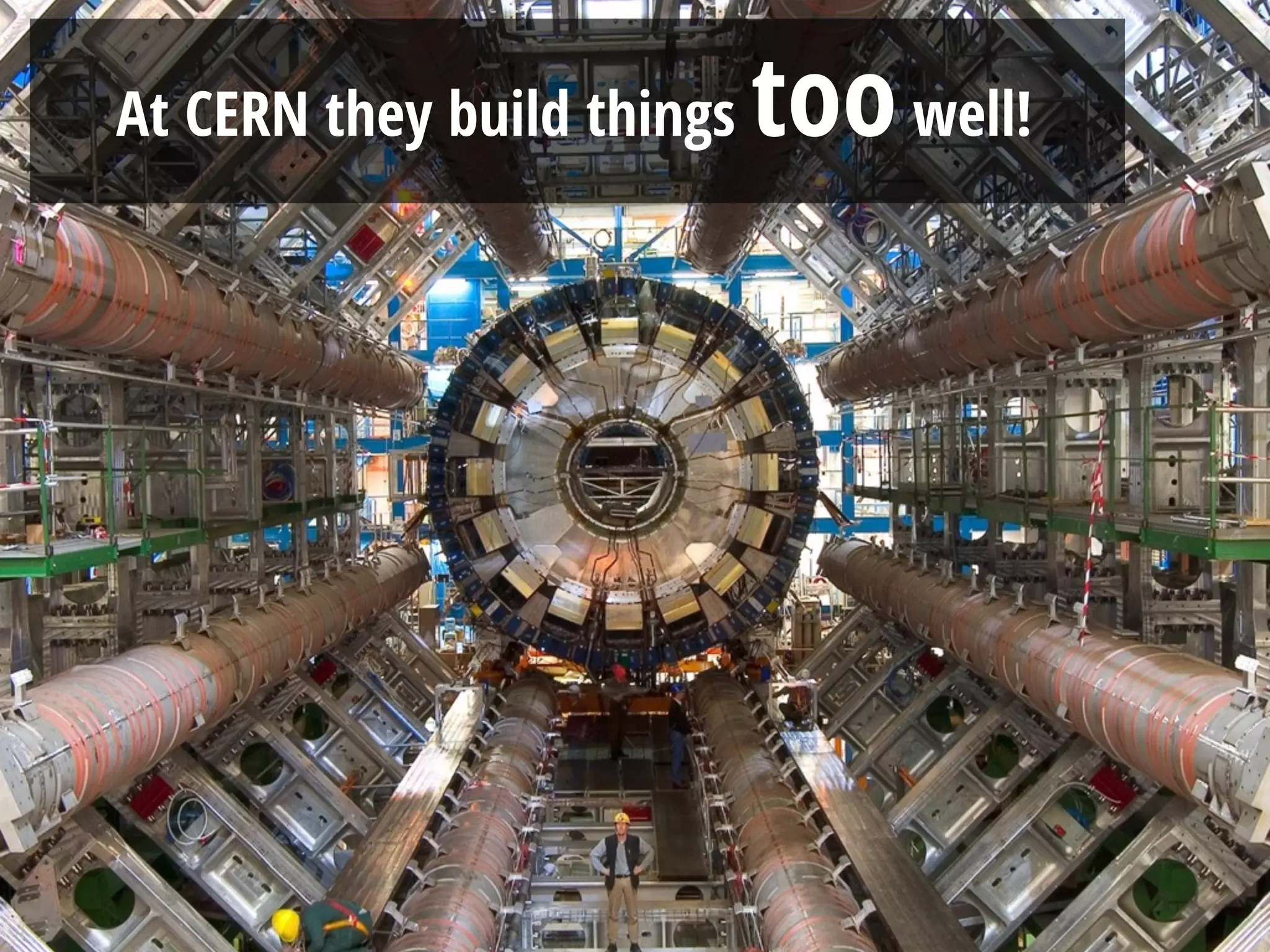

At CERN they build things toowell!

25. MADRID · NOV 27-28 · 2015

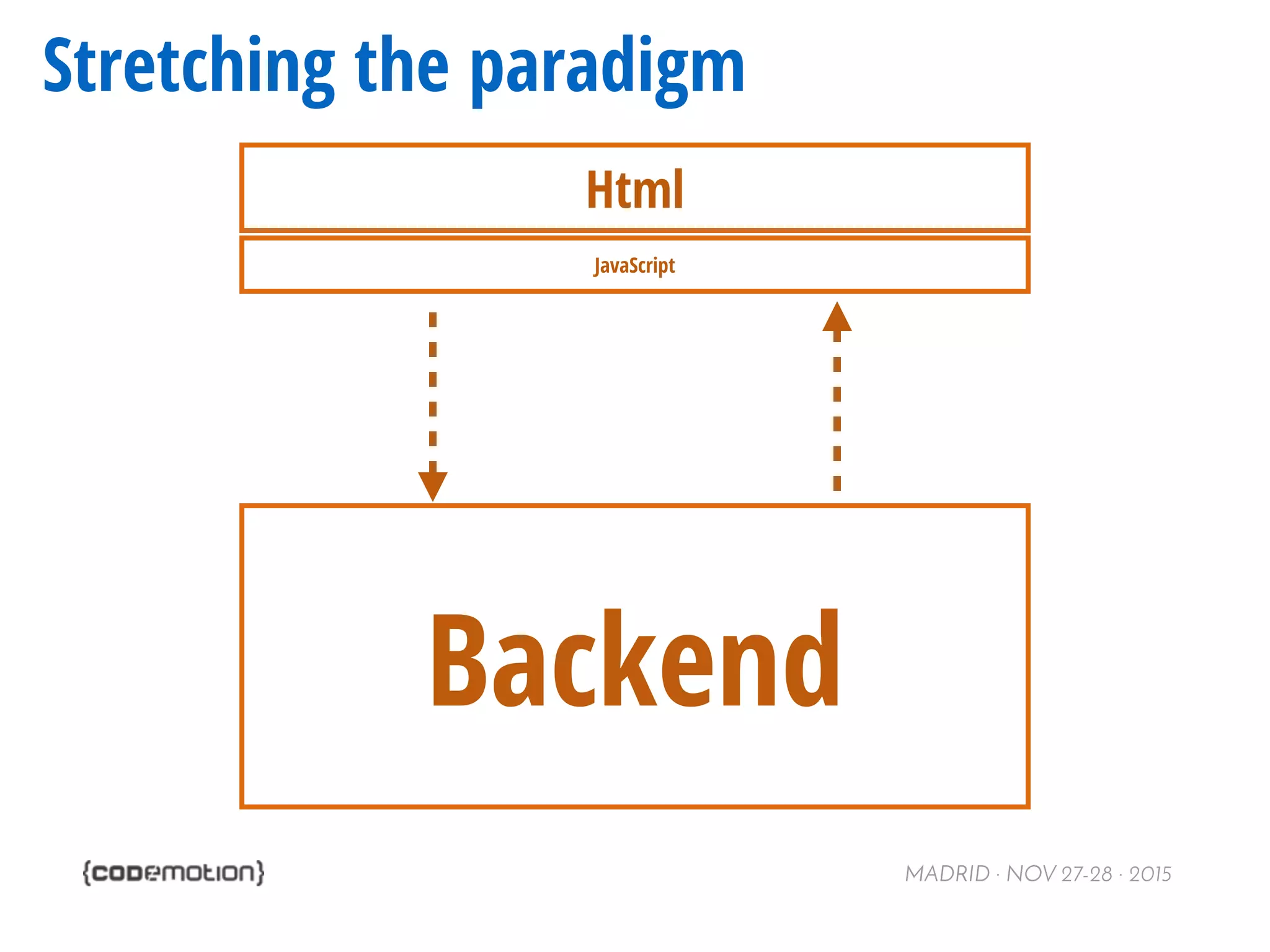

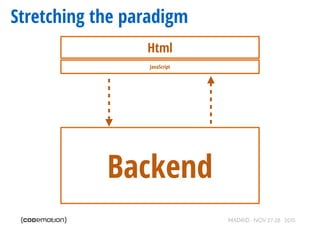

Stretching the paradigm
Backend
Html
JavaScript

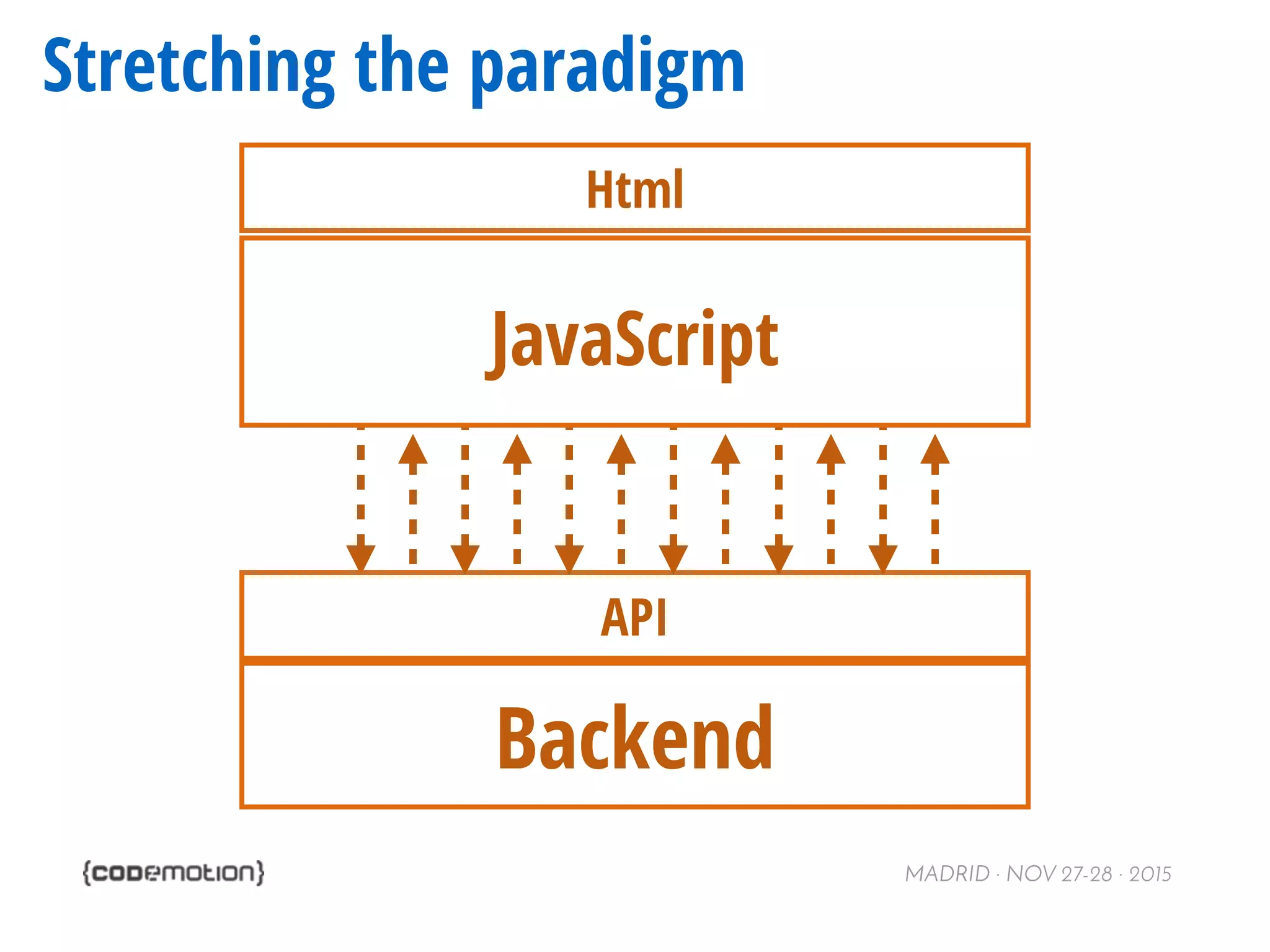

26. MADRID · NOV 27-28 · 2015
Stretching the paradigm
Backend
Html
JavaScript
API

27. MADRID · NOV 27-28 · 2015

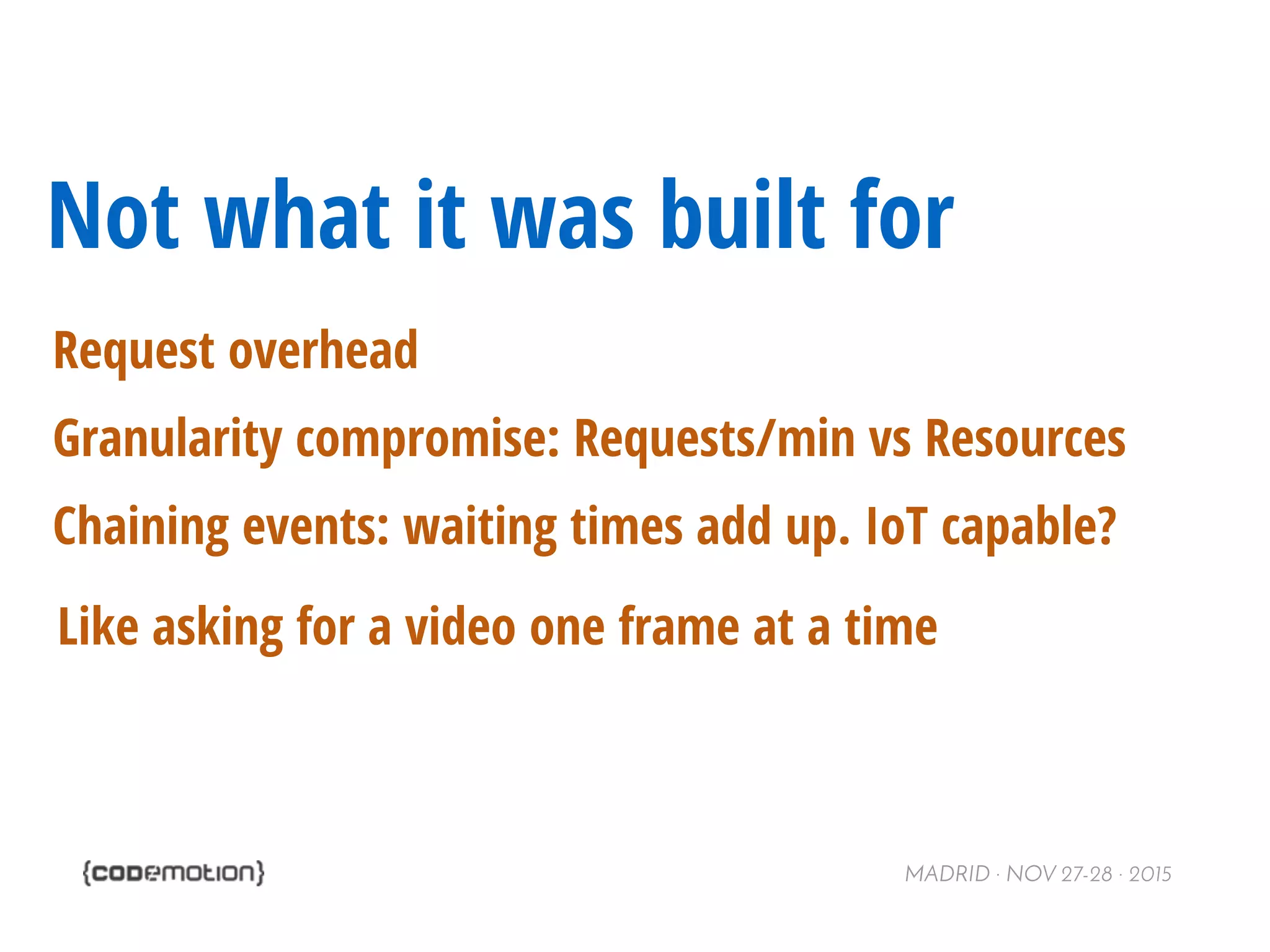

Not what it was built for
Request overhead
Granularity compromise: Requests/min vs Resources
Chaining events: waiting times add up. IoT capable?
Like asking for a video one frame at a time

28. MADRID · NOV 27-28 · 2015

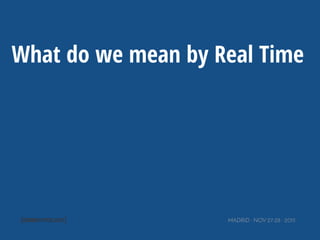

What do we mean by Real Time

29. MADRID · NOV 27-28 · 2015
Hard Real Time
Maximum response time guaranteed
We won’t talk about this

30. MADRID · NOV 27-28 · 2015

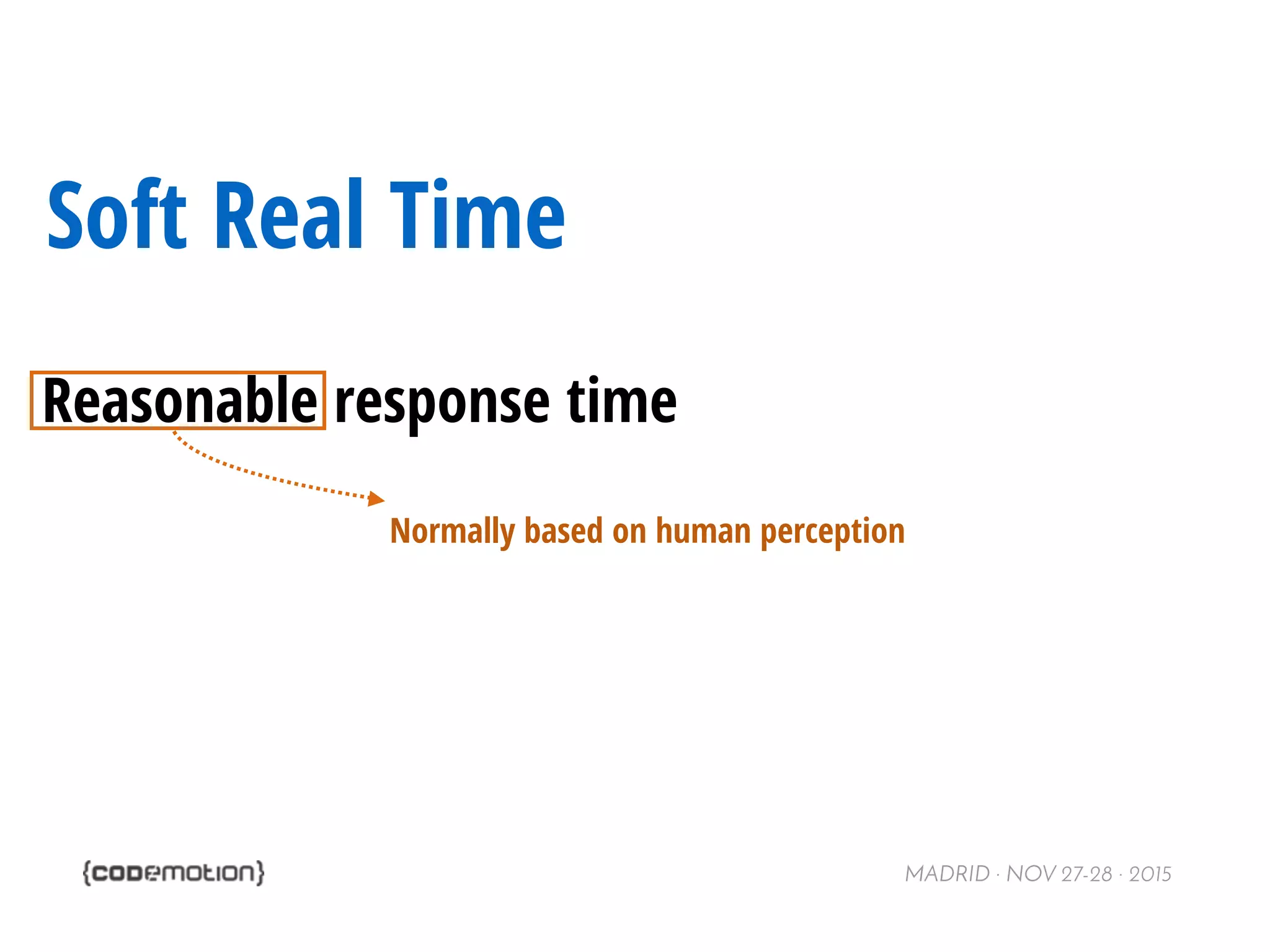

Soft Real Time
Reasonable response time
Normally based on human perception

31. MADRID · NOV 27-28 · 2015

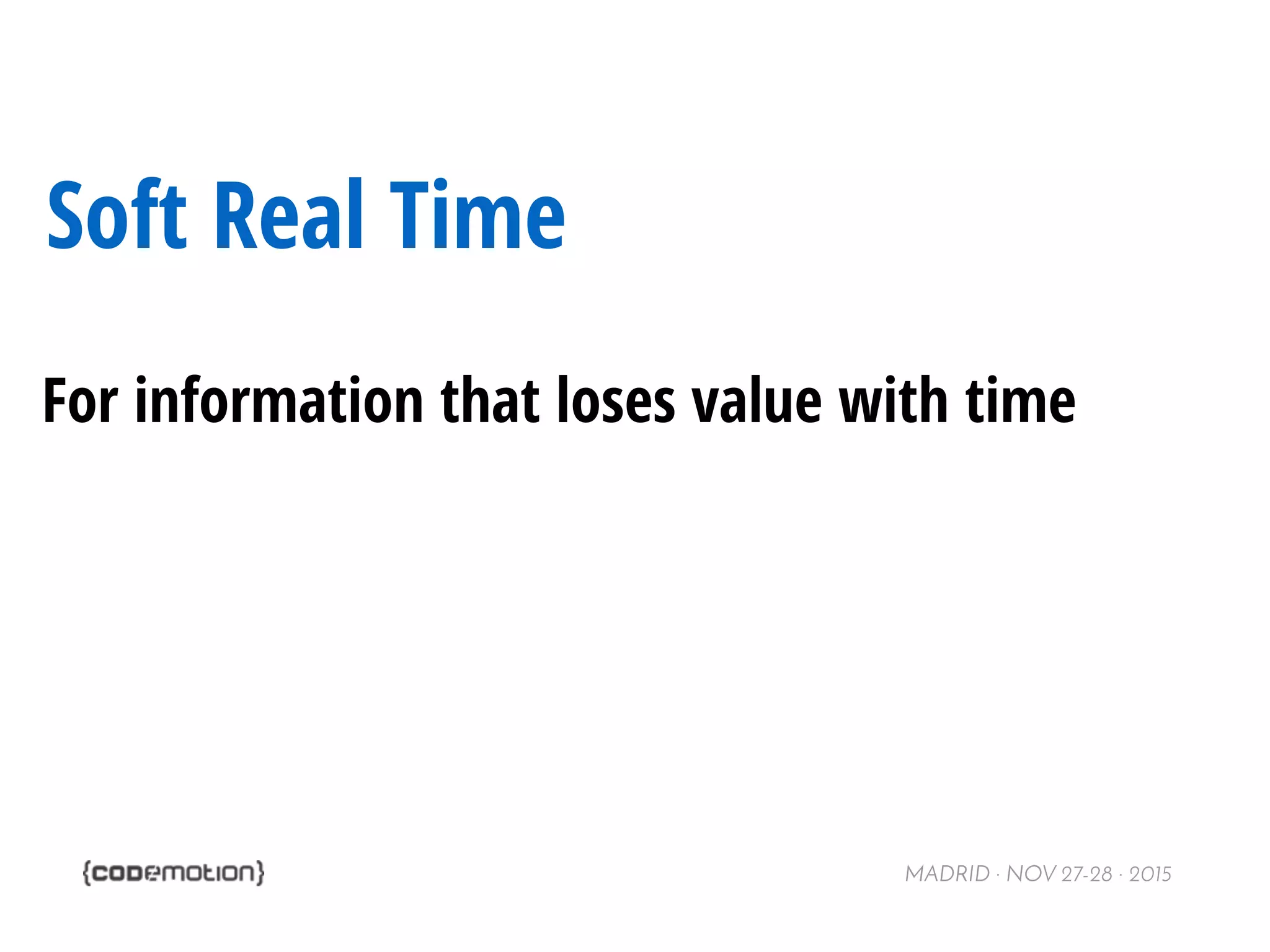

Soft Real Time
For information that loses value with time

32. MADRID · NOV 27-28 · 2015

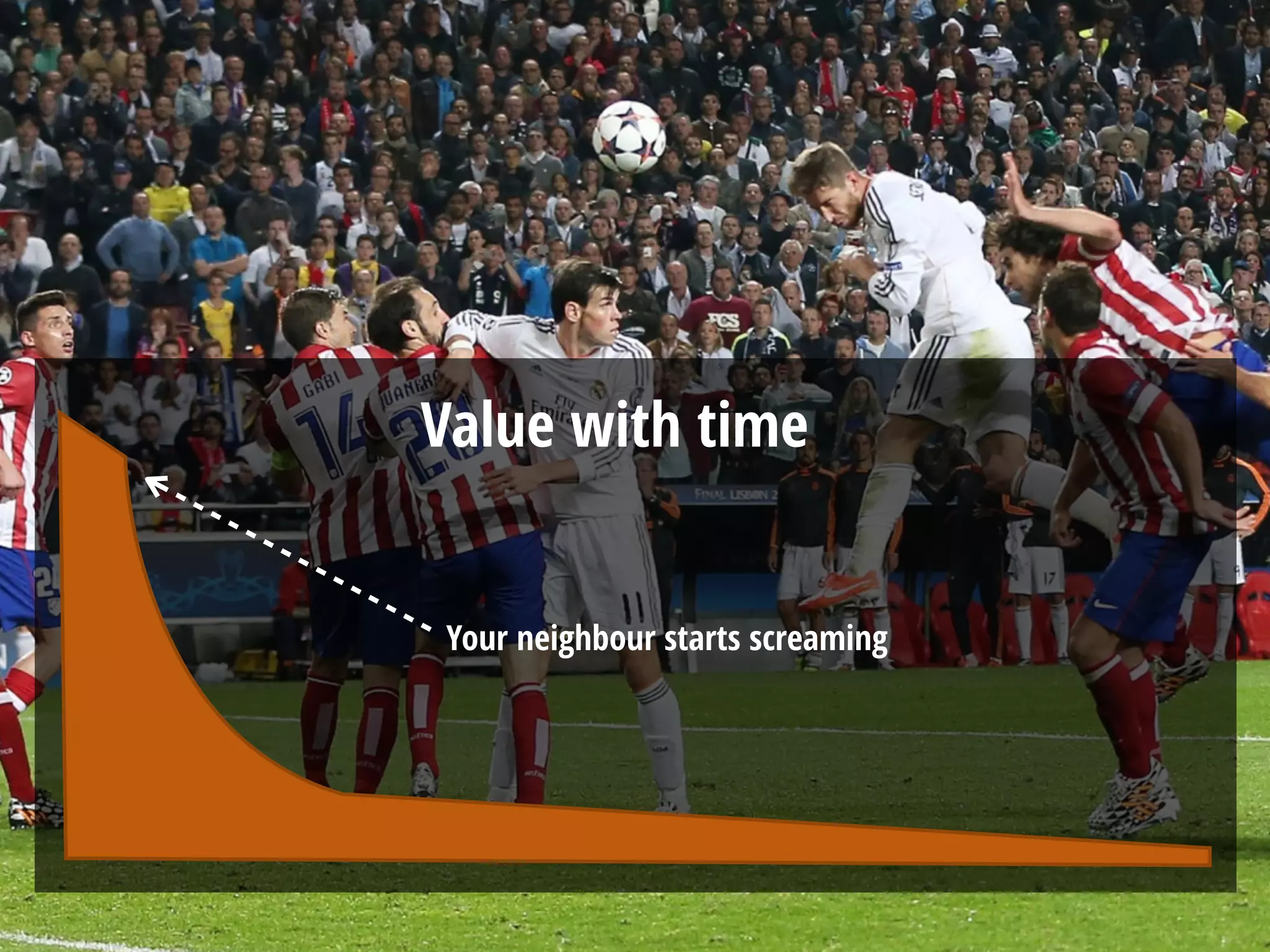

Value with time
Your neighbour starts screaming

33. MADRID · NOV 27-28 · 2015

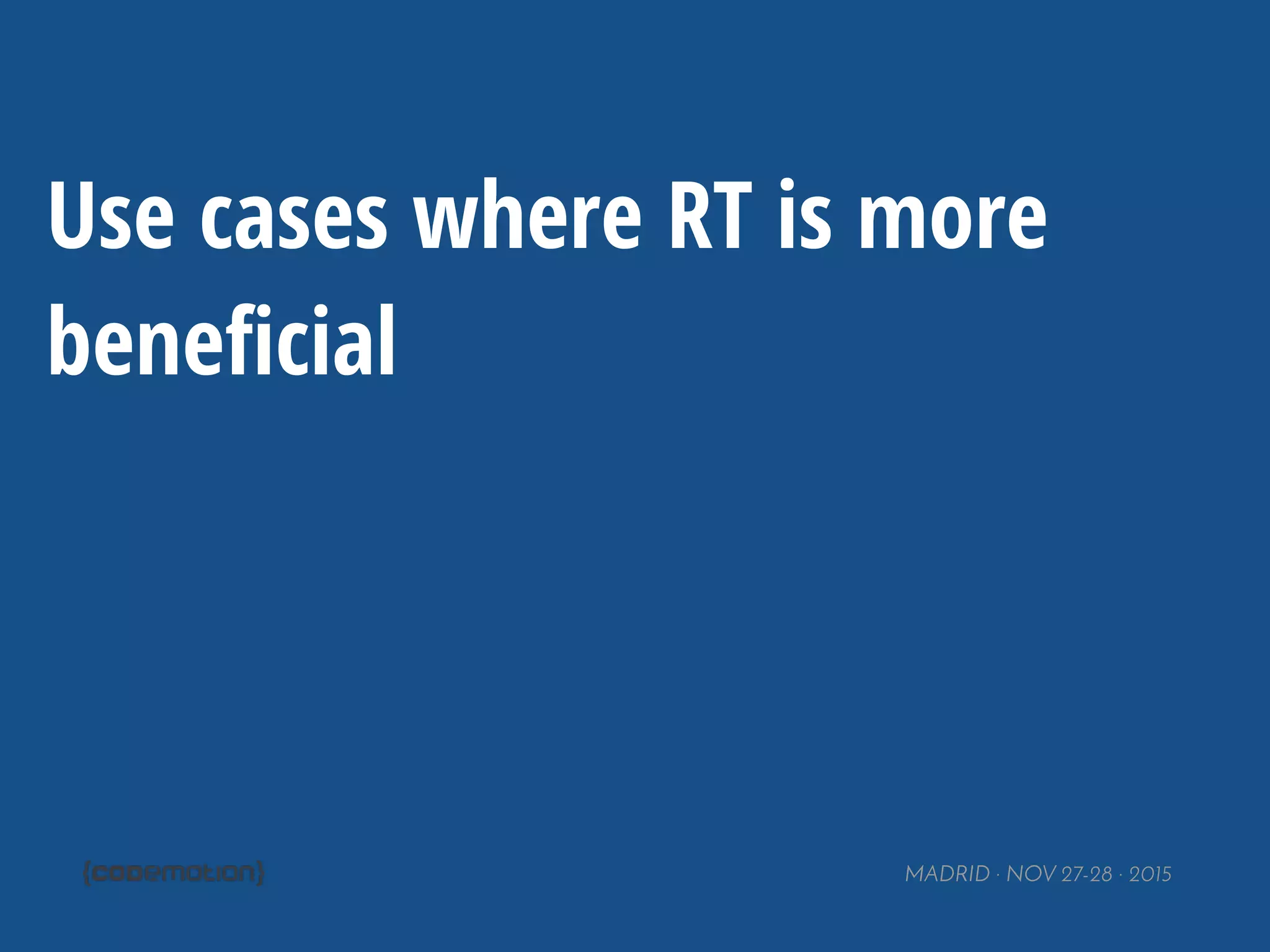

Use cases where RT is more
beneficial

34. MADRID · NOV 27-28 · 2015

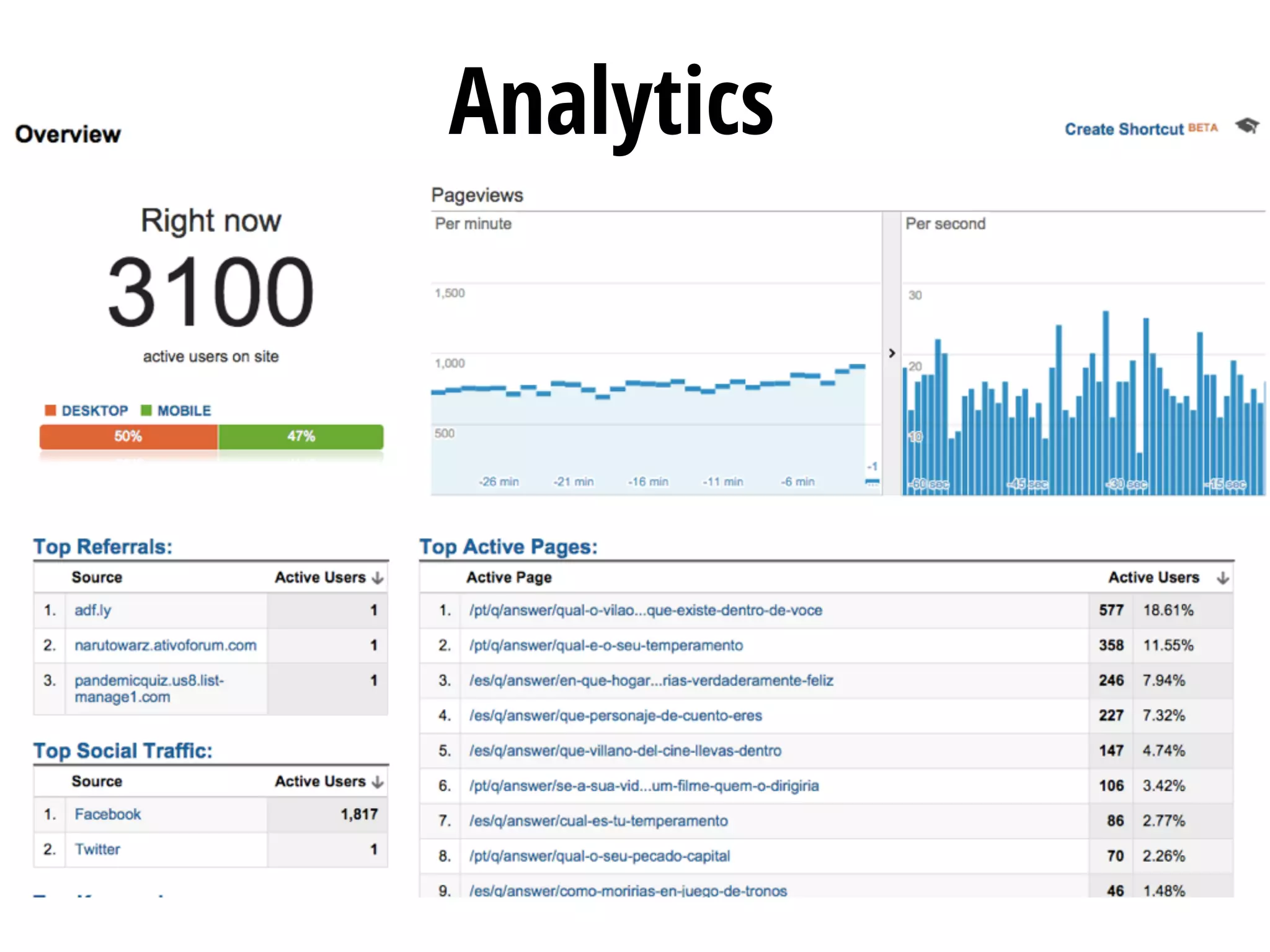

Analytics

35. MADRID · NOV 27-28 · 2015

36. MADRID · NOV 27-28 · 2015

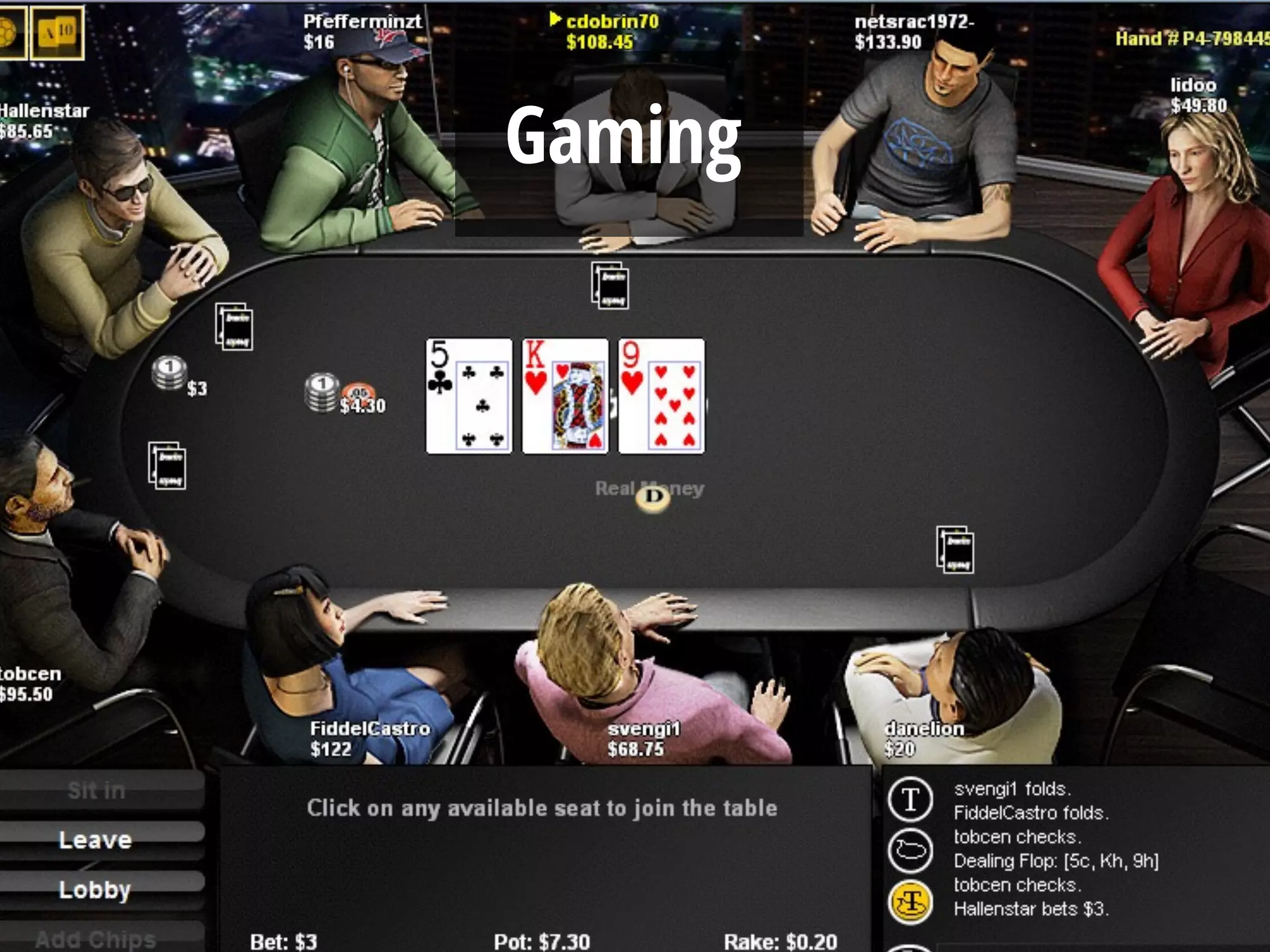

Gaming

37. MADRID · NOV 27-28 · 2015

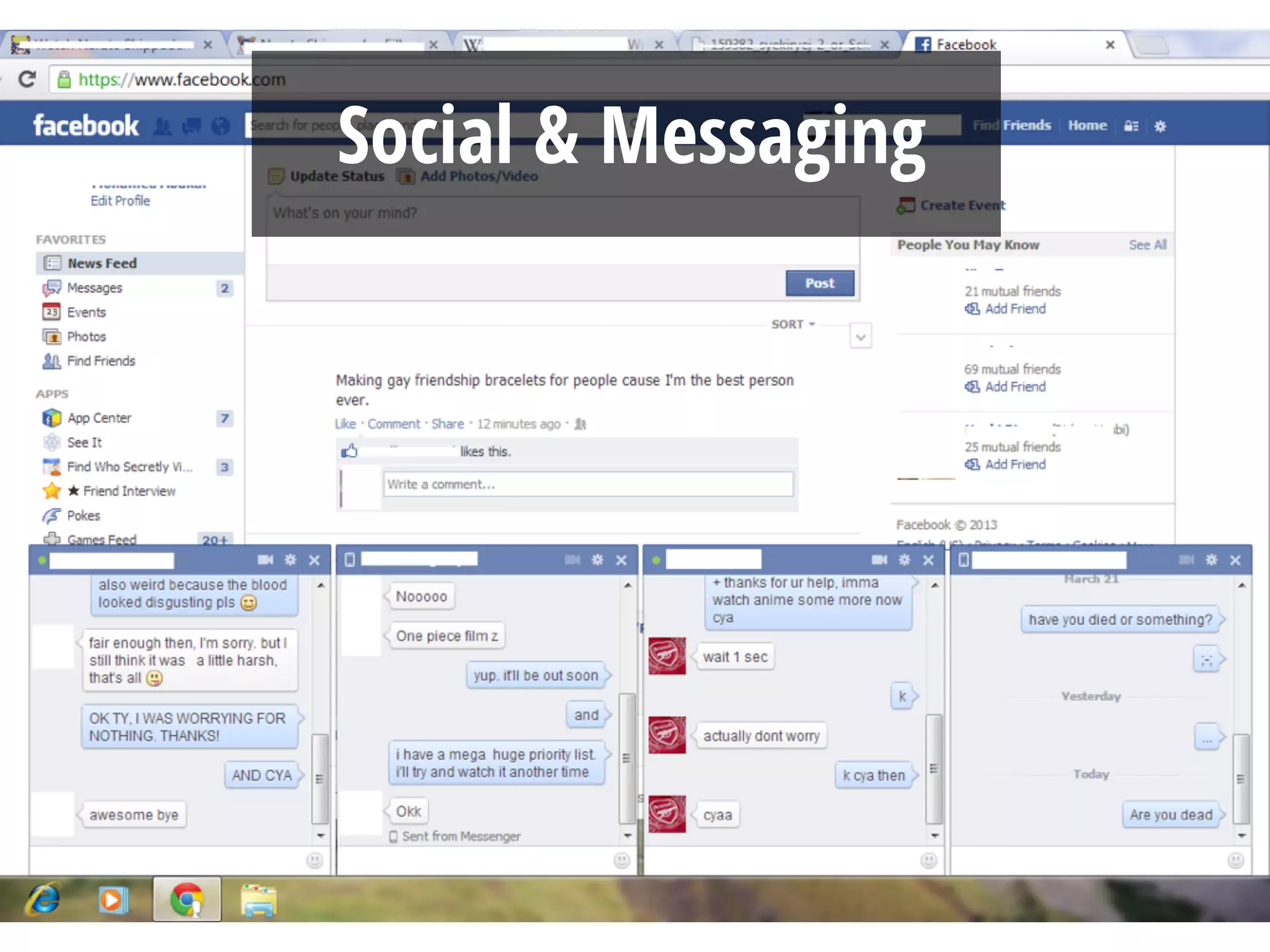

Social & Messaging

38. MADRID · NOV 27-28 · 2015

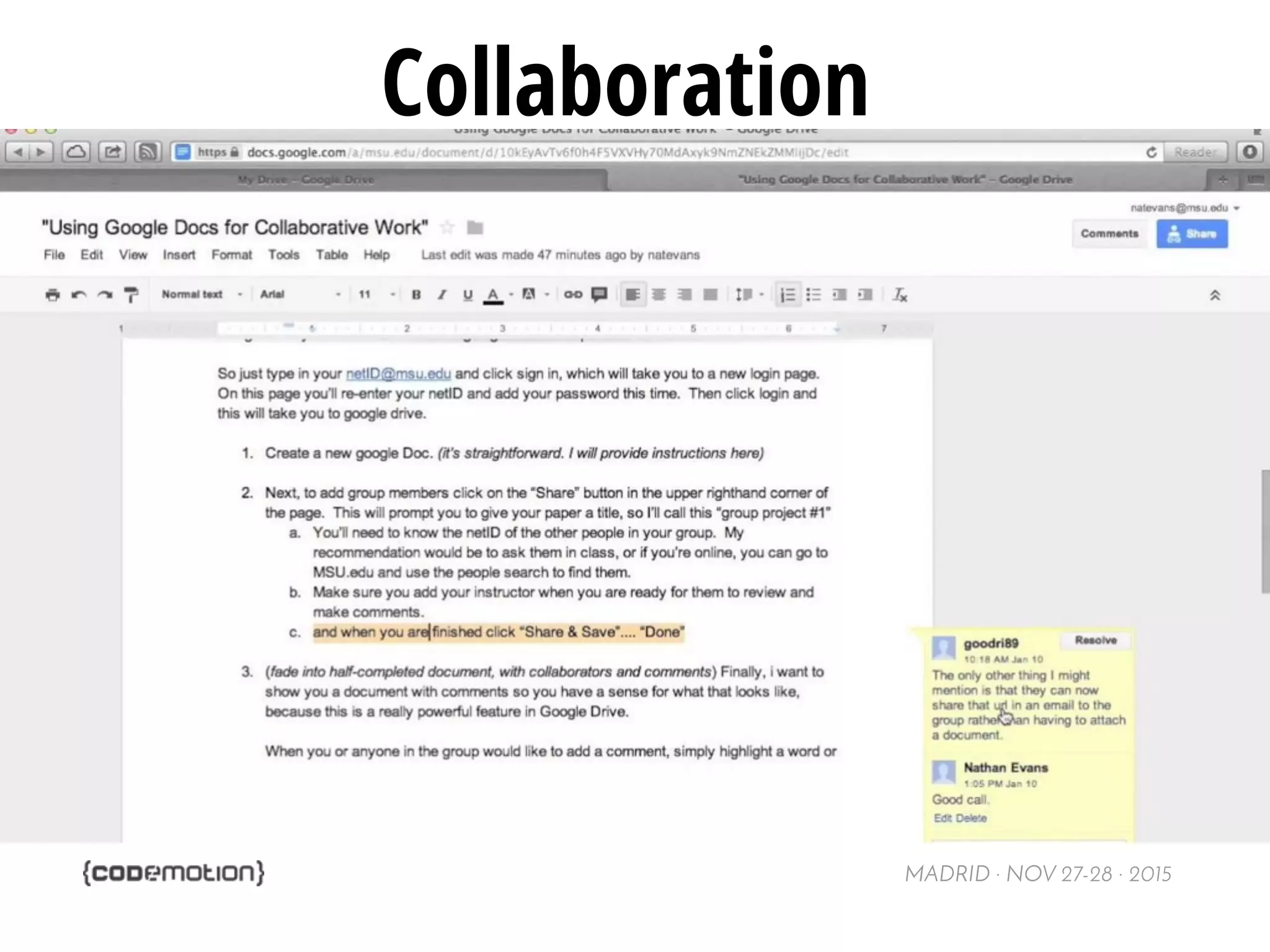

Collaboration

39. MADRID · NOV 27-28 · 2015

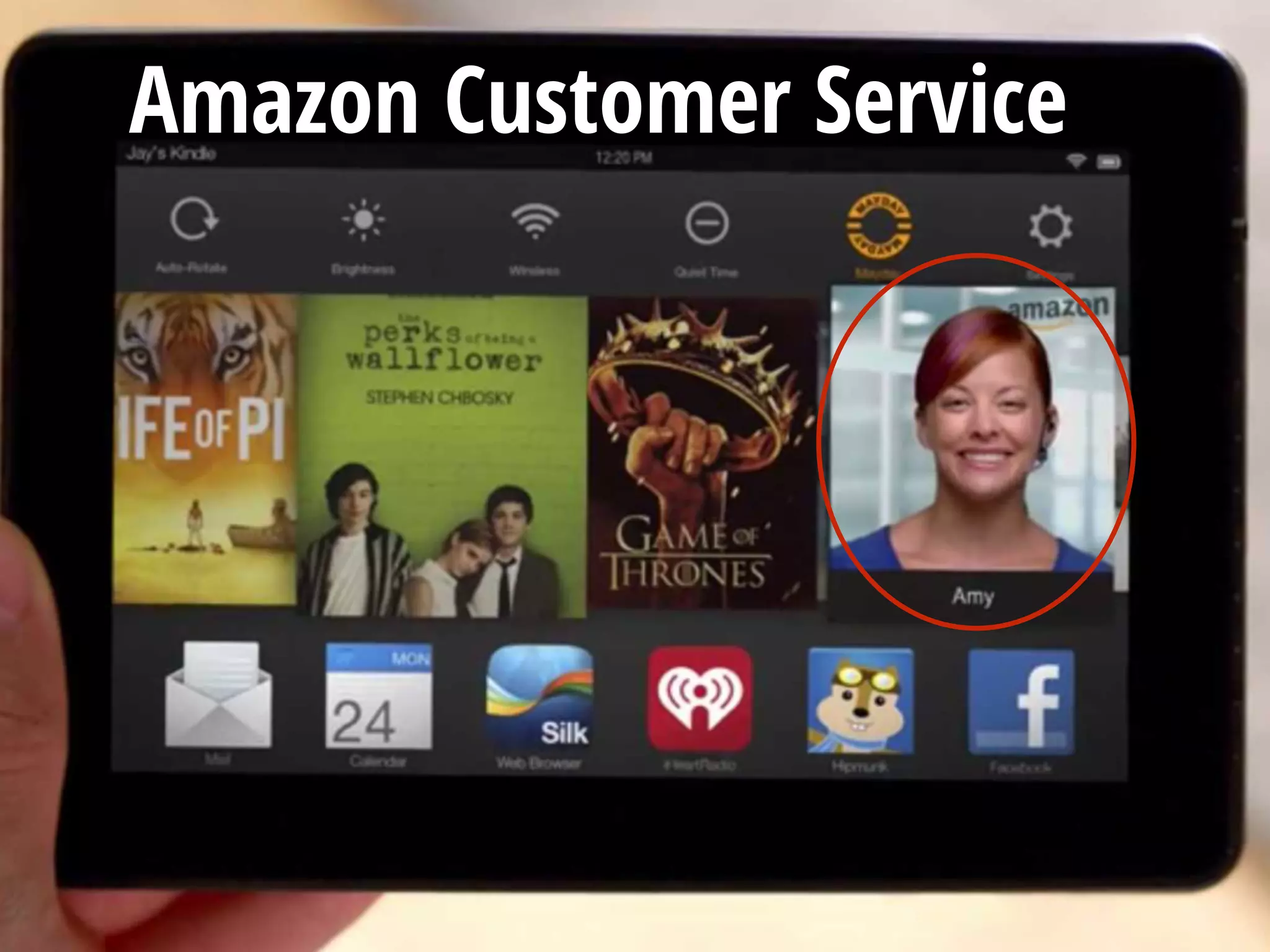

Amazon Customer Service

40. MADRID · NOV 27-28 · 2015
Basically,
the less your app looks like this

41. MADRID · NOV 27-28 · 2015

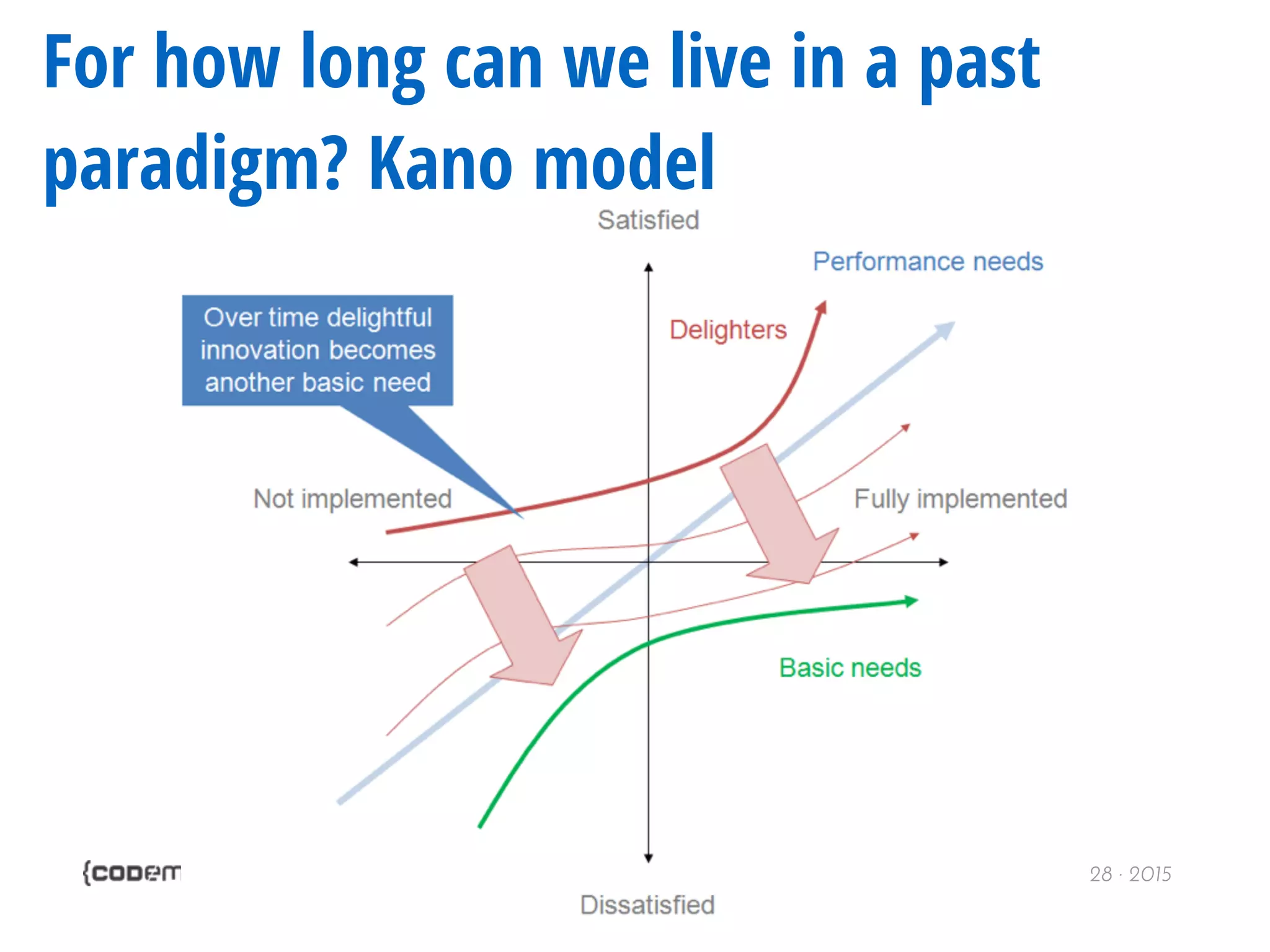

For how long can we live in a past
paradigm? Kano model

42. MADRID · NOV 27-28 · 2015
Architecture

43. MADRID · NOV 27-28 · 2015

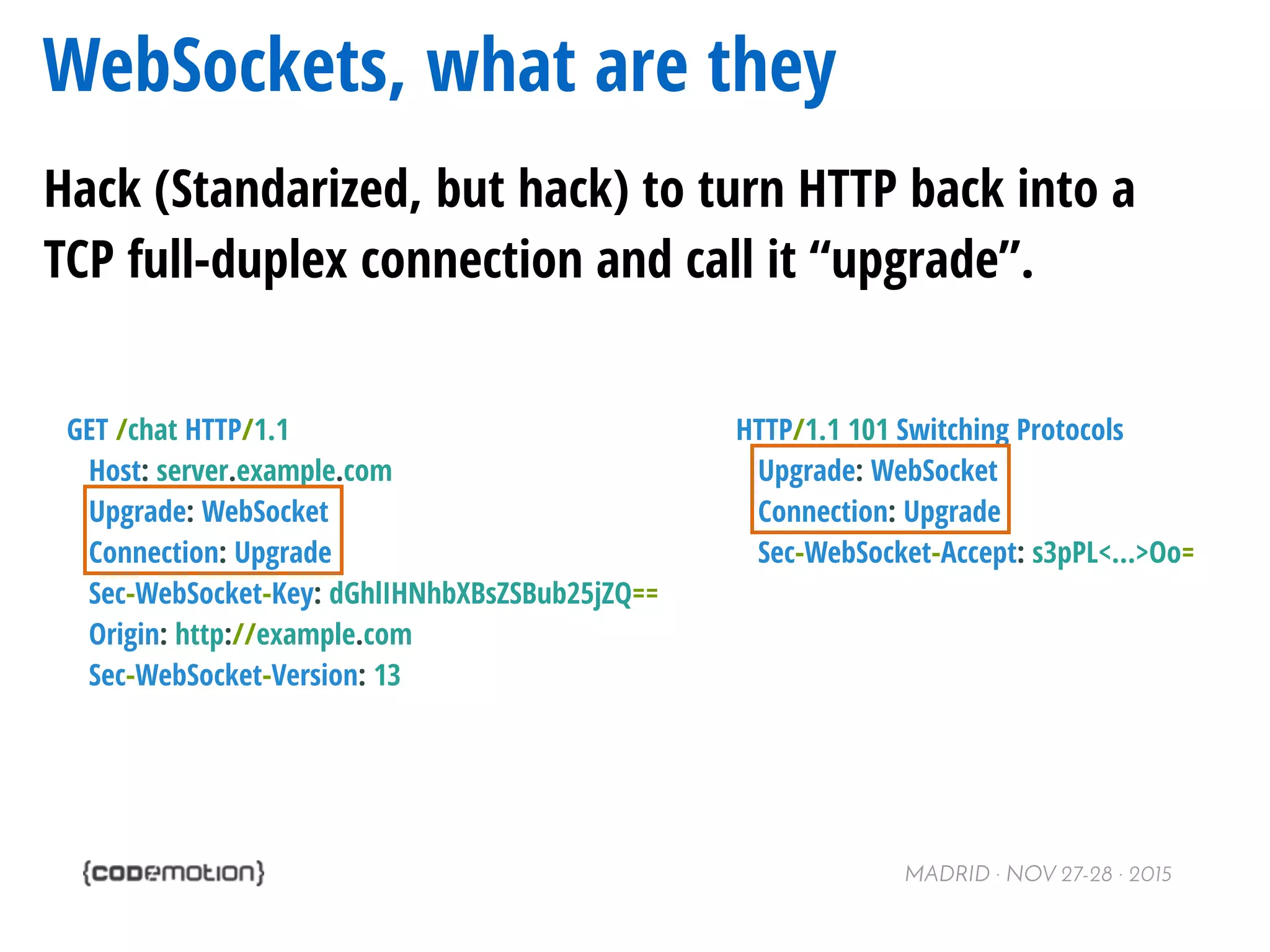

WebSockets, what are they
Hack (Standarized, but hack) to turn HTTP back into a
TCP full-duplex connection and call it “upgrade”.
GET /chat HTTP/1.1
Host: server.example.com
Upgrade: WebSocket
Connection: Upgrade
Sec-WebSocket-Key: dGhlIHNhbXBsZSBub25jZQ==
Origin: http://example.com
Sec-WebSocket-Version: 13
HTTP/1.1 101 Switching Protocols
Upgrade: WebSocket
Connection: Upgrade
Sec-WebSocket-Accept: s3pPL<…>Oo=

44. MADRID · NOV 27-28 · 2015

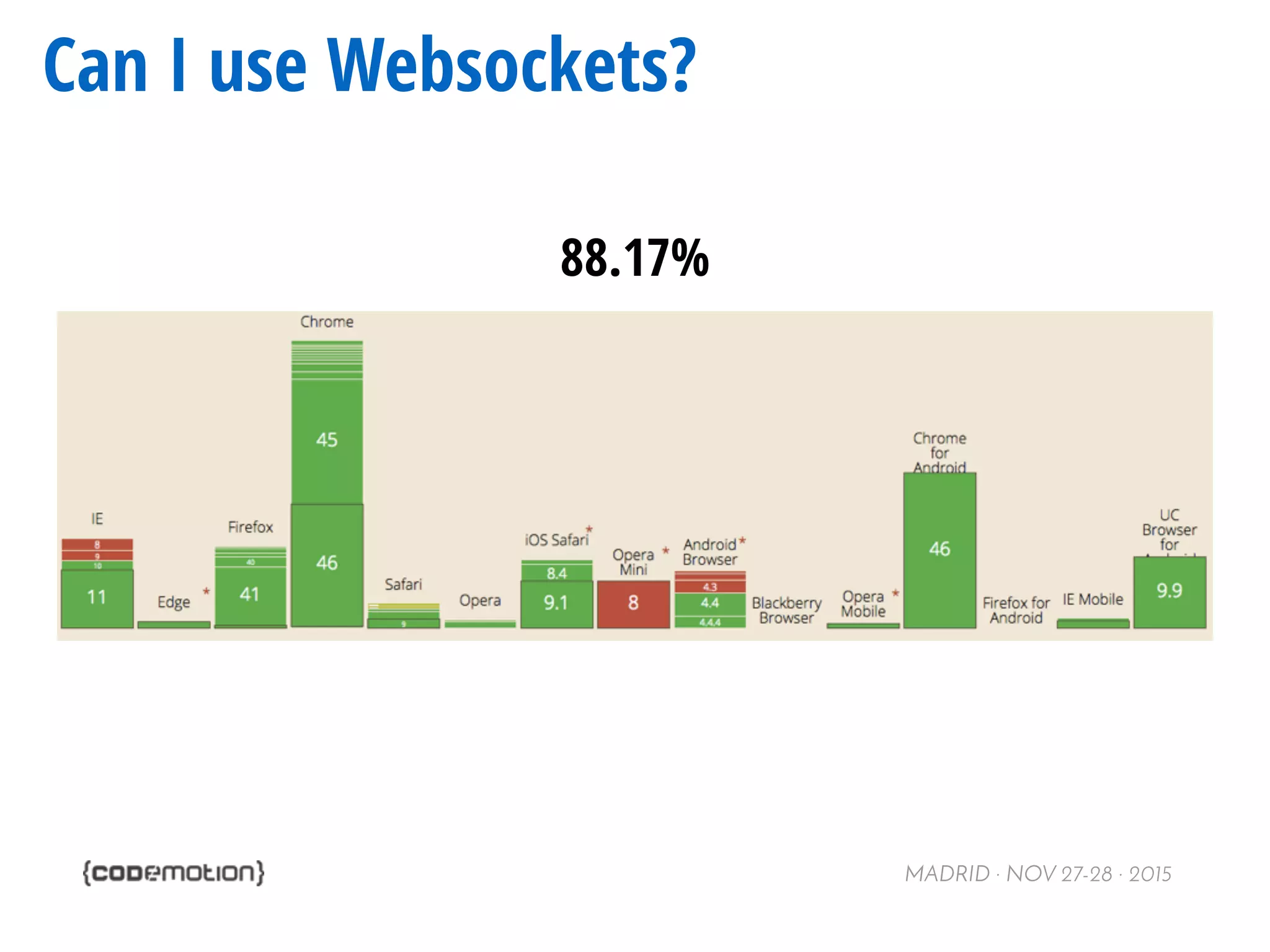

Can I use Websockets?
88.17%

45. MADRID · NOV 27-28 · 2015

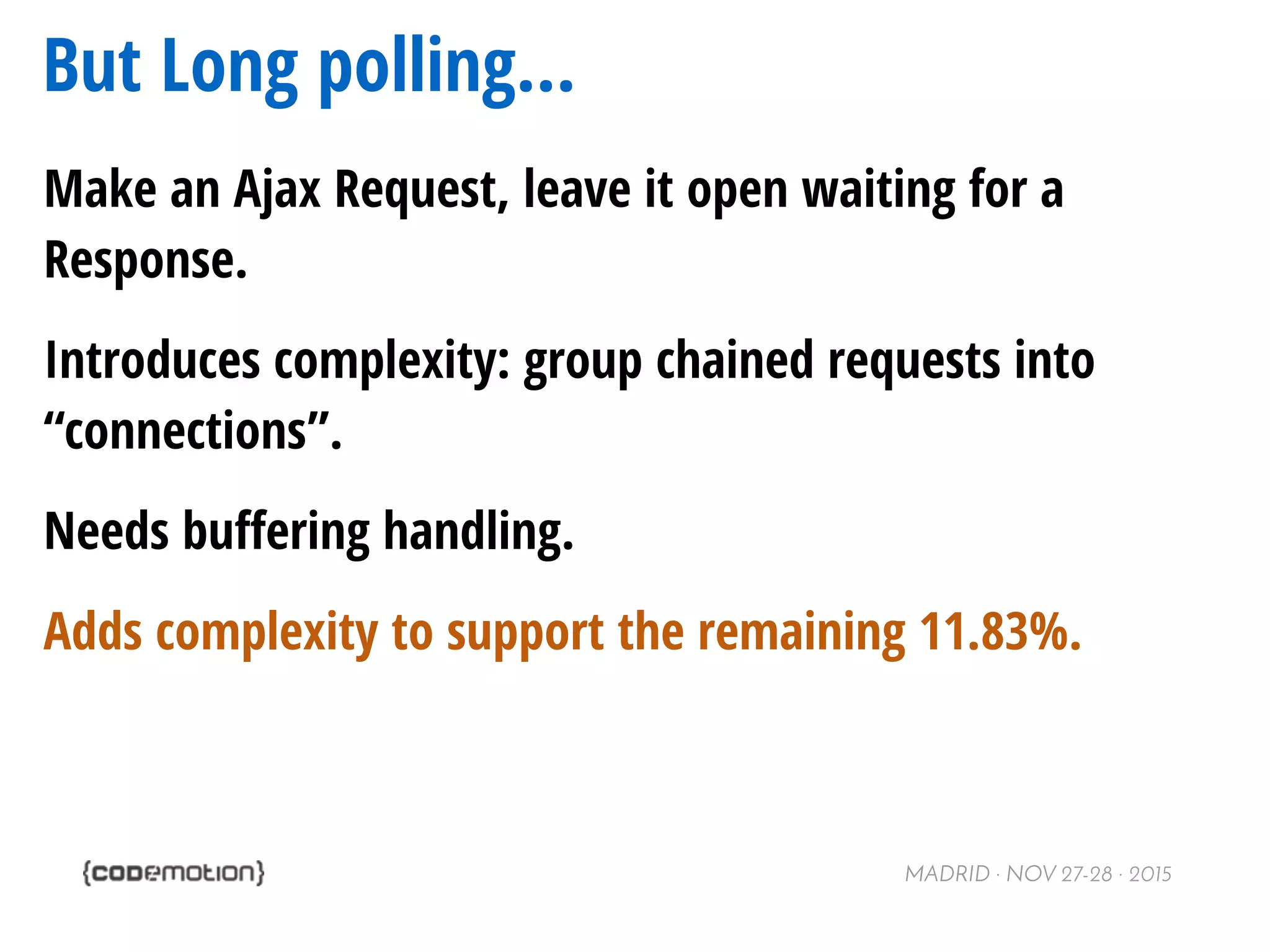

But Long polling…
Make an Ajax Request, leave it open waiting for a
Response.
Introduces complexity: group chained requests into
“connections”.
Needs buffering handling.
Adds complexity to support the remaining 11.83%.

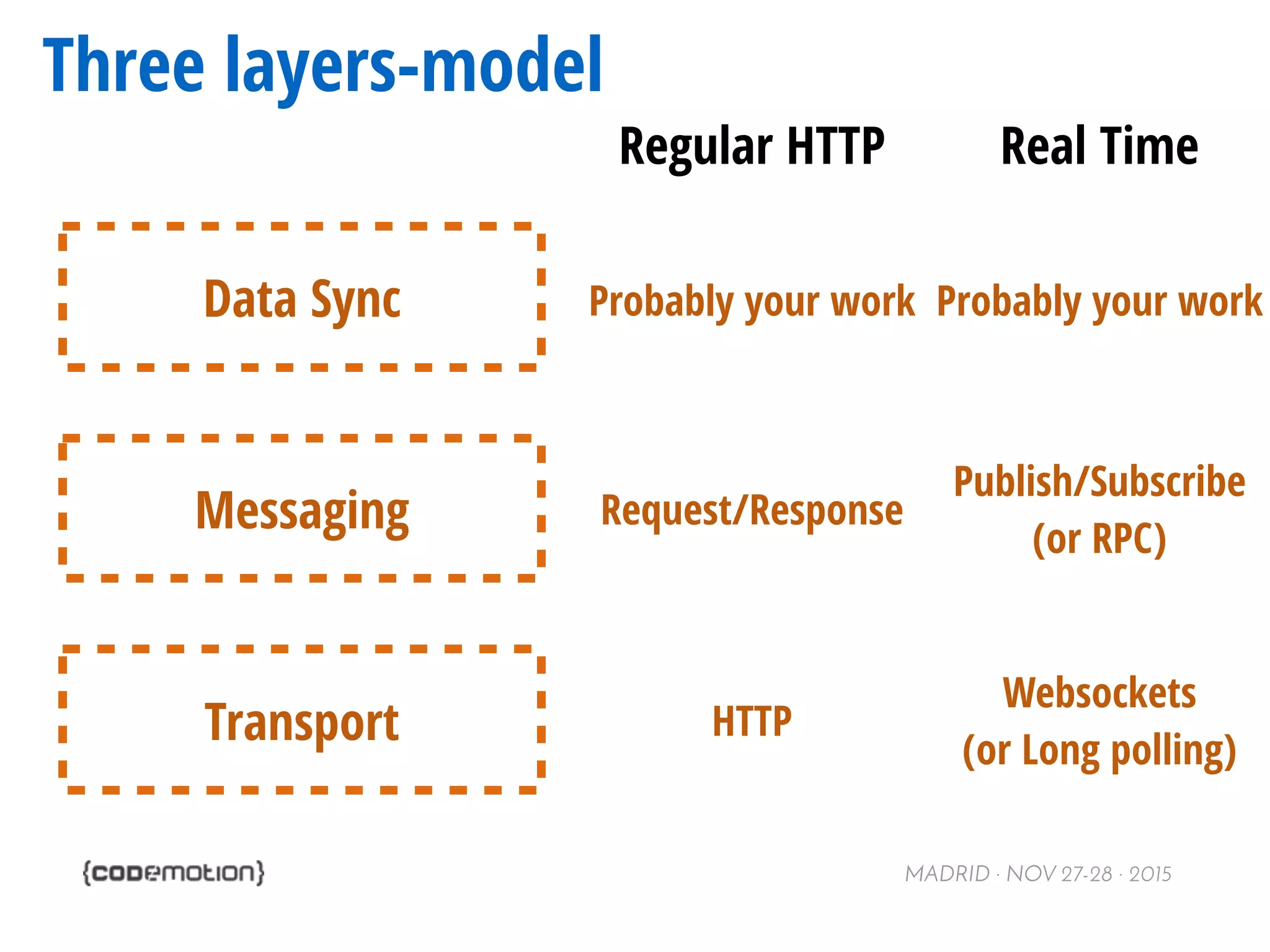

46. MADRID · NOV 27-28 · 2015

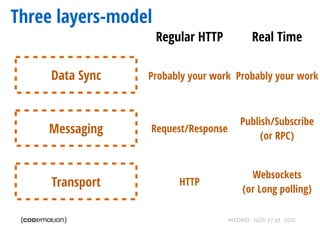

Three layers-model
Transport
Messaging
Data Sync
Regular HTTP
HTTP
Request/Response
Probably your work
Real Time
Websockets
(or Long polling)
Publish/Subscribe
(or RPC)
Probably your work

47. MADRID · NOV 27-28 · 2015

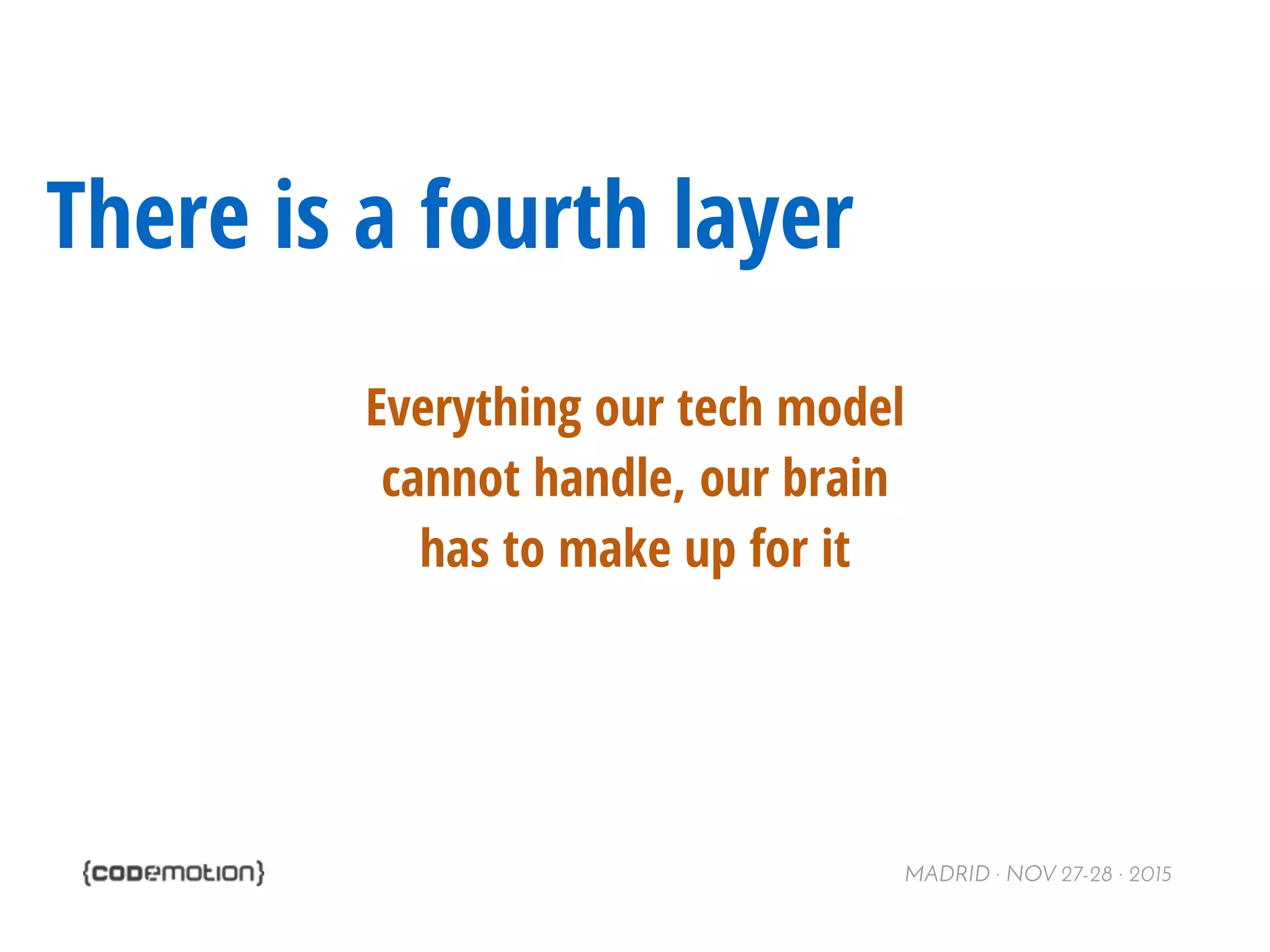

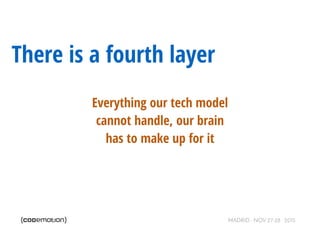

There is a fourth layer
Everything our tech model
cannot handle, our brain
has to make up for it

48. MADRID · NOV 27-28 · 2015

49. MADRID · NOV 27-28 · 2015
F5F5F5F5F5F5F5F5F5F5F5F5F5F5F5!!!!!!!
Human dealing with a protocol
that doesn’t map reality well

50. MADRID · NOV 27-28 · 2015

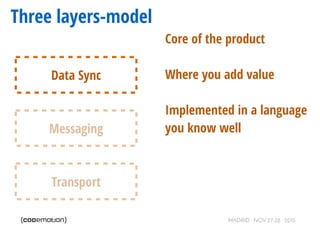

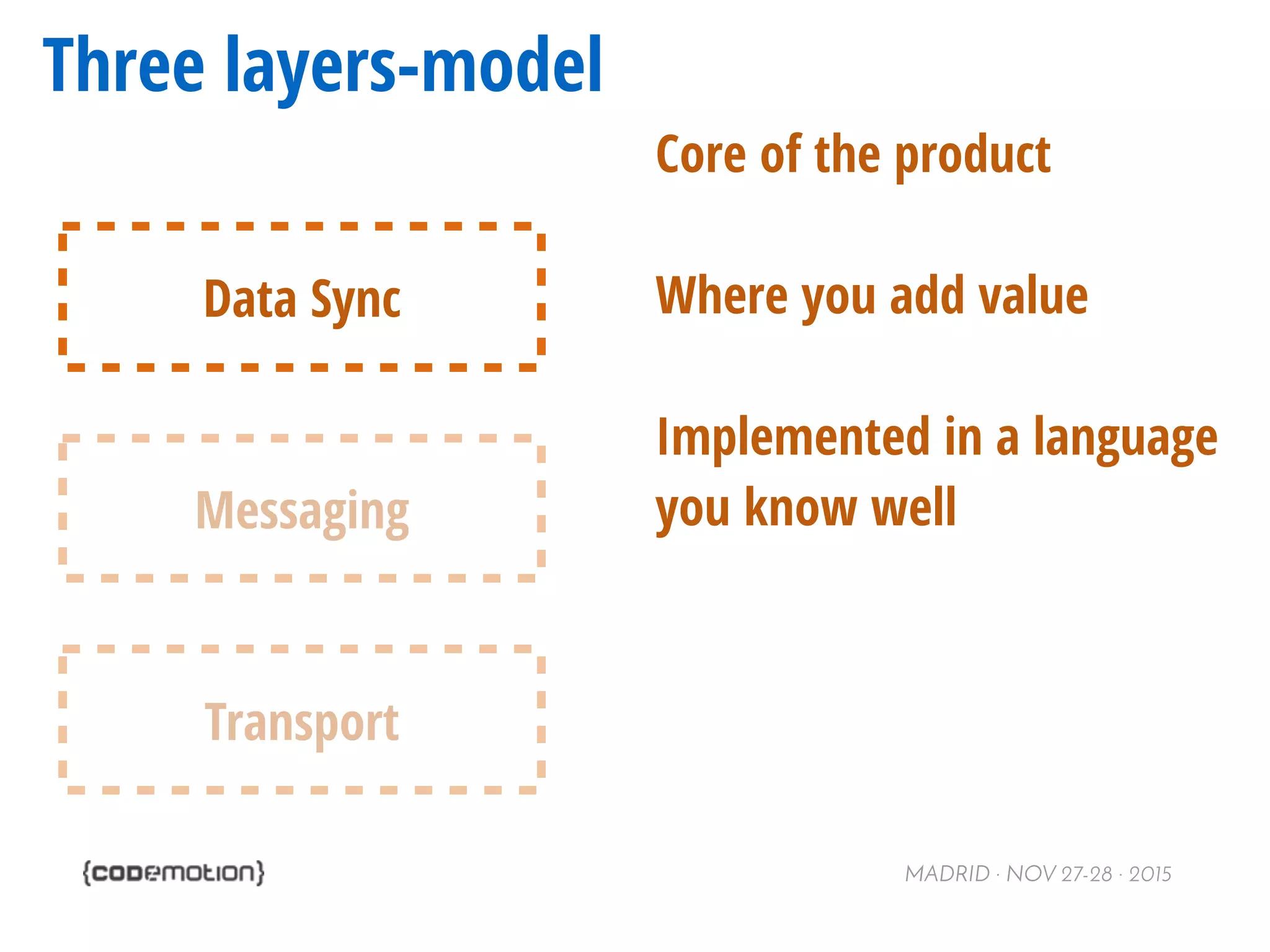

Three layers-model
Transport
Messaging
Data Sync
Core of the product
Where you add value
Implemented in a language
you know well

51. MADRID · NOV 27-28 · 2015

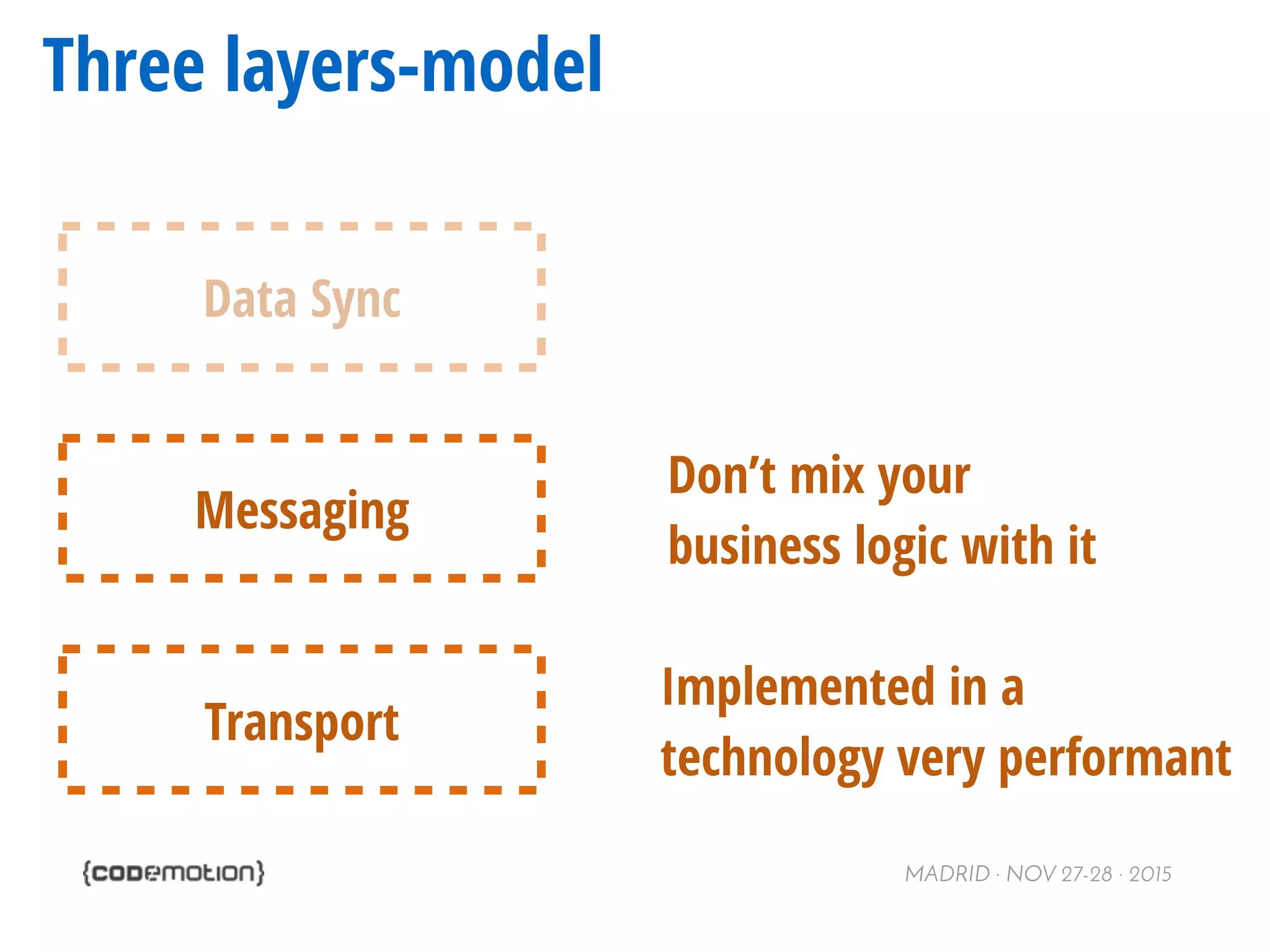

Three layers-model
Transport
Messaging
Data Sync
Implemented in a
technology very performant
Don’t mix your
business logic with it

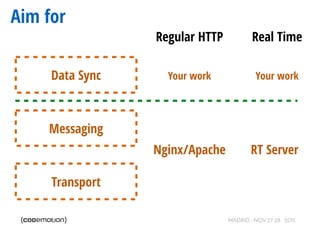

52. MADRID · NOV 27-28 · 2015

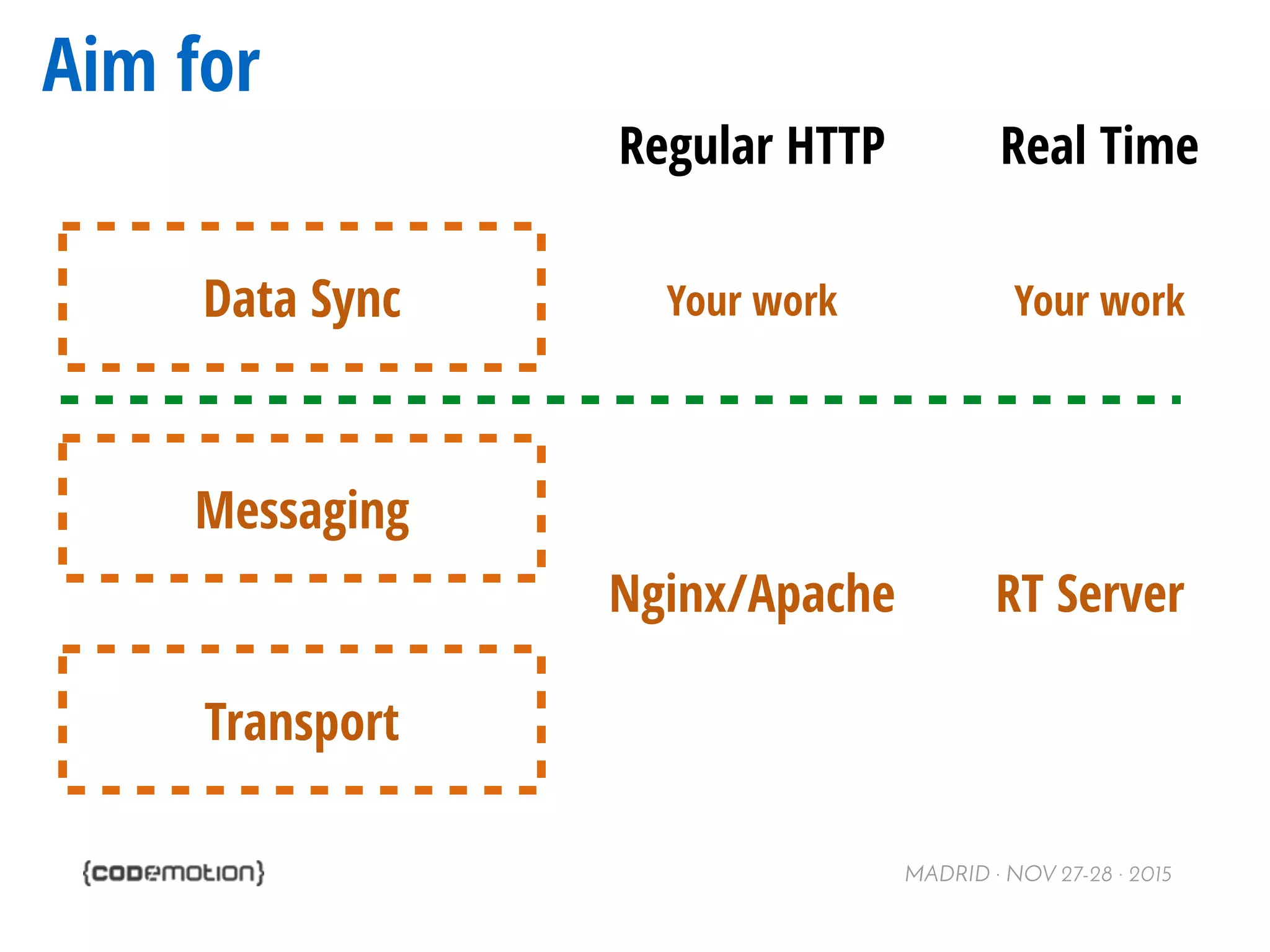

Aim for
Transport
Messaging
Data Sync
Regular HTTP
Your work
Real Time
Your work
Nginx/Apache RT Server

53. MADRID · NOV 27-28 · 2015

54. MADRID · NOV 27-28 · 2015

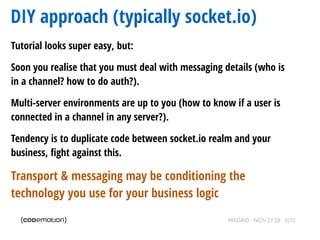

DIY approach (typically socket.io)
Tutorial looks super easy, but:
Soon you realise that you must deal with messaging details (who is
in a channel? how to do auth?).
Multi-server environments are up to you (how to know if a user is
connected in a channel in any server?).
Tendency is to duplicate code between socket.io realm and your
business, fight against this.
Transport & messaging may be conditioning the
technology you use for your business logic

55. MADRID · NOV 27-28 · 2015

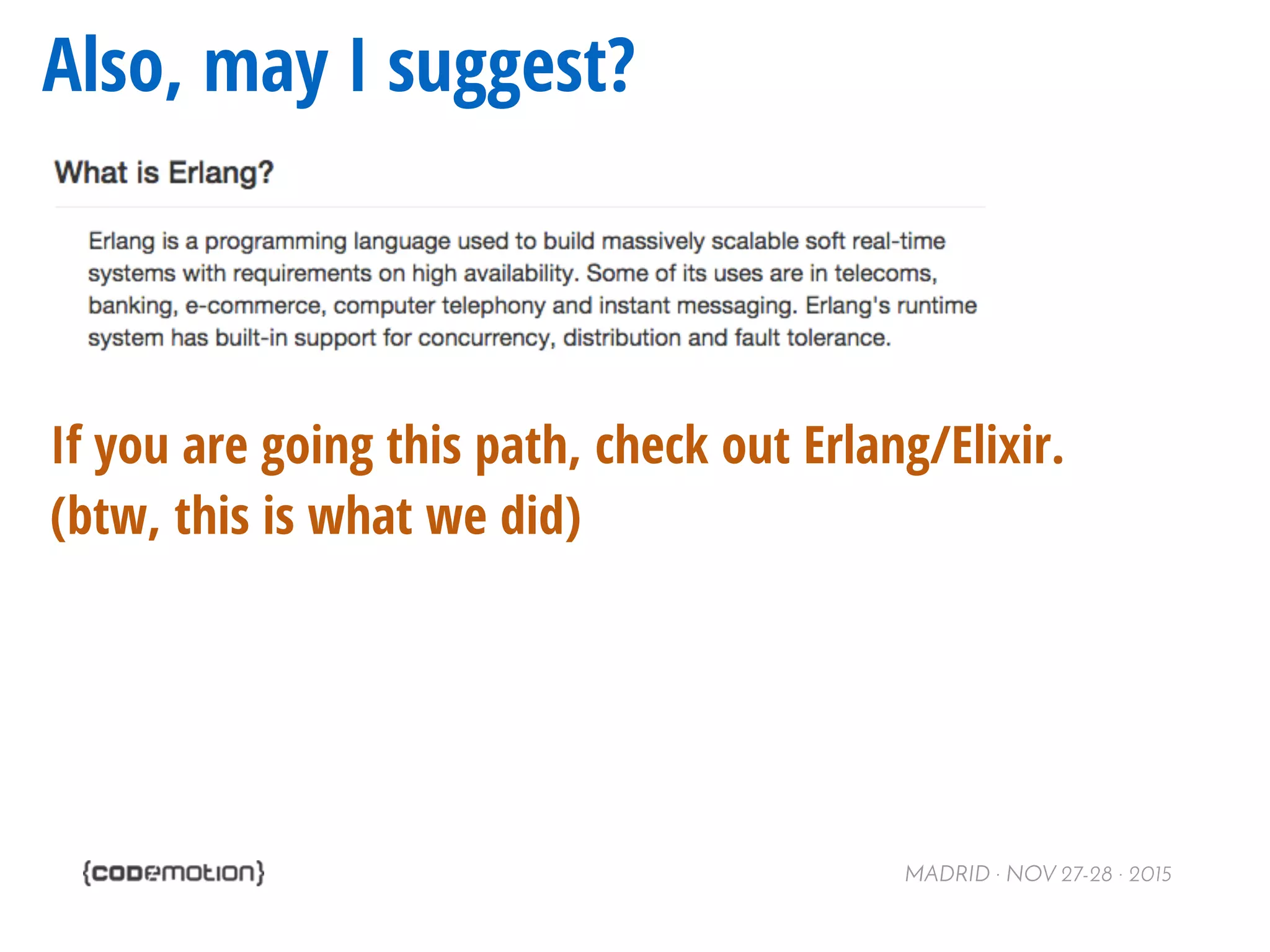

Also, may I suggest?
If you are going this path, check out Erlang/Elixir.
(btw, this is what we did)

56. MADRID · NOV 27-28 · 2015
Options available
(a lot)

57. MADRID · NOV 27-28 · 2015

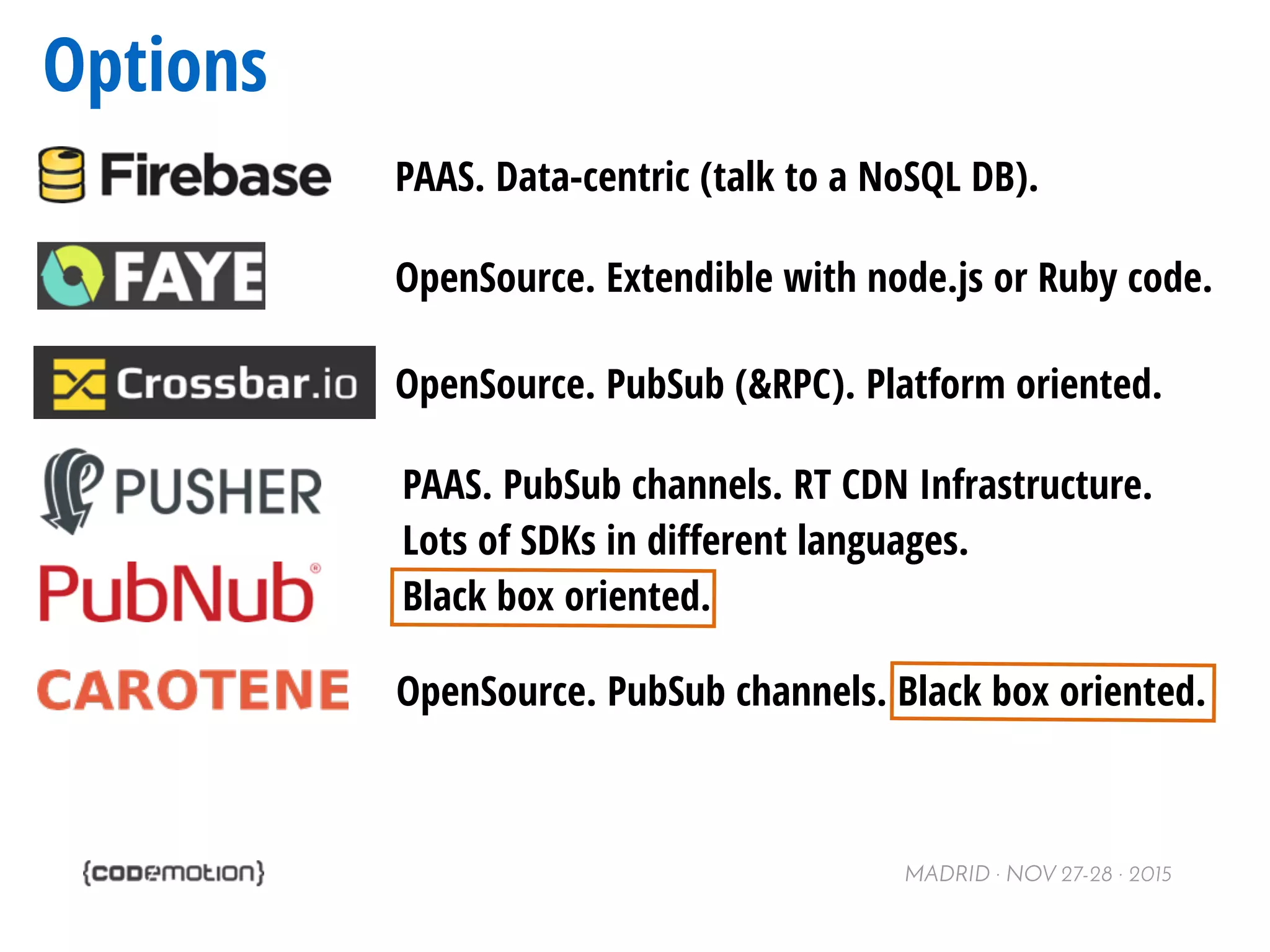

Options
PAAS. Data-centric (talk to a NoSQL DB).
OpenSource. Extendible with node.js or Ruby code.
PAAS. PubSub channels. RT CDN Infrastructure.
Lots of SDKs in different languages.
Black box oriented.
OpenSource. PubSub channels. Black box oriented.
OpenSource. PubSub (&RPC). Platform oriented.

58. MADRID · NOV 27-28 · 2015

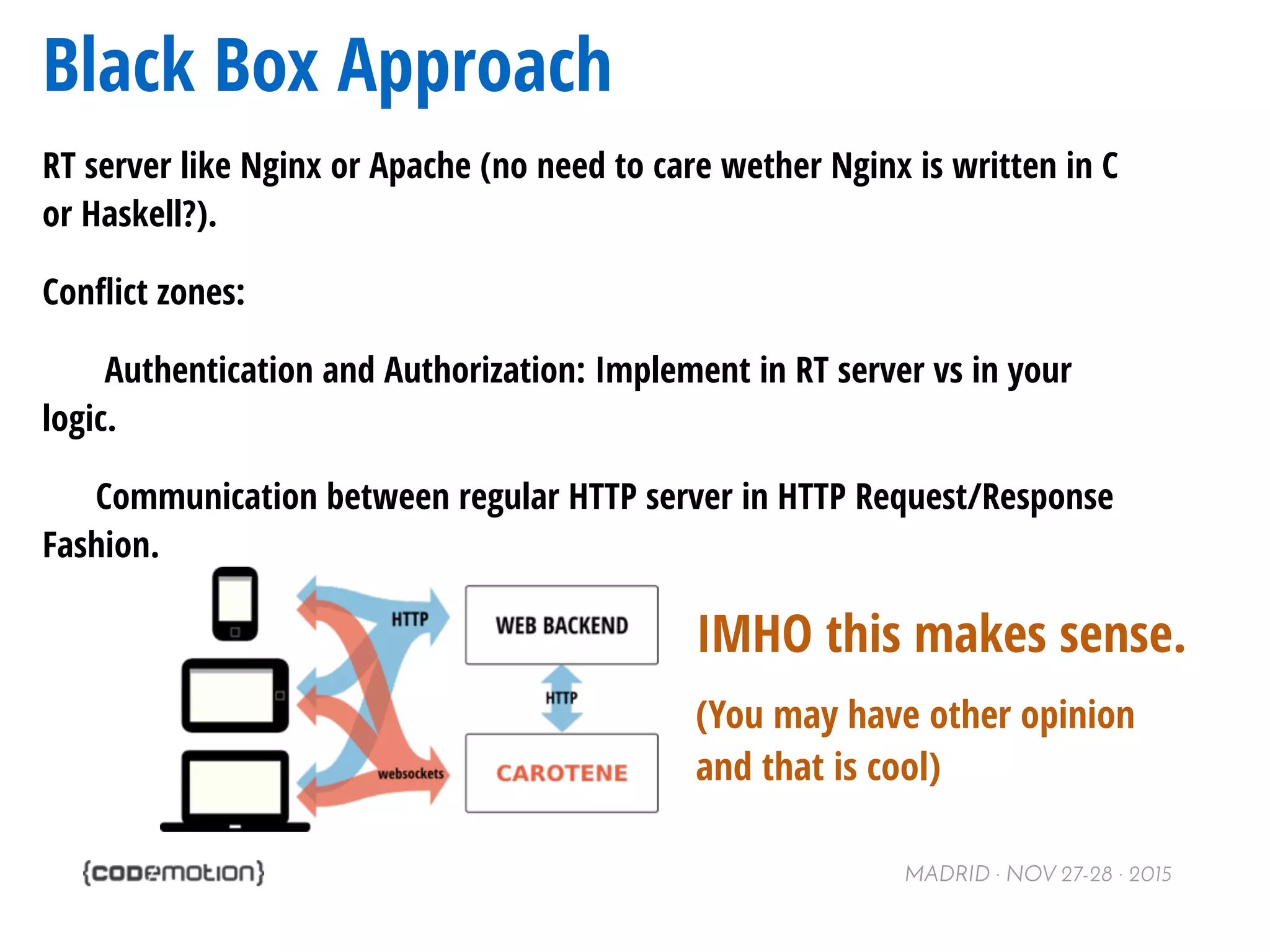

Black Box Approach
RT server like Nginx or Apache (no need to care wether Nginx is written in C
or Haskell?).
Conflict zones:
Authentication and Authorization: Implement in RT server vs in your
logic.
Communication between regular HTTP server in HTTP Request/Response
Fashion.
IMHO this makes sense.
(You may have other opinion
and that is cool)

59. MADRID · NOV 27-28 · 2015
How does it work: Client side

60. MADRID · NOV 27-28 · 2015

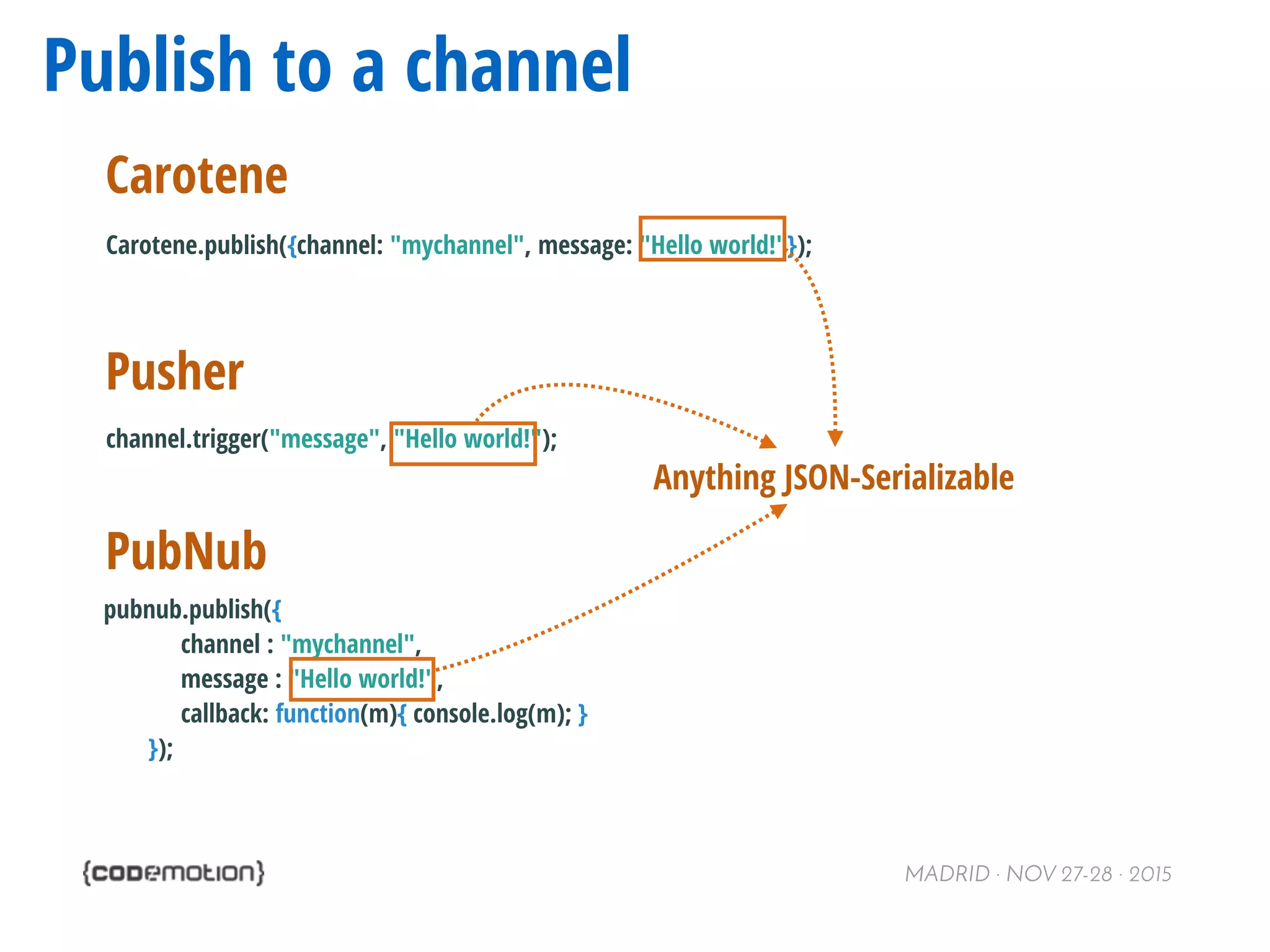

Publish to a channel
Carotene.publish({channel: "mychannel", message: "Hello world!"});
channel.trigger("message", "Hello world!");
pubnub.publish({
channel : "mychannel",
message : "Hello world!",
callback: function(m){ console.log(m); }
});
Carotene
Pusher
PubNub
Anything JSON-Serializable

61. MADRID · NOV 27-28 · 2015

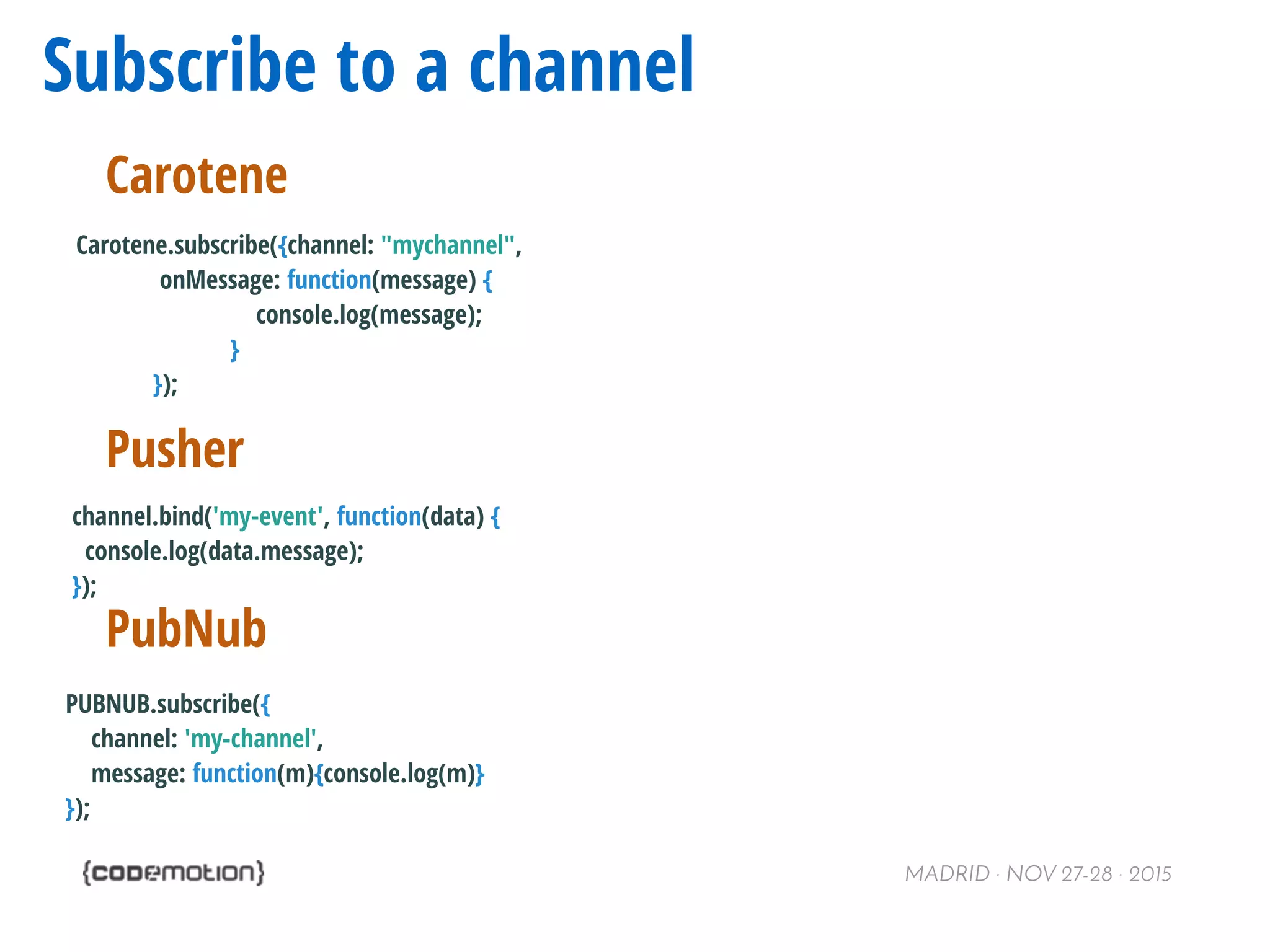

Carotene
Subscribe to a channel
Carotene.subscribe({channel: "mychannel",
onMessage: function(message) {
console.log(message);
}
});
Pusher
PubNub
channel.bind('my-event', function(data) {
console.log(data.message);
});
PUBNUB.subscribe({
channel: 'my-channel',
message: function(m){console.log(m)}
});

62. MADRID · NOV 27-28 · 2015

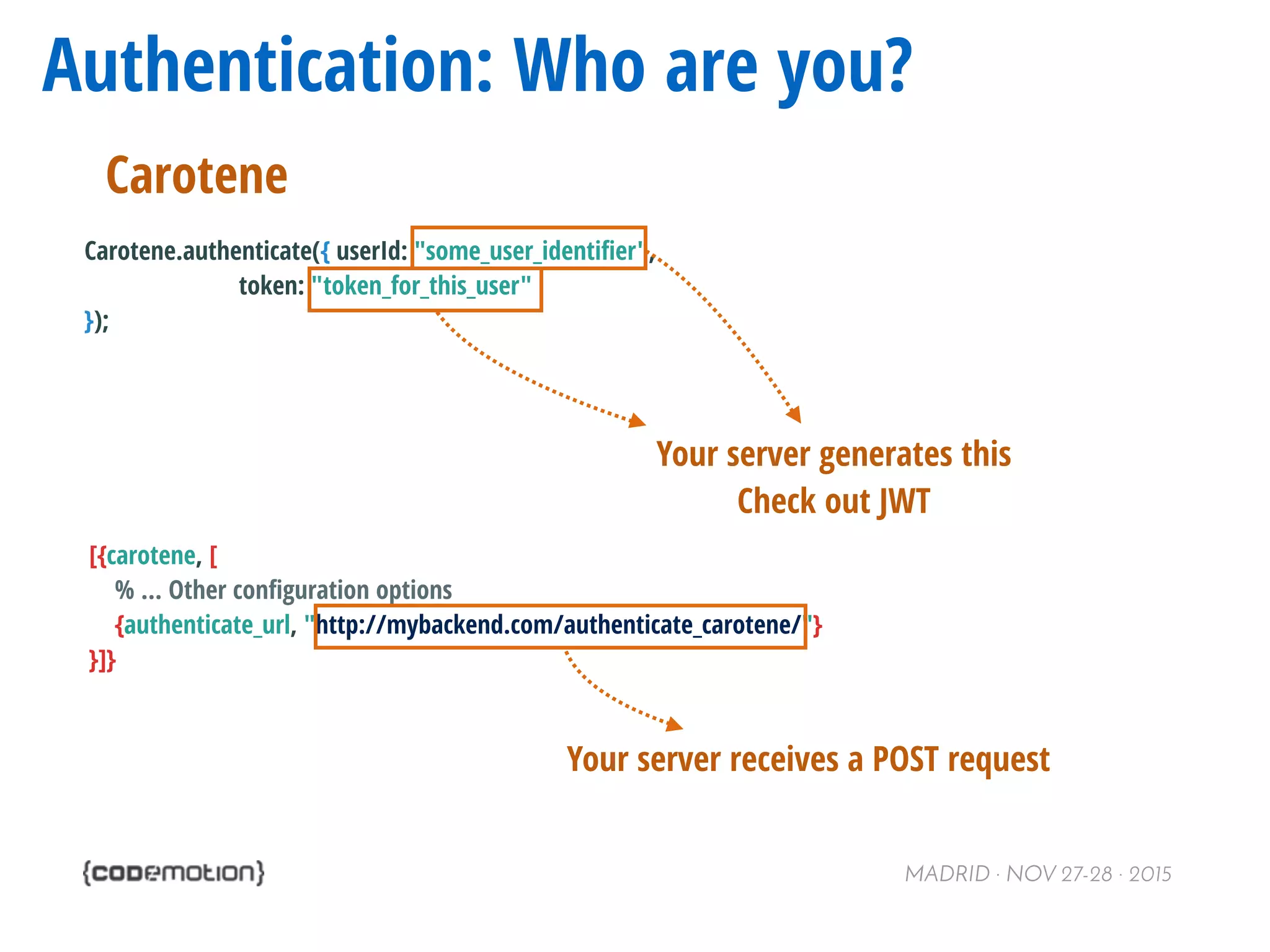

Authentication: Who are you?
Carotene.authenticate({ userId: "some_user_identifier",
token: "token_for_this_user"
});
Carotene
Your server generates this
Check out JWT
[{carotene, [
% ... Other configuration options
{authenticate_url, "http://mybackend.com/authenticate_carotene/"}
}]}
Your server receives a POST request

63. MADRID · NOV 27-28 · 2015

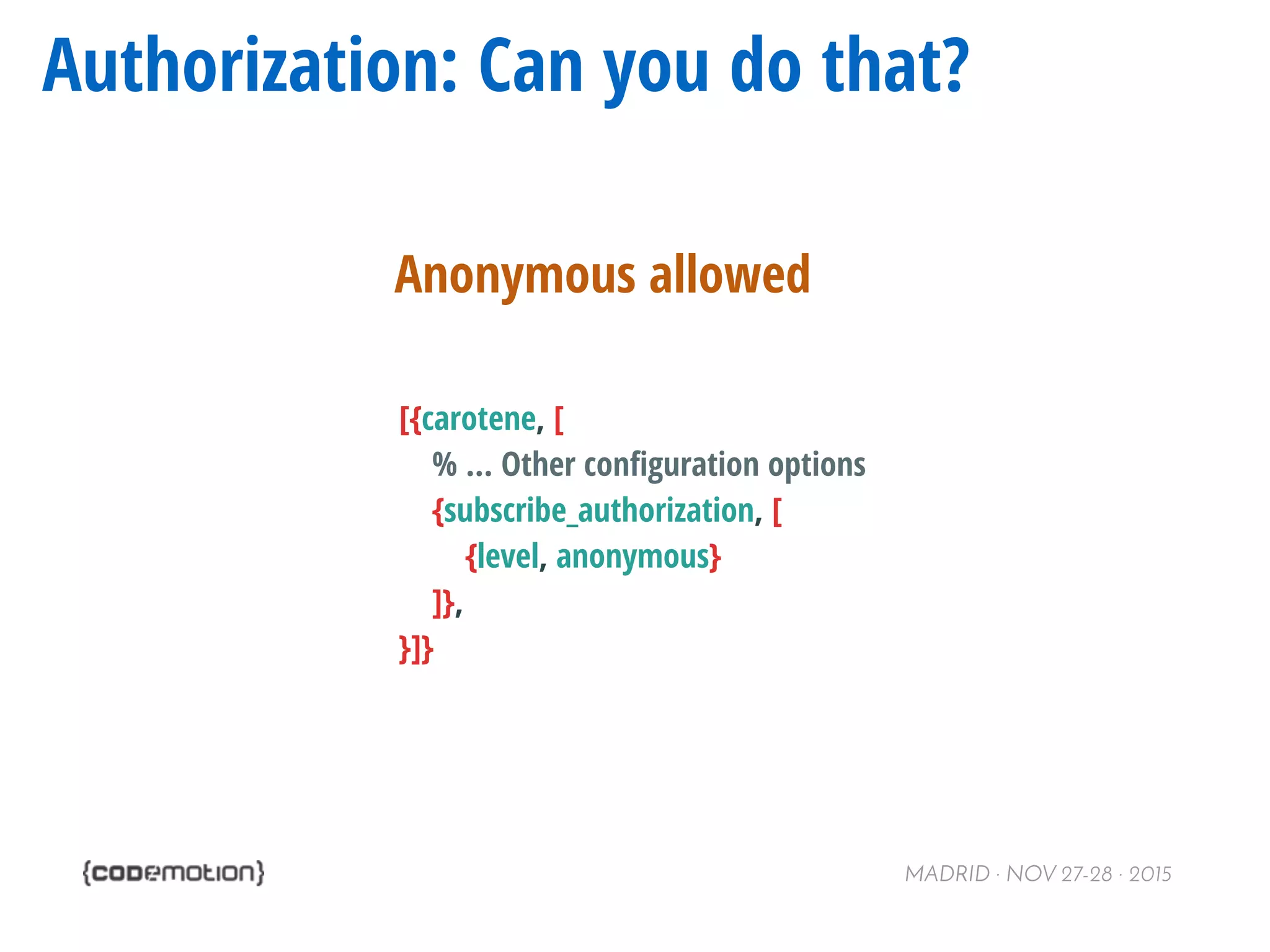

[{carotene, [
% ... Other configuration options
{subscribe_authorization, [
{level, anonymous}
]},
}]}
Anonymous allowed
Authorization: Can you do that?

64. MADRID · NOV 27-28 · 2015

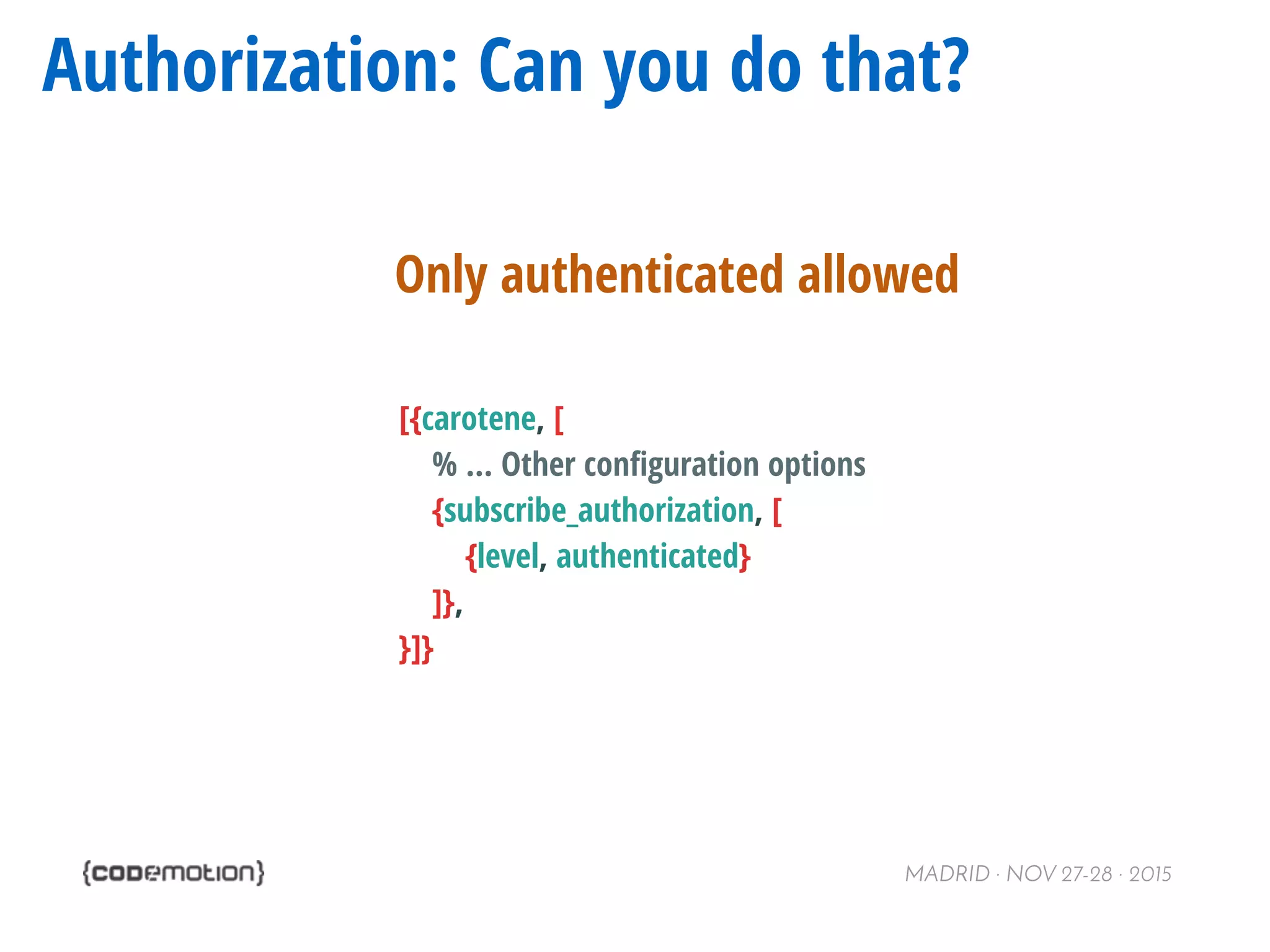

[{carotene, [
% ... Other configuration options
{subscribe_authorization, [
{level, authenticated}
]},
}]}
Only authenticated allowed
Authorization: Can you do that?

65. MADRID · NOV 27-28 · 2015

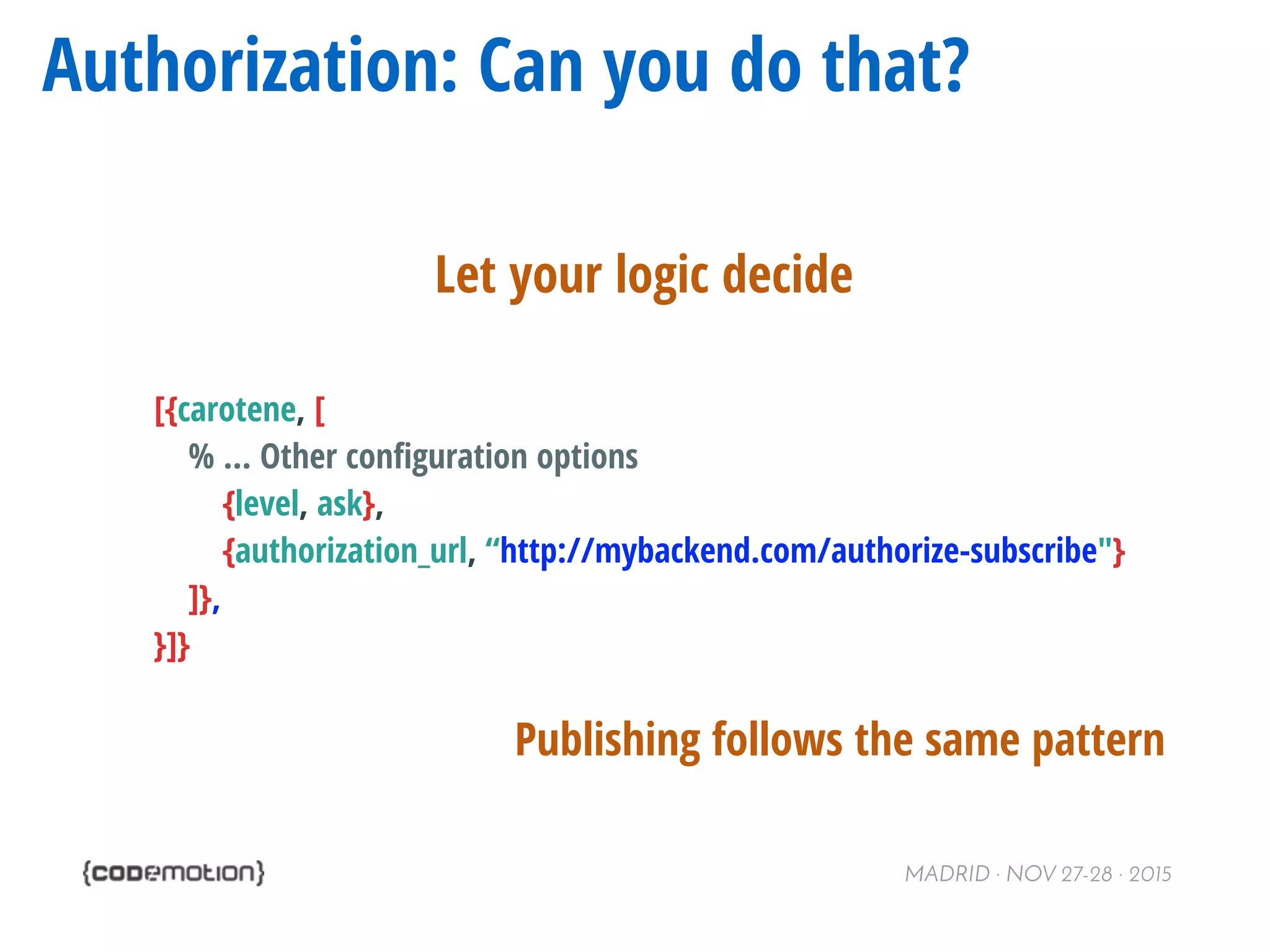

[{carotene, [
% ... Other configuration options
{level, ask},
{authorization_url, “http://mybackend.com/authorize-subscribe"}
]},
}]}
Let your logic decide
Publishing follows the same pattern
Authorization: Can you do that?

66. MADRID · NOV 27-28 · 2015
Examples

67. MADRID · NOV 27-28 · 2015
Simple chat

68. MADRID · NOV 27-28 · 2015
RT
#
subscribe({channel: “chat”})
#
subscribe({channel: “chat”})
#subscribe({channel: “chat”})

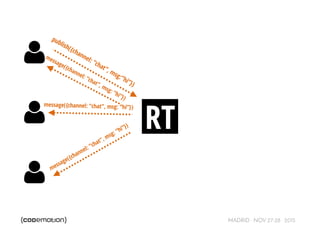

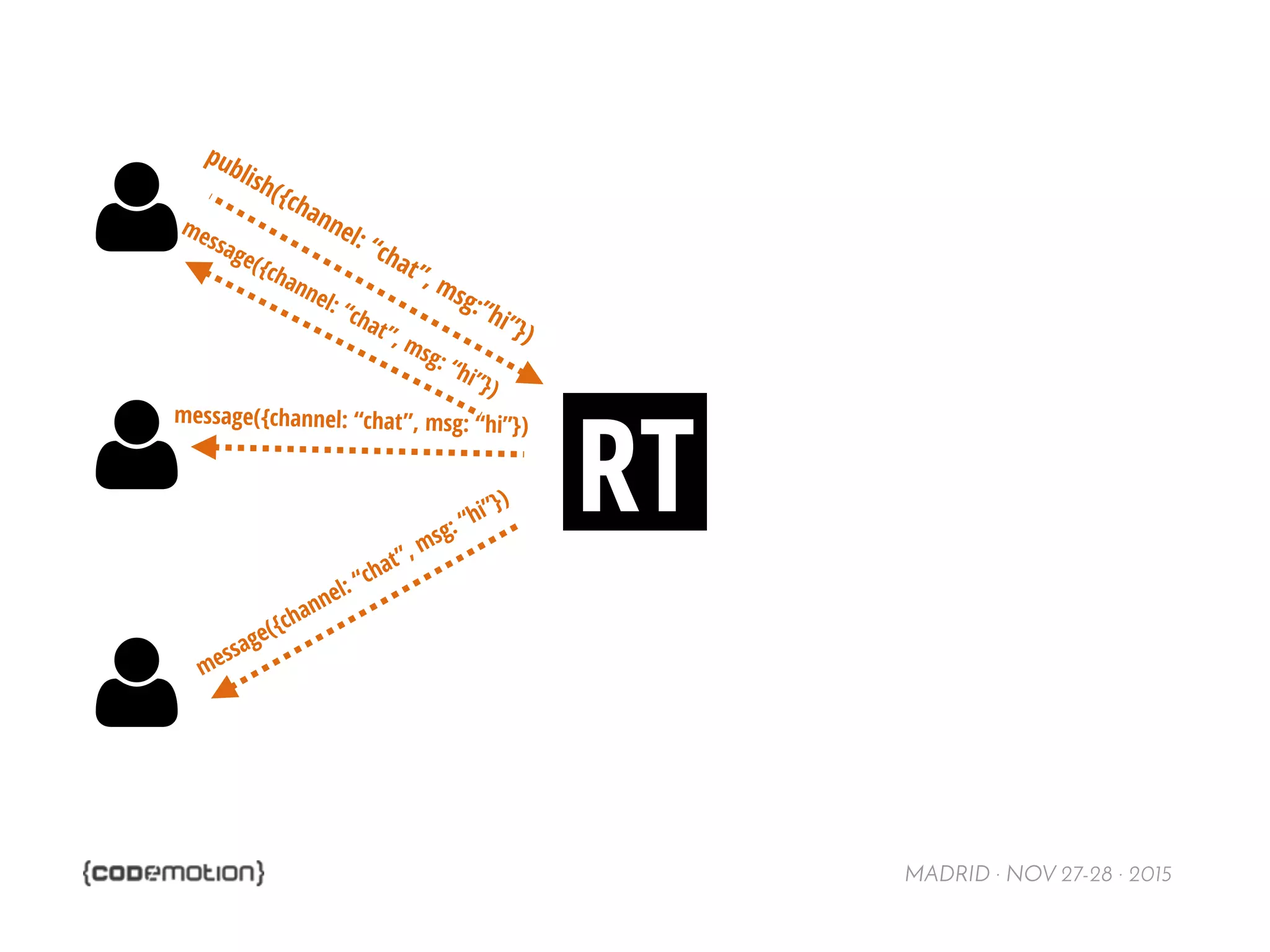

69. MADRID · NOV 27-28 · 2015
RT
#
publish({channel: “chat”, msg:”hi”})
#
message({channel: “chat”, msg: “hi”})
# message({channel: “chat”, msg: “hi”})
message({channel: “chat”, msg: “hi”})

70. MADRID · NOV 27-28 · 2015

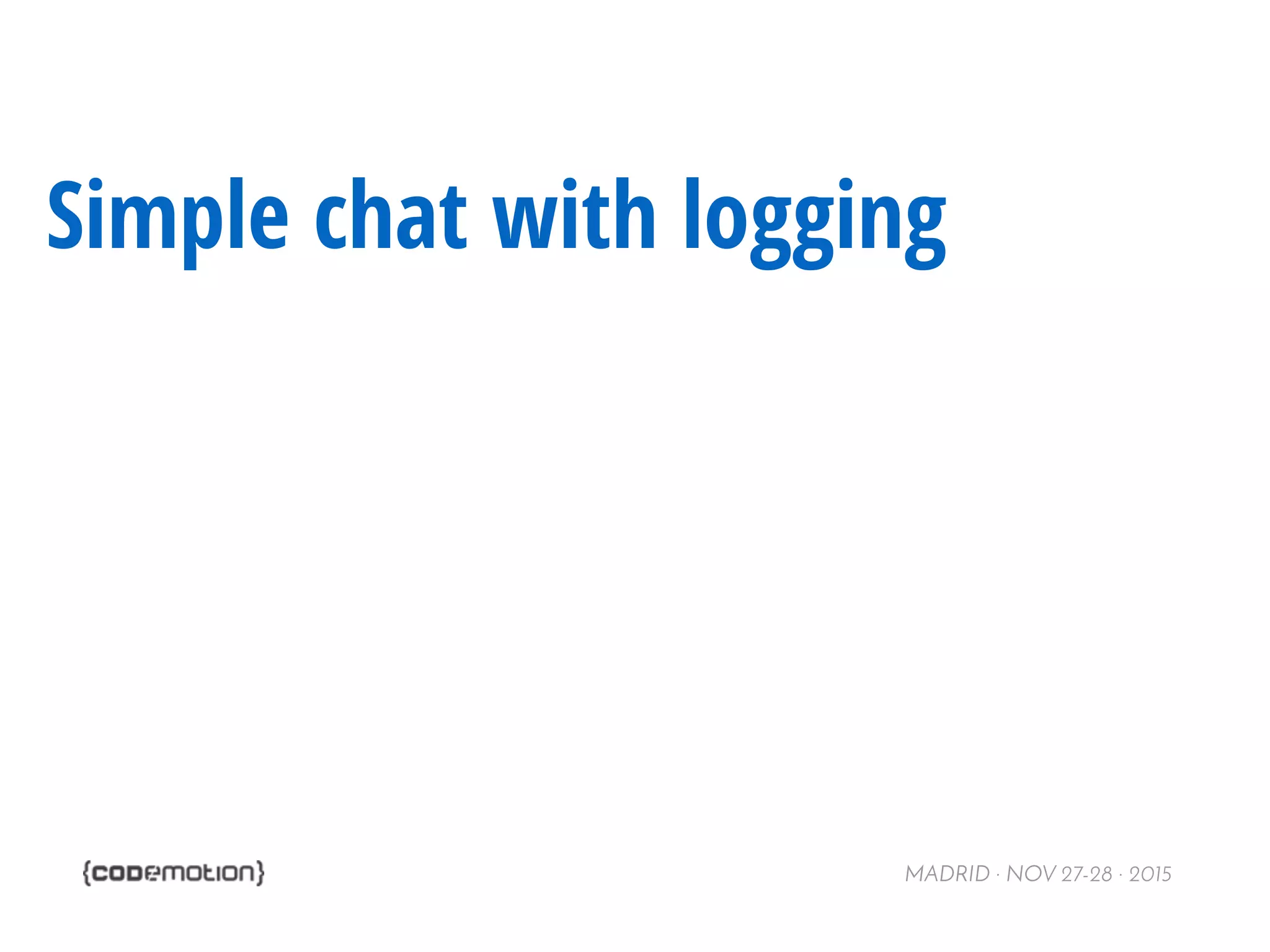

Simple chat with logging

71. MADRID · NOV 27-28 · 2015

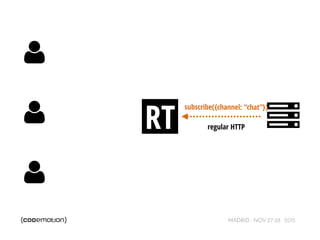

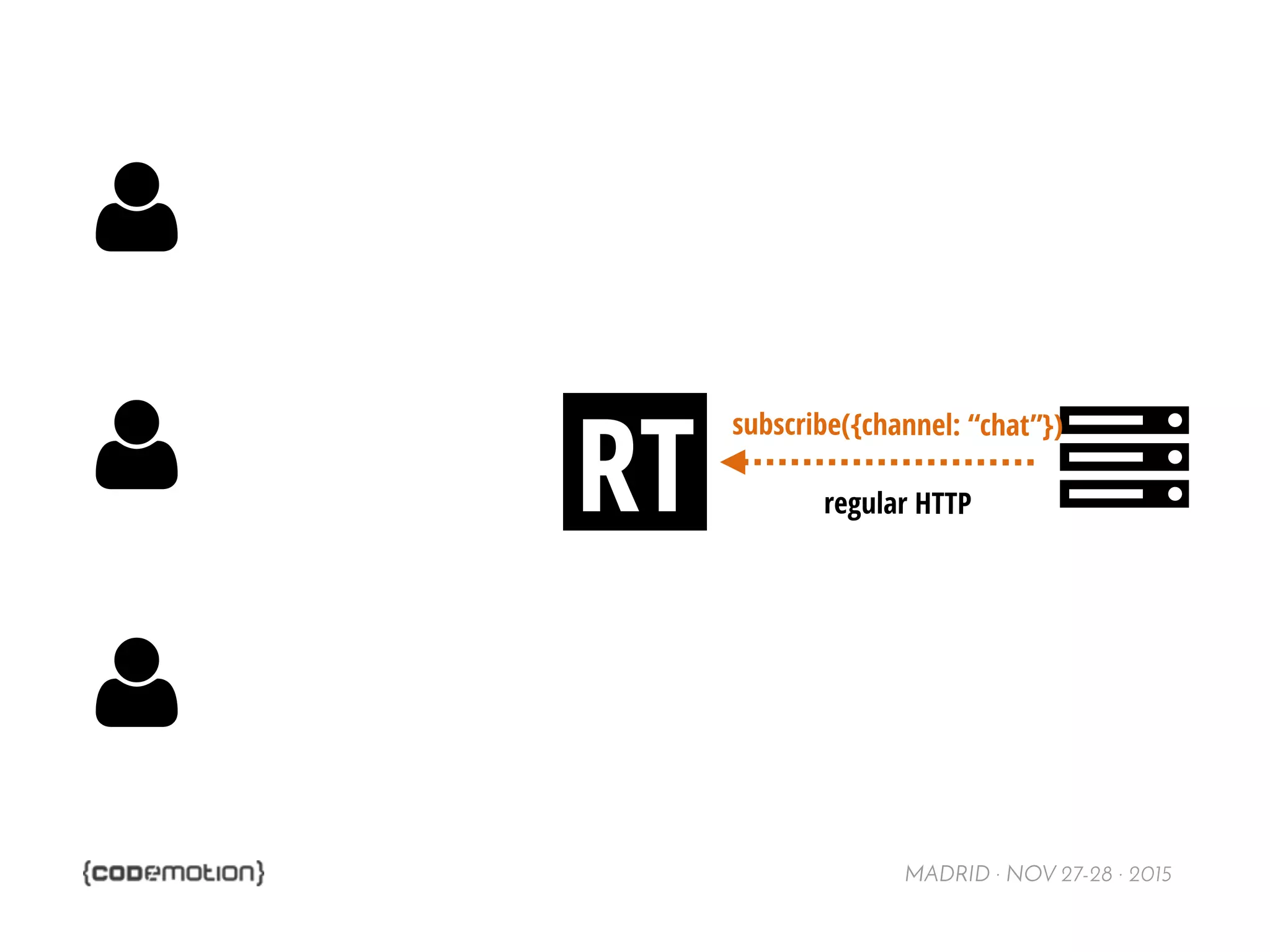

RT
#
#
#
!
subscribe({channel: “chat”})
regular HTTP

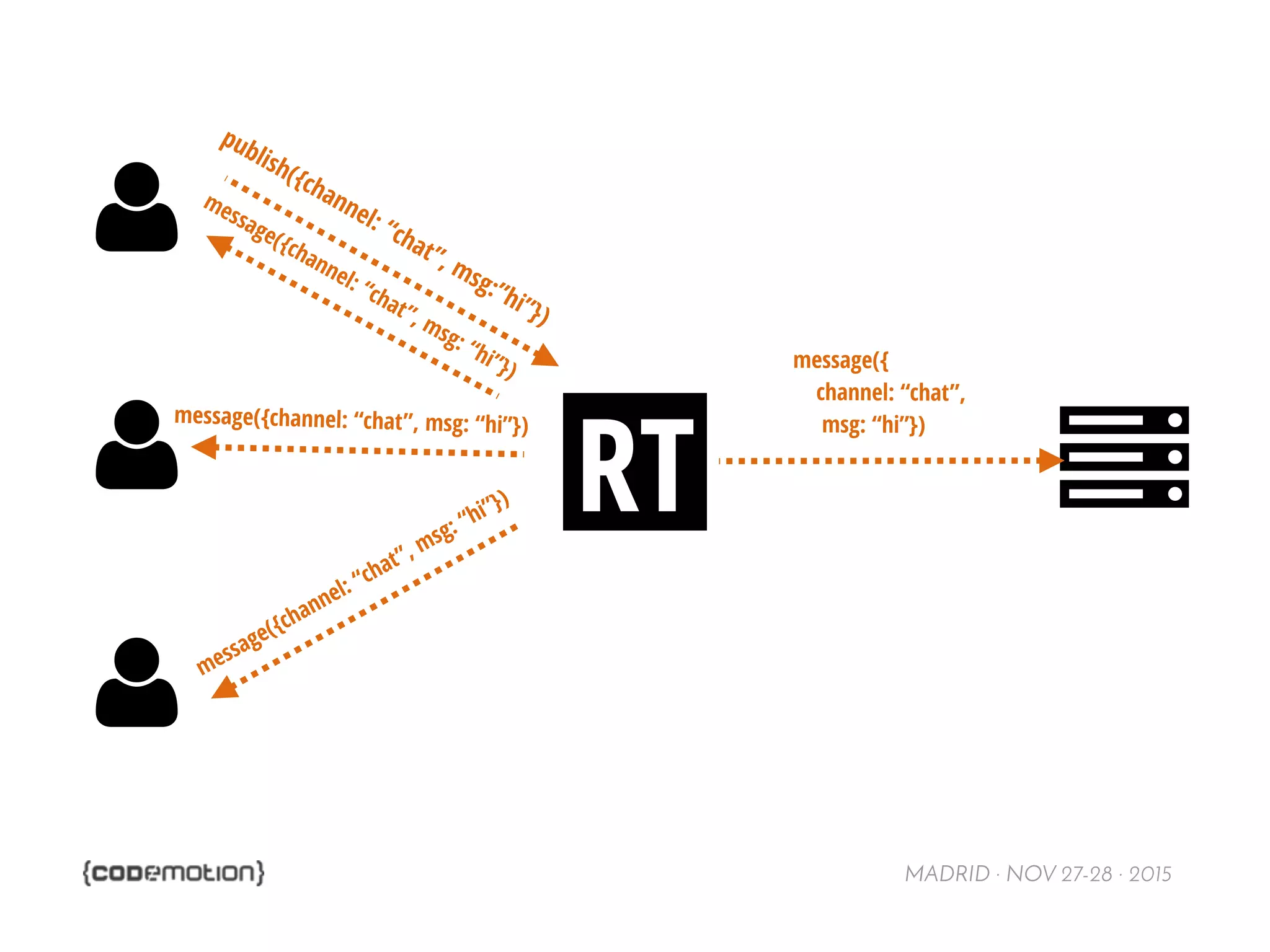

72. MADRID · NOV 27-28 · 2015
RT
#
#
message({channel: “chat”, msg: “hi”})
# message({channel: “chat”, msg: “hi”}) !
publish({channel: “chat”, msg:”hi”})
message({channel: “chat”, msg: “hi”}) message({
channel: “chat”,
msg: “hi”})

73. MADRID · NOV 27-28 · 2015

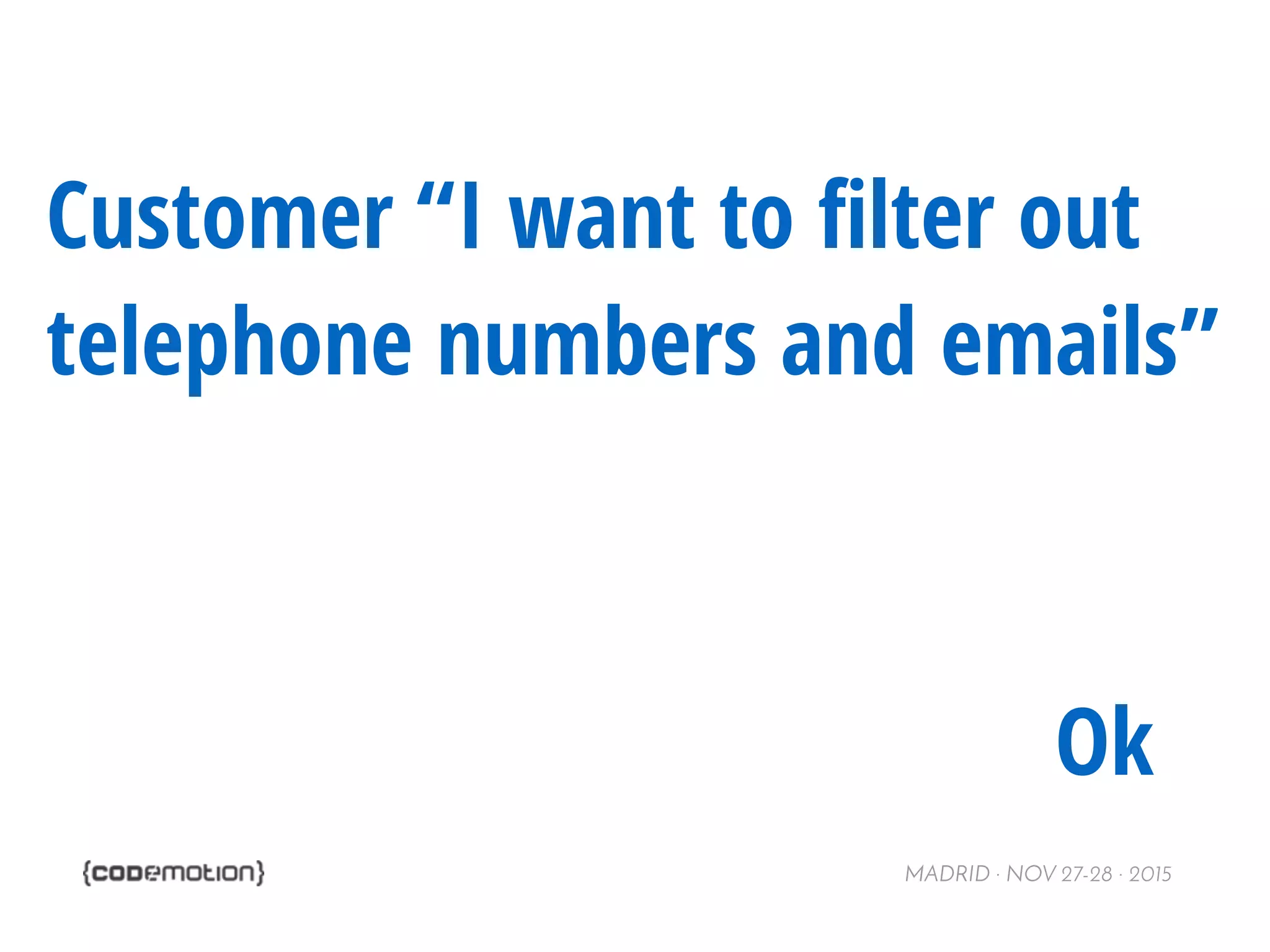

Customer “I want to filter out
telephone numbers and emails”
Ok

74. MADRID · NOV 27-28 · 2015

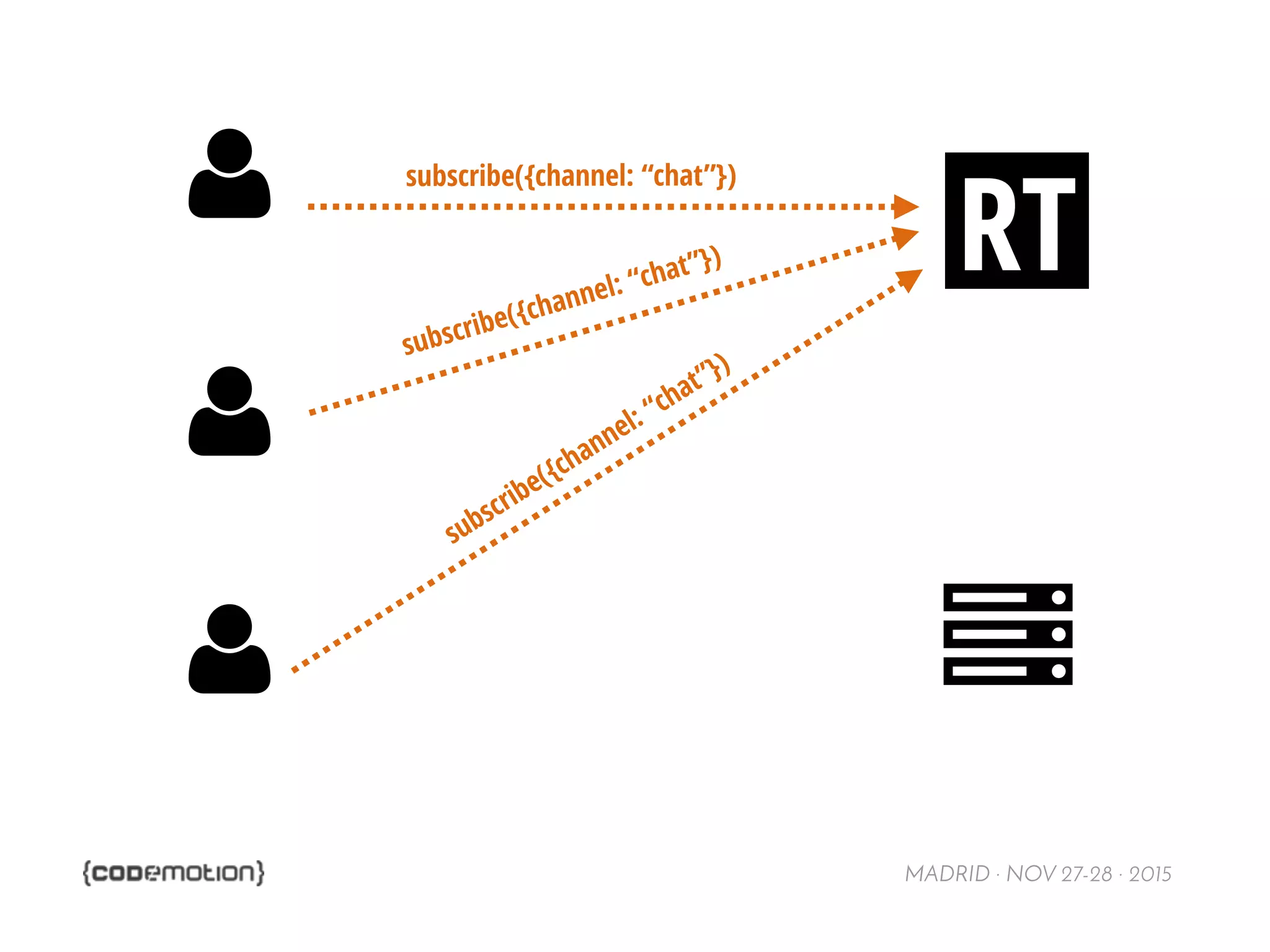

# subscribe({channel: “chat”})
#
subscribe({channel: “chat”})
#
subscribe({channel: “chat”})
RT
!

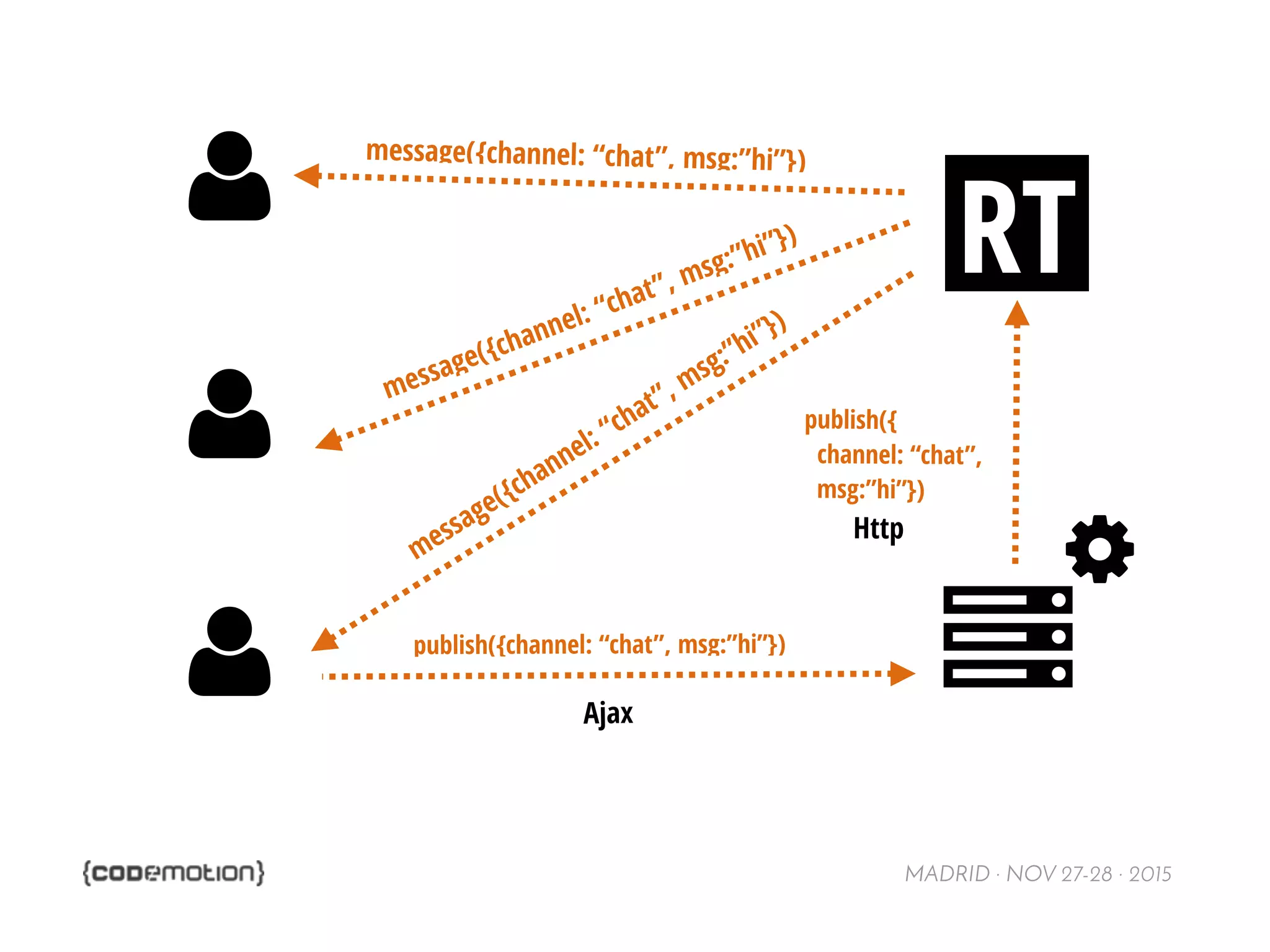

75. MADRID · NOV 27-28 · 2015

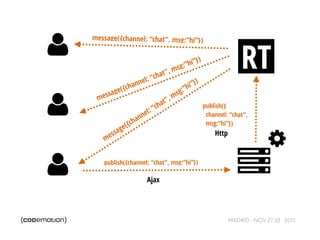

RT
!
#
#
#
$message({channel: “chat”, msg:”hi”})
message({channel: “chat”, msg:”hi”})
message({channel: “chat”, msg:”hi”})
publish({channel: “chat”, msg:”hi”})
Ajax
publish({
channel: “chat”,
msg:”hi”})
Http

76. MADRID · NOV 27-28 · 2015
Just because we have RT we
don’t need to stop using regular
HTTP

77. MADRID · NOV 27-28 · 2015

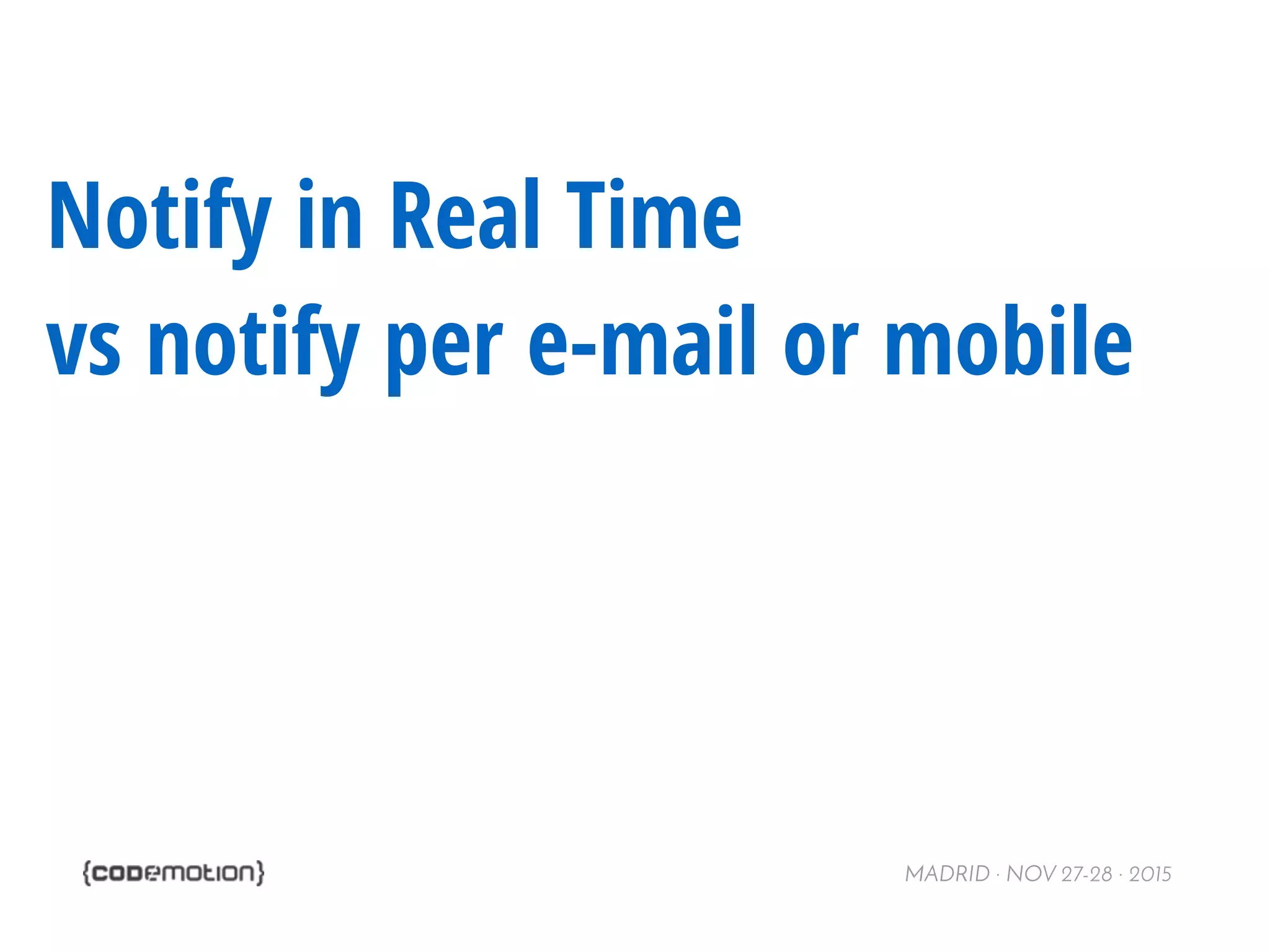

Notify in Real Time
vs notify per e-mail or mobile

78. MADRID · NOV 27-28 · 2015

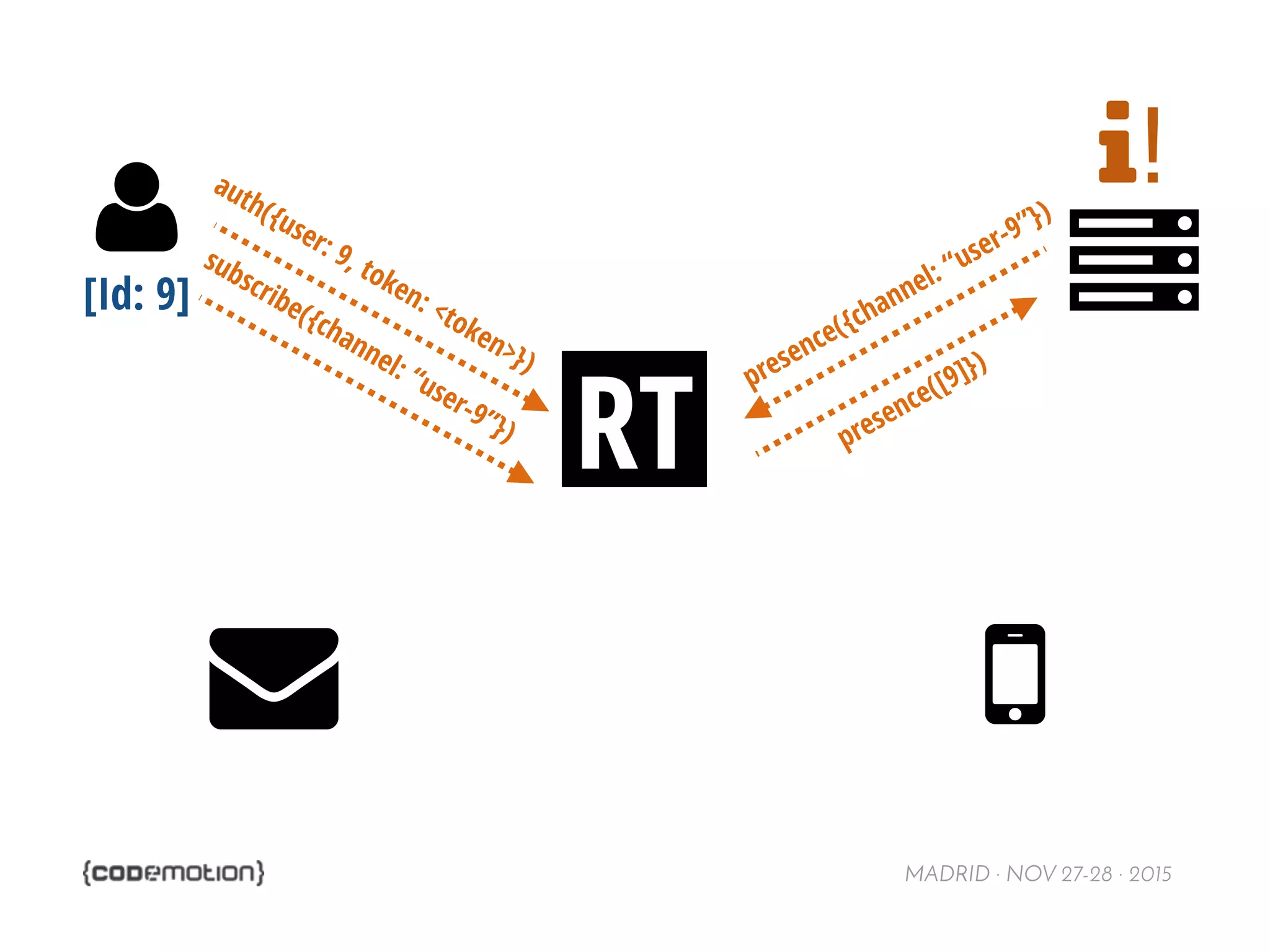

RT
#
[Id: 9]
subscribe({channel: “user-9”})
!
%!
presence({channel: “user-9”})
presence([9]})
auth({user: 9, token: <token>})
& '

79. MADRID · NOV 27-28 · 2015

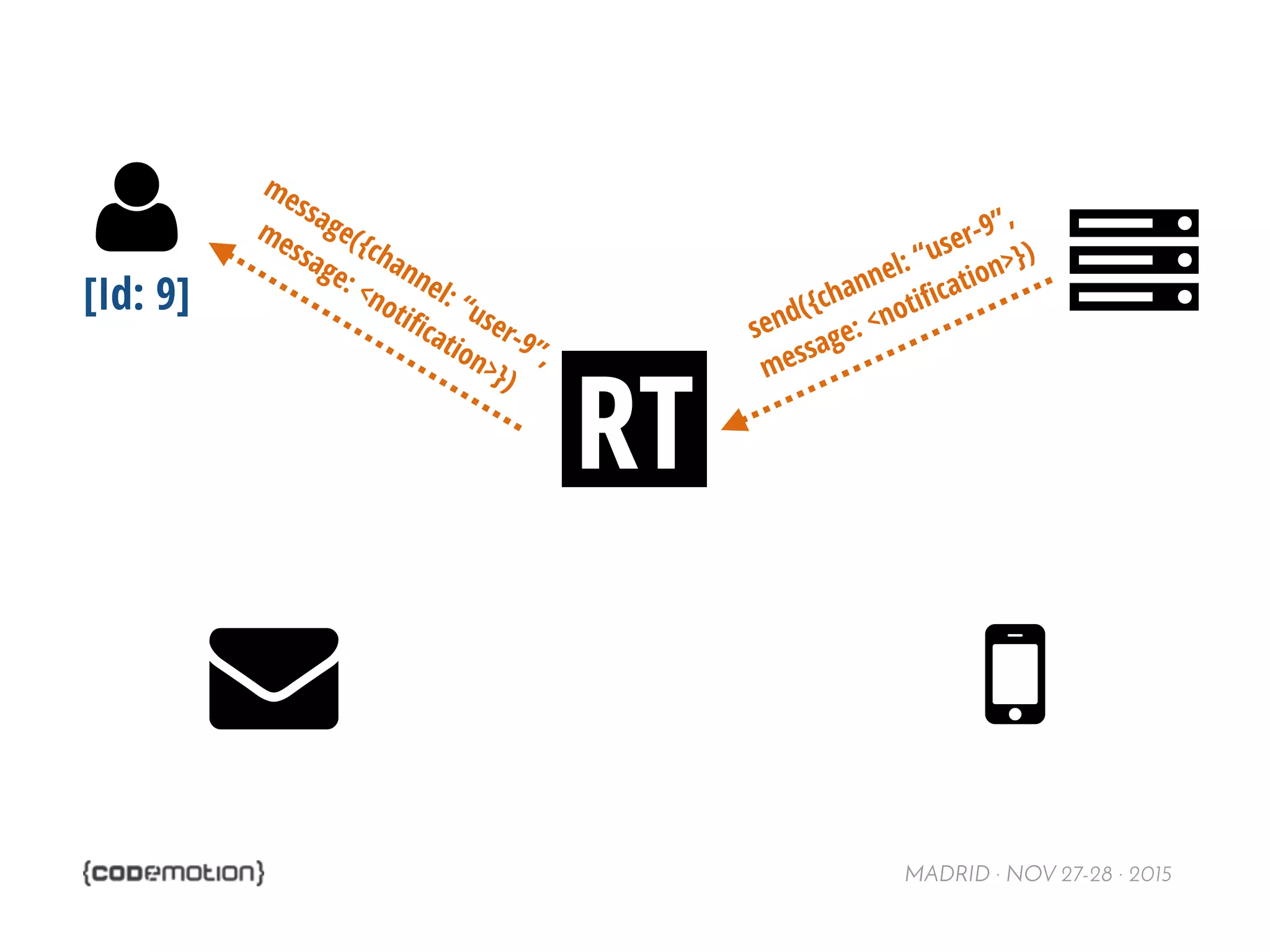

RT
#
[Id: 9] !send({channel: “user-9”,
message: <notification>})
message({channel: “user-9”,
message: <notification>})
& '

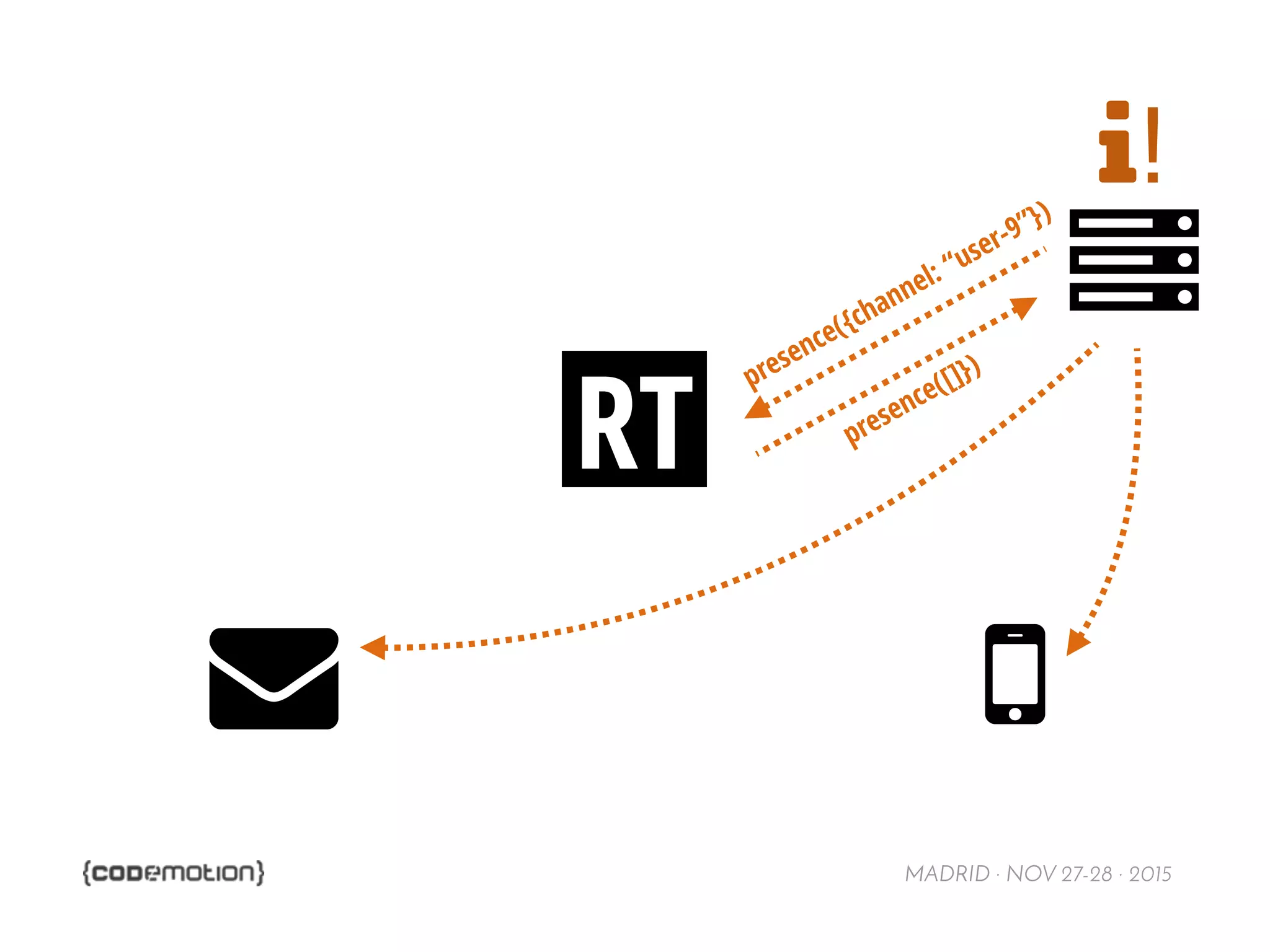

80. MADRID · NOV 27-28 · 2015

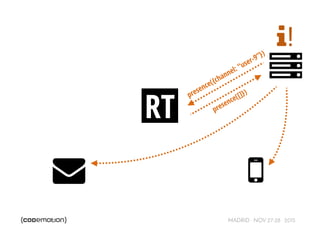

RT
!
%!
presence({channel: “user-9”})
presence([]})
& '

81. MADRID · NOV 27-28 · 2015

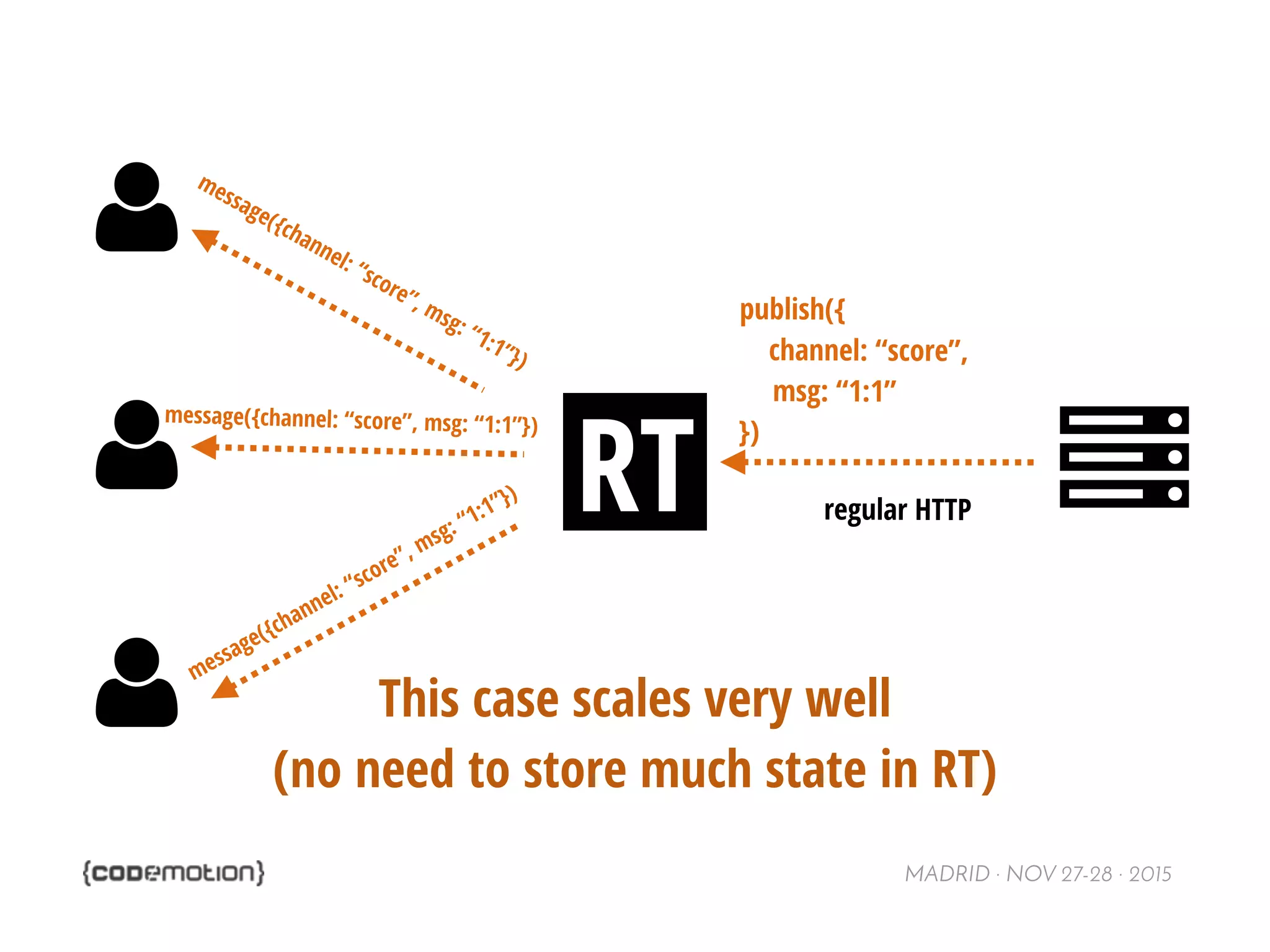

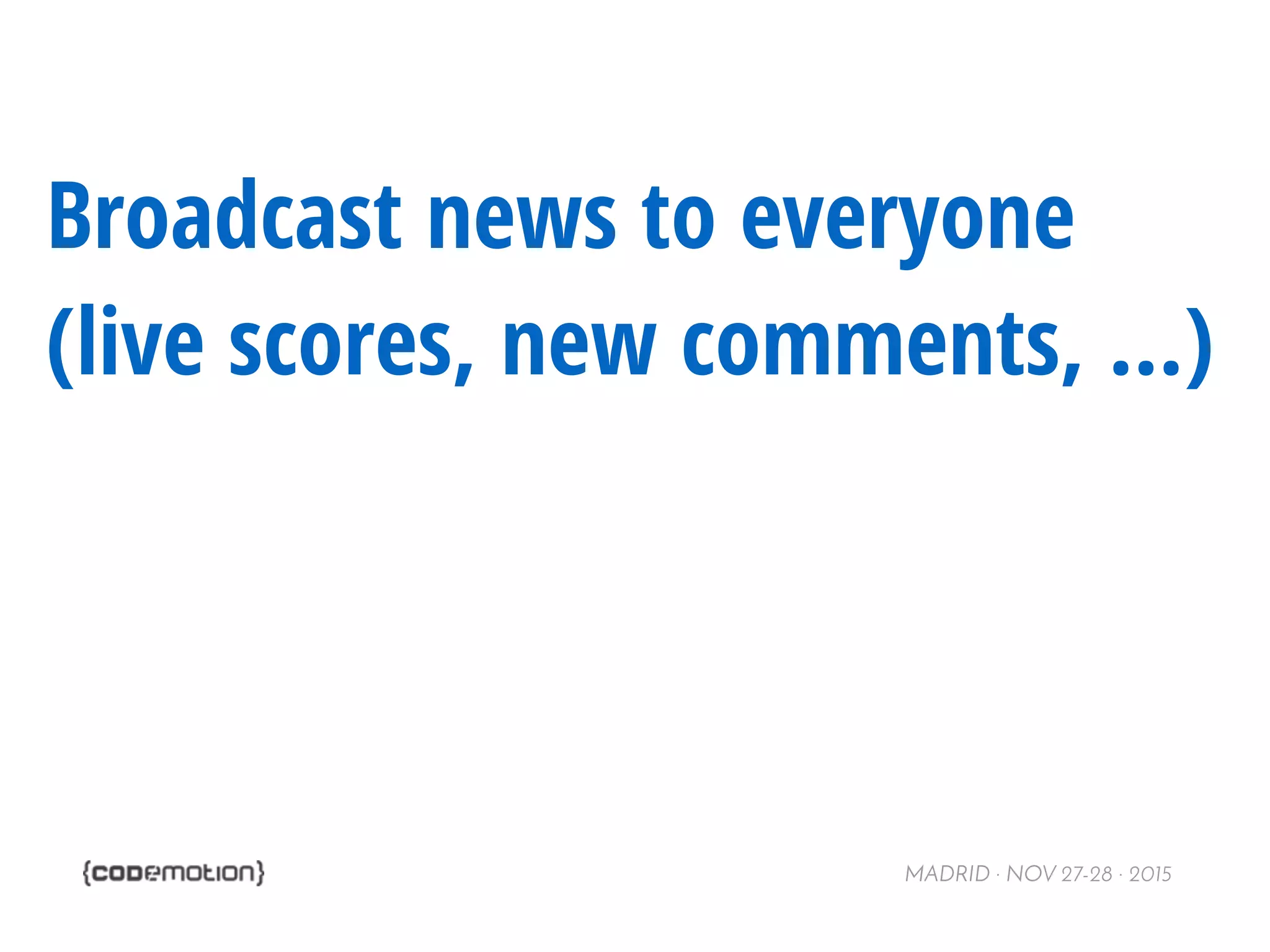

Broadcast news to everyone
(live scores, new comments, …)

82. MADRID · NOV 27-28 · 2015

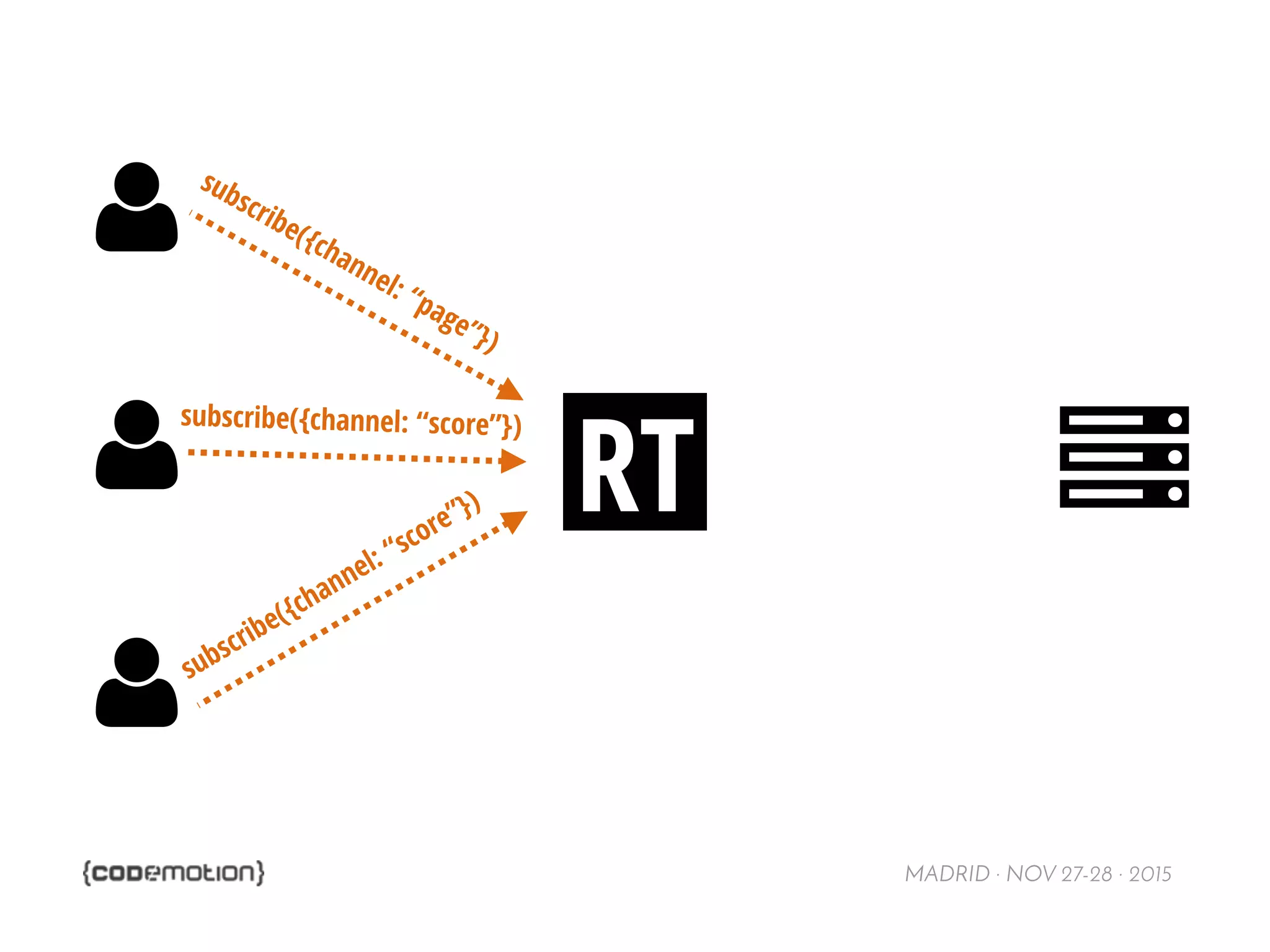

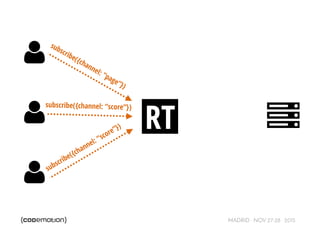

RT
#
subscribe({channel: “page”})
#
subscribe({channel: “score”})
#subscribe({channel: “score”}) !

83. MADRID · NOV 27-28 · 2015
RT
#
#
message({channel: “score”, msg: “1:1”})
#message({channel: “score”, msg: “1:1”}) !
publish({
channel: “score”,
msg: “1:1”
})
regular HTTP
message({channel: “score”, msg: “1:1”})
This case scales very well
(no need to store much state in RT)

84. MADRID · NOV 27-28 · 2015

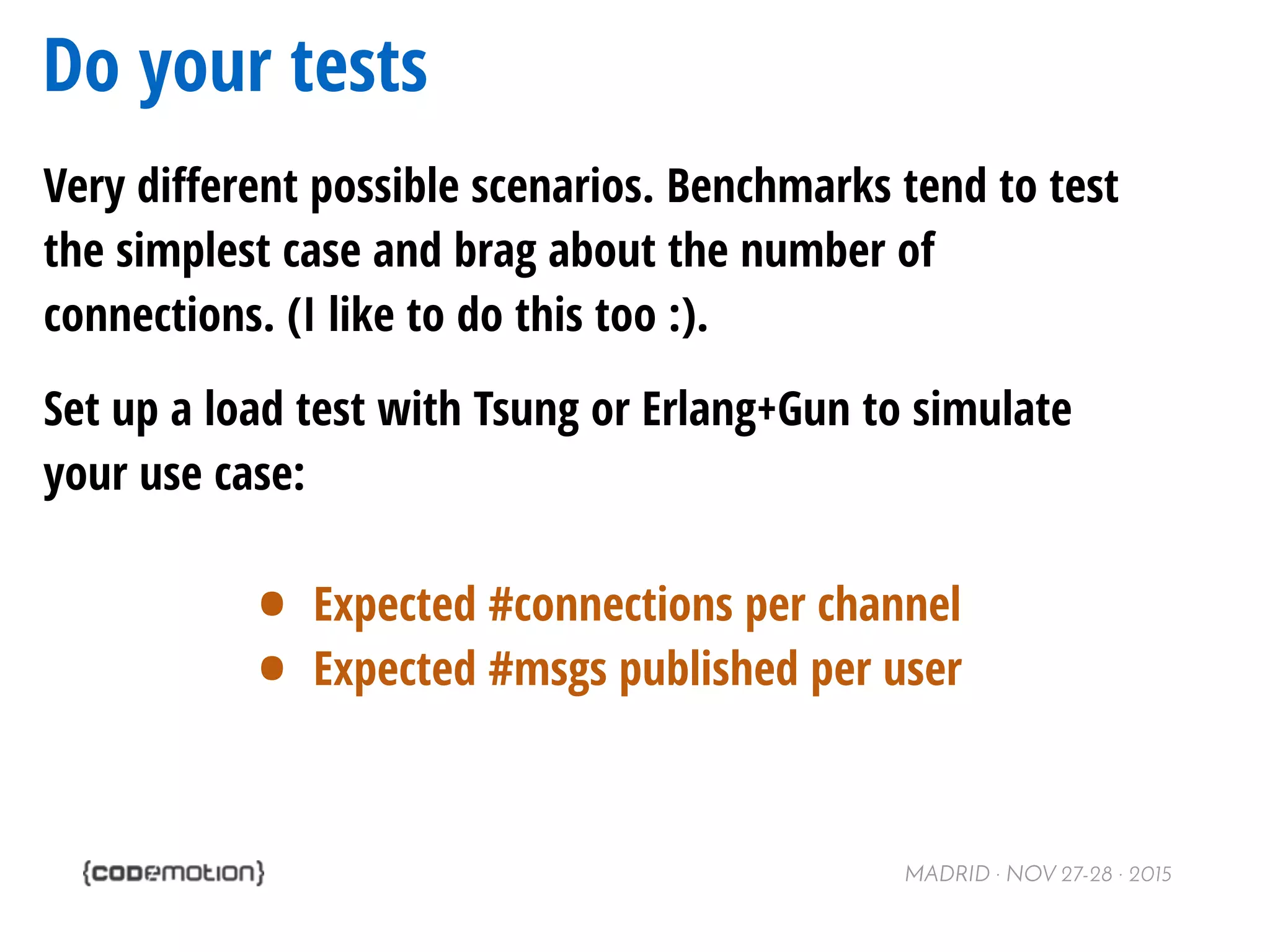

Do your tests
Very different possible scenarios. Benchmarks tend to test
the simplest case and brag about the number of
connections. (I like to do this too :).
Set up a load test with Tsung or Erlang+Gun to simulate
your use case:
• Expected #connections per channel
• Expected #msgs published per user

85. MADRID · NOV 27-28 · 2015

86. MADRID · NOV 27-28 · 2015
Thanks!
@nacmartin
nacho@limenius.com
http://carotene-project.com
http://limenius.com
