TrioNAS is a unified storage solution that brings enterprise-level NAS, SAN, and cloud storage features to SMBs at a lower price point. It consolidates file and block storage across multiple protocols while offering data efficiency technologies like deduplication and compression. TrioNAS also simplifies management with features like Active Directory integration and centralized administration. This allows SMBs to gain enterprise capabilities for backup storage and virtual environments at a more affordable cost.

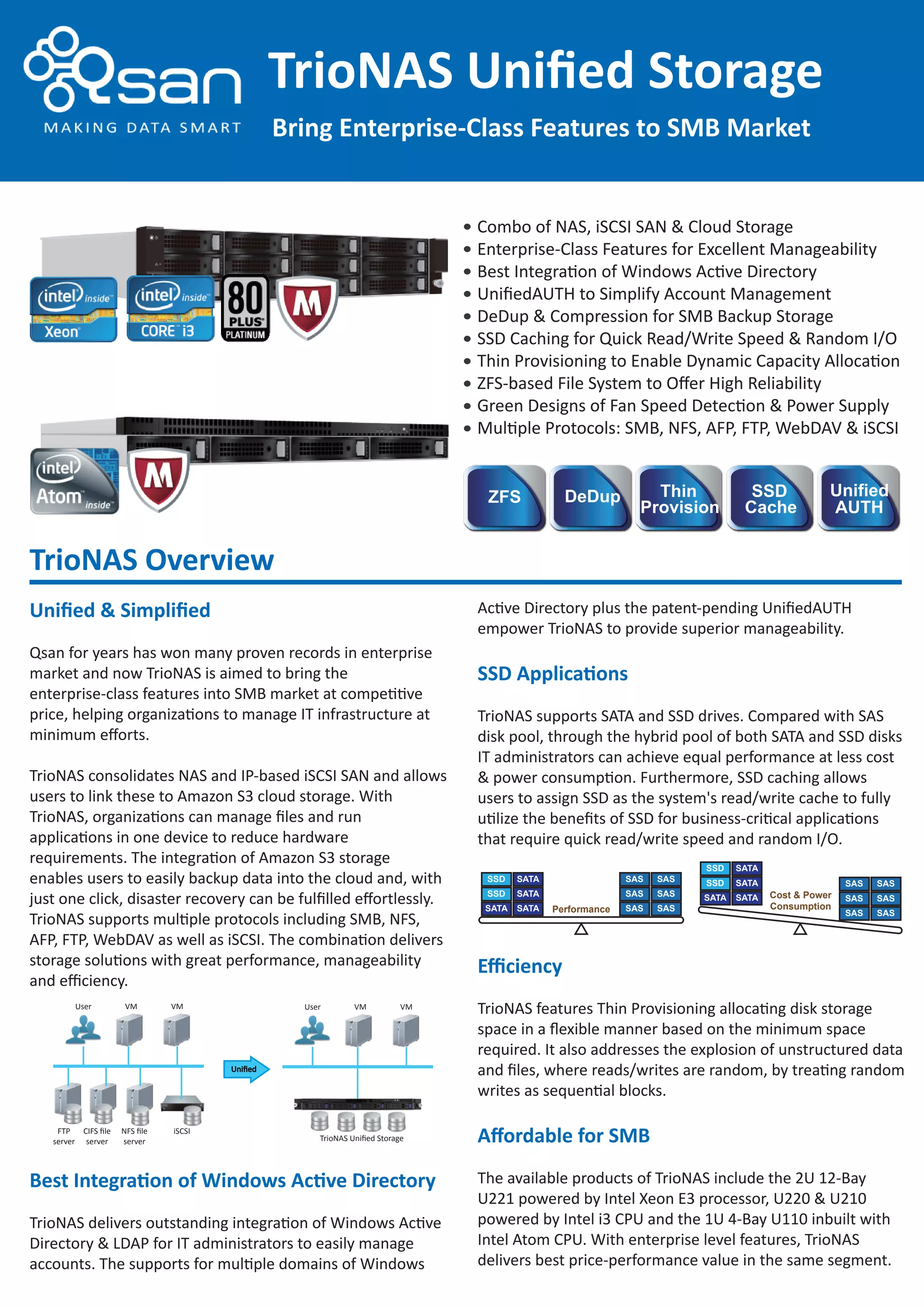

1. TrioNAS Unified Storage
Bring Enterprise-Class Features to SMB Market
Combo of NAS, iSCSI SAN & Cloud Storage
Enterprise-Class Features for Excellent Manageability
Best Integration of Windows Active Directory
UnifiedAUTH to Simplify Account Management
DeDup & Compression for SMB Backup Storage
SSD Caching for Quick Read/Write Speed & Random I/O
Thin Provisioning to Enable Dynamic Capacity Allocation
ZFS-based File System to Offer High Reliability
Green Designs of Fan Speed Detection & Power Supply
Multiple Protocols: SMB, NFS, AFP, FTP, WebDAV & iSCSI
ZFS
AUTH
UnifiedDeDup Thin
Provision
SSD
Cache
TrioNAS Overview
Unified & Simplified
Qsan for years has won many proven records in enterprise
market and now TrioNAS is aimed to bring the
enterprise-class features into SMB market at competitive
price, helping organizations to manage IT infrastructure at
minimum efforts.
TrioNAS consolidates NAS and IP-based iSCSI SAN and allows
users to link these to Amazon S3 cloud storage. With
TrioNAS, organizations can manage files and run
applications in one device to reduce hardware
requirements. The integration of Amazon S3 storage
enables users to easily backup data into the cloud and, with
just one click, disaster recovery can be fulfilled effortlessly.
TrioNAS supports multiple protocols including SMB, NFS,
AFP, FTP, WebDAV as well as iSCSI. The combination delivers
storage solutions with great performance, manageability
and efficiency.
Best Integration of Windows Active Directory
TrioNAS delivers outstanding integration of Windows Active
Directory & LDAP for IT administrators to easily manage
accounts. The supports for multiple domains of Windows
Active Directory plus the patent-pending UnifiedAUTH
empower TrioNAS to provide superior manageability.
SSD Applications
TrioNAS supports SATA and SSD drives. Compared with SAS
disk pool, through the hybrid pool of both SATA and SSD disks
IT administrators can achieve equal performance at less cost
& power consumption. Furthermore, SSD caching allows
users to assign SSD as the system's read/write cache to fully
utilize the benefits of SSD for business-critical applications
that require quick read/write speed and random I/O.
Efficiency
TrioNAS features Thin Provisioning allocating disk storage
space in a flexible manner based on the minimum space
required. It also addresses the explosion of unstructured data
and files, where reads/writes are random, by treating random
writes as sequential blocks.
Affordable for SMB
The available products of TrioNAS include the 2U 12-Bay
U221 powered by Intel Xeon E3 processor, U220 & U210
powered by Intel i3 CPU and the 1U 4-Bay U110 inbuilt with
Intel Atom CPU. With enterprise level features, TrioNAS
delivers best price-performance value in the same segment.
SSD
SSD
SATA
SATA
SATA
SATA
SAS
SAS
SAS
SAS
SAS
SAS
Cost & Power
Consumption
SSD
SSD
SATA
SATA
SATA
SATA
SAS
SAS
SAS
SAS
SAS
SASPerformance
User VM VM
CIFS file
server
NFS file
server
iSCSIFTP
server
Unified
User VM VM
TrioNAS Unified Storage

2. TrioNAS the Unified Storage For SMB
Qsan Technology, Inc.
Copyright ©2004-2013 by Qsan Technology, Inc. All rights reserved.
Any information provided herein is subject to change without prior notice. All other names, brands and trademarks are the properties of their respective owners.
TEL: +886-2-77202118 │ FAX: +886-2-77200295 │ 4F, No.103, Rui-Hu Street, Nei-Hu District, Taipei 114, Taiwan
Sales@QsanTechnology.com │ www.QsanTechnology.com
Why ZFS?
Self Healing Architecture
- Detect Silent Data Corruption
- Correct Errors on the Fly
Compression
- Save Storage Capacity
- Increase Write Speed
Variable Block Size
- Improve I/O Throughputs
Copy On Write Transactional Model
- End-to-end Protection to Keep Data Consistent
Unlimited File Size
- No limit at all!
U221 U220 U210 U110
Processor Intel® Xeon® E3 Intel® Core™ i3 Intel® Core™ i3 Intel® Atom™ D2550
Memory 32GB 16GB, up to 32GB 16GB, up to 32GB 4GB
Front-end 2x 10GbE + 2 x GbE ports 2x 10GbE + 2 x GbE ports 6 x GbE ports 2 x GbE ports
Back-end Up to 4 SATA II HDD or SSD
Power Supply 130W Single
Fan 2 x system fan
Form Factor 1U 4-Bay
Dimension 442.0 x 711.2 x 44.0 mm
(W x D x H)RAID 0, 1, 5 ,10
Pool
Data Efficiency
DeDup, Compression,
Thin provisioning,
SSD caching
Compression,
Thin provisioning
Networking
Data Service
Directory Service
Data Protection
Security
Management
Green Auto disk spin down
Safety/EMI
Warranty
Compression, Thin provisioning, SSD caching
DHCP or static IP address assignment, NTP client, Jumbo frame
Trunking & LACP & Teaming support, VLAN tagging, WINS client
SMB v2 for Windows, NFS v3/v4 for Linux & UNIX
AFP v3.3 for Mac OS X, FTP & SFTP, iSCSI target, WebDAV
TrioNAS
549W Redundant
2 X 549W3 x system fan & 1 x CPU fan
2U 12-Bay
442.0 x 711.2 x 88.0 mm
(W x D x H)
3 years for system
Up to 12 SATA II / SATA III HDD or SSD
UnifiedAUTH, Microsoft Active Directory, LDAP
Snapshot, Clone for volumes & file system, Remote replication,
Amazon S3 cloud replication & disaster recovery, ZFS file system
3-year McAfee anti-virus,
Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SFTP & SSH (Admin),
CIFS User/Group Access Control for shared folders
QCentral management, Online system firmware upgrade, Event notification via Email, SNMP trap, messenger & Syslog,
Performance states, System monitoring & Device health status, S.M.A.R.T., Start-up wizard, Wake-on-LAN, Web UI
80 Plus Platinum power supply, Auto disk spin down
RoHS, CE, FCC, BSMI, UL, CB, cUL
0, 1, 5, 6, 10, 50, 60
Dedicated hot spare disks, Multiple RAID groups support,
Auto volume rebuilding, Online pool expansion, Offline pool roaming
TrioNAS U221
Best Backup Storage for SMB
DeDep
Compression
+
Inbuilt with Intel Xeon CPU & 32GB
memory, TrioNAS U221 delivers
ultimate performance for online
DeDup & Compression to save disk
capacity up to 95% and to reduce
storage cost from $100/TB to
$51.28/TB.
Storage Capacity 95%
Best SMB
Backup
Storage
Storage Cost 50%
TrioNAS Specifications
