Triac1

Istanbul Energy Ltd. provides renewable energy generation and transmission equipment, including solar panels, wind turbines, energy storage, and microgrid solutions. It aims to help customers reduce their energy footprint and rely more on sustainable sources. The company has years of experience in project design, installation, and maintenance across Turkey. It offers complete renewable energy systems through its TRIAC product line that are ready to use, easy to transport and install, and provide off-grid power for homes, businesses, and villages.

Embed presentation

Download to read offline
Renewable power Anytime, Anywhere! Created ready to use

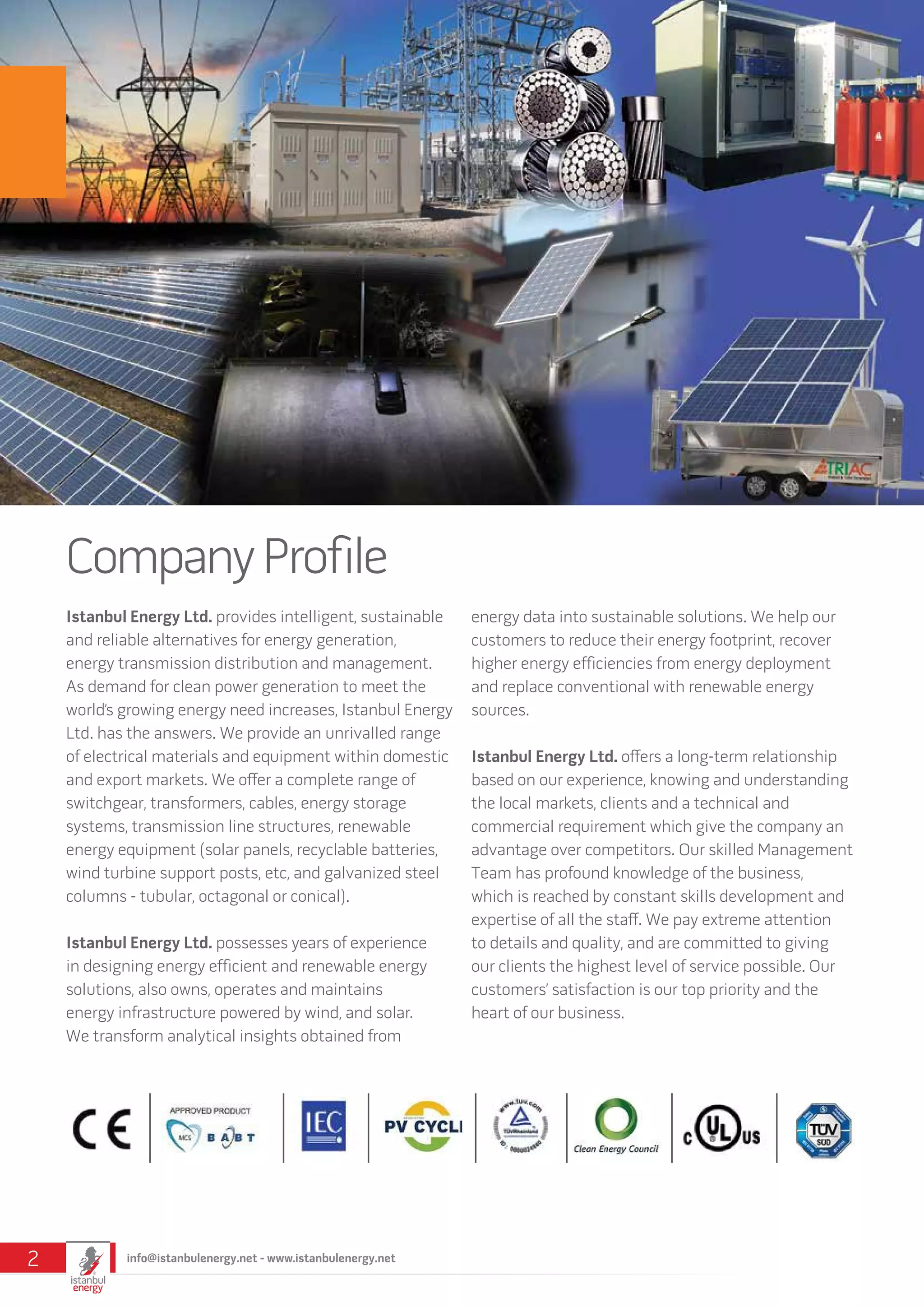

Istanbul Energy Ltd. provides intelligent, sustainable and reliable alternatives for energy generation, energy transmission distribution and management. As demand for clean power generation to meet the world’s growing energy need increases, Istanbul Energy Ltd. has the answers. We provide an unrivalled range of electrical materials and equipment within domestic and export markets. We offer a complete range of switchgear, transformers, cables, energy storage systems, transmission line structures, renewable energy equipment (solar panels, recyclable batteries, wind turbine support posts, etc, and galvanized steel columns - tubular, octagonal or conical). Istanbul Energy Ltd. possesses years of experience in designing energy efficient and renewable energy solutions, also owns, operates and maintains energy infrastructure powered by wind, and solar. We transform analytical insights obtained from energy data into sustainable solutions. We help our customers to reduce their energy footprint, recover higher energy efficiencies from energy deployment and replace conventional with renewable energy sources. Istanbul Energy Ltd. offers a long-term relationship based on our experience, knowing and understanding the local markets, clients and a technical and commercial requirement which give the company an advantage over competitors. Our skilled Management Team has profound knowledge of the business, which is reached by constant skills development and expertise of all the staff. We pay extreme attention to details and quality, and are committed to giving our clients the highest level of service possible. Our customers’ satisfaction is our top priority and the heart of our business. CompanyProfile info@istanbulenergy.net - www.istanbulenergy.net2

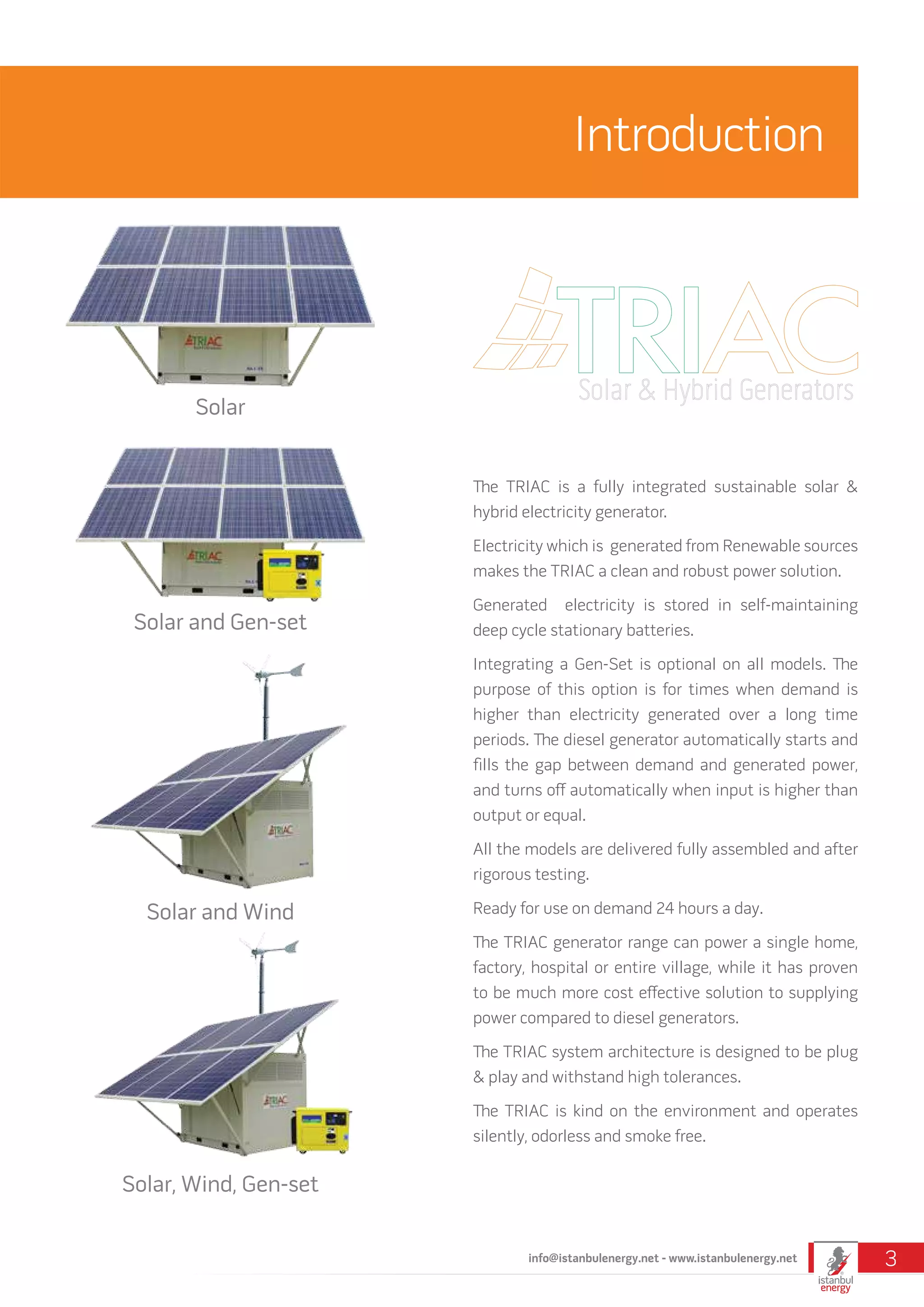

The TRIAC is a fully integrated sustainable solar & hybrid electricity generator. Electricity which is generated from Renewable sources makes the TRIAC a clean and robust power solution. Generated electricity is stored in self-maintaining deep cycle stationary batteries. Integrating a Gen-Set is optional on all models. The purpose of this option is for times when demand is higher than electricity generated over a long time periods. The diesel generator automatically starts and fills the gap between demand and generated power, and turns off automatically when input is higher than output or equal. All the models are delivered fully assembled and after rigorous testing. Ready for use on demand 24 hours a day. The TRIAC generator range can power a single home, factory, hospital or entire village, while it has proven to be much more cost effective solution to supplying power compared to diesel generators. The TRIAC system architecture is designed to be plug & play and withstand high tolerances. The TRIAC is kind on the environment and operates silently, odorless and smoke free. Introduction Solar Solar and Wind Solar and Gen-set Solar, Wind, Gen-set info@istanbulenergy.net - www.istanbulenergy.net 3

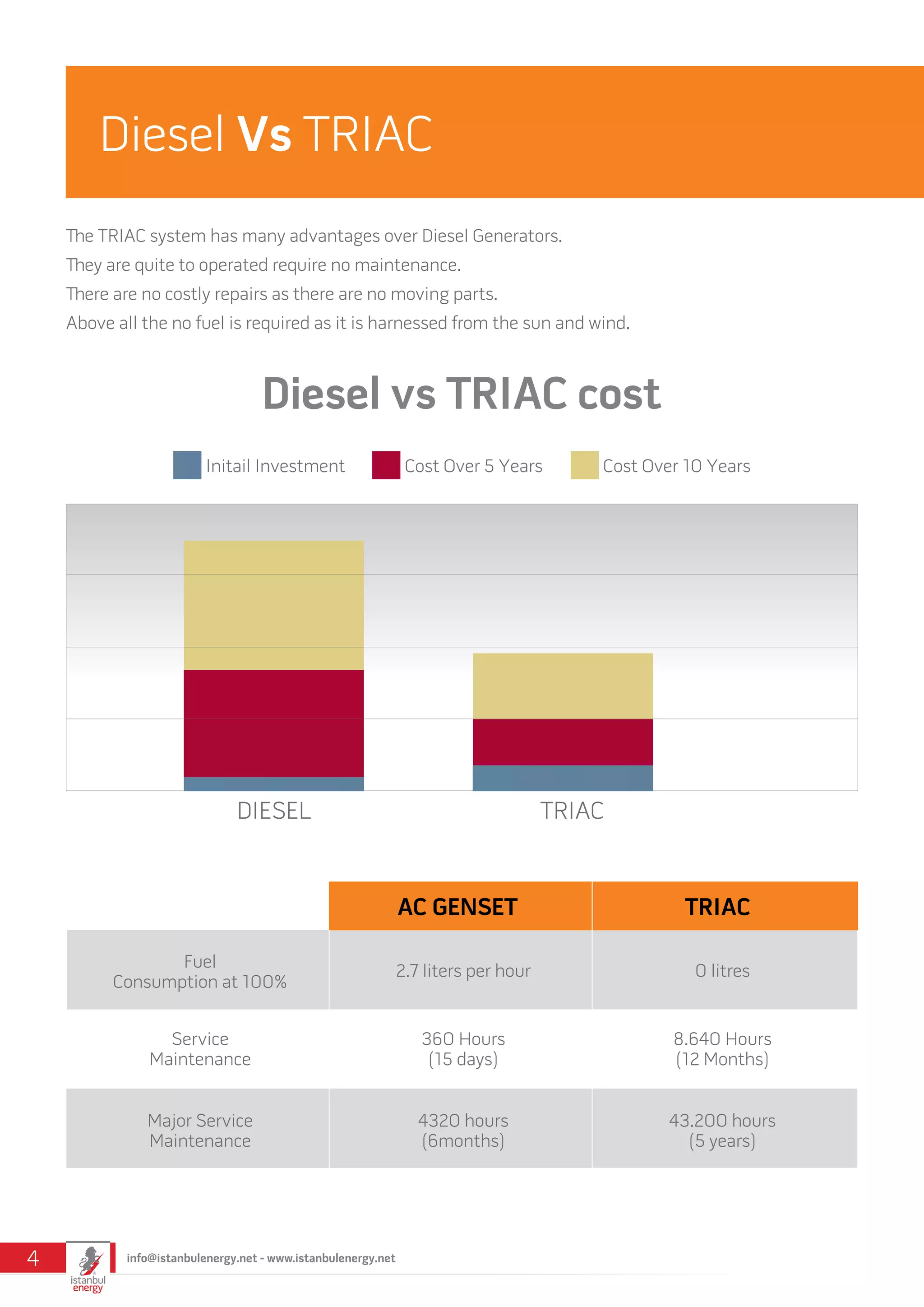

The TRIAC system has many advantages over Diesel Generators. They are quite to operated require no maintenance. There are no costly repairs as there are no moving parts. Above all the no fuel is required as it is harnessed from the sun and wind. Diesel Vs TRIAC Diesel vs TRIAC cost DIESEL TRIAC Initail Investment Cost Over 5 Years Cost Over 10 Years AC GENSET TRIAC Fuel Consumption at 100% 2.7 liters per hour 0 litres 360 Hours (15 days) 8.640 Hours (12 Months) 4320 hours (6months) 43.200 hours (5 years) Service Maintenance Major Service Maintenance info@istanbulenergy.net - www.istanbulenergy.net4

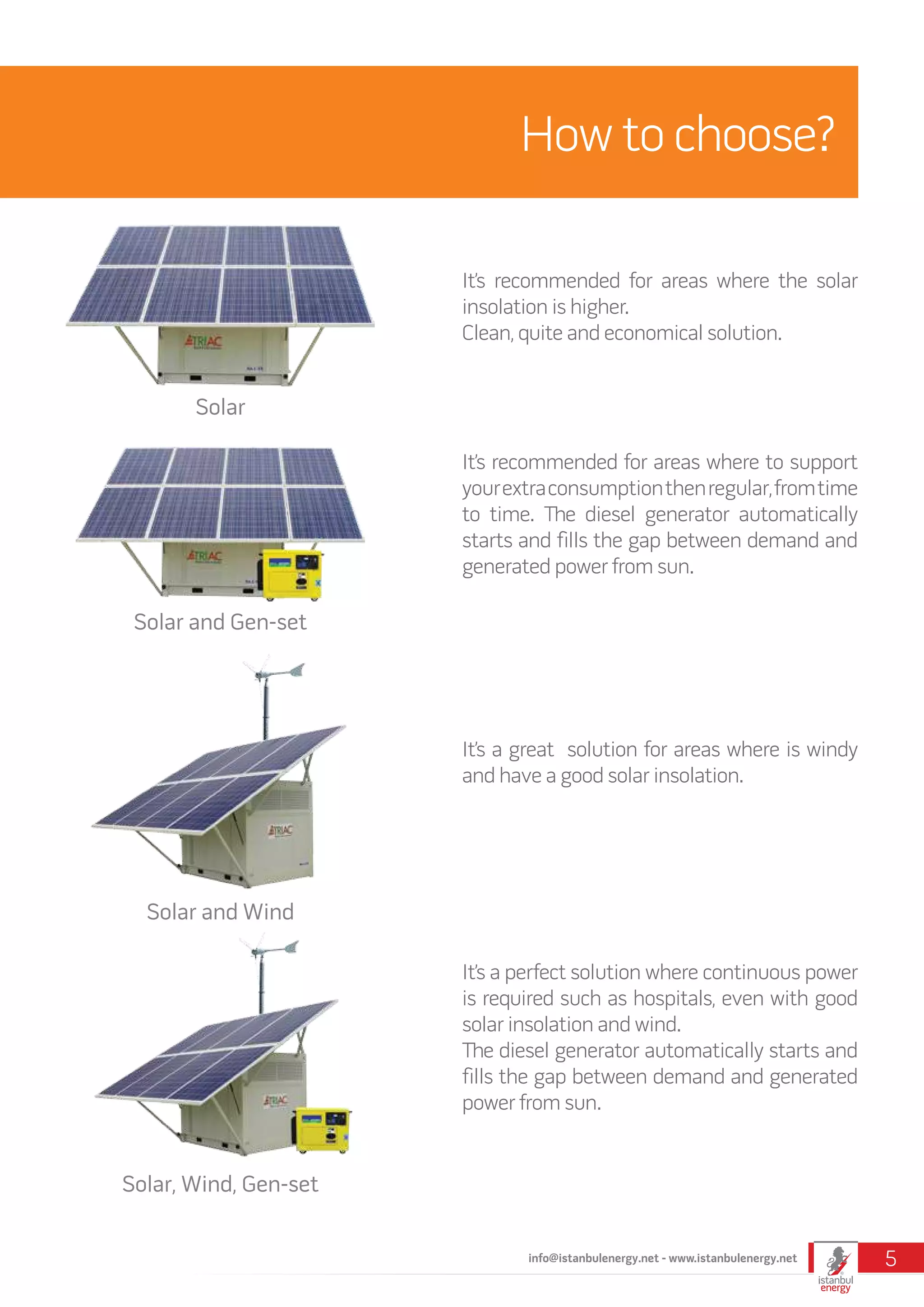

It’s a perfect solution where continuous power is required such as hospitals, even with good solar insolation and wind. The diesel generator automatically starts and fills the gap between demand and generated power from sun. How to choose? It’s recommended for areas where the solar insolation is higher. Clean, quite and economical solution. It’s recommended for areas where to support yourextraconsumptionthenregular,fromtime to time. The diesel generator automatically starts and fills the gap between demand and generated power from sun. It’s a great solution for areas where is windy and have a good solar insolation. Solar Solar and Wind Solar and Gen-set Solar, Wind, Gen-set info@istanbulenergy.net - www.istanbulenergy.net 5

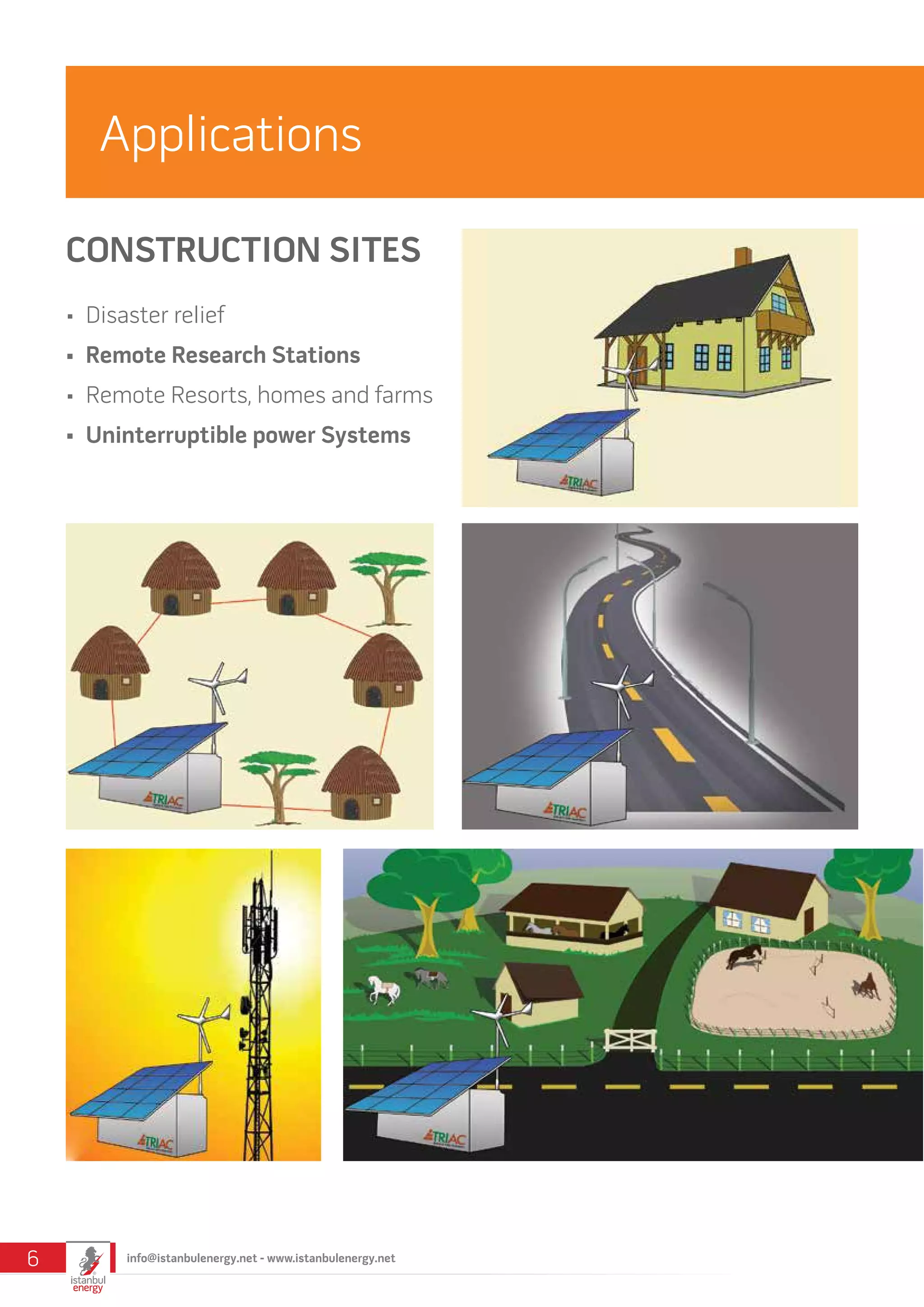

Applications CONSTRUCTION SITES • Disaster relief • Remote Research Stations • Remote Resorts, homes and farms • Uninterruptible power Systems info@istanbulenergy.net - www.istanbulenergy.net6

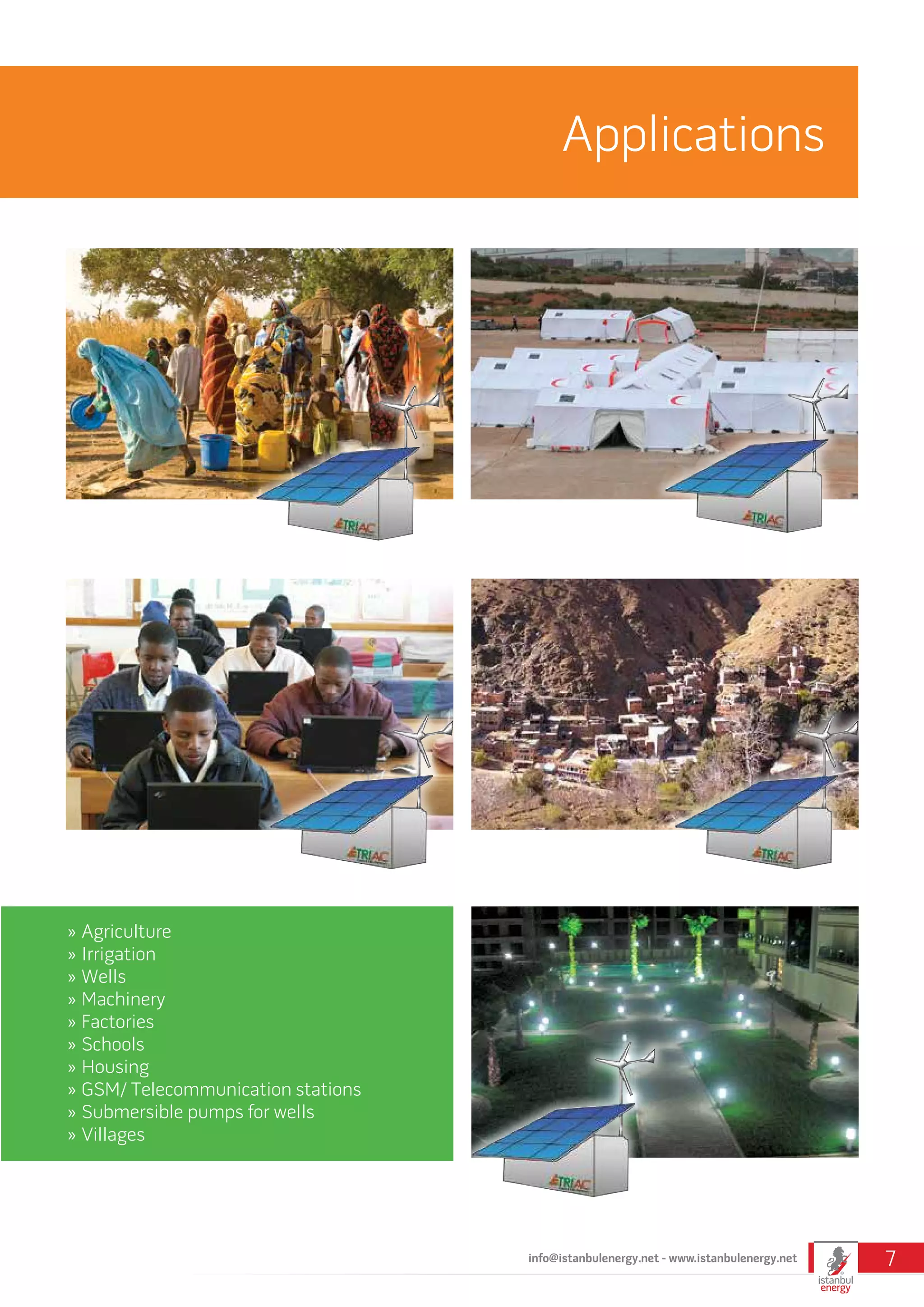

Applications »» Agriculture »» Irrigation »» Wells »» Machinery »» Factories »» Schools »» Housing »» GSM/ Telecommunication stations »» Submersible pumps for wells »» Villages info@istanbulenergy.net - www.istanbulenergy.net 7

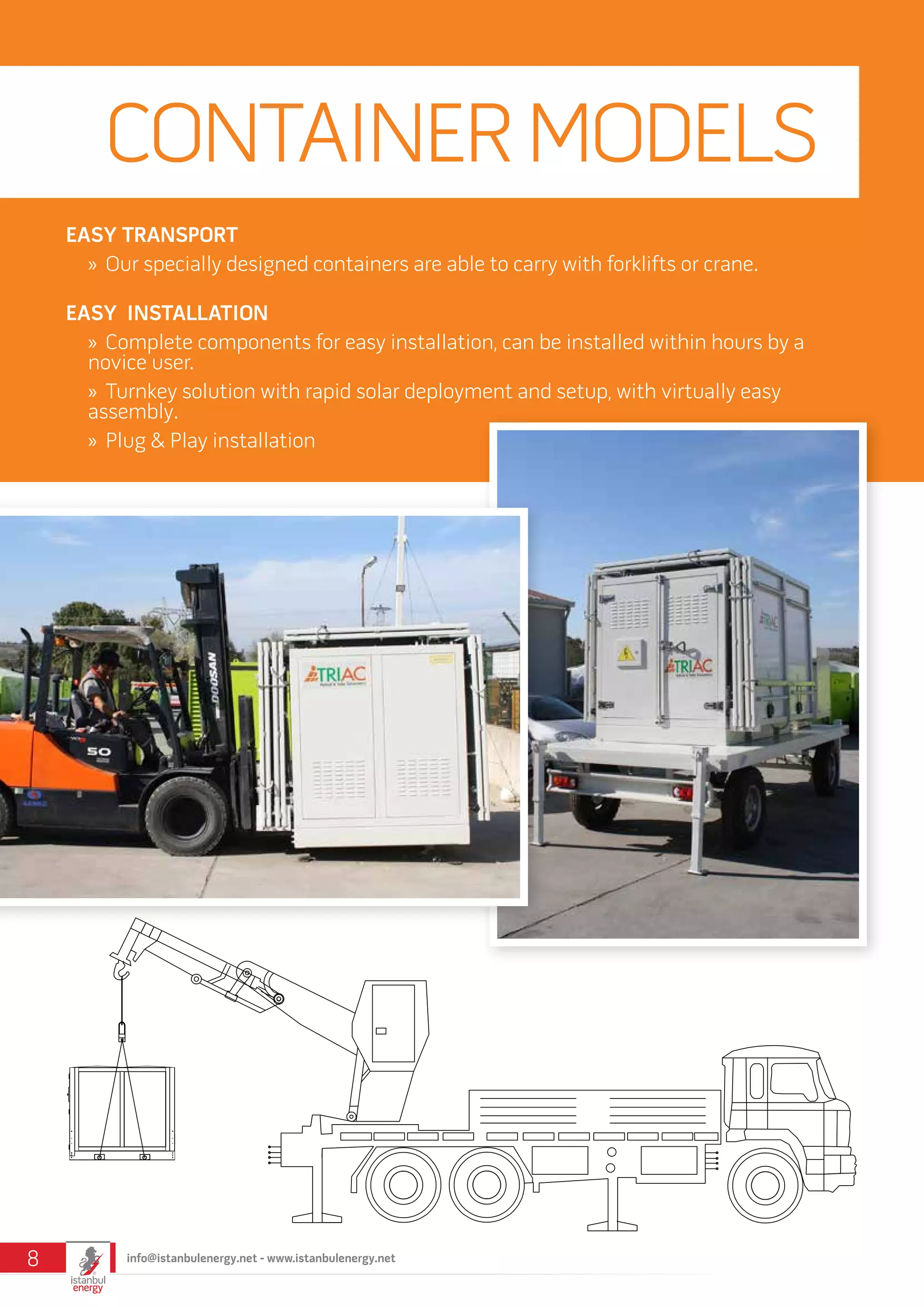

EASY TRANSPORT »» Our specially designed containers are able to carry with forklifts or crane. EASY INSTALLATION »» Complete components for easy installation, can be installed within hours by a novice user. »» Turnkey solution with rapid solar deployment and setup, with virtually easy assembly. »» Plug & Play installation CONTAINERMODELS info@istanbulenergy.net - www.istanbulenergy.net8

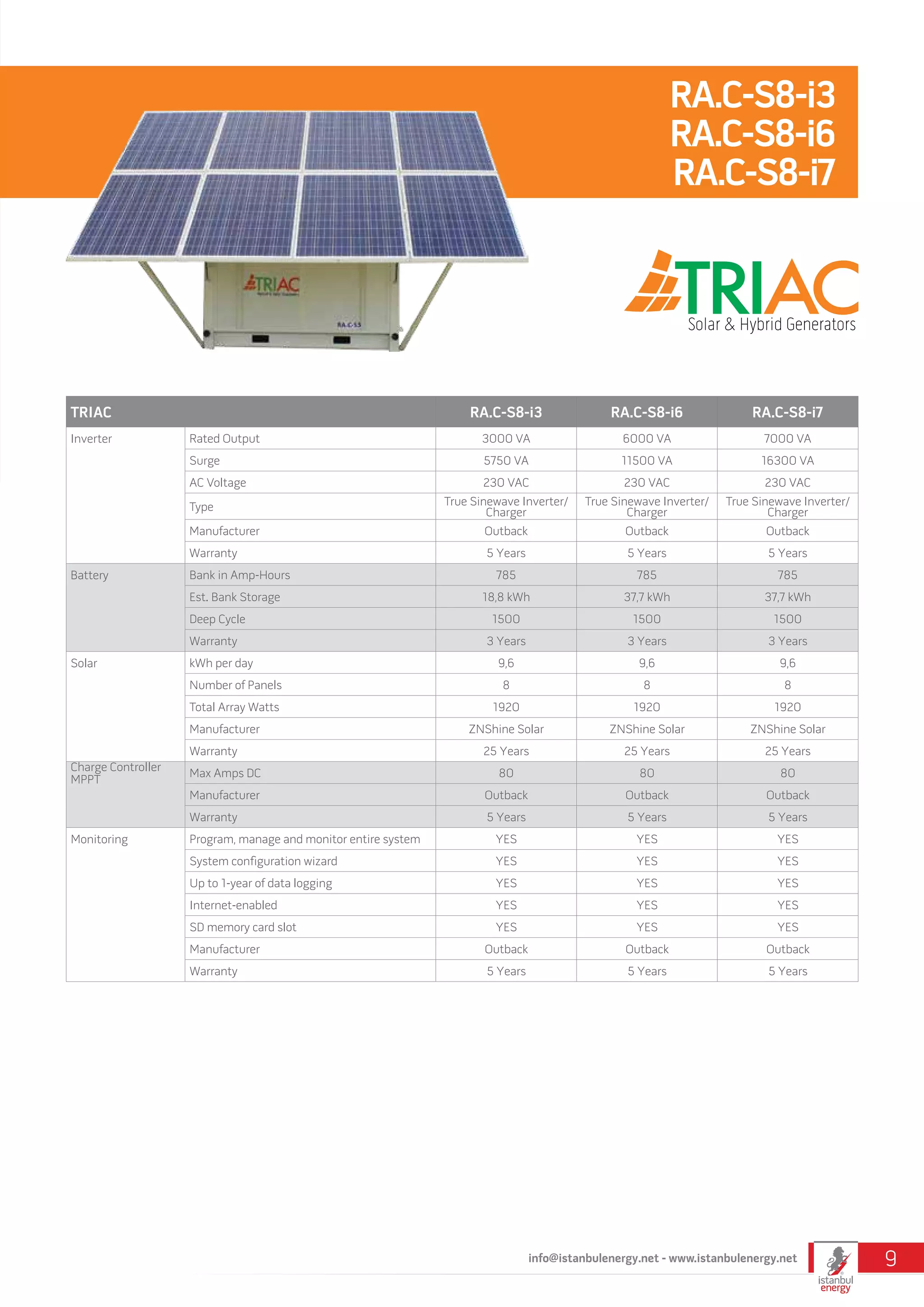

TRIAC RA.C-S8-i3 RA.C-S8-i6 RA.C-S8-i7 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 785 785 785 Est. Bank Storage 18,8 kWh 37,7 kWh 37,7 kWh Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Solar kWh per day 9,6 9,6 9,6 Number of Panels 8 8 8 Total Array Watts 1920 1920 1920 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller MPPT Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years RA.C-S8-i3 RA.C-S8-i6 RA.C-S8-i7 info@istanbulenergy.net - www.istanbulenergy.net 9

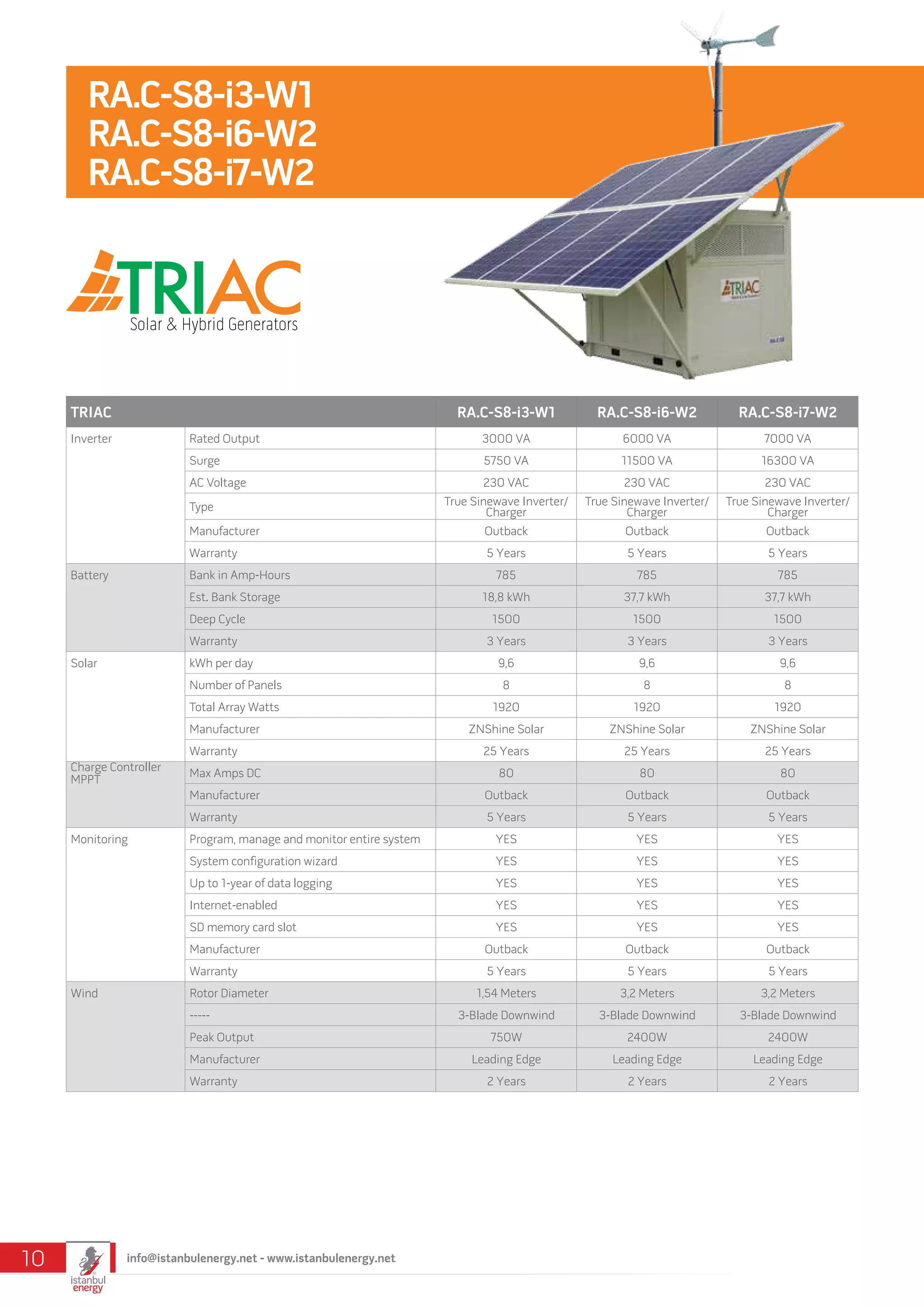

TRIAC RA.C-S8-i3-W1 RA.C-S8-i6-W2 RA.C-S8-i7-W2 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 785 785 785 Est. Bank Storage 18,8 kWh 37,7 kWh 37,7 kWh Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Solar kWh per day 9,6 9,6 9,6 Number of Panels 8 8 8 Total Array Watts 1920 1920 1920 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller MPPT Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Wind Rotor Diameter 1,54 Meters 3,2 Meters 3,2 Meters ----- 3-Blade Downwind 3-Blade Downwind 3-Blade Downwind Peak Output 750W 2400W 2400W Manufacturer Leading Edge Leading Edge Leading Edge Warranty 2 Years 2 Years 2 Years RA.C-S8-i3-W1 RA.C-S8-i6-W2 RA.C-S8-i7-W2 info@istanbulenergy.net - www.istanbulenergy.net10

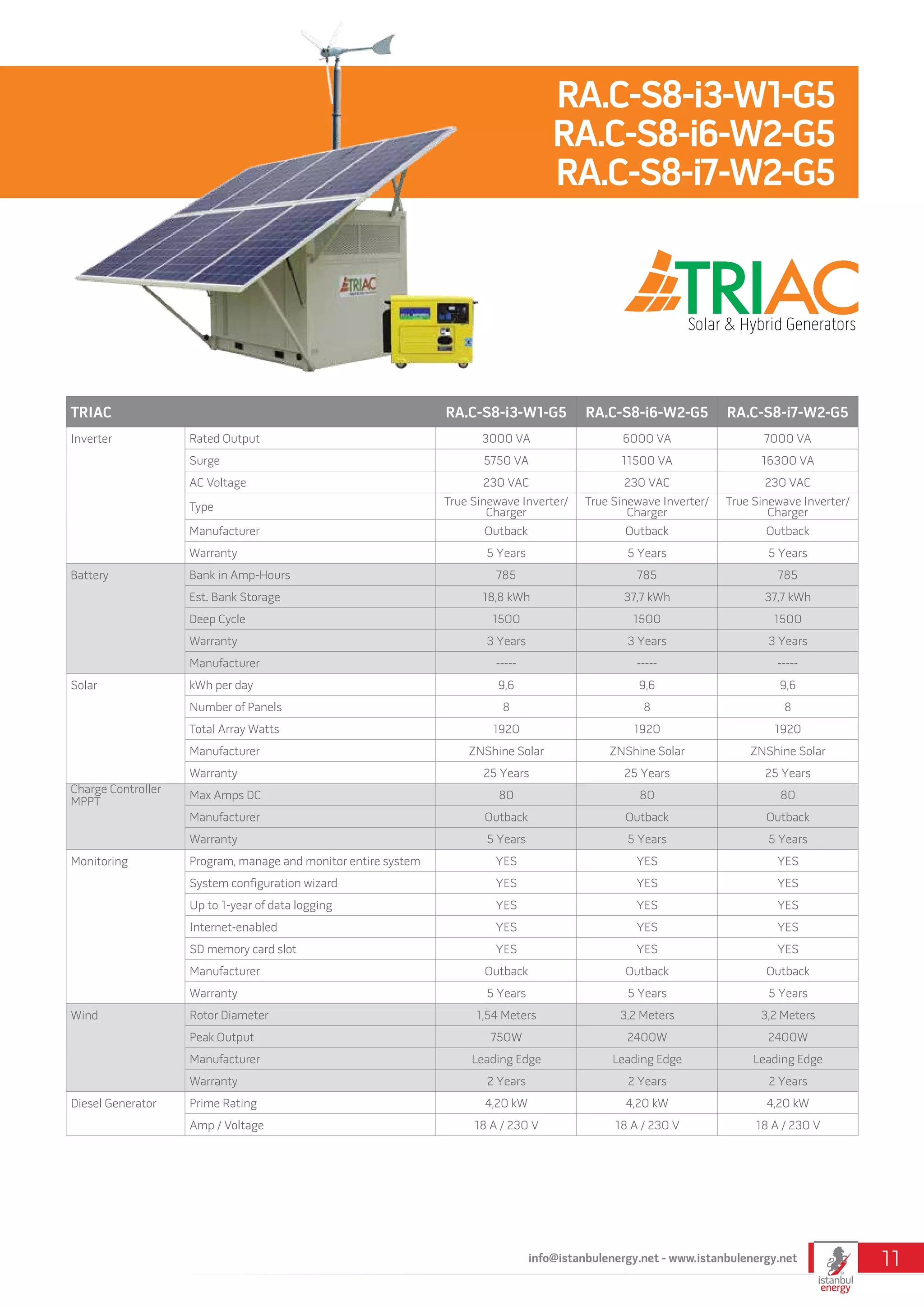

TRIAC RA.C-S8-i3-W1-G5 RA.C-S8-i6-W2-G5 RA.C-S8-i7-W2-G5 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 785 785 785 Est. Bank Storage 18,8 kWh 37,7 kWh 37,7 kWh Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Manufacturer ----- ----- ----- Solar kWh per day 9,6 9,6 9,6 Number of Panels 8 8 8 Total Array Watts 1920 1920 1920 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller MPPT Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Wind Rotor Diameter 1,54 Meters 3,2 Meters 3,2 Meters Peak Output 750W 2400W 2400W Manufacturer Leading Edge Leading Edge Leading Edge Warranty 2 Years 2 Years 2 Years Diesel Generator Prime Rating 4,20 kW 4,20 kW 4,20 kW Amp / Voltage 18 A / 230 V 18 A / 230 V 18 A / 230 V RA.C-S8-i3-W1-G5 RA.C-S8-i6-W2-G5 RA.C-S8-i7-W2-G5 info@istanbulenergy.net - www.istanbulenergy.net 11

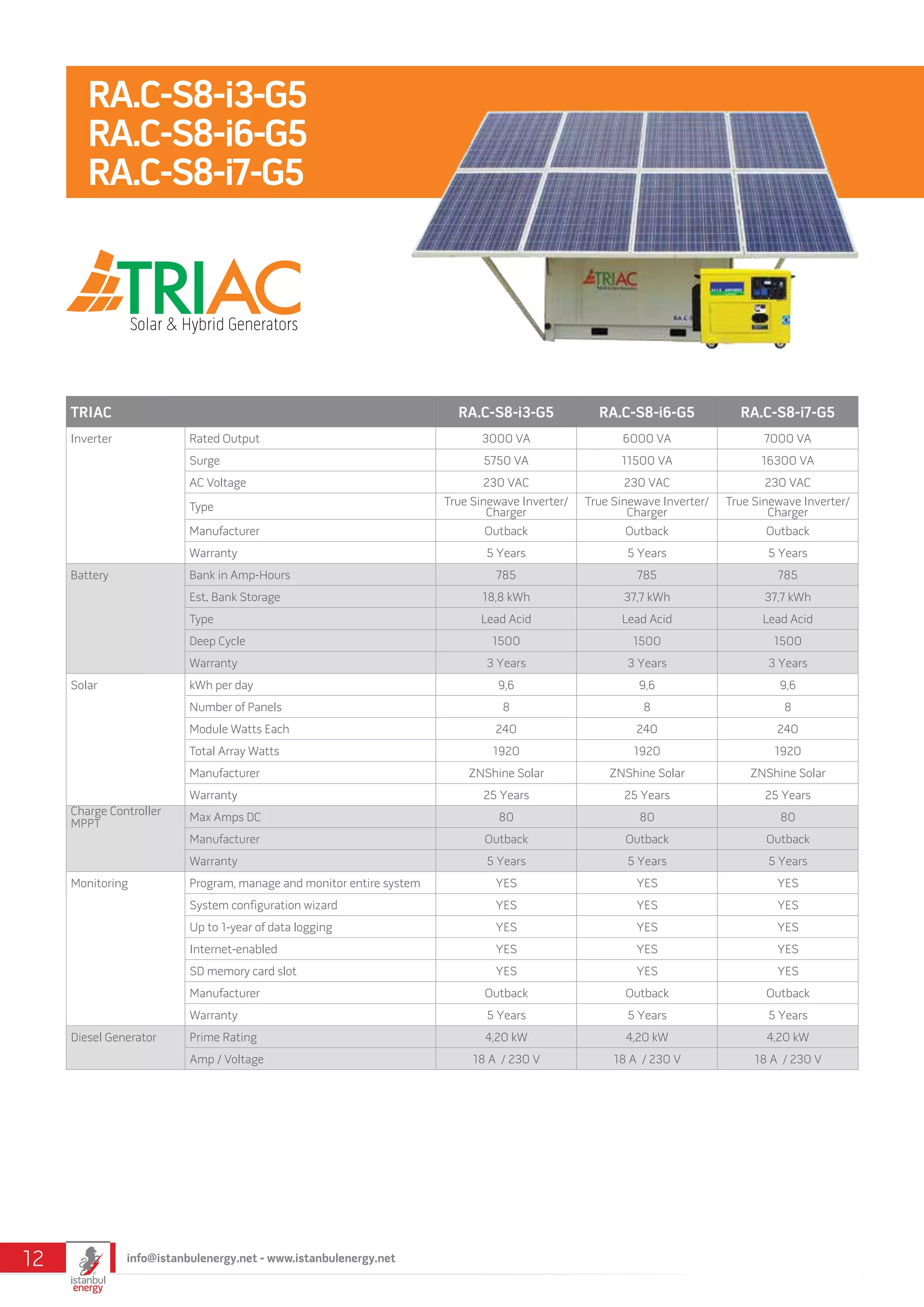

TRIAC RA.C-S8-i3-G5 RA.C-S8-i6-G5 RA.C-S8-i7-G5 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 785 785 785 Est. Bank Storage 18,8 kWh 37,7 kWh 37,7 kWh Type Lead Acid Lead Acid Lead Acid Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Solar kWh per day 9,6 9,6 9,6 Number of Panels 8 8 8 Module Watts Each 240 240 240 Total Array Watts 1920 1920 1920 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller MPPT Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Diesel Generator Prime Rating 4,20 kW 4,20 kW 4,20 kW Amp / Voltage 18 A / 230 V 18 A / 230 V 18 A / 230 V RA.C-S8-i3-G5 RA.C-S8-i6-G5 RA.C-S8-i7-G5 info@istanbulenergy.net - www.istanbulenergy.net12

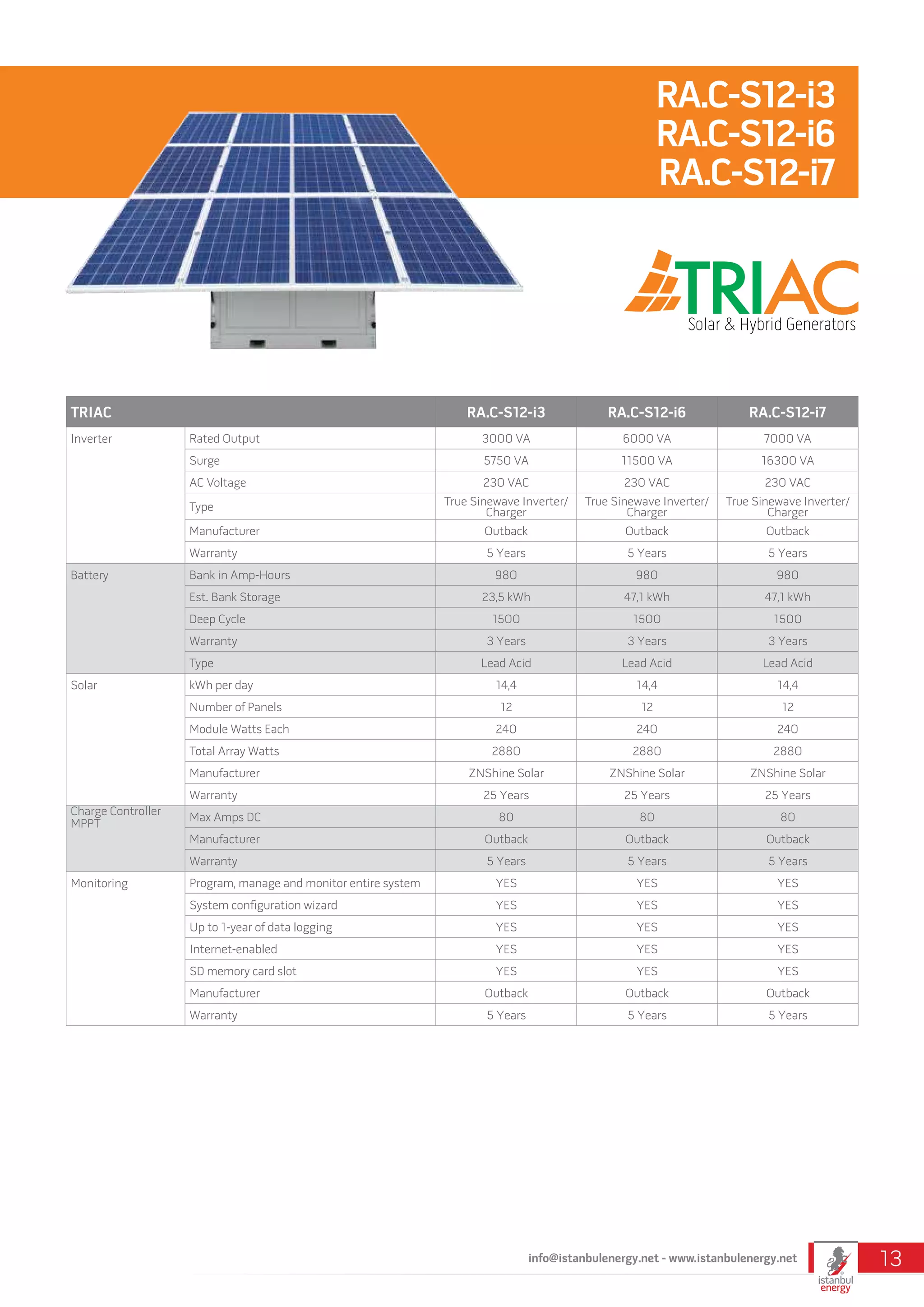

TRIAC RA.C-S12-i3 RA.C-S12-i6 RA.C-S12-i7 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 980 980 980 Est. Bank Storage 23,5 kWh 47,1 kWh 47,1 kWh Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Type Lead Acid Lead Acid Lead Acid Solar kWh per day 14,4 14,4 14,4 Number of Panels 12 12 12 Module Watts Each 240 240 240 Total Array Watts 2880 2880 2880 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller MPPT Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years RA.C-S12-i3 RA.C-S12-i6 RA.C-S12-i7 info@istanbulenergy.net - www.istanbulenergy.net 13

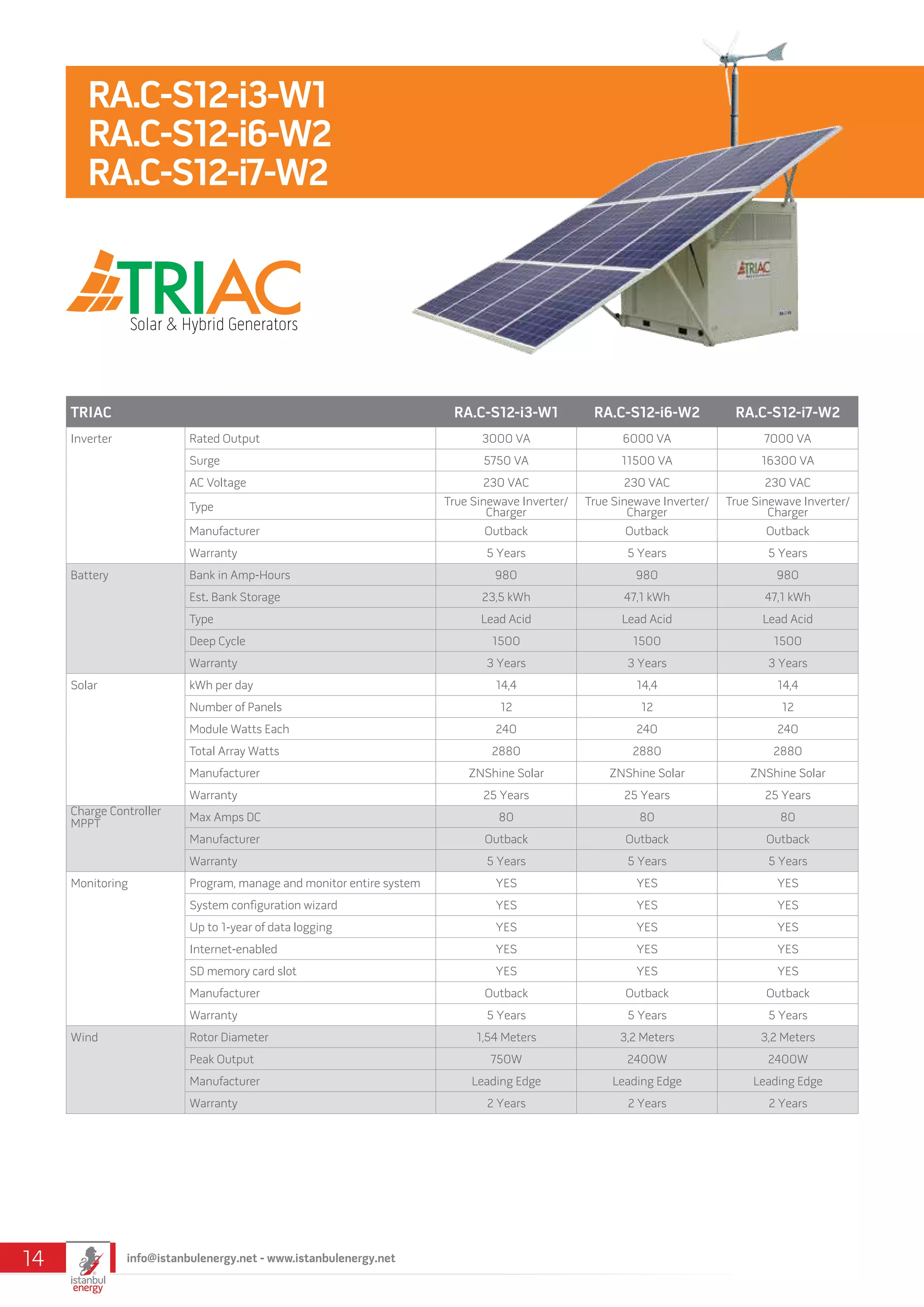

TRIAC RA.C-S12-i3-W1 RA.C-S12-i6-W2 RA.C-S12-i7-W2 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 980 980 980 Est. Bank Storage 23,5 kWh 47,1 kWh 47,1 kWh Type Lead Acid Lead Acid Lead Acid Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Solar kWh per day 14,4 14,4 14,4 Number of Panels 12 12 12 Module Watts Each 240 240 240 Total Array Watts 2880 2880 2880 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller MPPT Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Wind Rotor Diameter 1,54 Meters 3,2 Meters 3,2 Meters Peak Output 750W 2400W 2400W Manufacturer Leading Edge Leading Edge Leading Edge Warranty 2 Years 2 Years 2 Years RA.C-S12-i3-W1 RA.C-S12-i6-W2 RA.C-S12-i7-W2 info@istanbulenergy.net - www.istanbulenergy.net14

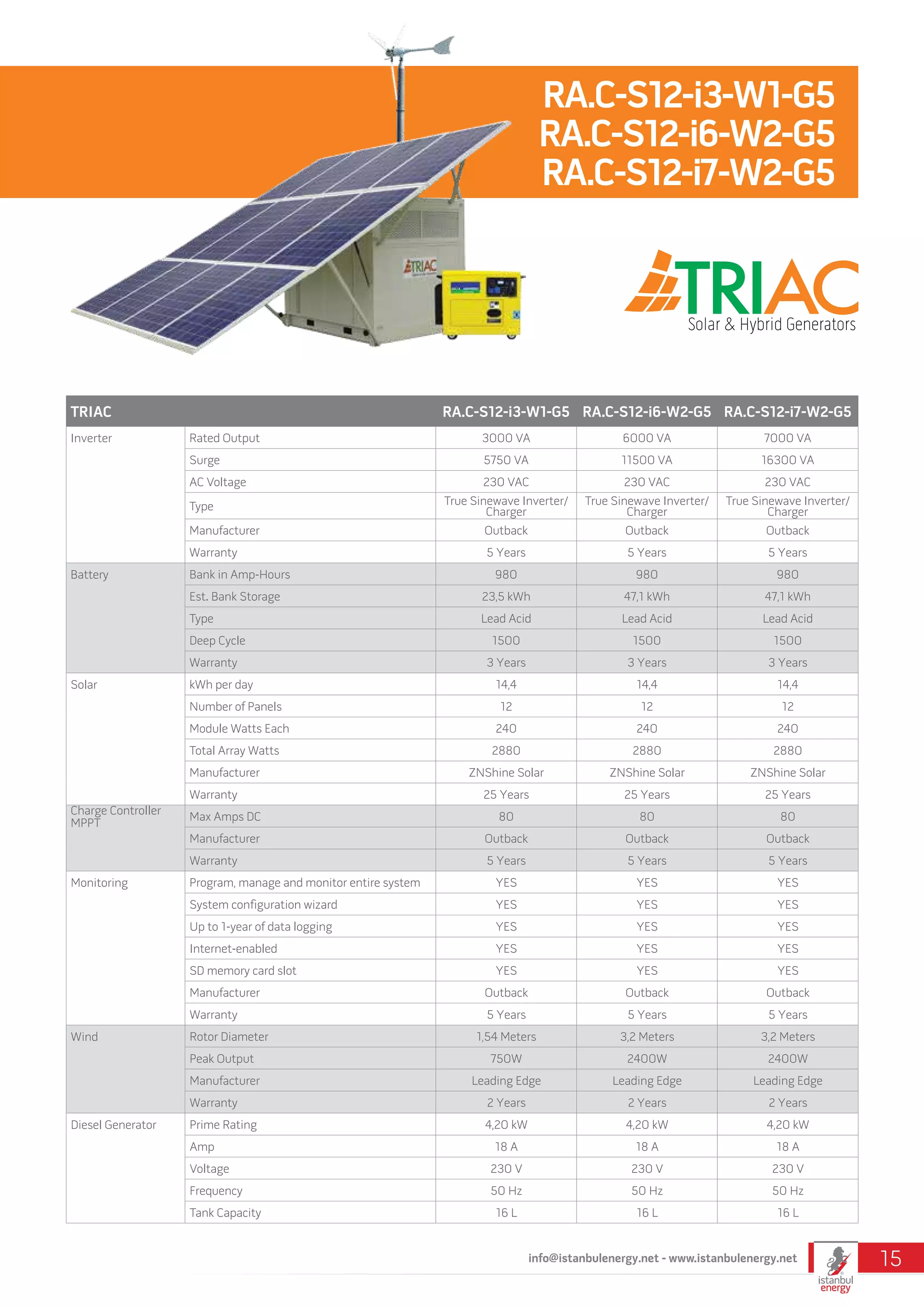

TRIAC RA.C-S12-i3-W1-G5 RA.C-S12-i6-W2-G5 RA.C-S12-i7-W2-G5 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 980 980 980 Est. Bank Storage 23,5 kWh 47,1 kWh 47,1 kWh Type Lead Acid Lead Acid Lead Acid Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Solar kWh per day 14,4 14,4 14,4 Number of Panels 12 12 12 Module Watts Each 240 240 240 Total Array Watts 2880 2880 2880 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller MPPT Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Wind Rotor Diameter 1,54 Meters 3,2 Meters 3,2 Meters Peak Output 750W 2400W 2400W Manufacturer Leading Edge Leading Edge Leading Edge Warranty 2 Years 2 Years 2 Years Diesel Generator Prime Rating 4,20 kW 4,20 kW 4,20 kW Amp 18 A 18 A 18 A Voltage 230 V 230 V 230 V Frequency 50 Hz 50 Hz 50 Hz Tank Capacity 16 L 16 L 16 L RA.C-S12-i3-W1-G5 RA.C-S12-i6-W2-G5 RA.C-S12-i7-W2-G5 info@istanbulenergy.net - www.istanbulenergy.net 15

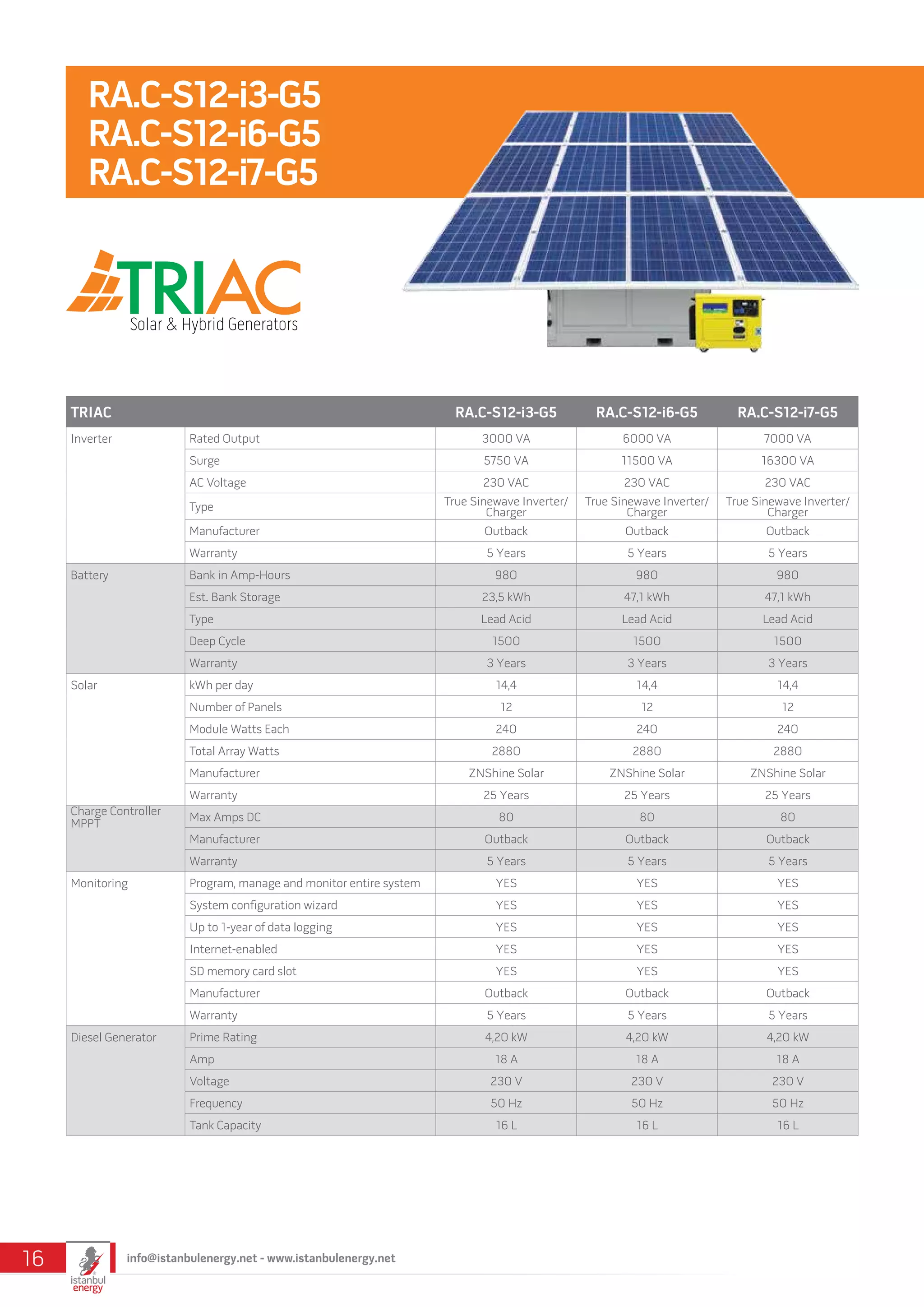

TRIAC RA.C-S12-i3-G5 RA.C-S12-i6-G5 RA.C-S12-i7-G5 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 980 980 980 Est. Bank Storage 23,5 kWh 47,1 kWh 47,1 kWh Type Lead Acid Lead Acid Lead Acid Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Solar kWh per day 14,4 14,4 14,4 Number of Panels 12 12 12 Module Watts Each 240 240 240 Total Array Watts 2880 2880 2880 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller MPPT Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Diesel Generator Prime Rating 4,20 kW 4,20 kW 4,20 kW Amp 18 A 18 A 18 A Voltage 230 V 230 V 230 V Frequency 50 Hz 50 Hz 50 Hz Tank Capacity 16 L 16 L 16 L RA.C-S12-i3-G5 RA.C-S12-i6-G5 RA.C-S12-i7-G5 info@istanbulenergy.net - www.istanbulenergy.net16
TRIAC RA.C-S16-i3 RA.C-S16-i6 RA.C-S16-i7 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 1170 1170 1170 Est. Bank Storage 28,1 kWh 56,2 kWh 56,2 kWh Type Lead Acid Lead Acid Lead Acid Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Solar kWh per day 19,2 19,2 19,2 Number of Panels 16 16 16 Module Watts Each 240 240 240 Total Array Watts 3840 3840 3840 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller MPPT Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years RA.C-S16-i3 RA.C-S16-i6 RA.C-S16-i7 info@istanbulenergy.net - www.istanbulenergy.net 17

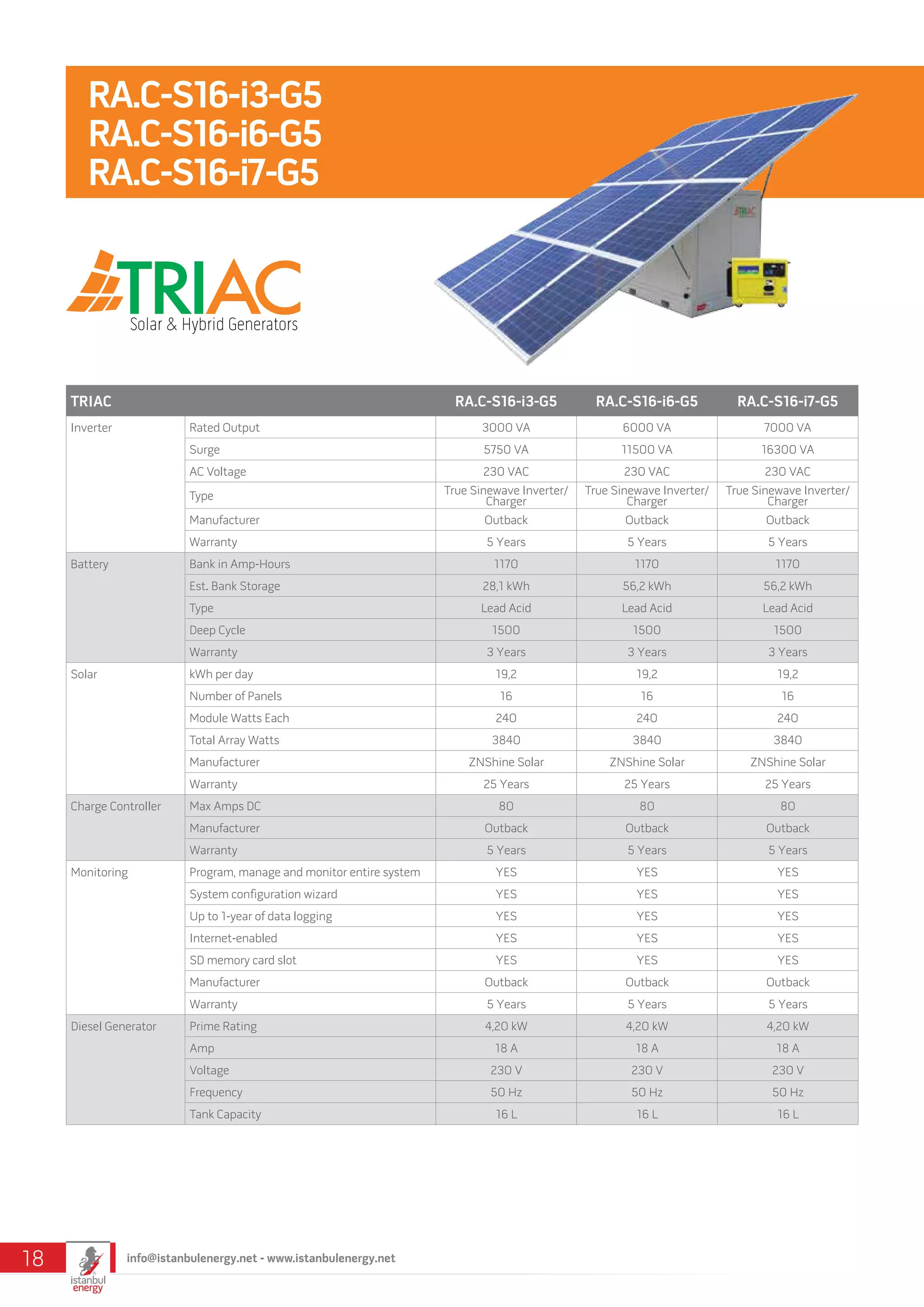

TRIAC RA.C-S16-i3-G5 RA.C-S16-i6-G5 RA.C-S16-i7-G5 Inverter Rated Output 3000 VA 6000 VA 7000 VA Surge 5750 VA 11500 VA 16300 VA AC Voltage 230 VAC 230 VAC 230 VAC Type True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger True Sinewave Inverter/ Charger Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Battery Bank in Amp-Hours 1170 1170 1170 Est. Bank Storage 28,1 kWh 56,2 kWh 56,2 kWh Type Lead Acid Lead Acid Lead Acid Deep Cycle 1500 1500 1500 Warranty 3 Years 3 Years 3 Years Solar kWh per day 19,2 19,2 19,2 Number of Panels 16 16 16 Module Watts Each 240 240 240 Total Array Watts 3840 3840 3840 Manufacturer ZNShine Solar ZNShine Solar ZNShine Solar Warranty 25 Years 25 Years 25 Years Charge Controller Max Amps DC 80 80 80 Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Monitoring Program, manage and monitor entire system YES YES YES System configuration wizard YES YES YES Up to 1-year of data logging YES YES YES Internet-enabled YES YES YES SD memory card slot YES YES YES Manufacturer Outback Outback Outback Warranty 5 Years 5 Years 5 Years Diesel Generator Prime Rating 4,20 kW 4,20 kW 4,20 kW Amp 18 A 18 A 18 A Voltage 230 V 230 V 230 V Frequency 50 Hz 50 Hz 50 Hz Tank Capacity 16 L 16 L 16 L RA.C-S16-i3-G5 RA.C-S16-i6-G5 RA.C-S16-i7-G5 info@istanbulenergy.net - www.istanbulenergy.net18
»» Ready to use mobile renewable power system. »» 7/24 availability of power »» Trafficable »» Easily integrates with wind, diesel generators or grid supply to provide a complete hybrid solution. MOBILEMODELS info@istanbulenergy.net - www.istanbulenergy.net 19

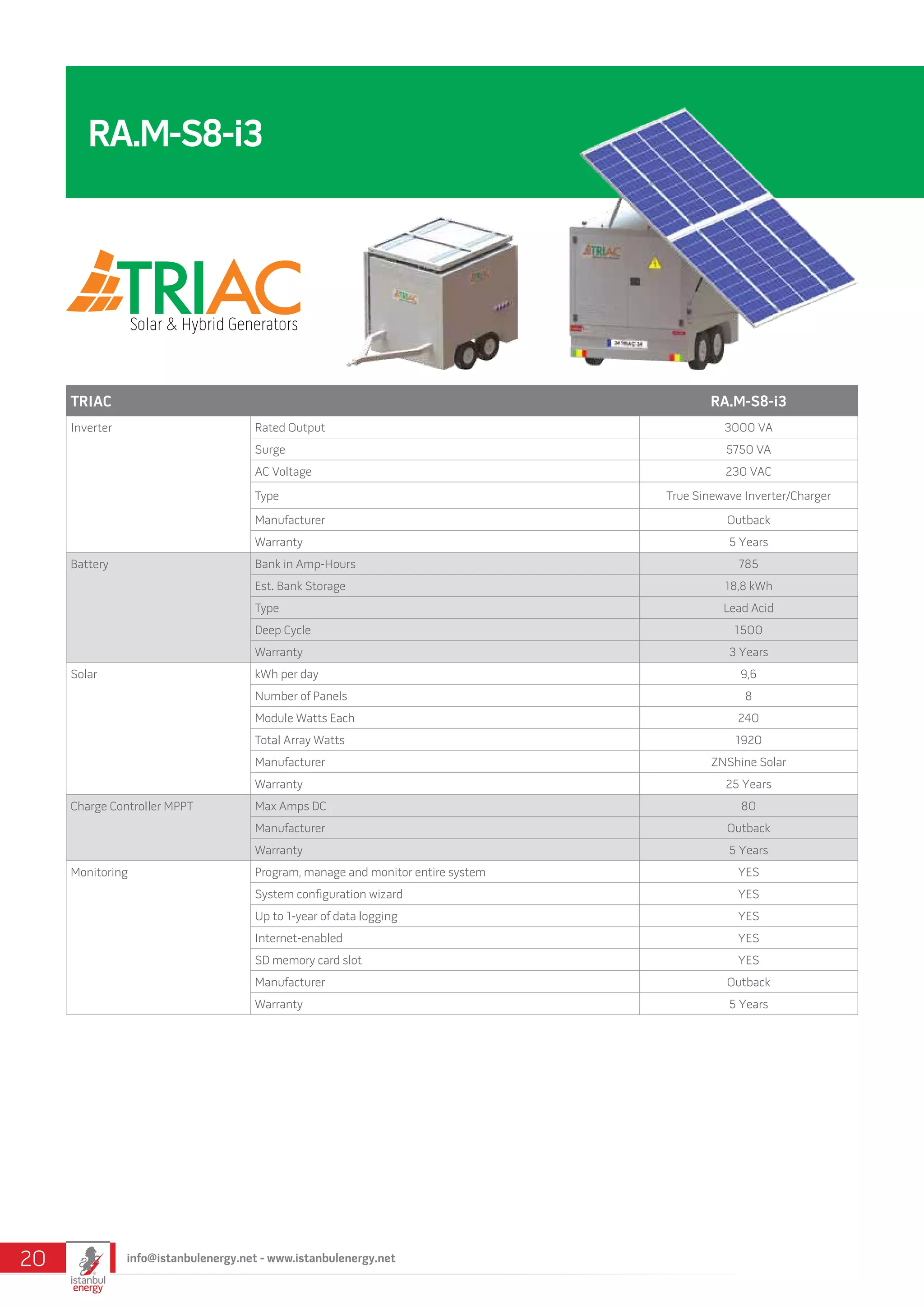

TRIAC RA.M-S8-i3 Inverter Rated Output 3000 VA Surge 5750 VA AC Voltage 230 VAC Type True Sinewave Inverter/Charger Manufacturer Outback Warranty 5 Years Battery Bank in Amp-Hours 785 Est. Bank Storage 18,8 kWh Type Lead Acid Deep Cycle 1500 Warranty 3 Years Solar kWh per day 9,6 Number of Panels 8 Module Watts Each 240 Total Array Watts 1920 Manufacturer ZNShine Solar Warranty 25 Years Charge Controller MPPT Max Amps DC 80 Manufacturer Outback Warranty 5 Years Monitoring Program, manage and monitor entire system YES System configuration wizard YES Up to 1-year of data logging YES Internet-enabled YES SD memory card slot YES Manufacturer Outback Warranty 5 Years RA.M-S8-i3 info@istanbulenergy.net - www.istanbulenergy.net20
TRIAC RA.M-S8-i3-W1 Inverter Rated Output 3000 VA Surge 5750 VA AC Voltage 230 VAC Type True Sinewave Inverter/Charger Manufacturer Outback Warranty 5 Years Battery Bank in Amp-Hours 785 Est. Bank Storage 18,8 kWh Type Lead Acid Deep Cycle 1500 Warranty 3 Years Solar kWh per day 9,6 Number of Panels 8 Module Watts Each 240 Total Array Watts 1920 Manufacturer ZNShine Solar Warranty 25 Years Charge Controller Max Amps DC 80 Manufacturer Outback Warranty 5 Years Monitoring Program, manage and monitor entire system YES System configuration wizard YES Up to 1-year of data logging YES Internet-enabled YES SD memory card slot YES Manufacturer Outback Warranty 5 Years Wind Rotor Diameter 1,54 Meters Peak Output 750W Manufacturer Leading Edge Warranty 2 Years RA.M-S8-i3-W1 info@istanbulenergy.net - www.istanbulenergy.net 21

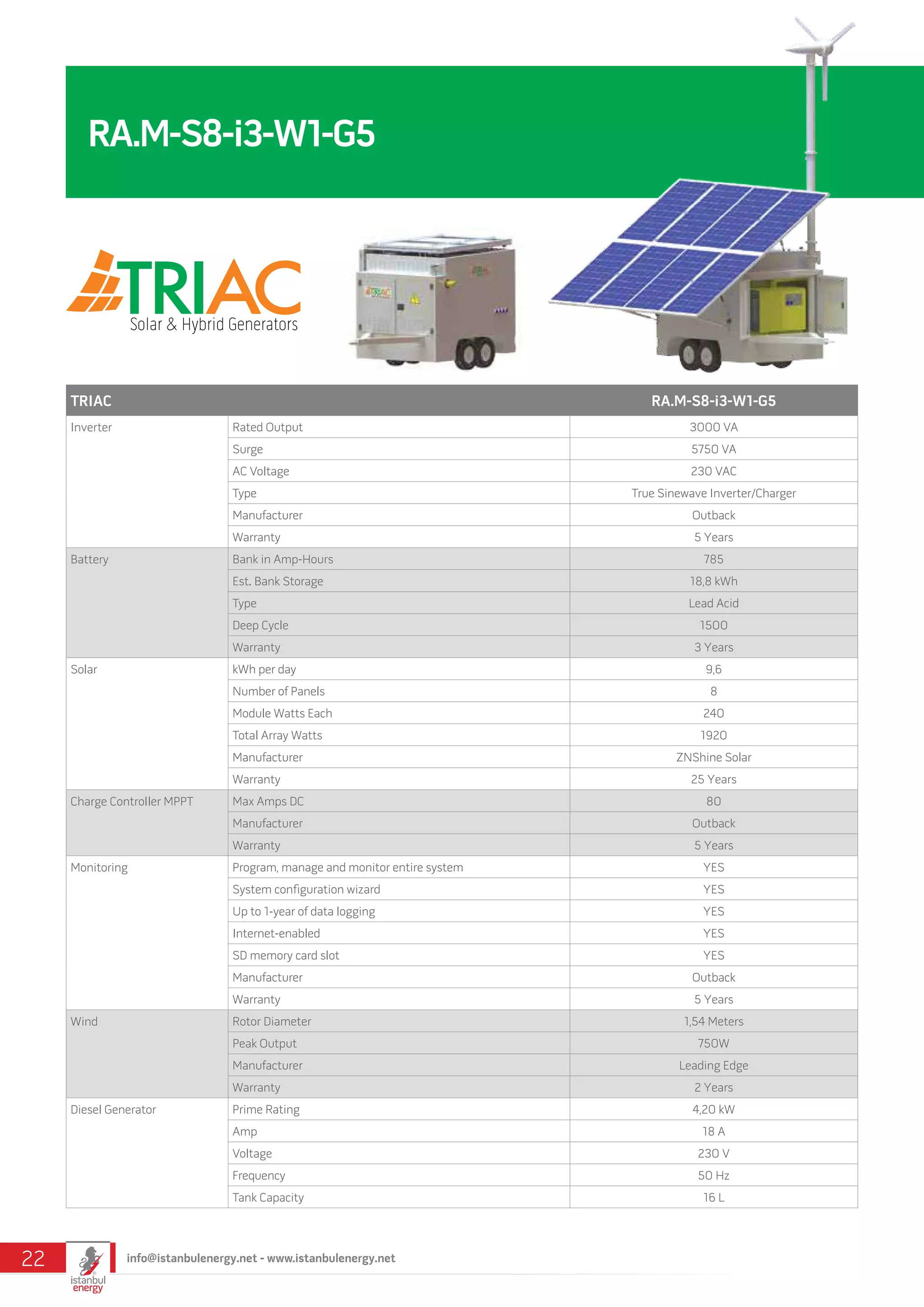

TRIAC RA.M-S8-i3-W1-G5 Inverter Rated Output 3000 VA Surge 5750 VA AC Voltage 230 VAC Type True Sinewave Inverter/Charger Manufacturer Outback Warranty 5 Years Battery Bank in Amp-Hours 785 Est. Bank Storage 18,8 kWh Type Lead Acid Deep Cycle 1500 Warranty 3 Years Solar kWh per day 9,6 Number of Panels 8 Module Watts Each 240 Total Array Watts 1920 Manufacturer ZNShine Solar Warranty 25 Years Charge Controller MPPT Max Amps DC 80 Manufacturer Outback Warranty 5 Years Monitoring Program, manage and monitor entire system YES System configuration wizard YES Up to 1-year of data logging YES Internet-enabled YES SD memory card slot YES Manufacturer Outback Warranty 5 Years Wind Rotor Diameter 1,54 Meters Peak Output 750W Manufacturer Leading Edge Warranty 2 Years Diesel Generator Prime Rating 4,20 kW Amp 18 A Voltage 230 V Frequency 50 Hz Tank Capacity 16 L RA.M-S8-i3-W1-G5 info@istanbulenergy.net - www.istanbulenergy.net22

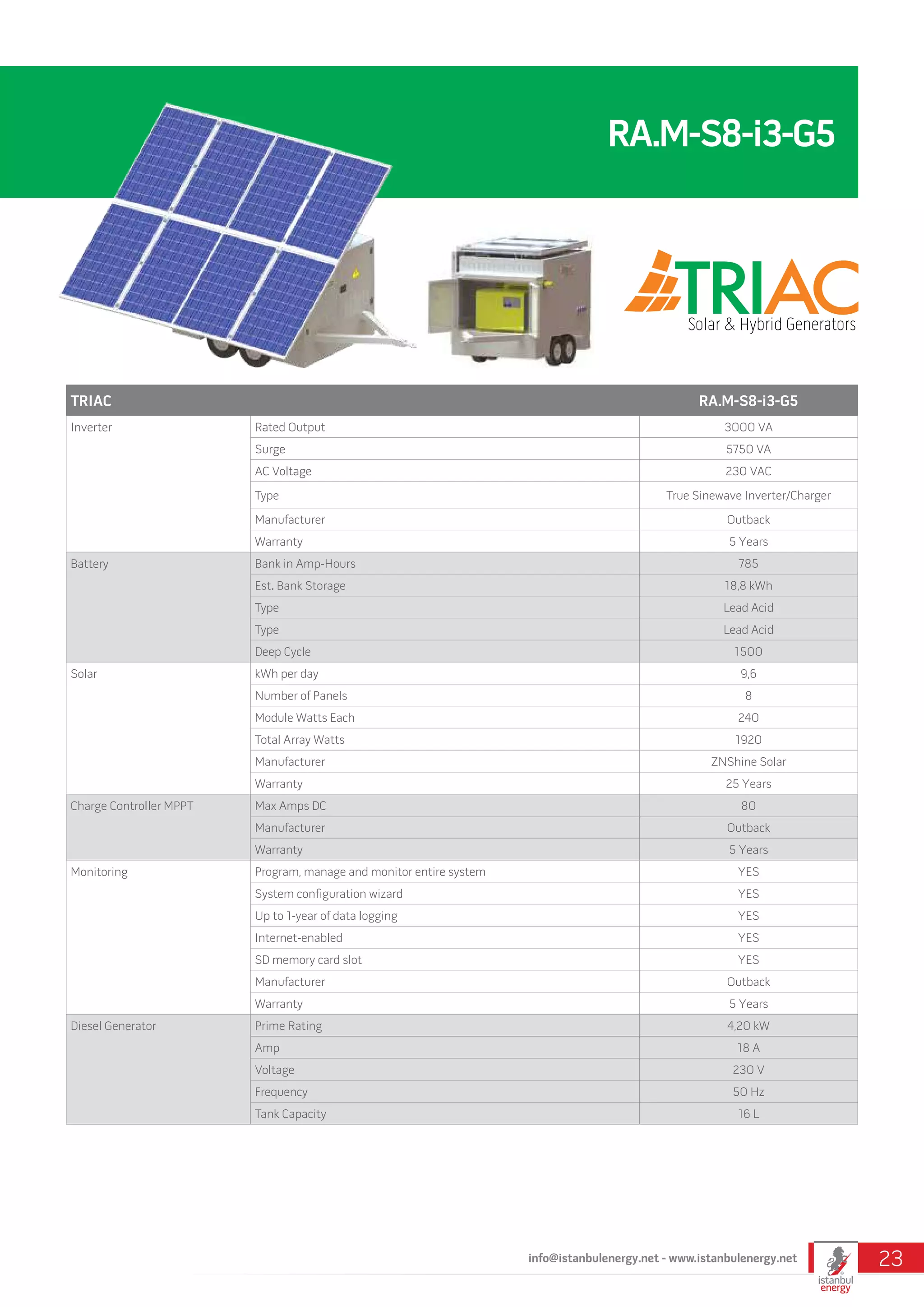

TRIAC RA.M-S8-i3-G5 Inverter Rated Output 3000 VA Surge 5750 VA AC Voltage 230 VAC Type True Sinewave Inverter/Charger Manufacturer Outback Warranty 5 Years Battery Bank in Amp-Hours 785 Est. Bank Storage 18,8 kWh Type Lead Acid Type Lead Acid Deep Cycle 1500 Solar kWh per day 9,6 Number of Panels 8 Module Watts Each 240 Total Array Watts 1920 Manufacturer ZNShine Solar Warranty 25 Years Charge Controller MPPT Max Amps DC 80 Manufacturer Outback Warranty 5 Years Monitoring Program, manage and monitor entire system YES System configuration wizard YES Up to 1-year of data logging YES Internet-enabled YES SD memory card slot YES Manufacturer Outback Warranty 5 Years Diesel Generator Prime Rating 4,20 kW Amp 18 A Voltage 230 V Frequency 50 Hz Tank Capacity 16 L RA.M-S8-i3-G5 info@istanbulenergy.net - www.istanbulenergy.net 23

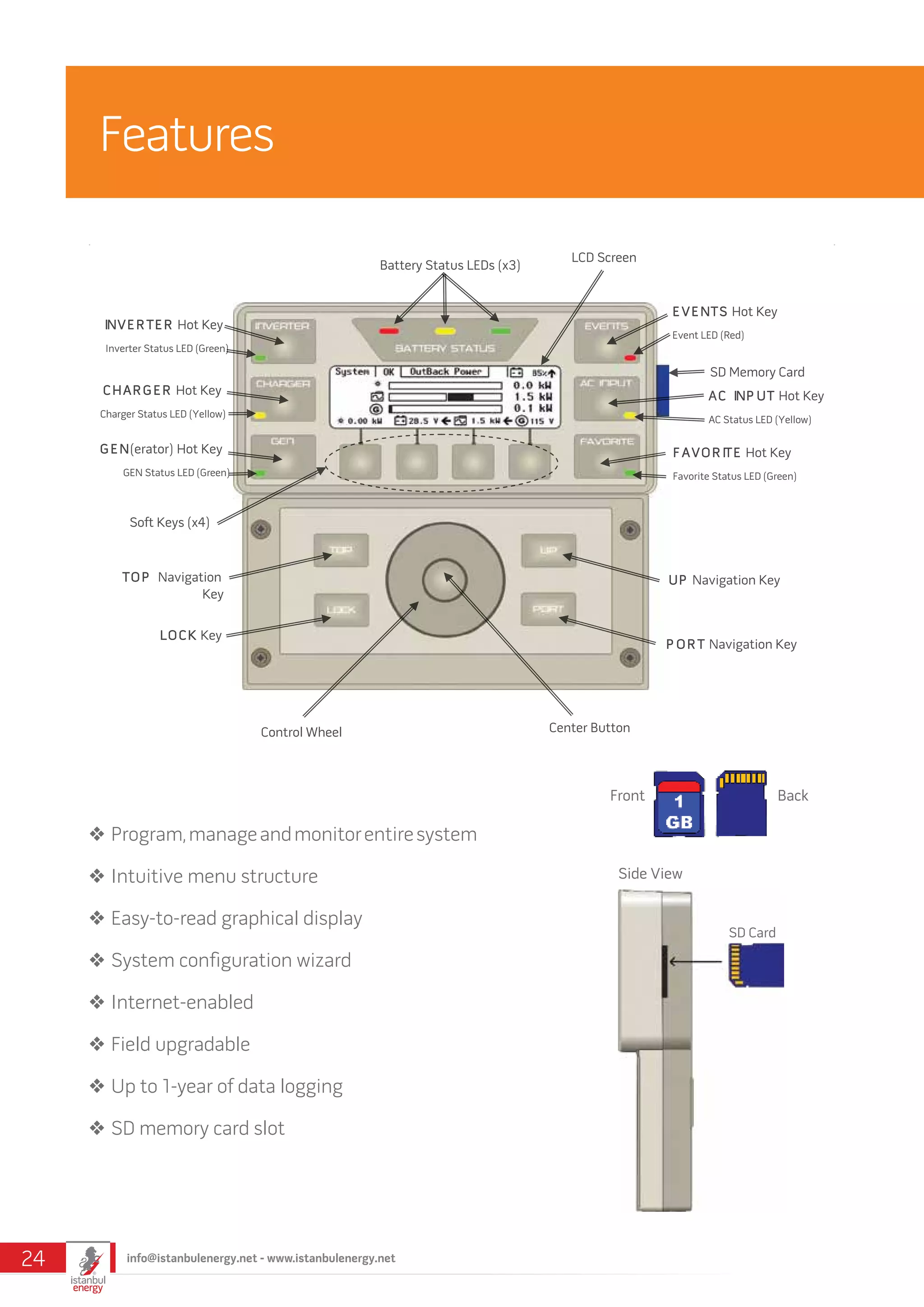

INVER TER Hot Key Inverter Status LED (Green) EVENTS Hot Key Event LED (Red) AC INP UT Hot Key AC Status LED (Yellow) F AVOR ITE Hot Key Favorite Status LED (Green) Battery Status LEDs (x3) LCD Screen Soft Keys (x4) P OR T Navigation Key UP Navigation Key LOCK Key TOP Navigation Key Control Wheel Center Button CHAR GER Hot Key Charger Status LED (Yellow) SD Memory Card Slot SD Memory Card Back View Side View HUB or OutBack Device Ethernet Port Network Status LEDs GEN(erator) Hot Key GEN Status LED (Green) Side View Front Back SD Card ❖❖ Program,manageandmonitorentiresystem ❖❖ Intuitive menu structure ❖❖ Easy-to-read graphical display ❖❖ System configuration wizard ❖❖ Internet-enabled ❖❖ Field upgradable ❖❖ Up to 1-year of data logging ❖❖ SD memory card slot Features info@istanbulenergy.net - www.istanbulenergy.net24

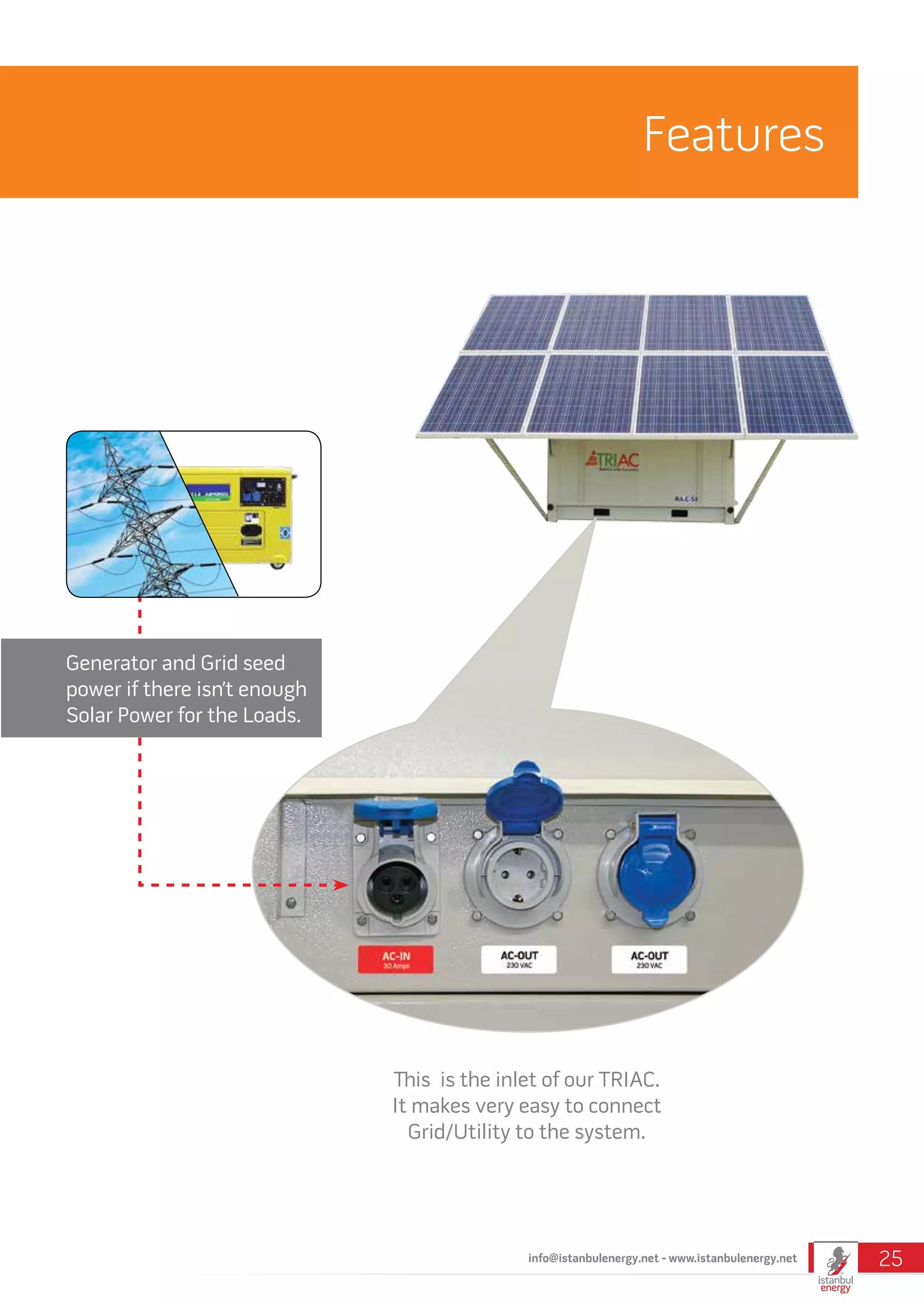

This is the inlet of our TRIAC. It makes very easy to connect Grid/Utility to the system. Features Generator and Grid seed power if there isn’t enough Solar Power for the Loads. info@istanbulenergy.net - www.istanbulenergy.net 25

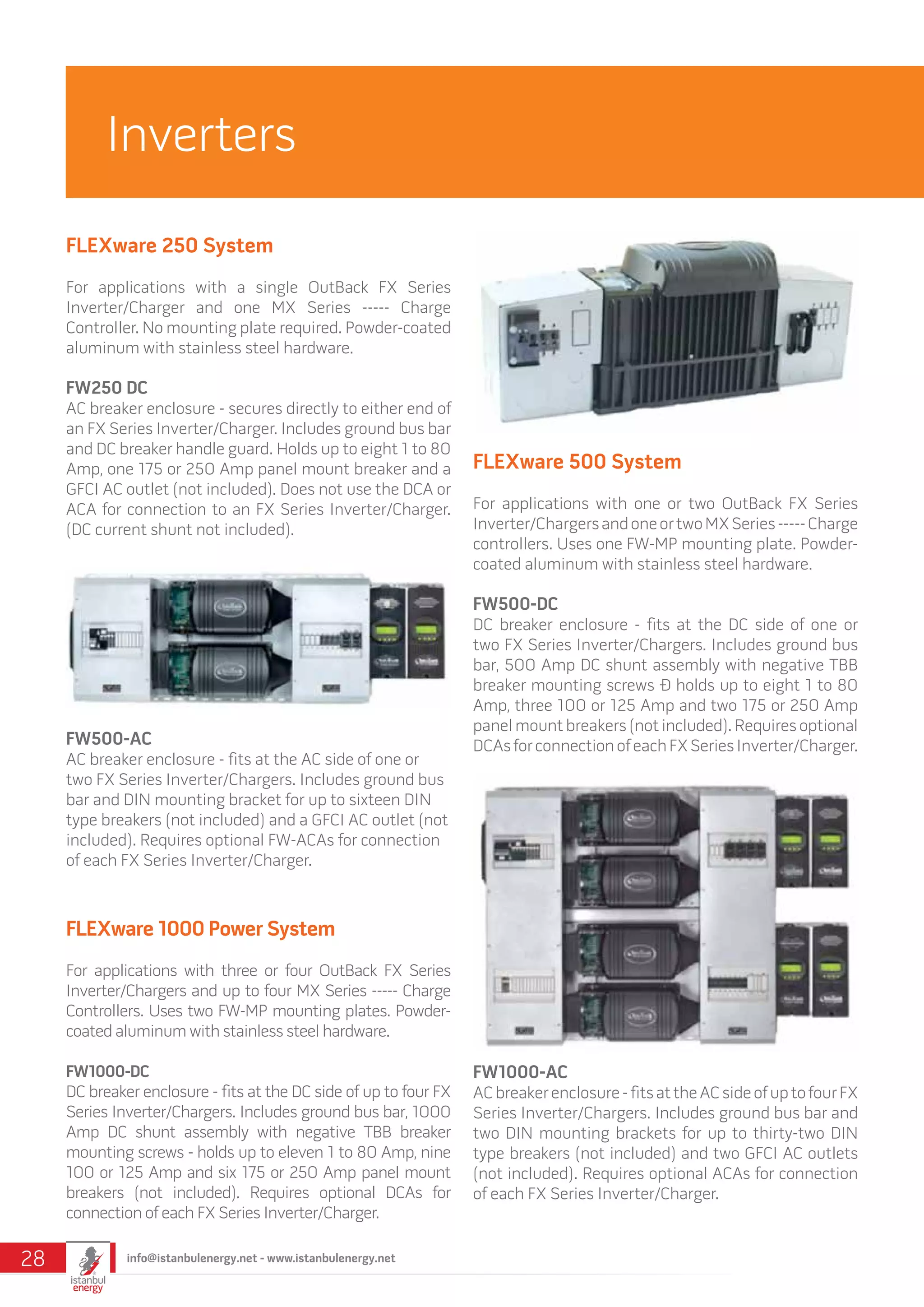

FLEXware 250 System For applications with a single OutBack FX Series Inverter/Charger and one MX Series ----- Charge Controller. No mounting plate required. Powder-coated aluminum with stainless steel hardware. FW250 DC AC breaker enclosure - secures directly to either end of an FX Series Inverter/Charger. Includes ground bus bar and DC breaker handle guard. Holds up to eight 1 to 80 Amp, one 175 or 250 Amp panel mount breaker and a GFCI AC outlet (not included). Does not use the DCA or ACA for connection to an FX Series Inverter/Charger. (DC current shunt not included). FLEXware 1000 Power System For applications with three or four OutBack FX Series Inverter/Chargers and up to four MX Series ----- Charge Controllers. Uses two FW-MP mounting plates. Powder- coated aluminum with stainless steel hardware. FW1000-DC DC breaker enclosure - fits at the DC side of up to four FX Series Inverter/Chargers. Includes ground bus bar, 1000 Amp DC shunt assembly with negative TBB breaker mounting screws - holds up to eleven 1 to 80 Amp, nine 100 or 125 Amp and six 175 or 250 Amp panel mount breakers (not included). Requires optional DCAs for connection of each FX Series Inverter/Charger. FLEXware 500 System For applications with one or two OutBack FX Series Inverter/ChargersandoneortwoMXSeries-----Charge controllers. Uses one FW-MP mounting plate. Powder- coated aluminum with stainless steel hardware. FW500-DC DC breaker enclosure - fits at the DC side of one or two FX Series Inverter/Chargers. Includes ground bus bar, 500 Amp DC shunt assembly with negative TBB breaker mounting screws Ð holds up to eight 1 to 80 Amp, three 100 or 125 Amp and two 175 or 250 Amp panel mount breakers (not included). Requires optional DCAsforconnectionofeachFXSeriesInverter/Charger.FW500-AC AC breaker enclosure - fits at the AC side of one or two FX Series Inverter/Chargers. Includes ground bus bar and DIN mounting bracket for up to sixteen DIN type breakers (not included) and a GFCI AC outlet (not included). Requires optional FW-ACAs for connection of each FX Series Inverter/Charger. FW1000-AC ACbreakerenclosure-fitsattheACsideofuptofourFX Series Inverter/Chargers. Includes ground bus bar and two DIN mounting brackets for up to thirty-two DIN type breakers (not included) and two GFCI AC outlets (not included). Requires optional ACAs for connection of each FX Series Inverter/Charger. Inverters info@istanbulenergy.net - www.istanbulenergy.net28

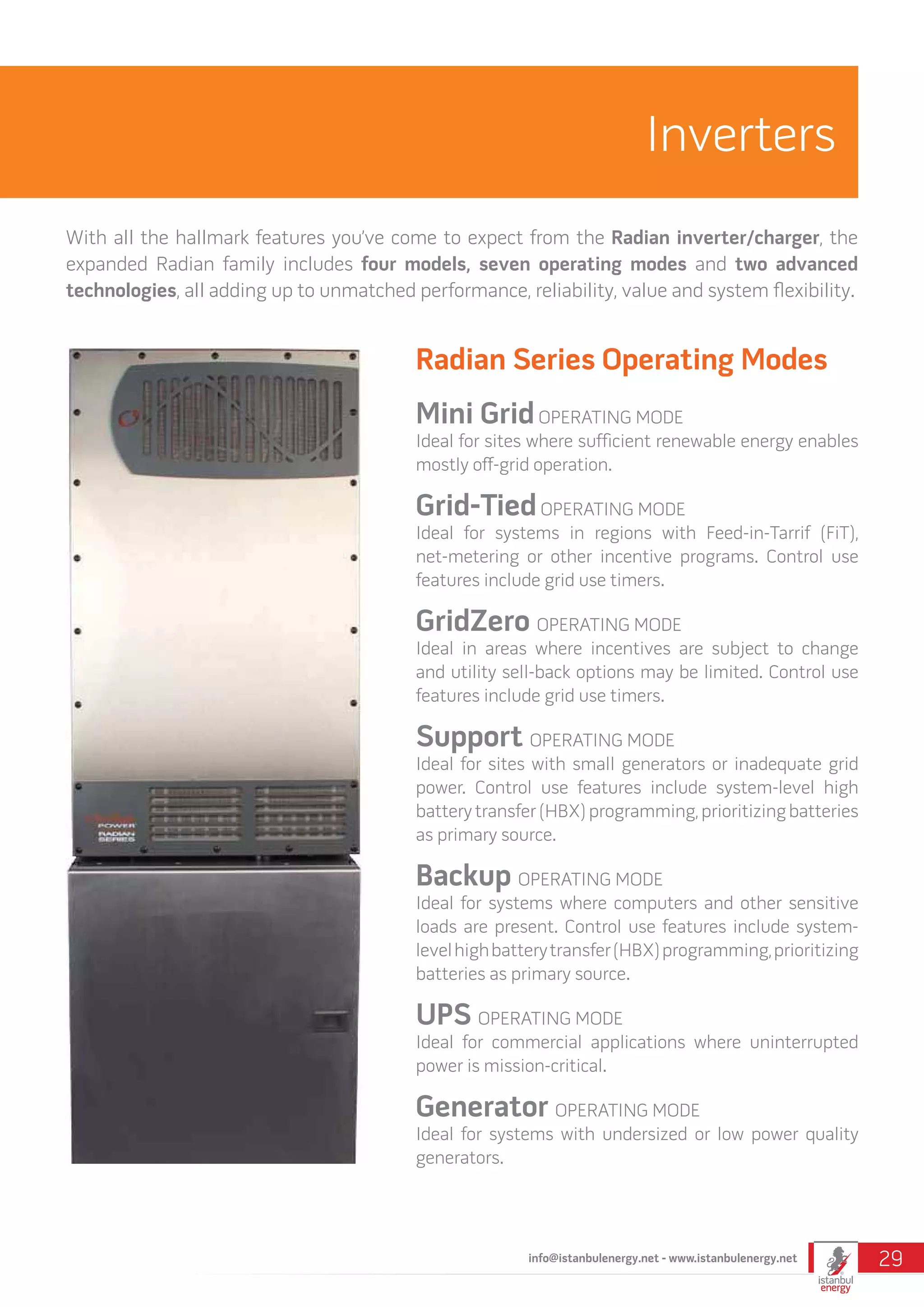

Radian Series Operating Modes Mini GridOPERATING MODE Ideal for sites where sufficient renewable energy enables mostly off-grid operation. Grid-TiedOPERATING MODE Ideal for systems in regions with Feed-in-Tarrif (FiT), net-metering or other incentive programs. Control use features include grid use timers. GridZero OPERATING MODE Ideal in areas where incentives are subject to change and utility sell-back options may be limited. Control use features include grid use timers. Support OPERATING MODE Ideal for sites with small generators or inadequate grid power. Control use features include system-level high battery transfer (HBX) programming, prioritizing batteries as primary source. Backup OPERATING MODE Ideal for systems where computers and other sensitive loads are present. Control use features include system- levelhighbatterytransfer(HBX)programming,prioritizing batteries as primary source. UPS OPERATING MODE Ideal for commercial applications where uninterrupted power is mission-critical. Generator OPERATING MODE Ideal for systems with undersized or low power quality generators. Inverters With all the hallmark features you’ve come to expect from the Radian inverter/charger, the expanded Radian family includes four models, seven operating modes and two advanced technologies, all adding up to unmatched performance, reliability, value and system flexibility. info@istanbulenergy.net - www.istanbulenergy.net 29

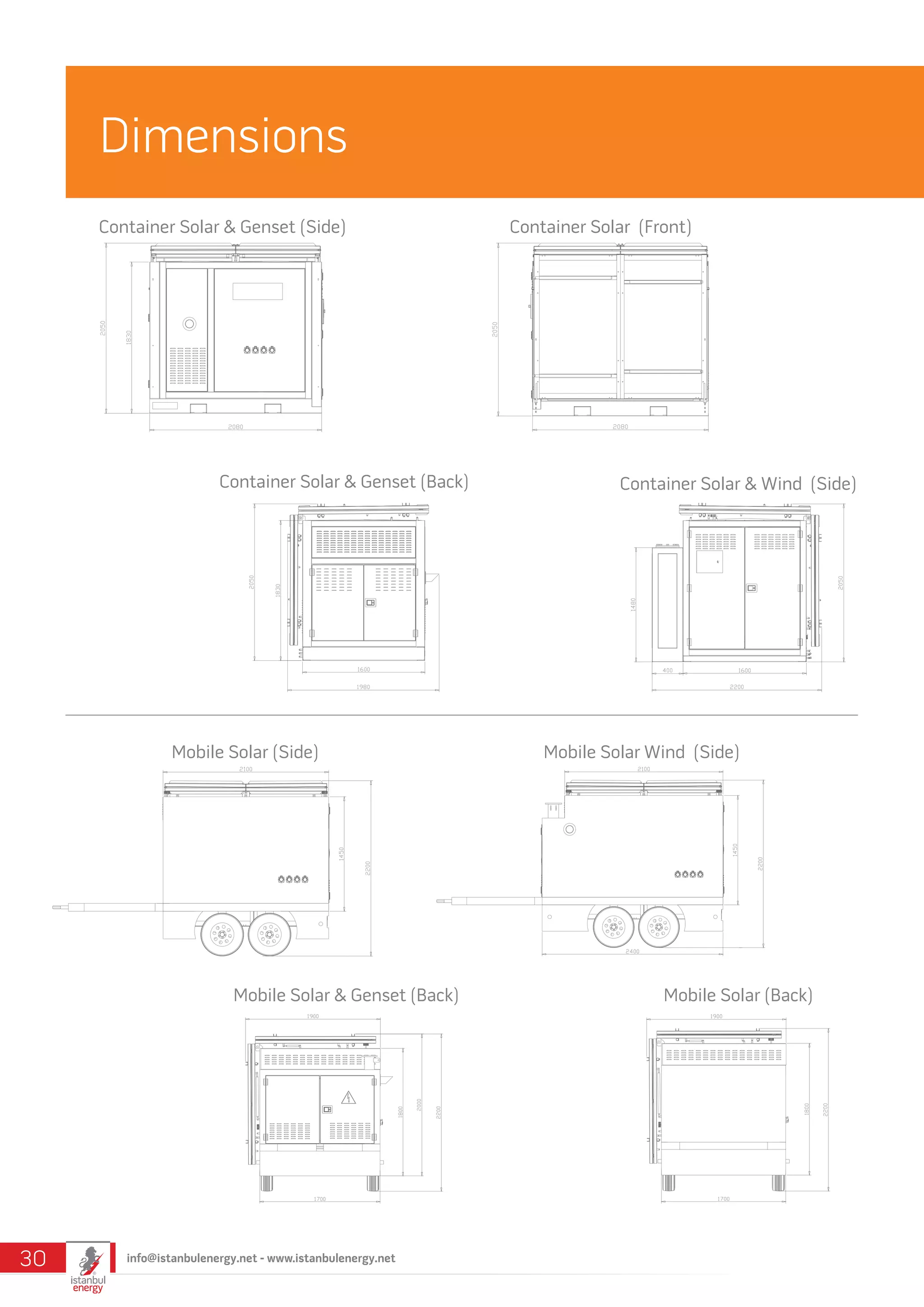

Dimensions Container Solar & Genset (Side) Container Solar & Genset (Back) Mobile Solar (Side) Mobile Solar & Genset (Back) Mobile Solar (Back) Mobile Solar Wind (Side) Container Solar (Front) Container Solar & Wind (Side) info@istanbulenergy.net - www.istanbulenergy.net30

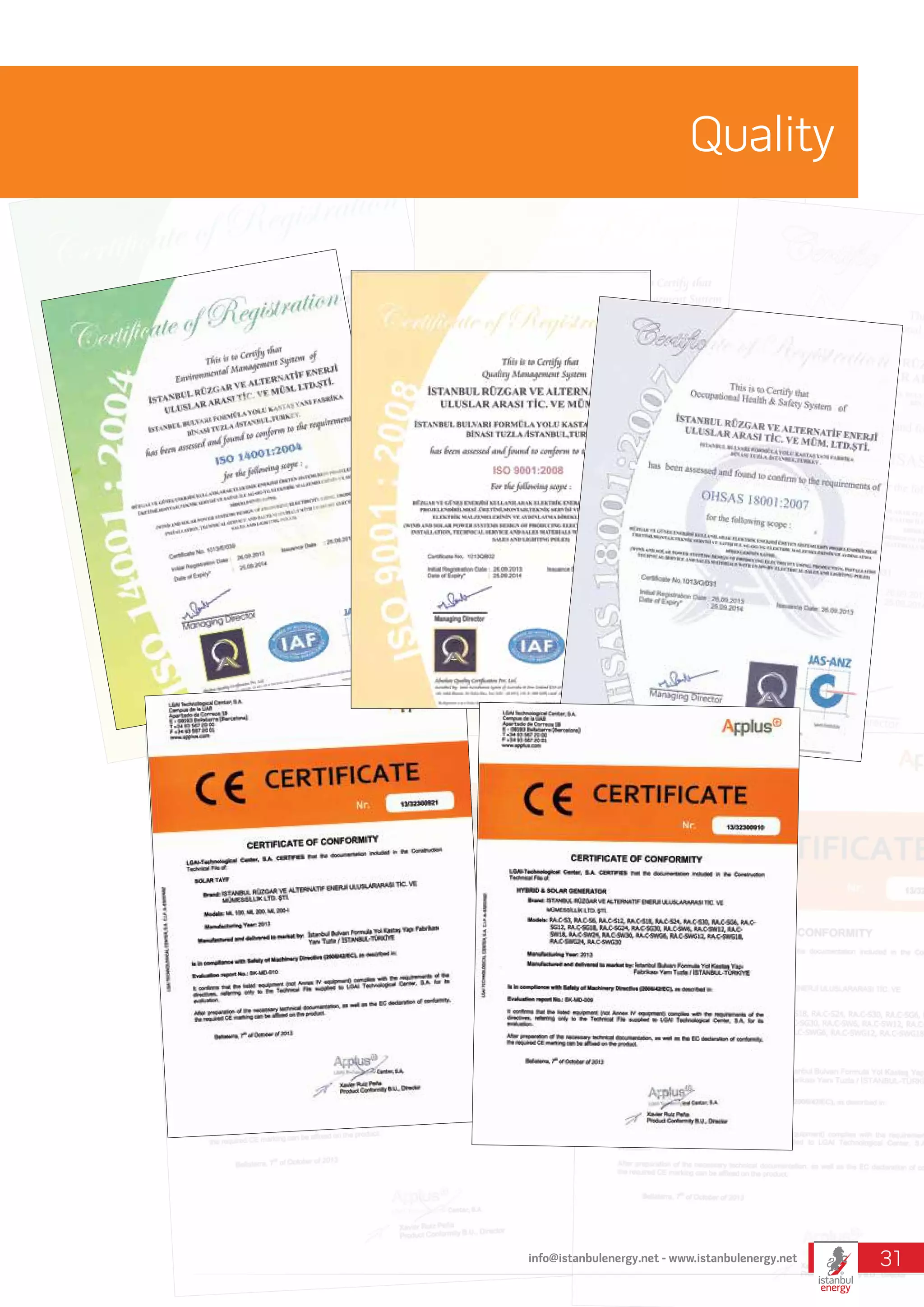

Quality info@istanbulenergy.net - www.istanbulenergy.net 31

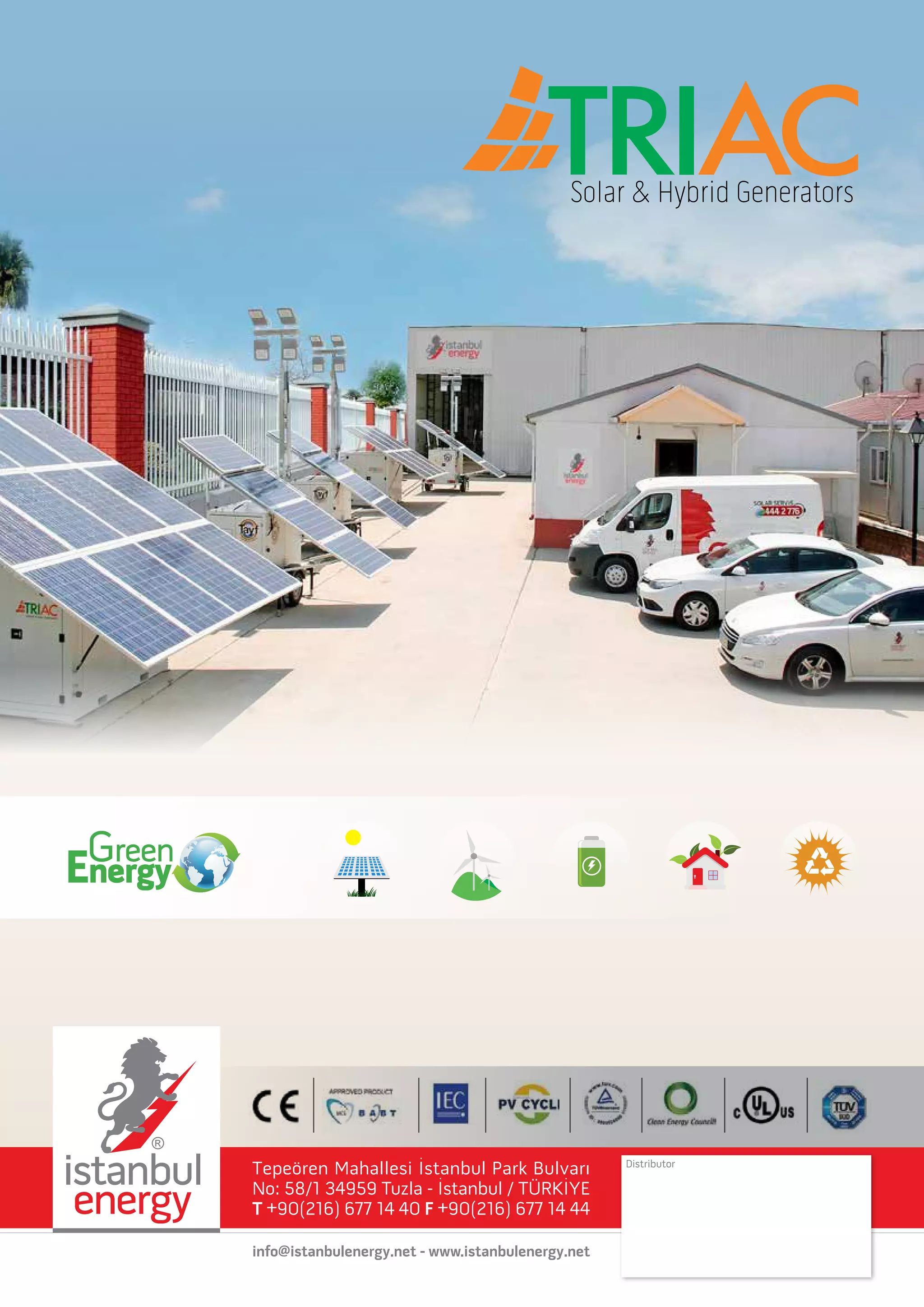

Tepeören Mahallesi İstanbul Park Bulvarı No: 58/1 34959 Tuzla - İstanbul / TÜRKİYE T +90(216) 677 14 40 F +90(216) 677 14 44 info@istanbulenergy.net - www.istanbulenergy.net Distributor Green Energy
