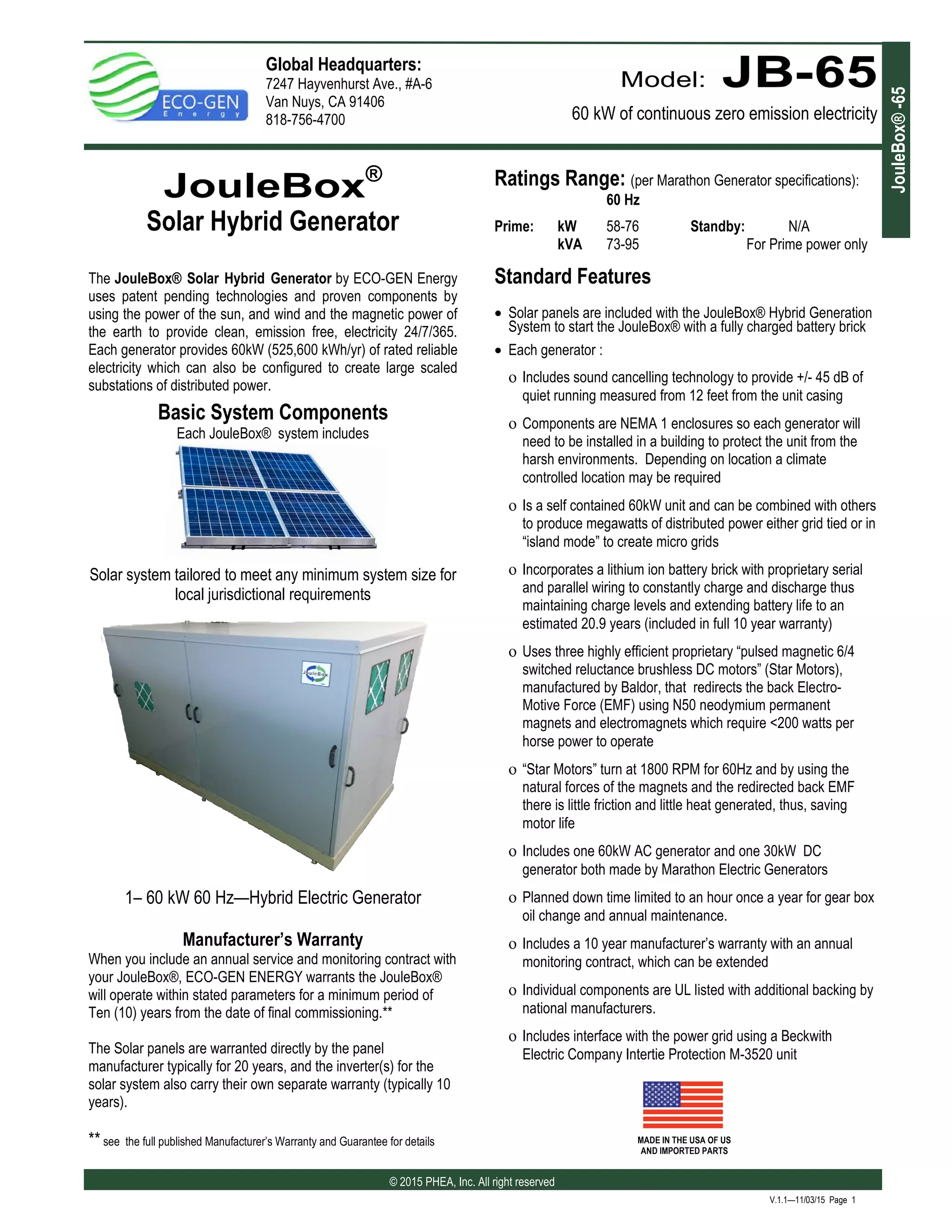

The JouleBox-65 provides 60 kW of continuous zero emission electricity using patented technologies. It includes solar panels, three proprietary "Star Motors" that use magnets and electromagnets to generate power with 73% less watts per horsepower than traditional motors, and a lithium ion battery brick. The system is self-contained and weatherproof, provides reliable 24/7 power for 10 years as per the warranty, and can be combined with other units for larger scale power generation.

1. © 2015 PHEA, Inc. All right reserved
JouleBox®-65
V.1.1—11/03/15 Page 1
Model: JBJBJB---656565Global Headquarters:
7247 Hayvenhurst Ave., #A-6
Van Nuys, CA 91406
818-756-4700 60 kW of continuous zero emission electricity
JouleBox®
Solar Hybrid Generator
Solar system tailored to meet any minimum system size for
local jurisdictional requirements
Basic System Components
Each JouleBox® system includes
The JouleBox® Solar Hybrid Generator by ECO-GEN Energy
uses patent pending technologies and proven components by
using the power of the sun, and wind and the magnetic power of
the earth to provide clean, emission free, electricity 24/7/365.
Each generator provides 60kW (525,600 kWh/yr) of rated reliable
electricity which can also be configured to create large scaled
substations of distributed power.
Standard Features
• Solar panels are included with the JouleBox® Hybrid Generation
System to start the JouleBox® with a fully charged battery brick
• Each generator :
ο Includes sound cancelling technology to provide +/- 45 dB of
quiet running measured from 12 feet from the unit casing
ο Components are NEMA 1 enclosures so each generator will
need to be installed in a building to protect the unit from the
harsh environments. Depending on location a climate
controlled location may be required
ο Is a self contained 60kW unit and can be combined with others
to produce megawatts of distributed power either grid tied or in
“island mode” to create micro grids
ο Incorporates a lithium ion battery brick with proprietary serial
and parallel wiring to constantly charge and discharge thus
maintaining charge levels and extending battery life to an
estimated 20.9 years (included in full 10 year warranty)
ο Uses three highly efficient proprietary “pulsed magnetic 6/4
switched reluctance brushless DC motors” (Star Motors),
manufactured by Baldor, that redirects the back Electro-
Motive Force (EMF) using N50 neodymium permanent
magnets and electromagnets which require <200 watts per
horse power to operate
ο “Star Motors” turn at 1800 RPM for 60Hz and by using the
natural forces of the magnets and the redirected back EMF
there is little friction and little heat generated, thus, saving
motor life
ο Includes one 60kW AC generator and one 30kW DC
generator both made by Marathon Electric Generators
ο Planned down time limited to an hour once a year for gear box
oil change and annual maintenance.
ο Includes a 10 year manufacturer’s warranty with an annual
monitoring contract, which can be extended
ο Individual components are UL listed with additional backing by
national manufacturers.
ο Includes interface with the power grid using a Beckwith
Electric Company Intertie Protection M-3520 unit
1– 60 kW 60 Hz—Hybrid Electric Generator
Manufacturer’s Warranty
When you include an annual service and monitoring contract with
your JouleBox®, ECO-GEN ENERGY warrants the JouleBox®
will operate within stated parameters for a minimum period of
Ten (10) years from the date of final commissioning.**
The Solar panels are warranted directly by the panel
manufacturer typically for 20 years, and the inverter(s) for the
solar system also carry their own separate warranty (typically 10
years).
** see the full published Manufacturer’s Warranty and Guarantee for details
Ratings Range: (per Marathon Generator specifications):
60 Hz
Prime: kW 58-76 Standby: N/A
kVA 73-95 For Prime power only
MADE IN THE USA OF US
AND IMPORTED PARTS

2. © 2015 OpEx Pros, Inc. All right reserved
JouleBox®-65
V.1.1—11/3/15 Page 2
Global Distributor:

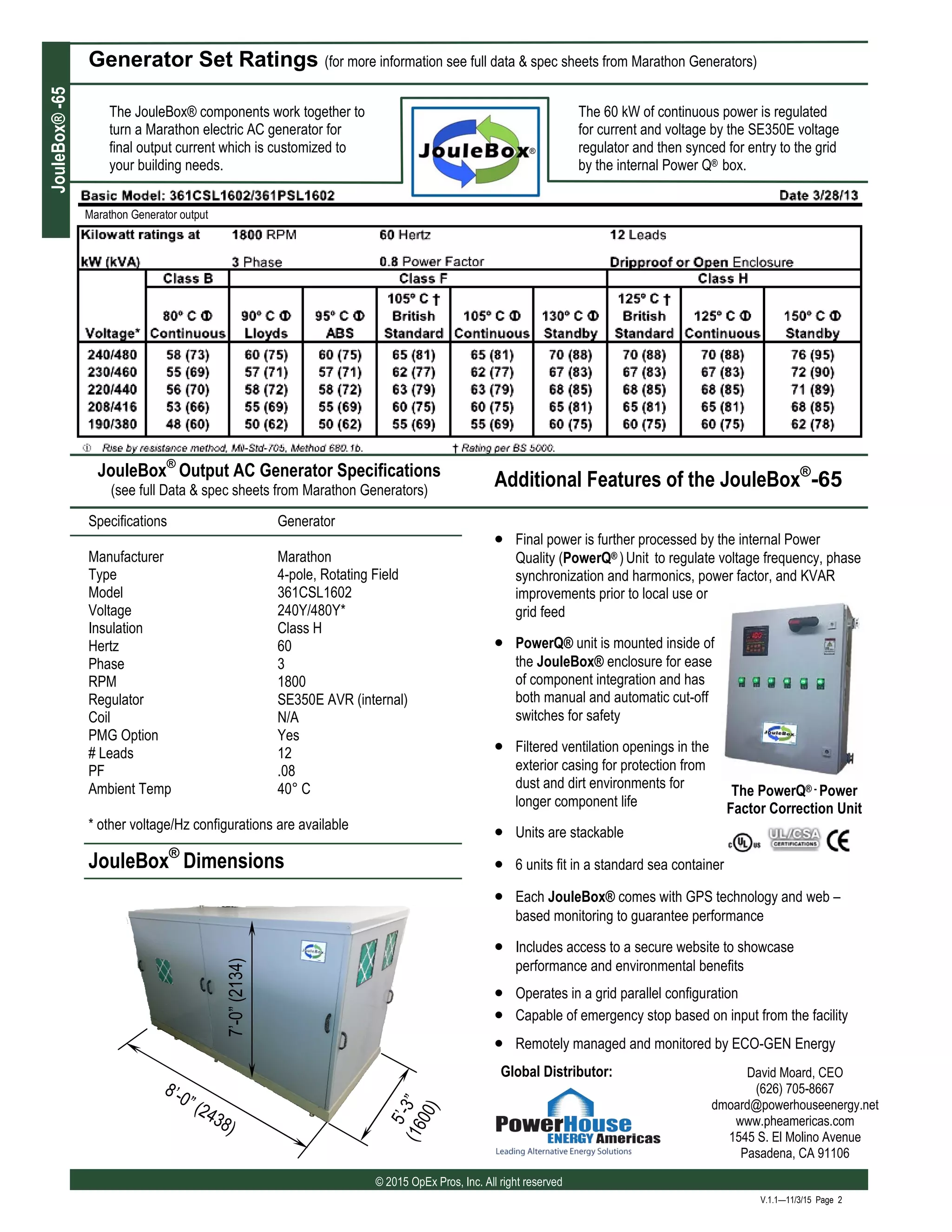

Generator Set Ratings (for more information see full data & spec sheets from Marathon Generators)
Specifications Generator
Manufacturer Marathon
Type 4-pole, Rotating Field
Model 361CSL1602
Voltage 240Y/480Y*
Insulation Class H
Hertz 60
Phase 3
RPM 1800
Regulator SE350E AVR (internal)
Coil N/A
PMG Option Yes
# Leads 12
PF .08
Ambient Temp 40° C
* other voltage/Hz configurations are available
Additional Features of the JouleBox®
-65
• Final power is further processed by the internal Power
Quality (PowerQ® )Unit to regulate voltage frequency, phase
synchronization and harmonics, power factor, and KVAR
improvements prior to local use or
grid feed
• PowerQ® unit is mounted inside of
the JouleBox® enclosure for ease
of component integration and has
both manual and automatic cut-off
switches for safety
• Filtered ventilation openings in the
exterior casing for protection from
dust and dirt environments for
longer component life
• Units are stackable
• 6 units fit in a standard sea container
• Each JouleBox® comes with GPS technology and web –
based monitoring to guarantee performance
• Includes access to a secure website to showcase
performance and environmental benefits
• Operates in a grid parallel configuration
• Capable of emergency stop based on input from the facility
• Remotely managed and monitored by ECO-GEN Energy
The PowerQ® - Power
Factor Correction Unit
The JouleBox® components work together to
turn a Marathon electric AC generator for
final output current which is customized to
your building needs.
The 60 kW of continuous power is regulated
for current and voltage by the SE350E voltage
regulator and then synced for entry to the grid
by the internal Power Q® box.
JouleBox®
Dimensions
8’-0” (2438)
5’-3”(1600)
7’-0”(2134)
®
Marathon Generator output
JouleBox®
Output AC Generator Specifications
(see full Data & spec sheets from Marathon Generators)
David Moard, CEO
(626) 705-8667
dmoard@powerhouseenergy.net
www.pheamericas.com
1545 S. El Molino Avenue
Pasadena, CA 91106

3. © 2015 OpEx Pros, Inc. All right reserved
JouleBox®-65
V.1.1—11/03/15 Page 3

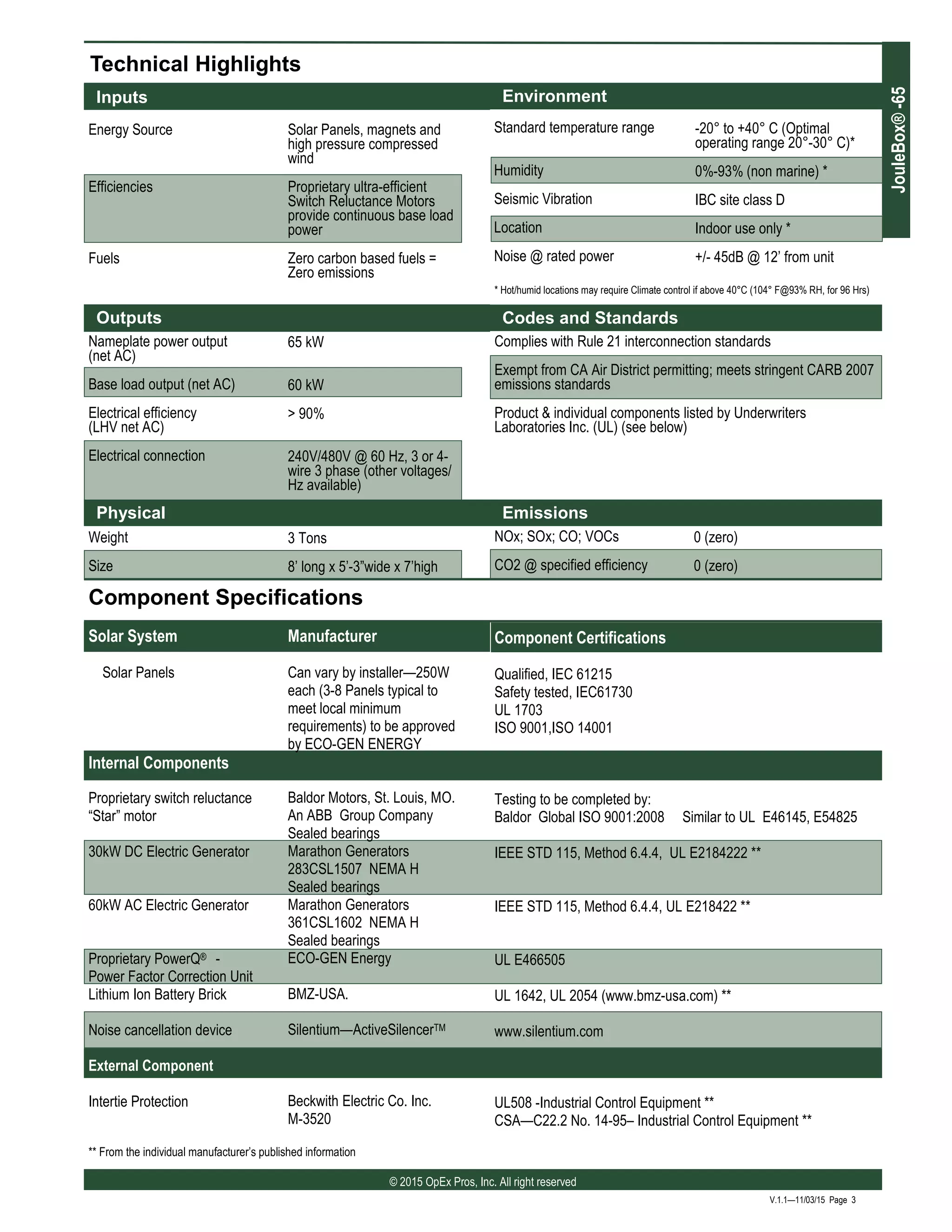

Technical Highlights
Inputs
Energy Source
Efficiencies
Fuels
Solar Panels, magnets and
high pressure compressed
wind
Proprietary ultra-efficient
Switch Reluctance Motors
provide continuous base load
power
Zero carbon based fuels =
Zero emissions
Outputs
Nameplate power output
(net AC)
Base load output (net AC)
Electrical efficiency
(LHV net AC)
Electrical connection
65 kW
60 kW
> 90%
240V/480V @ 60 Hz, 3 or 4-
wire 3 phase (other voltages/
Hz available)
Environment
Standard temperature range
Humidity
Seismic Vibration
Location
Noise @ rated power
-20° to +40° C (Optimal
operating range 20°-30° C)*
0%-93% (non marine) *
IBC site class D
Indoor use only *
+/- 45dB @ 12’ from unit
Physical
Weight
Size
3 Tons
8’ long x 5’-3”wide x 7’high
Emissions
NOx; SOx; CO; VOCs
CO2 @ specified efficiency
0 (zero)
0 (zero)
Codes and Standards
Complies with Rule 21 interconnection standards
Exempt from CA Air District permitting; meets stringent CARB 2007
emissions standards
Product & individual components listed by Underwriters
Laboratories Inc. (UL) (see below)
Component Specifications
Solar System
Solar Panels
Internal Components
Proprietary switch reluctance
“Star” motor
30kW DC Electric Generator
60kW AC Electric Generator
Proprietary PowerQ® -
Power Factor Correction Unit
Lithium Ion Battery Brick
Noise cancellation device
External Component
Intertie Protection
Manufacturer
Can vary by installer—250W
each (3-8 Panels typical to
meet local minimum
requirements) to be approved
by ECO-GEN ENERGY
Baldor Motors, St. Louis, MO.
An ABB Group Company
Sealed bearings
Marathon Generators
283CSL1507 NEMA H
Sealed bearings
Marathon Generators
361CSL1602 NEMA H
Sealed bearings
ECO-GEN Energy
BMZ-USA.
Silentium—ActiveSilencerTM
Beckwith Electric Co. Inc.
M-3520
Component Certifications
Qualified, IEC 61215
Safety tested, IEC61730
UL 1703
ISO 9001,ISO 14001
Testing to be completed by:
Baldor Global ISO 9001:2008 Similar to UL E46145, E54825
IEEE STD 115, Method 6.4.4, UL E2184222 **
IEEE STD 115, Method 6.4.4, UL E218422 **
UL E466505
UL 1642, UL 2054 (www.bmz-usa.com) **
www.silentium.com
UL508 -Industrial Control Equipment **
CSA—C22.2 No. 14-95– Industrial Control Equipment **
** From the individual manufacturer’s published information
* Hot/humid locations may require Climate control if above 40°C (104° F@93% RH, for 96 Hrs)

4. © 2015 PHEA, Inc. All right reserved
JouleBox®-65
V.1.1—11/3/15 Page 4

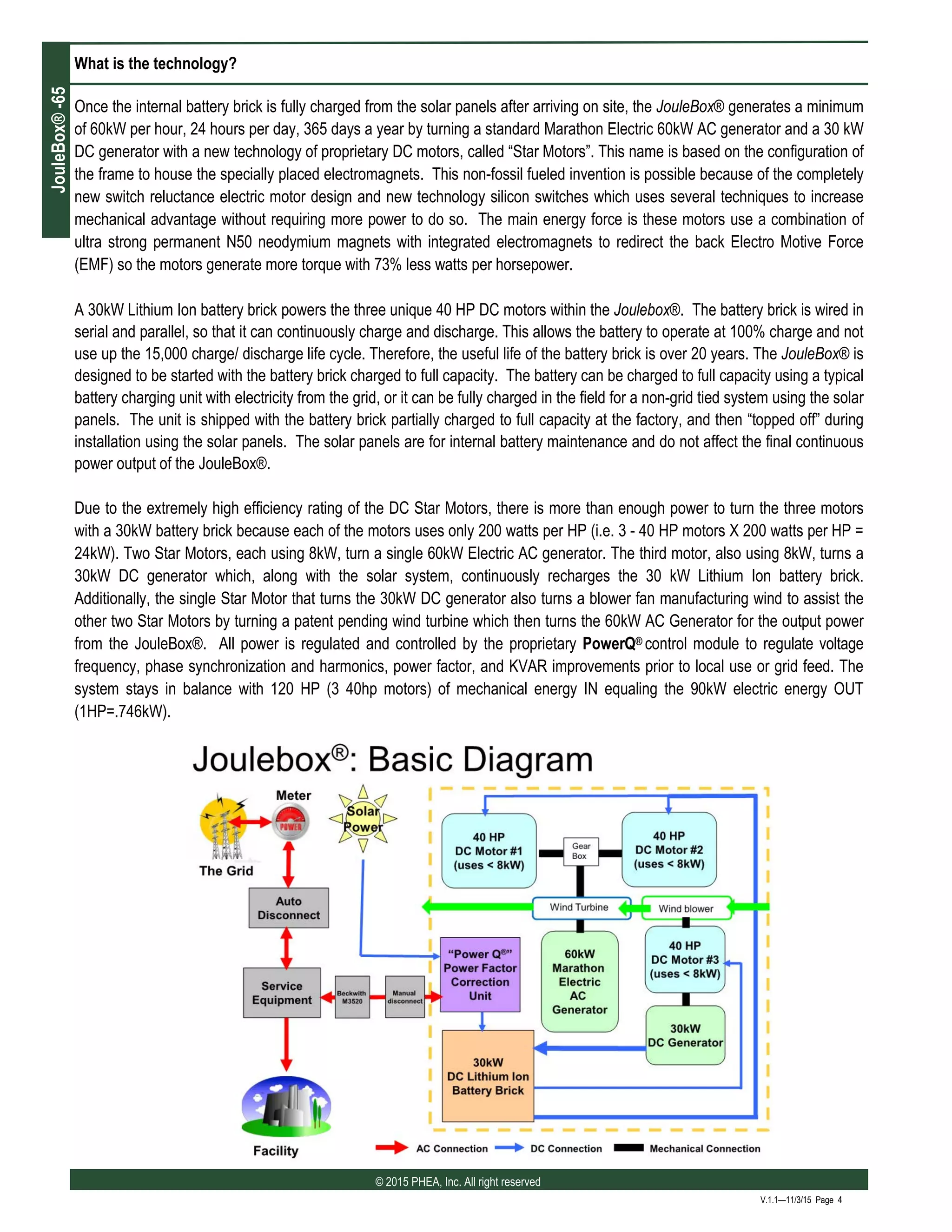

What is the technology?
Once the internal battery brick is fully charged from the solar panels after arriving on site, the JouleBox® generates a minimum
of 60kW per hour, 24 hours per day, 365 days a year by turning a standard Marathon Electric 60kW AC generator and a 30 kW
DC generator with a new technology of proprietary DC motors, called “Star Motors”. This name is based on the configuration of
the frame to house the specially placed electromagnets. This non-fossil fueled invention is possible because of the completely
new switch reluctance electric motor design and new technology silicon switches which uses several techniques to increase
mechanical advantage without requiring more power to do so. The main energy force is these motors use a combination of
ultra strong permanent N50 neodymium magnets with integrated electromagnets to redirect the back Electro Motive Force
(EMF) so the motors generate more torque with 73% less watts per horsepower.
A 30kW Lithium Ion battery brick powers the three unique 40 HP DC motors within the Joulebox®. The battery brick is wired in
serial and parallel, so that it can continuously charge and discharge. This allows the battery to operate at 100% charge and not
use up the 15,000 charge/ discharge life cycle. Therefore, the useful life of the battery brick is over 20 years. The JouleBox® is
designed to be started with the battery brick charged to full capacity. The battery can be charged to full capacity using a typical
battery charging unit with electricity from the grid, or it can be fully charged in the field for a non-grid tied system using the solar
panels. The unit is shipped with the battery brick partially charged to full capacity at the factory, and then “topped off” during
installation using the solar panels. The solar panels are for internal battery maintenance and do not affect the final continuous
power output of the JouleBox®.
Due to the extremely high efficiency rating of the DC Star Motors, there is more than enough power to turn the three motors
with a 30kW battery brick because each of the motors uses only 200 watts per HP (i.e. 3 - 40 HP motors X 200 watts per HP =
24kW). Two Star Motors, each using 8kW, turn a single 60kW Electric AC generator. The third motor, also using 8kW, turns a
30kW DC generator which, along with the solar system, continuously recharges the 30 kW Lithium Ion battery brick.
Additionally, the single Star Motor that turns the 30kW DC generator also turns a blower fan manufacturing wind to assist the
other two Star Motors by turning a patent pending wind turbine which then turns the 60kW AC Generator for the output power
from the JouleBox®. All power is regulated and controlled by the proprietary PowerQ® control module to regulate voltage
frequency, phase synchronization and harmonics, power factor, and KVAR improvements prior to local use or grid feed. The
system stays in balance with 120 HP (3 40hp motors) of mechanical energy IN equaling the 90kW electric energy OUT
(1HP=.746kW).

5. © 2015 PHEA, Inc. All right reserved
JouleBox®-65
V.1.1—11/03/15 Page 5

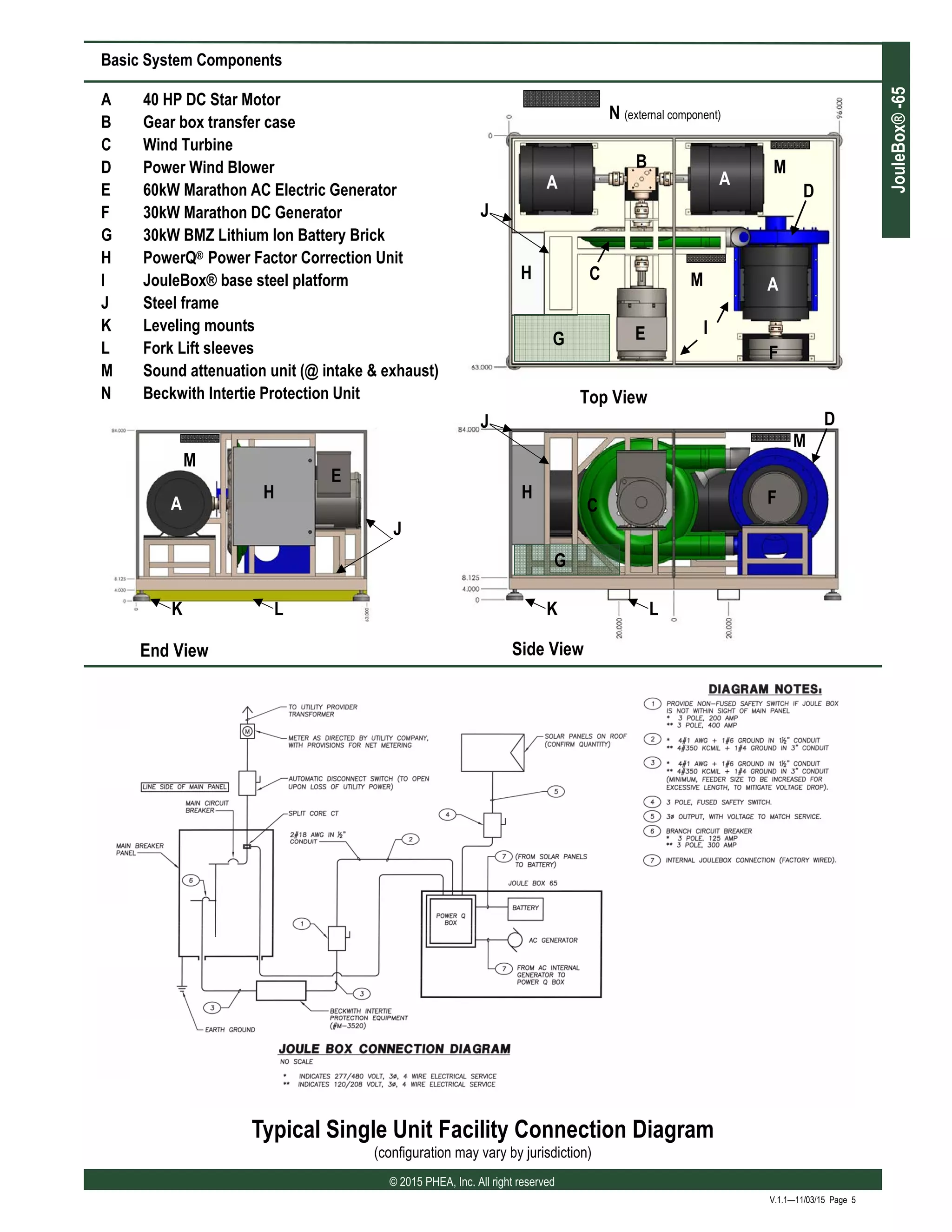

Typical Single Unit Facility Connection Diagram
(configuration may vary by jurisdiction)
Top View
Side ViewEnd View
Basic System Components
A 40 HP DC Star Motor
B Gear box transfer case
C Wind Turbine
D Power Wind Blower
E 60kW Marathon AC Electric Generator
F 30kW Marathon DC Generator
G 30kW BMZ Lithium Ion Battery Brick
H PowerQ® Power Factor Correction Unit
I JouleBox® base steel platform
J Steel frame
K Leveling mounts
L Fork Lift sleeves
M Sound attenuation unit (@ intake & exhaust)
N Beckwith Intertie Protection Unit
A A
A
B
C
D
E
F
G
H
I
J
K LK L
H H
A
E
F
D
C
J
J
G
N (external component)
M
M
M
M
