![Implementation – cont’d
• Event Collector
– [trema]/src/tremashark/tremashark.c
• Syslog Relay
– [trema]/src/tremashark/syslog_relay.c
• Packet Capture
– [trema]/src/tremashark/packet_capture.c
• Stdin Relay
– [trema]/src/tremashark/stdin_relay.c
• Wireshark Plugin
– [trema]/src/tremashark/plugin/packet-trema
• Trema (libtrema)
– [trema]/src/lib/messenger.[ch] – Any IPC event can be notified.
Copyright © 2013 NEC Corporation](https://image.slidesharecdn.com/tremashark201301261-130126052802-phpapp02/85/Tremashark-11-320.jpg)
![Use case #1 – cont’d
• Run controller and Tremashark
$ cd [trema]
$ ./trema run -c ls.conf -d
$ export TREMA_HOME=`pwd` -p: UDP port
-d: Daemonize
$ ./objects/tremashark/syslog_relay -p 10514 -d
$ sudo -E ./objects/tremashark/packet_capture -i lo -d port
6633 -i: Interface
-d: Daemonize
$ ./objects/tremashark/tremashark
ls.conf run {
path "./objects/examples/learning_switch/learning_switch"
options "-l debug", "-g", "-f local6"
}
Copyright © 2013 NEC Corporation](https://image.slidesharecdn.com/tremashark201301261-130126052802-phpapp02/85/Tremashark-16-320.jpg)
![Use case #2 – cont’d
• Run controller and Tremashark
$ cd [trema]
$ ./trema run -c ls.conf -d
$ export TREMA_HOME=`pwd`
$ ./objects/tremashark/syslog_relay -p 10514 -d
$ sudo -E ./objects/tremashark/packet_capture -i lo -d port
6633
Enable IPC event notification
$ kill –USR2 `cat tmp/pid/learning_switch.pid`
$ ./objects/tremashark/tremashark
Copyright © 2013 NEC Corporation](https://image.slidesharecdn.com/tremashark201301261-130126052802-phpapp02/85/Tremashark-19-320.jpg)
![Use case #3 – cont’d
• Run controller and Tremashark
$ cd [trema]
$ ./trema run -c ls.conf -d
$ export TREMA_HOME=`pwd`
$ ./objects/tremashark/syslog_relay -p 10514 -d
$ sudo -E ./objects/tremashark/packet_capture -i lo -d port
6633
$ ./objects/tremashark/tremashark -p -c 1000 -w log.cap -d
-p: Do not launch wireshark
-c: # of buffers
Dump the circular buffer to the file specified.
-w: File to output
$ kill –USR2 `cat tmp/pid/tremashark.pid` -d: Daemonize
Copyright © 2013 NEC Corporation](https://image.slidesharecdn.com/tremashark201301261-130126052802-phpapp02/85/Tremashark-22-320.jpg)
Uploaded byYasunobu Chiba
Tremashark
Tremashark is a tool for network debugging that collects event logs from multiple sources like packet captures, syslog outputs, and console logs. It combines these logs into a single timeline of events and allows users to analyze the logs using Wireshark. Tremashark is useful for debugging Trema-based OpenFlow controllers as it can collect packet data, system logs, and internal IPC messages between Trema modules.
Tremashark
- 1. meets Tremashark Jan. 26, 2013 Yasunobu Chiba Part-time Developer, Trema Project Copyright © 2013 NEC Corporation

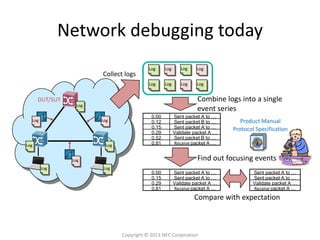

- 2. Network debugging today Log Log Log Log Collect logs Log Log Log Log DUT/SUT Combine logs into a single Log event series 0.00 Sent packet A to … Log Log 0.12 Sent packet B to … Product Manual 0.15 Sent packet A to … Protocol Specification 0.29 Validate packet A … 0.52 Sent packet B to … Log Log 0.81 Receive packet A … Log Find out focusing events Log Log 0.00 Sent packet A to … Sent packet A to … 0.15 Sent packet A to … Sent packet A to … 0.29 Validate packet A … Validate packet A … 0.81 Receive packet A … Receive packet A … Compare with expectation Copyright © 2013 NEC Corporation

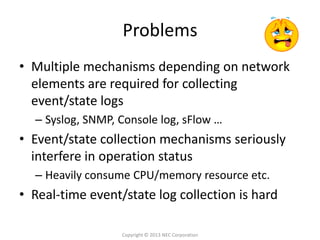

- 3. Problems • Multiple mechanismsdepending on network elements are required for collecting event/state logs – Syslog, SNMP, Console log, sFlow … • Event/state collection mechanisms seriously interfere in operation status – Heavily consume CPU/memory resource etc. • Real-time event/state log collection is hard Copyright © 2013 NEC Corporation

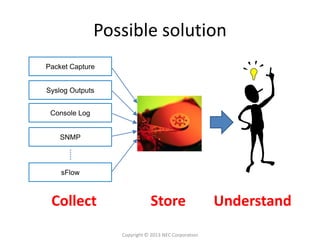

- 4. Possible solution Packet Capture SyslogOutputs Console Log SNMP sFlow Collect Store Understand Copyright © 2013 NEC Corporation
- 5. Possible solution –cont’d Packet Capture Syslog Outputs Console Log SNMP sFlow Collect Store Understand Big Data !!! Copyright © 2013 NEC Corporation

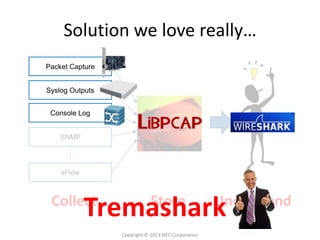

- 6. Solution we lovereally… Packet Capture Syslog Outputs Console Log SNMP sFlow Collect Store Understand Tremashark Copyright © 2013 NEC Corporation

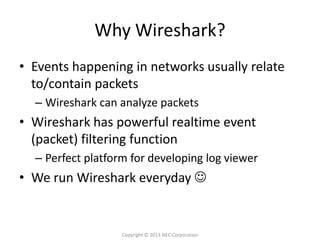

- 7. Why Wireshark? • Eventshappening in networks usually relate to/contain packets – Wireshark can analyze packets • Wireshark has powerful realtime event (packet) filtering function – Perfect platform for developing log viewer • We run Wireshark everyday Copyright © 2013 NEC Corporation

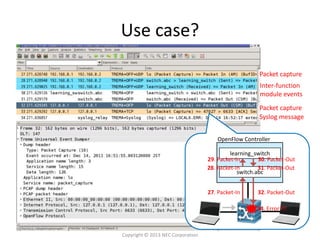

- 8. Use case? Packet capture Inter-function module events Packet capture Syslog message OpenFlow Controller learning_switch 29. Packet-In 30. Packet-Out 28. Packet-In 31. Packet-Out switch.abc 27. Packet-In 32. Packet-Out 34. Error !!! Copyright © 2013 NEC Corporation

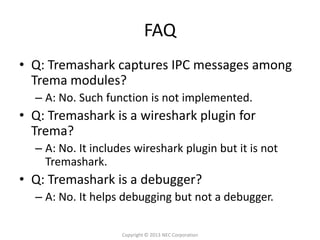

- 9. FAQ • Q: Tremasharkcaptures IPC messages among Trema modules? – A: No. Such function is not implemented. • Q: Tremashark is a wireshark plugin for Trema? – A: No. It includes wireshark plugin but it is not Tremashark. • Q: Tremashark is a debugger? – A: No. It helps debugging but not a debugger. Copyright © 2013 NEC Corporation
- 10. Implementation Trema-based OpenFlow Notifications through Trema IPC (messenger) Developer / Operator Controller Real-time / Off-line Monitoring Switch Syslog Syslog Event Viewer/Analyzer Host Relay Event Collector Wireshark w/ plugin Network Interface / Tap Circular Buffer Packet Capture Serialized Notifications Pcap File Any Text String Stdin Relay Copyright © 2013 NEC Corporation

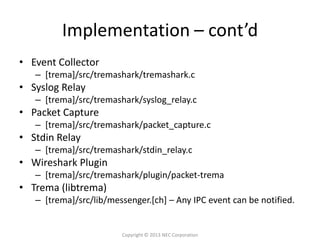

- 11. Implementation – cont’d •Event Collector – [trema]/src/tremashark/tremashark.c • Syslog Relay – [trema]/src/tremashark/syslog_relay.c • Packet Capture – [trema]/src/tremashark/packet_capture.c • Stdin Relay – [trema]/src/tremashark/stdin_relay.c • Wireshark Plugin – [trema]/src/tremashark/plugin/packet-trema • Trema (libtrema) – [trema]/src/lib/messenger.[ch] – Any IPC event can be notified. Copyright © 2013 NEC Corporation
- 12. How to buildand install? $ git clone git://github.com/trema/trema.git $ cd trema $ ./build.rb $ cd src/tremashark/plugin $ wget http://www.wireshark.org/download/src/wireshark- 1.6.12.tar.bz2 $ tar xvf wireshark-1.6.12.tar.bz2 $ ln -s wireshark-1.6.12 wireshark $ cd wireshark $ sudo apt-get install wireshark flex bison libgtkmm-2.4-dev $ ./configure Copyright © 2013 NEC Corporation
- 13. How to buildand install? – cont’d $ cd ../packet-trema $ make $ mkdir -p ~/.wireshark/plugins $ cp packet-trema.so ~/.wireshark/plugins $ cp ../user_dlts ~/.wireshark/ Copyright © 2013 NEC Corporation

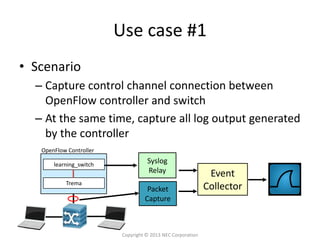

- 14. Use case #1 •Scenario – Capture control channel connection between OpenFlow controller and switch – At the same time, capture all log output generated by the controller OpenFlow Controller learning_switch Syslog Relay Event Trema Packet Collector Capture Copyright © 2013 NEC Corporation

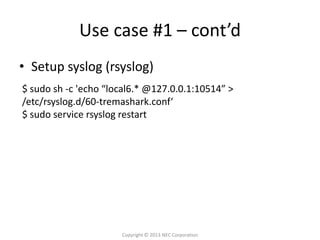

- 15. Use case #1– cont’d • Setup syslog (rsyslog) $ sudo sh -c 'echo “local6.* @127.0.0.1:10514” > /etc/rsyslog.d/60-tremashark.conf‘ $ sudo service rsyslog restart Copyright © 2013 NEC Corporation

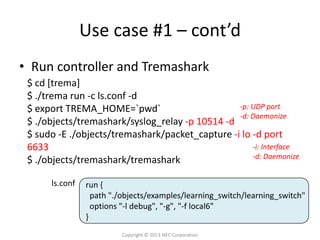

- 16. Use case #1– cont’d • Run controller and Tremashark $ cd [trema] $ ./trema run -c ls.conf -d $ export TREMA_HOME=`pwd` -p: UDP port -d: Daemonize $ ./objects/tremashark/syslog_relay -p 10514 -d $ sudo -E ./objects/tremashark/packet_capture -i lo -d port 6633 -i: Interface -d: Daemonize $ ./objects/tremashark/tremashark ls.conf run { path "./objects/examples/learning_switch/learning_switch" options "-l debug", "-g", "-f local6" } Copyright © 2013 NEC Corporation

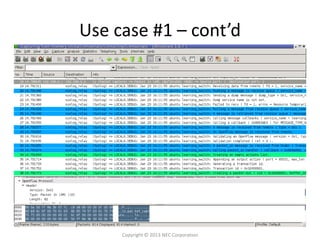

- 17. Use case #1– cont’d Copyright © 2013 NEC Corporation
- 18. Use case #2 •Scenario – In addition to use case #1, capture IPC events happening in a Trema-based OpenFlow controller OpenFlow Controller learning_switch Syslog Relay Event Trema Packet Collector Capture Copyright © 2013 NEC Corporation

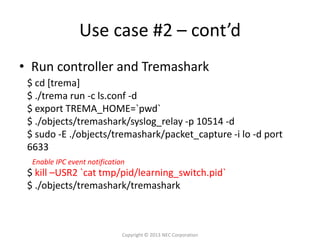

- 19. Use case #2– cont’d • Run controller and Tremashark $ cd [trema] $ ./trema run -c ls.conf -d $ export TREMA_HOME=`pwd` $ ./objects/tremashark/syslog_relay -p 10514 -d $ sudo -E ./objects/tremashark/packet_capture -i lo -d port 6633 Enable IPC event notification $ kill –USR2 `cat tmp/pid/learning_switch.pid` $ ./objects/tremashark/tremashark Copyright © 2013 NEC Corporation

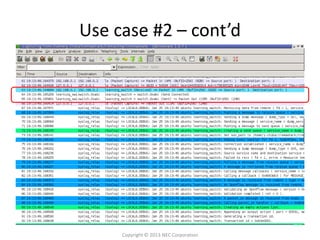

- 20. Use case #2– cont’d Copyright © 2013 NEC Corporation

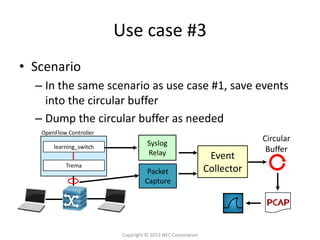

- 21. Use case #3 •Scenario – In the same scenario as use case #1, save events into the circular buffer – Dump the circular buffer as needed OpenFlow Controller Circular learning_switch Syslog Relay Buffer Event Trema Packet Collector Capture Copyright © 2013 NEC Corporation

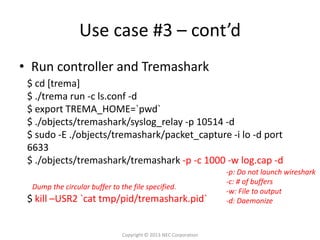

- 22. Use case #3– cont’d • Run controller and Tremashark $ cd [trema] $ ./trema run -c ls.conf -d $ export TREMA_HOME=`pwd` $ ./objects/tremashark/syslog_relay -p 10514 -d $ sudo -E ./objects/tremashark/packet_capture -i lo -d port 6633 $ ./objects/tremashark/tremashark -p -c 1000 -w log.cap -d -p: Do not launch wireshark -c: # of buffers Dump the circular buffer to the file specified. -w: File to output $ kill –USR2 `cat tmp/pid/tremashark.pid` -d: Daemonize Copyright © 2013 NEC Corporation

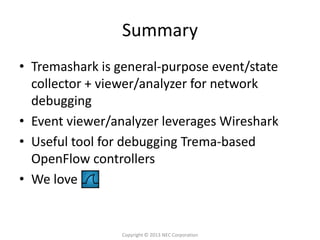

- 23. Summary • Tremashark isgeneral-purpose event/state collector + viewer/analyzer for network debugging • Event viewer/analyzer leverages Wireshark • Useful tool for debugging Trema-based OpenFlow controllers • We love Copyright © 2013 NEC Corporation
