1. Trap Handling in Linux
focusing on system call
Yongrae Jo
2017. 2. 16

2. 2
CONTENTS
Background
Function Call Flow from start_kernel()
IDT initialization & Its Data
Structure(gate, idt_table, MSR)
syscall entry, fast vs slow path,
sys_call_table Initialization
system call procedure from user
application and glibc

3. 3

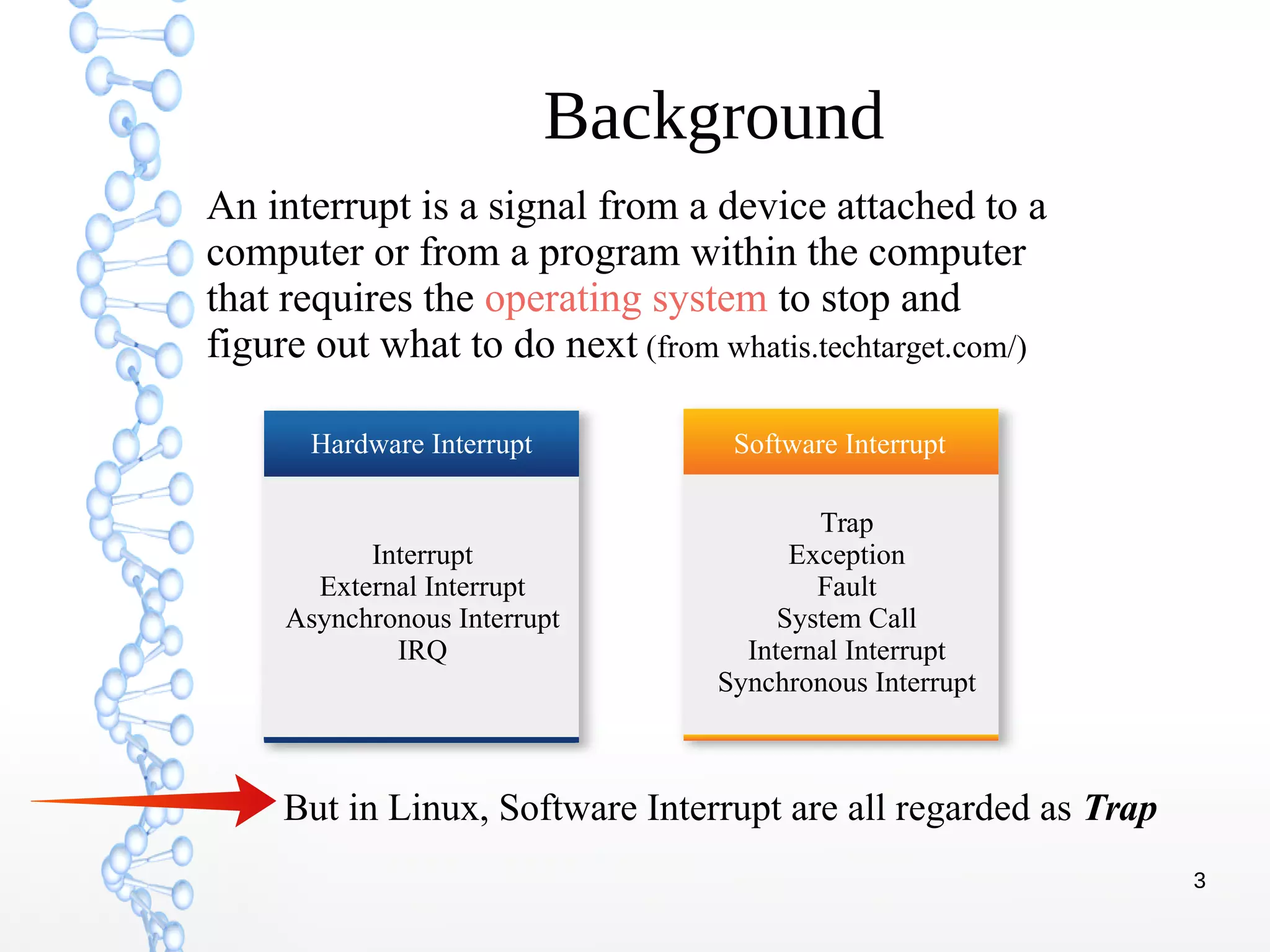

Background
Interrupt
External Interrupt
Asynchronous Interrupt
IRQ
Trap
Exception
Fault
System Call
Internal Interrupt
Synchronous Interrupt
Hardware Interrupt Software Interrupt
But in Linux, Software Interrupt are all regarded as Trap
An interrupt is a signal from a device attached to a
computer or from a program within the computer
that requires the operating system to stop and
figure out what to do next (from whatis.techtarget.com/)

4. 4
Execution Flow of Interrupt Service
Normal
Execution
Interrupt
Triggered,
Non-Maskable
Interrupt(NMI)
1. Save current State
2. Call Handler Routine
But it is masked
Execute Requested Handler Routine
1. Restore state
2. Return from ISR
Source : Image from http://studymake.tistory.com/341

5. 5
(External)Interrupt Controller
source : http://embien.com/blog/interrupt-handling-in-embedded-
software/

6. 6

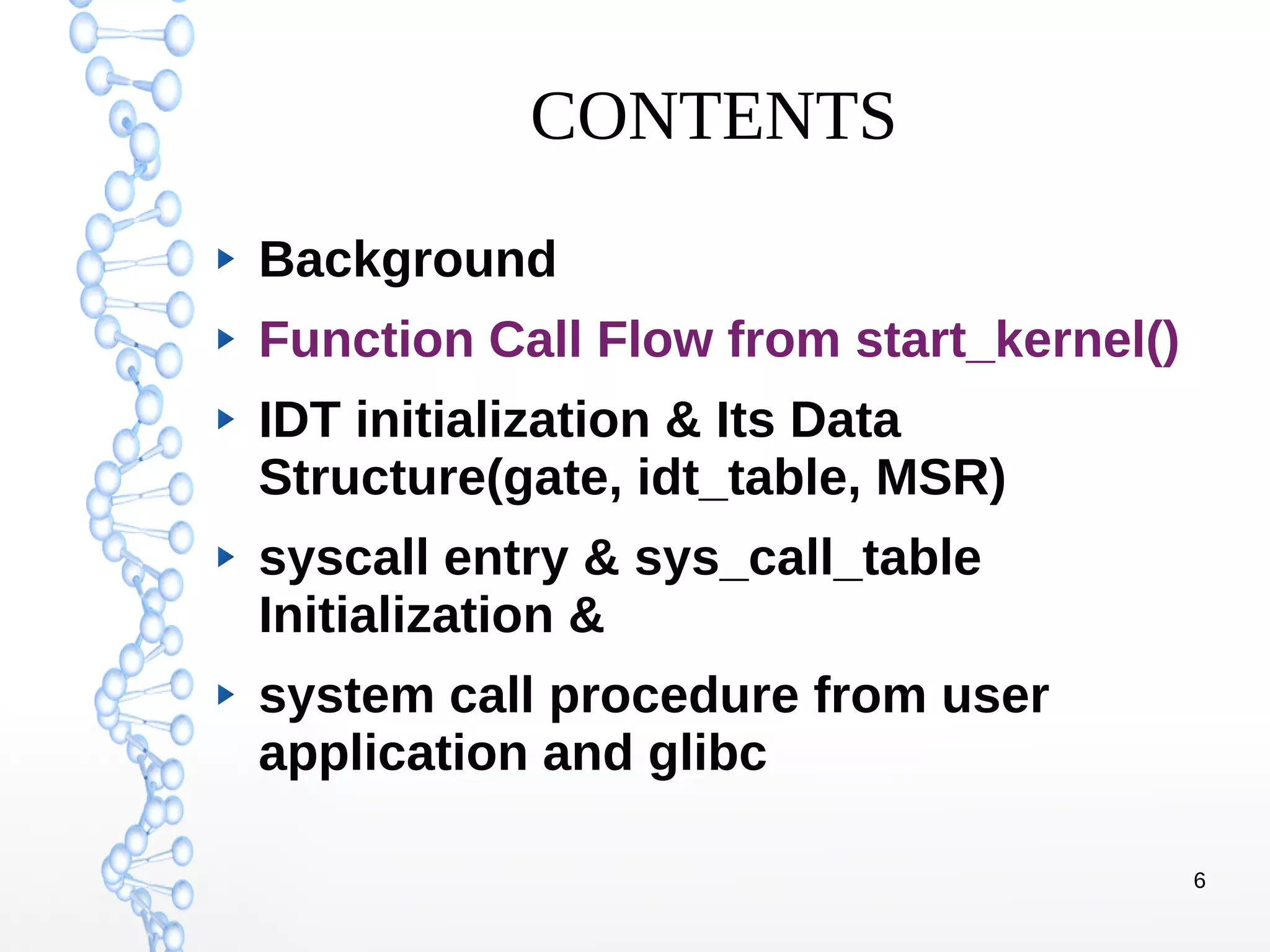

CONTENTS
Background
Function Call Flow from start_kernel()
IDT initialization & Its Data
Structure(gate, idt_table, MSR)
syscall entry & sys_call_table
Initialization &
system call procedure from user
application and glibc

7. 7
Function Call Flow from
start_kernel()

8. 8

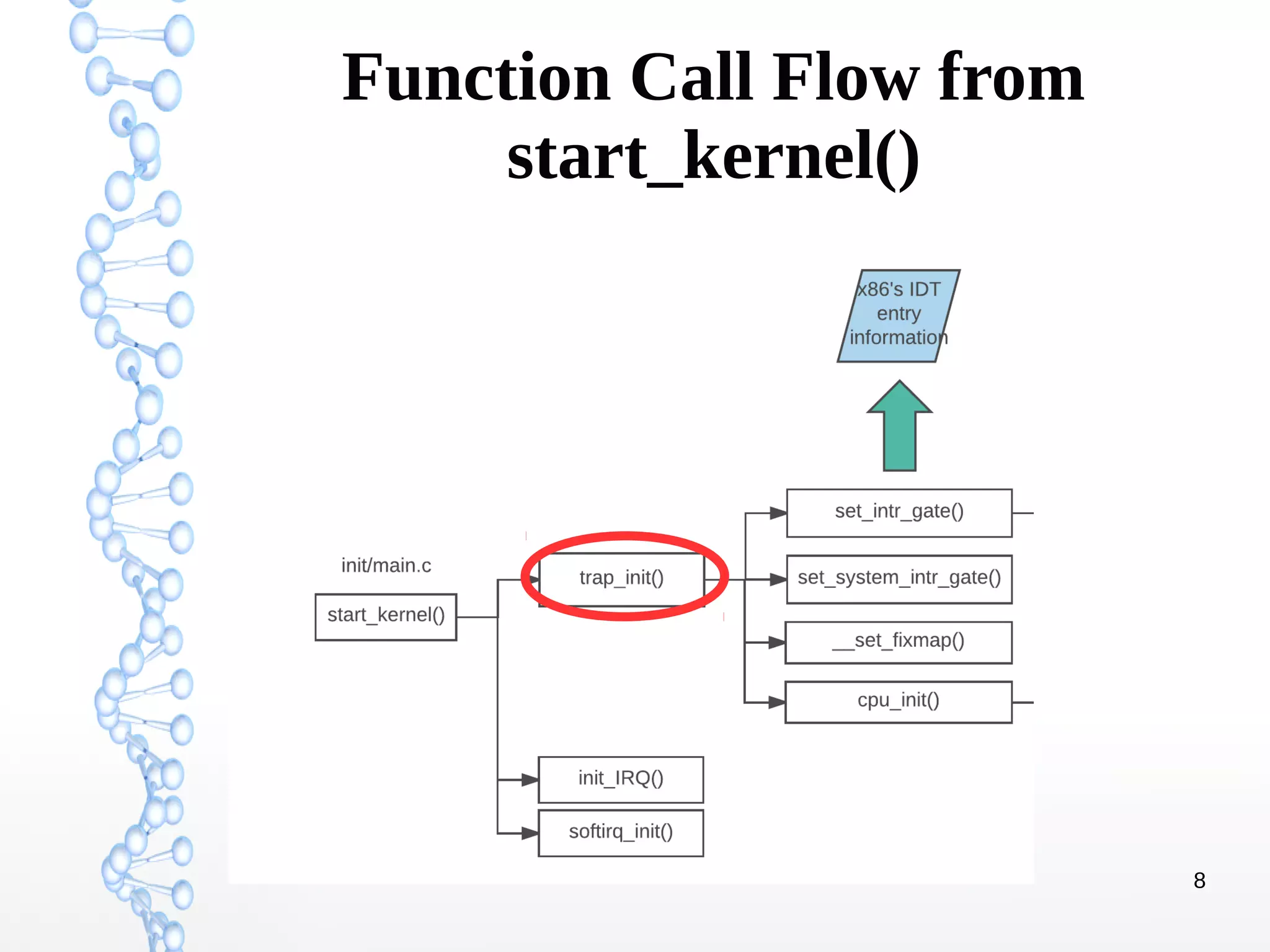

Function Call Flow from
start_kernel()

9. 9

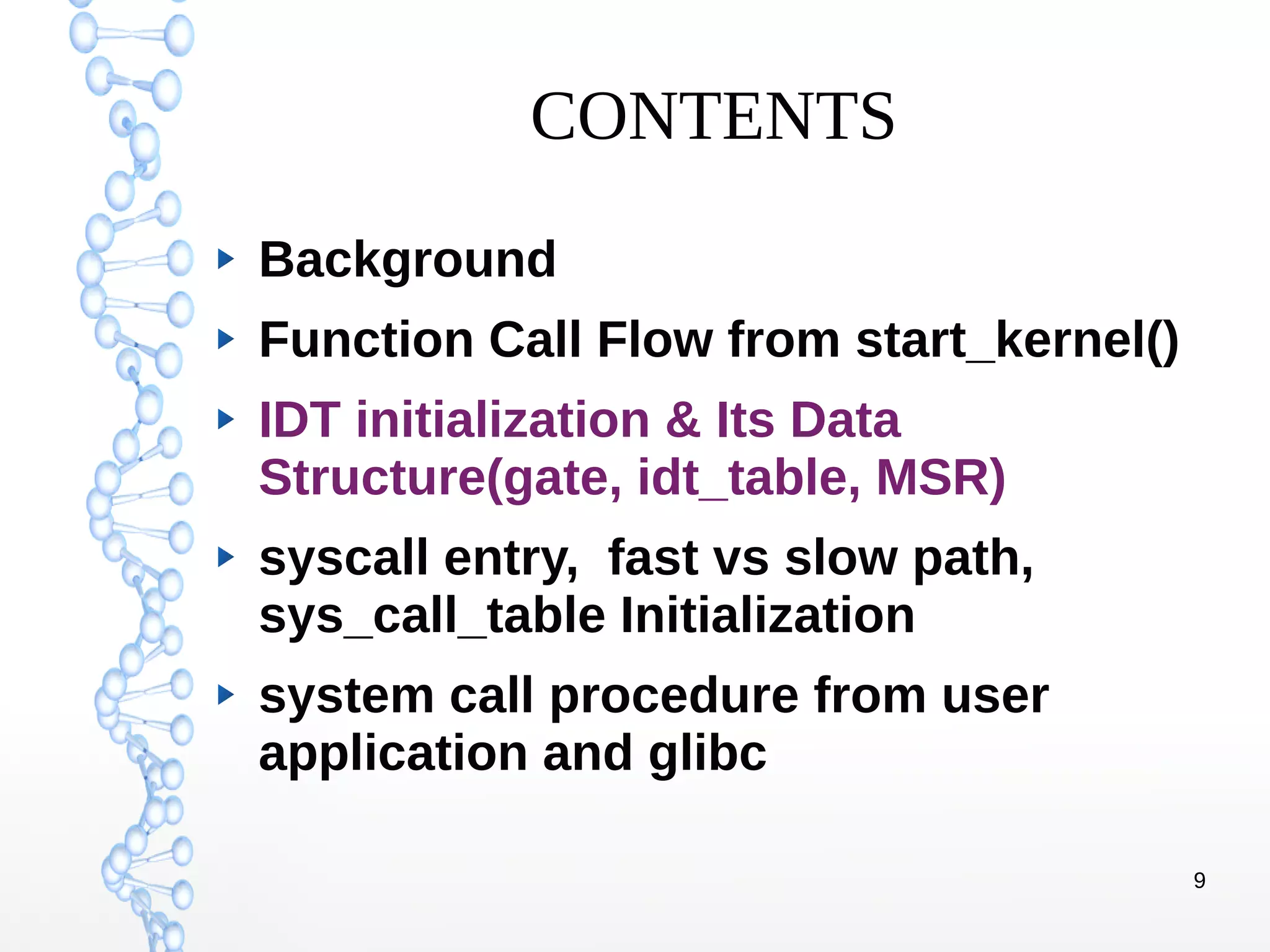

CONTENTS
Background
Function Call Flow from start_kernel()
IDT initialization & Its Data
Structure(gate, idt_table, MSR)
syscall entry, fast vs slow path,
sys_call_table Initialization
system call procedure from user
application and glibc

10. 10
trap_init() from
/usr/src/linux-4.9.6/arch/x86/kernel/traps.c

11. 11

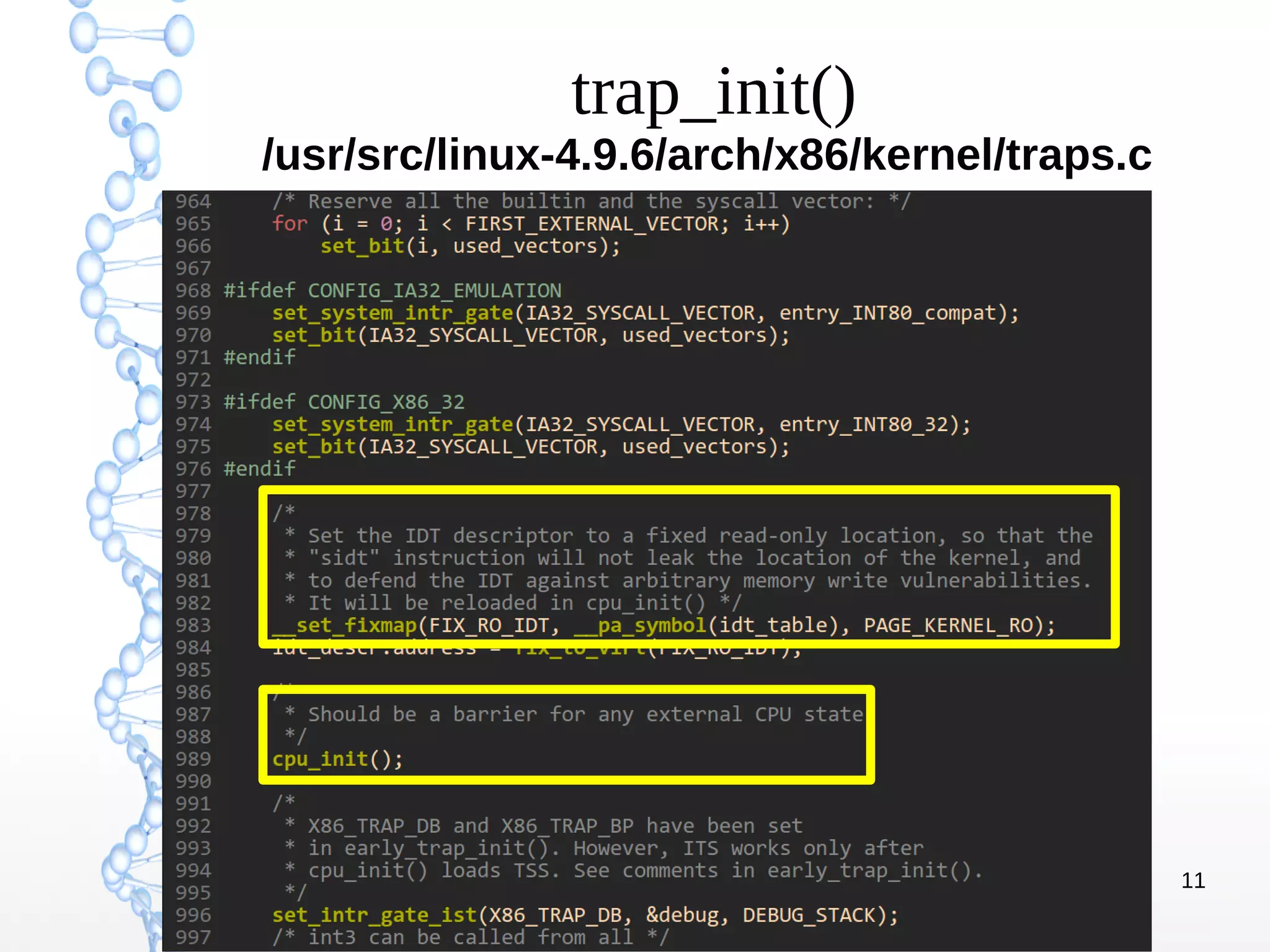

trap_init()
/usr/src/linux-4.9.6/arch/x86/kernel/traps.c

12. 12
List of interrupt from
/usr/src/linux-4.9.6/arch/x86/include/asm/traps.h

13. 13

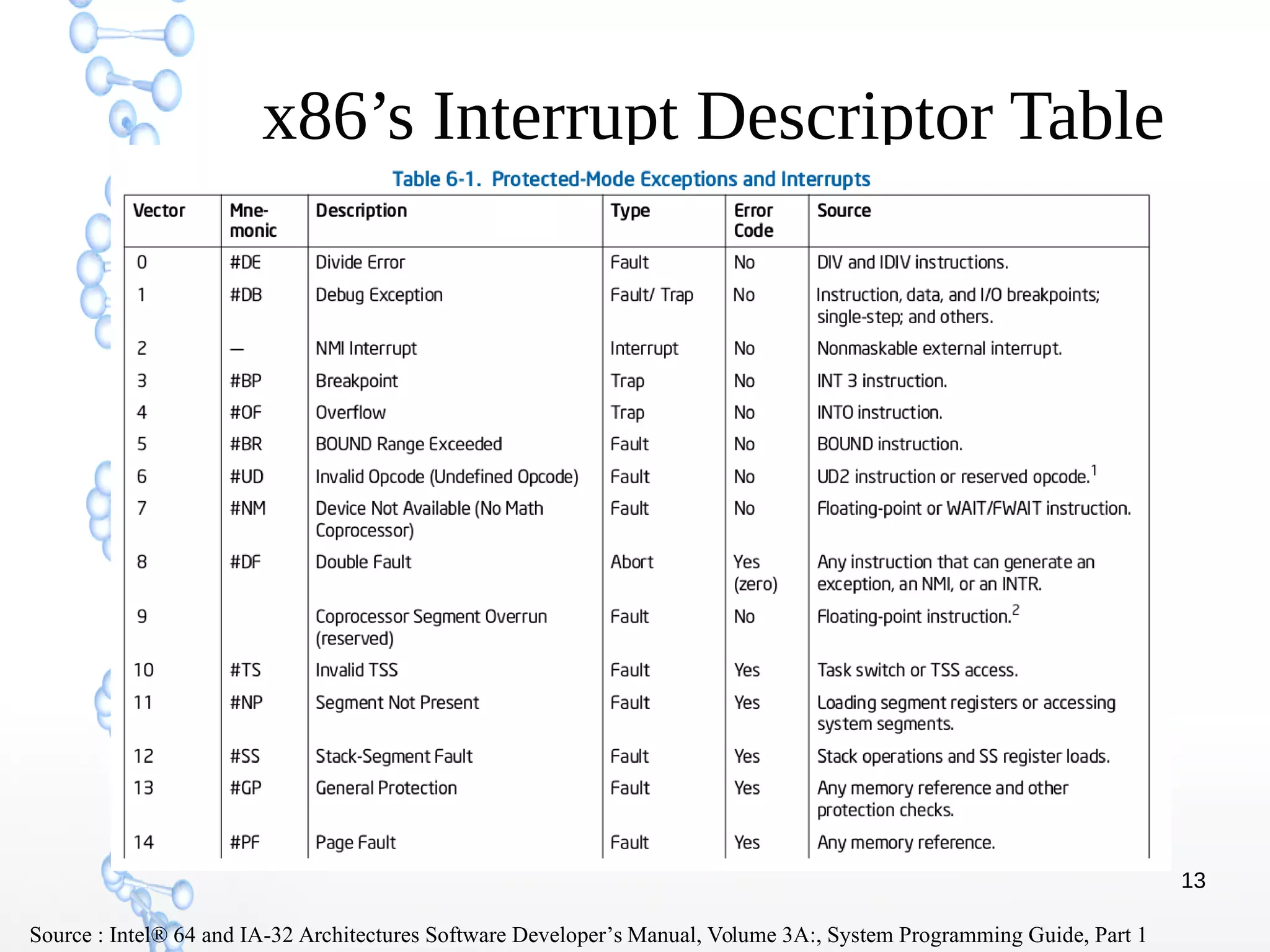

x86’s Interrupt Descriptor Table
Source : Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 3A:, System Programming Guide, Part 1

14. 14
x86’s Interrupt Descriptor Table(cont’d)
Source : Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 3A:, System Programming Guide, Part 1

15. 15

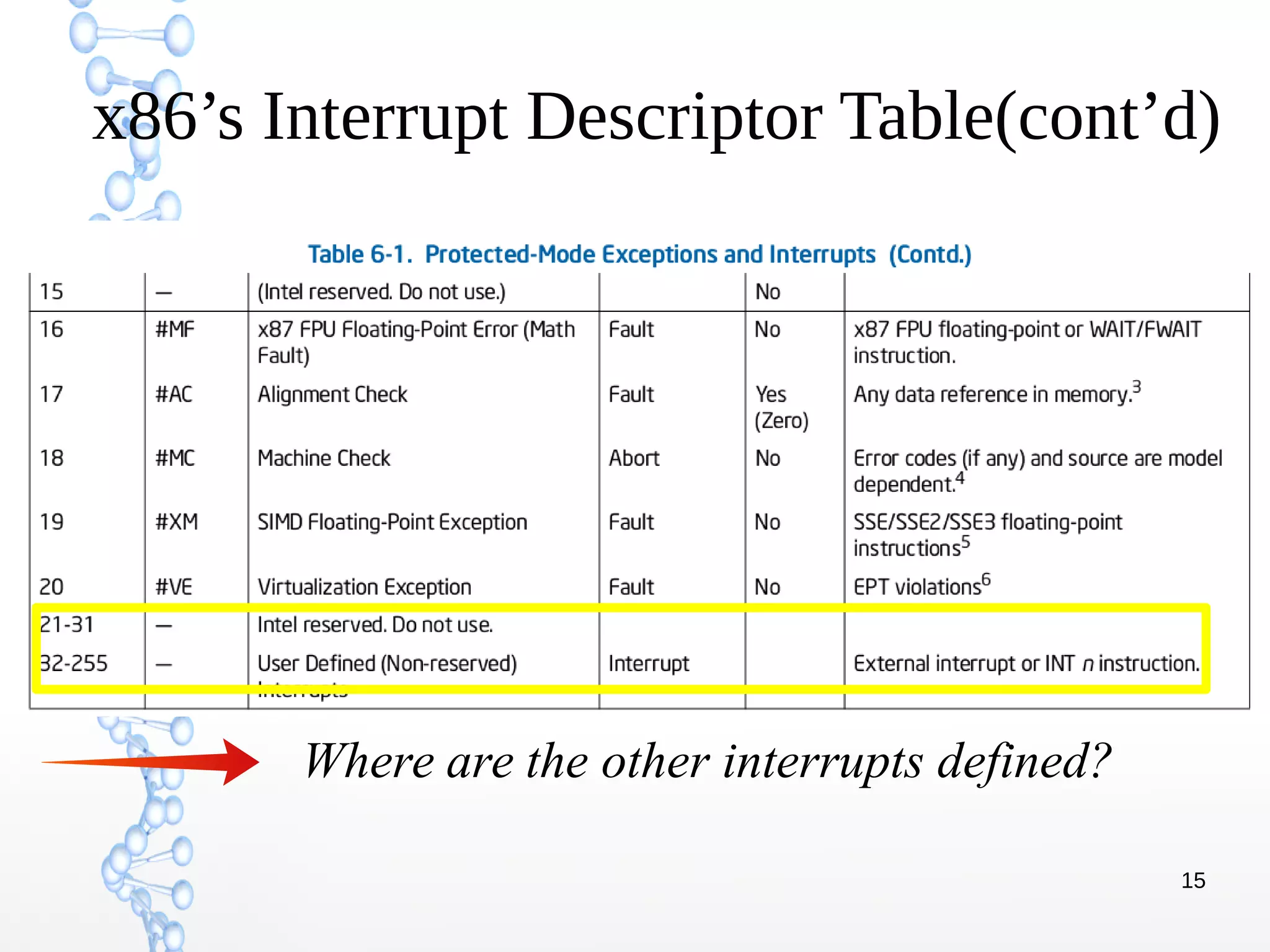

x86’s Interrupt Descriptor Table(cont’d)
Where are the other interrupts defined?

16. 16
List of interrupt from
: /usr/src/linux-4.9.6/arch/x86/include/asm/irq_vectors.h
In this file, We can see the other interrupt vector names and its
numbers

17. 17
Let’s follow set_intr_gate()
function call flow
trap_init()

18. 18

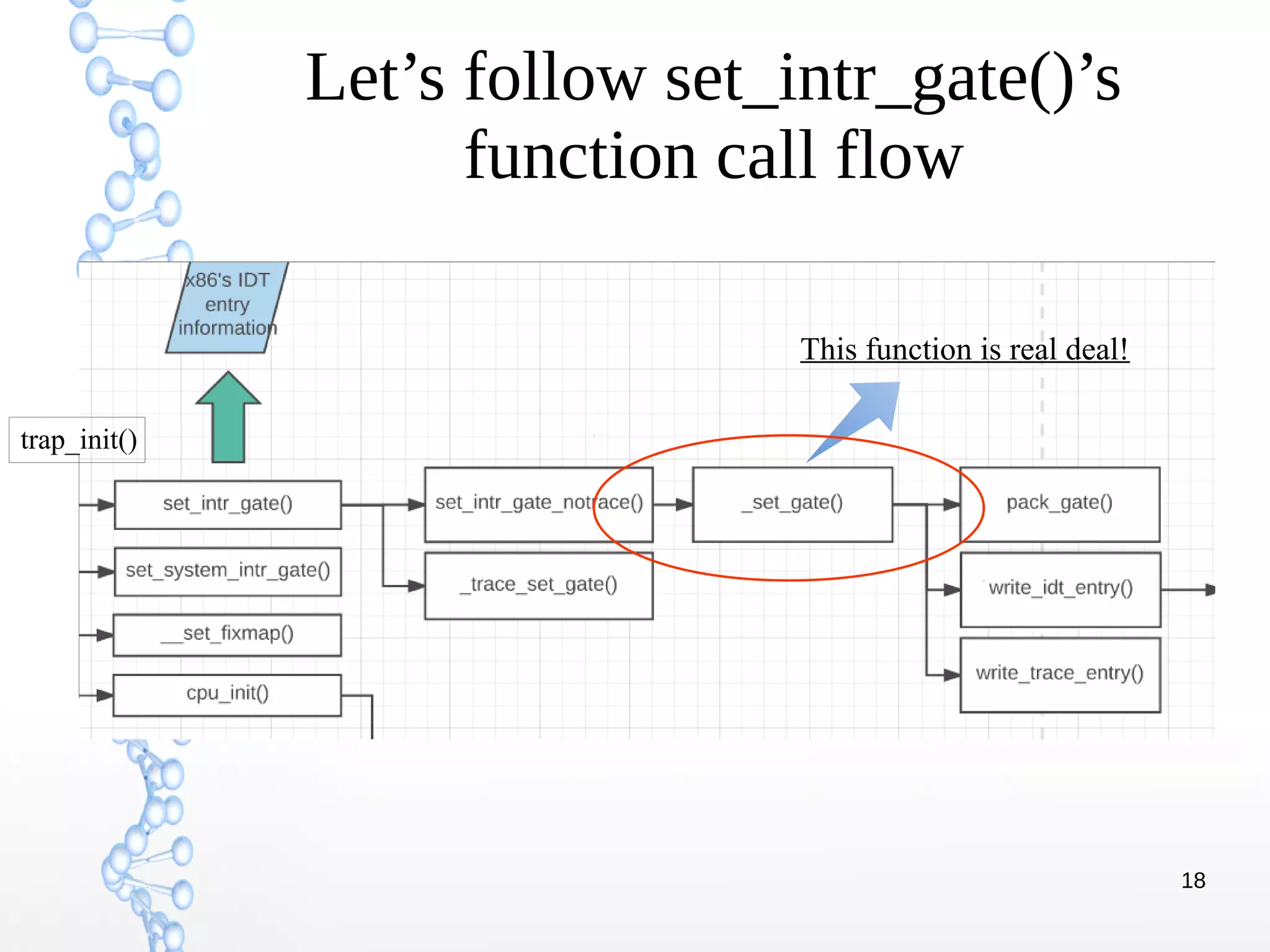

Let’s follow set_intr_gate()’s
function call flow
This function is real deal!
trap_init()

19. 19

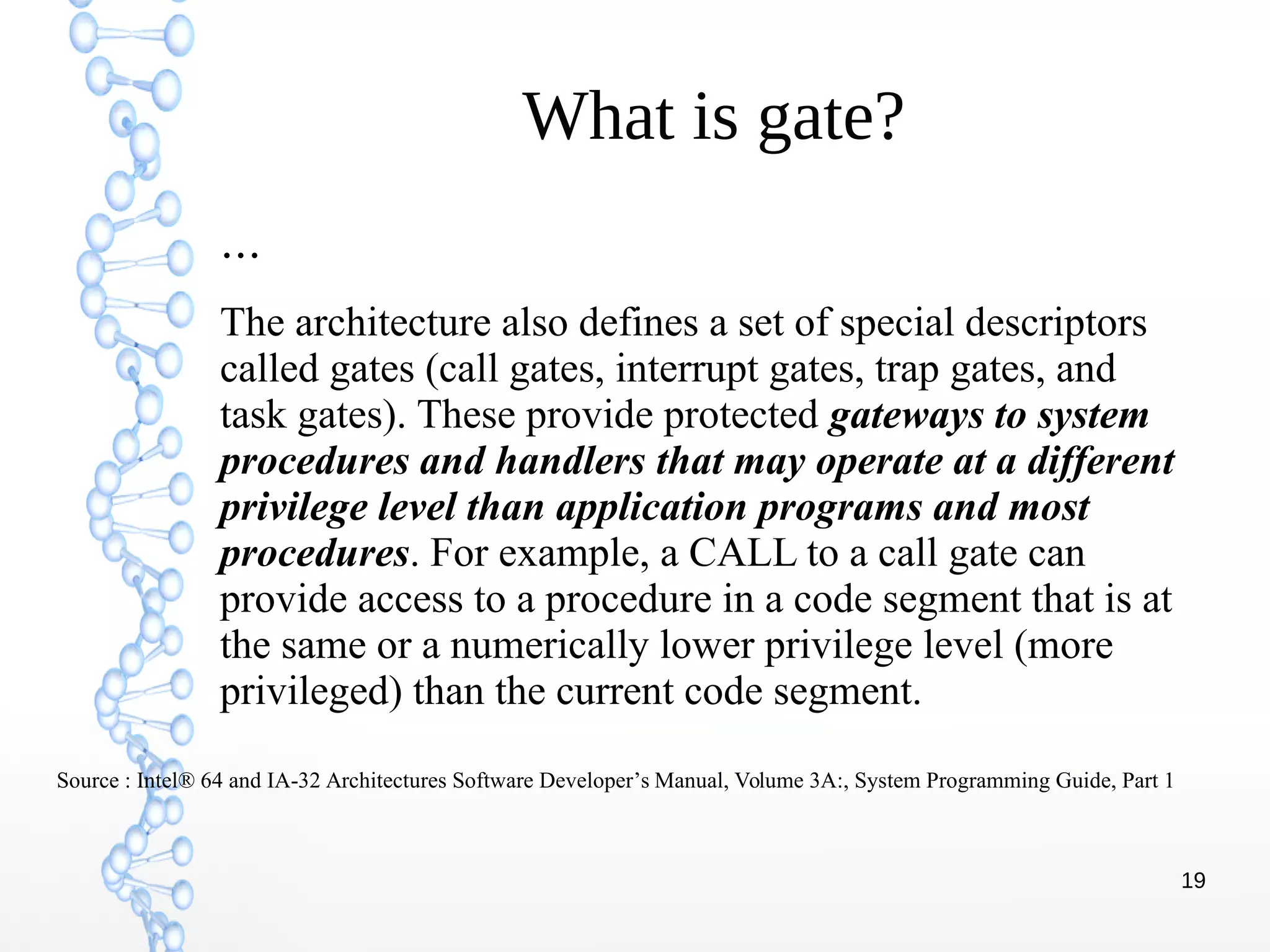

What is gate?
…
The architecture also defines a set of special descriptors
called gates (call gates, interrupt gates, trap gates, and
task gates). These provide protected gateways to system
procedures and handlers that may operate at a different
privilege level than application programs and most
procedures. For example, a CALL to a call gate can
provide access to a procedure in a code segment that is at
the same or a numerically lower privilege level (more
privileged) than the current code segment.
Source : Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 3A:, System Programming Guide, Part 1

20. 20
_set_gate() from
: /usr/src/linux-4.9.6/arch/x86/include/asm/desc.h
We need to know the meaning of following terms
“gate_desc”, “type”,“dpl”, “ist”, “seg” and “idt_table”

21. 21
gate_desc from
: /usr/src/linux-4.9.6/arch/x86/include/asm/desc_defs.h
Bit fields
gate_desc in 64 bits

22. 22
gate_struct64 and its connection to
x86’s feature
Source : Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 3A:, System Programming Guide, Part 1

23. 23

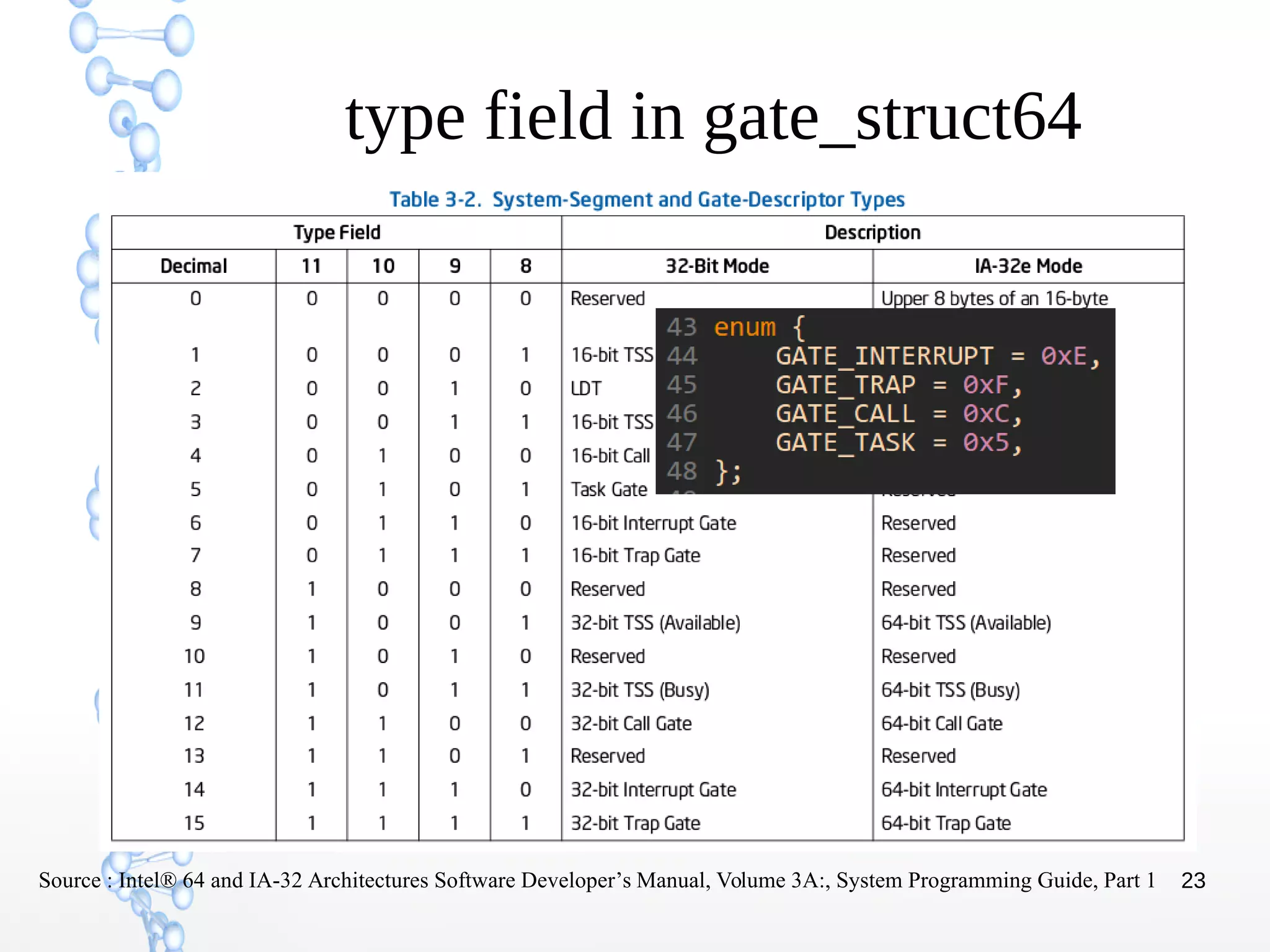

type field in gate_struct64
Source : Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 3A:, System Programming Guide, Part 1

24. 24

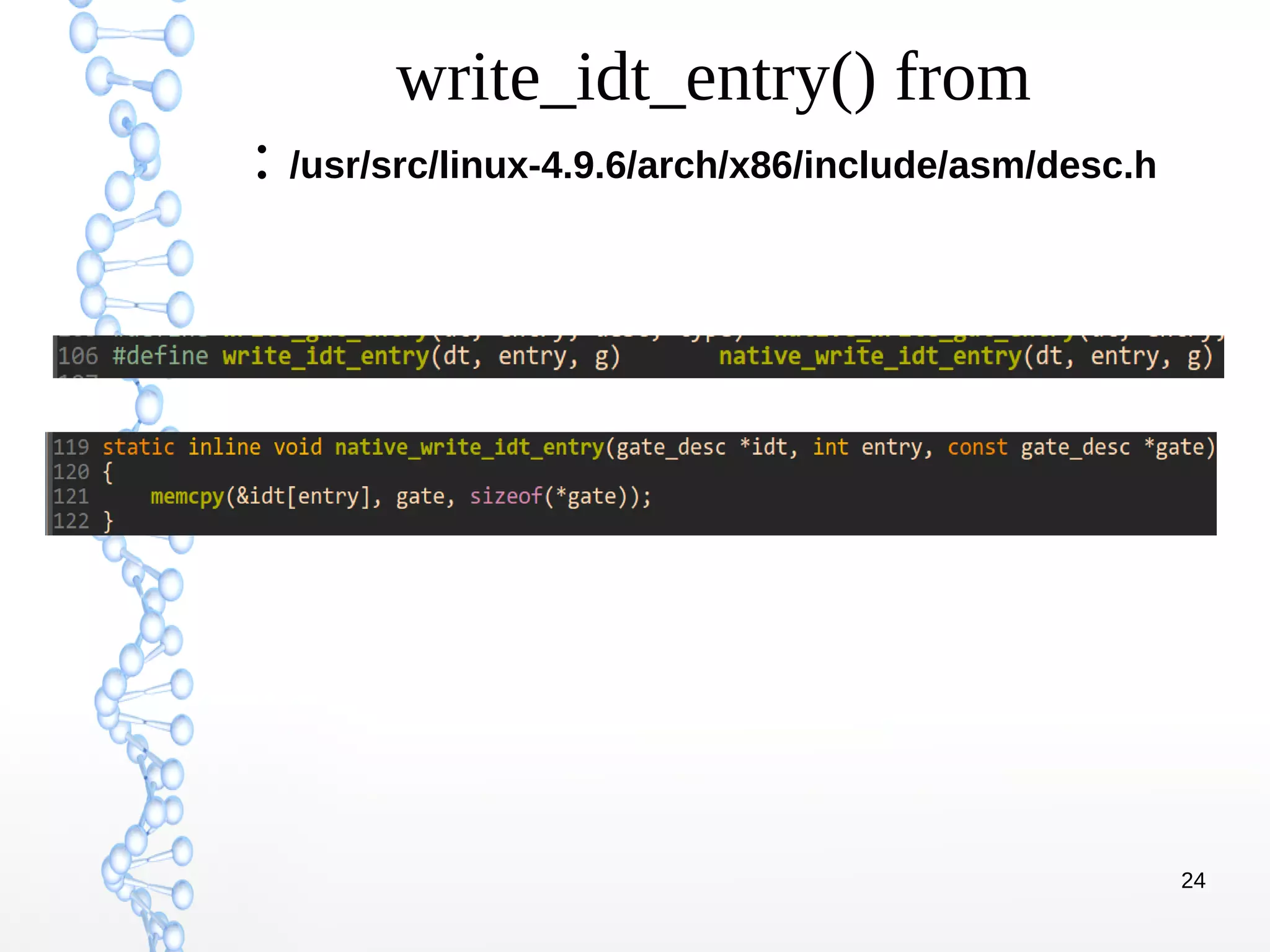

write_idt_entry() from
: /usr/src/linux-4.9.6/arch/x86/include/asm/desc.h

25. 25

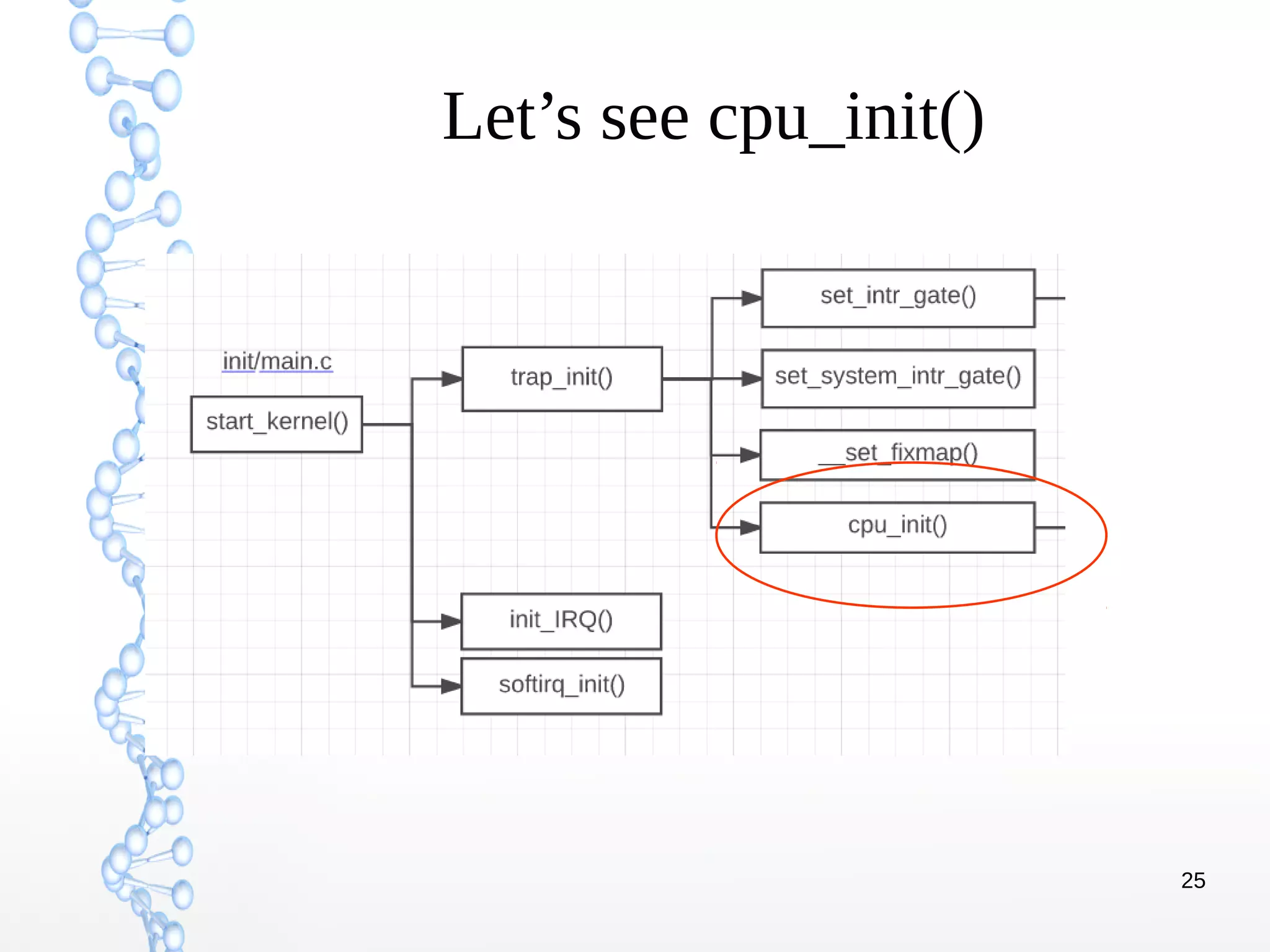

Let’s see cpu_init()

26. 26

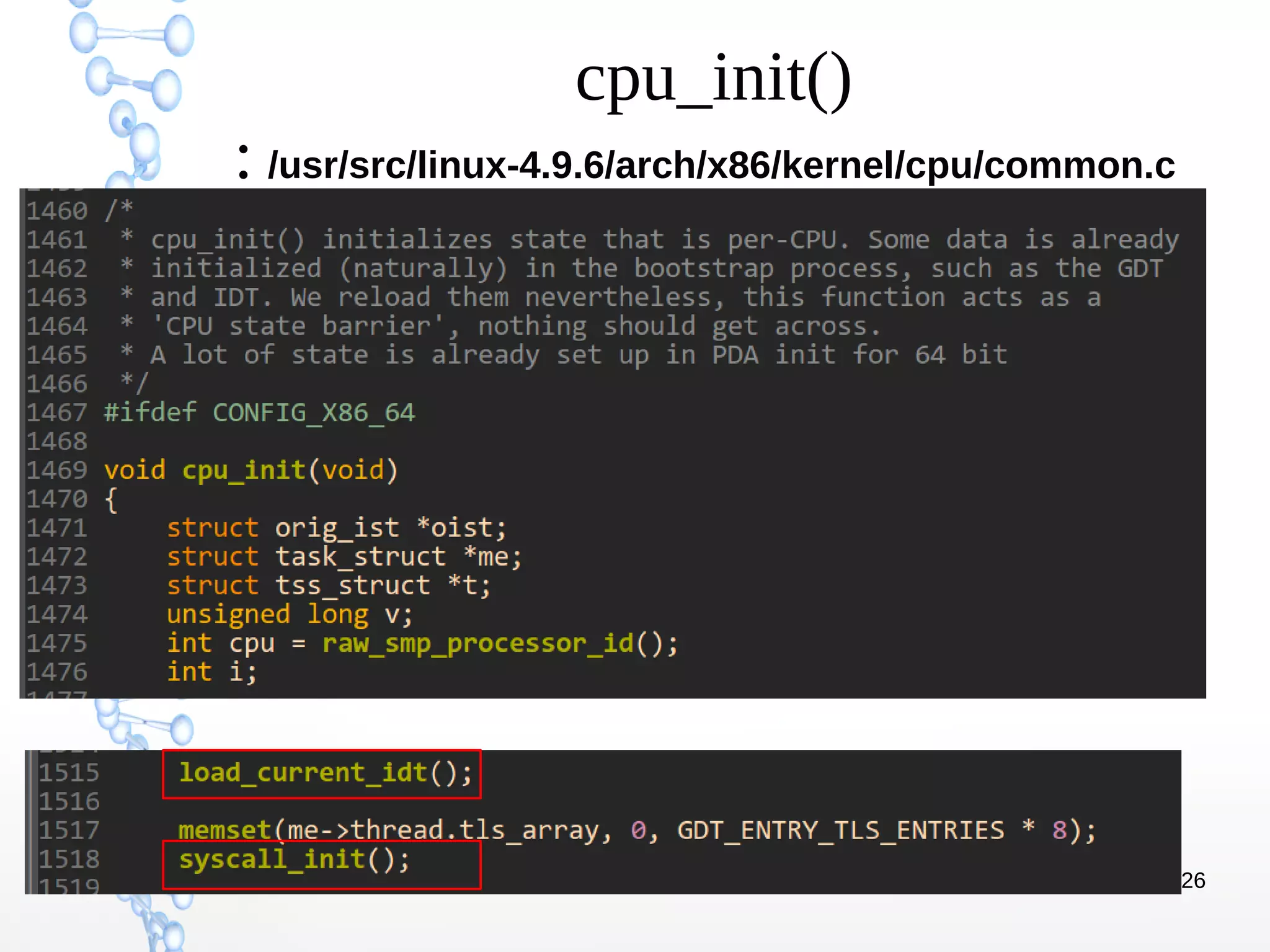

cpu_init()
: /usr/src/linux-4.9.6/arch/x86/kernel/cpu/common.c

27. 27
load_current_idt() function call
flow
Inline
assembly,
load idt
instruction

28. 28
GCC’s Inline Assembly for x86 in
Linux
Load idt nth
parameter
Input
operands :
Memory
constraints
C expression memory address
Source :
https://www.ibm.co
m/developerworks/li
brary/l-ia/
Source : https://www.ibm.com/developerworks/library/l-ia/

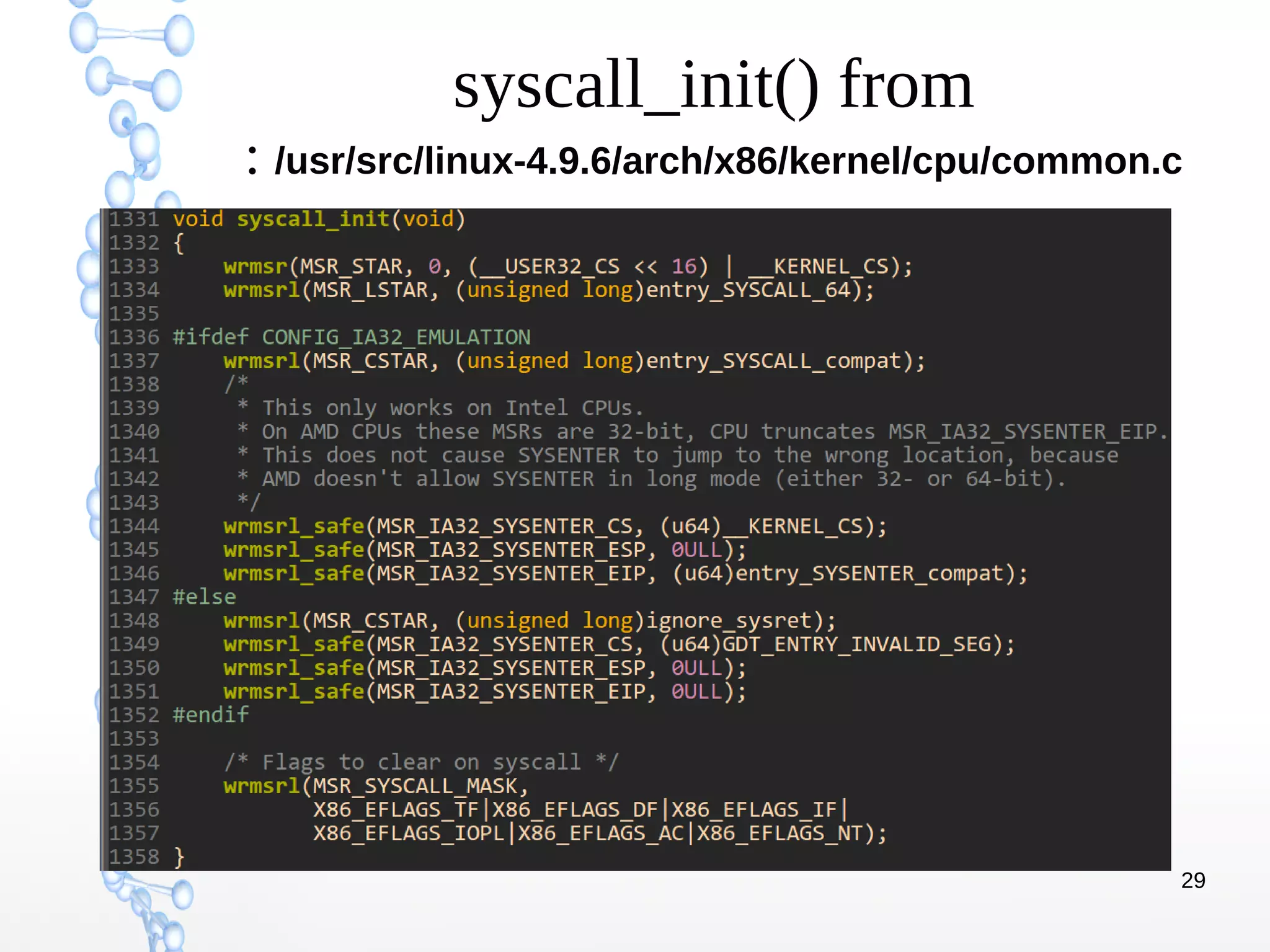

29. 29
syscall_init() from
: /usr/src/linux-4.9.6/arch/x86/kernel/cpu/common.c

30. 30

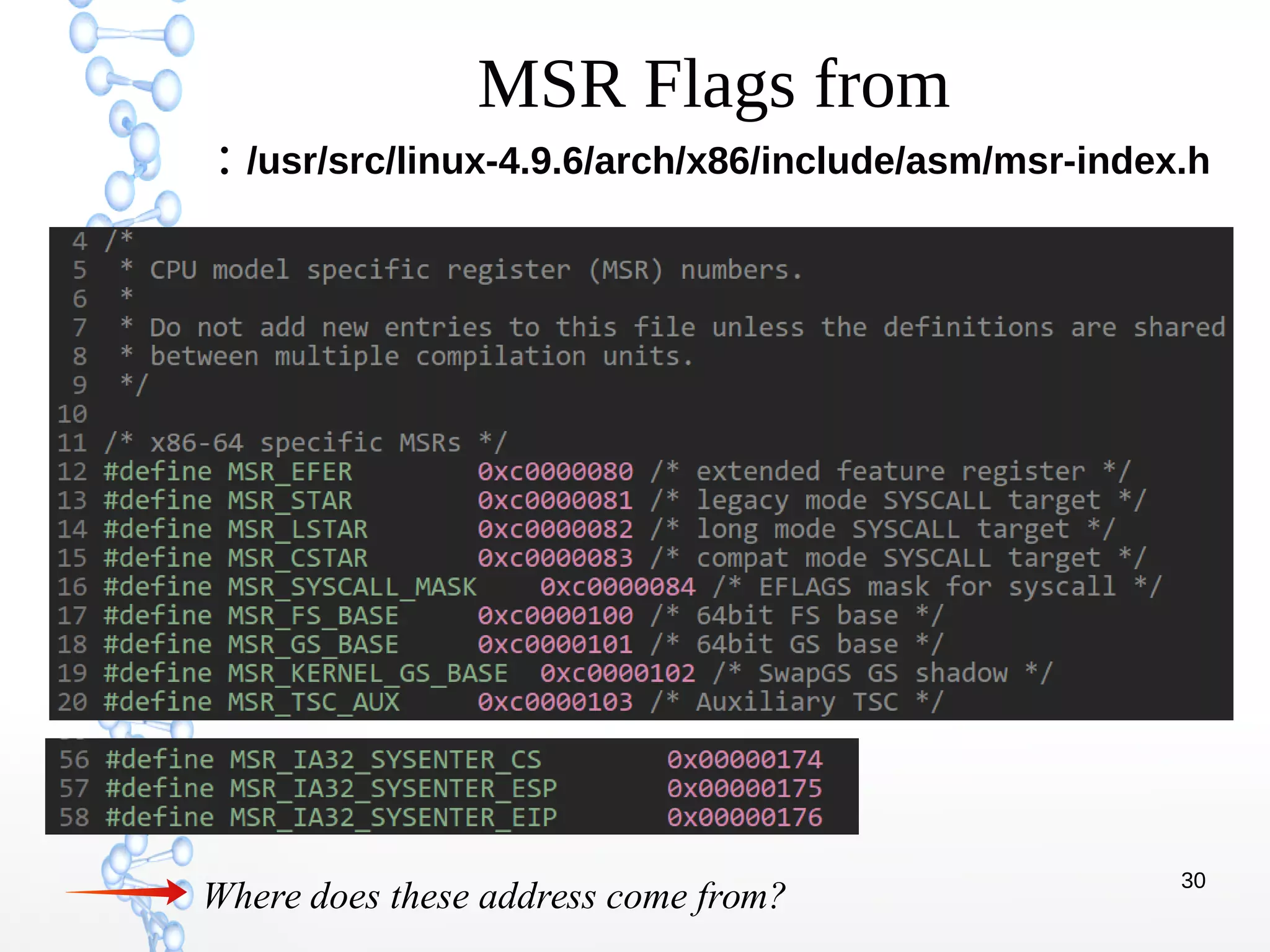

MSR Flags from
: /usr/src/linux-4.9.6/arch/x86/include/asm/msr-index.h
Where does these address come from?

31. 31

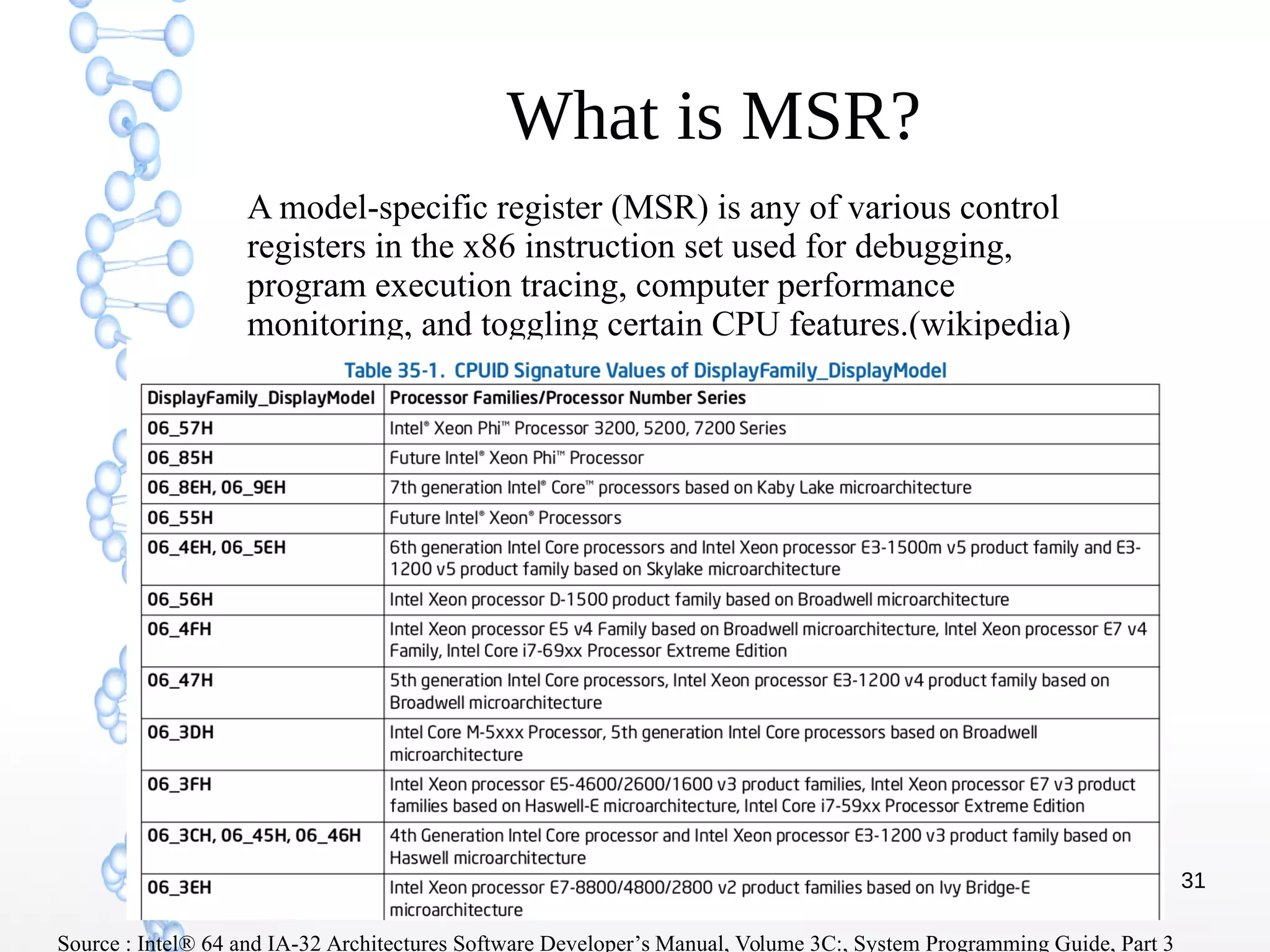

What is MSR?
A model-specific register (MSR) is any of various control
registers in the x86 instruction set used for debugging,
program execution tracing, computer performance
monitoring, and toggling certain CPU features.(wikipedia)
Model
Source : Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 3C:, System Programming Guide, Part 3

32. 32

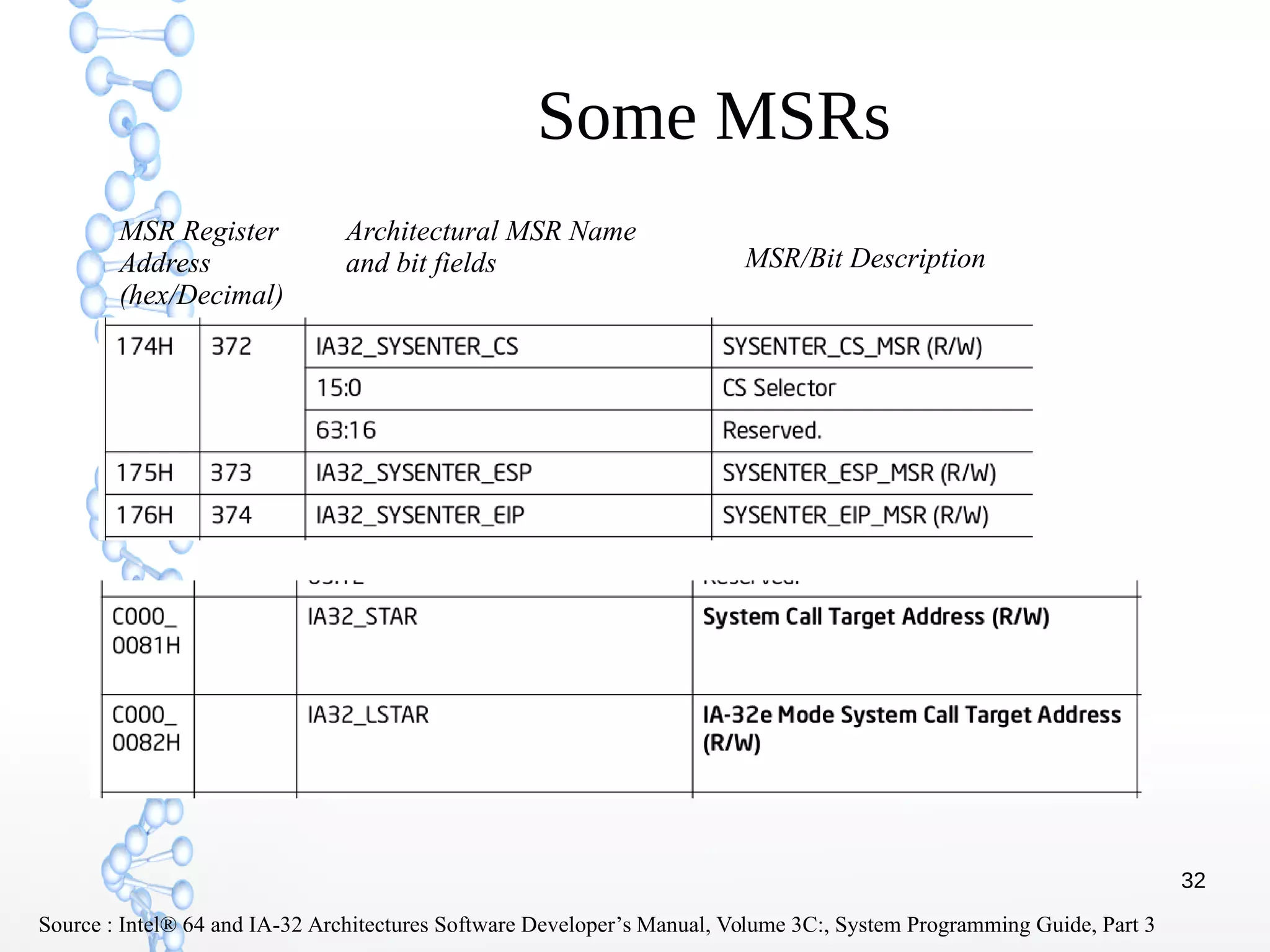

Some MSRs
Source : Intel® 64 and IA-32 Architectures Software Developer’s Manual, Volume 3C:, System Programming Guide, Part 3
MSR Register
Address
(hex/Decimal)
Architectural MSR Name
and bit fields MSR/Bit Description

33. 33
Register syscall entry to MSRs
: /usr/src/linux-4.9.6/arch/x86/kernel/cpu/common.c
segment
x86 -Assembly
procedure

34. 34

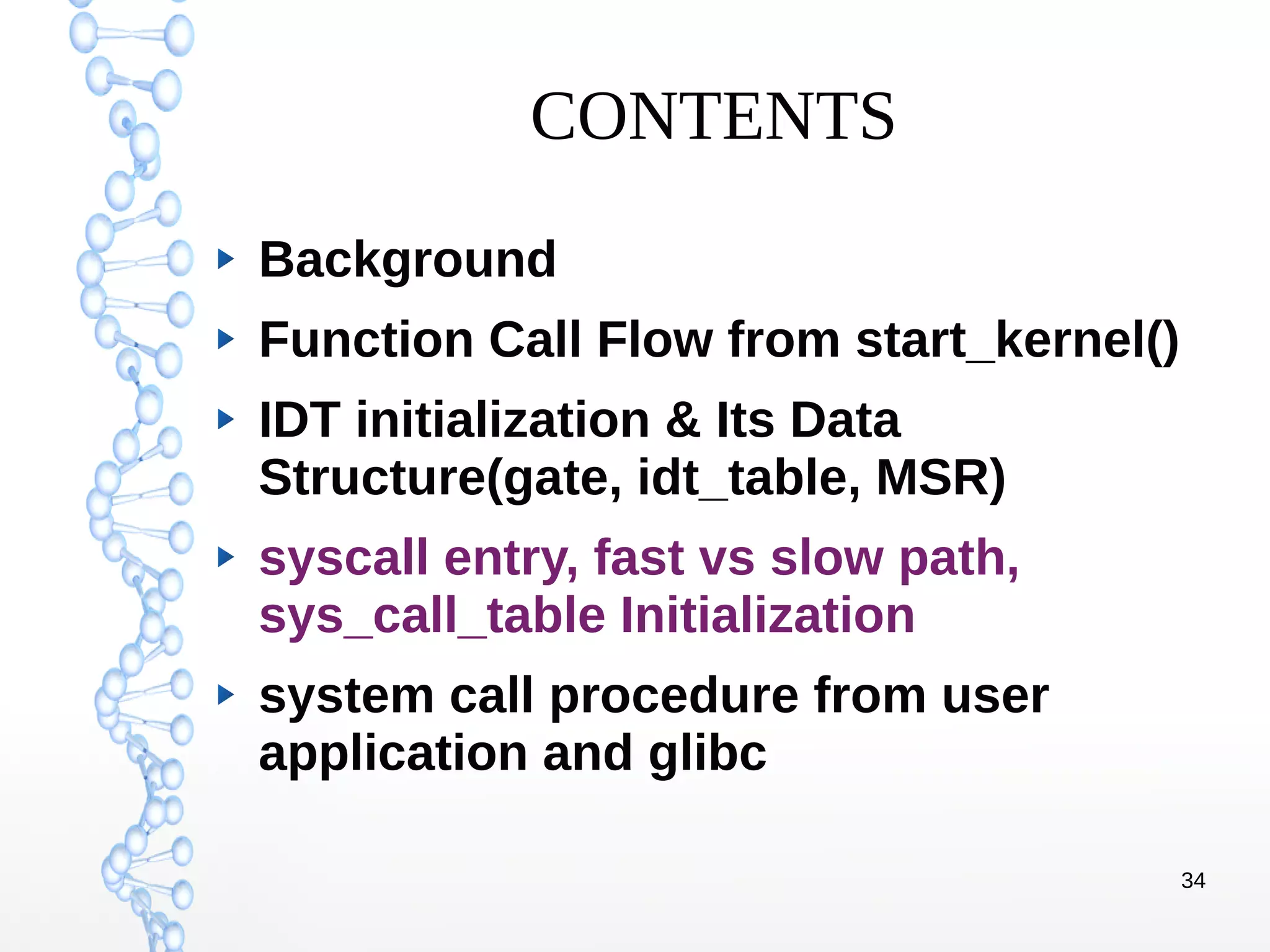

CONTENTS
Background
Function Call Flow from start_kernel()
IDT initialization & Its Data
Structure(gate, idt_table, MSR)
syscall entry, fast vs slow path,
sys_call_table Initialization
system call procedure from user
application and glibc

35. 35
syscall_init() has external
references
System.map is a symbol table which contains memory address, type and
its name. Here “t or T” means code(or text) section
Register entry address to MSR register

36. 36
More details on entry_SYSCALL_64
: /usr/src/linux-4.9.6/arch/x86/entry/entry_64.S
:

37. 37

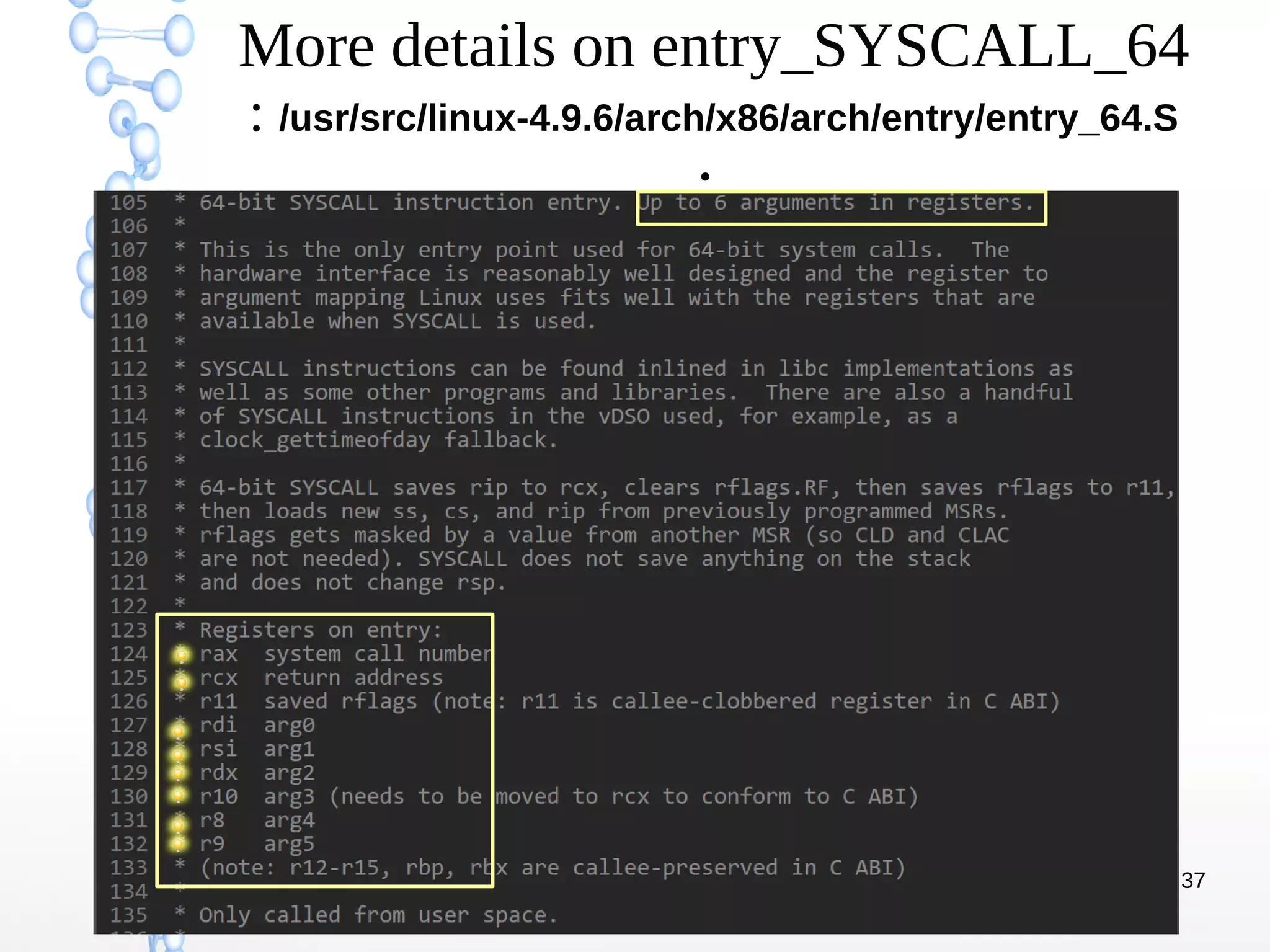

More details on entry_SYSCALL_64
: /usr/src/linux-4.9.6/arch/x86/arch/entry/entry_64.S
:

38. 38
System call has two types
: fast vs slow(in entry_64.S)

39. 39
System call has two types
: fast vs slow(in entry_64.S)
Invoke adequate system call

40. 40
Fast vs slow system call
A fast syscall is one that is known to be able to complete without
blocking or waiting. When the kernel encounters a fast syscall, it
knows it can execute the syscall immediately and keep the same
process scheduled (e.g. getuid(), getpid(), gettimeofday(), ...)
A slow syscall potentially requires waiting for another task to
complete, so the kernel must prepare to pause the calling process
and run another task.(e.g. sleep(), possibly read())
Source : http://unix.stackexchange.com/questions/14293/difference-between-slow-system-calls-and-fast-system-calls

41. 41
sys_call_table()
: array where system call are listed
sys_call_table is an array of function pointer named
sys_call_ptr_t which points to address of system call
function and it takes 6 arguments and returns long
type value

42. 42
Initializing sys_call_table
: /usr/src/linux-4.9.6/arch/x86/arch/syscall_64.c
Init doing nothing
function
Declaration of system call
functions
Assign system call function’s address to
sys_call_table array using nr as an index

43. 43

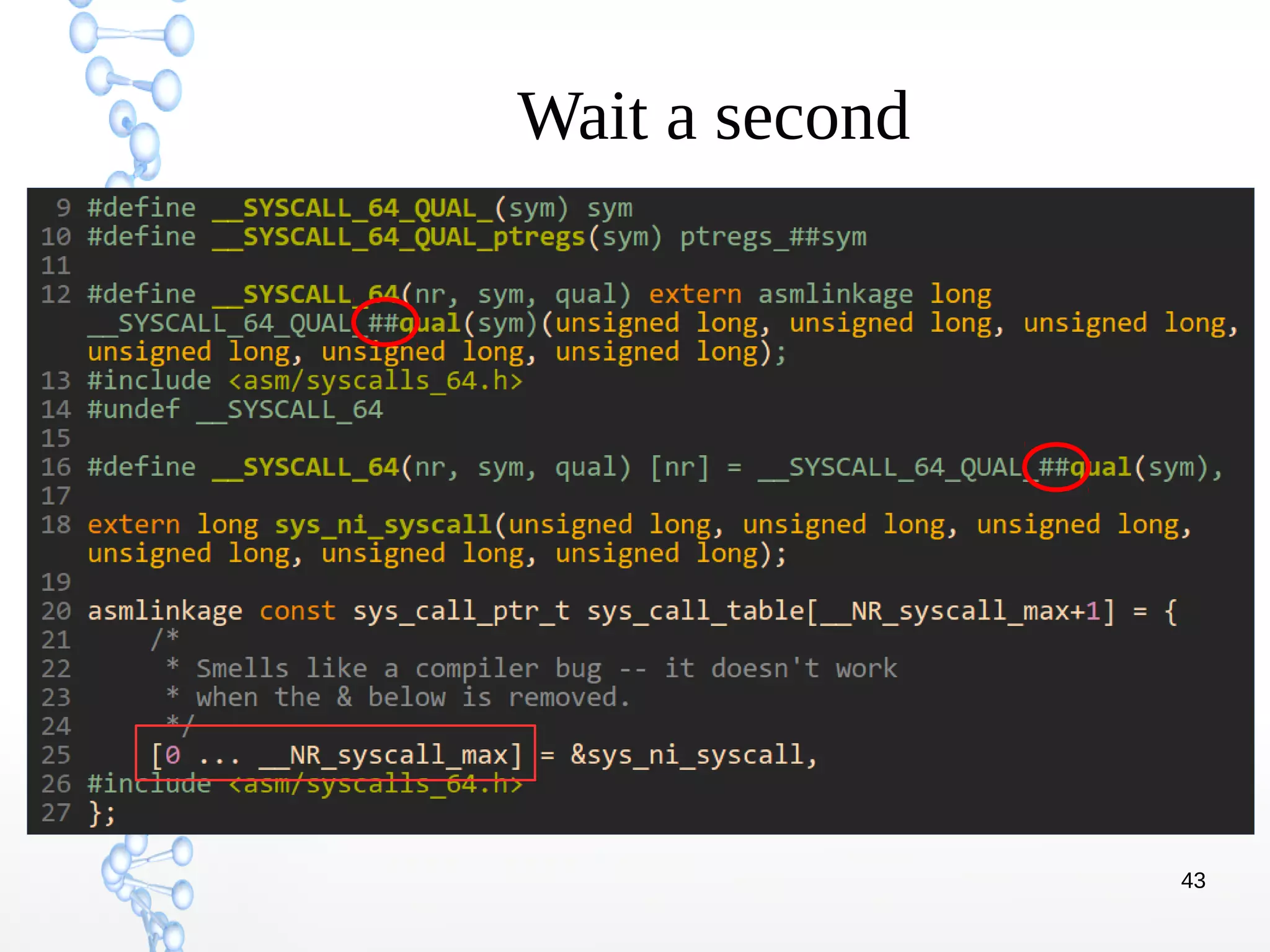

Wait a second

44. 44
Wait a second

45. 45

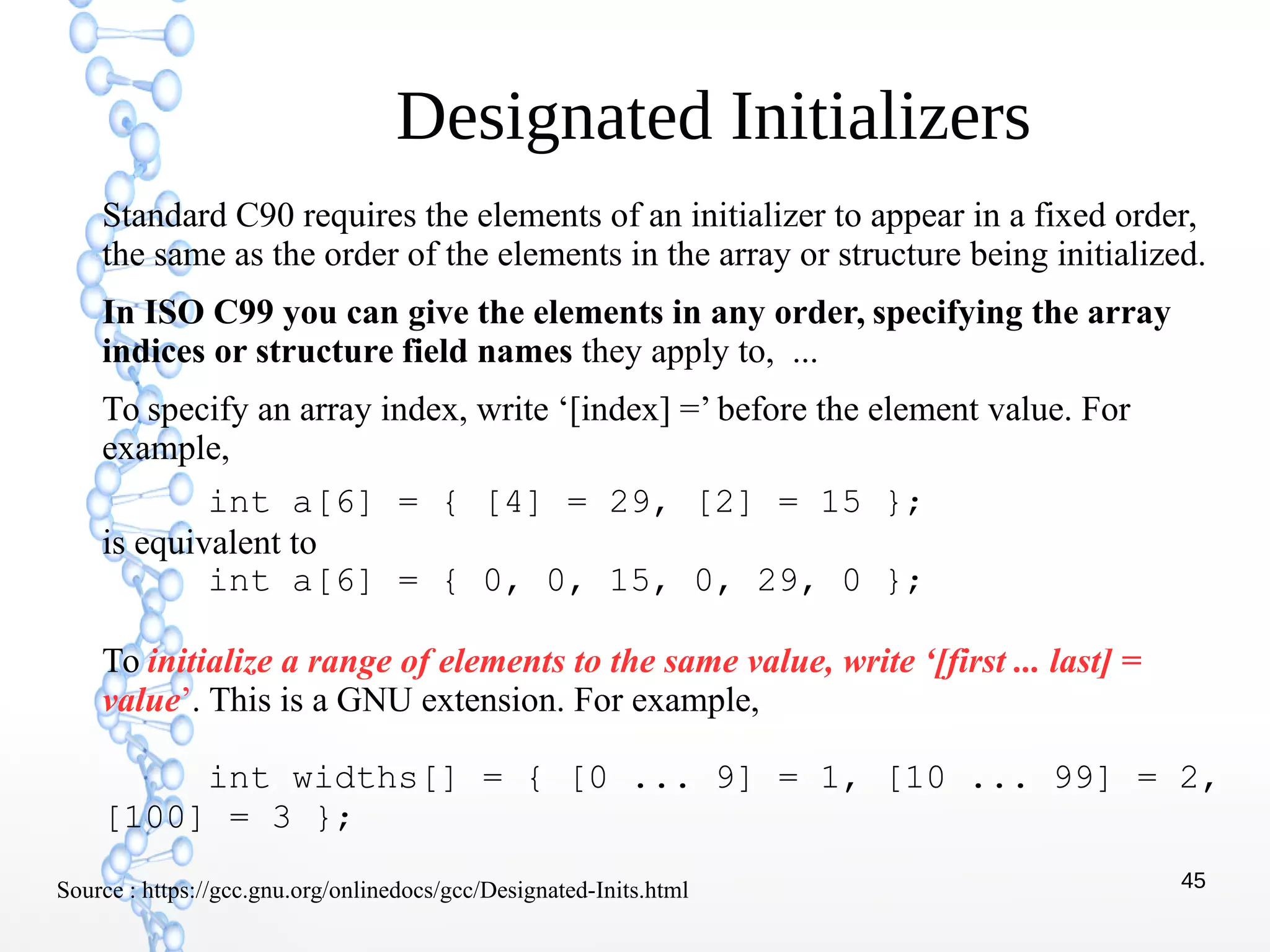

Designated Initializers
Standard C90 requires the elements of an initializer to appear in a fixed order,
the same as the order of the elements in the array or structure being initialized.
In ISO C99 you can give the elements in any order, specifying the array
indices or structure field names they apply to, ...
To specify an array index, write ‘[index] =’ before the element value. For
example,
int a[6] = { [4] = 29, [2] = 15 };
is equivalent to
int a[6] = { 0, 0, 15, 0, 29, 0 };
To initialize a range of elements to the same value, write ‘[first ... last] =
value’. This is a GNU extension. For example,
int widths[] = { [0 ... 9] = 1, [10 ... 99] = 2,
[100] = 3 };
Source : https://gcc.gnu.org/onlinedocs/gcc/Designated-Inits.html

46. 46

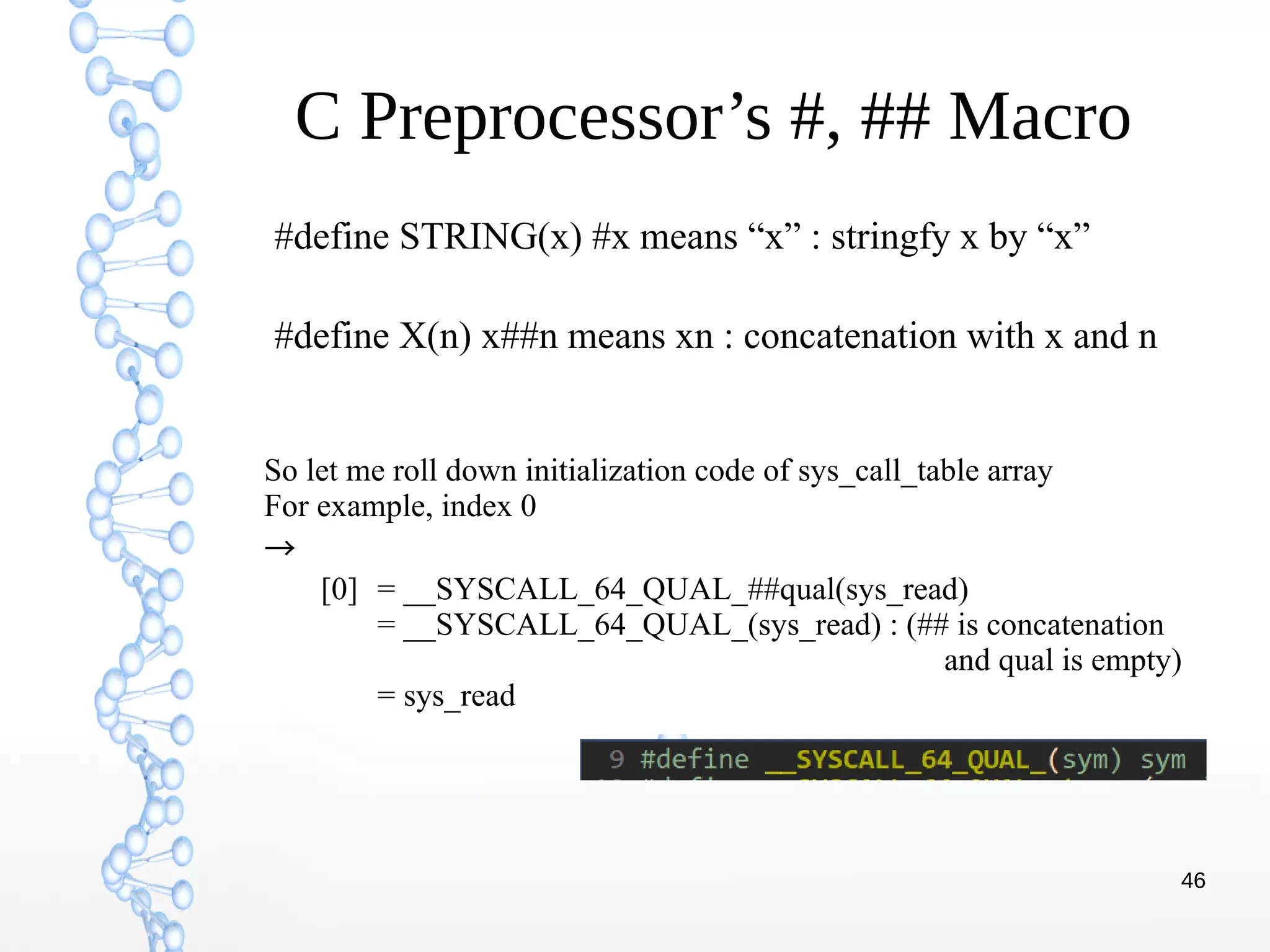

C Preprocessor’s #, ## Macro
#define STRING(x) #x means “x” : stringfy x by “x”
#define X(n) x##n means xn : concatenation with x and n
So let me roll down initialization code of sys_call_table array
For example, index 0
→
[0] = __SYSCALL_64_QUAL_##qual(sys_read)
= __SYSCALL_64_QUAL_(sys_read) : (## is concatenation
and qual is empty)
= sys_read

47. 47

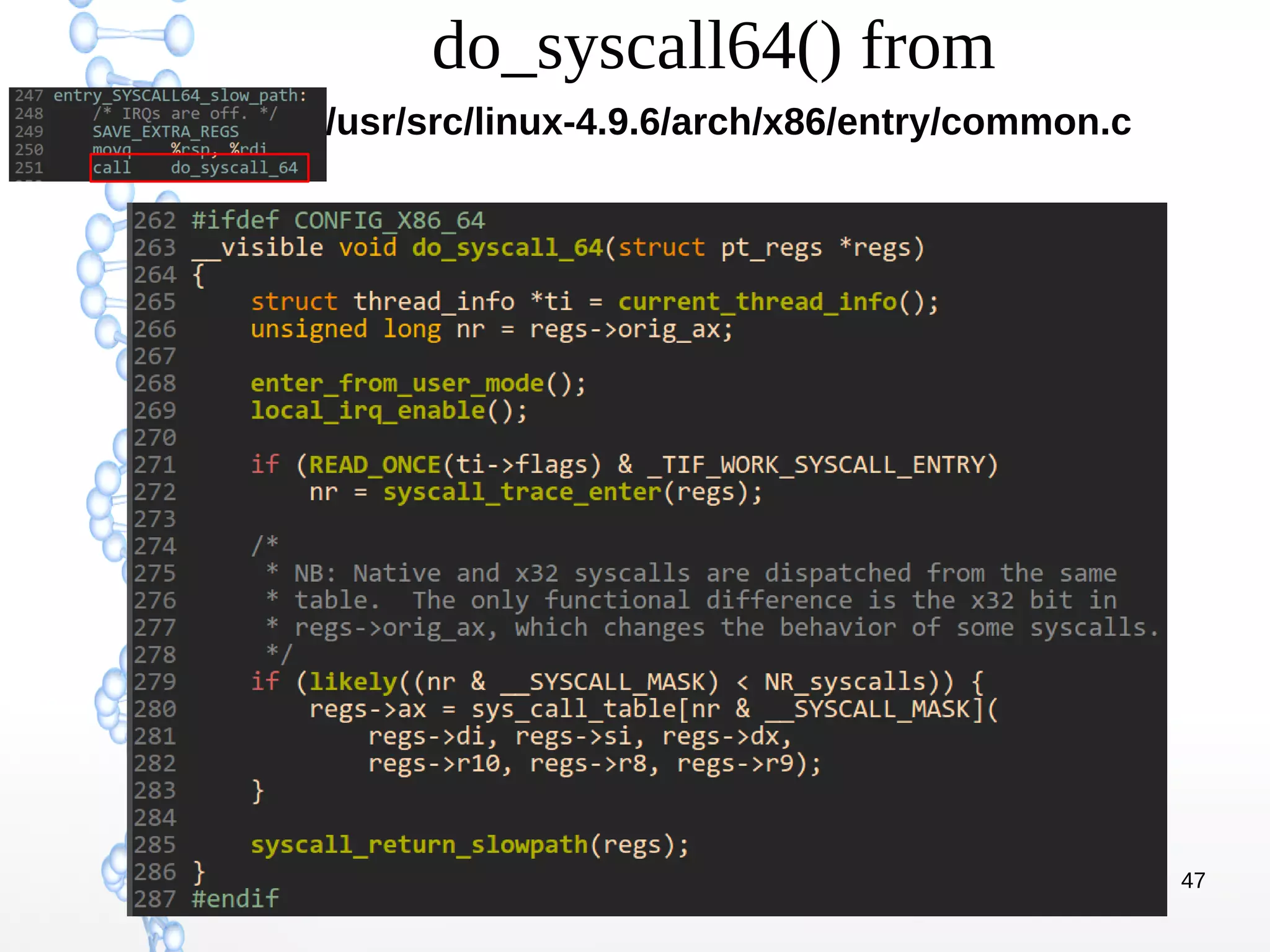

do_syscall64() from
: /usr/src/linux-4.9.6/arch/x86/entry/common.c

48. 48
do_syscall64() from
: /usr/src/linux-4.9.6/arch/x86/entry/common.c
It invokes
system call
with
arguments
548~0
These registers are
constructed from
entry_64.S

49. 49
do_syscall uses registers
constructed at entry_SYSCALL_64

50. 50
CONTENTS
Background
Function Call Flow from start_kernel()
IDT initialization & Its Data
Structure(gate, idt_table, MSR)
syscall entry, fast vs slow path,
sys_call_table Initialization
system call procedure from user
application and glibc

51. 51

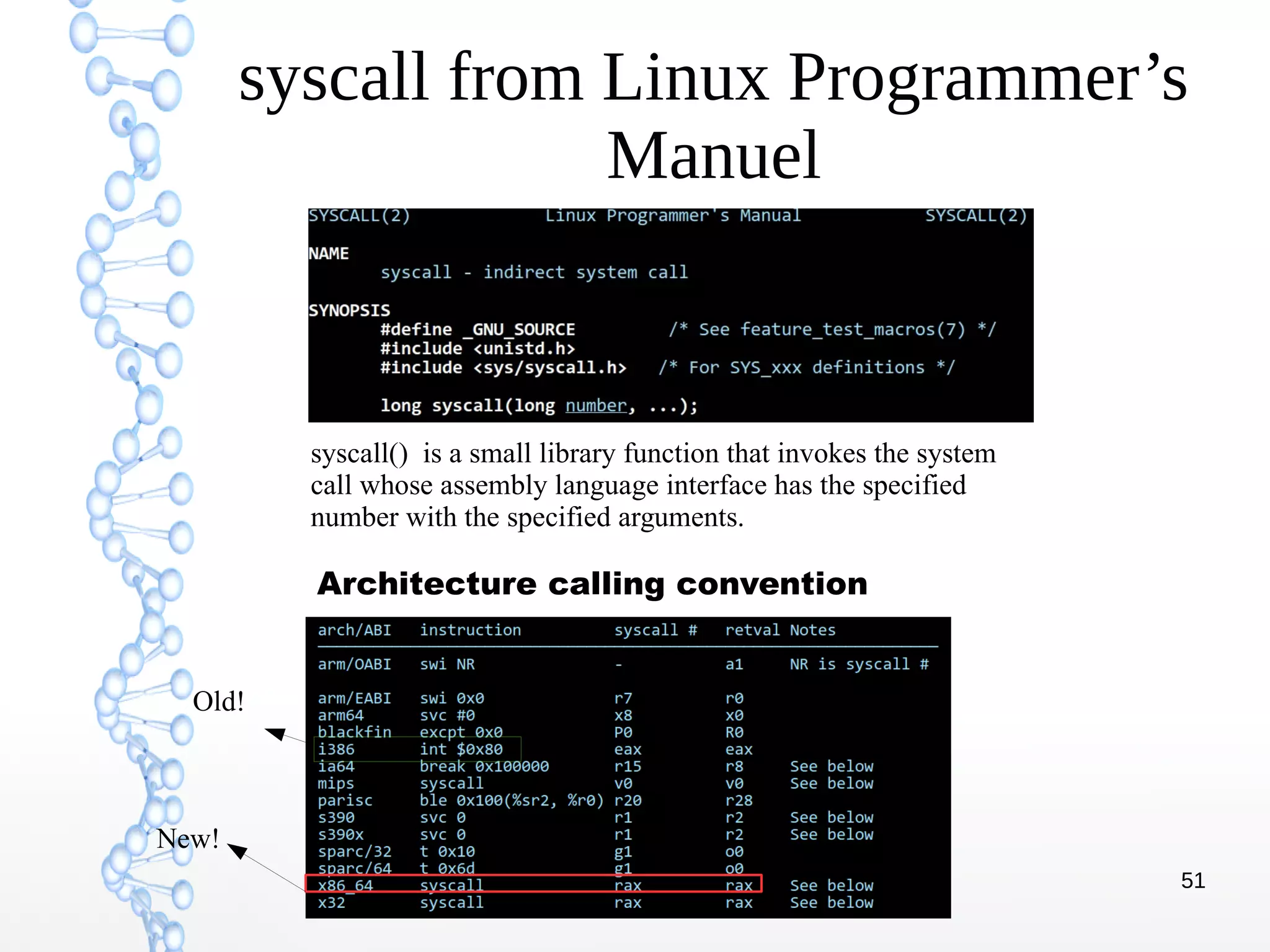

syscall from Linux Programmer’s
Manuel
syscall() is a small library function that invokes the system
call whose assembly language interface has the specified
number with the specified arguments.
Architecture calling convention
Old!
New!

52. 52

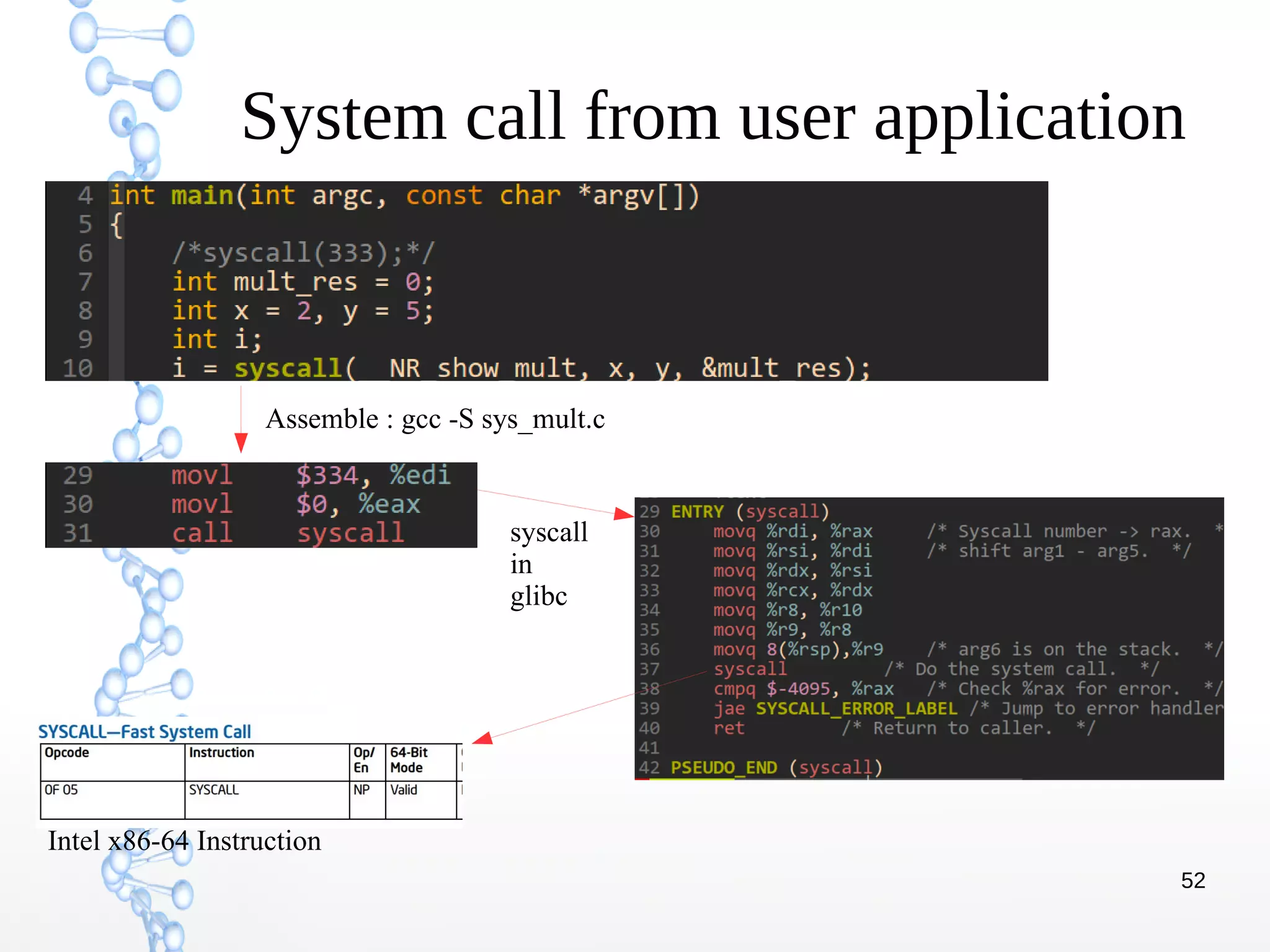

System call from user application
Assemble : gcc -S sys_mult.c
syscall
in
glibc
Intel x86-64 Instruction

53. 53

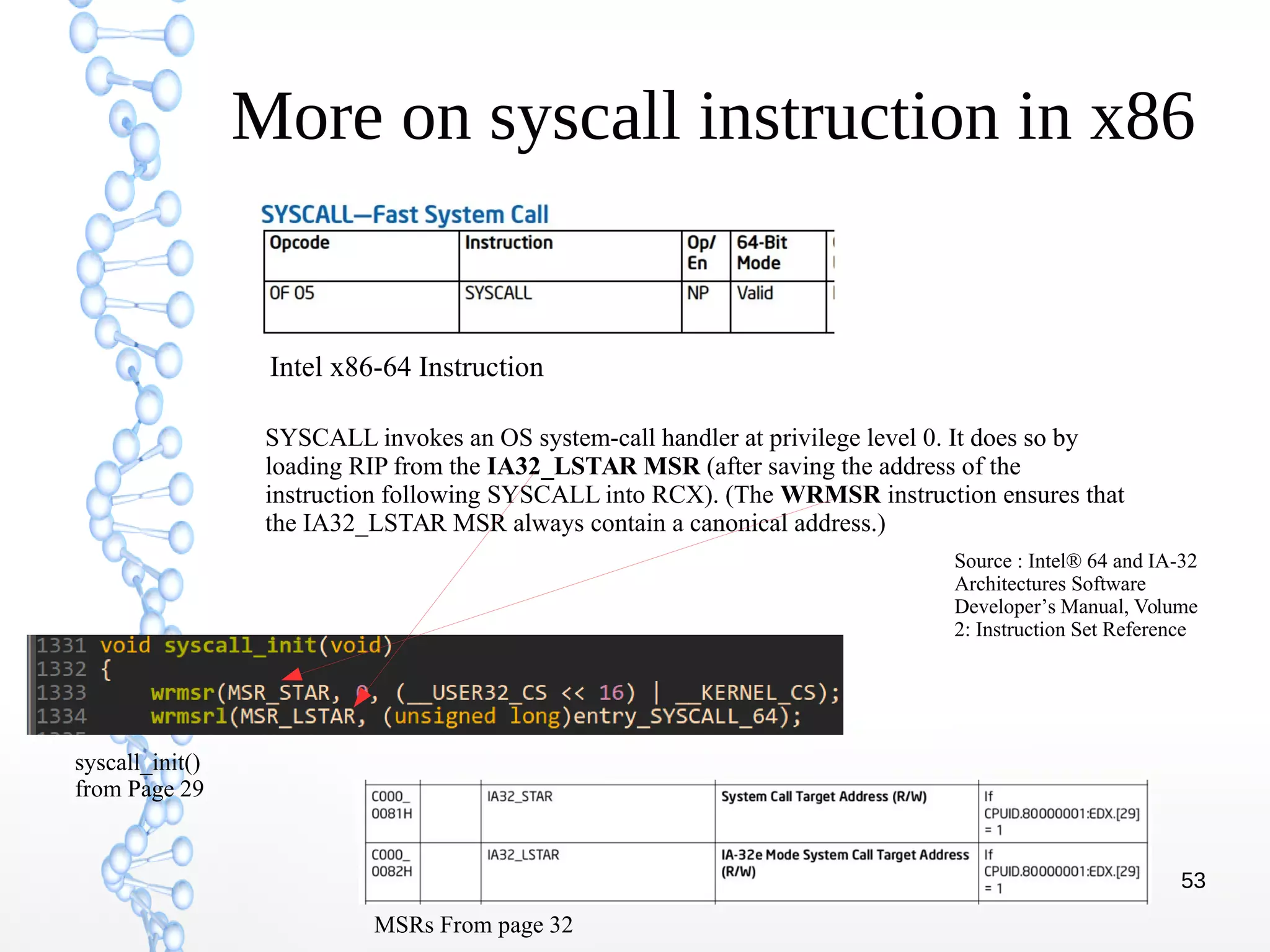

More on syscall instruction in x86
Intel x86-64 Instruction
SYSCALL invokes an OS system-call handler at privilege level 0. It does so by
loading RIP from the IA32_LSTAR MSR (after saving the address of the
instruction following SYSCALL into RCX). (The WRMSR instruction ensures that
the IA32_LSTAR MSR always contain a canonical address.)
syscall_init()
from Page 29
MSRs From page 32
Source : Intel® 64 and IA-32
Architectures Software
Developer’s Manual, Volume
2: Instruction Set Reference

54. 54

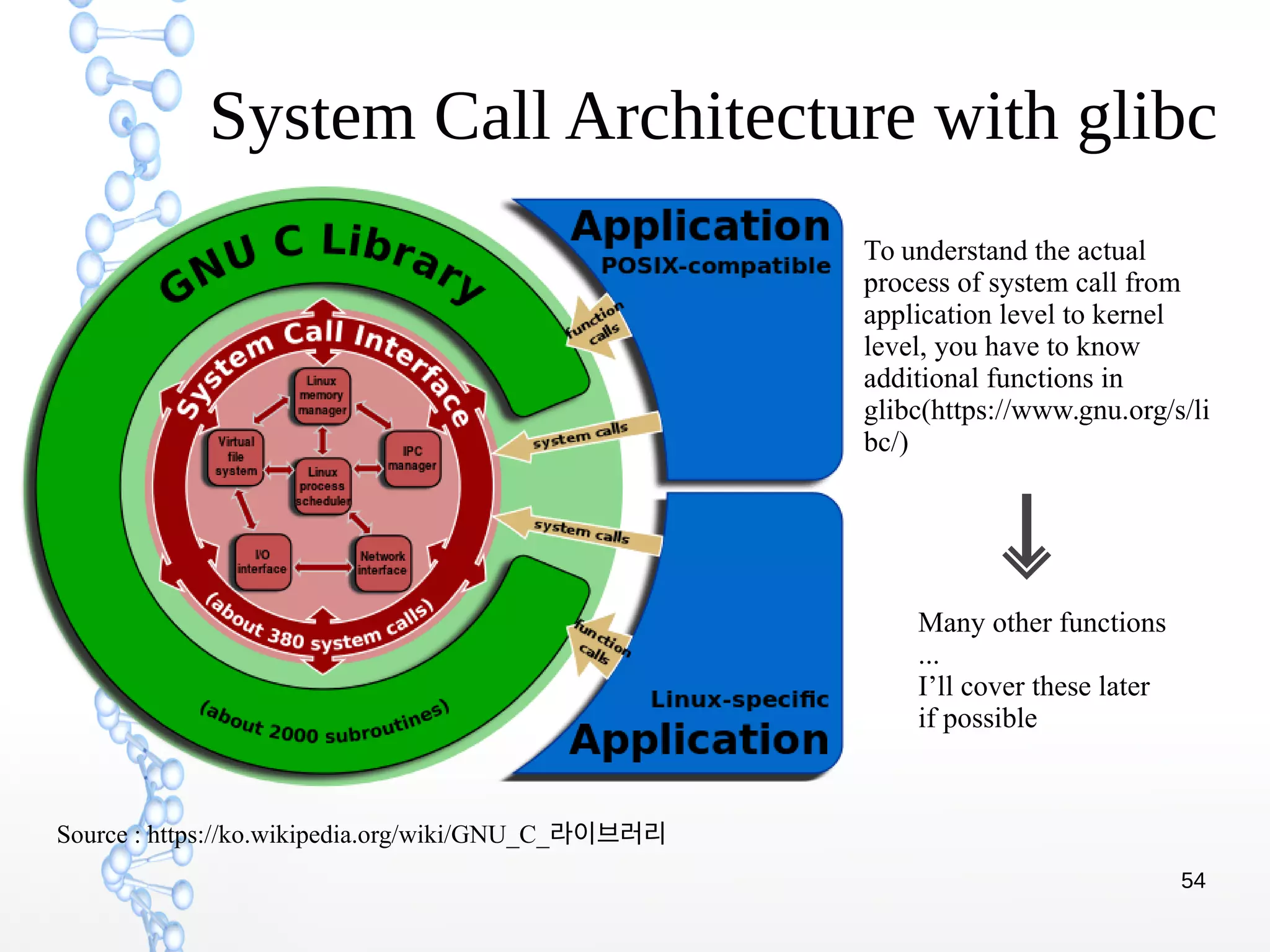

System Call Architecture with glibc
Source : https://ko.wikipedia.org/wiki/GNU_C_라이브러리
To understand the actual
process of system call from
application level to kernel
level, you have to know
additional functions in
glibc(https://www.gnu.org/s/li
bc/)
Many other functions
...
I’ll cover these later
if possible

55. 55
Q & A
