GIC manufactures Time Switches in both analog and digital versions that perform the function of controlling the opening and closing of electrical circuits based on a predetermined schedule.
(SANA) Call Girls Landewadi ( 7001035870 ) HI-Fi Pune Escorts Service
Time switch
1. • Modular construction
• Inbuilt over-ride facility
• High switching capacity
• Tamper proof sealing
• Analog version
• Daily/Weekly programming

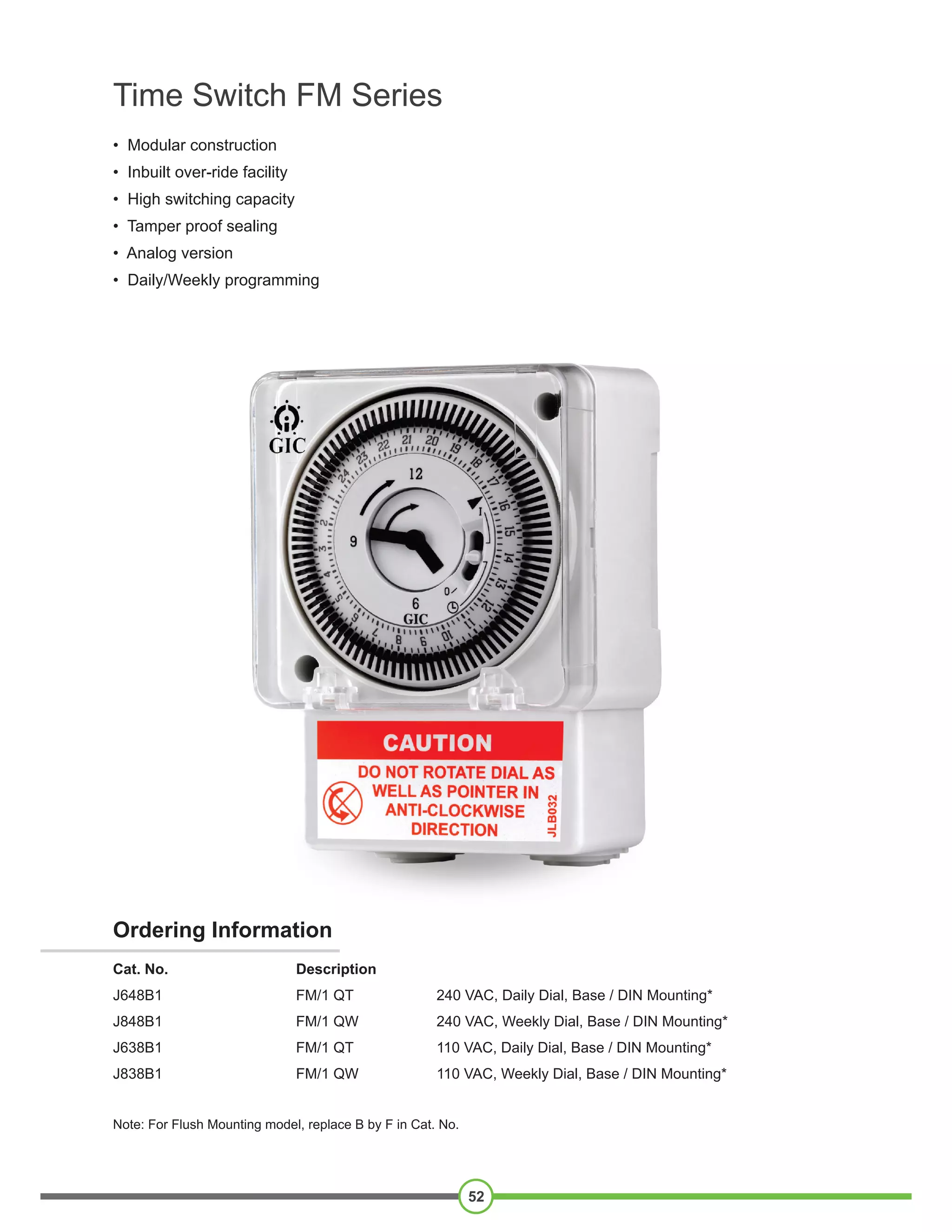

Time Switch FM Series
52
Cat. No. Description
J648B1 FM/1 QT 240 VAC, Daily Dial, Base / DIN Mounting*
J848B1 FM/1 QW 240 VAC, Weekly Dial, Base / DIN Mounting*
J638B1 FM/1 QT 110 VAC, Daily Dial, Base / DIN Mounting*
J838B1 FM/1 QW 110 VAC, Weekly Dial, Base / DIN Mounting*
Note: For Flush Mounting model, replace B by F in Cat. No.
Ordering Information
2. Cat. No. J648B1
*Products available for sale only in selected Countries
Incandescent Lamp 1350 W
Supply Voltage
Frequency
Power Consumption (Max.)
Relay Output
Accuracy
240 VAC
50/60 Hz
2 VA
± 1.5 s/day at 20°C
1 C/O
Contact
Rating
Resistive
Inductive (cosø = 0.6)
16A @ 250 VAC, 0.25A @ 220VDC
8A @ 250 VAC, 0.1A @ 220 VDC
Parameters
Shortest Switching Time
Weekly
Daily 15min
2h
F
TIME SETTING:
PROGRAMMING:
Rotate the switching Dial in clockwise direction until the
current time (day / time incase of weekly model) is
almost opposite to the marking arrow F. For fine
adjustment rotate the minute hand in the clockwise
direction until the clock shows the current time.
Required Switch ON time is set on the Switching Dial by
radially pulling outwards the corresponding black
segments. Each segment on daily dial corresponds to
15 mins. & on weekly Dial corresponds to 2 hours.
CONNECTION DIAGRAM
Power reserve
Memory locations
Storage Temperature
Manual Over-ride
Mounting
150h
N. A.
- 20°C to + 55°C
Provided
Flush, Base / DIN rail
Weight (unpacked) 185 g
MOUNTING DIMENSION (mm)
66.0
72.0 SQ
102.5
52.0
39.5
72.0
MAX. 4.5
66.00
30.95
SCREW14.70
34.50
20.50
Base Mounting Flush Mounting
TERMINAL TORQUE & CAPACITY
Permanent
'ON'
I
As per
Programme
Permanent
'OFF'
0
1 2 3
LOAD
NO NC
4 5
N
P
(Time Switch)
TS
53
Time Switch FM Series
Ø 3.5 mm....4.0mm
AWG
0.60 N.m (6 Lb.in)
2
1 x 4.0 mm Solid/Stranded Wire
1 x 20 to 10
