1. THORACIC CAGE

2.  COMPONENTS OF THORACIC CAGE:
 Sternum
 Manubrium, Body (Gladiolus), Xiphoid process
 Ribs
 7 True Ribs
 5 False Ribs (including 2 floating ribs)
 Clavicle Pectoral
 Scapula girdle
 12 Thoracic Vertebrae (T1 - T12)

4. Thoracic Cage
 It forms a conical enclosure for the lungs and heart
and provides attachment for the pectoral girdle and
upper limb.
 It has a broad base and a narrower superior apex; it
is rhythmically expanded by the respiratory muscles
to create a vacuum that draws air into the lungs.
 The inferior border of the thoracic cage is formed by
a downward arc of the ribs called the costal margin.
 The ribs protect the thoracic organs and spleen, most
of the liver, and to some extent the kidneys.

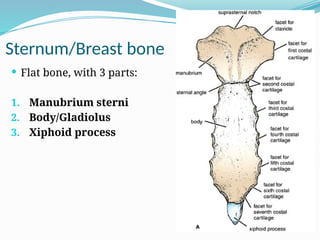

5. Sternum/Breast bone
 Flat bone, with 3 parts:
1. Manubrium sterni
2. Body/Gladiolus
3. Xiphoid process

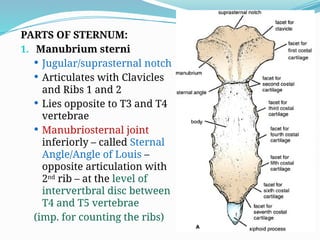

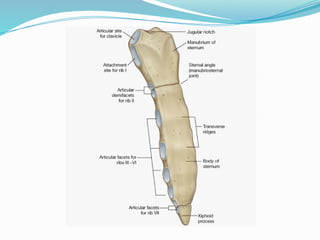

6. PARTS OF STERNUM:
1. Manubrium sterni
 Jugular/suprasternal notch
 Articulates with Clavicles
and Ribs 1 and 2
 Lies opposite to T3 and T4
vertebrae
 Manubriosternal joint
inferiorly – called Sternal
Angle/Angle of Louis –
opposite articulation with
2nd
rib – at the level of
intervertbral disc between
T4 and T5 vertebrae
(imp. for counting the ribs)

7. PARTS OF STERNUM:
2. Body/Gladiolus
 Articulates with Ribs 2-7
 Xiphisternal joint
inferiorly- opposite to T9
vertebra
3. Xiphoid process
 Cartilaginous - calcifies
through time
 Allows attachment of
muscles
 Tip of xiphoid – at level of
T10

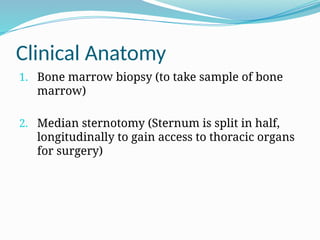

9. Clinical Anatomy
1. Bone marrow biopsy (to take sample of bone
marrow)
2. Median sternotomy (Sternum is split in half,
longitudinally to gain access to thoracic organs
for surgery)

10. Sternocostal joints

11. Ribs
 Typical Ribs 2-7
 Head
 Neck
 Tubercle
 Angle
 Shaft
 Subcostal groove
 Atypical Ribs 1, 8 -10
• Rib 1 - short, flat and
supports Subclavian
vessels
• Ribs 1, 10-12 -
articulate with only 1
vertebra
• Ribs 11 and 12 –
“floating ribs” – do not
articulate with
Transverse processes of
Vertebrae or Sternum

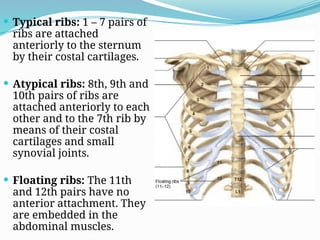

12.  Typical ribs: 1 – 7 pairs of
ribs are attached
anteriorly to the sternum
by their costal cartilages.
 Atypical ribs: 8th, 9th and
10th pairs of ribs are
attached anteriorly to each
other and to the 7th rib by
means of their costal
cartilages and small
synovial joints.
 Floating ribs: The 11th
and 12th pairs have no
anterior attachment. They
are embedded in the
abdominal muscles.

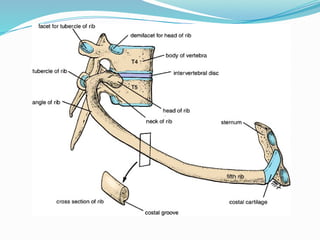

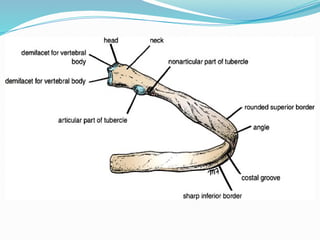

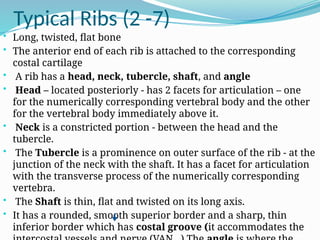

13. Typical Ribs (2 -7)
• Long, twisted, flat bone
• The anterior end of each rib is attached to the corresponding
costal cartilage
• A rib has a head, neck, tubercle, shaft, and angle
• Head – located posteriorly - has 2 facets for articulation – one
for the numerically corresponding vertebral body and the other
for the vertebral body immediately above it.
• Neck is a constricted portion - between the head and the
tubercle.
• The Tubercle is a prominence on outer surface of the rib - at the
junction of the neck with the shaft. It has a facet for articulation
with the transverse process of the numerically corresponding
vertebra.
• The Shaft is thin, flat and twisted on its long axis.
• It has a rounded, smooth superior border and a sharp, thin
inferior border which has costal groove (it accommodates the

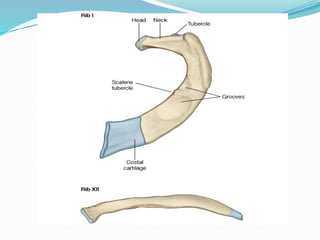

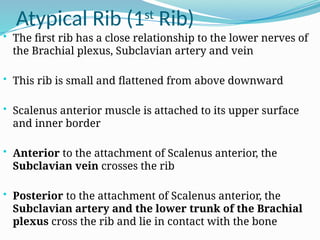

19. Atypical Rib (1st
Rib)
• The first rib has a close relationship to the lower nerves of
the Brachial plexus, Subclavian artery and vein
• This rib is small and flattened from above downward
• Scalenus anterior muscle is attached to its upper surface
and inner border
• Anterior to the attachment of Scalenus anterior, the
Subclavian vein crosses the rib
• Posterior to the attachment of Scalenus anterior, the
Subclavian artery and the lower trunk of the Brachial
plexus cross the rib and lie in contact with the bone

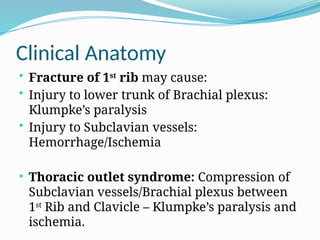

20. Clinical Anatomy
• Fracture of 1st
rib may cause:
• Injury to lower trunk of Brachial plexus:
Klumpke’s paralysis
• Injury to Subclavian vessels:
Hemorrhage/Ischemia
• Thoracic outlet syndrome: Compression of
Subclavian vessels/Brachial plexus between
1st
Rib and Clavicle – Klumpke’s paralysis and
ischemia.

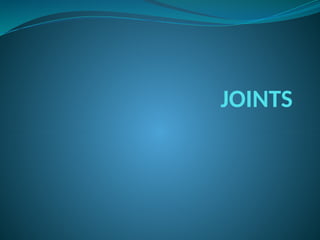

22. JOINTS

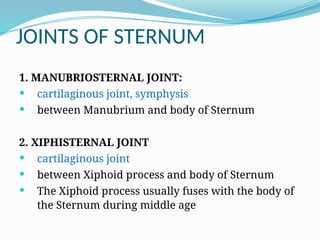

23. JOINTS OF STERNUM
1. MANUBRIOSTERNAL JOINT:
 cartilaginous joint, symphysis
 between Manubrium and body of Sternum
2. XIPHISTERNAL JOINT
 cartilaginous joint
 between Xiphoid process and body of Sternum
 The Xiphoid process usually fuses with the body of
the Sternum during middle age

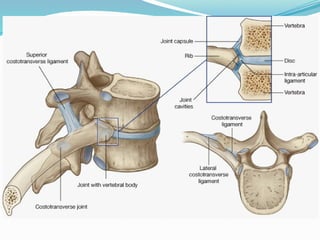

24. JOINTS OF RIBS
1. COSTOVERTEBRAL JOINTS:
 2 joints between heads of the Ribs and bodies of
Vertebrae (corresponding and upper)- Synovial joints
 1st
, 10th
, 11th
and 12th
rib has 1 synovial joint with the
corresponding vertebra, the rest have 2 each; one for
the corresponding vertebra and the other for the
vertebra above it
 1 joint between tubercle of Ribs and transverse
process of Vertebra (corresponding) - Synovial joint
(1st
-10th
Rib)
 Intra articular ligament connects head of Rib to the
intervertebral disc

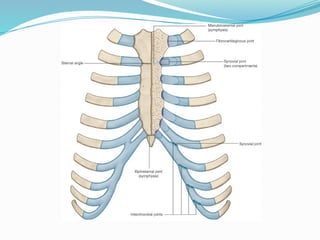

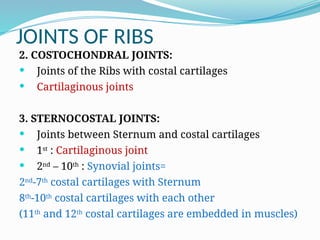

27. JOINTS OF RIBS
2. COSTOCHONDRAL JOINTS:
 Joints of the Ribs with costal cartilages
 Cartilaginous joints
3. STERNOCOSTAL JOINTS:
 Joints between Sternum and costal cartilages
 1st
: Cartilaginous joint
 2nd
– 10th
: Synovial joints=
2nd
-7th
costal cartilages with Sternum
8th
-10th
costal cartilages with each other
(11th
and 12th
costal cartilages are embedded in muscles)

29. MOVEMENTS
 Cartilaginous joints are immobile (thus 1st
rib
and all costochondral joints do not move
during respiration)
 Synovial joints are slightly mobile (due to
movements in both the joints between head,
tubercle and vertebrae, necks of Ribs rotate
along their axis, helping in raising and
lowering of ribs during respiration)

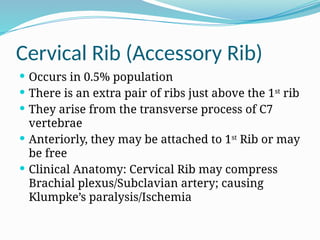

30. Cervical Rib (Accessory Rib)
 Occurs in 0.5% population
 There is an extra pair of ribs just above the 1st
rib
 They arise from the transverse process of C7
vertebrae
 Anteriorly, they may be attached to 1st
Rib or may
be free
 Clinical Anatomy: Cervical Rib may compress
Brachial plexus/Subclavian artery; causing
Klumpke’s paralysis/Ischemia

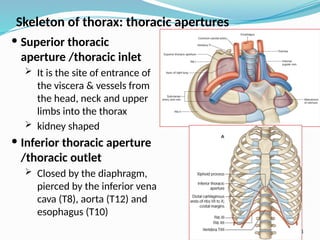

31. 31

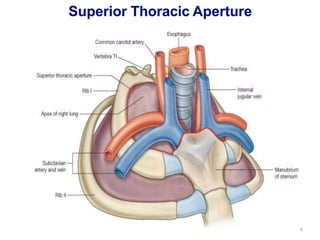

Skeleton of thorax: thoracic apertures
 Superior thoracic
aperture /thoracic inlet
 It is the site of entrance of
the viscera & vessels from
the head, neck and upper
limbs into the thorax
 kidney shaped
 Inferior thoracic aperture
/thoracic outlet
 Closed by the diaphragm,
pierced by the inferior vena
cava (T8), aorta (T12) and
esophagus (T10)

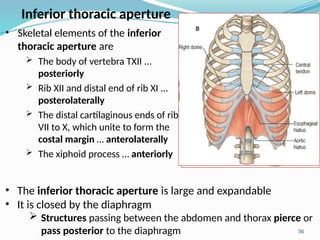

36. Inferior thoracic aperture
• Skeletal elements of the inferior
thoracic aperture are
 The body of vertebra TXII …
posteriorly
 Rib XII and distal end of rib XI …
posterolaterally
 The distal cartilaginous ends of ribs
VII to X, which unite to form the
costal margin … anterolaterally
 The xiphoid process … anteriorly
• The inferior thoracic aperture is large and expandable
• It is closed by the diaphragm
 Structures passing between the abdomen and thorax pierce or
pass posterior to the diaphragm 36
