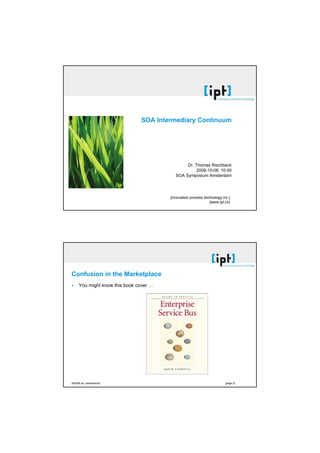

2. [21.10.2008]
SOA Intermediary Continuum
Dr. Thomas Rischbeck
2008-10-08, 10:00
SOA Symposium Amsterdam
[innovation process technology inc.]
[www.ipt.ch]
Confusion in the Marketplace
You might know this book cover …
[©2008 ipt | switzerland] [page 2]
[©2002 ipt | switzerland germany austria] [seite 1]

3. [21.10.2008]
The Fossil Record:
ESB Development Paths
MOM-based
MOM: publish-subscribe, loose coupling MOM
ESB
via queues, JMS API
EAI: Adapters, promise of universal
connectivity, QoS, transaction
management EAI Integration
WS: WS-platform/management vendors; Suites
platform-independent standards for SOA: WS-P
XML, WSDL, SOAP, UDDI, HTTP WS-M Pure-WS
ESB
APS: embedded ESB APS
Open Source + ESB
XML appliances APS
Open
RISK: Consolidation pressure puts Source
long-term viability of vendors at risk
XML Appliances
Source: IEEE Computer Archeology
[©2008 ipt | switzerland] [page 3]
What is an ESB? IDC: The ESB is an open standards-based technology
concept that will revolutionize IT and enable flexible and
scalable distributed computing for generations to come.
EAI++
ESB is just a Pattern - Zapthink: „message-bus with
IBM service-oriented interfaces“
Cali-Mero Fio-Rano
MOM++
An enterprise platform that implements
standardized interfaces for communication,
connectivity, transformation, and security.”-
Fiorano Software
A standards-based integration backbone,
combining messaging, Web services,
transformation, and intelligent routing (2004) -
Sonic Software
low-cost lightweight alternative to
traditional integration middleware -
Gartner
[©2008 ipt | switzerland] [page 4]
[©2002 ipt | switzerland germany austria] [seite 2]

4. [21.10.2008]

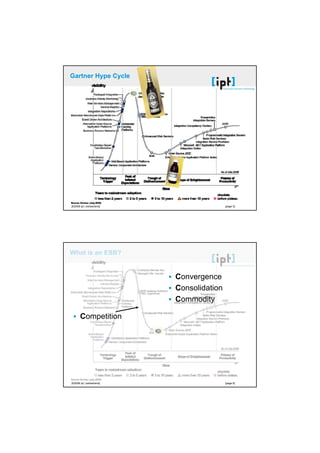

Gartner Hype Cycle
[©2008 ipt | switzerland] [page 5]
What is an ESB?
Convergence
Consolidation
Commodity
Competition
[©2008 ipt | switzerland] [page 6]
[©2002 ipt | switzerland germany austria] [seite 3]

5. [21.10.2008]

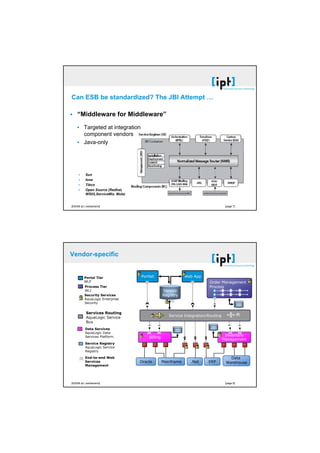

Can ESB be standardized? The JBI Attempt …
“Middleware for Middleware”
Targeted at integration
component vendors
Java-only
Sun
Iona
Tibco
Open Source (Redhat,
WS02,ServiceMix, Mule)
[©2008 ipt | switzerland] [page 7]
Vendor-specific
Portal Tier Portlet Web App
WLP Order Management
Process Tier Process
WLI Service
Security Services Registry
AquaLogic Enterprise
Security Service
Registry
Services Routing
AquaLogic Service Service Integration/Routing
Bus
Service
Data Services Service Registry
Registry
AquaLogic Data
Services Platform Inventory
Billing
Management
Service Registry
AquaLogic Service
Registry
End-to-end Web Data
Services Oracle Mainframe .Net ERP Warehouse
Management
[©2008 ipt | switzerland] [page 8]
[©2002 ipt | switzerland germany austria] [seite 4]

6. [21.10.2008]
Reference Architecture
Access/Client
Client Browser Rich Client
Tier
Access XML Appliance Reverse Proxy
Portal HTML
Presentation App / Web Server
Process Orchestration – Process Services
Monitoring (End-to-End)
Integration ESB – Enterprise Services
Middle
Shared Identity
Security
Domain Domain Services
Tier
Services Mgmt
Business Services BRMS …
Business Logic Applications … …
Registry/
Data Enterprise Information Repository
Data Access Services Integration
Data
Operational Data Storage Base
Data
Tier
Data Exploitation Data
DWH
Mart
[©2008 ipt | switzerland] [page 9]

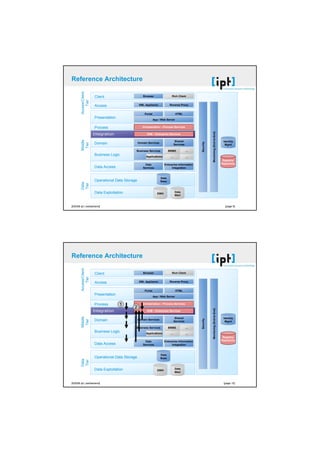

Reference Architecture
Access/Client
Client Browser Rich Client
Tier
Access XML Appliance Reverse Proxy
Portal HTML
Presentation App / Web Server
Process 1 Orchestration – Process Services
2
Monitoring (End-to-End)
Integration ESB – Enterprise Services
Middle
Shared Identity
Security
Domain Domain Services
Tier
Services Mgmt
Business Services BRMS …
Business Logic Applications … …
Registry/
Data Enterprise Information Repository
Data Access Services Integration
Data
Operational Data Storage Base
Data
Tier
Data Exploitation Data
DWH
Mart
[©2008 ipt | switzerland] [page 10]
[©2002 ipt | switzerland germany austria] [seite 5]

7. [21.10.2008]

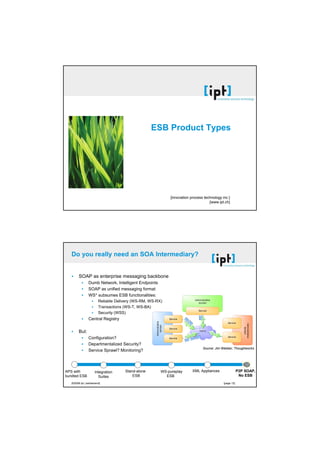

ESB Product Types
[innovation process technology inc.]
[www.ipt.ch]
Do you really need an SOA Intermediary?
SOAP as enterprise messaging backbone
Dumb Network, Intelligent Endpoints
SOAP as unified messaging format
WS* subsumes ESB functionalities:
Reliable Delivery (WS-RM, WS-RX)
Transactions (WS-T, WS-BA)
Security (WSS)
Central Registry
But:
Configuration?
Departmentalized Security?
Source: Jim Webber, Thoughtworks
Service Sprawl? Monitoring?
APS with Integration Stand-alone WS-pureplay XML Appliances P2P SOAP,
bundled ESB Suites ESB ESB No ESB
[©2008 ipt | switzerland] [page 12]
[©2002 ipt | switzerland germany austria] [seite 6]

8. [21.10.2008]

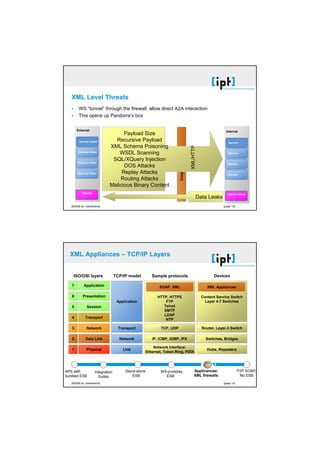

XML Level Threats
WS “tunnel” through the firewall, allow direct A2A interaction
This opens up Pandorra’s box
External Internal
Payload Size
Service Client Recursive Payload Service
XML Schema Poisoning
XML/HTTP
Corporate Firewall
Service Client
WSDL Scanning Service
SQL/XQuery Injection
Service Client Service
DOS Attacks
Service Client Replay Attacks Service
Routing Attacks
Malicious Binary Content
Service Service Client
Data Leaks
[©2008 ipt | switzerland] [page 13]
XML Appliances – TCP/IP Layers
ISO/OSI layers TCP/IP model Sample protocols Devices
7 Application SOAP, XML XML Appliances
6 Presentation HTTP, HTTPS Content Service Switch
Application FTP Layer 4-7 Switches
5 Session Telnet
SMTP
LDAP
4 Transport
NTP
3 Network Transport TCP, UDP Router, Layer-3 Switch
2 Data Link Network IP, ICMP, IGMP, IPX Switches, Bridges
Network Interface:
1 Physical Link Hubs, Repeaters
Ethernet, Token Ring, FDDI
APS with Integration Stand-alone WS-pureplay Applicances/ P2P SOAP,
bundled ESB Suites ESB ESB XML firewalls No ESB
[©2008 ipt | switzerland] [page 14]
[©2002 ipt | switzerland germany austria] [seite 7]

9. [21.10.2008]
XML Appliances
XML Processing at Network Boundaries
XML-Threat Prevention, Security DMZ
Load Balancing, Routing
Policy Management & Enforcem Finance Sales
XML ASICs
ESB1 ESB2
But:
Asynchronous Delivery?
IBM (ex DataPower)
Layer7
Cisco (ex Reactivity)
Forum Systems
Intel (ex Sarvega)
Vordel, Bridgewerx
APS with Integration Stand-alone WS-pureplay Applicances/ P2P SOAP,
bundled ESB Suites ESB ESB XML firewalls No ESB
[©2008 ipt | switzerland] [page 15]
ESB Products
Stand-alone ESB Open Source ESB
Mulesource
Fiorano ESB
WS02 (ex Synapse)
Sonic ESB
Redhat JBoss
ServiceMix
Iona Celtix
WS-pureplay ESB
Message Queueing (JMS, MOM) Blue Titan Network Director
Persistence, Reliable Delivery Cape Clear 6 Server
lightweight service containers Iona Artix
multi-step processes PolarLake Messaging Integrator
(some with BPEL)
No native Messaging (JMS)
APS with Integration Stand-alone WS-pureplay Applicances/ P2P SOAP,
bundled ESB Suites ESB ESB XML firewalls No ESB
[©2008 ipt | switzerland] [page 16]
[©2002 ipt | switzerland germany austria] [seite 8]

10. [21.10.2008]

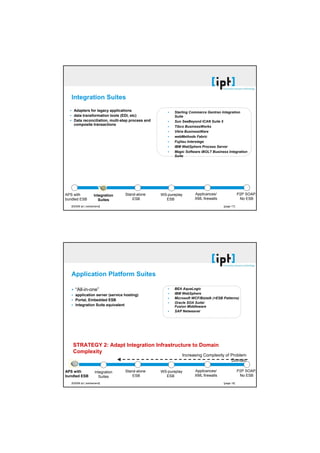

Integration Suites
Adapters for legacy applications Sterling Commerce Gentran Integration
data transformation tools (EDI, etc) Suite
Data reconciliation, multi-step process and Sun SeeBeyond ICAN Suite 5
composite transactions
Tibco BusinessWorks
Vitria BusinessWare
webMethods Fabric
Fujitsu Interstage
IBM WebSphere Process Server
Magic Software iBOLT Business Integration
Suite
APS with Integration Stand-alone WS-pureplay Applicances/ P2P SOAP,
bundled ESB Suites ESB ESB XML firewalls No ESB
[©2008 ipt | switzerland] [page 17]
Application Platform Suites
“All-in-one” BEA AquaLogic
application server (service hosting) IBM WebSphere
Microsoft WCF/Biztalk (+ESB Patterns)
Portal, Embedded ESB
Oracle SOA Suite/
Integration Suite equivalent Fusion Middleware
SAP Netweaver
STRATEGY 2: Adapt Integration Infrastructure to Domain
Complexity
Increasing Complexity of Problem
Domain
APS with Integration Stand-alone WS-pureplay Applicances/ P2P SOAP,
bundled ESB Suites ESB ESB XML firewalls No ESB
[©2008 ipt | switzerland] [page 18]
[©2002 ipt | switzerland germany austria] [seite 9]

11. [21.10.2008]
Deployment Scenarios
[innovation process technology inc.]
[www.ipt.ch]

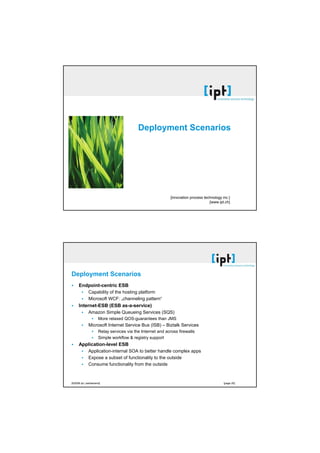

Deployment Scenarios
Endpoint-centric ESB
Capability of the hosting platform
Microsoft WCF: „channeling pattern“
Internet-ESB (ESB as-a-service)
Amazon Simple Queueing Services (SQS)
More relaxed QOS-guarantees than JMS
Microsoft Internet Service Bus (ISB) – Biztalk Services
Relay services via the Internet and across firewalls
Simple workflow & registry support
Application-level ESB
Application-internal SOA to better handle complex apps
Expose a subset of functionality to the outside
Consume functionality from the outside
[©2008 ipt | switzerland] [page 20]
[©2002 ipt | switzerland germany austria] [seite 10]

12. [21.10.2008]

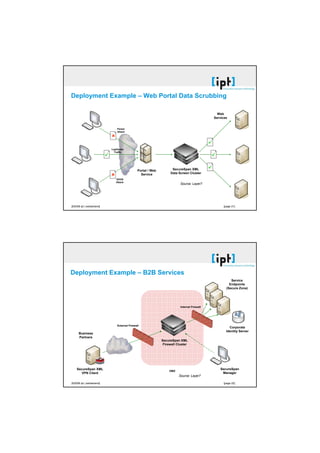

Deployment Example – Web Portal Data Scrubbing
Web
Services
Parser
Attack
Legitimate
Traffic
Portal / Web SecureSpan XML
Service Data Screen Cluster
XDOS
Attack
Source: Layer7
[©2008 ipt | switzerland] [page 21]
Deployment Example – B2B Services
Service
Endpoints
(Secure Zone)
Internal Firewall
External Firewall
Corporate
Identity Server
Business
Partners
SecureSpan XML
Firewall Cluster
SecureSpan XML SecureSpan
DMZ
VPN Client Manager
Source: Layer7
[©2008 ipt | switzerland] [page 22]
[©2002 ipt | switzerland germany austria] [seite 11]

13. [21.10.2008]

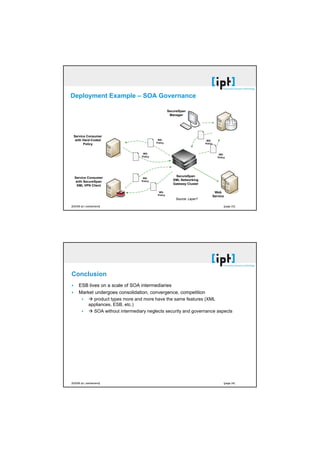

Deployment Example – SOA Governance
SecureSpan
Manager
Service Consumer
with Hard-Coded WS- WS-
Policy Policy
Policy
WS- WS-
Policy Policy
SecureSpan
Service Consumer WS-
Policy XML Networking
with SecureSpan
Gateway Cluster
XML VPN Client
WS- Web
Policy
Service
Source: Layer7
[©2008 ipt | switzerland] [page 23]
Conclusion
ESB lives on a scale of SOA intermediaries
Market undergoes consolidation, convergence, competition
product types more and more have the same features (XML
appliances, ESB, etc.)
SOA without intermediary neglects security and governance aspects
[©2008 ipt | switzerland] [page 24]
