Thinking Architecturally
- 1. Nathaniel T. Schutta @ntschutta ntschutta.io Thinking Architecturally
- 6. Constantly.
- 7. Feature not a bug.
- 9. We want to avoid legacy platforms.
- 10. But we can’t change things every few months.
- 11. “Our app has 4 different UI frameworks…”
- 12. Developers kept chasing the new hotness.
- 13. How do we avoid that?
- 14. How do we evaluate new technology?
- 15. I have no idea what language/ framework/platform is “next”.

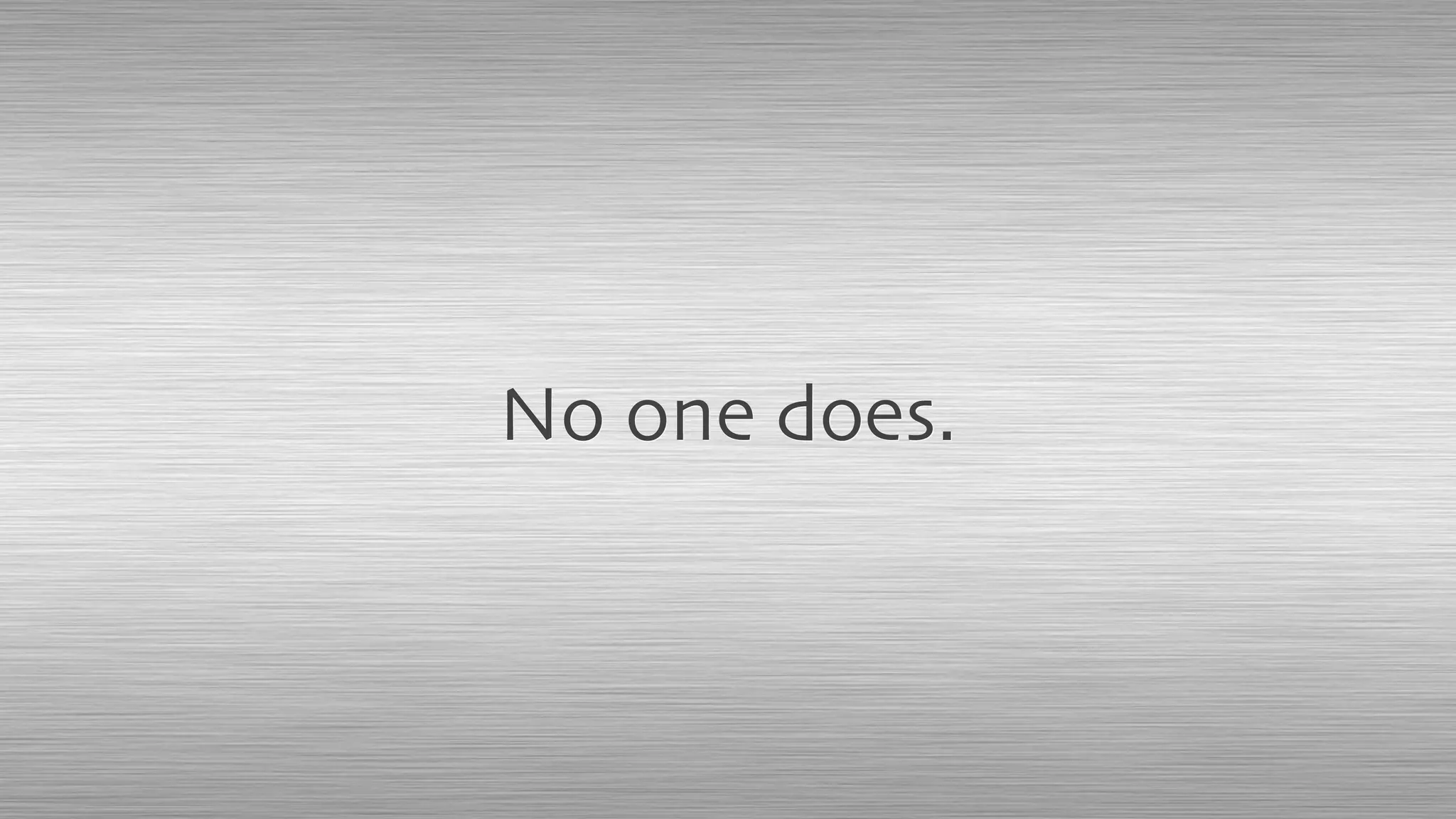

- 16. No one does.
- 17. But I can guarantee you this much:
- 18. It will be different than what we use today.
- 19. Five years from now we will be using something that isn’t invented yet.
- 20. Chasing the new thing.
- 22. Constantly.
- 23. Tempting to always chase the “new hotness”.
- 24. Bleeding edge.
- 25. It’s fun!
- 26. Part of being in this industry.
- 27. Our understanding constantly evolves.
- 29. Let’s be honest…
- 31. Often *very* strong opinions.
- 32. Maybe we fear old things?
- 36. How do we know where not to use a technology?
- 37. Trial and error.
- 38. Developers tend to get bored quickly.
- 40. Learning keeps it fresh.

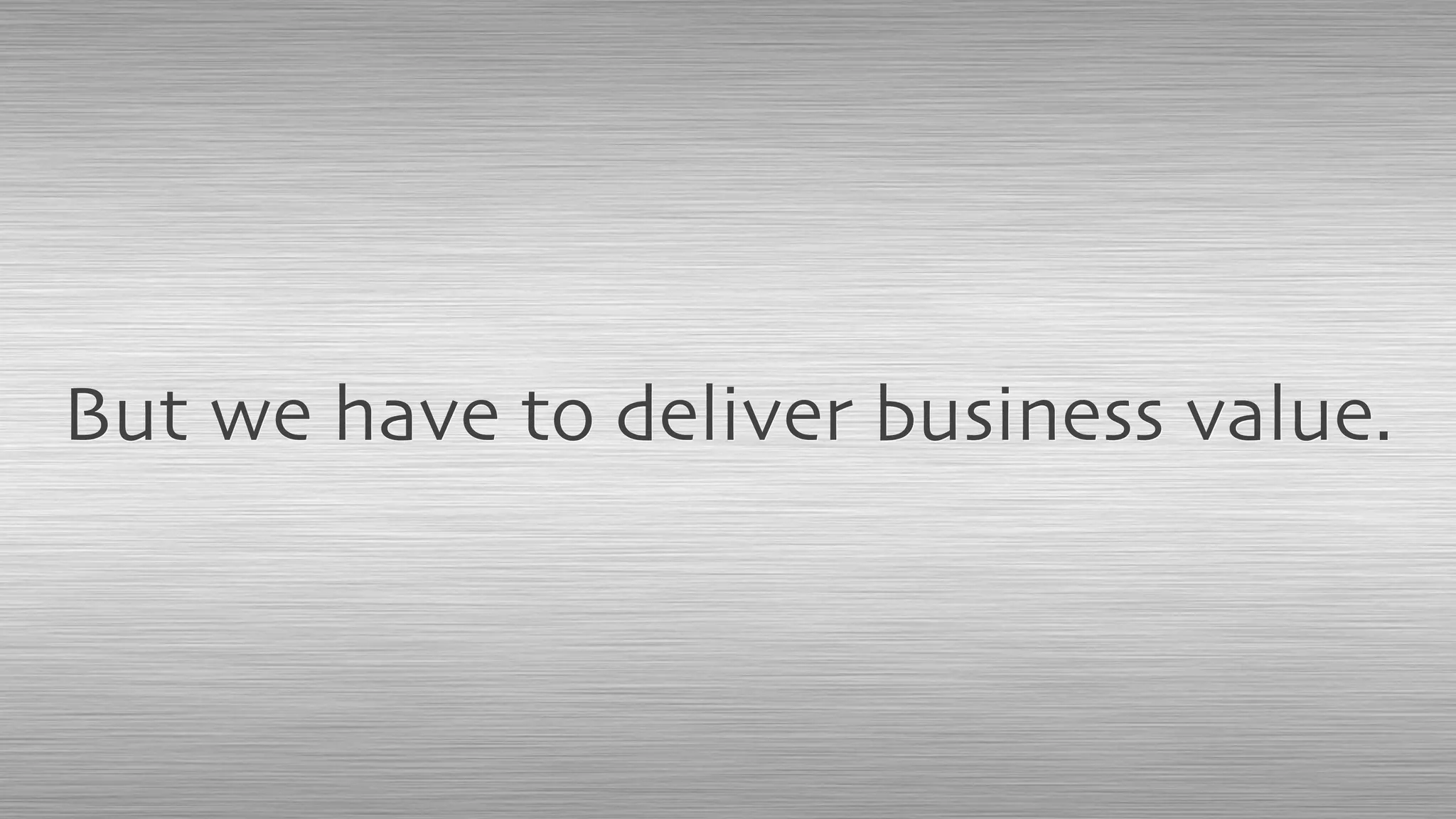

- 41. But we have to deliver business value.
- 42. Can’t do that if we’re always experimenting.
- 43. Have to commit at some point.
- 45. Bleeding edge… means you will bleed!
- 47. Pioneers…the ones with arrows in their backs.
- 48. What is your strategy?
- 49. How do we avoid dead platforms?
- 50. Without constantly changing direction?
- 51. Strategy.
- 52. Hope is not a strategy!
- 53. But it is what rebellions are built on.
- 54. We need to be deliberate.
- 55. There are a lot of bits out there...
- 56. New languages, techniques, approaches.
- 57. How do you keep up?
- 58. Blogs? Books? Twitter? Podcasts? Conferences?
- 61. Block out Friday afternoon. Tuesday over lunch. Whatever fits.
- 63. Take 15-30 minutes in the morning to peruse the tech news.
- 64. Before the day gets away from you…
- 66. — Seth Godin “Attention is a bit like real estate, in that they're not making any more of it. Unlike real estate, though, it keeps going up in value.” http://sethgodin.typepad.com/seths_blog/2011/07/ paying-attention-to-the-attention-economy.html
- 67. Don’t waste it.
- 68. Be selective.
- 69. Can’t read it all.
- 70. http://www.npr.org/blogs/monkeysee/2011/04/21/135508305/the-sad- beautiful-fact-that-were-all-going-to-miss-almost-everything In fact, you’ll miss almost everything.
- 71. We cannot adopt every new thing.
- 72. How do we know where to invest our time?
- 74. “I have a hunch that [Java] won't be a very successful language.”
- 75. Never written a line of Java, glanced at some books.
- 76. Need more than just a hunch.
- 77. “Judging Covers” can be a useful filter.
- 78. But beware bias.
- 79. Where is the community?
- 81. Are you skating to where the puck *was*?
- 84. Remember Google’s 20% time?
- 85. Fallen out of favor in some circles…
- 87. Could you carve out Friday afternoons?
- 88. How about Tuesday Tech Talks?
- 89. Architectural Briefings. https://github.com/stuarthalloway/presentations/wiki/Architectural-Briefings
- 90. One person does some research, presents to the team.
- 91. And no, you don’t need to be an architect to present!
- 92. Why should we use X?
- 93. What do you need to know to answer the “why”?
- 94. What do you need to know in order to use X?
- 95. Keep it short - 45 minutes.
- 96. Not a how to.
- 97. Beyond the initial documentation.
- 98. These are participatory events!
- 99. Attendees should be taking notes.
- 100. Asking questions.
- 101. Using their own experiences.
- 102. Do you agree? Why or why not?
- 103. By the way, you are up next week…
- 104. Pass the briefing filter?
- 105. Hands on time.
- 106. Workshop it.
- 107. Couple of hours.
- 108. A few exercises.
- 109. Focus on how to, simple setup.
- 110. Pass the hands on filter?
- 111. Time to trial it in the organization.
- 112. Real project work that is a good fit.
- 113. Probably not a “bet the company” project though!
- 114. The new hotness is not our only concern though.
- 115. Need to stay current on the things we are using day in day out.
- 121. Oops.
- 122. Don’t think you’re a target?
- 125. — Justin Smith At high velocity, the three Rs starve attacks of the resources they need to grow. It’s a complete 180-degree change from the traditional careful aversion to change to mitigate risk. Go fast to stay safer — in other words, speed reduces risk.
- 126. What is your patching strategy?
- 127. What version of X are you on?
- 128. Some organizations have a policy of N or N-1.
- 129. Do they measure it? Do they enforce it?
- 130. What needs to change in your culture to stay at N?

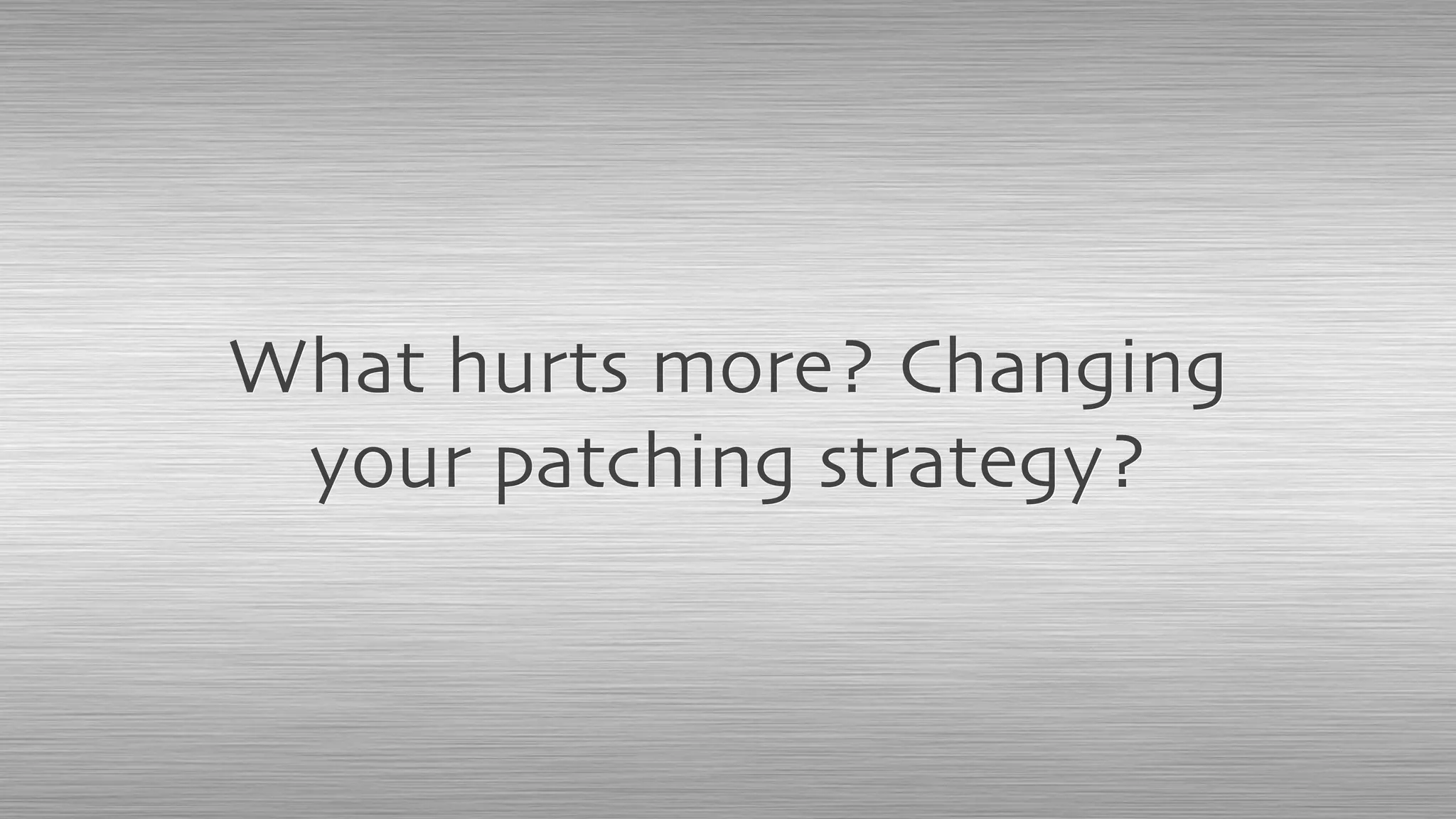

- 131. What hurts more? Changing your patching strategy?

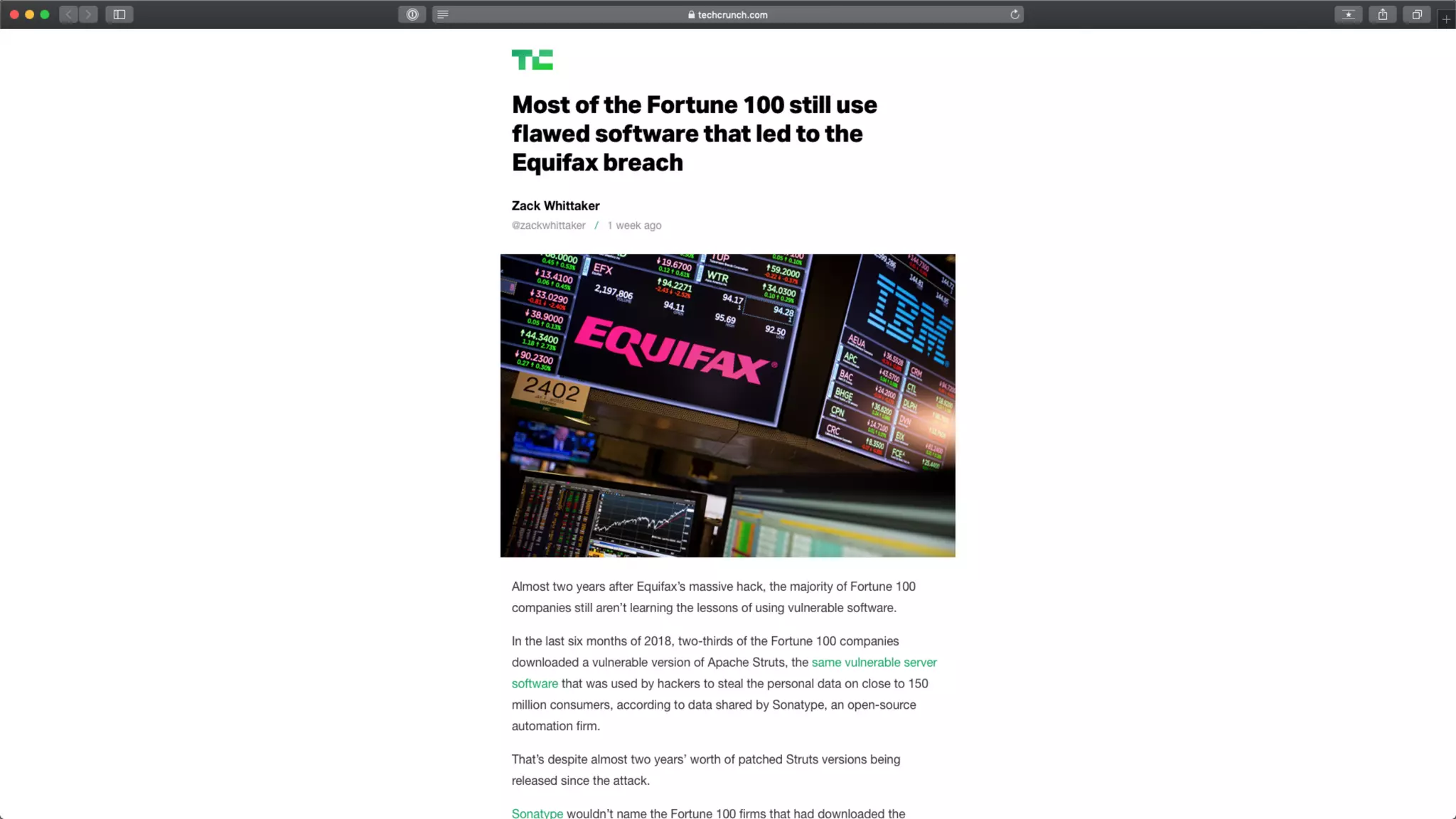

- 132. Or being on the receiving end of the latest “largest hack ever”?
- 133. Pros and Cons.
- 134. Every technical choice involves tradeoffs.
- 135. — Susan J. Fowler Production-Ready Microservices When we find ourselves presented with technology that promises to offer us drastic improvements, we need to look for the trade-offs.
- 136. Essence of design.
- 137. To paraphrase Harry Truman…
- 138. Give me a one handed technologist.

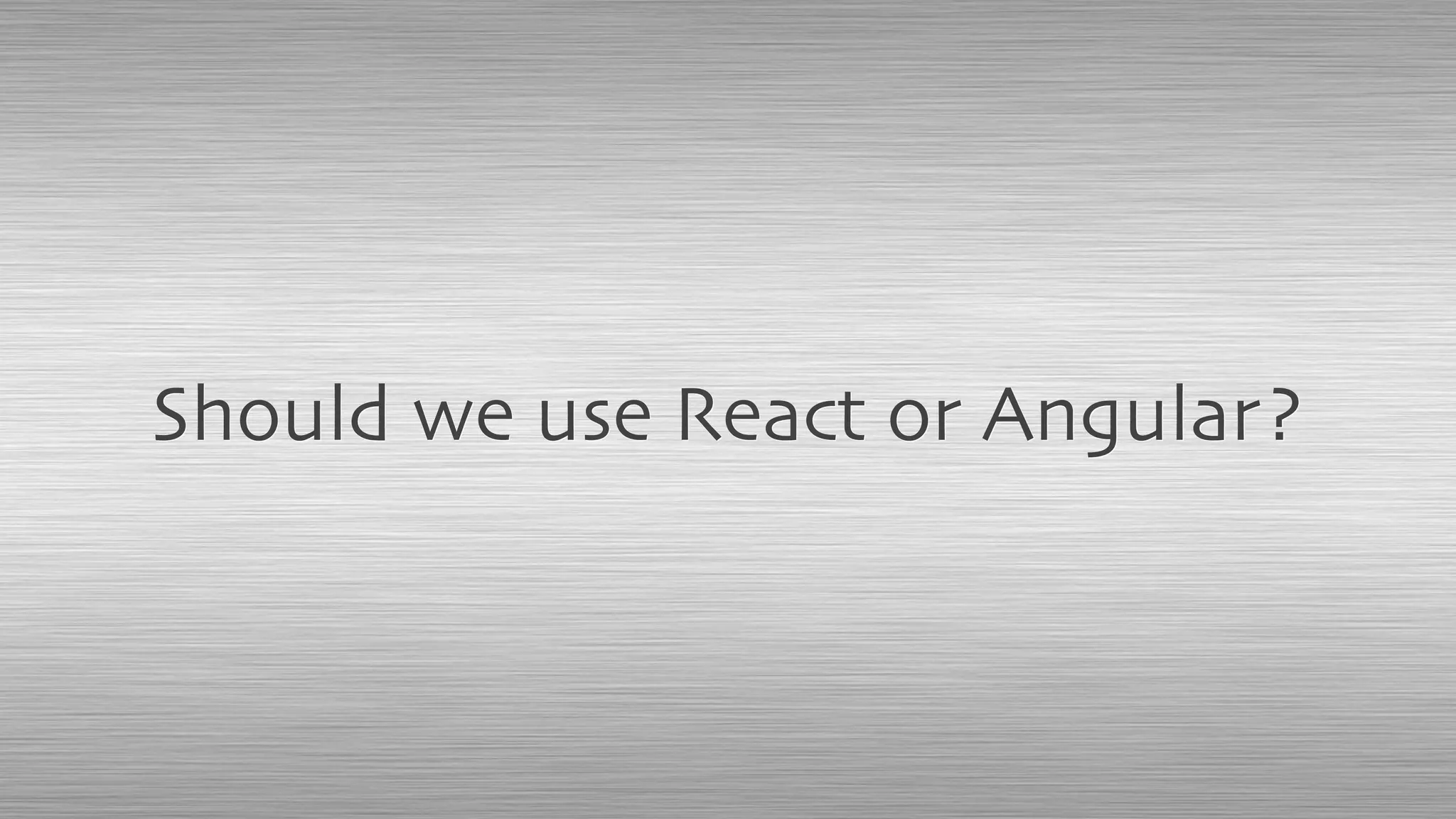

- 139. Should we use React or Angular?
- 140. Should we refactor to microservices?
- 141. Should we be on prem or public cloud?
- 143. In many cases?
- 144. && ! ||
- 145. Balancing those opposing forces is the art of architecture.
- 146. No tech is perfect, don’t pretend it is.

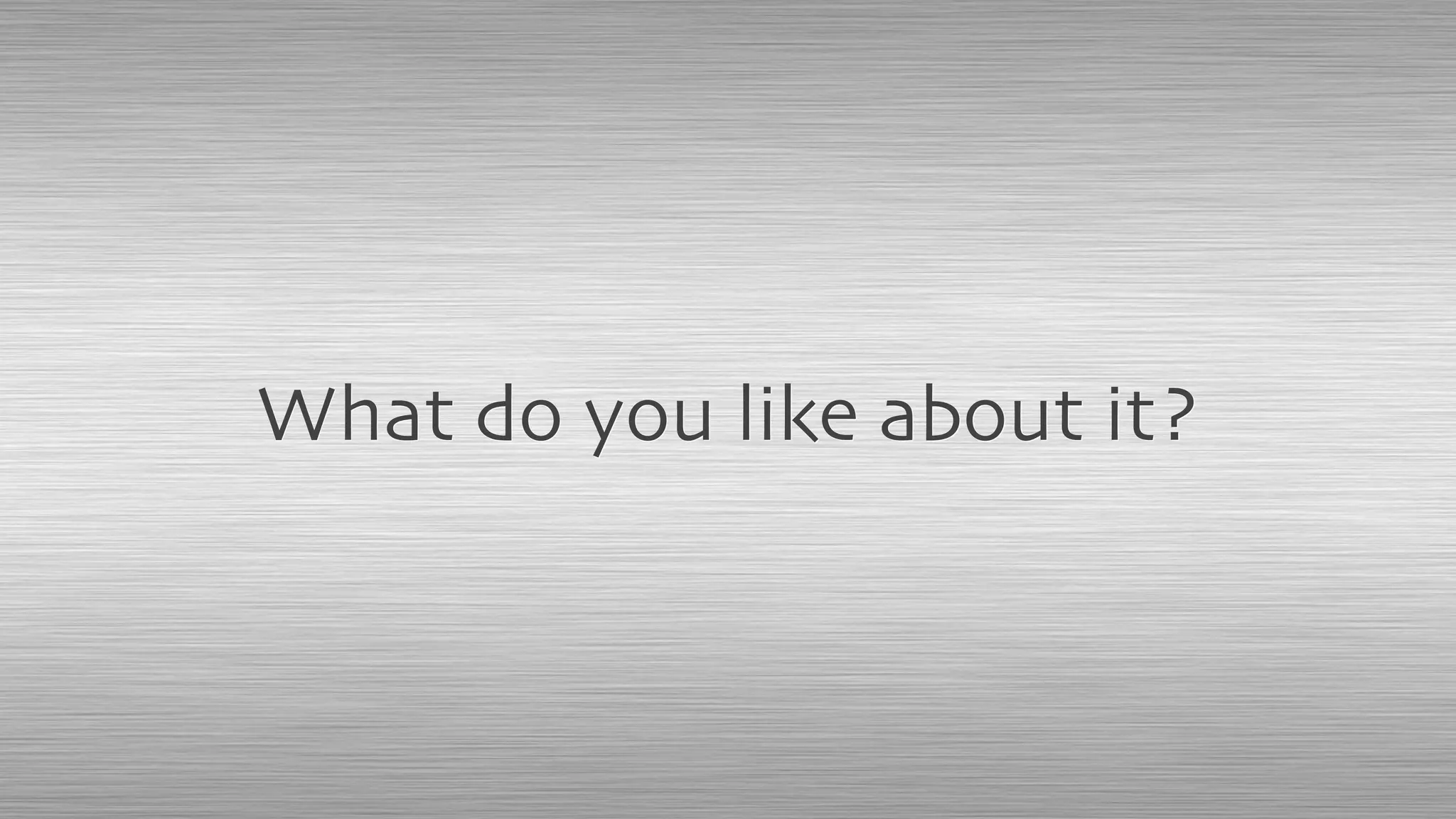

- 148. What do you like about it?
- 149. What don’t you like about it?
- 150. What would you add?
- 151. What would you remove?
- 152. King of Java for a day...
- 154. How does it stack up to alternatives?
- 156. Options across the top.
- 157. Criteria down the left.
- 158. Criteria can be weighted.
- 160. !"#$%

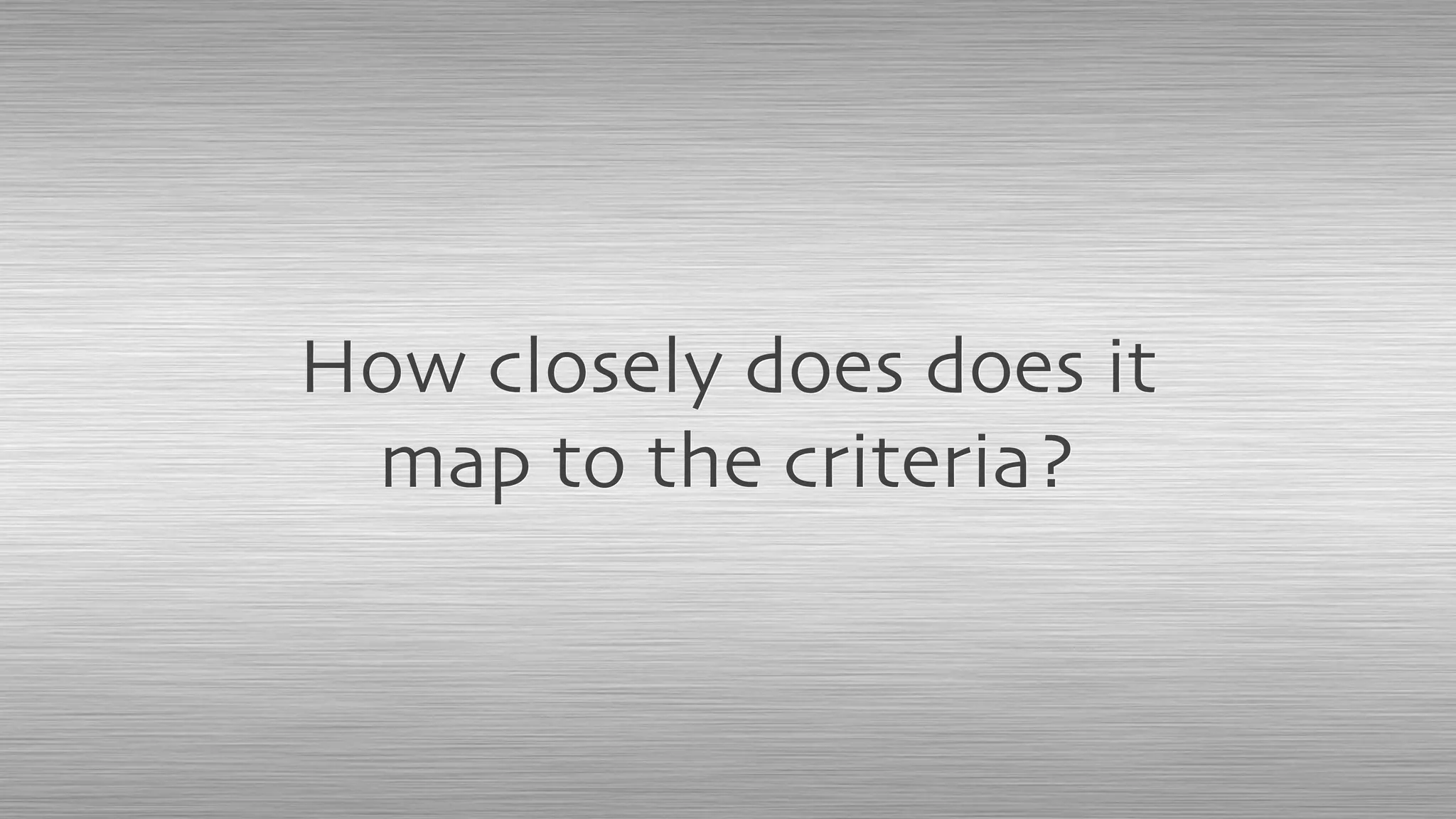

- 161. How closely does does it map to the criteria?
- 162. Very effective...
- 163. Angular React Documentation % $ Community % $ Committer diversity % % Codebase % % Testability % % Update history $ $ Maturity % $
- 164. Angular React Stability % $ Extensibility % % Support % % Training % % Hiring % $ Corporate fit ? ? Usage % %
- 165. What criteria should you use?
- 166. How should they be weighted?
- 167. Up to you.
- 168. You can tip the scales…
- 169. Usually backfires.
- 171. We can’t be everywhere…
- 172. We can’t be involved with every decision.
- 173. We can establish principles.
- 174. Guard rails.
- 175. Guide posts.
- 176. North stars.
- 177. Create the environment within which our projects can thrive.
- 178. But how do we know if projects are following our principles?
- 179. Fitness functions.
- 180. We’re all familiar with the second law of thermodynamics…
- 181. Otherwise known as a teenagers bedroom.
- 182. The universe really wants to be disordered.
- 183. Software is not immune from this!
- 184. We go through the thoughtful effort to establish an architecture…
- 185. How do we maintain it?
- 186. We can’t spend every minute of every day on every project.
- 187. How do we ensure teams continue to make good decisions?
- 188. We cannot predict the future.
- 189. That’s not entirely true.
- 190. One constant - change.
- 191. Architecture is often defined as the decisions that are hard to change.
- 192. Or the decisions we wish we got right.
- 193. But we *know* things will change!
- 194. Isn’t this approach anti agile?
- 195. Contributing factor to the “we’re agile, we don’t have architects” theory.
- 196. You definitely have people making architectural decisions!
- 197. Sure hope they are making good ones…
- 198. You’ll know in a year or two.
- 199. “Our app has 4 different UI frameworks…”
- 200. 🤔
- 201. What do we do about that?
- 202. Maybe we should change our assumptions.
- 205. What if our architectures expected to change?
- 207. — Building Evolutionary Architectures An evolutionary architecture supports guided, incremental change across multiple dimensions.

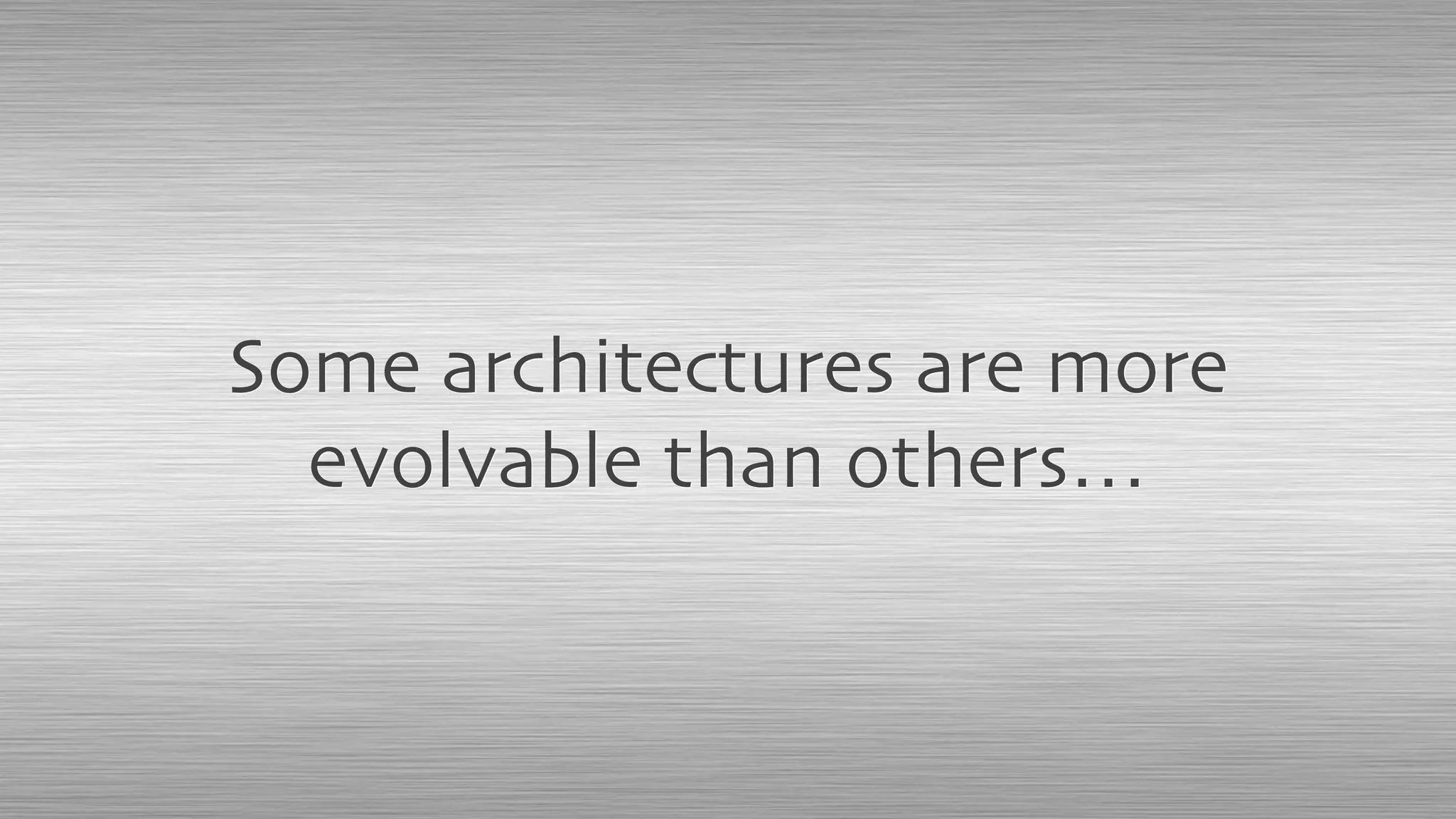

- 208. Some architectures are more evolvable than others…
- 210. Components are deployed, features are enabled via toggles.
- 211. Allows us to change incrementally.
- 212. Also perform hypothesis driven development!
- 213. But how do we ensure the architecture still meets our needs?
- 214. How do we know if a solution violates part of the architecture?
- 215. Fitness functions!
- 216. Concept comes from evolutionary computing.
- 217. Is this mutation a success?
- 218. Are we closer to or further from our goal?
- 219. For architecture, it is all about protecting the ilities.
- 220. And balancing the tradeoffs.
- 221. We want to capture and preserve the key architectural characteristics.
- 222. First, we need to identify those key measures for project success.
- 223. Service Level Indicators if you will.
- 224. What can we measure?
- 225. Sometimes we let what we can measure dictate too much…
- 226. Just because we can measure it doesn’t mean it matters!
- 227. Lines of code anyone?
- 228. Once we have our metrics, we can set some goals.
- 230. SLO !== SLA!
- 231. Now we can create a fitness function!
- 232. Basically, a set of tests we execute to validate our architecture.
- 233. How close does this particular design get us to our objectives?
- 234. Ideally, all automated. But we may need some manual verifications.
- 235. For example…
- 236. All service calls must respond within 100 ms.
- 237. Cyclomatic complexity shall not exceed X.
- 238. Hard failure of an application will spin up a new instance.
- 240. Chaos Engineering. https://medium.com/production-ready/chaos-monkey-for-fun-and-profit-87e2f343db31
- 241. Fitness functions remind us what is important in our architecture.
- 242. Informs our thinking about tradeoffs.
- 243. Different categories of fitness functions.
- 244. Atomic vs. Holistic.
- 245. Some characteristics must be tested in isolation…others cannot.
- 246. Holistic fitness functions test combined features.
- 247. We can’t test every possible combination!
- 248. Must be selective, driven by the value of the architectural characteristic.
- 250. Must consider frequency of execution.
- 251. Fitness functions can be triggered by something - checkin, QA pass…
- 252. Continual tests are just that.
- 253. Monitoring Driven Development! http://benjiweber.co.uk/blog/2015/03/02/monitoring-check-smells/
- 254. Static vs. Dynamic.
- 255. Static tests have a fixed result - they either pass or they fail.
- 256. Nearly any test based on a metric.
- 257. Other fitness functions have a shifting definition of success.
- 258. Generally defined within a range of acceptable outcomes.
- 260. Automation is good!
- 261. Ideally most of our fitness functions will live in our deployment pipeline.
- 262. Not everything is amenable to automation though…
- 263. Legal.
- 264. Existing projects.
- 267. Check for an upgrade of library X.
- 268. Break upon upgrade tests.
- 269. Clearly we want to identify fitness functions as early as we can.
- 270. The discussion about the tradeoffs is invaluable to our understanding.
- 271. Help us prioritize features.
- 272. May lead us to break a system up to isolate certain features.
- 273. We can’t know everything up front.
- 274. Fitness functions will emerge as the system changes.

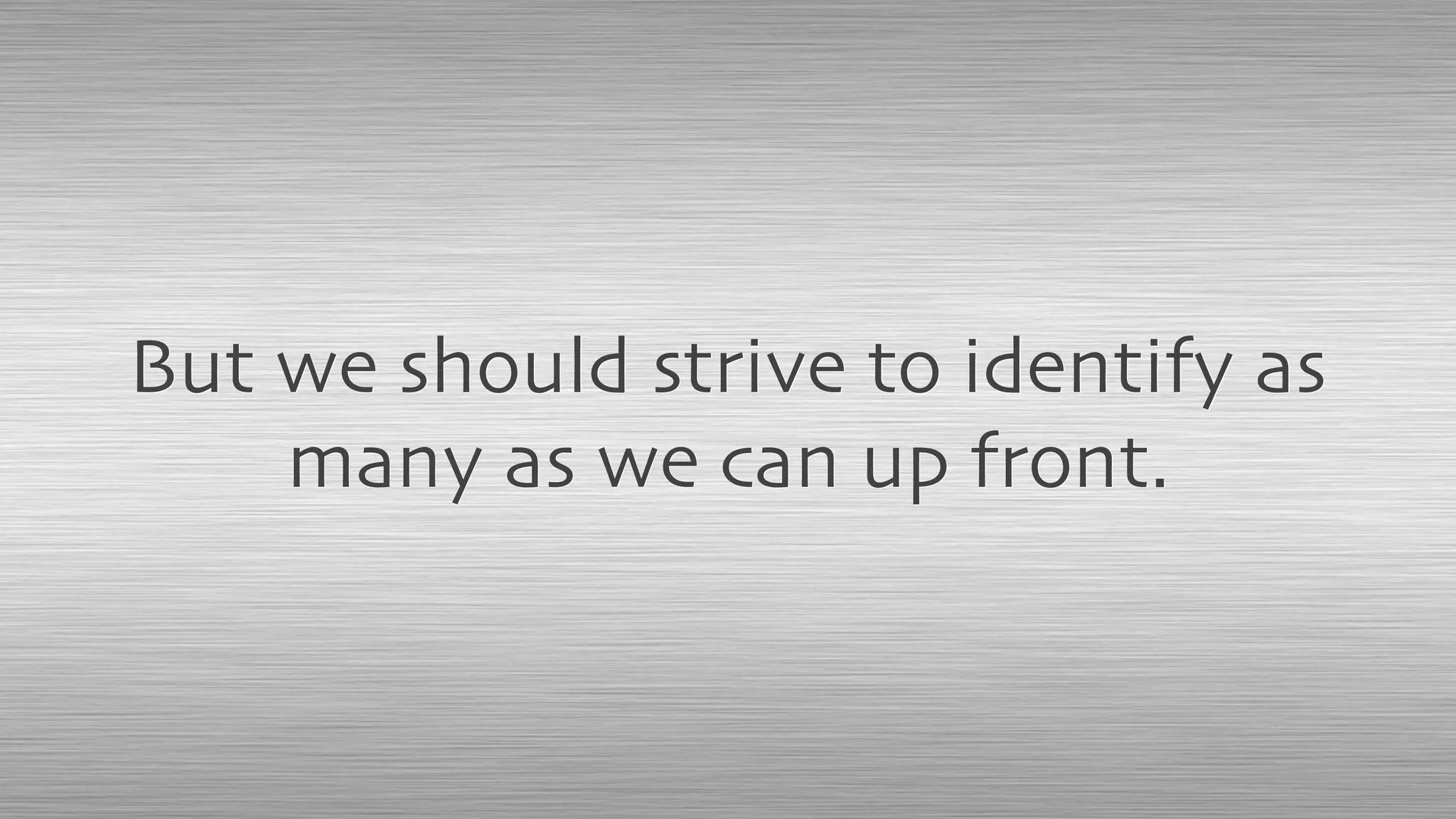

- 275. But we should strive to identify as many as we can up front.
- 276. We can also classify fitness functions.
- 277. Key - critical decisions.
- 278. Relevant - considered but unlikely to influence the architecture.
- 279. Not Relevant - won’t impact our decisions.
- 280. Can still be very useful to identify the non relevant dimensions!
- 281. Keep fitness functions visible!
- 282. Need to review the fitness functions.
- 283. Are they still relevant?
- 284. Are there new dimensions we need to track?
- 285. Are there better ways of measuring/ testing our current fitness functions?
- 286. Aim for at least an annual review.
- 288. We have a lot to juggle!
- 289. Important that we thing strategically.
- 290. We can’t afford Resume Driven Design.
- 291. Good luck!
- 292. Questions?
- 293. Nathaniel T. Schutta @ntschutta ntschutta.io Thanks! I’m a Software Architect, Now What? with Nate Shutta Modeling for Software Architects with Nate Shutta Presentation Patterns with Neal Ford & Nate Schutta
