- 1. The Road toClustered Data ONTAP © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 1
- 2. © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 2 “Please allow me to introduce myself…” ~ The Rolling Stones
- 3. © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 3
- 4. © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 4 100% Vancouver Calgary Toronto Ottawa London Montreal
- 5. We are… • Security •Infrastructure • Cloud © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 5
- 6. Top awards. © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 6 • Brocade Partner of the Year ~ Innovation • Cisco Partner of the Year ~ Data Centre & Virtualization • NetApp Partner of the Year ~ Central Canada • VMware Global Emerging Products Partner of the Year • F5 VAR Partner of the Year ~ North America • Palo Alto Networks Rookie of the Year
- 7. Top vendors. © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 7 • Enterprise leaders and emerging technologies • Vendors that can handle niche workloads and are experienced at developing markets

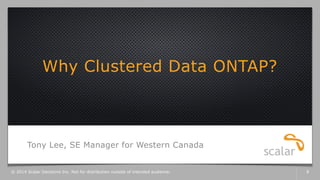

- 8. Why Clustered DataONTAP? Tony Lee, SE Manager for Western Canada © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 8
- 9. IT Professionals © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 9

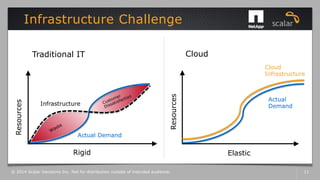

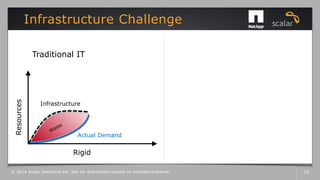

- 10. Infrastructure Challenge © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 10 Infrastructure Rigid Resources Traditional IT Actual Demand
- 11. Infrastructure Challenge © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 11 Elastic Resources Cloud Cloud Infrastructure Actual DemandInfrastructure Rigid Resources Traditional IT Actual Demand

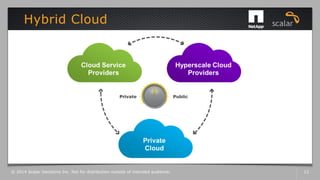

- 12. Hybrid Cloud © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 12
- 13. Seamless Flexibility © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 13

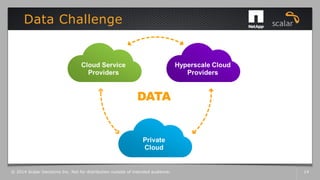

- 14. Data Challenge © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 14
- 15. Data Silos © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 15

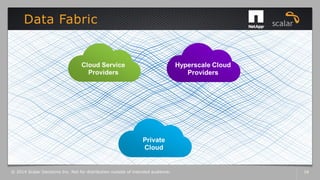

- 16. Data Fabric © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 16
- 17. Data Fabric © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 17

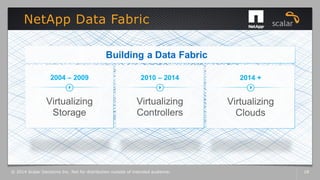

- 18. NetApp Data Fabric ©2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 18
- 19. NetApp Data Fabric ©2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 19

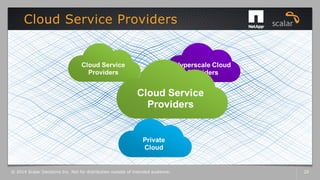

- 20. Cloud Service Providers ©2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 20

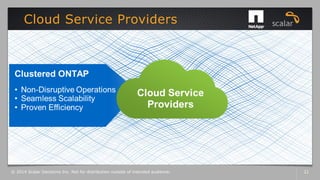

- 21. Cloud Service Providers ©2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 21
- 22. Cloud Service Providers ©2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 22

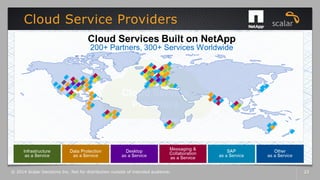

- 23. Cloud Service Providers ©2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 23
- 24. Hyperscalers © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 24
- 25. Hyperscalers © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 25

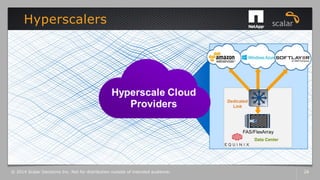

- 26. Hyperscalers © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 26

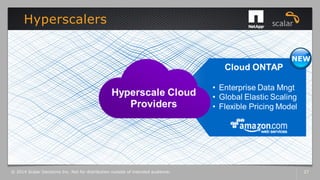

- 27. Hyperscalers © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 27

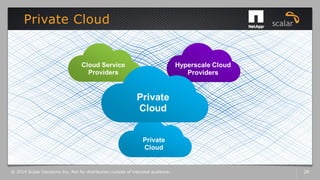

- 28. Private Cloud © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 28
- 29. Private Cloud © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 29

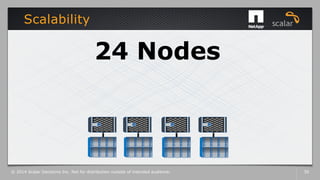

- 30. Scalability © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 30 24 Nodes

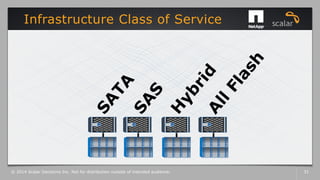

- 31. Infrastructure Class ofService © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 31

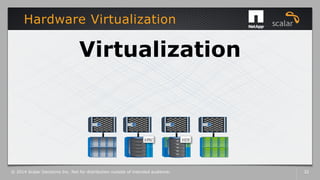

- 32. Hardware Virtualization © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 32 Virtualization

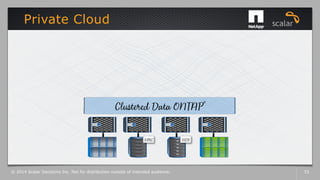

- 33. Private Cloud © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 33

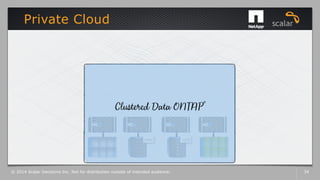

- 34. Private Cloud © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 34

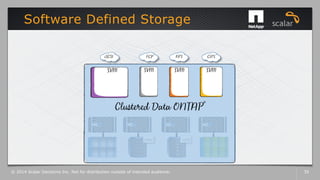

- 35. Software Defined Storage ©2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 35

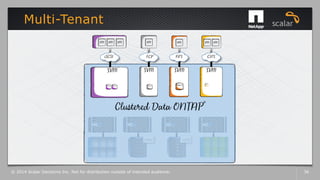

- 36. Multi-Tenant © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 36

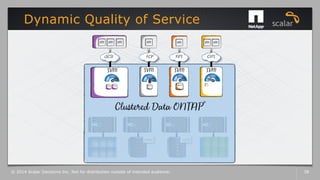

- 37. Dynamic Quality ofService © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 37
- 38. Dynamic Quality ofService © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 38

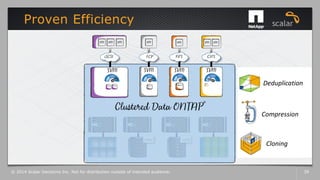

- 39. Proven Efficiency © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 39 Compression Deduplication Cloning

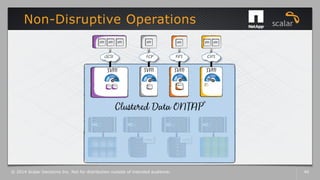

- 40. Non-Disruptive Operations © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 40

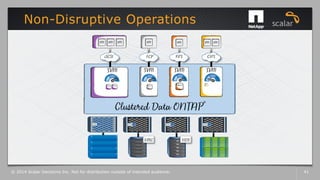

- 41. Non-Disruptive Operations © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 41

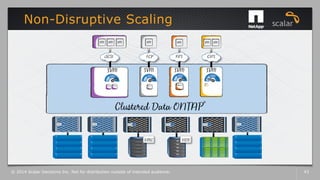

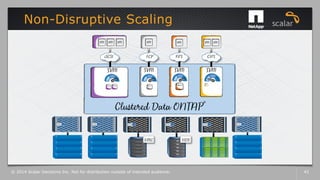

- 42. Non-Disruptive Scaling © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 42
- 43. Non-Disruptive Scaling © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 43

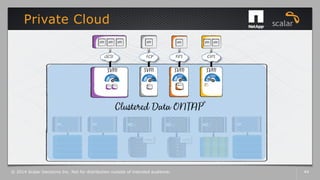

- 44. Private Cloud © 2014Scalar Decisions Inc. Not for distribution outside of intended audience. 44
- 45. NetApp Data Fabric ©2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 45

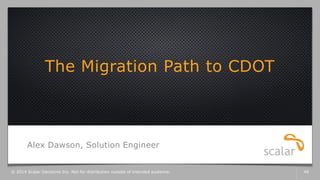

- 46. The Migration Pathto CDOT Alex Dawson, Solution Engineer © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 46

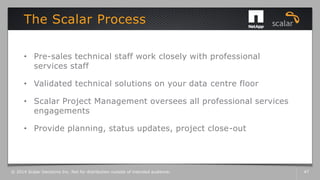

- 47. • Pre-sales technicalstaff work closely with professional services staff • Validated technical solutions on your data centre floor • Scalar Project Management oversees all professional services engagements • Provide planning, status updates, project close-out The Scalar Process © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 47
- 48. • Design sessionsfor network connectivity • Design sessions for storage layout, SVM layout • Design sessions for replication • Data classification • System implementation • Migration and documentation High level process © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 48

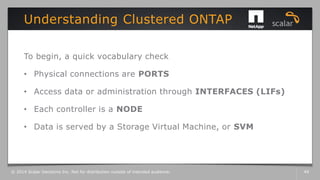

- 49. To begin, aquick vocabulary check • Physical connections are PORTS • Access data or administration through INTERFACES (LIFs) • Each controller is a NODE • Data is served by a Storage Virtual Machine, or SVM Understanding Clustered ONTAP © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 49
- 50. • How manyports, to where, for what? • What will go on those ports? IP ranges, VLANs • LACP LAGs, VLAN trunks • Leads to requirements for upstream network design • Can be simple, or rich, depending on use case for SAN Design for network connectivity © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 50

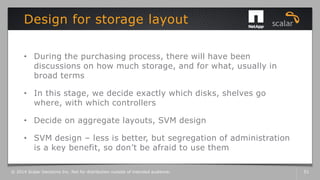

- 51. • During thepurchasing process, there will have been discussions on how much storage, and for what, usually in broad terms • In this stage, we decide exactly which disks, shelves go where, with which controllers • Decide on aggregate layouts, SVM design • SVM design – less is better, but segregation of administration is a key benefit, so don’t be afraid to use them Design for storage layout © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 51
- 52. • All datais served by SVMs, through logical interfaces (LIFs), either over IPs or FC WWPNs • Decide which LIFs, for what, for which SVM • Including Administration and data access IPs Design for storage layout © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 52

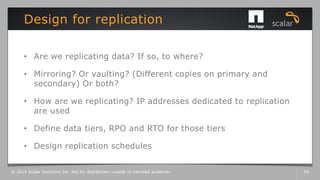

- 53. • Are wereplicating data? If so, to where? • Mirroring? Or vaulting? (Different copies on primary and secondary) Or both? • How are we replicating? IP addresses dedicated to replication are used • Define data tiers, RPO and RTO for those tiers • Design replication schedules Design for replication © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 53

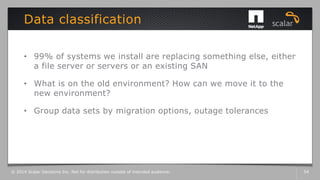

- 54. • 99% ofsystems we install are replacing something else, either a file server or servers or an existing SAN • What is on the old environment? How can we move it to the new environment? • Group data sets by migration options, outage tolerances Data classification © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 54
- 55. • Physical installation •Cabling • Formatting drives • Configure SVMs • Configure volumes, LUNs • Configure replication and protection Implementation © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 55

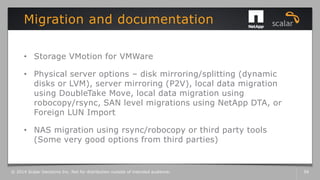

- 56. • Storage VMotionfor VMWare • Physical server options – disk mirroring/splitting (dynamic disks or LVM), server mirroring (P2V), local data migration using DoubleTake Move, local data migration using robocopy/rsync, SAN level migrations using NetApp DTA, or Foreign LUN Import • NAS migration using rsync/robocopy or third party tools (Some very good options from third parties) Migration and documentation © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 56

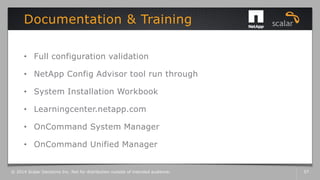

- 57. • Full configurationvalidation • NetApp Config Advisor tool run through • System Installation Workbook • Learningcenter.netapp.com • OnCommand System Manager • OnCommand Unified Manager Documentation & Training © 2014 Scalar Decisions Inc. Not for distribution outside of intended audience. 57
- 58. © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 58 Read how Vancouver Community College addressed their escalating data demands with CDOT here.
- 59. © 2014 ScalarDecisions Inc. Not for distribution outside of intended audience. 59
