The Ring programming language version 1.7 book - Part 78 of 196

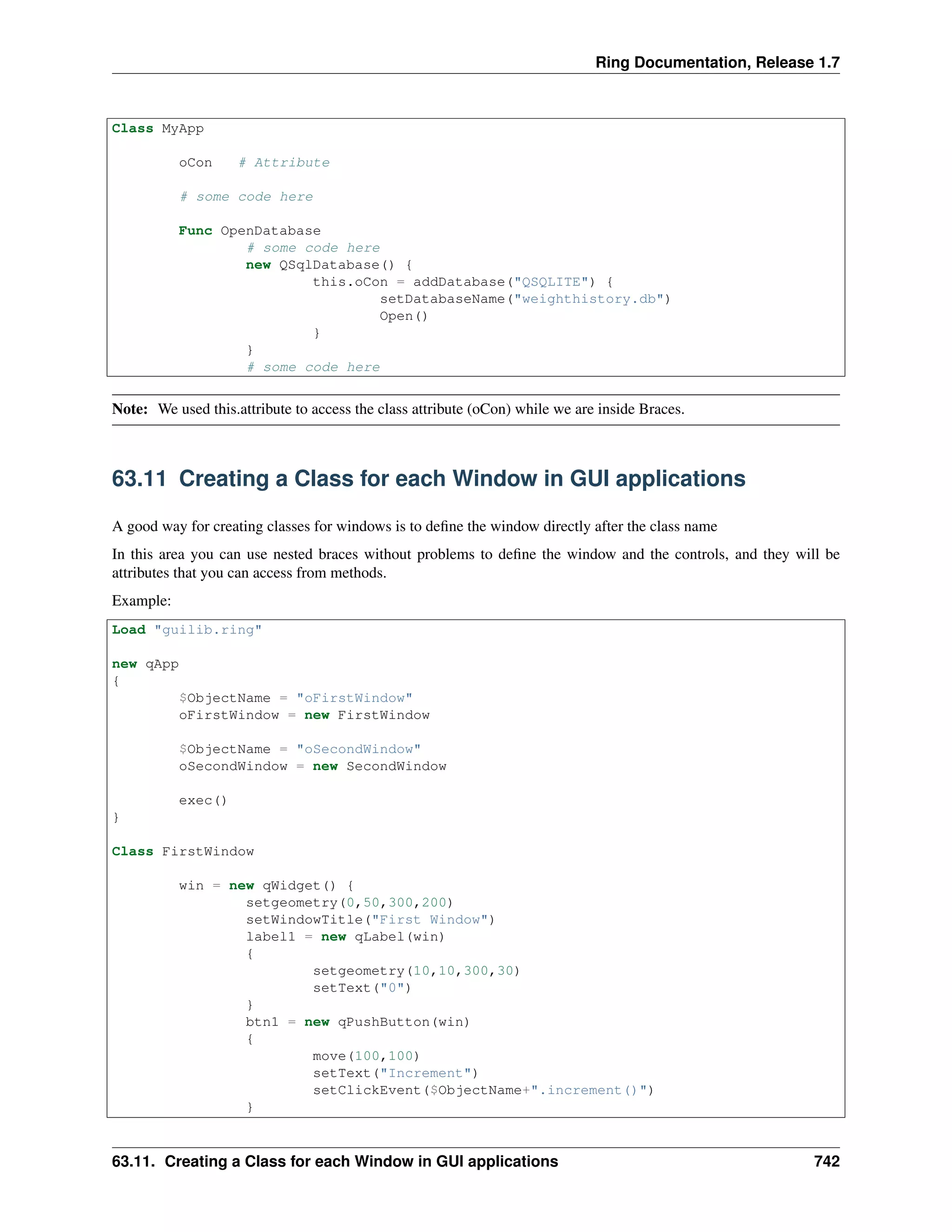

1. Ring Documentation, Release 1.7
Class MyApp
oCon # Attribute
# some code here
Func OpenDatabase
# some code here
new QSqlDatabase() {
this.oCon = addDatabase("QSQLITE") {
setDatabaseName("weighthistory.db")
Open()
}
}
# some code here
Note: We used this.attribute to access the class attribute (oCon) while we are inside Braces.
63.11 Creating a Class for each Window in GUI applications
A good way for creating classes for windows is to deļ¬ne the window directly after the class name
In this area you can use nested braces without problems to deļ¬ne the window and the controls, and they will be
attributes that you can access from methods.
Example:
Load "guilib.ring"
new qApp
{
$ObjectName = "oFirstWindow"
oFirstWindow = new FirstWindow
$ObjectName = "oSecondWindow"
oSecondWindow = new SecondWindow
exec()
}
Class FirstWindow
win = new qWidget() {
setgeometry(0,50,300,200)
setWindowTitle("First Window")
label1 = new qLabel(win)
{
setgeometry(10,10,300,30)
setText("0")
}
btn1 = new qPushButton(win)
{
move(100,100)
setText("Increment")
setClickEvent($ObjectName+".increment()")
}
63.11. Creating a Class for each Window in GUI applications 742

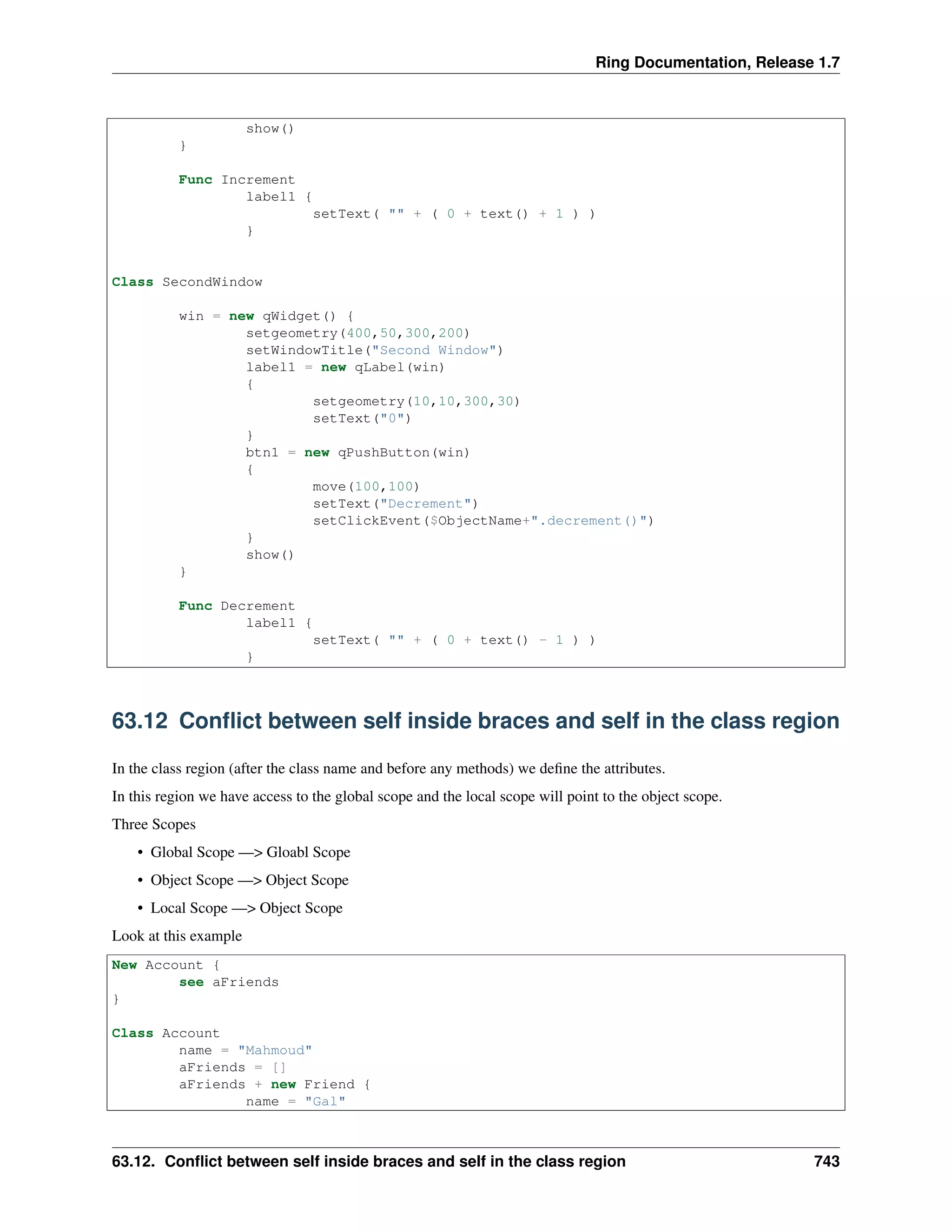

2. Ring Documentation, Release 1.7
show()
}
Func Increment
label1 {
setText( "" + ( 0 + text() + 1 ) )
}
Class SecondWindow
win = new qWidget() {
setgeometry(400,50,300,200)
setWindowTitle("Second Window")
label1 = new qLabel(win)
{
setgeometry(10,10,300,30)
setText("0")
}
btn1 = new qPushButton(win)
{
move(100,100)
setText("Decrement")
setClickEvent($ObjectName+".decrement()")
}
show()
}
Func Decrement
label1 {
setText( "" + ( 0 + text() - 1 ) )
}
63.12 Conļ¬ict between self inside braces and self in the class region
In the class region (after the class name and before any methods) we deļ¬ne the attributes.
In this region we have access to the global scope and the local scope will point to the object scope.
Three Scopes
ā¢ Global Scope ā> Gloabl Scope
ā¢ Object Scope ā> Object Scope
ā¢ Local Scope ā> Object Scope
Look at this example
New Account {
see aFriends
}
Class Account
name = "Mahmoud"
aFriends = []
aFriends + new Friend {
name = "Gal"
63.12. Conļ¬ict between self inside braces and self in the class region 743
3. Ring Documentation, Release 1.7
}
aFriends + new Friend {
name = "Bert"
}
Class Friend
name
Output:
name: NULL
name: NULL
The problem in the previous example is that the Class account contains an attribute called ānameā and the Friend class
contains an attribue called ānameā also.
If you tried using self.name inside braces you will get the same result!
New Account {
see aFriends
}
Class Account
name = "Mahmoud"
aFriends = []
aFriends + new Friend {
self.name = "Gal"
}
aFriends + new Friend {
self.name = "Bert"
}
Class Friend
name
So why using self.name inside braces doesnāt solve this conļ¬ict?
Because after the class region we have
ā¢ global scope ā> global scope
ā¢ object scope ā> object scope (Account Class)
ā¢ local scope ā> local scope (Account Class)
When we use braces we change the object scope, so we have
ā¢ global scope ā> global scope
ā¢ object scope ā> object scope (Friend Class)
ā¢ local scope ā> local scope (Account Class)
Ring search in the local scope ļ¬rst, so using self.name will use the Account class.
There are many solution
Solution (1) : Access the object through the list
New Account {
see aFriends
}
Class Account
63.12. Conļ¬ict between self inside braces and self in the class region 744
4. Ring Documentation, Release 1.7
name = "Mahmoud"
aFriends = []
aFriends + new Friend
aFriends[len(aFriends)] {
aFriends[len(aFriends)].name = "Gal"
}
aFriends + new Friend
aFriends[len(aFriends)] {
aFriends[len(aFriends)].name = "Bert"
}
Class Friend
name
Solution (2) : Create Method in the friend class to set the name attribute.
New Account {
see aFriends
}
Class Account
name = "Mahmoud"
aFriends = []
aFriends + new Friend {
setname("Gal")
}
aFriends + new Friend {
setname("Bert")
}
Class Friend
name
func setname cName
name = cName
Solution (3) : Create a method in the account class to set the attribute
New Account {
see aFriends
}
Class Account
name = "Mahmoud"
aFriends = []
friend("Gal")
friend("Bert")
func friend cName
aFriends + new Friend {
name = cName
}
Class Friend
name
Solution (4) : Declarative Programming
New Account {
name = "mahmoud"
friend {
63.12. Conļ¬ict between self inside braces and self in the class region 745
5. Ring Documentation, Release 1.7
name = "Gal"
}
friend {
name = "Bert"
}
see aFriends
}
Class Account
name
aFriends = []
friend
func getfriend
aFriends + new Friend
return aFriends[len(aFriends)]
Class Friend
name
Output:
name: Gal
name: Bert
63.13 Using braces to escape from the current object scope
Since braces change the current object scope to another object. we can use it to do some work without modifying the
class attributes and using the same variable names.
new point {x=10 y=20 z=30 start() }
class point x y z
func start
see self # print the x y z values (10,20,30)
new Local {
x = 100
y = 200
z = 300
}
see self # print the x y z values (10,20,30)
see x + nl # will print 100
see y + nl # will print 200
see z + nl # will print 300
Self { # NO Advantage - Search is done in local scope first
see x + nl # will print 100
see y + nl # will print 200
see z + nl # will print 300
}
see self.x + nl # will print 10
see self.y + nl # will print 20
see self.z + nl # will print 30
class Local
Output:
x: 10.000000
y: 20.000000
63.13. Using braces to escape from the current object scope 746
6. Ring Documentation, Release 1.7
z: 30.000000
x: 10.000000
y: 20.000000
z: 30.000000
100
200
300
100
200
300
10
20
30
63.14 Summary of Scope Rules
At ļ¬rst remember that
1 - Each programming language comes with itās scope rules based on the language goals
2 - Programming in the small is different than Programming in the Large
3 - Some programming language are designed for developing small programs while others are designed for large
programs
4 - In programming, If we have access to more than one scope - Then problems may come if we donāt manage things
correctly
5 - Itās always more secure to reduce the number of visible scopes
6 - Some programming languages force you to manage the scope in some way, while others not!
In Ring
1 - Special and very simple scope rules that are designed for Flexibility ļ¬rst then Security
2 - Ring is designed to support programming in the small and programming in the large.
3 - The language provide the different programming paradigms that you may select from based on the project size.
Errors comes only if you selected a bad paradigm for the target project or you are using the paradigm in a way that is
not correct or at least not common.
4 - In Ring you have the choice, you can use global variables or avoid them. you can give them a special $ mark or
leave them. you can use object-oriented or stay with procedures. you can use the class region (after the class name
and before any method) just for attributes or use it for code too.
5 - Just read the next scope rules and think about them then use them in your favorite way.
Scope Rules:
1 - At any place in our program code we have only at maximum Three Scopes (Local Scope, Object Scope and Global
Scope).
2 - When Ring ļ¬nd a variable it will search in the local scope ļ¬rst then in the object scope then in the global scope.
3 - At any time inside procedures or methods you can use braces { } to access an object and change the current object
scope.
4 - In the class region (After the class name and before any method) this is a special region where both of the object
scope and the local scope point to the object scope. I.e. No local variables where each variable you deļ¬ne in this
region will become an attribute.
63.14. Summary of Scope Rules 747
7. Ring Documentation, Release 1.7
5 - Before deļ¬ning any variable (in any scope and in the class region too) a search process will be done to use the
variable if itās found.
6 - Functions and Methods parameters are deļ¬ned automatically as local variables to these functions or methods.
7 - Using Object.Attribute will search in the object attributes only.
8 - Using Self.Attribute will lead to a search for Self ļ¬rst then search in Self Attributes.
9 - The Self reference inside class region (after the class name and before any method) always point to the object scope
created from the class.
10- The Self reference inside methods will be changed when we uses Braces to be a reference to the object that we
access.
11- Writing variable names directly in the class region (after the class name and before any method) means using them
or deļ¬ne then (in order).
12- Using self.attribute in the class region reduce search to the object scope (avoid conļ¬ict with global scope).
From these rules you can understand all types of conļ¬icts and why you may have them and how to avoid them
Simple advices to avoid any conļ¬ict and use the scope rules in a better way
1 - Try to avoid global variables
2 - Use the Main Function - This will help you to avoid global variables
3 - If you are going to use many global variables use the $ mark before the variable name
4 - In the class region if you donāt respect the advice number three ($) then use self.attribute when you deļ¬ne your
attributes
5 - You can use object.attribute and object.method() instead of object { attribute } and object { method() } if you donāt
like changing the object scope.
6 - If you will use nested braces in a class - think about using the class region if possible because in this region you
will have access to the object that you access using { } + access to the class attributes
7 - If you are inside a class method and used nested braces you will change the object scope with each brace and you
will loss the access to the class attributes directly but you have access to the local scope before and after using brace
{ } , if you will read/modify the class attribute from braces then use This.Attribute because using āThisā means (The
object created from this class) while using āSelfā means (The object in the current object scope).
After understanding all of the previous points, You will master this topic.
63.14. Summary of Scope Rules 748
8. CHAPTER
SIXTYFOUR
SCOPE RULES FOR FUNCTIONS AND METHODS
In this chapter we will learn about the scope rules for functions and methods.
You need to know the next information once you started using Ring for large applications.
These applications may contains and use
ā¢ Many Packages and Classes written in Ring
ā¢ Many Functions written in Ring
ā¢ Standard Ring Functions (Written in C language)
ā¢ Functions and Classes written in C/C++ languages
64.1 How Ring ļ¬nd the Functions and Methods?
When you call a method or function, Ring will start a search process to ļ¬nd this function
If found ā> Call the function and store the function pointer in the cache so Ring can use it again with doing another
search.
If not found ā> Runtime error message (That you can avoid using Try/Catch)
How the search process is done?
Search for functions/methods follow the next order
1 - Search in methods (if we are inside class method or object using braces {})
2 - Search in functions written by the programmer using Ring Code
3 - Search in functions written in C/C++ like standard Ring functions
This enable us to write clean code inside classes methods and avoid any conļ¬ict with functions.
If we want to call a function with the same name as a method in the class we will need a wrapper function or we will
access a temp. object using { } then call that function there.
We can replace C/C++ Functions with Ring Functions.
We can replace Ring Functions with Ring Methods.
Note: Using self.method() is not necessary in any use case.
Tip: We can use this.method() to escape from the current active scope that we access using braces {} and call a
method in the class that we are inside.
749
9. Ring Documentation, Release 1.7
64.2 Example about Sharing Names between Functions and Methods
Look at the next example
func main
o1 = new myclass { test() test2() }
test2()
func f1
see "f1 function" + nl
func f2
see "f2 function" + nl
func f3
see "f3 function" + nl
func test2
myline()
see "test2 function" + nl
new myclass {
f1()
f2()
f3()
self.f3()
}
myobj = new myclass
myobj.f3()
myline()
func myline
see copy("=",40) + nl
Class myclass
func test
myline()
see "test method" + nl
f1()
f2()
f3()
myline()
func f3
see "f3 method" + nl
func test2
myline()
see "test2 method" + nl
self {
f1()
f2()
f3()
}
myline()
Output:
64.2. Example about Sharing Names between Functions and Methods 750
10. Ring Documentation, Release 1.7
========================================
test method
f1 function
f2 function
f3 method
========================================
========================================
test2 method
f1 function
f2 function
f3 method
========================================
========================================
test2 function
f1 function
f2 function
f3 method
f3 method
f3 method
========================================
64.3 Calling a function sharing the name with a method in the current
class
In the previous example we have a function called f3() and we have a method called f3()
How we can call the f3() function from the test() method ?
Solution (1) : Change the current object scope to another object scope
In this solution we will have an empty class called local that we will use to change the current object scope.
func main
o1 = new myclass { test()}
func f1
see "f1 function" + nl
func f2
see "f2 function" + nl
func f3
see "f3 function" + nl
func myline
see copy("=",40) + nl
Class myclass
func test
myline()
see "test method" + nl
f1()
f2()
f3() # call f3() method
new local { f3() } # call f3() function
myline()
64.3. Calling a function sharing the name with a method in the current class 751
