C++ Introductory Course
- By Dennis Chang

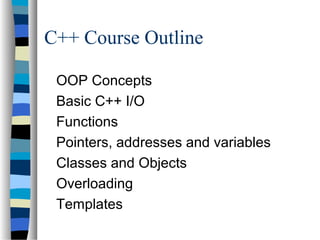

C++ Course Outline
OOP Concepts
Basic C++ I/O
Functions
Pointers, addresses and variables
Classes and Objects
Overloading
Templates

C++ Course Outline
Exception Handling

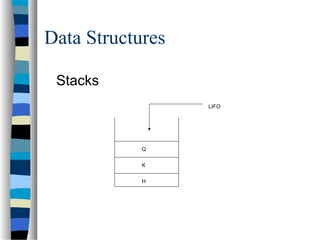

Data Structures

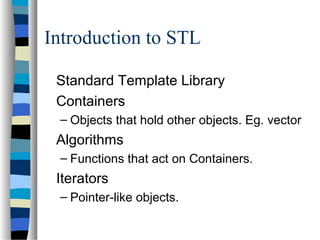

Introduction to STL

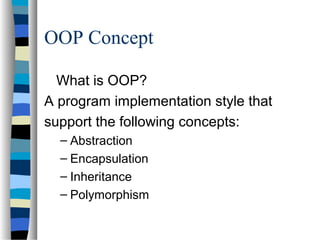

OOP Concept
What is OOP?
A program implementation style that
support the following concepts:
– Abstraction
– Encapsulation
– Inheritance
– Polymorphism

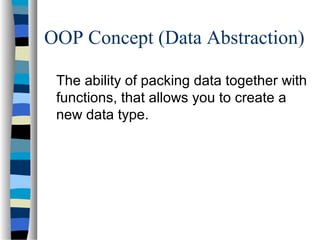

OOP Concept (Data Abstraction)
The ability of packing data together with
functions, that allows you to create a
new data type.

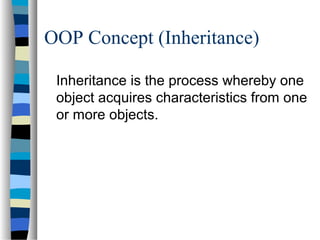

OOP Concept (Inheritance)
Inheritance is the process whereby one
object acquires characteristics from one
or more objects.

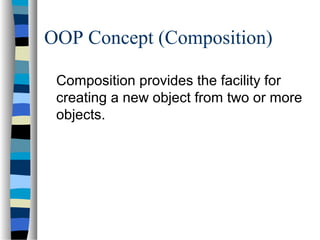

OOP Concept (Composition)
Composition provides the facility for
creating a new object from two or more
objects.

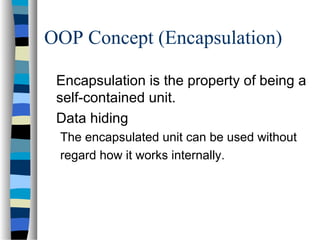

OOP Concept (Encapsulation)
Encapsulation is the property of being a
self-contained unit.
Data hiding
The encapsulated unit can be used without
regard how it works internally.

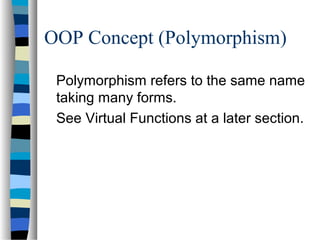

OOP Concept (Polymorphism)
Polymorphism refers to the same name
taking many forms.
See Virtual Functions at a later section.

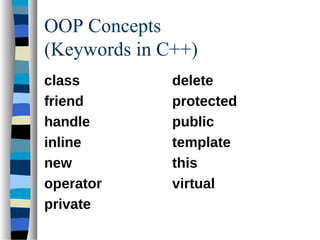

OOP Concepts
(Keywords in C++)
class delete
friend protected
handle public
inline template
new this
operator virtual
private

Basic C++ I/O
cin, tied to standard input.
cout, tied to standard output.

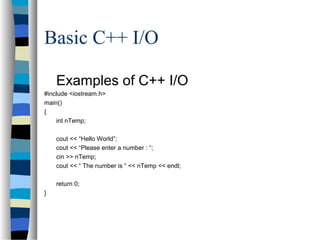

Basic C++ I/O
Examples of C++ I/O
#include <iostream.h>
main()
{
int nTemp;
cout << “Hello World”;
cout << “Please enter a number : “;
cin >> nTemp;
cout << “ The number is “ << nTemp << endl;
return 0;
}

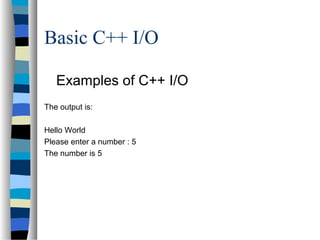

Basic C++ I/O
Examples of C++ I/O
The output is:
Hello World
Please enter a number : 5
The number is 5

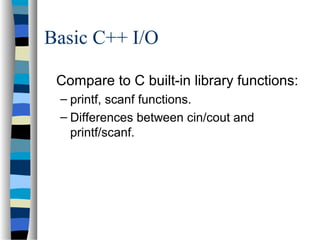

Basic C++ I/O
Compare to C built-in library functions:
– printf, scanf functions.
– Differences between cin/cout and
printf/scanf.

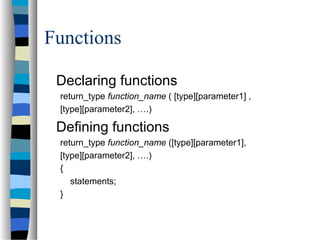

Functions
Declaring functions
return_type function_name ( [type][parameter1] ,
[type][parameter2], ….)
Defining functions
return_type function_name ([type][parameter1],
[type][parameter2], ….)
{
statements;
}

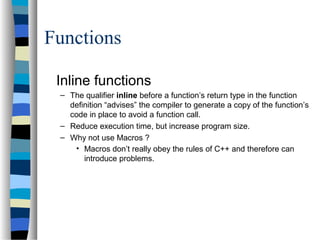

Functions
Inline functions
– The qualifier inline before a function’s return type in the function
definition “advises” the compiler to generate a copy of the function’s
code in place to avoid a function call.
– Reduce execution time, but increase program size.
– Why not use Macros ?
• Macros don’t really obey the rules of C++ and therefore can
introduce problems.

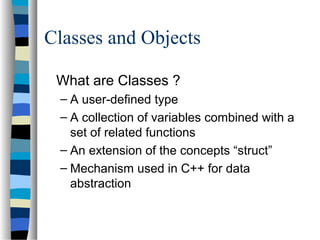

Classes and Objects
What are Classes ?
– A user-defined type
– A collection of variables combined with a
set of related functions
– An extension of the concepts “struct”
– Mechanism used in C++ for data
abstraction

Classes and Objects
What are Classes ?
– A C++ class has the following associated
attributes:
• Access Control
• Constructors and Destructors
• A collection of data members
• A collection of member functions
• An associated class tag name

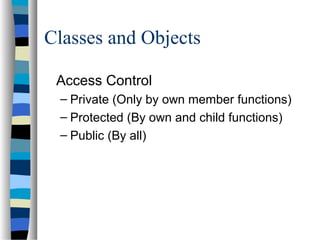

Classes and Objects
Access Control
– Private (Only by own member functions)
– Protected (By own and child functions)
– Public (By all)

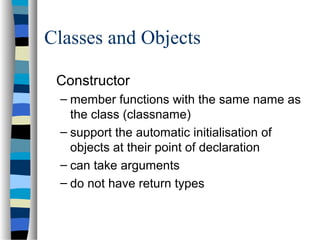

Classes and Objects
Constructor
– member functions with the same name as
the class (classname)
– support the automatic initialisation of
objects at their point of declaration
– can take arguments
– do not have return types

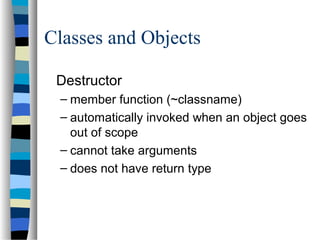

Classes and Objects
Destructor
– member function (~classname)
– automatically invoked when an object goes
out of scope
– cannot take arguments
– does not have return type

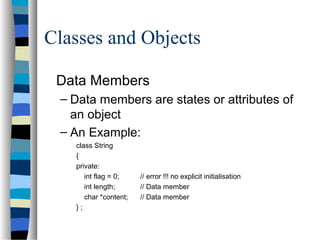

Classes and Objects
Data Members
– Data members are states or attributes of
an object
– An Example:
class String
{
private:
int flag = 0; // error !!! no explicit initialisation
int length; // Data member
char *content; // Data member
} ;

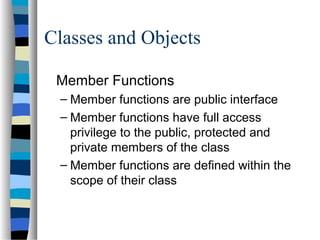

Classes and Objects
Member Functions
– Member functions are public interface
– Member functions have full access
privilege to the public, protected and
private members of the class
– Member functions are defined within the
scope of their class

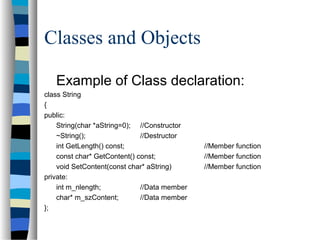

Classes and Objects
Example of Class declaration:
class String
{
public:
String(char *aString=0); //Constructor
~String(); //Destructor
int GetLength() const; //Member function
const char* GetContent() const; //Member function
void SetContent(const char* aString) //Member function
private:
int m_nlength; //Data member
char* m_szContent; //Data member
};

Classes and Objects
Examples of Member functions
implementation:
int String::GetLength() const
{
return m_nLength;
}

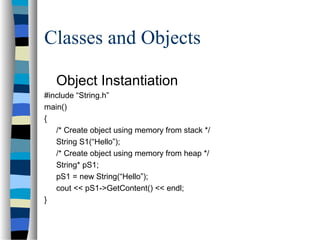

Classes and Objects
Object Instantiation
#include “String.h”
main()
{
/* Create object using memory from stack */
String S1(“Hello”);
/* Create object using memory from heap */
String* pS1;
pS1 = new String(“Hello”);
cout << pS1->GetContent() << endl;
}

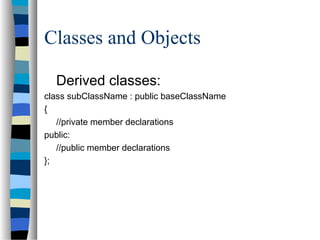

Classes and Objects
Derived classes:
class subClassName : public baseClassName
{
//private member declarations
public:
//public member declarations
};

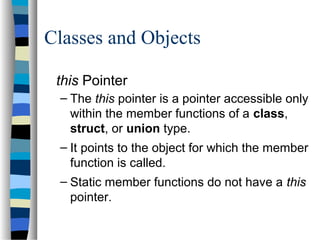

Classes and Objects
this Pointer
– The this pointer is a pointer accessible only
within the member functions of a class,
struct, or union type.
– It points to the object for which the member
function is called.
– Static member functions do not have a this
pointer.

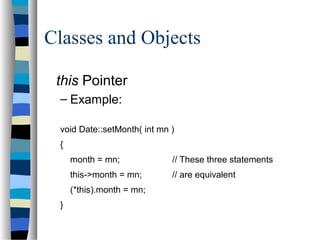

Classes and Objects
this Pointer
– Example:
void Date::setMonth( int mn )
{
month = mn; // These three statements
this->month = mn; // are equivalent
(*this).month = mn;
}

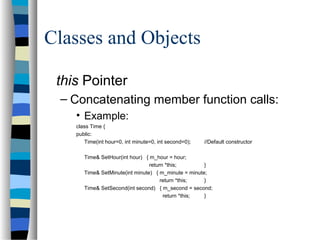

Classes and Objects
this Pointer
– Concatenating member function calls:
• Example:
class Time {
public:
Time(int hour=0, int minute=0, int second=0); //Default constructor
Time& SetHour(int hour) { m_hour = hour;
return *this; }
Time& SetMinute(int minute) { m_minute = minute;
return *this; }
Time& SetSecond(int second) { m_second = second;
return *this; }

Classes and Objects
this Pointer
private:
int hour;
int minute;
int second;
};
main( )
{
Time t;
t.SetHour(18).SetMinute(30).SetSecond(20); //Concatenating member function calls
return 0;
}

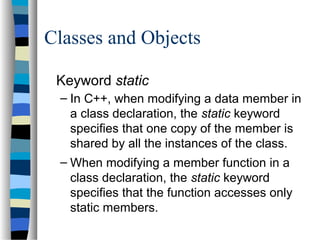

Classes and Objects
Keyword static
– In C++, when modifying a data member in
a class declaration, the static keyword
specifies that one copy of the member is
shared by all the instances of the class.
– When modifying a member function in a
class declaration, the static keyword
specifies that the function accesses only
static members.

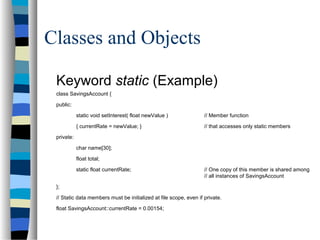

Classes and Objects
Keyword static (Example)
class SavingsAccount {
public:
static void setInterest( float newValue ) // Member function
{ currentRate = newValue; } // that accesses only static members
private:
char name[30];
float total;
static float currentRate; // One copy of this member is shared among
// all instances of SavingsAccount
};
// Static data members must be initialized at file scope, even if private.
float SavingsAccount::currentRate = 0.00154;

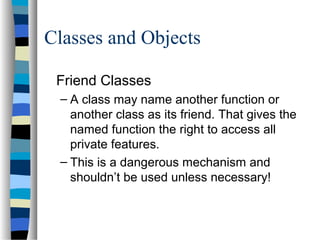

Classes and Objects
Friend Classes
– A class may name another function or
another class as its friend. That gives the
named function the right to access all
private features.
– This is a dangerous mechanism and
shouldn’t be used unless necessary!

Classes and Objects
Friend Classes
– Friendship is not mutual unless explicitly specified
as such.
– Friendship is not inherited.
– Friendship is not transitive. Therefore, if class A is
a friend of class B, and class B is a friend of class
C, we cannot infer that class C is a friend of class
A.

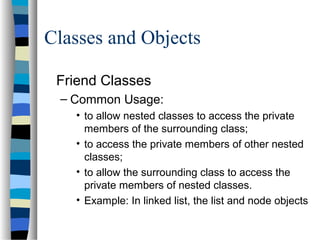

Classes and Objects
Friend Classes
– Common Usage:
• to allow nested classes to access the private
members of the surrounding class;
• to access the private members of other nested
classes;
• to allow the surrounding class to access the
private members of nested classes.
• Example: In linked list, the list and node objects

Classes and Objects
Friend Classes
– Syntax:
class A { class B {
private: class B can access
…. the private area of
class A
friend class B; };
};

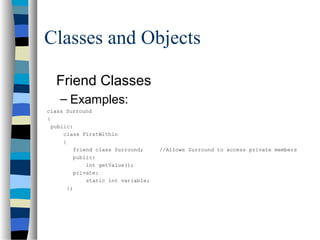

Classes and Objects
Friend Classes
– Examples:
class Surround
{
public:
class FirstWithin
{
friend class Surround; //Allows Surround to access private members
public:
int getValue();
private:
static int variable;
};

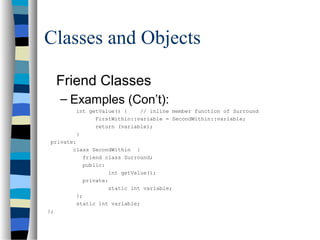

Classes and Objects
Friend Classes
– Examples (Con’t):
int getValue() { // inline member function of Surround
FirstWithin::variable = SecondWithin::variable;
return (variable);
}
private:
class SecondWithin {
friend class Surround;
public:
int getValue();
private:
};
};

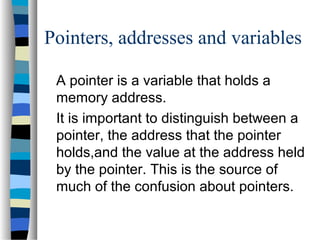

A pointer is a variable that holds a
memory address.
It is important to distinguish between a
pointer, the address that the pointer
holds,and the value at the address held
by the pointer. This is the source of
much of the confusion about pointers.

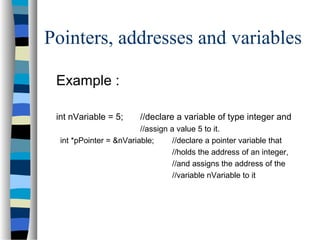

Example :
int nVariable = 5; //declare a variable of type integer and
//assign a value 5 to it.
int *pPointer = &nVariable; //declare a pointer variable that
//holds the address of an integer,
//and assigns the address of the
//variable nVariable to it

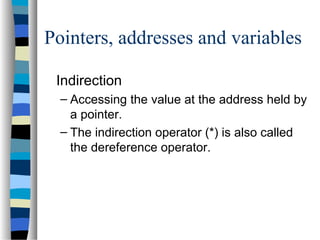

Indirection
– Accessing the value at the address held by
a pointer.
– The indirection operator (*) is also called
the dereference operator.

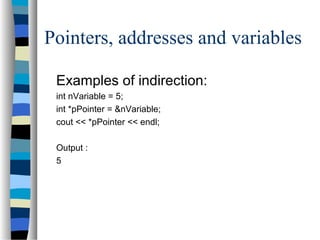

Examples of indirection:
int nVariable = 5;
int *pPointer = &nVariable;
cout << *pPointer << endl;
Output :
5

Pass by values
void swap(int x, int y);
int main()
{
int x=5, y=10;
cout << “Main. Before swap, x:” << x << “ y:” << y << “n”;
swap(x,y);
cout << “Main. After swap, x:” << x << “ y:” << y << “n”;
return 0;
}

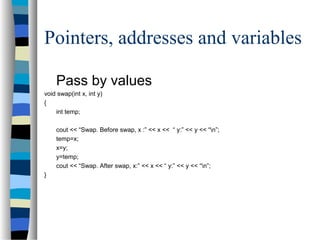

Pass by values
void swap(int x, int y)
{
int temp;
cout << “Swap. Before swap, x :” << x << “ y:” << y << “n”;
temp=x;
x=y;
y=temp;
cout << “Swap. After swap, x:” << x << “ y:” << y << “n”;
}

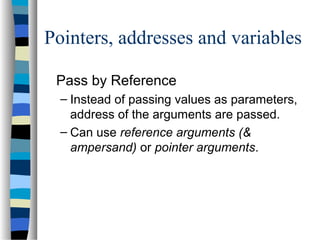

Pass by Reference
– Instead of passing values as parameters,
address of the arguments are passed.
– Can use reference arguments (&
ampersand) or pointer arguments.

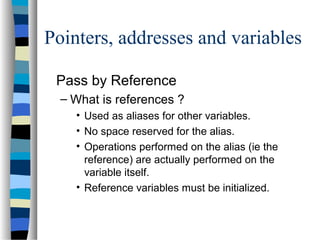

Pass by Reference
– What is references ?
• Used as aliases for other variables.
• No space reserved for the alias.
• Operations performed on the alias (ie the
reference) are actually performed on the
variable itself.
• Reference variables must be initialized.

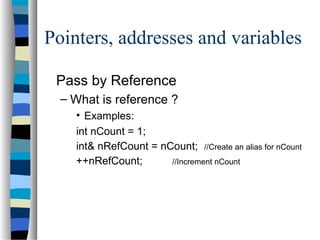

Pass by Reference
– What is reference ?
• Examples:
int nCount = 1;
int& nRefCount = nCount; //Create an alias for nCount
++nRefCount; //Increment nCount

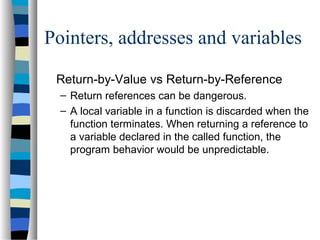

Return-by-Value vs Return-by-Reference
– Return references can be dangerous.
– A local variable in a function is discarded when the
function terminates. When returning a reference to
a variable declared in the called function, the
program behavior would be unpredictable.

Memory Allocation/Deallocation
– Keywords :
• For C :
– malloc( ) and free().
• For C++ :
– new and delete.

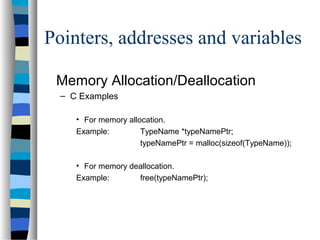

– C Examples
• For memory allocation.
Example: TypeName *typeNamePtr;
typeNamePtr = malloc(sizeof(TypeName));
• For memory deallocation.
Example: free(typeNamePtr);

– C++ Examples
• For memory allocation.
Example: int* pnPtr=0; char* pcChar=0;
pnPtr = new int; //Allocate space for pointer
//variable
pcChar = new char[20] //Allocate space for 20 char.
• For memory deallocation.
Example : delete pnPtr;
delete[ ] pcChar;

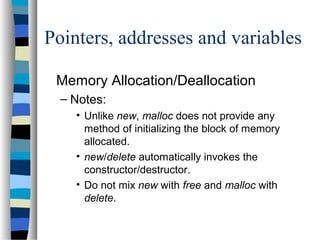

– Notes:
• Unlike new, malloc does not provide any
method of initializing the block of memory
allocated.
• new/delete automatically invokes the
constructor/destructor.
• Do not mix new with free and malloc with
delete.

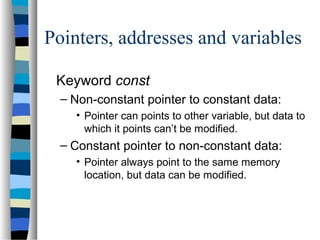

Keyword const
– Non-constant pointer to constant data:
• Pointer can points to other variable, but data to
which it points can’t be modified.
– Constant pointer to non-constant data:
• Pointer always point to the same memory
location, but data can be modified.

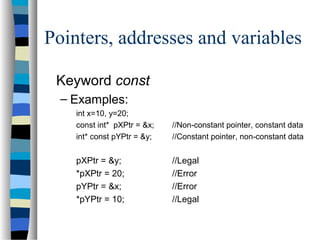

Keyword const
– Examples:
int x=10, y=20;
const int* pXPtr = &x; //Non-constant pointer, constant data
int* const pYPtr = &y; //Constant pointer, non-constant data
pXPtr = &y; //Legal
*pXPtr = 20; //Error
pYPtr = &x; //Error
*pYPtr = 10; //Legal

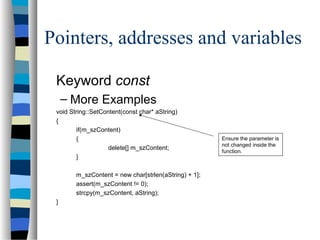

Keyword const
– More Examples
void String::SetContent(const char* aString)
{
if(m_szContent)
{
delete[] m_szContent;
}
m_szContent = new char[strlen(aString) + 1];
assert(m_szContent != 0);
strcpy(m_szContent, aString);
}
Ensure the parameter is
not changed inside the
function.

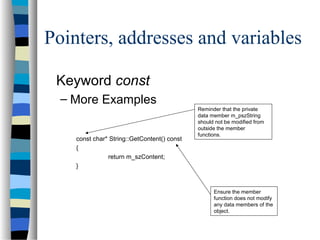

Keyword const
– More Examples
const char* String::GetContent() const
{
return m_szContent;
}
Ensure the member
function does not modify
any data members of the
object.
Reminder that the private
data member m_pszString
should not be modified from
outside the member
functions.

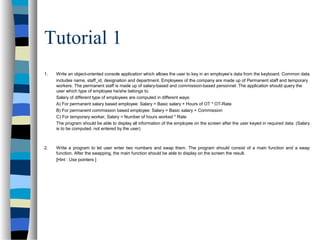

Tutorial 1
1. Write an object-oriented console application which allows the user to key in an employee’s data from the keyboard. Common data
includes name, staff_id, designation and department. Employees of the company are made up of Permanent staff and temporary
workers. The permanent staff is made up of salary-based and commission-based personnel. The application should query the
user which type of employee he/she belongs to.
Salary of different type of employees are computed in different ways:
A) For permanent salary based employee: Salary = Basic salary + Hours of OT * OT-Rate
B) For permanent commission based employee: Salary = Basic salary + Commission
C) For temporary worker, Salary = Number of hours worked * Rate
The program should be able to display all information of the employee on the screen after the user keyed in required data. (Salary
is to be computed, not entered by the user)
2. Write a program to let user enter two numbers and swap them. The program should consist of a main function and a swap
function. After the swapping, the main function should be able to display on the screen the result.
[Hint : Use pointers ]

Overloading
Function Overloading:
– A function can be reused with different
arguments and return type.
– Eg. void print(char* szMessage) and void
print(int number)

Overloading
Operator Overloading:
– Allow existing operators to be overloaded
so that when these operators are used with
class objects, the operators have meaning
appropriate to the new types.

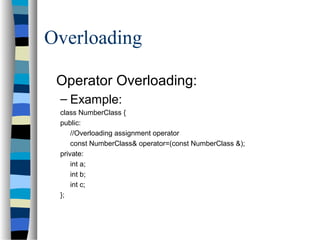

Overloading
– Example:
class NumberClass {
public:
//Overloading assignment operator
const NumberClass& operator=(const NumberClass &);
private:
int a;
int b;
int c;
};

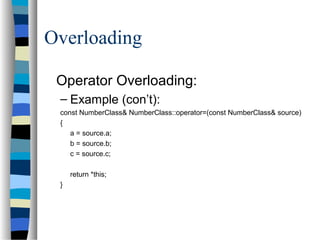

Overloading
– Example (con’t):
const NumberClass& NumberClass::operator=(const NumberClass& source)
{
a = source.a;
b = source.b;
c = source.c;
return *this;
}

Overloading

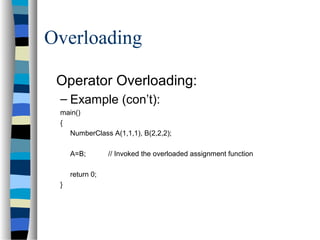

– Example (con’t):
main()
{
NumberClass A(1,1,1), B(2,2,2);
A=B; // Invoked the overloaded assignment function
return 0;
}

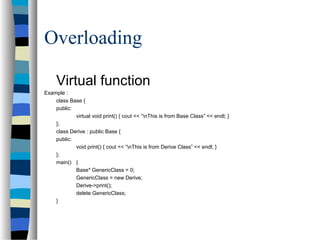

Overloading
Virtual function
Example :
class Base {
public:
virtual void print() { cout << “nThis is from Base Class” << endl; }
};
class Derive : public Base {
public:
void print() { cout << “nThis is from Derive Class” << endl; }
};
main() {
Base* GenericClass = 0;
GenericClass = new Derive;
Derive->print();
delete GenericClass;
}

Overloading

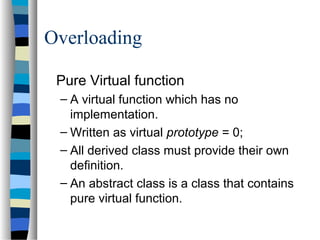

Pure Virtual function
– A virtual function which has no
implementation.
– Written as virtual prototype = 0;
– All derived class must provide their own
definition.
– An abstract class is a class that contains
pure virtual function.

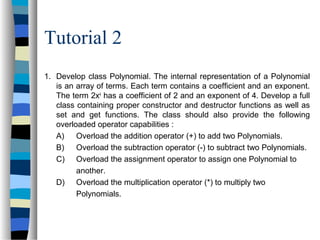

Tutorial 2
1. Develop class Polynomial. The internal representation of a Polynomial
is an array of terms. Each term contains a coefficient and an exponent.
The term 2x4
has a coefficient of 2 and an exponent of 4. Develop a full
class containing proper constructor and destructor functions as well as
set and get functions. The class should also provide the following
overloaded operator capabilities :
A) Overload the addition operator (+) to add two Polynomials.
B) Overload the subtraction operator (-) to subtract two Polynomials.
C) Overload the assignment operator to assign one Polynomial to
another.
D) Overload the multiplication operator (*) to multiply two
Polynomials.

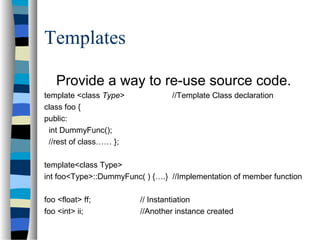

Templates
Provide a way to re-use source code.
template <class Type> //Template Class declaration
class foo {
public:
int DummyFunc();
//rest of class…… };
template<class Type>
int foo<Type>::DummyFunc( ) {….} //Implementation of member function
foo <float> ff; // Instantiation
foo <int> ii; //Another instance created

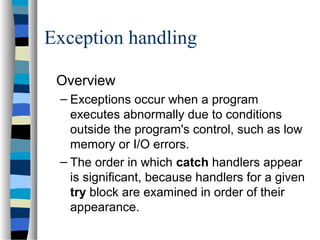

Exception handling
Overview
– Exceptions occur when a program
executes abnormally due to conditions
outside the program's control, such as low
memory or I/O errors.
– The order in which catch handlers appear
is significant, because handlers for a given
try block are examined in order of their
appearance.

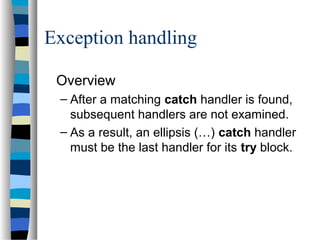

Exception handling
Overview
– After a matching catch handler is found,
subsequent handlers are not examined.
– As a result, an ellipsis (…) catch handler
must be the last handler for its try block.

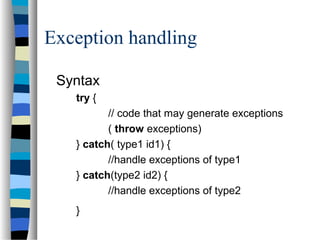

Exception handling
Syntax
try {
// code that may generate exceptions
( throw exceptions)
} catch( type1 id1) {
//handle exceptions of type1
} catch(type2 id2) {
//handle exceptions of type2
}

Exception handling

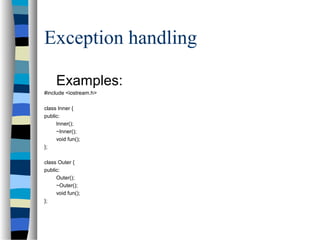

Examples:
class Inner {
public:
Inner();
~Inner();
void fun();
};
class Outer {
public:
Outer();
~Outer();
void fun();
};

Exception handling
Examples (Con’t):
Inner::Inner()
{
cout << "Inner constructorn";
}
Inner::~Inner()
{
cout << "Inner destructorn";
}
void Inner::fun()
{
cout << "Inner funn";
throw 1; //throw an exception
cout << "This statement is not executedn";
}

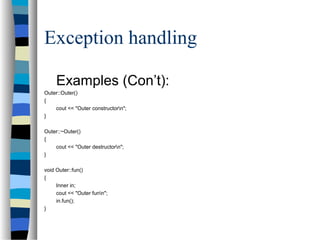

Exception handling
Examples (Con’t):
Outer::Outer()
{
cout << "Outer constructorn";
}
Outer::~Outer()
{
cout << "Outer destructorn";
}
void Outer::fun()
{
Inner in;
cout << "Outer funn";
in.fun();
}

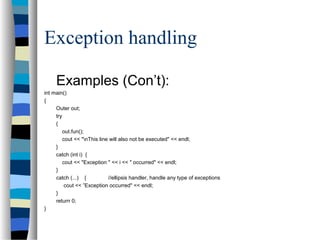

Exception handling
Examples (Con’t):
int main()
{
Outer out;
try
{
out.fun();
cout << "nThis line will also not be executed" << endl;
}
catch (int i) {
cout << "Exception " << i << " occurred" << endl;
}
catch (...) { //ellipsis handler, handle any type of exceptions
cout << ”Exception occurred" << endl;
}
return 0;
}

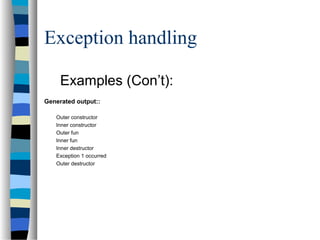

Exception handling
Examples (Con’t):
Generated output::
Outer constructor
Inner constructor
Outer fun
Inner fun
Inner destructor
Exception 1 occurred
Outer destructor

Data Structures
Linked List
H
Q
K
……..
First Ptr
Last Ptr

Data Structures
Stacks
H
K
Q
LIFO

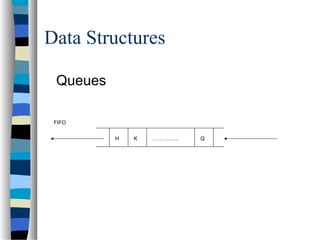

Data Structures
Queues
H K Q…………...
FIFO

Tutorial 3
1. Consider the following abstractions on inventory in a supermarket (represented as classname [structure : behavior}) with base
class: Inventory {InventoryNo, price, supplier, date: entry, display} and two derived classes : Durable{min_shelf_life, materials,
voltagetype : entry, display} and NonDurable {max_shelf_life, price, storagetemp : entry, display}
Assume that you are given the following specifications for the attributes listed above:
Field Name Field Type Field Length
InventoryNo Alpha 20 characters
Price Numeric 9 decimal digits
Supplier Alpha 20 characters
Date Numeric 8 decimal digits
Min_SL Numeric 3 decimal digits
Materials Alpha 10 characters
Voltage Numeric 3 decimal digits
Max_SL Numeric 3 decimal digits
Price Numeric 5 decimal digits
Storagetemp Numeric 3 decimal digits
The classes should have at least entry() and display() member functions to collect inputs and display data items of attributes
through keyboard and screen respectively.
Suppose we need one list class to hold the objects of the above classes. The list class should have the following member
functions:

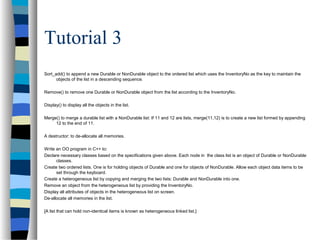

Tutorial 3
Sort_add() to append a new Durable or NonDurable object to the ordered list which uses the InventoryNo as the key to maintain the
objects of the list in a descending sequence.
Remove() to remove one Durable or NonDurable object from the list according to the InventoryNo.
Display() to display all the objects in the list.
Merge() to merge a durable list with a NonDurable list: If 11 and 12 are lists, merge(11,12) is to create a new list formed by appending
12 to the end of 11.
A destructor: to de-allocate all memories.
Write an OO program in C++ to:
Declare necessary classes based on the specifications given above. Each node in the class list is an object of Durable or NonDurable
classes.
Create two ordered lists. One is for holding objects of Durable and one for objects of NonDurable. Allow each object data items to be
set through the keyboard.
Create a heterogeneous list by copying and merging the two lists: Durable and NonDurable into one.
Remove an object from the heterogeneous list by providing the InventoryNo.
Display all attributes of objects in the heterogeneous list on screen.
De-allocate all memories in the list.
[A list that can hold non-identical items is known as heterogeneous linked list.]

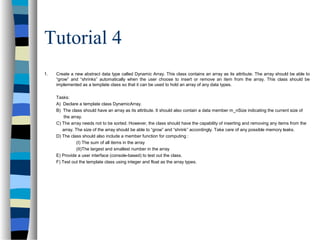

Tutorial 4
1. Create a new abstract data type called Dynamic Array. This class contains an array as its attribute. The array should be able to
“grow” and “shrinks” automatically when the user choose to insert or remove an item from the array. This class should be
implemented as a template class so that it can be used to hold an array of any data types.
Tasks:
A) Declare a template class DynamicArray.
B) The class should have an array as its attribute. It should also contain a data member m_nSize indicating the current size of
the array.
C) The array needs not to be sorted. However, the class should have the capability of inserting and removing any items from the
array. The size of the array should be able to “grow” and “shrink” accordingly. Take care of any possible memory leaks.
D) The class should also include a member function for computing :
(I) The sum of all items in the array
(II)The largest and smallest number in the array
E) Provide a user interface (console-based) to test out the class.
F) Test out the template class using integer and float as the array types.

Introduction to STL
Standard Template Library
Containers
– Objects that hold other objects. Eg. vector
Algorithms
– Functions that act on Containers.
Iterators
– Pointer-like objects.

Introduction to STL
Allocators
– Manages memory allocation for a
container.
STL Template class :
– vector, map, list, stack, deque, set.

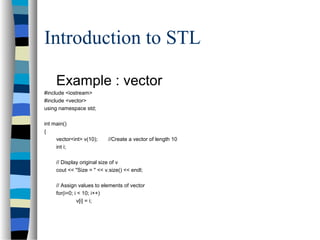

Introduction to STL
Example : vector
#include <iostream>
#include <vector>
using namespace std;
int main()
{
vector<int> v(10); //Create a vector of length 10
int i;
// Display original size of v
cout << "Size = " << v.size() << endl;
// Assign values to elements of vector
for(i=0; i < 10; i++)
v[i] = i;

Introduction to STL
// Display contents of vector
cout << "Current Contents :n";
for(i=0; i < v.size(); i++)
cout << v[i] << " ";
cout << "nn";
// Expand the vector
cout << "Expanding vectorn";
for(i=0; i < 5; i++)
v.push_back(i + 20);
// Display current size
cout << "Size now = " << v.size() << endl;
cout << "Current Contents :n";
cout << v[i] << " ";
cout << "nn";

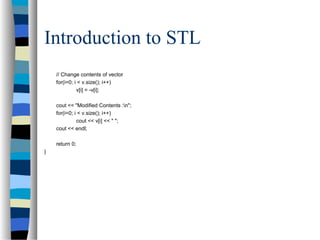

Introduction to STL
// Change contents of vector
v[i] = -v[i];
cout << "Modified Contents :n";
cout << v[i] << " ";
cout << endl;
return 0;
}

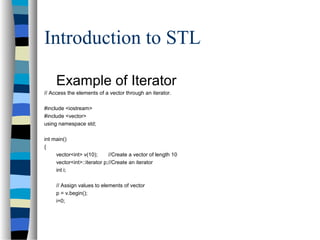

Introduction to STL
Example of Iterator
// Access the elements of a vector through an iterator.
#include <iostream>
#include <vector>
using namespace std;
int main()
{
vector<int> v(10); //Create a vector of length 10
vector<int>::iterator p;//Create an iterator
int i;
// Assign values to elements of vector
p = v.begin();
i=0;

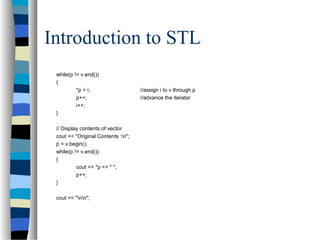

Introduction to STL
while(p != v.end())
{
*p = i; //assign i to v through p
p++; //advance the iterator
i++;
}
cout << "Original Contents :n";
p = v.begin();
while(p != v.end())
{
cout << *p << " ";
p++;
}
cout << "nn";

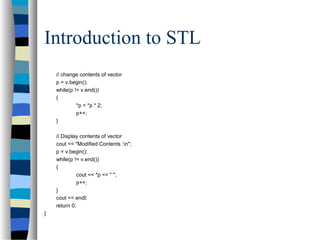

Introduction to STL
// change contents of vector
p = v.begin();
while(p != v.end())
{
*p = *p * 2;
p++;
}
cout << "Modified Contents :n";
p = v.begin();
while(p != v.end())
{
cout << *p << " ";
p++;
}
cout << endl;
return 0;
}

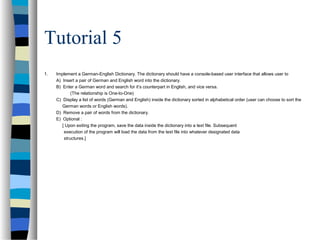

Tutorial 5
1. Implement a German-English Dictionary. The dictionary should have a console-based user interface that allows user to
A) Insert a pair of German and English word into the dictionary.
B) Enter a German word and search for it’s counterpart in English, and vice versa.
(The relationship is One-to-One)
C) Display a list of words (German and English) inside the dictionary sorted in alphabetical order (user can choose to sort the
German words or English words).
D) Remove a pair of words from the dictionary.
E) Optional :
[ Upon exiting the program, save the data inside the dictionary into a text file. Subsequent
execution of the program will load the data from the text file into whatever designated data
structures.]

References
C++ How To Program
STL Programming from the ground up.
http://www.4p8.com/eric.brasseur/cppce
n.html
MSDN Library

Ccourse 140618093931-phpapp02

More Related Content

What's hot

Similar to Ccourse 140618093931-phpapp02

More from Getachew Ganfur

Ccourse 140618093931-phpapp02
