- 2. 2 About Me … Java/JVM/GC performance person Current Life: Consultant who solves Managed Runtime performance issues Past Life: Worked with Oracle, Sun, AMD… - Was the Performance Lead for G1 GC www.codekaram.com https://www.linkedin.com/in/monicabeckwith Tweet @mon_beck
- 3. ©2016 CodeKaram The Facts • Performance Engineering • JVM • GC • Throughput and Latency Design Considerations • Generational GC 3
- 4. ©2016 CodeKaram The Algorithm • Allocations • Thread Local Allocation Buffers (TLABs) • Reclamation • Young Collection • Old Collection • Parallel and Serial Mark-Compact • Mostly Concurrent Mark-Sweep 4
- 5. ©2016 CodeKaram Tuning • Memory Leaks • Tuning Recommendations • Tuning for Throughput • Tuning for Latency 5
- 6. ©2016 CodeKaram Extras • Garbage First Garbage Collector 6
- 8. ©2016 CodeKaram8 Performance Engineering Performance Requirements & Test Plan Development Performance Analysis
- 12. ©2016 CodeKaram12 Performance Analysis Monitoring System Under Test Utilization, Lock Stats, … Application, System, Memory, … Profiling Analyzing logs
- 14. ©2016 CodeKaram14 Java Application Java APIs Java VM OS + HardwareJRE Runtime JIT Compiler GC Class loader
- 17. ©2016 CodeKaram17 GC Performance Engineering JVM Monitoring Application Profiling Process & Plot GC logs Online & Offline GC Monitoring Heap Profiling
- 18. 18 OpenJDK HotSpot GC - Facts!
- 19. ©2016 CodeKaram Throughput and latency are the two main drivers towards refinement of GC algorithms. 19 GC Fact #1
- 20. ©2016 CodeKaram The Throughput Maximizer 20 Maximize Throughput Generational Old Parallel Work Young Concurrent Threads Stop-the- world Threads
- 21. ©2016 CodeKaram Mr. Latency Sensitive 21 Latency Sensitive Pause only when needed Concurrent Marking/Sweeping Reduce stop-the- world GC pause time No/Partial Compaction 21
- 25. ©2016 CodeKaram All GCs in OpenJDK HotSpot are generational. 25 GC Fact #2
- 27. 27 OpenJDK HotSpot GC - Algorithms!
- 30. 30 Fast Path Allocation == Lock-Free Allocation == Threads Allocate Into Their Local Allocation Buffer (LAB)s

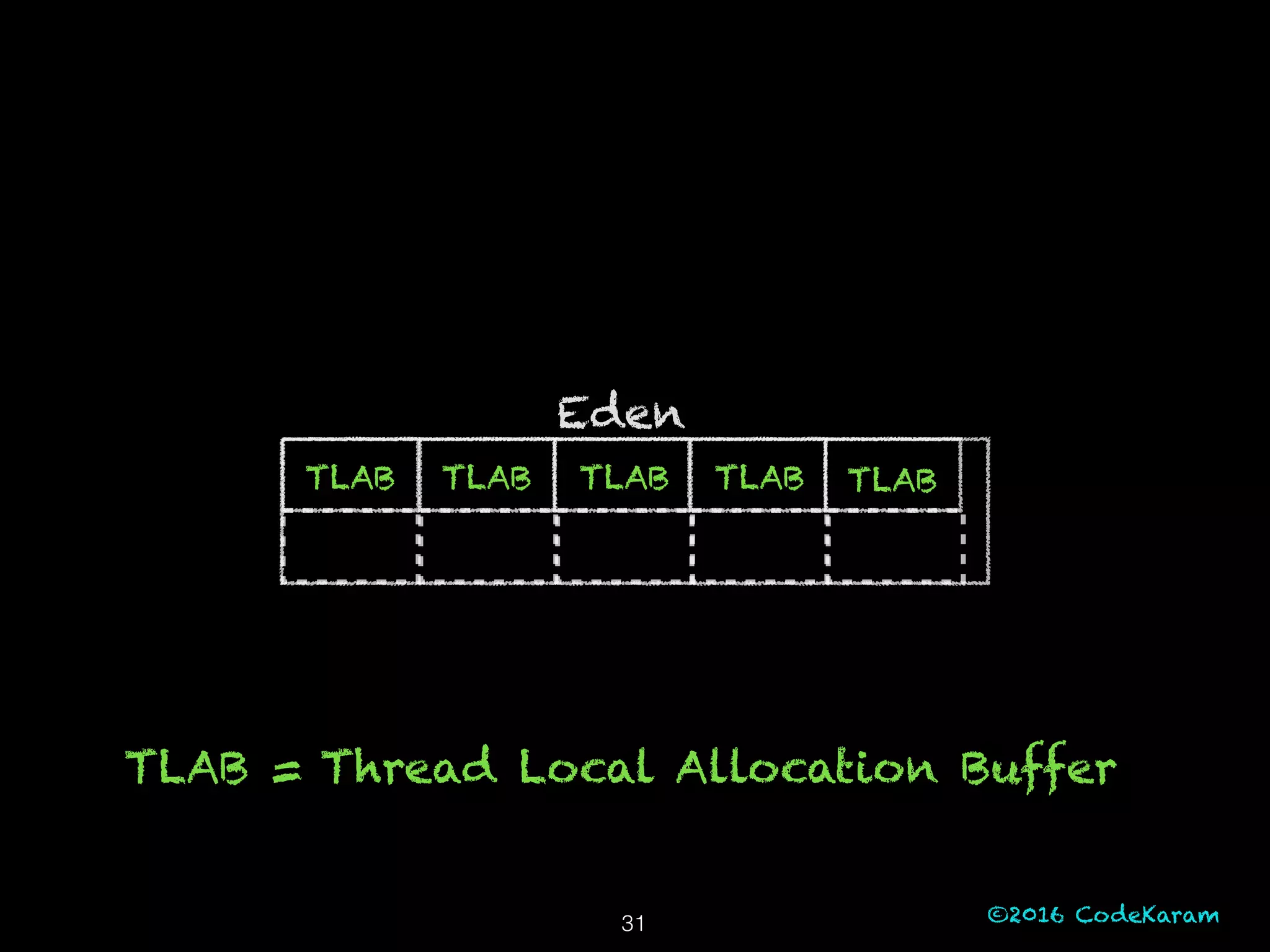

- 31. ©2016 CodeKaram31 Eden TLAB TLAB TLAB TLAB TLAB TLAB = Thread Local Allocation Buffer
- 32. ©2016 CodeKaram32 EdenThread 1 Thread 2 Thread 3 Thread 4 TLAB TLAB TLAB TLAB TLAB Thread 0

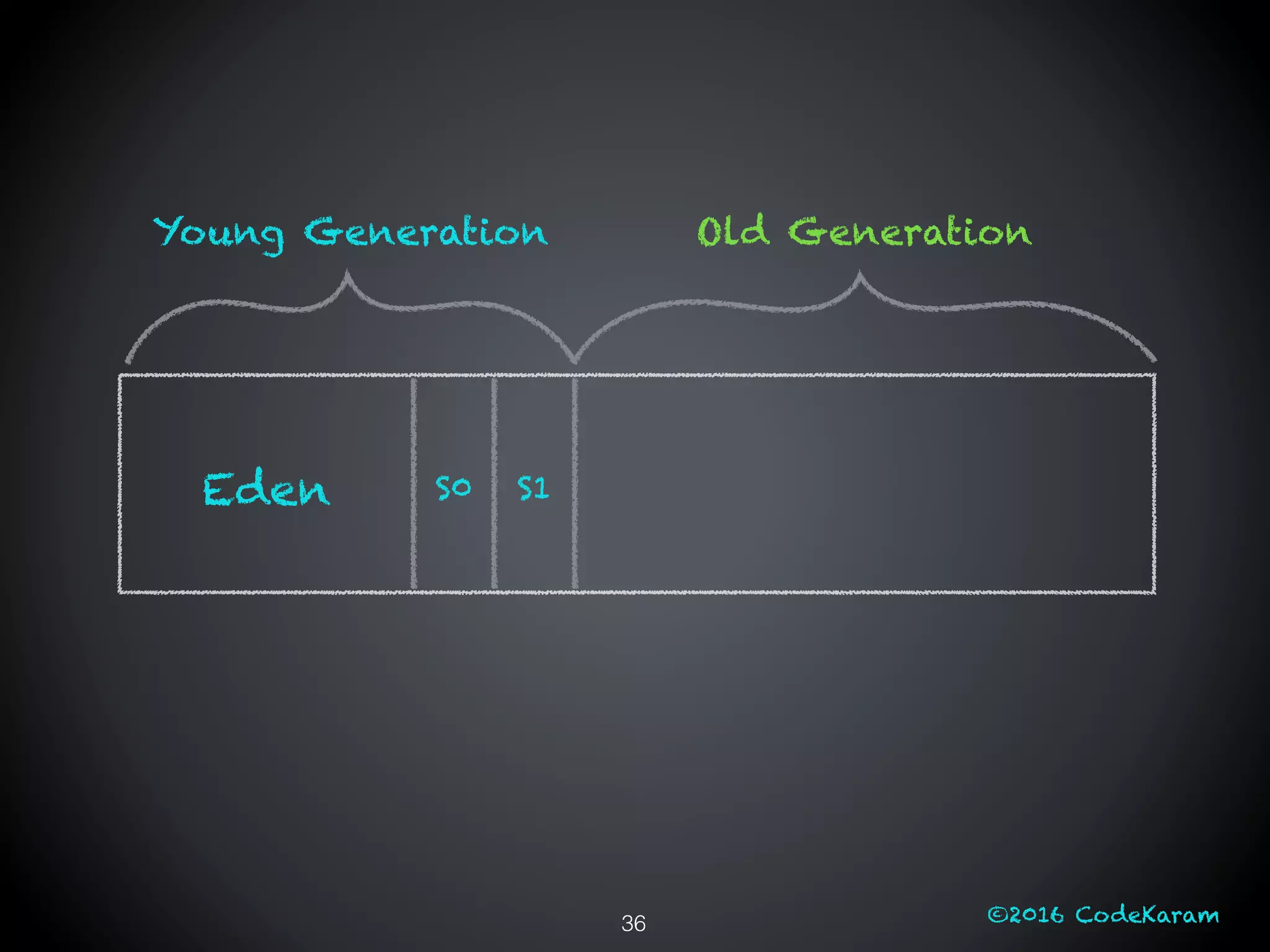

- 36. ©2016 CodeKaram36 Young Generation Old Generation Eden S0 S1

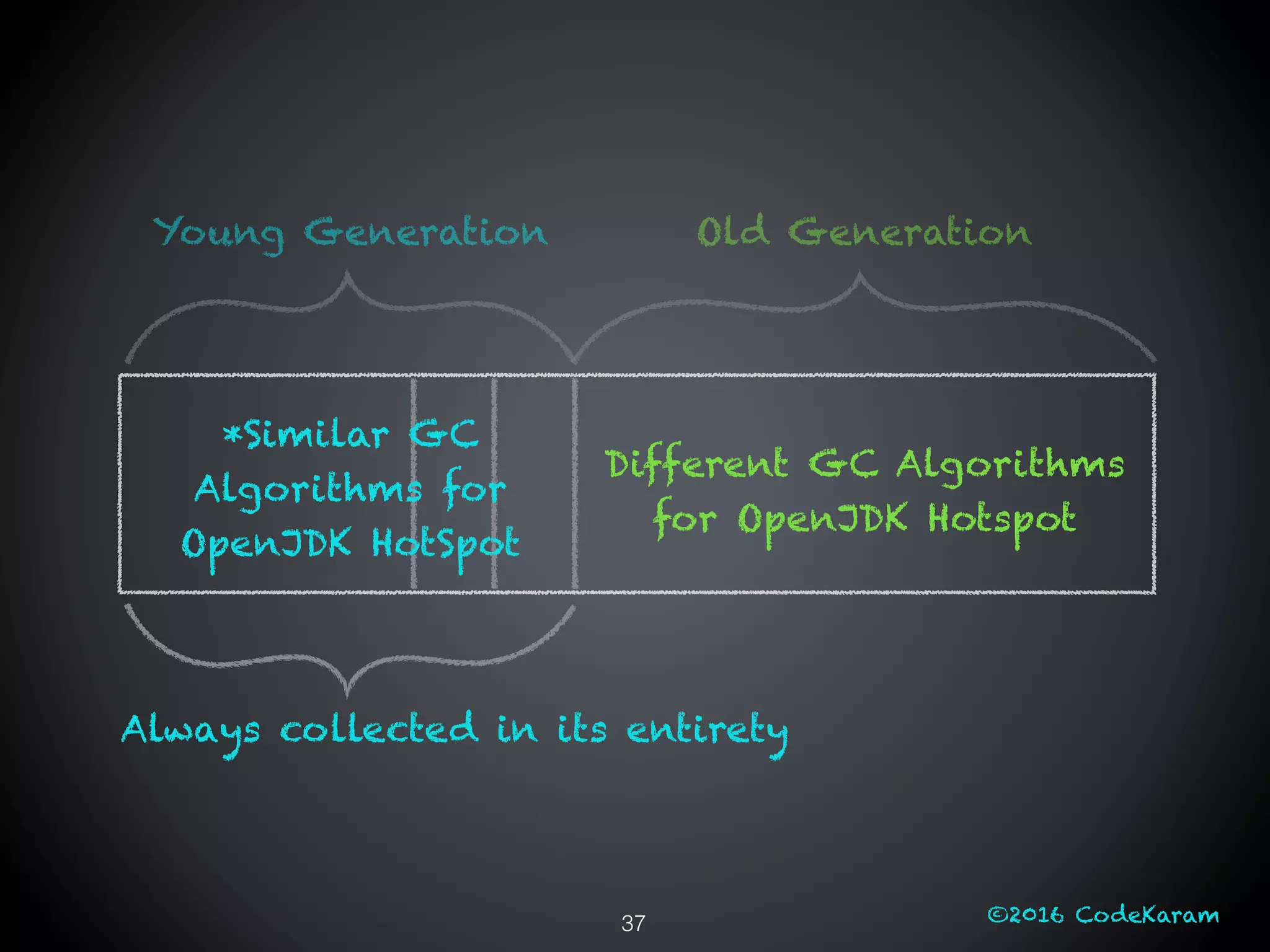

- 37. ©2016 CodeKaram37 *Similar GC Algorithms for OpenJDK HotSpot Different GC Algorithms for OpenJDK Hotspot Always collected in its entirety Young Generation Old Generation
- 38. ©2016 CodeKaram38 Always collected in its entirety Young Generation Old Generation *Similar GC Algorithms for OpenJDK HotSpot Different GC Algorithms for OpenJDK Hotspot
- 39. 39 Young Garbage Collection == Reclamation Via Scavenging
- 40. ©2016 CodeKaram40 Old Generation Root Set Young Generation
- 44. 44 Old Garbage Collection == Different GC Algorithms

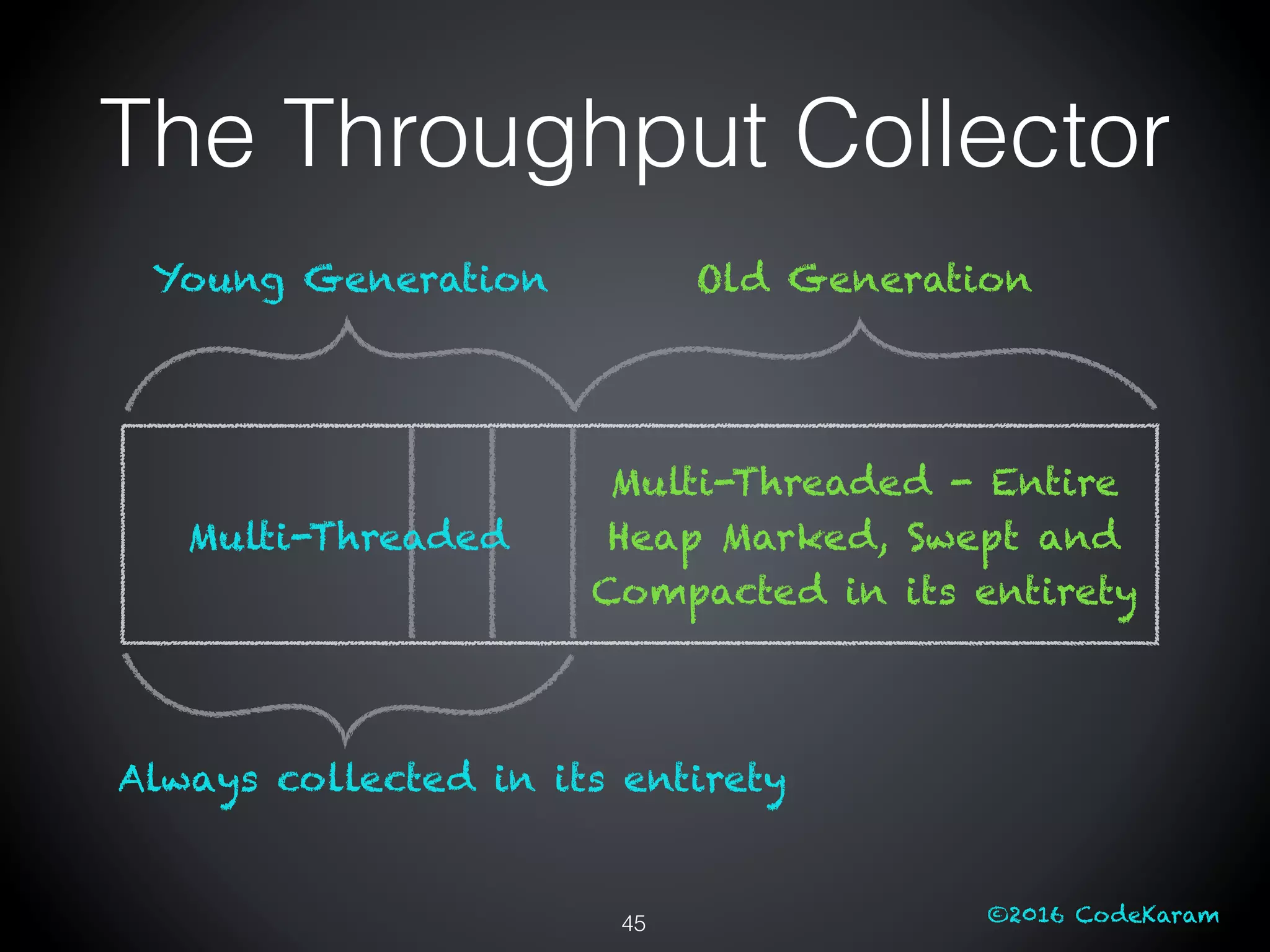

- 45. ©2016 CodeKaram The Throughput Collector Multi-Threaded Multi-Threaded - Entire Heap Marked, Swept and Compacted in its entirety Always collected in its entirety 45 Young Generation Old Generation

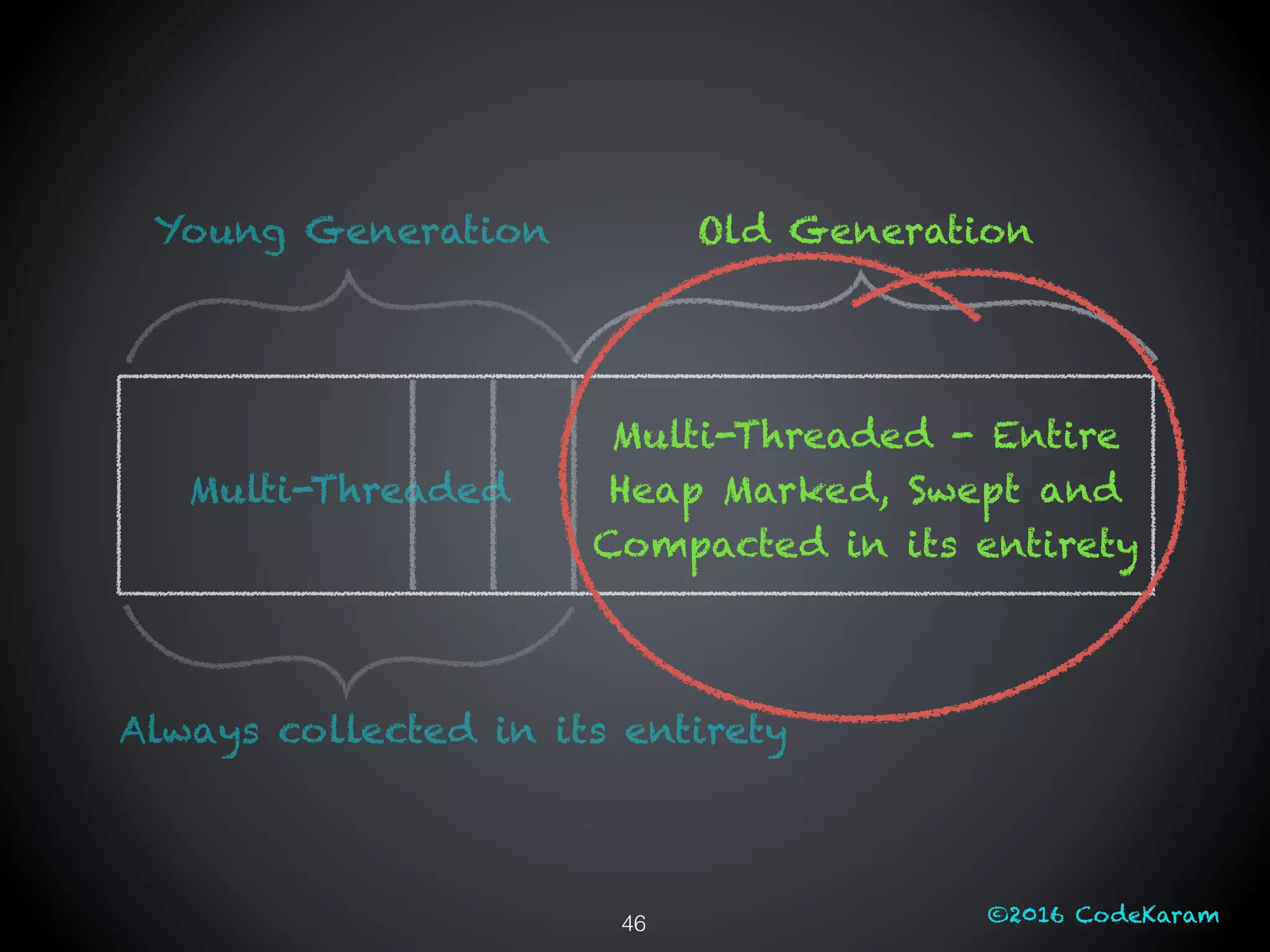

- 46. ©2016 CodeKaram46 Multi-Threaded Multi-Threaded - Entire Heap Marked, Swept and Compacted in its entirety Always collected in its entirety Young Generation Old Generation
- 47. ©2016 CodeKaram47 Old Generation Root Set Young Generation Garbage Collection -Reclamation via Parallel Mark-Compact
- 48. ©2016 CodeKaram Garbage Collection -Reclamation via Parallel Mark-Compact 48 Old Generation

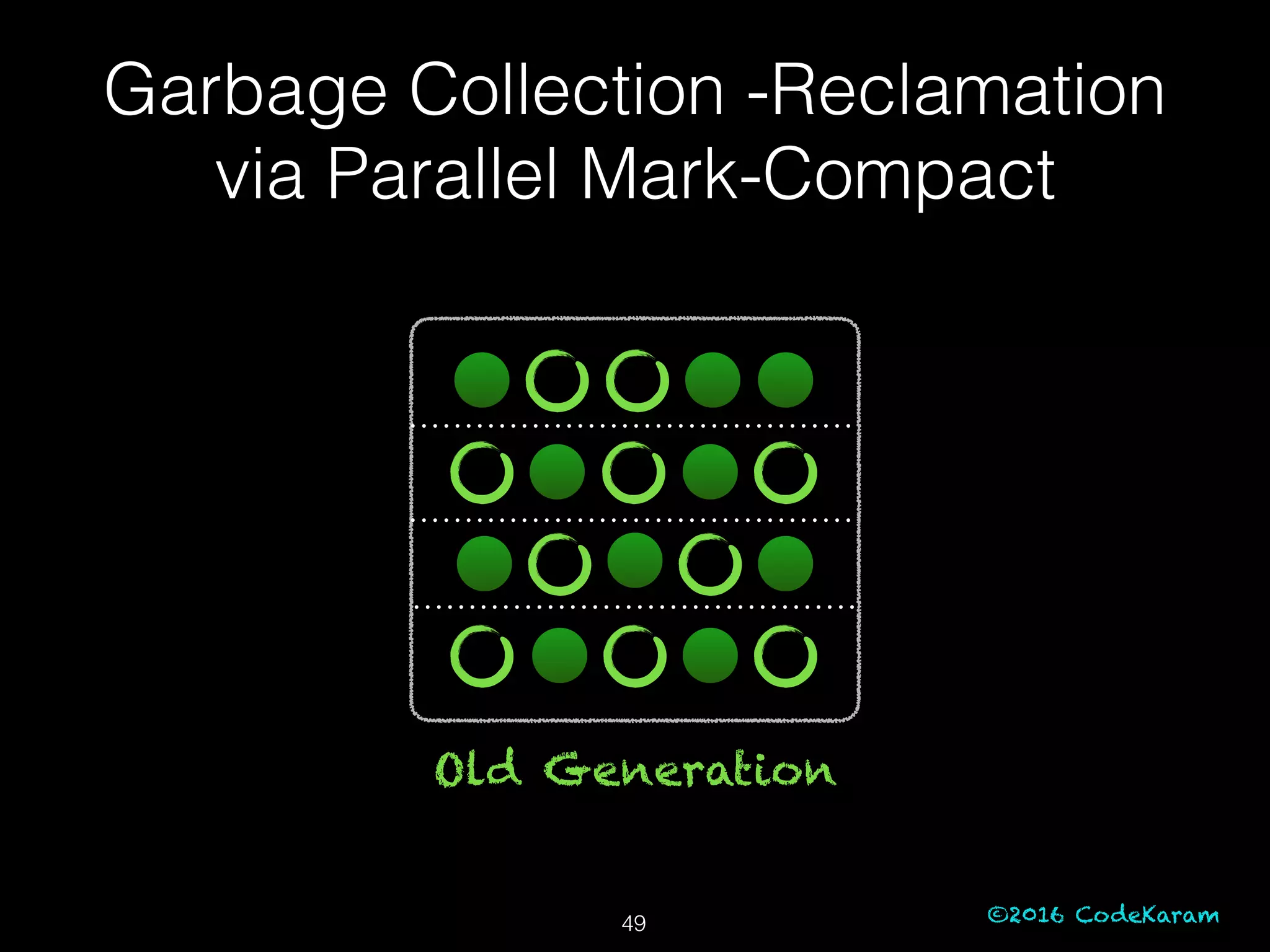

- 49. ©2016 CodeKaram49 Garbage Collection -Reclamation via Parallel Mark-Compact Old Generation

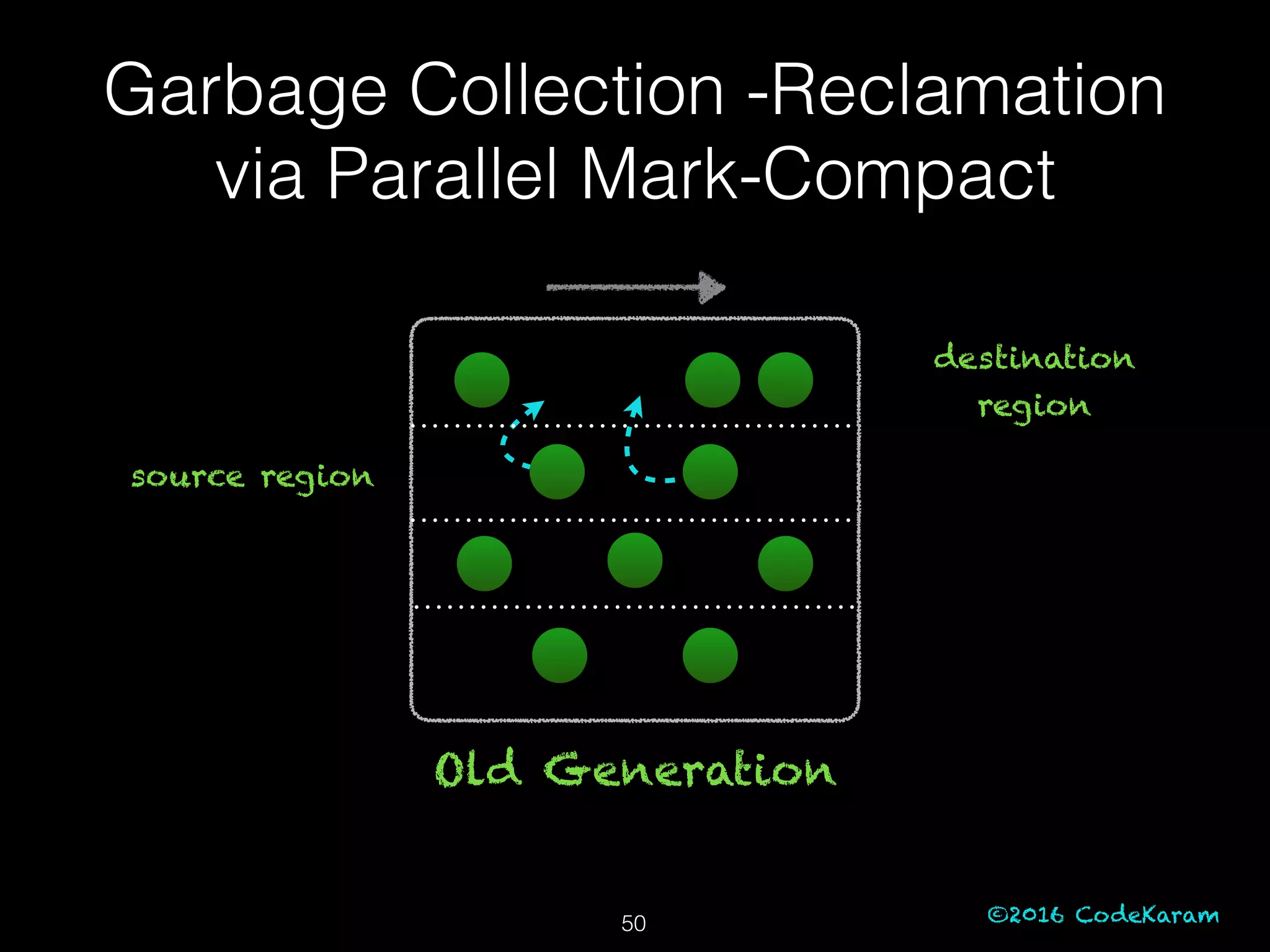

- 50. ©2016 CodeKaram50 Garbage Collection -Reclamation via Parallel Mark-Compact Old Generation source region destination region
- 51. ©2016 CodeKaram51 Garbage Collection -Reclamation via Parallel Mark-Compact Old Generation source region destination region

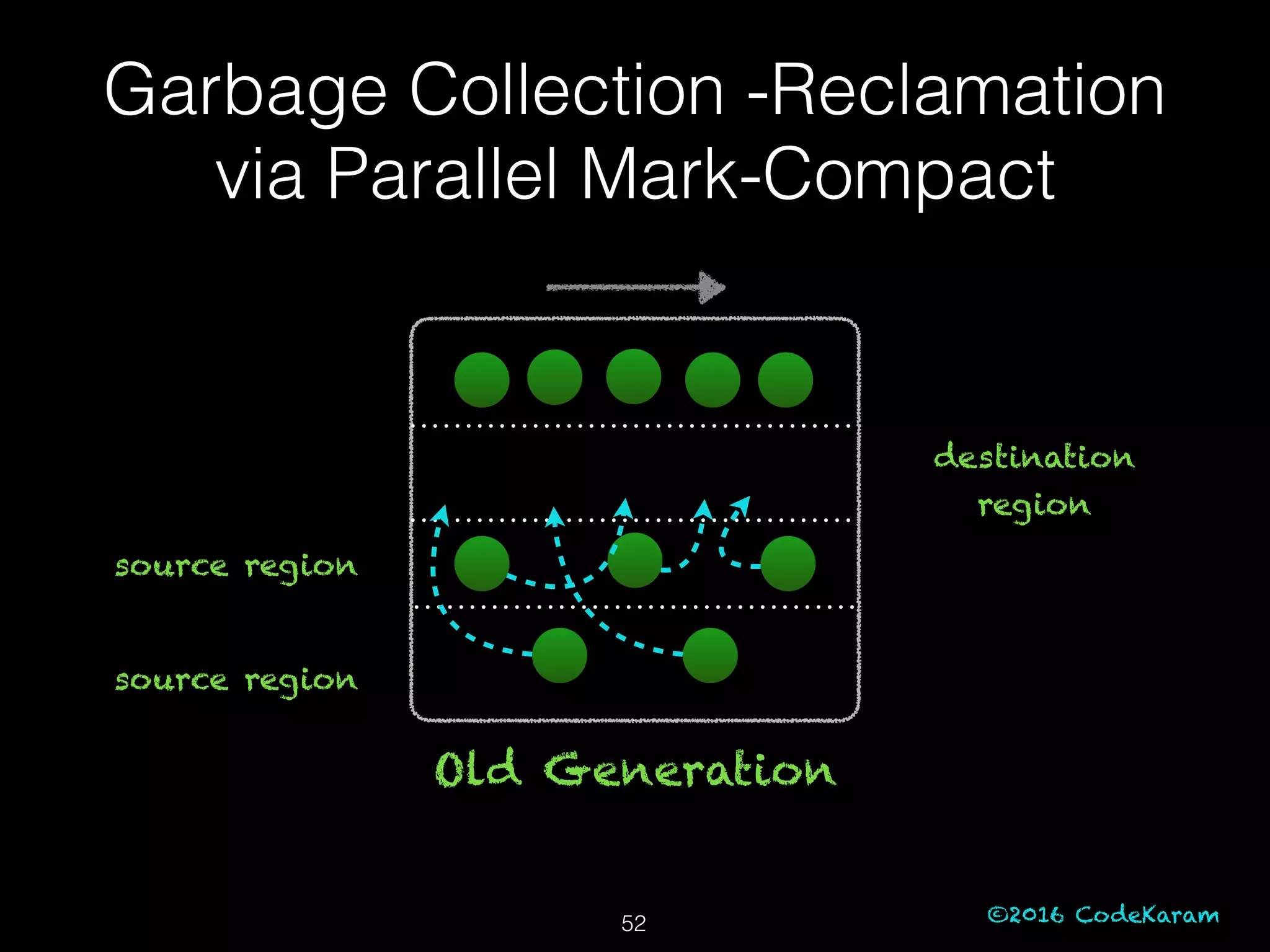

- 52. ©2016 CodeKaram52 Garbage Collection -Reclamation via Parallel Mark-Compact Old Generation source region destination region source region
- 53. ©2016 CodeKaram53 Garbage Collection -Reclamation via Parallel Mark-Compact Old Generation source region destination region source region

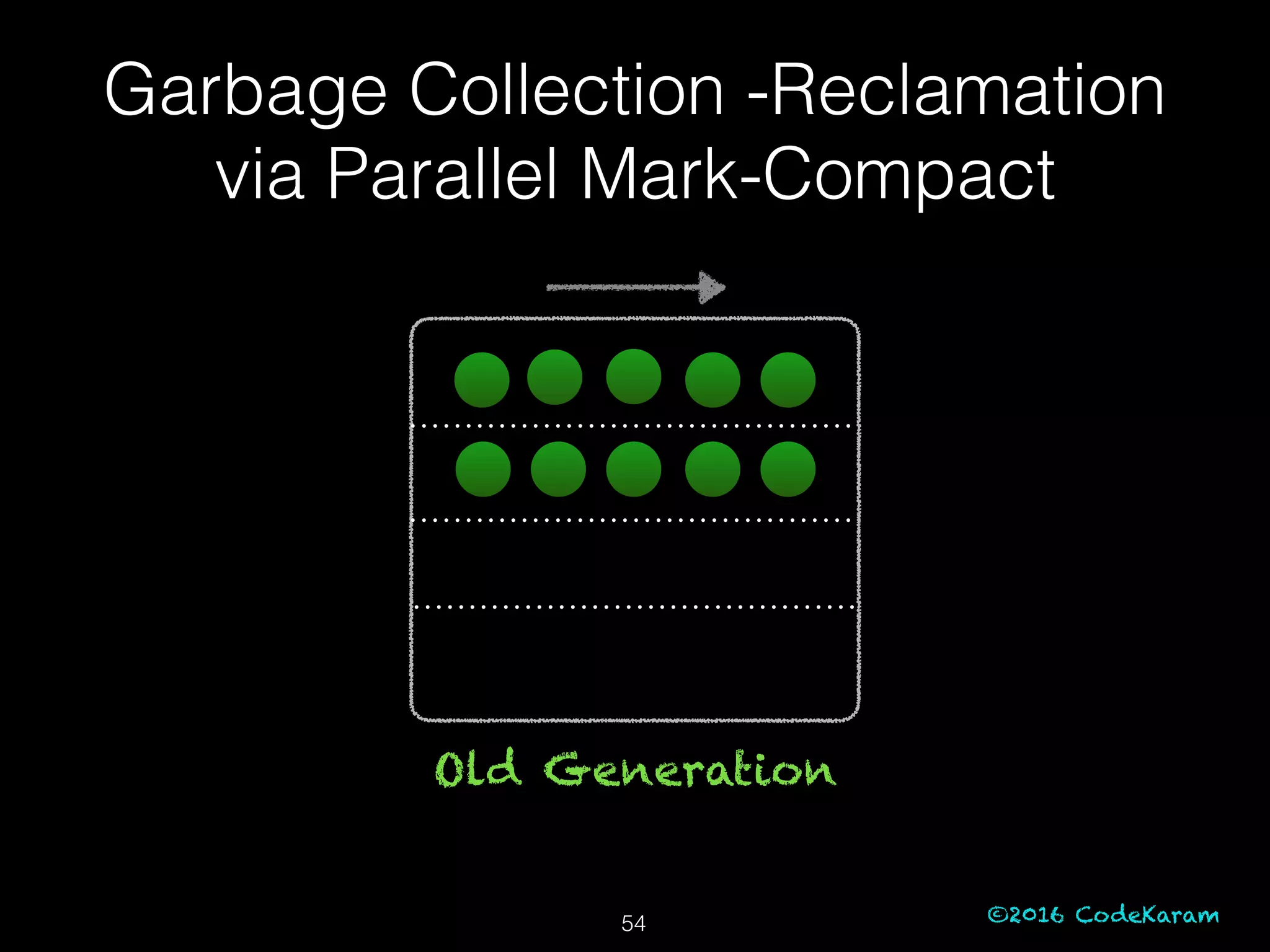

- 54. ©2016 CodeKaram54 Garbage Collection -Reclamation via Parallel Mark-Compact Old Generation

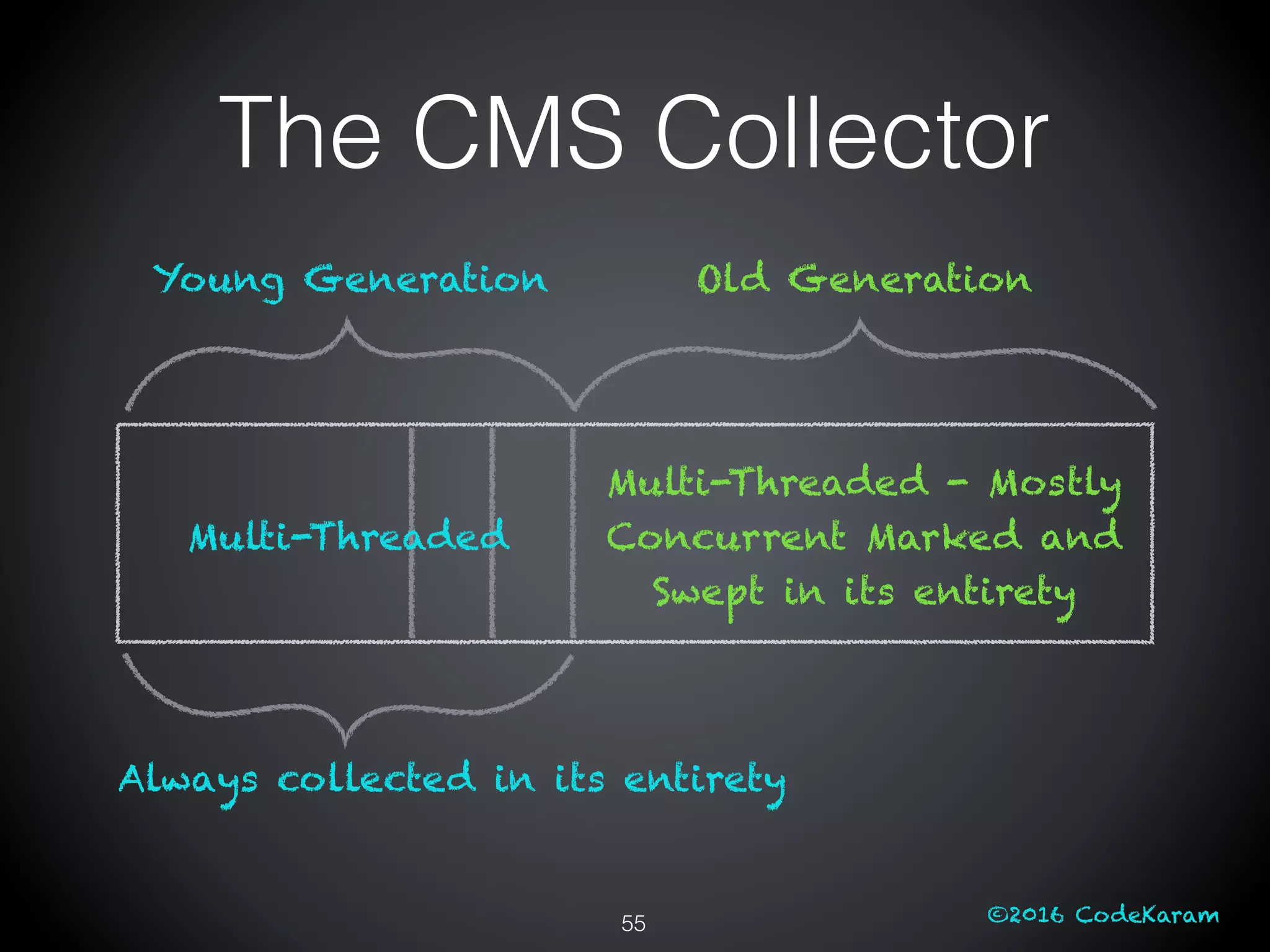

- 55. ©2016 CodeKaram The CMS Collector Multi-Threaded Multi-Threaded - Mostly Concurrent Marked and Swept in its entirety Always collected in its entirety 55 Young Generation Old Generation

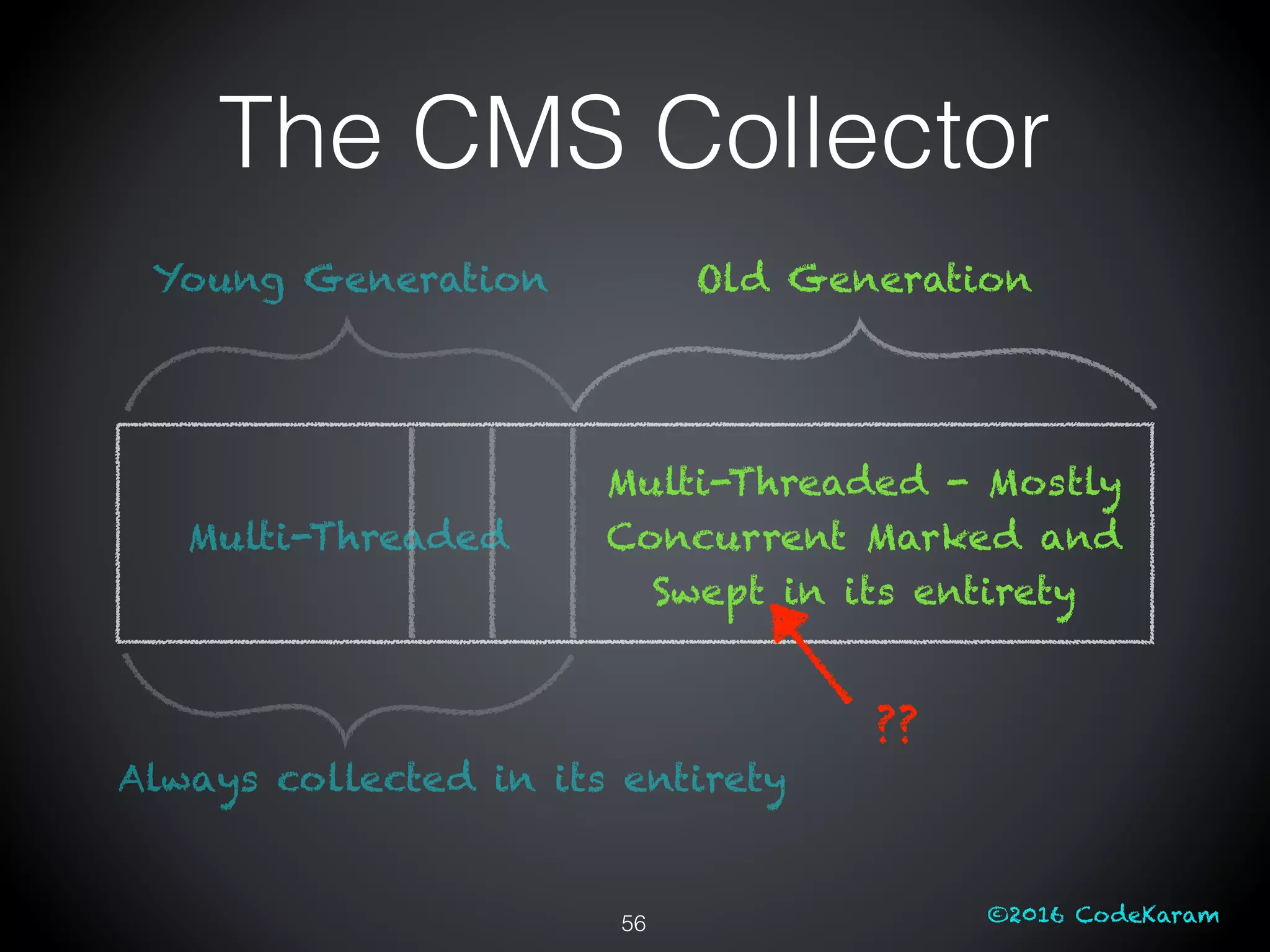

- 56. ©2016 CodeKaram The CMS Collector Multi-Threaded Multi-Threaded - Mostly Concurrent Marked and Swept in its entirety Always collected in its entirety 56 ?? Young Generation Old Generation
- 57. ©2016 CodeKaram The CMS Collector Multi-Threaded Multi-Threaded - Mostly Concurrent Marked and Swept in its entirety Always collected in its entirety 57 No Compaction!! Young Generation Old Generation

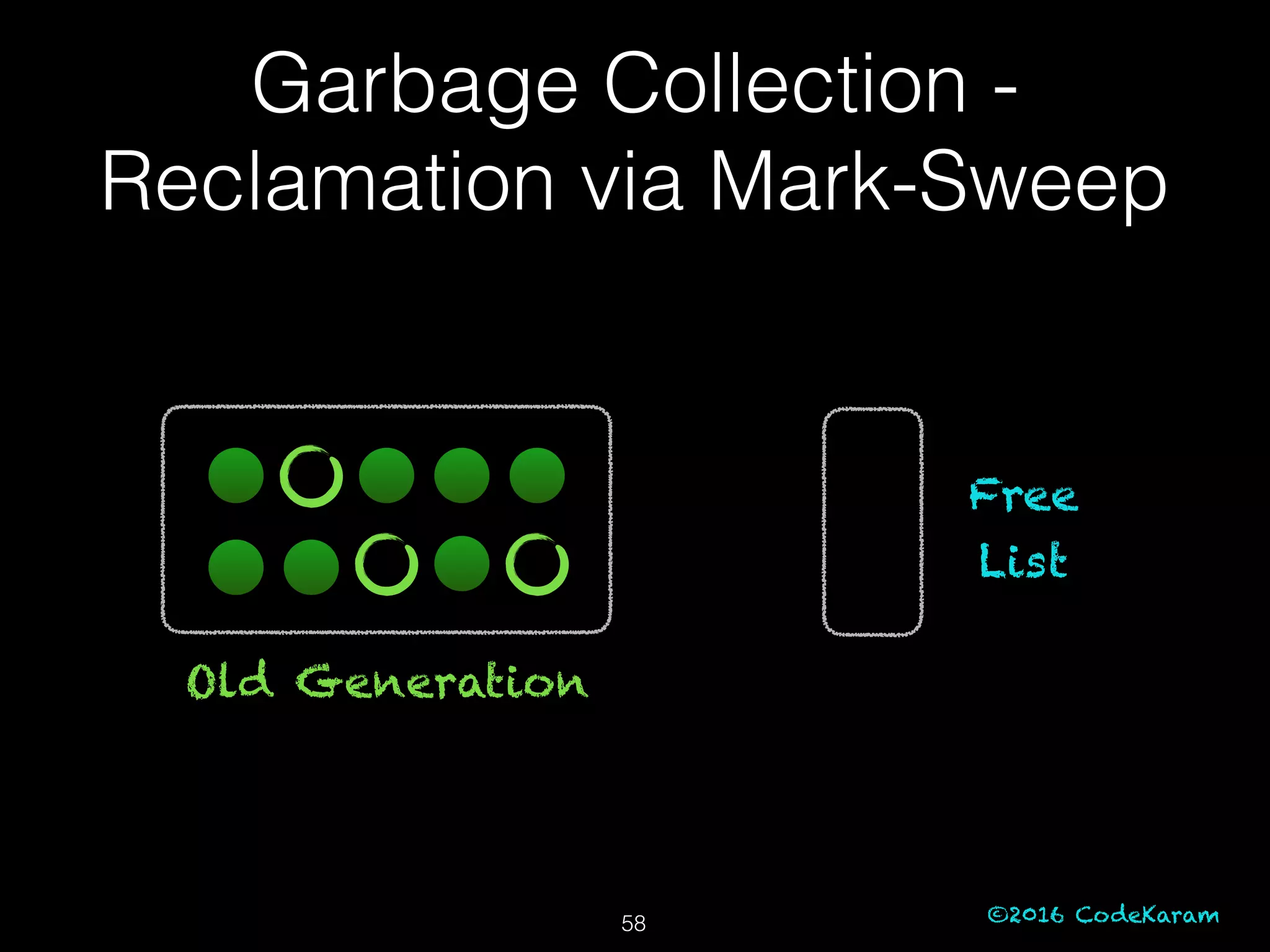

- 58. ©2016 CodeKaram Garbage Collection - Reclamation via Mark-Sweep 58 Old Generation Free List

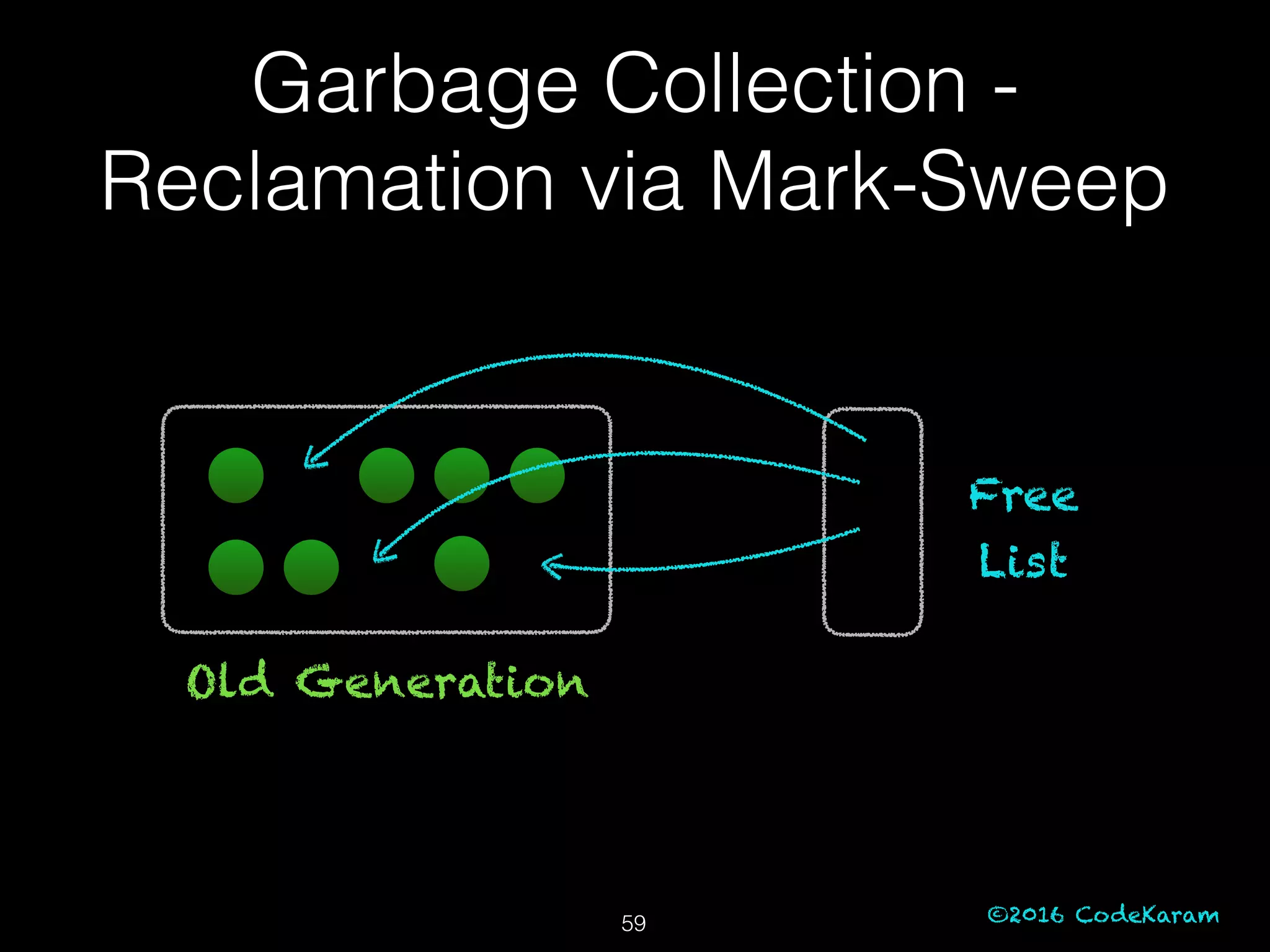

- 59. ©2016 CodeKaram Garbage Collection - Reclamation via Mark-Sweep 59 Old Generation Free List

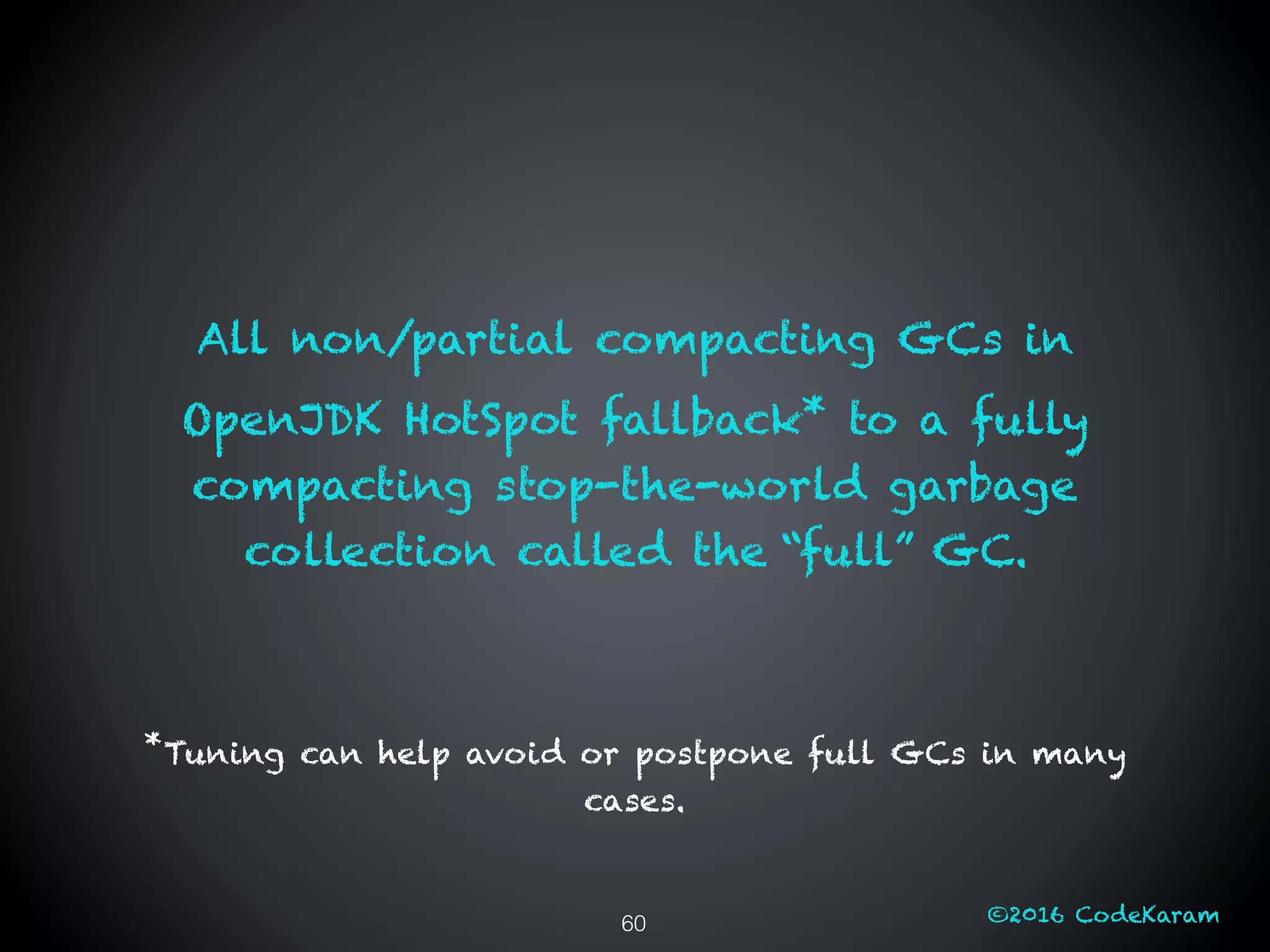

- 60. ©2016 CodeKaram All non/partial compacting GCs in OpenJDK HotSpot fallback* to a fully compacting stop-the-world garbage collection called the “full” GC. *Tuning can help avoid or postpone full GCs in many cases. 60

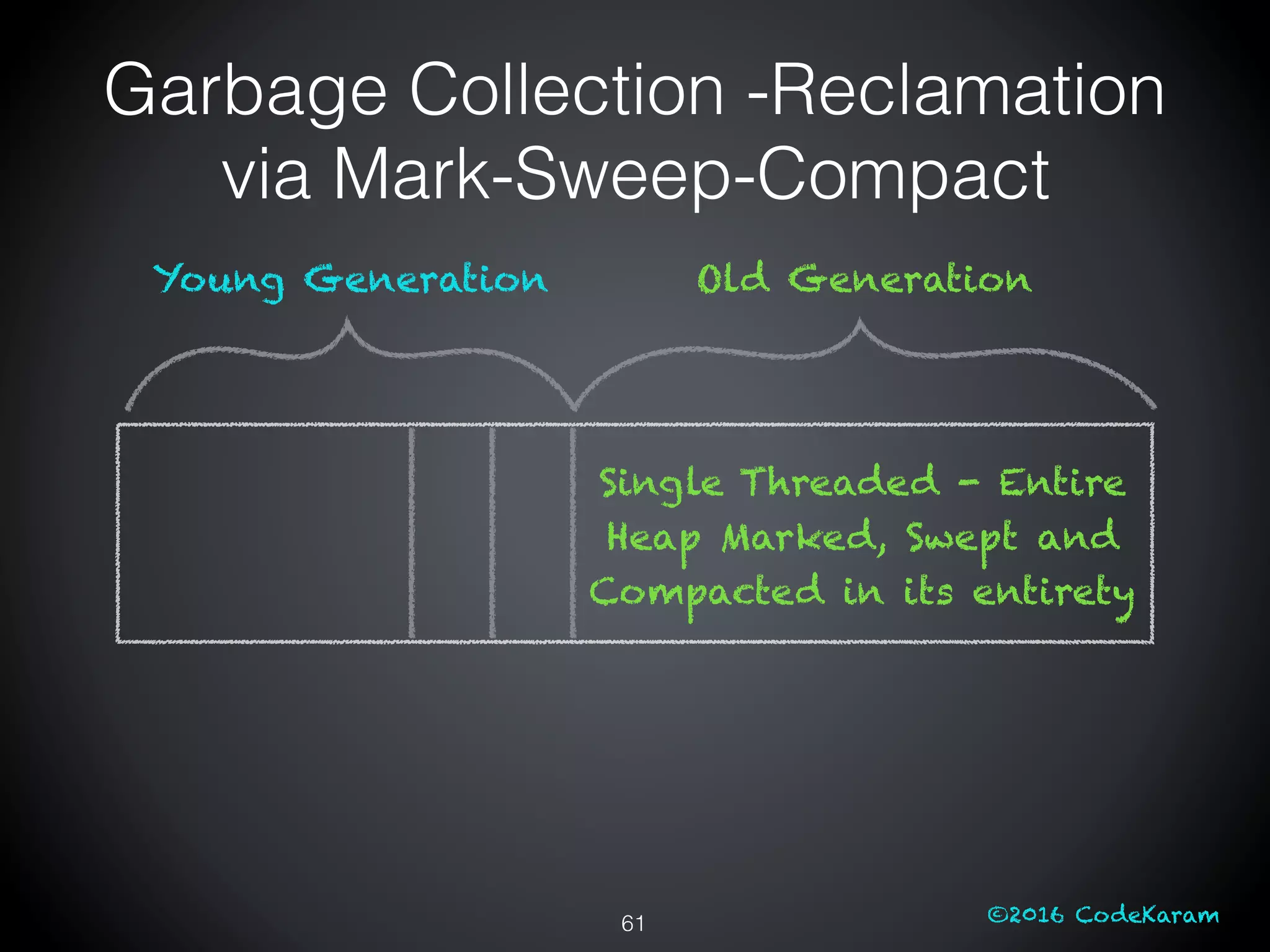

- 61. ©2016 CodeKaram Single Threaded - Entire Heap Marked, Swept and Compacted in its entirety 61 Young Generation Old Generation Garbage Collection -Reclamation via Mark-Sweep-Compact
- 62. ©2016 CodeKaram Single Threaded - Entire Heap Marked, Swept and Compacted in its entirety 62 Young Generation Old Generation Garbage Collection -Reclamation via Mark-Sweep-Compact
- 63. 63 OpenJDK HotSpot GC - Tuning!

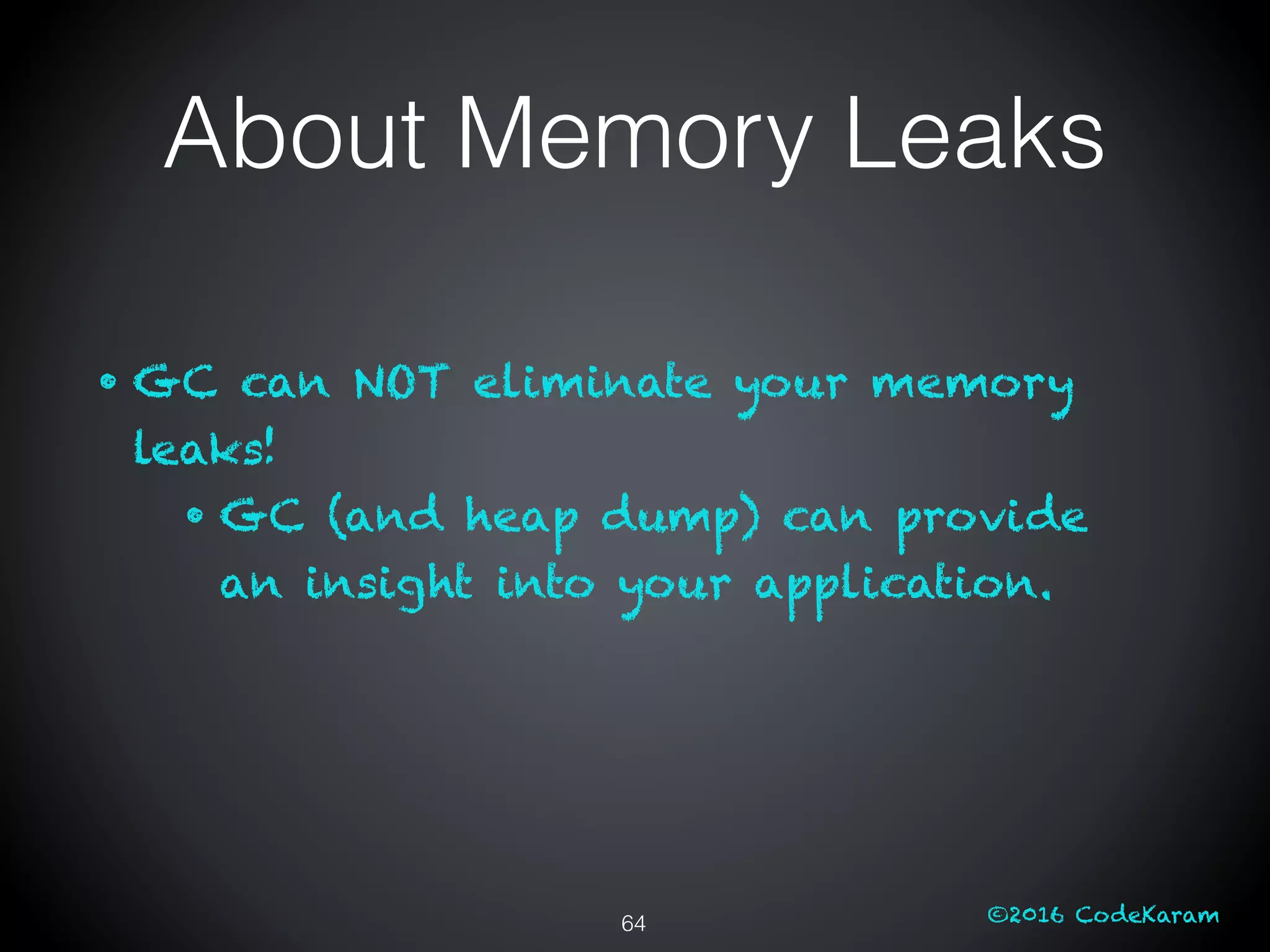

- 64. ©2016 CodeKaram • GC can NOT eliminate your memory leaks! • GC (and heap dump) can provide an insight into your application. 64 About Memory Leaks

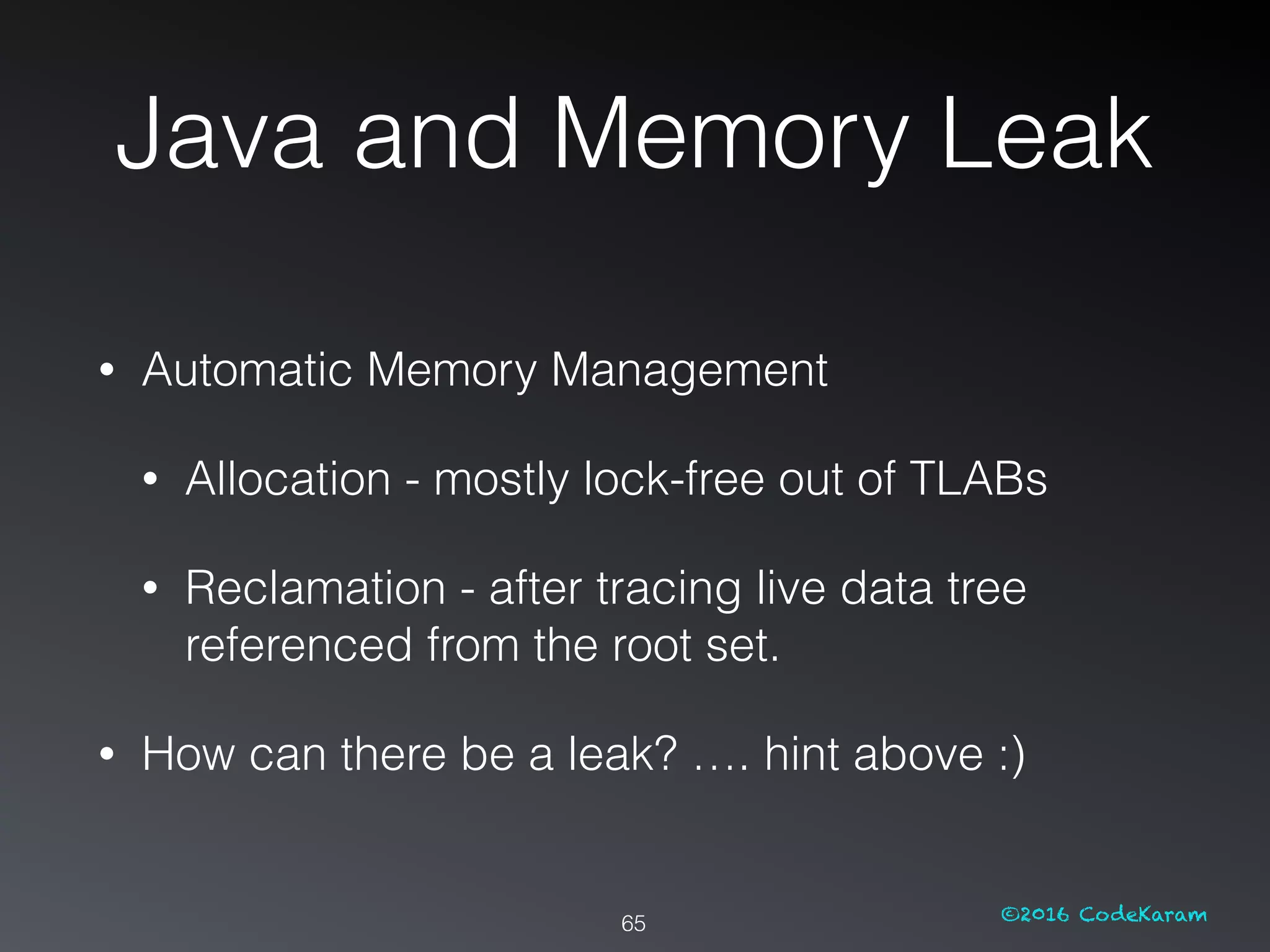

- 65. ©2016 CodeKaram Java and Memory Leak 65 • Automatic Memory Management • Allocation - mostly lock-free out of TLABs • Reclamation - after tracing live data tree referenced from the root set. • How can there be a leak? …. hint above :)
- 66. ©2016 CodeKaram Java and Memory Leak 66 • GC root • class loaded by class loader • static fields • threads • JNI local and global
- 67. ©2016 CodeKaram Java and Memory Leak 67 • class loader leaks • mutable static fields • ThreadLocal leaks • JNI memory leaks

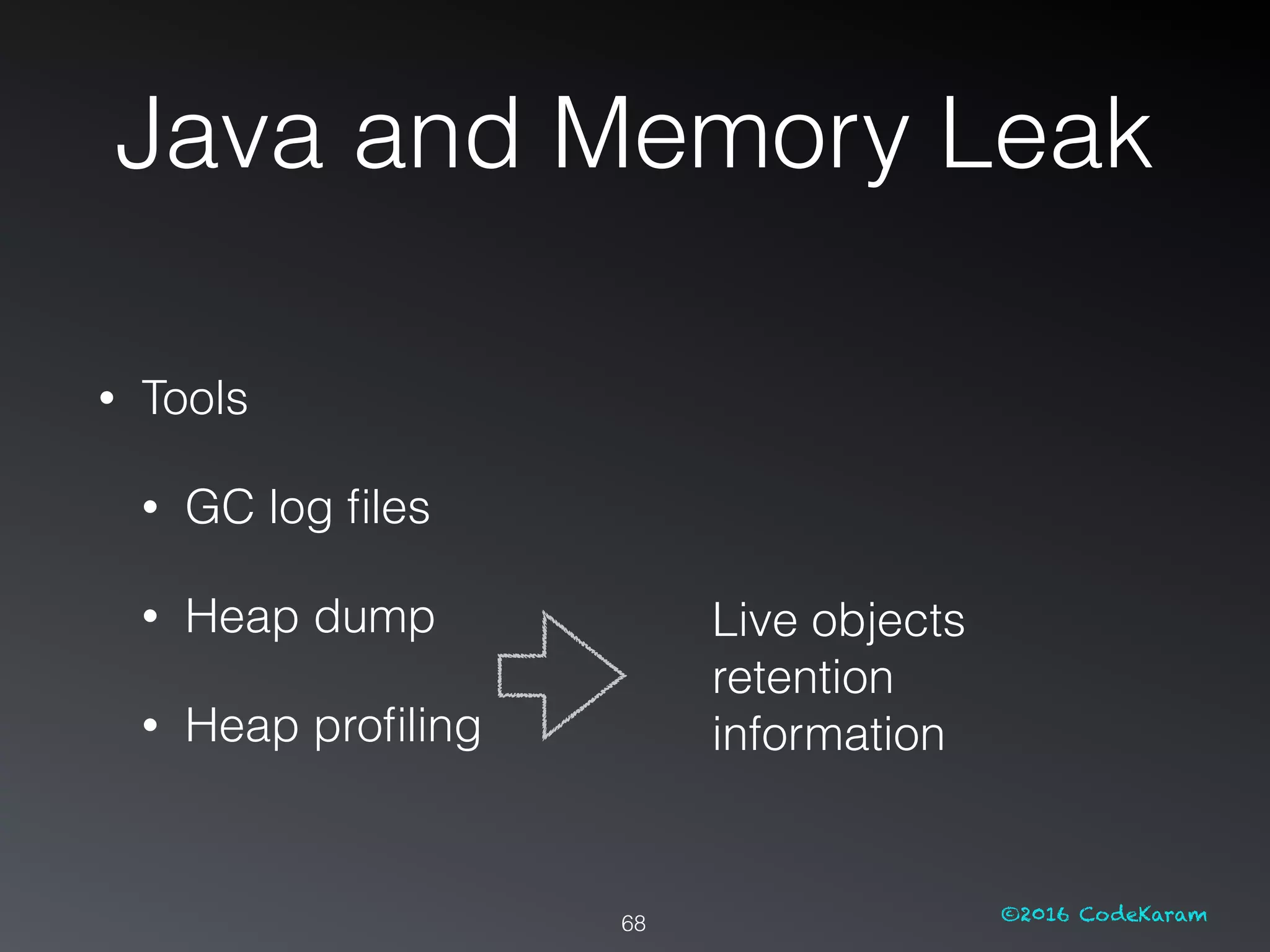

- 68. ©2016 CodeKaram Java and Memory Leak 68 • Tools • GC log files • Heap dump • Heap profiling Live objects retention information
- 69. ©2016 CodeKaram Java and Memory Leak 69 • Tools • -XX:+PrintGCDetails -XX: +PrintGCTimeStamps - Xloggc:filename; parse; plot • jvisualVM; jconsole; Java Mission Control
- 70. ©2016 CodeKaram70 Total Occupied Heap Old generation Young generation Live Data Set
- 73. 73 Tuning GC For Throughput Or For Latency??
- 74. 74 GC Elapsed Time Or GC Overhead

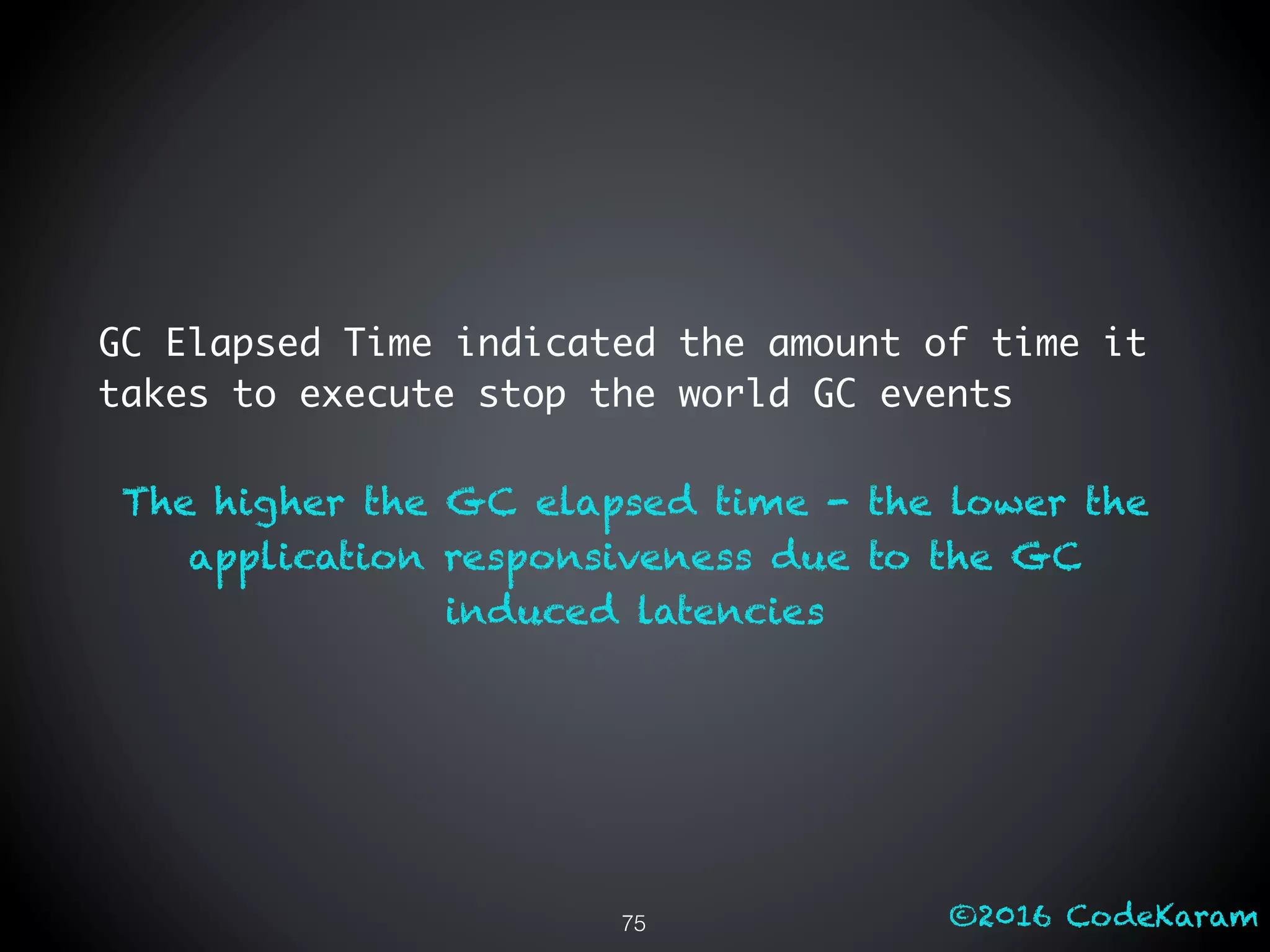

- 75. ©2016 CodeKaram GC Elapsed Time indicated the amount of time it takes to execute stop the world GC events The higher the GC elapsed time - the lower the application responsiveness due to the GC induced latencies 75

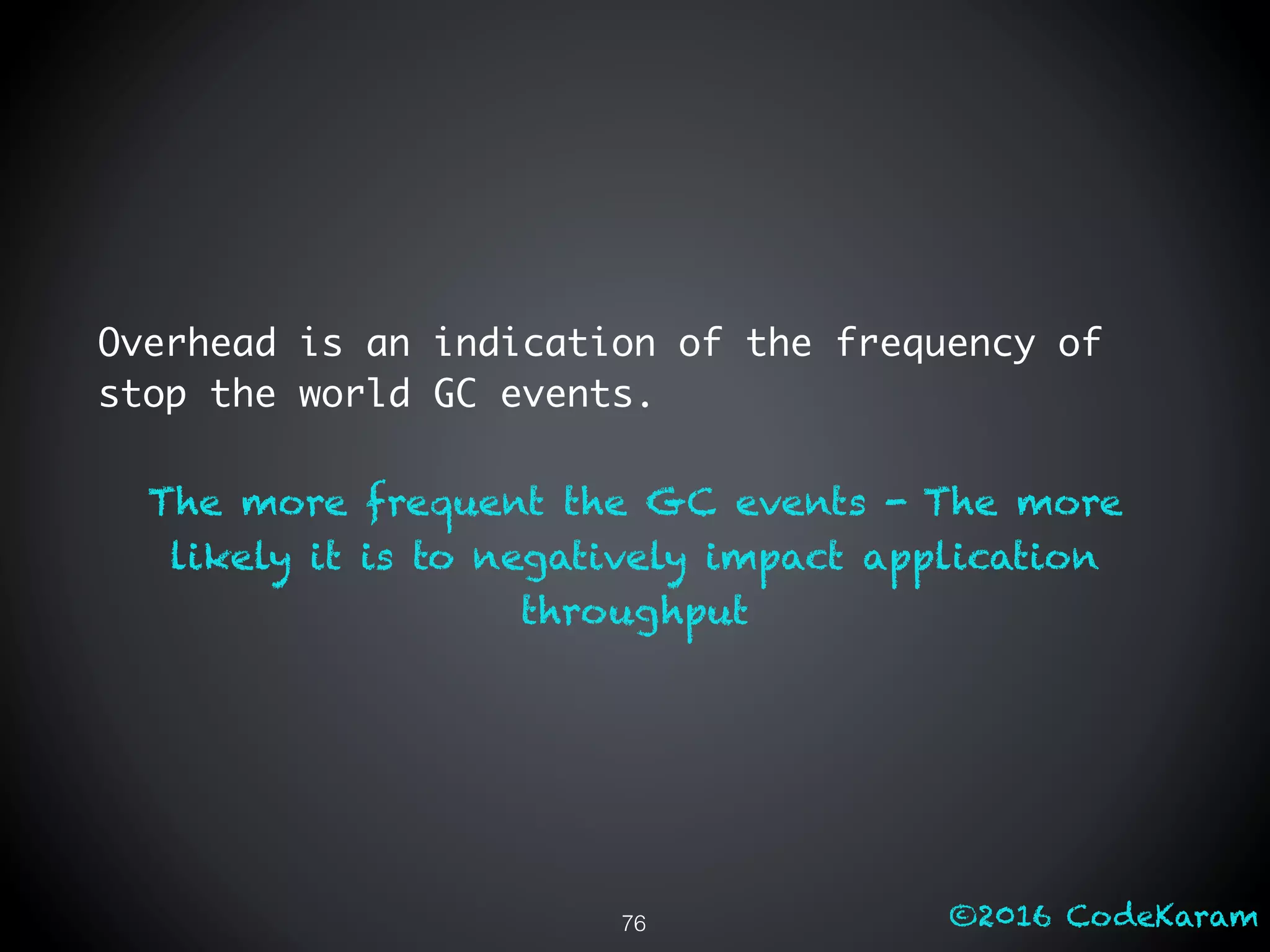

- 76. ©2016 CodeKaram Overhead is an indication of the frequency of stop the world GC events. The more frequent the GC events - The more likely it is to negatively impact application throughput 76
- 77. 77 What’s The #1 Contributor To A GC Elapsed Time?
- 79. 79 What Are The ContributorS To GC Overhead?
- 80. 80 Allocation Rate and Promotion Rate

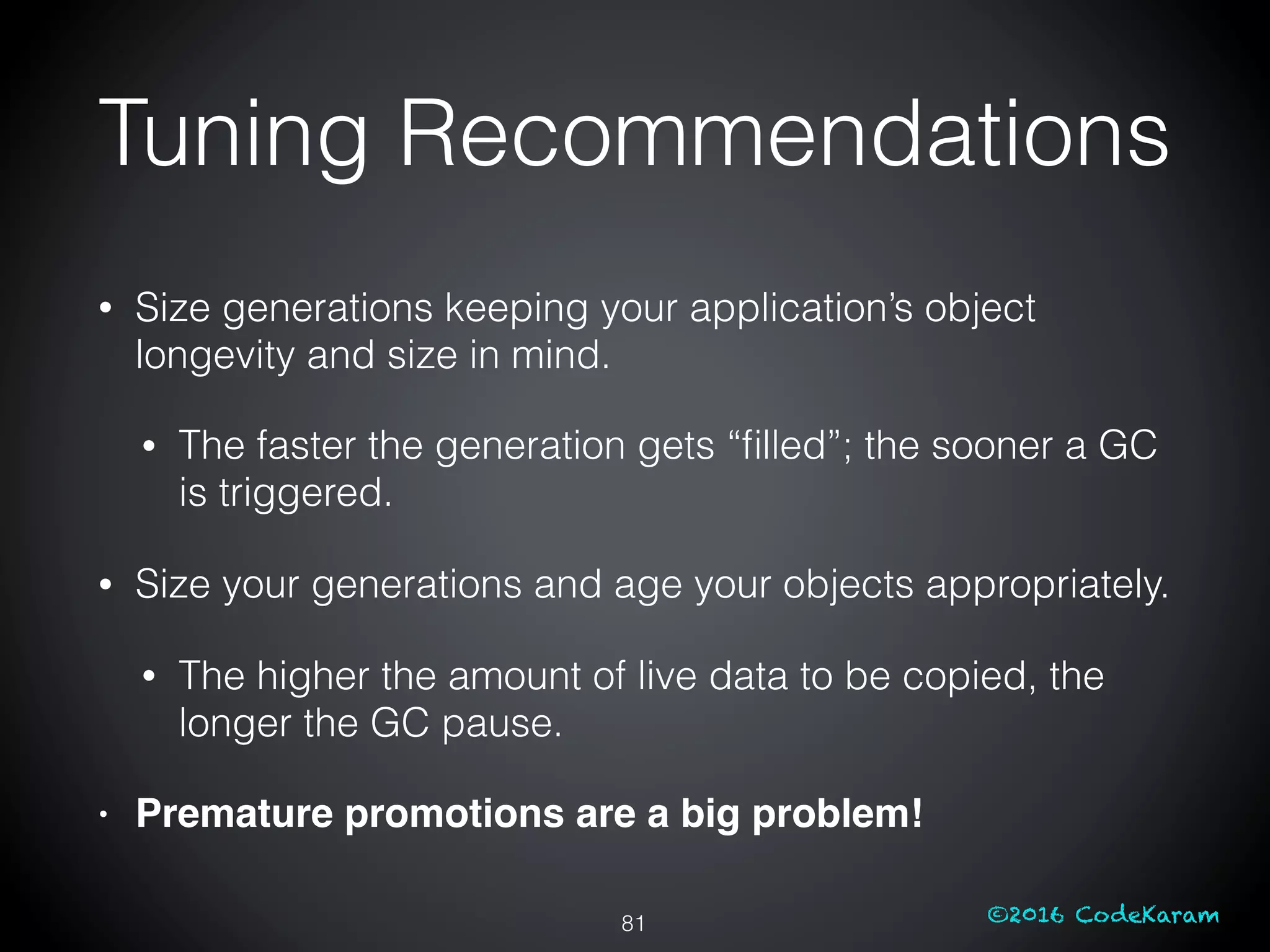

- 81. ©2016 CodeKaram • Size generations keeping your application’s object longevity and size in mind. • The faster the generation gets “filled”; the sooner a GC is triggered. • Size your generations and age your objects appropriately. • The higher the amount of live data to be copied, the longer the GC pause. • Premature promotions are a big problem! 81 Tuning Recommendations
- 82. ©2016 CodeKaram Plot Allocation & Promotion Rates 82
- 83. ©2016 CodeKaram83 Young Occupancy before GC Young Gen Size Old Gen Occupancy after GC Heap Occupancy before GC Heap Occupancy after GC Heap Size Timestamps
- 84. 84 Time Check!!
- 85. 85 What About Garbage First GC?

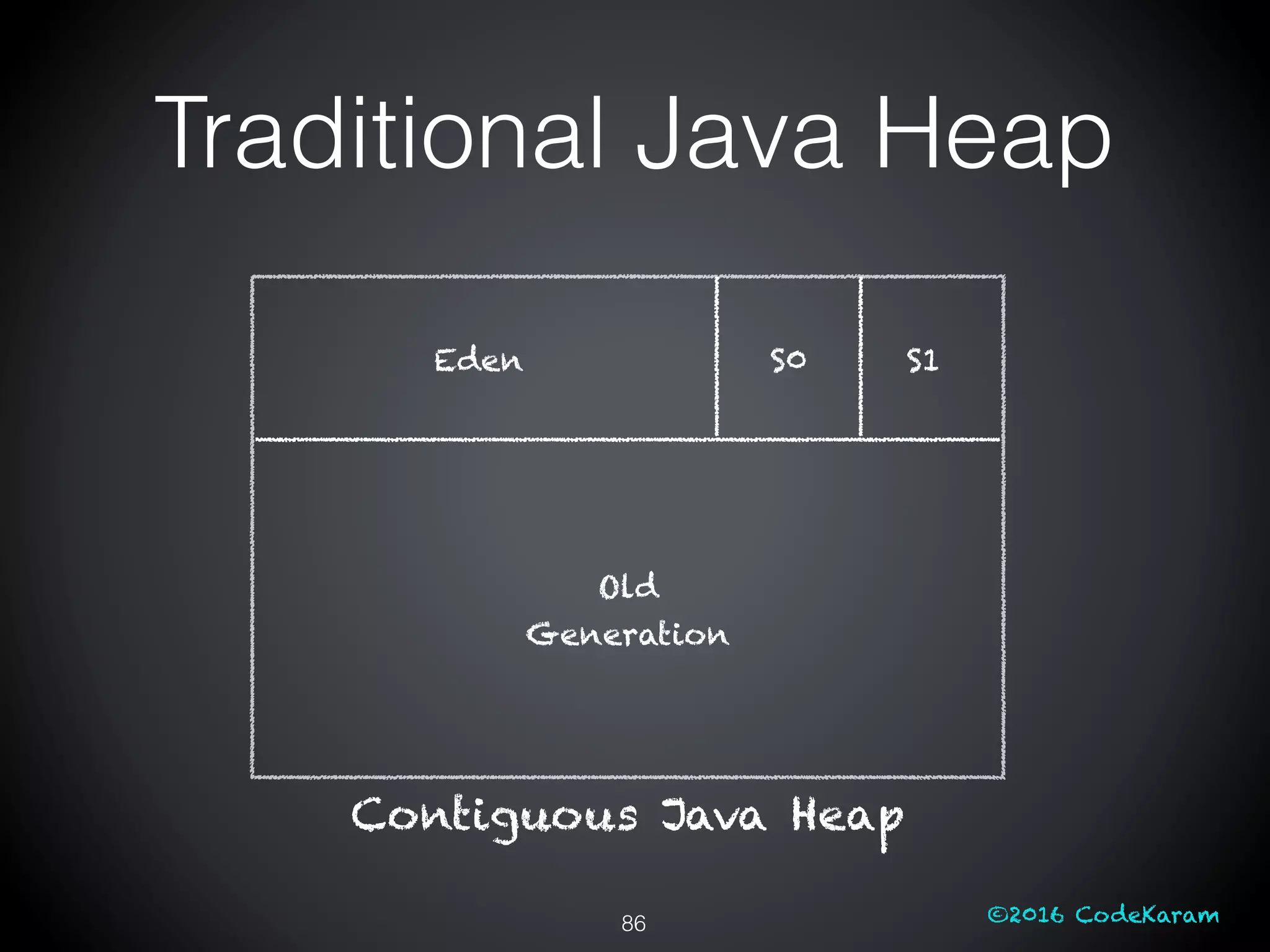

- 86. ©2016 CodeKaram Traditional Java Heap 86 Contiguous Java Heap Eden S0 S1 Old Generation

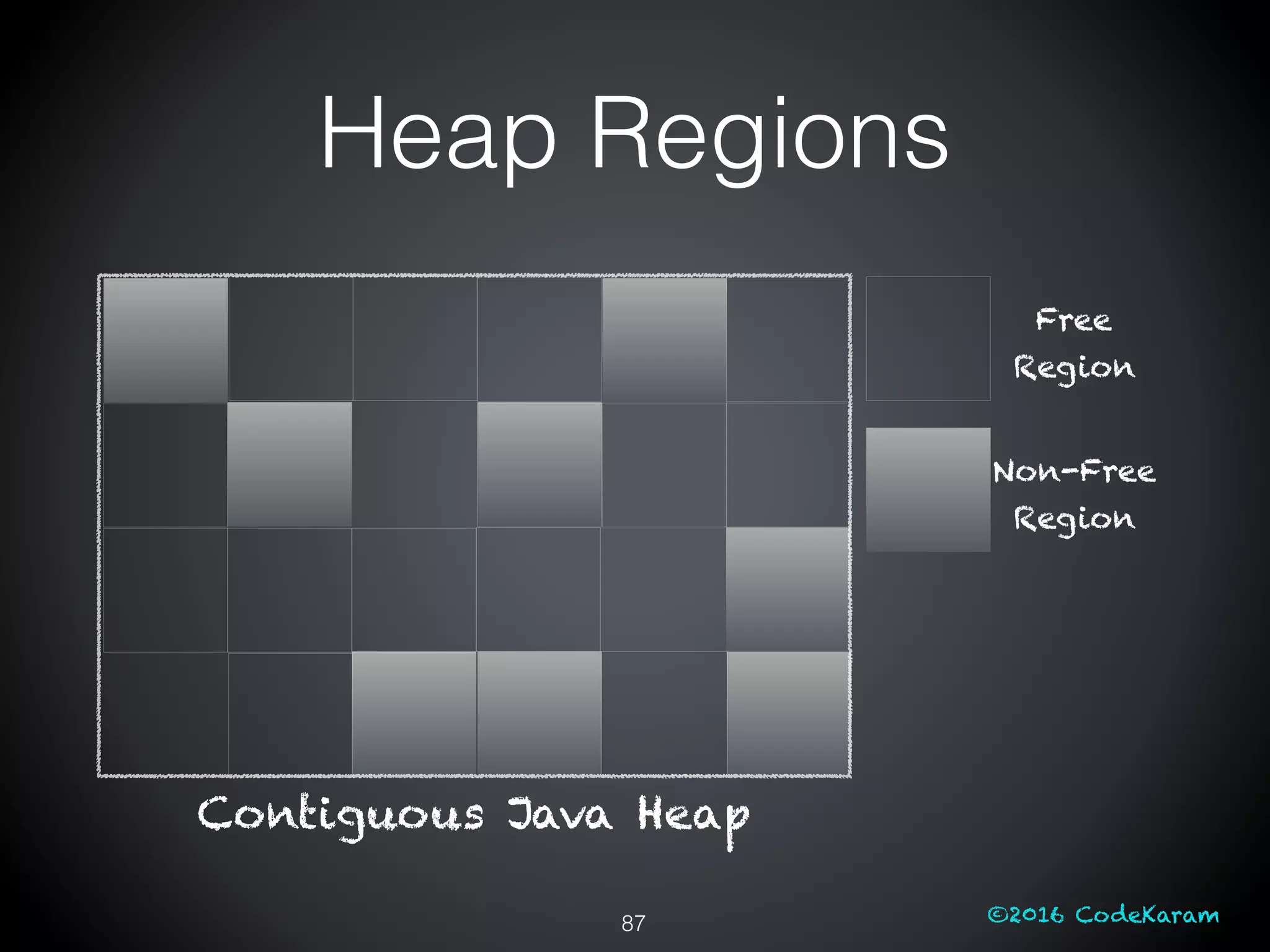

- 87. ©2016 CodeKaram Heap Regions 87 Contiguous Java Heap Free Region Non-Free Region

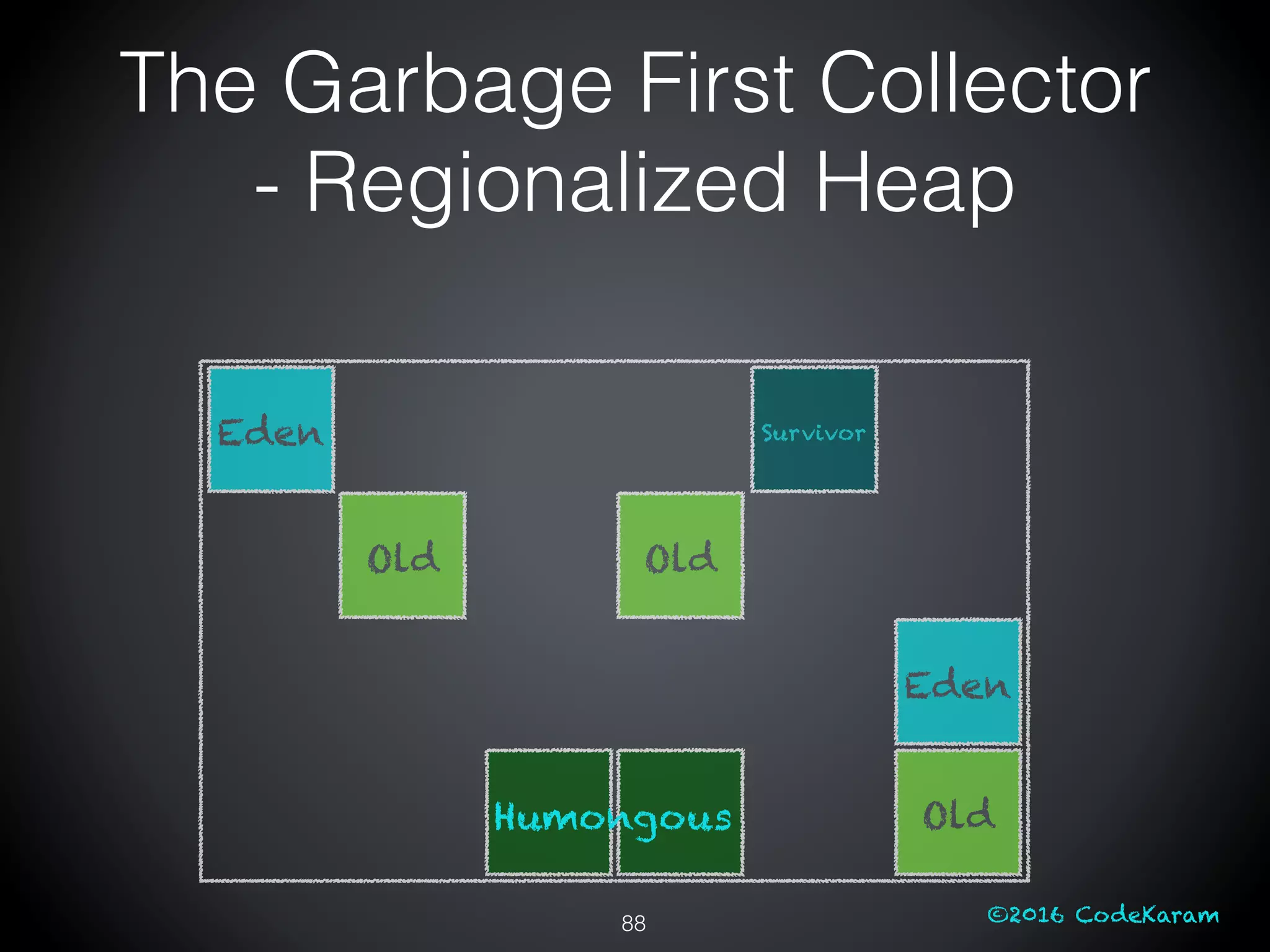

- 88. ©2016 CodeKaram The Garbage First Collector - Regionalized Heap Eden Old Old Eden Old Survivor Humongous 88

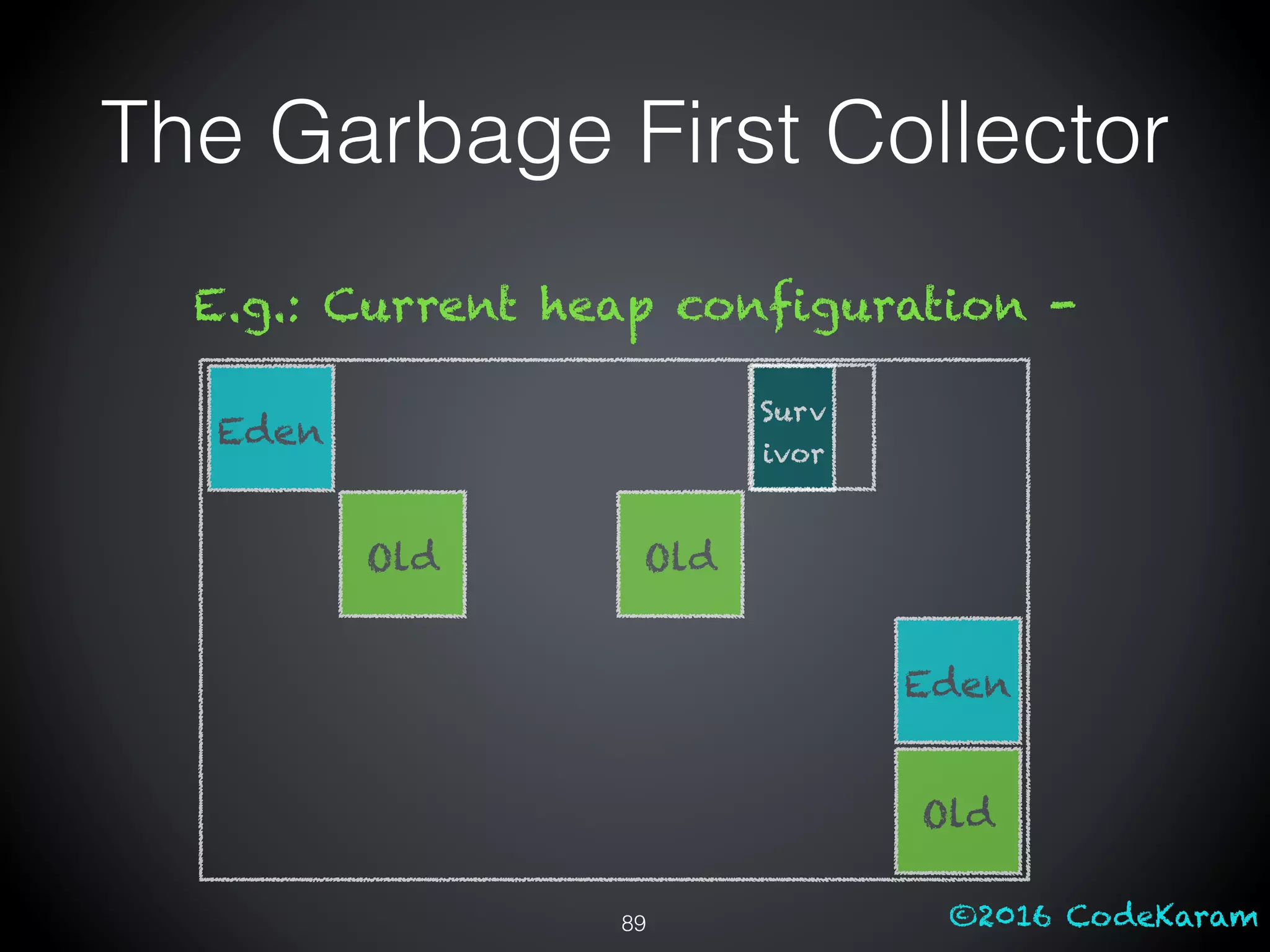

- 89. ©2016 CodeKaram The Garbage First Collector Eden Old Old Eden Old Surv ivor E.g.: Current heap configuration - 89

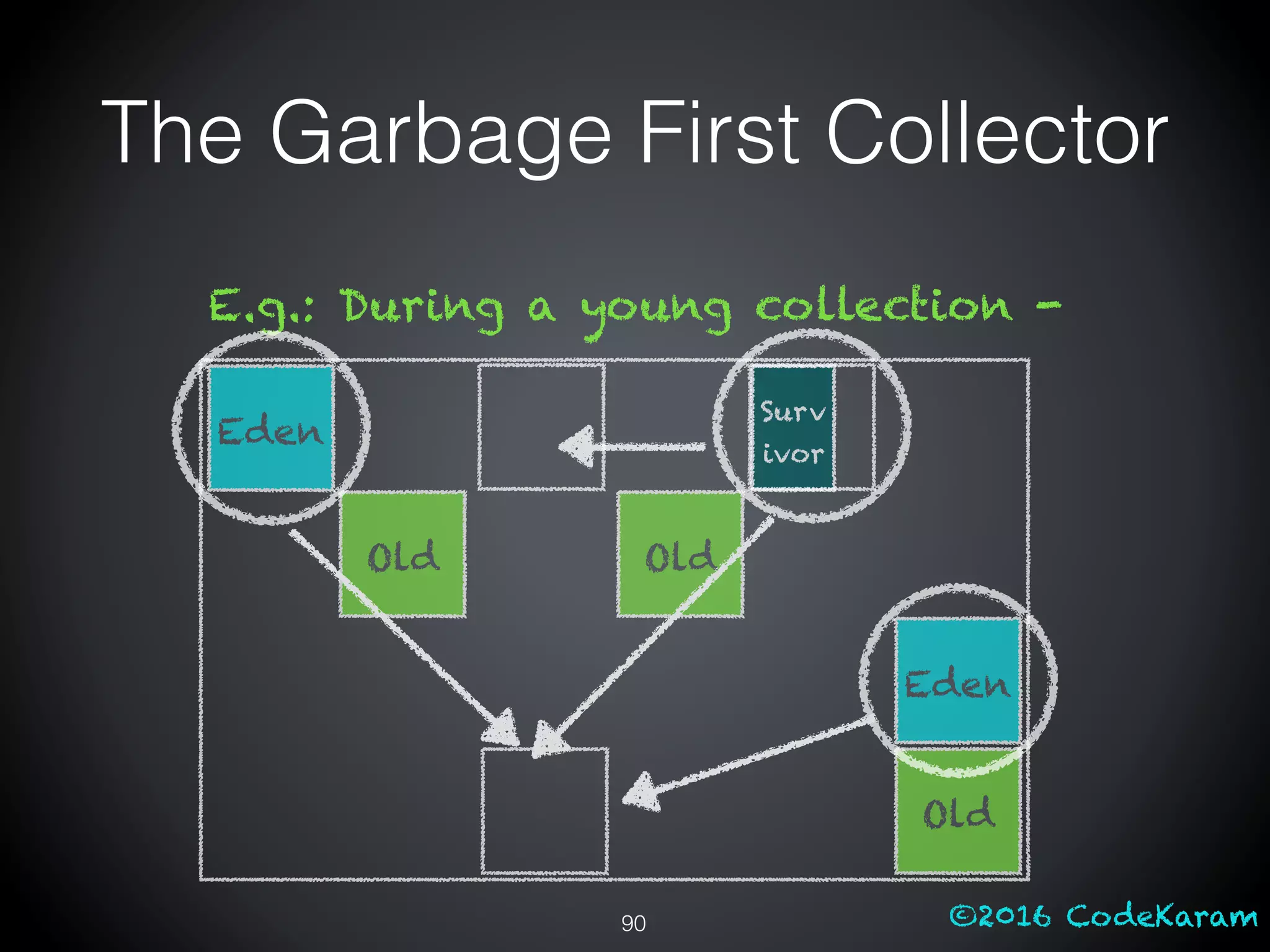

- 90. ©2016 CodeKaram The Garbage First Collector Eden Old Old Eden Old Surv ivor E.g.: During a young collection - 90

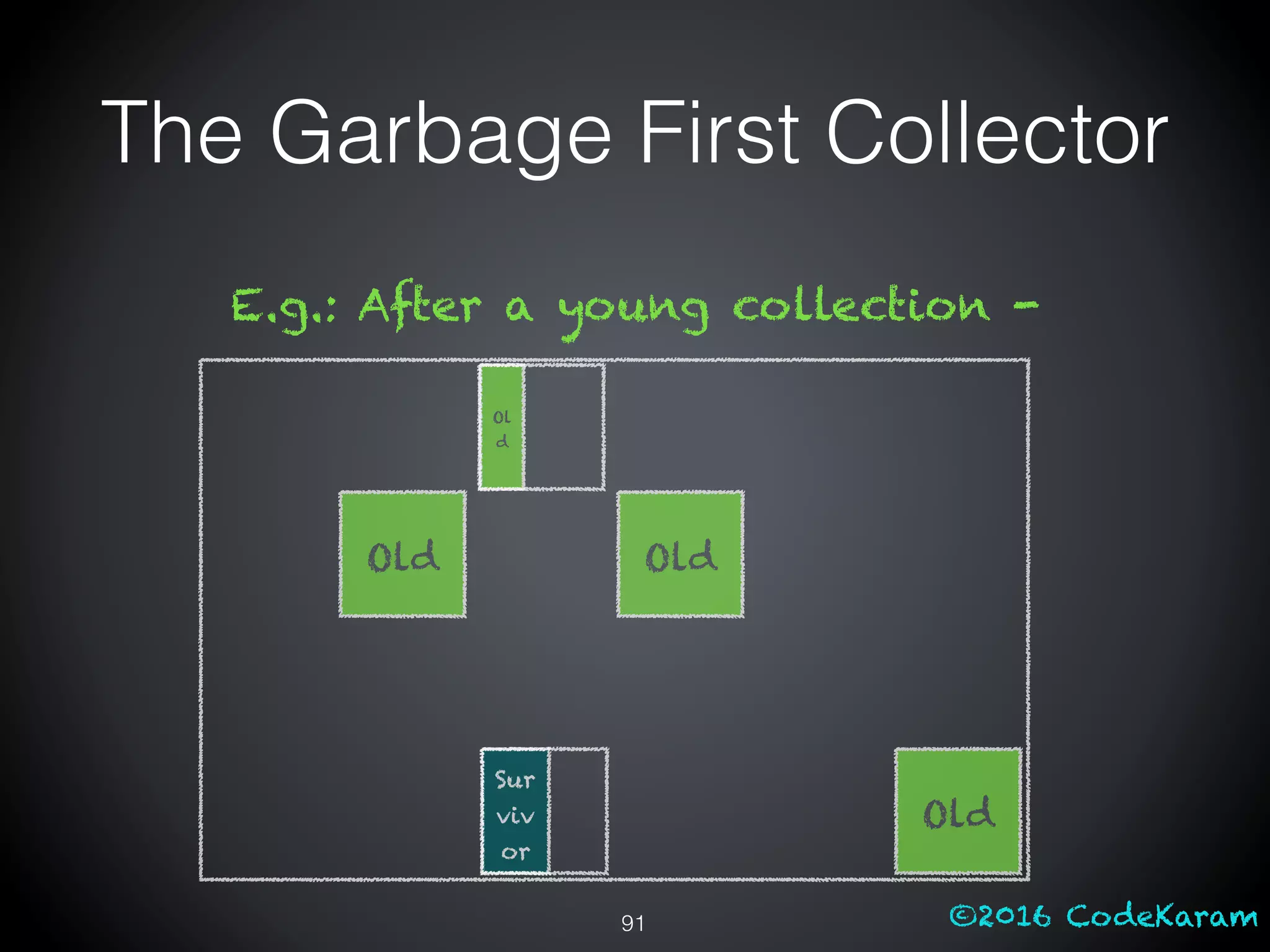

- 91. ©2016 CodeKaram The Garbage First Collector Old Old Old E.g.: After a young collection - Sur viv or Ol d 91
- 92. ©2016 CodeKaram Old Old Old Sur viv or Ol d Eden Eden Old The Garbage First Collector 92 E.g.: Current heap configuration -

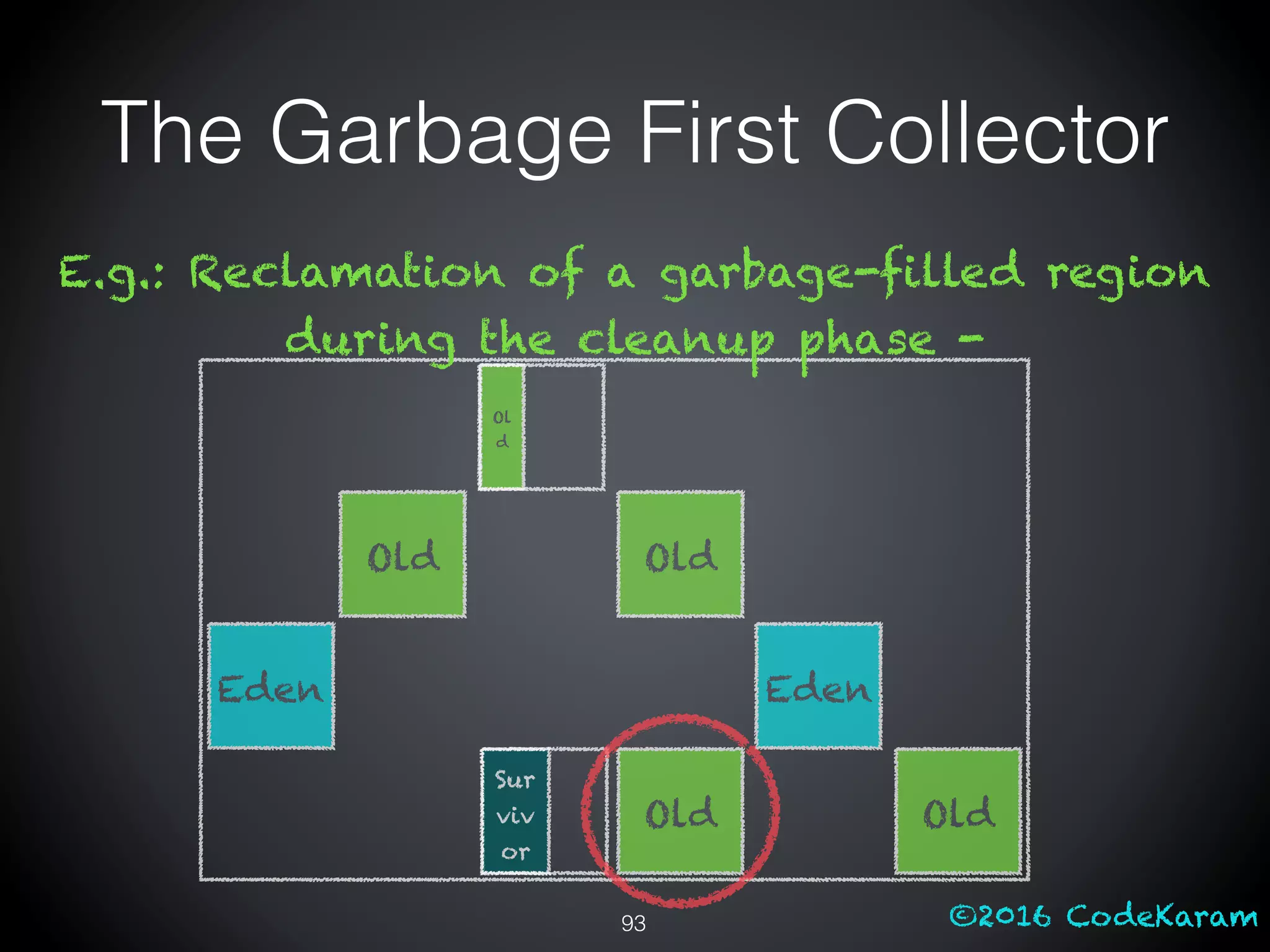

- 93. ©2016 CodeKaram Old Old Old E.g.: Reclamation of a garbage-filled region during the cleanup phase - Sur viv or Ol d Eden Eden Old The Garbage First Collector 93

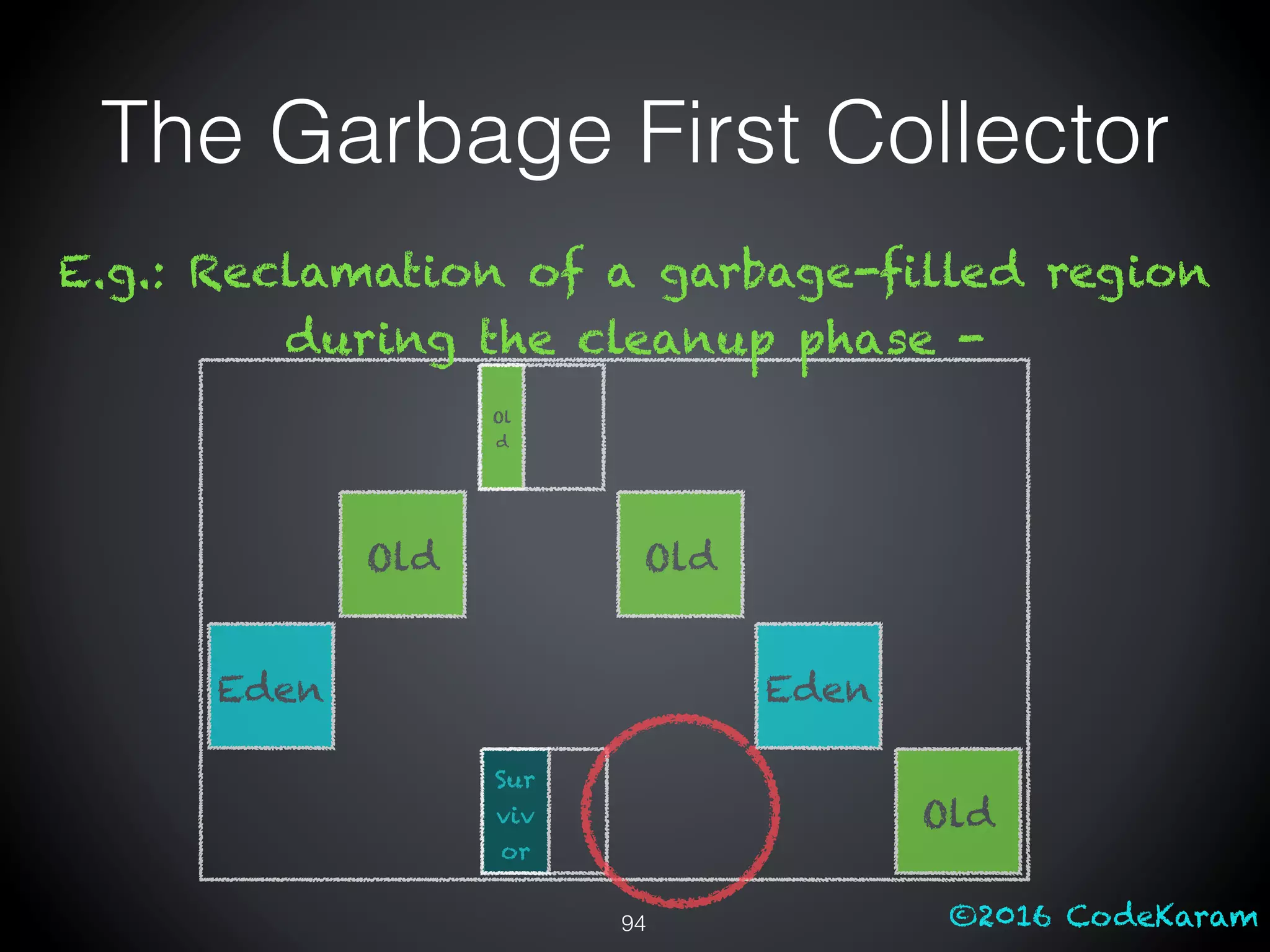

- 94. ©2016 CodeKaram Old Old Old E.g.: Reclamation of a garbage-filled region during the cleanup phase - Sur viv or Ol d Eden Eden The Garbage First Collector 94
- 95. ©2016 CodeKaram Old Old Old E.g.: Current heap configuration - Sur viv or Ol d Eden Eden The Garbage First Collector 95
- 96. ©2016 CodeKaram Old Old Old E.g.: During a mixed collection - Sur viv or Ol d Eden Eden The Garbage First Collector 96

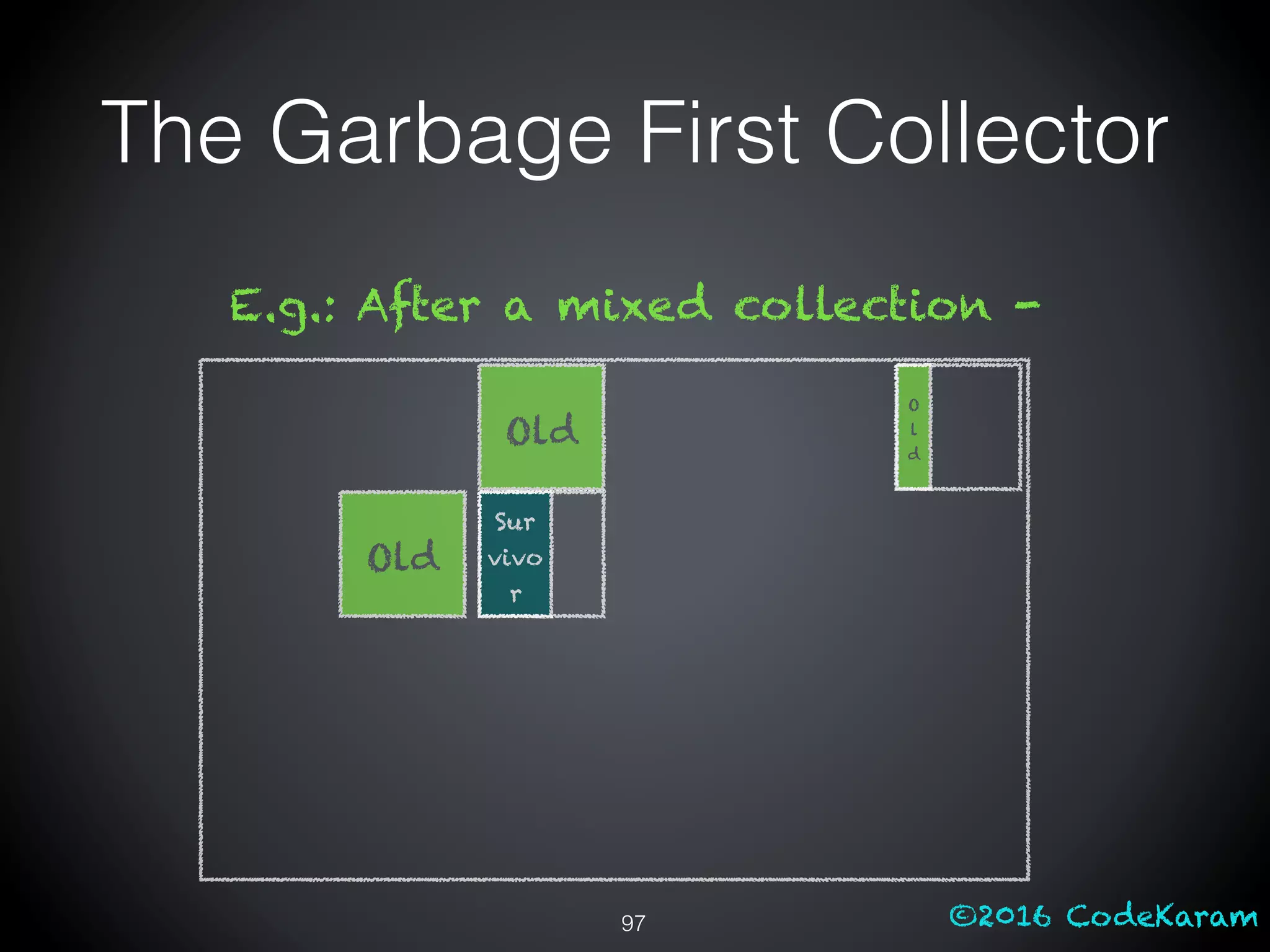

- 97. ©2016 CodeKaram Old E.g.: After a mixed collection - O l d Sur vivo r Old The Garbage First Collector 97

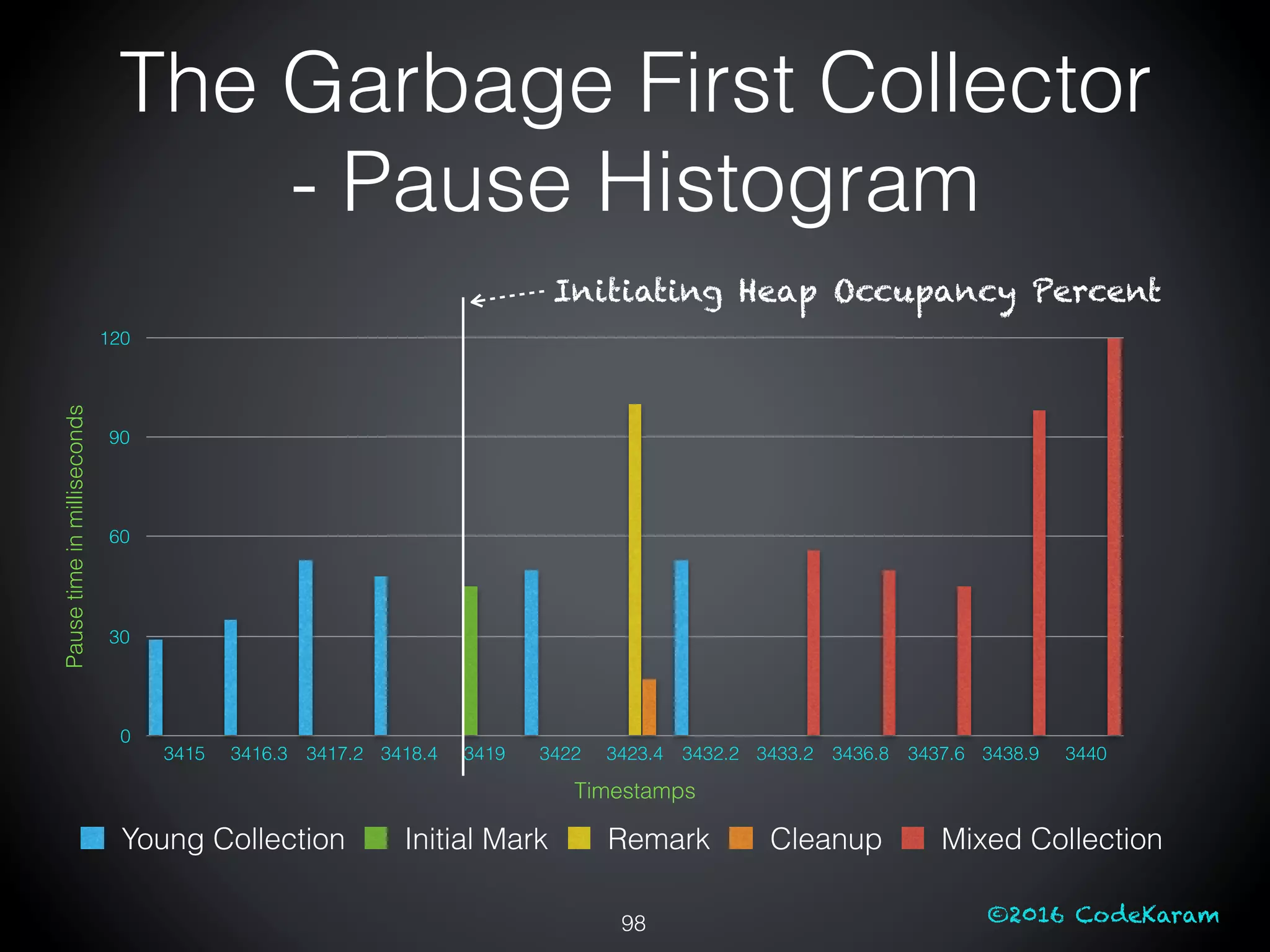

- 98. ©2016 CodeKaram The Garbage First Collector - Pause Histogram 98 Pausetimeinmilliseconds 0 30 60 90 120 Timestamps 3415 3416.3 3417.2 3418.4 3419 3422 3423.4 3432.2 3433.2 3436.8 3437.6 3438.9 3440 Young Collection Initial Mark Remark Cleanup Mixed Collection Initiating Heap Occupancy Percent
