This document summarizes various development tools for building decentralized applications on Ethereum, including: - The Truffle Suite for Solidity development, including Truffle, Ganache, and Drizzle. - Solidity integrated development environments (IDEs) like Remix, IntelliJ, and EtherAtom. - APIs for accessing Ethereum nodes and data like Block 16 API and web3.js. - Canonical smart contracts from Zeppelin and DappHub that are audited and reusable. - Techniques for interfacing smart contracts like using interfaces to allow proxy contracts to interact with other contracts for atomic swaps.

1. The Decentralized
Developer Toolbox
Petros Ring, Block 16

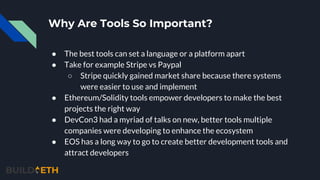

2. Why Are Tools So Important?
● The best tools can set a language or a platform apart
● Take for example Stripe vs Paypal
○ Stripe quickly gained market share because there systems
were easier to use and implement
● Ethereum/Solidity tools empower developers to make the best
projects the right way
● DevCon3 had a myriad of talks on new, better tools multiple
companies were developing to enhance the ecosystem
● EOS has a long way to go to create better development tools and
attract developers

3. The Basics: Truffle Suite
Truffle
- The easiest way to
start Solidity
development.
- Install and spin up a
new project as easy as
truffle init
Ganache
- Run your own private
Ethereum blockchain
- Test your applications in
a controlled environment
Drizzle
- A better way to handle
your dApp front end
- Manages syncing and
interactions with your
smart contract
https://truffleframework.com

4. Solidity IDEs
Web Based
EthFiddle
- Good for experimenting with
code snippets and sharing them
- Comparable to JSFiddle
Remix IDE
- An all inclusive online IDE that
will let you compile, deploy and
analyze smart contract code
- Great for beginners
Application Based
IntelliJ-Solidity
- Solidity language support for a
world class IDE
- Still in Alpha stage but still being
updated over time
EtherAtom
- Bringing many of Remix’s best
features to a local editor for
analyzing code and testing

5. Accessing Ethereum via APIs
- Reliable access to hosted
Ethereum nodes and IPFS
gateways.
- Allows you to do all of the
Ethereum JSON-RPC requests
you would normally make on
a local node.
- Easiest interface is web3.js
- Access human readable
content on addresses and
blocks separate from
standard web3.js calls
- Suitable for monitoring
information occuring on the
blockchain by a backend
system

6. Block 16 API
Endpoints
- Access to all the information, transactions, events on a per block level
- Access to token transfers and last 100 ethereum transactions on an
address level
- Endpoints combine calls for all block / uncles / transactions /
transaction receipts into one HTTP call which would normally be
somewhere from 250-500+ calls
Use Cases
- Scanning the entire blockchain and tracking it for transactions
occurring in real time on a separate backend
- Easily accessing assets data on an address
https://docs.block16.io

7. Canonical Smart Contracts
Zeppelin Solutions and DappHub have created many
audited smart contracts that are ready to be deployed at
any time and integrated into your application
Open Zeppelin
● Whitelists
● Crowdsale
● Lifecycle Management
● SafeMath
● Ownership
● Payment
● Token: ERC-20, 721, 827
Dapp Tools
● Multisig
● Authentication (Authority)
● Proxy
● Cache
● Token: ERC-20

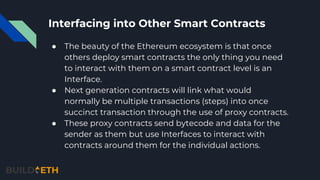

8. Interfacing into Other Smart Contracts
● The beauty of the Ethereum ecosystem is that once
others deploy smart contracts the only thing you need
to interact with them on a smart contract level is an
Interface.
● Next generation contracts will link what would
normally be multiple transactions (steps) into once
succinct transaction through the use of proxy contracts.
● These proxy contracts send bytecode and data for the
sender as them but use Interfaces to interact with
contracts around them for the individual actions.

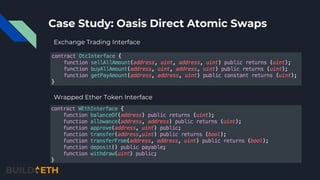

9. Case Study: Oasis Direct Atomic Swaps
Wrapped Ether Token Interface
Exchange Trading Interface

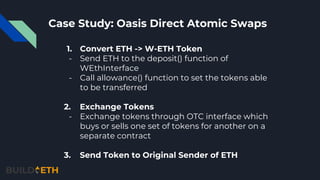

10. Case Study: Oasis Direct Atomic Swaps
1. Convert ETH -> W-ETH Token
- Send ETH to the deposit() function of
WEthInterface
- Call allowance() function to set the tokens able
to be transferred
2. Exchange Tokens
- Exchange tokens through OTC interface which
buys or sells one set of tokens for another on a
separate contract
3. Send Token to Original Sender of ETH

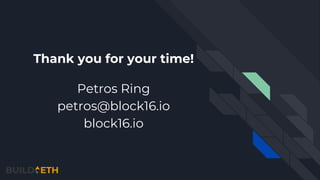

11. Thank you for your time!
Petros Ring
petros@block16.io
block16.io
