The document discusses using FME software to convert GIS data from an enterprise SDE server into CAD files for use by CAD users. It outlines the goals of providing the most up-to-date data to both internal and external users in their native CAD format. It describes using FME to automate the translation of GIS data into fully formatted DWG files that can be distributed and used by CAD analysts. The process allows any data on the enterprise GIS hub to be incorporated and provides a stable system for exporting GIS data to CAD.

1. The Best Dishes Are Made With Fresh Ingredients: Creating CAD Files from an Enterprise SDE Server Matthew Freid GIS Analyst – Bureau of Environmental Services City of Portland Oregon

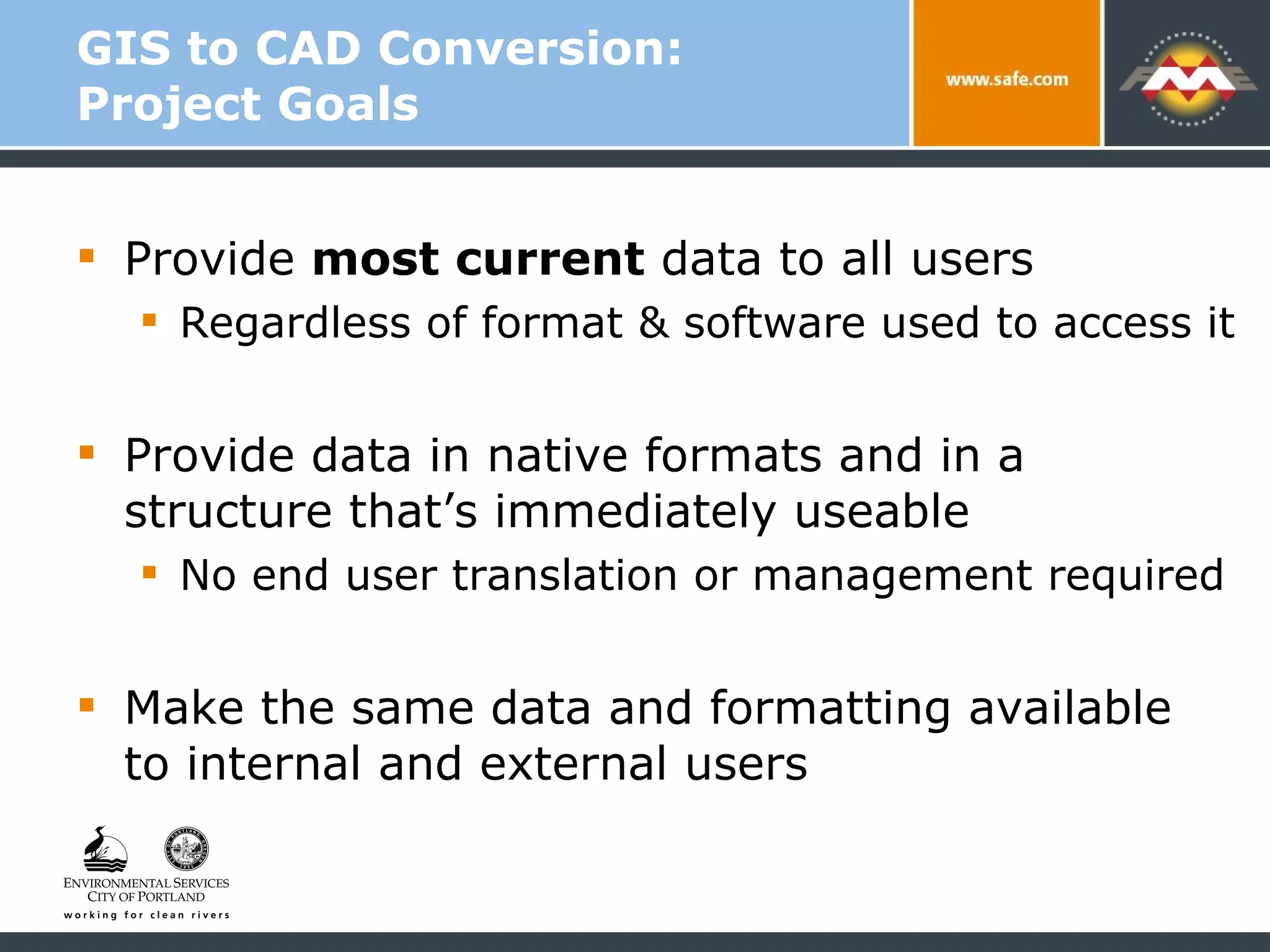

2. GIS to CAD Conversion: Project Goals Provide most current data to all users Regardless of format & software used to access it Provide data in native formats and in a structure that’s immediately useable No end user translation or management required Make the same data and formatting available to internal and external users

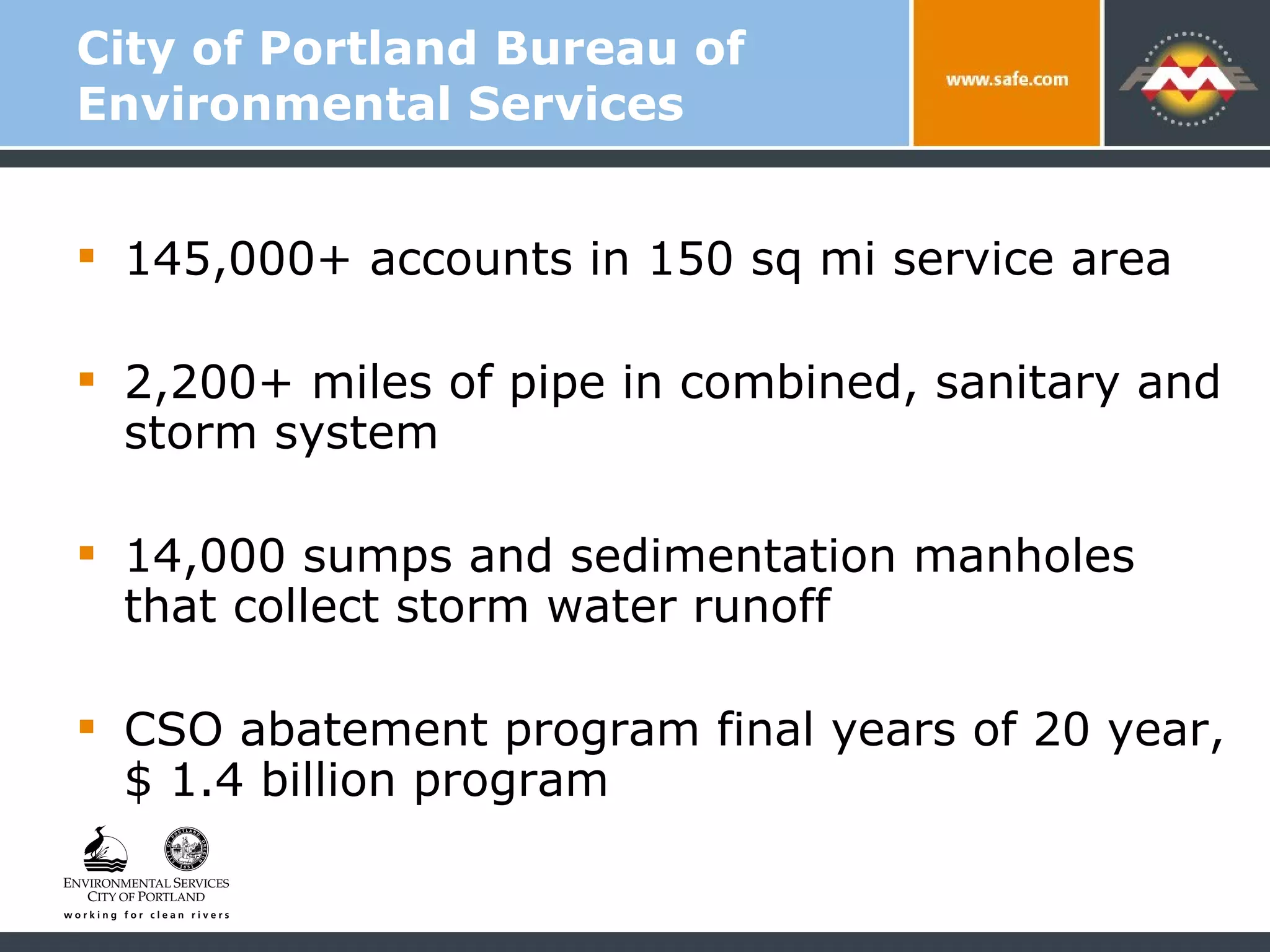

3. City of Portland Bureau of Environmental Services 145,000+ accounts in 150 sq mi service area 2,200+ miles of pipe in combined, sanitary and storm system 14,000 sumps and sedimentation manholes that collect storm water runoff CSO abatement program final years of 20 year, $ 1.4 billion program

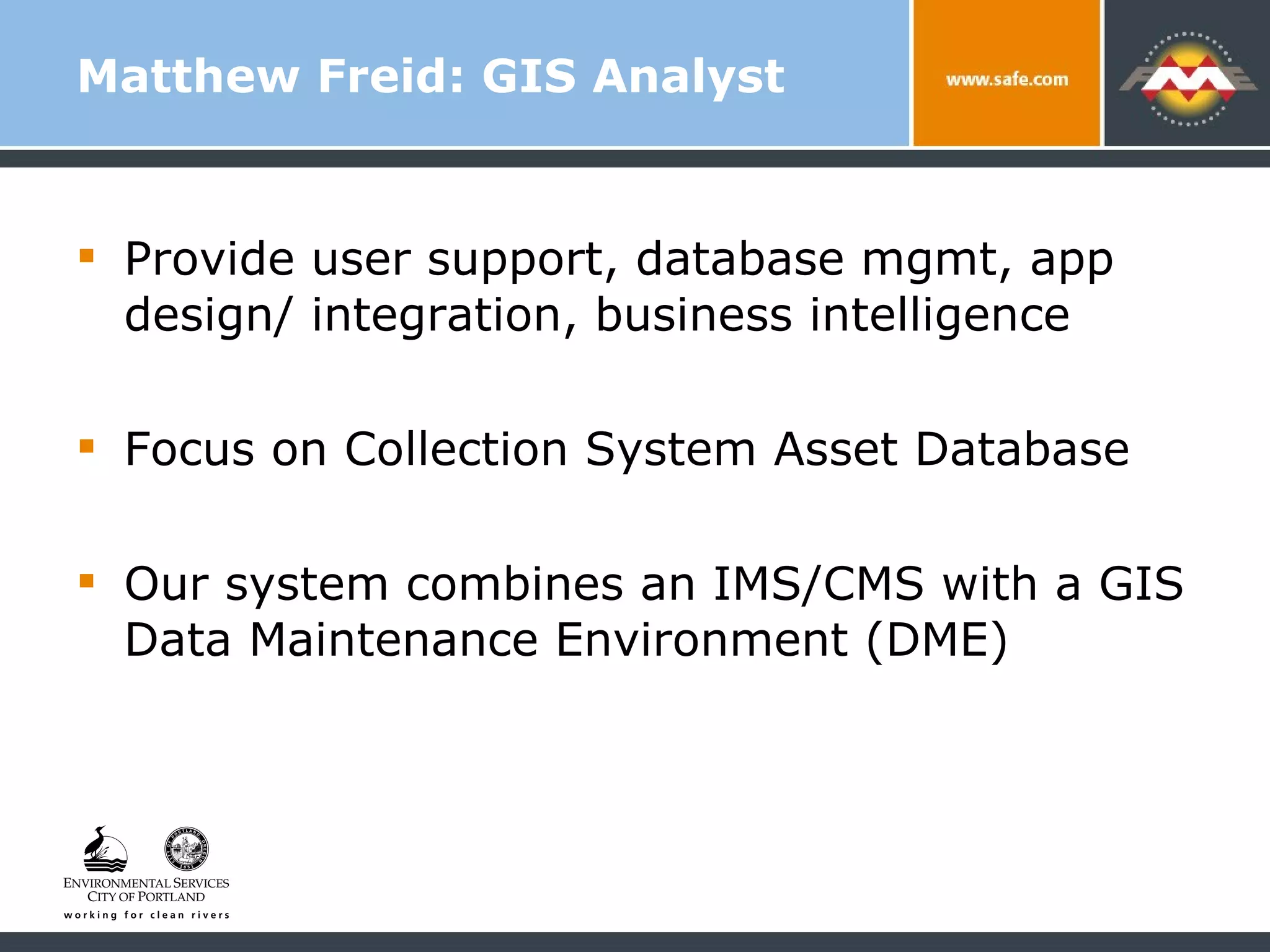

4. Matthew Freid: GIS Analyst Provide user support, database mgmt, app design/ integration, business intelligence Focus on Collection System Asset Database Our system combines an IMS/CMS with a GIS Data Maintenance Environment (DME)

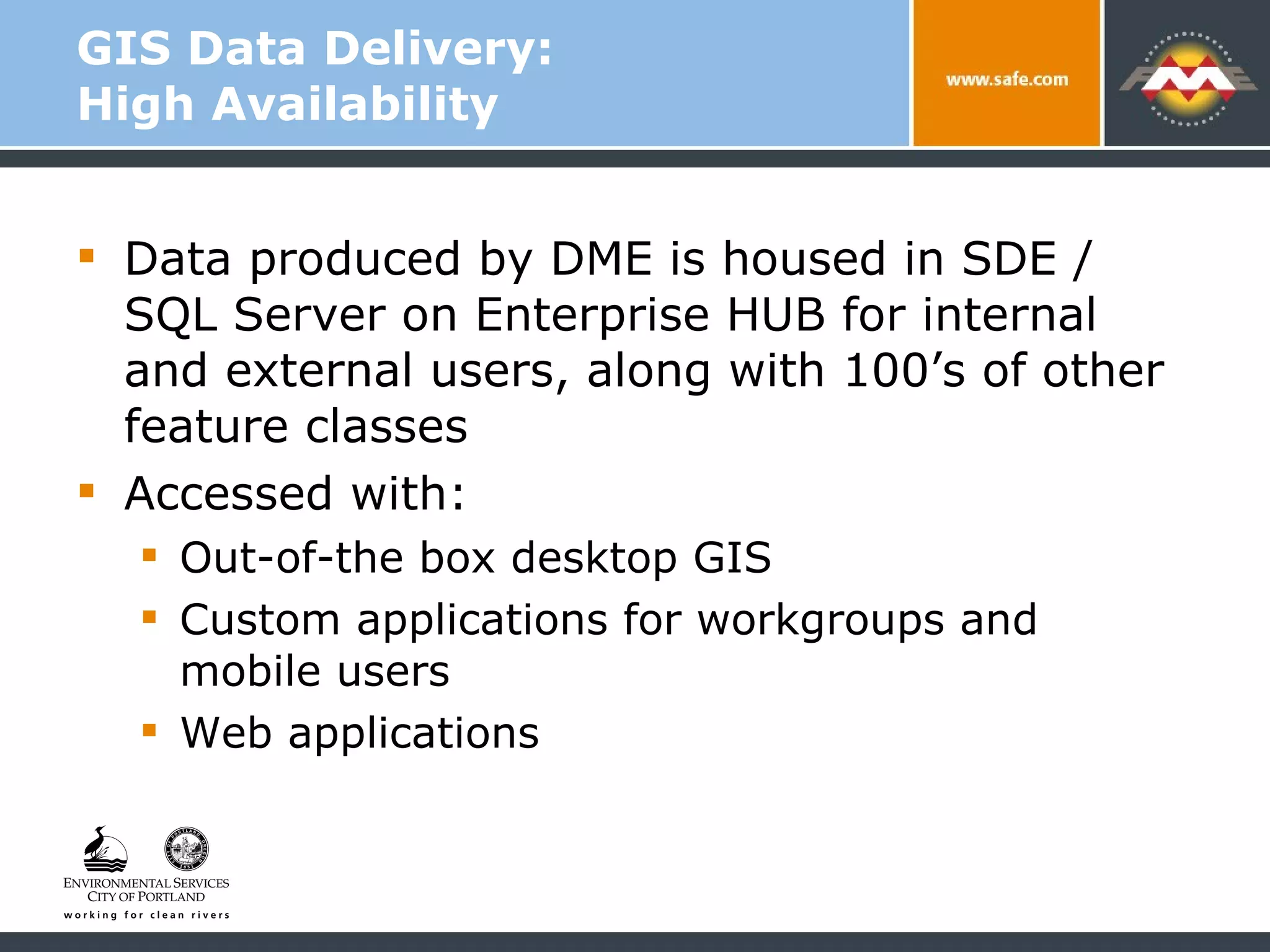

5. GIS Data Delivery: High Availability Data produced by DME is housed in SDE / SQL Server on Enterprise HUB for internal and external users, along with 100’s of other feature classes Accessed with: Out-of-the box desktop GIS Custom applications for workgroups and mobile users Web applications

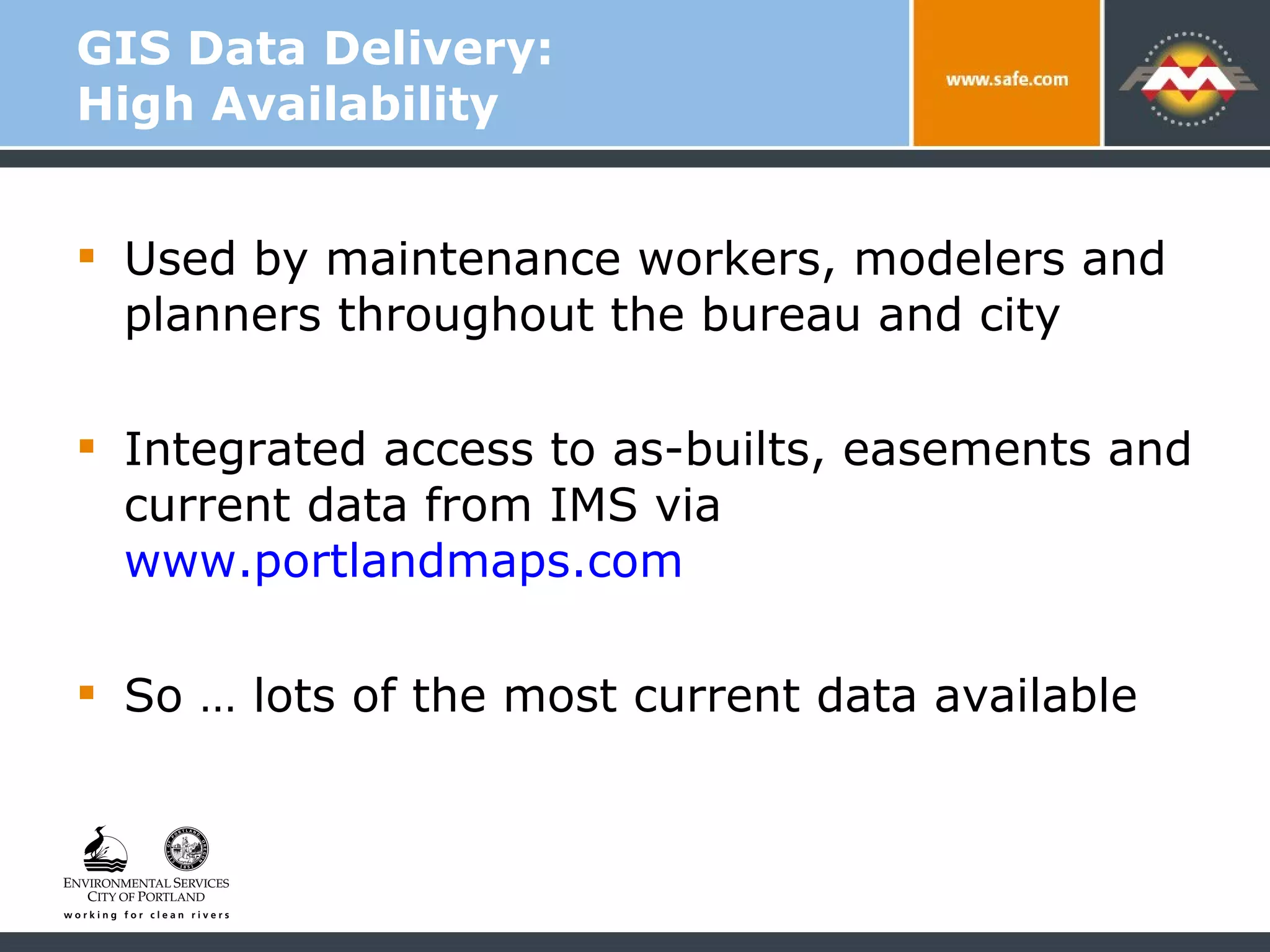

6. GIS Data Delivery: High Availability Used by maintenance workers, modelers and planners throughout the bureau and city Integrated access to as-builts, easements and current data from IMS via www.portlandmaps.com So … lots of the most current data available

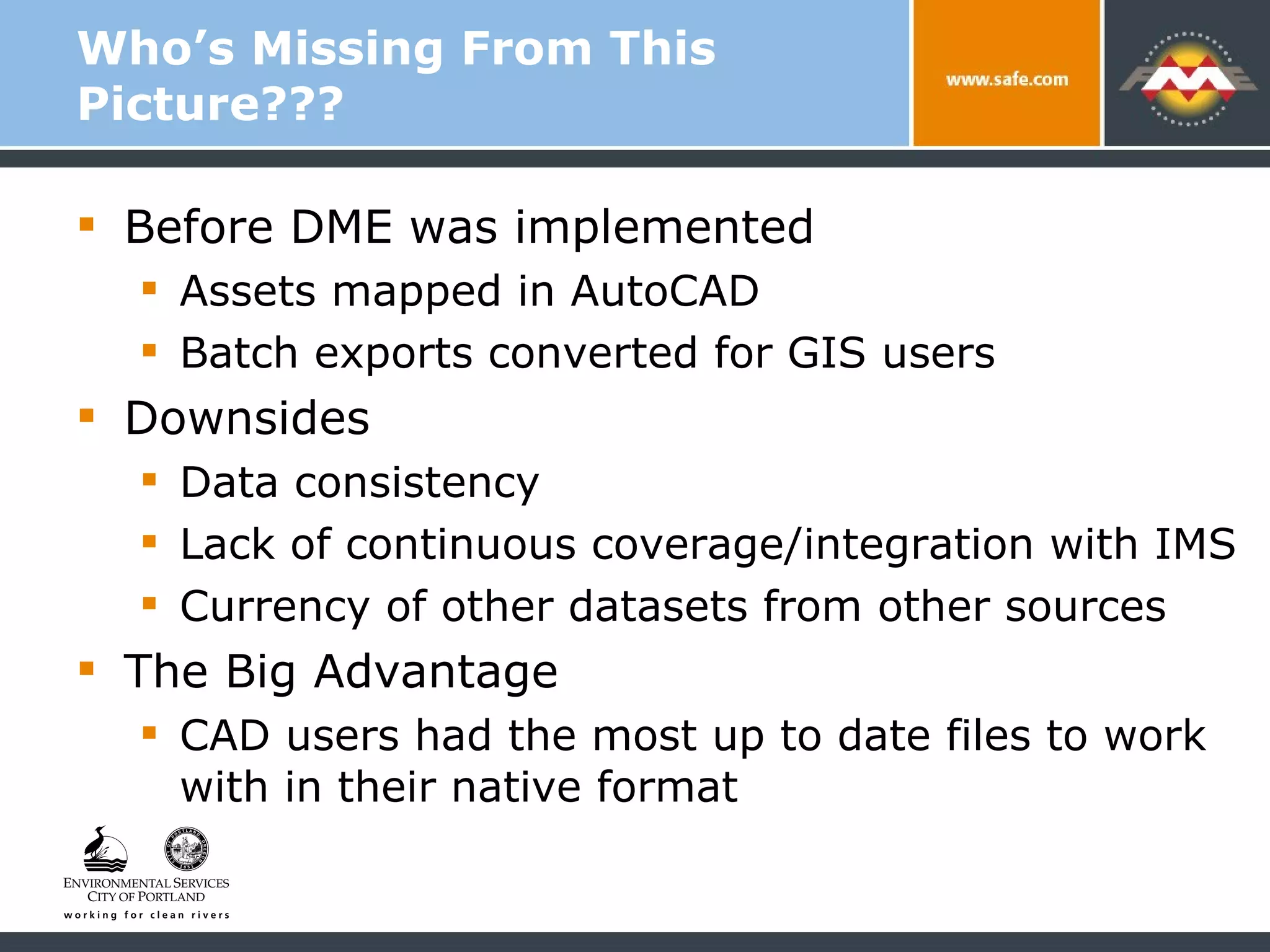

7. Who’s Missing From This Picture??? Before DME was implemented Assets mapped in AutoCAD Batch exports converted for GIS users Downsides Data consistency Lack of continuous coverage/integration with IMS Currency of other datasets from other sources The Big Advantage CAD users had the most up to date files to work with in their native format

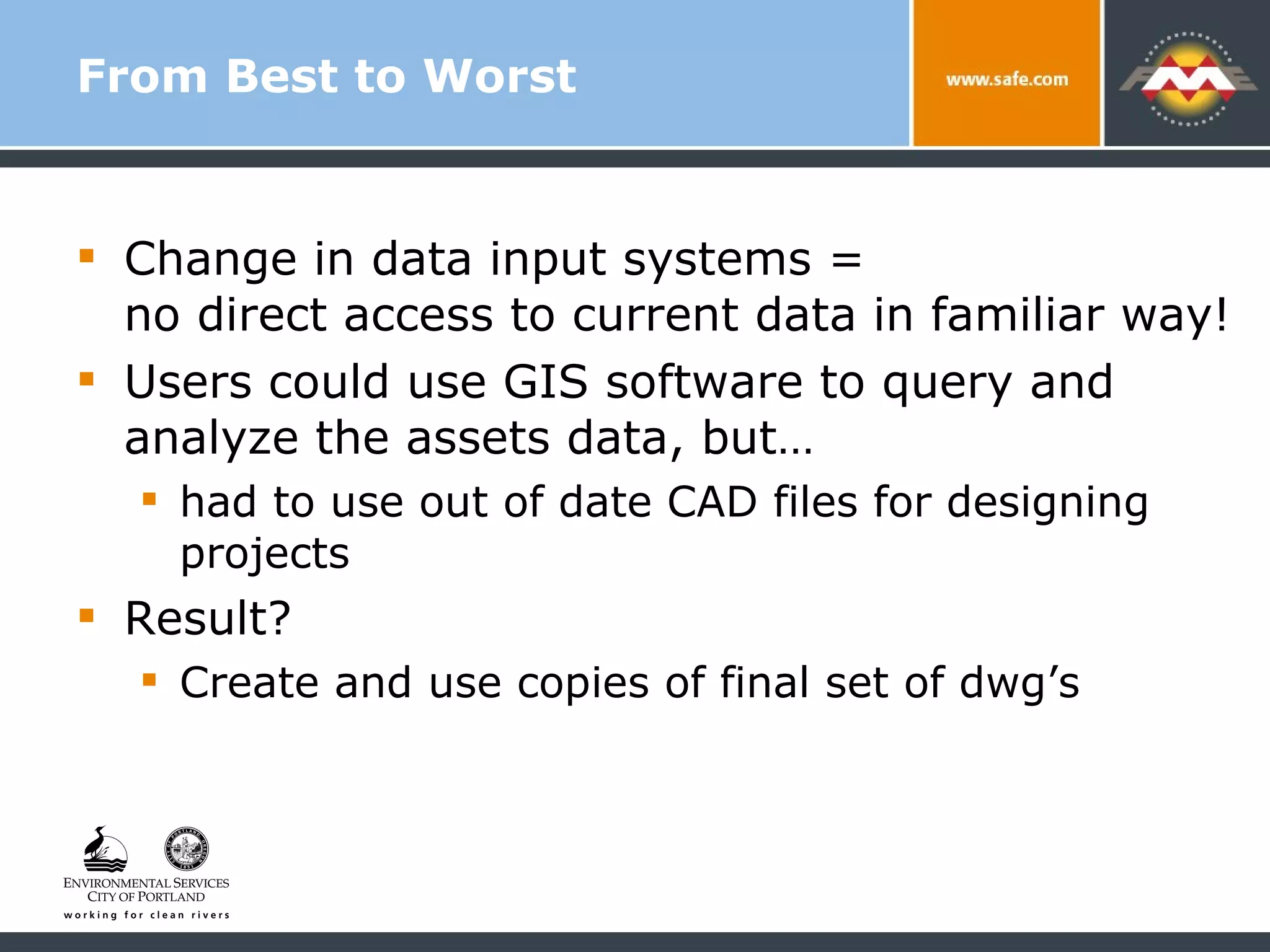

8. From Best to Worst Change in data input systems = no direct access to current data in familiar way! Users could use GIS software to query and analyze the assets data, but… had to use out of date CAD files for designing projects Result? Create and use copies of final set of dwg’s

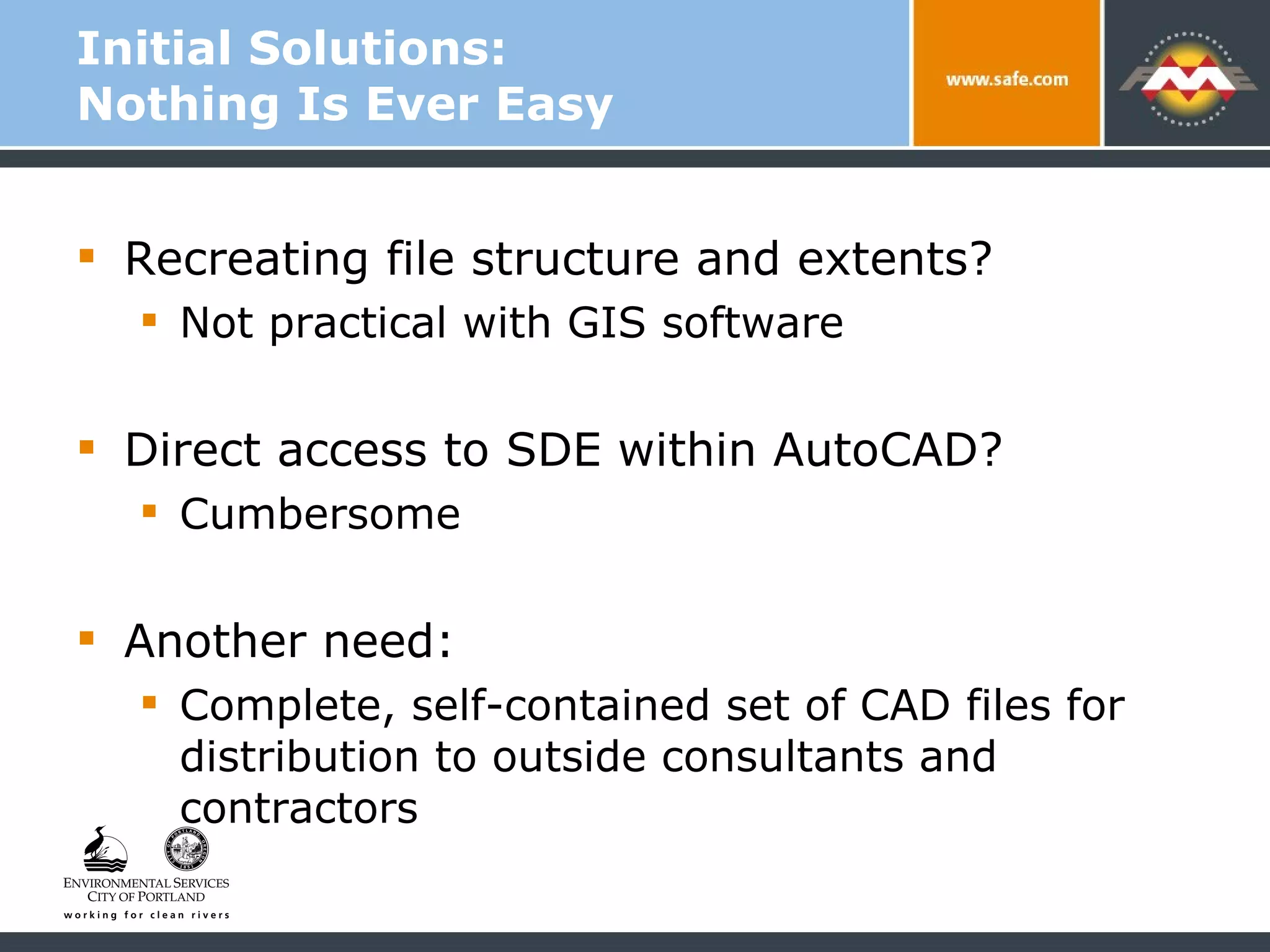

9. Initial Solutions: Nothing Is Ever Easy Recreating file structure and extents? Not practical with GIS software Direct access to SDE within AutoCAD? Cumbersome Another need: Complete, self-contained set of CAD files for distribution to outside consultants and contractors

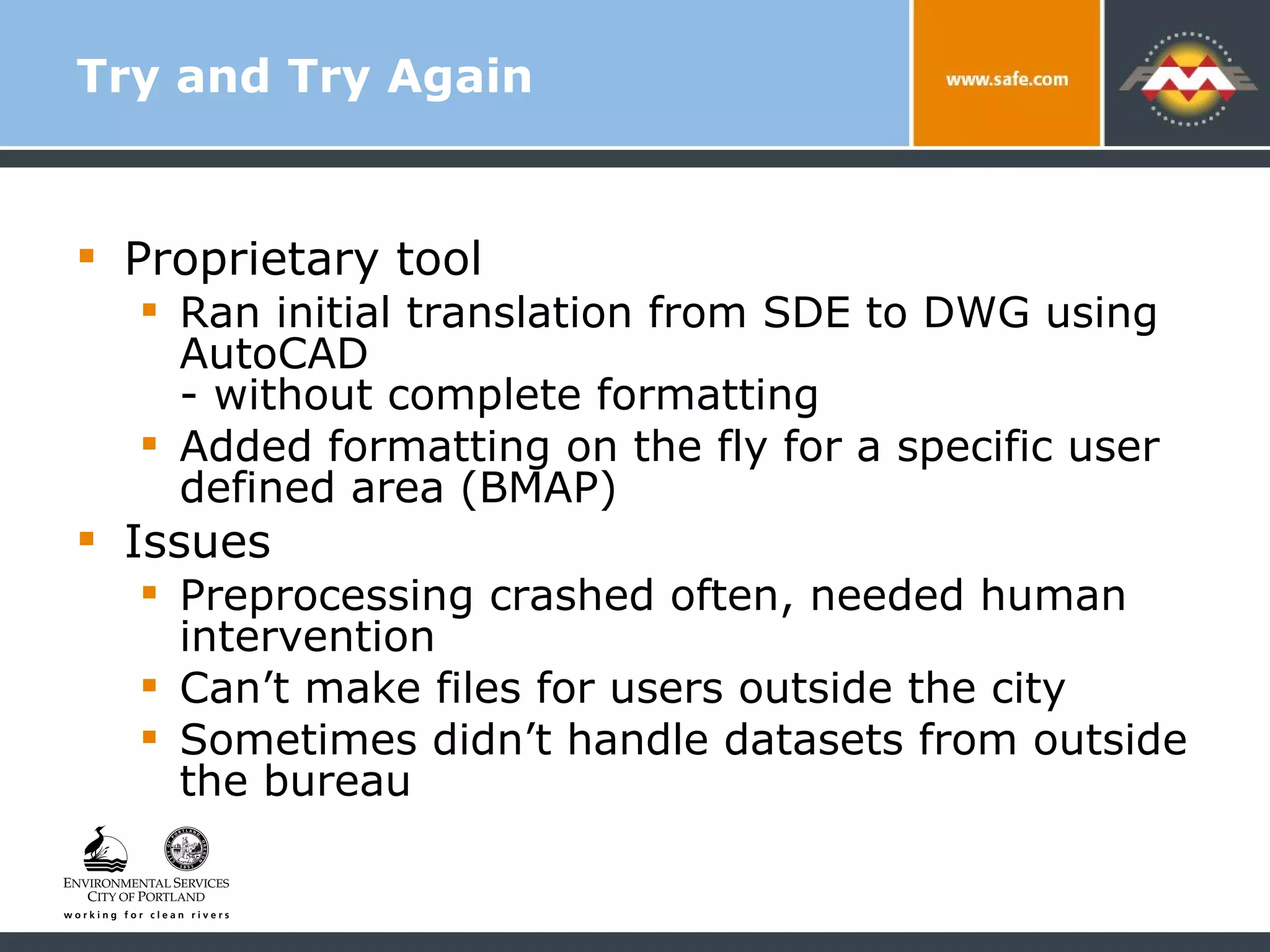

10. Try and Try Again Proprietary tool Ran initial translation from SDE to DWG using AutoCAD - without complete formatting Added formatting on the fly for a specific user defined area (BMAP) Issues Preprocessing crashed often, needed human intervention Can’t make files for users outside the city Sometimes didn’t handle datasets from outside the bureau

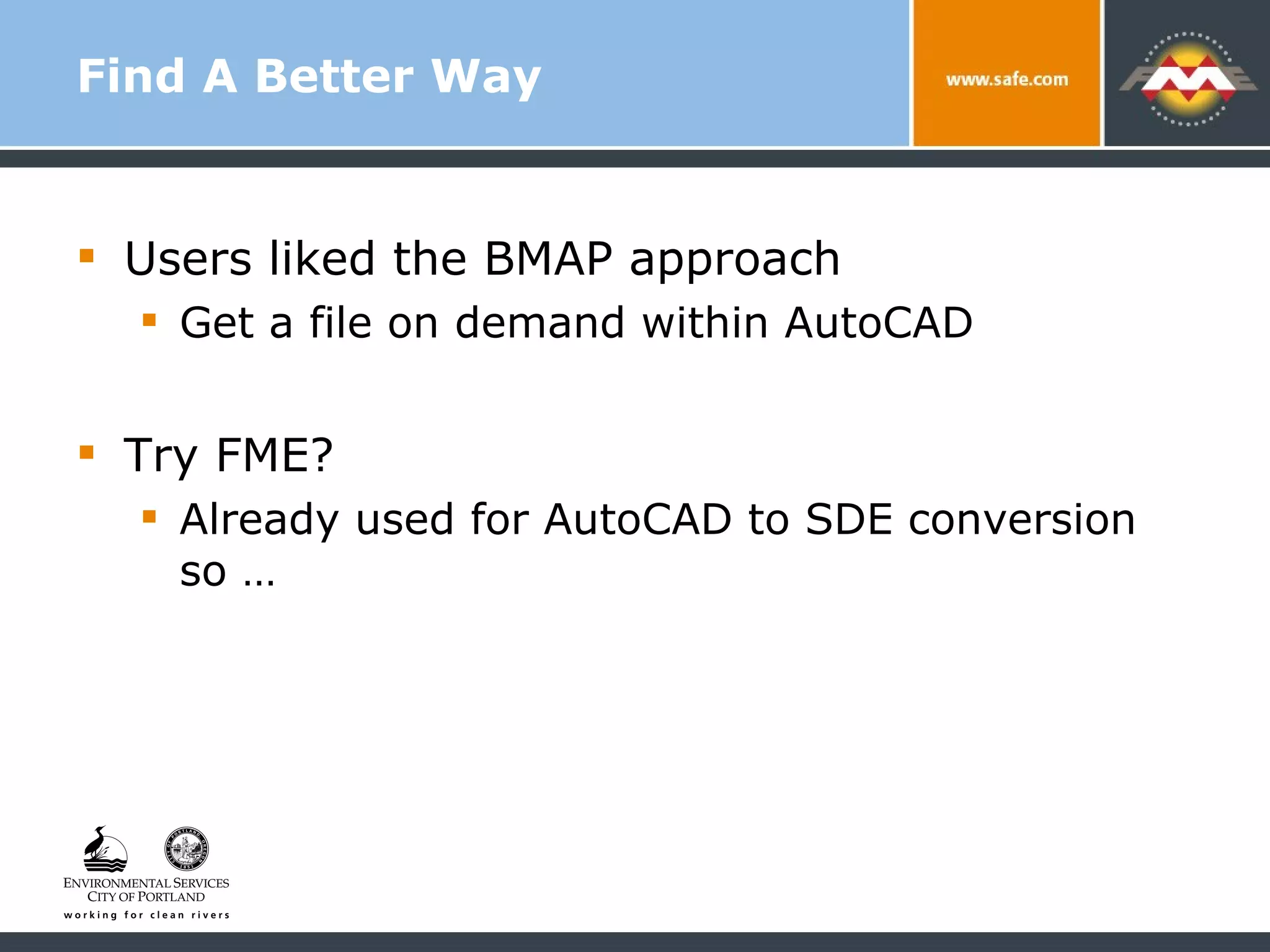

11. Find A Better Way Users liked the BMAP approach Get a file on demand within AutoCAD Try FME? Already used for AutoCAD to SDE conversion so …

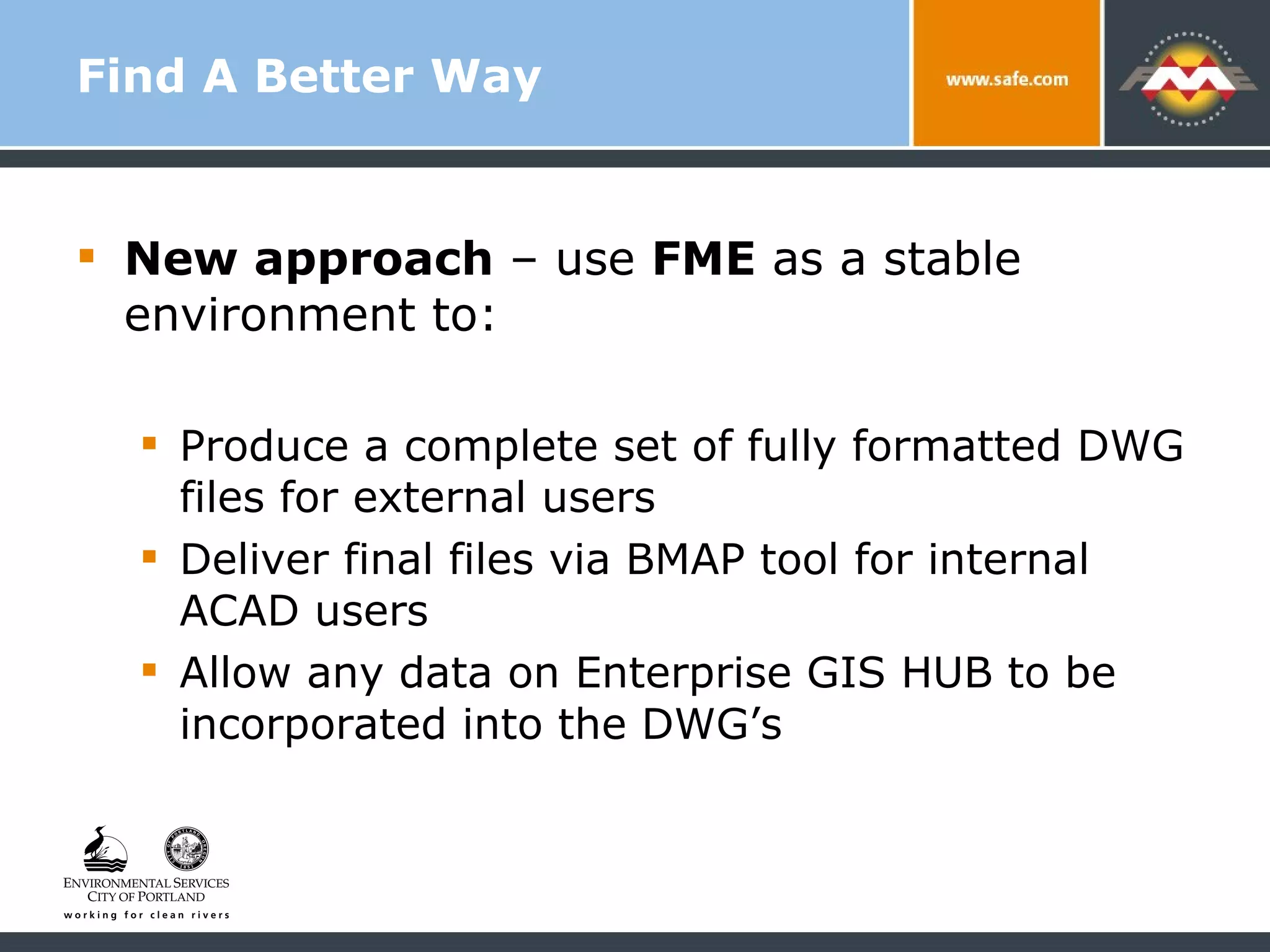

12. Find A Better Way New approach – use FME as a stable environment to: Produce a complete set of fully formatted DWG files for external users Deliver final files via BMAP tool for internal ACAD users Allow any data on Enterprise GIS HUB to be incorporated into the DWG’s

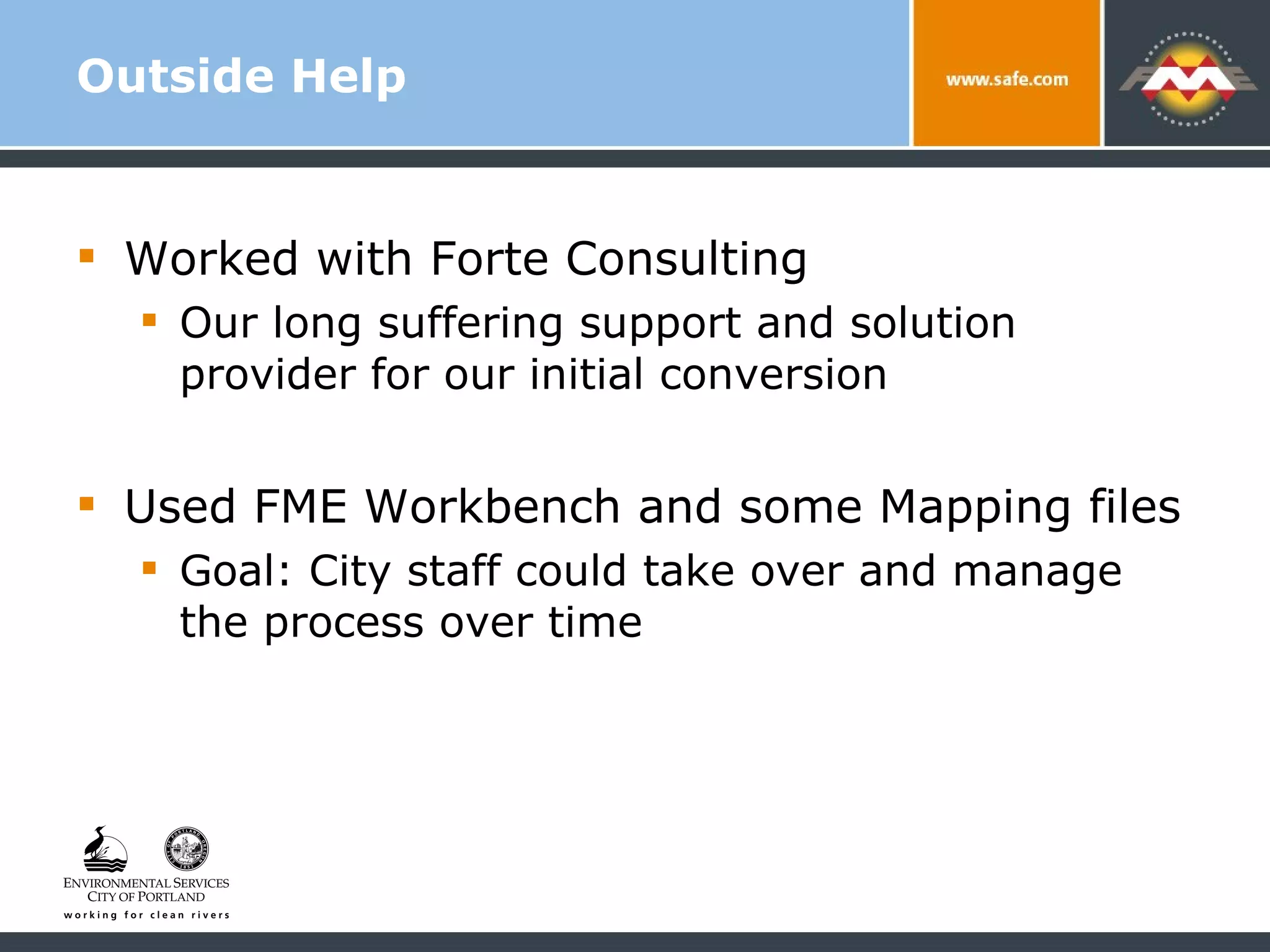

13. Outside Help Worked with Forte Consulting Our long suffering support and solution provider for our initial conversion Used FME Workbench and some Mapping files Goal: City staff could take over and manage the process over time

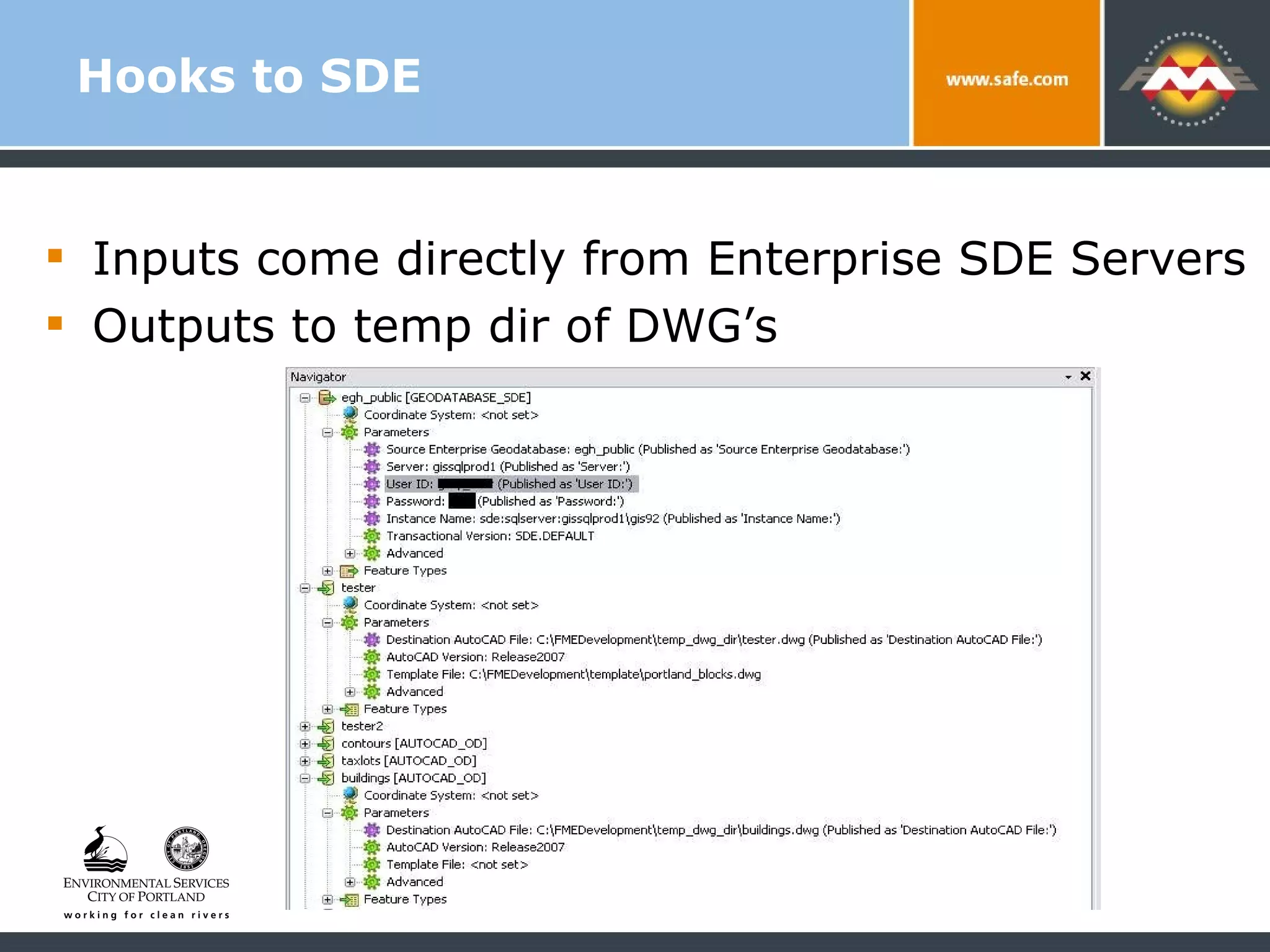

14. Hooks to SDE Inputs come directly from Enterprise SDE Servers Outputs to temp dir of DWG’s

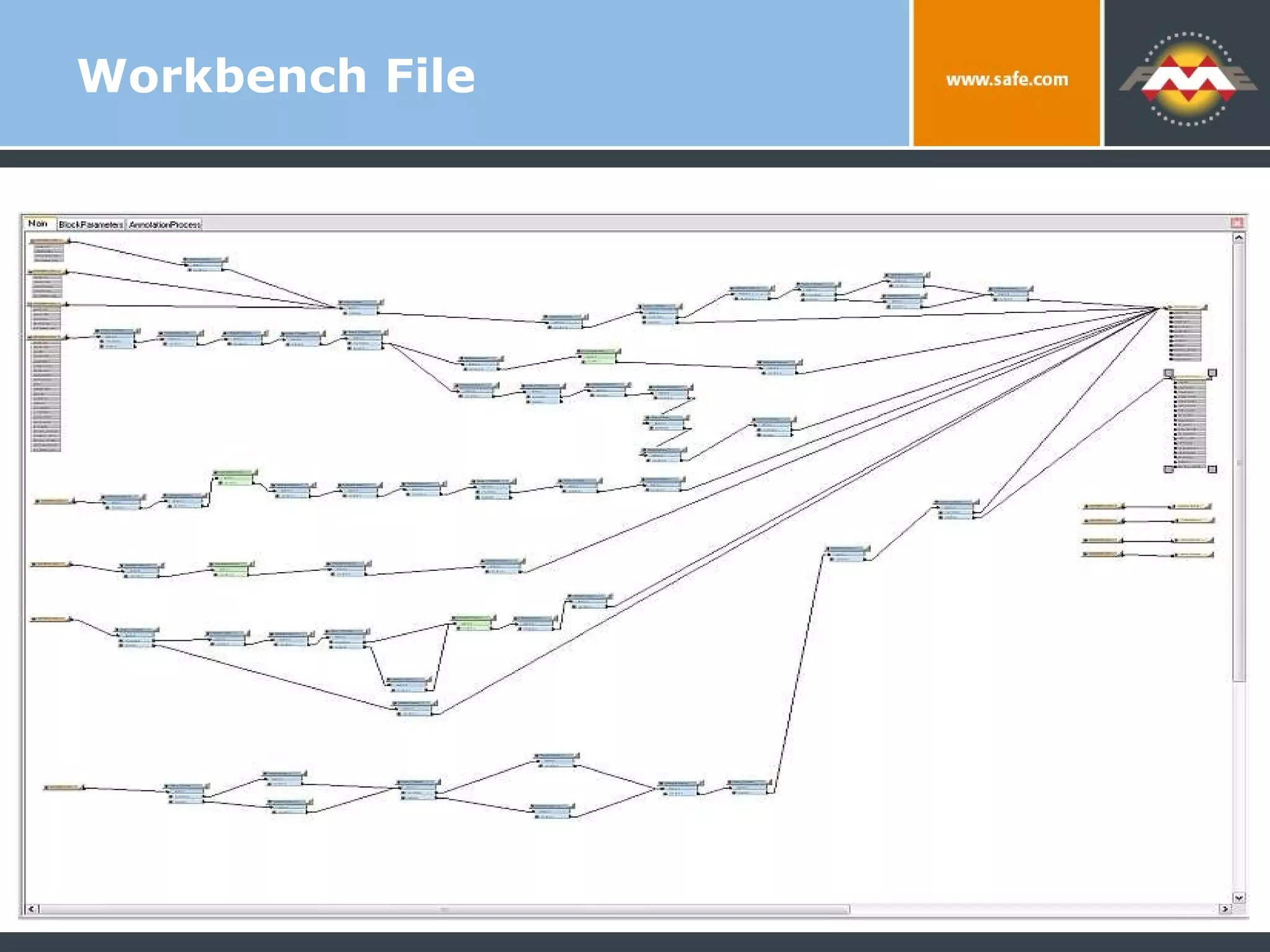

15. Workbench File

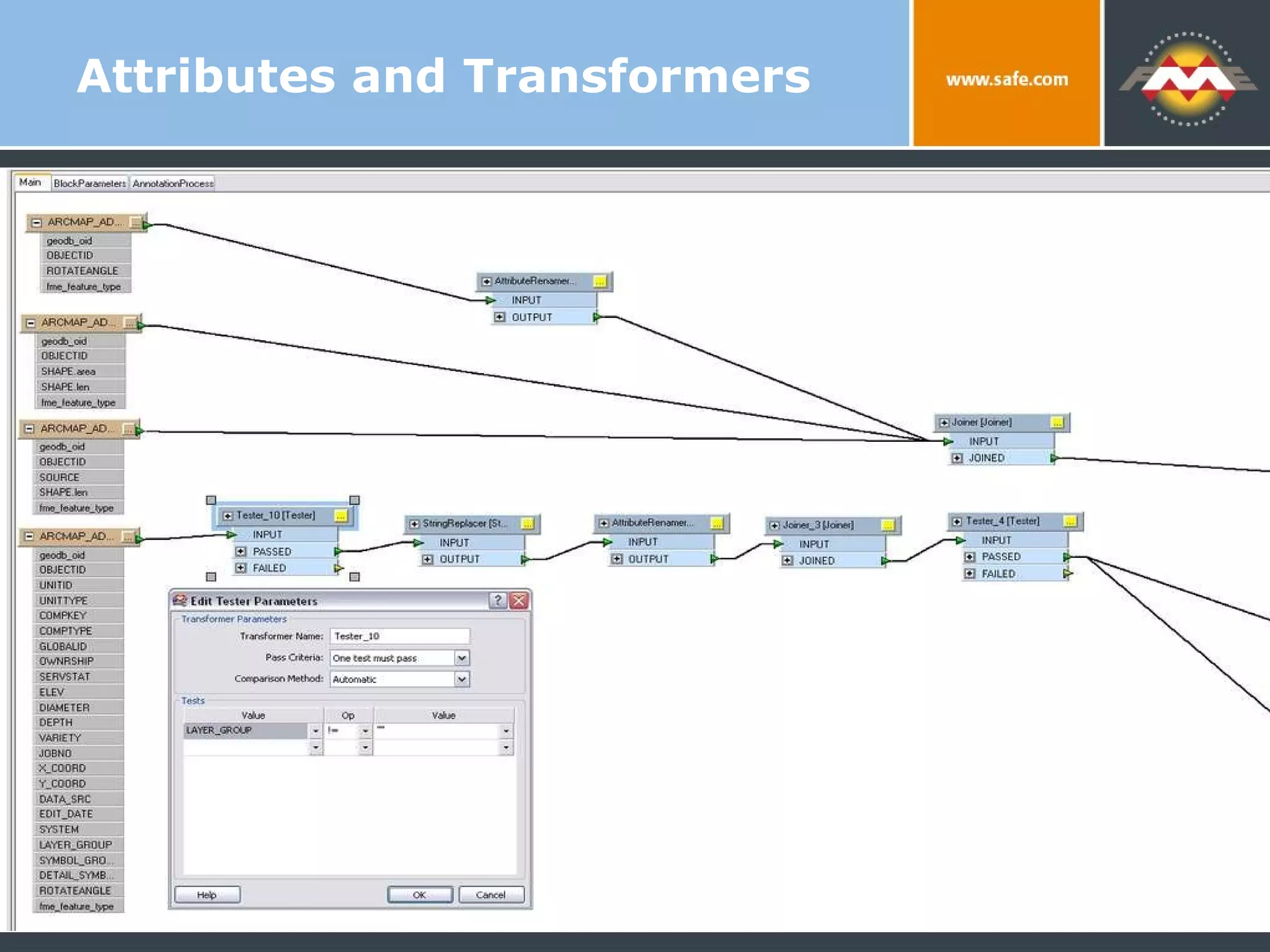

16. Attributes and Transformers

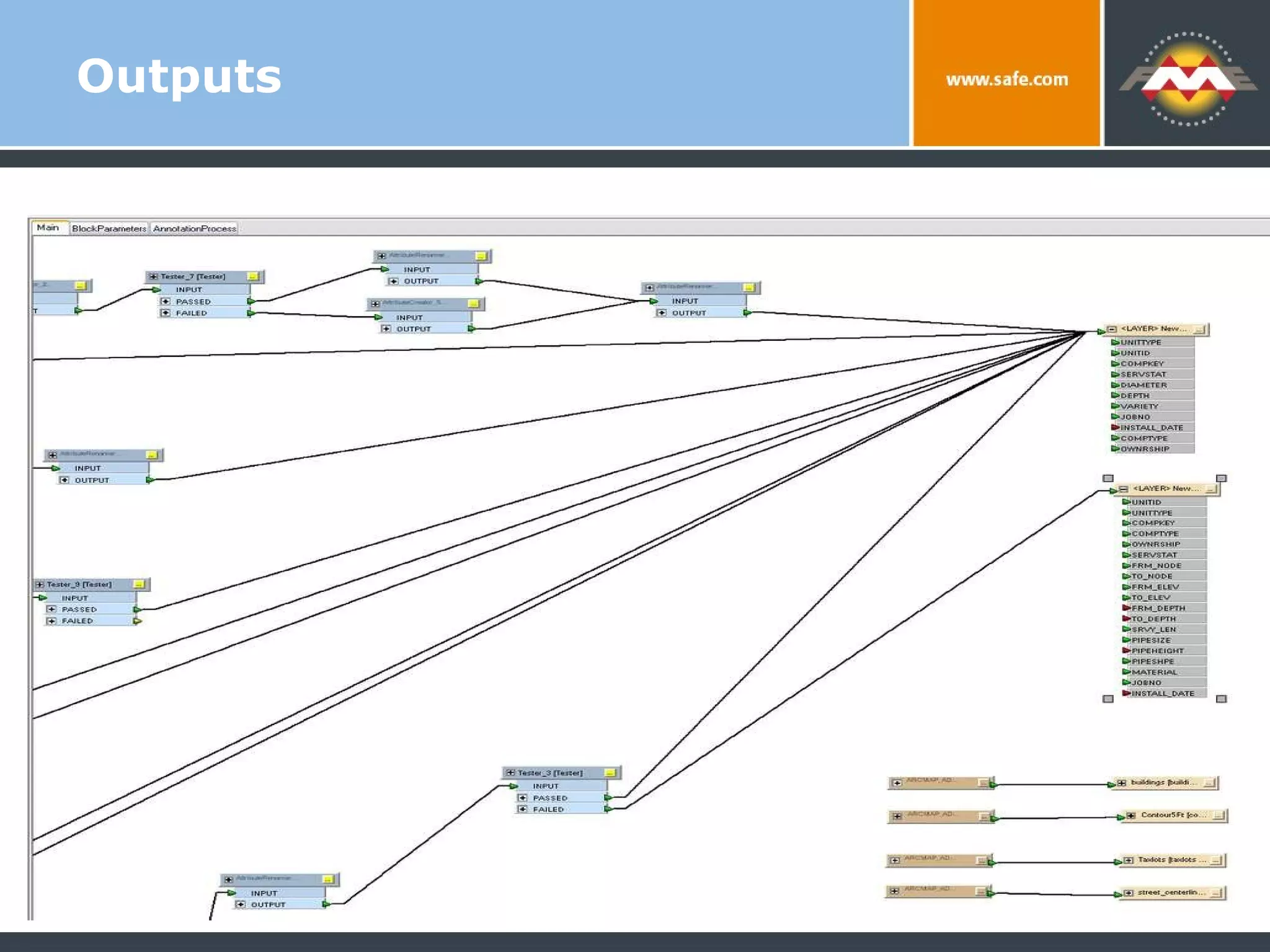

17. Outputs

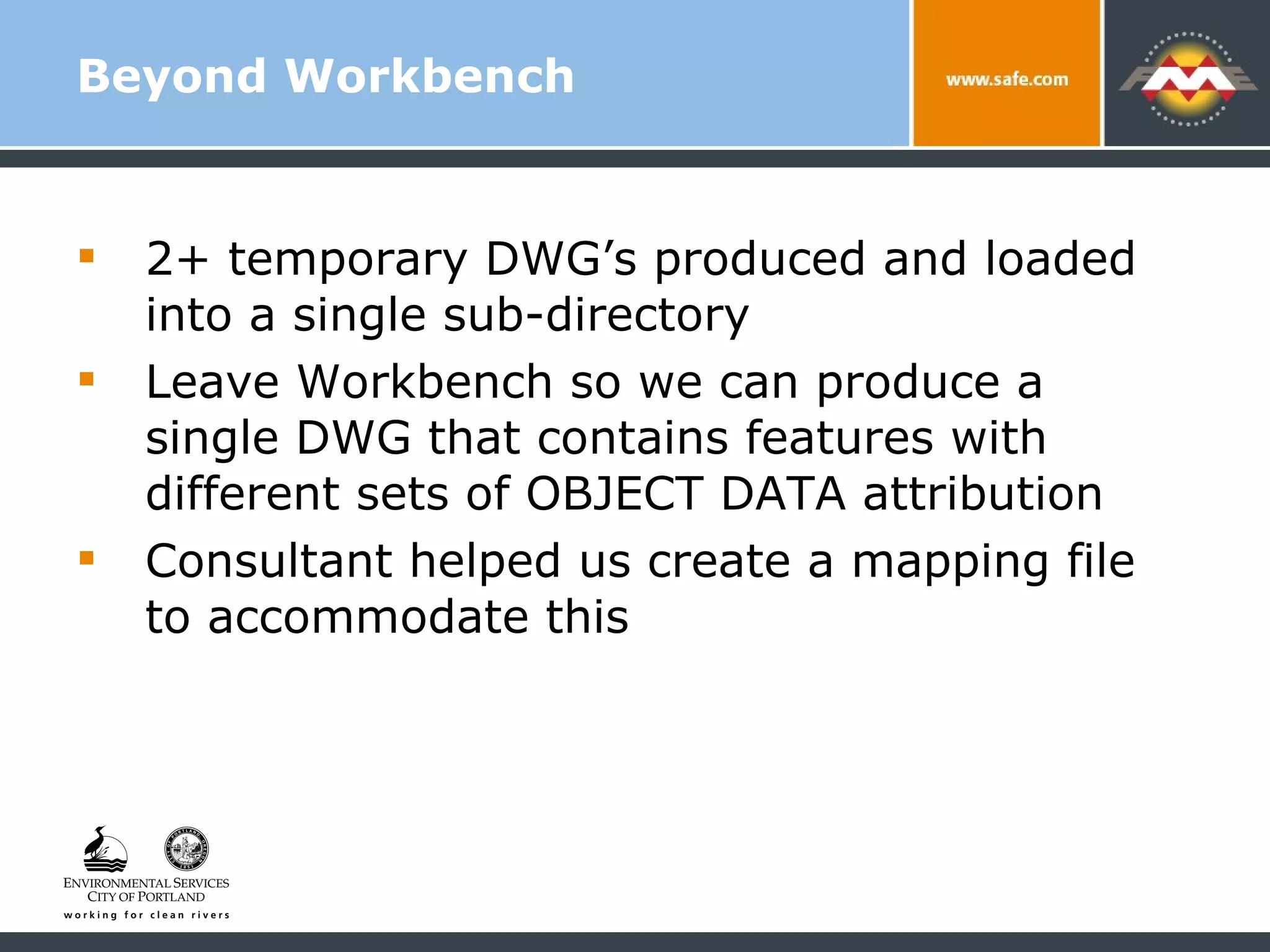

18. Beyond Workbench 2+ temporary DWG’s produced and loaded into a single sub-directory Leave Workbench so we can produce a single DWG that contains features with different sets of OBJECT DATA attribution Consultant helped us create a mapping file to accommodate this

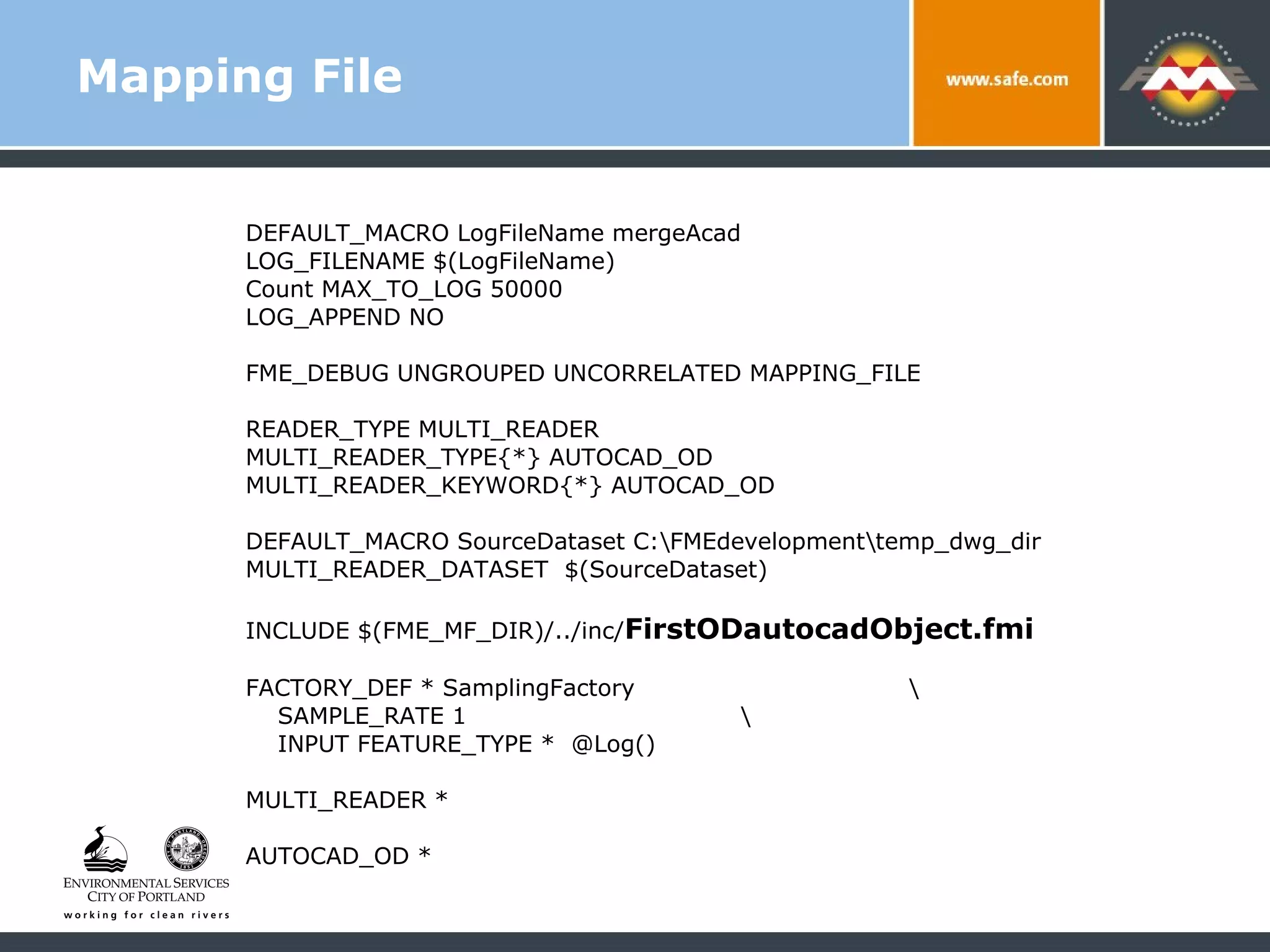

19. Mapping File DEFAULT_MACRO LogFileName mergeAcad LOG_FILENAME $(LogFileName) Count MAX_TO_LOG 50000 LOG_APPEND NO FME_DEBUG UNGROUPED UNCORRELATED MAPPING_FILE READER_TYPE MULTI_READER MULTI_READER_TYPE{*} AUTOCAD_OD MULTI_READER_KEYWORD{*} AUTOCAD_OD DEFAULT_MACRO SourceDataset C:\FMEdevelopment\temp_dwg_dir MULTI_READER_DATASET $(SourceDataset) INCLUDE $(FME_MF_DIR)/../inc/ FirstODautocadObject.fmi FACTORY_DEF * SamplingFactory \ SAMPLE_RATE 1 \ INPUT FEATURE_TYPE * @Log() MULTI_READER * AUTOCAD_OD *

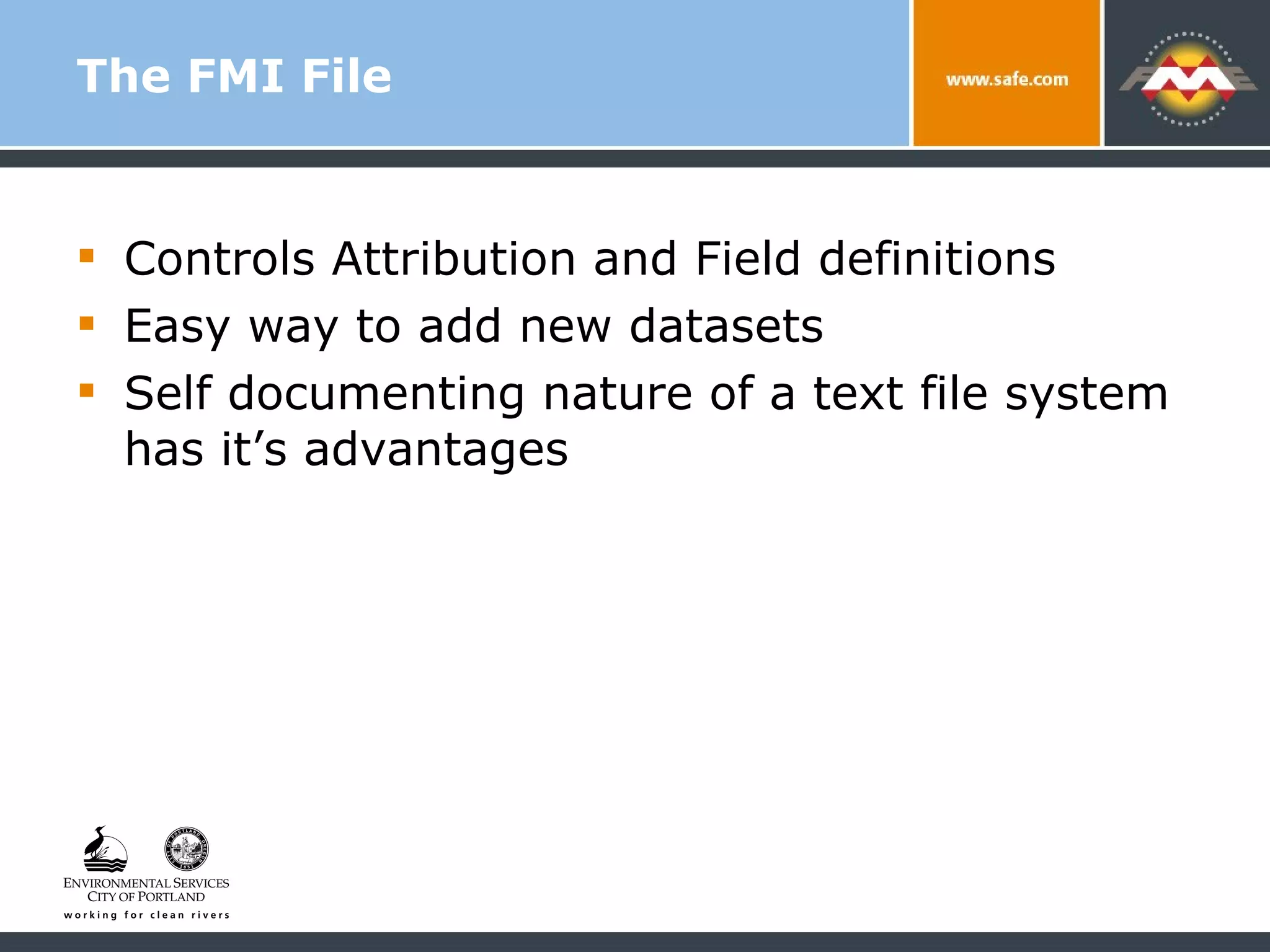

20. The FMI File Controls Attribution and Field definitions Easy way to add new datasets Self documenting nature of a text file system has it’s advantages

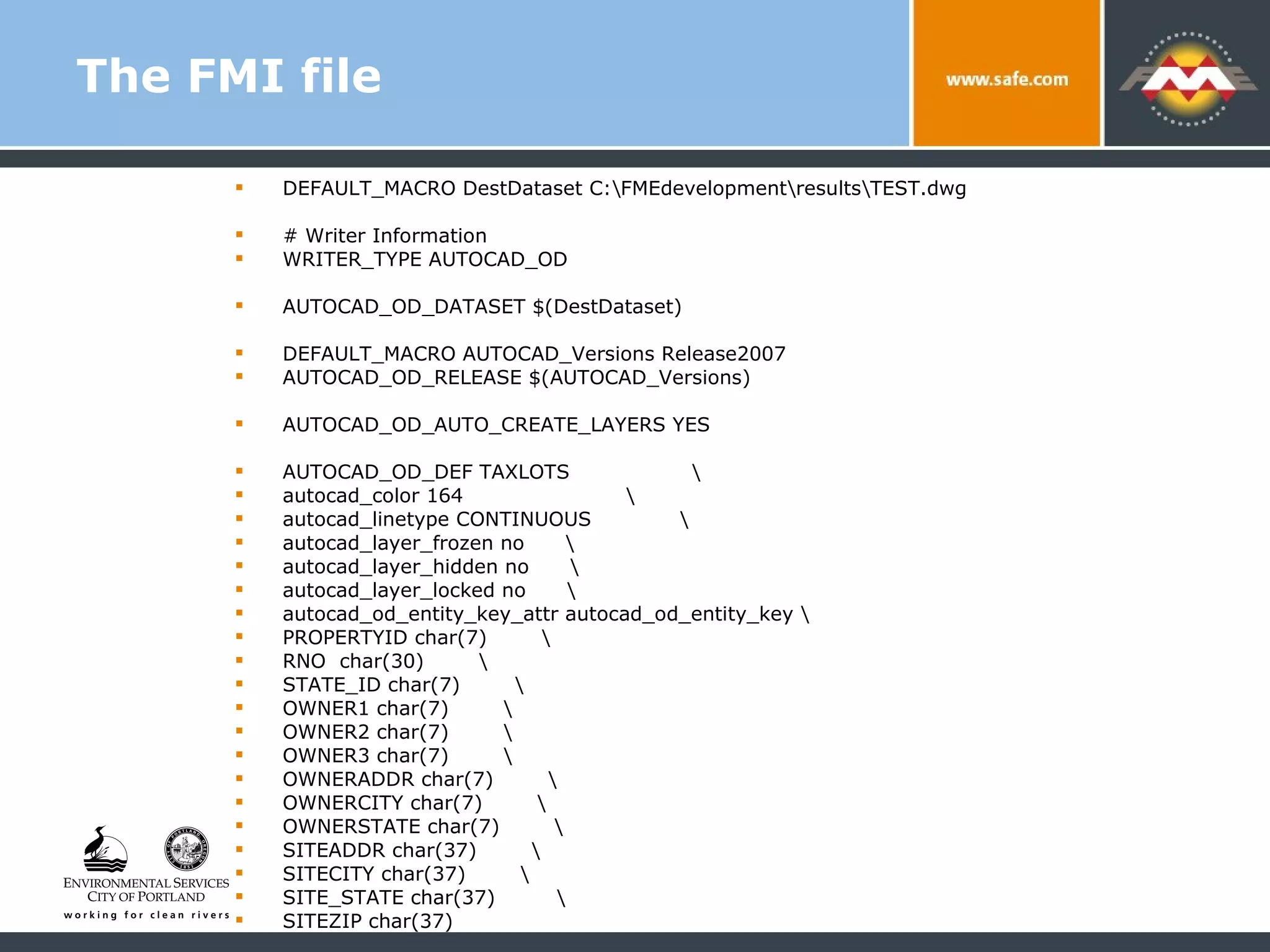

21. The FMI file DEFAULT_MACRO DestDataset C:\FMEdevelopment\results\TEST.dwg # Writer Information WRITER_TYPE AUTOCAD_OD AUTOCAD_OD_DATASET $(DestDataset) DEFAULT_MACRO AUTOCAD_Versions Release2007 AUTOCAD_OD_RELEASE $(AUTOCAD_Versions) AUTOCAD_OD_AUTO_CREATE_LAYERS YES AUTOCAD_OD_DEF TAXLOTS \ autocad_color 164 \ autocad_linetype CONTINUOUS \ autocad_layer_frozen no \ autocad_layer_hidden no \ autocad_layer_locked no \ autocad_od_entity_key_attr autocad_od_entity_key \ PROPERTYID char(7) \ RNO char(30) \ STATE_ID char(7) \ OWNER1 char(7) \ OWNER2 char(7) \ OWNER3 char(7) \ OWNERADDR char(7) \ OWNERCITY char(7) \ OWNERSTATE char(7) \ SITEADDR char(37) \ SITECITY char(37) \ SITE_STATE char(37) \ SITEZIP char(37)

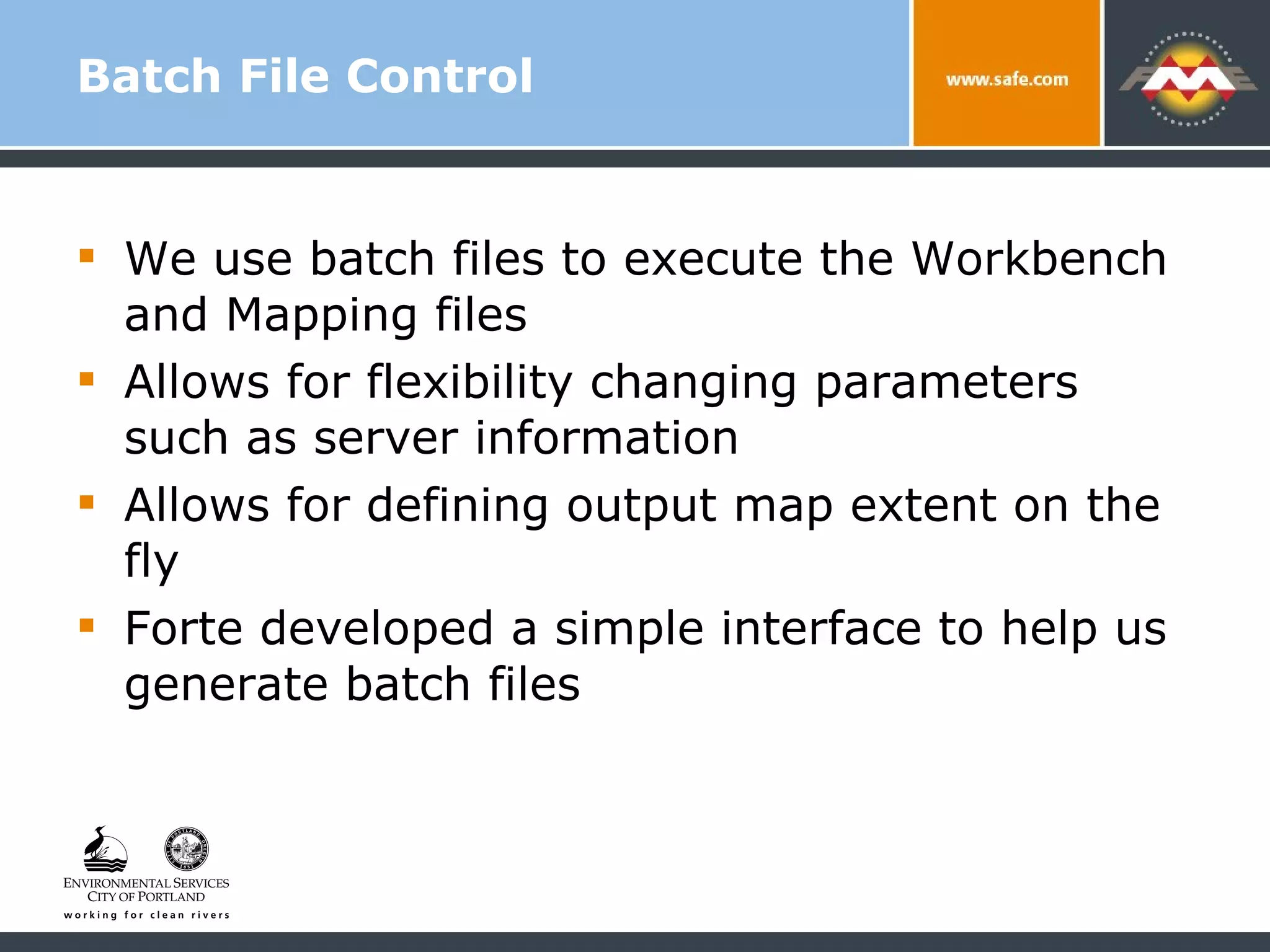

22. Batch File Control We use batch files to execute the Workbench and Mapping files Allows for flexibility changing parameters such as server information Allows for defining output map extent on the fly Forte developed a simple interface to help us generate batch files

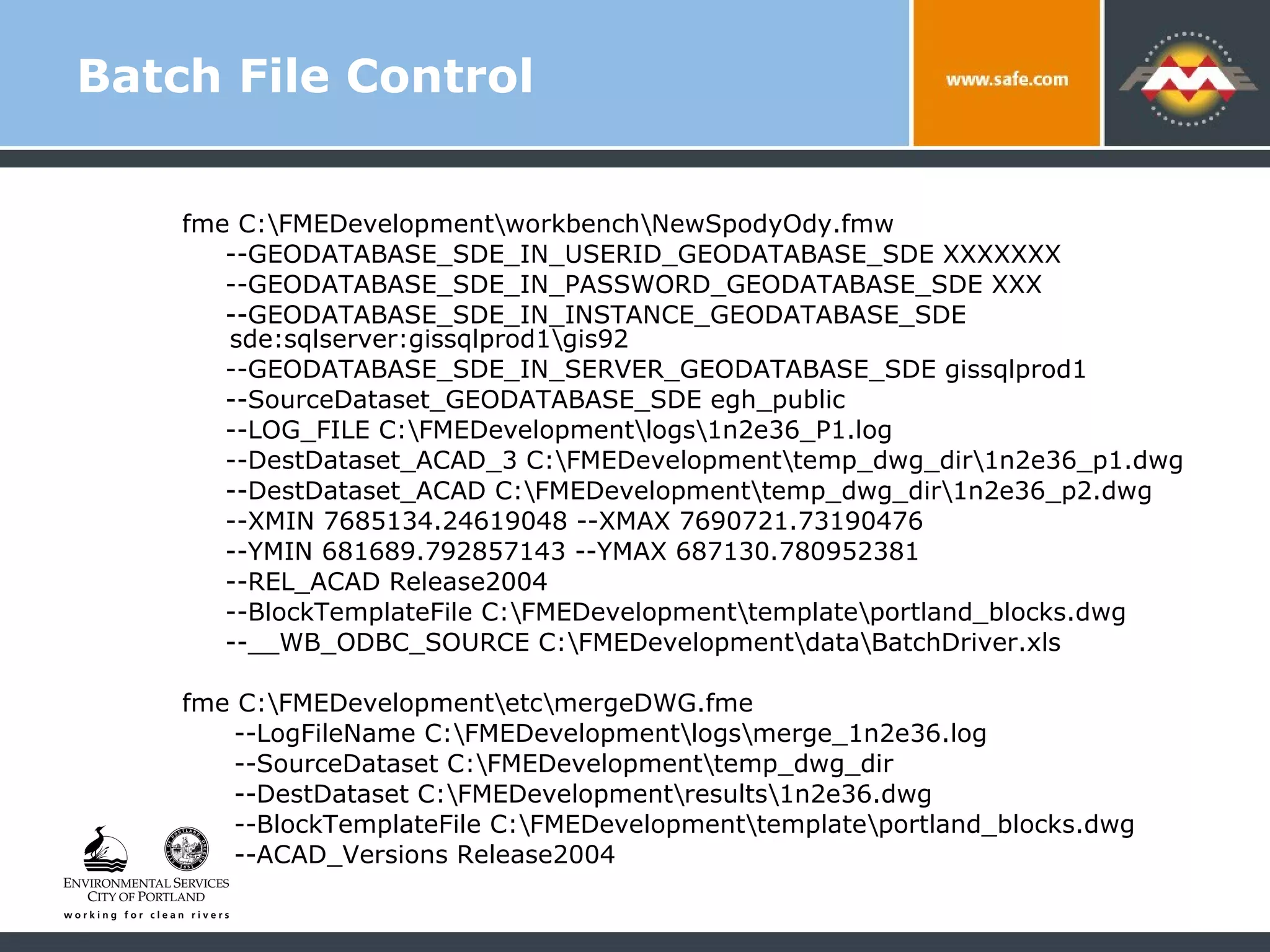

23. Batch File Control fme C:\FMEDevelopment\workbench\NewSpodyOdy.fmw --GEODATABASE_SDE_IN_USERID_GEODATABASE_SDE XXXXXXX --GEODATABASE_SDE_IN_PASSWORD_GEODATABASE_SDE XXX --GEODATABASE_SDE_IN_INSTANCE_GEODATABASE_SDE sde:sqlserver:gissqlprod1\gis92 --GEODATABASE_SDE_IN_SERVER_GEODATABASE_SDE gissqlprod1 --SourceDataset_GEODATABASE_SDE egh_public --LOG_FILE C:\FMEDevelopment\logs\1n2e36_P1.log --DestDataset_ACAD_3 C:\FMEDevelopment\temp_dwg_dir\1n2e36_p1.dwg --DestDataset_ACAD C:\FMEDevelopment\temp_dwg_dir\1n2e36_p2.dwg --XMIN 7685134.24619048 --XMAX 7690721.73190476 --YMIN 681689.792857143 --YMAX 687130.780952381 --REL_ACAD Release2004 --BlockTemplateFile C:\FMEDevelopment\template\portland_blocks.dwg --__WB_ODBC_SOURCE C:\FMEDevelopment\data\BatchDriver.xls fme C:\FMEDevelopment\etc\mergeDWG.fme --LogFileName C:\FMEDevelopment\logs\merge_1n2e36.log --SourceDataset C:\FMEDevelopment\temp_dwg_dir --DestDataset C:\FMEDevelopment\results\1n2e36.dwg --BlockTemplateFile C:\FMEDevelopment\template\portland_blocks.dwg --ACAD_Versions Release2004

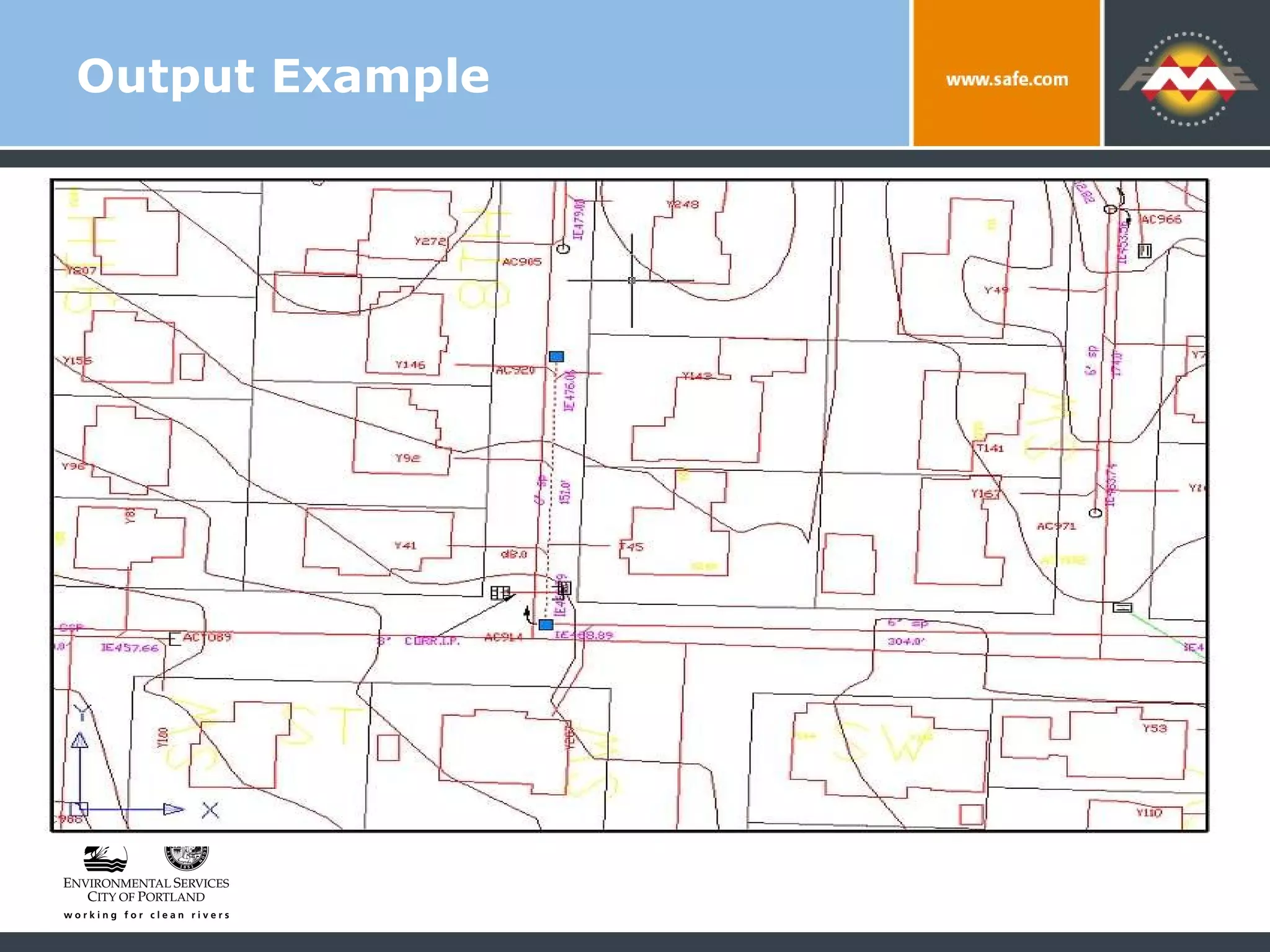

24. Output Example

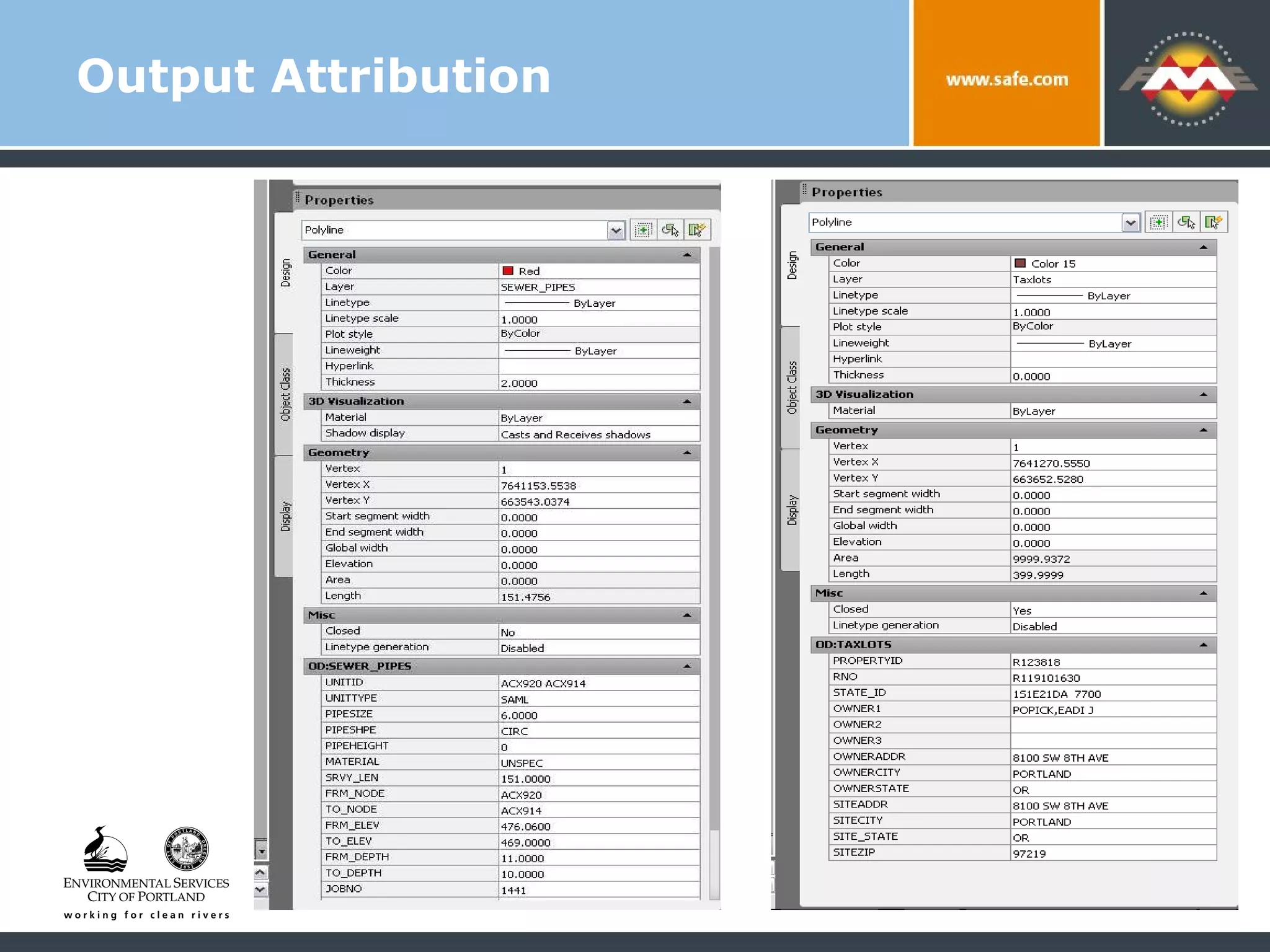

25. Output Attribution

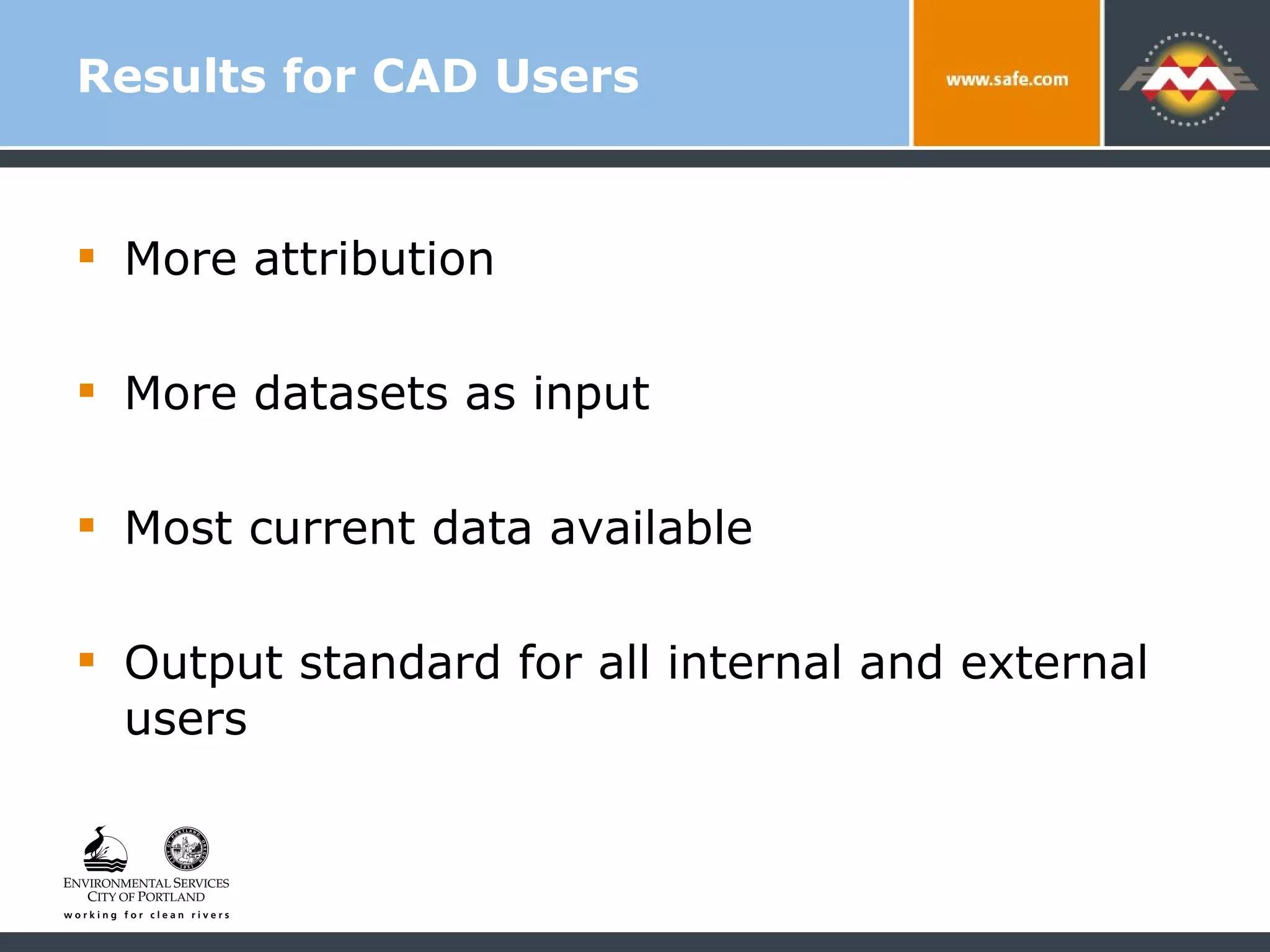

26. Results for CAD Users More attribution More datasets as input Most current data available Output standard for all internal and external users

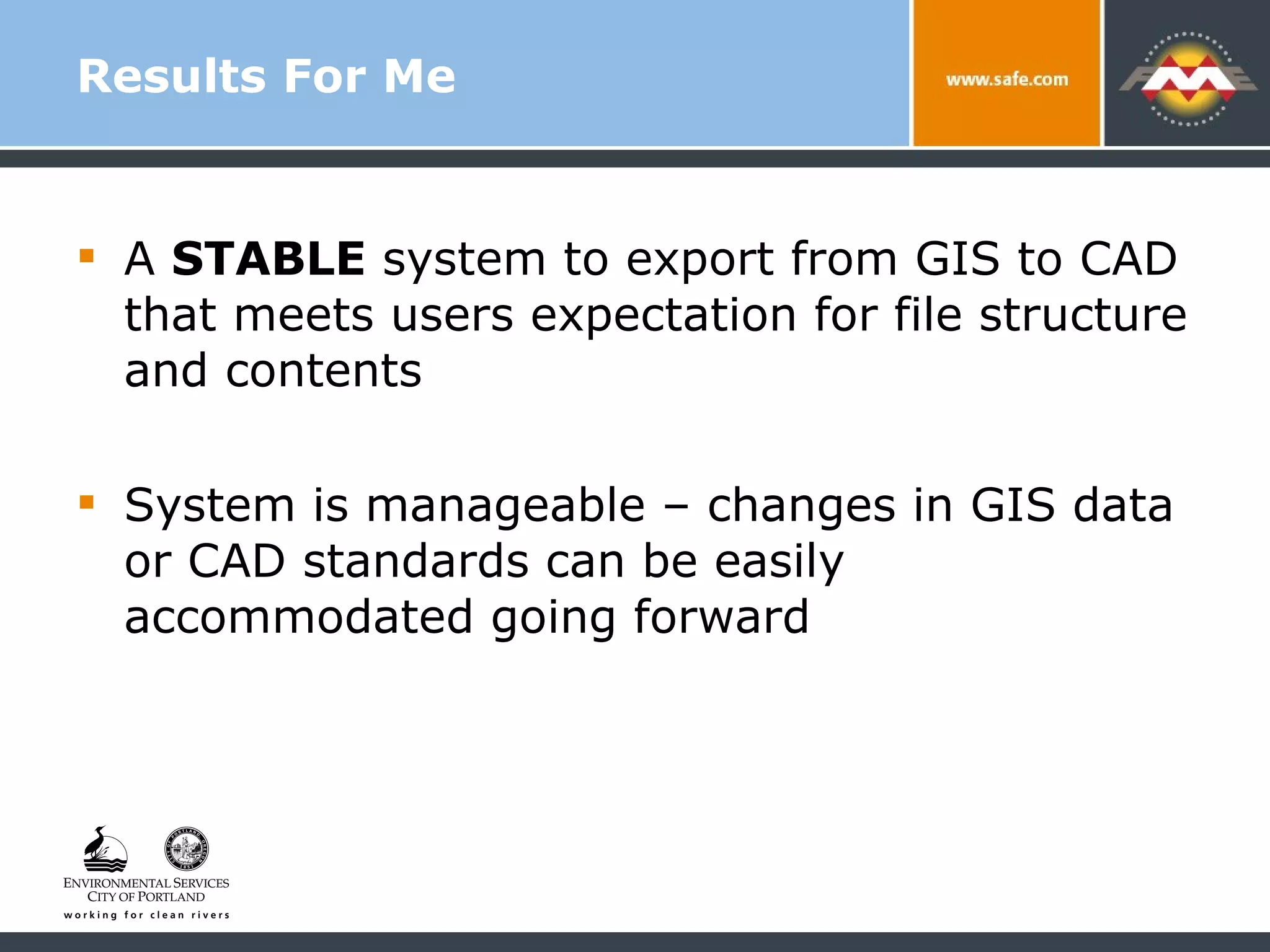

27. Results For Me A STABLE system to export from GIS to CAD that meets users expectation for file structure and contents System is manageable – changes in GIS data or CAD standards can be easily accommodated going forward

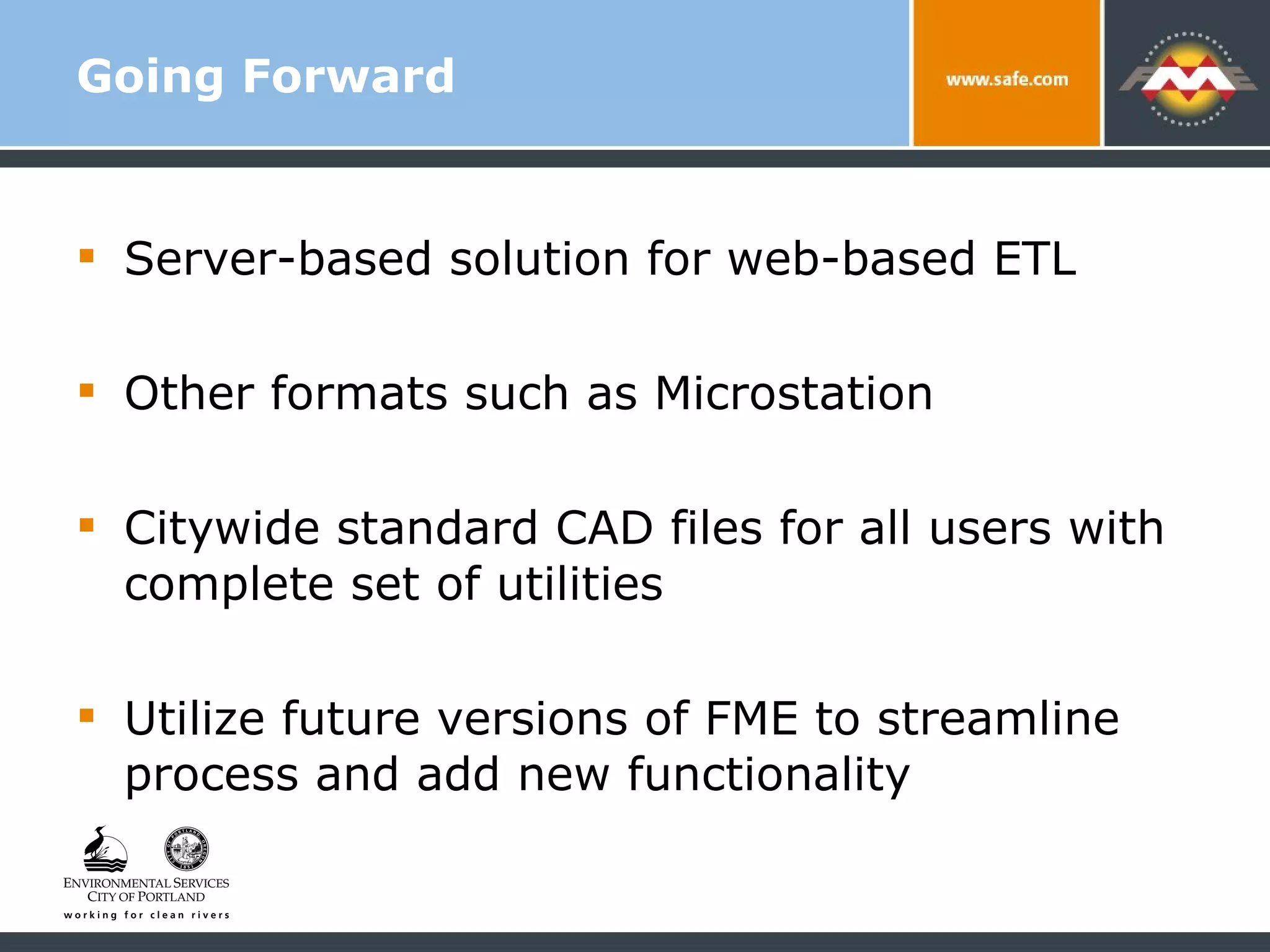

28. Going Forward Server-based solution for web-based ETL Other formats such as Microstation Citywide standard CAD files for all users with complete set of utilities Utilize future versions of FME to streamline process and add new functionality

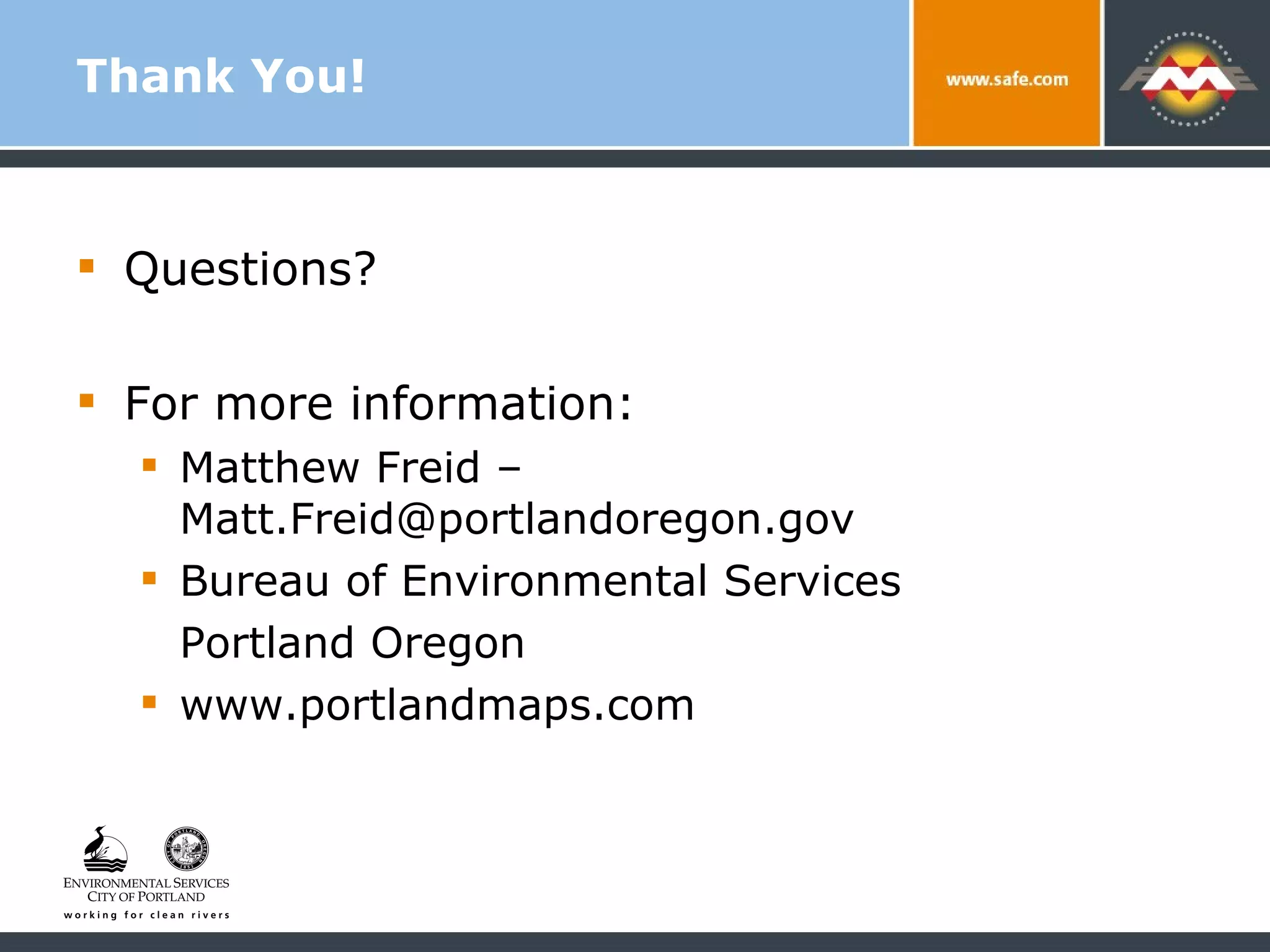

29. Thank You! Questions? For more information: Matthew Freid – Matt.Freid@portlandoregon.gov Bureau of Environmental Services Portland Oregon www.portlandmaps.com
