Create a highly available environment to host your microservices using Node.js, Docker, Kubernetes, and Ansible.

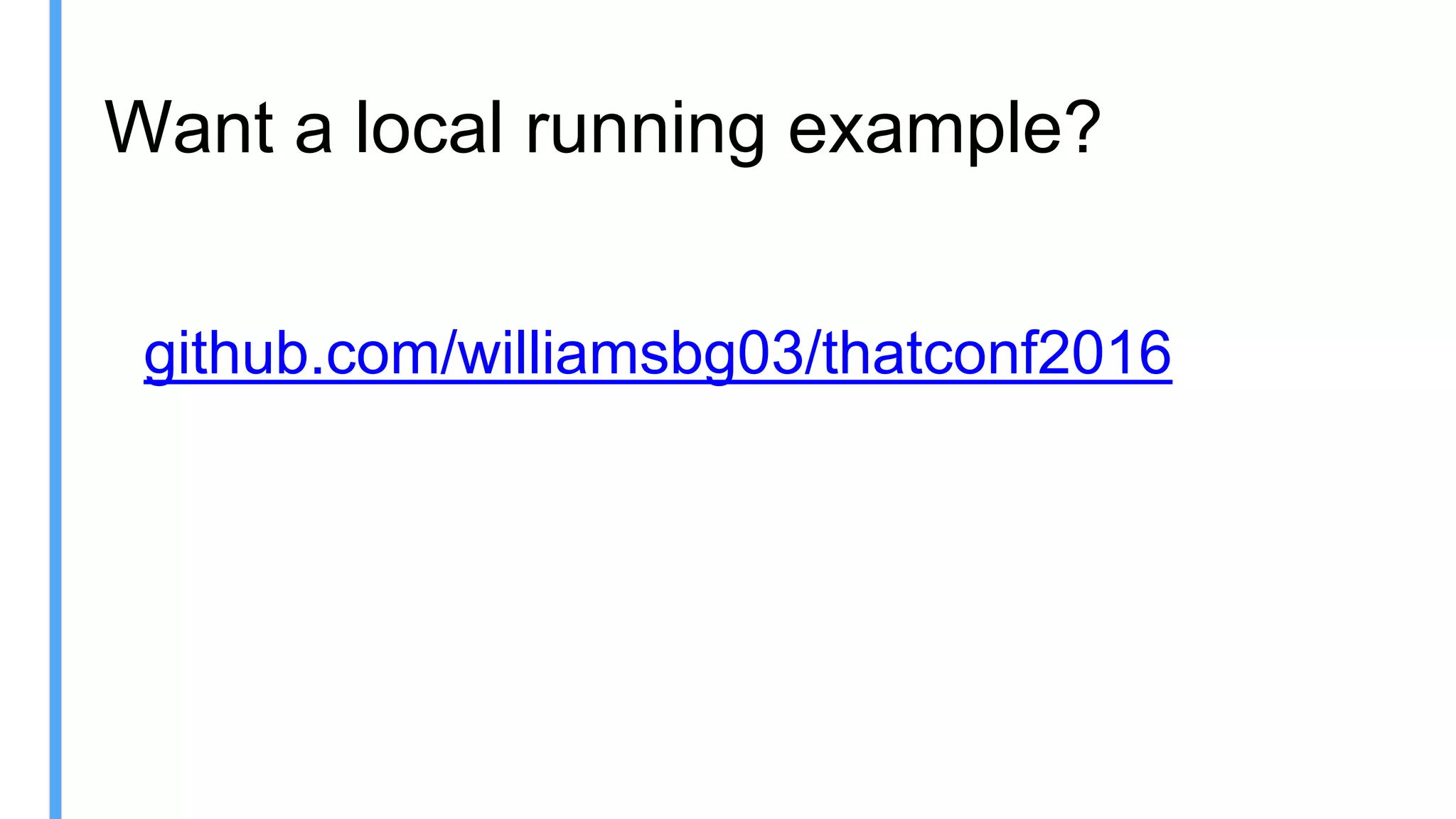

3. github.com/williamsbg03/thatconf2016
Want a local running example?

4. Highly Available Node.js
Bryan Pfremmer / Brad Williams
August 10th, 2016

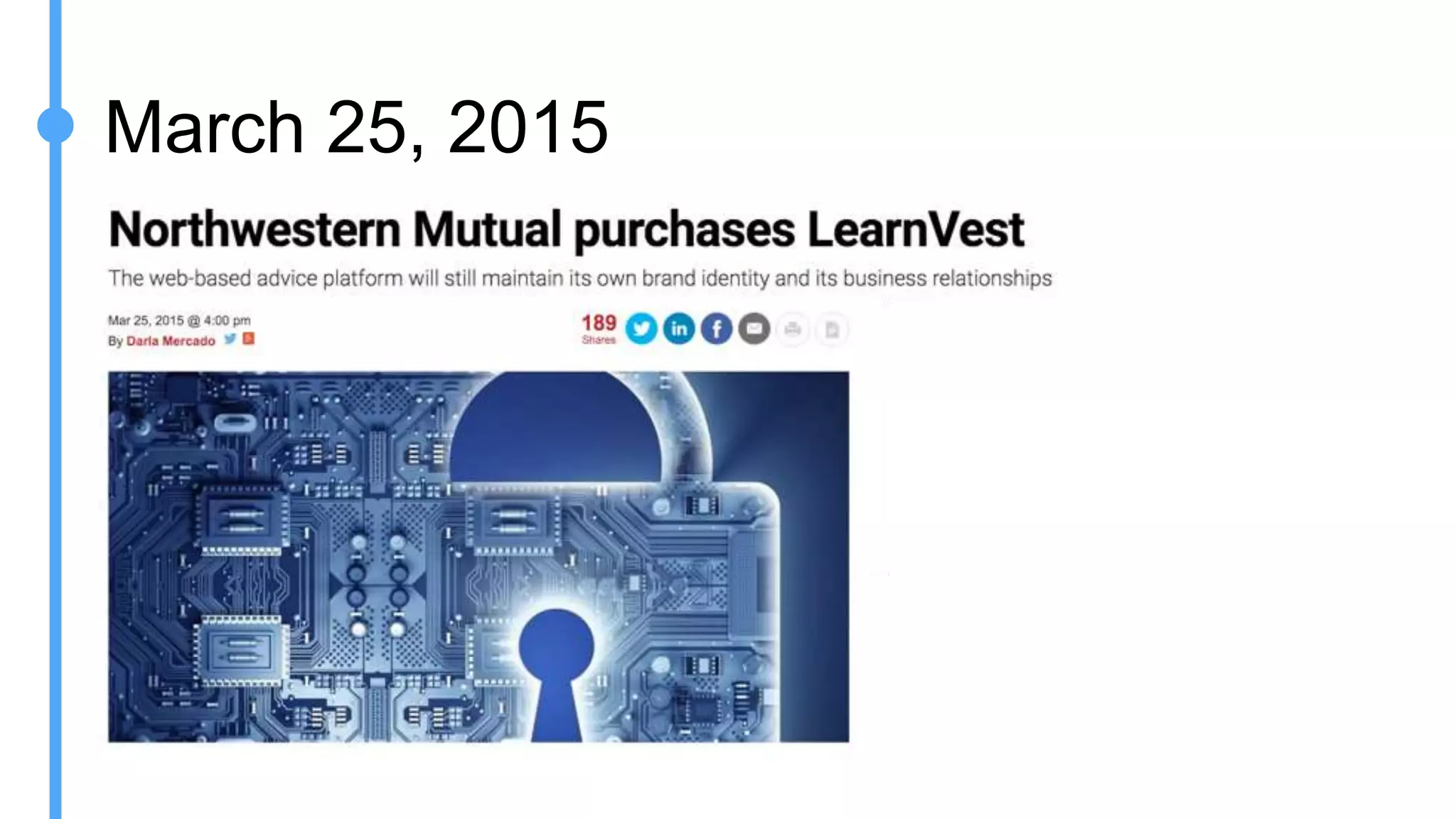

5. March 25, 2015

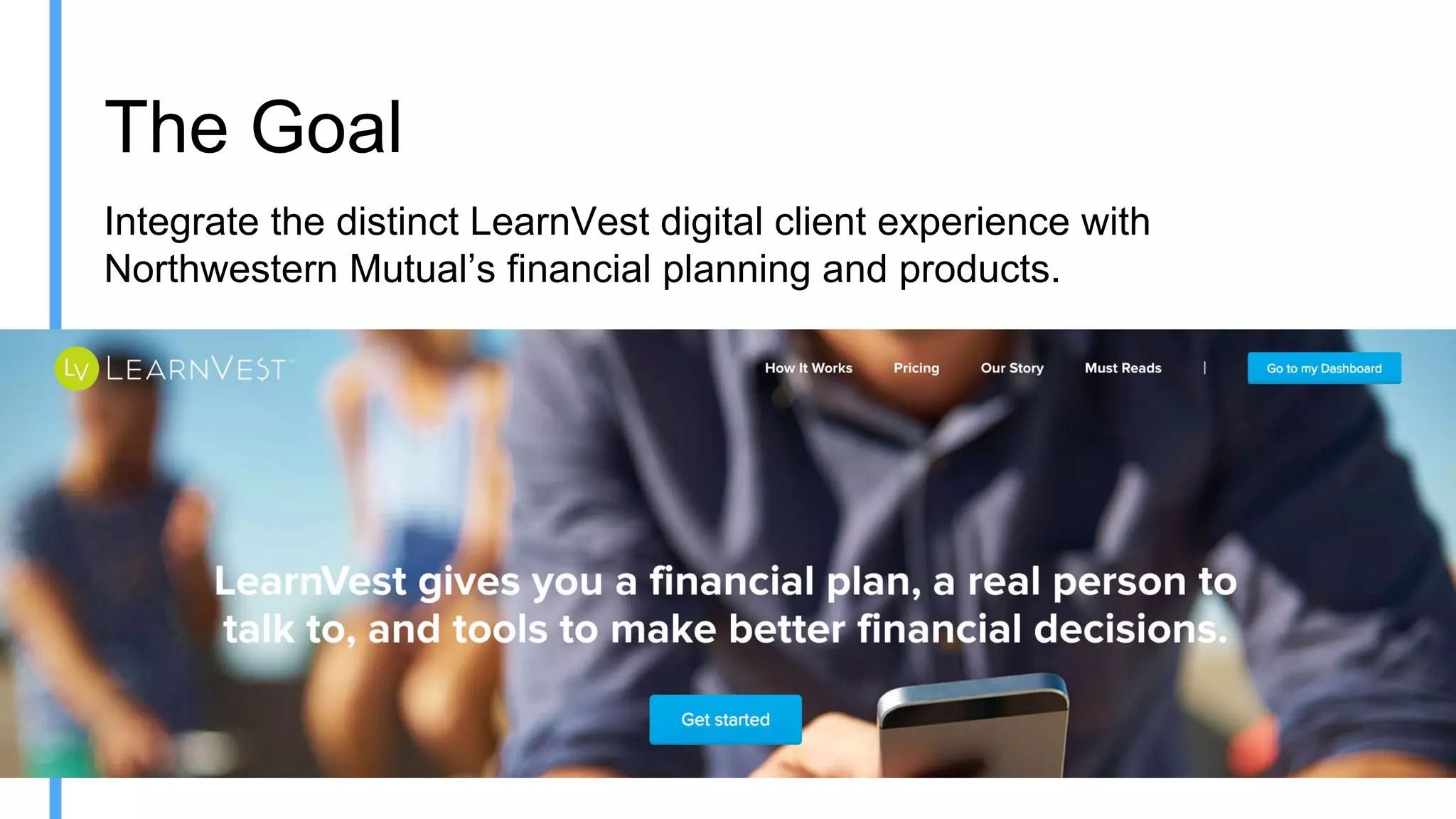

6. The Goal
Integrate the distinct LearnVest digital client experience with
Northwestern Mutual’s financial planning and products.

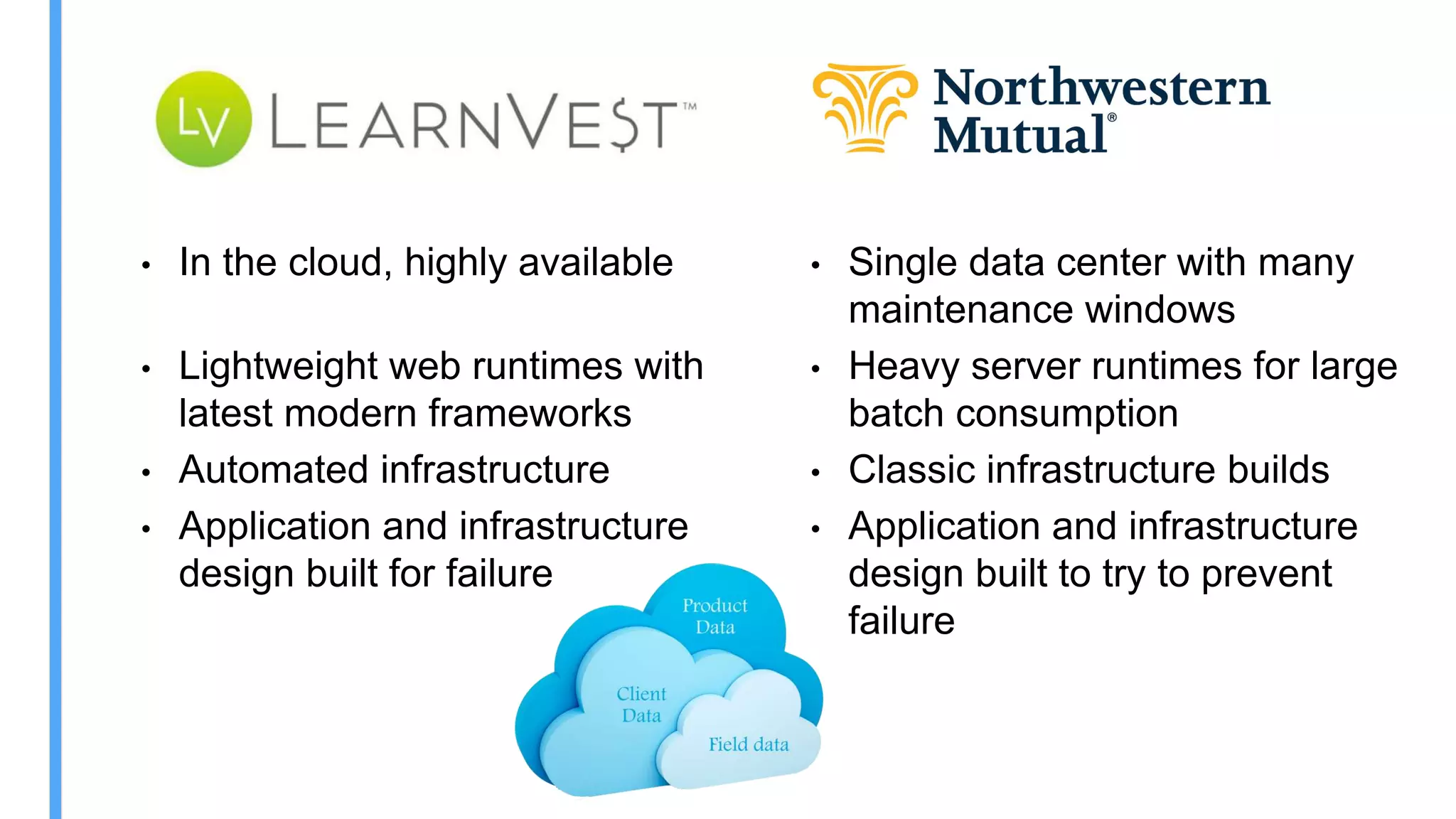

7. • In the cloud, highly available
• Lightweight web runtimes with
latest modern frameworks
• Automated infrastructure
• Application and infrastructure
design built for failure
• Single data center with many
maintenance windows
• Heavy server runtimes for large
batch consumption
• Classic infrastructure builds
• Application and infrastructure
design built to try to prevent
failure

8. The Key Principle
Be Available
Brett Favre
9/27/1992 - 12/5/2010
100% Availability
http://dailysnark.com/wp-content/uploads/2016/04/131.jpg

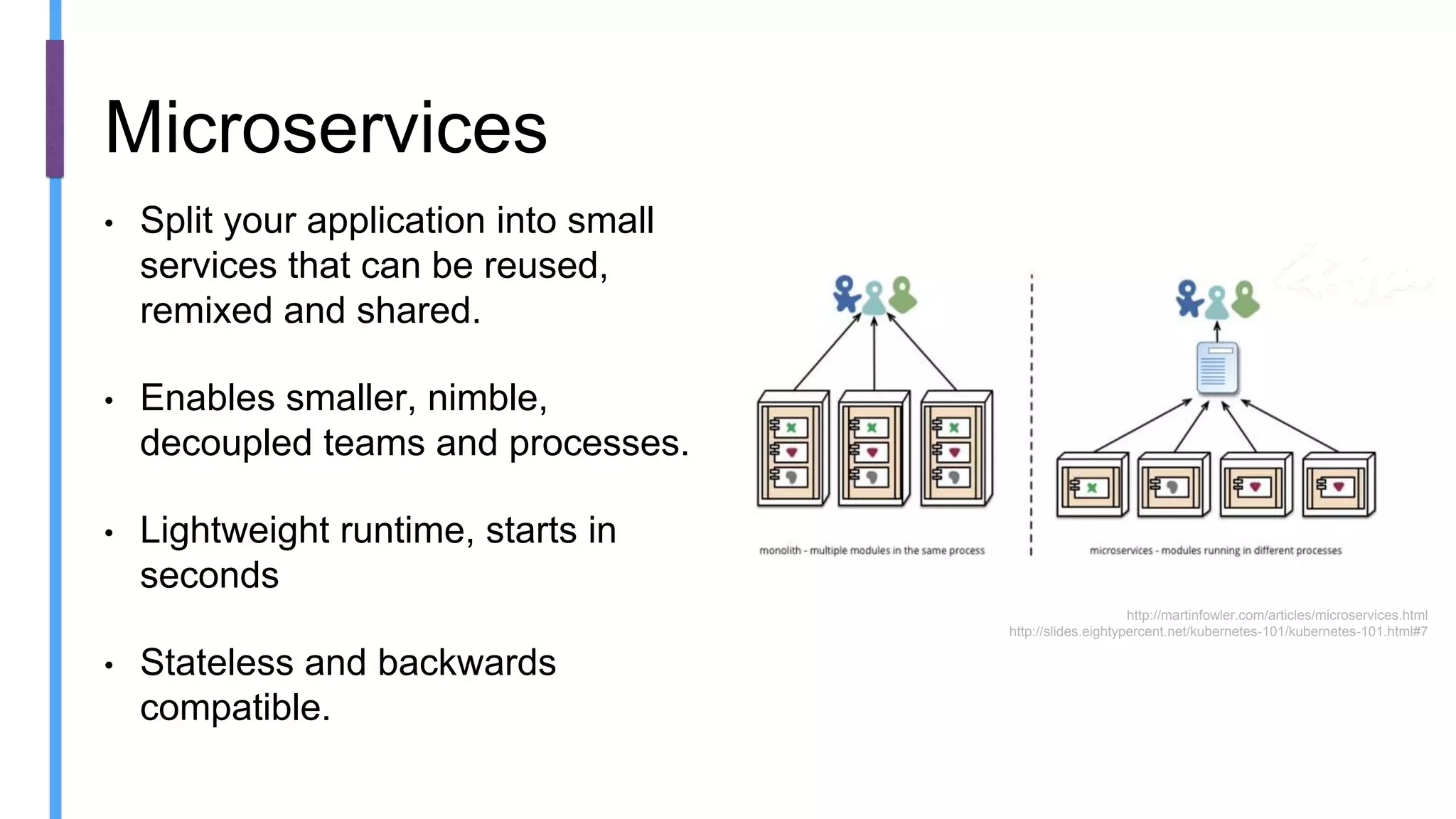

9. • Split your application into small
services that can be reused,
remixed and shared.
• Enables smaller, nimble,
decoupled teams and processes.
• Lightweight runtime, starts in
seconds
• Stateless and backwards
compatible.
Microservices
http://martinfowler.com/articles/microservices.html
http://slides.eightypercent.net/kubernetes-101/kubernetes-101.html#7

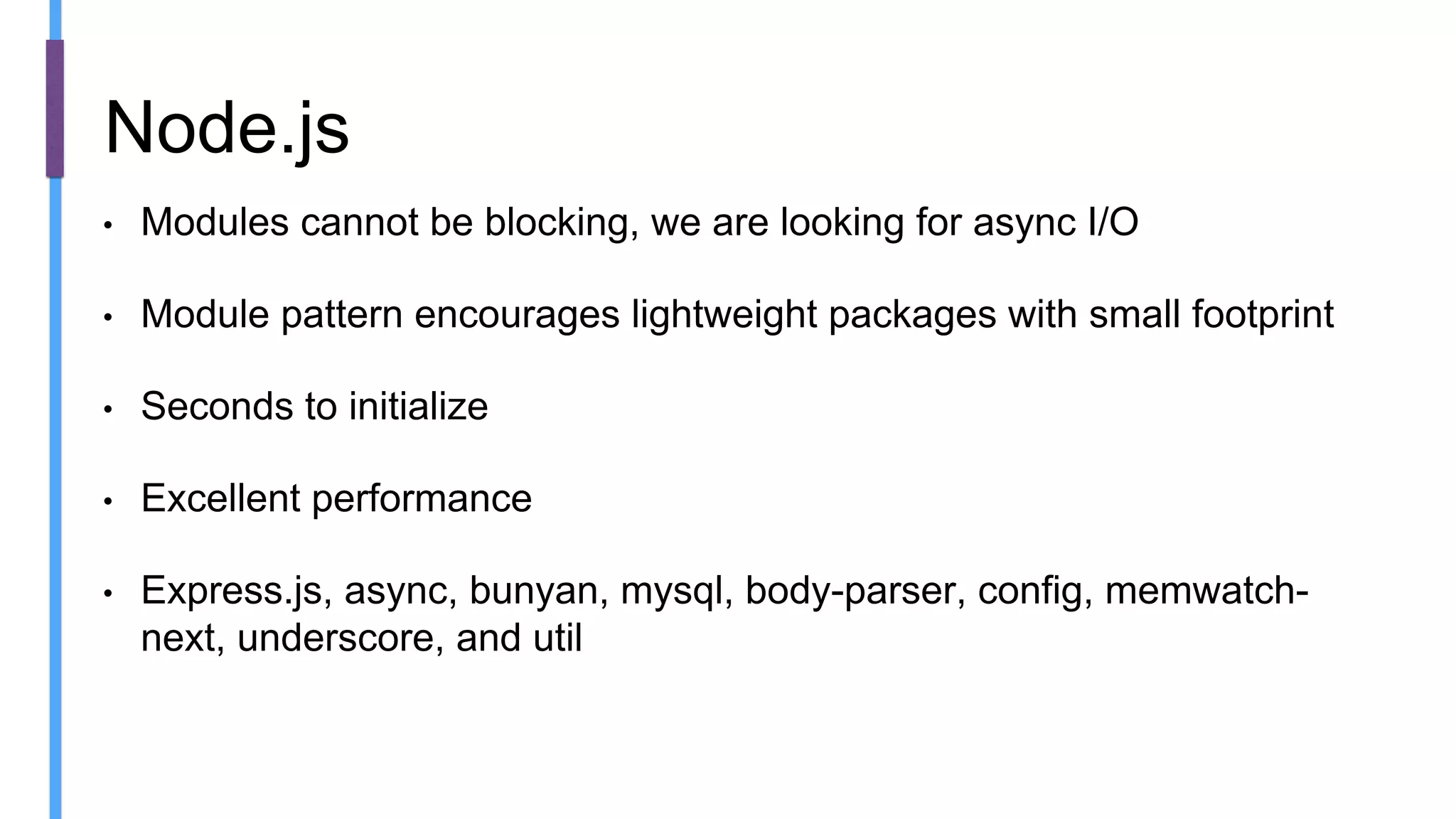

10. • Modules cannot be blocking, we are looking for async I/O
• Module pattern encourages lightweight packages with small footprint
• Seconds to initialize
• Excellent performance
• Express.js, async, bunyan, mysql, body-parser, config, memwatch-
next, underscore, and util
Node.js

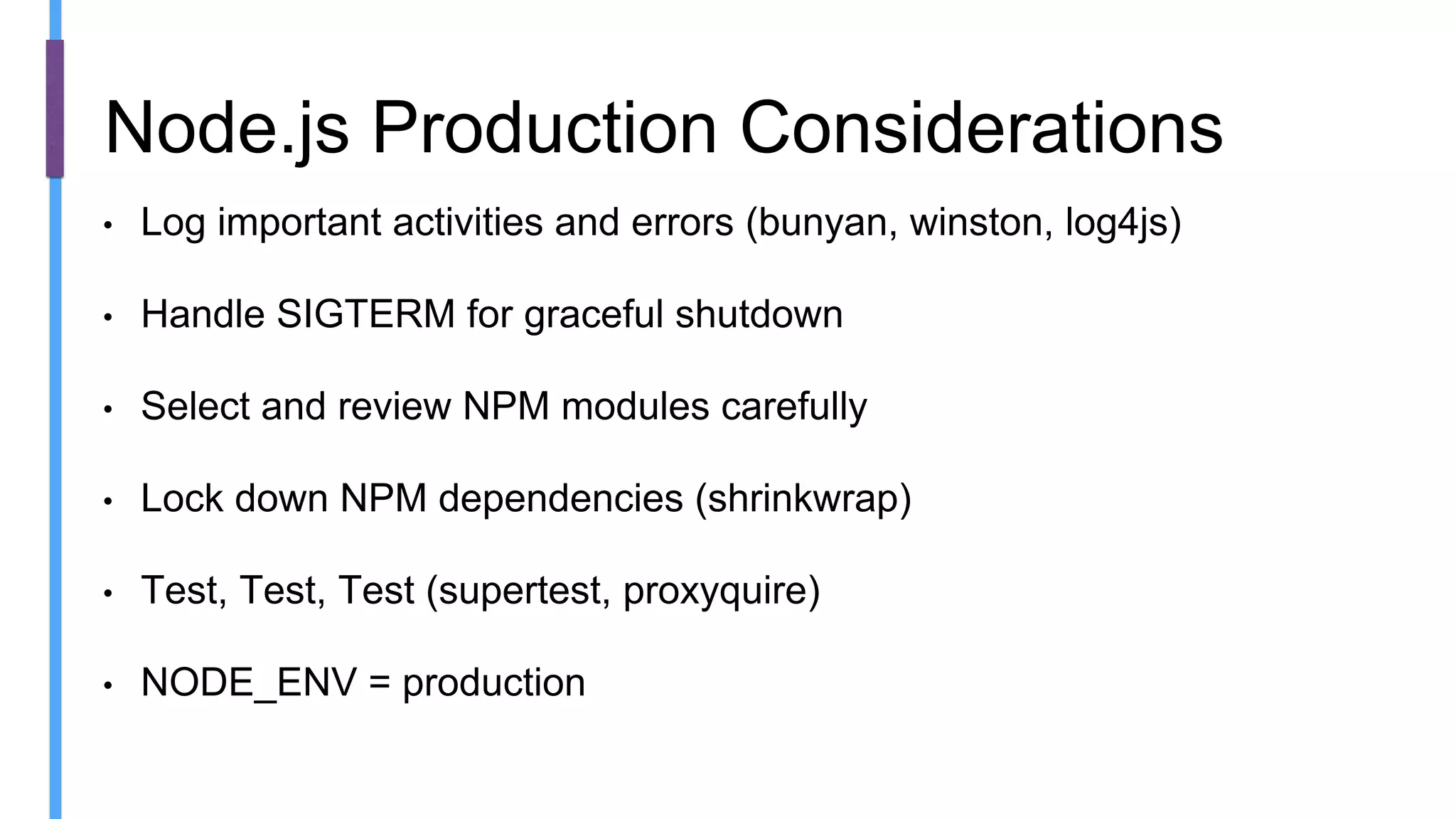

11. • Log important activities and errors (bunyan, winston, log4js)
• Handle SIGTERM for graceful shutdown
• Select and review NPM modules carefully
• Lock down NPM dependencies (shrinkwrap)
• Test, Test, Test (supertest, proxyquire)
• NODE_ENV = production
Node.js Production Considerations

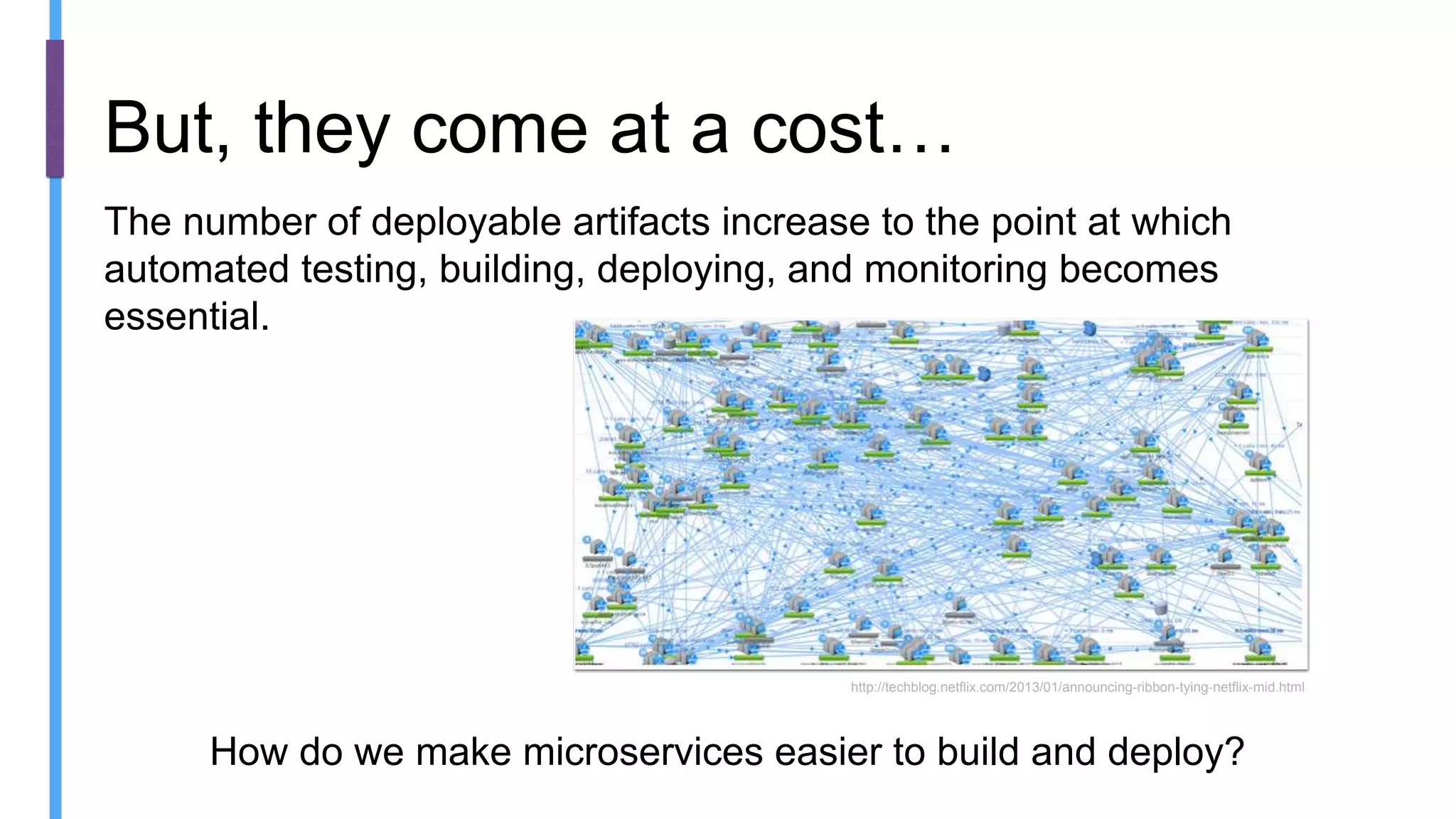

12. The number of deployable artifacts increase to the point at which
automated testing, building, deploying, and monitoring becomes
essential.
But, they come at a cost…
http://techblog.netflix.com/2013/01/announcing-ribbon-tying-netflix-mid.html
How do we make microservices easier to build and deploy?

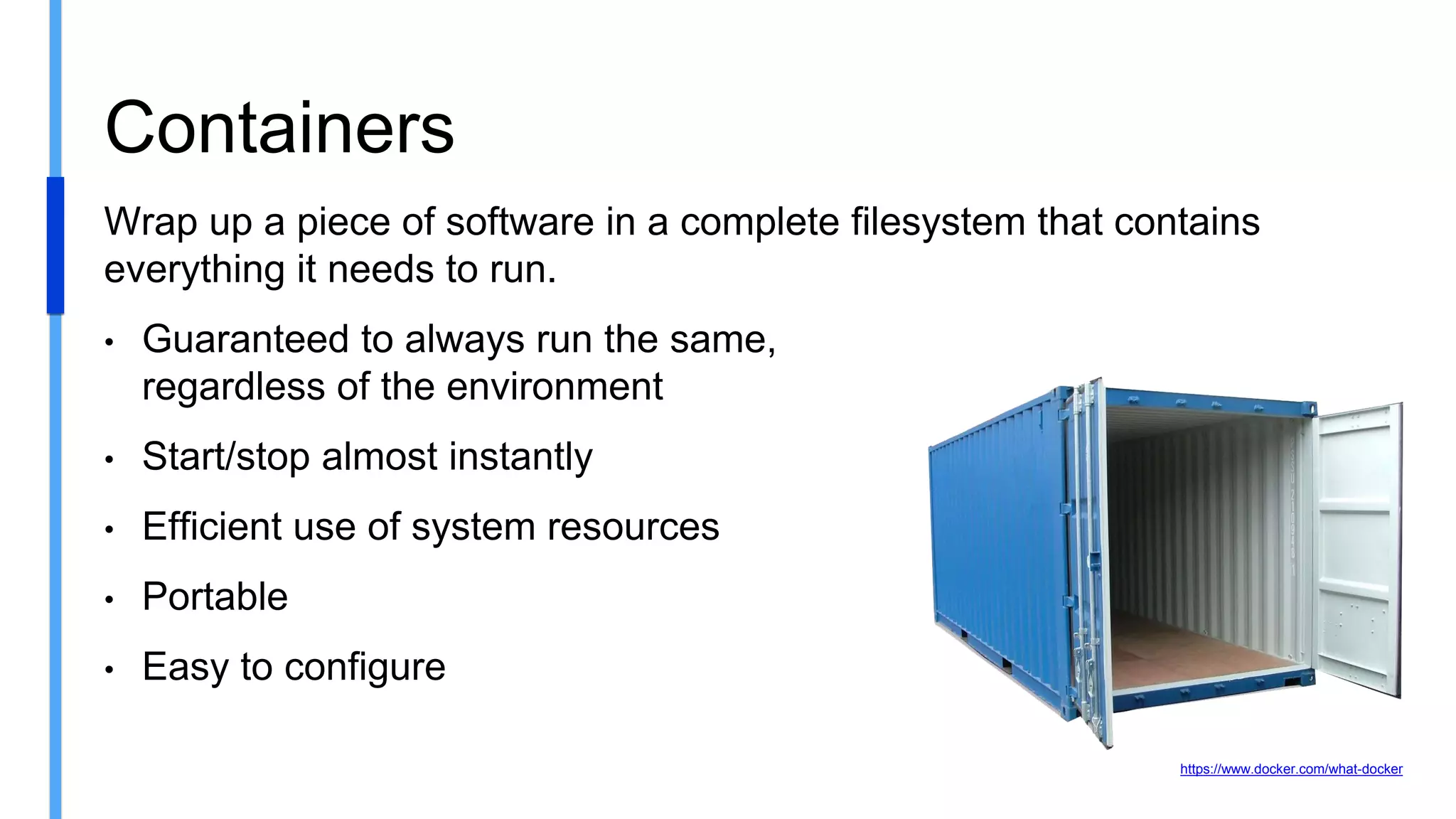

13. Wrap up a piece of software in a complete filesystem that contains
everything it needs to run.
• Guaranteed to always run the same,
regardless of the environment
• Start/stop almost instantly
• Efficient use of system resources
• Portable
• Easy to configure
Containers
https://www.docker.com/what-docker

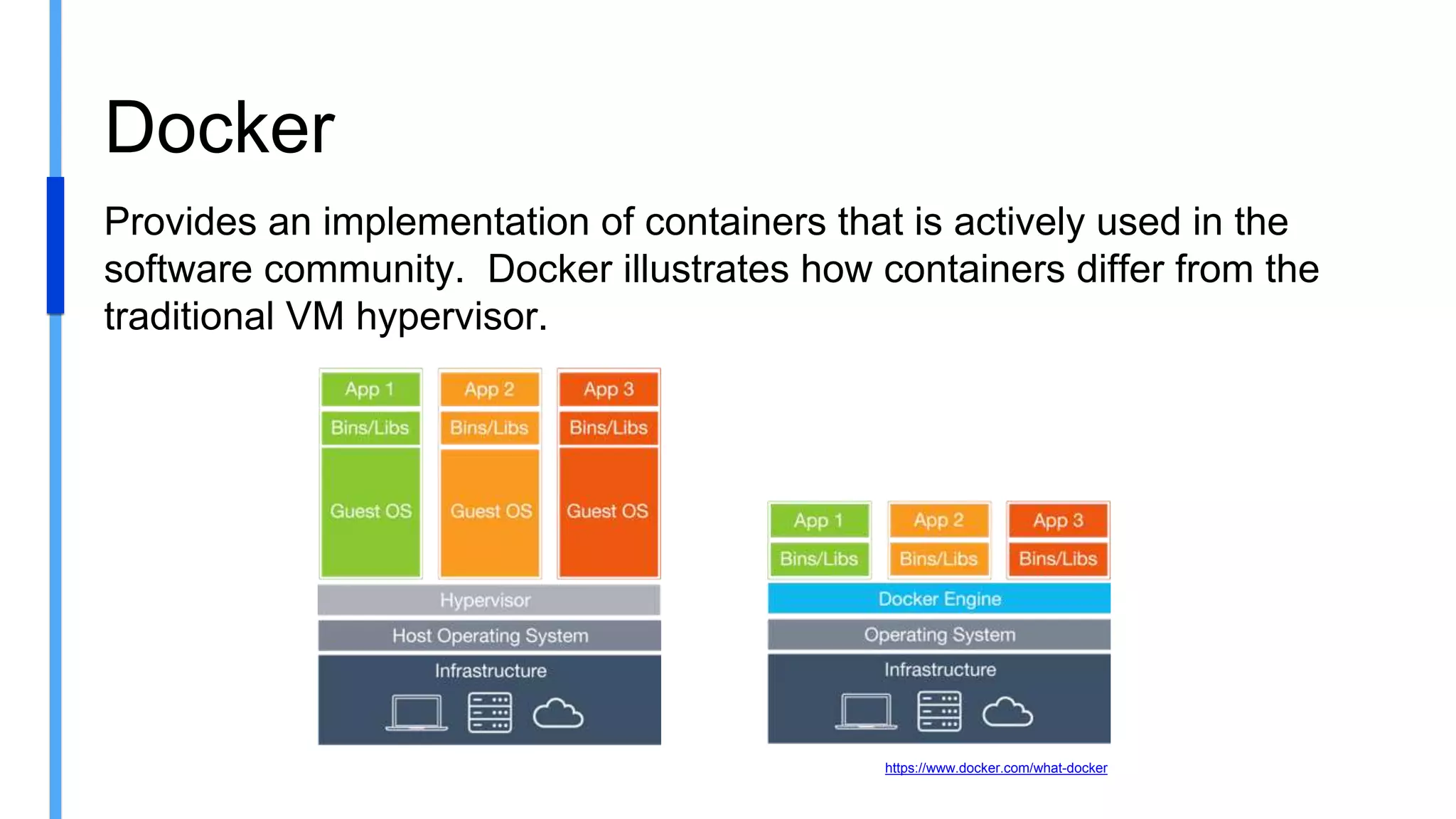

14. Provides an implementation of containers that is actively used in the
software community. Docker illustrates how containers differ from the
traditional VM hypervisor.
Docker
https://www.docker.com/what-docker

15. A sea of containers…
While containers provide us with a stable build and deploy platform, we still
have many artifacts to deploy and maintain.

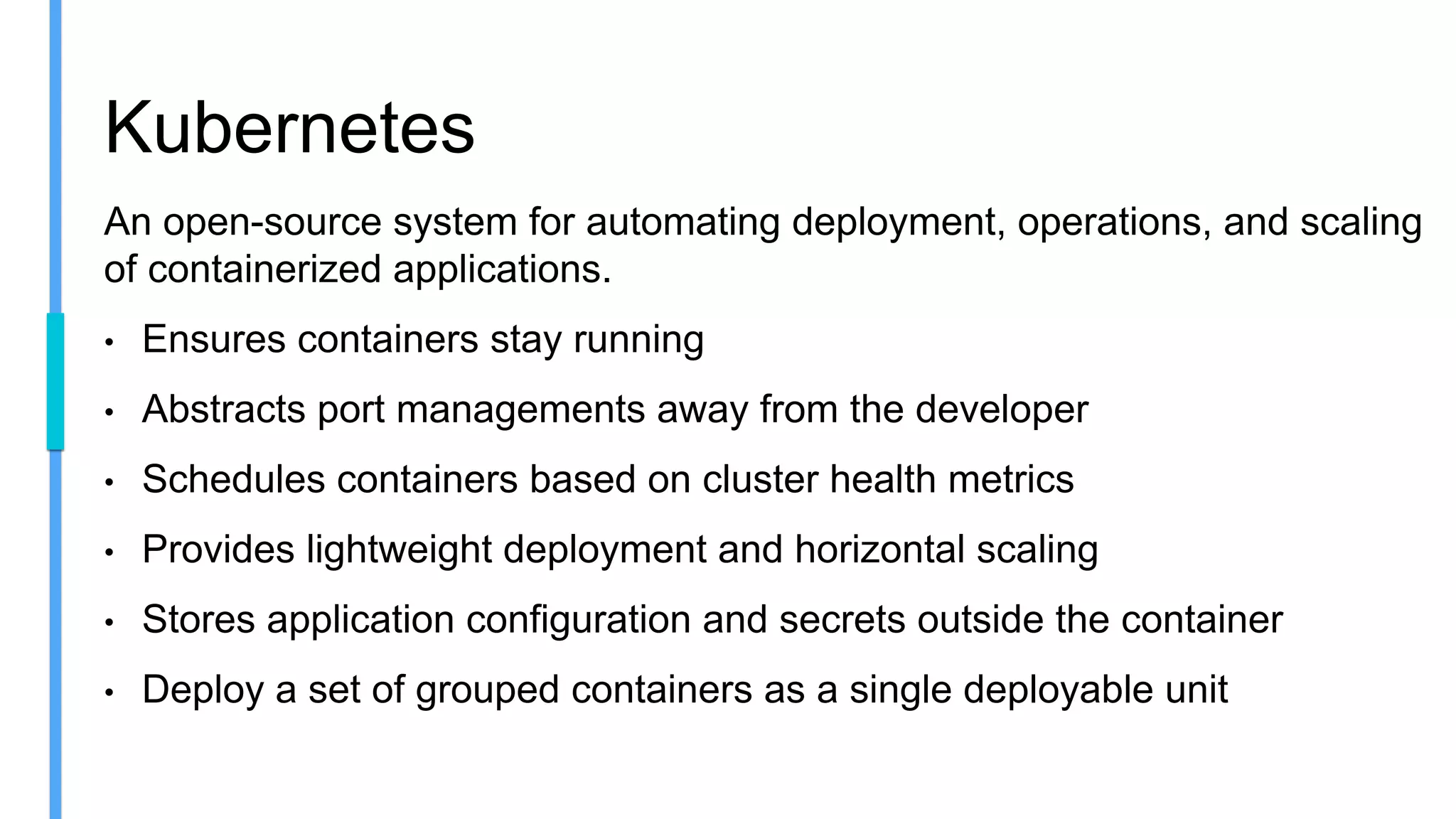

16. Kubernetes
An open-source system for automating deployment, operations, and scaling
of containerized applications.
• Ensures containers stay running
• Abstracts port managements away from the developer
• Schedules containers based on cluster health metrics
• Provides lightweight deployment and horizontal scaling
• Stores application configuration and secrets outside the container
• Deploy a set of grouped containers as a single deployable unit

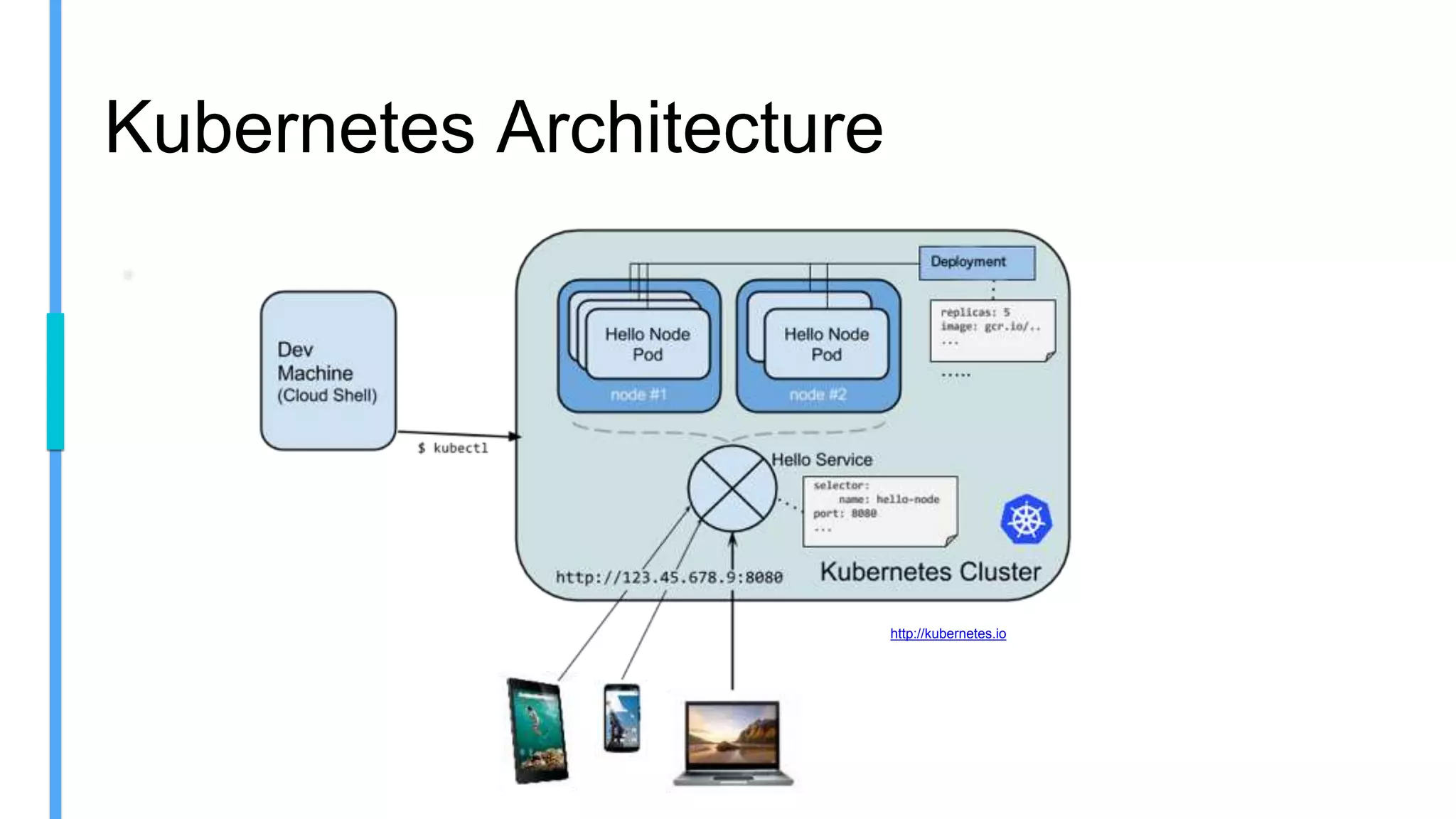

17. Kubernetes Architecture
http://kubernetes.io

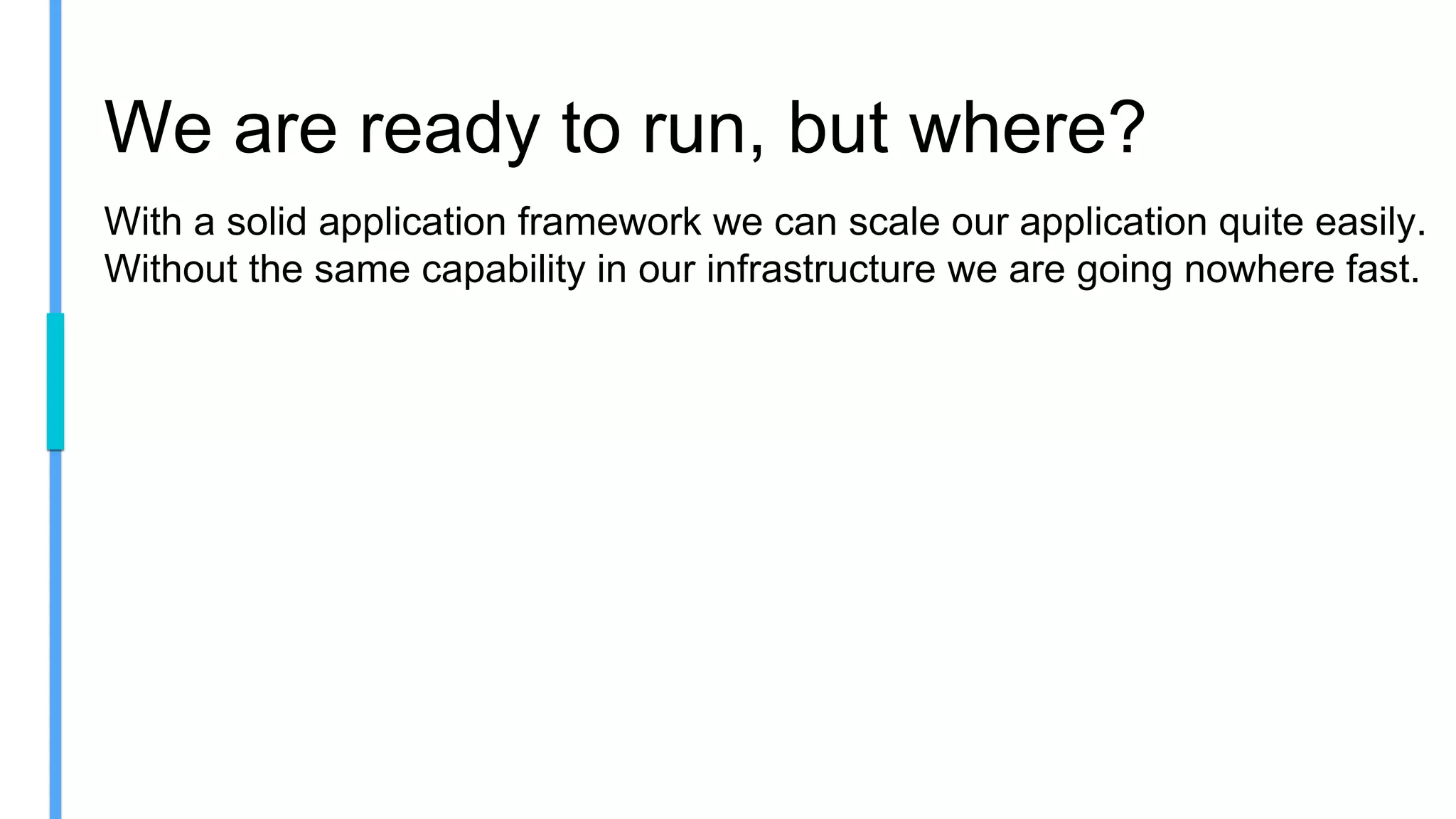

18. We are ready to run, but where?
With a solid application framework we can scale our application quite easily.
Without the same capability in our infrastructure we are going nowhere fast.

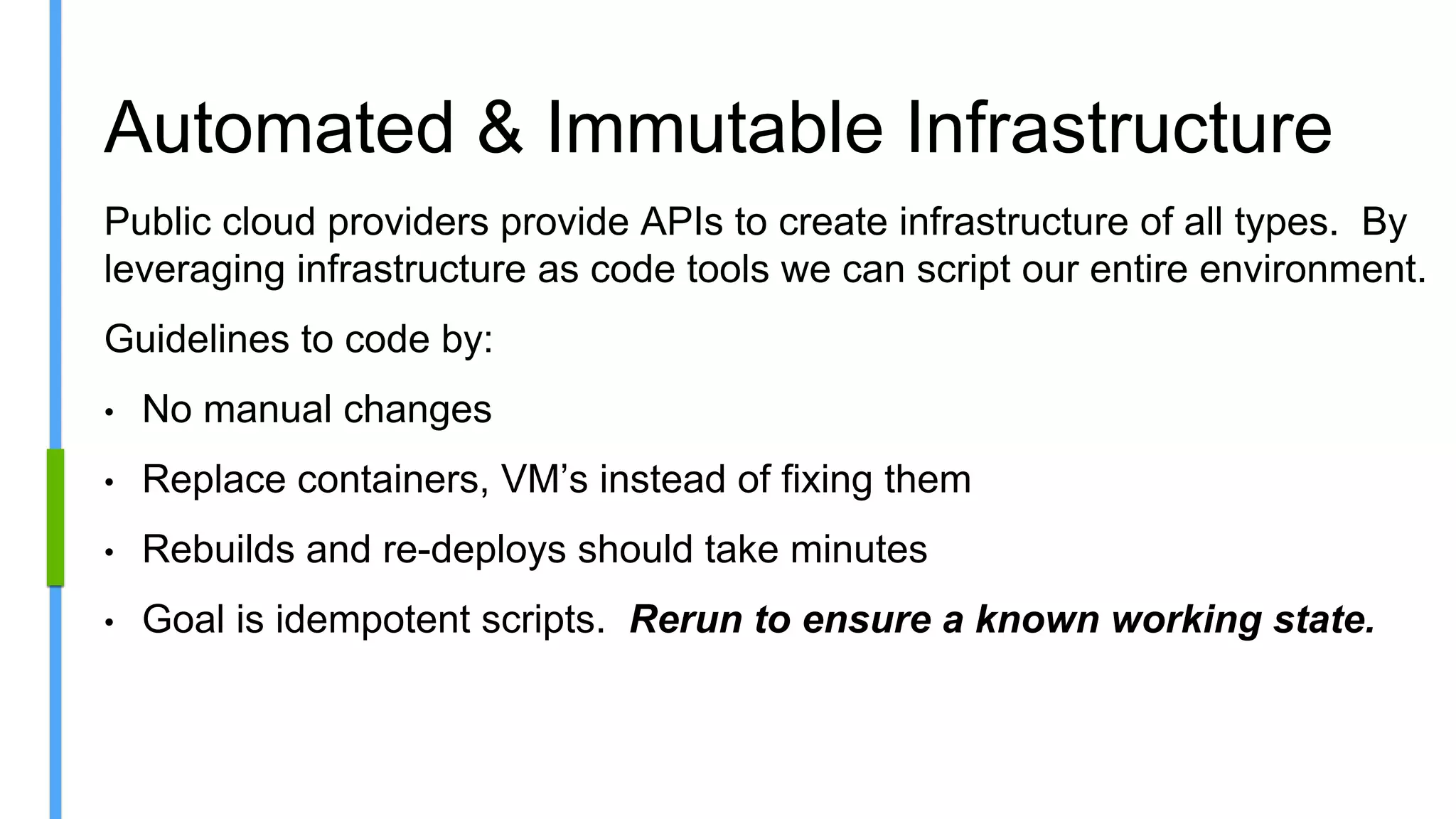

19. Automated & Immutable Infrastructure
Public cloud providers provide APIs to create infrastructure of all types. By
leveraging infrastructure as code tools we can script our entire environment.
Guidelines to code by:
• No manual changes
• Replace containers, VM’s instead of fixing them
• Rebuilds and re-deploys should take minutes
• Goal is idempotent scripts. Rerun to ensure a known working state.

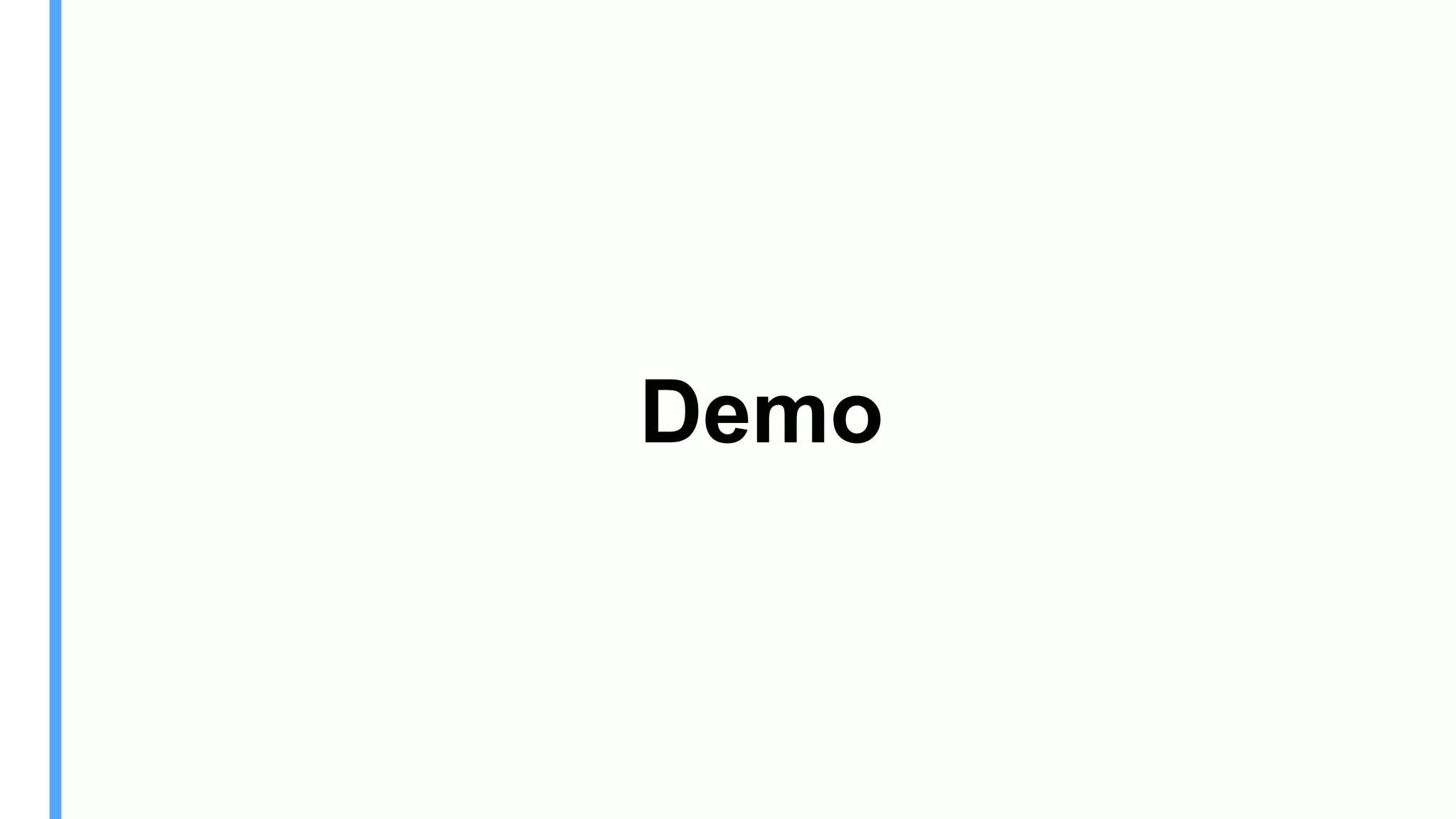

20. Demo

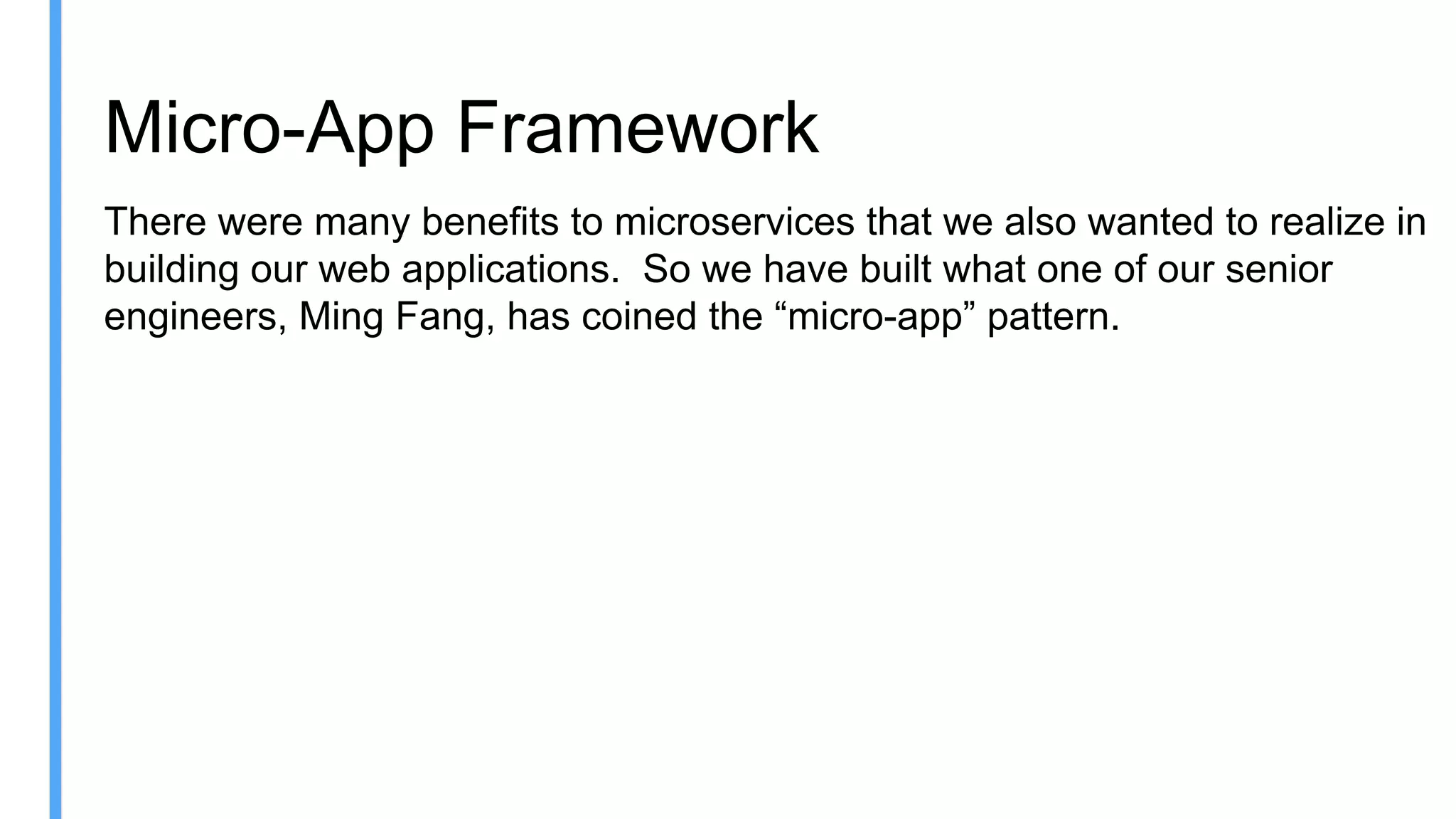

21. Micro-App Framework
There were many benefits to microservices that we also wanted to realize in
building our web applications. So we have built what one of our senior
engineers, Ming Fang, has coined the “micro-app” pattern.

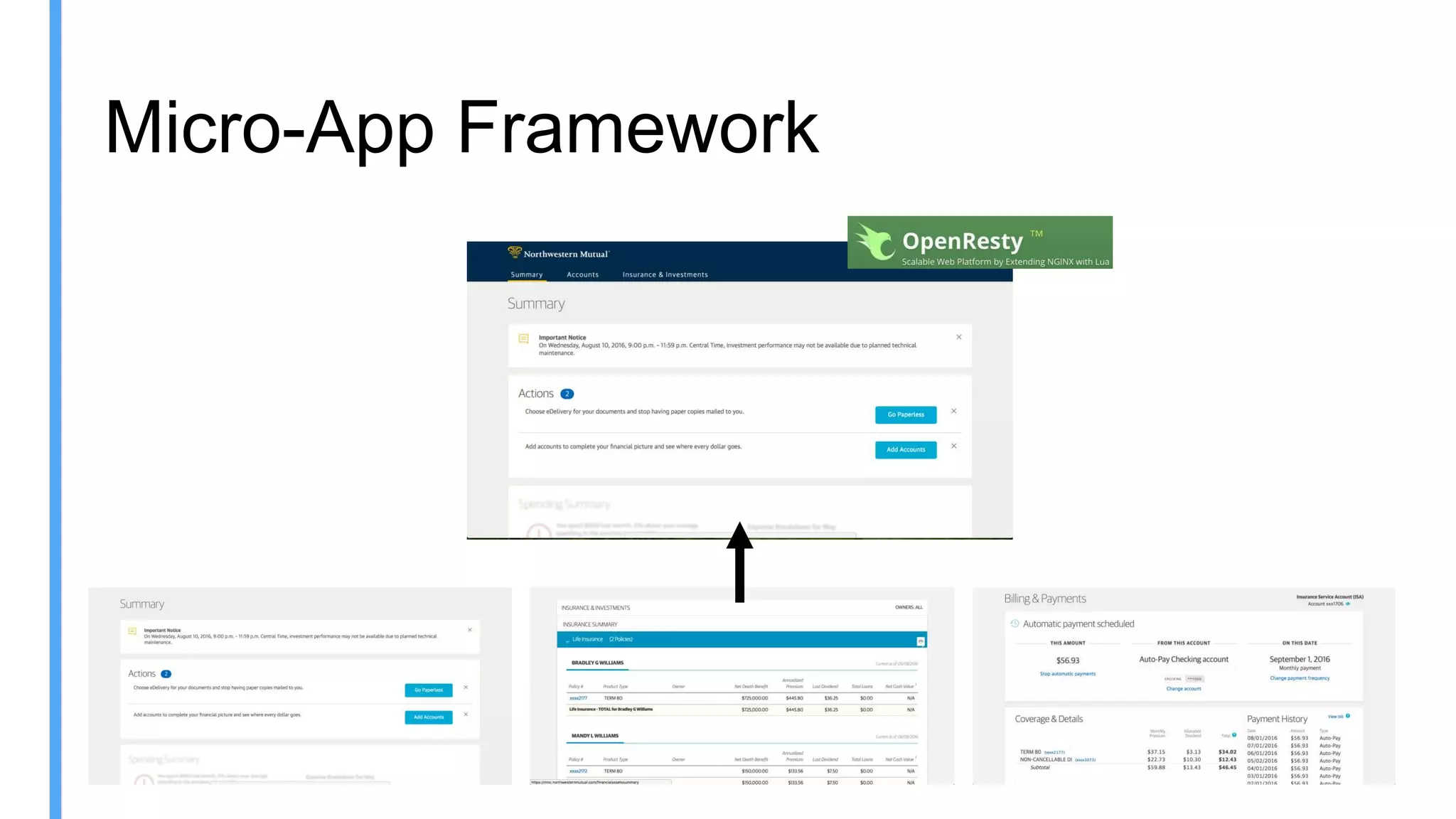

22. Micro-App Framework

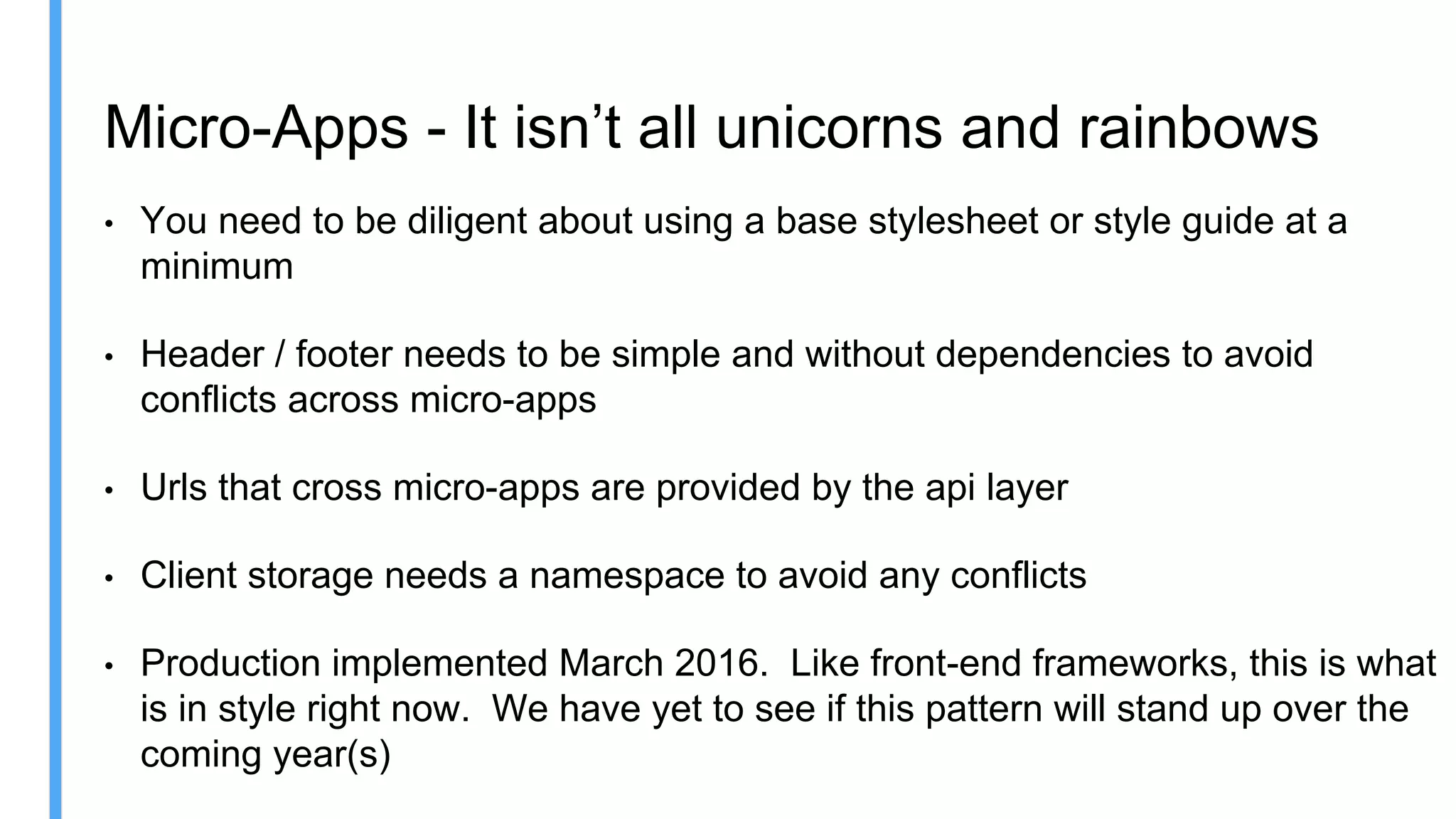

23. Micro-Apps - It isn’t all unicorns and rainbows
• You need to be diligent about using a base stylesheet or style guide at a
minimum
• Header / footer needs to be simple and without dependencies to avoid
conflicts across micro-apps
• Urls that cross micro-apps are provided by the api layer
• Client storage needs a namespace to avoid any conflicts
• Production implemented March 2016. Like front-end frameworks, this is what
is in style right now. We have yet to see if this pattern will stand up over the
coming year(s)

24. Tech Stack

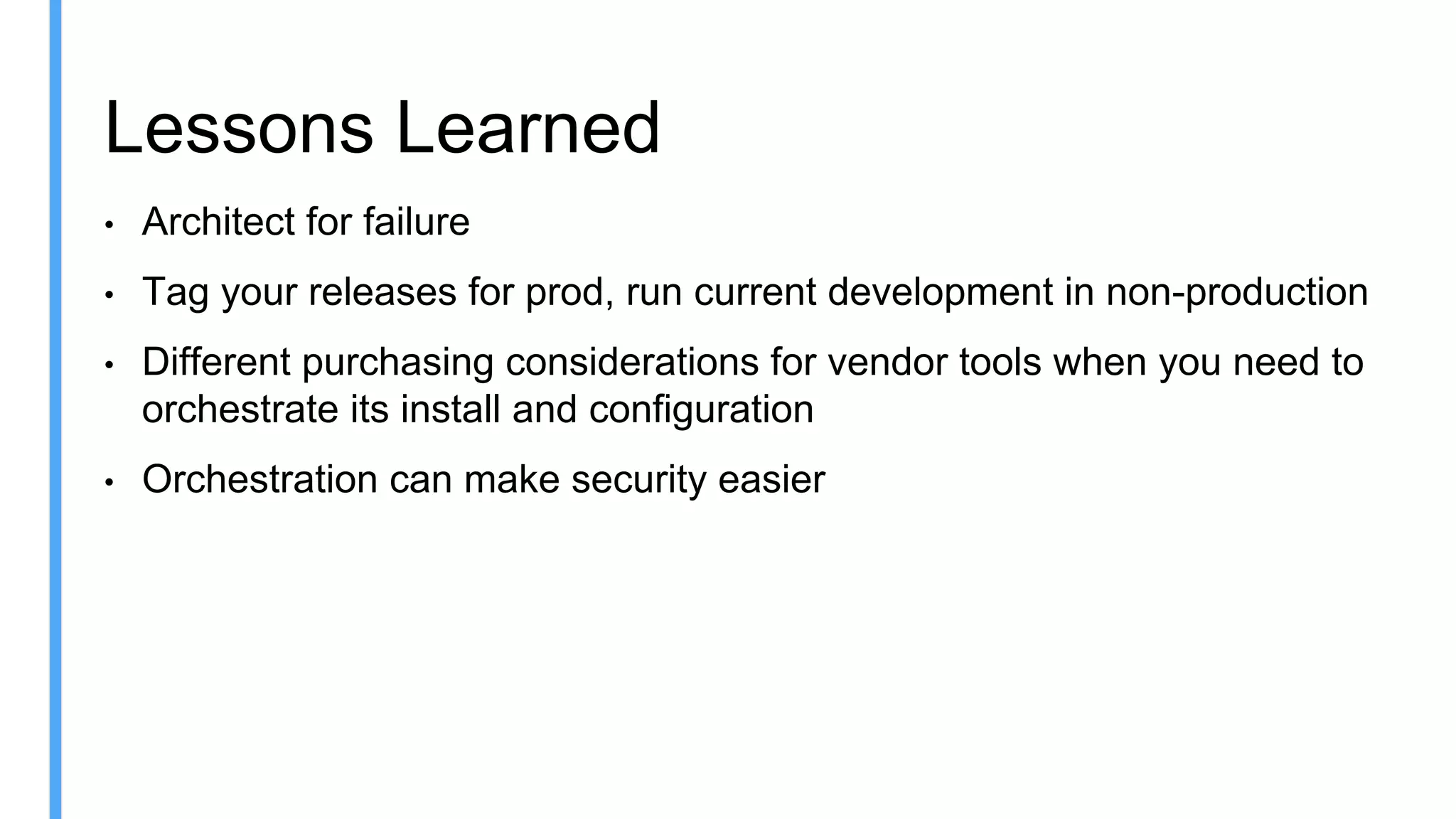

25. Lessons Learned
• Architect for failure
• Tag your releases for prod, run current development in non-production
• Different purchasing considerations for vendor tools when you need to
orchestrate its install and configuration
• Orchestration can make security easier

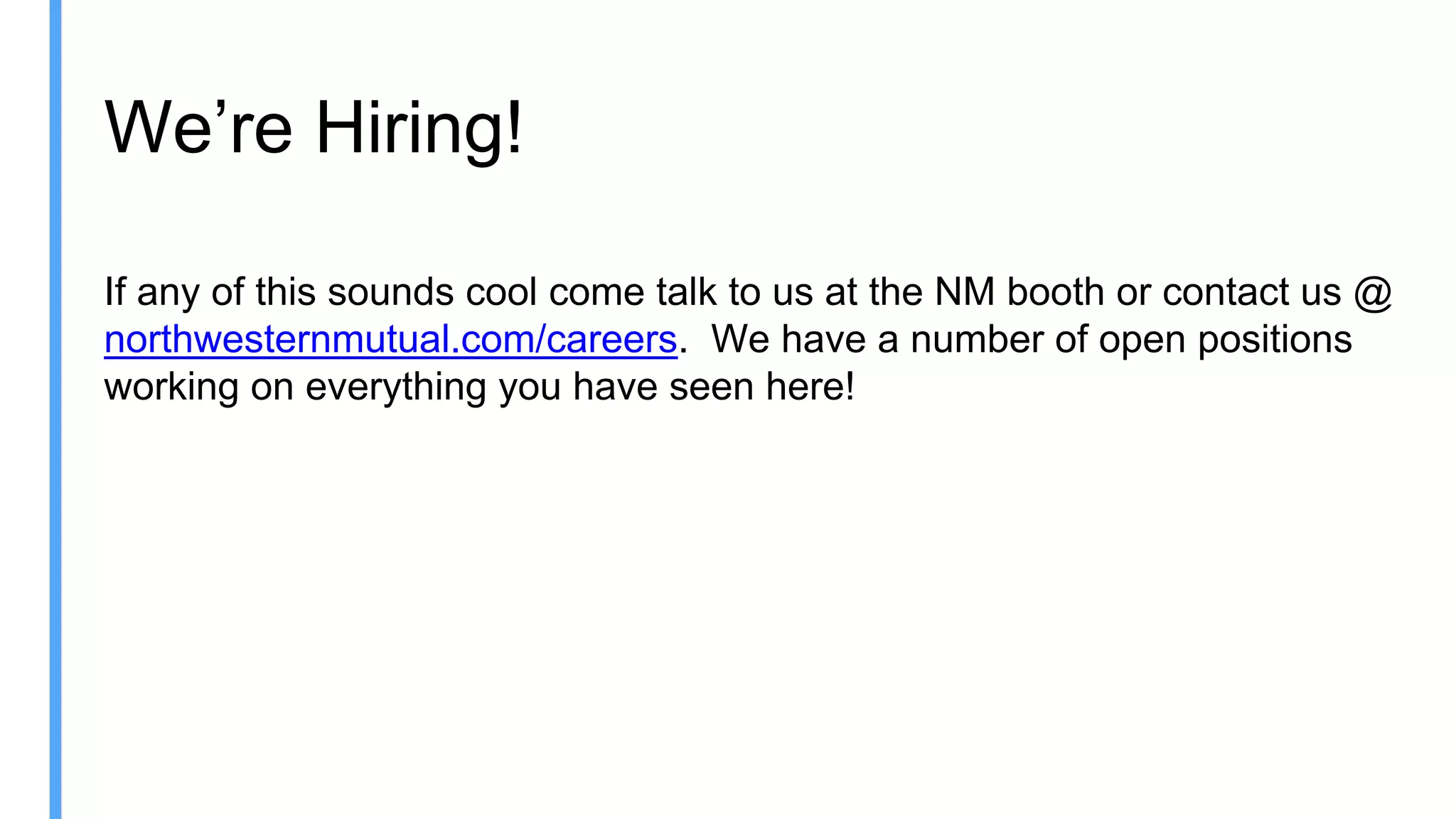

26. We’re Hiring!
