1. Testing Java Microservices:
From Development to Production
Abraham Marin-Perez | Daniel Bryant

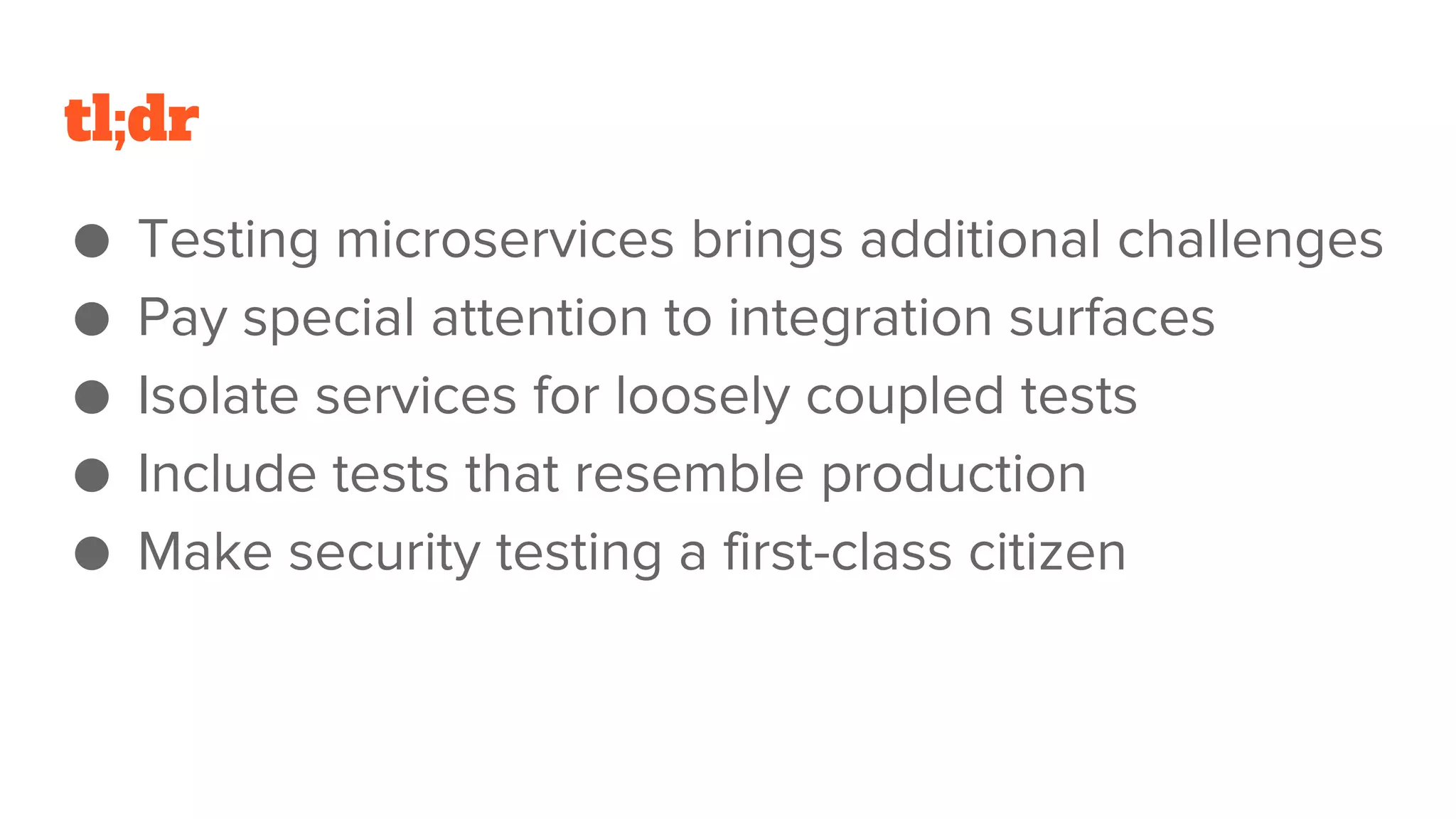

2. tl;dr
● Testing microservices brings additional challenges
● Pay special attention to integration surfaces
● Isolate services for loosely coupled tests
● Include tests that resemble production
● Make security testing a first-class citizen

3. Who are we?
@danielbryantuk
Tech Consultant and Writer
Product Architect at Datawire
Java Champion
Conference Tourist
@abrahammarin
Developer, Consultant, Writer
Associate of Equal Experts
Software Plumber

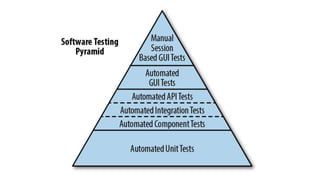

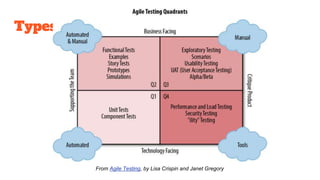

4. Types of tests
From Agile Testing, by Lisa Crispin and Janet Gregory

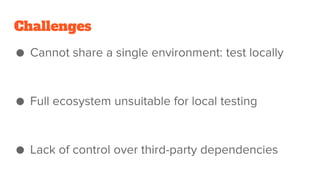

5. Challenges
● Cannot share a single environment: test locally
● Full ecosystem unsuitable for local testing
● Lack of control over third-party dependencies

6. Isolation

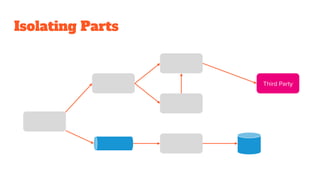

7. Isolating Parts
Third Party

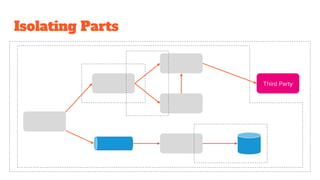

8. Isolating Parts
Third Party

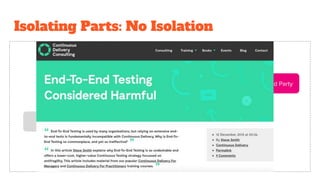

10. Isolating Parts: No Isolation
Third Party

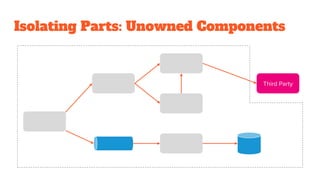

11. Isolating Parts: Unowned Components
Third Party

12. Test Doubles

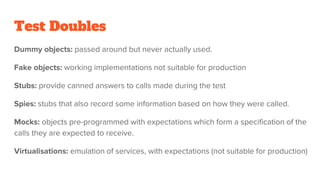

13. Test Doubles
Dummy objects: passed around but never actually used.
Fake objects: working implementations not suitable for production
Stubs: provide canned answers to calls made during the test
Spies: stubs that also record some information based on how they were called.
Mocks: objects pre-programmed with expectations which form a specification of the
calls they are expected to receive.
Virtualisations: emulation of services, with expectations (not suitable for production)

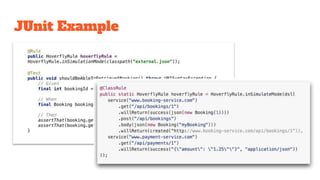

20. JUnit Example

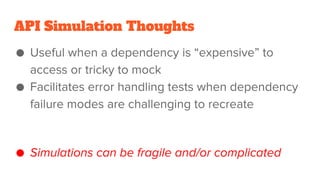

21. API Simulation Thoughts
● Useful when a dependency is “expensive” to
access or tricky to mock
● Facilitates error handling tests when dependency
failure modes are challenging to recreate
● Simulations can be fragile and/or complicated

22. Use simulations appropriately...
Sometime you need the real thing

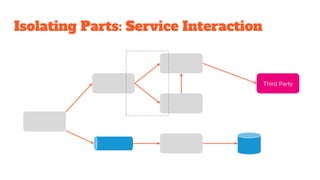

24. Isolating Parts: Service Interaction
Third Party

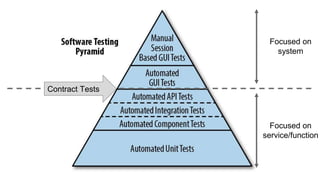

25. Focused on
service/function
Focused on
system
Contract Tests

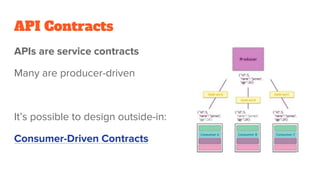

26. API Contracts
APIs are service contracts
Many are producer-driven
It’s possible to design outside-in:
Consumer-Driven Contracts

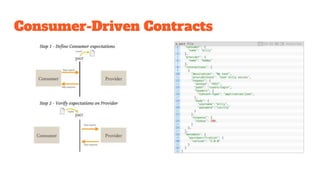

27. Consumer-Driven Contracts

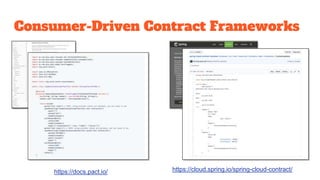

28. Consumer-Driven Contract Frameworks
https://docs.pact.io/ https://cloud.spring.io/spring-cloud-contract/

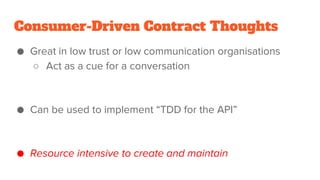

29. Consumer-Driven Contract Thoughts
● Great in low trust or low communication organisations
○ Act as a cue for a conversation
● Can be used to implement “TDD for the API”
● Resource intensive to create and maintain

30. https://bit.ly/2p68gBS

31. Components

32. Isolating Parts: Single Service
Third Party

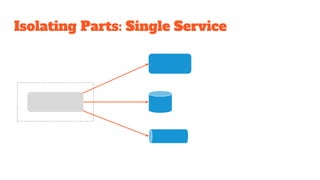

33. Isolating Parts: Single Service

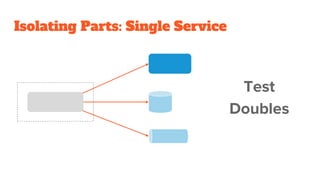

34. Isolating Parts: Single Service
Test
Doubles

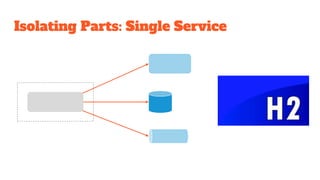

35. Isolating Parts: Single Service

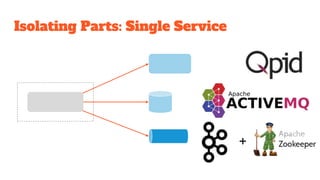

36. Isolating Parts: Single Service
+

37. Isolating Parts: Single Service
Fault Tolerance
Test double configured to fail

38. https://technology.cap-hpi.com/blog/unit-testing-what-benefits-you-can-reap/

39. Isolating Parts: Technicalities
Third Party

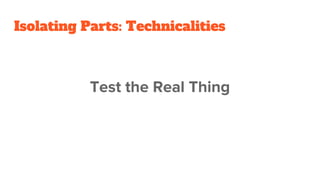

40. Isolating Parts: Technicalities
Test the Real Thing

41. Isolating Parts: Technicalities

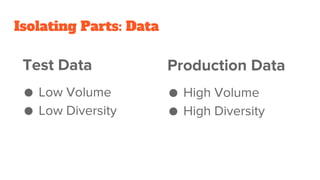

42. Isolating Parts: Data
Test Data
● Low Volume
● Low Diversity
Production Data
● High Volume
● High Diversity

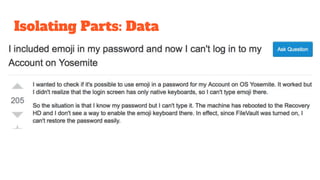

43. Isolating Parts: Data

44. Isolating Parts: Data
Marín
Argüelles
d’Hopital
Garçon
Castaña
Strauß
Fønss
Bård
かほる
Александр
สมชาย
Φραγκόπουλος

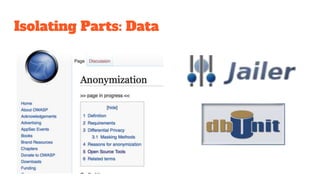

45. Isolating Parts: Data

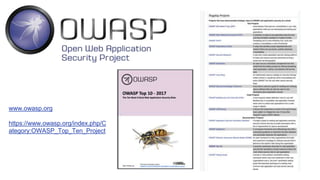

47. www.owasp.org
https://www.owasp.org/index.php/C
ategory:OWASP_Top_Ten_Project

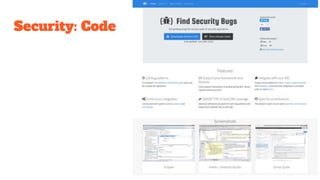

48. Security: Code

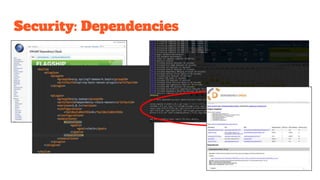

49. Security: Dependencies

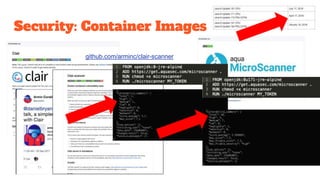

50. Security: Container Images
github.com/arminc/clair-scanner

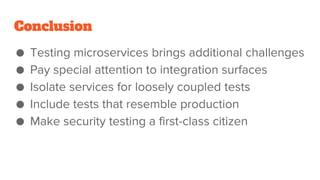

51. Conclusion
● Testing microservices brings additional challenges
● Pay special attention to integration surfaces
● Isolate services for loosely coupled tests
● Include tests that resemble production
● Make security testing a first-class citizen

52. Thanks!
Some code samples:
https://github.com/orgs/continuous-delivery-in-java
(with more coming soon!)
