The webinar led by Ashutosh Garg focuses on various test case design techniques, including the use of mind maps to enhance creativity and understanding in testing. Key techniques discussed include specification-based, structure-based, and experience-based approaches, with examples like boundary value analysis and exploratory testing. The session also emphasizes the importance of understanding objectives and optimizing test cases according to the stability of software features.

1. Test case design techniques
Webinar
Ashutosh Garg

2. Brief about me
I am Ashutosh Garg
• MBA in Finance and Marketing from IIM Lucknow (PGPWE)
• Department Manager at Mediatek Inc.
• Trainer and Writer on diverse topics like Agile, MS Excel, Negotiations, Communication, Content
Marketing

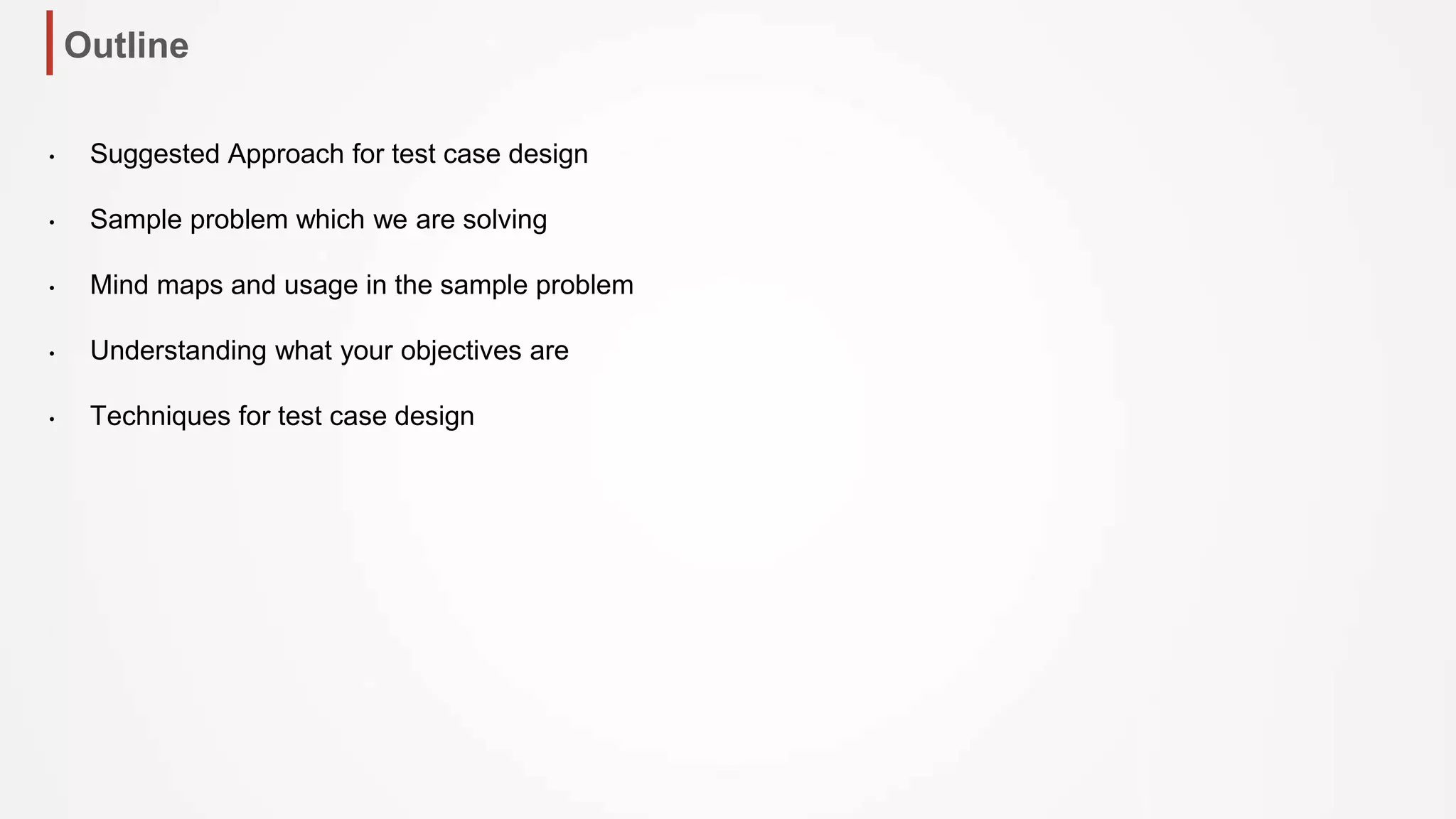

3. Outline
• Suggested Approach for test case design
• Sample problem which we are solving
• Mind maps and usage in the sample problem
• Understanding what your objectives are
• Techniques for test case design

4. Approach

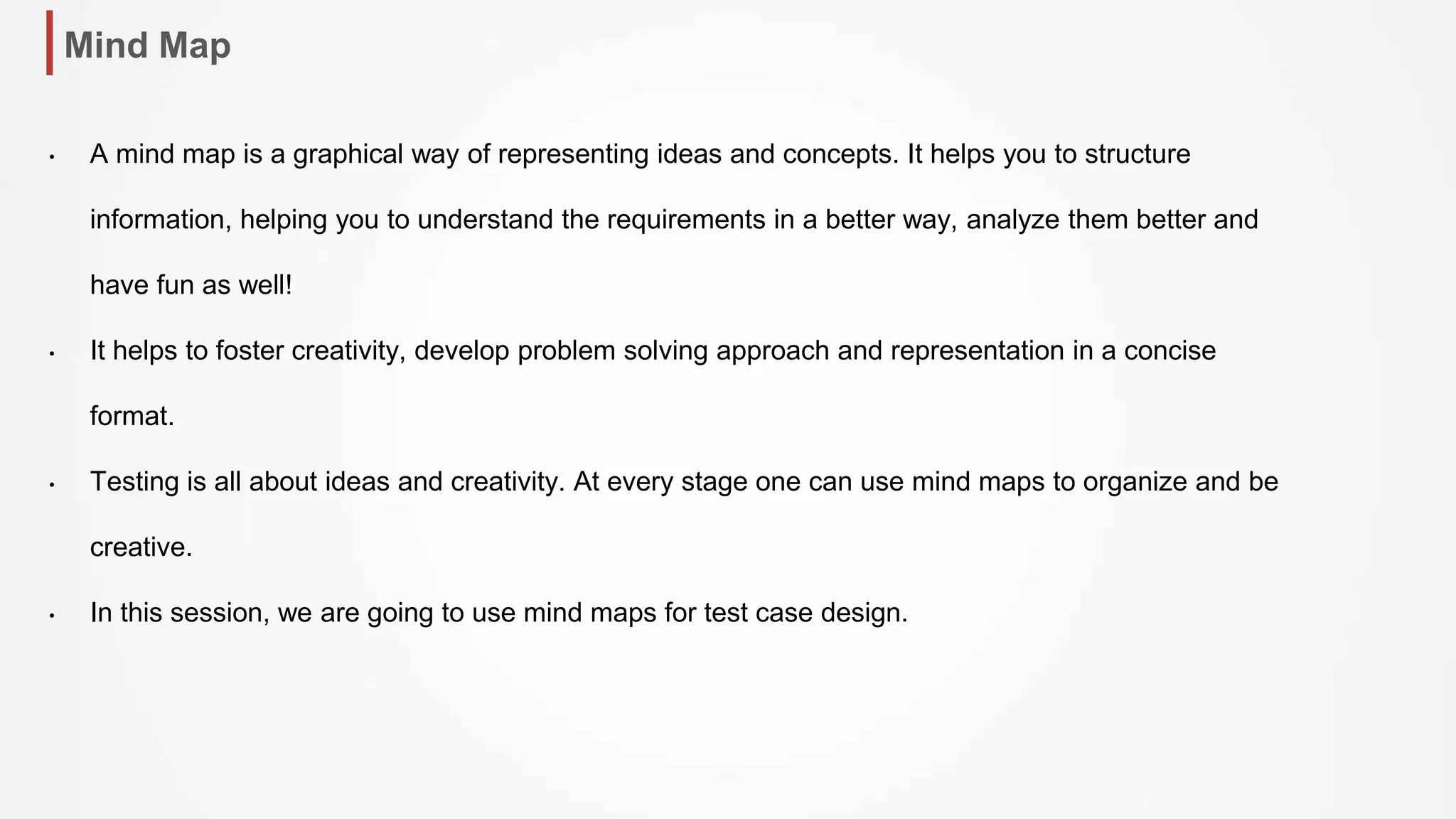

5. Mind Map
• A mind map is a graphical way of representing ideas and concepts. It helps you to structure
information, helping you to understand the requirements in a better way, analyze them better and
have fun as well!
• It helps to foster creativity, develop problem solving approach and representation in a concise
format.
• Testing is all about ideas and creativity. At every stage one can use mind maps to organize and be
creative.
• In this session, we are going to use mind maps for test case design.

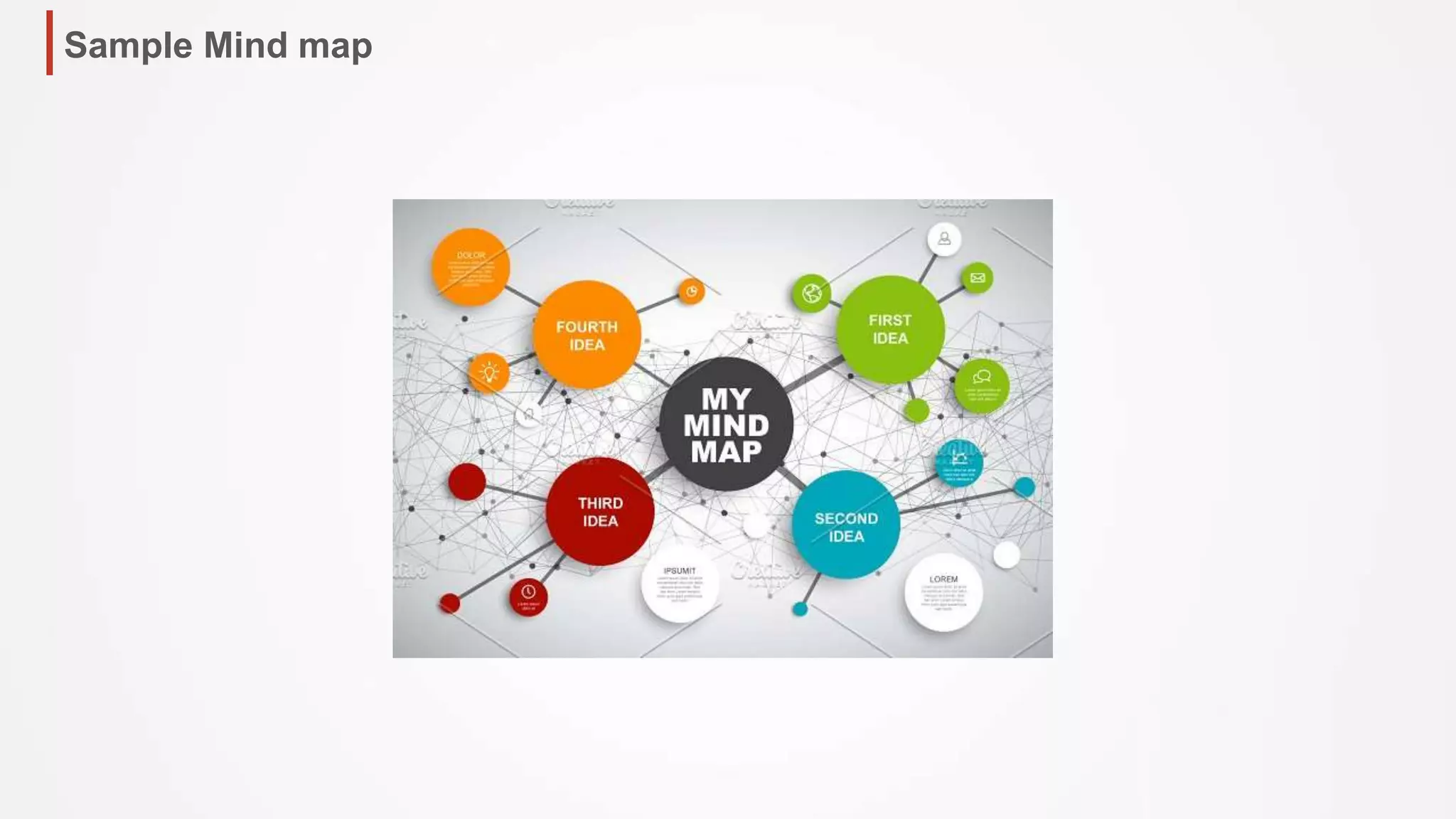

6. Sample Mind map

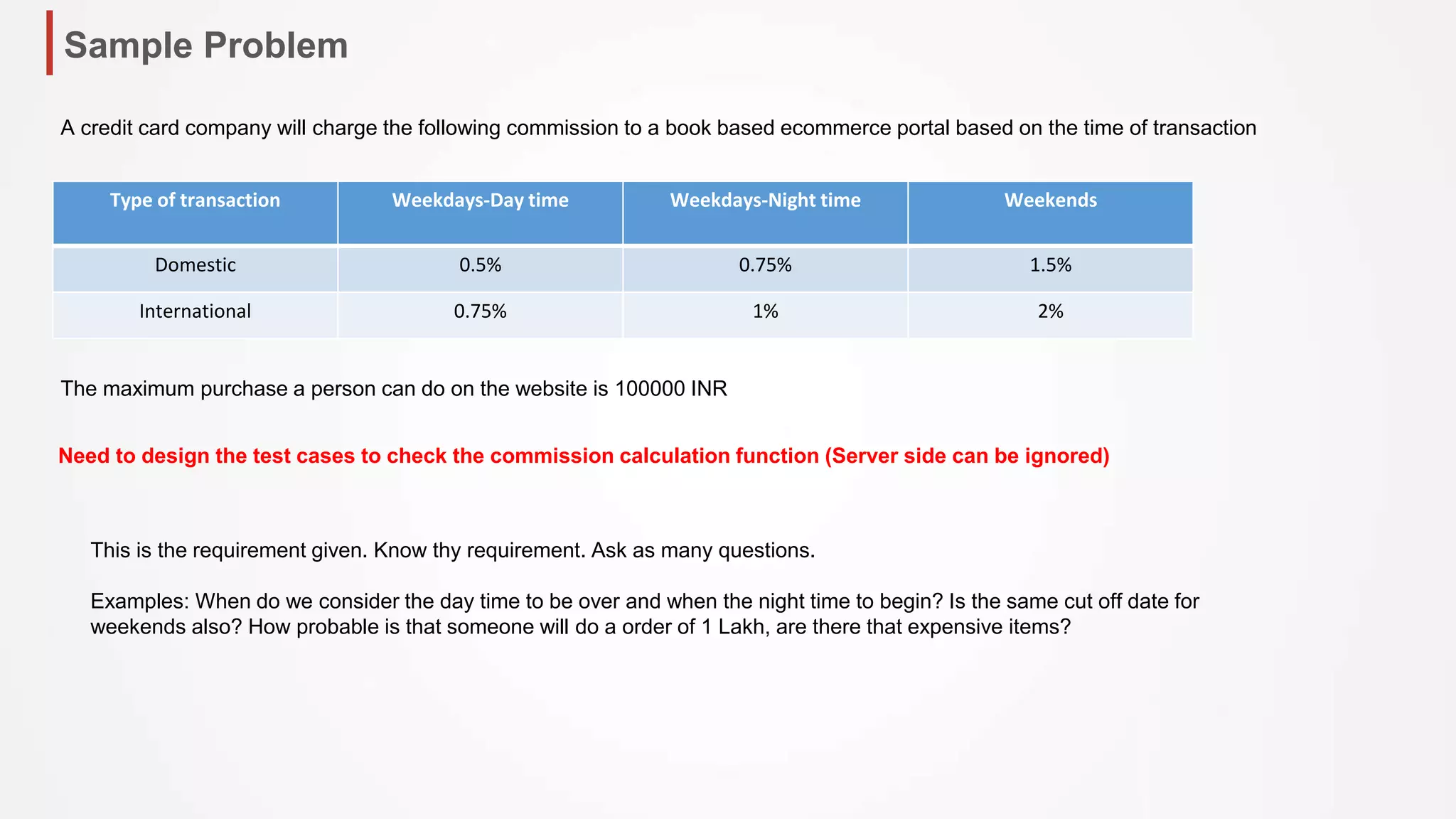

7. Sample Problem
Type of transaction Weekdays-Day time Weekdays-Night time Weekends
Domestic 0.5% 0.75% 1.5%
International 0.75% 1% 2%
A credit card company will charge the following commission to a book based ecommerce portal based on the time of transaction
The maximum purchase a person can do on the website is 100000 INR
Need to design the test cases to check the commission calculation function (Server side can be ignored)
This is the requirement given. Know thy requirement. Ask as many questions.
Examples: When do we consider the day time to be over and when the night time to begin? Is the same cut off date for
weekends also? How probable is that someone will do a order of 1 Lakh, are there that expensive items?

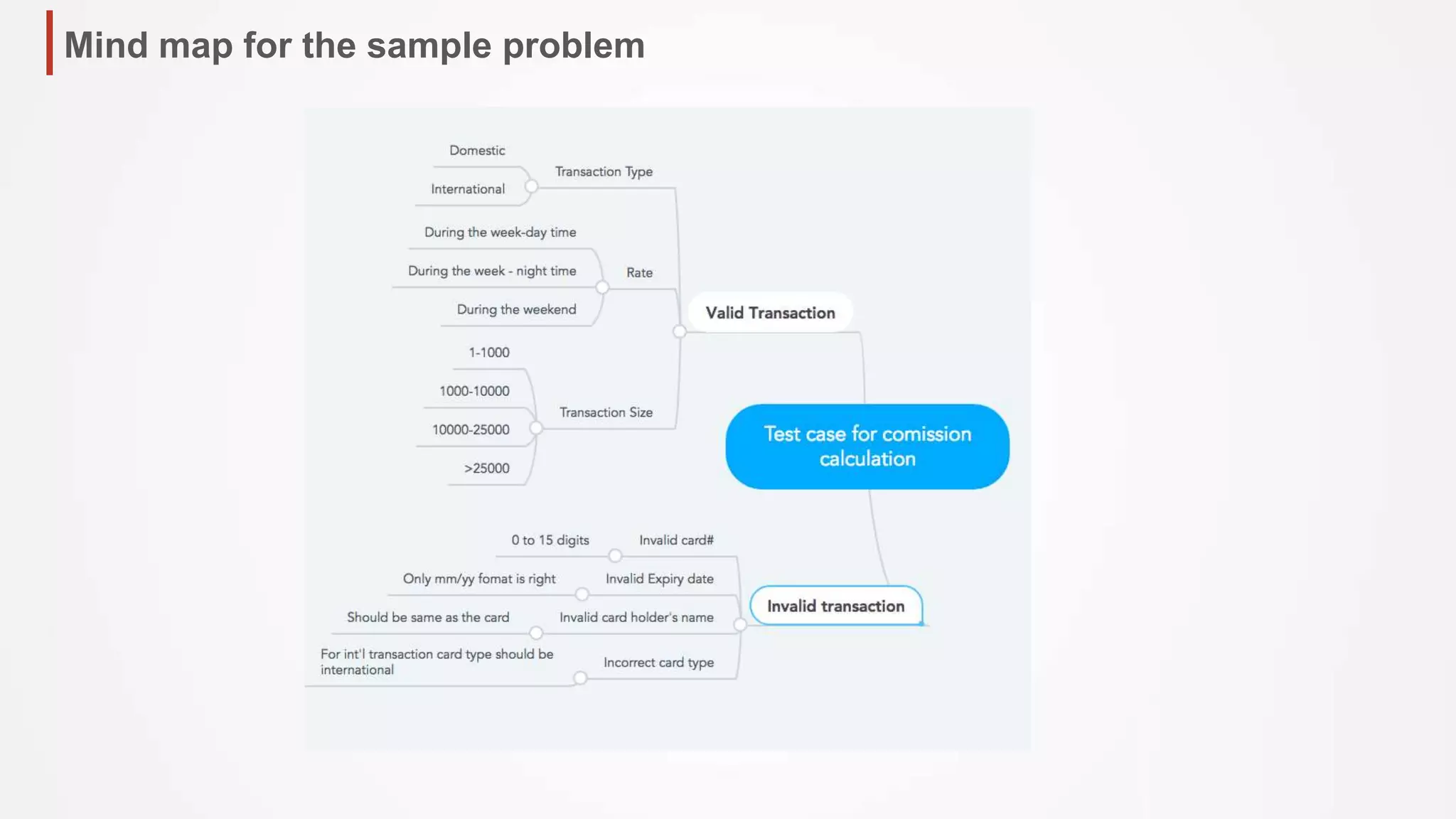

8. Mind map for the sample problem

9. Objective of the test case design

10. Mind map for the sample problem

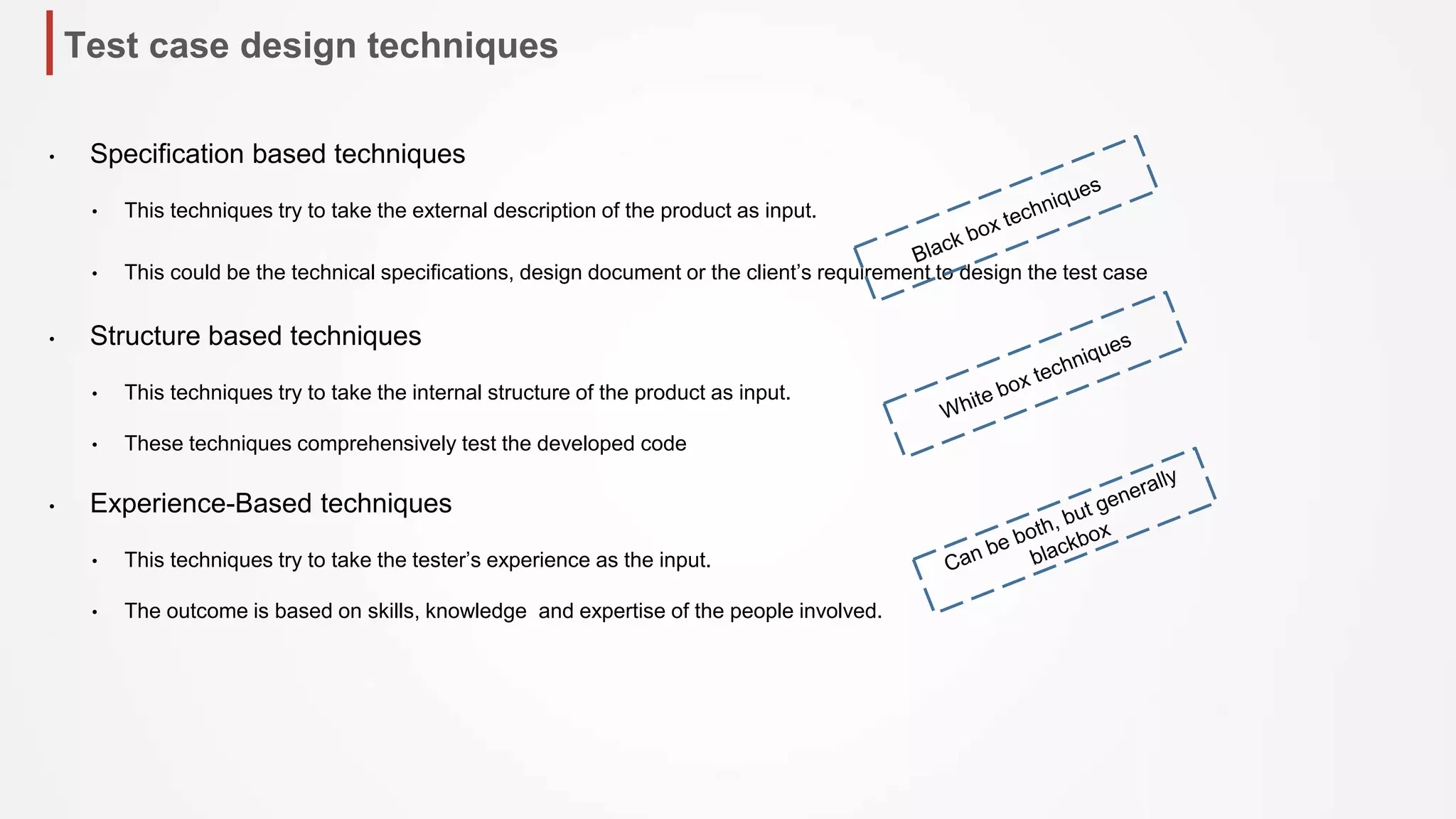

11. Test case design techniques
• Specification based techniques
• This techniques try to take the external description of the product as input.
• This could be the technical specifications, design document or the client’s requirement to design the test case
• Structure based techniques
• This techniques try to take the internal structure of the product as input.
• These techniques comprehensively test the developed code
• Experience-Based techniques
• This techniques try to take the tester’s experience as the input.
• The outcome is based on skills, knowledge and expertise of the people involved.

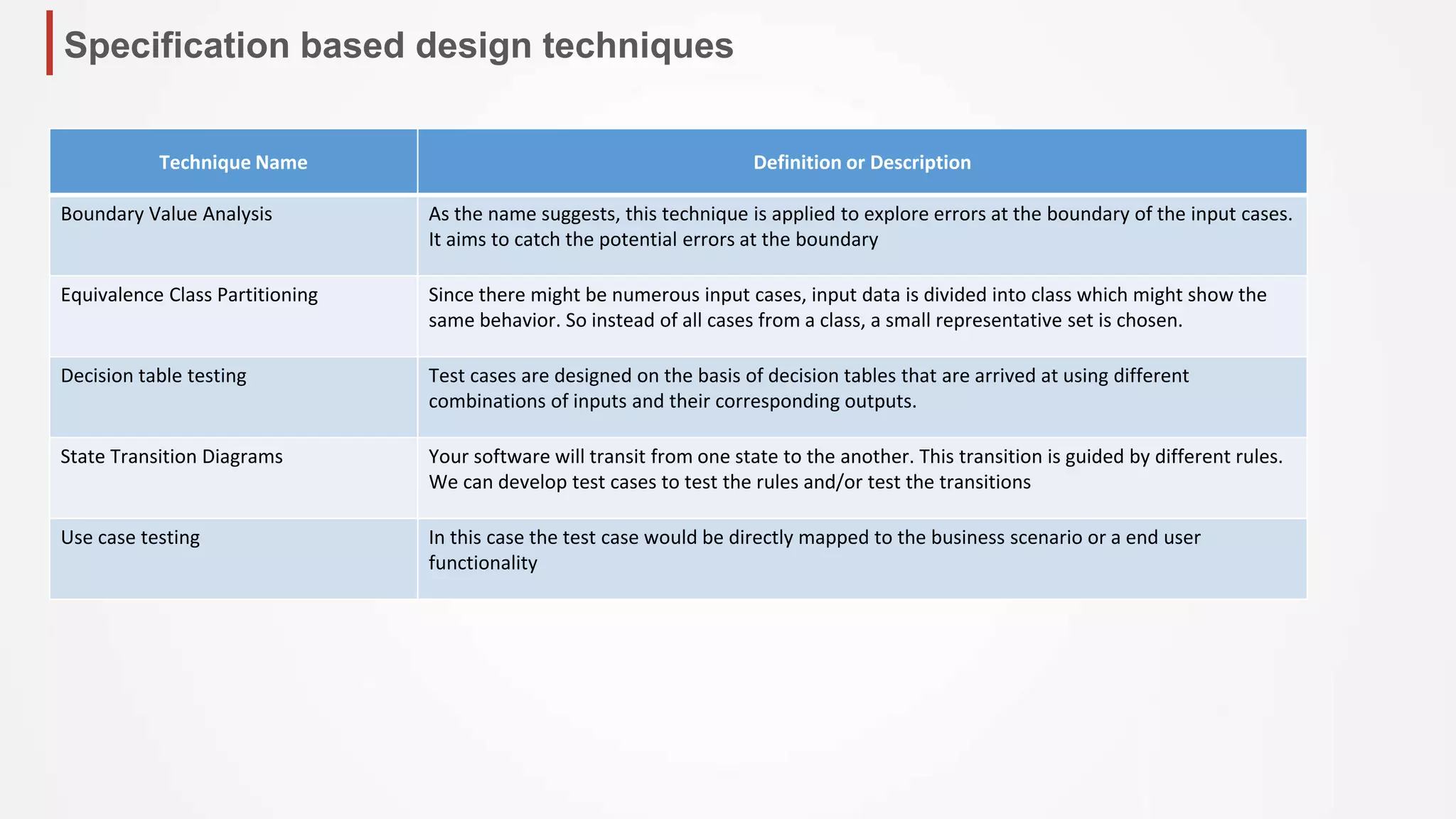

12. Specification based design techniques
Technique Name Definition or Description
Boundary Value Analysis As the name suggests, this technique is applied to explore errors at the boundary of the input cases.
It aims to catch the potential errors at the boundary
Equivalence Class Partitioning Since there might be numerous input cases, input data is divided into class which might show the
same behavior. So instead of all cases from a class, a small representative set is chosen.
Decision table testing Test cases are designed on the basis of decision tables that are arrived at using different
combinations of inputs and their corresponding outputs.
State Transition Diagrams Your software will transit from one state to the another. This transition is guided by different rules.
We can develop test cases to test the rules and/or test the transitions
Use case testing In this case the test case would be directly mapped to the business scenario or a end user
functionality

13. Structure based techniques
• Statement testing coverage
• Decision testing coverage
• (Multiple)Conditional testing coverage
• All path testing coverage

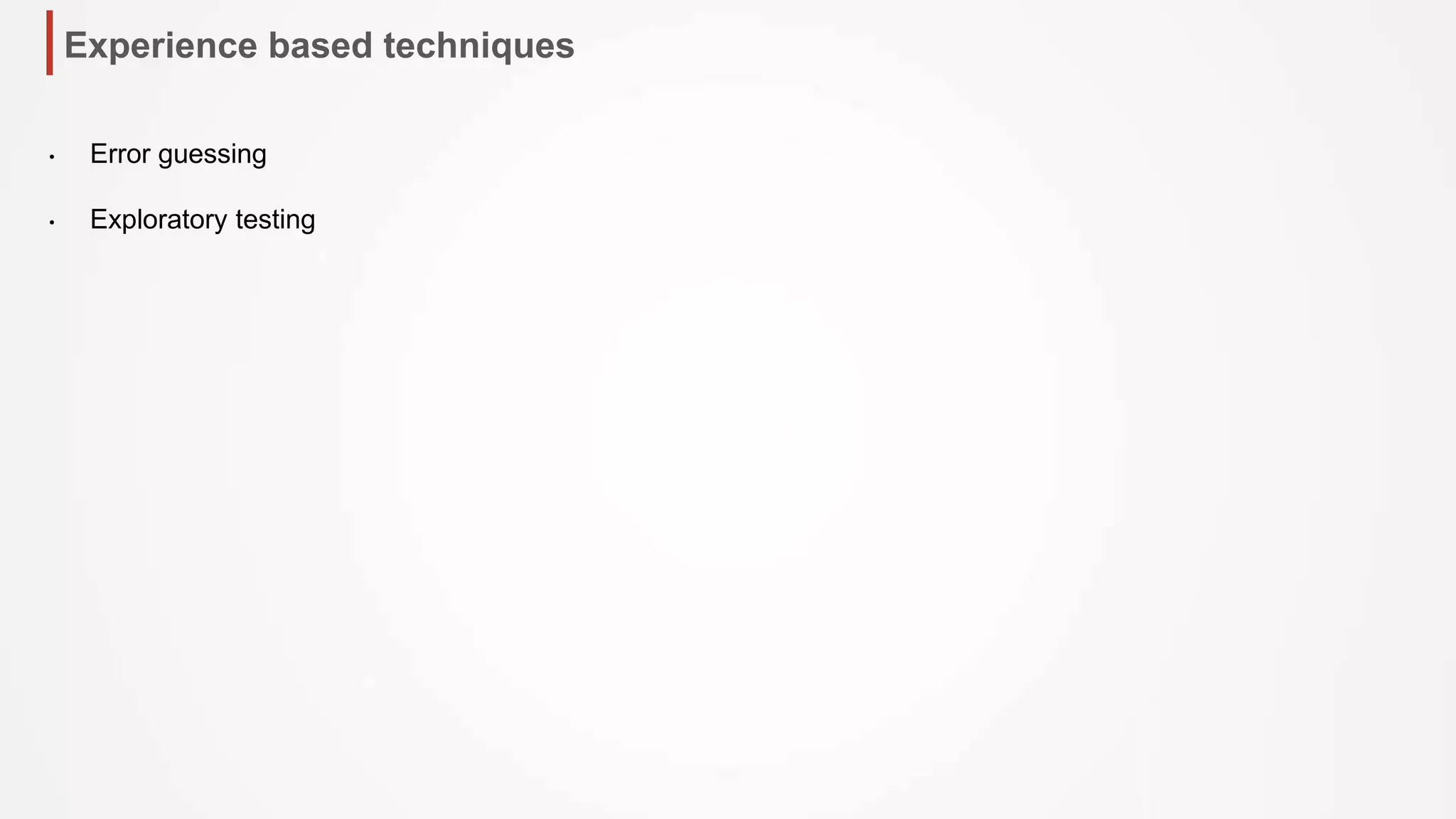

14. Experience based techniques
• Error guessing
• Exploratory testing

15. Equivalence class partitioning
• Based on the mind maps. Following partitions are clearly visible
• Transaction day
• [Mon – Fri][Sat-Sun]
• Transaction time
• [6 AM – 6 PM][6 PM-6 AM]
• Transaction Size
• [1 – 1000][1000-10000][10000-25000][>25000]
• Credit card number
• [0-4 digits][5-8 Digits][9-12 Digits][13-16 Digits]
• Other cases
• [Expiry date of Feb][Expiry date of Jan][Expiry date of April][Expiry date of Dec ][Expiry date of last year of Century]
Equivalence Class Partitioning Since there might be numerous input cases, input data is divided into class which might show the
same behavior. So instead of all cases from a class, a small representative set is chosen.

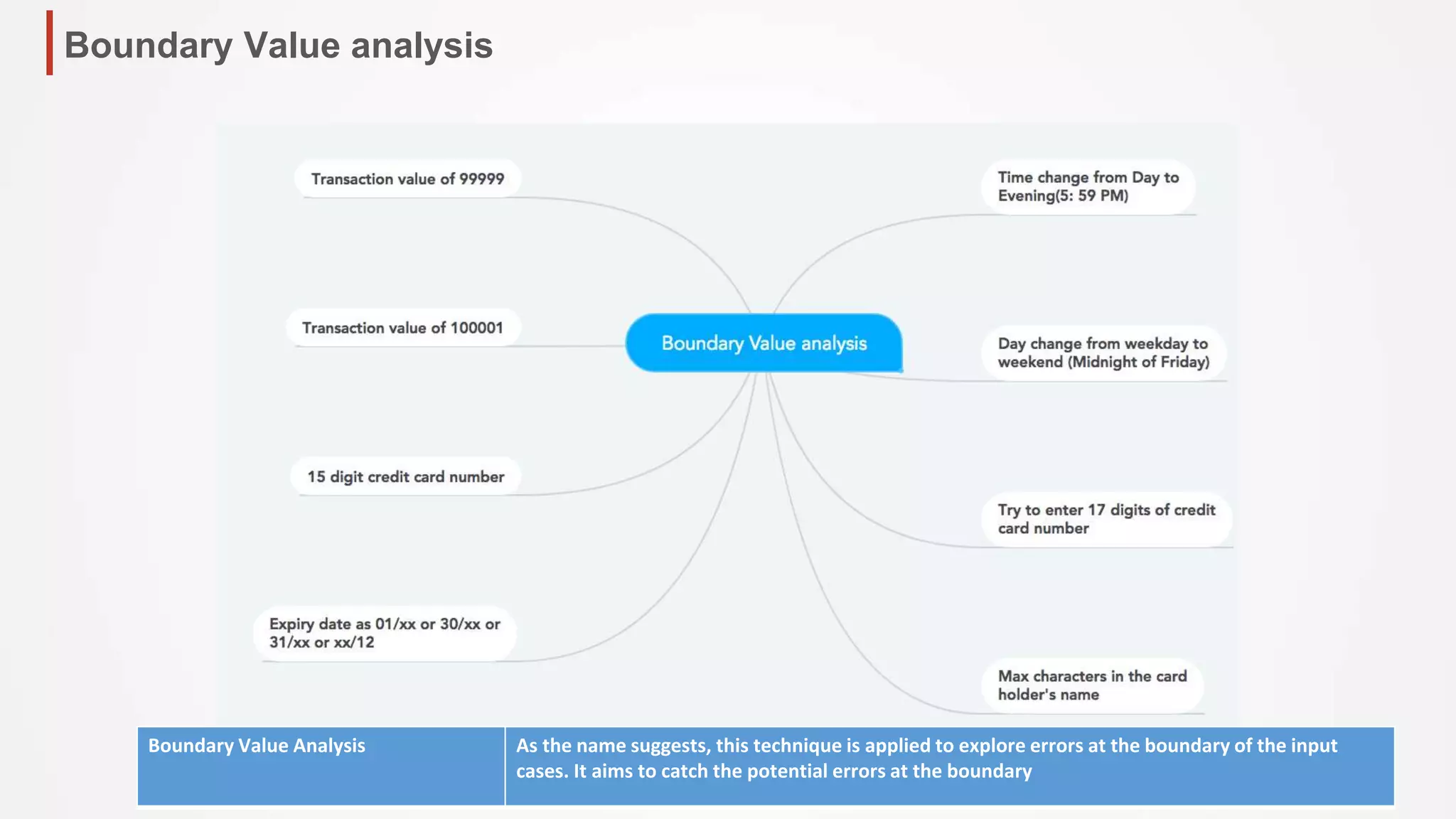

16. Boundary Value analysis
Boundary Value Analysis As the name suggests, this technique is applied to explore errors at the boundary of the input
cases. It aims to catch the potential errors at the boundary

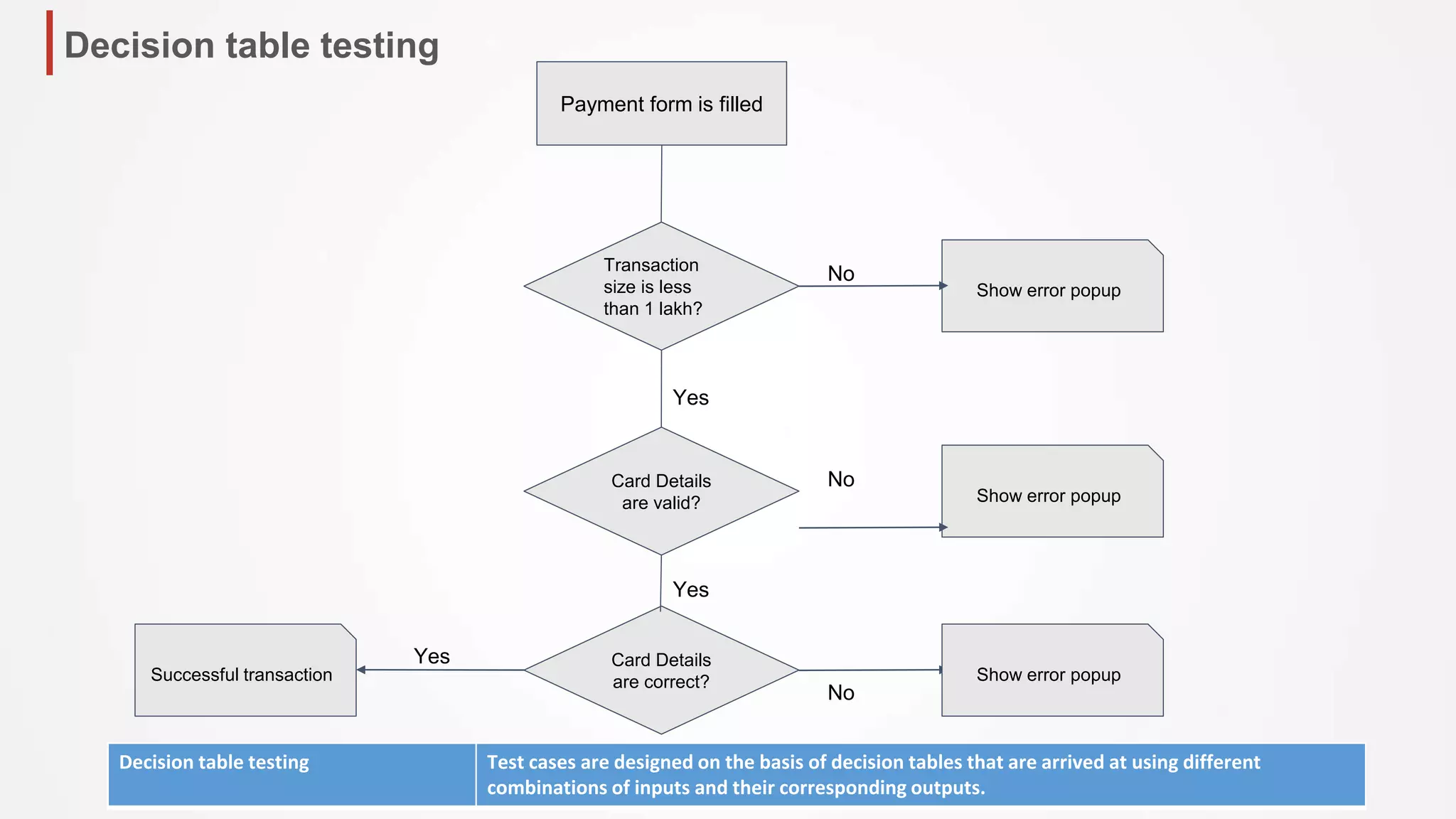

17. Decision table testing
Payment form is filled
Transaction
size is less
than 1 lakh?
Card Details
are valid?
Show error popup
Card Details
are correct?
Show error popup
Show error popupSuccessful transaction
Yes
Yes
Yes
No
No
No
Decision table testing Test cases are designed on the basis of decision tables that are arrived at using different
combinations of inputs and their corresponding outputs.

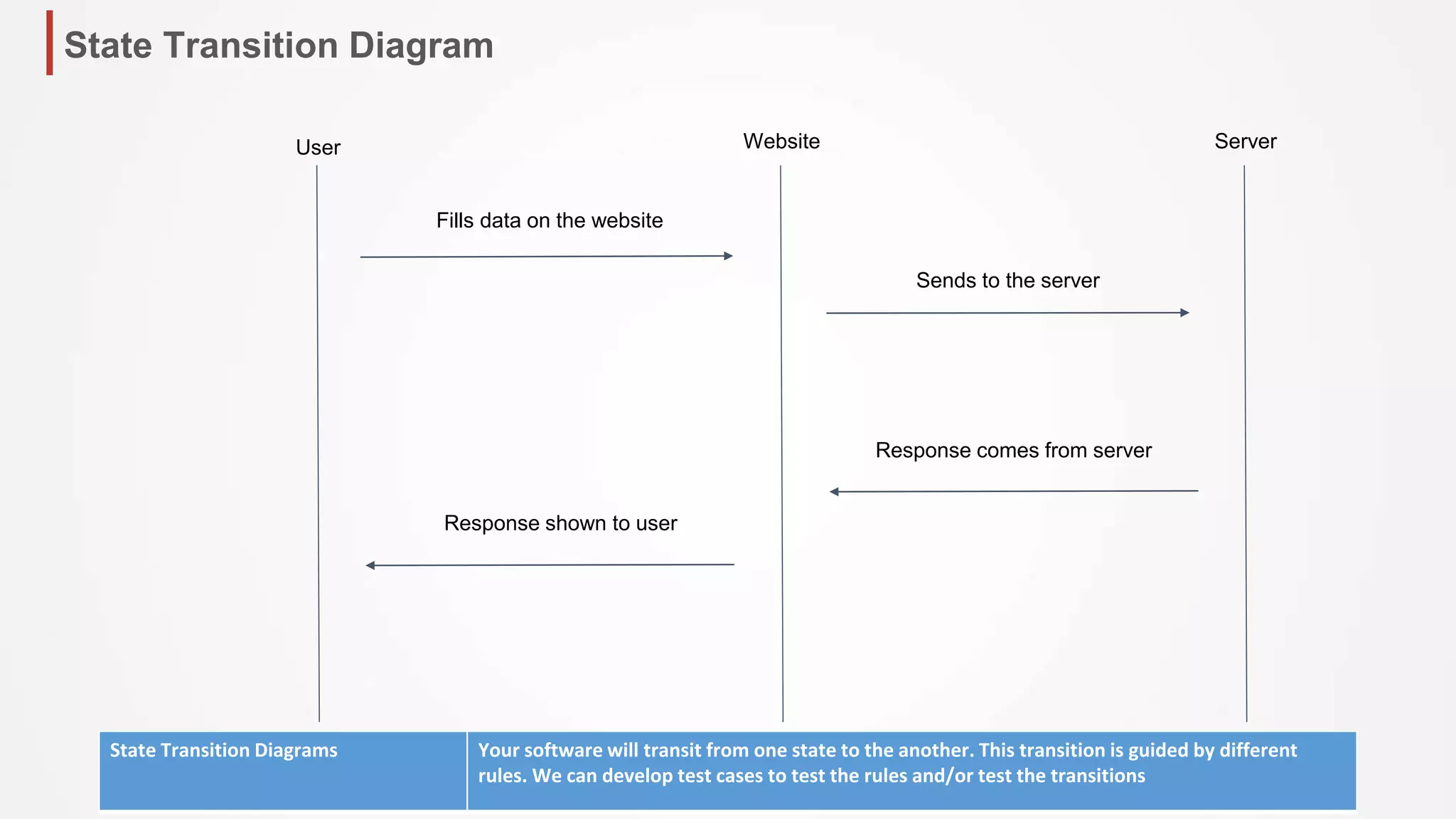

18. State Transition Diagram
User Website Server
Fills data on the website
Sends to the server
Response comes from server
Response shown to user
State Transition Diagrams Your software will transit from one state to the another. This transition is guided by different
rules. We can develop test cases to test the rules and/or test the transitions

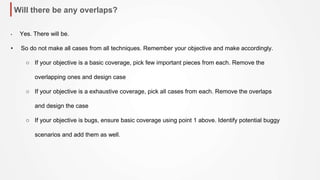

19. Will there be any overlaps?
• Yes. There will be.
• So do not make all cases from all techniques. Remember your objective and make accordingly.
○ If your objective is a basic coverage, pick few important pieces from each. Remove the
overlapping ones and design case
○ If your objective is a exhaustive coverage, pick all cases from each. Remove the overlaps
and design the case
○ If your objective is bugs, ensure basic coverage using point 1 above. Identify potential buggy
scenarios and add them as well.

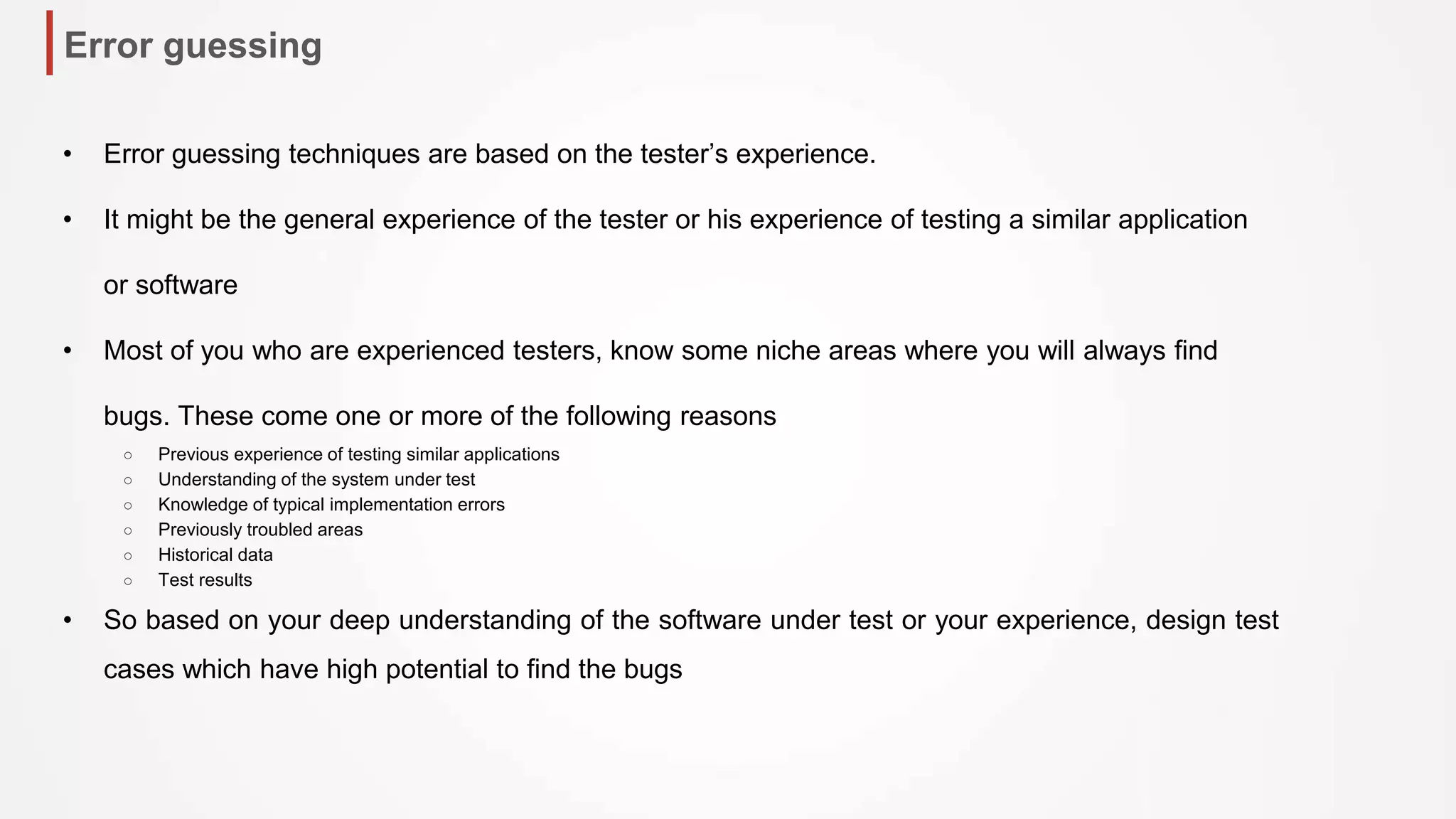

20. Error guessing
• Error guessing techniques are based on the tester’s experience.
• It might be the general experience of the tester or his experience of testing a similar application
or software
• Most of you who are experienced testers, know some niche areas where you will always find
bugs. These come one or more of the following reasons
○ Previous experience of testing similar applications
○ Understanding of the system under test
○ Knowledge of typical implementation errors
○ Previously troubled areas
○ Historical data
○ Test results
• So based on your deep understanding of the software under test or your experience, design test
cases which have high potential to find the bugs

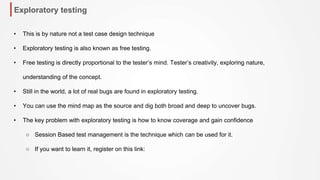

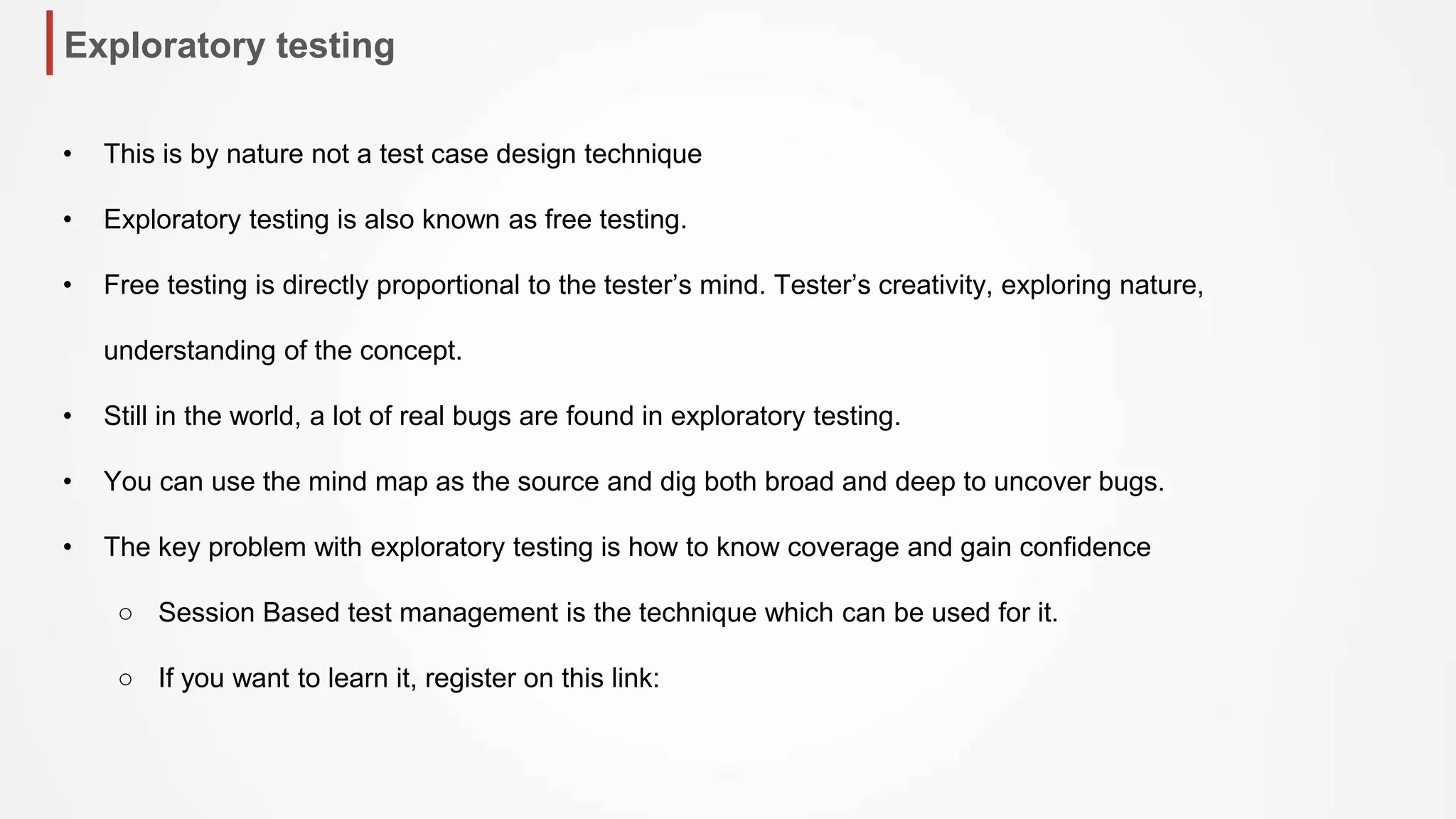

21. Exploratory testing
• This is by nature not a test case design technique
• Exploratory testing is also known as free testing.
• Free testing is directly proportional to the tester’s mind. Tester’s creativity, exploring nature,
understanding of the concept.
• Still in the world, a lot of real bugs are found in exploratory testing.
• You can use the mind map as the source and dig both broad and deep to uncover bugs.
• The key problem with exploratory testing is how to know coverage and gain confidence
○ Session Based test management is the technique which can be used for it.
○ If you want to learn it, register on this link:

22. Test cases are designed, what
next?

23. Optimization
• When a feature or module or software is new, it will have more check-ins. So test case might
need to run multiple times in a test duration.
• However, when the feature or module or software gets stable, it might not need so many runs
and we can optimize both the number of cycles and also the test case#
• Consider a module which has 100 test cases the number of checkins in each month as below
**Note: This is not a thumb rule, this depends purely on the business requirement in your organization

24. Chat with me
a@gargashutosh.com
+919810134649
www.gargashutosh.com

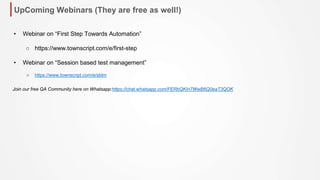

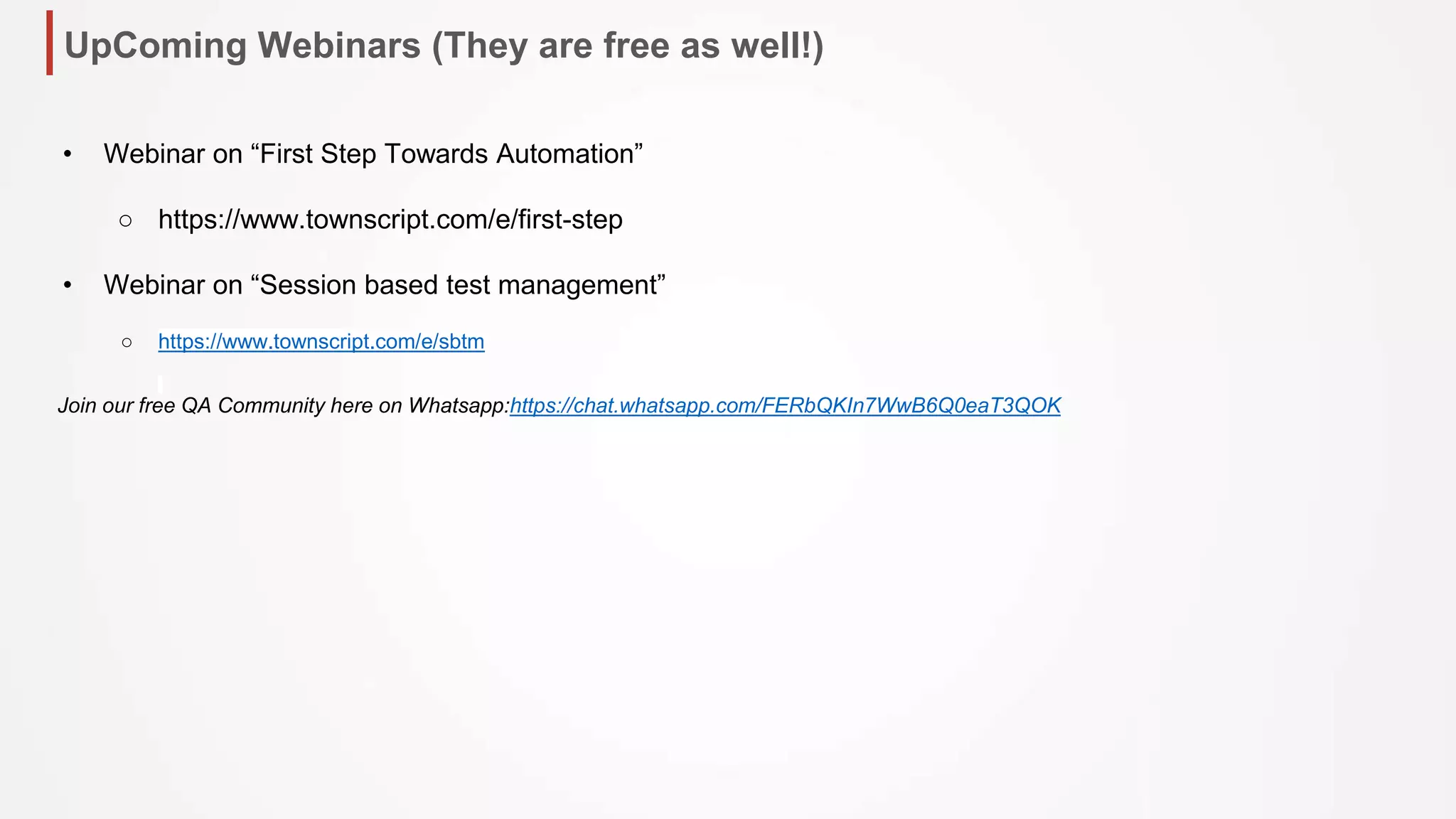

25. UpComing Webinars (They are free as well!)
