1. Q2 2016 Mainstream Products -
Applications and New Product Update

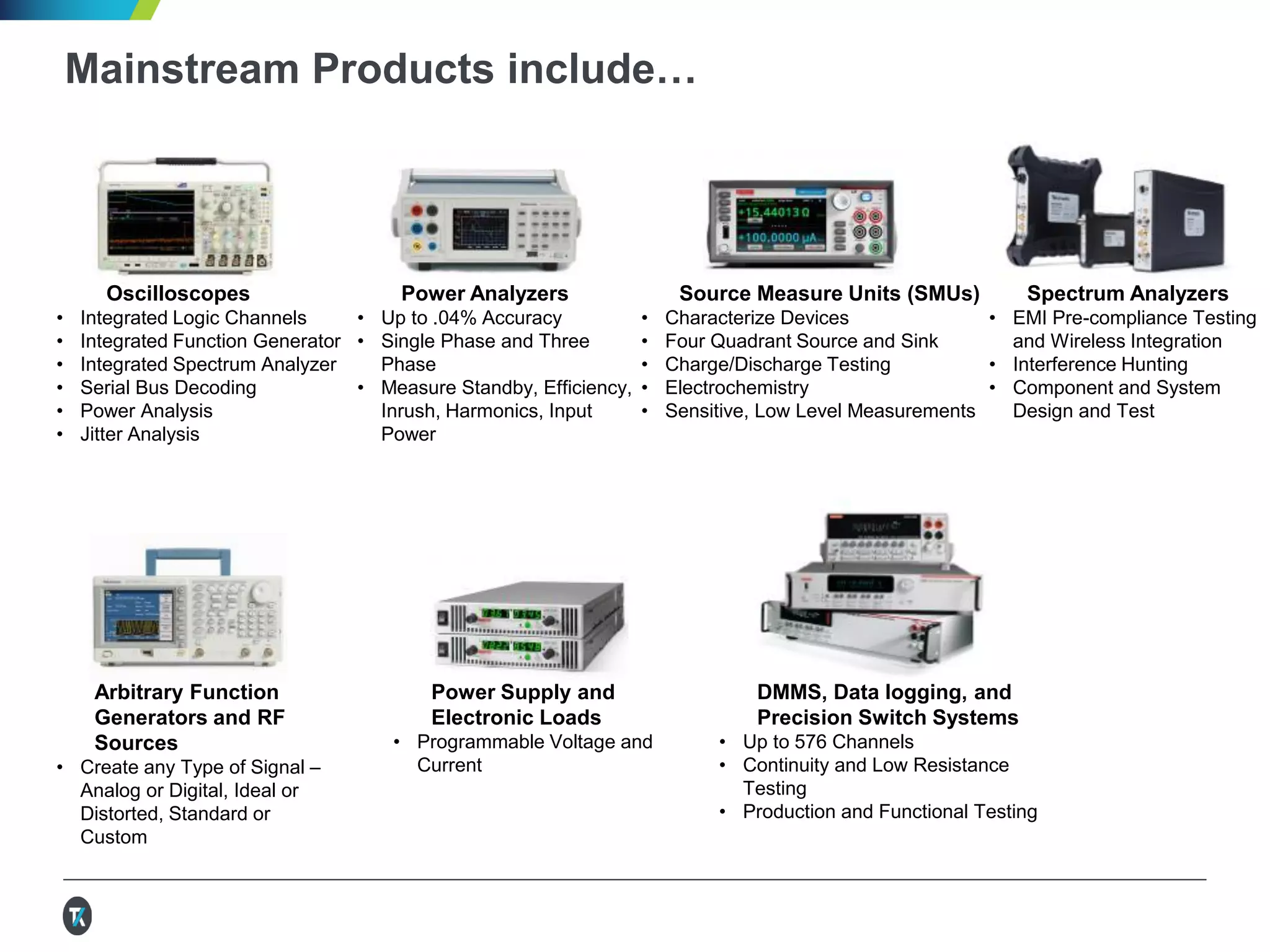

2. Mainstream Products include…
Oscilloscopes
• Integrated Logic Channels
• Integrated Function Generator
• Integrated Spectrum Analyzer
• Serial Bus Decoding
• Power Analysis
• Jitter Analysis
• Wide Range of Probes
Power Analyzers
• Up to .04% Accuracy
• Single Phase and Three
Phase
• Measure Standby, Efficiency,
Inrush, Harmonics, Input
Power
Source Measure Units (SMUs)
• Characterize Devices
• Four Quadrant Source and Sink
• Charge/Discharge Testing
• Electrochemistry
• Sensitive, Low Level Measurements
Arbitrary Function
Generators and RF
Sources
• Create any Type of Signal –
Analog or Digital, Ideal or
Distorted, Standard or
Custom
Spectrum Analyzers
• EMI Pre-compliance Testing
and Wireless Integration
• Interference Hunting
• Component and System
Design and Test
Power Supplies and
Electronic Loads
• Programmable Voltage and
Current
DMMs, Data logging, and
Precision Switch Systems
• Up to 576 Channels
• Continuity and Low Resistance
Testing
• Production and Functional Testing

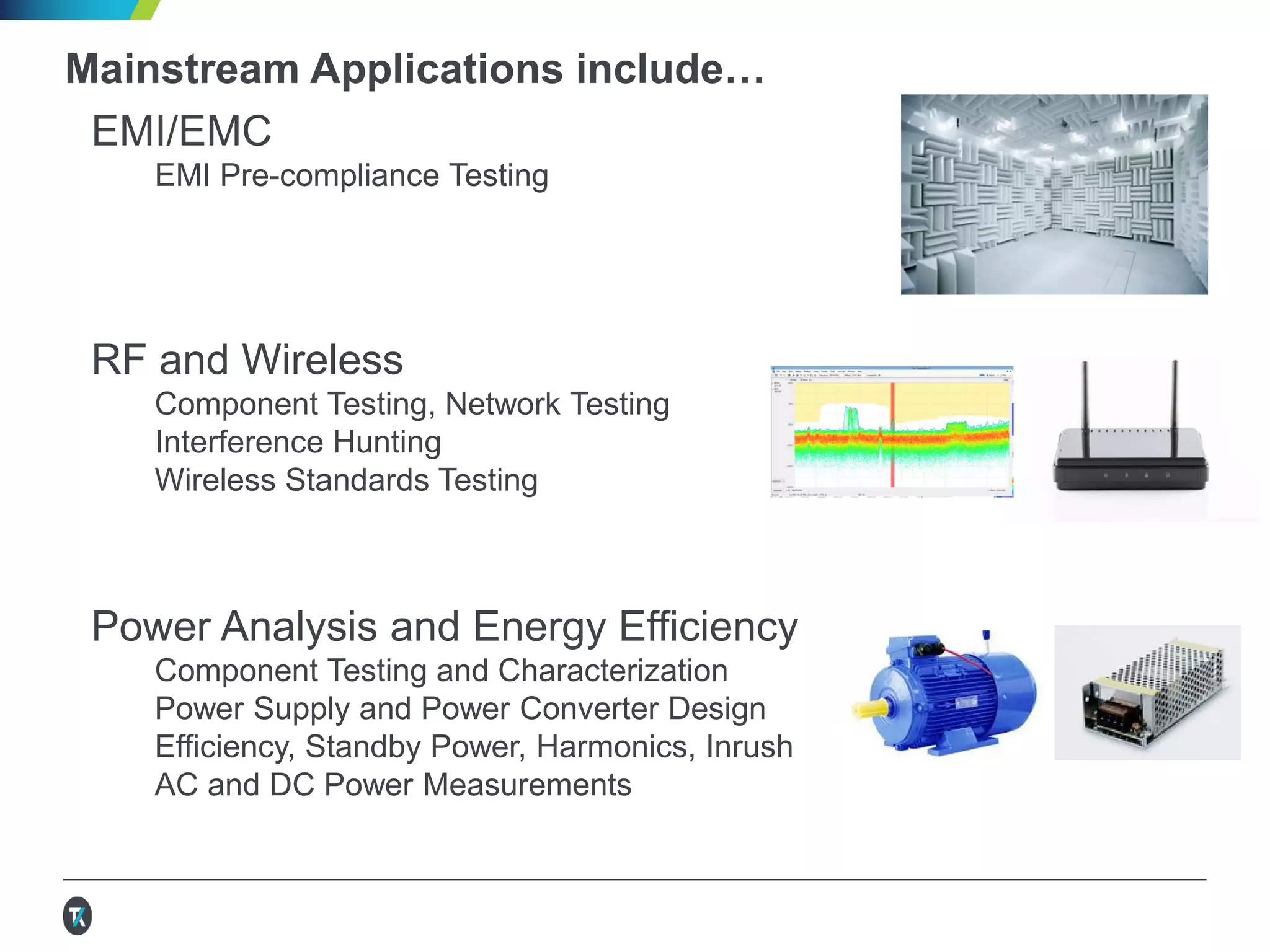

3. Mainstream Applications include…
EMI/EMC
EMI Pre-compliance Testing
RF and Wireless
Component Testing, Network Testing
Interference Hunting
Wireless Standards Testing
IoT Device and Sensor Testing
Design and Test of MEMs and other Sensors
Low Level Power Consumption Analysis
Wireless Transmit and Receive
Battery Modeling, Simulation, Characterization
Semiconductor Device Design, Test,
and Characterization

4. Mainstream Applications include…
Power Analysis and Energy Efficiency
Component Testing and Characterization
Power Supply and Power Converter Design
Efficiency, Standby Power, Harmonics, Inrush
AC and DC Power Measurements
Data Acquisition, Switching, and Control
Data Analysis
Serial Bus Protocol Decode and Debug
Jitter Analysis
Compliance Testing
Materials Science
Electrochemistry
Resistivity and Conductivity
Ultra-Low Measurements

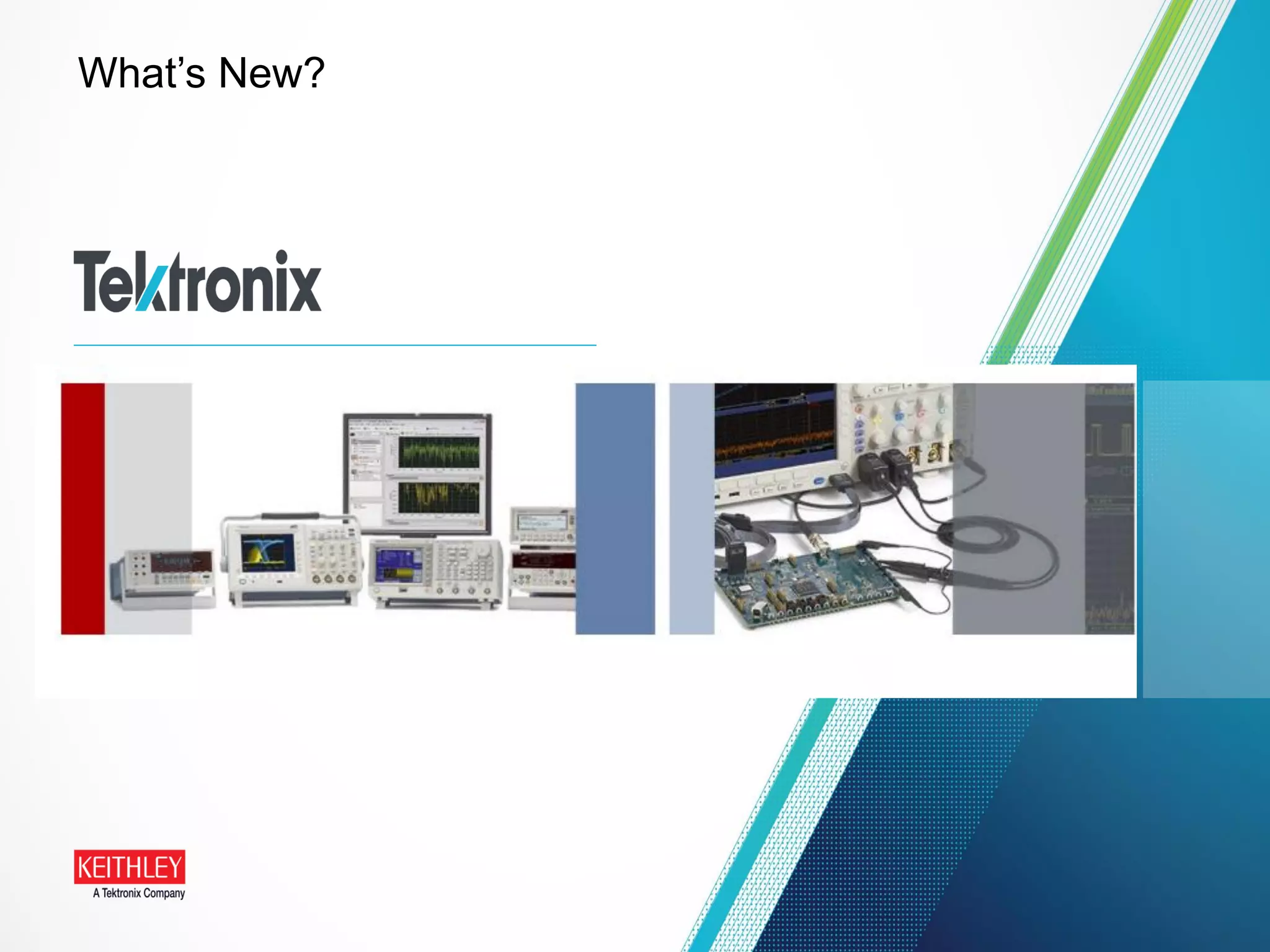

5. What’s New?

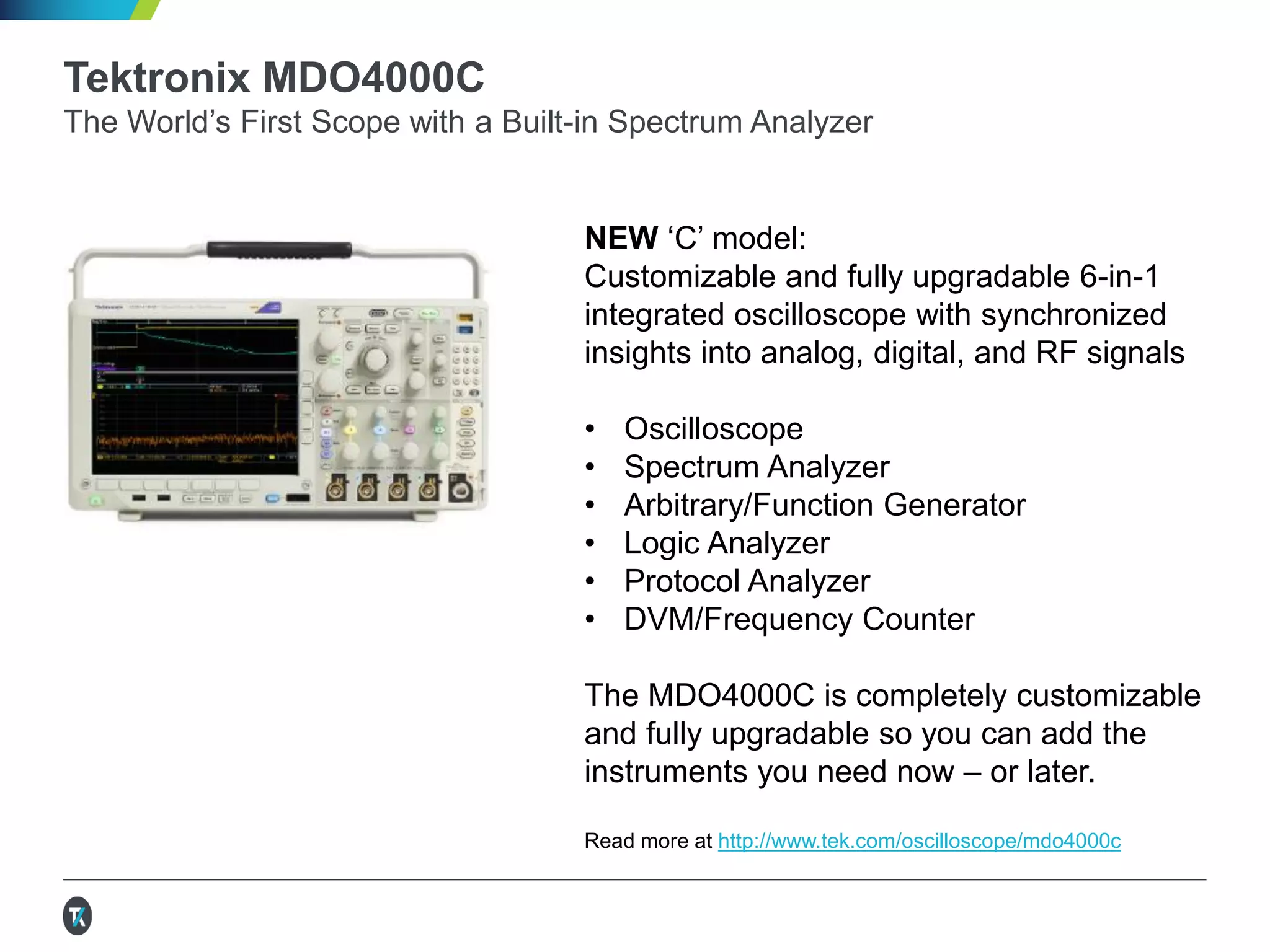

6. Tektronix MDO4000C
The World’s First Scope with a Built-in Spectrum Analyzer
NEW ‘C’ model:
Customizable and fully upgradable 6-in-1
integrated oscilloscope with synchronized
insights into analog, digital, and RF signals
• Oscilloscope
• Spectrum Analyzer
• Arbitrary/Function Generator
• Logic Analyzer
• Protocol Analyzer
• DVM/Frequency Counter
The MDO4000C is completely customizable
and fully upgradable so you can add the
instruments you need now – or later.
Read more at http://www.tek.com/oscilloscope/mdo4000c

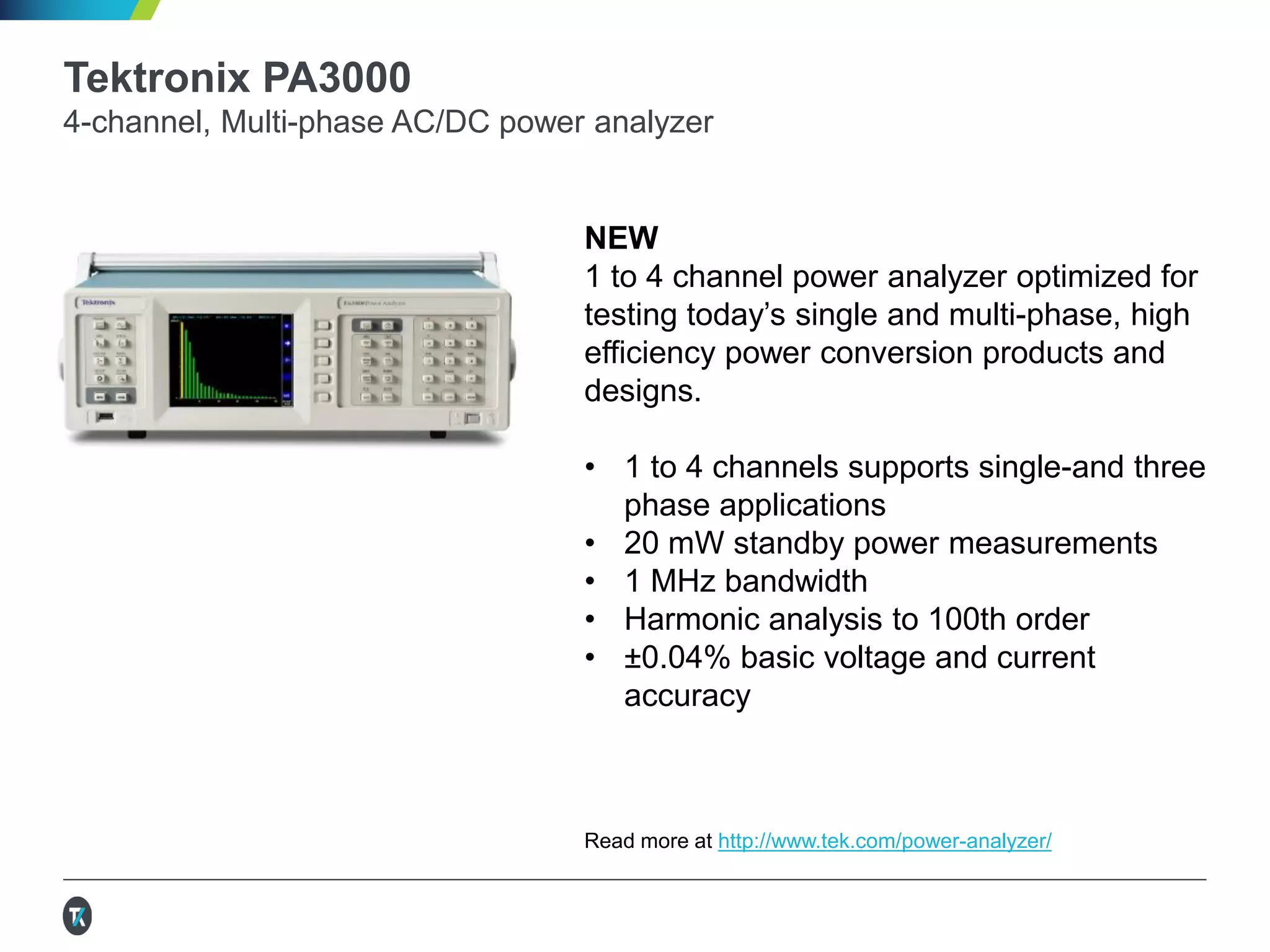

7. Tektronix PA3000
4-channel, Multi-phase AC/DC power analyzer
NEW
1 to 4 channel power analyzer optimized for
testing today’s single and multi-phase, high
efficiency power conversion products and
designs.
• 1 to 4 channels supports single-and three
phase applications
• 20 mW standby power measurements
• 1 MHz bandwidth
• Harmonic analysis to 100th order
• ±0.04% basic voltage and current
accuracy
Read more at http://www.tek.com/power-analyzer/

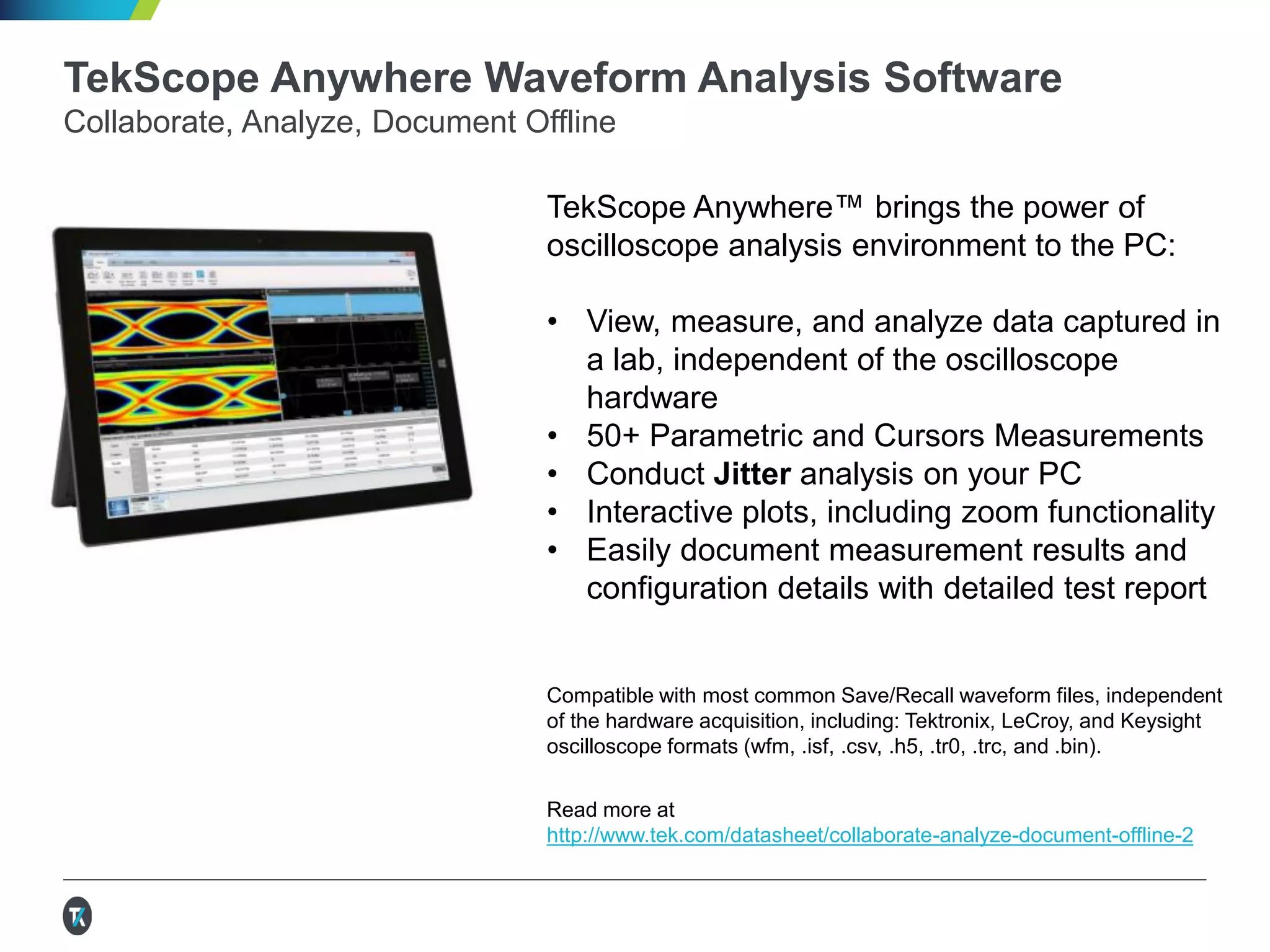

8. TekScope Anywhere Waveform Analysis Software
Collaborate, Analyze, Document Offline
TekScope Anywhere™ brings the power of
oscilloscope analysis environment to the PC:
• View, measure, and analyze data captured in
a lab, independent of the oscilloscope
hardware
• 50+ Parametric and Cursors Measurements
• Conduct Jitter analysis on your PC
• Interactive plots, including zoom functionality
• Easily document measurement results and
configuration details with detailed test report
Compatible with most common Save/Recall waveform files, independent
of the hardware acquisition, including: Tektronix, LeCroy, and Keysight
oscilloscope formats (wfm, .isf, .csv, .h5, .tr0, .trc, and .bin).
Read more at
http://www.tek.com/datasheet/collaborate-analyze-document-offline-2

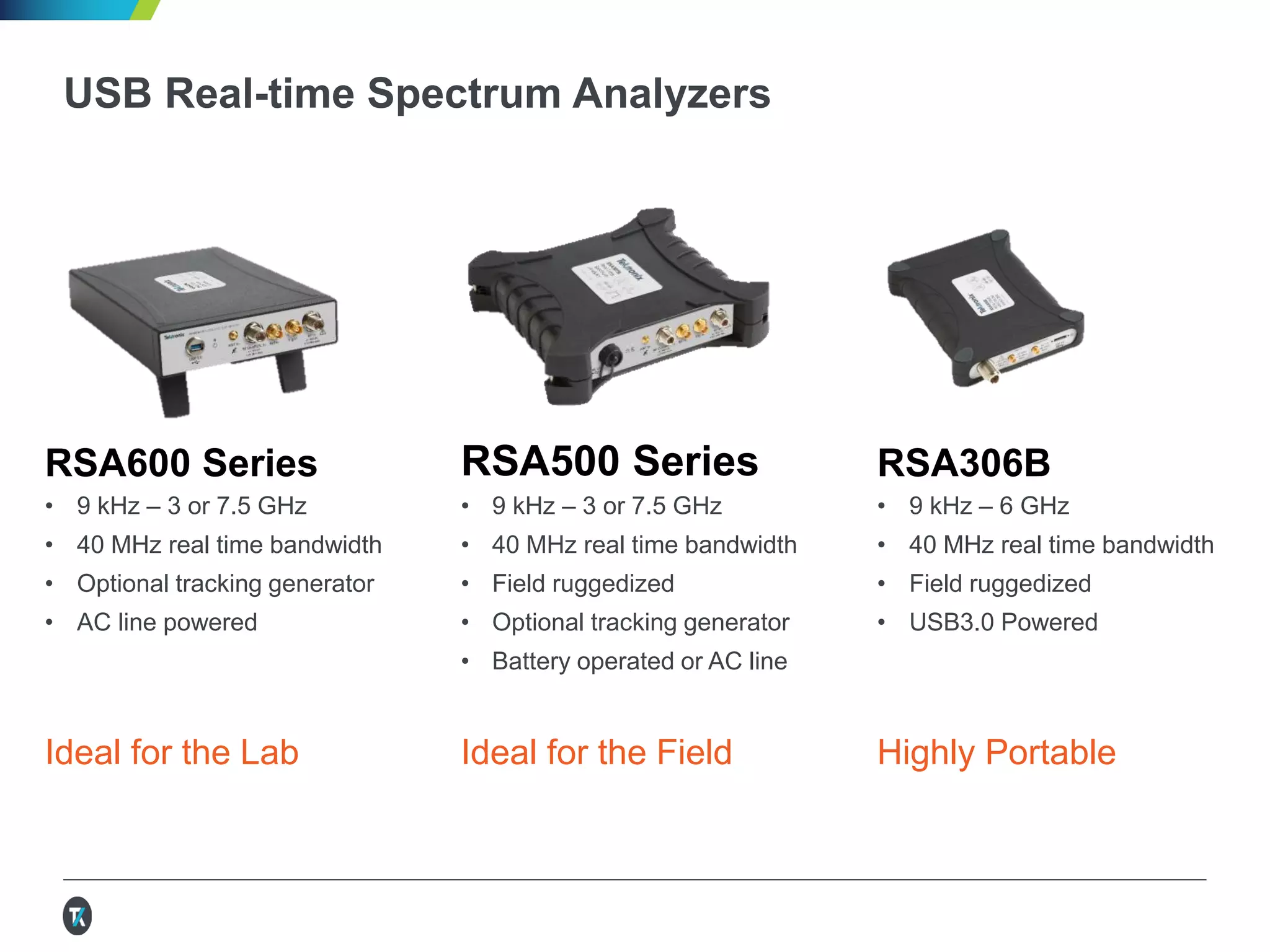

9. USB Real-time Spectrum Analyzers
RSA500 Series
• 9 kHz – 3 or 7.5 GHz
• 40 MHz real time bandwidth
• Field ruggedized
• Optional tracking generator
• Battery operated or AC line
RSA600 Series
• 9 kHz – 3 or 7.5 GHz
• 40 MHz real time bandwidth
• Optional tracking generator
• AC line powered
RSA306B
• 9 kHz – 6 GHz
• 40 MHz real time bandwidth
• Field ruggedized
• USB3.0 Powered
Ideal for the Lab Ideal for the Field Highly Portable

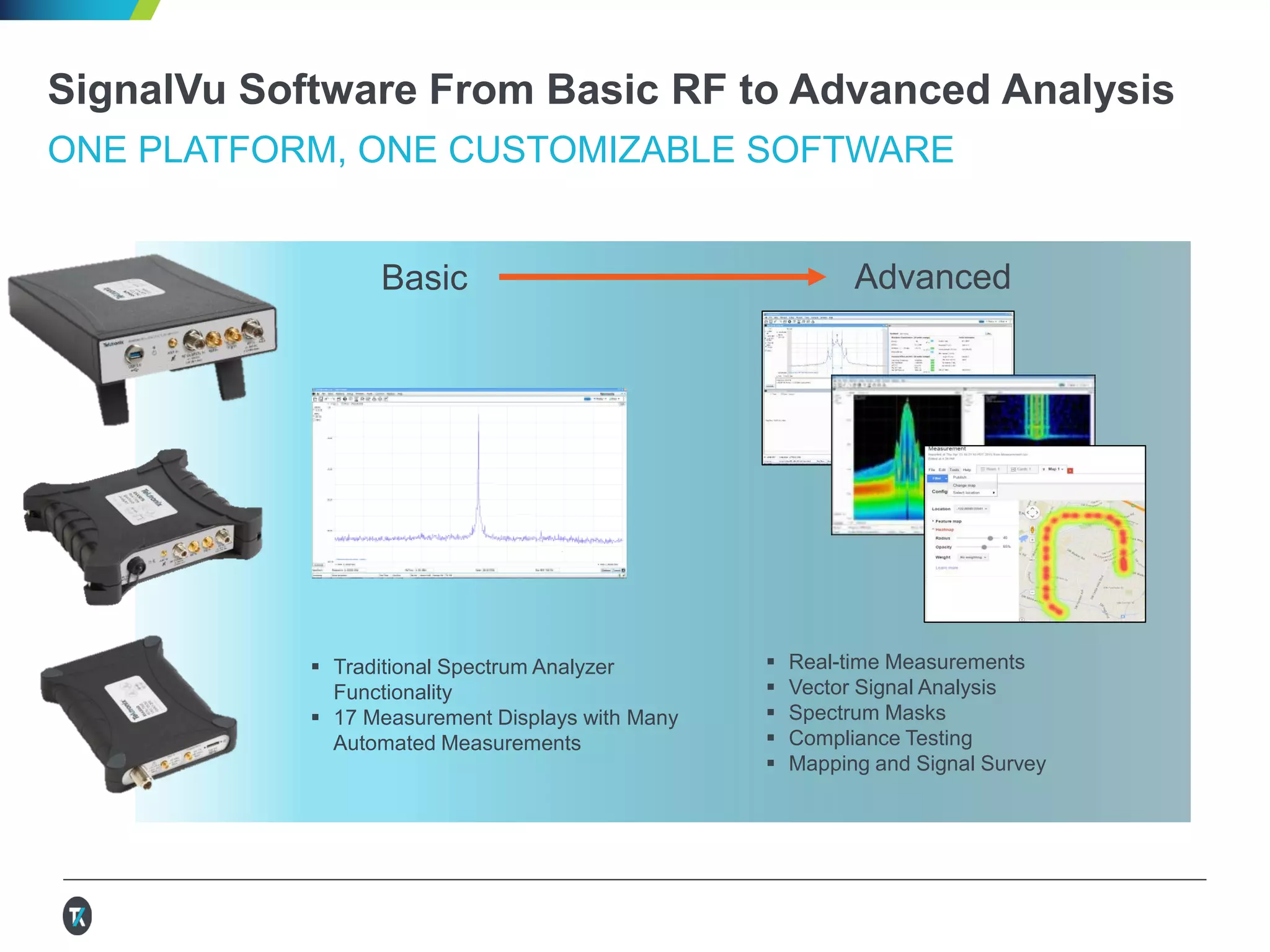

10. SignalVu Software From Basic RF to Advanced Analysis
ONE PLATFORM, ONE CUSTOMIZABLE SOFTWARE
 Traditional Spectrum Analyzer
Functionality
 17 Measurement Displays with Many
Automated Measurements
 Real-time Measurements
 Vector Signal Analysis
 Spectrum Masks
 Compliance Testing
 Mapping and Signal Survey
Basic Advanced

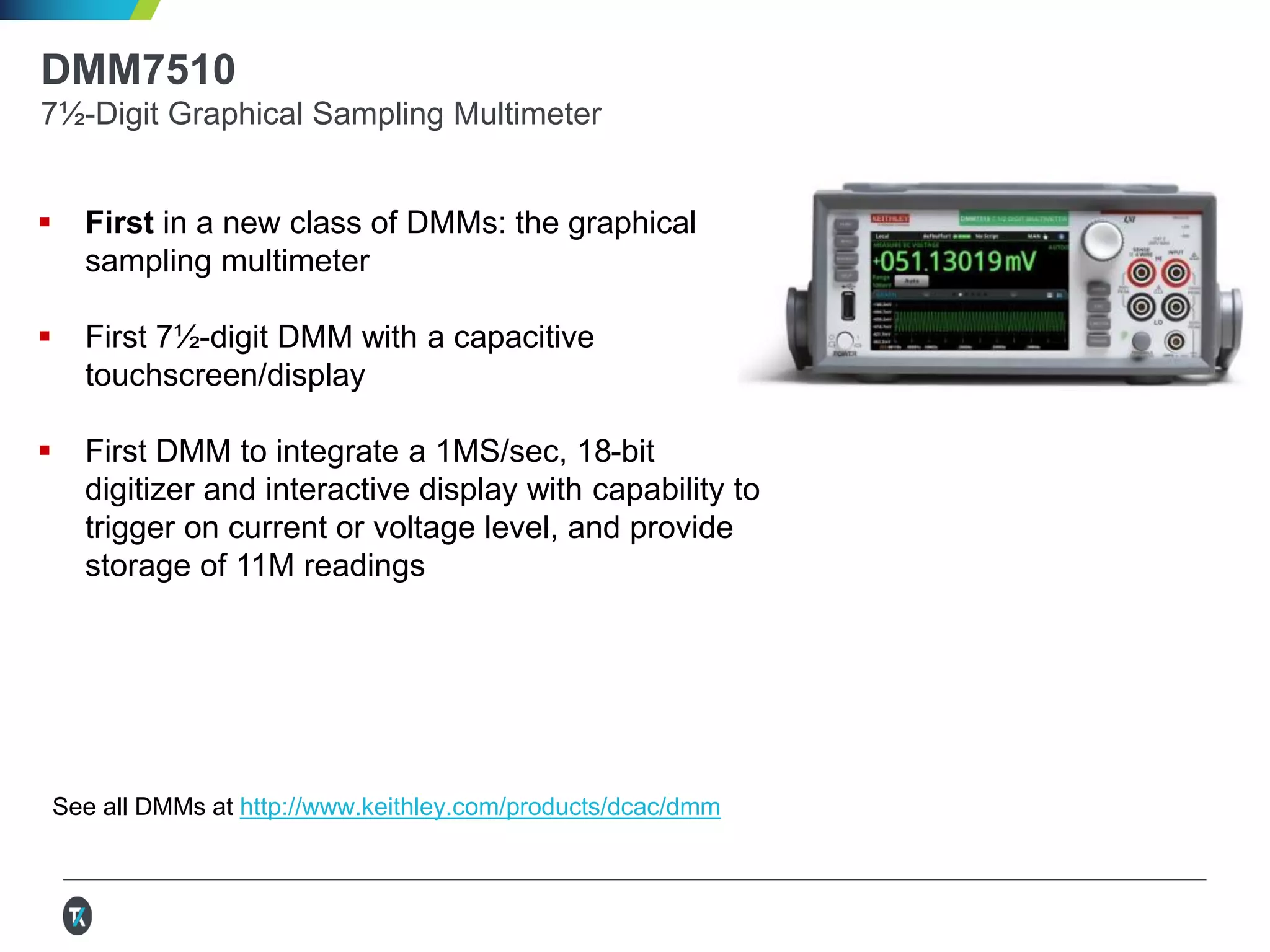

11. DMM7510
7½-Digit Graphical Sampling Multimeter
 First in a new class of DMMs: the graphical
sampling multimeter
 First 7½-digit DMM with a capacitive
touchscreen/display
 First DMM to integrate a 1MS/sec, 18-bit
digitizer and interactive display with capability to
trigger on current or voltage level, and provide
storage of 11M readings
See all DMMs at http://www.keithley.com/products/dcac/dmm

12. 2281S Battery Simulator and Precision DC Power Supply
 Create a complete battery model during
battery testing
 Precision DC power supply, with DMM-quality
high resolution, low current measurements
capability
 Optimized performance for production tests
Read more about the 2281S at
http://www.tek.com/dc-power-supply/series-2281s-battery-simulator

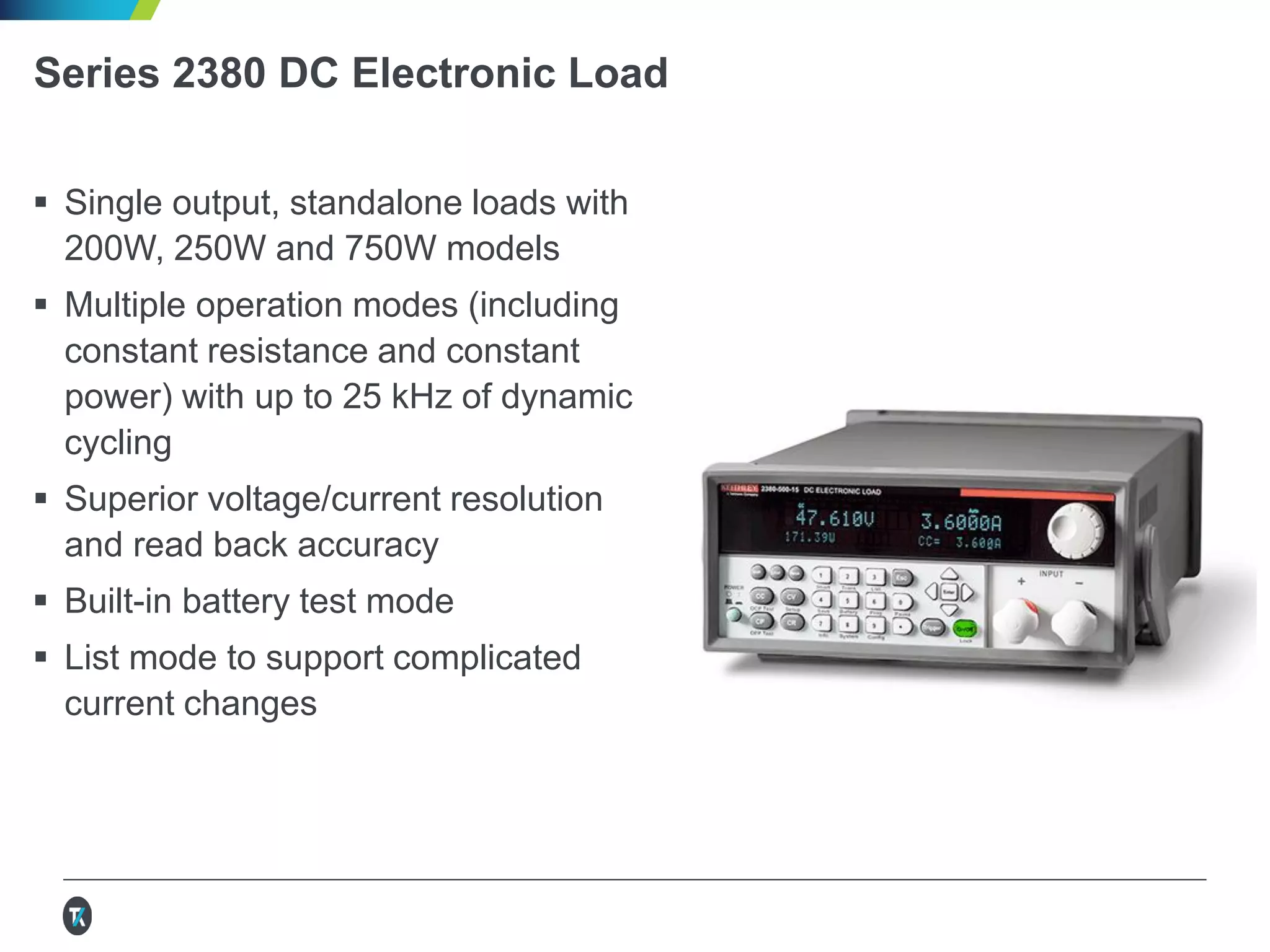

13. Series 2380 DC Electronic Load
 Single output, standalone loads with
200W, 250W and 750W models
 Multiple operation modes (including
constant resistance and constant
power) with up to 25 kHz of dynamic
cycling
 Superior voltage/current resolution
and read back accuracy
 Built-in battery test mode
 List mode to support complicated
current changes

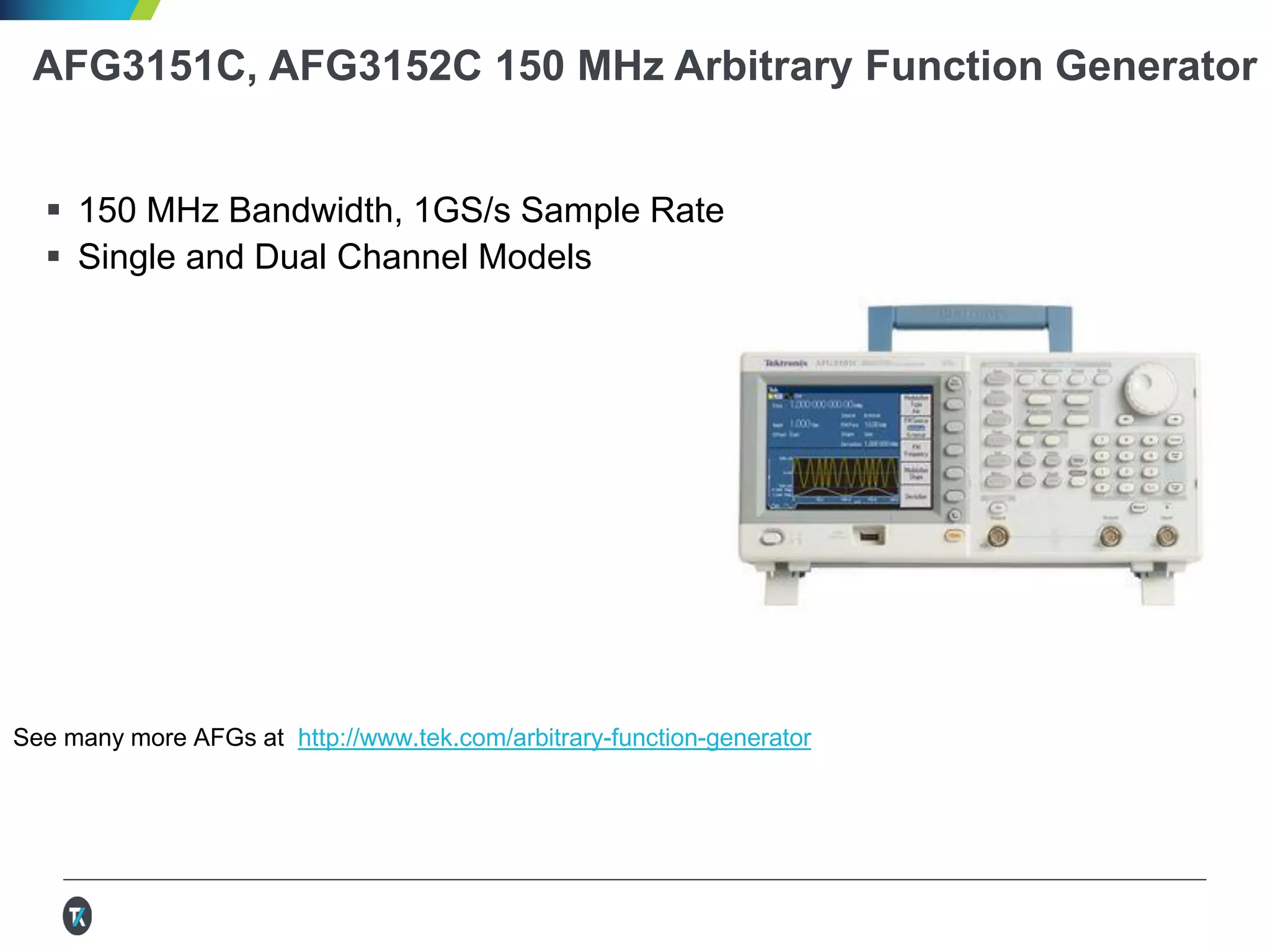

14. AFG3151C, AFG3152C 150 MHz Arbitrary Function Generator
 150 MHz Bandwidth, 1GS/s Sample Rate
 Single and Dual Channel Models
See many more AFGs at http://www.tek.com/arbitrary-function-generator

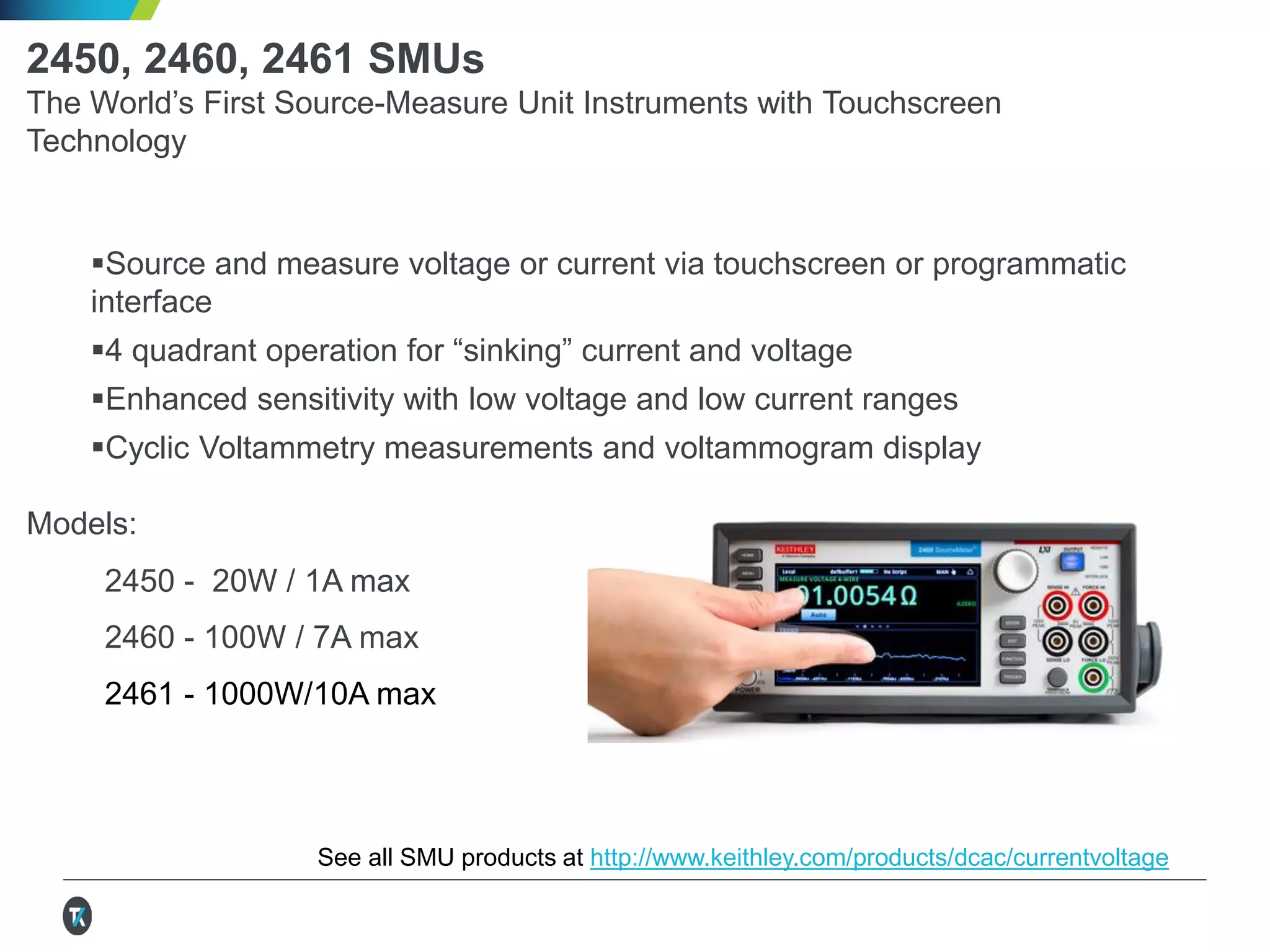

15. 2450, 2460, 2461 SMUs
The World’s First Source-Measure Unit Instruments with Touchscreen
Technology
Source and measure voltage or current via touchscreen or programmatic
interface
4 quadrant operation for “sinking” current and voltage
Enhanced sensitivity with low voltage and low current ranges
Cyclic Voltammetry measurements and voltammogram display
Models:
2450 - 20W / 1A max
2460 - 100W / 7A max
2461 - 1000W/10A max
See all SMU products at http://www.keithley.com/products/dcac/currentvoltage

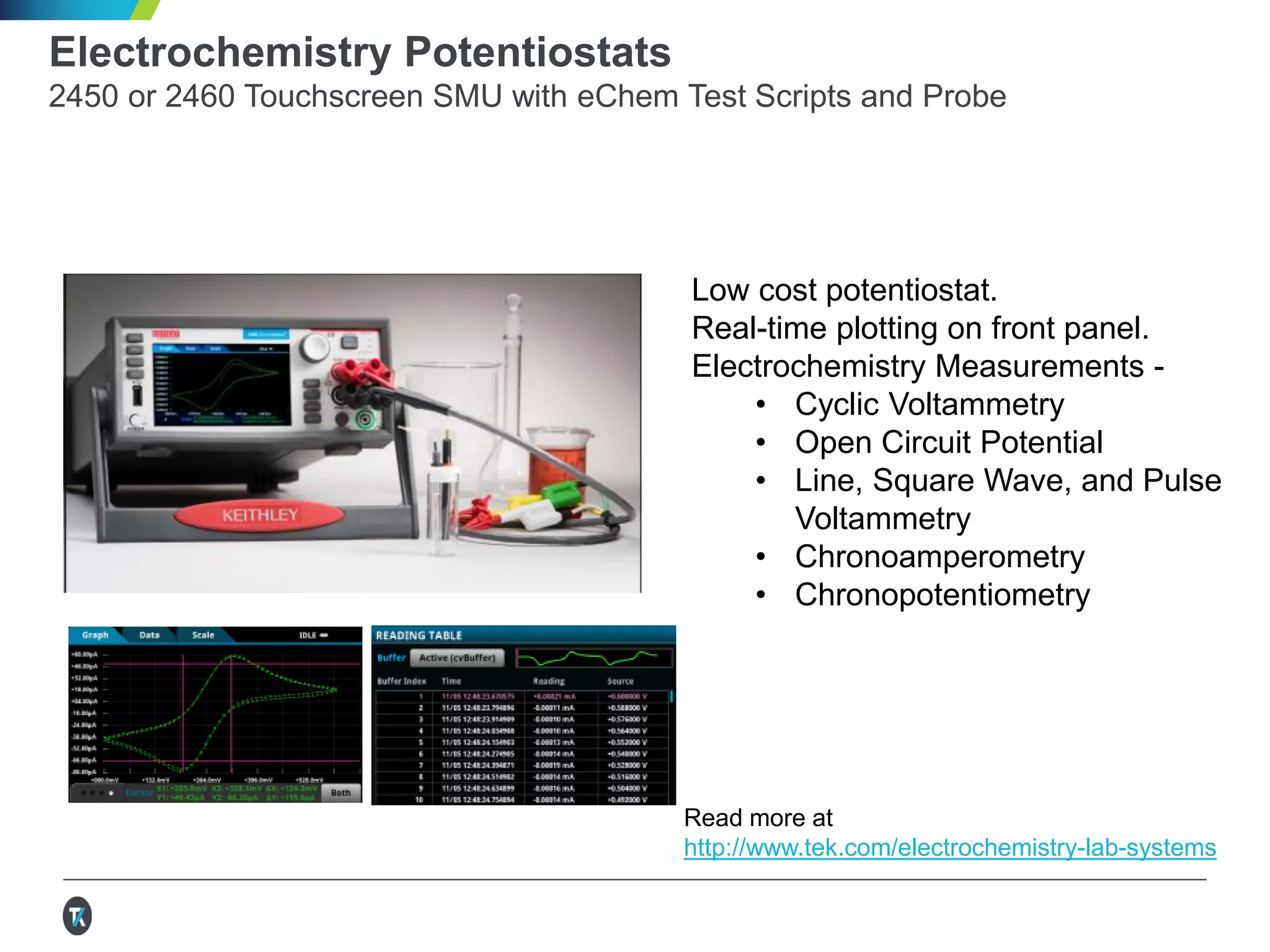

16. Low cost potentiostat.
Real-time plotting on front panel.
Electrochemistry Measurements -
• Cyclic Voltammetry
• Open Circuit Potential
• Line, Square Wave, and Pulse
Voltammetry
• Chronoamperometry
• Chronopotentiometry
Electrochemistry Potentiostats
2450 or 2460 Touchscreen SMU with eChem Test Scripts and Probe
Read more at
http://www.tek.com/electrochemistry-lab-systems

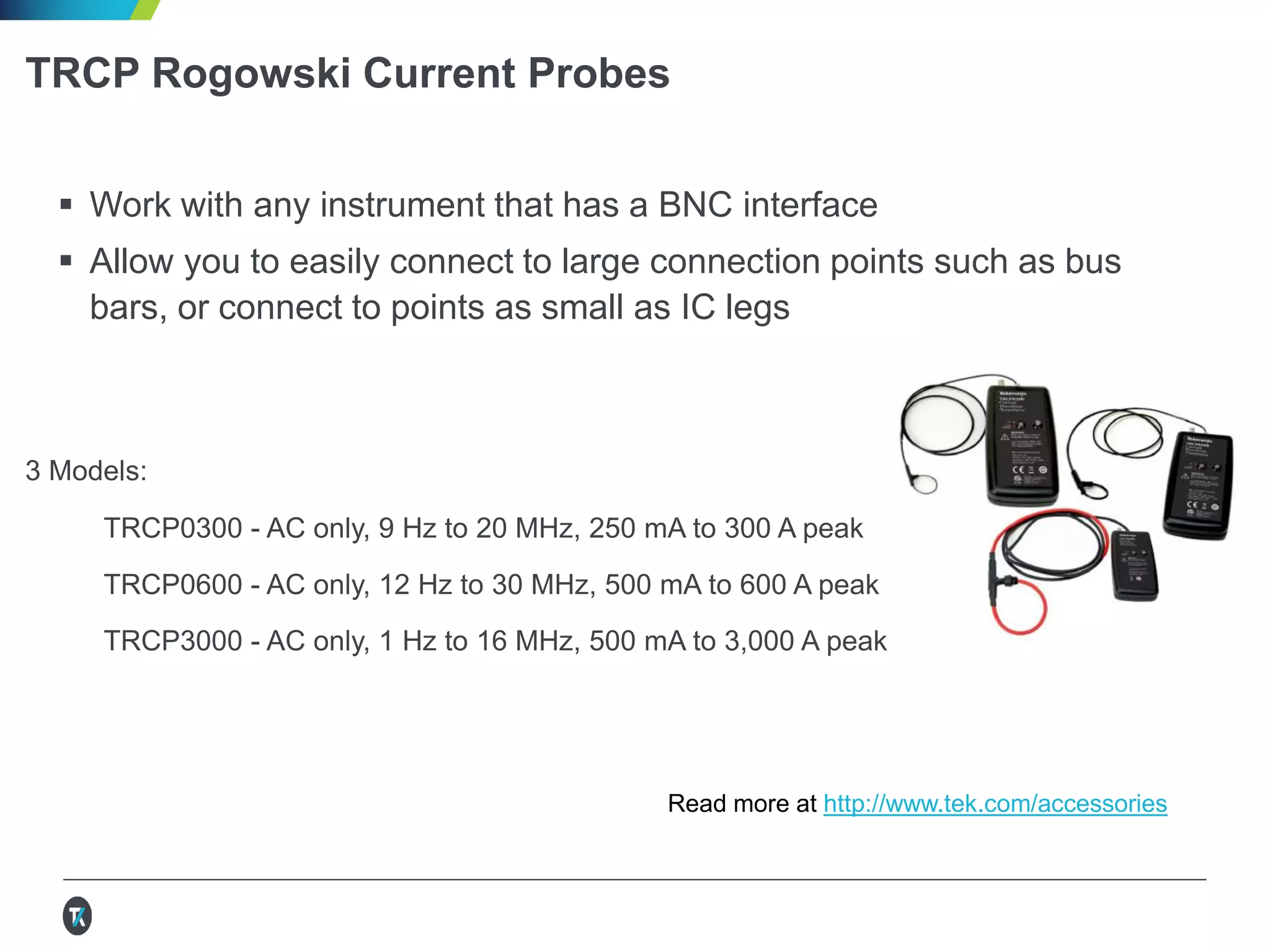

17. TRCP Rogowski Current Probes
 Work with any instrument that has a BNC interface
 Allow you to easily connect to large connection points such as bus
bars, or connect to points as small as IC legs
3 Models:
TRCP0300 - AC only, 9 Hz to 20 MHz, 250 mA to 300 A peak
TRCP0600 - AC only, 12 Hz to 30 MHz, 500 mA to 600 A peak
TRCP3000 - AC only, 1 Hz to 16 MHz, 500 mA to 3,000 A peak
See more current, differential, active and passive probes at http://www.tek.com/probes

18. Let me know how I can help you succeed.
Jeff Sable
Mainstream Sales Manager – New England
I manage sales of Tektronix and Keithley products through our distribution partners throughout New England.
