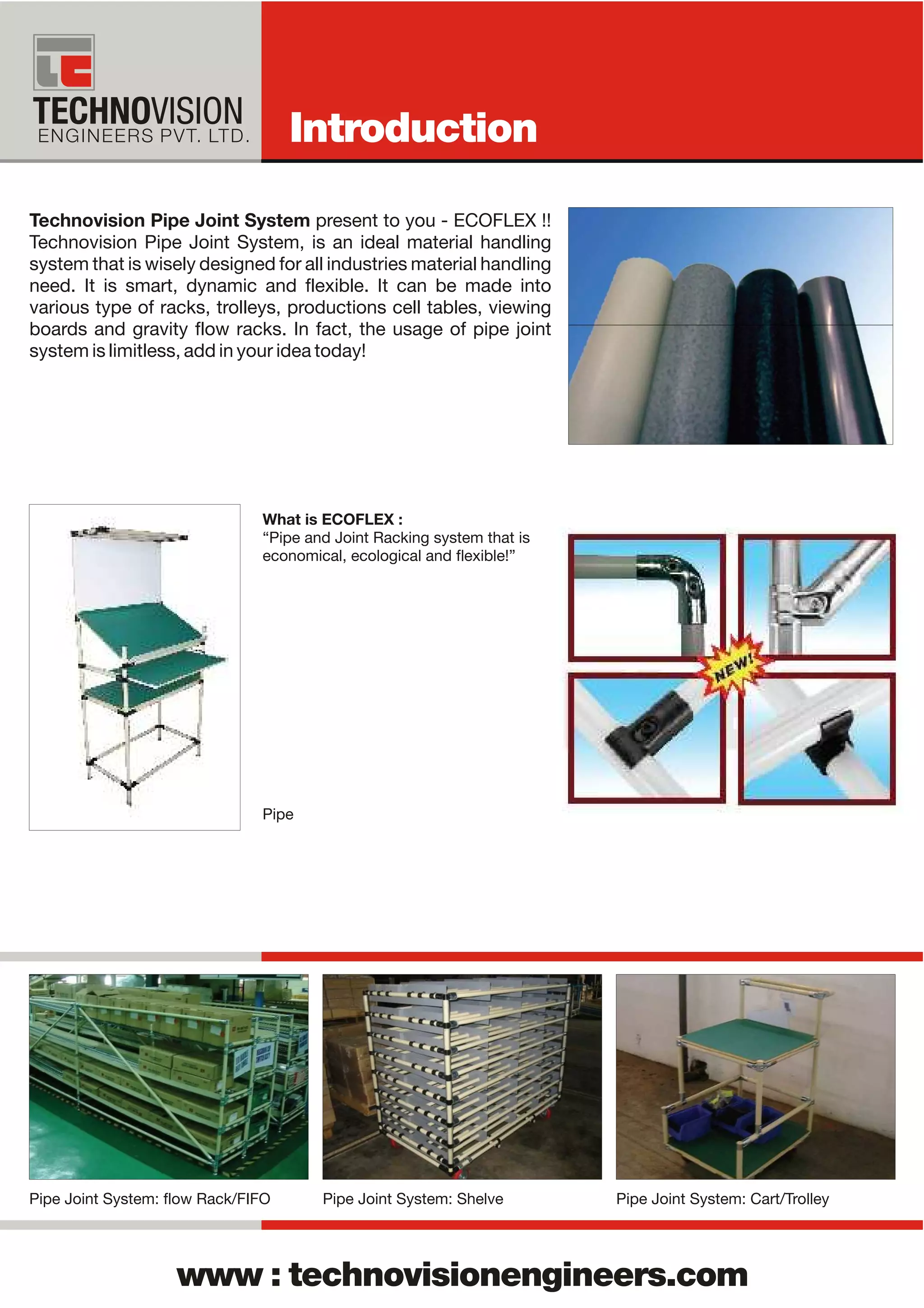

Technovision Pipe Joint System present to you - ECOFLEX !!
Technovision Pipe Joint System, is an ideal material handling
system that is wisely designed for all industries material handling
need. It is smart, dynamic and flexible. It can be made into
various type of racks, trolleys, productions cell tables, viewing
boards and gravity flow racks. In fact, the usage of pipe joint
system is limitless, add in your idea today!
Introduction
What is ECOFLEX :
“Pipe and Joint Racking system that is
economical, ecological and flexible!”
Pipe
Pipe Joint System: flow Rack/FIFO Pipe Joint System: Shelve Pipe Joint System: Cart/Trolley
www : technovisionengineers.com

An ISO 9001 Company
ENGINEERS PVT. LTD. Pipe
1. S-ECO pipes and S-ECO-ESD pipes (NEW!!)
S-ECO-ESD pipe is designed to prevent damage to an electrostatic discharge
sensitive device (ESDS) and to reduce secondary reject rate in shop floor. With
a stable surface resistivity of 107Ù, and a hardenuneven surface, S-ECO-ESD
pipe is suitable to be used in a clean room environment especially for semi-
conductor and electronic industry.
ECOFLEXS-ECO
pipe is a special formulated powder-coated-pipe, utilizing the powder coating
technology. It is fully recyclable, light, and environmental friendly. Unlike other
powder-coated-pipe, S-ECO pipe is fully hardened and it has high resistance
against impact and scratches. The most innovative uneven-surface-texture is
proven to increase the metal joint gripping power by 15%!! S-ECO pipe is really
ECO-nomical as it is cheaper than ABS coated pipe too.
S-ECO pipe : Most innovative pipes
in the industry, with fully hardened
uneven surface that proven to
increase scratch resistance and
gripping power.
Key Features of S-ECO & S-ECO-ESD Pipes:
• Environmental friendly
• Economical
• High scratch resistance
• Strong gripping power
• Available in various colors
MATERIAL
STEEL THICKNESS
OUTER DIAMETER
STANDARD LENGTH
COATING MATERIAL
COLOR AVAILABLE
COLD STRIP STEEL PLATE, SPCC-B1, powder-coated
0.8 mm, 1.2mm
Ø28mm
*4 meter
Powder or ESD powder
*IVORY, GREY, GREEN, BLUE , RED, BLACK

An ISO 9001 Company
Technovision Stainless Steel Pipe (SUS pipe) is made
with High Grade austenitic stainless steel, which is
nonmagnetic and strong corrosion resistance.
Scratches on the surface will NOT lead to corrosion of
the steel underneath.
2. STAINLESS STEEL PIPE (SUS PIPE)
Key Features of Stainless Steel Pipe:
• Fully Recyclable
• Chemical Resistance
• Conductive
• Could be used in Hot/Cold Environment
• Environmental Friendly
• Corrosion Resistance
• Wear Resistance
Austenitic Stainless Steel Sheet with high nickel
and chromium contain
0.7 mm, 1.2mm
Ø28mm
4 meter
Non coated
Silver
MATERIAL
STEEL THICKNESS
OUTER DIAMETER
STANDARD LENGTH
COATING MATERIAL
COLOR AVAILABLE

An ISO 9001 Company
Technovision ABS coated pipe, is SPCC-B1 steel pipe coated
with ABS resin. This ABS coating prevent the pipes from rusting
and it provides excellent wear and impact resistance.
3. ABS Coated pipe
ABS Coated
Pipe
Stainless
Steel Pipe
S-ECO Pipe
MATERIAL
STEEL THICKNESS
OUTER DIAMETER
STANDARD LENGTH
COATING MATERIAL
COLOR AVAILABLE
COLD STRIP STEEL PLATE, SPCC-B1
coated with ABS resin (1mm thickness)
0.7 mm, 1.0mm, 2.0mm
Ø28mm
*4 meter
ABS RESIN, ESD RESIN
*IVORY, GREY, GREEN, BLUE , RED

An ISO 9001 Company
ENGINEERS PVT. LTD.
Metal Joints
Pipe & Joint System
For Total Logistics System
ES-1
(E-1 + E-1)
ES-2
(E-2 + E-3)
ES-3
(E-2 + E-2 + E4)
ES-4
(E-4 + E4)
ES-5
(E-2 + E-2 + E-2 + E-2)
Metal Joints are metal components that link the pipes together. Available in ED Black (bk), zinc coating (Zn) and nickel
coating (Ni). Metal joints are locked with M6 bolt and T-nut, which could be tightened and un-tightened using an allen
key. This features enable the racks to be re-used and re-modified again and again.
ES-6
(E-6 + E-6)
ES-7
(E-7A + E-7A E-7B +E-7B )
ES-8
(E-8 + E-8)
ES-9
(E-9 + E-9)
ES-12
(E-12 + E-12 + Sleeve)
ES-1B
(E-1B + E-1B)
ES-6B
(E-6B + E-6B)
ES-11
(E-11 + E-11)
ES-13
(E-11 + E-11)
ES-14
(E-14 + E-14)
ES-15
(E-15A + E-15A)
ES-16
(E-16A + E-16A)
ES-18
(E-18 + E-18 +2 Sleeve)
ES-20
(E- + E-18 + E)

An ISO 9001 Company
ENGINEERS PVT. LTD.
Pipe & Joint System
Roller and Bracket
Roller Track is used to make Gravity Flow Rack, FIFO rack and other material
flowing application. It is a very important element in Technovision Pipe Joint
System. It is available in two size, 40mm wide roller, and 85 mm wide roller. The
standard length of roller track is 4 meter. Available in Normal (white) and ESD
(black).
From left :
1. Roller Track 40mm
2. Roller Track 40mm with guide
3. ESD Roller Track 40mm
4. Roller Track 85 mm
Roller Track 40mm Roller Track 40mm with guide Roller Track 85mm
1 2 3 4
Roller Bracket - GP Roller Bracket - GP-A Roller Bracket - GP-B
Roller Bracket - GP-C Roller Bracket - GP-C1 Roller Bracket - GP-D
Roller Bracket - GP-E Roller Bracket - GP-F Roller Bracket - GP-F

An ISO 9001 Company
ENGINEERS PVT. LTD.
Metal Accesories
Caster Mount CM-100
4 x cm - 100 for a caster
Caster Mount CM-200
4 x CM - 200 for a caster
Corner Metal CM - A Base Lock Metal
(Board Fixing Metal A)
ES-1
(E-1 + E-1)
ES-1
(E-1 + E-1)
New Accessories
Work Stopper
EWS-A
Tilt Bar
(use to put polybox after roller track)
Metal Inner Cap
(for S-Eco pipe, SUS pipe and ABS pipe)
Slide Pipe Accessories
Slide Bracket A Slide Bracket B Slide Bracket C
(Guide Metal) Slide Bracket D
Slide Bracket E
ES-1
(E-1 + E-1)
ES-1
(E-1 + E-1)
Metal Bushing
Adjuster Foot and Metal Bushing

An ISO 9001 Company
ENGINEERS PVT. LTD.
Metal Accesories
Other Metal Accessories
Pipe Hanging Metal
Guide Metal
(Slide Metal C)
Dividing Metal A Dividing Metal B
Corner Bumper (metal) Corner Bumper (Plastic) Hanging Metal A Hanging Metal B
Hanging Metal C
Shock Absorber
Support Metal Shock Absorber Pipe Linking Metal
Slide Rail Box Fixing Metal B Adjuster with
rubber pad
Pipe Lock Metal Overlap Cap
Vertical Opening/ Shutting
Link Metal (Similar to ES-16)
Vertical Opening/
Shutting Hanging Metal
Other Metal Accessories

An ISO 9001 Company
ENGINEERS PVT. LTD. Plastic Accessories
Plastic Joint GAP-01
Ivory/Black
Plastic Joint GAP-02A
Ivory/Black
Plastic Joint GAP-02B
Ivory/Black
Ivory/Black
Plastic Joint
* Bond/Glue is needed for using plastic joint
Plastic Cap
Universal Inner Cap
(CAP-01) Ivory/Black
Outer Cap (CAP-03)
Ivory/Black
Ivory/Black
(Cable/label holder)
Ivory/Black
(plastic base locker)
Ivory/Black
(Horizontal Leveler)
Ivory/Black
(Horizontal Leveler with taper edge)
Plastic Divider
Plastic Divider (Short)
Ivory/Black
Plastic Divider (Long)
Ivory/Black
Plastic Divider (Center)
Ivory/Black
Flexible Plastic Locker
Ivory/Black
(Flexible Locker)
Ivory/Black
Ivory/Black
Plastic Joint J-49
Ivory/Black

An ISO 9001 Company
ENGINEERS PVT. LTD. Plastic Channels
Plastic Channels are mainly used for making guide and partition. It can also be used as a protection against impact sensitive
goods.

An ISO 9001 Company
ENGINEERS PVT. LTD.
1. What is Technovision Pipe Joint System?
Technovision Pipe Joint System, is an ideal material handling system that is wisely designed for all
industries material handling need. It is smart, dynamic and flexible. It can be made into various type of
racks, trolleys, productions cell tables, viewing boards and gravity flow racks. In fact, i t s u s a g e i s
limitless, add in your idea today!
2. Who used Pipe Joint System?
Automotive industry, electronic industry, semi-conductor industry, super market, ware
houses,general factories, logistic operation, DIY stores, garden, school, hospital, in facts, almost
everywhere.
3. How to assemble Pipe Joint System?
Assembly of Pipe Joint system is simple. Make a drawing, cut the pipes size according to your
drawing, and lock all the pipes with Metal Joints. Anybody can do it, no special skill required!
4. What is the advantages of using Technovision Pipe Joint System?
Cost effective, as all the pipes and joints are re-usable.
Versatile, Samsung PJS can be made into various kind of racks.
Space saving - Fully utilized the floor space by easily customizing the racks.
Rapid - Assembly of Racks are easy. Just cut and joint the pipes.
Clean - Best for factories that implement 5 s system.
Kaizen - Japanese terms for “continuous improvements”.
Racks could be easily re-constructed again and again.
Easy maintenance - Just dis-assemble the pipes and replace with a new one
With all the above mentions, you save COST!!!
l
l
l
l
l
l
l
l
l
Technical Q & A

An ISO 9001 Company
ENGINEERS PVT. LTD. Application

•
VERTICAL
RECIPROCATING
CONVEYOR
•
HYDRAULIC
EQUIPM
ENTS
CONVEYOR
•

01
Enter the world of solutions that lies on the next pages.
TEPL is one of the leading manufacturer of Material Handling Equipment. The core focus of the company lies in
superior quality and excellent customer services. With expertise and constant innovation in the industry, company
also undertakes turnkey projects with Design, Manufacturing, Supply, Erection and Commissioning activities. The
company is one of the front runner in Manufacturing Material Handling Equipment and Vertical Reciprocating
ConveyorinIndia with an ISO 9001-2008 certification. The production house has the capability to conduct in-house R
& D and the company possesses exceptional talent for designing in terms of manpower, knowledge and technology.
The company owns two manufacturing set-up and total area of 28000 sq. ft. with all manufacturing and design
facility. TEPL is well known to deliver state of the art contemporary designs with their range of Material Handling
Equipment.
TECHNOVISION ENGINEERS PVT. LTD.
Our Journey
1998 Beginning of a fascinating journey of technical expertise with machinery activity using just 100 sq. ft. of space in
MIDC Bhosari, Pune.
2001 The striking start of manufacturing trolleys and pallets in Chinchwad, Pune, which led to an expansion of space to
3500 sq. ft.
2004 In order to widen horizons, the company was officially registered as a Pvt. Ltd. Company.
2005 With a vision of expansion, relocated headquarters & main production unit at Chikhali MIDC, Pune, with a large
space of 16,500 sq. ft.. Also ventured into designing and manufacturing of Unit Handling Conveyor Systems.
2006 The efforts of the company were recognized and the company was awarded ISO 9001 certification.
2008 Success followed and the company invested to set up a new factory.
2010 Registered under D & B, D-U-N-S.
2011 The awards and accolades kept pouring in. The company was awarded ISO 9001:2008 by TUV.
2012 The growth curve became stronger and Technovision Engineers established a new company called Techno Pipes
and Joints.
2012 In order to tap wider market, the company entered the business of Hydraulic Equipment Manufacturing.
2014 With newer technical expertise and innovations, renewed ISO 9001:2008 by TUV.
2014 The development continues with the introduction of design and manufacturing of Vertical Reciprocating Conveyor.
An ISO 9001 : 2008 Company

02
VERTICAL RECIPROCATING CONVEYOR
î ‘TWOPOST’VRC

03
î ‘TWOPOST’VRC
General:
Technovision ‘Two Post’ VRC is widely used to move the material from one floor to another floor with great safety. It is
aself-supportedfreestandingstructure.
ProductRange:
Series ‘Two Post’ VRC is available with lifting capacity up to 2000kgs, carriage size 1500x1500mm and travel height
16.0Mtrs.
Structure:
Modular design with MS tubular structure with ‘T’ guide and vertical ‘H’ beams. Carriage is MS fabricated tubular
structure with checkered platform. Carriage is covered with MS perforated sheet at non-operating sides, operating
sides are provided with collapsible doors. Vertical structure has provided with MS bracing and can be also covered
withMSperforatedsheetoptionally.
Operation:
Carriage lifting & lowering movement is controlled with SEW Fail Safe Motor and speed Reduction Gear Box with the
helpofChain&sprocketsmechanism.
Safety:
Ÿ 2Nos.ofspringloadedSafetycamsareprovidedtoarrestsuddenfallofthecarriageduetofailureofliftingchains.
Ÿ Bottom Safety Limit Switch provided to prevent carriage from hammering the ground in case of failure of the level
floorlimitswitch
Ÿ Chain Tensioner Limit Switch provided to stop the carriage in case of the lifting chains are pulled out due to any
externalobstructionintheupward/downwardmovementofthecarriage
Ÿ Top safety counter weight limit switch provided to cut-off the main power supply in case the carriage does not stop
duetothefailureoftopfloorlevellimitswitch
Ÿ Landingstationcollapsibledoorsareinterlockedwithelectro-mechanicallimitswitches.
Ÿ Commoncontactorisprovidedtocut-offthemainpowersupplyiftheup/downcontactorisfailed.
EnquiryData:
Pleasespecifythetechnicaldetailsasunder;
UDLCapacity,Kgs:PleasespecifyLoadcarryingcapacity.
CarriageSize,mm:WidthxDepthxHeight
VerticalTravel,mm:
NumberofStops:G+1/G+2/G+3etc.
Location:Pleasespecifythelocationforinstallation.

04
î ‘FOURPOST’VRC î CANTILEVERVRC

05
î ‘FOURPOST’VRC
Series‘FourPost’VRCdesignsoffermaximumcapacityandrigidforpostdesignforheavyloadapplication.
Ÿ VRCheavybulkyoversizedload.
Ÿ Transfer multiple pallet loads, large carts, oversized paper loads and heavy machineries between one and multi
floors.
Ÿ Offersmaximumflexibilityandcarriagesize,capacityandhaulagetrafficpatterns
Ÿ Loadingandunloadingcanbedonefromallfoursides
Ÿ Engineeredtomeetyourexactapplicationrequirement
Ÿ Carriagelifting&loweringiscontrolledbyheavyrollerchain&sprocketattachedtoliftingmechanism
Ÿ Heavy duty construction with four corner support provides superior strength, reliability and long term
performance
General:
Widely used to move the material from one floor to another floor with great safety. It is a self-supported free standing
structure.
ProductRange:
Series ‘Four Post’ VRC is available with lifting capacity up to 2500kgs-5000Kgs, carriage size is customized, travel
height30.0Mtrs.
Structure:
Modular design with MS tubular structure with vertical ‘H’ beams. Carriage is MS fabricated tubular structure with
checkered platform. Carriage is covered with MS perforated sheet at non-operating sides, operating sides are
provided with collapsible doors. Vertical structure has provided with MS bracing and can be also covered with MS
perforatedsheetoptionally.
Operation:
Carriage lifting & lowering movement is controlled with SEW Fail Safe Motor and speed Reduction Gear Box with the
helpofChain&sprocketsmechanism.
Safety:
Ÿ 2Nos.ofspringloadedSafetycamsareprovidedtoarrestsuddenfallofthecarriageduetofailureofliftingchains.
Ÿ Decklocksareprovidedforadditionallysafetyatcriticalupperlevel
Ÿ Bottom Safety Limit Switch provided to prevent carriage from hammering the ground in case of failure of the level
floorlimitswitch
Ÿ Chain Tensioner Limit Switch provided to stop the carriage in case of the lifting chains are pulled out due to any
externalobstructionintheupward/downwardmovementofthecarriage
Ÿ Top safety counter weight limit switch provided to cut-off the main power supply in case the carriage does not stop
duetothefailureoftopfloorlevellimitswitch
Ÿ Landingstationcollapsibledoorsareinterlockedwithelectro-mechanicallimitswitches.
Ÿ Commoncontactorisprovidedtocut-offthemainpowersupplyiftheup/downcontactorisfailed.
ApplicationData:
Pleasespecifythetechnicaldetailsasunder;
UDLCapacity,Kgs:PleasespecifyLoadcarryingcapacity.
CarriageSize,mm:WidthxDepthxHeight
VerticalTravel,mm:
NumberofStops:G+1/G+2/G+3etc.
Location:Pleasespecifythelocationforinstallation.

06
Application:
Ÿ Widely used for loading and unloading of the material from one shop floor level to another. Can be installed into the
civilpitandontheflooraswell.Theequipmentalsocanbeusedasgoodsliftheightupto9-10M.
Range:
Ÿ UDL Capacity varies from 500kgs to 15000kgs. Platform size and lifting height is totally customized. 440VAC
powered.
Note:
Ÿ 100%customizationispossible
Ÿ Flameproofcontrolsareavailable
HYDRAULIC PRODUCTS
î ELECTRO-HYDRAULICSCISSORLIFT

07
Application:
Ÿ Widelyusedtobridgetheheightdifferencebetweenthevehiclelevelandtheshopflooratdispatchbay.
Ÿ Tobeinstalledintothecivilpit.
Ÿ Idealshopfloorheightfromthegroundfloorfortheinstallationis1100mmto1200mm.
Range:
Ÿ UDLCapacityvariesfrom6T/9T/10T/12T/15T,
Ÿ StandardPlatformsizeis2.5Mx2.0M.
Note:
Ÿ Platformsizecanbecustomized
HYDRAULIC PRODUCTS
î ELECTRO-HYDRAULICDOCKLEVELER

06
Application:
Ÿ Useful to bridge the height difference between the shop floor and the vehicle platform. This equipment can be
carried from one place to another with the help of Forklift. Mostly used for container loading and unloading by
forklift.
Range:
Ÿ UDL Capacity varies from 6T/9T/10T/12T/15T.
Ÿ Overall size is 13.1M x 2.1M
Note:
Ÿ HydrauliccontrolisavailablewithACpowerpackandManuallyOperatedhydraulichandpump.
08
HYDRAULIC PRODUCTS
î MOBILEHYDRAULICDOCKRAMP

0609
HYDRAULIC PRODUCTS
î HIGHRAISEDELECTRO-HYDRAULICSCISSORLIFT
Application:
Ÿ Most preferred equipment to reach to the working point at the height during any kind of overhead maintenance
work. AC/DC input powered. Useful for indoor/outdoor application into the factory premises. Platform can be
extendedlengthwiseupto800mmwith100kgscapacity.
Range:
Ÿ UDLCapacityavailable300kgsand500kgs.Liftheightisavailableupto3.0/4.5M/6.0M/7.5M/9.0M
Note:

10
Application:
Ÿ Widely used to transfer material from one floor to another. It is to be installed with wall support at the one side and
rest3sidescanbeusedforloading&unloadingpurpose.
Range:
Ÿ UDL Capacity available up to 1500kgs. Platform size is maximum 1500x2000mm and Lift height is available up to
10.0M.
Note:
Ÿ CanbeconstructedinSS304/316etc.
HYDRAULIC PRODUCTS
î SINGLEMASTTYPEELECTRO-HYDRAULICGOODSLIFT

0611
Application:
Ÿ Widely used to transfer material from one floor to another. It is to be installed with wall support at the two sides
andrest2sidescanbeusedforloading&unloadingpurpose.
Range:
Ÿ UDL Capacity available up to 2000kgs. Platform size is maximum 2000x2500mm and Lift height is available up to
10.0M.
Note:
Ÿ CanbeconstructedinSS304/316etc
HYDRAULIC PRODUCTS
î DOUBLEMASTTYPEELECTRO-HYDRAULICGOODSLIFT

CONVEYOR
î BAG / BOX HANDLING BELT CONVEYOR
12
î BELTCONVEYOR
î MOBILE CONVEYOR
î STACKER

CONVEYOR
Application:
Belt Conveyor widely used for loading and unloading of bags, carton boxes in various industries. Widely used in
sugarindustries,distilleries,pharmaceuticals,packagingindustries,warehouses.
Capacity:
5kgto500kgs
Features:
Mostimportantfeature:Verysmoothconveyence,manpowerreductionandlesstimeconsumption.
0613
î NONHYDRAULICTRUCKLOADER
î HYDRAULICTRUCKLOADER
î BAG / BOX HANDLING BELT CONVEYOR

Application:
Widely used for handling of unit loads, high-volume materials. There are two types of Roller Conveyors: One is
Gravity type Roller Conveyor which requires no operational external power, another is Powerised Roller conveyor
whichisprovidedwithelectricalmotorforitsoperation.
Gravityrollerconveyorsareaveryeconomicalandversatileformofconveyanceandhavemanyapplications.
0614
CONVEYOR
î ROLLERCONVEYORS

15
Application:
Slat conveyors consist of endless chains, driven by electric motors operating through reduction gears and
sprockets, with attached spaced slats to carry objects that would damage a belt because of sharp edges or heavy
weights.
Application:
Chain conveyors for Metal Scraps and Metal Chips, Pallets Handling Chain Conveyors for automobile industries.
Chain conveyors also have wide spread use in the white goods, Metal finishing and distribution industries. Chain
conveyors are also used in the painting and coating industries, this allows for easier paint application. The products
areattachedtoandaboveheadchainconveyor,keepingproductsofthefloorallowsforhigherproductivitylevels.
Wire mesh belts are ideal metal conveyor belts for light transfers and positive drive. The large open area make wire
meshbeltsthemostefficientmetalconveyorbeltformanyapplicationsandavarietyofprocesses.
Features:
Flexibility permits changes in existing designs. Can be used in extreme working conditions where use of belt
conveyorisnotpossible,infewcasesofhightemperatures,highinclinations.
CONVEYOR
î CHAIN/WIREMESHCONVEYOR
î SLATCONVEYORS

18
Technovision Engineers Pvt. Ltd.
Gat No. 1559 -1560, Dehu Alandi Road, Shelar Vasti, Chikhali, Pune - 412 114.
Tel. No.: (+91) (20) 66 346 500 / 501
E-mail: contactus@technovisionengrs.com
Website: www.technovisionengineers.net, www.technovisionengrs.com
OUR PRESENCE
An ISO 9001 : 2008 Company
Delhi
Sales Office
Pune
Head Office
Chennai
Sales Office
sanseedesigns.com
Authorised Dealer

Techno Vision Engineers Private Limited, Pune, Component Trolley

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Techno Vision Engineers Private Limited, Pune, Component Trolley

Similar to Techno Vision Engineers Private Limited, Pune, Component Trolley (20)

More from IndiaMART InterMESH Limited

More from IndiaMART InterMESH Limited (20)

Recently uploaded

Recently uploaded (20)

Techno Vision Engineers Private Limited, Pune, Component Trolley
