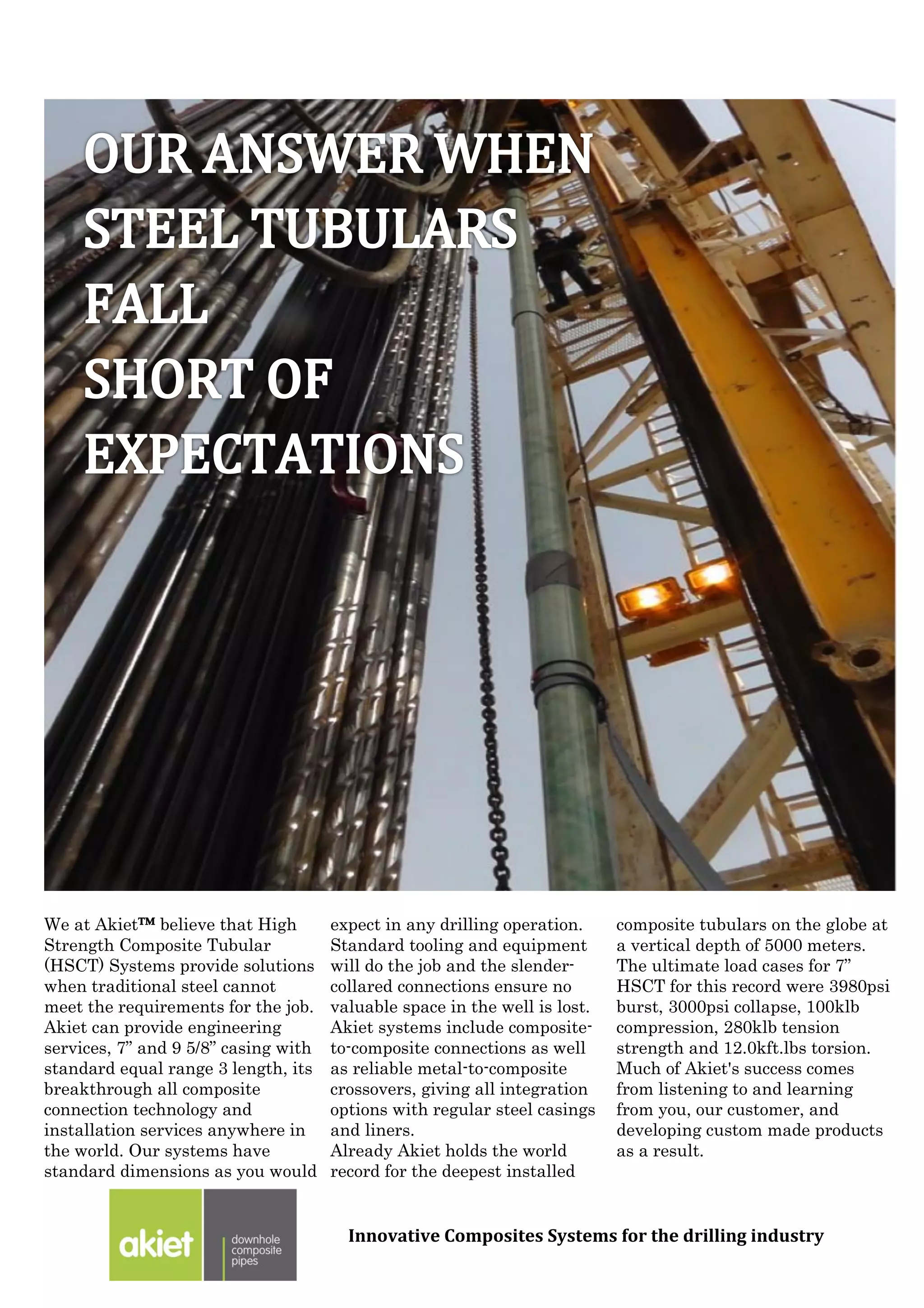

1. Innovative Composites Systems for the drilling industry
We at Akiet™ believe that High
Strength Composite Tubular
(HSCT) Systems provide solutions
when traditional steel cannot
meet the requirements for the job.
Akiet can provide engineering
services, 7” and 9 5/8” casing with
standard equal range 3 length, its
breakthrough all composite
connection technology and
installation services anywhere in
the world. Our systems have
standard dimensions as you would
expect in any drilling operation.
Standard tooling and equipment
will do the job and the slender-
collared connections ensure no
valuable space in the well is lost.
Akiet systems include composite-
to-composite connections as well
as reliable metal-to-composite
crossovers, giving all integration
options with regular steel casings
and liners.
Already Akiet holds the world
record for the deepest installed
composite tubulars on the globe at
a vertical depth of 5000 meters.
The ultimate load cases for 7”
HSCT for this record were 3980psi
burst, 3000psi collapse, 100klb
compression, 280klb tension
strength and 12.0kft.lbs torsion.
Much of Akiet's success comes
from listening to and learning
from you, our customer, and
developing custom made products
as a result.

2. Innovative Composites Systems for the drilling industry
Metal to composite crossovers
Composite tubulars are corrosion resistant, are
transparent for logging tools and are so light they
can be installed in Extreme Extended Reach wells
LIGHT WEIGHT
Akiet Composite materials are near buoyant in
drilling mud enabling extreme reach step-outs.
Special software has been developed to simulated
casing running in such extreme situations. The
pipes can withstand buckling and go further than
any steel system could
CORROSION RESISTANT
Problems with corrosion or scaling on any part of
your system? Be it internal or external, steel
systems are always vulnerable to corrosive liquid
flows. Akiet systems withstand corrosion and due to
its smooth surfaces virtually eliminate scaling and
chemical attack. Wells for water injection, steam
injection, enhanced oil recovery with related
hydrogensulfide/carbondioxide or geothermal energy
can all be protected by installing Akiet tubulars.
Extend the life time of your well investment!
TRANSPARENT FOR LOGGING
Logging adds insight in underground structures and
reservoir properties. With Akiet composite tubulars
it is possible to use conventional open hole logging
tools to look through the casing or liner. Time-lapse
See-Through-Logging (STL) gives you insight and
control in ways not feasible with steel systems.
Extended Reach Wells
Installation Services
Contact:
Akiet BV
www.akiet.com
info@akiet.com
+31 6 83 79 51 87
