Chandini H V presented on the Smart Note Taker, a pen that can write in air and store that information in its memory chip. It was created by Kawell Industry in 2016 to address limitations of earlier note taking devices. The Smart Note Taker uses sensors and a processor to recognize handwriting in 22 languages, which can then be edited, shared, and viewed on a connected PC. It has advantages like paperless note taking and assistance for blind users, though it is expensive. Potential applications include document editing and presentations. Further development could make similar products more affordable.

1. Department of information science and engineering
Technical Seminar Presentation
on
“SMART NOTE TAKER”
Presented By:
Chandini H V(18IS016)
7th sem,Dept.of ISE,SSIT
1
Under the Guidance of:
Dr. Vidyalaksmi K
Assistant Professor,
Dept. of ISE, SSIT
SRI SIDDHARTHA INSTITUTE OF TECHNOLOGY,
TUMAKURU-572105

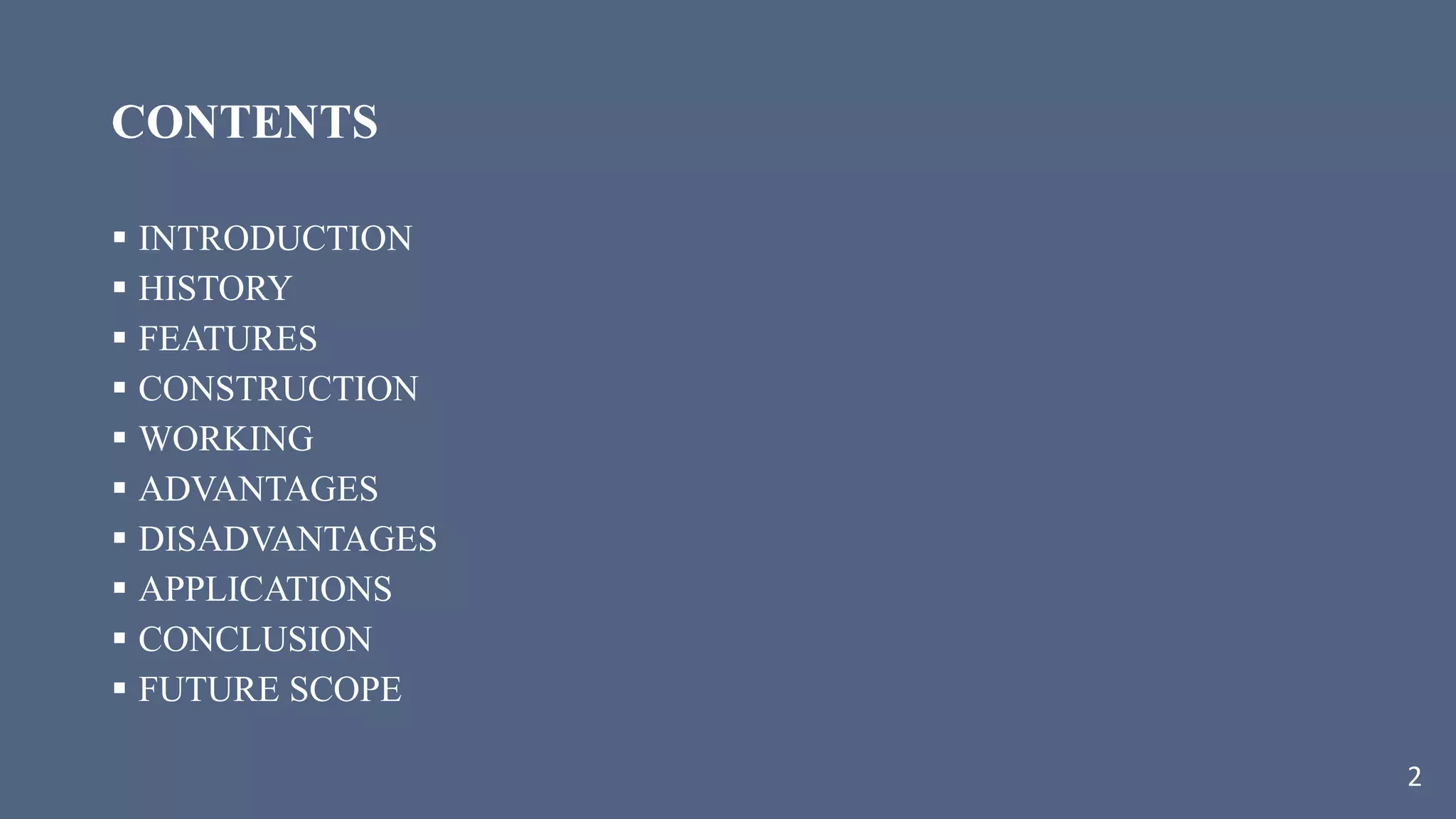

2. CONTENTS
 INTRODUCTION
 HISTORY
 FEATURES
 CONSTRUCTION
 WORKING
 ADVANTAGES
 DISADVANTAGES
 APPLICATIONS
 CONCLUSION
 FUTURE SCOPE
2

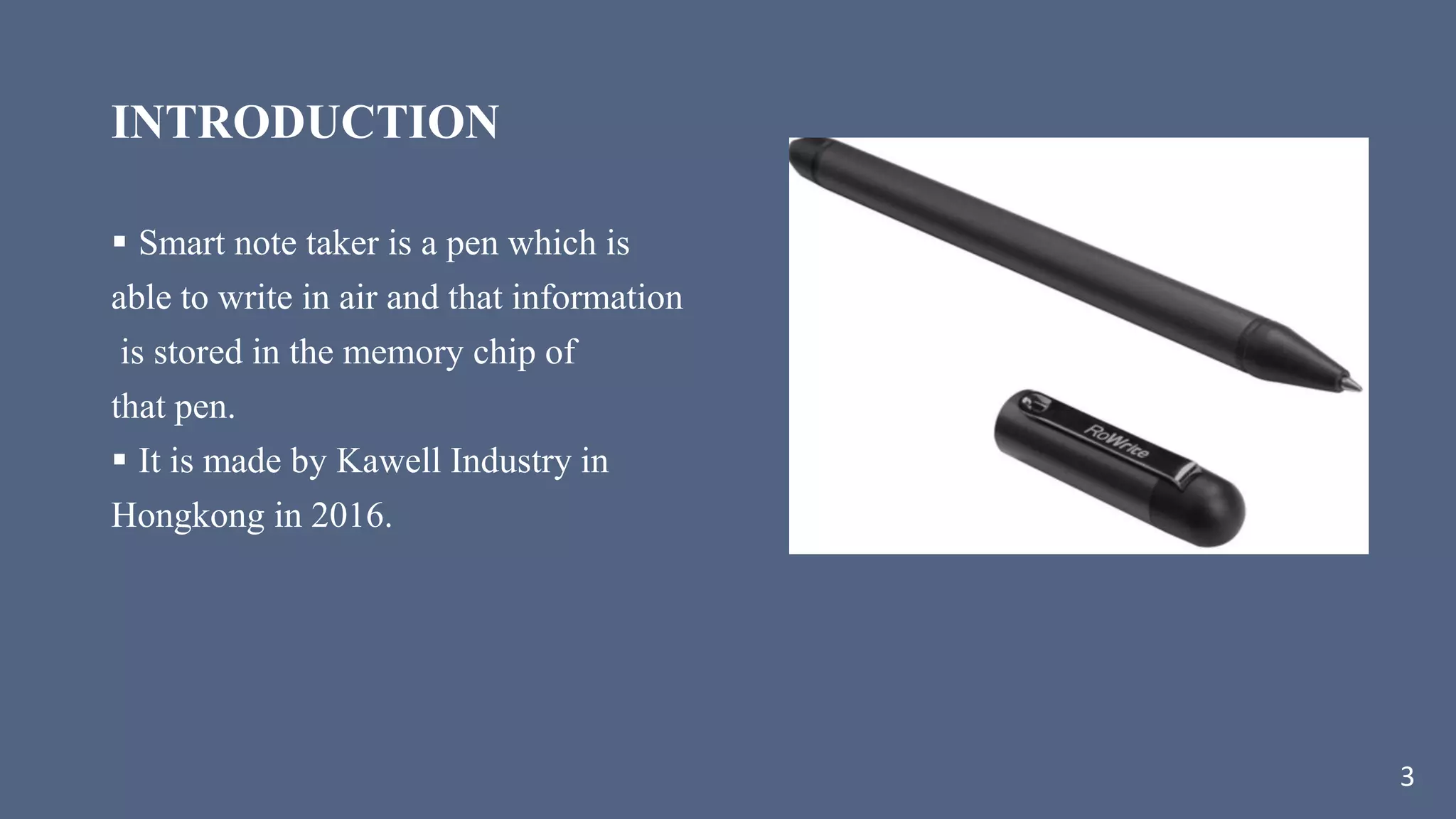

3. INTRODUCTION
 Smart note taker is a pen which is
able to write in air and that information
is stored in the memory chip of
that pen.
 It is made by Kawell Industry in
Hongkong in 2016.
3

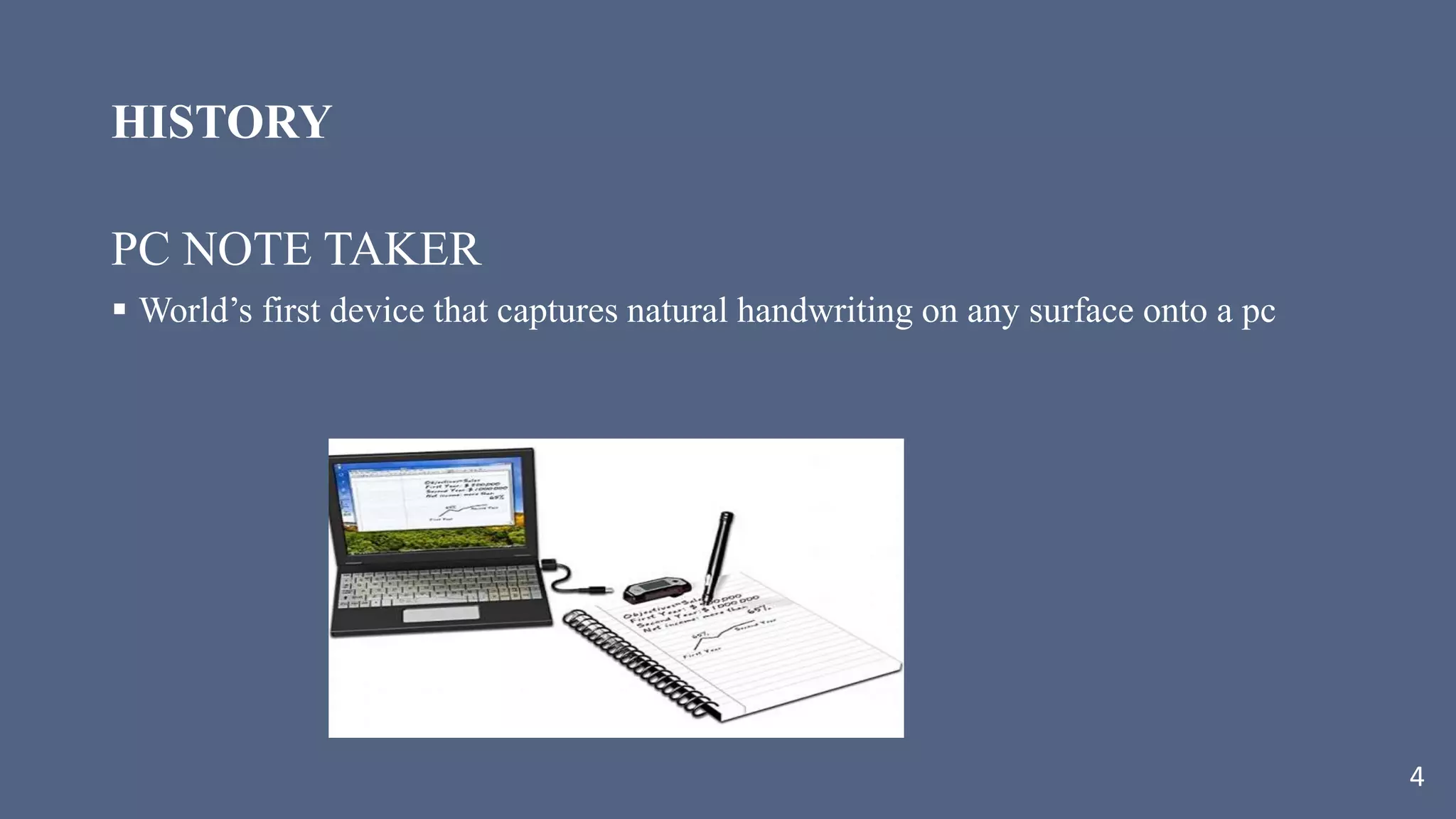

4. HISTORY
PC NOTE TAKER
 World’s first device that captures natural handwriting on any surface onto a pc
4

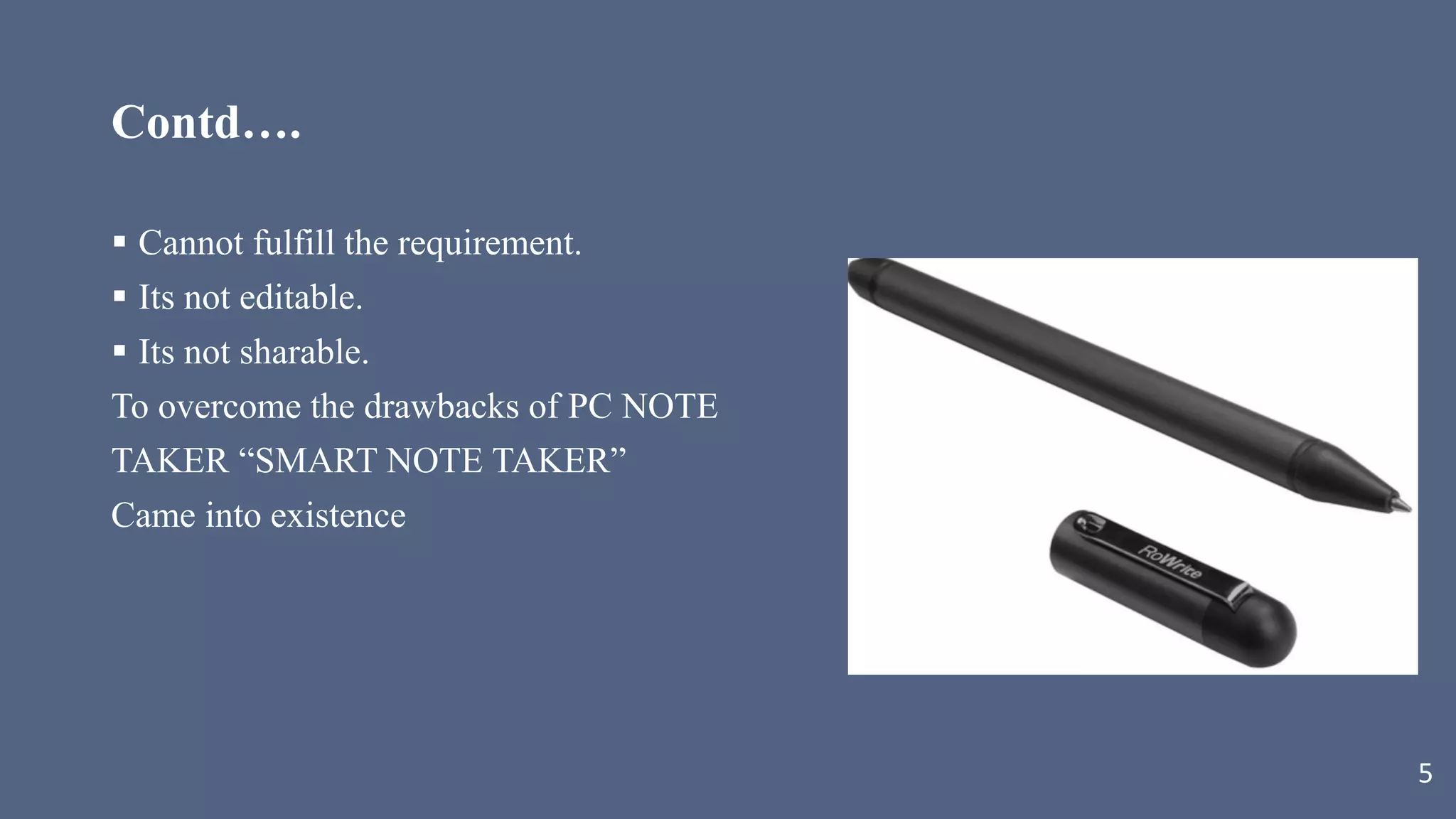

5. Contd….
 Cannot fulfill the requirement.
 Its not editable.
 Its not sharable.
To overcome the drawbacks of PC NOTE
TAKER “SMART NOTE TAKER”
Came into existence
5

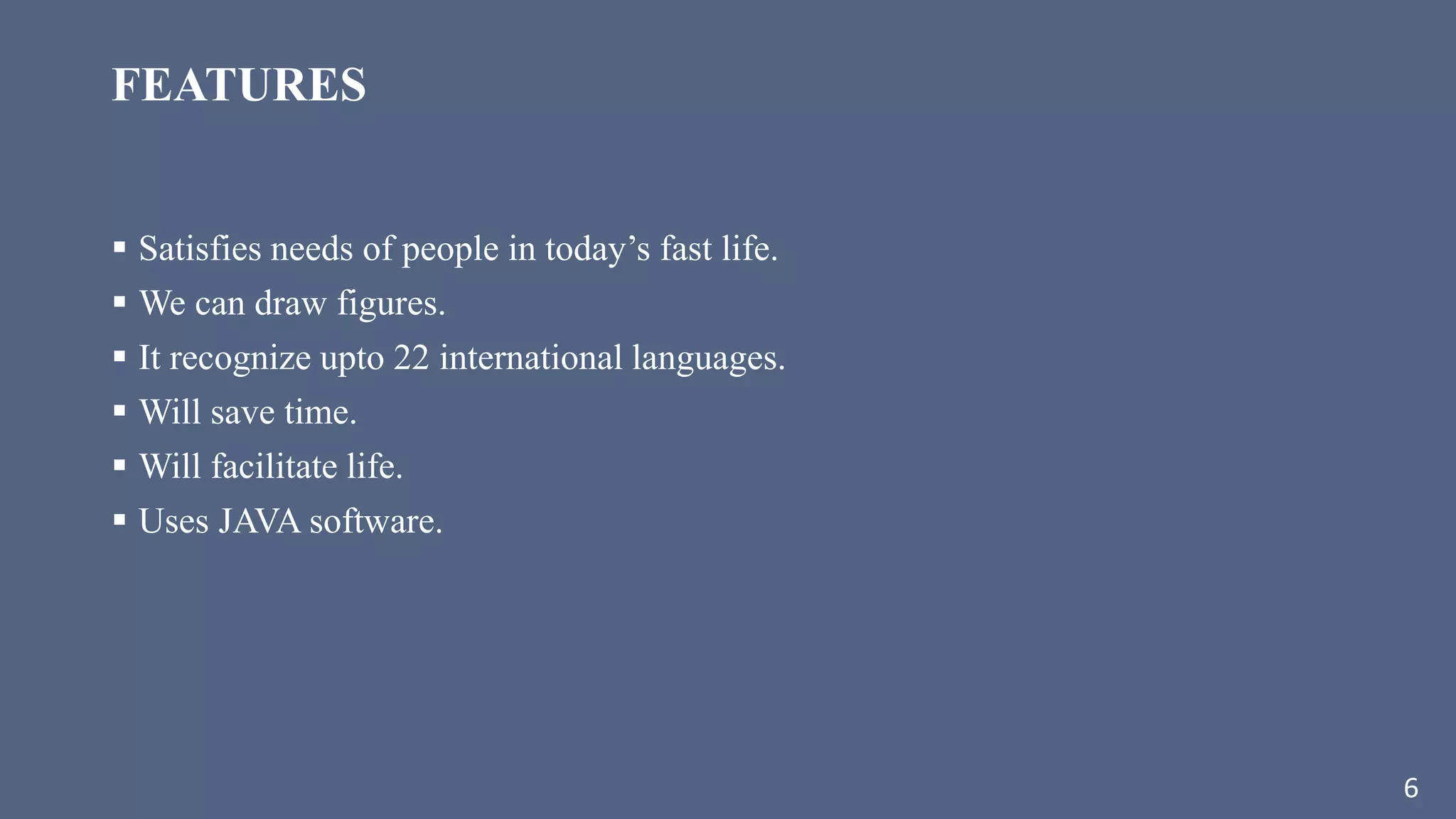

6. FEATURES
 Satisfies needs of people in today’s fast life.
 We can draw figures.
 It recognize upto 22 international languages.
 Will save time.
 Will facilitate life.
 Uses JAVA software.
6

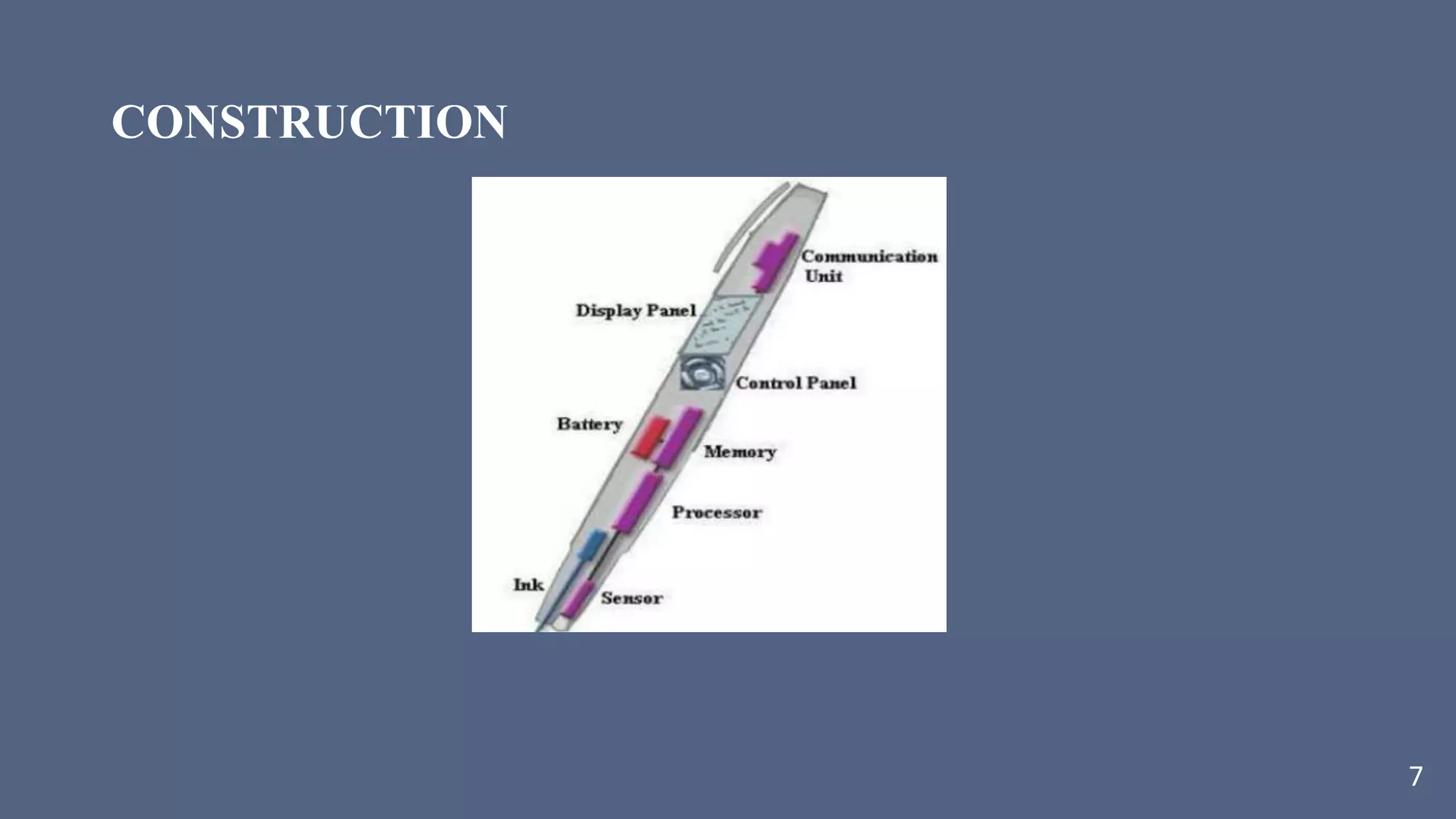

7. CONSTRUCTION
7

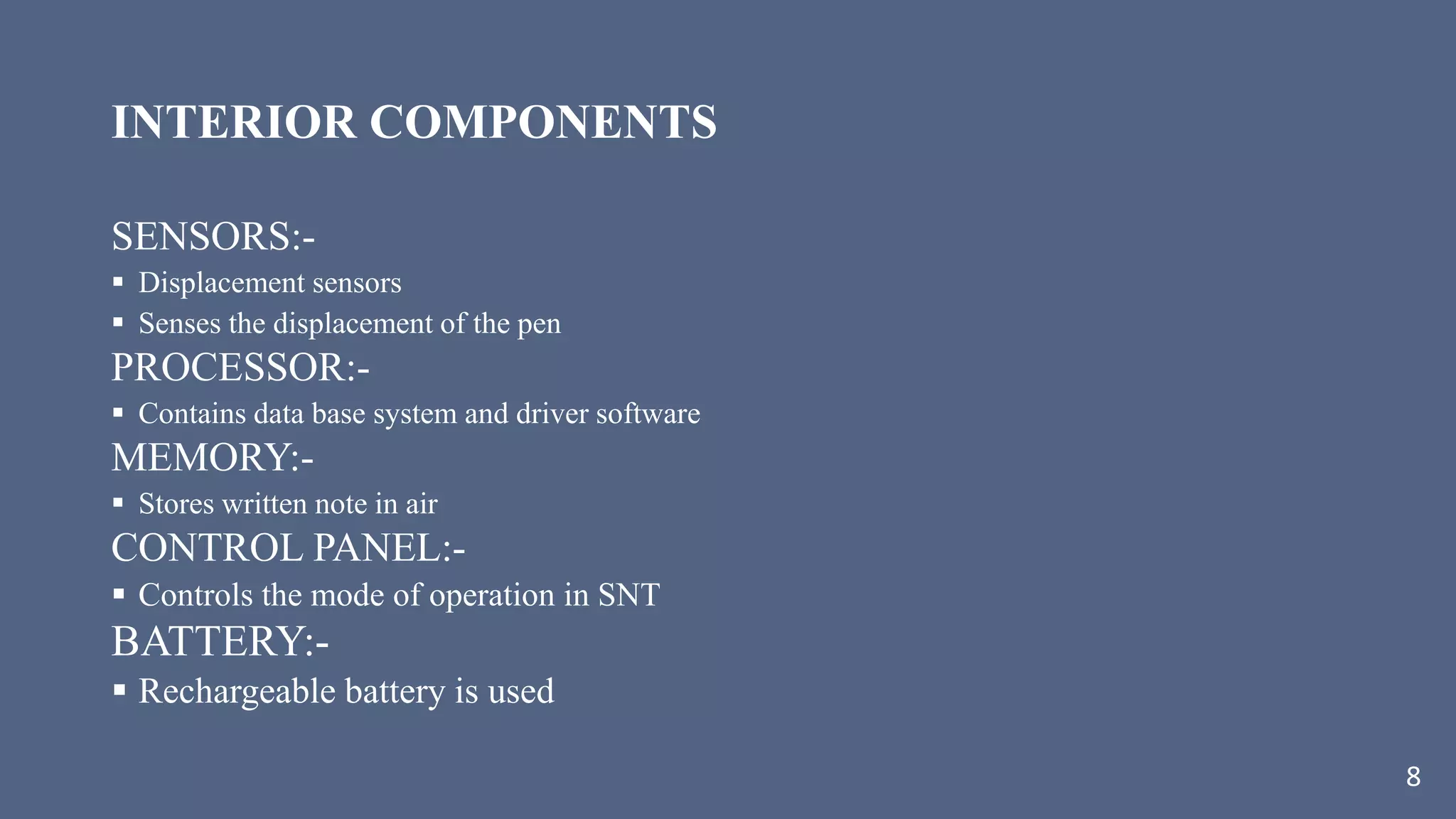

8. INTERIOR COMPONENTS
SENSORS:-
 Displacement sensors
 Senses the displacement of the pen
PROCESSOR:-
 Contains data base system and driver software
MEMORY:-
 Stores written note in air
CONTROL PANEL:-
 Controls the mode of operation in SNT
BATTERY:-
 Rechargeable battery is used
8

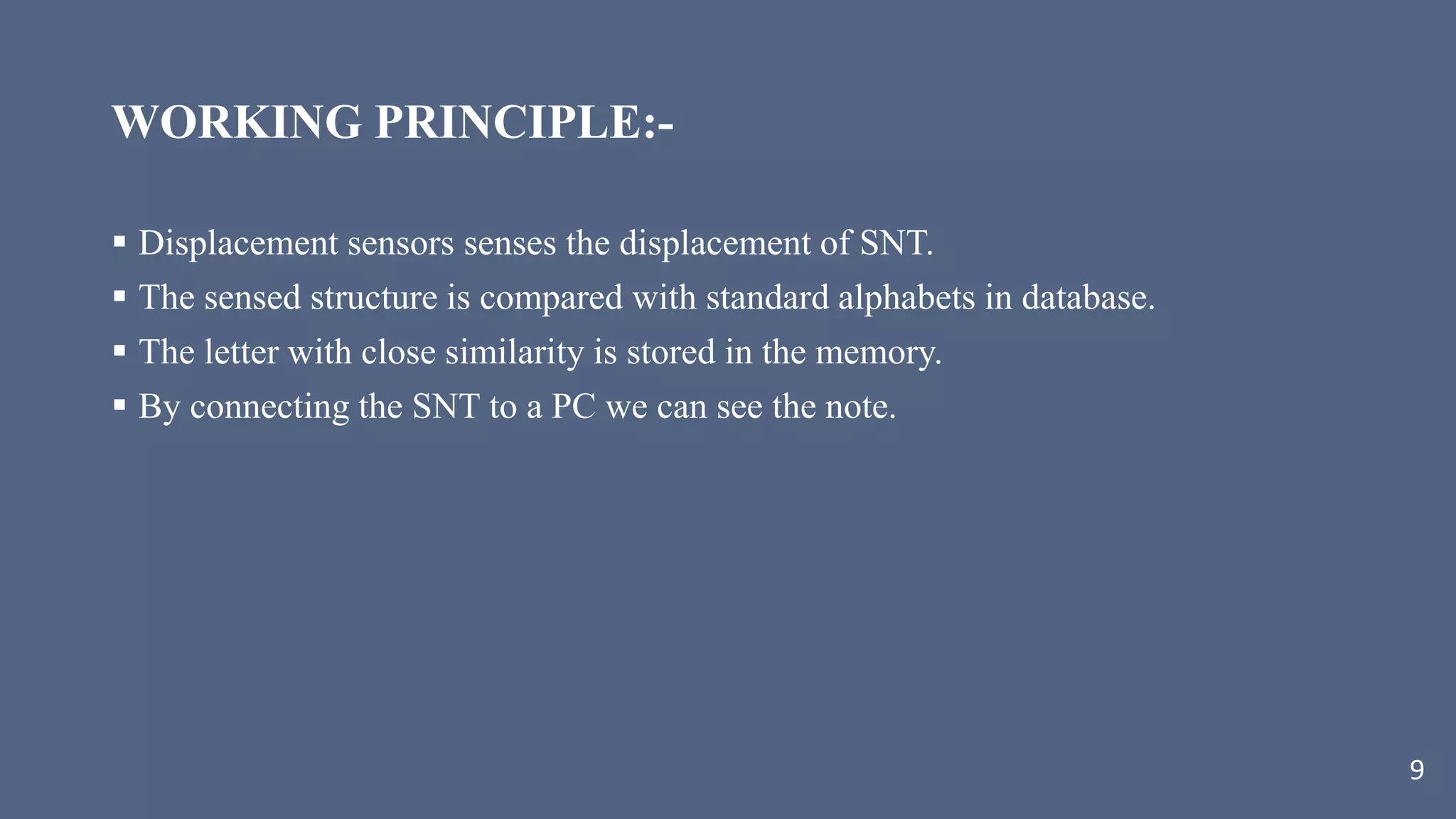

9. WORKING PRINCIPLE:-
 Displacement sensors senses the displacement of SNT.
 The sensed structure is compared with standard alphabets in database.
 The letter with close similarity is stored in the memory.
 By connecting the SNT to a PC we can see the note.
9

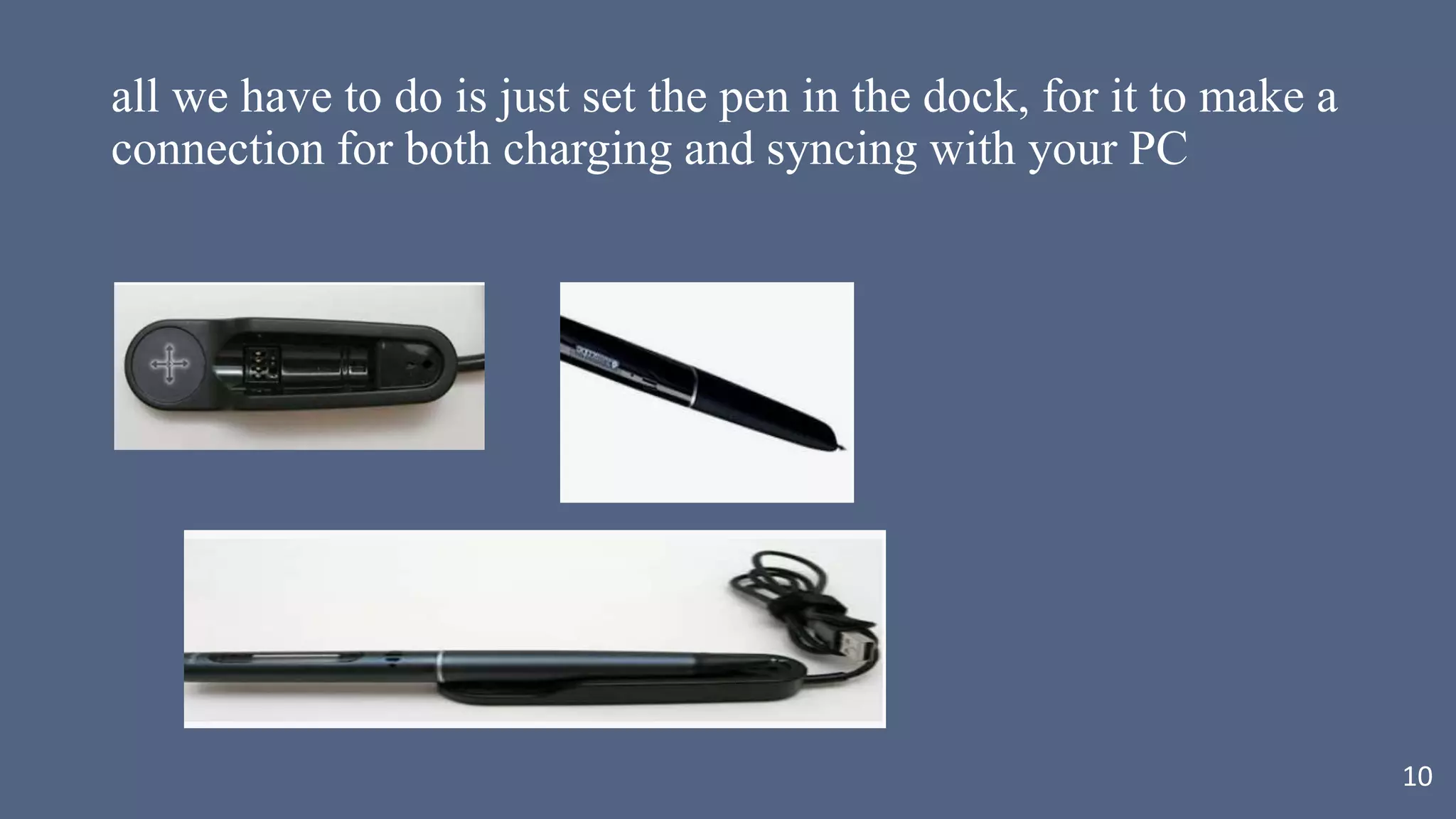

10. all we have to do is just set the pen in the dock, for it to make a
connection for both charging and syncing with your PC
10

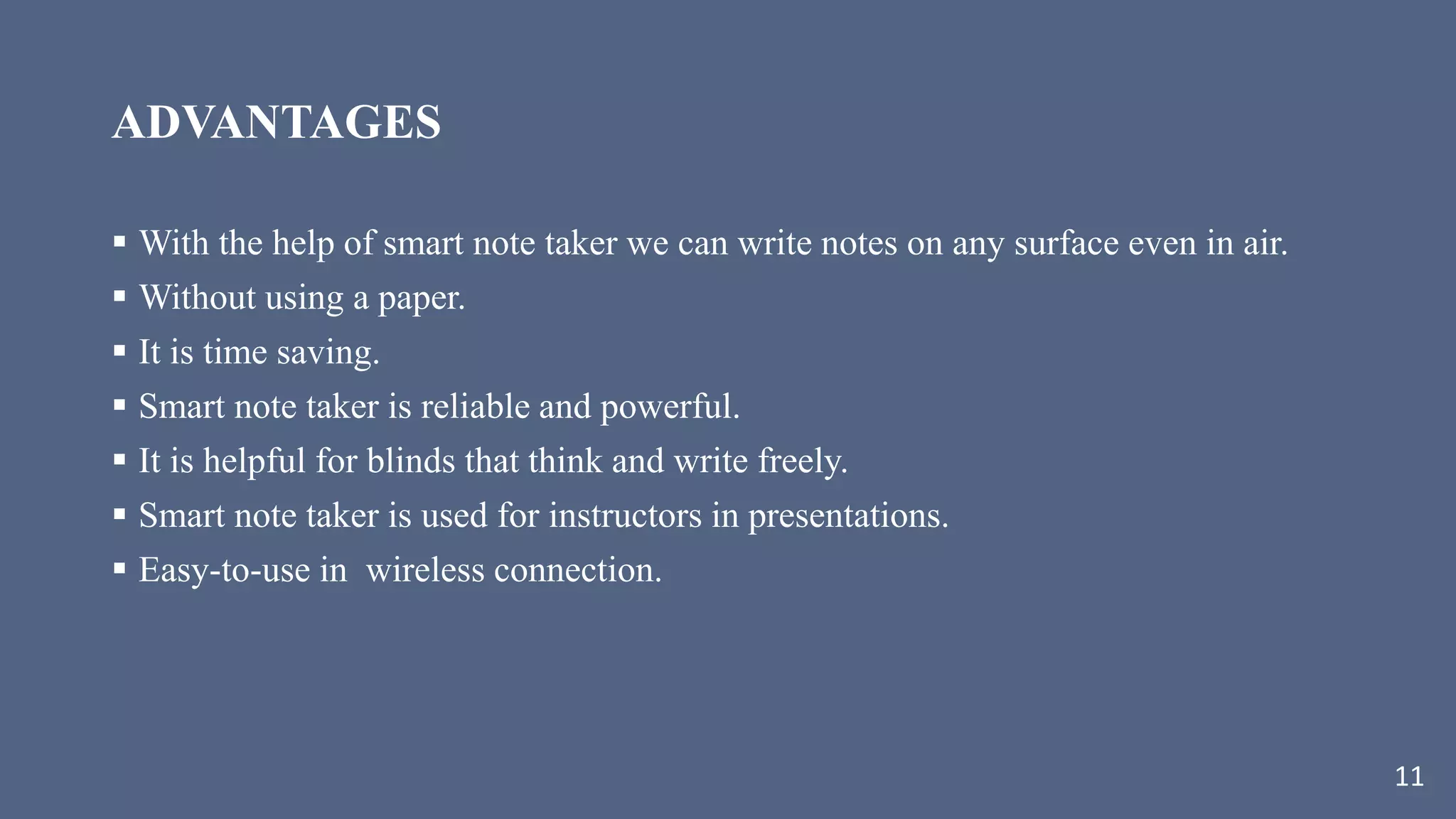

11. ADVANTAGES
 With the help of smart note taker we can write notes on any surface even in air.
 Without using a paper.
 It is time saving.
 Smart note taker is reliable and powerful.
 It is helpful for blinds that think and write freely.
 Smart note taker is used for instructors in presentations.
 Easy-to-use in wireless connection.
11

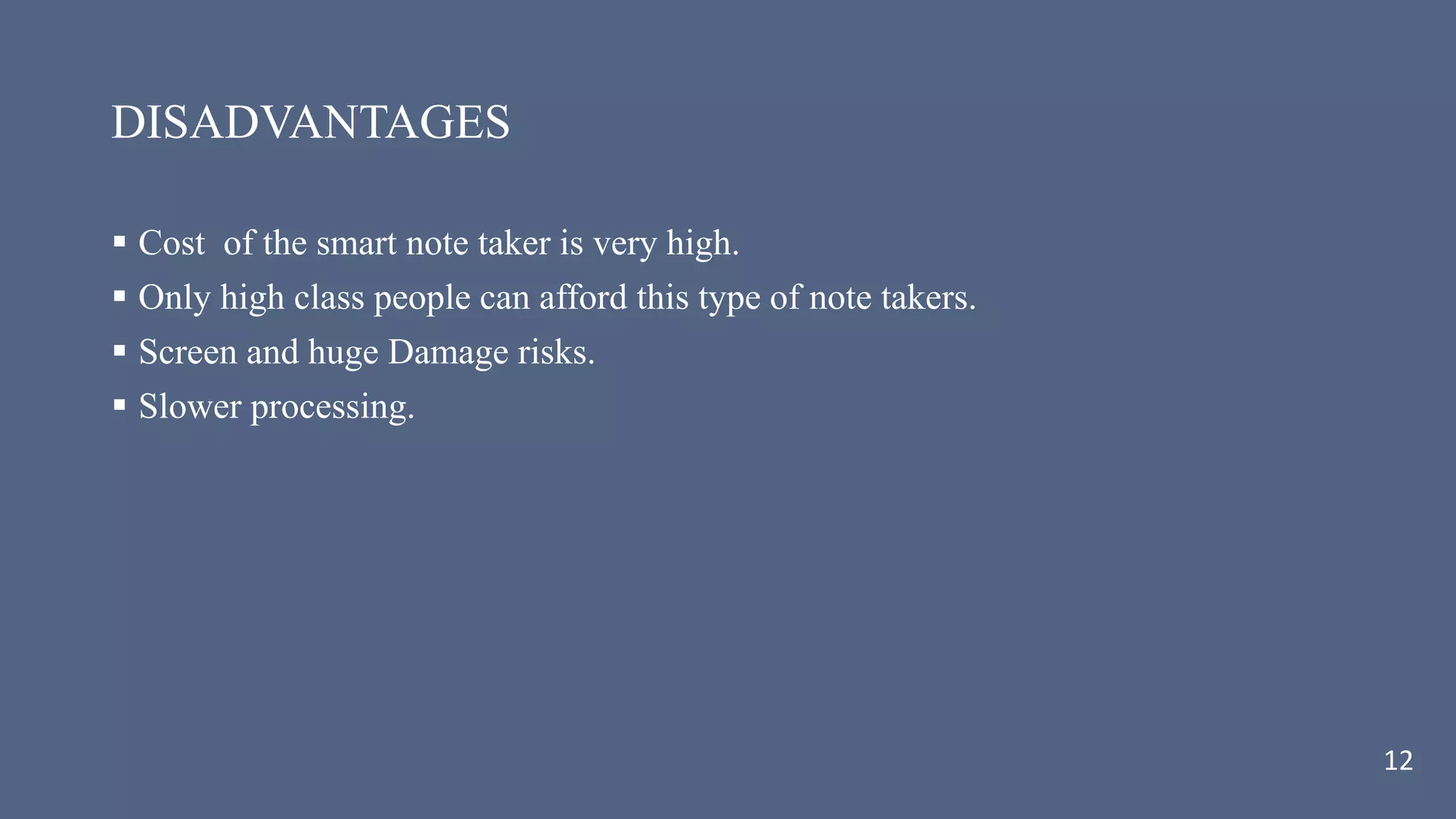

12. DISADVANTAGES
 Cost of the smart note taker is very high.
 Only high class people can afford this type of note takers.
 Screen and huge Damage risks.
 Slower processing.
12

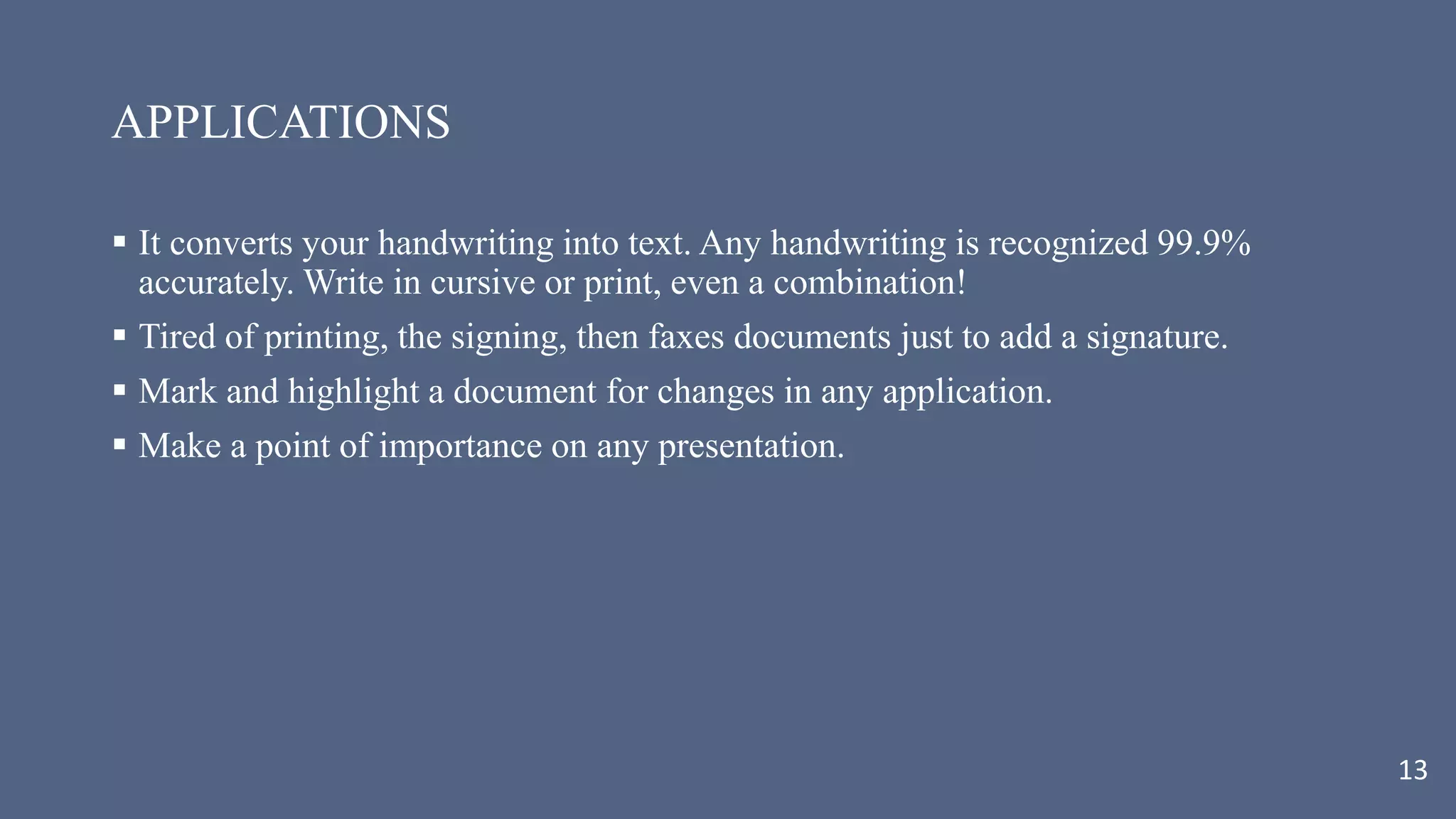

13. APPLICATIONS
 It converts your handwriting into text. Any handwriting is recognized 99.9%
accurately. Write in cursive or print, even a combination!
 Tired of printing, the signing, then faxes documents just to add a signature.
 Mark and highlight a document for changes in any application.
 Make a point of importance on any presentation.
13

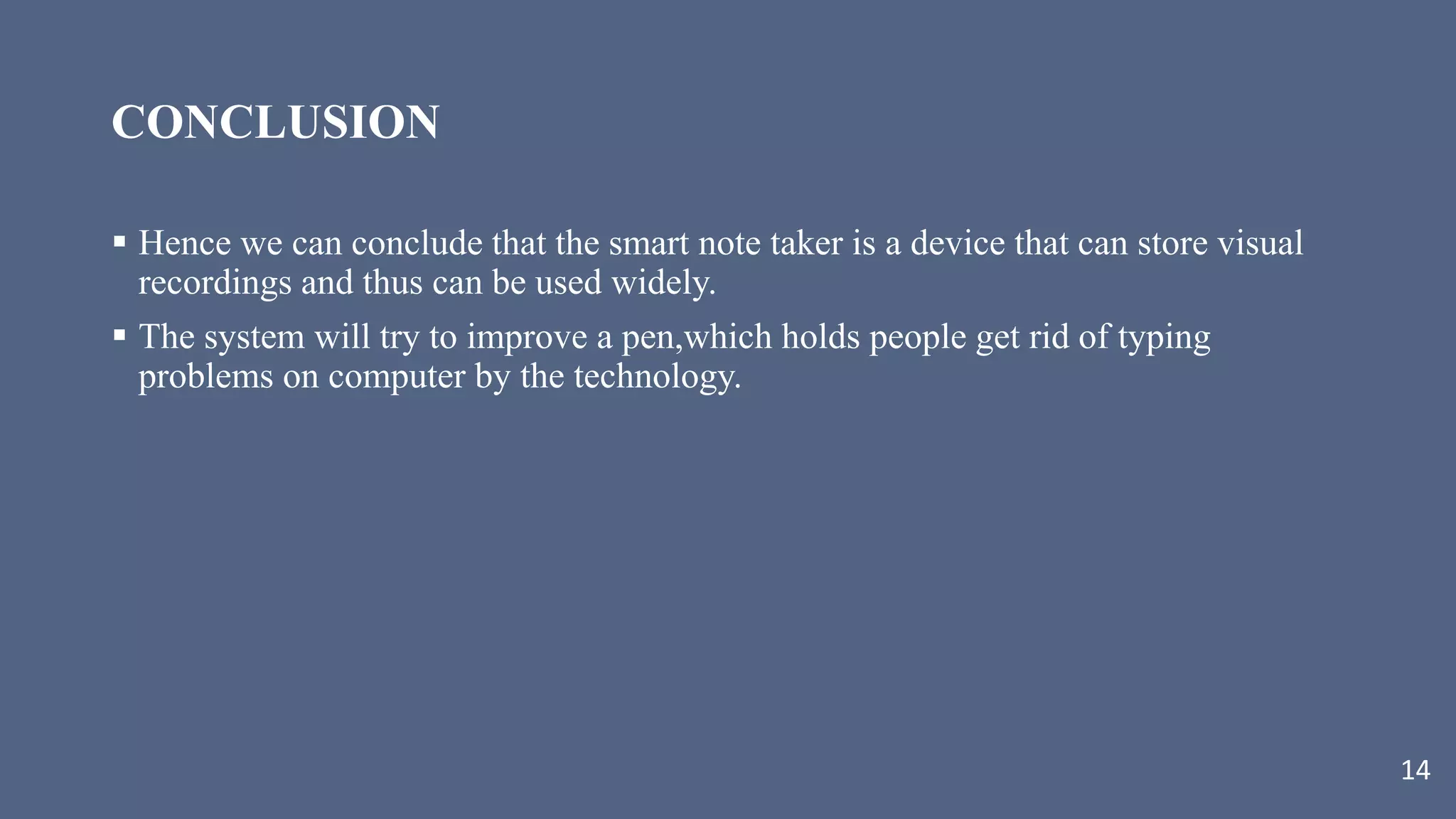

14. CONCLUSION
 Hence we can conclude that the smart note taker is a device that can store visual
recordings and thus can be used widely.
 The system will try to improve a pen,which holds people get rid of typing
problems on computer by the technology.
14

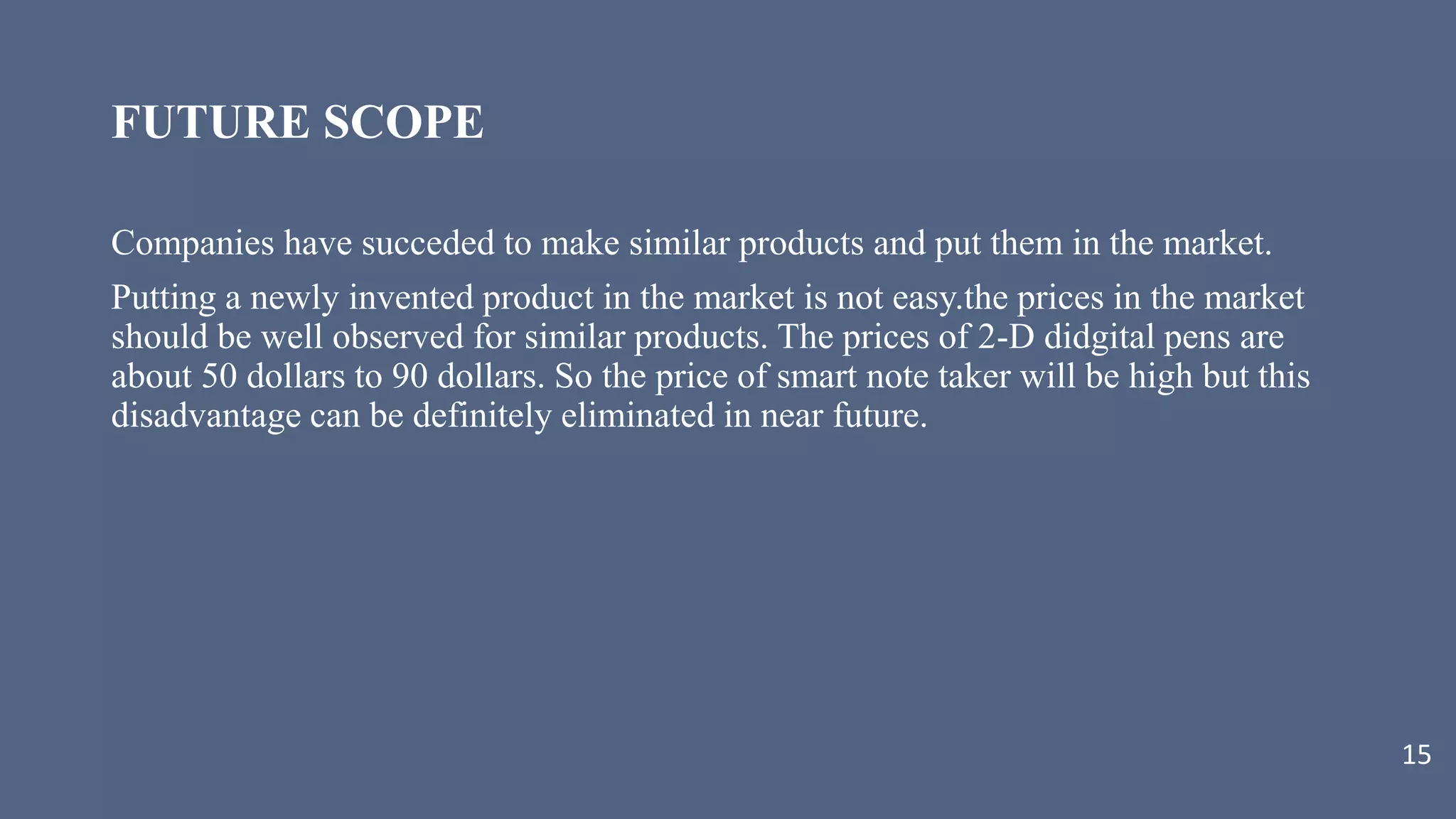

15. FUTURE SCOPE
Companies have succeded to make similar products and put them in the market.
Putting a newly invented product in the market is not easy.the prices in the market
should be well observed for similar products. The prices of 2-D didgital pens are
about 50 dollars to 90 dollars. So the price of smart note taker will be high but this
disadvantage can be definitely eliminated in near future.
15

16. Thank you
16
